ProForm PFTL71505.3 User Manual
Model No. PFTL71505.3
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
Serial No.
Serial Number
Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
USER'S MANUAL
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

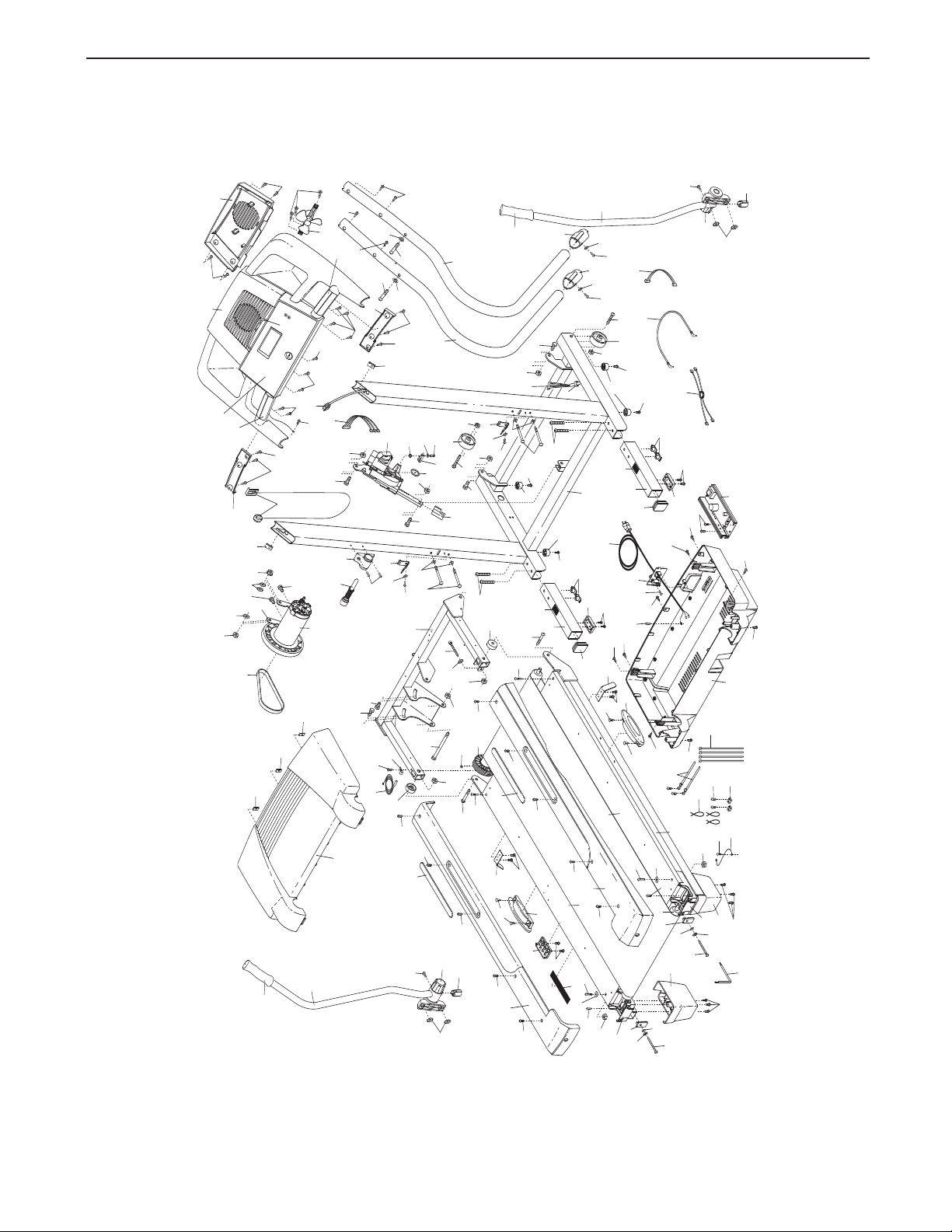

Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: T
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with at
least eight feet of clearance behind it and two
feet on each side. Do not place the treadmill
on any surface that blocks air openings. To
protect the floor or carpet from damage, place
a mat under the treadmill.
4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
o reduce the risk of burns, fire, electric shock, or injury to persons, read the
this manual and order part number 146148, or
see your local electronics store.
12. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change
speed, accelerate, or stop unexpectedly,
which may result in a fall and serious injury.
13. Keep the power cord and the surge suppressor away from heated surfaces.
14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROUBLESHOOTING on page 25 if the treadmill is
not working properly.)
15. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 12).
7. The treadmill should be used only by persons
weighing 300 pounds or less.
8. Never allow more than one person on the
treadmill at a time.
Wear appropriate exercise clothes while
9.
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women.
Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
10. When connecting the power cord (see page 10),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
11. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 10. To purchase a surge suppressor, see
your local PROFORM dealer or call the tollfree telephone number on the front cover of
16. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails or the upper body arms while using
the treadmill.
17. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
18. The pulse sensor is not a medical device.
Various factors, including the user’s movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only as
an exercise aid in determining heart rate
trends in general.
19. Never leave the treadmill unattended while it is
running. Always remove the key and unplug
the power cord when the treadmill is not in use.
20.
Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW
TREADMILL on page 23.)
MOVE
AND
You must be able to safely lift 45 pounds (20
kg) to raise, lower, or move the treadmill.
THE
TO FOLD
3
21. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
2. Inspect and properly tighten all parts of the
2
treadmill regularly.
23. Never insert any object into any opening.
tenance and adjustment procedures de-
cribed in this manual. Never remove the
s
motor hood unless instructed to do so by an
authorized service representative. Servicing
ther than the procedures in this manual
o
should be performed by an authorized service
representative only.
24. DANGER: Always unplug the power
cord immediately after use, before cleaning
the treadmill, and before performing the main-
25. This treadmill is intended for in-home use
only. Do not use this treadmill in a commercial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown here have been placed on the treadmill. If a decal is missing, or if
it is not legible, call the toll-free telephone number on the front cover of this manual
and order a free replacement decal. Note: The decals are not shown at actual size.
4
BEFORE YOU BEGIN
hank you for selecting the PROFORM
T
ALIBER ELITE treadmill. The CROSSWALK CAL-
C
IBER ELITE treadmill combines advanced technology
with innovative design to help you achieve your fitness
goals in the convenience and privacy of your home.
And when you’re not exercising, the CROSSWALK
CALIBER ELITE treadmill can be folded up, requiring
less than half the floor space of other treadmills.
For your benefit, read this manual carefully before
you use the treadmill. If you have questions after
reading this manual, please see the front cover of this
Upper Body Arm
Accessory Tray
Handrail
®
ROSSWALK
C
anual. To help us assist you, note the product model
m
umber and serial number before calling. The model
n
number of the treadmill is PFTL71505.3. The serial
number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).
To avoid a registration fee for any service needed
under warranty, you must register the treadmill at
www.proformservice.com/registration.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Fan
Console
Key/Clip
Storage Latch
Walking Belt
Foot Rail
BACK
Rear Roller
Adjustment Bolts
Upright
Reset/Off
Circuit Breaker
Power Cord
Cushioned Walking Platform
for maximum exercise comfort
RIGHT SIDE
5
ASSEMBLY
1/2” Screw (119)–1
3/4” Tek Screw (58)–8
5
/16” Star
W
asher (48)–4
3/4" Screw (2)–11
Nut (13)–2
Wheel Bolt (64)–2
Silver Ground
Screw (75)–1
1" Tek Screw (39)–4
Handrail Bolt (37)–2
Washer (52)–4
1/2" Screw (48)–2
3 1/2” Bolt (111)–4
Star Washer
(88)–4
Handrail Star
Washer (95)–2
Extension Leg
Nut (46)–4
Extension Leg Bolt (93)–4
Small Star
Washer (24)–4
To hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480. Assembly
requires two persons.
the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with
high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the
walking belt or the shipping carton. This is a normal condition and does not affect performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own phillips screwdriver , rubber
mallet , and adjustable wrench .
For help identifying the assembly hardware, see the drawings below. If a part is not in the parts bag, check
to see if it has been pre-assembled.
Set the treadmill in a cleared area and remove all packing materials; do not dispose of
To avoid damaging plastic parts, do not use power tools for assembly.
1. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip the
treadmill onto its left side as shown. Partially fold the
Frame (86) so the treadmill is more stable. Do not fully
fold the treadmill until it is completely assembled.
Insert an Extension Leg (63) into the base of the
Uprights (69), with the Extension Leg Pad (61) oriented
as shown. If necessary, use a rubber mallet to fully insert
the Extension Leg. Next, hold two Extension Leg Nuts
(46) in the bottom of the Extension Leg, and insert two
Extension Leg Bolts (93) into the top of the Extension
Leg. Firmly tighten the Extension Leg Bolts into the
Extension Leg Nuts.
Attach two Base Pads (57) to the base of the Uprights
(69) with two 1" Tek Screws (39).
1
93
86
69
63
61
57
39
39
46
6
. Attach a Wheel (66) to the base of the Uprights (69) with
2
a Wheel Bolt (64) and a Nut (13) as shown. Do not
overtighten the Wheel Bolt; the Wheel should turn
freely.
With the help of a second person, carefully tip the treadmill onto its other side. See assembly step 1, and attach
the other Extension Leg (63) and the remaining two
ase Pads (57). Then, attach the other Wheel (66) as
B
described above.
With the help of a second person, carefully tip the treadmill down so the Uprights (69) are in a vertical position.
2
69
64
6
6
3
1
3. Attach the Left Upper Body Arm (109) to the left Upright
(69) with two 3 1/2" Bolts (111), two Washers (52), and
two Star Washers (88) as shown.
Attach the Right Upper Body Arm (not shown) to the right
Upright (not shown) in the same way.
3
109
69
52
111
88
88
4. Insert the tab on one of the Handrail Brackets (21) into the
slot in the right Upright (69). Attach the Handrail Bracket
with a 3/4" Screw (2) and a Small Star Washer (24).
Attach the other Handrail Bracket to the left Upright
(not shown) in the same way.
7
4
69
Slot
21
24
2
5. If there is a packing board between the Uprights (69), re-
ove the two bolts securing the packing board. Discard
m
he packing board and the bolts.
t
5
1
7
7
3
Identify the Right Handrail (72), which has a large hole in
the left side. Cut the plastic tie securing the Upright Wire
(42) to the right Upright (69). Feed the Upright Wire into
the hole in the bottom of the Right Handrail and out of
the large hole in the side. Note: It may be helpful to use
needlenose pliers to pull the Upright Wire out of the hole.
Press a Handrail Cap (16) onto the lower end of the
Right Handrail (72) as shown. Set the Right Handrail on
the right Upright (69) while sliding the lower end of the
Right Handrail onto the right Handrail Bracket (21).
Finger tighten a Handrail Bolt (37) with a Handrail Star
Washer (95) into the Right Handrail and the right
Upright. Next, attach the lower end of the Right Handrail
with a 3/4" Screw (2) and a Small Star Washer (24).
Then, tighten the Handrail Bolt.
Attach the Left Handrail (71) in the same way. Note:
There is not an upright wire on the left side.
6. Hold the Console Base (47) near the Left Handrail (71).
Make sure that the Left Upper Body Arm (109) and
the Right Upper Body Arm (not shown) are on the indicated side of the Console Base.
Cut the plastic tie off the ends of the indicated ground
wires. Attach the ends of the ground wires to the indicated small hole in the Left Handrail (71) with the Silver
Ground Screw (75).
95
9
6
72
24
16
2
24
2
6
Ground
109
47
37
9
Wires
42
5
16
ole
H
69
21
7. Touch the Right Handrail (72) to discharge any static.
Slide the sleeve off the connector on the Upright Wire
(42) as shown in the inset drawing. Next, press the end of
the Upright Wire into the socket in the bottom of the
Console Base (47).
into the socket and snap into place.
does not slide easily and snap into place, turn the connector and then insert it.
connector.
The connector should slide easily
If the connector
Then, slide the sleeve back over the
71
7
72
Sleeve
42
Small
Hole
Connector
75
42
47
8
8. Set the Console Base (47) on the Handrails (71, 72).
Attach the Console Base with four 3/4" Screws (2). Start
ll four Screws before tightening any of them; do not
a
overtighten the Screws.
See the lower drawing. Make sure that the Upright
Wire (42) is routed below the two indicated round
posts (A). Next, press the Upright Wire into the slot be-
tween the square post (B) and the Console Base (47).
8
72
7
4
71
2
2
A
B
42
47
9. Cover the Upright Wire (42) with the Right Grip Plate
(36). Be careful not to pinch the Upright Wire. Tighten
two 1/2" Screws (48) and the 3/4" Screw (2) into the
Right Grip Plate and the Console Base (47).
10.Attach the Latch Housing (29) to the left Upright (69) with
two 3/4" Screws (2). Make sure that the large hole in
the Latch Housing is on the side shown.
Remove the knob from the pin. Make sure that the collar and the spring are on the pin as shown. Then, in-
sert the pin into the Latch Housing (29), and tighten the
knob back onto the pin.
9
10
Knob
48
47
42
36
2
69
29
Large
Hole
Make sure that all parts are properly tightened be
11.
fore you use the treadmill. Note: Extra hardware may
be included. Keep the included hex keys in a secure
place; the large hex key is used to adjust the walking
belt (see page 26). To protect the floor or carpet, place a
mat under the treadmill.
2
Spring
-
Collar
Pin
9
Loading...
