ProForm PFTL71505.2 User Manual
Model No. PFTL71505.2
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
Serial No.
Write the serial number in the
space above for future reference.
Serial Number
Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete customer satisfaction. If you have
questions, or if parts are missing,
PLEASE DO NOT CONTACT
THE STORE; please contact
Customer Care.
IMPORTANT: You must note the
product model number and
serial number (see the drawing
above) before contacting us:
USER'S MANUAL
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MST
Sat. 8 a.m.–4 p.m. MST
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

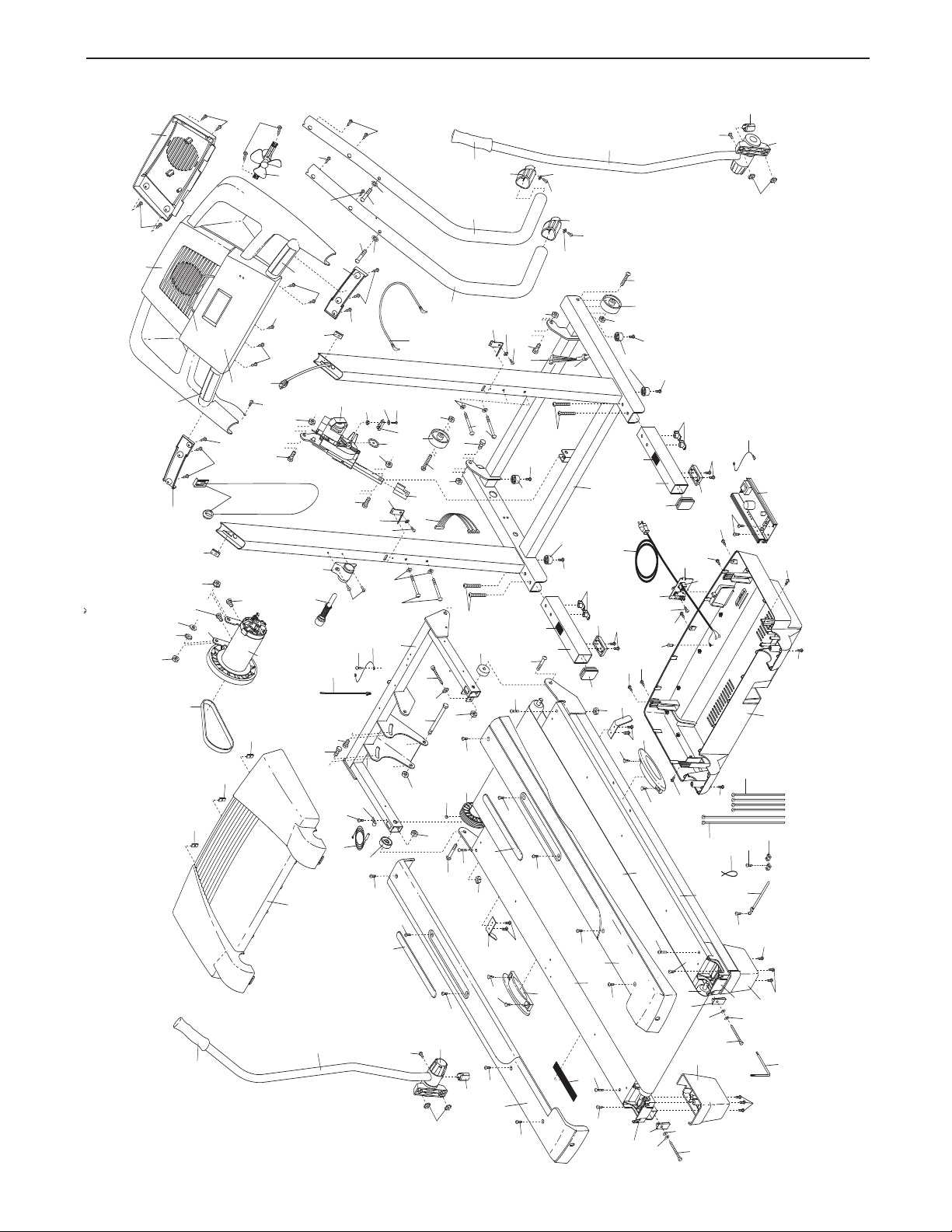

Note: An EXPLODED DRAWING and a PART LIST are attached in the center of this manual.
WARNING DECAL PLACEMENT
The decals shown here have been applied in the
locations shown. If a decal is missing or illegible,
call the telephone number on the front cover of
this manual and request a free replacement
decal. Apply the decal in the location shown.
Note: The decals may not be shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and in-
structions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of
his product.
t
1. Before beginning any exercise program, consult your physician. This is especially important for persons over the age of 35 or persons
with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
5. Keep the treadmill indoors, away from mois-
ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
12. Use only a single-outlet surge suppressor
that meets all of the specifications described
on page 10. To purchase a surge suppressor,
see your local PROFORM dealer or call the
telephone number on the front cover of this
manual and order part number 146148, or see
your local electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change
speed, accelerate, or stop unexpectedly,
which may result in a fall and serious injury.
14. Keep the power cord and the surge suppressor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROUBLESHOOTING on page 24 if the treadmill is
not working properly.)
7. Keep children under the age of 12 and pets
away from the treadmill at all times.
8. The treadmill should be used only by persons
weighing 300 lbs. (136 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women.
Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
11.
When connecting the power cord (see page 10),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 12).
17. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails or the upper body arms while using
the treadmill.
18. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
The pulse sensor is not a medical device.
19.
Various factors, including the user’s movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only as
an exercise aid in determining heart rate
trends in general.
3
20. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord, and switch the reset/off cir-
uit breaker to the off position when the
c
treadmill is not in use. (See the drawing on
page 5 for the location of the circuit breaker.)
1. Do not attempt to raise, lower, or move the
2
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 23.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
24. Never insert any object into any opening on
the treadmill.
DANGER: Always unplug the power
25.
cord immediately after use, before cleaning
the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.
22. When folding or moving the treadmill, make
sure that the frame is held securely in the
storage position.
23. Inspect and properly tighten all parts of the
treadmill regularly.
SAVE THESE INSTRUCTIONS
26. This treadmill is intended for in-home use
only. Do not use this treadmill in a commercial, rental, or institutional setting.
4
BEFORE YOU BEGIN
hank you for selecting the new PROFORM
T
ALK CALIBER ELITE treadmill. The CROSSWALK
W
CALIBER ELITE treadmill offers an impressive array of
features designed to make your workouts at home
more enjoyable and effective. And when you’re not exercising, the unique CROSSWALK CALIBER ELITE
treadmill can be folded up, requiring less than half the
floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
ing this manual, please see the front cover of this man-
Accessory Tray
Upper Body Arm
Handrail
®
C
ROSS-
al. To help us assist you, note the product model
u
umber and serial number before contacting us. The
n
model number and the location of the serial number
decal are shown on the front cover of this manual.
To avoid a registration fee for any service needed
under warranty, you must register the treadmill at
www.proformservice.com/registration.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Bookrack
Console
Key/Clip
Storage Latch
Walking Belt
Foot Rail
Rear Roller
Adjustment Bolts
Upright
Reset/Off
Circuit Breaker
Power Cord
Platform Cushion
5
ASSEMBLY
1
/2” Screw (119)–1
3/4" Screw (2)–11
Nut (13)–2
3/4” Tek Screw (58)–8
Wheel Bolt (64)–2
Silver Ground
Screw (75)–1
1" Tek Screw (39)–4
Handrail Bolt (37)–2
Washer (38)–4
1/2" Screw (48)–2
3 1/2" Bolt (45)–4
Star Washer
(106)–4
Extension Leg
Nut (46)–4
Extension Leg Bolt (93)–4
5/16” Star
Washer (48)–4
Handrail Star
Washer (95)–2
Small Star
Washer (118)–4
To hire an authorized service technician to assemble the treadmill, call 1-800-445-2480. Assembly requires
two persons.
materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or
the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on
top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex key and your own Phillips screwdriver ,
rubber mallet , adjustable wrench , and needlenose pliers .
For help identifying the assembly hardware, see the drawings below. If a part is not in the parts bag, first
check to see if it has been preassembled.
Set the treadmill in a cleared area and remove all packing materials; do not dispose of the packing
1. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip the
treadmill onto its left side as shown. Partially fold the
Frame (86) so the treadmill is more stable; do not fully
fold the treadmill yet.
Insert an Extension Leg (63) into the base of the
Uprights (69) with the Extension Leg Pad (61) oriented
as shown. If necessary, use a rubber mallet to fully insert the Extension Leg. Next, hold two Extension Leg
Nuts (46) in the bottom of the Extension Leg, and insert
two Extension Leg Bolts
Extension Leg. Firmly tighten the Extension Leg Bolts
into the Extension Leg Nuts.
Attach two Round Base Pads (57) to the base of the
Uprights (69) with two 1" Tek Screws (39).
(93) into the top of the
1
93
86
61
69
63
46
57
39
39
6
. Attach a Wheel (66) to the base of the Uprights (69)
2
with a Wheel Bolt (64) and a Nut (13) as shown. Do not
overtighten the Wheel Bolt; the Wheel should turn
freely.
With the help of a second person, carefully tip the treadmill onto its other side.
tach the other Extension Leg (63) and the remaining two
ound Base Pads (57). Then, attach the other Wheel
R
(66) as described above.
With the help of a second person, carefully lower the
base of the Uprights (69) to the floor so the Uprights are
in a vertical position.
See assembly step 1, and at-
2
69
64
6
6
3
1
3. Attach the Latch Housing (29) to the left Upright (69) with
two 3/4" Screws (2).
the Latch Housing is on the side shown.
Remove the knob from the pin. Make sure that the collar and the spring are on the pin as shown. Then, in-
sert the pin into the Latch Housing (29), and tighten the
knob back onto the pin.
4. Insert the tab on one of the Handrail Brackets (119) into
the slot in the right Upright (69). Attach the Handrail
Bracket with a 3/4" Screw (2) and a Small Star Washer
(118). Attach the other Handrail Bracket to the left
Upright (not shown) in the same way.
Make sure that the large hole in
3
69
Knob
2
4
29
Large
Hole
Spring
Collar
Pin
69
Slot
119
118
2
7
5. If there is a board between the Uprights (69), remove
he two bolts attaching the board. Discard the board and
t
the bolts.
5
37
71
Identify the Right Handrail (72), which has a large hole
in the left side. Remove the wire tie securing the Upright
Wire (42) inside of the right Upright (69). Feed the
pright Wire into the hole in the bottom of the Right
U
andrail and out of the large hole in the side. Note: It
H
may be helpful to use needlenose pliers to pull the Wire
Harness out of the hole.
Press a Handrail Cap (16) onto the lower end of the
Right Handrail (72) as shown. Set the Right Handrail on
the right Upright (69), while sliding the lower end of the
Right Handrail onto the Handrail Bracket (119). Attach
the Right Handrail with a Handrail Bolt (37) and a
Handrail Star Washer (95) in the upper end and a 3/4"
Screw (2) and a Small Star Washer (118) in the lower
Be careful not to pinch the Upright Wire (42).
end.
Attach the Left Handrail (71) as described above.
Note: There is no wire on the left side.
6. Hold the Console Base (47) near the Left Handrail (71).
Attach the ends of the ground wires on the Console
Base to the indicated small hole in the Left Handrail with
the Silver Ground Screw (75).
95
37
9
6
16
118
2
6
47
95
72
118
Ground
Wires
2
4
Hole
69
16
119
2
7. Touch the Right Handrail (72) to discharge any static.
See the inset drawing. Slide the sleeve off the connec
tor on the Upright Wire (42).
Upright Wire into the socket in the bottom of the Console
Base (47).
socket and snap into place. If it does not, turn the con
nector and then insert it. IF THE CONNECTOR IS NOT
CONNECTED PROPERLY, THE CONSOLE MAY BE
DAMAGED WHEN YOU TURN ON THE POWER.
Then, slide the sleeve back over the connector.
The connector should slide easily into the
Next, press the end of the
Small
Hole
71
-
-
7
72
Sleeve
42
Connector
75
42
47
8
8. Set the Console Base (47) on the Handrails (71, 72).
Attach the Console Base with four 3/4" Screws (2). Start
ll four Screws before tightening them; do not over-
a
tighten the Screws.
See the lower drawing. Make sure that the Upright
Wire (42) is routed below the two indicated round
posts (A). Next, press the Upright Wire into the slot be-
tween the square post (B) and the Console Base (47).
8
72
7
4
71
2
2
A
B
42
47
9. Cover the Upright Wire (42) with the Right Grip Plate
(36). Be careful not to pinch the Upright Wire. Tighten
two 1/2" Screws (48) and a 3/4" Screw (2) into the Right
Grip Plate and the Console Base (47).
10. Attach the Left Upper Body Arm (24) to the left Upright
(69) with two 3 1/2" Bolts (45), two Washers (38), and
two Star Washers (106) as shown.
Left Upper Body Arm is on the indicated side of the
Console Base (47).
Attach the Right Upper Body Arm (not shown) to the
right Upright (not shown) in the same way.
Make sure that the
9
10
48
47
42
36
2
47
24
Make sure that all parts are properly tightened be-
11.
fore you use the treadmill.
be included. Keep the included hex key in a secure
place; the hex key is used to adjust the walking belt (see
page 26). To protect the floor or carpet, place a mat
under the treadmill.
Note: Extra hardware may
69
106
38
106
45
9
Loading...
