ProForm PFTL69806.0 User Manual

odel No. PFTL69806.0

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

M
Serial No.

Serial Number

Decal

QUESTIONS?

As a manufacturer, we are com­mitted to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.

USER'S MANUAL

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri., 6 a.m.–6 p.m. MST

ON THE WEB:
www.proformservice.com

CAUTION

Read all precautions and instruc­tions in this manual before using
this equipment. Save this manual
for future reference.

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

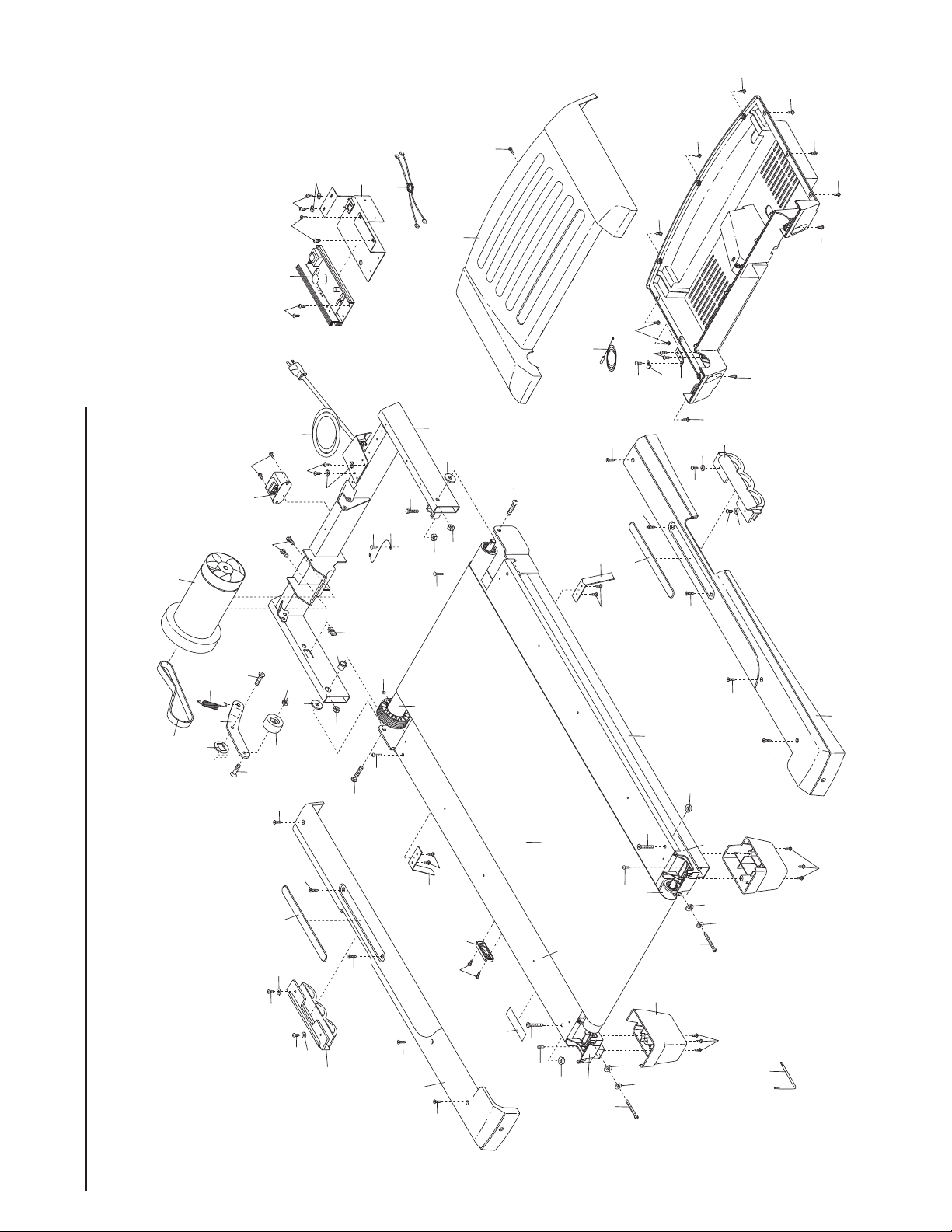

Note: An EXPLODED DRAWING is attached in the center of this manual.

PROFORM is a registered trademark of ICON IP, Inc.

2

IMPORTANT PRECAUTIONS

WARNING: T

following important precautions and information before operating the treadmill.

1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.

2. Use the treadmill only as described.

3. Place the treadmill on a level surface, with at
least eight feet of clearance behind it and two
feet on each side. Do not place the treadmill
on any surface that blocks air openings. To
protect the floor or carpet from damage, place
a mat under the treadmill.

4. Keep the treadmill indoors, away from mois­ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.

6. Keep children under the age of 12 and pets
away from the treadmill at all times.

7. The treadmill should be used only by persons
weighing 300 pounds or less.

8. Never allow more than one person on the
treadmill at a time.

9. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women.

shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.

When connecting the power cord (see page

10.

9), plug the power cord into a surge suppres­sor (not included) and plug the surge sup­pressor into a grounded circuit capable of
carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.

11. Use only a single-outlet surge suppressor
that meets all of the specifications described
on page 9. To purchase a surge suppressor,
see your local PROFORM dealer or call the
toll-free telephone number on the front cover
of this manual and order part number 146148,

o reduce the risk of burns, fire, electric shock, or injury to persons, read the

or see your local electronics store.

12. Failure to use a properly functioning surge
suppressor could result in damage to the con­trol system of the treadmill. If the control sys­tem is damaged, the walking belt may change
speed, accelerate, or stop unexpectedly,
which may result in a fall and serious injury.

13. Keep the power cord and the surge suppres­sor away from heated surfaces.

14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROU­BLESHOOTING on page 19 if the treadmill is
not working properly.)

15. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 11).

16. Never start the treadmill while you are stand­ing on the walking belt. Always hold the
handrails while using the treadmill.

17. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.

18. The pulse sensor is not a medical device.
Various factors, including the user's move-

Always wear athletic

ment, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.

19. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord, and switch the reset/off cir
cuit breaker to the off position when the
treadmill is not in use. (See the drawing on
page 5 for the location of the circuit breaker.)

20. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 17.)
You must be able to safely lift 45 pounds (20
kg) to raise, lower, or move the treadmill.

-

3

1. When folding or moving the treadmill, make

2

sure that the storage latch is fully closed.

22. Inspect and properly tighten all parts of the
treadmill regularly.

23. Never insert any object into any opening.

readmill, and before performing the mainte-

t
nance and adjustment procedures described in

his manual. Never remove the motor hood un-

t
less instructed to do so by an authorized ser­vice representative. Servicing other than the
procedures in this manual should be performed
by an authorized service representative only.

24.

DANGER: Always unplug the power

cord immediately after use, before cleaning the

25. This treadmill is intended for in-home use
only. Do not use this treadmill in a commer­cial, rental, or institutional setting.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

The decals shown here have been placed on the treadmill. If
a decal is missing, or if it is not legible, call the toll-free tele­phone number on the front cover of this manual and order a
free replacement decal. Apply the decal in the location
shown.

4

BEFORE YOU BEGIN

hank you for selecting the revolutionary PROFORM

T

95 Pi treadmill. The 695 Pi treadmill offers an impres-

6
sive array of features designed to make your workouts
at home more enjoyable and effective. And when
you’re not exercising, the unique 695 Pi treadmill can
be folded up, requiring less than half the floor space of
other treadmills.

For your benefit, read this manual carefully before
you use the treadmill. If you have questions after

reading this manual, please see the front cover of this
manual. To help us assist you, note the product model

Console

Handrail

®

umber and serial number before calling. The model

n

umber of the treadmill is PFTL69806.0. The serial

n
number can be found on a decal attached to the tread­mill (see the front cover of this manual for the location).

To avoid a registration fee for any service needed
under warranty, you must register the treadmill at
www.proformservice.com/registration.

Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.

Water Bottle Holder
(bottle not included)

Key/Clip

Fan

Storage Latch

Upright

Walking Belt

Foot Rail

BACK

Rear Roller
Adjustment Bolts

Reset/Off

Circuit Breaker

Power Cord

Cushioned Walking Platform

for maximum exercise comfort

RIGHT SIDE

5

ASSEMBLY

1” Tek Screw (83)–4

Star Washer (8)–8

Console Bolt (64)–4

Extension Leg Nut (67)–4

Latch Screw (3)–2

Extension Leg Bolt (65)–4

o hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480.

T

Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not

dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is
coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the
top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor­mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.

Assembly requires the included allen wrench and your own phillips screwdriver (with
a shaft at least 6” long) and wire cutters .

Use the drawings below to identify the hardware used during assembly. Note: If a part is not in the parts bag,
check to see if it has been preattached to one of the parts to be assembled. To avoid damaging plastic
parts, do not use power tools for assembly.

1. Make sure that the power cord is unplugged.

With the help of a second person, carefully tip the
treadmill onto its left side as shown. Partially fold the
Frame (58) so the treadmill is more stable. Do not fully

fold the Frame until the treadmill is completely as­sembled.

Attach four Base Pads (82) (only two are shown) to the
base of the Uprights (84) with four 1” Tek Screws (83).

Insert an Extension Leg (89) into the base of the Uprights
(84) as shown. Hold two Extension Leg Nuts (67) in the
bottom of the Extension Leg. Next, insert two Extension
Leg Bolts (65) with Star Washers (8) into the top of the
Extension Leg, and firmly tighten the Extension Leg Bolts
into the Extension Leg Nuts.

With the help of a second person, carefully tip the
treadmill onto its other side. Attach the other
Extension Leg (not shown) as described above.

1

84

65

58

8

82

67

89

82

83

6

. With the help of a second person, carefully raise the

2

Uprights (84) to a vertical position.

2

Have the second person hold the console assembly near
the Uprights (84) as shown. Look under the console as­sembly and locate the Console Wire Harness (78).

Remove the band securing the Upright Wire Harness (77)
to the right Upright (84). Next, connect the Upright Wire
Harness to the Console Wire Harness (78).

connect the connectors properly (see the inset draw­ing). The connectors should slide together easily and
snap into place.

easily and snap into place, turn one connector and then
try again. IF THE CONNECTORS ARE NOT CON-

NECTED PROPERLY, THE CONSOLE MAY BE DAM­AGED WHEN THE POWER IS TURNED ON.

3. Insert the Wire Harnesses (77, 78) down into the right
Upright (84).

Set the console assembly on the Uprights (84). Be care-

ful to avoid pinching the Wire Harnesses (77, 78).

While a second person holds the console assembly, at­tach it with four Console Bolts (64) and four Star Washers
(8) as shown; start all four Console Bolts and then

firmly tighten them.

If the connectors do not slide together

Make sure to

3

Console

Assembly

Console

ssembly

A

78

77

77, 78

8

64

84

78

77

84

8

64

84

4.

Orient the Latch Housing (73) so the large hole is on the
indicated side. Attach the Latch Housing to the left
Upright (84) with two Latch Screws (3); start both Latch

Screws and then tighten them.

Remove the knob from the pin. Make sure that the collar
and the spring are on the pin. (Note: If there are two col­lars, place one on each side of the spring.) Next, insert
the pin into the Latch Housing (73). Then, tighten the
knob back onto the pin.

4

84

73

Knob

Spring

3

Large

Hole

Collar

Pin

7

. Place the treadmill in the storage position (see HOW TO

5

FOLD AND MOVE THE TREADMILL on page 17).

5

18

Next, place the cylinder end of the Gas Spring (19) near

he bracket on the base of the Uprights (84).

t

See the two small inset drawings. Using your fingernail
or the end of a screwdriver, press on the end of the Gas
Spring Pin (18) to loosen it from the Gas Spring (19).
Next, rotate the Gas Spring Pin and pull it out of the Gas
Spring. Be careful to avoid losing the Gas Spring Pin.

See drawing 5a. Press the cylinder end of the Gas
Spring (19) onto the ball on the bracket. Next, insert the
end of the Gas Spring Pin (18) through two of the small
holes in the end of the Gas Spring. Then, rotate the Gas
Spring Pin until it clips onto the Gas Spring.

Raise the Gas Spring (19) to a vertical position. Remove

6.
the Gas Spring Pin (18) from the raised end of the Gas
Spring as described in step 5. If necessary, rotate the
Gas Spring to align the end of the Gas Spring with the
ball on the bracket on the Frame (58).

Plug in the power cord as described on page 9. Turn on
the power as described on page 11. Next, press the
Incline increase and decrease buttons until the ball on
the bracket is aligned with end of the Gas Spring (19).
Then, press the end of the Gas Spring onto the ball.
Note: It may be necessary to press the end of the Gas
Spring onto the ball while the Frame is moving.

Piston

5a

6

6a

19

84

19

18

18

58

C

18

Bracket

ylinder

Bracket

18

Bracket

19

See drawing 6a. Insert the Gas Spring Pin (18) into the
two indicated small holes in the end of the Gas Spring
(19). Then, rotate the Gas Spring Pin until it clips onto the
Gas Spring. Note: Extra Gas Spring Pins are included.

Press the Incline decrease button until the treadmill is at
the lowest incline level. Then, unplug the power cord.

7. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of clear
plastic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the tread-

ote: Extra hardware may be included. Keep the included allen wrench in a secure place; the large allen

mill. N
wrench is used to adjust the walking belt (see page 20).

Holes

19

18

8
