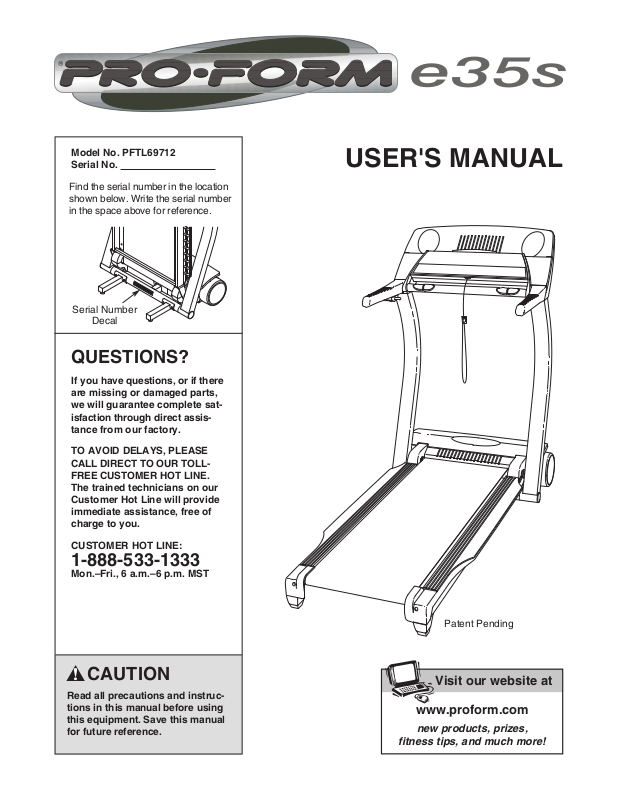

USER'S MANUAL

TO AVOID DELAYS, PLEASE CALL DIRECT TO OUR TOLLFREE CUSTOMER HOT LINE. The trained technicians on our Customer Hot Line will provide immediate assistance, free of charge to you.

CUSTOMER HOT LINE:

1-888-533-1333

Mon.–Fri., 6 a.m.–6 p.m. MST

CAUTION

Read all precautions and instruc tions in this manual before using this equipment. Save this manual for future reference.

Patent Pending

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

Note: A PART LIST/EXPLODED DRAWING is attached in the center of this manual.

PROFORM is a registered trademark of ICON IP, Inc.

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the

following important precautions and information before operating the treadmill.

1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.

2. Use the treadmill only as described.

3. Place the treadmill on a level surface, with at least eight feet of clearance behind it and two feet on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.

4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.

6. Keep children under the age of 12 and pets away from the treadmill at all times.

7. The treadmill should not be used by persons weighing more than 250 pounds.

8. Never allow more than one person on the treadmill at a time.

9. Wear appropriate exercise clothes when using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recommended for both men and women.

shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.

When connecting the power cord (see page 10),

10. plug the power cord into a surge suppressor (not included) and plug the surge suppressor into a grounded circuit capable of carrying 15 or more amps. No other appliance should be on the same circuit. Do not use an extension cord.

Use only a single-outlet surge suppressor that

11. meets all of the specifications described on page 10. To purchase a surge suppressor, see your local PROFORM dealer or call 1-888-533-

and order part number 146148.

1333

Always wear athletic

12. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed or stop unexpectedly, which may result in a fall and serious injury.

13. Keep the power cord and the surge suppressor away from heated surfaces.

14. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See BEFORE YOU BEGIN on page 5 if the treadmill is not working properly.)

15. Never start the treadmill while you are standing on the walking belt. Always hold the handrails while using the treadmill.

16. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.

17. The pulse sensor is not a medical device. Various factors, including the user's movement, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.

Never leave the treadmill unattended while it

18. is running. Always remove the key, unplug the power cord and move the on/off switch to the off position when the treadmill is not in use. (See the drawing on page 5 for the location of the on/off switch.)

19.

Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See ASSEMBLY on page 6, and HOW TO FOLD AND MOVE THE TREADMILL on page 23.) You must be able to safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill.

20. Do not change the incline of the treadmill by placing objects under the treadmill.

21. When folding or moving the treadmill, make sure that the storage latch is fully closed.

22. When using iFIT.com CDs and videos, an

•Fully engage storage latch before treadmill is moved or stored

•Reduce incline to its lowest level before folding tread mill into storage position

electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change. Always listen for the “chirp” and be prepared for speed and/or incline changes. In some instances, the speed and/or incline may change before the personal trainer describes the change.

23. When using iFIT.com CDs and videos, you can manually override the speed and incline settings at any time by pressing the speed and incline buttons. However, when the next “chirp” is heard, the speed and/or incline will change to the next settings of the CD or video program.

25. Inspect and properly tighten all parts of the treadmill regularly.

26. Never insert or drop any object into any opening.

DANGER: Always unplug the power

27. cord immediately after use, before cleaning the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.

24. Always remove iFIT.com CDs and videos from your CD player or VCR when you are not using them.

28. This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, or institutional setting.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

The decals shown below have been placed on your treadmill. If the decal is missing, or if it is not legible, please call our Customer Service Department, toll-free, to order a free replacement decal (see ORDERING REPLACEMENT PARTS on the back cover of this manual). Apply the decal in the location shown. Note: The decal at the far right is shown at 50% of actual size.

Note: The decal at the right is shown at 80% of actual size.

BEFORE YOU BEGIN

Thank you for selecting the new PROFORM®e35s treadmill. The e35s treadmill combines advanced technology with innovative design to help you get the most from your exercise program in the convenience of your home. And when you’re not exercising, the unique e35s treadmill can be folded up, requiring less than half the floor space of other treadmills.

For your benefit, read this manual carefully before using the treadmill. If you have questions after read-

ing this manual, please call our Customer Service

Water Bottle Holder (Bottle is not included)

Handrail

Lock Knob

Department toll-free at 1-888-533-1333, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please note the product model number and serial number before calling. The model number of the treadmill is PFTL69712. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).

Before reading further, please review the drawing below and familiarize yourself with the labeled parts.

Book Holder

Console

Pulse Sensor

Key/Clip

LEFT SIDE

Walking Belt

Foot Rail

RIGHT SIDE

On/Off Switch

Circuit Breaker

Power Cord

Front Wheel

Rear Roller

Adjustment Bolts

ASSEMBLY

Assembly requires two people. Set the treadmill in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench and your own 7/16” and 9/16” wrenches and Phillips screwdriver.

Use the part chart attached in the center of this manual to identify small parts used in assembly. Each bag of hardware is labeled with the corresponding assembly step.

, rubber mallet , wire cutters ,

1. With the help of another person, carefully tip the treadmill onto its left side. Have the other person continue to hold the treadmill during steps 1 through 4. Note: Only half of the hardware in the bags for steps 1 to 3 will be used. The remaining hardware will be used at the end of step 4.

Identify the Right Upright (58), which contains the Wire Harness (55). Insert the round tube on the Right Upright into the Base (117) as shown. If necessary, apply grease to the round tube and use a rubber mallet. Hold a Star Washer (113) between the indicated tab and the Base, and Finger tighten an Upright Bolt (66) through the tab into the Base.

Make sure that the two indicated Walking Platform Screws (114) in the Walking Platform (100) are tight.

2. Attach a Base Leg (78) to the Base (117) with two Base Leg Bolts (77) and two Base Leg Nuts (70). Make sure that the Base Pad (75) is in the position shown. (Note: The Base Leg Nuts fit into square holes in the Base. If necessary, push or pull on the Right Upright [58] to align the holes.) Do not fully tighten the Base Leg Bolts yet.

Tab

113

117

100

114

3. See the inset drawing. Identify the right Front Wheel (62) by observing the direction that the Wheel Bracket (64) slants.

Locate four 3/4” Screws (12) in hardware bag number 4. Attach the Wheel Bracket (64) on the right Front Wheel (62) to the Base (117) with the four Screws.

Attach a Thin Base Pad (103) and a Thick Base Pad (75) to the Base (117) with two 3/4” Screws (12) as shown.

103

117

Right

Left

4. Locate the Belly Pan Wire Harness (124). Route the Belly Pan Wire Harness over the Base (117) as shown. Connect the Belly Pan Wire Harness to the Wire Harness (55). See the bottom inset drawing. should slide together easily and “snap” into place. If the connectors do not slide easily and snap into place, turn a connector and try again. See the top inset drawing. Carefully wrap the wires around the connectors as shown. Insert the connectors and the excess Wire Harness into the Right Upright (58).

With the help of another person, carefully tip the treadmill onto its other side. Attach the Left Upright, the other Base Leg, the left Front Wheel, and the other Base Pads (not shown) as described in steps 1 through 3. (Note: There is not a wire harness in the Left Upright.) Do not fully

tighten the bolts yet.

The connectors

117

124

5. With the help of another person, carefully raise the Uprights (35, 58) to the vertical position, with the wheels and the walking platform on the floor as shown on page 5.

Have the other person hold a Handgrip Post (41) on the Left Upright (35) as shown. Hold a Post Spacer (43) in- side of the Handgrip Post. Insert a Post Bolt (44) with a 1/4” Washer (107) through the end hole in the Handgrip Post and through the Post Spacer. Finger tighten the Post Bolt. Finger tighten another Post Bolt (44) with a 1/4” Washer (107) into the other hole. If necessary, tap the Handgrip Post with a rubber mallet to make sure that it is fully seated. Tighten the Post Bolt in the end hole. Then, tighten the other Post Bolt.

Attach the other Handgrip Post (41) to the right Upright (not shown) as described above.

6. Have another person hold the Console Base (52) near the Uprights (35, 58). Locate the wire harness extending from the Console Base. Connect the wire harness to the Wire Harness (55) in the Right Upright. The connectors should slide together easily and “snap” into place. If the connectors do not slide easily and snap into place, turn a connector and try again. Carefully feed the connectors and the excess wire harness into the Right Upright. Carefully set the Console Base on the posts on the Uprights.

Finger tighten four Console Bolts (42) with four Star Washers (113) into the Uprights (35, 58) and the Console Base (52). After all four Console Bolts have been started, tighten them.

See steps 1 and 2. Tighten the two Upright Bolts (66). Next, tighten the four Base Leg Bolts (77). Make sure that the Base Leg Nuts (70) are fully seated in the square holes. Note: It may be helpful to tip the treadmill onto its side while you do this.

107

113

107

Hole

Wire Harness

End

113

See the inset drawing. Identify the Right Top Handgrip

7a.

(53); there are identifying marks inside the Handgrips. Set the Right Top Handgrip on the right Handgrip Post (41). Insert two 1/2” Screws (51)

the Handgrip Post indicated by the arrows. Tighten the Screws into the Right Top Handgrip.

Important: Be careful not to insert the two 1/2” Screws (51) into the wrong holes in the Handgrip Post (41), or tighten the Screws into the plastic bosses on the bottom of the Right Top Handgrip (53).

into the two holes in

Bosses

Left

Right

7b.Attach the matching Right Bottom Handgrip (54) with

three 1/2” Screws (51).

Attach the Left Top Handgrip (21) and the Left Bottom Handgrip (not shown) as described above.

8. Set the Right Foot Rail (98) and the Left Foot Rail (not shown) on the sides of the Walking Platform (100). While a second person holds the Foot Rails, raise the Walking Platform to the position shown. Attach the Right Foot Rail with five Foot Rail Screws (97) and five Foot Rail Washers (96).

Attach the Left Foot Rail (not shown) in the same way.

Identify the Right Foot Housing (106) and one of the Rubber Feet (104). See the inset drawing. Hold the Right Foot Housing and the Rubber Foot near the upper end of the Right Foot Rail (98) as shown. The ridge on the Right Foot Housing should match the ridge on the Right Foot Rail. In addition, the angle of the Rubber Foot should match the angle of the Right Foot Housing. Make sure that the parts are oriented exactly as shown. Attach the Right Foot Housing with two Foot Housing Screws (105). Attach the Rubber Foot with two Foot Screws (65).

Attach the Left Foot Housing (not shown) and the other Rubber Foot (not shown) as described above.

Lower the Walking Platform (100) to the floor.

106

104

Matching

Angles

104

100

Ridges

105

106

Side View

9. Attach the Latch Assembly (37) and the Latch Spacer (39) to the Left Bottom Handgrip (40) with two Latch Screws (36). Firmly tighten the Latch Screws. Note: The ridge on the Latch Spacer must be on the side shown.

If there are plastic ties around the left and right Pulse Sensor Plates (2), cut off the plastic ties.

Ridge

10. Attach the Hood Cover (3) to the treadmill with four 1/2”

Screws (51). Firmly tighten the Screws.

Peel the backing off the Hood Decal (1). Position the Hood Decal over the recess in the Hood Cover (3). Press the Hood Decal into place.

Note: If the treadmill rocks slightly, tip the treadmill back onto its side. See step 2. Loosen the four Base Leg Bolts (77), adjust the positions of the Base Legs (78), and then retighten the Base Leg Bolts. Raise the treadmill back to the vertical position. Repeat until the rocking motion is eliminated.

To protect the floor or carpet from damage, place the included Mat (125) under the front of the treadmill.

11. Plug the Power Cord (93) into the front of the treadmill as

shown.

Note: Extra parts may be included.

125

12. Make sure that all parts are properly tightened before you use the treadmill. Keep the included allen

wrench in a secure place. The allen wrench is used to adjust the walking belt (see page 26). To protect the floor or carpet from damage, place a mat under the treadmill.

Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.

OPERATION AND ADJUSTMENT

PERFORMANT LUBE

THE

Your treadmill features a walking belt coated with PERFORMANT LUBETM, a high-performance lubricant.

IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking plat form. Such substances will deteriorate the walking belt and cause excessive wear.

HOW TO PLUG IN THE POWER CORD

WALKING BELT

DANGER: Improper connection

of the equipment-grounding conductor can result in an increased risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your home’s power. Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off. To decrease the possi-

bility of your treadmill being damaged, always use a surge suppressor with your treadmill (see drawing 1 at the right). To purchase a surge suppressor, see your local PROFORM dealer or call 1-888533-1333 and order part number 146148.

an equipment-grounding conductor and a grounding plug.

Plug the power cord into a surge suppressor, and plug the surge suppressor into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Important: The treadmill is not compatible with GFCI-equipped outlets.

This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the surge suppressor to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available.

Grounded Outlet Box

Surge Suppressor

Grounding Pin

Grounded Outlet

Grounded Outlet Box

Adapter

Grounding Plug

Surge Suppressor

Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup pressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indicate whether it is functioning properly. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed or stop unexpectedly, which may result in a fall and serious injury.

This product must be grounded.

tion or break down, grounding provides a path of least resistance for electric current to reduce the risk of elec tric shock. This product is equipped with a cord having

If it should malfunc-

Lug

Metal Screw

The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician.

The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used it must be held in place by a metal screw.

covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is

grounded before using an adapter.

Some 2-pole receptacle outlet box

CONSOLE DIAGRAM

Manual/Program Indicators

Note: If there is a thin sheet of plastic on the face of the console, remove it.

Display

Program Display

Key

CAUTION: Before operating the

console, read the following precautions.

• Do not stand on the walking belt when turning on the power.

• Always wear the clip (see the drawing above) while operating the treadmill.

•Adjust the speed in small increments to avoid sudden jumps in speed.

•To reduce the possibility of electric shock, keep the console dry. Avoid spilling liquids on the console and place only a sealed water bottle in the water bottle holder.

FEATURES OF THE CONSOLE

The advanced console offers an impressive array of features to help you get the most from your exercise. When the manual mode of the console is selected, the speed and incline of the treadmill can be changed with a touch of a button. As you exercise, the console will display continuous exercise feedback. You can even measure pulse sensor. Note: See page 22 for information about an optional chest pulse sensor.

Four certified personal trainer programs are also offered. Each program automatically controls the

your heart rate using the built-in handgrip

Display

speed and incline of the treadmill to give you an effective workout. Two heart rate programs are also featured. Each program controls the speed and incline of the treadmill to keep your heart rate near a target level during your workouts.

The console also features new iFIT.com interactive technology. Having iFIT.com technology is like having a personal trainer in your home. Using the included audio cable, you can connect the treadmill to your home stereo, portable stereo, computer, or VCR and play special iFIT.com CD and video programs (iFIT.com CDs and videocassettes are available separately). iFIT.com CD and video programs automatically control the speed and incline of the treadmill as a personal trainer coaches you through every step of your workout. High-energy music provides added motivation. To pur-

chase iFIT.com CDs or videocassettes, call tollfree 1-888-533-1333.

With the treadmill connected to your computer, you can also go to our Web site at www.iFIT.com and access programs directly from the internet. Additional options are soon to be available. See www.iFIT.com for

more information.

To use the manual mode of the console steps beginning on page 12. To use a personal trainer program, see page 14. To use a heart rate program, see page 15. To use an iFIT.com CD or video program, see page 19. To use an iFIT.com rectly from our Web site

Program Profiles

Clip

, see page 21.

, follow the

program di

HOW TO TURN ON THE POWER

Plug in the power cord (see page 10).

Locate the on/off

switch near the power cord. Move the on/off switch to the on posi tion.

Stand on the foot rails of the treadmill. Find the clip

attached to the key (see the drawing on page 11) and slide the clip onto the waistband of your clothes. Next, insert the key into the console. After a moment, the displays and various indicators will light. Test the clip by carefully taking a few

steps backward until the key is pulled from the console. If the key is not pulled from the console, adjust the position of the clip.

HOW TO USE THE MANUAL MODE

Insert the key fully into the console.

Position

See HOW TO TURN ON THE POWER above.

Each time a button is pressed, the speed setting will change by 0.1 mph; if a button is held down, the speed setting will change in increments mph. To change the speed setting quickly, press the Quick Speed buttons.

display speed and distance in either miles or kilometers. For simplicity, all instructions in this section refer to miles.

To stop the walking belt, press the Stop button. The Time/Incline/Segment Time display will begin to flash. To restart the walking belt, press the Start button or the Speed

Note: During the first few minutes that the treadmill is used, inspect the alignment of the walking belt and align it if necessary (see page 26).

Change the incline of the treadmill as desired.

Note: The console can

button.

To change the incline of the treadmill, press the Incline buttons. Each time a button is pressed, the incline will change by

0.5%. Note: After the buttons are pressed, it may take a moment for the treadmill to reach the selected incline setting.

Follow your progress with the LED track and

the displays.

of 0.5

Select the manual mode.

When the key is inserted, the manual mode will be selected and the Manual Control indicator will light. If a program has been selected, press the Program button repeatedly to reselect the manual mode.

Press the Start button or the Speed

start the walking belt.

A moment after the button is pressed, the walking belt will begin to move at 1 mph. Hold the handrails walking. As you exer cise, change the speed of the walking belt as de sired by pressing the Speed

and begin

and

buttons

button to

The LED Track—When the manual mode or the iFIT.com mode is selected, the program display will show an LED track representing 1/4 mile. As you exercise, the indicators around the track will light in sequence until you have completed 1/4 mile. A new lap will then begin.

Calories/Fat Calories/ Heart Rate display—

This display shows the approximate numbers of calories and fat calories you have burned (see FAT BURNING on page 27). The display will change from one number to the other every few seconds, as shown by the indicators in the dis

play. The display will also show your heart rate when you use the handgrip pulse sensor (see step 6 on page 13) or the optional chest pulse sensor (see page 22).

Time/Incline/Segment Time display—When

the manual mode or the iFIT.com mode is selected, this display will show the elapsed time and the incline level of the treadmill. The display will change from one number to the other every few seconds, as shown by the indicators in the display. When a personal trainer program or a heart rate program is selected, the display will show the remaining in the current segment of the program, and the incline level. Note: Each time the incline changes, the display will show the current incline setting for several seconds.

Distance/Laps display—This display

shows the distance that you have walked and the number of 1/4-mile laps you have completed. The display will change from one number to the other every few seconds, as shown by the indicators in the display.

Speed/Min-Mile display—This display

shows the speed of the walking belt and your current pace (pace is measured in minutes per mile). The display will change from one number to the other every few seconds, as shown by the indicators in the display. Note: Each time the speed changes, the display will show the current speed setting for several seconds.

time remaining in the program, the time

Measure your heart rate if desired.

Note: Before using the handgrip pulse sensor, make sure that your hands are clean.

To measure your heart rate, stand

on the foot rails

and place your hands on the metal contacts on the handrail. Your palms must be resting on the contacts—avoid moving your hands. When your pulse is detected, the heart-shaped indicator in the Calories/Fat Calories/Heart Rate display will flash, and then your heart rate will be shown.

most accurate heart rate reading, continue to hold the contacts for about 15 seconds.

When you are finished exercising, remove the

key.

Step onto the foot rails, press the Stop button, and

adjust the incline of the treadmill to the lowest setting. The incline must be at the lowest setting when the treadmill is folded to the storage position or the treadmill will be damaged. Next, re-

move the key from the console and put it in a secure place. Note: If the displays and various indi-

cators on the console remain lit after the key is removed, the console is in the “demo” mode. See page 22 and turn off the demo mode.

When you are finished using the treadmill, move the on/off switch near the power cord to the off position and unplug the power cord.

For the

Note: The console can display speed and distance in either miles or

To find which

ters.

kilome unit of measurement is selected, hold down the Stop button while inserting the key into the console. An “E” for English miles or an “M” for metric kilometers will appear in the display. Press the Speed ment. When the desired unit of measurement is selected, remove the key and then reinsert it.

To reset the displays, press the Stop button, re move

button to change the unit of measure-

the key, and then reinsert the key.

HOW TO USE PERSONAL TRAINER PROGRAMS

Insert the key fully into the console.

See HOW TO TURN ON THE POWER on page

12.

Select one of the personal trainer programs.

When the key is inserted, the manual mode will be selected. To select one of the personal trainer programs, press the Program button repeatedly until one of the four personal trainer pro gram indicators lights. When a personal trainer program is selected, the Time/Incline/Segment Time display will flash the maximum incline setting for the program for six seconds, and the Speed/Min-mile display will flash the maximum speed setting.

speed setting for the first segment will be shown in the flashing Current Segment column of the program dis play. (The incline settings are not shown in the program display.) The speed settings for the next four segments will be shown in the four columns to the right.

When only three seconds remain in the first segment of the program, both the Current Segment column and the column to the right will flash and a tone will sound. In addition, if the speed and/or incline of the treadmill is about to change, the Speed/Min-mile display and/or the Time/Incline/ Segment Time display will flash to alert you, and

three tones will sound. When the first segment is completed,

umn to the left

segment will then be shown in the flashing Current Segment column and the treadmill will automatically adjust to the speed and incline settings for the second segment.

all speed settings will move one col-

. The speed setting for the second

Current Segment

The four profiles on the right side of the console show how the speed and incline of the treadmill will change during the programs. The numbers beside the profiles show the maximum speed and incline settings for the programs.

The program display will show the first speed settings for the program. The Time/ Incline/Segment Time display will show how long the program will last.

Press the Start button or the Speed

start the program.

A moment after the button is pressed, the treadmill will automatically adjust to the first speed and incline settings for the program. Hold the handrails and begin walking.

Each program is divided into several time segments of different lengths. The Time/Incline/ Segment Time dis maining in the program the current segment. One speed setting and one incline setting are programmed for each (The same speed setting and/or incline setting may be programmed for consecutive segments.) The

play will show both the time re

and the time remaining in

button to

segment

The program will continue in this way until the speed setting for the last segment is shown in the Current Segment column and no time remains in the Time/Incline/Segment Time display. The walking belt will then slow to a stop.

Note: Each time a segment ends and the speed settings move one column to the left,

indicators in the Current Segment column are lit, the speed settings will move downward so that only the highest indicators in the columns will appear in the program display. When the speed settings

move to the left again and not all of the indicators in the Current Segment column are lit, the speed settings will move back up.

If the speed or incline setting for the current segment override the setting by pressing the Speed or Incline buttons. Every few times one of the Speed buttons is pressed, an additional or darken in the Current Segment column. If any of the columns to the right of the Current Segment column have the same number of lit indicators as the Current Segment column, an additional indica-

tor may light or darken in those columns as well.

Important: program ends, the treadmill will automatically adjust to the speed and incline settings for the next segment.

is too high or too low, you can manually

When the current segment of the

if all of the

indicator will light

To stop the program temporarily, press the Stop button. The Time/Incline/Segment Time display will begin to the Start button or the Speed program, press the Stop button, remove the key, and then reinsert the key.

Follow your progress with the displays.

flash. To restart the program, press

button. To end the

See step 5 on page 12.

Measure your heart rate if desired.

See step 6 on page 13.

When the program is completed, remove the

key from the console.

When the program has ended, make sure that the incline of the treadmill is at the lowest setting. Next, remove the key from the console and put it in a safe place.Note: If the displays and various indicators on the console remain lit after the key is removed, the console is in the “demo” mode. Refer to page 22 and turn off the demo mode.

HOW TO USE HEART RATE PROGRAMS

CAUTION: If you have heart prob-

lems, or if you are over 60 years of age and have been inactive, do not use the heart rate programs. If you are taking medication regularly, consult your physician to find whether the medication will affect your exercise heart rate.

Follow the steps below to use the heart rate programs.

Note: You must wear the optional chest pulse sensor (see page 22) to use the heart rate programs.

Put on the chest pulse sensor.

Refer to the instructions included with the optional chest pulse sensor.

Insert the key fully into the console.

See HOW TO TURN ON THE POWER on page

12.

When you are finished using the treadmill, move the on/off switch near the power cord to the off position and unplug the power cord.

Select a heart rate program.

When the key is inserted, the manual mode will be selected. To select one of the heart rate programs, press the Program button repeatedly until one of the two heart rate program indicators lights.

The two profiles on the left side of the console show how the target heart rate will change during the programs. The numbers above the profiles represent percentages of your estimated maxi- mum heart rate. (Your estimated maximum heart rate is determined by subtracting your age from

220. For example, if you are 30 years old, your estimated maximum heart rate is 190 beats per minute [220 – 30 = 190]. If you are 30 years old, a target heart rate setting of 50% is equal to 95 beats per minute [50% of 190 is 95]).

During heart rate programs, the program display will show a graphic that represents your heart rate. Each time a heartbeat is detected, an additional peak will appear.

Enter your age.

When a heart rate program is selected, the letters AGE and the current age setting will begin to flash in the Calories/ Fat Calories/Heart Rate display. You must enter your age to use a heart rate program. If you have already entered your age, go to step 5. If you have not entered your age, press the Incline (Age Set) buttons until your age is shown. Your age will then be saved in memory.

Press the Start button or the Speed

start the program.

A moment after the button is pressed, the treadmill will automatically adjust to the first speed and incline settings for the program. Hold the handrails and begin walking.

Each heart rate program is divided into one-minute segments. The Time/Incline/Segment Time display will show both the time remaining in the program and the time remaining in the current segment of the program. One target heart rate setting is programmed for each segment. (The same target heart rate setting may be programmed for consecutive segments.)

When only three seconds remain in the first oneminute segment of the program, a series of tones will sound and the Time/Incline/Segment Time display and the Speed/Min-Mile display will flash.

button to

The speed and/or incline of the treadmill will then change, if needed, to bring your heart rate closer to the target heart rate setting for the next segment. The program will continue until no time remains in the program. The walking belt will then slow to a stop.

If the speed or incline setting for the current segment is too high or too low, you can adjust the setting with the Speed or Incline buttons. However, if you

decrease the speed, the incline will automati-

increase; if you increase the speed, the in-

cally cline will speed will decrease; if you decrease the incline, the speed will increase. The treadmill will always

attempt to keep your heart rate near the target heart rate setting for the current segment. Note:

When the incline reaches the lowest setting, the speed cannot be increased any further. When the incline reaches the highest setting, the speed cannot be decreased any further.

If your pulse is not detected during the program, the letters PLS will flash in the Calories/Fat Calories/Heart Rate display and the speed and incline of the treadmill may automatically decrease until your pulse is detected. If this occurs, refer to the instructions included with the optional chest pulse sensor.

To stop the program at any time, press the Stop button. Heart rate programs should not be stopped temporarily and then restarted. To use a heart rate program again, reselect the program and start it at the beginning.

Follow your progress with the displays.

decrease. If you increase the incline, the

Refer to step 5 on page 12.

When the program is completed, remove the

key from the console.

Refer to step 6 on page 15.

HOW TO CONNECT THE TREADMILL TO YOUR

LINE OUT

PHONES

LINE OUT

PHONES

AUDIO OUT

RIGHT

LEFT

LINE OUT

AUDIO OUT

RIGHT

LEFT

PHONES

LINE OUT

AUDIO OUT

RIGHT

LEFT

LINE OUT

PHONES

LINE OUT

PHONES

CD PLAYER, VCR, OR COMPUTER

To use iFIT.com CDs

, the treadmill must be connected to your portable CD player, portable stereo, home stereo, or computer with CD player. See pages 17 and 18 for connecting instructions.

To use iFIT.com videocassettes, the treadmill must be connected to your VCR. See page 19 for connecting instructions. To use iFIT.com programs directly from our internet site,

the treadmill must be connected to your home computer. See page 18 for connecting instructions.

HOW TO CONNECT YOUR PORTABLE CD PLAYER

Note: If your CD player has separate LINE OUT and PHONES jacks, see instruction A below. If your CD player has only one jack, see instruction B.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your CD player. Plug your headphones into the PHONES jack.

HOW TO CONNECT YOUR PORTABLE STEREO

Note: If your stereo has an RCA-type AUDIO OUT jack, see instruction A below. If your stereo has a

3.5mm LINE OUT jack, see instruction B. If your stereo has only a PHONES jack, see instruction C.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into an AUDIO OUT jack on your stereo.

Audio

Adapter

Cable

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your stereo.

Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the other end of the cable into a 3.5mm Y-adapter (available at electronics stores). Plug the Y-adapter into

Audio

Cable

Head-

phones

the PHONES jack on your CD player. Plug your headphones into the other side of the Y-adapter.

Audio Cable

Headphones

3.5mm

Y-adapter

Audio Cable

C. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the other end of the cable into a 3.5mm Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your stereo. Plug your headphones into the other side of the Y-adapter.

3.5mm

Audio

Y-adapter

Cable

Headphones

HOW TO CONNECT YOUR HOME STEREO

LINE OUT

VCR

Amp

LINE OUT

VCR

Amp

LINE OUT

VCR

Amp

LINE OUT

PHONES

LINE OUT

HOW TO CONNECT YOUR COMPUTER

Note: If your stereo has an unused LINE OUT jack, see instruction A below. If the LINE OUT jack is being used, see instruction B.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into the LINE OUT jack on your stereo.

Audio

Adapter

Cable

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the LINE OUT jack on your stereo and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the LINE OUT jack on your stereo.

Note:

If your computer has a 3.5mm LINE OUT jack, see instruction A. If your computer has only a PHONES jack, see instruction B.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your computer.

Audio Cable

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the other end of the cable into a 3.5mm Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your computer. Plug your headphones or speakers into the other side of the Y-adapter.

Audio Cable

3.5mm

Y-adapter

Headphones/Speakers

RCA

Audio

Cable

Y-adapter

Adapter

Wire removed from

LINE OUT jack

HOW TO CONNECT YOUR VCR

AUDIO OUT

RIGHT

LEFT

VIDEO AUDIO

ANT

. IN

RF OUT

OUT

CH 3

AUDIO OUT

RIGHT

LEFT

VIDEO AUDIO

ANT

. IN

RF OUT

OUT

CH 3

VIDEO AUDIO

ANT

. IN

RF OUT

OUT

CH 3

Note: If your VCR has an unused AUDIO OUT jack, see instruction A below. If the AUDIO OUT jack is being used, see instruction B. If you have a TV with a built-in VCR, see instruction B. If your VCR is connected to your home stereo, see HOW TO CONNECT YOUR HOME STEREO on page 18.

A. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into the AUDIO OUT jack on your VCR.

HOW TO USE IFIT.COM CD AND VIDEO PROGRAMS

To use iFIT.com CDs or videocassettes, the treadmill must be connected to your portable CD player, portable stereo, home stereo, computer with CD player, or VCR. See HOW TO CONNECT THE TREADMILL TO YOUR CD PLAYER, VCR, OR COMPUTER on page

Note: To purchase iFIT.com CDs or videocas-

17.

settes, call toll-free 1-888-533-1333.

Follow the steps below to use an iFIT.com CD or video program.

Audio

Adapter

Cable

B. Plug one end of the audio cable into the jack on the

front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the AUDIO OUT jack on your VCR and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the AUDIO OUT jack on your VCR.

RCA Y-adapter

Audio Cable

Adapter

Insert the key into the console.

See HOW TO TURN ON THE POWER on page 12.

Select the iFIT.com mode.

When the key is inserted, the manual mode will be selected. To use iFIT.com CDs or videocassettes, press the Program button repeatedly until the iFIT.com indicator lights.

Insert the iFIT.com CD or videocassette.

If you are using an iFIT.com CD, insert the CD into your CD player. If you are using an iFIT.com videocassette, insert the videocassette into your VCR.

Press the PLAY button on your CD player or

VCR.

A moment after the button is pressed, your personal trainer will begin guiding you through your workout. Simply follow your personal trainer’s instructions. Note: If the Time/Incline/Segment Time display is flashing, press the Start button or the Speed will not respond to a CD or video program when the Time/Incline/Segment Time display is flashing.

button on the console. The treadmill

Wire removed from

AUDIO OUT jack

During the CD or video program, an electronic “chirping” sound

will alert you when the speed

and/or incline of the treadmill is about to change.

CAUTION: Always listen for the “chirp” and be prepared for speed and/or incline changes. In some instances, the speed and/or incline may change before the personal trainer describes the change.

If the speed or incline settings are too high or too low, you can manually override the settings at any time by pressing the Speed or Incline buttons on the console. However,

heard, the speed and/or incline will change the next settings of the CD or video program.

when the next “chirp” is

If the volume is too high or too low, the console may not detect the program signals.

• Make sure that the audio cable is properly connected, that it is fully plugged in, and that it is not wrapped around a power cord.

To stop the walking belt at any time, press the Stop button on the console. The Time/Incline/ Segment Time display will begin to flash. To restart the program, press the Start button or the Speed will begin to move at 1 mph. When the next

“chirp” is heard, the speed and incline will change to the next settings of the CD or video program.

When the CD or video program is completed, the walking belt will stop and the Time/Incline/Segment Time display will begin to flash. Note: To use another CD or video program, press the Stop button or remove the key and go to step 1 on page 19.

Note: If the speed or incline of the treadmill does not change when a “chirp” is heard:

• Make sure that the iFIT.com indicator is lit and that the Time/Incline/Segment Time display is not flashing. If the Time/Incline/Segment Time display is flashing, press the Start button or the Speed

button. After a moment, the walking belt

button on the console.

• If you are using your portable CD player and the CD skips, set the CD player on the floor or another flat surface instead of on the console.

• See the instructions near the bottom of page

26.

Follow your progress with the LED track and

the displays.

See step 5 on page 12.

Measure your heart rate if desired.

See step 6 on page 13.

When the program is completed, remove the

key.

See step 6 on page 15.

CAUTION: Always remove iFIT.com CDs and videocassettes from your CD player or VCR when you are finished using them.

• Adjust the volume of your CD player or VCR.

HOW TO USE PROGRAMS DIRECTLY FROM OUR WEB SITE

Return to the treadmill and stand on the foot

rails. Find the clip attached to the key and slide the clip onto the waistband of your clothes.

Our Web site at www.iFIT.com allows you to access basic programs, audio programs, and video programs directly from the internet. Additional options are soon to be available. See www.iFIT.com for details.

To use programs from our Web site, the treadmill must be connected to your home computer. See HOW TO CONNECT YOUR COMPUTER on page 18. In addition, you must have an internet connection and an internet service provider. A list of specific system requirements will be found on our Web site.

Follow the steps below to use a program from our Web site.

Insert the key into the console.

See HOW TO TURN ON THE POWER on page 12.

Select the iFIT.com mode.

When the key is inserted, the manual mode will be selected. To use a program from our Web site, press the Program button repeatedly until the iFIT.com indicator lights.

When the on-screen countdown ends, the program will begin and the walking belt will begin to move. Hold the handrails, step onto the walking belt, and

begin walking. During the program, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change.

CAUTION: Always listen for the “chirp” and be prepared for speed and/or incline changes.

If the speed or incline settings are too high or too low, you can manually override the settings at any time by pressing the Speed or Incline buttons on the console. However, when the next “chirp” is

heard, the speed and/or incline will change to the next settings for the program.

“chirp” is heard, the speed and incline will change to the next settings of the program.

When the program is completed, the walking belt will stop and the Time/Incline/Segment Time display will begin to flash. Note: To use another program, press the Stop button and go to step 5.

button. After a moment, the walking belt

Go to your computer and start an internet

connection.

Start your web browser, if necessary, and go to

our Web site at www.iFIT.com.

Follow the desired links on our Web site to se-

lect a program.

Read and follow the on-line instructions for using a program.

Follow the on-line instructions to start the

program.

When you start the program, an on-screen count down will begin.

Note: If the speed or incline of the treadmill does not change when a “chirp” is heard, make sure that the iFIT.com indicator is lit and that the Time/Incline/Segment Time display is not flashing. In addition, make sure that the audio cable is properly connected, that it is fully plugged in, and that it is not wrapped around a power cord.

Follow your progress with the LED track and

the displays.

See step 5 on page 12.

When the program is completed, remove the

key.

See step 6 on page 15.

THE INFORMATION MODE/DEMO MODE

THE OPTIONAL CHEST PULSE SENSOR

The console features an information mode that keeps track of the total number of hours that the treadmill has been operated and the total number of miles that the walking belt has moved. The information mode also allows you to switch the console from miles per hour to kilometers per hour. In addition, the information mode allows you to turn on and turn off the demo mode.

To select the information mode, hold down the Stop button while inserting the key into the console. When the information mode is selected, the following information will be shown:

The Time/Incline/Segment Time display will show the total number of hours the treadmill has been used.

The Distance/Laps display will show the total number of miles (or kilometers) that the walking belt has moved.

An optional chest pulse sensor adds even more fea

tures to the console. The chest pulse sensor offers hands-free operation, and enables you to use the con sole’s two heart rate programs.

To purchase the

chest pulse sensor, call toll-free 1-888-533-1333.

An “E” for english miles or an “M” for metric kilometers will appear in the Speed/Min-Mile

display. Press the Speed

button to change the unit of measurement.

IMPORTANT: The Calories/ Fat Calories/Heart Rate display should be blank.

If a “d” appears in the display, the console is in the “demo” mode. This mode is intended to be used only when a treadmill is displayed in a store. When the console is in the demo mode, the power cord can be plugged in, the key can be removed from the console, and the displays and indicators on the console will automatically light in a preset sequence, although

operate.

buttons on the

the

console will

pears in the Calories/Fat Calories/

not

Heart Rate display

If a “d” ap

when the information mode is selected, press the

Speed

button so the display is blank.

To exit the information mode, remove the key from the console.

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be permanently damaged. CAUTION: You must be able to safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill.

1. Hold the treadmill with your hands in the locations shown

at the right.

injury, bend your legs and keep your back straight. As you raise the treadmill, make sure to lift with your legs rather than your back.

to the vertical position.

CAUTION: To decrease the possibility of

Next, unplug the power cord.

Raise the treadmill about halfway

2. Move your right hand to the position shown and hold the

treadmill firmly. Using your left hand, pull the latch knob to the left and hold it. Raise the treadmill until the foot rail is past the latch pin. Slowly release the latch knob. Make

sure that the foot rail is securely held by the latch pin.

To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85° Fahrenheit.

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the foot

rail is securely held by the latch pin.

1. Hold the handrails or console as shown and place one

foot against a wheel.

2. Tilt the treadmill back until it rolls freely on the wheels.

Carefully move the treadmill to the desired location.

Never move the treadmill without tipping it back. To reduce the risk of injury, use moving the treadmill. treadmill over an uneven surface.

Do not attempt to move the

extreme caution while

Latch Knob

Foot Rail

Open

Closed

3. Place one foot on a wheel, and carefully lower the tread-

mill until it is resting in the storage position.

Base

Wheels

HOW TO LOWER THE TREADMILL FOR USE

Hold the upper end of the treadmill with your right hand

as shown. Using your left hand, pull the latch knob to the left and hold it. Pivot the treadmill down until the frame is past the pin. Slowly release the latch knob.

2. Hold the treadmill firmly with both hands, and lower the

treadmill to the floor.

to the floor. CAUTION: To decrease the possibility of injury, bend your legs and keep your back straight.

Do not drop the treadmill frame

Latch Knob

Foot

Rail

Open

TROUBLESHOOTING

Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department tollfree at 1-888-533-1333, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).

PROBLEM: The power does not turn on

SOLUTION:

PROBLEM: The power turns off during use

SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see c. above). If the

a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor

is plugged into a properly grounded outlet (see page 10). Use only a single-outlet surge suppressor that meets all of the specifications described on page 10. Important: The treadmill is not compatible with GFCI-equipped outlets.

b. Make sure that the key is fully inserted into the console.

c. Check the circuit breaker located on the treadmill

near the power cord. If the switch protrudes as shown, the circuit breaker has tripped. To reset the circuit breaker, wait for five minutes and then press the switch back in.

d. Check the on/off switch located on the treadmill near

the power cord. The switch must be in the on position.

circuit breaker has tripped, wait for five minutes and then press the switch back in.

b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for

five minutes, and then plug it back in.

Tripped

Reset

Position

PROBLEM:

SOLUTION:

c. Remove the key from the console. Reinsert the key fully into the console.

d. Make sure that the on/off switch is in the on position.

The displays of the console do not function properly

a. Lower the treadmill to the lowest incline level. Unplug

the power cord from the front of the treadmill and

remove the key from the console. Remove a Hood Screw (45) from each side of the Motor Hood (4). Carefully remove the Motor Hood by pulling the Hood in the indicated direction.

Locate the Reed Switch (13) and the Magnet (126) on the left side of the Pulley (29). Turn the Pulley until the Magnet is aligned with the Reed Switch. Loosen the Reed Switch Screw (12), and slide the Reed Switch as close as possible to the Magnet; make sure that the Magnet will not hit the Reed Switch. Retighten the Screw. Re-attach the hood, and run the treadmill for a few minutes to check for a correct speed reading.

1/8”

Top

View

126

PROBLEM: The walking belt slows when walked on

Use only a single-outlet surge suppressor that meets all of the specifications described on page 10.

SOLUTION:

PROBLEM: The walking belt is off-center or slips when walked on

If the walking belt is overtightened, treadmill perfor-

mance may decrease and the walking belt may become damaged. Remove the key and POWER CORD. Using the allen wrench, turn both rear roller adjustment bolts counterclockwise, 1/4 of a turn. When the walking belt is properly tightened, you should be able to lift each side of the walking belt 3 to 4 inches off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, insert the key and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

c. If the walking belt still slows when walked on, please call our Customer Service Department, toll-

free.

UNPLUG THE

Rear Roller Adjustment Bolts

3”–4”

SOLUTION: a. If the walking belt is off-center, first remove the key

UNPLUG THE POWER CORD. If the walking

and belt has shifted to the left, use the allen wrench to turn the left rear roller bolt clockwise 1/2 of a turn; if the walking belt has shifted to the right, turn the bolt counterclockwise 1/2 of a turn. Be careful not to overtighten the walking belt. Plug in the power cord, insert the key and run the treadmill for a few minutes. Repeat until the walking belt is centered.

b. If the walking belt slips when walked on, first remove

the key and UNPLUG THE POWER CORD. Using the allen wrench, turn both rear roller bolts clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each side of the walking belt 3 to 4 inches off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, insert the key and carefully walk on the treadmill for a few minutes. Repeat until the walking belt is properly tightened.

PROBLEM: The incline of the treadmill does not change correctly or does not change when iFIT.com

CDs and videos are played

SOLUTION:

a. With the key inserted in the console, press one of the Incline buttons. While the incline is

changing, remove the key. After a few seconds, re-insert the key. The treadmill will automati-

cally rise to the maximum incline level and then return to the minimum level. This will recalibrate the incline.

CONDITIONING GUIDELINES

WARNING:

• Before beginning this or any exercise pro-

gram, consult your physician. This is especially important for persons over the age of 35 or persons with pre-existing health problems.

• The pulse sensor is not a medical device. Various factors may affect the accuracy of heart rate readings. The sensor is intended only as an exercise aid in determining heart rate trends in general.

The following guidelines will help you to plan your exercise program. For more detailed exercise information, obtain a reputable book or consult your physician.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recommended heart rates for fat burning and aerobic exercise.

uses easily accessible ergy. Only after the first few minutes does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the speed and incline of the treadmill until your heart rate is near the lowest number in your training zone.

For maximum fat burning, adjust the speed and incline of the treadmill until your heart rate is near the middle number in your training zone.

Aerobic Exercise

If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the speed and incline of the treadmill until your heart rate is near the highest number in your training zone.

WORKOUT GUIDELINES

Each workout should include the following three parts:

A Warm-up—Start each workout with 5 to 10 minutes of stretching and light exercise. A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise.

carbohydrate calories for en

To find the proper heart rate for you, first find your age near the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age. The three numbers define your “training zone.” The lower two numbers are recommended heart rates for fat burning; the higher number is the recommended heart rate for aerobic exercise.

To measure your heart rate during exercise, use the pulse sensor.

Fat Burning

To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time. During the first few minutes of exercise, your body

Training Zone Exercise—After warming up, increase the intensity of your exercise until your pulse is in your training zone for 20 to 60 minutes. (During the first few weeks of your exercise program, do not keep your pulse in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise—never hold your breath.

A Cool-down—Finish each workout with 5 to 10 minutes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three workouts each week, with at least one day of rest be tween workouts. After a few months, you may com plete up to five workouts each week if desired. The key to success is to make exercise a regular and enjoyable part of your everyday life.

Extension Leg Screw (34)–2

3/8” x 2" Bolt (43)–4

1/2" Screw (59)–2

1/4” x 1” Bolt (23)–4

Star Washer (113)–6

Upright Bolt (66)–2

Console Bolt (42)–4

Post Bolt (44)–4

Foot Housing Screw (105)–4

Latch Screw (36)–2

1/2" Screw (51)–14

3/4” Screw (12)–12

Foot Screw (65)–4

1/4” Washer (107)–4

Foot Rail Washer (96)–10

Handrail Spacer (43)–2

Base Leg Bolt (77)–4

Base Leg Nut (70)–4

Base Leg Bolt (77)–4

Thick Base Pad (75)–2

Thin Base Pad (103)–2

Foot Rail Screw (97)–10

Remove this chart and use it to identify small parts during assembly. Save this chart and the EXPLODED DRAWING/PART LIST for future reference.

PART LIST—Model No. PFTL69712 R0304A

Key

Qty. Description

No.

1 Decal

1 2 5 Pulse Sensor Plate 3 1 Hood Cover 4 1 Motor Hood 5 2 Tinnerman Clip 6 1 Left Foot Rail 7 1 Motor Belt 8 1 Frame Pivot Nut

9 1 Lift Frame 10 1 Incline Decal 11 2 Frame Spacer 12 12 3/4” Screw 13 1 Reed Switch 14 1 Jack 15 4 Motor Bolt 16 13 Electronics Screw 17 1 Controller 18 1 Electronics Bracket 19 1 Power Board 20 4 Plastic Stand-off 21 1 Left Top Handgrip 22 1 Choke Bracket 23 2 Choke Nut 24 1 Choke 25 1 Motor Tension Bolt 26 1 Motor Tension Washer 27 8 Cage Nut 28 1 Flywheel 29 1 Front Roller/Pulley 30 1 Motor 31* 1 Motor Assembly 32 1 Front Roller Adj. Bolt 33 1 Console/

Pulse Bar Wire 34 1 Motor Controller Wire 35 1 Left Upright 36 37 1 Latch Assembly 38 39 1 Latch Spacer 40 1 Left Bottom Handgrip 41 2 Handgrip Post 42 4 Console Bolt 43 44 4 Post Bolt 45 46 1 Console Insert 47 48 1 Cup Holder, Left

2 Latch Screw

Choke Bracket Bolt

2 Post Spacer

Hood Screw

Console Base, Front

Key

Qty. Description

No.

49 50 1 Cup Holder, Right 51 37 1/2” Screw 52 1 Console Base, Back 53 1 Right Top Handgrip 54 1 Right Bottom Handgrip 55 1 Wire Harness 56 2 Releasable Wire Tie 57 2 Key/Clip 58 1 Right Upright 59 2 Front Wheel Cover 60 2 Front Wheel Bolt 61 2 Spring Washer 62 2 Front Wheel 63 2 Front Wheel Nut 64 1 Wheel Bracket, Right 65 4 Foot Screw 66 2 Upright Bolt 67 2 Upright Endcap 68 3 Warning Decal 69 2 Incline Pivot Bolt 70 4 Base Leg Nut 71 1 Tension Cage Nut 72 1 Incline Motor 73 1 Incline Stop Bracket 74 1 Incline Motor

75 4 Thick Base Pad 76 1 Incline Motor

77 4 Base Leg Bolt 78 2 Base Leg 79 3 Tie Block 80 1 Ground Screw 81 1 12” Ground Wire 82 2 Belly Pan

83 1 Belly Pan 84 85 1 iFit Wire Nut 86 2 Static Decal 87 1 Breaker Nut 88 1 Receptical 89 90 1 Belly Pan Plug 91 92 1 IFit Wire 93 94 4 Belt Guide Screw

1 Book Rack

Bolt, Top

Bolt, Bottom

Screw, Long

Pulse Wire Harness

1 Circuit Breaker

On/Off Switch

Power Cord

Key

Qty. Description

No.

95 96 10 Foot Rail Washer 97 10 Foot Rail Screw 98 1 Right Foot Rail

99 1 Frame 100 1 Walking Platform 101 1 Walking Belt 102 2 Latch Decal 103 2 Thin Base Pad 104 2 Rubber Foot 105 4 Foot Housing Screw 106 1 Right Foot Housing 107 7 1/4” Washer 108 2 Rear Roller Adj. Bolt 109 1 Allen Wrench 110 1 Left Foot Housing 111 1 Rear Roller 112 1 IFit Wire 113 6 Star Washer 114 6 Walking Platform

115 1 Console Ground Wire 116 1 Frame Pivot Bolt,

117 1 Base 118 1 Wheel Bracket, Left 119 1 Console Support

120 1 Pulse Door 121 2 Base Leg Endcap 122 2 Base Endcap 123 4 Wire Tie 124 1 Belly Pan Wire

125 1 Mat 126 1 Magnet 127

# These parts are not illustrated *

1 Belt Guide

Screw

Right

Frame

Harness

2 Incline Motor Nut

# 1 14” Blue Wire, 2F

4” Blue Wire, 2F

# # 1 10” White Wire, 2F # 1 4” Black Wire, 2F # 1 4” Red Wire, M/F # 1 12” Green Wire, F/Ring

1 25” Wire Harness

# # 1 User's Manual

Includes all parts shown in the box

31*

127

118

109

108

107

110

104

101

100

106

104

108

107

111

112

102

105

113

107

114

102

121

117

119

120

115

123

124

126

116

122

103

125

EXPLODED DRAWING—Model No. PFTL69712 R0304A

ORDERING REPLACEMENT PARTS

To order replacement parts, call our Customer Service Department toll-free at 1-888-533-1333, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give the following information:

• The MODEL NUMBER OF THE PRODUCT (PFTL69712)

• The NAME OF THE PRODUCT (PROFORM

• The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)

• The KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the EXPLODED DRAWING and PART LIST attached in the center of this manual)

e35s treadmill)

LIMITED WARRANTY

ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center; products used for commercial or rental purposes; or products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con nection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of in cidental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

Part No. 207635 R0304A

Printed in USA

ProForm PFTL69712 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
