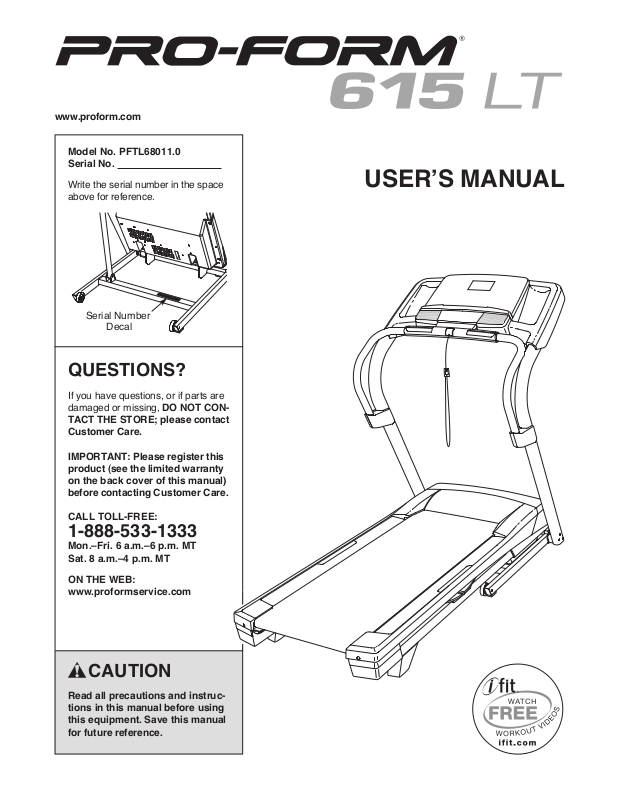

www.proform.com
Model No. PFTL68011.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT CON-
TACT THE STORE; please contact
Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
USERʼS MANUAL
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
P
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the locations of the warning
decals. If a decal is missing or illegible, call
the telephone number on the front cover of
this manual and request a free replacement
decal. Apply the decal in the location shown.
Note: The decals may not be shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and in-
tructions in this manual and all warnings on your treadmill before using your treadmill. ICON as-
s
sumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
1. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with
pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under age 12 and pets away
from the treadmill at all times.
carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.
12. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 13. To purchase a surge suppressor, see
your local PROFORM dealer or call the telephone number on the front cover of this manual and order part number 146148, or see your
local electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may slow,
accelerate, or stop unexpectedly, which may
result in a fall and serious injury.
14. Keep the power cord and the surge suppres-
sor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROUBLESHOOTING on page 23 if the treadmill is
not working properly.)
8. The treadmill should be used only by persons
weighing 300 lbs. (136 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended
for both men and women. Always wear ath-
letic shoes. Never use the treadmill with bare
feet, wearing only stockings, or in sandals.
11. When connecting the power cord (see page
13), plug the power cord into a surge suppressor (not included) and plug the surge
suppressor into a grounded circuit capable of
16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 15).
17. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
18. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
19. The heart rate monitor is not a medical device. Various factors, including the user's
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is intended only as an exercise aid in determining
heart rate trends in general.
3
0. Never leave the treadmill unattended while it
2
is running. Always remove the key, unplug
the power cord, and press the power switch
into the off position when the treadmill is not
in use. (See the drawing on page 5 for the location of the power switch.)
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 7, and HOW TO FOLD
AND MOVE THE TREADMILL on page 22.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
22. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
23. Never insert any object into any opening on
the treadmill.
SAVE THESE INSTRUCTIONS
4. Inspect and properly tighten all parts of the
2
treadmill regularly.
25.
DANGER: Always unplug the power
cord immediately after use, before cleaning the
treadmill, and before performing the mainte-
ance and adjustment procedures described in
n
this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the
procedures in this manual should be performed
by an authorized service representative only.
26. This treadmill is intended for in-home use
only. Do not use this treadmill in a commercial, rental, or institutional setting.
27. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM
15 LT treadmill. The 615 LT treadmill offers an im-
6
pressive selection of features designed to make your
workouts at home more enjoyable and effective. And
when youʼre not exercising, the unique treadmill can be
olded up, requiring less than half the floor space of
f
other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
Length: 6 ft. (183 cm)
Width: 2 ft. 10 in. (86 cm)
Handrail
Tray
®
ing this manual, please see the front cover of this man-
al. To help us assist you, please note the product
u
model number and serial number before contacting us.
The model number and the location of the serial number decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Pulse Sensor
Console
Key/Clip
Walking Belt
Foot Rail
Idler Roller
Adjustment Screws
Power Switch
Power Cord
Platform Cushion
5
#8 x 1/2" Ground
Screw (1)–1
3/8" Star
Washer (5)–6
3/8" Nut (3)–3
#8 x 3/4" Screw
(6)–18
5/16" Star
Washer (8)–2
1/4" x 5/8"
Screw (9)–4
1/4" Star
Washer (11)–4
3/8" x 2" Bolt (13)–1
3/8" x 1 3/4" Patch Screw (12)–1
1/4" x 1 3/4"
Patch Screw (10)–4
5/16" x 3 1/4"
Patch Screw (7)–2
3/8" x 4" Patch Screw (4)–6
3/8" x 2 1/2" Patch Bolt (2)–2
PART IDENTIFICATION CHART
se the drawings below to identify small parts used for assembly. The number in parentheses below each draw-
U
ing is the key number of the part, from the PART LIST near the end of this manual. The number following the key
number is the quantity used for assembly. Note: If a part is not in the hardware kit, check to see if it is preat-
tached. Some extra hardware may be included.
6
ASSEMBLY
• To hire a service technician to assemble this
product in your home, call 1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the pack-
ing materials until you finish assembly.
• The underside of the walking belt is coated with
high-performance lubricant. After shipping, there
may be some lubricant on top of the walking belt
or on the shipping carton. This is normal. If there
is lubricant on top of the walking belt, wipe it
off with a soft cloth and a mild, non-abrasive
cleaner.
1. Make sure that the power cord is unplugged.
Attach a Wheel (81) to the Base (80) with a 3/8"
x 2 1/2" Patch Bolt (2) and a 3/8" Nut (3). Do
not overtighten the Nut; the Wheel must turn
freely.
• To identify small parts, see page 6.
Assembly requires the following tools:
•
the included hex key
one adjustable wrench
one Phillips screwdriver
scissors
needlenose pliers
To avoid damaging parts, do not use power
tools for assembly.
1
Attach the other Wheel (not shown) to the
other side of the Base (80) in the same way.
2. Remove the ties securing the Upright Wire (70)
to the Base (80). Pull the Upright Wire and the
Base Ground Wire (92) through the indicated
hole in the Base (80).
Attach the Base Ground Wire (92) to the Base
(80) with a #8 x 1/2" Ground Screw (1).
Press a Base Cap (77) into each side of the
Base (80). Make sure the Grommet (67) is
pressed into the square hole in the Base.
80
2
81
3
2
Hole
77
92
1
80
70
7678
3. Identify the Left Upright (75), which is marked
“Left.” Have a second person hold the Left
Upright near the Base (80).
3
See the inset drawing. Tie the wire tie in the
eft Upright (75) securely around the end of the
L
Upright Wire (70). Then, pull the other end of the
wire tie until the Upright Wire is routed through
the Left Upright.
4. Hold the Left Upright (75) against the Base
(80). Be careful not to pinch the wires. Insert
a 3/8" x 4" Patch Screw (4) with a 3/8" Star
Washer (5) into the top hole in the Left Upright.
70
5
7
Wire
Tie
75
70
Wire Tie
4
80
Insert the 3/8" x 4" Patch Screw (4) partially
through the Left Upright (75). Next, slide a
Screw Spacer (93) onto the end of the Patch
Screw. Then, partially tighten the Patch Screw
into the Base (80).
Partially tighten two more 3/8" x 4" Patch
Screws (4) with two 3/8" Star Washers (5); do
not fully tighten the Patch Screws yet.
Attach the Right Upright (not shown) in the
same way. Note: There are no wires on the
right side.
75
4
93
5
Wires
80
. Set the Console Base (83) face down on a soft
5
surface to avoid scratching the Console Base.
5
Remove the two #8 x 3/4" Screws (6) from the
onsole Frame (87). Remove the Console
C
Frame. Discard the Screws.
6. Attach the Console Frame (87) to the Left
Upright (75) and the Right Upright (76) with two
5/16" x 3 1/4" Patch Screws (7) and two 5/16"
Star Washers (8); do not fully tighten the
Patch Screws yet.
6
6
83
7
8
6
87
75
8
7
8
76
7
9
7. Insert the upper end of the Left Handrail (71)
into the tube on the Console Frame (87). Hold
the lower end against the Left Upright (75).
7
Attach the Left Handrail (71) with two 1/4" x
3/4" Patch Screws (10), two 1/4" Star
1
Washers (11), and two 1/4" x 5/8" Screws (9) as
shown; do not fully tighten the Screws yet.
Attach the Right Handrail (not shown) as described above.
8. Locate the tie in the console assembly. Use the
tie to pull the ground wires out of the hole in the
console assembly.
71
75
8
9
11
10
87
Console
Assembly
With the help of a second person, hold the console assembly near the Left Upright (75).
Connect the Upright Wire (70) to the console
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CONNECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER.
Remove the wire tie from the Upright Wire (70).
Connect the ground wires and remove the tie.
Tie
Console
Wire
70
Ground
Wires
Console
Wire
Wire
Tie
70
75
10
9. Insert the ground wires into the console assembly as you set the console assembly on the Left
Upright (75) and the Right Upright (not shown).
ake sure that no wires are pinched.
M
ttach the console assembly with eight #8 x 3/4"
A
Screws (6) (four are shown); start all eight
Screws, and then tighten each of them. Do
not overtighten the Screws.
Insert the wires into the Left Upright (75).
9
Console
Ground
Wires
Assembly
Fully tighten the ten Screws (7, 9, and 10) (only
one side is shown).
See step 4. Fully tighten the six 3/8" x 4" Patch
Screws (4).
10. Attach the Pulse Bar Bottom (90) to the console
assembly with six #8 x 3/4" Screws (6); start all
six Screws, and then tighten each of them.
Do not overtighten the Screws.
10
Console
Assembly
Wires
6
9
6
75
10
7
11
90
6
6
6
11. Attach a Left Handrail Cover (73) to the lower
end of the Left Handrail (71) with two #8 x 3/4"
Screws (6). Be careful not to overtighten the
crews.
S
ress the Left Handrail Cover (73) and a Right
P
Handrail Cover (74) together around the Left
Handrail (71) and the Left Upright (75).
11
71
Attach the other Covers (not shown) around
the Right Handrail (72) as described above.
12. Raise the Frame (49) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (51) so that the large
barrel and the latch knob are oriented as shown.
Attach the upper end of the Storage Latch (51)
to the Frame (49) with a 3/8" x 1 3/4" Patch
Screw (12).
75
73
72
74
6
12
49
12
Attach the lower end of the Storage Latch (51) to
the Base (80) with a 3/8" x 2" Bolt (13) and a
3/8" Nut (3). Note: It may be necessary to move
the Frame (49) back and forth to align the
Storage Latch with the Base.
Lower the Frame (49) (see HOW TO LOWER
THE TREADMILL FOR USE on page 22).
13. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill.
Note: Extra hardware may be included. Keep the included hex key in a secure place; the hex key is used to
adjust the walking belt (see pages 24 and 25).
Latch
Knob
Large
Barrel
13
51
3
80
12
OPERATION AND ADJUSTMENT
HE PRE-LUBRICATED WALKING BELT
T
Your treadmill features a walking belt coated with highperformance lubricant. IMPORTANT: Never apply sil-
cone spray or other substances to the walking
i
belt or the walking platform. Such substances will
cause excessive wear.
HOW TO PLUG IN THE POWER CORD
ance with all local codes and ordinances.
d
IMPORTANT: The treadmill is not compatible with
GFCI-equipped outlets and may not be compatible
with AFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit
(see drawing 1). A temporary adapter may be used to
connect the surge suppressor to a 2-pole receptacle if
a properly grounded outlet is not available (see drawing 2).
DANGER: Improper connection
of the equipment-grounding conductor increases the risk of electric shock. Check with
a qualified electrician or serviceman if you
are unsure whether the product is properly
grounded. Do not modify the plug—if it will
not fit the outlet, have a proper outlet installed by a qualified electrician.
Your treadmill, like other electronic equipment, can be
damaged by sudden voltage changes in your homeʼs
power. To decrease the risk of damaging your
treadmill, always use a surge suppressor with your
treadmill (see drawing 1 at the right). To purchase
a surge suppressor, see precaution 12 on page 3.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could damage the control system of the treadmill (see precaution 13 on page 3).
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This productʼs power cord has an equipment-grounding conductor and a grounding plug. Plug
the power cord into a surge suppressor, and plug
the surge suppressor into an appropriate outlet
that is properly installed and grounded in accor-
1
Grounded Outlet
2
Metal Screw
The temporary adapter should be used only until a
properly grounded outlet (see drawing 1) can be installed by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
The adapter must be held in place by a metal screw.
Some 2-pole receptacle outlet box covers are not
grounded. Contact a qualified electrician to determine if the outlet box cover is grounded before
using an adapter.
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Grounding Pin
Grounding Plug
Grounded Outlet Box
Adapter
Lug
Grounding Plug
Surge Suppressor
13
CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of
features designed to make your workouts more effective and enjoyable. When you use the manual mode,
you can change the speed and incline of the treadmill
with the touch of a button. As you exercise, the console will display instant exercise feedback. You can
even measure your heart rate using the heart rate
monitor.
In addition, the console features sixteen onboard workouts—eight calorie workouts and eight timed workouts.
Each workout automatically controls the speed and incline of the treadmill as it guides you through an effective exercise session.
The console also features an iFit Live mode that enables the treadmill to communicate with your wireless
network through an optional iFit Live module. With the
iFit Live mode, you can download personalized workouts, create your own workouts, track your workout results, race against other runners, and access many
other features. To purchase an iFit Live module at
any time, go to www.iFit.com or call the telephone
number on the front cover of this manual.
You can even listen to your favorite workout music or
audio books with the consoleʼs stereo sound system
while you exercise.
To turn on the power, see page 15. To use the manual mode, see page 15. To use the cool down
mode, see page 17. To use an onboard workout,
see page 18. To use an iFit Live workout, see page
19. To use the stereo sound system, see page 20.
To use the information mode, see page 21.
IMPORTANT: If there are sheets of plastic on the
console, remove the plastic. To prevent damage to
the walking platform, wear clean athletic shoes
while using the treadmill. The first time you use the
treadmill, observe the alignment of the walking
belt, and center the walking belt if necessary (see
page 25).
14
HOW TO TURN ON THE POWER
HOW TO USE THE MANUAL MODE
IMPORTANT: If the treadmill has been exposed to
old temperatures, allow it to warm to room tem-
c
perature before turning on the power. If you do not
o this, you may damage the console displays or
d
other electrical components.
Plug in the power cord (see
page 13). Next, locate the
power switch on the treadmill frame near the power
cord. Press the power
switch into the reset
position.
IMPORTANT: The console features a display demo
mode, designed to be used if the treadmill is displayed in a store. If the displays light as soon as
you plug in the power cord and press the power
switch into the reset position, the demo mode is
turned on. To turn off the demo mode, hold down
the Stop button for a few seconds. If the displays
remain lit, see THE INFORMATION MODE on page
21 to turn off the demo mode.
Next, stand on the
foot rails of the
treadmill. Find the
clip attached to the
key and slide the
clip onto the waistband of your
clothes. Then, insert the key into
the console. After
a moment, the displays will light. IMPORTANT: In an
emergency, the key can be pulled from the console, causing the walking belt to slow to a stop.
Test the clip by carefully taking a few steps backward; if the key is not pulled from the console, adjust the position of the clip.
Note: The console can display speed and distance in
either miles or kilometers. To find which unit of measurement is selected, see THE INFORMATION MODE
on page 21. For simplicity, all instructions in this manual refer to miles.
Key
Reset
Clip
1. Insert the key into the console.
See HOW TO TURN ON THE POWER at the left.
2. Select the manual mode.
Press the Manual button on the console. If you are
not connected to iFit Live, the manual mode will be
selected automatically.
3. Start the walking belt.
To start the walking belt, press the Start button, the
Speed increase button, or one of the numbered
Quick Speed buttons.
If you press the Start button or the Speed increase
button, the walking belt will begin to move at 1
mph. As you exercise, change the speed of the
walking belt as desired by pressing the Speed increase and decrease buttons. Each time you press
one of the buttons, the speed setting will change by
0.1 mph; if you hold down the button, the speed
setting will change in increments of 0.5 mph. Note:
After you press the button, it may take a moment
for the walking belt to reach the selected speed
setting.
If you press one of the numbered Quick Speed buttons, the walking belt will gradually change speed
until it reaches the selected speed setting. To select a speed setting that includes a decimal—such
as 3.5 mph—press two numbered buttons in succession. For example, to select a speed setting of
3.5 mph, press the 3 button and then immediately
press the 5 button.
To stop the walking belt, press the Stop button.
The time will begin to flash in the display. To restart
the walking belt, press the Start button or the
Speed increase button.
15
4. Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the
ncline increase or decrease button or one of the
I
numbered Quick Incline buttons. Each time you
ress one of the buttons, the treadmill will gradu-
p
ally adjust to the selected incline setting.
5. Follow your progress with the displays.
As you walk or run on the treadmill, the display can
show the following workout information:
• The elapsed time
• The distance that you have walked or run
• The matrix
• The workout intensity bar
• The approximate number of calories you have
burned
• The incline level of the treadmill
• The number of vertical feet you have climbed
Trail tab will show a track that represents 1/4 mile
(400 meters). As you exercise, the flashing rectangle will show your progress. The My Trail tab will
lso show the number of laps you are completing.
a
he Calorie tab will show the approximate amount
T
of calories you have burned. The height of each
segment represents the amount of calories burned
during that segment. Note: When you select the
Calorie tab, the calorie display will show the approximate number of calories burned per hour.
As you exercise, the workout intensity level bar will
indicate the approximate intensity level of your exercise.
Press the Home button to return to the default
menu (see THE INFORMATION MODE on page
21 to set the default menu). If necessary, press the
Home button again.
• The speed of the walking belt
• Your heart rate (see step 6 on page 17)
The matrix offers several display tabs. Press the
increase and decrease button next to the Enter
button until the desired tab is shown.
The Incline tab will show a profile of the incline settings of the workout. A new segment will appear at
the end of each minute. The Speed tab will show a
profile of the speed settings of the workout. The My
When a wireless iFit Live
module is connected, the
wireless symbol at the
top of the display will
show the strength of your
wireless signal. Four arcs
indicate full signal
strength.
To reset the displays, press the Stop button, remove the key, and then reinsert the key.
16
6. Measure your heart rate if desired.
Before using the
eart rate moni-
h
tor, remove the
heets of plastic
s
from the metal
contacts, if necessary. In addition, make sure
that your hands
are clean.
To measure your heart rate, stand on the foot
rails and hold the metal contacts on the handrails
for approximately ten seconds—avoid moving
your hands. When your pulse is detected, a heart
symbol in the calorie display will flash each time
your heart beats, one or two dashes will appear,
and then your heart rate will be shown. For the
most accurate heart rate reading, continue to
hold the contacts for about 15 seconds.
Contacts
7. When you are finished exercising, remove the
key from the console.
tep onto the foot rails, press the Stop button, and
S
adjust the incline of the treadmill to the lowest
etting. The incline must be at the lowest set-
s
ting or you may damage the treadmill when you
fold it to the storage position. Next, remove the
key from the console and put it in a secure place.
When you are finished using the treadmill, press
the power switch into the off position and unplug
the power cord. IMPORTANT: If you do not do
this, the treadmillʼs electrical components may
wear prematurely.
THE COOL DOWN MODE
To select the cool down mode, press the Cool Down
button. Then, press the Start button. The walking belt
will begin to move at 2.5 mph. After a few minutes, the
walking belt will slow to a stop.
17
HOW TO USE AN ONBOARD WORKOUT
1. Insert the key into the console.
ent speed and/or incline setting is programmed for
the next segment, the treadmill will automatically
adjust to the new speed and/or incline setting.
See HOW TO TURN ON THE POWER on page 15.
2. Select an onboard workout.
To select an onboard workout, press the Calories
button or the Timed button repeatedly until the desired workout appears in the display.
When you select an onboard workout, the display
will show the duration, the distance, the name, the
maximum speed setting, and the maximum incline
setting of the workout. In addition, a profile of the
speed settings of the workout will appear in the matrix. If you select a calorie workout, the approximate
number of calories you will burn will appear in the
name of the workout.
3. Start the workout.
Press the Start button or the Speed increase button
to start the workout. A moment after you press the
button, the treadmill will automatically adjust to the
first speed and incline settings of the workout. Hold
the handrails and begin walking.
Each workout is divided into segments. One speed
setting and one incline setting are programmed for
each segment. Note: The same speed setting
and/or incline setting may be programmed for consecutive segments.
During the
workout, the
profiles on
the speed
and incline
tabs will
show your
progress.
The flashing segment of the profile represents the
current segment of the workout. The height of the
flashing segment indicates the speed or incline setting for the current segment. At the end of each
segment, a series of tones will sound and the next
segment of the profile will begin to flash. If a differ-
Current Segment
The workout will continue in this way until the last
egment of the profile flashes in the display and the
s
last segment ends. The walking belt will then slow
to a stop.
Note: The calorie goal is an estimate of the
number of calories that you will burn during the
workout. The actual number of calories that you
burn will depend on your weight. In addition, if
you manually change the speed or incline of
the treadmill during the workout, the number of
calories you burn will be affected.
If the speed or incline setting is too high or too low
at any time during the workout, you can manually
override the setting by pressing the Speed or
Incline buttons; however, when the next segment
of the workout begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.
To stop the workout at any time, press the Stop
button. The time will begin to flash in the display.
To resume the workout, press the Start button or
the Speed increase button. The walking belt will
begin to move at 1 mph. When the next segment of
the workout begins, the treadmill will automatically
adjust to the speed and incline settings for the next
segment.
4. Follow your progress with the displays.
See step 5 on page 16. The display will show the
time remaining instead of the elapsed time.
5. Measure your heart rate if desired.
See step 6 on page 17.
6. When you are finished exercising, remove the
key from the console.
See step 7 on page 17.
18
HOW TO USE AN IFIT LIVE WORKOUT
Note: To use an iFit Live workout, you must have an
ptional iFit Live module. To purchase an iFit Live
o
module at any time, go to www.iFit.com or call the
elephone number on the front cover of this man-
t
ual. You must also have access to a computer with a
USB port and an internet connection. In addition, you
must have access to a wireless network including an
802.11b router with SSID broadcast enabled (hidden
networks are not supported). An iFit.com membership
is also required.
1. Insert the key into the console.
or the Event Training button to download the next
workout of that type in your schedule. Press the
Compete button to compete in a race that you have
reviously scheduled. For more information
p
about the iFit Live workouts, please see
ww.iFit.com.
w
When you select an iFit Live workout, the display
will show the duration of the workout, the distance
you will walk or run, and the approximate number of
calories you will burn. The display may also show
the name of the workout. If you select a competition
workout, the display will count down to the beginning of the race.
See HOW TO TURN ON THE POWER on page 15.
2. Insert the iFit Live module into the console.
To insert the iFit Live module, see the instructions
included with the iFit Live module.
3. Select a user.
If more than one user is registered, you can switch
users in the iFit Live main screen. Press the increase and decrease buttons next to the Enter button to select a user.
4. Select an iFit Live workout.
To select an iFit Live workout, press one of the iFit
Live buttons. Before some workouts will download,
you must add them to your schedule on
www.iFit.com.
Press the iFit Live button to download the next
workout in your schedule. Press the My Trainer
button, the My Maps button, the World Tour button,
Note: Each iFit Live button can also run two demo
workouts. To use the demo workouts, remove the
iFit Live module from the console and press one of
the iFit Live buttons.
5. Start the workout.
See step 3 on page 18.
During some workouts, the voice of a personal
trainer will guide you through your workout. You
can select an audio setting for your personal trainer
(see THE INFORMATION MODE on page 21).
To stop the workout at any time, press the Stop
button. The time will begin to flash in the display.
To resume the workout, press the Start button or
the Speed increase button. The walking belt will
begin to move at the speed setting for the first segment of the workout. When the next segment of the
workout begins, the treadmill will automatically adjust to the speed and incline settings for the next
segment.
19
6. Follow your progress with the displays.
HOW TO USE THE STEREO SOUND SYSTEM
See step 5 on page 16.
The My Trail tab will show a map of the trail you
re walking or running or it will show a track and
a
the number of laps you are completing.
During a competition workout, the Compete tab will
show your progress in the race. As you race, the
top line in the matrix will show how much of the
race you have completed. The other lines will show
your top four competitors. The end of the matrix
represents the end of the race.
7. Measure your heart rate if desired.
See step 6 on page 17.
8. When you are finished exercising, remove the
key from the console.
See step 7 on page 17.
For more information about the iFit Live mode, go
to www.iFit.com.
To play music or audio books through the consoleʼs
tereo speakers, you must connect your MP3 player,
s
CD player, or other personal audio player to the con-
ole through the MP3 jack.
s
To use the MP3 jack, locate the included audio wire
and plug it into the MP3 jack. Then, plug the audio wire
into a jack on your MP3 player, CD player, or other
personal audio player. Make sure that the audio wire
is fully inserted.
Next, press the Play button on your MP3 player, CD
player, or other personal audio player. Adjust the volume on your personal audio player or press the Vol increase and decrease buttons on the console.
If you are using a personal CD player and the CD
skips, set the CD player on the floor or another flat surface instead of on the console.
20
THE INFORMATION MODE
The console features an information mode that keeps
rack of treadmill information and allows you to person-
t
alize console settings.
To select the information mode, hold down the Stop
button while inserting the key into the console and then
release the Stop button. When the information mode is
selected, the following information will be shown:
The time display will show the total number of hours
the treadmill has been used.
The distance display will show the total number of
miles (or kilometers) that the walking belt has moved.
The lower section of the display will show the status of
an iFit Live module. If an iFit Live module is connected,
the display will show the words WIFI MODULE. If a
USB module is connected, the display will show the
words USB/SD MODULE. If no module is connected,
the display will show the words NO IFIT MODULE.
While the information mode is selected, the matrix
will display several optional screens. Press the decrease button next to the Enter button to select
each of the following screens:
1. UNITS: To change the unit of measurement, press
the Enter button. To view distance in miles, select
ENGLISH. To view distance in kilometers, select
METRIC.
3. CONTRAST LVL: Press the Incline increase and
decrease buttons to adjust the contrast level of the
display.
If a module is connected, you may also select the
ollowing screen:
f
4. TRAINER VOICE: To turn on or turn off the voice
of the personal trainer, press the Enter button.
If an iFit Live module is connected, you may also
select the following screens:
5. DEFAULT MENU: The default menu will appear
when you insert the key into the console or when
you press the Home button. Press the Enter button
repeatedly to select the manual main screen or the
iFit Live screen as the default menu.
6. CHECK WIFI STATUS: Press the Enter button to
check the status of your iFit Live module. The lower
display will show the software version number, the
network SSID, the network encryption type, the
connection status, the wireless signal strength, the
IP address of the module, the number of registered
users and their names, the results of the DNS
lookup, and the status of the iFit Live server.
7. SEND/RECEIVE DATA: To send and receive
workouts, workout logs, and updates, press the
Enter button. When the process is finished, the
words TRANSFERS DONE will appear in the
display.
2. DEMO: The console features a display demo
mode, designed to be used if the treadmill is displayed in a store. While the demo mode is turned
on, the console will function normally when you
plug in the power cord, press the power switch into
the reset position, and insert the key into the console. However, when you remove the key, the displays will remain lit, although the buttons will not
function. If the demo mode is turned on, the word
ON will appear in the matrix. To turn on or turn off
the demo mode, press the Enter button.
To exit the information mode, remove the key from the
console.
21
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL
To avoid damaging the treadmill, adjust the incline
o the lowest position before you fold the treadmill.
t
Then, remove the key and unplug the power cord.
AUTION: You must be able to safely lift 45 lbs. (20
C
kg) to raise, lower, or move the treadmill.
1. Hold the metal frame firmly in the location shown
by the arrow below. CAUTION: Do not hold the
frame by the plastic foot rails. Bend your legs
and keep your back straight.
1
Frame
HOW TO MOVE THE TREADMILL
Before moving the treadmill, fold it as described at the
eft. CAUTION: Make sure that the latch knob is
l
locked in the storage position. Moving the tread-
ill may require two people.
m
1. Hold the frame and one of the handrails, and place
one foot against a wheel.
1
Frame
Handrail
Wheel
2. Raise the frame until the latch knob locks in the
storage position. CAUTION: Make sure that the
latch knob locks.
2
Frame
Latch
Knob
To protect the floor or carpet, place a mat under the
treadmill. Keep the treadmill out of direct sunlight.
Do not leave the treadmill in the storage position in
temperatures above 85° F (30° C).
2. Pull back on the handrail until the treadmill will roll
on the wheels, and carefully move it to the desired
location. CAUTION: Do not move the treadmill
without tipping it back, do not pull on the frame,
and do not move the treadmill over an uneven
surface.
3. Place one foot against a wheel, and carefully lower
the treadmill.
HOW TO LOWER THE TREADMILL FOR USE
1. See drawing 2. Hold the upper end of the treadmill
frame with your left hand. Then, pull the latch knob
to the right. IMPORTANT: Do not turn the latch
knob. If necessary, push the frame forward
slightly. Pivot the frame downward a few inches,
and release the latch knob.
2. See drawing 1 at the left. Hold the metal frame
firmly with both hands, and lower it to the floor.
CAUTION: Do not hold the frame by the plastic
foot rails, and do not drop the frame. Bend your
legs and keep your back straight.
22
TROUBLESHOOTING
Most treadmill problems can be solved by following
the simple steps below. Find the symptom that
applies, and follow the steps listed. If further assis-
ance is needed, see the front cover of this manual.
t
YMPTOM: The power does not turn on
S
a. Make sure that the power cord is plugged into a
surge suppressor, and that the surge suppressor is
plugged into a properly grounded outlet (see page
13). Use only a single-outlet surge suppressor that
meets all of the specifications described on page
13. IMPORTANT: The treadmill is not compati-
ble with GFCI-equipped outlets and may not be
compatible with AFCI-equipped outlets.
b. After the power cord has been plugged in, make
sure that the key is inserted into the console.
c. Check the power switch located on the treadmill
frame near the power cord. If the switch protrudes
as shown, the switch has tripped. To reset the
power switch, wait for five minutes and then press
the switch back in.
c
Tripped
Reset
c. Remove the key from the console, and then
reinsert it.
. If the treadmill still will not run, please see the front
d
cover of this manual.
SYMPTOM: The console displays remain lit when
you remove the key from the console
a. The console features a display demo mode, de-
signed to be used if the treadmill is displayed in a
store. If the displays remain lit when you remove
the key, the demo mode is turned on. To turn off
the demo mode, hold down the Stop button for a
few seconds. If the displays are still lit, see THE
INFORMATION MODE on page 21 to turn off the
demo mode.
SYMPTOM: The displays of the console do not
function properly
a. Remove the key from the console and UNPLUG
THE POWER CORD. Place the treadmill in the
storage position (see HOW TO FOLD THE
TREADMILL on page 22).
Next, remove the two indicated #8 x 3/4" Screws
(6).
SYMPTOM: The power turns off during use
a. Check the power switch (see the drawing above). If
the switch has tripped, wait for five minutes and
then press the switch back in.
b. Make sure that the power cord is plugged in. If the
power cord is plugged in, unplug it, wait for five
minutes, and then plug it back in.
a
6
6
23
Lower the treadmill (see HOW TO LOWER THE
TREADMILL FOR USE on page 22). Remove the
three #8 x 3/4" Screws (6). Carefully slide the
otor Hood (57) off.
M
button. The treadmill will automatically rise to the
maximum incline level and then return to the minimum level. This will calibrate the incline system. If
he incline system does not calibrate, press the
t
Stop button, and then press the Incline increase or
ecrease button again. When the incline system is
d
calibrated, remove the key from the console.
7
5
Locate the Reed Switch (95) and the Magnet (44)
on the left side of the Pulley (43). Turn the Pulley
until the Magnet is aligned with the Reed Switch.
Make sure that the gap between the Magnet
and the Reed Switch is about 1/8 in. (3 mm). If
necessary, loosen the #8 x 3/4" Truss Head Screw
(19), move the Reed Switch slightly, and then
retighten the Screw. Reattach the Motor Hood (not
shown) with the five #8 x 3/4" Screws (not shown)
and run the treadmill for a few minutes to check for
a correct speed reading.
Front
View
44
6
6
43
19
95
1/8 in.
SYMPTOM: The walking belt slows when walked on
a. Use only a single-outlet surge suppressor that
meets all of the specifications described on page 13.
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may become damaged. Remove the key and UNPLUG
THE POWER CORD. Using the hex key, turn both
idler roller screws counterclockwise, 1/4 of a turn.
When the walking belt is properly tightened, you
should be able to lift each edge of the walking belt
2 to 3 in. (5 to 7 cm) off the walking platform. Be
careful to keep the walking belt centered. Then,
plug in the power cord, insert the key, and run the
treadmill for a few minutes. Repeat until the walking belt is properly tightened.
b
2–3 in.
SYMPTOM: The incline of the treadmill does not
change correctly
a. Hold down the Stop button and the Speed increase
button, insert the key into the console, and then release both buttons. Next, press the Stop button,
and then press the Incline increase or decrease
Idler Roller Screws
c. If the walking belt still slows when walked on, see
the front cover of this manual.
24
SYMPTOM: The walking belt is off-center or slips
when walked on
. If the walking belt is off-center, first remove the
a
key and UNPLUG THE POWER CORD. If the
alking belt has shifted to the left, use the hex
w
key to turn the left idler roller screw clockwise 1/2
of a turn; if the walking belt has shifted to the
right, turn the left idler roller screw counterclockwise 1/2 of a turn. Be careful not to overtighten the
walking belt. Then, plug in the power cord, insert
the key, and run the treadmill for a few minutes.
Repeat until the walking belt is centered.
a
b. If the walking belt slips when walked on, first re-
move the key and UNPLUG THE POWER CORD.
Using the hex key, turn both idler roller screws
lockwise, 1/4 of a turn. When the walking belt is
c
correctly tightened, you should be able to lift each
dge of the walking belt 2 to 3 in. (5 to 7 cm) off
e
the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and carefully walk on the treadmill for
a few minutes. Repeat until the walking belt is
properly tightened.
b
SYMPTOM: The console display has lines running
through it
a. If lines appear in the console display, see THE IN-
FORMATION MODE on page 21 and adjust the
contrast level of the display.
25
EXERCISE GUIDELINES
WARNING: Before beginning this
r any exercise program, consult your physi-
o
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The heart rate monitor is not a medical device. Various factors may affect the accuracy
of heart rate readings. The heart rate monitor
is intended only as an exercise aid in determining heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of
oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise—never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
26
PART LIST Model No. PFTL68011.0 R0411A
Key No.
Qty. Description
1
223/8" x 2 1/2" Patch Bolt
353/8" Nut
463/8" x 4" Patch Screw
5
6 43 #8 x 3/4" Screw
725/16" x 3 1/4" Patch Screw
825/16" Star Washer
941/4" x 5/8" Screw
10 4 1/4" x 1 3/4" Patch Screw
11 4 1/4" Star Washer
12 1 3/8" x 1 3/4" Patch Screw
13 1 3/8" x 2" Bolt
14 2 1/4" x 2 1/2" Screw
15 2 3/8" x 1 3/8" Bolt
16 2 1/2" x 2 1/4" Bolt
17 2 1/2" Nut
18 3 Hood Clip
19 25 #8 x 3/4" Truss Head Screw
20 2 3/8" x 1 1/2" Bolt
21 2 3/8" Jam Nut
22 2 Incline Motor Spacer
23 2 1/4" x 3/8" Screw
24 4 Belt Guide Screw
25 2 5/16" x 1 1/4" Bolt
26 2 5/16" Flange Nut
27 2 5/16" x 1 3/4" Bolt
28 2 5/16" Washer
29 2 5/16" Nut
30 1 1/4" Fender Washer
31 11 #8 x 1/2" Screw
32 1 1/4" x 1 3/4" Screw
33 2 M6 Nut
34 1 Hex Key
35 1 5/32" Hex Key
36 2 Platform Cushion
37 1 Left Foot Rail
38 1 Latch Warning Decal
39 1 Walking Platform
40 1 Walking Belt
41 2 Belt Guide
42 2 Rubber Spacer
43 1 Drive Roller/Pulley
44 1 Magnet
45 1 Reed Switch Clamp
46 1 Drive Motor Belt
47 1 Drive Motor
48 2 Frame Spacer
49 1 Frame
50 1 Right Foot Rail
5 #8 x 1/2" Ground Screw
6 3/8" Star Washer
Key No.
Qty. Description
1 1 Storage Latch
5
52 1 Right Rear Foot
53 1 Left Rear Foot
54 1 Right Footrail Cap
5 1 Left Footrail Cap
5
56 1 Idler Roller
57 1 Motor Hood
58 2 Incline Frame Spacer
59 1 Incline Frame
60 1 Incline Motor
61 1 Controller Ground Wire
62 1 Controller
63 3 Wire Tie
64 1 Belly Pan Plate
65 1 Power Switch
66 1 Power Cord
67 2 Grommet
68 1 Belly Pan
69 2 Upright Cap
70 1 Upright Wire
71 1 Left Handrail
72 1 Right Handrail
73 2 Left Handrail Cover
74 2 Right Handrail Cover
75 1 Left Upright
76 1 Right Upright
77 4 Base Cap
78 2 Caution Decal
79 4 Base Pad
80 1 Base
81 2 Wheel
82 1 Key/Clip
83 1 Console Base
84 1 Module Housing
85 1 Audio Wire
86 1 Console
87 1 Console Frame
88 2 Console Frame Cap
89 2 Console Ground Wire
90 1 Pulse Bar Bottom
91 2 Console Wire Tie
92 1 Base Ground Wire
93 2 Screw Spacer
94 8 Platform Washer
95 1 Reed Switch
96 2 Platform Isolator
97 2 M6 Bolt
98 2 1/4" Isolator Screw
*–Userʼs Manual
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
27
51
27
25
24
24
41
41
42
38
39
50
49
14
34
37
32
30
27
23
47
29
42
28
29
28
33
19
19
52
19
53
6
6
6
6
14
26
55
3
54
25
40
43
44
36
12
46
48
48
19
45
19
19
19
19
26
19
19
19
19
13
1
16
16
35
56
94
94
94
94
36
33
19
19
94
94
94
95
19
94
31
96
98
98
96
31
31
31
31
31
97
97
EXPLODED DRAWING A Model No. PFTL68011.0 R0411A
28
6
1
66
67
65
61
63
62
1
58
59
58
18
20
21
60
22
6
57
6
64
3
3
17
17
20
21
6
18
18
6
6
6
6
6
68
6
6
EXPLODED DRAWING B Model No. PFTL68011.0 R0411A
29
80
78
15
5
5
77
15
4
4
78
4
4
76
77
2
81
3
19
3
2
81
19
79
67
70
10
11
10
11
9
9
71
72
74
73
7
8
6
75
6
1
19
19
5
5
69
69
74
73
7
8
79
79
79
92
93
93
77
77
6
6
EXPLODED DRAWING C Model No. PFTL68011.0 R0411A
30
91
31
85
8
2
83
31
31
84
6
86
88
88
89
87
90
6
6
6
6
6
6
6
6
6
6
6
6
1
6
6
6
6
EXPLODED DRAWING D Model No. PFTL68011.0 R0411A
31
ORDERING REPLACEMENT PARTS
o order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to pro-
T
vide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
IMPORTANT: You must register this product within 30 days of the purchase date to avoid added
fees for service needed under warranty. Go to www.proformservice.com/registration.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame is warranted for a lifetime. The drive motor
is warranted for twenty-five (25) years from the date of purchase. Parts and labor are warranted for one
(1) year from the date of purchase.
This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to
repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to a
service center, freight charges to and from the service center will be the customerʼs responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to any damage to a product caused by or attributable to freight damage,
abuse, misuse, improper or abnormal usage, or repairs not provided by an ICON authorized service center; to products used for commercial or rental purposes or as store display models; or to products transported or purchased outside the US. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
Part No. 314369 R0411A Printed in China © 2011 ICON IP, Inc.
Loading...
