www.proform.com
Model No. PFTL63609.1
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT CON-
TACT THE STORE; please contact
Customer Care.
USERʼS MANUAL
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
SSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
A
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the locations of the
warning decals. If a decal is missing or il-
legible, call the telephone number on the
front cover of this manual and request a
free replacement decal. Apply the decal
in the location shown. Note: The decals
may not be shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and in-
tructions in this manual and all warnings on your treadmill before using your treadmill. ICON as-
s
sumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
1. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with
pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under age 12 and pets away
from the treadmill at all times.
carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.
12. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 14. To purchase a surge suppressor, see
your local PROFORM dealer or call the telephone number on the front cover of this manual and order part number 146148, or see your
local electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may slow,
accelerate, or stop unexpectedly, which may
result in a fall and serious injury.
14. Keep the power cord and the surge suppres-
sor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROUBLESHOOTING on page 24 if the treadmill is
not working properly.)
8. The treadmill should be used only by persons
weighing 325 lbs. (147 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended
for both men and women. Always wear ath-
letic shoes. Never use the treadmill with bare
feet, wearing only stockings, or in sandals.
11. When connecting the power cord (see page
14), plug the power cord into a surge suppressor (not included) and plug the surge
suppressor into a grounded circuit capable of
16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 16).
17. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
18. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
19. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
3
0. Never leave the treadmill unattended while it
2
is running. Always remove the key, unplug
the power cord, and press the power switch
into the off position when the treadmill is not
in use. (See the drawing on page 5 for the location of the power switch.)
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 23.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
22. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
23. Never insert any object into any opening on
the treadmill.
SAVE THESE INSTRUCTIONS
4. Inspect and properly tighten all parts of the
2
treadmill regularly.
25.
DANGER: Always unplug the power
cord immediately after use, before cleaning the
treadmill, and before performing the mainte-
ance and adjustment procedures described in
n
this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the
procedures in this manual should be performed
by an authorized service representative only.
26. This treadmill is intended for in-home use
only. Do not use this treadmill in a commercial, rental, or institutional setting.
27. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM
50 T treadmill. The 850 T treadmill offers an impres-
8
sive selection of features designed to make your workouts at home more enjoyable and effective. And when
youʼre not exercising, the unique treadmill can be
olded up, requiring less than half the floor space of
f
other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
Tray
Handrail
®
ing this manual, please see the front cover of this man-
al. To help us assist you, please note the product
u
model number and serial number before contacting us.
The model number and the location of the serial number decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Console
Pulse Sensor
Key/Clip
Upright
Walking Belt
Foot Rail
Idler Roller
Adjustment Bolts
Power Switch
Power Cord
Platform Cushion
5
ASSEMBLY
Base Foot Spacer
(94)–2
#8 x 3/4" Screw
(1)–14
3/8" Star
Washer (11)–6
#8 x 1" Tek Screw
(5)–4
3/8" Nut (10)–5
5/16" Star
Washer (13)–2
#10 x 3/4" Screw
(2)–4
1/4" Star
Washer (12)–8
3/8" x 4" Patch Bolt (7)–4
5/16" x 1"
Patch Bolt (4)–2
1/4" x 1"
Patch Bolt (9)–4
3/8" x 2" Bolt (8)–5
5/16" x 1" Flat Head
Patch Bolt (3)–4
#8 x 1" Screw
(53)–4
3/8" x 1 1/2" Bolt (14)–2
o hire an authorized service technician to assemble the treadmill, call 1-800-445-2480.
T
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
elt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the top of
b
the walking belt or the shipping carton. This is normal and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver ,
adjustable wrench , needlenose pliers , and scissors .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: Some small parts may have been preassembled. To avoid dam-
aging parts, do not use power tools for assembly. Extra hardware may be included.
6
. Make sure that the power cord is unplugged.
1
ith the help of a second person, carefully tip
W
the treadmill onto its left side. Partially fold the
Frame (55) so that the treadmill is more stable;
do not fully fold the Frame yet.
Cut the shipping tie securing the Upright Wire
(87) to the Base (95). Locate a plastic tie in the
indicated hole in the Base, and use the tie to pull
the Upright Wire out of the hole.
Attach two Base Feet (90) to the Base (95) in the
locations shown with two #8 x 1" Tek Screws (5)
and two Base Foot Spacers (94).
Then, attach the other two Base Feet (90) with
two #8 x 1" Tek Screws (5).
1
55
94
94
90
Hole
7
8
5
90
5
95
90
5
90
5
2. See the inset drawing. Cut the plastic tie near
the Upright Wire (87).
Attach a Wheel (96) to the Base (95) with a 3/8"
x 2" Bolt (8) and a 3/8" Nut (10). Do not over-
tighten the Nut; the Wheel must turn freely.
Press a Base Cap (89) into the Base (95).
2
Plastic Tie
87
8
95
96
10
Cut
87
89
7
3. Identify the Right Upright (85), which is marked
ith a “Right” sticker. Hold the Right Upright
w
near the Base (95) as shown.
3
85
See the inset drawing. Tie the wire tie in the
Right Upright (85) securely around the end of
the Upright Wire (87). Then, pull the other end
f the wire tie until the Upright Wire is routed
o
completely through the Right Upright.
4. Hold the Right Upright (85) against the Base
(95). Be careful not to pinch the Upright
Wire (87). Insert two 3/8" x 4" Patch Bolts (7)
with two 3/8" Star Washers (11) and a 3/8" x
1 1/2" Bolt (14) with a 3/8" Star Washer (11)
into the Right Upright.
Partially tighten the 3/8" x 4" Patch Bolts (7)
until the heads of the Patch Bolts touch the
Right Upright (85); do not fully tighten the
Patch Bolts yet. Partially tighten the 3/8" x
1 1/2" Bolt (14).
87
87
4
Wire Tie
85
Wire
Tie
85
7
14
11
95
11
87
87
9
5
8
5. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (55) so that the treadmill is more stable;
o not fully fold the Frame yet.
d
ttach a Wheel (96) to the Base (95) with a 3/8"
A
x 2" Bolt (8) and a 3/8" Nut (10). Do not over-
tighten the Nut; the Wheel must turn freely.
Press a Base Cap (89) into the Base (95).
5
9
8
8
55
95
96
10
6. Hold the Left Upright (84) against the Base (95).
Insert two 3/8" x 4" Patch Bolts (7) with two 3/8"
Star Washers (11) and a 3/8" x 1 1/2" Bolt (14)
with a 3/8" Star Washer (11) into the Left
Upright.
Partially tighten the 3/8" x 4" Patch Bolts (7)
until the heads of the Patch Bolts touch the Left
Upright (84); do not fully tighten the Patch
Bolts yet. Partially tighten the 3/8" x 1 1/2" Bolt
(14).
With the help of a second person, tip the treadmill so that the Base (95) is flat on the floor.
6
7
11
95
14
11
84
9
7. Identify the Left Base Cover (88) and the Right
Base Cover (91). Slide the Left Base Cover onto
the Left Upright (84). Slide the Right Base Cover
onto the Right Upright (85).
7
84
85
88
91
8. Remove the tie from the indicated bracket on
the Right Handrail (83). If necessary, press the
5/16" Cage Nuts (38) back into place.
Slide the Right Upright Cover (86) onto the
Right Upright (85), and slide a Handrail Cap (81)
onto the Right Handrail (83). Orient the Cover
and the Cap as shown.
Hold the Right Handrail (83) near the Right
Upright (85). Insert the Upright Wire (87)
through the indicated bracket on the Right
Handrail. Pull the Upright Wire out of the end of
the Right Handrail.
Position the Right Upright Cover (86) as
shown. Attach the Right Handrail (83) to the
Right Upright (85) with two 5/16" x 1" Flat Head
Patch Bolts (3), a 5/16" x 1" Patch Bolt (4) with
a 5/16" Star Washer (13), and two #8 x 3/4"
Screws (1). Do not tighten the Patch Bolts or
Screws yet.
Attach the Left Handrail (not shown) in the
same way. Note: There is no wire on the left
side.
8
87
Bracket
3
83
81
1
38
4
13
86
85
10
9. Set the console assembly face down on a soft
surface to avoid scratching the console assembly. Remove the two #8 x 3/4" Screws (1). Next,
lift off the Crossbar (107).
9
Console
Assembly
1
107
10. IMPORTANT: To avoid damaging the
Crossbar (107), do not use power tools and
do not overtighten the #10 x 3/4" Screws (2).
There may be two Screws (A) in the Handrails
(82, 83) in the indicated locations. If there are,
remove and discard them.
Orient the Crossbar (107) as shown. Attach the
Crossbar to the Handrails (82, 83) with four #10
x 3/4" Screws (2) and four 1/4" Star Washers
(12); do not tighten the Screws yet.
Insert the Console Frame (102) into the
Handrails (82, 83). Attach the Console Frame
with four 1/4" x 1" Patch Bolts (9) and four 1/4"
Star Washers (12); do not tighten the Patch
Bolts yet. Be careful not to pinch the Upright
Wire (87).
Tighten one #10 x 3/4" Screw (2) in each end
of the Crossbar (107); do not overtighten the
Screws. Then, tighten the other #10 x 3/4"
Screw (2) in each end of the Crossbar.
10
First
9
2
12
A
82
12
1
107
First
83
102
2
A
12
9
12
87
1
Tighten the four 1/4" x 1" Patch Bolts (9) and
the four #8 x 3/4" Screws (1).
11

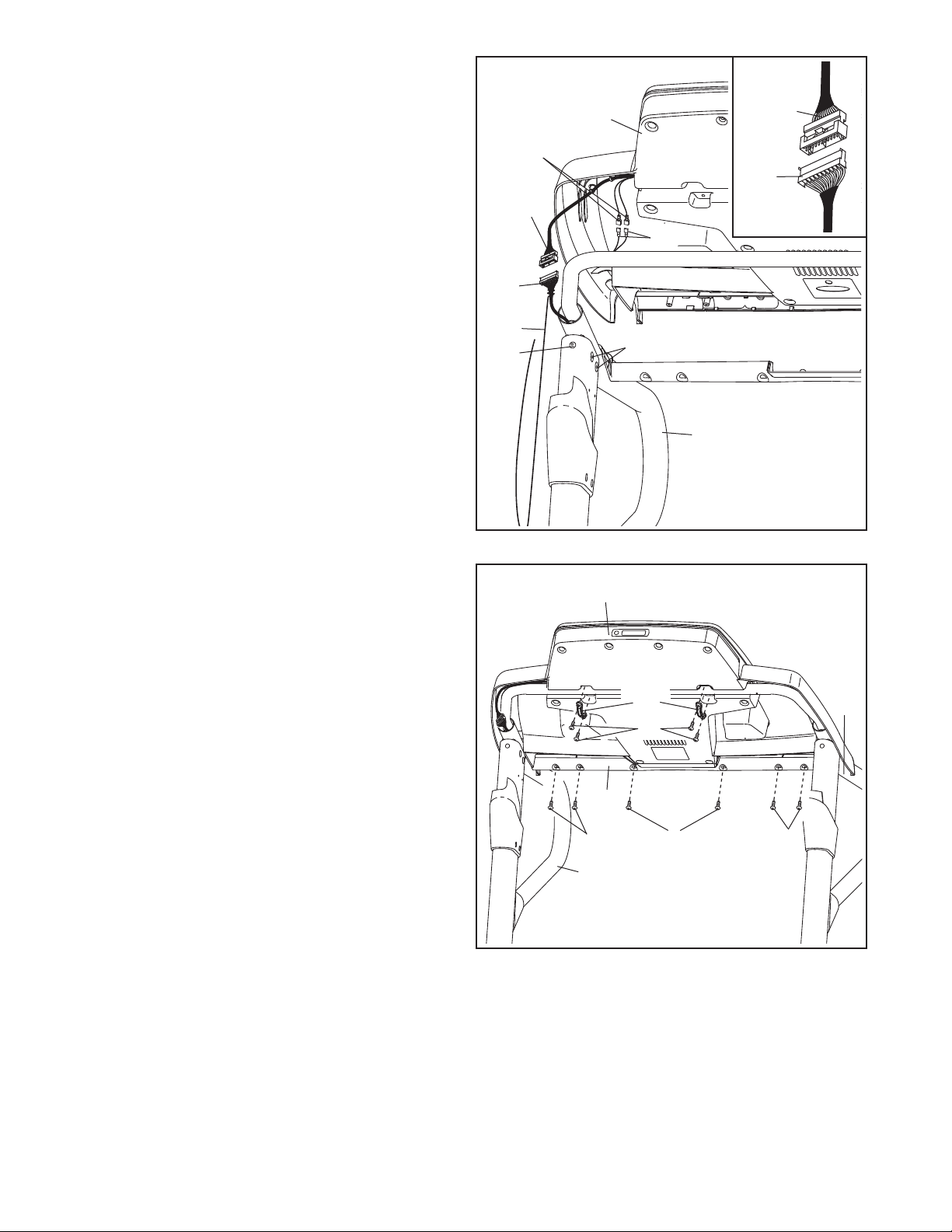

11. Firmly tighten the four 5/16" x 1" Flat Head
Patch Bolts (3) and the two 5/16" x 1" Patch
Bolts (4) (only one side is shown).
ith the help of a second person, hold the con-
W
sole assembly near the Right Handrail (83) and
the Left Handrail (not shown).
onnect the Upright Wire (87) to the console
C
wire. See the inset drawing. The connectors
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF YOU DO NOT CONNECT THE CONNECTORS PROPERLY, THE CONSOLE MAY
BECOME DAMAGED WHEN YOU TURN ON
THE POWER. Remove the wire tie from the
Upright Wire.
Connect the two ground wires from the console
assembly to the two Console Ground Wires (52).
11
round
G
Wire
Console
ire
W
87
Wire
Tie
4
Console
ssembly
A
onsole
C
Wire
87
52
3
83
12. Set the console assembly on the Left and Right
Handrails (82, 83). Be careful not to pinch any
wires.
Attach the console assembly to the Crossbar
(107) with six #8 x 3/4" Screws (1). Start all six
Screws, and then tighten each of them.
Attach the two Console Clamps (105) to the
console assembly with four #8 x 1" Screws (53).
12
Console Assembly
105
53
107
1
83
82
1
1
12

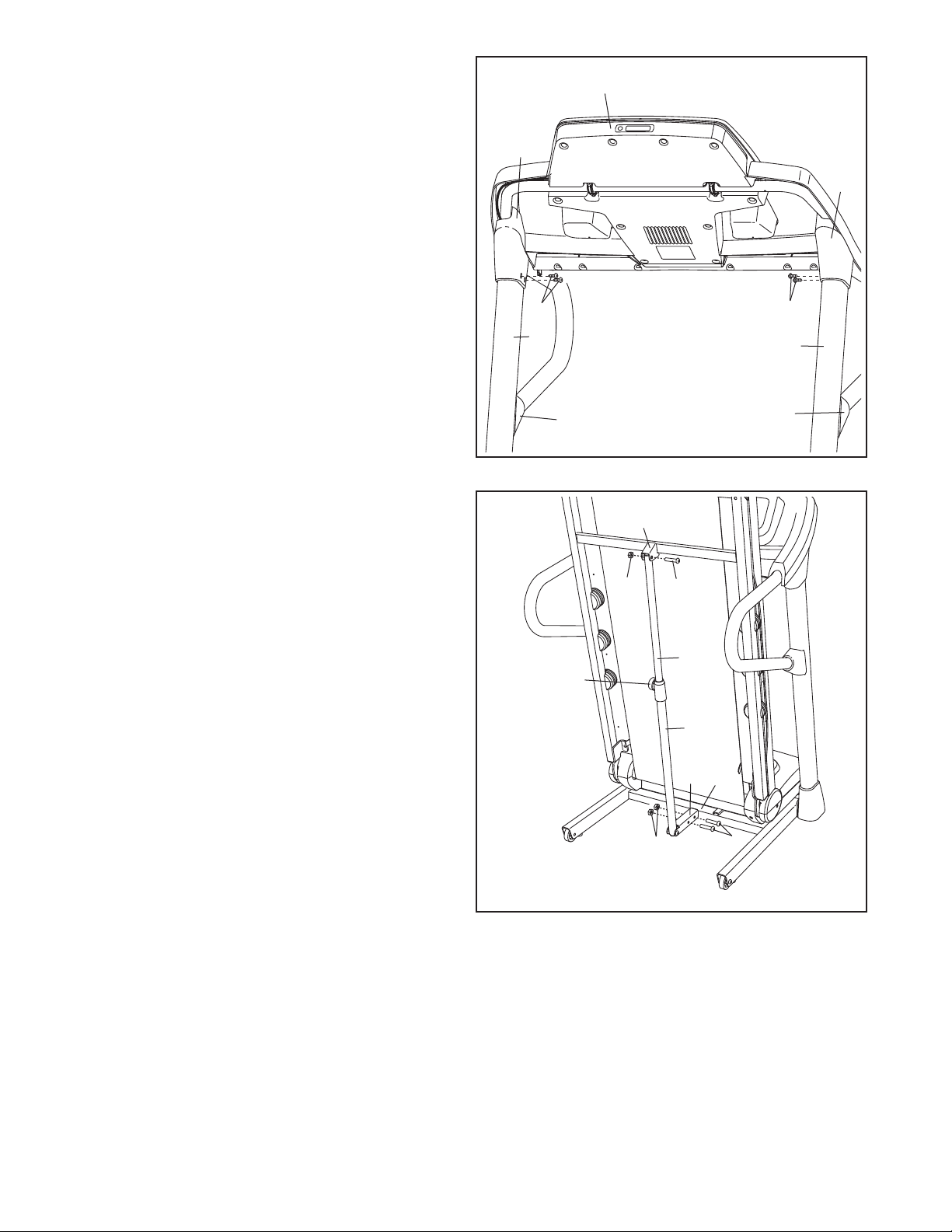

13. Hold the Right Upright Cover (86) against the
console assembly. Align the holes in the Right
Upright Cover with the holes in the Right Upright
(85). Attach the Right Upright Cover with two #8
3/4" Screws (1).
x
3
1
Console Assembly
86
Attach the Left Upright Cover (80) to the Left
Upright (84) in the same way.
Slide the Handrail Caps (81) down against the
Uprights (84, 85).
See steps 4 and 6. Tighten the four 3/8" x 4"
Patch Bolts (7) and the two 3/8" x 1 1/2" Bolts
(14).
14. Raise the Frame (55) to the position shown.
Have a second person hold the Frame until
this step is completed.
Orient the Storage Latch (51) so that the large
barrel and the latch knob are oriented as shown.
14
85
0
8
1
81
55
10
8
1
84
81
Attach the Latch Bracket (6) and Storage Latch
(51) to the Base (95) with two 3/8" x 2" Bolts (8)
and two 3/8" Nuts (10).
Attach the upper end of the Storage Latch (51)
to the bracket on the Frame (55) with a 3/8" x 2"
Bolt (8) and a 3/8" Nut (10). Note: It may be
necessary to move the Frame back and forth to
align the Storage Latch with the bracket.
Lower the Frame (55) (see HOW TO LOWER
THE TREADMILL FOR USE on page 23).
15. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of plastic
on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill.
Note: Extra hardware may be included. Keep the included hex keys in a secure place; one of the hex keys is
used to adjust the walking belt (see pages 25 and 26).
Latch Knob
10
51
Large
Barrel
6
95
8
13
OPERATION AND ADJUSTMENT
HE PRE-LUBRICATED WALKING BELT
T
Your treadmill features a walking belt coated with highperformance lubricant. IMPORTANT: Never apply sil-
cone spray or other substances to the walking
i
belt or the walking platform. Such substances will
cause excessive wear.
HOW TO PLUG IN THE POWER CORD
hat is properly installed and grounded in accor-
t
dance with all local codes and ordinances.
IMPORTANT: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit
(see drawing 1). A temporary adapter may be used to
connect the surge suppressor to a 2-pole receptacle if
a properly grounded outlet is not available (see drawing 2).
DANGER: Improper connection
of the equipment-grounding conductor increases the risk of electric shock. Check with
a qualified electrician or serviceman if you
are unsure whether the product is properly
grounded. Do not modify the plug—if it will
not fit the outlet, have a proper outlet installed by a qualified electrician.
Your treadmill, like other electronic equipment, can be
damaged by sudden voltage changes in your homeʼs
power. To decrease the risk of damaging your
treadmill, always use a surge suppressor with your
treadmill (see drawing 1 at the right). To purchase
a surge suppressor, see precaution 12 on page 3.
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could damage the control system of the treadmill (see precaution 13 on page 3).
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of electric shock. This productʼs power cord has an equipment-grounding conductor and a grounding plug. Plug
the power cord into a surge suppressor, and plug
the surge suppressor into an appropriate outlet
1
Grounded Outlet
2
Metal Screw
The temporary adapter should be used only until a
properly grounded outlet (see drawing 1) can be installed by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
The adapter must be held in place by a metal screw.
Some 2-pole receptacle outlet box covers are not
grounded. Contact a qualified electrician to determine if the outlet box cover is grounded before
using an adapter.
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Grounding Pin
Grounding Plug
Grounded Outlet Box
Adapter
Lug
Grounding Plug
Surge Suppressor
14
CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of
features designed to make your workouts more effective and enjoyable. When you use the manual mode,
you can change the speed and incline of the treadmill
with the touch of a button. As you exercise, the console will display instant exercise feedback. You can
even measure your heart rate using the handgrip pulse
sensor.
In addition, the console features twenty-four onboard
workouts—eight calorie workouts, eight timed workouts, and eight distance workouts. Each workout automatically controls the speed and incline of the treadmill
as it guides you through an effective exercise session.
The console also features an iFit Live mode that enables the treadmill to communicate with your wireless
network through an optional iFit Live module. With the
iFit Live mode, you can download personalized workouts, create your own workouts, track your workout results, race against other runners, and access many
other features. To purchase an iFit Live module at
any time, go to www.iFit.com or call the telephone
number on the front cover of this manual.
You can even listen to your favorite workout music or
audio books with the consoleʼs stereo sound system
while you exercise.
To turn on the power, see page 16. To use the manual mode, see page 16. To use an onboard workout, see page 19. To use an iFit Live workout, see
page 20. To use the stereo sound system, see page
21. To use the information mode, see page 22.
Note: The console can display speed and distance in
either miles or kilometers. To find which unit of measurement is selected, see THE INFORMATION MODE
on page 22. For simplicity, all instructions in this manual refer to miles.
IMPORTANT: If there are sheets of plastic on the
console, remove the plastic. To prevent damage to
the walking platform, wear clean athletic shoes
while using the treadmill. The first time you use the
treadmill, observe the alignment of the walking
belt, and center the walking belt if necessary (see
page 26).
15
HOW TO TURN ON THE POWER
IMPORTANT: If the treadmill has been exposed to
old temperatures, allow it to warm to room tem-
c
perature before turning on the power. If you do not
o this, you may damage the console displays or
d
other electrical components.
Plug in the power cord (see
page 14). Next, locate the
power switch on the treadmill frame near the power
cord. Press the power
switch into the reset
position.
IMPORTANT: The console features a display demo
mode, designed to be used if the treadmill is displayed in a store. If the displays light as soon as
you plug in the power cord and press the power
switch into the reset position, the demo mode is
turned on. To turn off the demo mode, hold down
the Stop button for a few seconds. If the displays
remain lit, see THE INFORMATION MODE on page
22 to turn off the demo mode.
Next, stand on the foot rails
of the treadmill. Find the
clip attached to the key and
slide the clip onto the waistband of your clothes. Then,
insert the key into the console. After a moment, the
displays will light. IMPOR-
TANT: In an emergency,
the key can be pulled from the console, causing
the walking belt to slow to a stop. Test the clip by
carefully taking a few steps backward; if the key is
not pulled from the console, adjust the position of
the clip.
Reset
Key
Clip
HOW TO USE THE MANUAL MODE
. Insert the key into the console.
1
ee HOW TO TURN ON THE POWER at the left.
S
2. Select the manual mode.
Press the Manual button on the console. If you are
not connected to iFit Live, the manual mode will be
selected automatically.
3. Start the walking belt.
To start the walking belt, press the Start button, the
Speed increase button, or one of the Quick Speed
buttons numbered 1 through 12.
If you press the Start button or the Speed increase
button, the walking belt will begin to move at 1
mph. As you exercise, change the speed of the
walking belt as desired by pressing the Speed increase and decrease buttons. Each time you press
one of the buttons, the speed setting will change by
0.1 mph; if you hold down the button, the speed
setting will change in increments of 0.5 mph. Note:
After you press the button, it may take a moment
for the walking belt to reach the selected speed
setting.
If you press one of the numbered Quick Speed buttons, the walking belt will gradually change speed
until it reaches the selected speed setting.
To stop the walking belt, press the Stop button.
The time will begin to flash in the display. To restart
the walking belt, press the Start button or the
Speed increase button.
16
4. Change the incline of the treadmill as desired.
To change the incline of the treadmill, press the
ncline increase or decrease button or one of the
I
numbered Quick Incline buttons. Each time you
ress one of the buttons, the treadmill will gradu-
p
ally adjust to the selected incline setting.
5. Follow your progress with the displays.
As you walk or run on the treadmill, the display can
show the following workout information:
• The elapsed time
• The distance that you have walked or run
• The matrix
• The workout intensity bar
• The approximate number of calories you have
burned
• The incline level of the treadmill
• The number of vertical feet you have climbed
• The speed of the walking belt
• Your heart rate (see step 6 on page 18)
The matrix offers several display tabs. Press the
increase and decrease button next to the Enter
button until the desired tab is shown.
The Incline tab will show a profile of the incline settings of the workout. A new segment will appear at
the end of each minute. The Speed tab will show a
profile of the speed settings of the workout.
The My Trail tab will show a track that represents
1/4 mile (400 meters). As you exercise, the white
rectangle will show your progress. The My Trail tab
ill also show the number of laps you are complet-
w
ing.
The Calorie tab will show the approximate amount
of calories you have burned. The height of each
segment represents the amount of calories burned
during that segment.
As you exercise, the workout intensity level bar will
indicate the approximate intensity level of your exercise.
Press the Home button to return to the default
menu (see THE INFORMATION MODE on page
22 to set the default menu). If necessary, press the
Home button again.
When a wireless iFit Live
module is connected, the
wireless symbol at the top of
the display will show the
strength of your wireless signal. Four arcs indicate full
signal strength.
To reset the displays, press the Stop button, remove the key, and then reinsert the key.
17
6. Measure your heart rate if desired.
Before using the
andgrip pulse
h
sensor, remove
he sheets of
t
plastic from the
metal contacts
on the pulse bar.
In addition, make
sure that your
hands are clean.
To measure your heart rate, stand on the foot
rails and hold the pulse bar with your palms on the
metal contacts for approximately ten seconds;
avoid moving your hands. When your pulse is
detected, a heart symbol in the calorie display will
flash each time your heart beats, one or two
dashes will appear, and then your heart rate will be
shown. For the most accurate heart rate read-
ing, continue to hold the contacts for about 15
seconds.
7. Turn on the fan if desired.
Contacts
speed or to turn off the
fan. Note: If the fan is on
when the walking belt is
topped, the fan will turn
s
off automatically after a
ew minutes.
f
8. When you are finished exercising, remove the
key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest setting or you may damage the treadmill when you
fold it to the storage position. Next, remove the
key from the console and put it in a secure place.
When you are finished using the treadmill, press
the power switch into the off position and unplug
the power cord. IMPORTANT: If you do not do
this, the treadmillʼs electrical components may
wear prematurely.
Fan Decrease
Fan Increase
The fan features several speed settings. Press the
Fan increase or decrease button to select a fan
18
HOW TO USE AN ONBOARD WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 16.
2. Select an onboard workout.
To select an onboard workout, press the Calorie
button, the Timed button, or the Distance button repeatedly until the desired workout appears in the
display.
When you select an onboard workout, the display
will show the duration of the workout and the name
of the workout. In addition, a profile of the speed
settings of the workout will appear in the matrix. If
you select a distance workout, the distance you will
walk or run will appear in the display instead of the
workout duration. If you select a calorie workout,
the approximate number of calories you will burn
will appear in the name of the workout.
3. Start the workout.
Press the Start button or the Speed increase button
to start the workout. A moment after you press the
button, the treadmill will automatically adjust to the
first speed and incline settings of the workout. Hold
the handrails and begin walking. Note: If you select
a distance workout, the exercise session will begin
with a three-minute warm-up segment before the
distance workout begins.
Each workout is divided into segments. One speed
setting and one incline setting are programmed for
each segment. Note: The same speed setting
and/or incline setting may be programmed for consecutive segments.
During the
workout, the
profiles on the
peed and in-
s
cline tabs will
how your
s
progress. The
flashing segment of the profile represents the current segment
of the workout. The height of the flashing segment
indicates the speed or incline setting for the current
segment. At the end of each segment, a series of
tones will sound and the next segment of the profile
will begin to flash. If a different speed and/or incline
setting is programmed for the next segment, the
treadmill will automatically adjust to the new speed
and/or incline setting. Note: If you select a distance
workout, the next segment of the profile will not
flash in the display.
The workout will continue in this way until the last
segment of the profile flashes in the display and the
last segment ends. The walking belt will then slow
to a stop. Note: If you select a distance workout,
the workout will end with a three-minute cool-down
segment.
Note: The calorie goal is an estimate of the
number of calories that you will burn during the
workout. The actual number of calories that you
burn will depend on your weight. In addition, if
you manually change the speed or incline of
the treadmill during the workout, the number of
calories you burn will be affected.

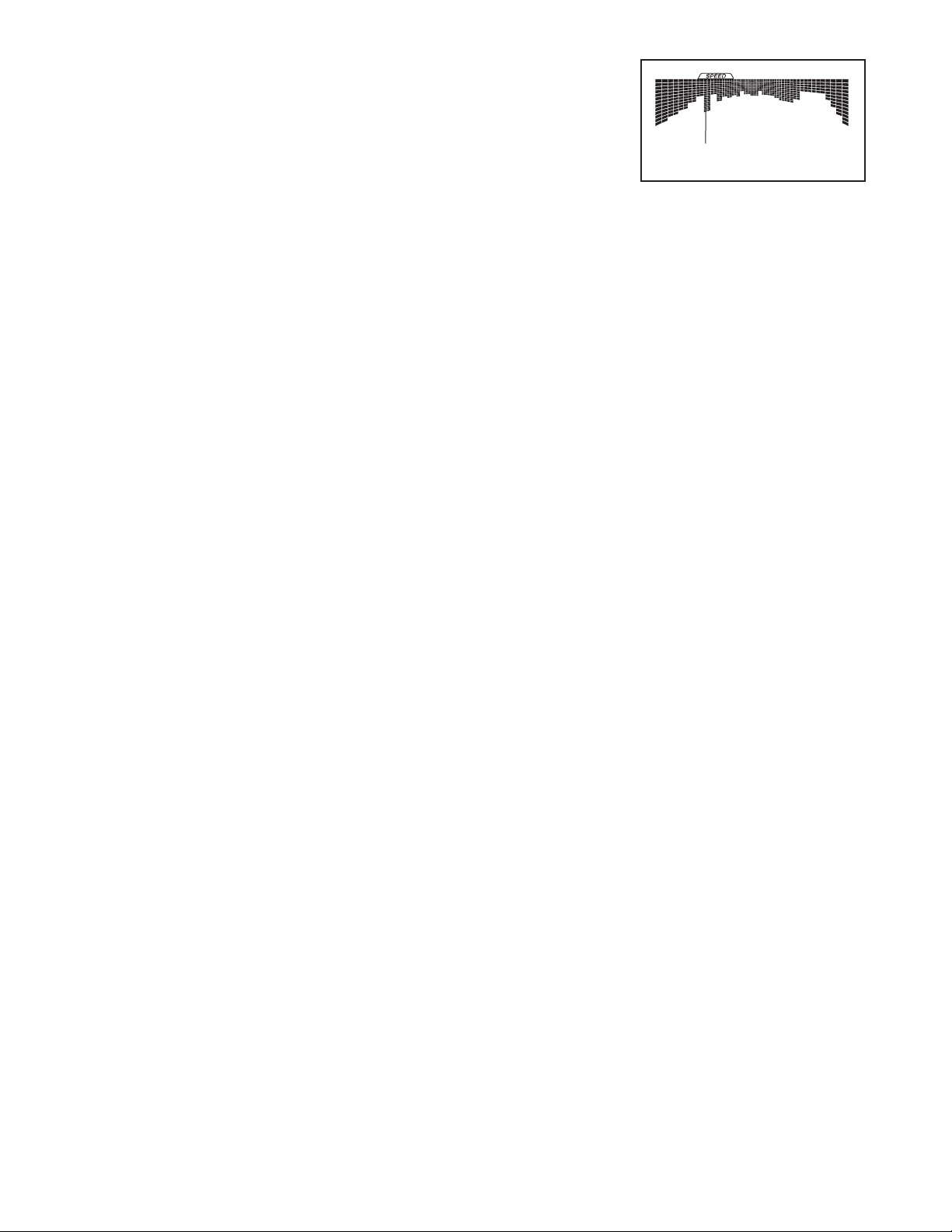

Current Segment
19
If the speed or incline setting is too high or too low
at any time during the workout, you can manually
override the setting by pressing the Speed or
ncline buttons; however, when the next segment
I
of the workout begins, the treadmill will auto-
atically adjust to the speed and incline set-
m
tings for the next segment.
HOW TO USE AN IFIT LIVE WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 16.
2. Insert the iFit Live module into the console.
To stop the workout at any time, press the Stop
button. The time will begin to flash in the display.
To resume the workout, press the Start button or
the Speed increase button. The walking belt will
begin to move at 1 mph. When the next segment of
the workout begins, the treadmill will automatically
adjust to the speed and incline settings for the next
segment.
4. Follow your progress with the displays.
See step 5 on page 17. If you select a calorie workout or a timed workout, the display will show the
time remaining instead of the elapsed time.
5. Measure your heart rate if desired.
See step 6 on page 18.
6. Turn on the fan if desired.
See step 7 on page 18.
7. When you are finished exercising, remove the
key from the console.
See step 8 on page 18.
To use an iFit Live workout, insert the optional iFit
Live module into the console. To purchase an iFit
Live module at any time, go to www.iFit.com or call
the telephone number on the front cover of this
manual. You must have an iFit Live module to use
an iFit Live workout.
Note: To use an iFit Live module, you must have
access to a computer with an internet connection
and a USB port. You will also need an iFit.com
membership. To use a wireless iFit Live module,
you must also have your own wireless network including an 802.11b router with SSID broadcast enabled (hidden networks are not supported).
3. Select a user.
If more than one user is registered, you can switch
users in the iFit Live main screen. Press the increase and decrease buttons next to the Enter button to select a user.
4. Select an iFit Live workout.
To select an iFit Live workout, press one of the iFit
Live buttons. Before a workout will download, you
must add the workout to your queue on
www.iFit.com.
20
Press the iFit Live button to download the next
workout in your queue. Press the My Trainer button, the My Maps button, the World Tour button, or
the Event Training button to download the next
workout of that type in your queue. Press the
Compete button to compete in a race that you have
previously scheduled. For more information on the
iFit Live workouts, please see www.iFit.com.
When you select an iFit Live workout, the display
will show the duration of the workout, the distance
you will walk or run, and the approximate number of
alories you will burn. The display may also show
c
the name of the workout. If you select a competition
orkout, the display will count down to the begin-
w
ning of the race.
7. Measure your heart rate if desired.
See step 6 on page 18.
8. Turn on the fan if desired.
See step 7 on page 18.
5. Start the workout.
See step 3 on page 19.
During some workouts, the voice of a personal
trainer will guide you through your workout. You
can select an audio setting for your personal trainer
(see THE INFORMATION MODE on page 22).
To stop the workout at any time, press the Stop
button. The time will begin to flash in the display.
To resume the workout, press the Start button or
the Speed increase button. The walking belt will
begin to move at the speed setting for the first segment of the workout. When the next segment of the
workout begins, the treadmill will automatically adjust to the speed and incline settings for the next
segment.
6. Follow your progress with the displays.
See step 5 on page 17.
The My Trail tab will show a map of the trail you
are walking or running or it will show a track and
the number of laps you are completing.
During a competition workout, the Competition tab
will show your progress in the race. As you race,
the top line in the matrix will show how much of the
race you have completed. The other lines will show
your top four competitors. The end of the matrix
represents the end of the race.
9. When you are finished exercising, remove the
key from the console.
See step 8 on page 18.
For more information on the iFit Live mode, go to
www.iFit.com.
HOW TO USE THE STEREO SOUND SYSTEM
To play music or audio books through the consoleʼs
stereo speakers, you must connect your MP3 player,
CD player, or other personal audio player to the console through the MP3 jack.
To use the MP3 jack, locate the included audio wire
and plug it into the MP3 jack. Then, plug the audio wire
into a jack on your MP3 player, CD player, or other
personal audio player. Make sure that the audio wire
is fully inserted.
Next, press the Play button
on your MP3 player, CD
player, or other personal
audio player. Adjust the volume on your personal audio
player or press the volume
increase and decrease buttons on the console.
If you are using a personal CD player and the CD
skips, set the CD player on the floor or another flat surface instead of on the console.
Volume Decrease
Volume Increase
21
THE INFORMATION MODE
The console features an information mode that keeps
rack of treadmill information and allows you to person-
t
alize console settings.
To select the information mode, hold down the Stop
button while inserting the key into the console and then
release the Stop button. When the information mode is
selected, the following information will be shown:
The time display will show the total number of hours
the treadmill has been used.
demo mode, press the Enter button or the Speed decrease button.
ress the decrease button next to the Enter button.
P
The display will show the contrast level of the display.
ress the Incline increase and decrease buttons to ad-
P
just the contrast.
If a wireless iFit Live module is connected, press the
decrease button next to the Enter button to view the
status of the personal trainer voice. To turn on or turn
off the voice of the personal trainer, press the Enter
button.
The distance display will show the total number of kilometers (or miles) that the walking belt has moved.
The lower section of the display will show the status of
an iFit Live module. If a wireless iFit Live module is
connected, the display will show the words WIFI MODULE. If a USB module is connected, the display will
show the words USB/SD MODULE. If no module is
connected, the display will show the words NO IFIT
MODULE.
The matrix will show the selected unit of measurement.
To change the unit of measurement, press the Enter
button or the Speed increase button. To view distance
in miles, select ENGLISH. To view distance in kilometers, select METRIC.
Press the decrease button next to the Enter button.
The console features a display demo mode, designed
to be used if the treadmill is displayed in a store. While
the demo mode is turned on, the console will function
normally when you plug in the power cord, press the
power switch into the reset position, and insert the key
into the console. However, when you remove the key,
the displays will remain lit, although the buttons will not
function. If the demo mode is turned on, the word ON
will appear in the matrix. To turn on or turn off the
If a wireless iFit Live module is connected, press the
decrease button next to the Enter button to view the
default menu. The default menu will appear when you
insert the key into the console or when you press the
Home button. Press the Enter button repeatedly to select the manual main screen or the iFit Live main
screen as the default menu.
If a wireless iFit Live module is connected, press the
decrease button next to the Enter button to view the
status of an iFit Live module. Press the Enter button to
check the status of an iFit Live module. If a wireless
iFit Live module is connected, the display will show the
words WIFI STATUS. If a USB module is connected,
the display will show the words USB STATUS. If no
module is connected, the display will show the words
NO MODULE DETECTED.
If a wireless iFit Live module is connected, press the
decrease button next to the Enter button to transfer
data. To send and receive workouts, workout logs, and
updates, press the Enter button. When the process is
finished, the words TRANSFERS DONE will appear in
the display.
To exit the information mode, remove the key from the
console.
22
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL
To avoid damaging the treadmill, adjust the incline
o the lowest position before you fold the treadmill.
t
Then, remove the key and unplug the power cord.
AUTION: You must be able to safely lift 45 lbs. (20
C
kg) to raise, lower, or move the treadmill.
1. Hold the metal frame firmly in the location shown
by the arrow below. CAUTION: Do not hold the
frame by the plastic foot rails. Bend your legs
and keep your back straight.
1
Frame
HOW TO MOVE THE TREADMILL
Before moving the treadmill, fold it as described at the
eft. CAUTION: Make sure that the latch knob is
l
locked in the storage position. Moving the tread-
ill may require two people.
m
1. Hold the frame and one of the handrails, and place
one foot against a wheel.
1
Frame
Handrail
Wheel
2. Raise the frame until the latch knob locks in the
storage position. CAUTION: Make sure that the
latch knob locks.
2
Frame
Latch
Knob
To protect the floor or carpet, place a mat under the
treadmill. Keep the treadmill out of direct sunlight.
Do not leave the treadmill in the storage position in
temperatures above 85° F (30° C).
2. Pull back on the handrail until the treadmill will roll
on the wheels, and carefully move it to the desired
location. CAUTION: Do not move the treadmill
without tipping it back, do not pull on the frame,
and do not move the treadmill over an uneven
surface.
3. Place one foot against a wheel, and carefully lower
the treadmill.
HOW TO LOWER THE TREADMILL FOR USE
1. See drawing 2. Hold the upper end of the treadmill
frame with your right hand. Pull the latch knob to
the left; if necessary, push the frame forward
slightly. Pivot the frame downward a few inches,
and release the latch knob.
2. See drawing 1 at the left. Hold the metal frame
firmly with both hands, and lower it to the floor.
CAUTION: Do not hold the frame by the plastic
foot rails, and do not drop the frame. Bend your
legs and keep your back straight.
23
TROUBLESHOOTING
ost treadmill problems can be solved by following the simple steps below. Find the symptom that
M
applies, and follow the steps listed. If further assistance is needed, see the front cover of this manual.
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 14). Use only a single-outlet surge suppressor that meets all of the specifications described on page 14. IMPORTANT: The treadmill is not
compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is inserted into the console.
c. Check the power switch located on the treadmill
frame near the power cord. If the switch protrudes
as shown, the switch has tripped. To reset the
switch, wait for five minutes and then press the
switch back in.
PROBLEM:The power turns off during use
SOLUTION: a. Check the power switch (see the drawing above). If the switch has tripped, wait for five minutes
and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key into the console.
d. If the treadmill still will not run, please see the front cover of this manual.
PROBLEM: The console displays remain lit when you remove the key from the console
SOLUTION: a. The console features a display demo mode, designed to be used if the treadmill is displayed in a
store. If the displays remain lit when you remove the key, the demo mode is turned on. To turn off
the demo mode, hold down the Stop button for a few seconds. If the displays are still lit, see THE
INFORMATION MODE on page 22 to turn off the demo mode.
c
Tripped Reset

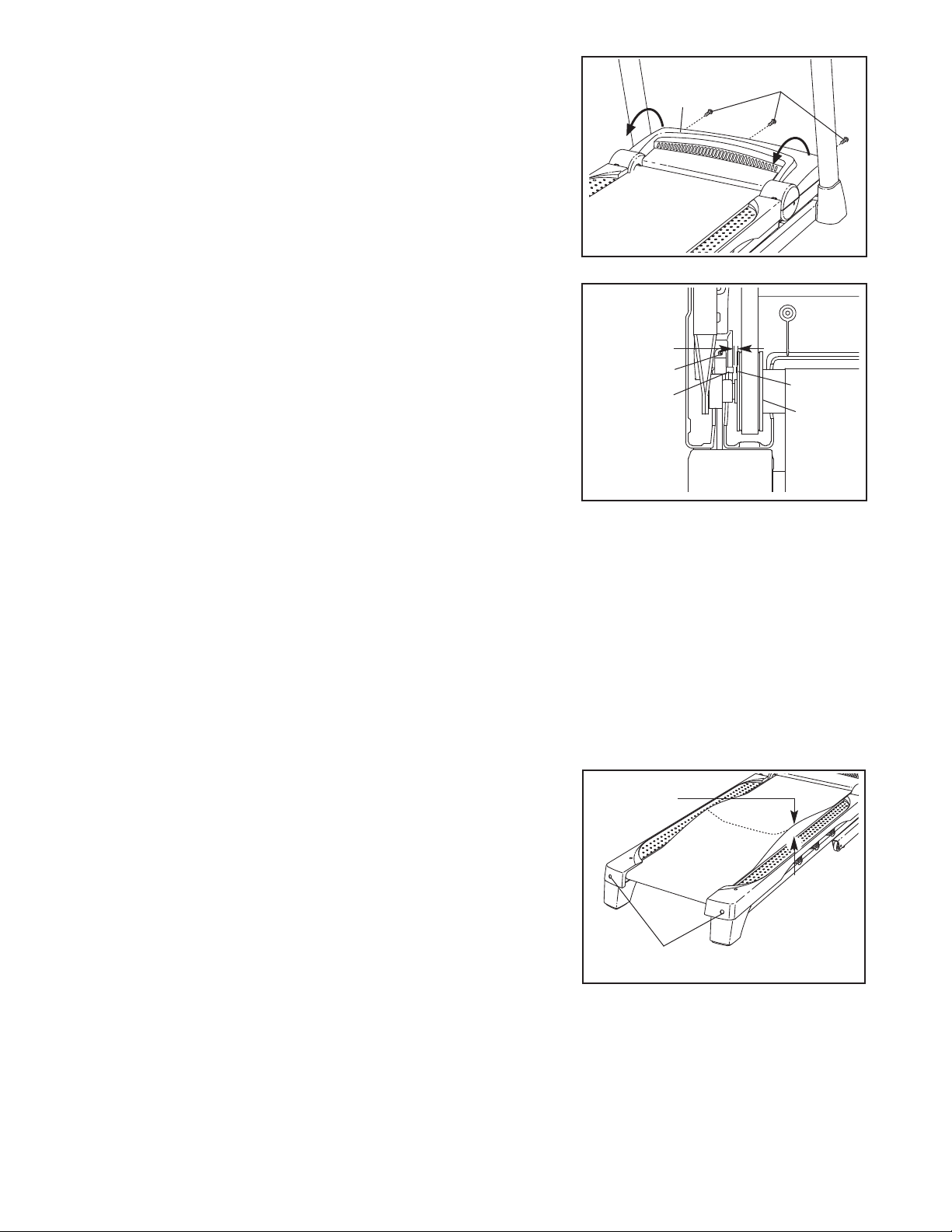

PROBLEM:The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and UNPLUG
THE POWER CORD. With the help of a second
person, carefully tip down the Uprights (84, 85).
There may be three #8 x 2" Screws (16) in the bottom of the Belly Pan (75). If there are, remove them.
Note: A Phillips screwdriver with a shaft at least 5
in. (13 cm) long is required.
Then, raise the Uprights (84, 85).
24
a
85
84
75
16
16
Remove the three #8 x 3/4" Screws (1) and carefully pivot the Motor Hood (62) off.
Locate the Reed Switch (73) and the Magnet (47)
on the left side of the Pulley (48). Turn the Pulley
until the Magnet is aligned with the Reed Switch.
Make sure that the gap between the Magnet and
the Reed Switch is about 1/8 in. (3 mm). If nec-
essary, loosen the #8 x 3/4" Truss Head Screw
(18), move the Reed Switch slightly, and then
retighten the Screw. Reattach the Motor Hood (not
shown) with the #8 x 3/4" Screws (not shown).
Reattach the #8 x 2" Screws (not shown) if necessary. Run the treadmill for a few minutes to check
for a correct speed reading.
1/8 in.
Top
View
18
73
1
62
47
48
PROBLEM: The incline of the treadmill does not change correctly
SOLUTION: a. Hold down the Stop button and the Speed increase button, insert the key into the console, and
then release the Stop button and the Speed increase button. Press the Stop button and then
press the Incline increase or decrease button. The treadmill will automatically rise to the maximum incline level and then return to the minimum level. This will recalibrate the incline system. If the
incline does not calibrate, press the Stop button again, and then press the Incline increase or decrease button again. When the incline is calibrated, remove the key from the console.
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 14.
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may become damaged. Remove the key and UNPLUG
THE POWER CORD. Using the hex key, turn both
idler roller bolts counterclockwise, 1/4 of a turn.
When the walking belt is properly tightened, you
should be able to lift each edge of the walking belt
2 to 3 in. (5 to 7 cm) off the walking platform. Be
careful to keep the walking belt centered. Then,
plug in the power cord, insert the key, and run the
treadmill for a few minutes. Repeat until the walking
belt is properly tightened.
b
2–3 in.
Idler Roller Bolts
c. If the walking belt still slows when walked on, see the front cover of this manual.
25
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, first remove the
ey and UNPLUG THE POWER CORD. If the
k
walking belt has shifted to the left, use the hex
ey to turn the left idler roller bolt clockwise 1/2 of
k
a turn; if the walking belt has shifted to the
right, turn the left idler roller bolt counterclockwise
1/2 of a turn. Be careful not to overtighten the
walking belt. Then, plug in the power cord, insert
the key, and run the treadmill for a few minutes.
Repeat until the walking belt is centered.
b. If the walking belt slips when walked on, first re-
move the key and UNPLUG THE POWER CORD.
Using the hex key, turn both idler roller bolts clockwise, 1/4 of a turn. When the walking belt is correctly tightened, you should be able to lift each
edge of the walking belt 2 to 3 in. (5 to 7 cm) off
the walking platform. Be careful to keep the walking belt centered. Then, plug in the power cord, insert the key, and carefully walk on the treadmill for
a few minutes. Repeat until the walking belt is
properly tightened.
PROBLEM: The console display has lines running through it
a
b
SOLUTION: a. If lines appear in the console display, see THE INFORMATION MODE on page 22 and adjust the
contrast level of the display.
26
EXERCISE GUIDELINES
WARNING: Before beginning this
r any exercise program, consult your physi-
o
cian. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is intended only as an exercise aid in determining
heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of
oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
27
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts, then
relax. Repeat 3 times. Stretches: Hamstrings, back of knees and
back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward
you and rest it against the inner thigh of your extended leg. Reach
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Hamstrings, lower back and
groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat 3
times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
1
2
3
4
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times for
each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull
your feet toward your groin area as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles.
5
28
NOTES
29
PART LIST—Model No. PFTL63609.1 R0910A
To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual.
Key No. Qty. Description Key No. Qty. Description
1 36 #8 x 3/4" Screw
24#10 x 3/4" Screw
3
425/16" x 1" Patch Bolt
54#8 x 1" Tek Screw
61Latch Bracket
743/8" x 4" Patch Bolt
863/8" x 2" Bolt
941/4" x 1" Patch Bolt
10 6 3/8" Nut
11 6 3/8" Star Washer
12 8 1/4" Star Washer
13 2 5/16" Star Washer
14 2 3/8" x 1 1/2" Bolt
15 11 #8 x 3/4" Tek Screw
16 3 #8 x 2" Screw
17 8 #8 x 1/2" Pan Head Screw
18 5 #8 x 3/4" Truss Head Screw
19 2 #8 x 1 1/2" Screw
20 2 5/16" x 1 1/2" Bolt
21 2 5/16" x 3 5/8" Bolt
22 2 3/8" x 1" Bolt
23 1 1/4" x 1" Bolt
24 2 Idler Roller Bolt
25 1 3/8" x 1 3/4" Bolt
26 1 3/8" x 1 1/2" Bolt
27 2 3/8" x 3/4" Bolt
28 7 #8 x 1/2" Bright Screw
29 1 #8 x 1/2" Ground Screw
30 8 #12 x 1 1/4" Screw
31 2 1/4" Motor Bolt
32 4 #8 Belt Guide Screw
33 2 1/4" Washer
34 2 1/4" Split Washer
35 4 3/8" Jam Nut
36 4 5/16" Flange Nut
37 3 Hood Clip
38 2 5/16" Cage Nut
39 1 iFit Housing
40 1 Left Foot Rail
41 1 Latch Warning Decal
42 6 Platform Cushion
43 2 Belt Guide
44 1 Walking Platform
45 2 Frame Cap
46 2 Frame Spacer
47 1 Magnet
48 1 Front Roller/Pulley
49 1 Walking Belt
50 1 Audio Wire
4 5/16" x 1" Flat Head Patch Bolt
51 1 Storage Latch
52 2 Console Ground Wire
3 4 #8 x 1" Screw
5
54 1 Right Foot Rail
55 1 Frame
56 2 Roller Bracket
57 1 Roller Ground Wire
58 1 Right Rear Foot
59 1 Left Rear Foot
60 1 Idler Roller
61 1 Hex Key
62 1 Motor Hood
63 1 Hood Accent
64 1 Lift Frame
65 1 Lift Frame Ground Wire
66 1 Drive Motor Belt
67 1 Drive Motor
68 1 Controller Ground Wire
69 1 Power Cord
70 1 Grommet
71 1 Power Switch
72 1 Controller
73 1 Reed Switch
74 1 Reed Switch Clamp
75 1 Belly Pan
76 3 Wire Tie
77 8 8" Tie
78 2 15" Tie
79 4 Releasable Tie
80 1 Left Upright Cover
81 2 Handrail Cap
82 1 Left Handrail
83 1 Right Handrail
84 1 Left Upright
85 1 Right Upright
86 1 Right Upright Cover
87 1 Upright Wire
88 1 Left Base Cover
89 2 Base Cap
90 4 Base Foot
91 1 Right Base Cover
92 2 Caution Decal
93 1 Incline Wire
94 2 Base Foot Spacer
95 1 Base
96 2 Wheel
97 1 Incline Motor
98 1 Incline Motor Spacer
99 1 Key/Clip
100 3 Cable Tie
30
Key No. Qty. Description Key No. Qty. Description
101 1 Console
102 1 Console Frame
103 1 Tray
04 1 5/32" Hex Key
1
105 2 Console Clamp
106 1 Console Base
107 1 Crossbar
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
108 1 Access Door
109 8 #8 x 3/4" Truss Head Screw
110 1 #3 x 3/8" Screw
11 6 Inner Cushion
1
112 6 Cushion Plate
113 1 Grill Accent
*–Userʼs Manual
31
8
51
20
21
21
34
33
34
33
28
32
32
43
43
30
45
30
30
40
36
36
36
47
45
46
36
44
41
49
48
54
60
55
56
56
46
58
59
61
57
18
10
24
23
18
19
19
20
24
30
30
30
30
28
104
30
15
42
15
15
111
111
42
112
112
112
42
111
15
111
42
15
15
111
111
42
112
112
42
112
8
10
10
8
6
EXPLODED DRAWING A—Model No. PFTL63609.1 R0910A
32
15
15
15
15
74
18
73
37
37
37
1
1
1
17
22
22
28
28
69
70
71
68
62
64
76
75
72
65
16
28
28
31
67
66
77
79
78
16
16
63
113
109
109
109
109
109
EXPLODED DRAWING B—Model No. PFTL63609.1 R0910A
33
90
5
90
5
90
5
96
96
8
27
35
89
89
85
95
92
92
94
90
5
94
25
26
35
35
97
98
87
10
10
8
93
87
86
83
82
81
80
38
3
8
1
1
3
4
4
13
13
9
27
35
84
3
7
11
7
11
14
11
11
88
91
14
81
1
1
12
9
1
2
EXPLODED DRAWING C—Model No. PFTL63609.1 R0910A
34
53
1
108
103
101
12
107
1
2
39
102
106
1
1
1
1
1
12
2
1
1
1
1
1
1
1
100
17
105
105
50
53
99
1
1
1
1
17
17
52
29
110
EXPLODED DRAWING D—Model No. PFTL63609.1 R0910A
35
ORDERING REPLACEMENT PARTS
o order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to pro-
T
vide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
IMPORTANT: You must register this product within 30 days of the purchase date to avoid added
fees for service needed under warranty and to activate your extended warranty. Go to
www.proformservice.com/registration.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame is warranted for a lifetime. The drive motor
is warranted for twenty-five (25) years from the date of purchase. Parts and labor are warranted for one
(a) year from the date of purchase.
This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to
repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to a
service center, freight charges to and from the service center will be the customerʼs responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to any damage to a product caused by or attributable to freight damage,
abuse, misuse, improper or abnormal usage, or repairs not provided by an ICON authorized service center; to products used for commercial or rental purposes or as store display models; or to products transported or purchased outside the US. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
Part No. 303348 R0910A Printed in China © 2010 ICON IP, Inc.
Loading...
