IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with at least eight feet of clearance behind it and two feet on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
4. Keep the treadmill indoors, away from mois­ture and dust. Do not put the treadmill in a garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
6. Keep children under the age of 12 and pets away from the treadmill at all times.
7. The treadmill should be used only by persons weighing 250 pounds or less.
8. Never allow more than one person on the treadmill at a time.
9. Wear appropriate exercise clothes when using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recommended for
both men and women.
shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.
10. When connecting the power cord (see page 8), plug the power cord into a surge suppressor (not included) and plug the surge suppressor into a grounded circuit capable of carrying 15 or more amps. No other appliance should be on the same circuit. Do not use an extension cord.
11. Use only a single-outlet surge suppressor that meets all of the specifications described on page 8. To purchase a surge suppressor, see your local PROFORM dealer or call 1-800-806­3651 and order part number 146148.
12. Failure to use a properly functioning surge suppressor could result in damage to the con­trol system of the treadmill. If the control sys­tem is damaged, the walking belt may change speed or stop unexpectedly, which may result in a fall and serious injury.
13. Keep the power cord and the surge suppres­sor away from heated surfaces.
14. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See BE­FORE YOU BEGIN on page 4 if the treadmill is not working properly.)
Always wear athletic
2
15. Never start the treadmill while you are stand­ing on the walking belt. Always hold the handrails while using the treadmill.
16. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.
17. Never leave the treadmill unattended while it is running. Always remove the key, unplug the power cord and move the reset/off circuit breaker to the off position when the treadmill is not in use. (See the drawing on page 4 for the location of the circuit breaker.)
18. Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See ASSEMBLY on page 5, and HOW TO FOLD AND MOVE THE TREADMILL on page 21.) You must be able to safely lift 45 pounds (20 kg) to raise, lower, or move the treadmill.
19. When folding or moving the treadmill, make sure that the storage latch is fully closed.
20. When using iFIT.com CDs and videos, an electronic “chirping” sound will alert you when the speed of the treadmill is about to change. Always listen for the “chirp” and be prepared for speed changes. In some in­stances, the speed may change before the personal trainer describes the change.
21. When using iFIT.com CDs and videos, you can manually override the speed setting at any time by pressing the speed buttons. However, when the next “chirp” is heard, the speed will change to the next setting for the CD or video program.
22. Remove iFIT.com CDs and videos from your CD player or VCR when you are not using them.
23. Inspect and properly tighten all parts of the treadmill regularly.
24. Never insert any object into any opening.
DANGER: Always unplug the power
25. cord immediately after use, before cleaning the treadmill, and before performing the mainte­nance and adjustment procedures described in this manual. Never remove the motor hood un­less instructed to do so by an authorized ser­vice representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.
26. This treadmill is intended for in-home use only. Do not use this treadmill in a commer­cial, rental, or institutional setting.
SAVE THESE INSTRUCTIONS
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
The decals shown have been placed on your treadmill. If a decal is missing, or if it is not legible, please call our Customer Service Department, toll-free, to order a free re­placement decal (see the front cover of this manual). Apply the decal in the location shown.
3
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM E35S treadmill. The E35S treadmill combines ad­vanced technology with innovative design to help you get the most from your exercise program in the conve­nience and privacy of your home. And when you’re not exercising, the unique E35S treadmill can be folded up, requiring less than half the floor space of other tread­mills.
®
Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (ex­cluding holidays). To help us assist you, please note the product model number and serial number before calling. The model number of the treadmill is PFTL61731. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).
For your benefit, read this manual carefully before using the treadmill. If you have questions after read-
ing this manual, please call our Customer Service
Accessory Tray
Fan
Handrail
Storage Latch
Upright
Walking Belt
Before reading further, please review the drawing below and familiarize yourself with the labeled parts.
CD Holder
Console
Key/Clip
Reset/Off
Circuit Breaker
Power Cord
Foot Rail
BACK
Rear Roller Adjustment Bolts
RIGHT SIDE
Cushioned Walking Platform
for maximum exercise comfort
4
1/4” Washer
(39)–4
Internal Star
Washer (77)–4
Extension Leg Bolt (96)–4
1” Tek Screw (80)–2
Upright Bolt (76)–4
Latch Screw (79)–2
ASSEMBLY
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill perfor­mance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included allen wrenches and your own phillips screwdriver and wire cutters .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is the key number of the part, from the PART LIST on pages 26 and 27. The number after the parentheses shows the quantity needed for assembly. Note: If a part is not in the parts bag, check to see if it is preattached to
one of the parts to be assembled.
1. Make sure that the power cord is unplugged.
With the help of a second person, carefully raise the Uprights (97) to the position shown. Insert one of the Extension Legs (92) into the right Upright. (Note: It may be helpful to tip the Uprights forward as you insert the Extension Leg.) Make sure that the Warning Decal (91) is in the indicated location.
Insert the other Extension Leg (not shown) in the same way.
1
91
97
92
5
2. With the help of a second person, carefully tip the Uprights (97) down as shown. (Note: It may be helpful to place your foot on one of the Extension Legs [92] as you tip the Uprights.)
remain in the Uprights.
Make sure that the Extension Legs
2
99
80
Attach each Extension Leg (92) with two Extension Leg Bolts (96) and two 1/4” Washers (39) as shown. Thread a Leveling Foot (95) into each side of the Upright Base
do not thread the Leveling Feet fully into the
(97);
Upright Base.
Attach the two Base Pads (99) to the Upright Base (97) in the locations shown with two 1” Tek Screws (80).
With the help of a second person, raise the Upright Base (97) to the vertical position.
3. Attach the Latch Assembly (82) to the Left Upright (84) with the two Latch Screws (79). Start both Latch Screws before tightening either of them. Note: The Latch Screws may be preattached to the Left Upright.
99
96
80
39
97
39
96
97
92
3
39
79
95
96
82
92
95
96
4. Refer to drawing 4c. With the help of a second person, hold the Console Base (101) near the Uprights (80, 84). Look under the Console Base and locate the wires on the sides of the Console Base. Make sure that the wires
not routed through the openings for the Trays (109,
are
111). Drawing 4a shows the correct route for the wires. Drawing 4b shows an incorrect route.
Refer to drawing 4c. Cut the plastic ties holding the Wire Harness (74) and the pulse wire in the Uprights (80, 84).
Locate the Wire Harness (74) and pulse wire in the Uprights (97). Connect the Wire Harness and the pulse wire to the connectors on the sides of the Console Base
Make sure to connect the connectors properly
(101).
(see the inset drawings). IF THE CONNECTORS ARE NOT CONNECTED PROPERLY, THE CONSOLE MAY BE DAMAGED WHEN THE POWER IS TURNED ON. The connectors should slide together easily and snap into place.
easily and snap into place, turn a connector and try to in­sert it again. Insert the excess Wire Harness and pulse wire up into the Console Base.
If the connectors do not slide together
4a 4b
Correct
4c
111
101
74
97
74
109
84
Incorrect
97
Pulse
Wire
6
5. Set the Console Base (101) on the Uprights (97). Thread
the four Upright Bolts (76) with four Internal Star Washers (77) into the Uprights and the Console Base.
Be careful not to pinch the Wires (not shown) in the Uprights. Tighten the two Upright Bolts indicated by the
arrows first; then, tighten the remaining two Upright Bolts.
5
111
109
101
84
Make sure that the Left and Right Trays (109, 111) are pressed into the Console Base (101).
76
6. Fold the treadmill to the storage position (see page 21).
If the Wheels (94) are resting on the floor, or if the tread­mill rocks slightly, turn one or both of the Leveling Feet (95) under the Uprights (97) until the Wheels are off the floor and the rocking motion is eliminated. Note: If neces­sary, tip the treadmill and use a phillips screwdriver to turn the Leveling Feet.
7. Make sure that all parts are properly tightened before you use the treadmill. Note: Extra hardware may be included. Keep the included allen wrenches in a secure place. The large allen wrench is used to adjust the walking belt (see page 23). To protect the floor or carpet, place a mat under the treadmill. If there are thin sheets of clear plastic on the decals, remove them.
6
94
77
97
97
95
94
77
76
77
If you purchase the optional chest pulse sensor (see page 20), follow the steps below to install the receiver included with the chest pulse sensor.
1. Make sure that the power cord is unplugged. Remove
the indicated Screw (108) and the Access Door (116).
2. Remove the paper from the adhesive pad on the back of
the receiver (A).
der is near the lower edge of the receiver and facing the Console (107) as shown.
onto the indicated corner of the Access Door (116). Connect the wire on the receiver to the indicated wire ex­tending from the Console.
Make sure that no wires are pinched. Reattach the
3.
Access Door (116) with the Screw (108). The wires in­cluded with the receiver may be discarded.
Hold the receiver so the small cylin-
Firmly press the Receiver
7
116
107
108
Wire
A
Wire
Cylinder
OPERATION AND ADJUSTMENT
THE PERFORMANT LUBETMWALKING BELT
Your treadmill features a walking belt coated with PERFORMANT LUBE
IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking plat­form. Such substances will deteriorate the walking belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
TM
, a high-performance lubricant.
DANGER: Improper connection
of the equipment-grounding conductor can result in an increased risk of electric shock. Check with a qualified electrician or service­man if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your home’s power. Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off.
your treadmill being damaged, always use a surge suppressor with your treadmill (see drawing 1 at the right). To purchase a surge suppressor, see your local PROFORM dealer or call 1-800-806-3651 and order part number 146148.
To decrease the possibility of
an equipment-grounding conductor and a grounding
Plug the power cord into a surge suppressor,
plug.
and plug the surge suppressor into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. Important: The treadmill is not compatible with GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illus­trated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the surge suppressor to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available.
1
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Grounding Pin
Grounded Outlet
2
Grounded Outlet Box
Adapter
Grounding Plug
Surge Suppressor
Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup­pressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indi­cate whether it is functioning properly. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed or stop unexpect­edly, which may result in a fall and serious injury.
This product must be grounded.
tion or break down, grounding provides a path of least resistance for electric current to reduce the risk of elec­tric shock. This product is equipped with a cord having
If it should malfunc-
Lug
Metal Screw
The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician.
The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used it must be held in place by a metal screw.
covers are not grounded. Contact a qualified elec­trician to determine if the outlet box cover is grounded before using an adapter.
Some 2-pole receptacle outlet box
8
Note: If there are thin sheets of clear plastic on the console, remove them.
Clip
Key
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of features that help you get the most from your workouts.
When the manual mode of the console is selected, the speed and incline of the treadmill can be changed with the touch of a button. As you exercise, the console will display instant exercise feedback. You can even mea­sure your heart rate using the handgrip pulse sensor or the optional chest pulse sensor (see page 20).
In addition, the console offers six preset workout pro­grams. Each program automatically controls the speed and incline of the treadmill as it guides you through an effective workout. Two pulse programs are also offered. Each program automatically adjusts the speed and in­cline of the treadmill to keep your heart rate within a tar­get range while you exercise.
The console also features iFIT.com interactive technol­ogy. Having iFIT.com technology is like having a per­sonal trainer in your home. Using the included audio
cable, you can connect the treadmill to your home stereo, portable stereo, or computer and play special iFIT.com CD and video programs (one iFIT.com CD is included; additional CDs and videocassettes are avail­able separately). iFIT.com CD and video programs au­tomatically control the speed and incline of the treadmill as a personal trainer guides you through every step of your workout. High-energy music provides added moti­vation.
settes, call toll-free 1-800-735-0768.
With the treadmill connected to your computer, you can also go to our Web site at www.iFIT.com and ac­cess programs directly from the internet. Additional op­tions are soon to be available.
more information.
To use the manual mode of the console
steps beginning on page 10. To use preset programs, see page 12. To use heart rate programs, see page
13. page 17. To use iFIT.com programs directly from
our Web site, see page 19.
To purchase iFIT.com CDs or videocas-
See www.iFIT.com for
, follow the
To use an iFIT.com CD or video program, see
9

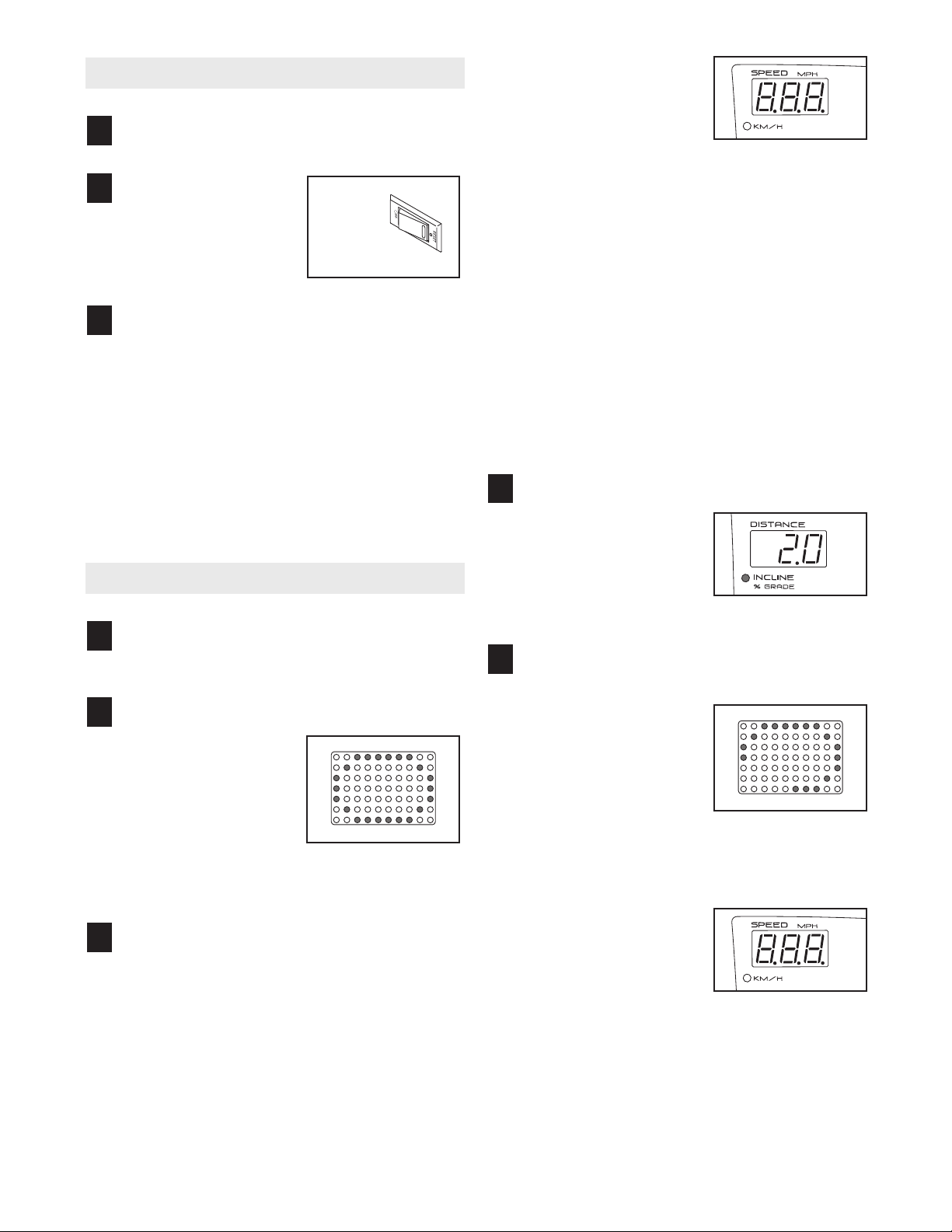

HOW TO TURN ON THE POWER
Plug in the power cord (see page 8).
1
Locate the reset/off
2
circuit breaker near the power cord. Make sure that the circuit breaker is in the on position.
Reset
Position
buttons. Each time a button is pressed, the speed setting will change by 0.1 mph; if a button is held down, the speed setting will change in increments of 0.5 mph. To change the speed setting quickly, press the Quick Speed but­tons. Note: The console can display speed and
distance in either miles or kilometers. For sim­plicity, all instructions in this section refer to miles.
Stand on the foot rails of the treadmill. Find the clip
3
attached to the key (see the drawing on page 9) and slide the clip onto the waistband of your clothes. Next, route the cord attached to the clip under the handgrip pulse sensor, and insert the key into the console. After a moment, the displays and various indicators will light. Test the clip by
carefully taking a few steps backward until the key is pulled from the console. If the key is not pulled from the console, adjust the position of the clip.
HOW TO USE THE MANUAL MODE
Insert the key fully into the console.
1
See HOW TO TURN ON THE POWER above.
Select the manual mode.
2
When the key is in­serted, the manual mode will be selected. To reselect the manual mode, press the Program Select button repeatedly until a track appears in the matrix. Make sure that the indicator on the iFIT.com button is
Press the Start button or the Speed
3
start the walking belt.
A moment after the button is pressed, the walking belt will begin to move at 1 mph. Hold the handrails and begin walking.
As you exercise, change the speed of the walking belt as desired by pressing the Speed
not lit.
button to
ss
and
t
t
s
s
To stop the walking belt, press the Stop button. The Time/Pace display will begin to flash. To restart the walking belt, press the Start button or
s
the Speed
Note: The first time the treadmill is used, observe the alignment of the walking belt, and align the walking belt if necessary (see page 23).
Change the incline of the treadmill as desired.
s
button.
4
To change the incline of the treadmill, press the Incline Each time a button is pressed, the incline will change by 0.5%.
Follow your progress with the matrix and the
5
displays.
The matrix
manual mode or the iFIT.com mode is se­lected, the matrix will display a 1/4-mile track. As you exercise, the in­dicators around the track will light in succession until the entire track is lit. The track will then darken and the indicators will again begin to light in succession.
Speed display—This display shows the speed of the walking belt. Note: When the KM/H indica­tor is lit, the console will display speed and dis­tance in kilometers; when the KM/H indicator is not lit, the console will display speed and distance in miles.
and
t
t
—When the
buttons.
s
s
10
To change the unit of measurement, first hold down the Stop button while inserting the key into the console. An “E” for English miles or an “M” for metric kilometers will appear in the Speed
ss
display. Press the Speed unit of measurement. When the desired unit of measurement is selected, remove the key.
Calories/Pulse display—This display
shows the approximate numbers of calories and fat calories you have burned (see FAT BURN­ING on page 24). The display will change from one number to the other every few seconds. The display will also show your heart rate when you use the handgrip pulse sensor or the optional chest pulse sensor.
button to change the
Measure your heart rate if desired.
6
You can measure your heart rate using either the handgrip pulse sensor or the optional chest pulse sensor.
To use the hand­grip pulse sen­sor, first make sure that your hands are clean.
stand on
Next,
the foot rails
and hold the handgrip pulse sensor, with your hands on the metal contacts. Avoid moving your hands. When your pulse is detected, two dashes (– –) will appear in the Calories/Pulse display, and then your heart rate will be shown.
reading, continue to hold the contacts for about 15 seconds.
For the most accurate heart rate
Contacts
Distance/Incline dis-
—This display
play
shows the distance that you have walked or run and the incline level of the treadmill. The display will change from one number to the other every few seconds. Note: Each time the incline changes, the display will show the incline setting for several seconds.
Time/Pace display— When the manual mode or the iFIT.com mode is selected, this display will show the elapsed time and your current pace (pace is measured in play will change from one number to the other every few seconds. When a preset program or a heart rate program is selected, the display will show the time than the elapsed time.
To reset the displays, press the Stop button, re­move the key, and then reinsert the key.
remaining in the program rather
minutes per mile). The dis-
Turn on the fan if desired.
7
To turn on the fan, press the button below the fan. To turn on the fan at high speed, press the button a second time. To turn off the fan, press the but­ton a third time. Note: A few minutes after the walking belt is stopped, the fan will automatically turn off.
When you are finished exercising, remove the
8
key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest setting. The incline must be at the lowest setting when the treadmill is folded to the storage posi­tion or the treadmill will be damaged. Next, re-
move the key from the console and put it in a se­cure place.
cators on the console remain lit after the key is removed, the console is in the “demo” mode. See page 20 and turn off the demo mode.
When you are finished using the treadmill, move the reset/off circuit breaker switch near the power cord to the off position and unplug the power cord.
Note: If the displays and various indi-
11
HOW TO USE PRESET PROGRAMS
Insert the key fully into the console.
1
See HOW TO TURN ON THE POWER on page
10.
Select one of the preset programs.
2
When the key is inserted, the manual mode will be selected. To select a pre­set program, press the Program Select button repeatedly until one of the six preset program indicators lights.
When a preset program is selected, the Speed display will flash the maximum speed setting of the program, and the Distance/Incline display will flash the maximum incline setting, for six seconds. The Time/Pace display will show how long the program will last.
The matrix will show the first seven speed settings of the program. Note: The profiles below the matrix show how the speed and in­cline of the treadmill will change during the programs.
Press the Start button or the Speed
3
start the program.
A moment after the button is pressed, the tread­mill will automatically adjust to the first speed and incline settings of the program. Hold the handrails and begin walking.
Each program is divided into several time seg­ments of different lengths. One speed setting and one incline setting are programmed for each seg­ment. Note: The same speed setting and/or in­cline setting may be programmed for two or more consecutive segments.
button to
ss
The speed setting for the first segment is shown in the flashing Current Segment column of the matrix. (The incline set­tings are not shown in the matrix.) The speed settings for the next seven segments are shown in the seven columns to the right.
When only three seconds remain in the first seg­ment of the program, both the Current Segment column and the column to the right will flash and a series of tones will sound. If the speed and/or in­cline of the treadmill is about to change, the Speed display and/or the Distance/Incline display will flash to alert you. When the first segment ends,
speed settings will move one column to the left
The speed setting for the second segment will then be shown in the flashing Current Segment column and the treadmill will automatically adjust to the speed and incline settings for the second segment. Note: If all of the indicators in the Current Segment column are lit after the speed settings have moved to the left, so that only the highest indicators appear in the matrix. If some of the indicators in the Current Segment column are not lit when the speed set­tings move to the left again, the speed settings will move back up.
The program will continue in this way until the speed setting for the last segment is shown in the Current Segment column of the matrix and the Time/Pace display counts down to zero. The walk­ing belt will then slow to a stop.
If the speed or incline setting is too high or too low at any time during the program, you can manually override the setting by pressing the Speed or Incline buttons. Every few times a Speed button is pressed, an additional indicator will light or darken in the Current Segment column. (If any of the columns to the right of the Current Segment col­umn have the same number of lit indicators as the Current Segment column, an additional indicator may light or darken in those columns as well.)
Note: When the next segment of the program begins, the treadmill will automatically adjust to the speed and incline settings for the next segment.
the speed settings will move downward
Current Segment
all
.
12
To stop the program temporarily, press the Stop button. The Time/Pace display will begin to flash. To restart the program, press the Start button or the Speed the Stop button, remove the key, and then reinsert the key.
Follow your progress with the displays.
button. To end the program, press
s
s
4
See step 5 on page 10.
Measure your heart rate if desired.
5
See step 6 on page 11.
Turn on the fan if desired.
6
See step 7 on page 11.
When the program is finished, remove the key
7
from the console.
HOW TO USE HEART RATE PROGRAMS
CAUTION: If you have heart prob-
lems, or if you are over 60 years of age and have been inactive, do not use the heart rate programs. If you are taking medication regu­larly, consult your physician to find whether the medication will affect your exercise heart rate.
Follow the steps below to use a heart rate program.
Note: You must wear the optional chest pulse sen­sor (see page 20) to use a heart rate program.
Put on the chest pulse sensor.
1
See the instructions included with the optional chest pulse sensor.
When the program has ended, make sure that
the incline of the treadmill is at the lowest set-
Next, remove the key from the console and
ting. put it in a secure place. Note: If the displays and various indicators on the console remain lit after the key is removed, the console is in the “demo” mode. Refer to page 20 and turn off the demo mode.
When you are finished using the treadmill, move the reset/off circuit breaker switch near the power cord to the off position and unplug the power cord.
Insert the key fully into the console.
2
See HOW TO TURN ON THE POWER on page
10.
Select a heart rate program.
3
When the key is inserted, the manual mode will be se­lected. To se­lect a heart rate program, press the Program Select button repeatedly until one of the two heart rate program indicators lights.
The two profiles on the left side of the matrix show how the target heart rate will change during the programs. During heart rate program 1, your heart rate will reach approximately 85% of your mated maximum heart rate; during heart rate pro­gram 2, your heart rate will reach approximately 80% of your Note: Your estimated maximum heart rate is de­termined by subtracting your age from 220. For example, if you are 30 years old, your estimated maximum heart rate is 190 beats per minute (220 – 30 = 190).
estimated maximum heart rate.
esti-
13
During heart rate pro­grams, the matrix will show a graphic that represents your heart rate. Each time a heart­beat is detected, an ad­ditional peak will ap­pear.
automatically increase or decrease to bring your heart rate closer to the target heart rate. If the speed reaches the maximum speed setting of the program (see step 4 at the left) and your heart rate is still too far below the current target heart rate, the incline of the treadmill will also increase to bring your heart rate closer to the target heart rate.
Enter your age and a maximum speed setting.
4
When a heart rate pro­gram is selected, the word “AGE” and the current age setting will flash in the Calories/ Pulse display. If you have already entered your age, simply press the Enter Age button. If you have not entered your age, press the buttons beside the Enter Age button to enter your age. Then, press the Enter Age button.
After you have entered your age, the letters “SPd” and the maxi­mum speed setting of the program will flash in the Calories/Pulse dis­play. If desired, press
s
s
the to adjust the maximum speed setting. When the desired setting is shown, press the Enter Age but­ton.
Press the Start button or the Speed
5
start the program.
A moment after the button is pressed, the tread­mill will automatically adjust to the first speed and incline settings of the program. Hold the handrails and begin walking.
t
t
and
buttons beside the Enter Age button
ss
button to
s
s
and
t
t
During the last three seconds of each segment, a series of tones will sound and the Speed display and the Distance/Incline display will flash.
The program will continue until no time remains in the program. The walking belt will then slow to a stop.
If the speed or incline setting is too high or too low at any time during the program, you can adjust the setting with the Speed or Incline buttons. However, each time the console compares your heart rate to the current target heart rate, the speed and/or in­cline of the treadmill may automatically change to bring your heart rate closer to the target heart rate.
If your pulse is not detected during the program, the letters “PLS” will flash in the Calories/ Pulse display and the speed and incline of the treadmill may automatically decrease until your pulse is detected. If this occurs, refer to the instruc­tions included with the optional chest pulse sensor.
To stop the program at any time, press the Stop button. Heart rate programs cannot be stopped temporarily and then restarted. To use a heart rate program again, reselect the program and start it at the beginning.
Follow your progress with the displays.
6
See step 5 on page 10.
Each heart rate program is divided into several time segments of different lengths. One target heart rate is programmed for each segment.
During each segment, the console will regularly compare your heart rate to the current target heart rate. If your heart rate is too far below or above the target heart rate, the speed of the treadmill will
14
Turn on the fan if desired.
7
See step 7 on page 11.
When the program is finished, remove the key
8
from the console.
See step 7 on page 13.
HOW TO CONNECT THE TREADMILL TO YOUR
LINE OUT
PHONES
LINE OUT
PHONES
AUDIO OUT
RIGHT
LEFT
A
LINE OUT
AUDIO OUT
RIGHT
LEFT
A
PHONES
LINE OUT
B
AUDIO OUT
RIGHT
LEFT
A
LINE OUT
PHONES
LINE OUT
PHONES
PHONES
PHONES
CD PLAYER, VCR, OR COMPUTER
To use iFIT.com CDs
, the treadmill must be connected to your portable CD player, portable stereo, home stereo, or computer with CD player. See pages 15 and 16 for connecting instructions.
To use iFIT.com video­cassettes, the treadmill must be connected to your VCR. See page 17 for connecting instructions. To use iFIT.com programs directly from our internet site
, the treadmill must be connected to your home com­puter. See page 16 for connecting instructions.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and PHONES jacks, see instruction A below. If your CD player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your CD player. Plug your headphones into the PHONES jack.
A
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT jack, see instruction A below. If your stereo has a
3.5mm LINE OUT jack, see instruction B. If your stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into an AUDIO OUT jack on your stereo.
A
Audio
Adapter
Cable
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your stereo.
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into a 3.5mm Y-adapter (avail­able at electronics stores). Plug the Y-adapter into
Audio Cable
phones
the PHONES jack on your CD player. Plug your headphones into the other side of the Y-adapter.
Head-
B
Audio
Cable
Headphones
3.5mm
Y-adapter
B
Audio Cable
C. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into a 3.5mm Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your stereo. Plug your headphones into the other side of the Y-adapter.
C
3.5mm
Audio
Y-adapter
Cable
15
Headphones
HOW TO CONNECT YOUR HOME STEREO
LINE OUT
CD
VCR
Amp
LINE OUT
LINE OUT
A
LINE OUT
CD
VCR
Amp
LINE OUT
CD
VCR
Amp
LINE OUT
A
PHONES
LINE OUT
HOW TO CONNECT YOUR COMPUTER
Note: If your stereo has an unused LINE OUT jack, see instruction A below. If the LINE OUT jack is being used, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into the LINE OUT jack on your stereo.
A
Audio
Adapter
Cable
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the LINE OUT jack on your stereo and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the LINE OUT jack on your stereo.
Note: If your computer has a 3.5mm LINE OUT jack, see instruction A. If your computer has only a PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the LINE OUT jack on your computer.
A
Audio Cable
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into a 3.5mm Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your computer. Plug your headphones or speakers into the other side of the Y-adapter.
B
B
Audio Cable
3.5mm
Y-adapter
Headphones/Speakers
RCA
Audio
Cable
Y-adapter
Adapter
Wire removed from
LINE OUT jack
16
HOW TO CONNECT YOUR VCR
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT. IN
RF OUT
IN
OUT
CH 34
A
AUDIO OUT
RIGHT
LEFT
VIDEO AUDIO
ANT. IN
RF OUT
IN
OUT
CH
34
VIDEO AUDIO
ANT. IN
RF OUT
IN
OUT
CH 34
Note: If your VCR has an unused AUDIO OUT jack, see instruction A below. If the AUDIO OUT jack is being used, see instruction B. If you have a TV with a built-in VCR, see instruction B. If your VCR is connected to your home stereo, see HOW TO CONNECT YOUR HOME STEREO on page 16.
A. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into the AUDIO OUT jack on your VCR.
HOW TO USE IFIT.COM CD AND VIDEO PROGRAMS
To use iFIT.com CDs or videocassettes, the treadmill must be connected to your portable CD player, portable stereo, home stereo, computer with CD player, or VCR. See HOW TO CONNECT THE TREADMILL TO YOUR CD PLAYER, VCR, OR COMPUTER on pages 15 to 17.
Note: To purchase iFIT.com CDs or video-
cassettes, call toll-free 1-800-735-0768.
Follow the steps below to use an iFIT.com CD or video program.
A
Audio
Adapter
Cable
B. Plug one end of the audio cable into the jack on the
front of the treadmill near the power cord. Plug the other end of the cable into the included adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the AUDIO OUT jack on your VCR and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the AUDIO OUT jack on your VCR.
B
Insert the key into the console.
1
See HOW TO TURN ON THE POWER on page 10.
Select the iFIT.com mode.
2
When the key is inserted, the manual mode will be se­lected. To use iFIT.com CDs or videocas­settes, press the iFIT.com button. The iFIT.com indicator will light.
Insert the iFIT.com CD or videocassette.
3
If you are using an iFIT.com CD, insert the CD into your CD player. If you are using an iFIT.com videocassette, insert the videocassette into your VCR.
Press the PLAY button on your CD player or
4
VCR.
RCA Y-adapter
Audio Cable
Wire removed from
AUDIO OUT jack
Adapter
17
A moment after the button is pressed, your per­sonal trainer will begin guiding you through your workout. Simply follow your personal trainer’s instructions. Note: If the Time/Pace display is flashing, press the Start button or the Speed
s
s
button on the console. The treadmill will not re­spond to a CD or video program when the Time/Pace display is flashing.
During the CD or video program, an electronic “chirping” sound will alert you when the speed and/or incline of the treadmill is about to change.
CAUTION: Always listen for the “chirp” and be prepared for speed and/or incline changes. In some instances, the speed and/or incline may change before the personal trainer describes the change.
If the speed or incline settings are too high or too low, you can manually override the settings at any time by pressing the Speed or Incline buttons on the console. However,
heard, the speed and/or incline will change to the next settings of the CD or video program.
To stop the walking belt at any time, press the Stop button on the console. The Time/Pace dis­play will begin to flash. To restart the program, press the Start button or the Speed a moment, the walking belt will begin to move at 1
When the next “chirp” is heard, the
mph.
speed and incline will change to the next set­tings of the CD or video program.
When the CD or video program is completed, the walking belt will stop and the Time/Pace display will begin to flash. Note: To use another CD or video program, press the Stop button or remove the key and go to step 1 on page 17.
Note: If the speed or incline of the treadmill does not change when a “chirp” is heard:
• Make sure that the iFIT.com indicator is lit and that the Time/Pace display is not flashing. If the Time/Pace display is flashing, press the Start button or the Speed console.
when the next “chirp” is
button. After
s
s
s
s
button on the
• Make sure that the audio cable is properly connected, that it is fully plugged in, and that it is not wrapped around a power cord.
• If you are using your portable CD player and the CD skips, set the CD player on the floor or another flat surface instead of on the console.
Follow your progress with the matrix and the
5
displays.
See step 5 on page 10.
Measure your heart rate if desired.
6
See step 6 on page 11.
Turn on the fan if desired.
7
See step 7 on page 11.
When the program is completed remove the
8
key.
See step 7 on page 13.
CAUTION: Always remove iFIT.com CDs and videocassettes from your CD player and VCR when you are finished using them.
• Adjust the volume of your CD player or VCR. If the volume is too high or too low, the con­sole may not detect the program signals.
18
HOW TO USE PROGRAMS DIRECTLY FROM OUR WEB SITE
To use programs from our Web site, the treadmill must be connected to your home computer. See HOW TO CONNECT YOUR COMPUTER on page 16. In addi­tion, you must have an internet connection and an in­ternet service provider. A list of specific system re­quirements is found on our Web site.
Follow the steps below to use a program from our Web site.
Hold the handrails, step onto the walking belt, and begin walking. During the program, an electronic
“chirping” sound will alert you when the speed and/or incline of the treadmill is about to change.
CAUTION: Always listen for the “chirp” and be prepared for speed and/or incline changes.
If the speed or incline settings are too high or too low, you can manually override the settings at any time by pressing the Speed or Incline buttons on the console.
heard, the speed and/or incline will change to the next settings of the program.
However, when the next “chirp” is
Insert the key into the console.
1
See HOW TO TURN ON THE POWER on page 10.
Select the iFIT.com mode.
2
When the key is inserted, the manual mode will be se­lected. To use a program from our Web site, press the iFIT.com button. The iFIT.com indi­cator will light.
Go to your computer and start an internet
3
connection.
Start your web browser, if necessary, and go to
4
our Web site at www.iFIT.com.
Follow the desired links on our Web site to se-
5
lect a program.
Read and follow the on-line instructions for using a program.
Follow the on-line instructions to start the
6
program.
To stop the walking belt at any time, press the Stop button on the console. The Time/Pace dis­play will begin to flash. To restart the program,
s
press the Start button or the Speed a moment, the walking belt will begin to move at 1 mph. When the next “chirp” is heard, the speed
and incline will change to the next settings of the program.
When the program is completed, the walking belt will stop and the Time/Pace display will begin to flash. Note: To use another program, press the Stop button and go to step 5.
Note: If the speed or incline of the treadmill does not change when a “chirp” is heard, make sure that the iFIT.com indicator is lit and that the Time/Pace display is not flashing. In addi­tion, make sure that the audio cable is properly connected, that it is fully plugged in, and that it is not wrapped around a power cord.
Follow your progress with the matrix and the
8
displays.
See step 5 on page 10.
When the program has ended, remove the key.
s
button. After
9
See step 7 on page 13.
When you start the program, an on-screen count­down will begin.
Return to the treadmill and stand on the foot
7
pads. Find the clip attached to the key and slide the clip onto the waistband of your clothes.
When the on-screen countdown ends, the program will begin and the walking belt will begin to move.
19
THE INFORMATION MODE/DEMO MODE
THE OPTIONAL CHEST PULSE SENSOR
The console features an information mode that keeps track of the total number of hours that the treadmill has been operated and the total number of miles that the walking belt has moved. The information mode also al­lows you to switch the console from miles per hour to kilometers per hour. In addition, the information mode allows you to turn on and turn off the demo mode.
To select the information mode, hold down the Stop button while inserting the key into the console. When the information mode is selected, the following informa­tion will be shown:
The Distance/Incline display will show the total number of miles (or kilometers) that the walking belt has moved.
The Time/Pace display will show the total number of hours the treadmill has been used.
An “E” for English miles or an “M” for metric kilometers will appear in the Speed dis­play. Press the Speed
ss
but­ton to change the unit of measurement.
An optional chest pulse sensor adds even more features to the console. The chest pulse sensor provides hands-free operation and allows the console’s heart rate programs to be used.
To purchase the optional
chest pulse sensor, call toll-free 1-800-734-2377.
HOW TO LEVEL THE TREADMILL
If the treadmill wheels are touching the floor or if the treadmill rocks slightly, turn one or both of the leveling feet under the upright base until the wheels are off the floor and the rocking motion is eliminated. Note: If nec­essary, tip the treadmill and use a phillips screwdriver to turn the leveling feet.
IMPORTANT: The Calories/Pulse display should be blank.
If a “d” ap­pears in the display, the con­sole is in the “demo” mode.
This mode is intended to be used only when a treadmill is displayed in a store. When the console is in the demo mode, the power cord can be plugged in, the key can be removed from the console, and the displays and indicators on the console will automatically light in a preset sequence, although the buttons on the console will not operate. If a “d” ap-
pears in the Calories/Pulse display when the infor­mation mode is selected, press the Speed
button
t
t
so the display is blank.
To exit the information mode, remove the key from the console.
Leveling
Feet
Wheels
20
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the lowest position. If this is not done, the treadmill may be per­manently damaged. Next, unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill.
1. Hold the treadmill with your hands in the locations shown at the
right. To decrease the possibility of injury, bend your legs
and keep your back straight. As you raise the treadmill, make sure to lift with your legs rather than your back.
Raise the treadmill about halfway to the vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Using your left hand, pull the latch knob to the left and hold it. Raise the treadmill until the frame is past the latch pin. Slowly release the latch knob.
the frame is securely held by the latch pin.
To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of direct sun­light. Do not leave the treadmill in the storage position in temperatures above 85° Fahrenheit.
Make sure that
1
2
Frame
Latch Knob
Engaged
Latch Pin
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the frame is se-
curely held by the latch pin.
1. Hold the upper ends of the handrails. Place one foot on the
base as shown.
2. Tilt the treadmill back until it rolls freely on the front wheels.
Carefully move the treadmill to the desired location.
duce the risk of injury, use extreme caution while mov­ing the treadmill. Do not move the treadmill over an un­even surface.
3. Place one foot on the base, and carefully lower the treadmill
until it is resting in the storage position.
HOW TO LOWER THE TREADMILL FOR USE
1. See drawing 2 above. Hold the upper end of the treadmill with your right hand. Pull the latch knob to the left
and hold it. Pivot the treadmill down until the frame is past the latch pin.
To re-
Base
Front Wheels
2. See drawing 1 above. Hold the treadmill firmly with both hands, and lower the treadmill to the floor.
CAUTION: To decrease the possibility of injury, bend your legs and keep your back straight.
21
TROUBLESHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department toll­free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).
PROBLEM: The power does not turn on
SOLUTION:
PROBLEM: The power turns off during use
SOLUTION: a. Check the reset/off circuit breaker (see the drawing above). If the circuit breaker has tripped, wait
PROBLEM: The incline of the treadmill does not change correctly
a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 8). Use only a single-outlet surge suppressor that meets all of the specifications described on page 8. Important: The treadmill is not compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is fully inserted into the console.
c. Check the reset/off circuit breaker located on the
treadmill frame near the power cord. If the switch protrudes as shown, the circuit breaker has tripped. To reset the circuit breaker, wait for five minutes and then press the switch back in.
for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key fully into the console.
d. If the treadmill still will not run, please call our Customer Service Department, toll-free.
c
Tripped
Reset
SOLUTION:
PROBLEM: The treadmill rocks during use
SOLUTION:

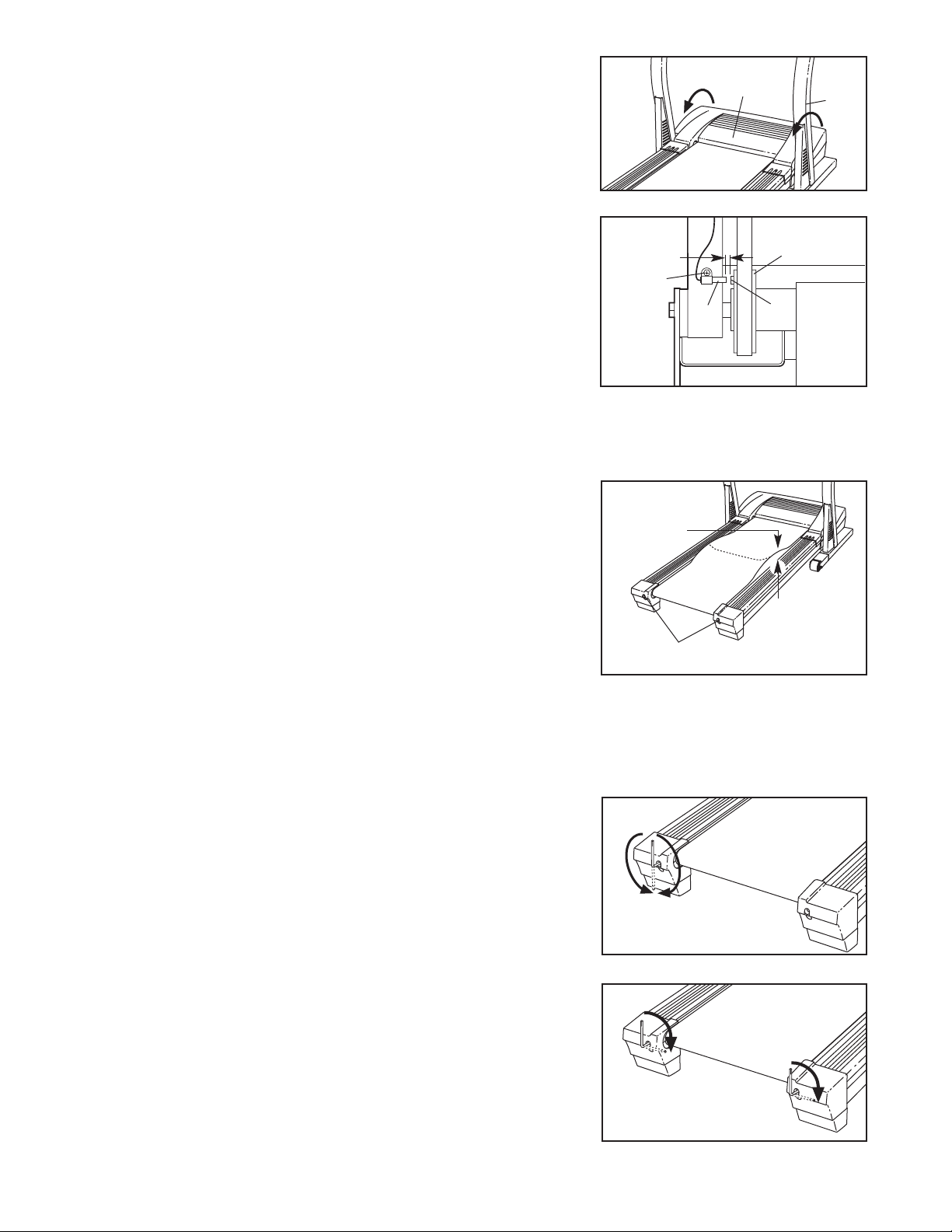

PROBLEM: The displays of the console do not function properly
SOLUTION:
a. With the key in the console, press one of the Incline buttons. While the incline is changing, re-
move the key. After a few seconds, re-insert the key. The treadmill will automatically rise to the
maximum incline level and then return to the minimum level. This will recalibrate the incline system.
a. See assembly step 6 on page 7.
a. Remove the key from the console and UNPLUG THE
POWER CORD. With the help of a second person, carefully tip the Upright Base (97) down as shown. Remove the five Hood Screws (44). Note: A phillips screwdriver with at least a 5” shaft is required.
a
44
44
97
44
22
With the help of a second person, carefully raise the Upright Base (97) as shown. Carefully pivot the Hood (105) off.
Locate the Reed Switch (22) and the Magnet (19) on the left side of the Pulley (18). Turn the Pulley until the Magnet is aligned with the Reed Switch.
that the gap between the Magnet and the Reed Switch is about 1/8”.
(23) and move the Reed Switch slightly. Retighten the Screw. Reattach the Hood, and run the treadmill for a few minutes to check for a correct speed reading.
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 8.
If necessary, loosen the Screw
Make sure
1/8”
22
Top
View
23
105
97
18
19
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may be­come damaged. Remove the key and POWER CORD. Using the allen wrench, turn both rear roller adjustment bolts counterclockwise, 1/4 of a turn. When the walking belt is properly tightened, you should be able to lift each side of the walking belt 2 to 3 inches off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, in­sert the key, and run the treadmill for a few minutes. Repeat until the walking belt is properly tightened.
c. If the walking belt still slows when walked on, please call our Customer Service Department, toll-
free.
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, first remove the key
UNPLUG THE POWER CORD. If the walking
and belt has shifted to the left, use the allen wrench to turn the left rear roller bolt clockwise 1/2 of a turn; if the walking belt has shifted to the right, turn the bolt counterclockwise 1/2 of a turn. Be careful not to overtighten the walking belt. Plug in the power cord, insert the key, and run the treadmill for a few minutes. Repeat until the walking belt is centered.
UNPLUG THE
b
2”–3”
Rear Roller Adjustment Bolts
a
If the walking belt slips when walked on, first re-
b.
move the key and Using the allen wrench, turn both rear roller bolts clockwise, 1/4 of a turn. When the walking belt is cor­rectly tightened, you should be able to lift each side of the walking belt 2 to 3 inches off the walking platform. Be careful to keep the walking belt centered. Plug in the power cord, insert the key, and carefully walk on the treadmill for a few minutes. Repeat until the walk­ing belt is properly tightened.
UNPLUG THE POWER CORD.
23
b
CONDITIONING GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physi­cian. This is especially important for individu­als over the age of 35 or individuals with pre­existing health problems.
The pulse sensor is not a medical device. Various factors, including your movement, may affect the accuracy of heart rate readings. The sensor is intended only as an exercise aid in determining heart rate trends in general.
The following guidelines will help you to plan your ex­ercise program. For more detailed exercise informa­tion, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recom­mended heart rates for fat burning and aerobic exercise.
ergy. Only after the first few minutes does your body begin to use stored is to burn fat, adjust the speed and incline of the tread­mill until your heart rate is near the lowest number in your training zone.
For maximum fat burning, adjust the speed and incline of the treadmill until your heart rate is near the middle number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys­tem, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the speed and incline of the treadmill until your heart rate is near the highest number in your training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-up—Start each workout with 5 to 10 minutes of stretching and light exercise. A proper warm-up in­creases your body temperature, heart rate and circula­tion in preparation for exercise.
fat calories for energy. If your goal
To find the proper heart rate for you, first find your age near the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age. The three numbers define your “train­ing zone.” The lower two numbers are recommended heart rates for fat burning; the higher number is the recommended heart rate for aerobic exercise.
To measure your heart rate during exercise, use the pulse sensor. If your heart rate is too high or too low, adjust the speed and incline of the treadmill.
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses easily accessible
carbohydrate calories for en-
Training Zone Exercise—After warming up, increase the intensity of your exercise until your pulse is in your training zone for 20 to 60 minutes. (During the first few weeks of your exercise program, do not keep your pulse in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise—never hold your breath.
A Cool-down—Finish each workout with 5 to 10 min­utes of stretching to cool down. This will increase the flexibility of your muscles and will help prevent post­exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three workouts each week, with at least one day of rest be­tween workouts. After a few months, you may com­plete up to five workouts each week if desired. The key to success is to make exercise a regular and enjoyable part of your everyday life.
24
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg. Reach toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg. To cause further stretching of the achilles ten­dons, bend your back leg as well. Stretches: Calves, achilles ten­dons and ankles.
4. Quadriceps Stretch
1
2
3
4
With one hand against a wall for balance, reach back and grasp one foot with your other hand. Bring your heel as close to your but­tocks as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull your feet toward your groin area as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.
5
25
PART LIST—Model No. PFTL61731 R1103A
To locate the parts listed below, refer to the EXPLODED DRAWING attached in the center of this manual.
Key No. Qty. Description Key No. Qty. Description
1 1 Foot Rail Insert 2 2 Foot Rail 3 2 Foot Rail Cap Screw 4 2 Foot Rail Cap
5* 1 Idler Arm Assembly
6 1 Idler Pivot Bolt 7 1 Idler Arm 8 1 Idler Arm Spring
9 1 Idler Arm Washer 10 1 Pulley Nut 11 1 Pulley Washer 12 1 Idler Pulley 13 1 Walking Platform 14 2 Belt Guide 15 4 Belt Guide Screw 16 2 Walking Platform Screw (Rear) 17 2 Frame Pivot Bolt 18 1 Front Roller/Pulley 19 1 Magnet 20 9 Pivot Nut 21 2 Pivot Bushing 22 1 Reed Switch 23 1 Reed Switch Screw 24 1 Reed Switch Clip 25 1 E-Clip 26 4 Belly Pan Screw 27 1 Pulley/Flywheel/Fan 28 1 Motor Belt 29 1 Latch Plate 30 2 Latch Plate Screw 31 1 Motor 32 2 Platform Cushion 33 1 Lift Frame 34 1 Spring 35 1 Pulley Bolt 36 1 Motor Pivot Bolt 37 1 Incline Motor 38 4 Incline Bolt 39 6 1/4” Washer 40 3 Roller Star Washer 41 1 Front Roller Adj. Bolt 42 4 Walking Platform Screw 43 1 Transformer 44 5 Hood Screw/Console Screw/
Belly Pan Screw 45 1 Left Handrail 46 1 Right Handrail 47 1 Reset/Off Circuit Breaker 48 1 Controller 49 1 Power Cord
50 1 Power Cord Grommet 51 2 Static Decal 52 10 3/4” Tek Screw 53 3 Belly Pan Clip 54 1 Belly Pan 55 1 Releasable Tie 56 1 Latch Pin Collar 57 1 Tie Holder Clamp 58 1 Cable Tie 59 1 Frame 60 1 Right Rear Foot 61 1 Audio Wire 62 2 Rear Roller Adj. Bolt 63 1 Rear Roller 64 1 Allen Wrench 65 1 Top Left Endcap 66 1 Left Rear Foot 67 1 Left Rear Endcap 68 1 Walking Belt 69 2 Warning Decal 70 1 Photo Switch Star Washer 71 1 Pulse Bar 72 1 Right Rear Endcap 73 1 Console Top 74 1 Wire Harness 75 1 Top Right Endcap 76 4 Upright Bolt 77 4 Internal Star Washer 78 1 Photo Switch Wire 79 2 Latch Screw 80 2 1” Tek Screw 81 1 Filter Wire 82 1 Latch Housing 83 1 Controller Wire 84 1 Latch Pin 85 1 Optic Disk 86 4 Isolator Screw 87 4 Isolator 88 1 Latch Knob 89* 2 Extension Leg Assembly 90 2 Wheel Bolt 91 2 Warning Decal 92 2 Extension Leg 93 1 iFIT.com Wire Nut 94 2 Wheel 95 2 Leveling Foot 96 4 Extension Leg Bolt 97 1 Upright 98 1 Photo Switch 99 2 Base Pad
26
Key No. Qty. Description Key No. Qty. Description
100 2 Upright Base Endcap 101 1 Console Base 102 1 Console Back 103 8 Ground Screw/Choke Screw 104 1 Key Clip 105 1 Hood 106 1 Fan 107 1 Console 108 44 Screw 109 1 Left Tray 110 1 CD Holder 111 1 Right Tray 112 1 iFIT.com Wire 113 1 iFIT.com Jack 114 2 Motor Bolt 115 1 Photo Switch Screw 116 1 Access Door 117 1 Left Handgrip (Top) 118 1 Photo Switch Nut
119 1 Left Bottom Handgrip 120 1 Right Handgrip (Top) 121 1 Right Bottom Handgrip 122 1 5/32” Allen Wrench 123 1 Shock 124 2 Controller Screw 125 1 iFIT.com CD 126* 1 Latch Assembly 127 2 Small Upright Endcap 128 1 Hood Bracket
# 1 12” Green Wire, F/Ring # 1 8” Green Wire, 2 Ring # 1 4” Blue Wire, 2F # 1 User’s Manual
* Includes all parts shown in the box #These parts are not illustrated
Specifications are subject to change without notice.
27
15
14
17
20
20
38
21
37
38
33
20
23
20
21
22
24
55
108
57
58
41
40
39
85
115
70
98
118
87
86
86
87
1
2
3
4
17
19
18
3
2
4
1
42
13
68
39
62
69
62
39
64
16
59
16
63
42
32
108
108
32
72
67
30
29
52
52
14
15
40
40
42
42
86
87
87
86
60
66
44
26
54
48
53
26
26
26
51
47
49
50
93
61
83
78
81
44
53
53
5*
7
11
8
10
12
20
35
6
9
31
27
28
114
105
44
44
44
103
43
122
69
124
108
128
EXPLODED DRAWING—Model No. PFTL61731 R1103A
112
113
104
108
106
108
107
117
120
119
108
108
108
108
121
108
108
108
108
108
108
108
108
108
108
108
108
108
108
108
102
111
110
108
108
108
108
108
108
108
108
101
109
51
116
44
44
125
71
103
108
97
89*
90
94
20
91
92
95
96
89*
20
94
90
91
92
65
108
99
80
100
38
20
20
38
74
103
99
80
74
75
100
39
76
77
108
108
77
76
108
45
46
73
82
84
25
56
34
88
79
108
95
96
39
123
126*
127
127
EXPLODED DRAWING—Model No. PFTL61731 R1103A
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). Before calling, please note the following information:
• The MODEL NUMBER of the product (PFTL61731)
®
• The NAME of the product (PROFORM
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the EXPLODED DRAWING and PART LIST attached in the center of this manual)
E35S treadmill)
PROFORM is a registered trademark of ICON Health & Fitness, Inc.
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of pur­chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim­ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, mis­use, improper or abnormal usage or repairs not provided by an ICON authorized service center; prod­ucts used for commercial or rental purposes; or products used as store display models. No other war­ranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con­nection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of in­cidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 201784 R1103A Printed in USA © 2003 ICON Health & Fitness, Inc.
Loading...
