ProForm PFTL59906.0 User Manual

Model No. PFTL59906.0
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
Serial No.
Serial Number Decal
QUESTIONS?
As a manufacturer, we are com­mitted to providing complete customer satisfaction. If you have questions, or if parts are damaged or missing, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT DIRECTLY.
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB: www.proformservice.com
CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Save this manual for future reference.
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

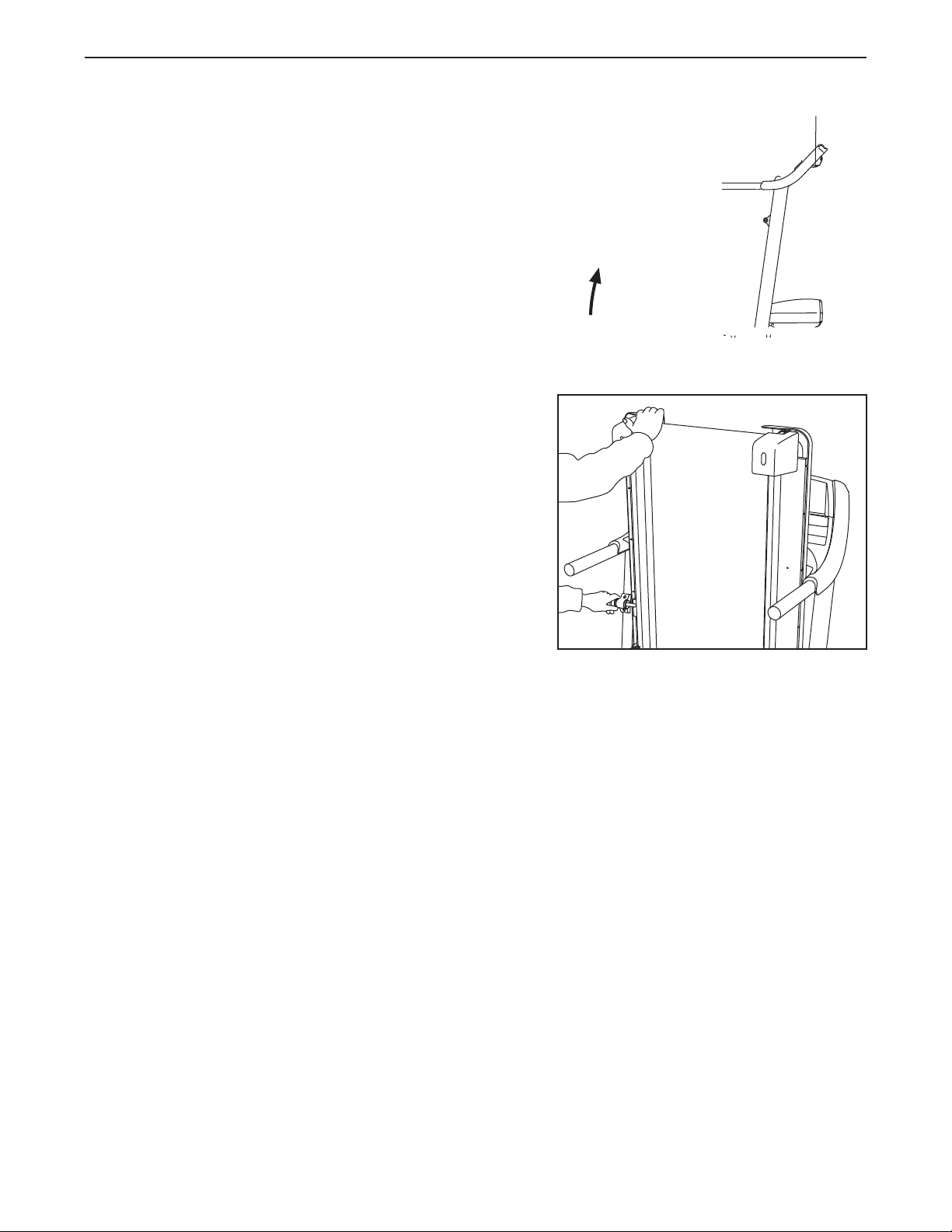

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
TROUBLESHOOTING
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

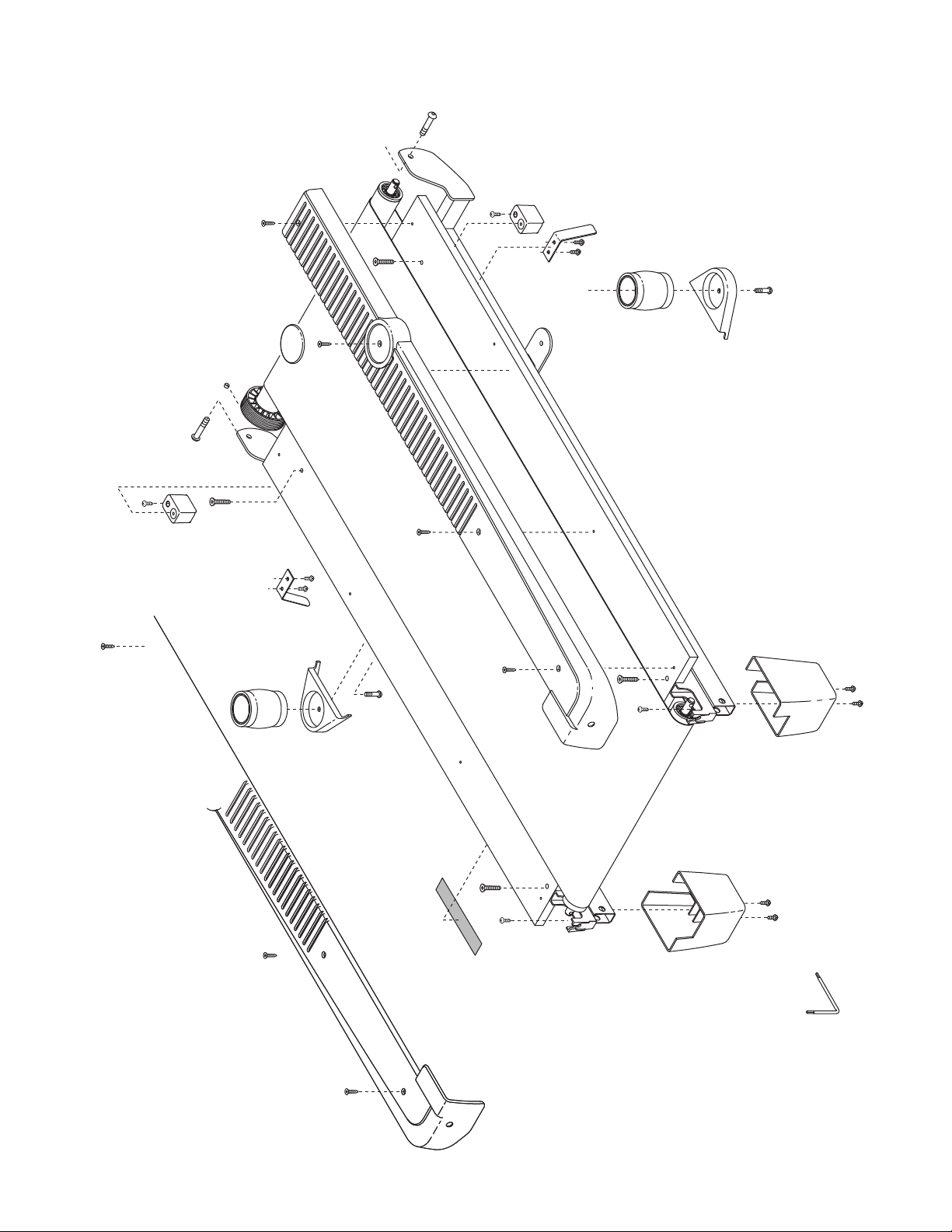

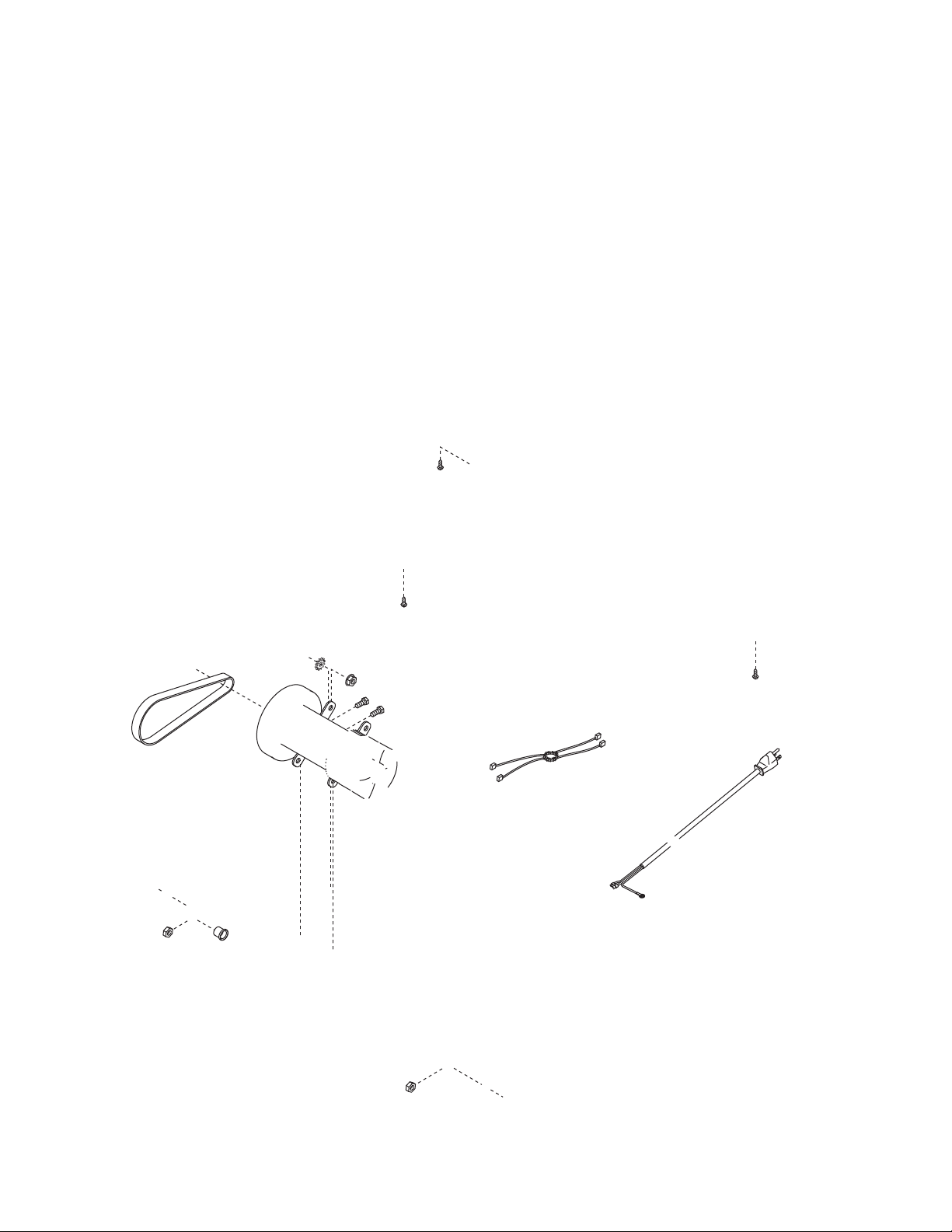

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: T
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with at least eight feet of clearance behind it and two feet on each side. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
4. Keep the treadmill indoors, away from mois­ture and dust. Do not put the treadmill in a garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
6. Keep children under the age of 12 and pets away from the treadmill at all times.
7. The treadmill should be used only by persons weighing 300 pounds or less.
o reduce the risk of burns, fire, electric shock, or injury to persons, read the
page 9. To purchase a surge suppressor, see your local PROFORM dealer or call the toll­free telephone number on the front cover of this manual and order part number 146148, or see your local electronics store.
12. Failure to use a properly functioning surge suppressor could result in damage to the con­trol system of the treadmill. If the control sys­tem is damaged, the walking belt may change speed, accelerate, or stop unexpectedly, which may result in a fall and serious injury.
13. Keep the power cord and the surge suppres­sor away from heated surfaces.
14. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See TROU­BLESHOOTING on page 18 if the treadmill is not working properly.)
15. Read, understand, and test the emergency stop procedure before using the treadmill (see HOW TO TURN ON THE POWER on page 11).
8. Never allow more than one person on the treadmill at a time.
Wear appropriate exercise clothes when
9. using the treadmill. Do not wear loose clothes that could become caught in the treadmill. Athletic support clothes are recommended for both men and women.
Always wear athletic shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.
10. When connecting the power cord (see page
9), plug the power cord into a surge suppres­sor (not included) and plug the surge sup­pressor into a grounded circuit capable of carrying 15 or more amps. No other appliance should be on the same circuit. Do not use an extension cord.
11. Use only a single-outlet surge suppressor that meets all of the specifications described on
16. Never start the treadmill while you are stand­ing on the walking belt. Always hold the handrails while using the treadmill.
17. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.
18. The pulse sensor is not a medical device. Various factors, including the user's move­ment, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.
19. Use the included dumbbells only as de­scribed in this manual. Properly store the dumbbells in the dumbbell holders on the console when you are not using them. If the dumbbells are improperly stored, they may fall off the console, causing the user to trip.
3
4
BEFORE YOU BEGIN
hank you for selecting the new PROFORM
T
ROSSTRAINER treadmill. The 560 CROSSTRAINER
C treadmill combines advanced technology with innova­tive design to let you enjoy an excellent form of cardio­vascular exercise in the convenience and privacy of your home. And when you’re not exercising, the unique 560 CROSSTRAINER treadmill can be folded up, re­quiring less than half the floor space of other treadmills.
For your benefit, read this manual carefully before you use the treadmill. If you have questions after
reading this manual, please see the front cover of this manual. To help us assist you, note the product model
Fan
Accessory Tray
Handrail
®
60
5
umber and serial number before contacting us. The
n
odel number of the treadmill is PFTL59906.0. The
m serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the lo­cation).
To avoid a registration fee for any service needed under warranty, you must register the treadmill at www.proformservice.com/registration.
Before reading further, please review the drawing below and familiarize yourself with the labeled parts.
Dumbbells
Console
Pulse Sensor
Storage Latch
Upright
Walking Belt
Foot Rail
BACK
Rear Roller Adjustment Bolts
Key/Clip
Reset/Off
Circuit Breaker
Power Cord
RIGHT SIDE
Cushioned Walking Platform
for maximum exercise comfort
5
ASSEMBLY
1" Tek Screw (83)–2
Extension Leg Nut (67)–2
Screw (3)–2
2.5" Extension Leg Bolt (65)–2
2.25" Extension Leg Bolt (92)–2
Handail Bolt (64)–4
Front Endcap Screw (14)–2
To hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480.
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials; do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to
he top of the walking belt or the shipping carton. This does not affect treadmill performance. If there is lubricant
t on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own phillips screwdriver .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is the key number of the part, from the PART LIST on pages 22 and 23. The number after the parentheses shows the quantity needed for assembly. Note: If a part is not in the parts bag, check to see if it is preattached to one of the parts to be assembled. If a part is missing, call toll-free 1-888-533-1333. To avoid damaging plastic
parts, do not use power tools for assembly.
1. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip the treadmill onto its left side as shown. Partially fold the Frame (58) so the treadmill is more sta­ble. Do not fully fold the treadmill until it is
completely assembled.
Insert an Extension Leg (89) into the base of the Uprights (84). Hold an Extension Leg Nut (67) in the bottom of the Extension Leg, and thread a
2.25" Extension Leg Bolt (92) into the top of the Extension Leg. Next, thread a 2.5" Extension Leg Bolt (65) into the bottom of the Extension leg.
Firmly tighten the Extension Leg Bolts.
Slide a Front Endcap (44) onto the base of the Uprights (84). Partially tighten a Front Endcap Screw (14) into the Front Endcap and the base.
1
84
92
89
58
6
67
14
44
65
2. With the help of a second person, carefully tip the treadmill onto its right side. Do not fully fold
he treadmill until it is completely assembled.
t
nsert the other Extension Leg (89) into the base
I of the Uprights (84). Hold an Extension Leg Nut (67) in the bottom of the Extension Leg, and thread a 2.25" Extension Leg Bolt (92) into the top of the Extension Leg. Next, thread a 2.5" Extension Leg Bolt (65) into the bottom of the Extension leg.
Leg Bolts.
Slide the other Front Endcap (44) onto the base of the Uprights (84). Partially tighten a Front Endcap Screw (14) into the Front Endcap and the base.
Firmly tighten the Extension
2
44
65
14
67
84
92
89
3. Attach two Base Pads (82) to the base of the Uprights (84) with two 1" Tek Screws (83).
4. With the help of a second person, carefully raise the Uprights (84) to a vertical position.
Insert the Handrails (20) into the tubes at the top of the Upright (84). Make sure that the Handrails are turned so that the Handrail Bolts (64) can be threaded into the Handrails (see the inset draw­ing). Start both Handrail Bolts before tightening them.
See steps 1 and 2. Fully tighten the two Front Endcap Screws (14).
3
82
83
84
83
82
4
20
64
84
20
20
64
7
5. Attach the Latch Housing (73) to the left Upright
84) with two Screws (3); start both Screws
(
and then tighten them. Note: Make sure that the large hole in the Latch Housing is on the indicated side.
Remove the knob from the pin. Make sure that the collar and the spring are on the pin. (Note: If there are two collars, place one on each side of the spring.) Next, insert the pin into the Latch Housing (73). Then, tighten the knob onto the pin.
6. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of clear
plastic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the tread­mill. Note: Extra hardware may be included. Keep the included hex key in a secure place; the large hex key is used to adjust the walking belt (see page 19).

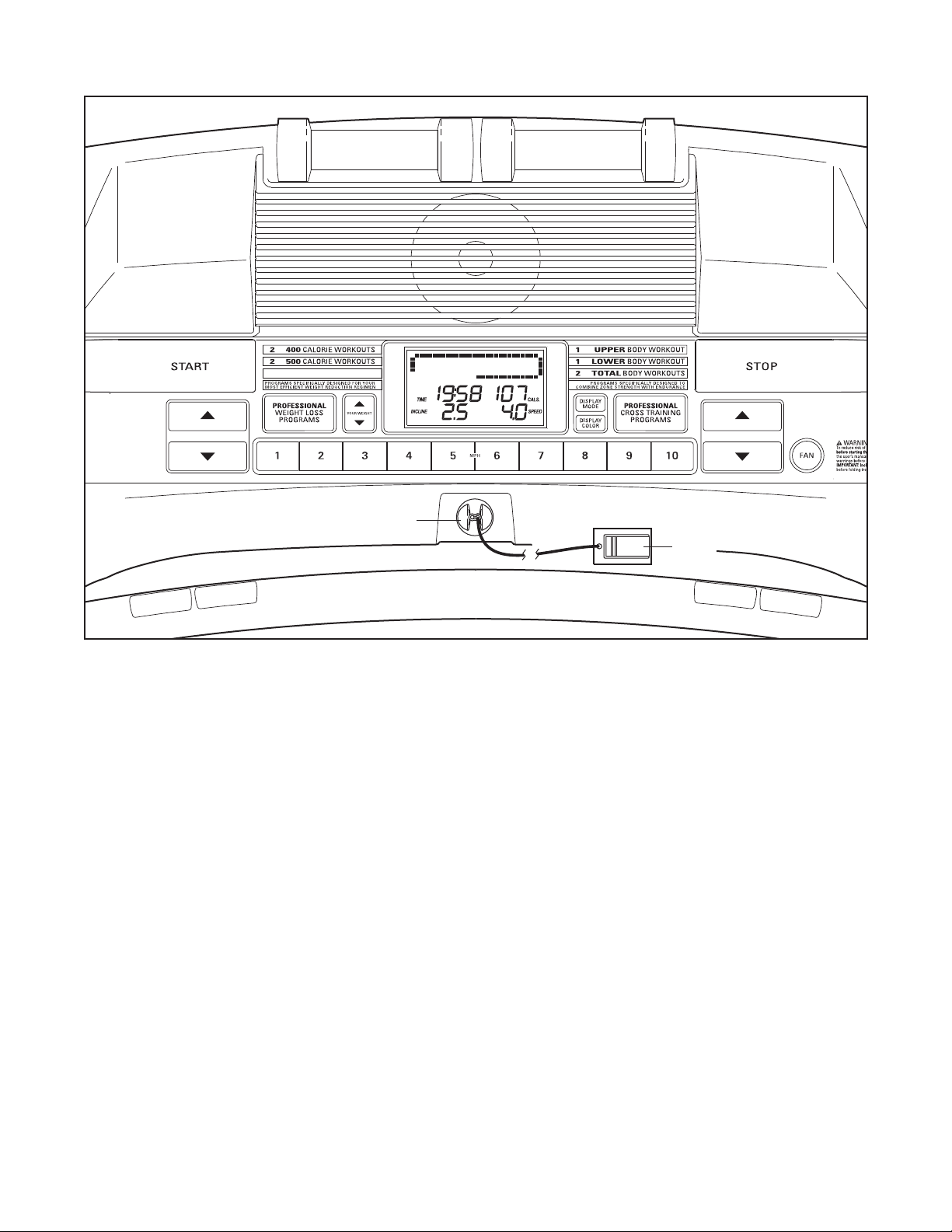

If you purchase the optional chest pulse sensor (see page 16), follow the steps below to install the receiver included with the chest pulse sensor.
5
4
8
73
Knob
3
Large Hole
Wire
Spring
Collar
Pin
1. Make sure that the power cord is unplugged. Remove
the indicated Screw (3) and the Access Door (76) from the back side of the Console Base (85).
2. Connect the wire on the receiver (A) to the indicated wire
extending from the Console Base (85). Hold the re-
ceiver so the small cylinder is oriented as shown and is facing the Console Back. Attach the receiver to the
plastic posts on the Access Door (76) with the two in­cluded small screws.
3. Make sure that no wires are pinched. Reattach the
Access Door (76) with the Screw (3). Discard the other wires included with the receiver.
85
76
Small
Screws
3
Small
Cylinder
A
8
OPERATION AND ADJUSTMENT
HE PRE-LUBRICATED WALKING BELT
T
Your treadmill features a walking belt coated with high­performance lubricant. IMPORTANT: Never apply sil-
icone spray or other substances to the walking belt or the walking platform. Such substances will deteriorate the walking belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
DANGER: Improper connection
of the equipment-grounding conductor can result in an increased risk of electric shock. Check with a qualified electrician or service­man if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.
Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your home’s power. Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge suppressor with your treadmill (see drawing 1 at the right). To purchase a surge suppressor, see your local PROFORM dealer or call the toll-free telephone number on the front cover of this man­ual and order part number 146148, or see your local electronics store.
ric shock. This product is equipped with a cord having
t an equipment-grounding conductor and a grounding plug.
Plug the power cord into a surge suppressor, and plug the surge suppressor into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances. Important: The treadmill is not compatible with GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illus­trated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the surge suppressor to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available.
Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup­pressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps. There must be a moni­toring light on the surge suppressor to indicate whether it is functioning properly. Failure to use a properly functioning surge suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change speed, accelerate, or stop unexpect­edly, which may result in a fall and serious injury.
This product must be grounded.
tion or break down, grounding provides a path of least resistance for electric current to reduce the risk of elec-
If it should malfunc-
The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician.
The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used it must be held in place by a metal screw.
covers are not grounded. Contact a qualified elec trician to determine if the outlet box cover is grounded before using an adapter.
Some 2-pole receptacle outlet box
9
-
