CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.

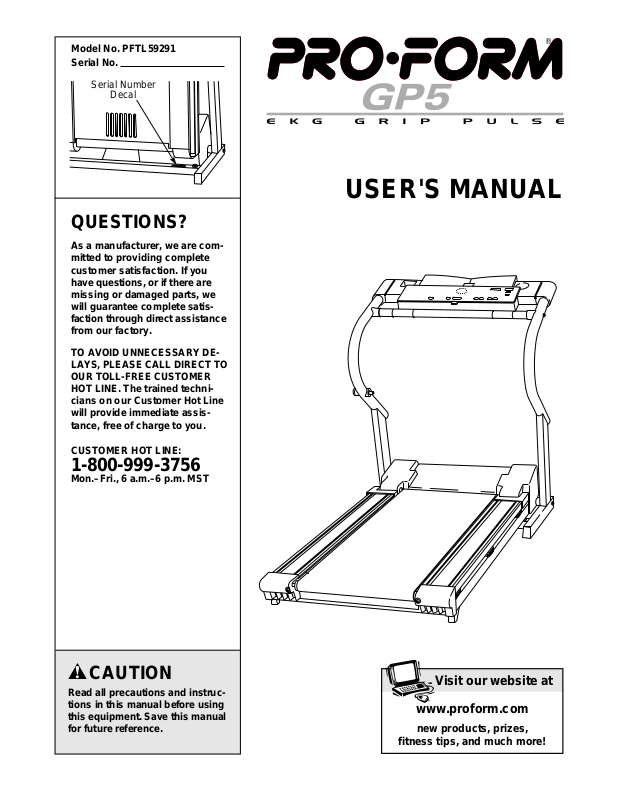

USER'S MANUAL
®
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
MAINTENANCE AND TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

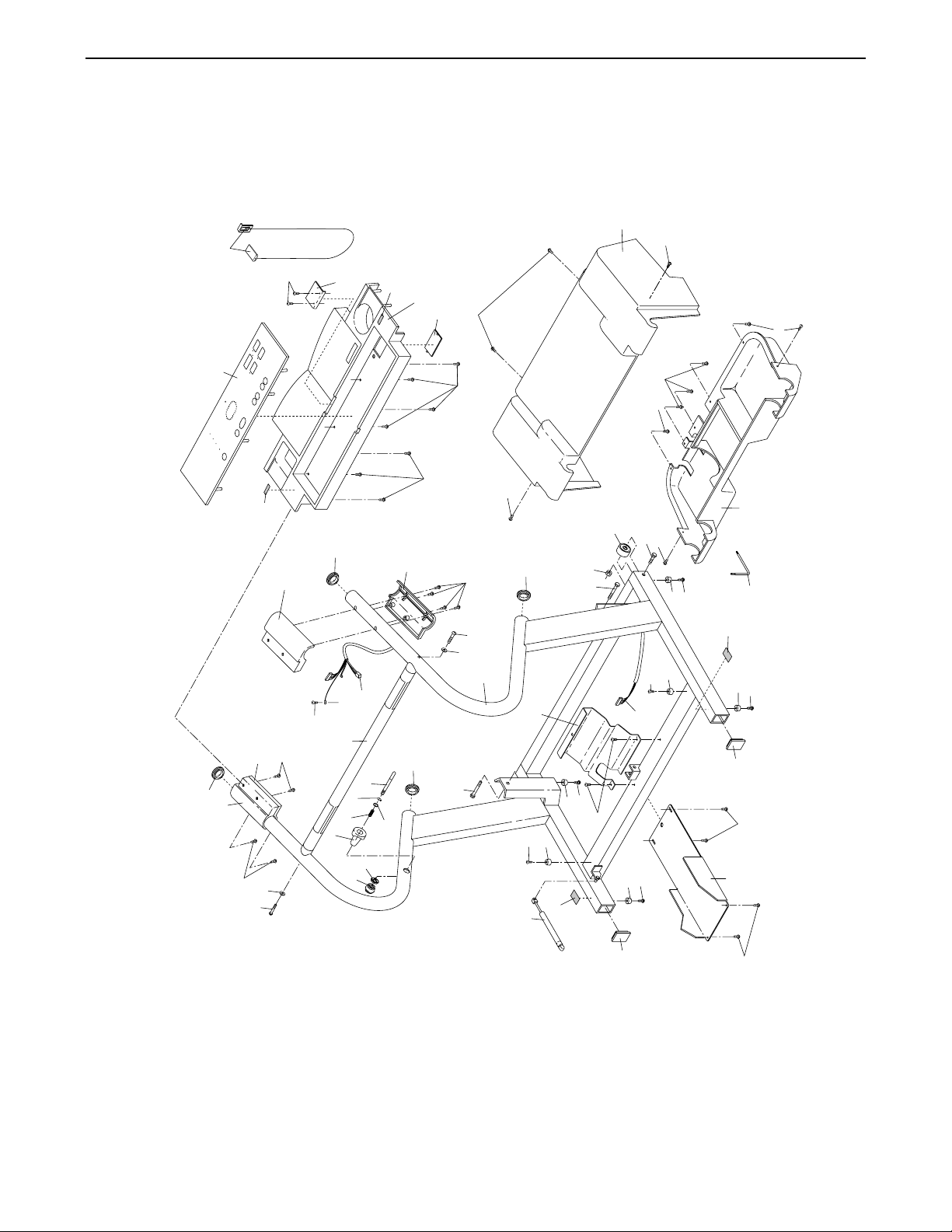

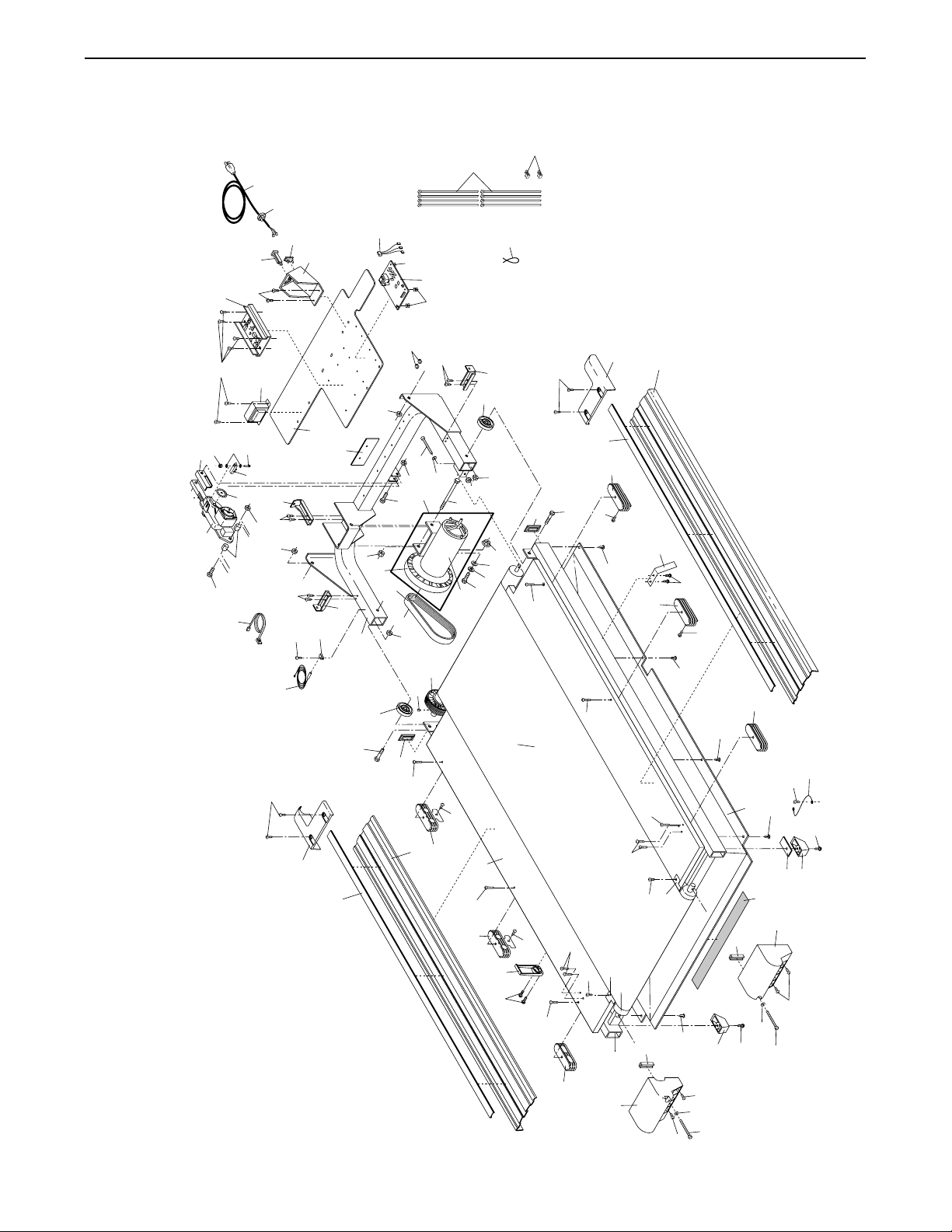

Note: An EXPLODED DRAWING is attached in the center of this manual.
®
2
3
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described in this
manual.
3. Place the treadmill on a level surface, with at
least eight feet of clearance behind it. Do not
place the treadmill on any surface that blocks
air openings. To protect the floor or carpet
from damage, place a mat under the treadmill.
4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
7. The treadmill should not be used by persons
weighing more than 250 pounds.
8. Never allow more than one person on the
treadmill at a time.
9. Wear appropriate exercise clothing when
using the treadmill. Do not wear loose clothing that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
10. When connecting the power cord (see page 7),
plug the power cord into a surge protector
(not included) and plug the surge protector
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be
on the same circuit. Do not use an extension
cord.
11. Use only a UL-listed surge protector, rated at
15 amps, with a 14-gauge cord of five feet or
less in length. Do not use an extension cord.
12. Keep the power cord and the surge protector
away from heated surfaces.
13. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See
BEFORE YOU BEGIN on page 5 if the treadmill is not working properly.)
14. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
15. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
16. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
17. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord and move the on/off switch to
the off position when the treadmill is not in
use. (See the drawing on page 5 for the location of the on/off switch.)
18. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO MOVE
THE TREADMILL on page 12.) You must be
able to safely lift 45 pounds (20 kg) in order to
raise, lower, or move the treadmill.
19. Do not change the incline of the treadmill by
placing objects under the treadmill.
20. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
21. Inspect and tighten all parts of the treadmill
regularly.
DANGER:To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
IMPORTANT PRECAUTIONS
22. Never drop or insert any object into any
opening.
23.
DANGER:Always unplug the power
cord immediately after use, before cleaning
the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
other than the procedures in this manual
should be performed by an authorized service
representative only.
24. This treadmill is intended for in-home use
only. Do not use this treadmill in any commercial, rental, or institutional setting.
WARNING:Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown below have been placed on your treadmill. If a decal is missing, or if it is not legible,
please call our Customer Service Department, toll-free, to order a free replacement decal (see ORDERING
REPLACEMENT PARTS on the back cover of this manual). Apply the decal in the location shown.
Note: This decal is shown at 38% of actual size.
4
Thank you for selecting the PROFORM®GP5 treadmill.
The GP5 treadmill combines advanced technology
with innovative design to let you enjoy an excellent
form of cardiovascular exercise in the convenience and
privacy of your home. And when you’re not exercising,
the unique GP5 can be folded up, requiring less than
half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have additional questions,
please call our Customer Service Department toll-free
at 1-800-999-3756, Monday through Friday, 6 a.m.
until 6 p.m. Mountain Time (excluding holidays). To
help us assist you, please note the product model
number and serial number before calling. The model
number of the treadmill is PFTL59291. The serial number can be found on a decal attached to the treadmill
(see the front cover of this manual for the location).
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
BEFORE YOU BEGIN
Handrail
Accessory Holder
Storage Latch
Pulse Sensor
Book Holder
Key/Clip
Circuit
Breaker
On/Off Switch
Walking Belt
Cushioned Walking Platform
Front
Wheel
Foot Rails
Power
Cord
Rear Roller
Adjustment Bolts
Water Bottle
Holder (Bottle
not included)
RIGHT SIDE
LEFT SIDE
5
2. Using a rubber mallet, tap the Lock Knob Sleeve (91)
into the large hole in the left Upright (114). Align the two
small pins on the Lock Knob Spacer (122) with the small
holes in the left side of the Upright. Insert the Lock Knob
Spacer into the Upright. Make sure that the Lock Knob
Sleeve and the Lock Knob Spacer are fully inserted into
the Upright.
Remove the Lock Knob (90) from the Lock Pin (94).
Make sure that the Lock Pin Collar (93) and the Spring
(92) are on the Lock Pin. Insert the Lock Pin into the left
Upright (114) and tighten the Lock Knob onto it.
92
94
91
90
114
2
ASSEMBLY
Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Assembly requires a rubber mallet
and a phillips screwdriver (not included).
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner.
1. With the help of a second person, carefully raise the
Uprights (114) until the treadmill is in the position shown.
4. Make sure that all parts of the treadmill are tightened before you use the treadmill. Keep the included
allen wrench in a secure place. The allen wrench is used to adjust the walking belt (see page 15). To protect
the floor or carpet from damage, place a mat under the treadmill.
114
1
93
122
110
72
Ridges
71
79
3
3. Observe the two Rear Feet (72) at the rear of the tread-
mill (see figure 1 above). If there is a space between one
of the Feet and the floor, the Foot Spacer (110) will need
to be attached. Hold the treadmill firmly with both hands,
and raise the treadmill to the storage position as described on page 12.
Using a phillips screwdriver, remove the Screw (71) and the
Rear Foot (72) from the side that was raised off the floor.
Snap the Rear Foot Spacer (127) onto the Rear Foot.
Reattach the Rear Foot to the treadmill Frame (79). Hold
the treadmill firmly with both hands, and lower the treadmill as described on page 13.
72
6
OPERATION AND ADJUSTMENT
THE PERFORMANT LUBETMWALKING BELT
Your treadmill features a walking belt coated with
PERFORMANT LUBE
TM
, a high-performance lubricant.
IMPORTANT: Never apply silicone spray or other
substances to the walking belt or the walking platform. They will deteriorate the walking belt and
cause excessive wear.
HOW TO PLUG IN THE POWER CORD
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances
being turned on or off.
To decrease the possibility of your treadmill being damaged,
always use a surge
protector (not included) with your
treadmill.
Surge protectors are
sold at most hardware
stores and department
stores. Use only a ULlisted surge protector,
rated at 15 amps, with a
14-gauge cord of five
feet or less in length.
This product must be
grounded. If it should
malfunction or break
down, grounding provides a path of least resistance for electric current to reduce the risk of
electric shock. This product is equipped with a cord
having an equipment-grounding conductor and a
grounding plug. Plug the power cord into a surge
protector, and plug the surge protector into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances. Important: The treadmill is not compatible
with GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge protector to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available.
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is
grounded before using an adapter.
DANGER:Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet installed by a qualified electrician.
1
2
Grounded Outlet Box
Grounded Outlet Box
Grounding Plug
Treadmill Power Cord
Grounding Plug
Grounding Plug
Grounding Pin
Surge Protector
Grounding Pin
Grounding Pin
Adapter
Lug
Metal Screw
Grounded Outlet
7

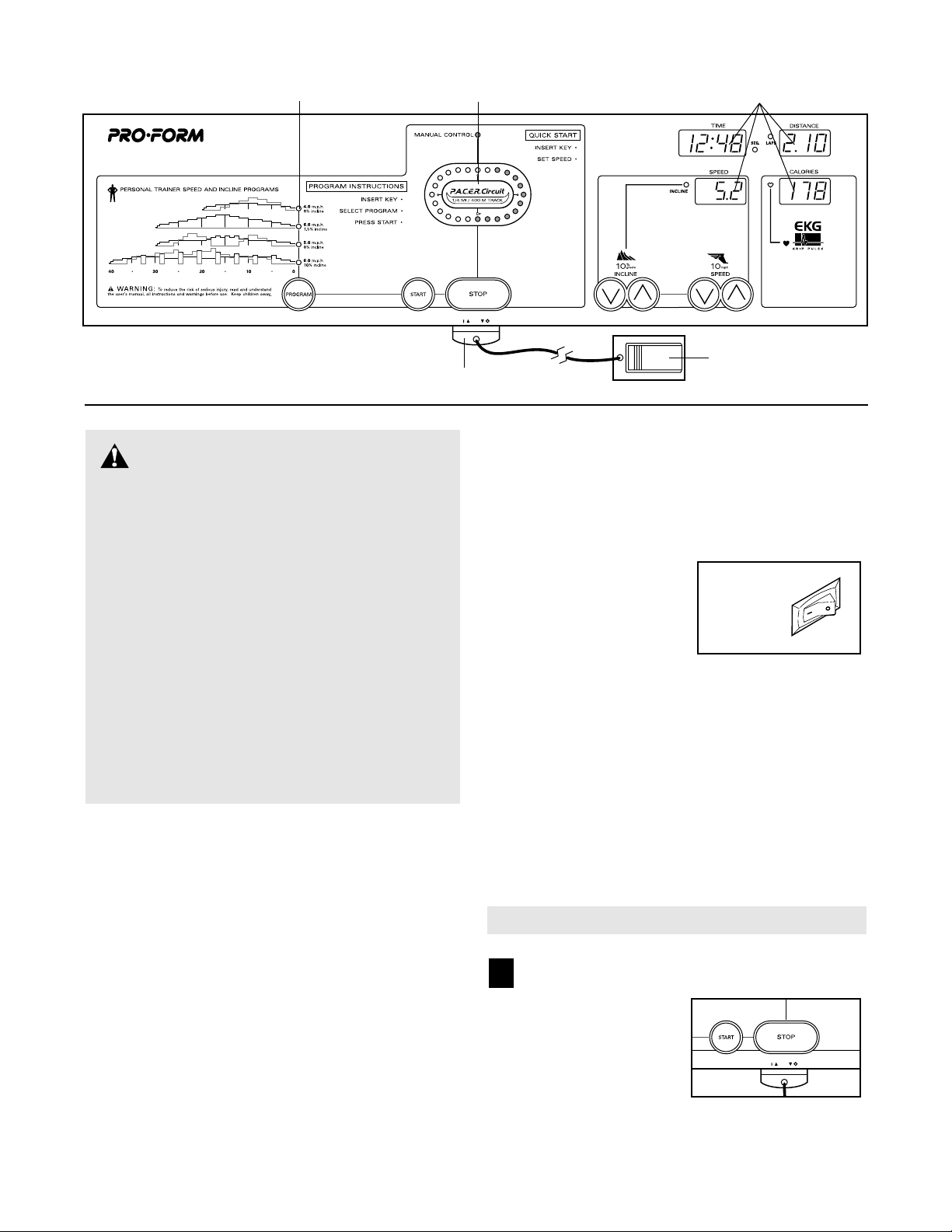

CONSOLE DIAGRAM
Clip
Key
Displays
LED Track
Program Indicators
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of
features to help you get the most from your exercise
program. When the manual mode is selected, you can
adjust the speed and incline of the treadmill with a
touch of a button. As you exercise, four displays and an
LED “track” will provide continuous exercise feedback.
You can even measure your heart rate at any time
using the built-in pulse sensor.
In addition, the console offers four workout programs.
Each program automatically controls the speed and
incline of the treadmill as it guides you through an
effective workout.
STEP-BY-STEP CONSOLE OPERATION
Note: The console can display speed and distance in
either miles or kilometers (see SPEED/INCLINE DISPLAY on page 9). For simplicity, all instructions in this
section refer to miles.
Before operating the
console, make sure that
the on/off switch near the
power cord is in the on
position. In addition,
make sure that the
power cord is properly
plugged in (see HOW TO PLUG IN THE POWER
CORD on page 7).
When you are ready to begin exercising, step onto the
foot rails of the treadmill. Find the clip attached to the
key (see the drawing above), and slide the clip onto the
waistband of your clothing. Test the clip by carefully
taking a few steps backward until the key is pulled
from the console. If the key is not pulled from the
console, adjust the position of the clip as needed.
HOW TO USE THE MANUAL MODE
Insert the key into the console.
A moment after the
key is inserted, the
four displays and various indicators on the
console will light.
1
CAUTION:Before operating the
console, read the following precautions.
• Do not stand on the walking belt when turning on the power.
• Always wear the clip (see the drawing above)
while operating the treadmill. If the key is
pulled from the console, the walking belt will
automatically stop.
• Adjust the speed in small increments to
avoid sudden jumps in speed.
• To reduce the possibility of electric shock,
keep the console dry. Avoid spilling liquids
on the console, and place only a sealed
water bottle in the water bottle holder.

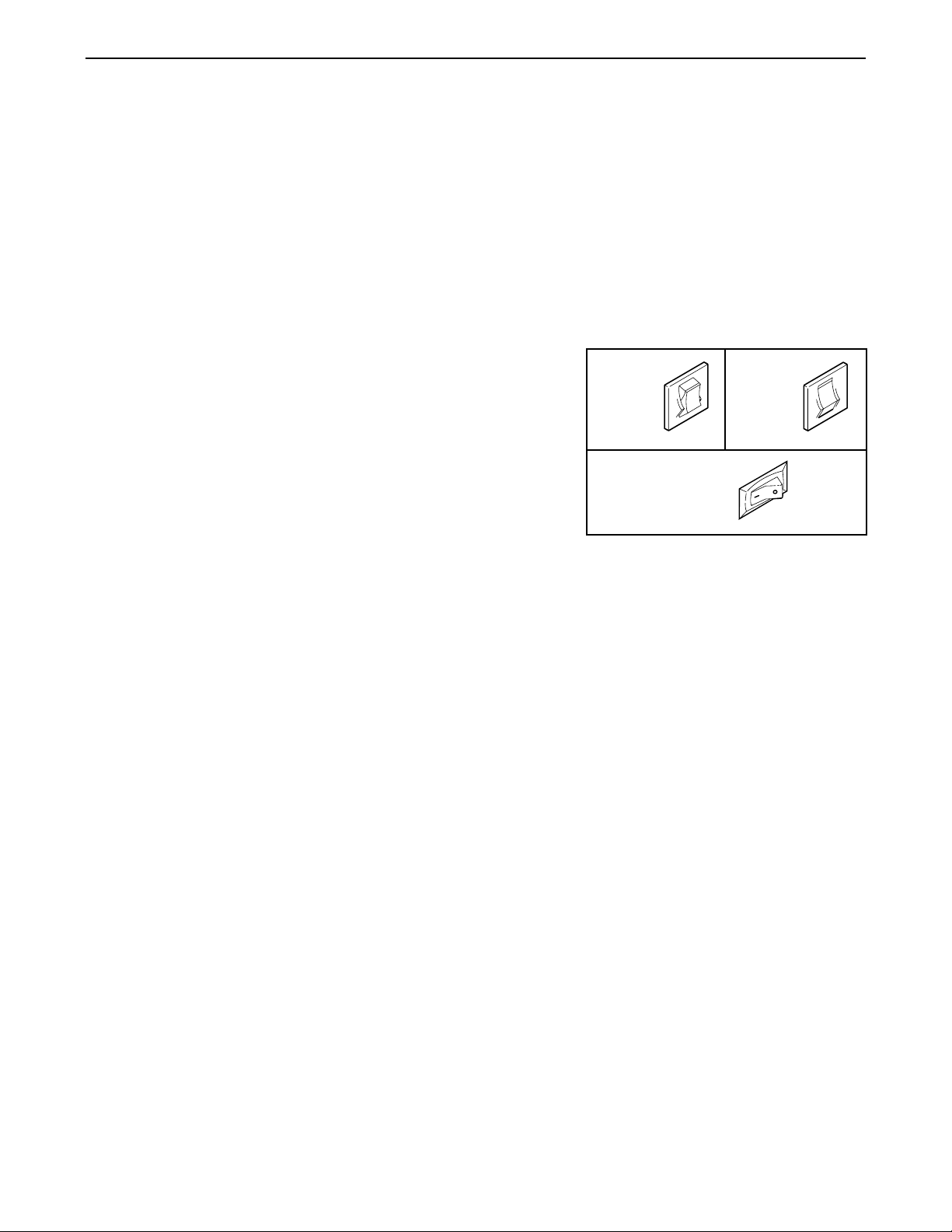

On
Position
Note: If there is a sheet of clear plastic
on the face of the console, remove it.
8
Select the manual mode.
When the key is
inserted, the manual
mode will be selected, as shown by
the MANUAL CONTROL indicator. If
you have selected a
workout program, press the PROGRAM button
repeatedly until the MANUAL CONTROL indicator
lights.
Press the START button and adjust the speed
of the walking belt.
A moment after the START button is pressed, the
walking belt will begin to move. Hold the handrails
and carefully begin walking.
As you exercise, change the speed of the walking
belt as desired by pressing the SPEED buttons.
Each time one of the buttons is pressed, the
speed will change by 0.1 mph. The buttons can be
held down to change the speed quickly. Note: It
may take a few seconds for the walking belt to
reach the selected speed setting.
To stop the walking belt, press the STOP button.
The TIME/SEGMENT display will begin to flash.
To restart the walking belt, press the START button. To stop the walking belt and reset the displays, hold down the STOP button for two seconds.
Adjust the incline of the treadmill as desired.
To change the incline of the treadmill, press the
INCLINE buttons. Each time one of the buttons is
pressed, the incline will change by 0.5%. The buttons can be held down to change the incline
quickly. Note: It may take a few seconds for the
treadmill to reach the selected incline setting.

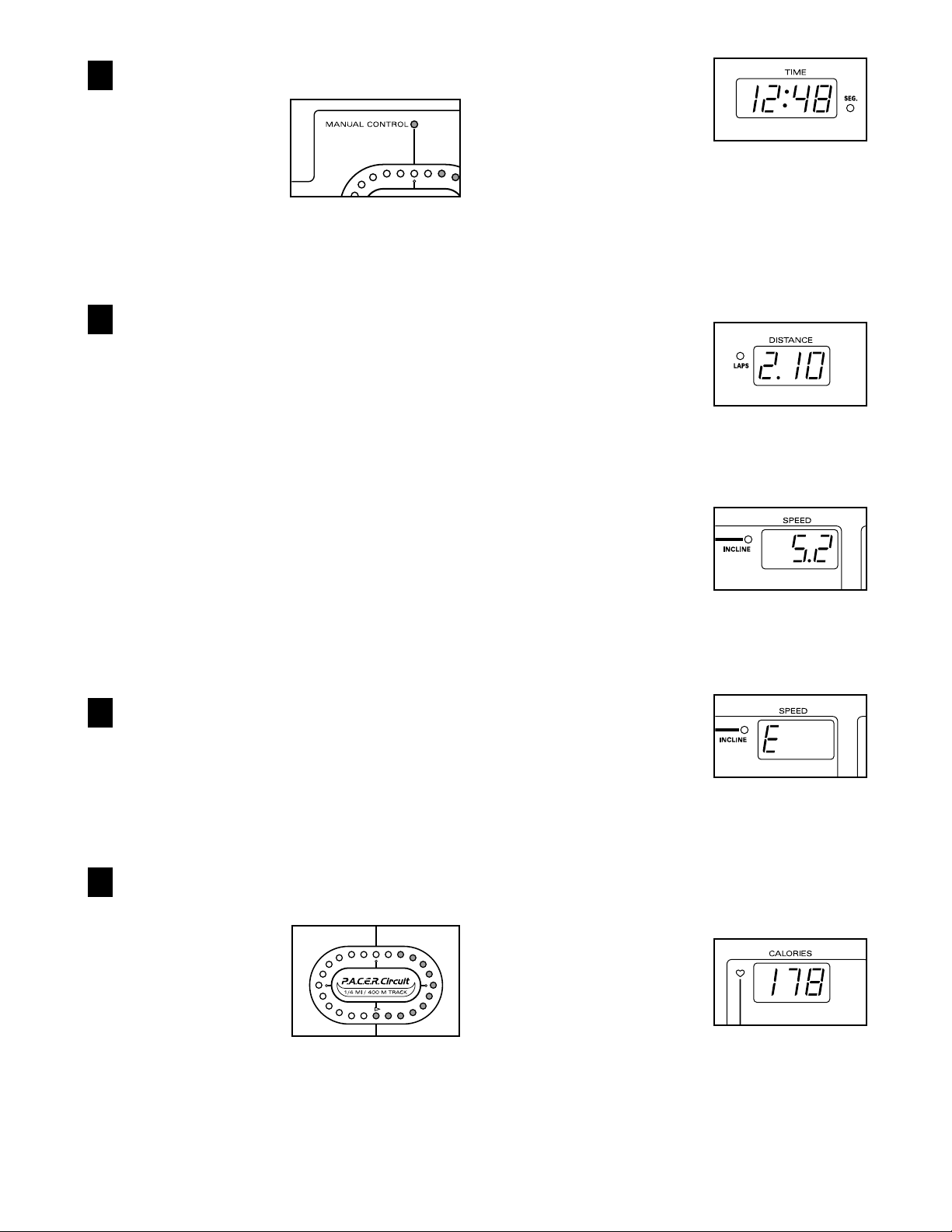

Follow your progress with the LED track and
the four displays.
The LED Track—
The LED track represents a distance of
1/4 mile. As you exercise, the indicators
around the track will
light one at a time.
When you have completed 1/4 mile, the indicators will darken in a counterclockwise direction and a new lap will begin.
TIME/SEGMENT
display—When the
manual mode is selected, this display will
show the elapsed time.
When a workout program is selected, this display will show the time
remaining in the program as well as the time remaining in the current “segment” (segments will
be explained in a later step). The display will
change from one number to the other every seven
seconds. The SEG indicator will light when the
time remaining in the current segment is shown.
DISTANCE/LAPS
display—This display
shows the distance that
you have walked and
the number of 1/4-mile
laps you have completed. The display will change from one number
to the other every seven seconds. The LAPS indicator will light when the number of laps is shown.
SPEED/INCLINE
display—This display
shows the speed of the
walking belt and the incline level of the treadmill. Every seven seconds, the display will change from one number to
the other; the INCLINE indicator will light when
the incline is shown.
Note: The console can
display distance and
speed in either miles or
kilometers. To see which
unit of measurement is
selected, hold down the
STOP button while inserting the key into the console. An “E,” for english miles, or an “M,” for metric kilometers, will appear in the SPEED/INCLINE
display. To change the unit of measurement,
press the SPEED
▲▲
button. Then, remove and
reinsert the key.
CALORIES/PULSE
display—This display
shows the approximate
number of calories you
have burned during your
workout. When you use
the pulse sensor, this display will show your heart
rate (see step 6).
5
4
3
2
9
Measure your heart rate, if desired.
To measure
your heart rate,
stand on the
foot rails and
place your
hands on the
metal contacts
on the pulse
sensor. Your
palms must be
resting on the
upper contacts,
and your fingers
must be touching the lower contacts—avoid mov-
ing your hands. When your pulse is detected, the
heart-shaped indicator will flash steadily and
three dashes (— — —) will appear in the CALORIES/PULSE display. After a few seconds, your
heart rate will be shown. For the most accurate
heart rate reading, continue to hold the contacts for about 15 seconds.
When you are finished exercising, press the
STOP button and remove the key.
Step onto the foot rails, press the STOP button,
and adjust the incline of the treadmill to the
lowest setting. The incline must be at the lowest setting when the treadmill is folded to the
storage position or the treadmill will be damaged. Remove the key from the console. Keep the
key in a secure place. Note: If the displays and
various indicators on the console remain lit
when the key is removed, the console is in the
“demo” mode. Refer to page 11 and turn off the
demo mode.
When you are finished using the treadmill, unplug
the power cord and move the on/off switch to the
off position.
HOW TO USE THE WORKOUT PROGRAMS
Insert the key into the console.
A moment after the key is inserted, the four displays and various indicators on the console will
light.

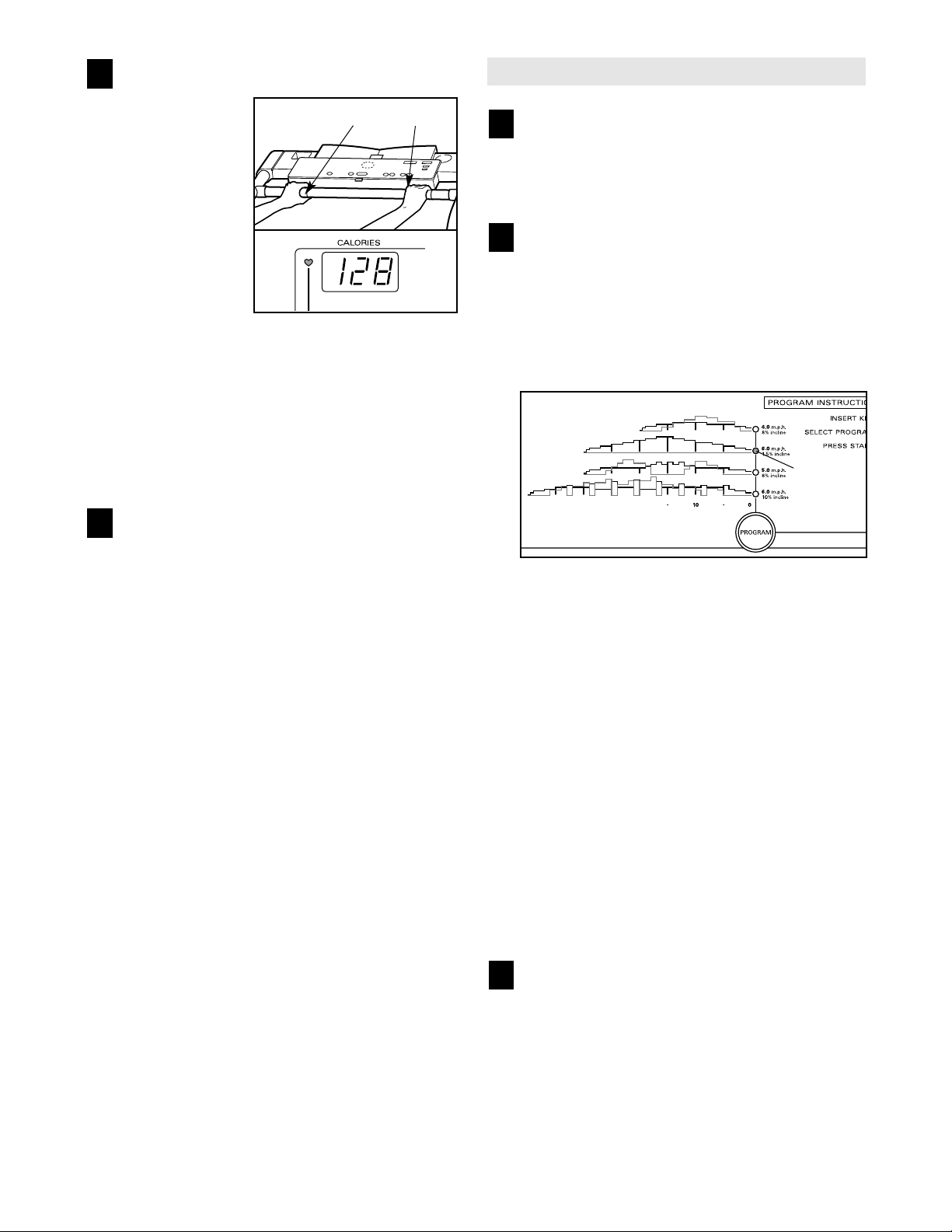

Press the MODE button to select a workout
program.
When the key is inserted, the manual mode will be
selected, as shown by the MANUAL CONTROL
indicator. To select one of the workout programs,
press the PROGRAM button repeatedly until one
of the four program indicators lights.
Each workout program will automatically control
the speed and incline of the treadmill to give you
an effective workout. The graphs on the left side
of the console show how the speed and incline
will change during each program—the red lines
show how the speed will change and the white
lines show how the incline will change. The numbers at the right end of each graph show the maximum speed and incline that the treadmill will
reach during the program. The scale below the
graphs shows how long each program will last.
Refer to the upper graph. This graph shows that
when the first program is selected, the speed and
incline will gradually increase during the first half
of the program and then gradually decrease during the last half. The speed will reach a maximum
of 4 mph and the incline will reach a maximum of
8% during the program. The scale shows that the
program will last for twenty minutes.
Press the START button to start the program
A moment after the START button is pressed, the
walking belt will begin to move. Hold the handrails
and carefully begin walking.
3
2
1
7
6
Metal Contacts
Program
Indicators
10
Each program is divided into several individual
“segments.” The speed and/or incline of the treadmill will automatically change at the beginning of
each segment.
Throughout the program, the TIME/SEGMENT display will
show the time remaining in the program as
well as the time remaining in the current “segment” (see TIME/SEGMENT display on page 9.) When only three seconds remain in the current segment, a series of
tones will be heard and the speed and/or incline of
the treadmill will automatically change. Make sure
to listen for the tones and be ready for speed
and/or incline changes.
The program will continue in this way until no time
remains in the program. The walking belt will then
slow to a stop.
If the program is too difficult or too easy, the speed
and incline of the treadmill can be adjusted at any
time with the SPEED and INCLINE buttons. How-
ever, when the next segment of the program
begins, the speed and incline will automatically
change to the next settings of the program.
To stop the program for a moment, press the STOP
button. The TIME/SEGMENT display will begin to
flash. To restart the program, press the START button. To stop the program and reset the displays,
hold down the STOP button for two seconds.
Follow your progress with the LED track and
the four displays.
See step 5 on page 9.
Measure your heart rate, if desired.
See step 6 on page 10.
When the program is completed, remove the
key.
Step onto the foot rails, press the STOP button,
and adjust the incline of the treadmill to the
lowest setting. The incline must be at the lowest setting when the treadmill is folded to the
storage position or the treadmill will be damaged. Remove the key from the console. Keep the
key in a secure place. Note: If the displays and
various indicators on the console remain lit
when the key is removed, the console is in the
“demo” mode. Refer to page 11 and turn off the
demo mode.
When you are finished using the treadmill, unplug
the power cord and move the on/off switch to the
off position.
THE INFORMATION MODE

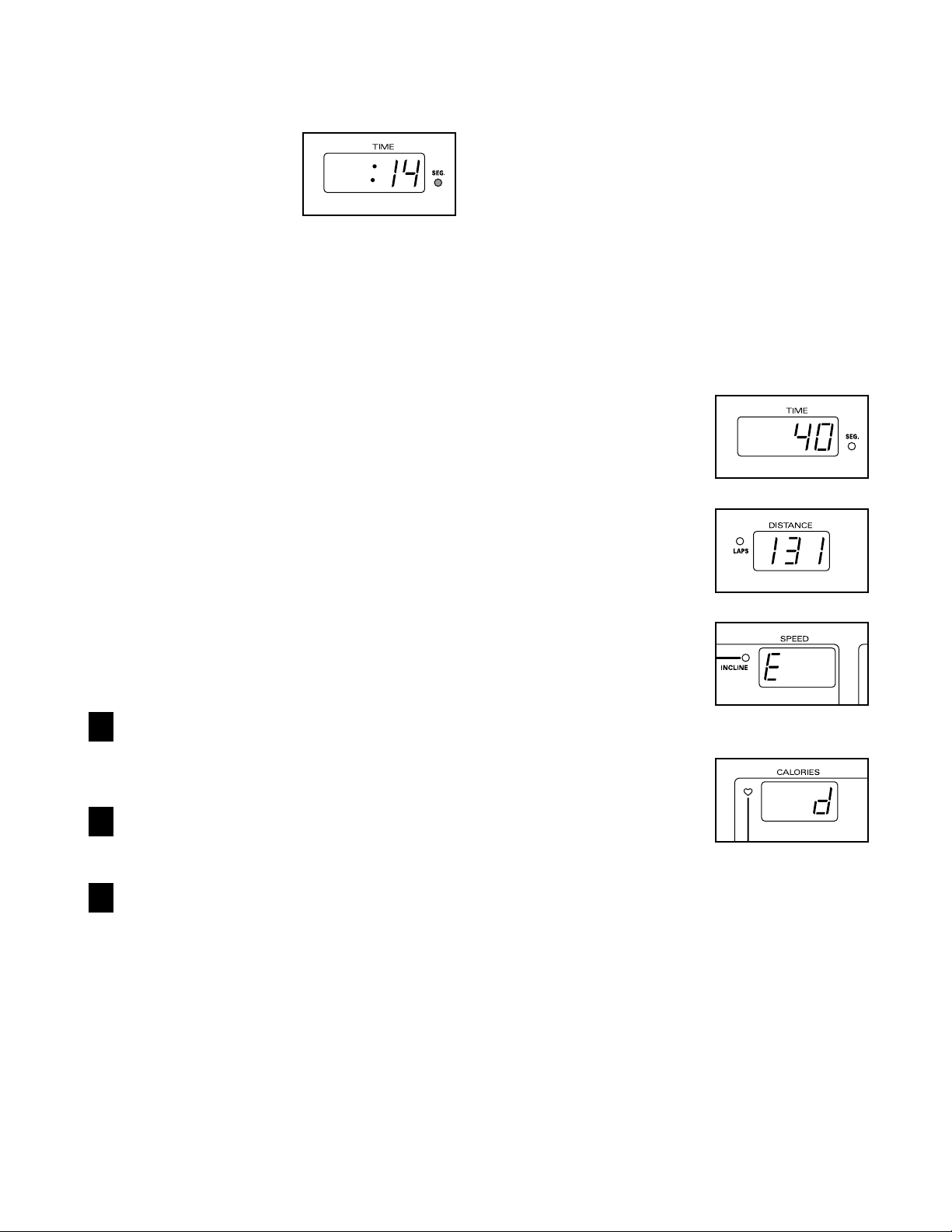

The console features an information mode that keeps
track of the total number of hours that the treadmill has
been operated and the total number of miles that the
walking belt has moved. The information mode also
allows you to switch the console from miles per hour to
kilometers per hour.
To select the information mode, hold down the STOP
button while inserting the key into the console. When
the information mode is selected, the following information will be shown:
The TIME/SEGMENT display
will show the total number of
hours the treadmill has been
used.
The DISTANCE/LAPS
display will show the total
number of miles that the
walking belt has moved.
An “E,” for english miles, or
an “M,” for metric kilometers,
will appear in the SPEED/
INCLINE display. Press the
SPEED
▲▲
button to change
the unit of measurement.
IMPORTANT: The CALORIES/PULSE display
should be blank. If a “d” ap-
pears in the display, the console is in the “demo” mode.
This mode is intended to be
used only when a treadmill is displayed in a store.
When the console is in the demo mode, the power cord
can be plugged in, the key can be removed from the
console, and the displays and indicators on the console
will automatically light in a preset sequence, although
the buttons on the console will not operate. If a “d” ap-
pears in the CALORIES/PULSE display when the information mode is selected, press the SPEED
▼▼
but-
ton so the CALORIES/PULSE display is blank.
To exit the information mode, remove the key from the
console.
6
5
4
11
HOW TO FOLD AND MOVE THE TREADMILL
HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, adjust the incline to the
lowest position. If this is not done, the treadmill may be
permanently damaged. Next, unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20 kg) in
order to raise, lower, or move the treadmill.

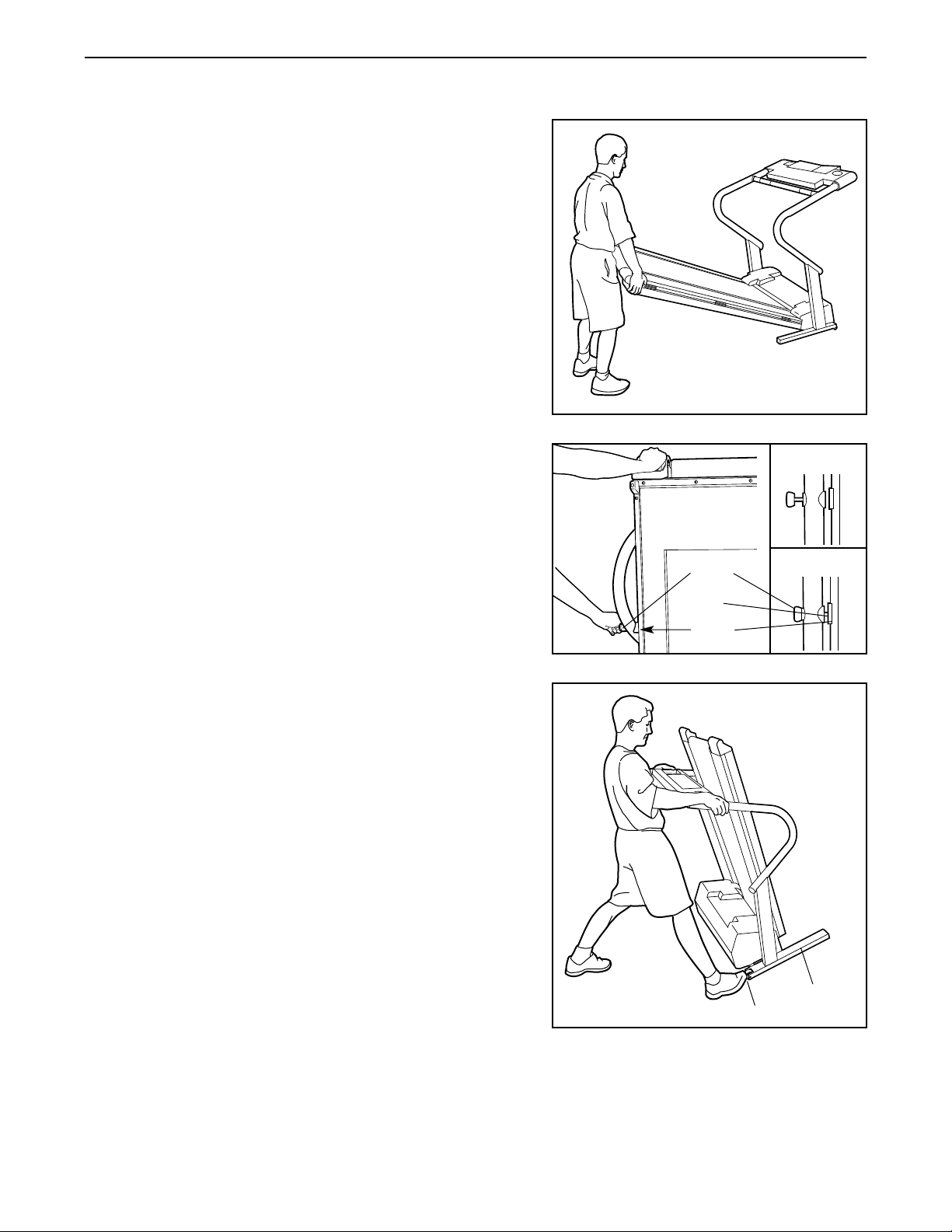

1. Hold the treadmill with your hands in the locations shown at
the right. CAUTION: To decrease the possibility of injury,
bend your legs and keep your back straight. As you
raise the treadmill, make sure to lift with your legs rather
than your back. Raise the treadmill about halfway to the
vertical position.
2. Move your right hand to the position shown and hold the
treadmill firmly. Using your left hand, pull the latch knob to
the left and hold it. Raise the treadmill until the latch pin is
aligned with the hole in the catch. Insert the latch pin into
the catch. Make sure that the latch pin is fully inserted
into the catch.
To protect the floor or carpet from damage, place a mat
under the treadmill. Keep the treadmill out of
direct sunlight. Do not leave the treadmill in the storage
position in temperatures above 85° Fahrenheit.
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the latch pin
is fully inserted into the catch.
1. Hold the treadmill as shown and place one foot against a
wheel.
2. Tilt the treadmill back until it rolls freely on the front wheels.
Carefully move the treadmill to the desired location. Never
move the treadmill without tipping it back. To reduce
the risk of injury, use extreme caution while moving the
treadmill. Do not attempt to move the treadmill over an
uneven surface.
3. Place one foot on the base, and carefully lower the treadmill
until it is resting in the storage position.
Latch
Knob
Pin
Catch
Closed
Open
Base
Front Wheels
12
HOW TO LOWER THE TREADMILL FOR USE

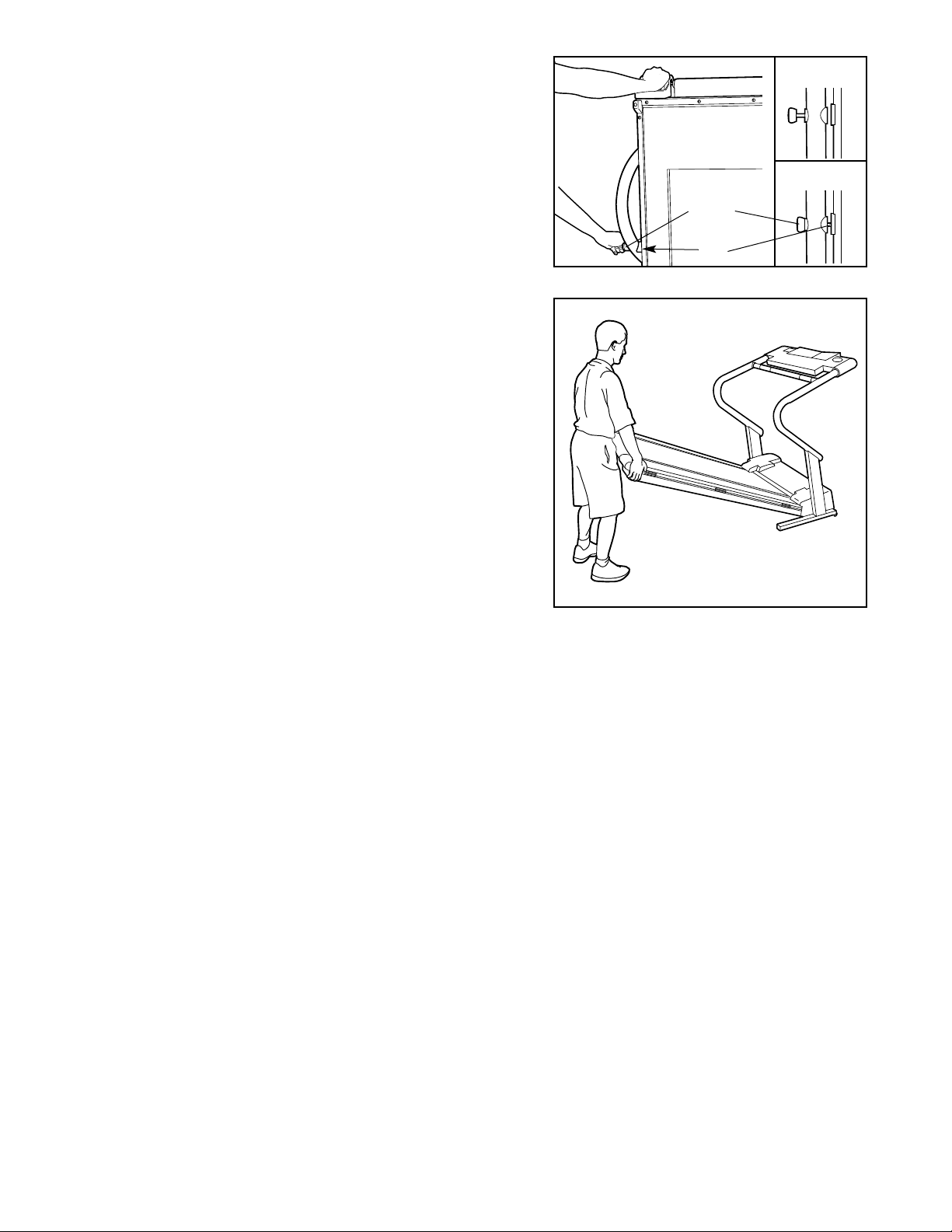

1. Hold the upper end of the treadmill with your right hand as
shown. Using your left hand, pull the latch knob to the left
and hold it. Pivot the treadmill down until the frame is past
the pin. Slowly release the latch knob.
2. Hold the treadmill firmly with both hands, and lower the
treadmill to the floor. CAUTION: To decrease the possibil-
ity of injury, bend your legs and keep your back straight.
Latch
Knob
Pin
Closed
Open
13
MAINTENANCE AND TROUBLE-SHOOTING
Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and
follow the steps listed. If further assistance is needed, please call our Customer Service Department tollfree at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).
1. SYMPTOM: THE POWER DOES NOT TURN ON
a. Make sure that the power cord is plugged into a surge protector, and that the surge protector is plugged into
a properly grounded outlet. (See HOW TO PLUG IN THE POWER CORD on page 7.) Use only a UL-listed
surge protector, rated at 15 amps, with a 14-gauge cord of five feet or less in length.
b. Make sure that the key is inserted into the console as far as it will go.
c. Check the circuit breaker located on the treadmill near the
power cord. If the switch protrudes as shown, the circuit
breaker has tripped. To reset the circuit breaker, wait for five
minutes and then press the switch back in.
d. Check the on/off switch located on the treadmill near the
power cord. The switch must be in the on position.
2. SYMPTOM: THE POWER TURNS OFF DURING USE
a. Check the circuit breaker located on the treadmill frame near the power cord (see 1. c. above). If the circuit
breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in.
c. Unplug the power cord, wait for five minutes, and then plug the power cord back in.
d. Remove the key from the console. Reinsert the key fully into the console.
e. Make sure that the on/off switch is in the on position.
f. If the treadmill still will not run, please call our Customer Service Department, toll-free.
3. SYMPTOM: THE PULSE SENSOR DOES NOT FUNCTION PROPERLY
a. Make sure to stand on the foot rails and avoid moving your hands while measuring your heart rate.
Excessive movement may interfere with heart rate readings. If the pulse sensor is not used correctly, your
heart rate will not be shown.
b. Do not hold the metal contacts too tightly; doing so may interfere with heart rate readings.
c. For the most accurate heart rate reading, hold the contacts for about 15 seconds.
d. For optimal performance of the pulse sensor, keep the contacts clean. The contacts can be cleaned with a
soft cloth—never use alcohol, abrasives, or chemicals.
Tripped
c
Reset
On
Position
d
14
Tripped
Reset

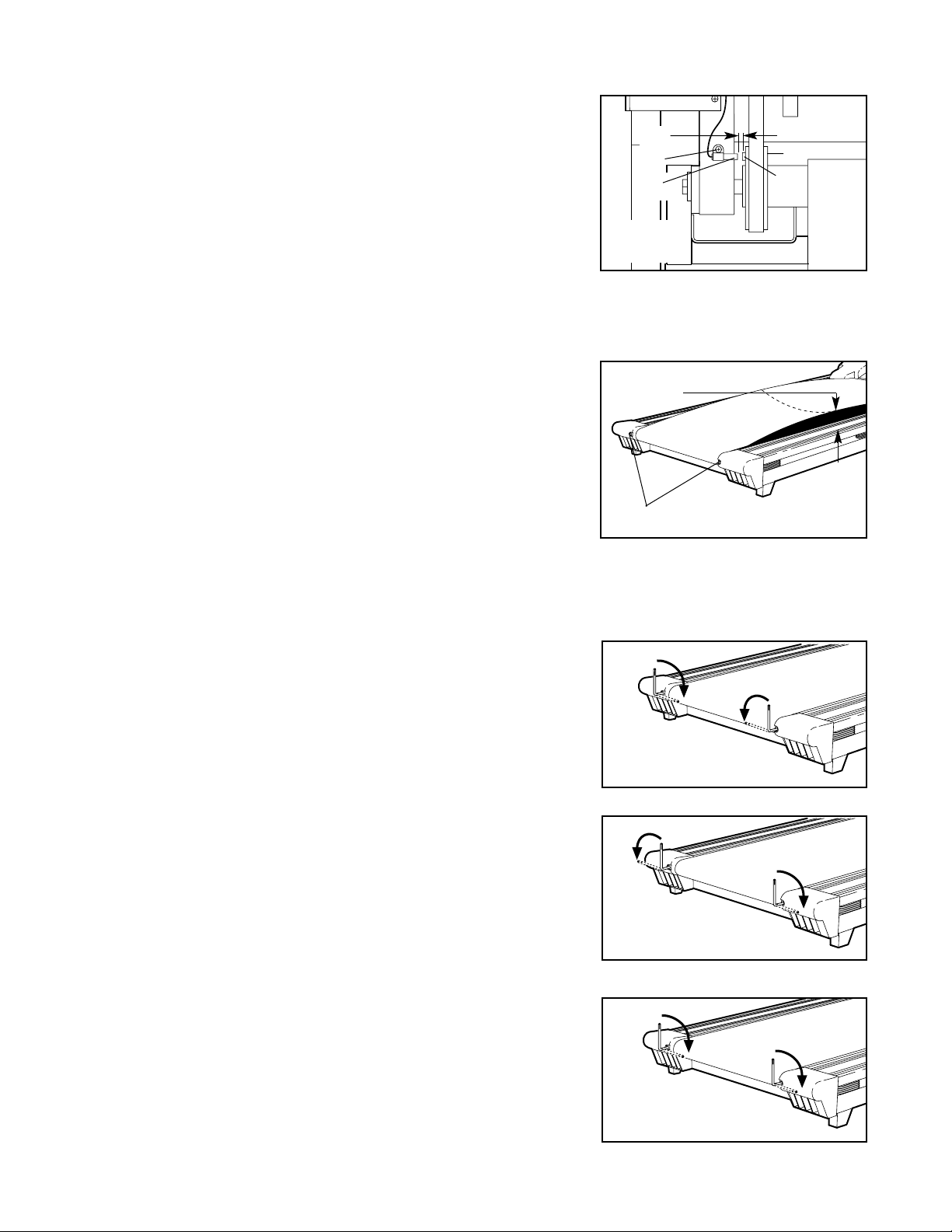

4. SYMPTOM: THE DISPLAYS OF THE CONSOLE DO NOT FUNCTION PROPERLY
a. Remove the key from the console and UNPLUG THE POWER
CORD. Remove the screws from the hood and remove the hood.
Locate the Reed Switch (16) and the Magnet (10) on the left side
of the Pulley (111). Turn the Pulley until the Magnet is aligned
with the Reed Switch. Make sure that the gap between the
Magnet and the Reed Switch is about 1/8”. If necessary,
loosen the Reed Switch Screw (15) and move the Reed Switch
slightly. Retighten the Screw. Re-attach the hood, and run the
treadmill for a few minutes to check for a correct speed reading.
5. SYMPTOM: The walking belt slows when walked on
a. Use only a UL-listed surge protector, rated at 15 amps, with a 14-gauge cord of five feet or less in length.
b. If the walking belt is overtightened, treadmill performance may
decrease and the walking belt may be permanently damaged.
Remove the key and UNPLUG THE POWER CORD. Using the
allen wrench, turn both rear roller adjustment bolts counterclock-
wise, 1/4 of a turn. When the walking belt is properly tightened,
you should be able to lift each side of the walking belt 3 to 4
inches off the walking platform. Be careful to keep the walking
belt centered. Plug in the power cord, insert the key and run the
treadmill for a few minutes. Repeat until the walking belt is prop-
erly tightened.
c. If the walking belt still slows when walked on, please call our Customer Service Department, toll-free.
6. SYMPTOM: The walking belt is off-center
a. If the walking belt has shifted to the left, first remove the key
and UNPLUG THE POWER CORD. Using the allen wrench, turn
the left rear roller adjustment bolt clockwise, and the right bolt
counterclockwise, 1/4 of a turn each. Be careful not to over-
tighten the walking belt. Plug in the power cord, insert the key
and run the treadmill for a few minutes. Repeat until the walking
belt is centered.
b. If the walking belt has shifted to the right, first remove the
key and UNPLUG THE POWER CORD. Using the allen wrench,
turn the left rear roller adjustment bolt counterclockwise, and the
right bolt clockwise, 1/4 of a turn each. Be careful not to over-
tighten the walking belt. Plug in the power cord, insert the key
and run the treadmill for a few minutes. Repeat until the walking
belt is centered.
7. SYMPTOM: The walking belt slips when walked on
a. If the walking belt slips when walked on, first remove the key and
UNPLUG THE POWER CORD. Using the allen wrench, turn
both rear roller adjustment bolts clockwise, 1/4 of a turn. When
the walking belt is correctly tightened, you should be able to lift
each side of the walking belt 3 to 4 inches off the walking plat-
form. Be careful to keep the walking belt centered. Plug in the
power cord, insert the key and carefully walk on the treadmill for
a few minutes. Repeat until the walking belt is properly tightened.
10
16
15
Top
View
1/8”
11
b
c
a
Rear Roller Adjustment Bolts
3–4”
b
15
CONDITIONING GUIDELINES
The following guidelines will help you to plan your exercise program. Remember—these are general guidelines only. For more detailed exercise information, obtain a reputable book or consult your physician.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your

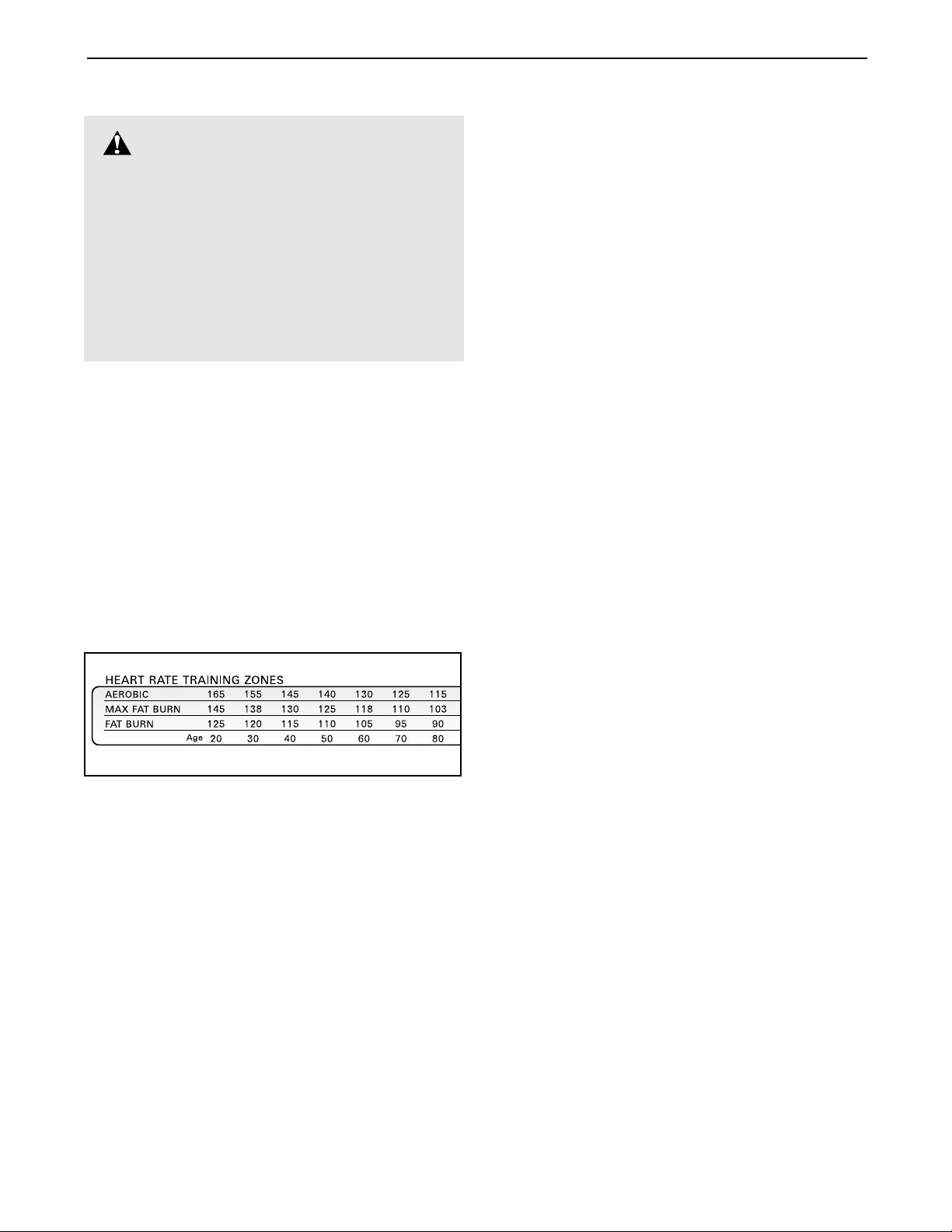

heart rate as a guide. The chart below shows recommended heart rates for fat burning and aerobic exercise.
To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers define your “training zone.” The lower two numbers are recommended
heart rates for fat burning; the higher number is the
recommended heart rate for aerobic exercise.
To measure your heart rate during exercise, use the
pulse sensor on the console. If your heart rate is too
high or too low, adjust the speed and incline of the
treadmill.
Fat Burning
To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for energy. Only after the first few minutes does your body
begin to use stored fat calories for energy. If your goal
is to burn fat, adjust the speed and incline of the treadmill until your heart rate is near the lowest number in
your training zone.
For maximum fat burning, adjust the speed and incline
of the treadmill until your heart rate is near the middle
number in your training zone.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A Warm-up—Start each workout with 5 to 10 minutes
of stretching and light exercise (see SUGGESTED
STRETCHES on page 17). A proper warm-up increases your body temperature, heart rate and circulation in preparation for exercise.
Training Zone Exercise—After warming up, increase
the intensity of your exercise until your pulse is in your
training zone for 20 to 60 minutes. (During the first few
weeks of your exercise program, do not keep your
pulse in your training zone for longer than 20 minutes.)
Breathe regularly and deeply as you exercise—never
hold your breath.
A Cool-down—Finish each workout with 5 to 10 minutes of stretching to cool down. This will increase the
flexibility of your muscles and will help prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest between workouts. After a few months, you may complete up to five workouts each week if desired. The key
to success is to make exercise a regular and enjoyable
part of your everyday life.
WARNING:Before beginning this
or any exercise program, consult your physician. This is especially important for individuals over the age of 35 or individuals with preexisting health problems.
The pulse sensor is not a medical device.
Various factors, including your movement,
may affect the accuracy of heart rate readings.
The sensor is intended only as an exercise aid
in determining heart rate trends in general.
16

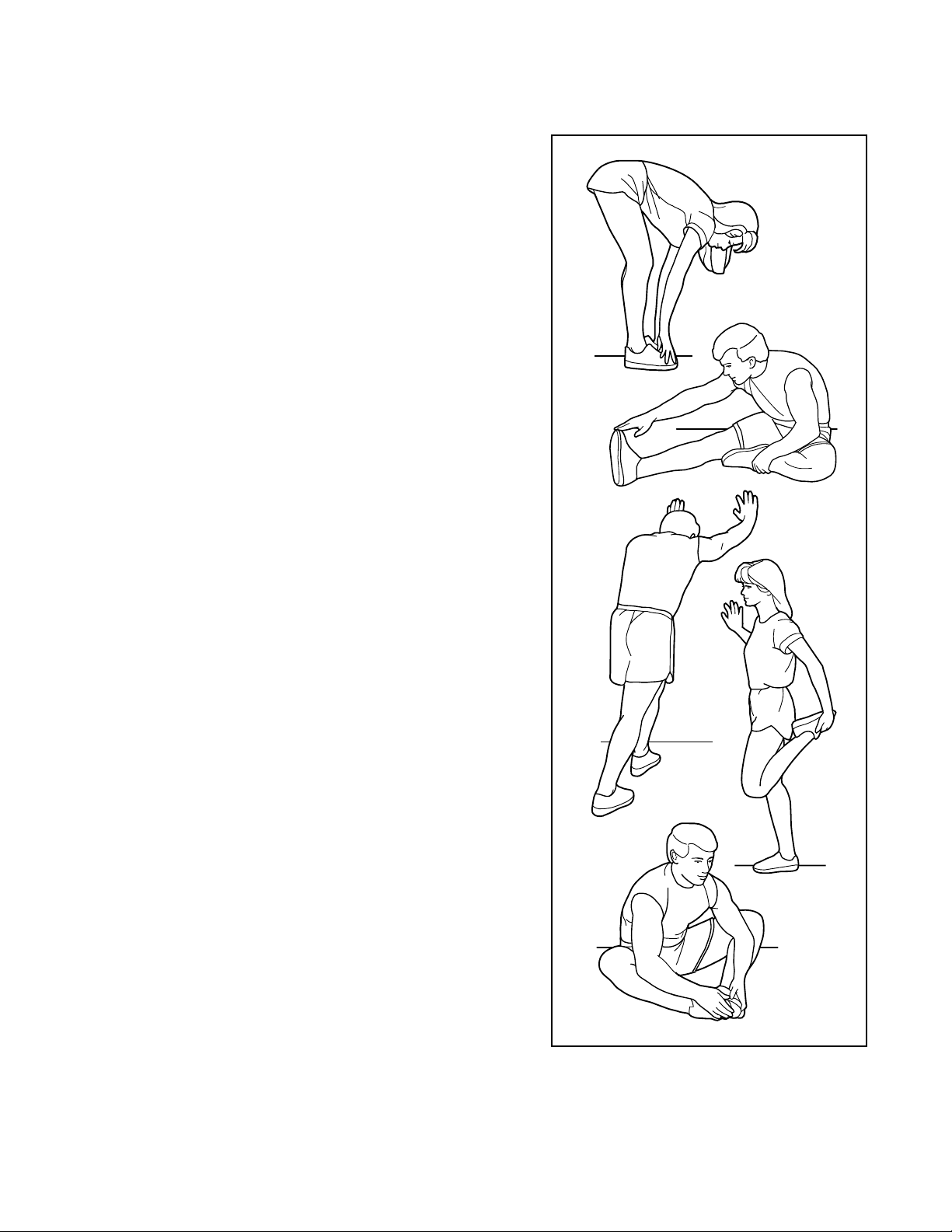

SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward
from your hips. Allow your back and shoulders to relax as you
reach down toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Hamstrings,
back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for each leg. Stretches:
Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your
back foot flat on the floor. Bend your front leg, lean forward and
move your hips toward the wall. Hold for 15 counts, then relax.
Repeat 3 times for each leg. To cause further stretching of the
achilles tendons, bend your back leg as well. Stretches:
Calves, achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and
grasp one foot with your other hand. Bring your heel as close
to your buttocks as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Quadriceps and hip
muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold
for 15 counts, then relax. Repeat 3 times. Stretches:
Quadriceps and hip muscles.
1
2
3
4
5
17
PART LIST—Model No. PFTL59291 R0501A
1 2 Center Track
2 2 Left Foot Rail Cap
3 4 Foot Rail Cap
4 2 Foot Rail
5 4 Isolator
6 26 Small Screw
7 4 Deck Screw
8 2 Frame Pivot Bolt
9 2 Frame Spacer
10 1 Magnet
11 1 Front Roller/Pulley
12 7 Frame Pivot Nut/Incline Nut
13 1 Incline Frame
14 1 Reed Switch Clip
15 9 Reed Switch Screw/Belly Pan Screw
16 1 Reed Switch
17 1 Sensor Wire
18 2 Incline Bolt
19 2 Incline Motor Spacer
20 1 Console Ground Screw
21 2 Hood Bracket
22 2 Incline Pivot Nut
23 1 Long Hood Bracket
24 2 Incline Motor Nut
25 1 Incline Motor
26 1 Incline Optic Disk
27 1 Stop Bracket
28 1 Small Nut
29 1 Small Bolt
30 1 Optic Switch
31 14 Screw
32 1 Choke
33 1 Electronics Bracket
34 1 Controller
35 1 Circuit Breaker
36 1 Power Cord
37 1 Grommet
38 1 On/Off Switch
39 1 Outlet Bracket
40 1 8” Wire Harness
41 4 Plastic Stand-Off
42 1 Power Supply w/Stand-Off
43 2 Optic Switch Star Washer
44 1 Front Roller Adj. Bolt
45 3 Roller Adjustment Washer
46* 1 Motor Assembly
47 1 Motor Pivot Bolt
48 1 Front Roller Nut
49 1 Motor Pivot Nut
50 1 Pulley/Flywheel/Fan
51 1 Motor Pulley Belt
52 1 Motor
53 1 Motor Tension Bolt
54 1 Motor Tension Washer
55 1 Star Washer
56 1 Motor Tension Nut
57 1 Shock
58 1 Incline Motor Shield
59 1 Right Foot Rail Cap
60 8 Belly Pan Fastener
61 1 Walking Belt
62 2 Frame Guide
63 6 Frame Guide Screw/Incline Shield Screw
64 2 Rear Isolator
65 2 Rear Isolator Screw
66 4 Small Isolator Screw
67 2 Roller Guard
68 1 Belly Pan
69 1 Ground Screw
70 1 Roller Ground Wire
71 2 Rear Foot Screw
72 2 Rear Foot
73 1 Caution Decal
74 1 Right Endcap
75 4 Endcap Screw
76 2 Rear roller Bolt
77 2 Endcap Spacer
78 2 Rear Roller
79 1 Frame
80 1 Left Endcap
81 2 Latch Catch Screw
82 1 Latch Catch
83 1 Pulse Bar Assembly
84 2 Pulse Bar Bolt
85 2 Pulse Bar Washer
86 8 Base Mount Screw
87 1 Bottom Left Base Mount
88 1 Top Left Base Mount
89 4 Handrail Cap
90 1 Lock Knob
91 1 Lock Knob Sleeve
92 1 Lock Knob Spring
93 1 Lock Pin Collar
94 1 Lock Pin
95 1 Snap Ring
96 1 Main Wire Harness
97 1 Right Top Base Mount
98 1 Right Bottom Base Mount
99 1 Spacer
100 1 Console
101 1 Key/Clip
102 2 Wire Tie Holder
Key
No. Qty. Description
Key
No. Qty. Description
To locate the parts listed below, refer to the EXPLODED DRAWING attached in the center of this manual.
18
Key
No. Qty. Description
Key
No. Qty. Description
103 1 Book Holder
104 1 Console Base
105 1 Console Plug
106 4 Hood Screw
107 1 Motor Hood
108 13 Pad Screw/Shield Screw
109 1 Belly Pan
110 1 Foot Spacer
111 2 Front Wheel
112 2 Wheel Bolt
113 2 Frame Endcap
114 1 Upright
115 2 Frame Pivot Bolt
116 8 8” Wire Tie
117 6 Bumper Screw
118 1 Allen Wrench
119 2 Caution Decal
120 2 Upright Base Endcap
121 1 Walking Platform
122 1 Lock Knob Spacer
123 1 Releasable Tie
124 1 Incline Belly Pan
125 8 8” Wire Tie
126 1 Incline Warning
127 1 Foot Rail Warning
# 1 24” Black Wire, M/Ring
# 1 4” Black Wire, 2 F
# 1 4” Blue Wire, 2 F
# 1 10” White Wire, 2 F
# 1 8” Green Wire, M/Ring
# 1 8” Green Wire, F/Ring
# 1 User's Manual
# These parts are not illustrated
* Includes all parts shown in the box
Specifications are subject to change without notice. For information about ordering replacement parts, see the
back cover of this manual.
19
Part No. 166136 R0501A Printed in USA © 2001 ICON Health & Fitness, Inc.
ORDERING REPLACEMENT PARTS
To order replacement parts, call our Customer Service Department toll-free at 1-800-999-3756, Monday through
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please be prepared to give
the following information:
• The MODEL NUMBER OF THE PRODUCT (PFTL59291)
• The NAME OF THE PRODUCT (PROFORM
®
GP5 treadmill)
• The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual).
• The KEY NUMBER AND DESCRIPTION OF THE PART(S) (see the EXPLODED DRAWING and PART LIST
in the center of the manual)
If possible, place the treadmill near your telephone for easy reference when calling.
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product at one of its authorized service centers. All
products for which warranty claim is made must be received by ICON at one of its authorized service
centers with all freight and other transportation charges prepaid, accompanied by sufficient proof of purchase. All returns must be pre-authorized by ICON. This warranty does not extend to any product or
damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal
usage or repairs not provided by an ICON authorized service center, to products used for commercial or
rental purposes, or to products used as store display models. No other warranty beyond that specifically
set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly,
the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
EXPLODED DRAWING—Model No. PFTL59291 R0501A
102
116
36
37
38
35
31
34
39
40
41
42
41
123
43
31
32
12
33
43
29
28
27
30
26
23
20
25
24
12
19
18
17
31
16
3
99
49
50
51
21
14
15
2
13
9
8
1
31
44
45
24
46*
18
12
11
10
113
7
5
4
21
9
12
48
47
56
55
54
53
52
6
121
7
5
82
81
3
113
7
61
6
65
59
4
1
5
8
6
62
60
7
66
66
67
22
78
79
63
5
6
60
64
60
70
69
68
65
67
22
60
77
72
60
71
72
110
73
74
77
6
45
71
76
64
80
6
45
76
6
EXPLODED DRAWING—Model No. PFTL59291 R0501A
107
101
6
103
127
104
105
106
106
15
100
126
89
97
20
86
87
89
88
83
95
92
91
98
96
89
94
93
6
6
106
86
84
85
115
89
114
58
108
12
115
108
116
63
116
111
15
15
109
112
15
116
108
116
108
96
118
119
116
108
120
108
122
86
85
84
90
119
57
120
108
116
124
108
Loading...
