ProForm PFTL590110 User Manual
www.proform.com
Model No. PFTL59011.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
QUESTIONS?
If you have questions, or if parts
are damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
USER’S MANUAL
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
TABLE OF CONTENTS
256836
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT PRECAUTIONS .................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
OPERATION AND ADJUSTMENT ............................................................14
HOW TO FOLD AND MOVE THE TREADMILL ..................................................20
TROUBLESHOOTING .....................................................................21
EXERCISE GUIDELINES ...................................................................24
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

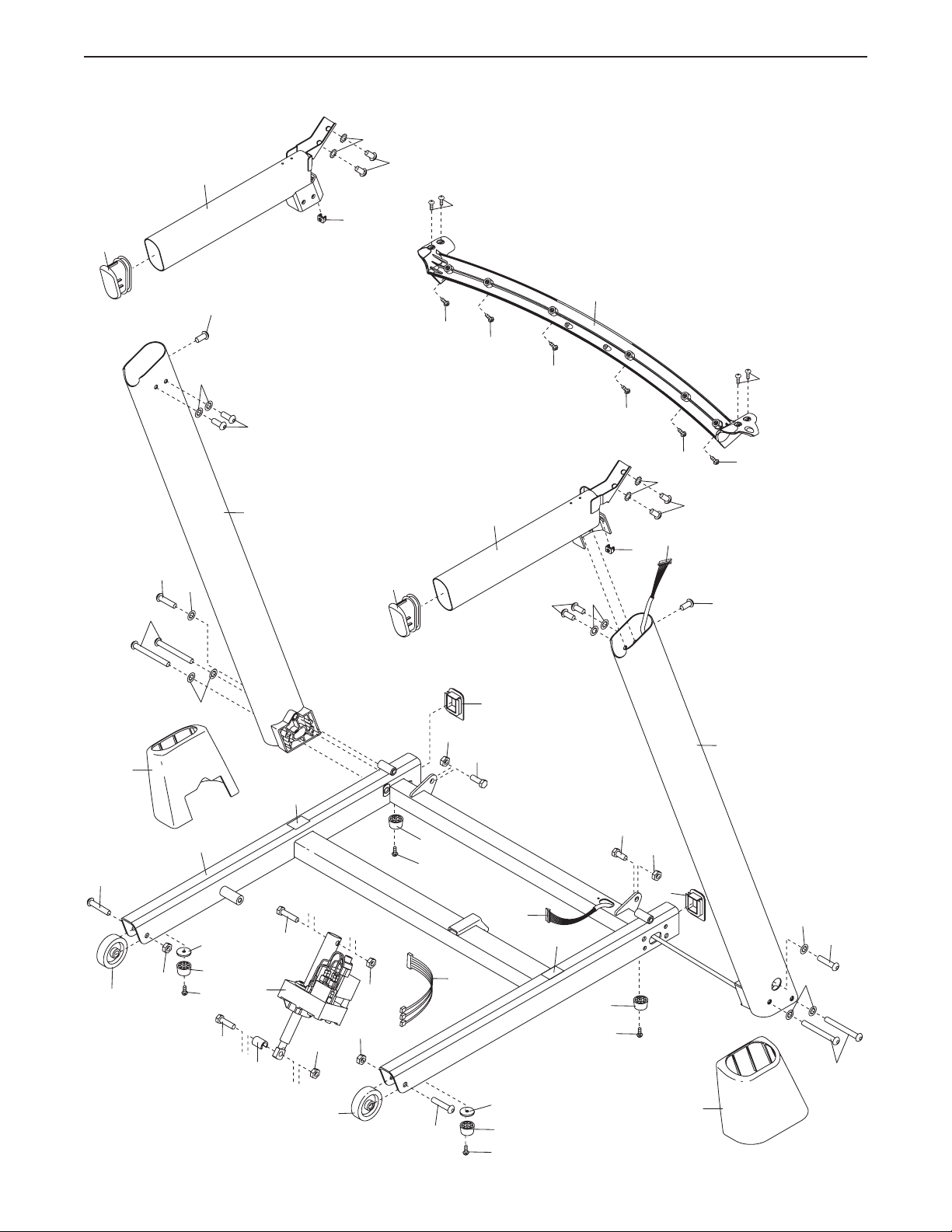

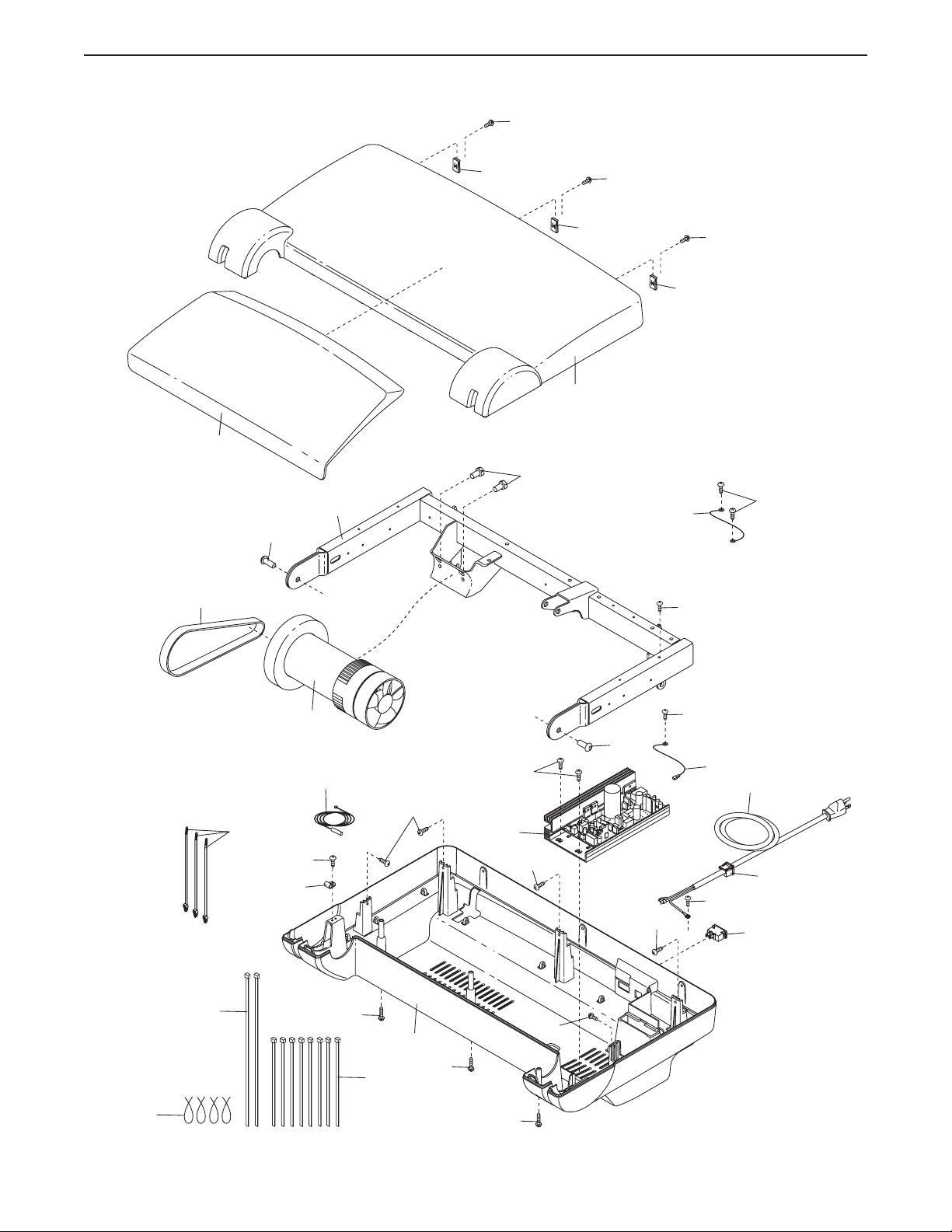

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the locations of the
warning decals. If a decal is missing or il-
legible, call the telephone number on the
front cover of this manual and request a
free replacement decal. Apply the decal
in the location shown. Note: The decals
may not be shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precations and in-
structions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
1. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with
pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Place the treadmill on a level surface, with
at least 8 ft. (2.4 m) of clearance behind it
and 2 ft. (0.6 m) on each side. Do not place
the treadmill on any surface that blocks air
openings. To protect the oor or carpet from
damage, place a mat under the treadmill.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under age 12 and pets away
from the treadmill at all times.
other electrical devices, except for low-power
devices such as cell phone chargers, into
the surge suppressor or into an outlet on the
same circuit.
12. Use only a surge suppressor that meets all of
the specifications described on page 14. To
purchase a surge suppressor, see your local
PROFORM dealer, call the telephone number
on the front cover of this manual, or see your
local electronics store.
13. Failure to use a properly-functioning surge
suppressor could result in damage to the
control system of the treadmill. If the control
system is damaged, the walking belt may
slow, accelerate, or stop unexpectedly, which
may result in a fall and serious injury.
14. Keep the power cord and the surge suppressor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROUBLESHOOTING on page 21 if the treadmill is
not working properly.)
8. The treadmill should be used only by persons weighing 300 lbs. (136 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes while using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended
for both men and women. Always wear ath-
letic shoes. Never use the treadmill with bare
feet, wearing only stockings, or in sandals.

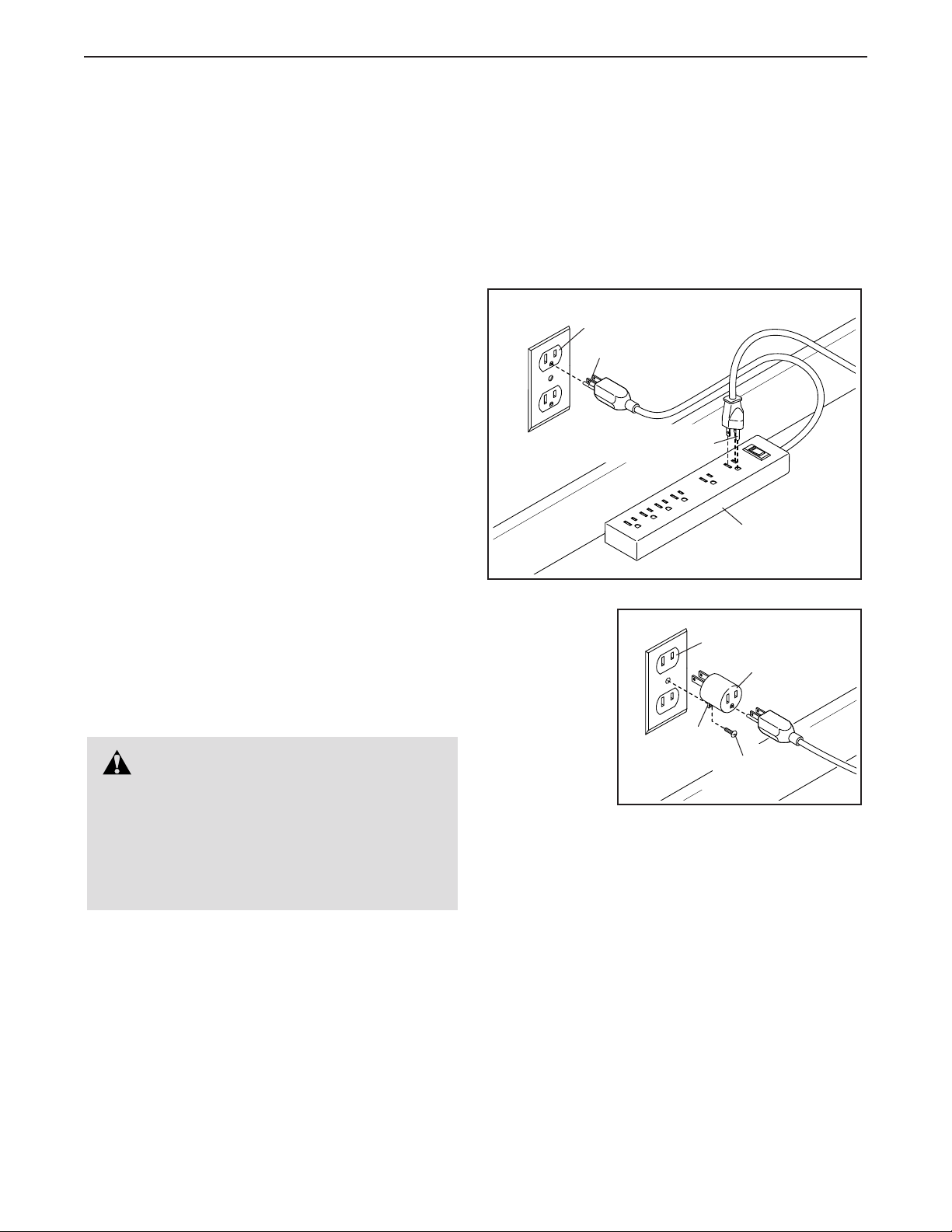

11. Plug the power cord into a surge suppressor
(not included), and plug the surge suppressor into an appropriate outlet (see page 14).
To avoid overloading the circuit, do not plug
16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 16).
17. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
18. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid
sudden jumps in speed.
19. The heart rate monitor is not a medical
device. Various factors, including the user’s
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is intended only as an exercise aid in determining
heart rate trends in general.
3
20. Never leave the treadmill unattended while
it is running. Always remove the key, unplug
the power cord, and press the power switch
into the off position when the treadmill is not
in use. (See the drawing on page 5 for the
location of the power switch.)
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 20.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
22. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
23. Never insert any object into any opening on
the treadmill.
24. Inspect and properly tighten all parts of the
treadmill regularly.
25. DANGER: Always unplug the power
cord immediately after use, before cleaning the treadmill, and before performing the
maintenance and adjustment procedures
described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing other than the procedures in this manual
should be performed by an authorized service representative only.
26. This treadmill is intended for home use only.
Do not use this treadmill in a commercial,
rental, or institutional setting.
27. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
SAVE THESE INSTRUCTIONS
4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM®
515 TX treadmill. The 515 TX treadmill offers an impressive selection of features designed to make your
workouts at home more enjoyable and effective. And
when you’re not exercising, the unique treadmill can
be folded up, requiring less than half the oor space of
other treadmills.
For your benet, read this manual carefully be-
fore using the treadmill. If you have questions after
Tray
Handrail
Upright
reading this manual, please see the front cover of this
manual. To help us assist you, please note the product
model number and serial number before contacting us.
The model number and the location of the serial number decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Console
Handgrip Heart
Rate Monitor
Key/Clip
Walking Belt
Foot Rail
Idler Roller
Adjustment Screws
Power Switch
Power Cord
Platform Cushion
Length: 6 ft. (183 cm)
Width: 2 ft. 10 in. (86 cm)
5
ASSEMBLY
To hire an authorized service technician to assemble the treadmill, call 1-800-445-2480.
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
belt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the top of
the walking belt or the shipping carton. This is normal and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver ,
adjustable wrench , needlenose pliers , and scissors .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: Some small parts may have been preassembled. To avoid dam-
aging parts, do not use power tools. Extra hardware may be included.
1/4" Star
Washer (12)–4
#8 x 3/4" Screw
(1)–6
5/16" x 1"
Bolt (4)–6
3/8" x 1 3/4" Screw (6)–1
5/16" Star
Washer (13)–4
#8 x 1" Tek Screw
3/8" x 1 1/2" Screw (14)–2
3/8" Star
Washer (11)–6
(5)–4
Base Foot
Spacer (94)–2
#10 x 3/4" Screw
(2)–4
3/8" x 2" Bolt (8)–3
3/8" x 4" Screw (7)–4
3/8" Nut (10)–3
1/4" x 1/2"
Screw (9)–4
6
1. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip
the treadmill onto its left side. Partially fold the
Frame (55) so that the treadmill is more stable;
do not fully fold the Frame yet.
Cut the shipping tie securing the Upright Wire
(87) to the Base (95). Locate a plastic tie in the
indicated hole in the Base, and use the tie to pull
the Upright Wire out of the hole.
Attach two Base Feet (90) to the Base (95) in the
locations shown with two #8 x 1" Tek Screws (5)
and two Base Foot Spacers (94).
Then, attach the other two Base Feet (90) with
two #8 x 1" Tek Screws (5).
1
55
94
94
90
Hole
87
5
90
5
95
90
5
90
5
2. See the inset drawing. Cut the plastic tie near
the Upright Wire (87).
Attach a Wheel (96) to the Base (95) with a 3/8"
x 2" Bolt (8) and a 3/8" Nut (10). Do not over-
tighten the Nut; the Wheel must turn freely.
Press a Base Cap (89) into the Base (95).
2
89
Plastic Tie
87
8
95
96
10
Cut
87
7
3. Identify the Right Upright (85), which is marked
with a “Right” sticker. Hold the Right Upright
near the Base (95) as shown.
See the inset drawing. Tie the wire tie in the
Right Upright (85) securely around the end of
the Upright Wire (87). Then, pull the other end
of the wire tie until the Upright Wire is routed
through the Right Upright.
3
85
87
Wire Tie
95
85
4. Hold the Right Upright (85) against the Base
(95). Be careful not to pinch the Upright
Wire (87). Insert two 3/8" x 4" Screws (7) with
two 3/8" Star Washers (11) and a 3/8" x 1 1/2"
Screw (14) with a 3/8" Star Washer (11) into the
Right Upright.
Partially tighten the 3/8" x 4" Screws (7) until
the heads of the Screws touch the Right Upright
(85); do not fully tighten the Screws yet.
Partially tighten the 3/8" x 1 1/2" Screw (14).
87
4
Wire
Tie
85
7
14
11
11
87
95
8
5. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (55) so that the treadmill is more stable;
do not fully fold the Frame yet.
Attach a Wheel (96) to the Base (95) with a 3/8"
x 2" Bolt (8) and a 3/8" Nut (10). Do not over-
tighten the Nut; the Wheel must turn freely.
Press a Base Cap (89) into the Base (95).
5
89
8
55
95
96
10
6. Hold the Left Upright (84) against the Base (95).
Insert two 3/8" x 4" Screws (7) with two 3/8"
Star Washers (11) and a 3/8" x 1 1/2" Screw
(14) with a 3/8" Star Washer (11) into the Left
Upright.
Partially tighten the 3/8" x 4" Screws (7) until the
heads of the Screws touch the Left Upright (84);
do not fully tighten the Screws yet. Partially
tighten the 3/8" x 1 1/2" Screws (14).
With the help of a second person, tip the tread-
mill so that the Base (95) is at on the oor.
6
14
84
7
11
95
11
9

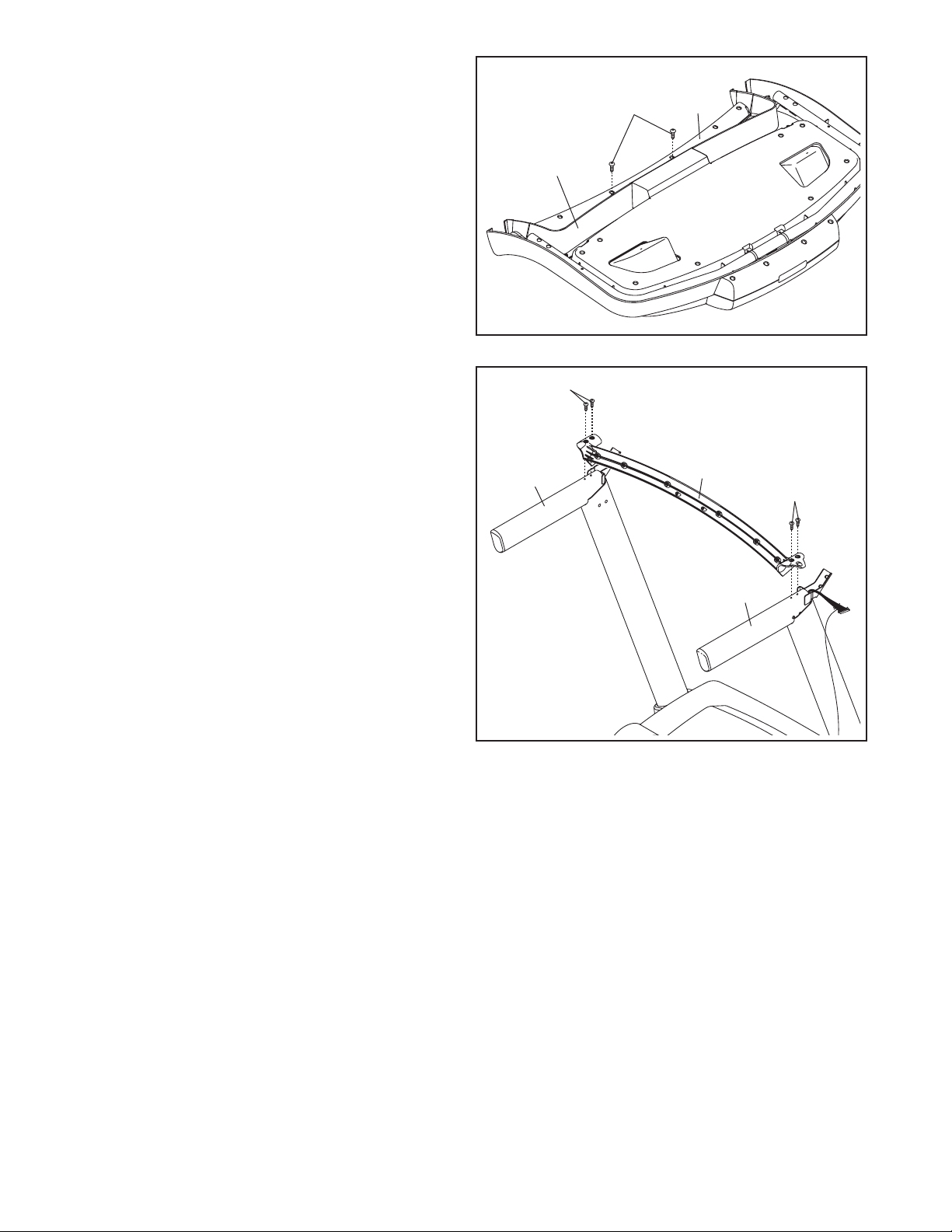

7. Identify the Right Base Cover (91) and the Left
Base Cover (88). Slide the Right Base Cover
onto the Right Upright (85). Slide the Left Base
Cover onto the Left Upright (84).
7
84
85
88
91

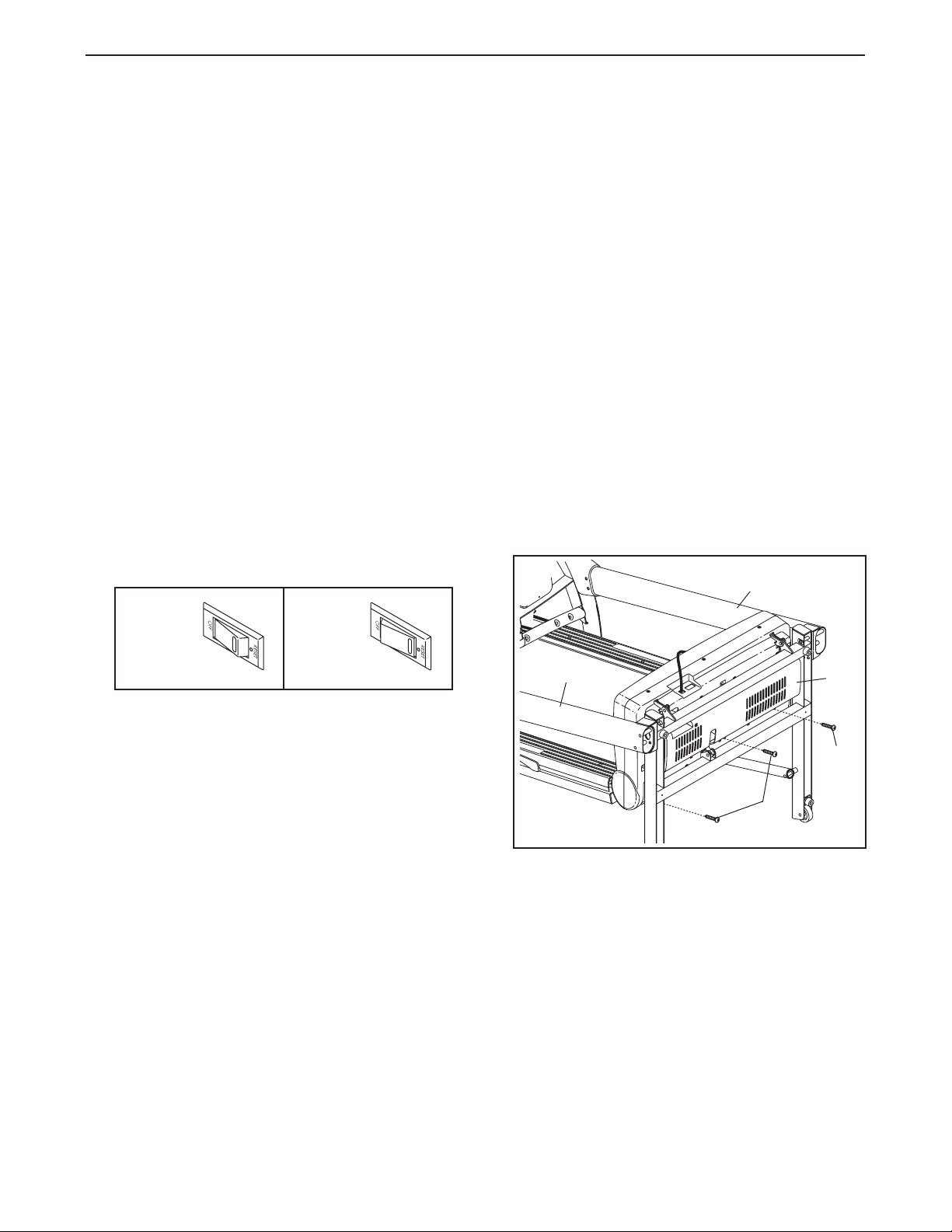

8. Remove the tie from the bracket on the Right
Handrail (83). If necessary, press the 5/16"
Cage Nuts (38) back into place.
Hold the Right Handrail (83) near the Right
Upright (85). Insert the Upright Wire (87)
through the indicated bracket on the Right
Handrail, and pull the Upright Wire out of the
end of the Right Handrail.
Attach the Right Handrail (83) to the Right
Upright (85) with three 5/16" x 1" Bolts (4) and
two 5/16" Star Washers (13) as shown. Do not
tighten the Bolts yet.
Attach the Left Handrail (not shown) in the
same way. Note: There is no wire on the left
side. Remove and discard the screws (A) from
both Handrails.
8
87
4
13
A
83
38
Tie
4
85
10
Loading...
