USER'S MANUAL
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.

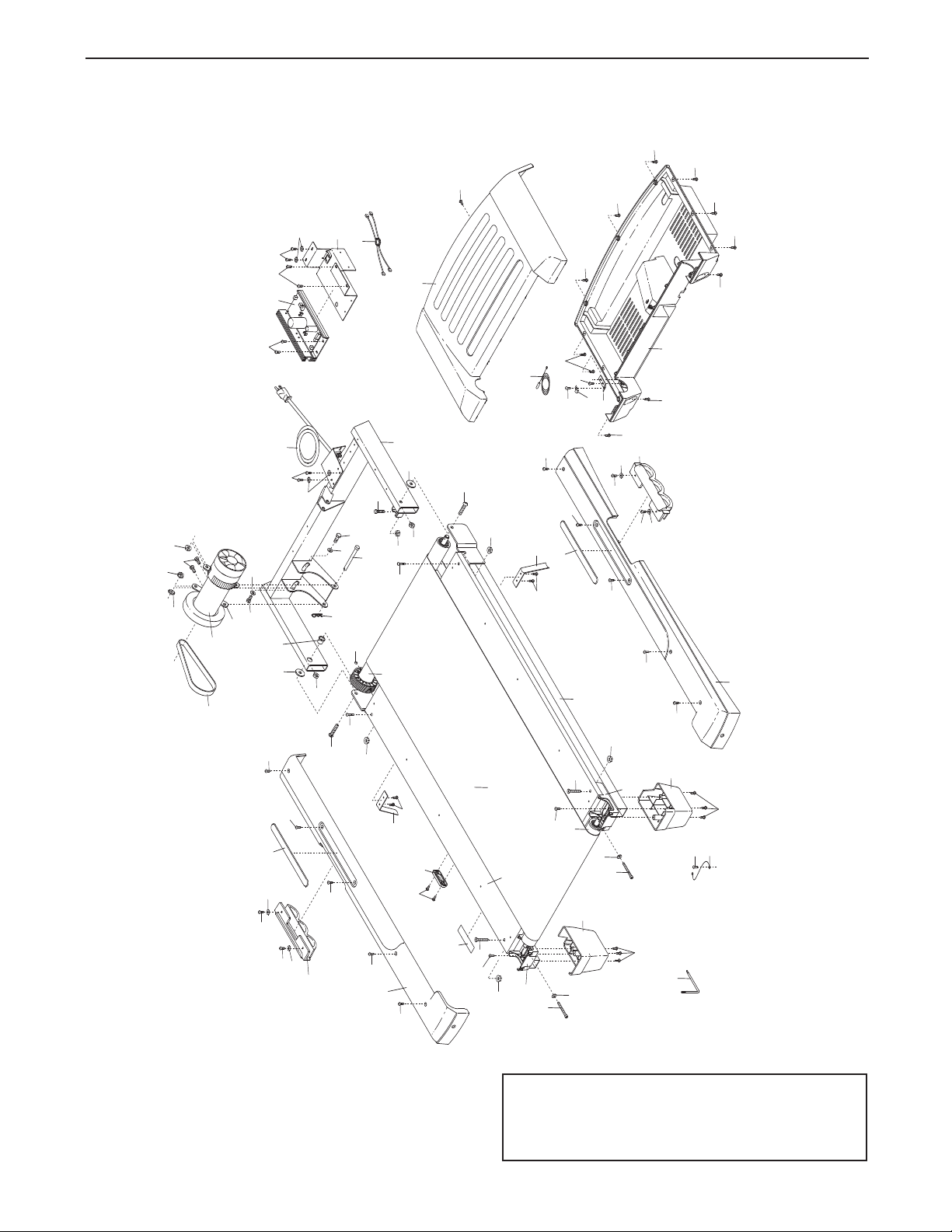

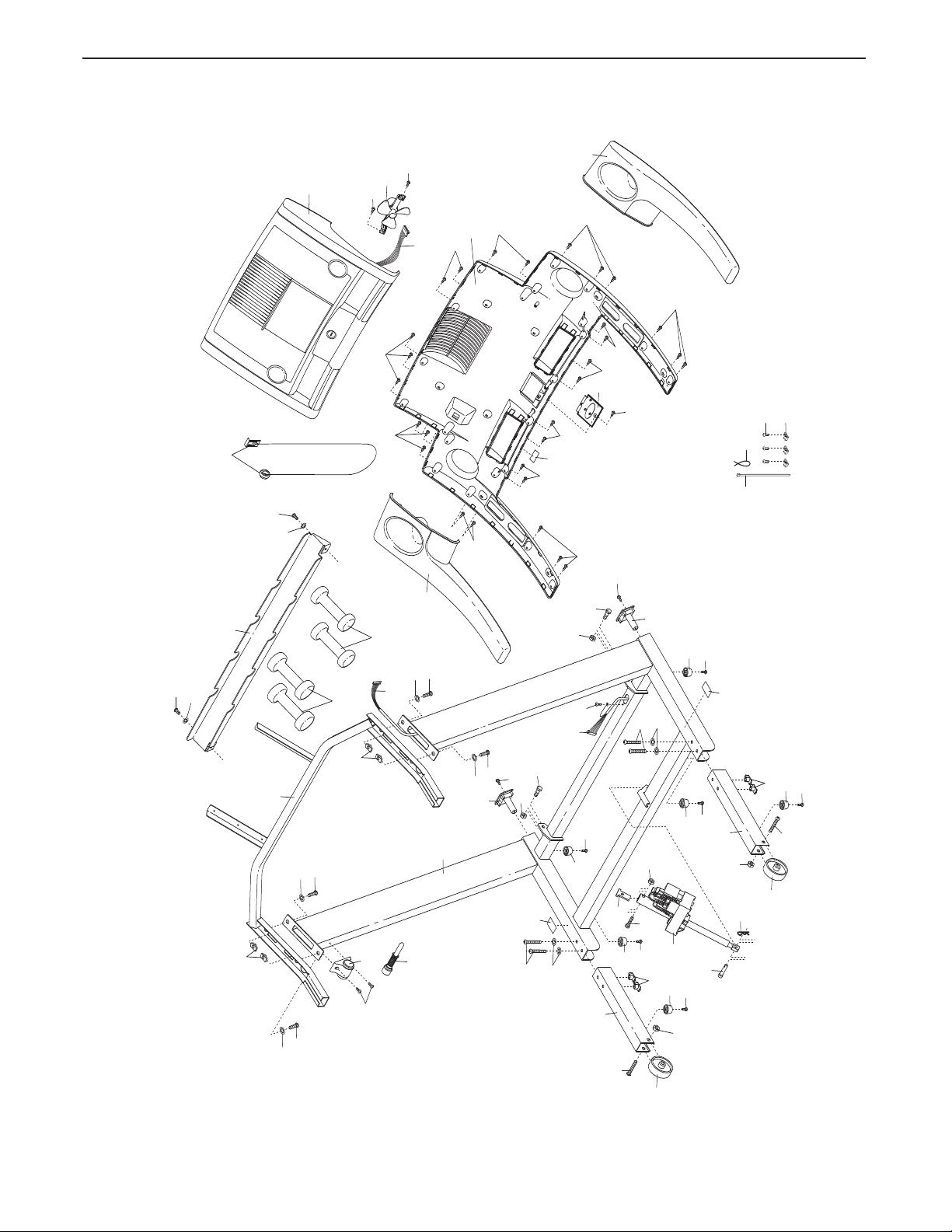

Note: An EXPLODED DRAWING is attached in the center of this manual.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: T
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described.
3. Place the treadmill on a level surface, with at
least eight feet of clearance behind it and two
feet on each side. Do not place the treadmill
on any surface that blocks air openings. To
protect the floor or carpet from damage, place
a mat under the treadmill.
4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
7. The treadmill should be used only by persons
weighing 300 pounds or less.
o reduce the risk of burns, fire, electric shock, or injury to persons, read the
on page 9. To purchase a surge suppressor,
see your local PROFORM dealer or call the
toll-free telephone number on the front cover
of this manual and order part number 146148,
or see your local electronics store.
12. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change
speed, accelerate, or stop unexpectedly,
which may result in a fall and serious injury.
13. Keep the power cord and the surge suppressor away from heated surfaces.
14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROUBLESHOOTING on page 19 if the treadmill is
not working properly.)
15. Read, understand, and test the emergency
stop procedure before using the treadmill (see
TREADMILL OPERATION).
8. Never allow more than one person on the
treadmill at a time.
Wear appropriate exercise clothes when
9.
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women.
Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.
10. When connecting the power cord (see page
9), plug the power cord into a surge suppressor (not included) and plug the surge suppressor into a grounded circuit capable of
carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.
Use only a single-outlet surge suppressor
11.
that meets all of the specifications described
16. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
17. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
18. The pulse sensor is not a medical device.
Various factors, including the user’s movement, may affect the accuracy of heart rate
readings. The sensor is intended only as an
exercise aid in determining heart rate trends in
general.
19. Do not use the hand weights at speeds faster
than walking speeds. Using weights and not
holding the handrails may compromise your
ability to maintain your balance. Exercises
using weights should be attempted only by
experienced users.
3
0. Never leave the treadmill unattended while it
2
is running. Always remove the key, unplug
he power cord, and switch the reset/off cir-
t
cuit breaker to the off position when the
treadmill is not in use. (See the drawing on
page 5 for the location of the circuit breaker.)
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 17.)
You must be able to safely lift 45 pounds (20
kg) to raise, lower, or move the treadmill.
readmill regularly.
t
4. Never insert any object into any opening.
2
25. DANGER: Always unplug the power
cord immediately after use, before cleaning the
treadmill, and before performing the maintenance and adjustment procedures described in
this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the
procedures in this manual should be performed
by an authorized service representative only.
22. When folding or moving the treadmill, make
sure that the storage latch is fully closed.
23. Inspect and properly tighten all parts of the
26. This treadmill is intended for in-home use
only. Do not use this treadmill in a commercial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
SAVE THESE INSTRUCTIONS
The decals shown here have been placed on the treadmill.
If a decal is missing, or if it is not legible, call the toll-free
telephone number on the front cover of this manual and
order a free replacement decal. Apply the decal in the location shown.
4
BEFORE YOU BEGIN
hank you for selecting the new PROFORM
T
readmill. The 600 S treadmill offers an impressive
t
array of features designed to make your workouts at
home more enjoyable and effective. And when you’re
not exercising, the unique 600 S treadmill can be
folded up, requiring less than half the floor space of
other treadmills.
For your benefit, read this manual carefully before
you use the treadmill. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
Console
Pulse Sensor
Handrail
®
00 S
6
umber and serial number before calling. The model
n
umber of the treadmill is PFTL52105.2. The serial
n
number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).
To avoid a registration fee for any service needed
under warranty, you must register the treadmill at
www.proformservice.com/registration.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Fan
Water Bottle Holder*
Hand Weights
Storage Latch
Upright
Walking Belt
Foot Rail
BACK
Rear Roller
Adjustment Bolts
Key/Clip
Reset/Off
Circuit Breaker
Power Cord
Cushioned Walking Platform
RIGHT SIDE
*No water bottle is included
5
ASSEMBLY
Wheel Nut (13)–2
1” Tek Screw (83)–4
Handrail Bolt (64)–4
E
xtension Leg Bolt (96)–4
3
Star Washer (8)–8
Console Bolt (64)–4
Extension Leg Nut (67)–4
Screw (3)–2
Extension Leg Bolt (65)–4
Rack Bolt (91)–2
Rack Star
Washer (92)–2
Extension Leg Bolt (96)–4
o hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480.
T
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is
coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the
top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.
Assembly requires the included allen wrench and your own phillips screwdriver (with
a shaft at least 6” long) and wire cutters .
Use the drawings below to identify the hardware used during assembly. Note: If a part is not in the parts bag,
check to see if it has been preattached to one of the parts to be assembled. To avoid damaging plastic
parts, do not use power tools for assembly.
1. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip the
treadmill onto its left side as shown. Partially fold the
Frame (58) so the treadmill is more stable. Do not fully
fold the treadmill until it is completely assembled.
Insert an Extension Leg (89) into the base of the Uprights
(84) as shown. Next, hold two Extension Leg Nuts (67) in
the bottom of the Extension Leg. Insert two Extension
Leg Bolts (65) with Star Washers (8) into the top of the
Extension Leg, and firmly tighten the Extension Leg Bolts
into the Extension Leg Nuts.
With the help of a second person, carefully tip the treadmill onto its other side and attach the other Extension Leg
(not shown) in the same way.
1
65
58
8
82
89
84
82
83
67
Attach four Base Pads (82) to the base of the Uprights
(84) with four 1” Tek Screws (83) (only two are shown).
6
. With the help of a second person, carefully raise the
2
Uprights (84) to a vertical position.
2
Have the second person hold the console assembly near
the Uprights (84) as shown. Look under the console assembly and locate the Console Wire Harness (78).
Cut the plastic ties securing the Upright Wire Harness
(77) to the right Upright (84). Next, connect the Upright
Wire Harness to the Console Wire Harness (78).
sure to connect the connectors properly (see the
inset drawing). The connectors should slide together
easily and snap into place.
slide together easily and snap into place, turn one connector and then try again. IF THE CONNECTORS ARE
NOT CONNECTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS TURNED ON.
3. Insert the Wire Harnesses (77, 78) down into the right
Upright (84).
Set the console assembly on the Uprights (84). Be care-
ful to avoid pinching the Wire Harnesses (77, 78).
While a second person holds the console assembly, attach it with four Console Bolts (64) and four Star Washers
(8) as shown; start all four Console Bolts but do not
tighten them yet.
If the connectors do not
Make
3
Console
Assembly
Console
Assembly
78
77
77, 78
8
64
84
78
77
84
8
64
84
4.
Orient the Latch Housing (73) so the large hole is on the
indicated side. Attach the Latch Housing to the left
Upright (84) with two Screws (3); start both Screws and
then tighten them.
Remove the knob from the pin. Make sure that the collar
and the spring are on the pin. (Note: If there are two collars, place one on each side of the spring.) Next, insert
the pin into the Latch Housing (73). Then, tighten the
knob back onto the pin.
4
84
73
Knob
3
Large
Hole
Spring
Collar
Pin
7
. Attach the Weight Rack (93) (only one end is shown) to
5
the Uprights (84) with two Rack Bolts (91) and two Rack
Washers (92). Start both Rack Bolts and then tighten
them.
See step 3. Firmly tighten the four Console Bolts (64).
Place the Weights (not shown) on the Weight Rack (93).
6. Make sure that all parts are properly tightened before you use the treadmill. If there are sheets of clear
plastic on the treadmill decals, remove the plastic. To protect the floor or carpet, place a mat under the treadmill. Note: Extra hardware may be included. Keep the included allen wrench in a secure place; the large allen
wrench is used to adjust the walking belt (see page 20).
If you purchase the optional chest pulse sensor (see page 16), follow the steps below to install the receiver
included with the chest pulse sensor.
5
92
91
84
93
1. Make sure that the key is removed from the console
and that the power cord is unplugged.
Remove the indicated Screw (3) and the Access Door
(76) from the back of the Console Base (85).
2. Connect the wire on the receiver (A) to the indicated wire
extending from the Console Base (85). Hold the re-
ceiver so the small cylinder is oriented as shown and
is facing the Console Base. Attach the receiver to the
plastic posts on the Access Door (76) with the two included small screws.
3. Make sure that no wires are pinched. Reattach the
Access Door (76) with the Screw (3). Discard the other
wires included with the receiver.
85
76
Wire
Small
Screws
3
A
Small
Cylinder
8
Loading...
+ 18 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
