ProForm PFTL49908.0 User Manual
With Universal Dock for iPod
www.proform.com
Model No. PFTL49908.0
Serial No.
Write the serial number in the space
above for future reference.
Serial
Number
Decal
®
QUESTIONS?
USER'S MANUAL
As a manufacturer, we are committed to providing complete customer satisfaction. If you have
questions, or if parts are missing,
DO NOT CONTACT THE STORE;
please contact Customer Care.
IMPORTANT: You must note the
product model number and
serial number (see the drawing
above) before contacting us:
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
MPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
I
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the locations of the warning decals. If a decal is missing or illegible, call the tele-
phone number on the front cover of this manual
and request a free replacement decal. Apply the
decal in the location shown. Note: The decals may
not be shown at actual size.
®
is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.
iPod
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and in-
tructions in this manual and all warnings on your treadmill before using your treadmill. ICON as-
s
sumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
1. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with
pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
Use the treadmill only as described.
3. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
6. Keep children under age 12 and pets away
from the treadmill at all times.
7. The treadmill should be used only by persons
weighing 300 lbs. (136 kg) or less.
8. Never allow more than one person on the
treadmill at a time.
9. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recommended for both men and women. Always
wear athletic shoes; never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
10. When connecting the power cord (see page
13), plug the power cord into a surge suppressor (not included) and plug the surge
suppressor into a grounded circuit capable of
carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.
11. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 13. To purchase a surge suppressor, see
your local PROFORM dealer or call the telephone number on the front cover of this manual and order part number 146148, or see your
local electronics store.
12. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may slow,
accelerate, or stop unexpectedly, which may
result in a fall and serious injury.
13. Keep the power cord and the surge suppres-
sor away from heated surfaces.
14. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROUBLESHOOTING on page 22 if the treadmill is
not working properly.)
15. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 15).
16. Never start the treadmill while you are stand-
ing on the walking belt. Always hold the
handrails while using the treadmill.
17. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
18. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
3
19. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord, and switch the reset/off circuit breaker to the off position when the
treadmill is not in use. (See the drawing on
page 5 for the location of the circuit breaker.)
20. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 20.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
21. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
22. Never insert any object into any opening on
the treadmill.
SAVE THESE INSTRUCTIONS
23. Inspect and properly tighten all parts of the
treadmill regularly.
24. DANGER: Always unplug the power
cord immediately after use, before cleaning the
treadmill, and before performing the mainte-
ance and adjustment procedures described in
n
this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the
procedures in this manual should be performed
by an authorized service representative only.
25. This treadmill is intended for in-home use
only. Do not use this treadmill in a commercial, rental, or institutional setting.
4
BEFORE YOU BEGIN
Thank you for selecting the new PROFORM®580 LT
readmill with Universal Dock for iPod
t
treadmill with Universal Dock for iPod offers a selection
of features designed to make your workouts at home
more effective and enjoyable. And when youʼre not ex-
rcising, the treadmill can be folded up, requiring less
e
than half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
ing this manual, please see the front cover of this man-
Accessory Tray
Handrail
Upright
®
The 580 LT
.
ual. To help us assist you, please note the product
odel number and serial number before contacting us.
m
The model number and the location of the serial number decal are shown on the front cover of this manual.
o avoid a registration fee for any service needed
T
under warranty, you must register the treadmill at
www.proformservice.com/registration.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Console
Pulse Sensor
Key/Clip
Walking Belt
Foot Rail
Idler Roller
Adjustment Bolts
Reset/Off
Circuit Breaker
Power Cord
Platform Cushion
5
ASSEMBLY
Base Foot Spacer
(94)–2
M8 Star
Washer (10)–6
M10 Star
Washer (9)–4
M4.2 x 19mm
Screw (1)–4
#8 x 1/2" Ground
Screw (4)–1
3/8" Locknut
(6)–1
#8 x 3/4"
Screw (35)–6
M10 x 95mm Bolt (8)–4
Bolt Spacer (90)–4
M4 x 20mm
Screw (2)–2
M4.2 x 25mm
Tek Screw (3)–4
M8 x 25mm Bolt (5)–6
3/8" x 1 3/4" Bolt (7)–2
o hire an authorized service technician to assemble the treadmill, call 1-800-445-2480.
T
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
elt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to
b
the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver ,
adjustable wrench , and scissors .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it is preattached
to one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assembly. Extra hardware may be included.
6
. Make sure that the power cord is unplugged.
1
ith the help of a second person, carefully tip
W
the treadmill onto its left side. Partially fold the
Frame (56) so that the treadmill is more stable;
do not fully fold the Frame yet.
1
C
B
88
5
9
Remove and discard the two indicated bolts (B)
and the shipping bracket (C).
Cut the tie securing the Wire Harness (88) to the
Base (95). Next, locate a tie in the indicated hole
in the Base, and use the tie to pull the Wire
Harness out of the hole.
2. Attach two Base Feet (92) to the Base (95) in
the locations shown with two M4.2 x 25mm Tek
Screws (3) and two Base Foot Spacers (94).
Attach the other two Base Feet (92) with only
two M4.2 x 25mm Tek Screws (3).
Hole
56
2
95
94
92
3
92
3
3. Remove the M10 Nut (19), the M10 x 50mm Bolt
(31), and the shipping bracket (A) from the Base
(95). Attach a Wheel (97) with the Bolt and the
Nut that you just removed. Do not overtighten
the Nut; the Wheel must turn freely. Discard
the shipping bracket.
92
3
92
94
3
31
A
3
95
97
19
7
4. Identify the Right Upright (89) and the Right
Upright Spacer (91), which are marked with
stickers.
4
Long
Tie
Insert the Wire Harness (88) through the Right
pright Spacer (91) as shown. Then, set the
U
Right Upright Spacer on the Base (95).
With the help of a second person, hold the Right
Upright (89) near the Base (95). See the inset
drawing. Tie the long tie in the Right Upright securely around the end of the Wire Harness (88).
Then, pull the other end of the long tie until the
Wire Harness is routed completely through the
Right Upright.
5. Hold a Bolt Spacer (90) inside the lower end of
the Right Upright (89). Insert an M10 x 95mm
Bolt (8) with an M10 Star Washer (9) into the
Right Upright and the Bolt Spacer. Repeat this
step with a second Bolt Spacer (90), M10 x
95mm Bolt (8), and M10 Star Washer (9).
Hold the Right Upright (89) against the Right
Upright Spacer (91). Be careful not to pinch
the Wire Harness (88). Tighten the M10 x
95mm Bolts (8) until the heads of the Bolts
touch the Right Upright; do not fully tighten
the Bolts yet.
89
8
8
88
5
9
89
88
5
Long
Tie
8
89
9
88
91
91
90
6. Press a Base Cap (87) into the Base (95).
6
87
95
8
7. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (56) so that the treadmill is more stable;
o not fully fold the Frame yet.
d
emove and discard the two indicated bolts (B)
R
and the shipping bracket (C).
Remove the M10 Nut (19), the M10 x 50mm
Bolt (31), and the shipping bracket (A) from the
Base (95). Attach a Wheel (97) with the Bolt and
the Nut that you just removed. Do not over-
tighten the Nut; the Wheel must turn freely.
Discard the shipping bracket.
7
C
B
31
56
95
97
A
19
8. With the help of a second person, hold a Bolt
Spacer (90) inside the lower end of the Left
Upright (85). Insert an M10 x 95mm Bolt (8) with
an M10 Star Washer (9) into the Left Upright and
the Bolt Spacer. Repeat this step with a second
Bolt Spacer (90), M10 x 95mm Bolt (8), and
M10 Star Washer (9).
Orient the Left Upright (85) and the Left Upright
Spacer (86) as shown. Hold the Left Upright
Spacer and the Left Upright against the Base
(95). Tighten the M10 x 95mm Bolts (8) until the
heads of the Bolts touch the Left Upright; do not
fully tighten the Bolts yet.
9. Press a Base Cap (87) into the Base (95).
With the help of a second person, tip the treadmill
so that the Base (95) is flat on the floor.
8
8
9
90
86
95
9
87
85
95
9

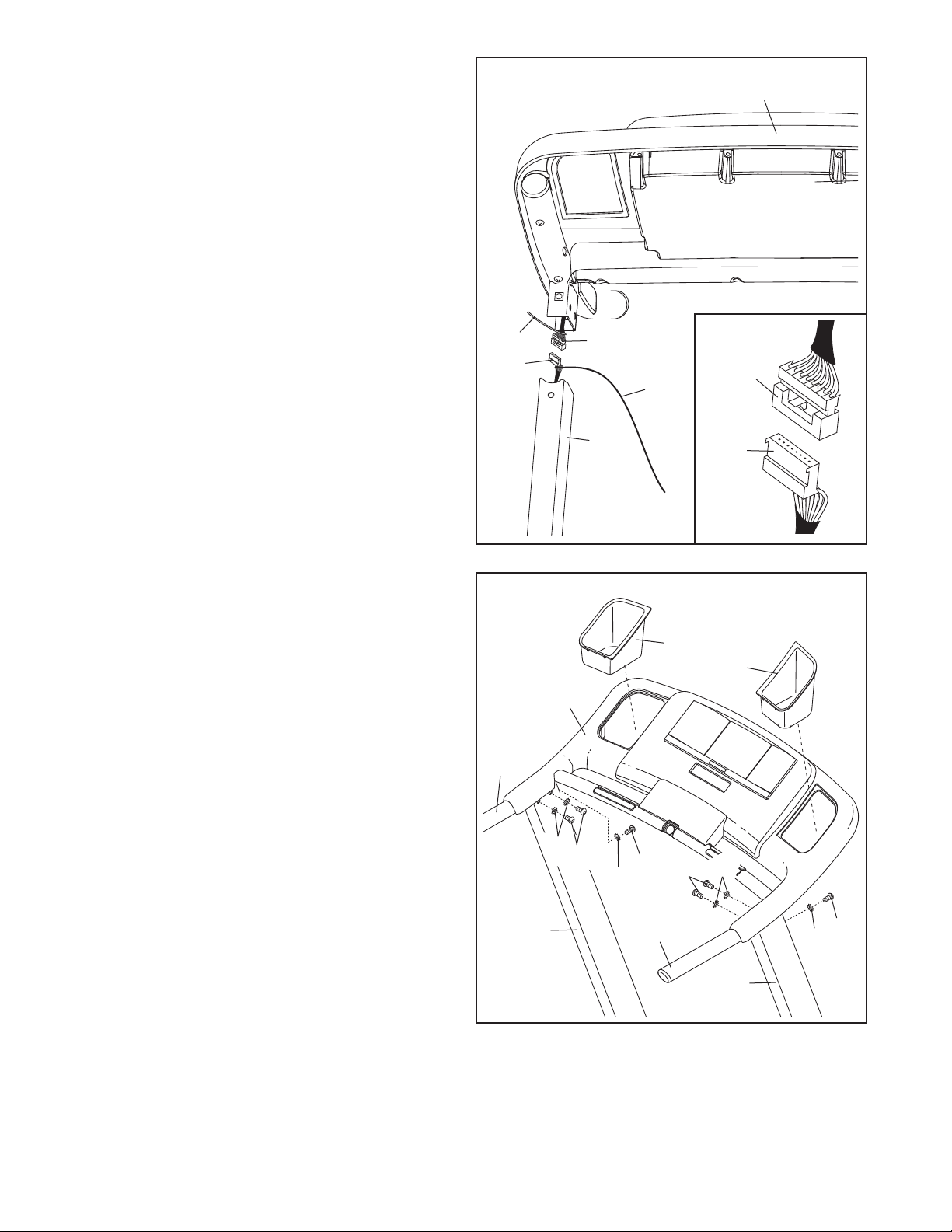

10. Set the Console (105) face down on a soft surface to avoid scratching the Console. Remove
the ties securing the Pulse Support (111) to the
onsole.
C
ift off the Pulse Support (111).
L
0
1
105
111
11. Identify the Right Handrail (101), which has a
large hole in the location shown. Hold the Right
Handrail near the Console (105). Attach the
Console Ground Wire (112) to the Right
Handrail with a #8 x 1/2" Ground Screw (4).
Next, insert the tie on the console wire into the
large hole in the Right Handrail (101) and out of
the top as shown. Insert the included plastic tie
through the holes in the Right Handrail as
shown. Make sure the plastic tie holds the console wire to the near side. Tighten the plastic tie.
Attach the Right Handrail with two M4.2 x 19mm
Screws (1); do not fully tighten the Screws
yet. Make sure that no wires are pinched.
Remove the plastic tie.
Attach the Left Handrail (not shown) to the
Console (105) in the same way. Note: There
are no wires on the left side of the Console.
12. Set the Pulse Support (111) on the console assembly. Make sure that no wires are pinched.
11
12
101
Plastic Tie
105
Tie
Console
Wire
1
Large
Hole
112
1
4
Tighten two M4 x 20mm Screws (2) into the
Pulse Support (111).
Tighten six #8 x 3/4" Screws (35) into the Pulse
Support (111) and console assembly. Start all
six Screws before tightening any of them.
See step 11. TIghten the four M4.2 x 19mm
Screws (1). Do not overtighten the Screws.
10
2
35
35
35
2
111
Console
Assembly
Loading...
