Model No. PFTL14008.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete customer satisfaction. If you have
questions, or if parts are missing,
DO NOT CONTACT THE STORE;
please contact Customer Care.
USER'S MANUAL
IMPORTANT: You must note the
product model number and
serial number (see the drawing
above) before contacting us:
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
MPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
I
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the locations of the warning decals. If a decal is missing or illegible, call the
telephone number on the front cover of this
manual and request a free replacement decal.
Apply the decal in the location shown. Note: The
decals may not be shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and in-
structions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
1. Before beginning this or any exercise program, consult your physician. This is especially important for persons over the age of
35 or persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
5. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under age 12 and pets away
from the treadmill at all times.
8. The treadmill should be used only by persons weighing 350 lbs. (159 kg) or less.
11. When connecting the power cord (see page
14), plug the power cord into a surge suppressor (not included) and plug the surge suppressor into a grounded circuit capable of
carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.
12. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 14. To purchase a surge suppressor, see
your local PROFORM dealer or call the telephone number on the front cover of this manual and order part number 146148, or see your
local electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may slow,
accelerate, or stop unexpectedly, which may
result in a fall and serious injury.
14. Keep the power cord and the surge suppressor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See
TROUBLESHOOTING on page 28 if the treadmill is not working properly.)
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose
clothes that could become caught in the
treadmill. Athletic support clothes are recommended for both men and women. Always
wear athletic shoes. Never use the treadmill
with bare feet, wearing only stockings, or in
sandals.
16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 16).
17. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
3
8. The treadmill is capable of high speeds.
1
Adjust the speed in small increments to
void sudden jumps in speed.
a
9. The pulse sensors are not medical devices.
1
Various factors, including the user's move-
ent, may affect the accuracy of heart rate
m
readings. The pulse sensors are intended
only as an exercise aid in determining heart
rate trends in general.
20. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord, and switch the reset/off circuit breaker to the “off” position when the
treadmill is not in use. (See the drawing on
page 6 for the location of the reset/off circuit
breaker.)
ther than the procedures in this manual
o
should be performed by an authorized service
representative only.
27. The treadmill is intended for in-home use
nly. Do not use the treadmill in any commer-
o
cial, rental, or institutional setting.
28. Do not store the television in temperatures
below -40° F (-40° C) or above 140° F (60° C).
Do not operate the television in temperatures
below 23° F (-5° C) or above 90° F (35° C).
29. To protect the treadmill and television during
lightning storms, unplug the power cord from
the wall outlet and disconnect the cable system. This will prevent damage due to lightning and power line surges.
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 7, and HOW TO FOLD
AND MOVE THE TREADMILL on page 26.) You
must be able to safely lift 45 lbs. (20 kg) to
raise, lower, or move the treadmill.
22. Do not change the incline of the treadmill by
placing objects under the treadmill.
23. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
24. Inspect and properly tighten all parts of the
treadmill regularly.
25. Never insert or drop any object into any
opening on the treadmill.
26. DANGER: Always unplug the power
cord immediately after use, before cleaning
the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the
motor hood unless instructed to do so by an
authorized service representative. Servicing
30. If an outside antenna or cable system is connected, be sure that the antenna or cable system is grounded to provide some protection
against voltage surges and built-up static
charges. Section 810 of the National
Electrical Code, ANSI/NFPA No. 70-1984, provides information with respect to proper
grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit,
connection to grounding electrodes, and requirements for the grounding electrode.
31. An outside antenna system should not be located in the vicinity of overhead power lines
or other electric light or power circuits, or
where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep
from touching such power lines or circuits, as
contact with them might be fatal.
32. To reduce the risk of electric shock, do not remove the cover or the back of the television.
There are no user serviceable parts inside.
Refer servicing to qualified service personnel.
4
33. Upon completion of any service or repairs to
the treadmill or the television, ask the service
technician to perform safety checks to confirm that the unit is in proper operating condition.
• Use No. 10 AWG (5.3 mm2) copper, No. 8
WG (8.4 mm
A
2
mm
) copper-clad steel or bronze wire, or
2
aluminum, No. 17 AWG (1.0
)
larger as a ground wire.
• Secure an antenna lead-in and ground
wires to the house with stand-off insulators
spaced from 4 to 6 feet (1.22 to 1.83 m)
apart.
• Mount an antenna discharge unit as close
as possible to where the lead-in enters the
house.
Power Lines
• Use a jumper wire not smaller than No. 6
AWG (13.3 mm2) copper, or the equivalent
when a separate antenna-grounding electrode is used. See NEC Section 810-21 (j).
ote to CATV system installer: This reminder is
N
provided to call the CATV system installerʼs attention to Article 820-40 of the NEC that provides
guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building,
as close to the point of cable entry as practical.
Ground
Clamp
Standoff
Insulators
Service
Entrance
Conductors
Service
Entrance
Equipment
Power Service Grounding
Electrode System (e.g.
Interior Metal Water Pipe)
SAVE THESE INSTRUCTIONS
Ground
Clamps
To External 75 Ohm
Terminal of Treadmill
Ground
Wire
Bonding
Jumper
Optional Antenna Grounding Electrode Driven 8
Feet (2.44 m) Into The Earth (If Required By Local
Codes). See NEC Section 810–21 (f).
Mast
Antenna
Lead-in Wire
Antenna
Discharge Unit
Ground Wire
Ground
Clamps
5
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM
PERSPECTIVE ES treadmill. The PERSPECTIVE ES
treadmill offers an impressive selection of features designed to make your workouts at home more enjoyable
and effective. And when youʼre not exercising, the
unique treadmill can be folded up, requiring less than
half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
ing this manual, please see the front cover of this man-
Personal Television/Console
Accessory Tray
Handrail
Pulse Sensor
®
ual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
To avoid a registration fee for any service needed
under warranty, you must register the treadmill at
www.proformservice.com/registration.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Fan
Book Holder
Key/Clip
Walking Belt
Foot Rail
Idler Roller
Adjustment Bolts
Reset/Off
Circuit Breaker
Power Cord
Platform Cushion
6
ASSEMBLY
#8 x 3/4"
Screw (4)–2
3/8" Star Washer
(90)–10
3/4" Tek Screw
(21)–2
3/8" x 3 3/4" Bolt (72)–4
3/8" x 1"
Bolt (64)–6
o hire an authorized service technician to assemble the treadmill, call toll-free 1-800-445-2480.
T
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
elt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to
b
the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.
Assembly requires the included hex key and your own Phillips screwdriver .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it is preattached
to one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assembly. Extra hardware may be included.
1. Make sure that the power cord is unplugged.
With the help of a second person, raise the front
of the treadmill and insert the crossbar on the
Base (83) into the cutout in the cardboard stand
as shown. Have the second person hold the
treadmill to prevent it from moving forward
or backward until assembly step 3 is completed.
WARNING: Serious injury
may occur if the treadmill moves forward or backward and falls off the cardboard stand. A second person must
hold the treadmill until assembly step 3
is completed to prevent the treadmill
from moving, tipping, or falling.
7
1
83
Cardboard
Stand
2. Hold the Right Upright (74) near the Right Base
Cover (77). See the inset drawing. Make sure
the wire tie is in the rectangular hole as
hown. Tie the wire tie in the lower end of the
s
Right Upright securely around the end of the
pright Wire Harness (75). Then, pull the other
U
end of the wire tie up through the top of the
Right Upright until the Upright Wire Harness is
routed completely through the Right Upright.
Gently pull up on the Upright Wire Harness (75)
as you set the Right Upright (74) on the Base
(83) inside the Right Base Cover (77). Be care-
ful not to pinch the Upright Wire Harness.
Attach the Right Upright (74) to the Base (83)
with two 3/8" x 3 3/4" Bolts (72) and two 3/8"
Star Washers (90). Note: It may be necessary to
tip the top of the Right Upright forward slightly
as you thread the Bolts into it. Do not tighten
the Bolts yet.
2
74
Wire
Tie
75
74
77
83
90
72
75
Wire
Tie
3. Hold the Left Upright (73) near the Left Base
Cover (76). See the inset drawing. Make sure
the wire tie is in the rectangular hole as
shown. Tie the wire tie securely around the end
of the TV Cable (49) and the AV Cable (97).
Then, pull the other end of the wire tie up
through the top of the Left Upright until the TV
Cable and the AV Cable are routed completely
through the Left Upright.
Gently pull up on the TV Cable (49) and the AV
Cable (97) as you set the Left Upright (73) on
the Base (83) inside the Left Base Cover (76).
Be careful not to pinch the Cables.
Attach the Left Upright (73) to the Base (83) with
two 3/8" x 3 3/4" Bolts (72) and two 3/8" Star
Washers (90). Note: It may be necessary to tip
the top of the Left Upright forward slightly as you
thread the Bolts into it. Do not tighten the
Bolts yet.
With the help of a second person, lower the
treadmill off the cardboard stand.
3
97
Wire
Tie
73
49, 97
Wire
Tie
76
90
72
49
73
83
8
4. Identify the Right Upright Sleeve (96) and the
Left Upright Sleeve (95); the Upright Sleeves
are labeled. Slide the Right Upright Sleeve onto
he Right Upright (74) and the Left Upright
t
Sleeve onto the Left Upright (73).
4
95
73
“Left”
“Right”
96
74
5. With the help of a second person, hold the console assembly near the Uprights (73, 74).
Connect the Upright Wire Harness (75) to the
Console Wire Harness (71). See the inset draw-
ing. The connectors should slide together
easily and snap into place. If they do not, turn
one connector and try again. IF THE CONNECTORS ARE NOT CONNECTED PROPERLY,
THE CONSOLE MAY BE DAMAGED WHEN
THE POWER IS TURNED ON. Remove the wire
tie from the Upright Wire Harness. Insert the connectors down into Right Upright (74).
5
75
Console
Assembly
73
Wire
Tie
71
75
74
9
6. Connect the TV Cable (49) and the AV Cable
(97) to the cables extending from the console
assembly. Remove the wire tie from the TV
able and the AV Cable. Then, insert the con-
C
nectors down into the Left Upright (73).
Next, insert the brackets on the Handrails (99)
into the Uprights (73, 74). Make sure that no
wires are pinched.
6
Console
Assembly
99
7
9
73
Wire
Tie
49
99
74
7. Finger tighten three 3/8" x 1" Bolts (64) with
three 3/8" Star Washers (90) into the Right
Upright (74).
Repeat this step with the Left Upright (73).
Then, firmly tighten all six 3/8" x 1" Bolts (64).
7
73
64
90
74
90
64
10
8. Slide the Right Upright Sleeve (96) up against
the console assembly. Attach the Right Upright
Sleeve with a #8 x 3/4" Screw (4) and a #8 x
/4" Tek Screw (21) as shown.
3
ttach the Left Upright Sleeve (not shown) to
A
the console assembly as described above.
8
Console
ssembly
73
A
4
96
9. With the help of a second person, raise the
front of the treadmill and insert the crossbar on
the Base (83) into the cutout in the cardboard
stand as shown. Have the second person
hold the treadmill to prevent it from moving
forward or backward.
Firmly tighten the four 3/8" x 3 3/4" Bolts (72).
With the help of the second person, lower the
treadmill off the cardboard stand.
21
9
83
72
74
72
Cardboard
Stand
10. Note the location of the 75 ohm terminal and the
audio/video input jack on the treadmill. For the
television to operate, the included AV Wire (88)
and your DVD player or VCR must be connected
to the audio/video input jack or a CATV cable or
antenna must be connected to the 75 ohm terminal (see page 13).
11. Make sure that all parts are properly tightened before you use the treadmill. Keep the included hex key
in a secure place; the hex key is used to adjust the walking belt (see pages 29 and 30). To protect the floor
or carpet from damage, place a mat under the treadmill.
10
Audio/
Video
Input
75 Ohm
Terminal
88
11
If you purchase the optional chest pulse sensor (see page 25), follow the steps below to install the receiver included with the chest pulse sensor.
1. Make sure that the power cord is unplugged.
Remove the indicated #8 x 3/4" Screws (4) from
the Pulse Receiver Cover (70) on the back of the
Console (66).
2. Next, hold the receiver so that the small
cylinder is oriented as shown. Attach the receiver to the Pulse Receiver Cover (70) with the
two included small screws.
1
66
70
4
2
Small Screws
Receiver
Cylinder
70
3. Connect the wire on the receiver to the wire ex-
tending from the Console (66). Make sure that
no wires are pinched. Reattach the Pulse
Receiver Cover (70) to the Console with the two
#8 x 3/4" Screws (4). Discard the other wires included with the receiver.
3
66
Tab
Wires
70
4
12
Before operating the television, you must connect an antenna or a 75 ohm CATV cable to the 75 ohm terminal or the AV wire to the audio/video input jack. Note: Use a CATV cable to connect to an external source
such as a cable box, satellite TV box, VCR, or analog cable. No CATV cable, antenna, or adapter is included.
HOW TO CONNECT AN ANTENNA
Place an indoor
VHF antenna or an
outdoor combination VHF/UHF antenna in the desired
location. Outdoor
antennas are subject to weathering
that can reduce signal quality. Inspect
your outdoor antenna and the leadin wiring before
connecting the antenna.
75 Ohm CATV Cable
1. Connect the 75 ohm
CATV cable from the
antenna to the 75
ohm terminal on the
treadmill frame near
the power cord.
300 Ohm Flat Wire
Indoor
VHF
ntenna
A
75 Ohm CATV Cable
75 Ohm Terminal
udoor
O
Combination
VHF/UHF
Antenna
Note: Due to an FCC requirement, analog signals will
o longer be broadcast over the air after February 17,
n
2009. If you wish to view television signals through an
antenna after that date, you must have an antenna capable of receiving digital signals. Cable television will
not be affected.
HOW TO CONNECT AN EXTERNAL SOURCE
USING A CATV CABLE
1. Connect one end of a 75 ohm CATV cable to the
75 ohm output jack on your external source.
2. Plug in the power cord of your external source.
See your external source userʼs manual for proper
grounding instructions.
3. Connect the 75 ohm CATV cable to the 75 ohm
terminal on the treadmill frame near the power
cord. See the drawing at the left.
HOW TO CONNECT A VCR OR DVD PLAYER
USING THE AV WIRE
1. Connect the threepronged end of the
AV Wire (88) to your
VCR or DVD player.
88
1. Connect the 300
ohm flat wire from
the antenna to a 300
ohm to 75 ohm
adapter.
2. Push the 300 ohm to
75 ohm adapter onto
the 75 ohm terminal
on the treadmill
frame near the power
cord.
Screwdriver
300
Ohm Flat
Wire
300 to 75
Ohm Adapter
300 to 75 Ohm Adapter
75 Ohm
Terminal
2. Plug in the power cord of your VCR or DVD player.
See your VCR or DVD player userʼs manual for
proper grounding instructions.
3. Connect the AV Wire to the audio/video input jack
on the treadmill frame near the power cord.
13
OPERATION AND ADJUSTMENT
THE PRE-LUBRICATED WALKING BELT
our treadmill features a walking belt coated with high-
Y
performance lubricant. IMPORTANT: Never apply sil-
icone spray or other substances to the walking
belt or the walking platform. Such substances will
deteriorate the walking belt and cause excessive
wear.
HOW TO PLUG IN THE POWER CORD
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your homeʼs power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right). To purchase a surge suppressor, see
your local PROFORM dealer or call the telephone
number on the front cover of this manual and order
part number 146148, or see your local electronics
store.
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
lug. Plug the power cord into a surge suppressor,
p
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
IMPORTANT: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
1
Grounded Outlet
2
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Grounding Pin
Grounding Plug
Grounded Outlet Box
Adapter
Surge Suppressor
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could result
in damage to the control system of the treadmill. If
the control system is damaged, the walking belt
may change speed, accelerate, or stop unexpectedly, which may result in a fall and serious injury.
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec-
Lug
Metal Screw
The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box
covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is
grounded before using an adapter.
14
CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The treadmill console offers an impressive selection of
features designed to make your workouts more effective and enjoyable. When the manual mode of the console is selected, the speed and incline of the treadmill
can be changed with the touch of a button. As you exercise, the console will display continuous exercise
feedback. You can even measure your heart rate using
the handgrip pulse sensor or the optional chest pulse
sensor. See page 25 for information about the optional
chest pulse sensor.
In addition, the console features twenty-eight preset
workouts—ten weight loss workouts, nine aerobic fitness workouts, and nine performance workouts. Each
workout automatically controls the speed and incline of
the treadmill as it guides you through an effective exercise session. You can even create your own custom
workouts and save them for future use.
Whether you select the manual mode or a workout,
you can enjoy the shows of your choice on the personal television while you get in shape. You can also
listen to your favorite workout music or audio books with
the consoleʼs premium sound system.
To turn on the power, see page 16. To use the manual mode, see page 16. To use a preset workout, see
page 18. To create and use a custom workout, see
pages 19 and 20. To operate the personal televi-
sion, see page 21. To use the remote control, see
page 22. To replace the batteries in the remote con-
trol, see page 22. To adjust television settings, see
page 23. To use the information mode, see page 25.
To use the sound system, see page 25.
15
HOW TO TURN ON THE POWER
HOW TO USE THE MANUAL MODE
IMPORTANT: If the treadmill has been exposed to
old temperatures, allow it to warm to room tem-
c
perature before turning on the power. If you do not
o this, you may damage the console displays or
d
other electrical components.
Plug in the power cord (see
page 14). Next, locate the
reset/off circuit breaker on
the treadmill frame near the
power cord. Make sure that
the circuit breaker is in the
“reset” position.
IMPORTANT: The console features a display demo
mode, designed to be used if the treadmill is displayed in a store. If the displays light as soon as
you plug in the power cord and switch the reset/off
circuit breaker to the reset position, the demo
mode is turned on. To turn off the demo mode,
hold down the Stop button for a few seconds. If the
displays remain lit, see THE INFORMATION MODE
on page 25 to turn off the demo mode.
Next, stand on the
foot rails of the
treadmill. Locate
the clip attached to
the key (see the
drawing at the
right), and slide
the clip securely
onto the waistband
of your clothes. Then, insert the key into the console.
After a moment, the displays will light. IMPORTANT:
In an emergency situation, the key can be pulled
from the console, causing the walking belt to slow
to a stop. Test the clip by carefully taking a few
steps backward; if the key is not pulled from the
console, adjust the position of the clip.
Reset
Position
Key
Clip
1. Insert the key into the console.
See HOW TO TURN ON THE POWER at the left.
2. Select the manual mode.
Each time the key is inserted, the manual mode
will be selected. If you
have selected a workout,
press any of the workout
buttons (Weight Loss,
Aerobic Fitness,
Performance, or Custom) repeatedly until a track
appears in the matrix.
3. Start the walking belt and adjust the speed.
To start the walking belt, press the Start button, the
Speed increase button, or one of the speed buttons numbered 1 to 12.
If you press the Start button or the Speed increase
button, the walking belt will begin to move at 1
mph. As you exercise, change the speed of the
walking belt as desired by pressing the Speed increase and decrease buttons. Each time you press
a button, the speed setting will change by 0.1 mph;
if you hold down the button, the speed setting will
change in increments of 0.5 mph. If you press one
of the numbered speed buttons, the walking belt
will gradually change speed until it reaches the selected speed setting.
To stop the walking belt, press the Stop button. To
restart the walking belt, press the Start button, the
Speed increase button, or one of the numbered
speed buttons.
4. Change the incline of the treadmill as desired.
IMPORTANT: If there is a sheet of clear plastic on
the face of the console, remove the plastic. To prevent damage to the walking platform, wear clean
athletic shoes while using the treadmill. The first
time the treadmill is used, observe the alignment of
the walking belt, and center the walking belt if necessary (see page 29).
Note: The console can display speed and distance in
either miles or kilometers. To find out which unit of
measurement is selected or to change the unit of measurement, see THE INFORMATION MODE on page
25. For simplicity, all instructions in this section refer to
miles.
To change the incline of the treadmill, press the
Incline increase and decrease buttons or one of
the incline buttons numbered 0 to 12.
Each time you press the Incline increase or decrease button, the incline will change by 0.5%. If
you press one of the numbered incline buttons, the
incline will gradually change until it reaches the selected incline setting. Note: After you press the buttons, it may take a moment for the treadmill to
reach the selected incline setting.
16
5. Follow your progress with the displays.
The matrix—When you
elect the manual
s
mode, the matrix will
isplay a track that rep-
d
resents 1/4 mile (400
meters). As you exercise, the indicators
around the track will appear in succession until the
entire track appears. The track will then disappear
and the indicators will again begin to appear in
succession.
The Time display—
The Time display will
show the elapsed time.
Note: When a workout
is selected, the display
will show the time remaining in the workout instead of the elapsed time.
The Distance/Incline
display—The
Distance/Incline display
can show the distance
that you have walked or
run. The display will
also show the incline of the treadmill for several
seconds each time the incline changes.
The Calorie/Pulse display—The
Calorie/Pulse display
can show the approximate number of calories
you have burned. The
display will also show your heart rate when you
use the handgrip pulse sensor or the optional chest
pulse sensor.
The Speed display—
The Speed display will
show the speed of the
walking belt.
To reset the console, press the Stop button, remove the key, and then reinsert the key.
time, the console will not display your heart
rate accurately. See page 25 for information
about the optional chest pulse sensor.
Before using
he handgrip
t
pulse sensor,
remove the
sheets of clear
plastic from the
metal contacts.
In addition,
make sure that
your hands are
clean.
To measure your heart rate, stand on the foot
rails and hold the metal contacts on the handrail—
avoid moving your hands. Hold the contacts for
approximately ten seconds. When your pulse is

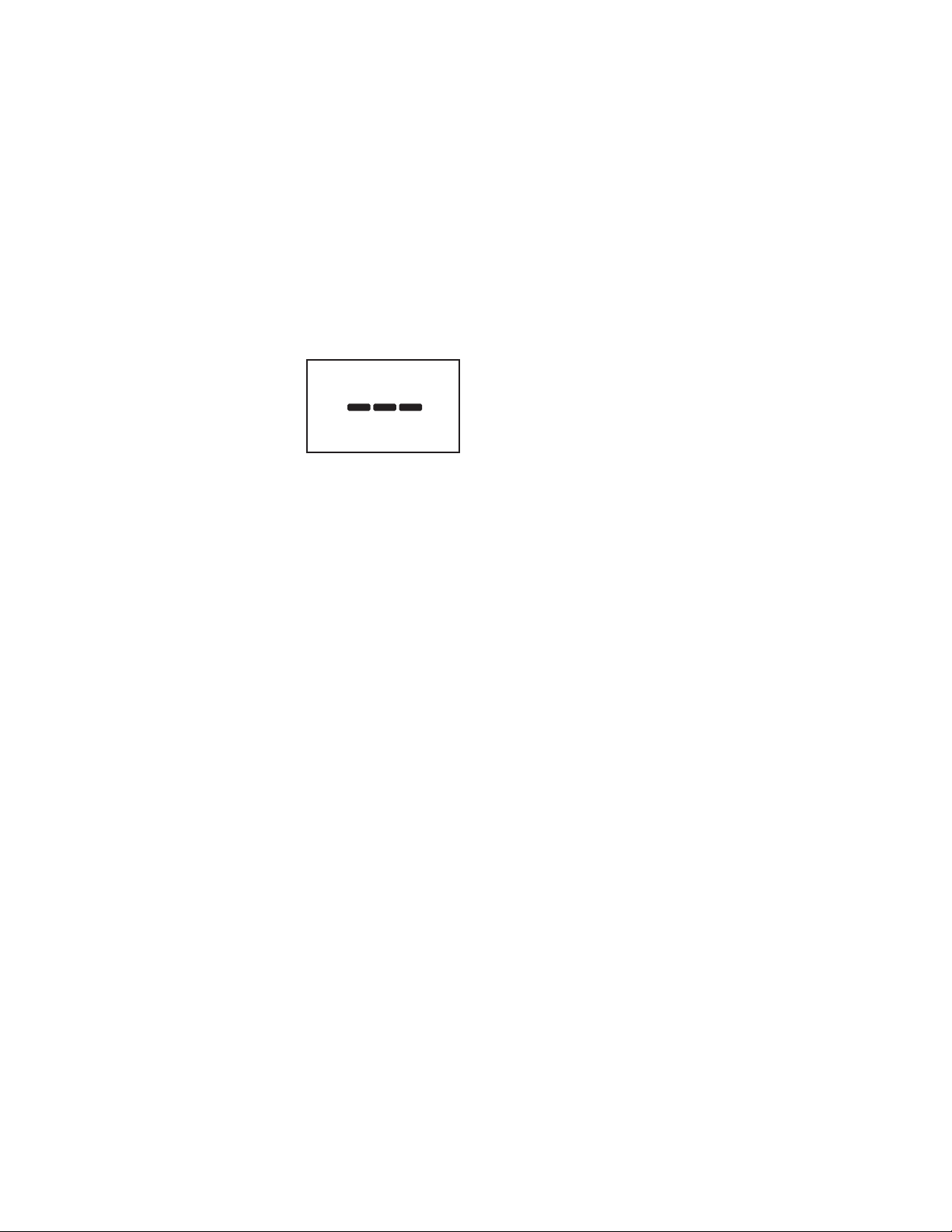

detected, several dashes will appear in the display
and then your heart rate will be shown. For the
most accurate heart rate reading, continue to
hold the contacts for about 15 seconds.
7. Turn on the fan if desired.
The fan features high and low speed settings.
Press the Fan button repeatedly to select a fan
speed or to turn off the fan. Note: If the fan is on
when the walking belt is stopped, the fan will turn
off automatically after a few minutes.
8. When you are finished exercising, remove the
key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest setting
when you fold the treadmill to the storage position, or you may damage the treadmill. Next, re-
move the key from the console and put it in a secure
place.
When you are finished using the treadmill, switch
the reset/off circuit breaker to the “off” position and
unplug the power cord. IMPORTANT: If you do
not do this, the treadmillʼs electrical components may wear prematurely.
Contacts
6. Measure your heart rate if desired.
Note: If you use the handgrip pulse sensor and
the optional chest pulse sensor at the same
17
HOW TO USE A PRESET WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 16.
2. Select a preset workout.
To select a preset workout, press the Weight Loss
button, the Aerobic Fitness button, or the
Performance button.
When a preset workout
is selected, the displays
will show the duration of
the workout, the maximum incline setting, the
workout number, and
the maximum speed setting of the workout. In addition, a profile of the speed settings of the workout
will scroll across the matrix.
3. Start the walking belt.
Press the Start button to start the workout. A moment after you press the Start button, the treadmill
will automatically adjust to the first speed and incline settings of the workout. Hold the handrails
and begin walking.
Each workout is divided into one-minute segments.
One speed setting and one incline setting are programmed for each segment. Note: The same speed
and/or incline setting may be programmed for consecutive segments.
During the workout, the
profile will show your
progress. The flashing
segment of the profile
represents the current
segment of the workout.
The height of the flashing segment indicates the
Current Segment
speed setting for the current segment. At the end of
each segment, a series of tones will sound and the
next segment of the profile will begin to flash. If a
ew speed or incline setting is programmed for the
n
next segment, the new speed or incline setting will
ppear in the displays for a few seconds.
a
If the speed or incline setting is too high or too low
at any time during the workout, you can manually
override the setting by pressing the speed or incline
buttons; however, when the next segment of the
workout begins, the treadmill will automatically
adjust to the speed and incline settings for the
next segment.
To stop the workout at any time, press the Stop
button. To restart the workout, press the Start button or the Speed increase button. The walking belt
will begin to move at 1 mph. When the next segment of the workout begins, the treadmill will automatically adjust to the speed and incline settings for
the next segment.
The workout will continue in this way until the last
segment of the workout ends. The walking belt will
then slow to a stop.
4. Follow your progress with the displays.
See step 5 on page 17.
5. Measure your heart rate if desired.
See step 6 on page 17.
6. Turn on the fan if desired.
See step 7 on page 17.
7. When you are finished exercising, remove the
key from the console.
See step 8 on page 17.
18
HOW TO CREATE A CUSTOM WORKOUT
1. Insert the key into the console.
the first segment, simply adjust the speed and incline of the treadmill as desired by pressing the
speed and incline buttons.
See HOW TO TURN ON THE POWER on page 16.
2. Select a custom workout.
To select a custom workout, press the Custom button repeatedly. When a custom workout is selected, the displays will show the duration of the
workout, the maximum incline setting, the workout
number, and the maximum speed setting of the
workout. In addition, three columns of indicators
will appear in the displays.
Note: If more than
three columns of indicators scroll across
the matrix, see HOW
TO USE A CUSTOM
WORKOUT on page
20.
3. Start the walking belt and program the desired
speed and incline settings.
Press the Start button. A moment after you press
the Start button, the walking belt will begin to
move. Hold the handrails and begin walking.
Each custom workout is divided into several oneminute segments. One speed setting and one incline setting can be programmed for each segment. To program speed and incline settings for
When the first segment of the workout ends, a se-
ies of tones will sound and the current speed and
r
incline settings will be saved in memory. Program
a speed setting and an incline setting for the second segment in the same way.
Continue programming speed and incline settings
for as many segments as desired; custom workouts can have up to forty segments. When you are
finished with your workout, press the Stop button
twice. The speed and incline settings that you have
programmed and the workout time will then be
saved in memory.
4. Follow your progress with the displays.
See step 5 on page 17.
5. Measure your heart rate if desired.
See step 6 on page 17.
6. Turn on the fan if desired.
See step 7 on page 17.
7. When you are finished exercising, remove the
key from the console.
See step 8 on page 17.
19
HOW TO USE A CUSTOM WORKOUT
1. Insert the key into the console.
See HOW TO TURN ON THE POWER on page 16.
2. Select a custom workout.
To select a custom workout, press the Custom button repeatedly. When a custom workout is selected, a profile of the speed settings of the workout will scroll across the matrix.
In addition, the duration
of the workout, the maximum incline setting, the
workout number, and
the maximum speed
setting of the workout
will appear. Note: If only three columns of indi-
cators scroll across the matrix, see HOW TO
CREATE A CUSTOM WORKOUT on page 19.
If desired, you can redesign the workout while
using it. To change the speed setting or the in-
cline setting for the current segment, simply
ress the speed or incline buttons. When the current
p
segment ends, the new setting will be saved in mem-
ry. To increase the length of the workout, first
o
wait until the workout is completed. Then, press the
Start button and program speed and incline settings
for as many additional segments as desired. When
you have added as many segments as desired,
press the Stop button twice. To decrease the
length of the workout, press the Stop button twice
at any time before the workout is completed.
To stop the workout temporarily, press the Stop
button. To restart the workout, press the Start button. The walking belt will begin to move at 1 mph.
When the next segment of the workout begins, the
treadmill will automatically adjust to the speed and
incline settings programmed for the next segment.
4. Follow your progress with the displays.
3. Start the walking belt.
Press the Start button to start the workout. A moment after you press the Start button, the treadmill
will automatically adjust to the first speed and incline settings that you programmed previously.
Hold the handrails and begin walking.
Each custom workout is divided into several oneminute segments. One speed setting and one incline setting are programmed for each segment.
Note: The same speed and/or incline setting may
be programmed for consecutive segments.
The custom workout will function in the same way
as a preset workout (see step 3 on page 18).
See step 5 on page 17.
5. Measure your heart rate if desired.
See step 6 on page 17.
6. Turn on the fan if desired.
See step 7 on page 17.
7. When you are finished exercising, remove the
key from the console.
See step 8 on page 17.
20
HOW TO OPERATE THE PERSONAL TELEVISION
IMPORTANT: Before operating the television, you
ust connect the AV wire or a CATV cable to the
m
treadmill (see page 13).
1. Turn on the television.
If there is a sheet of clear plastic on the television
screen, remove the plastic. Insert the key into the
console. See HOW TO TURN ON THE POWER on
page 16. Press the Power button to turn on the
television. Note: If you operate the television without inserting the key into the console, the buttons
on the console will not function.
2. Scan for television channels.
Before operating your television, you must scan for
channels. See page 24 for information on scanning
for channels. Note: To use a VCR or DVD player,
you must connect a VCR or DVD player and then
scan for channels.
Your television can receive analog and digital signals. For the television to operate properly, good
reception is necessary. Make sure the television
settings are set correctly (see HOW TO ADJUST
THE TELEVISION SETTINGS on page 23). If you
are using an antenna, make sure that it is properly
connected and adjusted for optimal reception (see
HOW TO CONNECT AN ANTENNA on page 13).
tenna or a 75 ohm CATV cable to the 75 ohm terminal on the treadmill, select the TV source. If you
have plugged the audio/video wire harness into the
udio/video input jack, select the AV source.
a
o use a VCR or DVD player, make sure the VCR
T
or DVD player is connected correctly (see page
13). Select the AV source and press play on your
VCR or DVD player.
4. Select the desired channel.
When you turn on the television, the screen will
show the last channel that was selected. To select
a different channel, press the numbered channel
buttons on the remote or the Channel increase and
decrease buttons. The selected channel number
will appear on the screen for a few seconds. Note:
Before channels can be selected, they must be
saved in the televisionʼs memory. See page 24.
5. Adjust the volume.
Press the Volume increase or decrease buttons on
the console to change the volume. Note: For best
results, change the volume by pressing the Volume
buttons on the console only. Make sure the audio
wire is not plugged into audio jack on the console.
To use earphones or headphones (not included),
plug them into the headphone jack near the Start
button on the console.
3. Select a television source.
Select a television source by pressing the TV/AV
button repeatedly. If you have connected an an-
6. Turn off the television.
When you are finished using the television, press
the TV power button to turn off the television.
21
HOW TO USE THE REMOTE CONTROL
available when viewing ATSC digital television.
The first time you use the re-
ote control, insert batteries
m
(see HOW TO REPLACE THE
ATTERIES IN THE REMOTE
B
CONTROL at the right).
Next, stand on the treadmill and
hold the remote control near the
television. Point the remote control directly at the television.
Press the Power button ( ). After a few moments, the
television will turn on or turn off.
Press the Volume (VOL) increase or decrease button
to navigate left or right in a menu. For best results,
change the volume by pressing the Volume buttons on
the console only.
Press the Mute button to turn on or turn off the sound.
Press the numbered channel buttons or the Channel
(CH) increase or decrease button to select a channel.
The Channel increase and decrease buttons on the remote also function as the up and down navigation buttons in a menu.
Press the Info button to view information about the cur-
ent program and the broadcast or cable signal.
r
ress the CC button repeatedly to turn on or turn off
P
closed captioning. See step 5 on page 23 to adjust
closed captioning settings.
Press the TV/AV button repeatedly to select the input
source. To view television channels through an antenna or a CATV cable, select the TV source. To use
the audio/video wire harness, select the AV source.
Press the MTS button repeatedly to select mono,
stereo, or SAP (secondary audio programming) as the
audio setting.
Press the Format button repeatedly to select auto, 4:3,
or wide image as the display format. Note: The auto
display format is only available when viewing ATSC
digital television.
Press the Pict button repeatedly to select standard, dynamic, soft, or personal as the image mode.
Press the Audio button repeatedly to select standard,
music, movie, or personal as the audio mode.
Press the Return button ( ) to view the previous
channel.
To select a subchannel, select a channel, press the
Subchannel button ( ), and then press the numbered
channel buttons.
Press the Menu button to view the main menu or to
view a previous menu. See pages 23 and 24 for information on the menu.
Press the Exit button to exit any menu.
Press the PRLIST button to view a list of channels. If
you have labeled any channels, the menu will also
show the channel label. See page 24 for information
on labeling channels. Note: You can also view this list
by pressing the OK/Auto button on the console.
Press the EPG button to view the electronic program
guide. Note: The electronic program guide is only
HOW TO REPLACE THE BATTERIES IN THE
REMOTE CONTROL
To replace the batteries,
first locate the battery
cover on the back of the
remote control. Push
down lightly on the battery cover with your
thumb and slide off the
battery cover.
Next, remove the old batteries from the remote control,
and insert two new “AAA” batteries. Make sure to in-
sert the batteries as shown in the drawing. Then,
slide the battery cover onto the remote control.
22

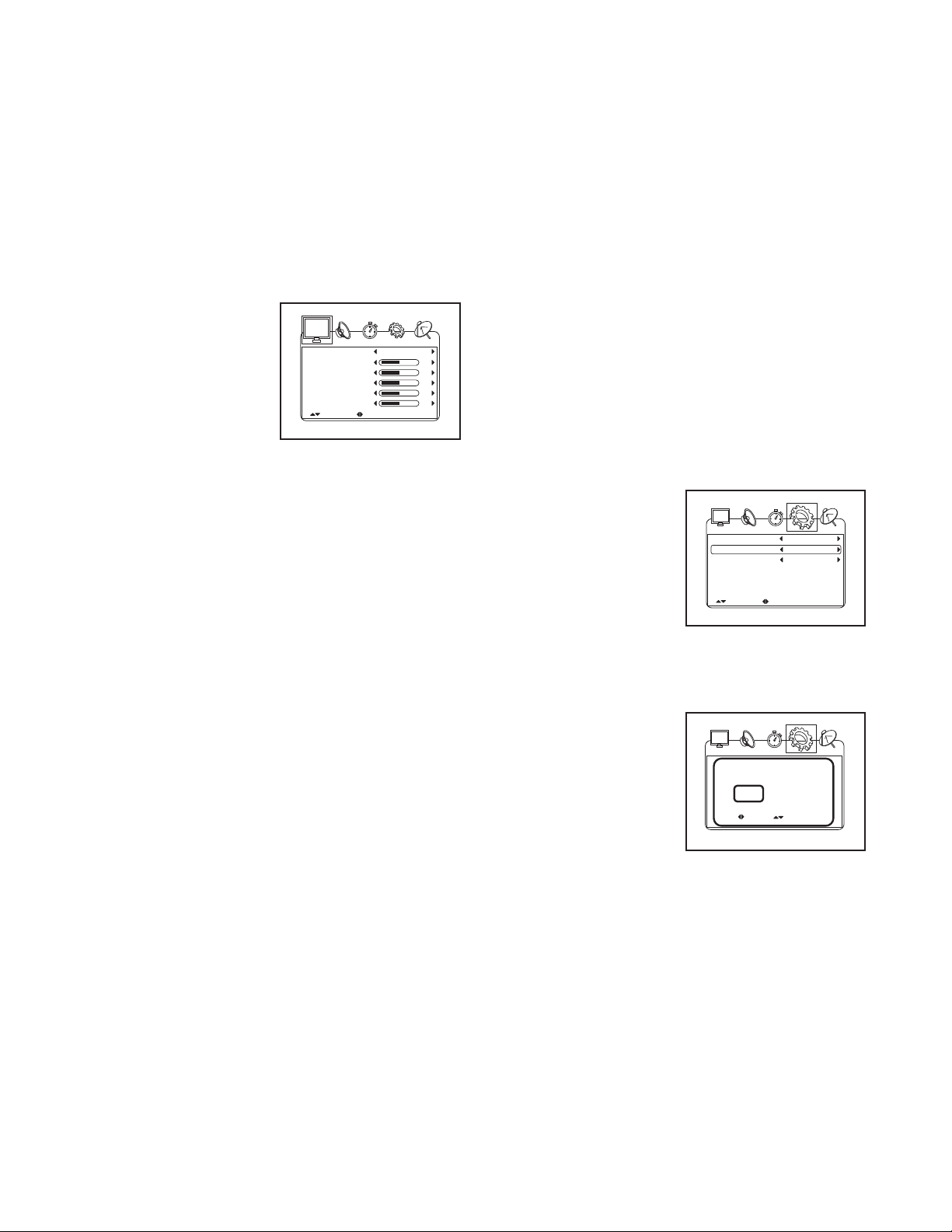

HOW TO ADJUST THE TELEVISION SETTINGS
Picture Mode
Contrast
Brightness
Color
Sharpness
Tint
Personal
50
50
50
50
0
UP/DOWN ADJUST "MENU": EXIT
CC Mode
Off
UP/DOWN ADJUST "MENU": EXIT
Basic Selection
Advance Selection
CC1
Service 1
SELECT
Are you sure?
NO
CONFIRM
YES
4. Adjust the time settings.
You must use your remote control to adjust television
ettings. Press the Menu button to enter the main
s
menu or to return to a previous menu. Press the Exit
utton to exit a menu. Press the Channel (CH) in-
b
crease and decrease buttons to navigate up and down
in a menu and the Volume (VOL) increase and decrease buttons on your remote control to navigate right
and left.
1. Enter the main menu.
Press the Menu button. To select one of
the icons across the
top of the screen,
press the Volume increase and decrease buttons on
your remote control
until the desired icon
appears larger than the others. Select the monitor
to adjust the image settings. Select the speaker to
adjust the audio settings. Select the clock to adjust
the time settings. Select the gear to adjust the television settings. Select the antenna to locate and
save channels. To return to the main menu, press
the Menu button repeatedly.
2. Adjust the image settings.
Select the personal, standard, dynamic, or soft picture mode. The contrast, brightness, color, sharpness, and tint will automatically adjust. You can
also manually adjust the contrast, brightness, color,
sharpness, or tint.
3. Adjust the audio settings.
Select the personal, standard, movie, or music
sound mode. The bass, treble, and balance will automatically adjust. You can also manually adjust the
bass, treble, balance, or audio language. Select an
audio language to hear programs in the selected
language. Note: The audio language setting will
function only if another audio signal is available.
Adjust the OSD (on-screen display) duration, sleep
imer, time zone, or daylight savings time settings.
t
The clock will display the current date and time and
s reset every time the power is turned on. The
i
OSD duration is the length of time indicators (like
channel number or the electronic program guide)
will remain on the screen after they appear. If you
set the sleep timer, the television will turn off after
the indicated number of minutes. A countdown will
warn you when the television is about to turn off.
Note: The time zone setting, daylight savings time
setting, and clock are only available when viewing
digital television.
5. Adjust the television settings.
Adjust the language used in the menus, the transparency of the menu, the color mode, or the closed
caption settings. You can also restore the original
television settings.
To enter the closed
caption submenu,
highlight CLOSED
CAPTION and press
the Volume increase
button on your remote control. In the
closed caption submenu, adjust the
closed caption mode, the basic selection, and the
advanced selection.
When you highlight
RESTORE SETTING
and press the
Volume increase button, a confirmation
request will appear in
the display. Use the
Volume increase or
decrease button to
select YES or NO and press the Channel increase
or decrease button to confirm your selection.
Select YES to restore the original television settings or NO to keep the current settings.
23
6. Scan and save channels.
N
o.
"MENU": EXIT
"ENTER": SELECT
P
rogram Name Skip
4-1 FD 3803 Off
9-2 KQUED-SD Off
EDIT SELECT "MENU": EXIT
FD 38 30
Cable System
UP/DOWN ADJUST "MENU": EXIT
Start to Scan
AUTO
Select CATV or AIR. Select CATV to receive chan-
els through the 75 ohm terminal on the treadmill.
n
Select AIR to receive channels through an antenna.
To scan for available channels, highlight AUTO
SCAN or AUTO SCAN ADD CH. To scan all channels, select the Auto scan option. To scan all channels and add an extra channel, select the Auto
Scan Add Ch option. The scan channel submenu
will appear.
If you are receiving
channels through a
CATV cable, highlight CABLE SYSTEM and select the
auto, STD, IRC, or
HRC setting. Try all
four cable settings, if
necessary, to find
the optimal setting.
Highlight START TO SCAN and press the Volume
increase button to start the auto scan. The television will begin scanning all of the channels available in your area. When no signal is detected on a
channel, the channel will be skipped. When a signal is detected, the channel will be saved into
memory and the next channel will be selected. This
process will continue until the highest channel is
reached. The television will renumber the channels
in the order in which it locates them. Do not re-
move the key while the television is scanning
channels. Note: If a television channel disappears,
scan for channels again.
After all valid channels available in your
area have been
aved into the televi-
s
sionʼs memory, you
an manually skip
c
unwanted channels.
To skip a channel,
highlight CHANNEL
SKIP and press the Volume increase button on
your remote control. In the channel skip submenu,
press the Channel increase and decrease buttons
to highlight the desired channel and the Volume increase and decrease buttons to turn on or turn off
the skip option. Continue this process until you
have skipped all unwanted channels.
To change the display name of a channel, highlight CHANNEL NO. and select
a channel. Then,
highlight CHANNEL
LABEL and press the
Volume increase button to enter the
channel label submenu. Press the Volume increase and decrease buttons to select a number or
letter box. Then press the Channel increase and
decrease buttons to select the desired number or
letter.
7. Exit the Menu.
When you have finished adjusting the settings,
press the Exit button.
24
THE INFORMATION MODE
HOW TO USE THE SOUND SYSTEM
The console features an information mode that keeps
rack of the total distance that the walking belt has
t
moved and the total number of hours that the treadmill
as been used. The information mode also allows you
h
to select miles or kilometers to measure distance, and
to turn on and turn off the display demo mode.
To select the information mode, hold down the Stop
button while inserting the key into the console and then
release the Stop button. When the information mode is
selected, the following information will be shown:
The Time display will show
the total number of hours the
treadmill has been used.
The Distance/Incline display
will show the total number of
miles or kilometers that the
walking belt has moved.
An “E” for English miles or an
“M” for metric kilometers will
appear in the Calorie/Pulse
display. Press the Speed increase button to change the
unit of measurement if desired.
To play music or audio books through the consoleʼs
ound system, you must connect your MP3 player, CD
s
player, or other personal audio player to the console
hrough the audio jack above the speakers.
t
To use the audio jack, locate the audio wire and plug it
into the audio jack. Then plug the audio wire into a jack
on your MP3 player, CD player, or other personal
audio player. Make sure that the audio wire is fully
plugged in. While the audio wire is plugged in, the
television audio will not function.
Next, press the Play button on your MP3 player, CD
player, or other personal audio player. Adjust the volume on your personal audio player or press the
Volume increase and decrease buttons on the console.
If you are using a personal CD player and the CD
skips, set the CD player on the floor or another flat surface and not on the console.
THE OPTIONAL CHEST PULSE SENSOR
An optional chest pulse sensor offers hands-free operation as it tracks your heart rate during your workouts.
To purchase the optional chest pulse sensor, call
the telephone number on the front cover of this
manual.
The console features a display demo mode, designed
to be used if the treadmill is
displayed in a store. While
the demo mode is turned on,
the console will function normally when you plug in the power cord, switch the
reset/off circuit breaker to the reset position, and insert
the key into the console. However, when you remove
the key, the displays will remain lit, although the buttons will not function. If the demo mode is turned on, a
“d” will appear in the Speed display while the information mode is selected. To turn on or turn off the demo
mode, press the Speed decrease button.
To exit the information mode, remove the key from the
console.
25
HOW TO FOLD AND MOVE THE TREADMILL
OW TO FOLD THE TREADMILL FOR STORAGE
H
Before folding the treadmill, adjust the incline to the
lowest position. If you do not do this, you may permanently
damage the treadmill. Remove the key and unplug the
power cord. CAUTION: You must be able to safely lift 45
lbs. (20 kg) to raise, lower, or move the treadmill.
1. Hold the metal frame firmly in the location shown by
the arrow at the right. CAUTION: To decrease the possibility of injury, do not lift the frame by the plastic foot
rails. To raise the frame, bend your legs, keep your
back straight, and lift with your legs. Raise the frame
about halfway to the vertical position.
2. Raise the frame until the latch knob locks into the storage
position. Make sure that the latch knob is locked in
the storage position.
To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85° F (30° C).
Frame
Frame
HOW TO MOVE THE TREADMILL
Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the latch
knob is locked in the storage position.
1. Hold the handrails and place one foot against one of the
wheels.
2. Tilt the treadmill back until it rolls freely on the wheels.
Carefully move the treadmill to the desired location. Never
move the treadmill without tipping it back. To reduce
the risk of injury, use extreme caution while moving
the treadmill. Do not attempt to move the treadmill
over an uneven surface.
3. Place one foot against one of the wheels, and carefully
lower the treadmill until it is resting in the storage position.
Latch Knob
Handrails
Wheel
26
HOW TO LOWER THE TREADMILL FOR USE
. Hold the upper end of the treadmill with your left hand.
1
Pull the latch knob to the left and hold it. Pivot the frame
downward and release the latch knob. Note: To release
the latch knob, it may be necessary to push the frame forward as you pull the latch knob to the left.
2. Hold the metal frame firmly with both hands, and lower it
to the floor. CAUTION: To decrease the possibility of in-
jury, do not lower the frame by gripping only the plastic
foot rails. Do not drop the frame to the floor. Make sure
to bend your legs and keep your back straight.
Frame
Latch Knob
Frame
27
TROUBLESHOOTING
ost treadmill problems can be solved by following the steps below. Find the problem that applies, and
M
follow the steps listed. If further assistance is needed, please see the front cover of this manual.
PROBLEM: The power does not turn on
SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 14). Use only a single-outlet surge suppressor that meets all of the specifications described on page 14. IMPORTANT: The treadmill is not
compatible with GFCI-equipped outlets.
b. After the power cord has been plugged in, make sure that the key is inserted into the console.
c. Check the reset/off circuit breaker located on the
treadmill frame near the power cord. If the switch protrudes as shown, the circuit breaker has tripped. To
reset the circuit breaker, wait for five minutes and
then press the switch to the reset position.
PROBLEM: The power turns off during use
SOLUTION: a. Check the reset/off circuit breaker (see the drawing above). If the circuit breaker has tripped, wait
for five minutes and then press the switch to the reset position.
b. Make sure that the power cord is plugged in. If the power cord is plugged in, unplug it, wait for five
minutes, and then plug it back in.
c. Remove the key from the console. Reinsert the key into the console.
d. If the treadmill still will not run, please see the front cover of this manual.
PROBLEM: The console displays remain lit when you remove the key from the console
SOLUTION: a. The console features a display demo mode, designed to be used if the treadmill is displayed in a
store. If the displays remain lit when you remove the key, the demo mode is turned on. To turn off
the demo mode, hold down the Stop button for a few seconds. If the displays are still lit, see THE
INFORMATION MODE on page 25 to turn off the demo mode.
c
Tripped
Position
Reset
Position
PROBLEM: The displays of the console do not function properly
SOLUTION: a. Remove the key from the console and UNPLUG THE
POWER CORD. Place the treadmill in the storage po-
sition (see HOW TO FOLD AND MOVE THE TREADMILL on page 26).
Next, remove the two indicated #8 x 3/4" Screws (4).
28
a
4
4
Lower the treadmill (see HOW TO LOWER THE
TREADMILL FOR USE on page 27). Remove the four
indicated #8 x 3/4" Screws (4), and remove the Motor
ood (44).
H
Next, locate the Reed Switch (20) and the Magnet
(12) on the left side of the Pulley (11). Turn the Pulley
until the Magnet is aligned with the Reed Switch.
Make sure that the gap between the Magnet and
the Reed Switch is about 1/8 in. (3 mm). If neces-
sary, loosen the indicated Screw (29), move the Reed
Switch slightly, and then retighten the Screw. Then,
reattach the Motor Hood (not shown), and run the
treadmill for a few minutes to check for a correct
speed reading.
PROBLEM: The walking belt slows when walked on
SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 14.
44
Top
View
20
29
4
4
1/8 in.
11
12
b. If the walking belt is overtightened, treadmill perfor-
mance may decrease and the walking belt may become damaged. Remove the key and UNPLUG THE
POWER CORD. Using the hex key, turn both idler
roller bolts counterclockwise, 1/4 of a turn. When the
walking belt is properly tightened, you should be able
to lift each edge of the walking belt 3 to 4 in. (8 to 10
cm) off the walking platform. Be careful to keep the
walking belt centered. Then, plug in the power cord,
insert the key, and run the treadmill for a few minutes.
Repeat until the walking belt is properly tightened.
c. If the walking belt still slows when walked on, please see the front cover of this manual.
PROBLEM: The walking belt is off-center or slips when walked on
SOLUTION: a. If the walking belt is off-center, remove the key and
UNPLUG THE POWER CORD. If the walking belt
has shifted to the left, use the hex key to turn the
left idler roller bolt clockwise 1/2 of a turn; if the walking belt has shifted to the right, turn the left idler
roller bolt counterclockwise 1/2 of a turn. Be careful
not to overtighten the walking belt. Plug in the power
cord, insert the key, and run the treadmill for a few
minutes. Repeat until the walking belt is centered.
b
3–4 in.
Idler Roller Bolts
a
29
b. If the walking belt slips when walked on, first remove
the key and UNPLUG THE POWER CORD. Using
the hex key, turn both idler roller bolts clockwise, 1/4
f a turn. When the walking belt is correctly tightened,
o
you should be able to lift each edge of the walking
elt 3 to 4 in. (8 to 10 cm) off the walking platform. Be
b
careful to keep the walking belt centered. Then, plug
in the power cord, insert the key, and carefully walk
on the treadmill for a few minutes. Repeat until the
walking belt is properly tightened.
PROBLEM: The incline of the treadmill does not change correctly
SOLUTION: a. With the key in the console, press one of the Incline buttons. While the incline is changing, re-
move the key. After a few seconds, re-insert the key. The treadmill will automatically rise to the
maximum incline level and then return to the minimum level. This will recalibrate the incline system.
PROBLEM: Television reception is poor
SOLUTION: a. Make sure that the television settings are set correctly. See HOW TO ADJUST THE TELEVISION
SETTINGS on page 23.
b. For the digital television to operate properly, good reception is necessary. If you are using an an-
tenna, make sure that it is properly connected and adjusted for optimal reception. (See HOW TO
CONNECT AN ANTENNA on page 13.)
b
c. Check for the problems listed below and follow the applicable instructions.
• Ignition (black spots or horizontal streaks that appear or a picture that flutters or drifts)—
Usually this is caused by interference from automobile ignition systems, neon lamps, electric
drifts, or other electric appliances. Try changing the position of the treadmill or other electric
appliances to correct the problem.
• Ghosts—Ghosts are caused by the television signal following two paths—one is the direct path
and the other is reflected from tall buildings, hills, or other objects. Change the direction or position of the antenna to improve reception.
• Blue Screen—If the treadmill is located in the fringe area of a television station where the signal is weak, the picture may be of poor quality or a blue screen may appear. If the signal is
weak, it may be necessary to install an external antenna to improve the picture.
• Fading—If blocks of the picture are missing, the picture moves around the screen, or the picture disappears, the signal may be weak. Change the direction or position of the antenna to improve reception. Make sure the television settings are set correctly (see HOW TO ADJUST
TELEVISION SETTINGS on page 23). Do not use a splitter.
Note: If one of these problems appears when the cable from a CATV company is connected, the
problem may be caused by the cable company broadcast.
30
PROBLEM: The
remote control
does not function correctly
SOLUTION: a.
PROBLEM: The television is not receiving a signal
SOLUTION: a. Make sure the correct TV or AV source is selected. See step 3 on page 21 to select a television
PROBLEM: The
SOLUTION: a.
Make sure you are standing on the treadmill, holding the remote control near the television and
ointing the remote control directly at the console.
p
. If your remote control is still not functioning correctly,
b
mote control problems are the result of low batteries. See page 22 to replace the batteries.
source.
b. Make sure that the antenna cable, CATV cable, or audio/video wire harness is connected se-
curely to the treadmill. See page 13 to connect a cable to treadmill.
c. Scan for broadcast or cable signals. See page 24 to scan for signals.
d. Due to an FCC requirement, analog signals will no longer be broadcast over the air after
February 17, 2009. If you wish to view television signals through an antenna after this date, you
must have an antenna capable of receiving digital signals. Cable television will not be affected.
volume is too loud or the television audio makes a crackling sound
If the television audio makes a crackling sound when the volume is turned up, the volume is too
loud. Press the Volume increase or decrease button on the remote control until the volume level is
80 percent. Once the volume reaches 80 percent, adjust the volume by pressing the Volume buttons on the console only.
he batteries should be replaced; most re-
t
PROBLEM: The
SOLUTION: a.
PROBLEM: The television needs to be cleaned
SOLUTION: a. UNPLUG THE POWER CORD. To clean the television, wipe the television and screen using a
volume cannot be turned up
If the volume cannot be turned up, the volume may have been adjusted with the remote control.
Press the Volume increase or decrease button on the remote control until the volume level is 80
percent. Once the volume reaches 80 percent, adjust the volume by pressing the Volume buttons
on the console only.
b. If there is no sound coming from the television, make sure the television audio is not muted.
c. If there is no sound coming from the television, make sure the audio wire is not plugged into the
audio jack on the console.
soft cloth with a small amount of soft detergent. Do not use a polishing cloth, solvent, or any
type of propellant or chemical detergent such as alcohol or benzene.
31
EXERCISE GUIDELINES
WARNING: Before beginning any
xercise program, consult your physician.
e
This is especially important for persons over
the age of 35 or persons with pre-existing
health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is intended only as an exercise aid in determining
heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of
oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
32
PART LIST—Model No. PFTL14008.0 R0109A
To locate the parts listed below, see the EXPLODED DRAWING near the end of this manual.
Key No. Qty. Description Key No. Qty. Description
12Foot Rail Cover
22Foot Rail
38Isolator Screw
4 54 #8 x 3/4" Screw
52#8 x 1/2" Ground Screw
61Walking Platform
72Belt Guide
84#8 Belt Guide Screw
92Front Isolator
10 2 1/4" x 1 1/4" Bolt
11 1 Drive Roller/Pulley
12 1 Magnet
13 17 1/2" Screw
14 1 Reed Switch Clip
15 2 Incline Rod Bushing
16 2 Lift Arm
17 2 3/8" x 3/4" Bolt
18 2 Hood Mount
19 2 Lift Arm Spacer
20 1 Reed Switch
21 10 #8 x 3/4" Tek Screw
22 4 Base Foot Spacer
23 4 #8 x 1" Screw
24 1 3/8" x 1 3/4" Hex Bolt
25 4 #6 x 1/2" Screw
26 1 Speaker
27 1 Speaker Cover
28 1 Motor Belt
29 9 #8 x 3/4" Washer Head Tek Screw
30 2 Lift Pivot Bolt
31 1 Drive Motor
32 2 5/16" Drive Motor Bolt
33 4 1/4" Nut
34 1 Electronic Bracket
35 1 Front Endcap
36 1 Controller
37 1 Incline Rod
38 10 3/8" Nut
39 1 Lift Motor
40 1 3/8" x 2" Hex Bolt
41 1 AV Cover
42 2 Platform Cushion
43 1 Power Inlet Plate
44 1 Motor Hood
45 4 Hood Clip
46 2 Grommet
47 1 Walking Belt
48 1 Frame
49 1 TV Cable
50 1 Power Cord Grommet
51 1 Right Rear Foot
52 4 Rear Wheel
53 2 3/8" x 3 3/4" Bolt
54 1 Right Rear Cap
55 4 1/4" Star Washer
56 2 1/4" x 2 1/2" Bolt
57 1 Hex Key
58 1 Left Rear Foot
59 1 Left Rear Cap
60 1 Idler Roller
61 2 5/16" Flange Nut
62 2 5/16" x 1 1/4" Bolt
63 1 Console Fan
64 6 3/8" x 1" Bolt
65 1 Console Base
66 1 Console
67 1 TV Console
68 1 Static Decal
69 7 #8 x 1/2" Bright Screw
70 1 Pulse Receiver Cover
71 1 Console Wire Harness
72 4 3/8" x 3 3/4" Bolt
73 1 Left Upright
74 1 Right Upright
75 1 Upright Wire Harness
76 1 Left Base Cover
77 1 Right Base Cover
78 1 Left Grip
79 2 4" Ground Wire
80 4 #8 Star Washer
81 4 Base Foot
82 4 #8 x 1" Tek Screw
83 1 Base
84 1 Power Cord
85 2 3/8" x 2 3/8" Bolt
86 2 Wheel
87 3 Caution Decal
88 1 AV Wire
89 1 Key/Clip
90 10 3/8" Star Washer
91 4 Releasable Tie
92 2 Tie Clamp
93 8 Plastic Tie
94 2 Handrail Cover
95 1 Left Upright Sleeve
96 1 Right Upright Sleeve
97 1 AV Cable
98 1 #8 Nut
99 1 Handrail
100 1 Latch Assembly
33
Key No. Qty. Description Key No. Qty. Description
101 1 Latch Warning Decal
102 1 M12 Nut
103 1 Right Grip
04 1 Reset/Off Circuit Breaker
1
105 2 1/4" Lock Washer
06 1 Incline/Controller Wire
1
107 1 Incline Stop Bracket
108 1 Stop Bracket Spacer
109 1 Audio Wire
110 1 Console Plate
111 2 3/8" Cable Nut
Note: Specifications are subject to change without notice. See the back cover of this manual for information about
ordering replacement parts. *These parts are not illustrated.
112 1 3/8" Bright Star Washer
113 1 3/8" x 2" Bolt
114 4 Handrail Cover Fastener
15 1 Remote Control
1
116 2 Console Clamp
17 1 3/8" x 1 3/4" Bolt
1
118 1 Latch Knob
119 1 Latch Endcap
*–4" White Wire, M/F
*–Userʼs Manual
34
58
57
54
29
59
53
38
52
29
14
9
10
62
60
105
56
4
6
47
62
10
7
8
7
12
32
4
4
4
8
61
61
105
56
48
55
33
33
69
69
33
36
9
30
19
16
15
17
15
16
19
30
17
29
51
38
53
52
18
4
4
35
18
29
11
34
4
4
4
13
46
29
4
101
20
55
55
69
43
13
98
84
50
104
EXPLODED DRAWING A—Model No. PFTL14008.0 R0109A
35
118
4
44
4
4
4
45
45
2
1
42
3
3
3
3
1
2
42
3
3
3
3
117
38
100
113
38
119
28
31
106
37
38
24
38
107
108
39
40
EXPLODED DRAWING B—Model No. PFTL14008.0 R0109A
36
88
73
74
83
38
86
85
87
87
86
85
38
64
87
38
38
82
81
82
81
82
81
95
96
90
64
90
90
75
75
64
90
4
4
82
81
4
4
4
4
4
4
49
76
77
4
21
4
90
72
90
72
90
41
111
112
102
97
97
4
9
46
68
64
22
22
22
22
21
69
69
29
92
91
93
EXPLODED DRAWING C—Model No. PFTL14008.0 R0109A
37
99
94
94
114
114
21
21
80
4
4
4
4
110
23
116
116
23
80
7
9
5
13
4
13
21
21
4
EXPLODED DRAWING D—Model No. PFTL14008.0 R0109A
38
70
4
65
67
63
21
4
4
4
4
4
4
4
78
103
66
71
89
13
27
25
4
4
26
13
13
13
13
115
109
21
EXPLODED DRAWING E—Model No. PFTL14008.0 R0109A
39
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The drive motor is warranted for twenty (20) years
from the date of purchase. Parts and labor are warranted for one (1) year from the date of purchase.
This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to
repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to a
service center, freight charges to and from the service center will be the customerʼs responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to any damage to a product caused by or attributable to freight damage,
abuse, misuse, improper or abnormal usage, or repairs not provided by an ICON authorized service center; products used for commercial or rental purposes; or products used as store display models. No other
warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 274986 R0109A Printed in USA © 2009 ICON IP, Inc.
Loading...
