ProForm PFTL12008.0 User Manual
www.proform.com
Model No. PFTL12008.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete customer satisfaction. If you have
questions, or if parts are missing,
DO NOT CONTACT THE STORE;
please contact Customer Care.
USER'S MANUAL
IMPORTANT: You must note the
product model number and
serial number (see the drawing
above) before contacting us:
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
SSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
A
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

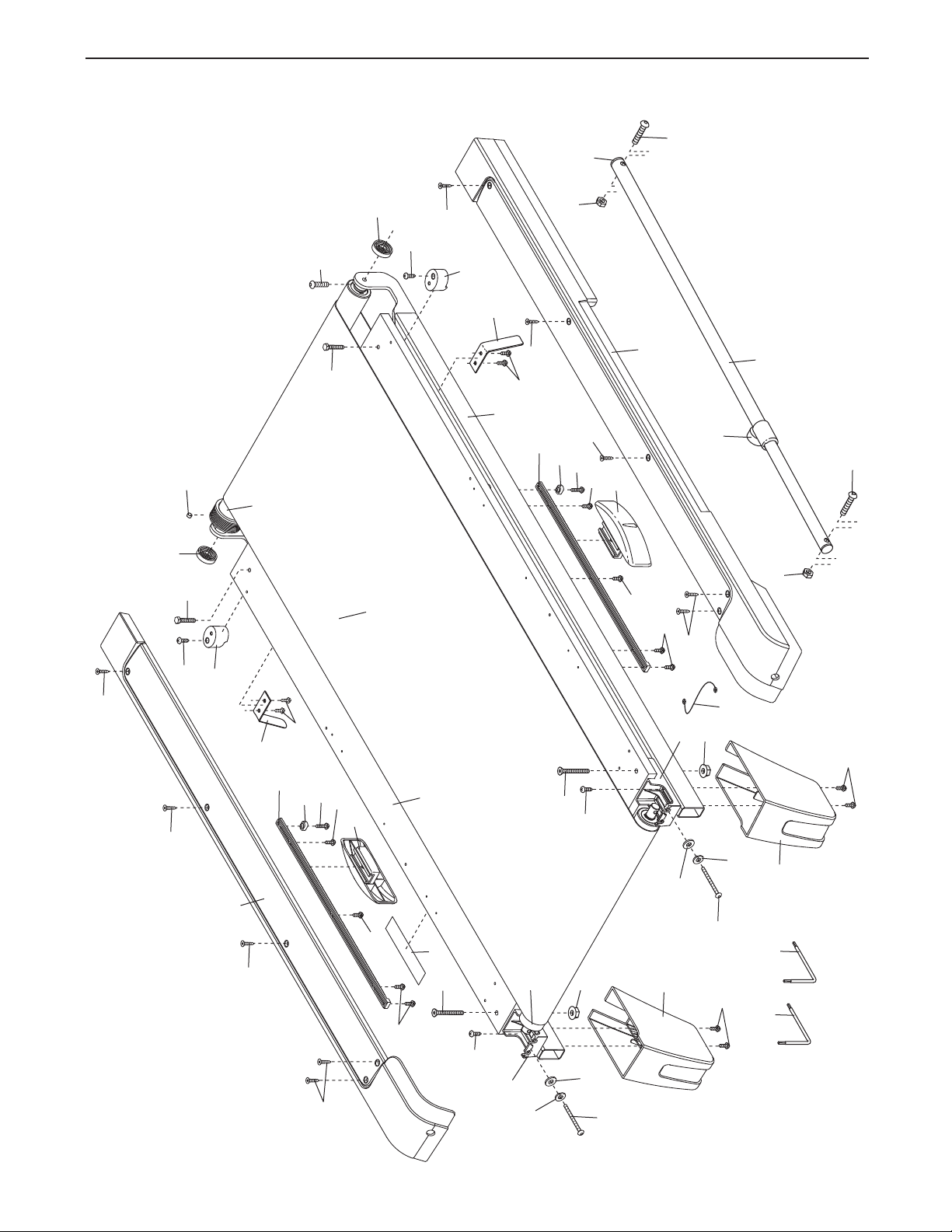

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the locations of the warning
decals. If a decal is missing or illegible, call
the telephone number on the front cover of
this manual and request a free replacement
decal. Apply the decal in the location shown.
Note: The decals may not be shown at actual
size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: T
structions in this manual and all warnings on your treadmill before using your treadmill. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
1. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with
pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
5. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
o reduce the risk of serious injury, read all important precautions and in-
carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.
12. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 13. To purchase a surge suppressor, see
your local PROFORM dealer or call the telephone number on the front cover of this manual and order part number 146148, or see your
local electronics store.
13. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may slow,
accelerate, or stop unexpectedly, which may
result in a fall and serious injury.
14. Keep the power cord and the surge suppressor away from heated surfaces.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under age 12 and pets away
from the treadmill at all times.
8. The treadmill should be used only by persons
weighing 325 lbs. (147 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended
for both men and women. Always wear ath-
letic shoes. Never use the treadmill with bare
feet, wearing only stockings, or in sandals.
11. When connecting the power cord (see page
13), plug the power cord into a surge suppressor (not included) and plug the surge
suppressor into a grounded circuit capable of
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROUBLESHOOTING on page 22 if the treadmill is
not working properly.)
16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 15).
17. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
18. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
19. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
3
0. Never leave the treadmill unattended while it
2
is running. Always remove the key, unplug
the power cord, and switch the reset/off circuit breaker to the off position when the
treadmill is not in use. (See the drawing on
page 5 for the location of the circuit breaker.)
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 20.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
22. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
23. Never insert any object into any opening on
the treadmill.
SAVE THESE INSTRUCTIONS
4. Inspect and properly tighten all parts of the
2
treadmill regularly.
25.
DANGER:Always unplug the power
cord immediately after use, before cleaning the
treadmill, and before performing the mainte-
ance and adjustment procedures described in
n
this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the
procedures in this manual should be performed
by an authorized service representative only.
26. This treadmill is intended for in-home use
only. Do not use this treadmill in a commercial, rental, or institutional setting.
4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM
80 AUDIO TRAINER treadmill. The 980 AUDIO
9
TRAINER treadmill offers an impressive selection of
features designed to make your workouts at home
more enjoyable and effective. And when youʼre not ex-
rcising, the unique treadmill can be folded up, requir-
e
ing less than half the floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
ing this manual, please see the front cover of this man-
Accessory Tray
Handrail
®
ual. To help us assist you, note the product model
umber and serial number before contacting us. The
n
model number and the location of the serial number
decal are shown on the front cover of this manual.
o avoid a registration fee for any service needed
T
under warranty, you must register the treadmill at
www.proformservice.com/registration.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Console
Pulse Sensor
Key/Clip
Upright
Walking Belt
Foot Rail
Idler Roller
Adjustment Bolts
Reset/Off
Circuit Breaker
Power Cord
Platform Cushion
5
ASSEMBLY
Base Foot Spacer
(88)–2
#8 x 3/4"
Screw (1)–6
3/8" Star
Washer (12)–4
1/4" Star
Washer (10)–2
#8 x 1" Tek
Screw (2)–4
3/8" Nut (13)–5
5/16" Star
Washer (11)–4
3/8" x 2" Bolt (7)–3
1/4" x 1 1/4" Bolt (4)–2
1/4" x 5/8"
Bolt (3)–4
5/16" x 2 1/2" Patch Bolt (5)–4
3/8" x 1 1/2"
Patch Bolt (6)–2
3/8" x 3 1/2"
Patch Bolt (8)–2
3/8" x 2 3/4" Bolt (9)–2
o hire an authorized service technician to assemble the treadmill, call 1-800-445-2480.
T
Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
elt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to
b
the top of the walking belt or the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild,
non-abrasive cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver ,
adjustable wrench , needlenose pliers , scissors , and rubber mallet .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it is preattached
to one of the parts to be assembled. To avoid damaging plastic parts, do not use power tools for assembly. Extra hardware may be included.
6
. Make sure that the power cord is unplugged.
1
ith the help of a second person, carefully tip
W
the treadmill onto its left side. Partially fold the
Frame (51) so that the treadmill is more stable;
do not fully fold the Frame yet.
Attach two Base Feet (87) to the Base (90) in the
locations shown with two #8 x 1" Tek Screws (2)
and two Base Foot Spacers (88). Then, attach
two Base Feet (87) with only two #8 x 1" Tek
Screws (2).
1
90
87
2
88
87
51
2
87
2
88
87
2
2. Attach two Wheels (91) to the Base (90) with a
3/8" x 2 3/4" Bolt (9) and a 3/8" Nut (13). Do not
overtighten the Nut; the Wheels must turn
freely.
2
90
9
91
13
7

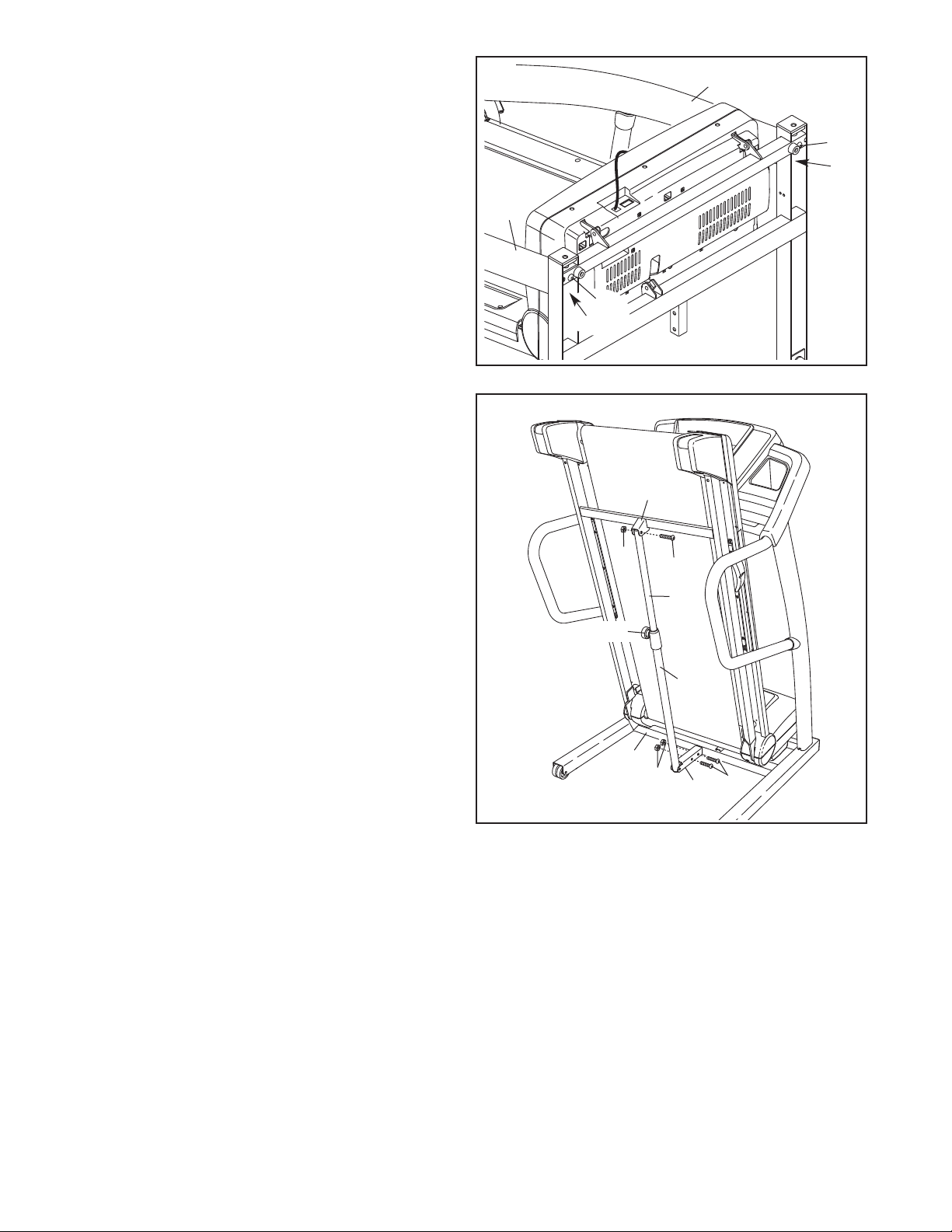

. Identify the Right Upright (83), which is marked
3
with a sticker.
Have a second person hold the Right Upright
83) near the Base (90). See the inset drawing.
(
Tie the wire tie in the Right Upright securely
around the end of the Wire Harness (84). Then,
pull the other end of the wire tie until the Wire
arness is routed completely through the Right
H
Upright.
3
3
8
84
Wire Tie
83
84
90
4. Attach the Right Upright (83) to the Base (90)
with a 3/8" x 3 1/2" Patch Bolt (8), a 3/8" x 1 1/2"
Patch Bolt (6), and two 3/8" Star Washers (12)
in the indicated locations. Be careful not to
pinch the Wire Harness (84). Partially tighten
the Patch Bolts until the heads of the Patch
Bolts touch the Base; do not fully tighten the
Patch Bolts yet.
5. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (51) so the treadmill is more stable; do
not fully fold the Frame yet.
Attach two Wheels (91) to the Base (90) with a
3/8" x 2 3/4" Bolt (9) and a 3/8" Nut (13). Do not
overtighten the Nut; the Wheels must turn
freely.
84
4
5
Wire
Tie
83
90
51
84
8
12
6
90
9
91
13
8
6. Attach the Left Upright (81) to the Base (90) with
a 3/8" x 3 1/2" Patch Bolt (8), a 3/8" x 1 1/2"
Patch Bolt (6), and two 3/8" Star Washers (12)
in the indicated locations. Partially tighten the
atch Bolts until the heads of the Patch Bolts
P
touch the Base; do not fully tighten the Patch
Bolts yet.
ith the help of a second person, tip the tread-
W
mill so that the Base (90) is flat on the floor.
6
90
8
12
6
90
81
7. Orient the Crossbar (82) so that the indicated
bump is in the position shown. (Note: The bump
will go into a hole in the Right Upright [83].)
Attach the Crossbar to the Uprights (81, 83) with
four 1/4" x 5/8" Bolts (3); do not tighten the
Bolts yet.
8. Identify the Right Handrail (78), which is marked
with a sticker. Insert the end of the Wire
Harness (84) into the hole in the bottom of the
Right Handrail and out of the hole in the top.
7
3
82
3
Bump
81
83
8
84
78
9
9. Slide the two Handrail Caps (80) onto the lower
ends of the Left Handrail (77) and the Right
Handrail (78) as shown.
ttach the Handrails (77, 78) to the Uprights (81,
A
83) with four 5/16" x 2 1/2" Patch Bolts (5), four
5/16" Star Washers (11), and two #8 x 3/4"
Screws (1).
9
5
11
77
5
Orient the Handrail Caps (80) as shown. Slide
the Handrail Caps against the Uprights (81, 83).
Firmly tighten the four 5/16" x 2 1/2" Patch Bolts
(5).
10. Have a second person hold the console assembly near the Right Handrail (78). Connect the
Wire Harness (84) to the console wire. See the
inset drawing. The connectors should slide
together easily and snap into place. If they do
not, turn one connector and try again. IF THE
CONNECTORS ARE NOT CONNECTED
PROPERLY, THE CONSOLE MAY BE DAMAGED WHEN YOU TURN ON THE POWER.
Next, remove the wire tie from the Wire Harness.
Insert the connectors and the excess wire into
the Right Handrail.
Set the console assembly on the Right Handrail
(78) and the Left Handrail (not shown). Be care-
ful not to pinch the wires.
10
78
80
Console
Assembly
1
Console
84
Wire Tie
11
81
83
78
80
1
Wire
Console
Wire
10
84
Loading...
