ProForm PFTL01411.0 User Manual
www.proform.com
Model No. PFTL01411.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT CON-
TACT THE STORE; please contact
Customer Care.
USERʼS MANUAL
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
SSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
A
OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

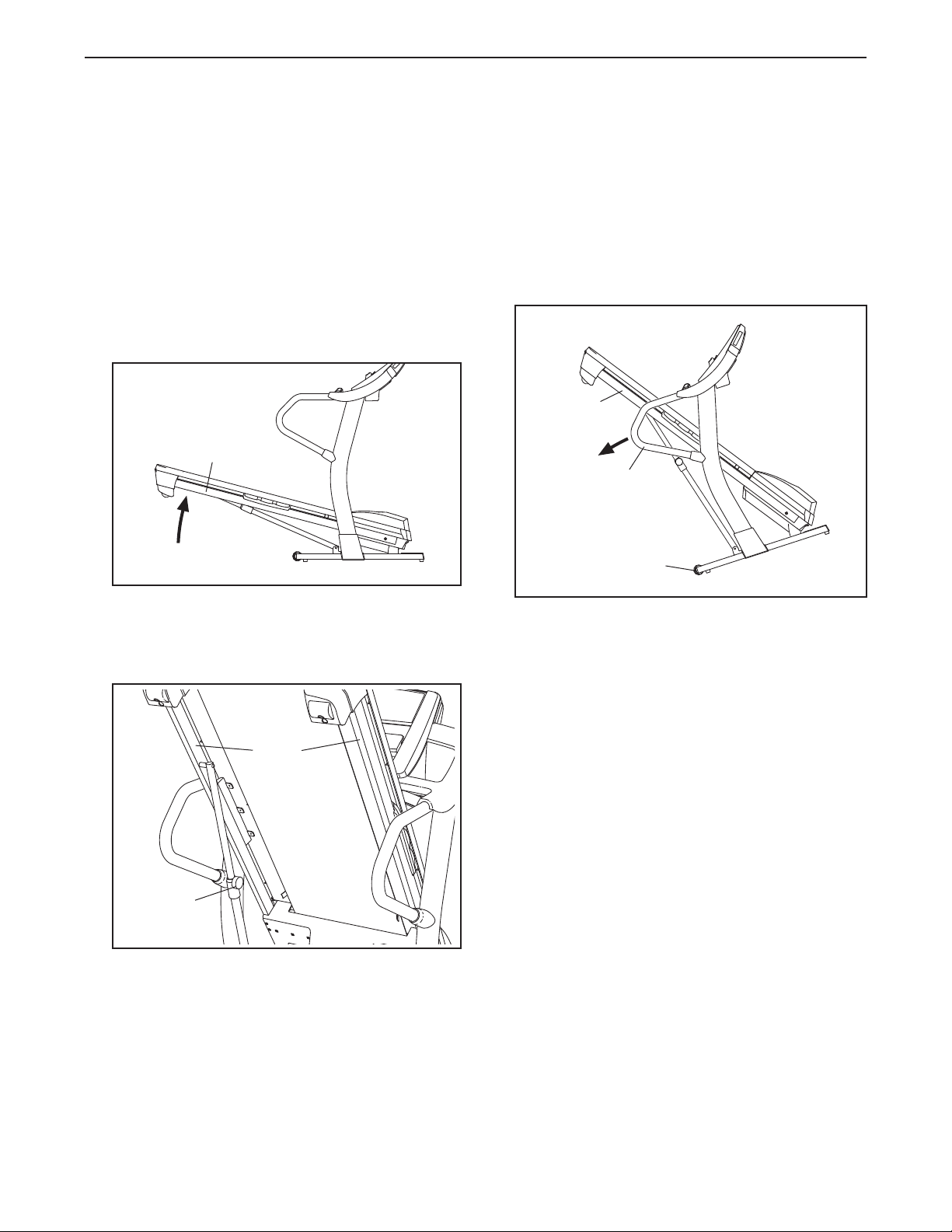

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

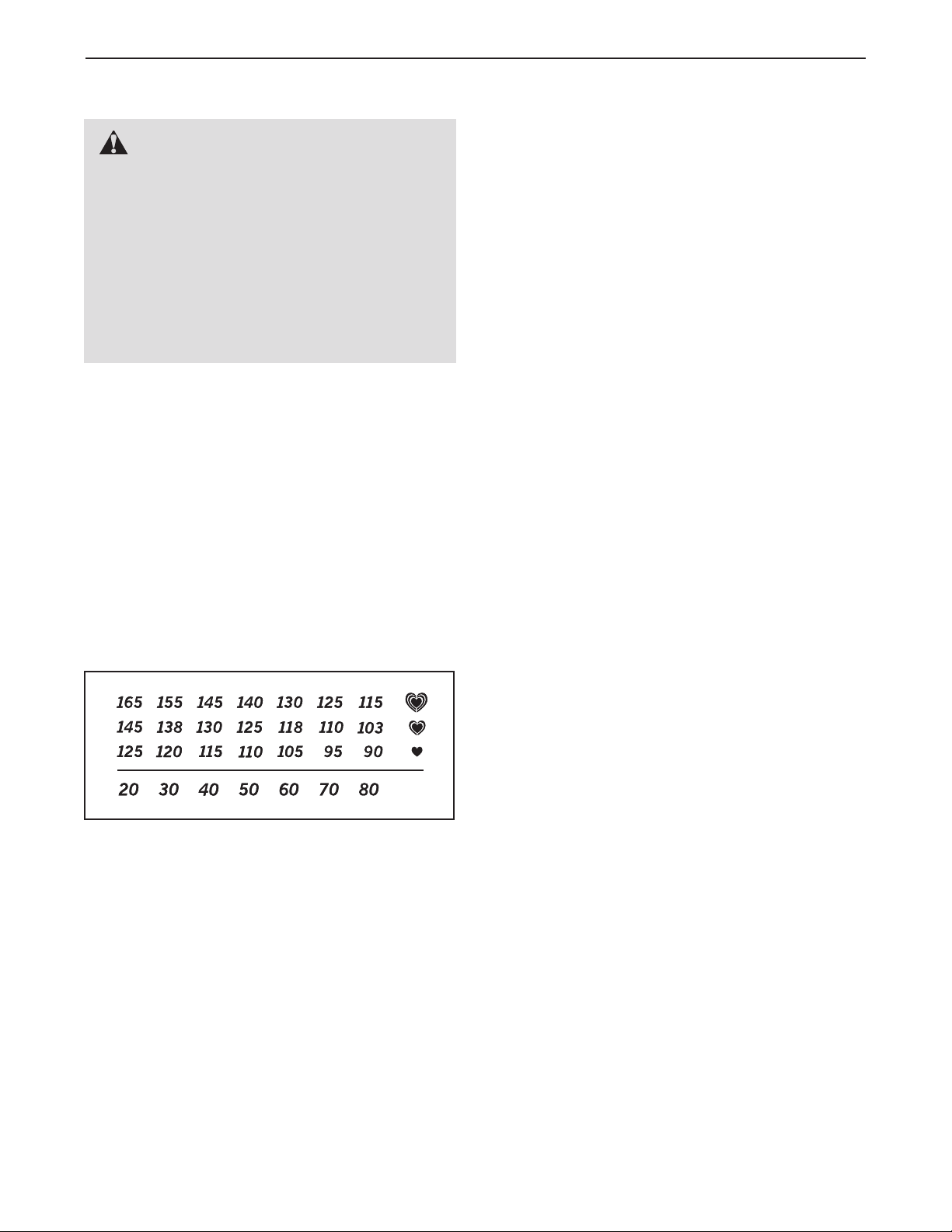

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

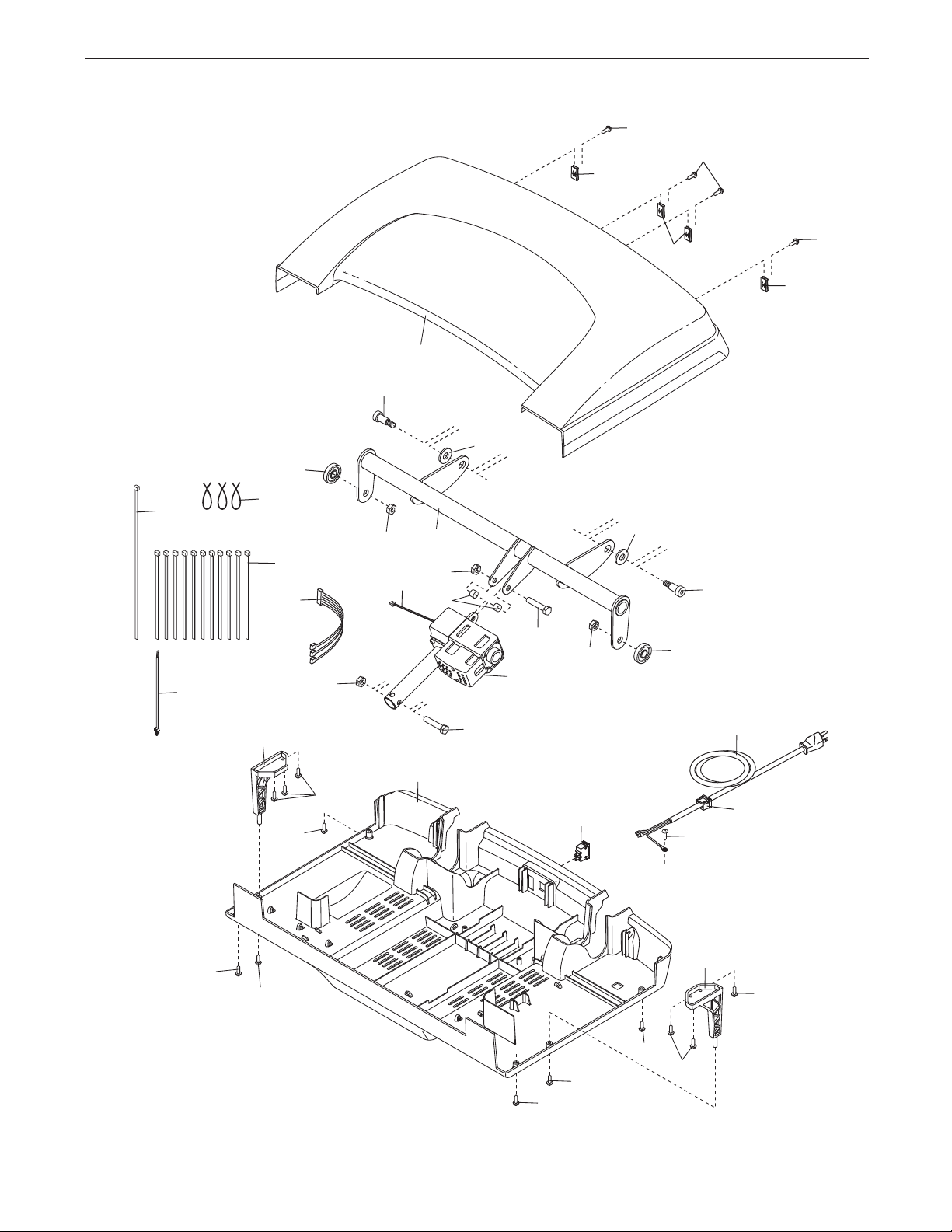

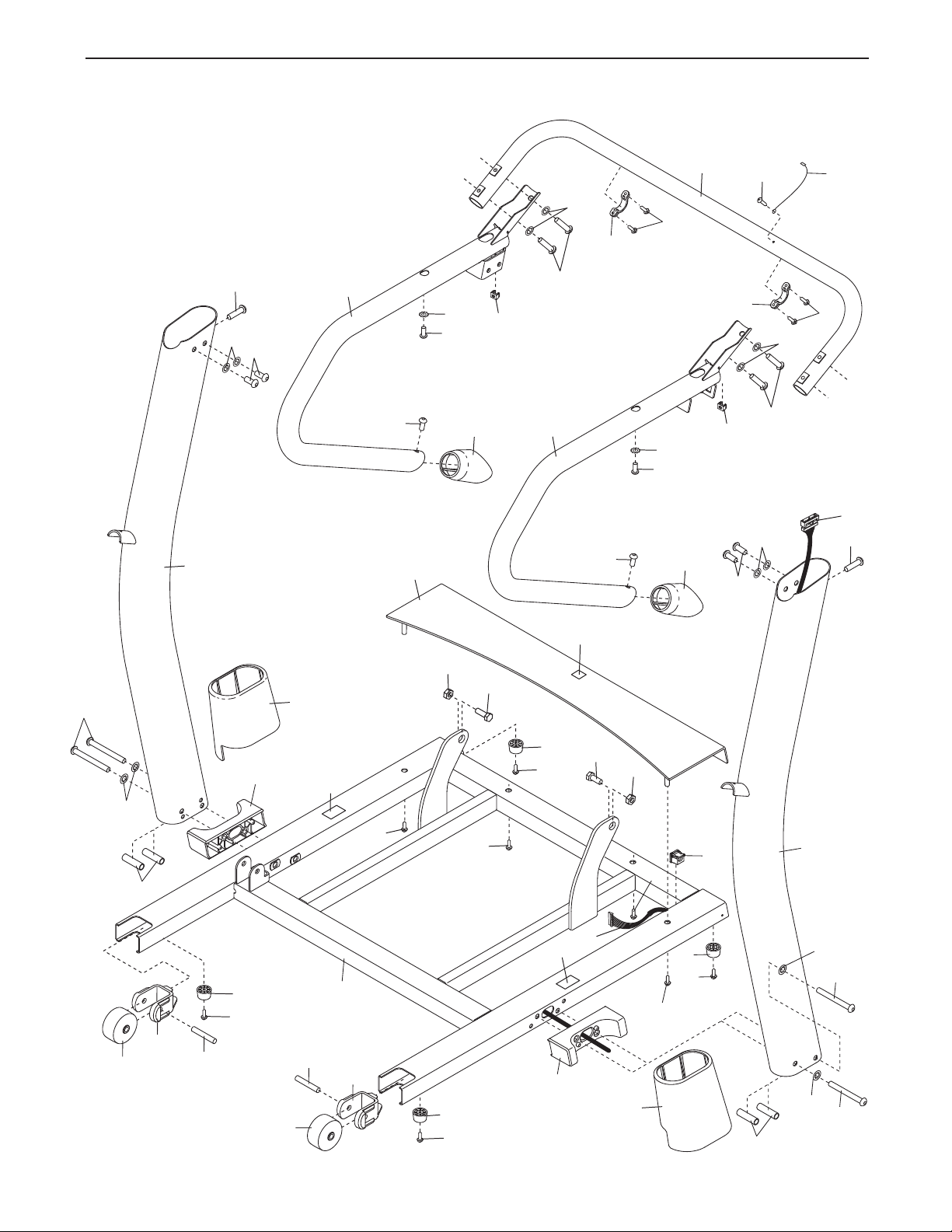

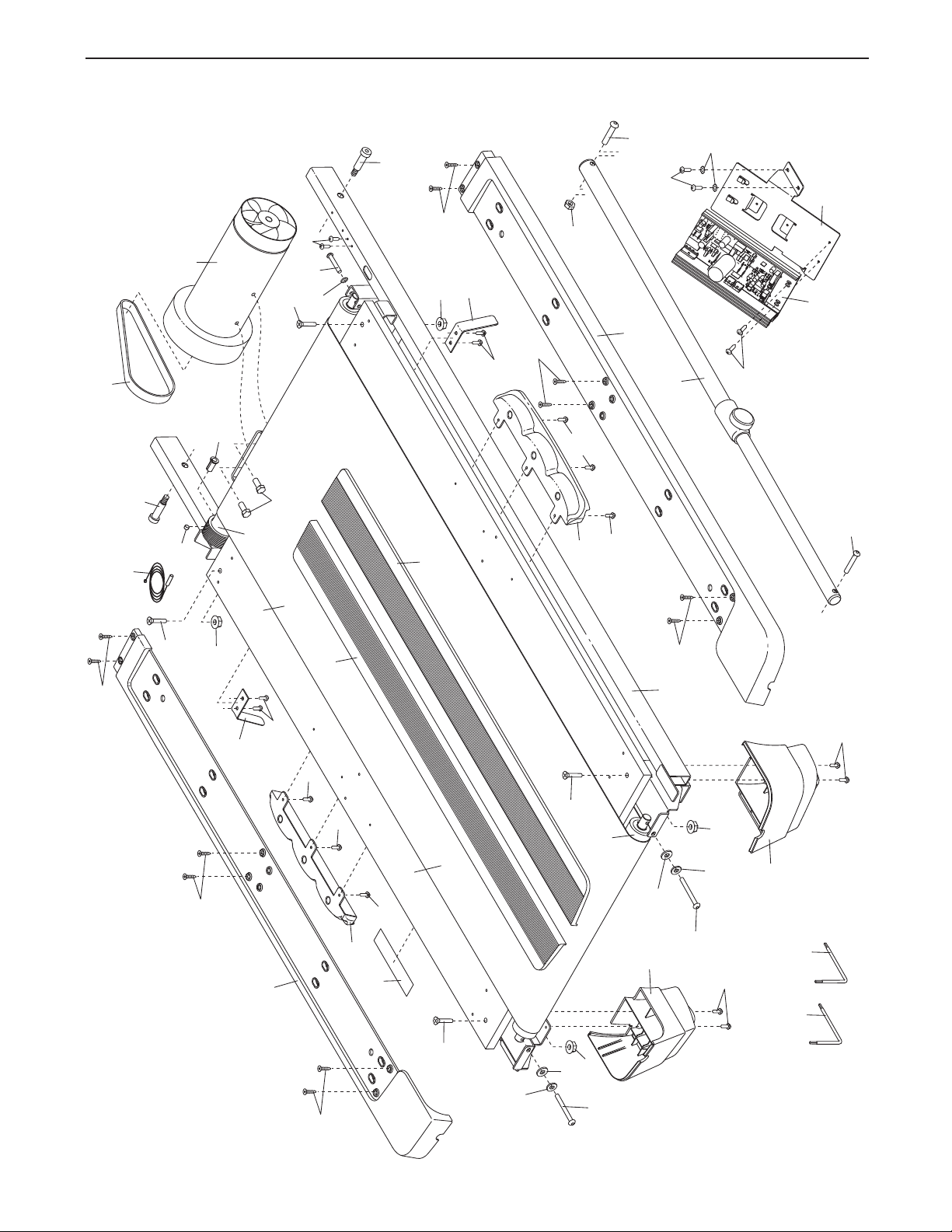

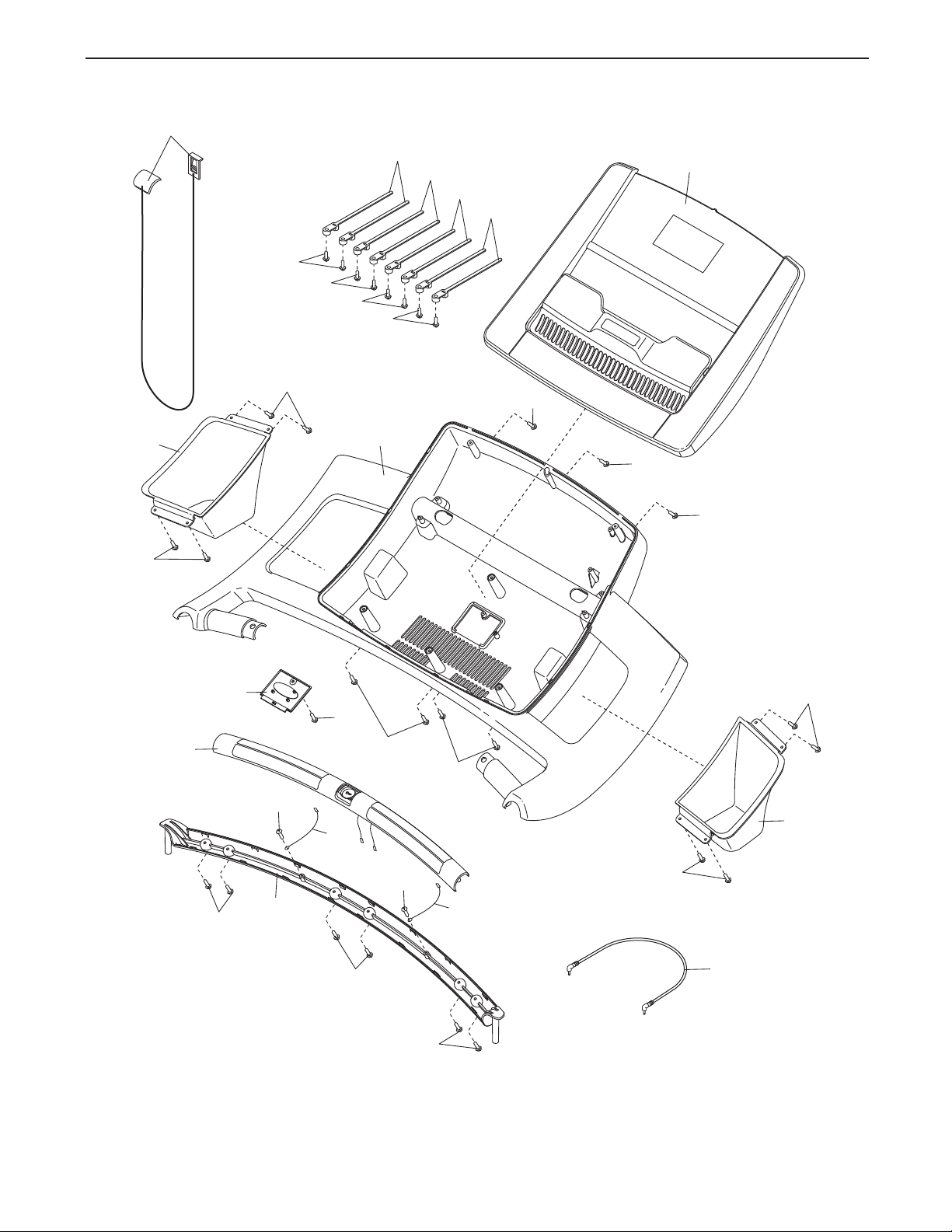

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the locations
of the warning decals. If a decal
is missing or illegible, call the
telephone number on the front
cover of this manual and request a free replacement decal.
Apply the decal in the location
shown. Note: The decals may
not be shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and in-
tructions in this manual and all warnings on your treadmill before using your treadmill. ICON as-
s
sumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
1. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with
pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
3. Use the treadmill only as described.
4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a
garage or covered patio, or near water.
5. Place the treadmill on a level surface, with at
least 8 ft. (2.4 m) of clearance behind it and 2
ft. (0.6 m) on each side. Do not place the
treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.
6. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.
7. Keep children under age 12 and pets away
from the treadmill at all times.
carrying 15 or more amps. No other appliance
should be on the same circuit. Do not use an
extension cord.
12. Use only a single-outlet surge suppressor that
meets all of the specifications described on
page 14. To purchase a surge suppressor, see
your local PROFORM dealer or call the telephone number on the front cover of this manual and order part number 146148, or see your
local electronics store.
13. Failure to use a properly-functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may slow,
accelerate, or stop unexpectedly, which may
result in a fall and serious injury.
14. Keep the power cord and the surge suppres-
sor away from heated surfaces.
15. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See TROUBLESHOOTING on page 26 if the treadmill is
not working properly.)
8. The treadmill should be used only by persons
weighing 350 lbs. (159 kg) or less.
9. Never allow more than one person on the
treadmill at a time.
10. Wear appropriate exercise clothes while
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended
for both men and women. Always wear ath-
letic shoes. Never use the treadmill with bare
feet, wearing only stockings, or in sandals.

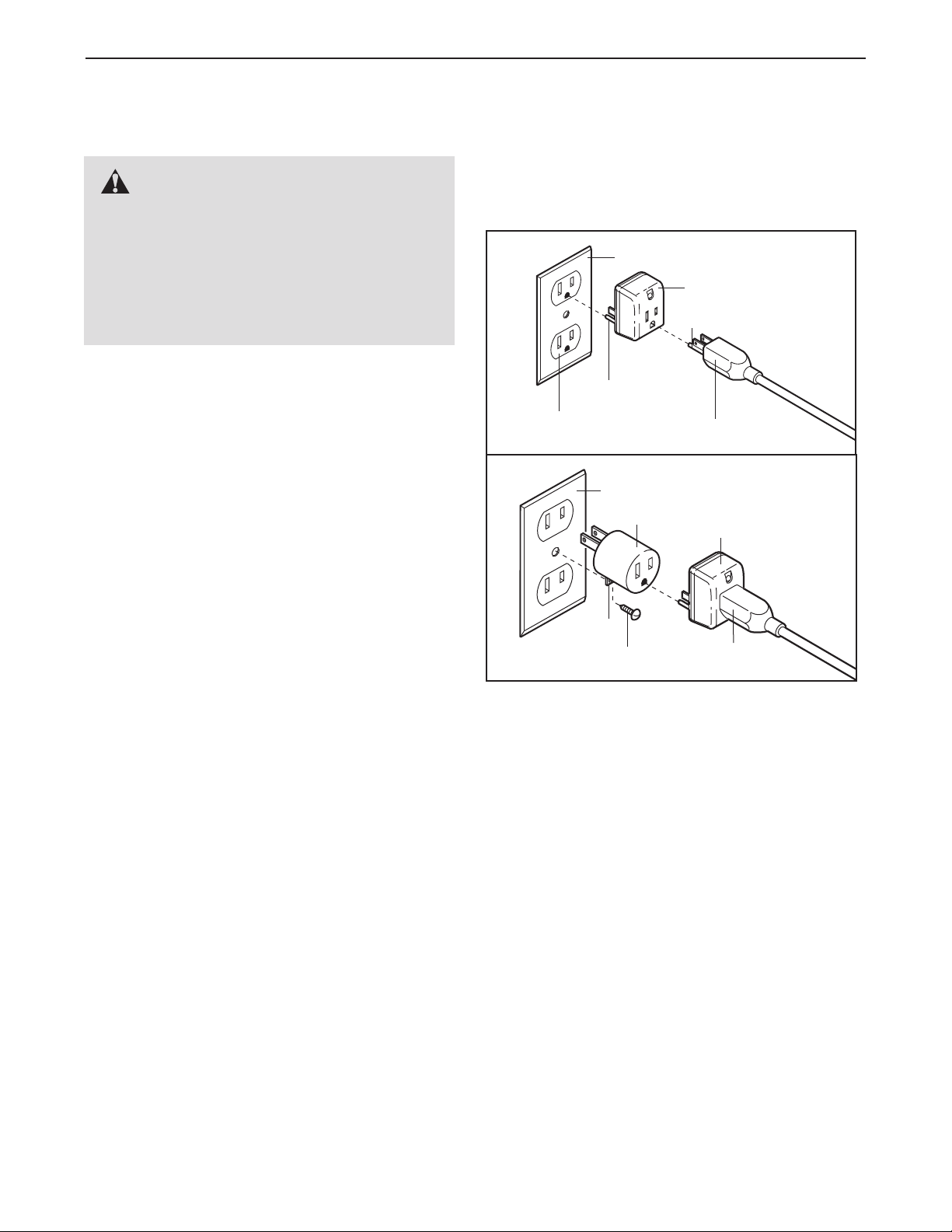

11. When connecting the power cord (see page
14), plug the power cord into a surge suppressor (not included) and plug the surge
suppressor into a grounded circuit capable of
16. Read, understand, and test the emergency
stop procedure before using the treadmill (see
HOW TO TURN ON THE POWER on page 16).
17. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
18. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
19. The heart rate monitor is not a medical device. Various factors, including the user's
movement, may affect the accuracy of heart
rate readings. The heart rate monitor is intended only as an exercise aid in determining
heart rate trends in general.
3
0. Never leave the treadmill unattended while it
2
is running. Always remove the key, unplug
the power cord, and press the power switch
into the off position when the treadmill is not
in use. (See the drawing on page 5 for the location of the power switch.)
21. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW TO FOLD
AND MOVE THE TREADMILL on page 25.)
You must be able to safely lift 45 lbs. (20 kg)
to raise, lower, or move the treadmill.
22. When folding or moving the treadmill, make
sure that the storage latch is holding the
frame securely in the storage position.
23. Never insert any object into any opening on
the treadmill.
SAVE THESE INSTRUCTIONS
4. Inspect and properly tighten all parts of the
2
treadmill regularly.
25.
DANGER: Always unplug the power
cord immediately after use, before cleaning the
treadmill, and before performing the mainte-
ance and adjustment procedures described in
n
this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the
procedures in this manual should be performed
by an authorized service representative only.
26. This treadmill is intended for home use only.
Do not use this treadmill in a commercial,
rental, or institutional setting.
27. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM
210 RT treadmill. The 1210 RT treadmill offers an im-
1
pressive selection of features designed to make your
workouts at home more enjoyable and effective. And
when youʼre not exercising, the unique treadmill can be
olded up, requiring less than half the floor space of
f
other treadmills.
For your benefit, read this manual carefully before
using the treadmill. If you have questions after read-
Accessory Tray
Handrail
®
ing this manual, please see the front cover of this man-
al. To help us assist you, please note the product
u
model number and serial number before contacting us.
The model number and the location of the serial number decal are shown on the front cover of this manual.
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Console
Book Holder
Heart Rate Monitor
Key/Clip
Upright
Walking Belt
Foot Rail
Idler Roller
Adjustment Screws
Power Switch
Power Cord
Platform Cushion
Length: 6 ft. 8 in. (203 cm)
Width: 3 ft. 2 in. (97 cm)
5
ASSEMBLY
3/8" Star
Washer (11)–4
#8 x 1/2"
Screw (1)–12
#8 x 1" Tek Screw
(2)–4
3/8" Nut (10)–1
1/4" Star
Washer (12)–2
5/16" Star
Washer (9)–8
5/16" x 3/4"
Screw (5)–4
5/16" x 1 1/2"
Screw (4)–6
3/8" x 5 1/2" Screw (7)–4
1/4" x 1/2"
Screw (8)–4
Screw Spacer (88)–4
Wheel Axle (97)–2
3/8" x 1 3/4" Screw (6)–1
3/8" x 2" Bolt (3)–1
ssembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not
A
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking
belt is coated with high-performance lubricant. During shipping, some lubricant may be transferred to the top of
the walking belt or the shipping carton. This is normal and does not affect treadmill performance. If there is lubri-
ant on top of the walking belt, simply wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
c
Assembly requires the included hex keys and your own Phillips screwdriver , adjustable
wrench , needlenose pliers , and scissors .
Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it is preattached
to one of the parts to be assembled. To avoid damaging parts, do not use power tools for assembly.
Extra hardware may be included.
6
1. Make sure that the power cord is unplugged.
With the help of a second person, carefully tip
the treadmill onto its left side. Partially fold the
Frame (55) so that the treadmill is more stable;
do not fully fold the Frame yet.
Locate the Upright Wire (85), which is bundled
at the back of the Base (94). Remove the packaging from the Upright Wire. Next, insert the
Upright Wire into the Base, and pull it out of the
indicated hole. If necessary, use the plastic tie to
pull the Upright Wire out of the hole.
1
5
8
4
9
5
Tie
Hole
5
Next, hold a Wheel (95) inside of a Wheel
Housing (96). Insert a Wheel Axle (97) into the
Wheel, and press the Wheel Housing into the
Base (94). Make sure that the tab on the
Wheel Housing is in the position shown.
Attach the other Wheel (95) in the same way.
2. Attach the four Base Feet (92) to the Base (94)
in the locations shown with four #8 x 1" Tek
Screws (2).
See the inset drawing. Cut the plastic tie near
the Upright Wire (85).
97
Tab
96
95
95
2
85
Tie
92
2
94
92
2
92
2
Tie
Cut
92
2
85
7
3. Identify the Right Upright Spacer (91), which is
marked with a “Right” sticker.
lign the oval hole in the Right Upright Spacer
A
(91) with the oval hole in the Base (94). If the
holes do not line up, turn the Right Upright
Spacer and try again.
Insert the Upright Wire (85) through the Right
Upright Spacer (91). Set the Right Upright
Spacer on the Base (94).
3
85
Oval
ole
H
Oval
Hole
91
4
9
4. Identify the Right Upright (83), which is marked
with a “Right” sticker. Orient the Right Upright
Cover (86) as shown. Slide the Right Upright
Cover onto the lower end of the Right Upright.
Have a second person hold the Right Upright
(83) near the Base (94). See the inset drawing.
Tie the wire tie in the Right Upright securely
around the end of the Upright Wire (85). Then,
pull the other end of the wire tie until the Upright
Wire is routed through the Right Upright.
4
85
85
83
86
94
Wire Tie
83
Wire
Tie
8
5. Hold a Screw Spacer (88) inside the lower end
of the Right Upright (83). Insert a 3/8" x 5 1/2"
Screw (7) with a 3/8" Star Washer (11) into the
Right Upright and the Screw Spacer. Repeat
his step with a second Screw Spacer (88),
t
3/8" x 5 1/2" Screw (7), and 3/8" Star Washer
(11).
5
3
8
7
11
old the Right Upright (83) against the Right
H
Upright Spacer (91). Be careful not to pinch
the Upright Wire (85) or the ground wire.
Tighten the 3/8" x 5 1/2" Screws (7) until the
heads of the Screws touch the Upright; do not
fully tighten the Screws yet.
6. With the help of a second person, carefully tip
the treadmill onto its right side. Partially fold the
Frame (55) so that the treadmill is more stable;
do not fully fold the Frame yet.
Slide the Left Upright Cover (87) onto the Left
Upright (82).
Set the Left Upright Spacer (90) on the Base
(94).
91
6
94
11
90
85
88
7
82
87
55
Hold a Screw Spacer (88) inside the lower end
of the Left Upright (82). Insert a 3/8" x 5 1/2"
Screw (7) with a 3/8" Star Washer (11) into the
Left Upright and the Screw Spacer. Repeat this
step with a second Screw Spacer (88), 3/8" x
5 1/2" Screw (7), and 3/8" Star Washer (11).
Hold the Left Upright (82) against the Left
Upright Spacer (90). Tighten the 3/8" x 5 1/2"
Screws (7) until the heads of the Screws touch
the Upright; do not fully tighten the Screws
yet.
88
9
7. Attach the Base Cover (84) to the Base (94)
with four #8 x 1/2" Screws (1). Be careful not
to overtighten the Screws.
7
84
ith the help of a second person, tip the tread-
W
mill so that the Base (94) is flat on the floor.
8. Set the console assembly face down on a soft
surface to avoid scratching the console.
Identify the Right Handrail (79). Hold the Right
Handrail near the console assembly. Route the
console wire through the large holes in the top
and bottom of the Right Handrail.
Set the Right Handrail (79) on the Console
Frame (81). Start a 1/4" x 1/2" Screw (8) with a
1/4" Star Washer (12) into the Right Handrail.
Then, start two 5/16" x 1 1/2" Screws (4) with
two 5/16" Star Washers (9) into the Right
Handrail. Make sure that the console wire is
not pinched. Do not tighten the three Screws
yet.
Attach the Left Handrail (not shown) as described above. Note: There is not a wire on
the left side.
8
Console
Assembly
1
79
94
1
Console
8
12
Wire
4
9
81
10
9. With the help of a second person, grip the sides
of the console assembly and hold it near the
Right Upright (83) and the Left Upright (not
shown). Do not lift the console assembly by
he Right Handrail (79) or the Left Handrail
t
(not shown).
Connect the Upright Wire (85) to the console
ire. See the inset drawing. The connectors
w
should slide together easily and snap into
place. If they do not, turn one connector and try
again. IF THE CONNECTORS ARE NOT CONNECTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN YOU TURN ON THE
POWER. Then, remove the wire tie from the
Upright Wire.
9
Console
Wire
Tie
Console
ssembly
A
Wire
85
83
79
Console
Wire
85
10. Slide a Handrail Cover (77) onto the lower end
of each Handrail (78, 79).
Set the console assembly on the Left and Right
Uprights (82, 83). At the same time, slide the
lower ends of the Handrails (78, 79) over the
brackets on the Uprights. Be careful not to
pinch any wires. Insert the excess wire into the
Right Upright.
Start four 5/16" x 3/4" Screws (5) with four 5/16"
Star Washers (9) into the Uprights (82, 83).
Then, start two 5/16" x 1 1/2" Screws (4) into the
Uprights. Do not tighten the Screws yet.
10
4
9
Console
Assembly
5
77
Bracket
83
5
9
4
79
77
Bracket
78
82
11
Loading...
