ProForm PFSY59001 User Manual

USER'S MANUAL
QUESTIONS?
As a manufacturer, we are committed to providing complete customer satisfaction. If you have questions, or if there are missing parts, we will guarantee complete satisfaction through assistance from our factory.
TO AVOID DELAYS, PLEASE CALL DIRECT TO OUR TOLL-FREE CUSTOMER HOT LINE. The techni­cians on our customer hot line will provide immediate assistance, free of charge.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
Model No. PFSY59001 Serial No.
Write the serial number in the space above for future reference.
CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Save this manual for future reference.
Serial Number Decal (Under Seat)
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
WEIGHT RESISTANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
TROUBLE-SHOOTING AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
CABLE DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: APART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached to the center of this manual. Remove the PART IDENTIFICATION CHART and the PART LIST/EXPLODED DRAWING before beginning assembly.
PROFORM is a registered trademark of ICON Health & Fitness, Inc.
IMPORTANT PRECAUTIONS
3
1. Read all instructions in this manual and in the accompanying literature before using the weight system.
2. It is the responsibility of the owner to ensure that all users of the weight system are ade­quately informed of all precautions.
3. The weight system is intended for home use only. Do not use the weight system in any commercial, rental, or institutional setting.
4. Use the weight system only on a level sur­face. Cover the floor beneath the weight sys­tem to protect the floor.
5. Make sure all parts are properly tightened each time you use the weight system. Replace any worn parts immediately.
6. Keep children under 12 and pets away from the weight system at all times.
7. Keep hands and feet away from moving parts.
8. Always wear athletic shoes for foot protection.
9. The weight system is designed to support a a maximum user weight of 250 pounds.
10. Always stand on the foot plate when per­forming an exercise that could cause the weight system to tip.
11.Never release the press arm, butterfly arms, leg lever, leg press, lat bar, ab strap, or nylon strap while weights are raised. The weights will fall with great force.
12. Always disconnect the lat bar from the
weight system when performing an exercise that does not use the lat bar.
13. Make sure that the cables remain on the pul­leys at all times. If the cables bind while you are exercising, stop immediately and make sure that the cables are on all of the pulleys.
14. If you feel pain or dizziness at any time while exercising, stop immediately and begin cool­ing down.
15. The decal shown at the right has been attached to the weight system in the two locations shown on page 4. If a decal is missing or illegible, please call 1-800-999-3756, toll-free, to order a free replacement decal. Apply the decal in the location shown.
WARNING:
To reduce the risk of serious injury, read the following important precautions
before using the weight system.
WARNING:Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
4
BEFORE YOU BEGIN
ASSEMBLED DIMENSIONS: Height: 76.0 in. Width: 86.5 in. Length: 91.5 in.
Foot Plate
Low Pulley
Station
High Pulley Station
Lat Bar
Leg Lever
Butterfly Arms
Press Arms
Leg Press
Seat
Seat
Weight Stack
Backrests
Curl Pad
Ab Pulley Station
WARNING DECAL
WARNING
DECAL
Thank you for selecting the versatile PROFORM®960 weight system. The PROFORM®960 offers a selection of weight stations designed to develop every major muscle group of the body. Whether your goal is to tone your body, build dramatic muscle size and strength, or improve your cardiovascular system, the PROFORM
®
960 will help you to achieve the specific results you want.
For your benefit, read this manual carefully before using the PROFORM
®
960. If you have additional
questions, please call our Customer Service
Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please note the product model number and serial number before calling. The model number is PFSY59001. The serial number can be found on a decal attached to the weight system (see the front cover of this manual).
Before reading further, please review the drawing below and familiarize yourself with the parts that are labeled.
5
ASSEMBLY
Make sure you have the following tools:
• Two (2) adjustable wrenches
• One (1) standard screwdriver
• One (1) phillips screwdriver
• One (1) rubber mallet
•You will also need grease or petroleum jelly, a
small amount of soapy water, and clear tape or masking tape.
Note: Assembly will be more convenient if you have a socket set, a set of open-end or closed-end wrenches, or a set of ratchet wrenches.
How to Identify Parts
To help you identify the small parts used in assembly, we have included a PART IDENTIFICATION CHART in the center of this manual. Place the chart on the floor and use it to easily identify parts during each assembly step. Note: Some small parts may have
been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached.
How to Orient Parts
As you assemble the weight system, make sure that all parts are oriented exactly as shown in the draw­ings.
Tightening Parts
Tighten all parts as you assemble them, unless instructed to do otherwise.
Questions?
If you have questions after reading the assembly instructions, please call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time.
Assembly Requires Two Persons
For your convenience and safety, assemble the weight system with the help of another person.
Set Aside Enough Time
Due to the many features of the weight system, the assembly process will require several hours. By setting aside plenty of time and by deciding to make the task enjoyable, assembly will go smoothly. You may want to assemble the weight system over a couple of evenings.
Select a Location for the Weight System
Because of its weight and size, the weight system should be assembled in the location where it will be used. Make sure that there is enough room to walk around the weight system as you assemble it.
How to Unpack the Box
To make assembly as easy as possible, we have divided the assembly process into four stages. The parts needed for each stage are found in individual bags. Important: Wait until you begin each stage to open the parts bag for that stage. Place all parts of the weight system in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed.
Make Assembly Easier!
Everything in this manual is designed to ensure that the weight system can be assem­bled successfully by anyone. Before begin-
ning assembly, make sure to read the information on this page. This brief intro­duction will save you much more time than it takes to read it!
The Four Stages of the Assembly Process
Frame Assembly—You will begin by assembling
the base and the uprights that form the skeleton of the weight system.
Arm Assembly—During this stage you will assemble the arms and the leg levers.
Cable Assembly—During this stage you will attach the cables and pulleys that connect the arms to the weights.
Seat Assembly—During the final stage you will assemble the seats and the backrest.
1.
Locate and open the parts bags labeled “FRAME ASSEMBLY.”
See the inset drawing. Insert two 1 1/2” x 2 1/2” Inner Caps (83) and two 3/8” x 2” Carriage Bolts (92) into the Butterfly Base (4).
Insert two 1 1/2” x 2 1/2” Inner Caps (83) into the indicated ends of the Butterfly Base (4) and the Press Base (6). Insert six 3/8” x 2” Carriage Bolts (92) into the Butterfly Base and the Press Base.
Attach the Butterfly Base (4) to the Press Base (6) with two 3/8” x 3 1/4” Bolts (62), two 3/8” Washers (48), and two 3/8” Nylon Locknuts (50).
2
FRAME ASSEMBLY
6
50
50
1
4
50
6
50
2
Before you begin this step, make sure that you have read all of the information on page
5. This brief introduction will save you much more time than it takes to read it.
1
83
62
83
48
83
50
4
83
4
48
6
2. Attach the Butterfly Upright (1) to the indicated 3/8” x 2” Carriage Bolts (92) in the Butterfly Base (4) with two 3/8” Nylon Locknuts (50). Do not tighten
the Nylon Locknuts yet. Be sure the Upright is attached in the position shown.
Attach the Press Upright (2) to the indicated 3/8” x 2” Carriage Bolts (92) in the Press Base (6) with two 3/8” Nylon Locknuts (50). Do not tighten the
Nylon Locknuts yet. Be sure the Upright is attached in the position shown.
3. Make sure the Plastic Bushing (52) is in the top of the Butterfly Front Leg (3).
Attach the Butterfly Front Leg (3) to the indicated 3/8” x 2” Carriage Bolts (92) in the Butterfly Base (4) with two 3/8” Nylon Locknuts (50). Do not tight-
en the Nylon Locknuts yet. Make sure that the Butterfly Front Leg is turned so that the welded “U”-bracket is on the side shown.
92
3
50
3
“U”-bracket
50
52
4
92
92
92
92
92
92
4. Attach the Butterfly Seat Frame (14) to the Butterfly Upright (1) with two 3/8” x 3 3/4” Bolts (102), two 3/8” Washers (48), and two 3/8” Nylon Locknuts (50).
Attach the Butterfly Seat Frame (14) to the Butterfly Front Leg (3) with two 3/8” x 3 3/4” Bolts (102), two 3/8” Washers (48) and two 3/8” Nylon Locknuts (50).
Do not tighten the Nylon Locknuts (50) yet.
5. Press a 3” Round Inner Cap (78) into the Press Front Leg (20).
Attach the Press Front Leg (20) to the indicated 3/8” x 2” Carriage Bolts (92) on the Press Base (6) with two 3/8” Nylon Locknuts (50). Do not tighten
the Nylon Locknuts yet. Make sure that the Press Front Leg is turned so that the indicated hole is on the side shown.
6. Attach the Press Seat Frame (7) to the Press Upright (2) with two 3/8” x 3 3/4” Bolts (102), the Rounded Support Plate (104), and two 3/8” Nylon Locknuts (50).
Attach the Press Seat Frame (7) to the Press Front Leg (20) with two 3/8” x 3 3/4” Bolts (102), two 3/8” Washers (48), and two 3/8” Nylon Locknuts (50).
Do not tighten the Nylon Locknuts (50) yet.
5
7
78
50
50
6
20
Hole
4
3
1
102
50
102
50
14
50
48
50
48
6
50
20
7
2
104
48
48
102
50
50
102
50
7
83
87
94
33
83
50
1
50
7. Insert three 1 1/2” x 2 1/2” Inner Caps (83) into the ends of the Butterfly Top Frame (33).
Attach the Butterfly Top Frame (33) to the Butterfly Upright (1) with two 3/8” x 2 1/2” Bolts (87), a Support Plate (94), and two 3/8” Nylon Locknuts (50). Do not tighten the Nylon Locknuts yet.
83
92
8
89
48
48
48
89
51
6
50
48
21
Slot
15
8. See the inset drawing. Insert two Weight Inserts (56) into each Weight (21).
Set the two Weight Bumpers (51) over the holes in the corner bar of the Press Base (6).
Slide the Weight Guides (15) through the Weight Bumpers (51) and into the holes in the Press Base (6). Secure the Weight Guides to the Press Base with two 3/8” x 2 3/4” Bolts (89), four 3/8” Washers (48), and two 3/8” Nylon Locknuts (50).
Slide the Weights (21) onto the Weight Guides (15), stacking them on top of the Weight Bumpers (51).
Note: Make sure that the Weights are oriented so that the slots in the Weights are toward the front, as shown.
9. Press the Weight Tube Bumper (18) into the Weight Tube (17).
Slide the Top Weight (16) onto the Weight Guides (15), so that the Weight Tube (17) goes into the center holes in the Weights (21).
9
15
21
18
16
17
21
56
8
10
83
2
9
87
94
50
50
15
10. Press a 1 1/2” x 2 1/2” Inner Cap (83) into the end of the Press Top Frame (9).
Attach the Press Top Frame (9) and a Support Plate (94) to the Press Upright (2) with two 3/8” x 2 1/2” Bolts (87) and two 3/8” Nylon Locknuts (50).
Do not tighten the Nylon Locknuts yet.
Note: Be sure that the Weight Guides (15) are properly positioned in relation to the Press Top Frame (9), as shown in drawing 11 on the next page.
9
48
62
50
48
33
9
11. Secure the Press Top Frame (9) to the Butterfly Top Frame (33) with two 3/8” x 3 1/4” Bolts (62), two 3/8” Washers (48), and two 3/8” Nylon Locknuts (50). Do not tighten the Nylon Locknuts yet.
12. Secure the Weight Guides (15) to the Press Top Frame (9) with two 3/8” x 1 3/4” Bolts (57) and two 3/8” Nylon Locknuts (50).
Tighten the Nylon Locknuts (50) used in steps 2–12.
11
12
57
9
50
50
15
13
85
Lubricate
31
35
33
38
Axle
31
38
13. Locate and open the parts bag labeled “ARM
ASSEMBLY.”
Press a 1 1/2” Square Inner Cap (35) into the end of each Pivot Arm (85, 71 [not shown]).
Lubricate the axles on the Butterfly Top Frame (33). Secure the Right Pivot Arm (85) to the right axle with two Retainer Rings (31) and a 1” Round Outer Cap (38). Do not confuse the Right Pivot Arm
with the Left Pivot Arm (not shown). The Retainer Rings may break if disassembled.
Note: Be sure that the Retainer Rings (31) and 1” Round Outer Cap (38) are oriented as shown in the inset drawing.
Repeat this step with the Left Pivot Arm (not shown) and the left axle.
ARM ASSEMBLY
10
14
48
48
10
84
101
10
101
48
48
53
53
14. Insert a 2” Round Inner Cap (101) into the end of a Butterfly Arm (10).
Attach a Butterfly Handle (53) to the Butterfly Arm (10) with two 3/8” x 1” Bolts (84) and two 3/8” Washers (48).
Repeat this step with the other Butterfly Arm (10).
15. Lubricate a 3/8” x 3 1/4” Bolt (62). Attach the left Butterfly Arm (10) to the Left Pivot Arm (71) with the Bolt and a 3/8” Nylon Locknut (50).
Repeat this step with the right Butterfly Arm (not shown) and the Right Pivot Arm (85).
17. Insert a 2” Round Inner Cap (101) into the top of a Press Arm (77). Press two 1” Round Inner Caps (86) into the outside ends of the handles.
Attach the Press Arm (77) to the Press Frame (8) with two 5/16” x 2 3/4” Bolts (96) and two 5/16” Nylon Locknuts (64).
Repeat this step with the other Press Arm (77).
15
50
10
71
85
62
Lubricate
17
77
64
96
8
101
86
Handles
16. Lubricate a 1/2” x 4” Bolt (68). Attach the Press Frame (8) to the Press Base (6) with the Bolt and a 1/2” Nylon Jamnut (36). Note: Do not over tighten
the 1/2” Nylon Jamnut; the Press Frame must be able to pivot easily.
16
8
36
6
68
Lubricate
20.
Locate and open the parts bags labeled “CABLE ASSEMBLY” and “PULLEYS.”
Locate the Butterfly Cable (73), which is the shorter cable of the two that have eyelets on both ends. Attach the Butterfly Cable to the Right
Pivot Arm (85) with a 5/16” x 2 1/4” Shoulder Bolt (79) and a 5/16” Nylon Jamnut (105).
11
18. Attach a Bumper (40) to the Press Front Leg (20) with a 1” Tap Screw (80).
Press a 3” Round Inner Cap (78) into the top of the Press Leg Lever (90).
Lubricate a 1/2” x 4” Bolt (68). Attach the Press Leg Lever (90) to the Press Base (6) with the Bolt and a 1/2” Nylon Jamnut (36). Note: Do not over tighten
the Nylon Jamnut; the Press Leg Lever must be able to pivot easily.
19. Insert two 2” Square Inner Caps (28) into the Leg Lever (41).
Attach a Bumper (40) to the Butterfly Front Leg (3) with a 1” Tap Screw (80).
Lubricate a 3/8” x 3” Bolt (88). Attach the Leg Lever (41) to the Butterfly Front Leg (3) with the Bolt and a 3/8” Nylon Jamnut (63). Note: Do not over tight-
en the Nylon Jamnut; the Leg Lever must pivot easily.

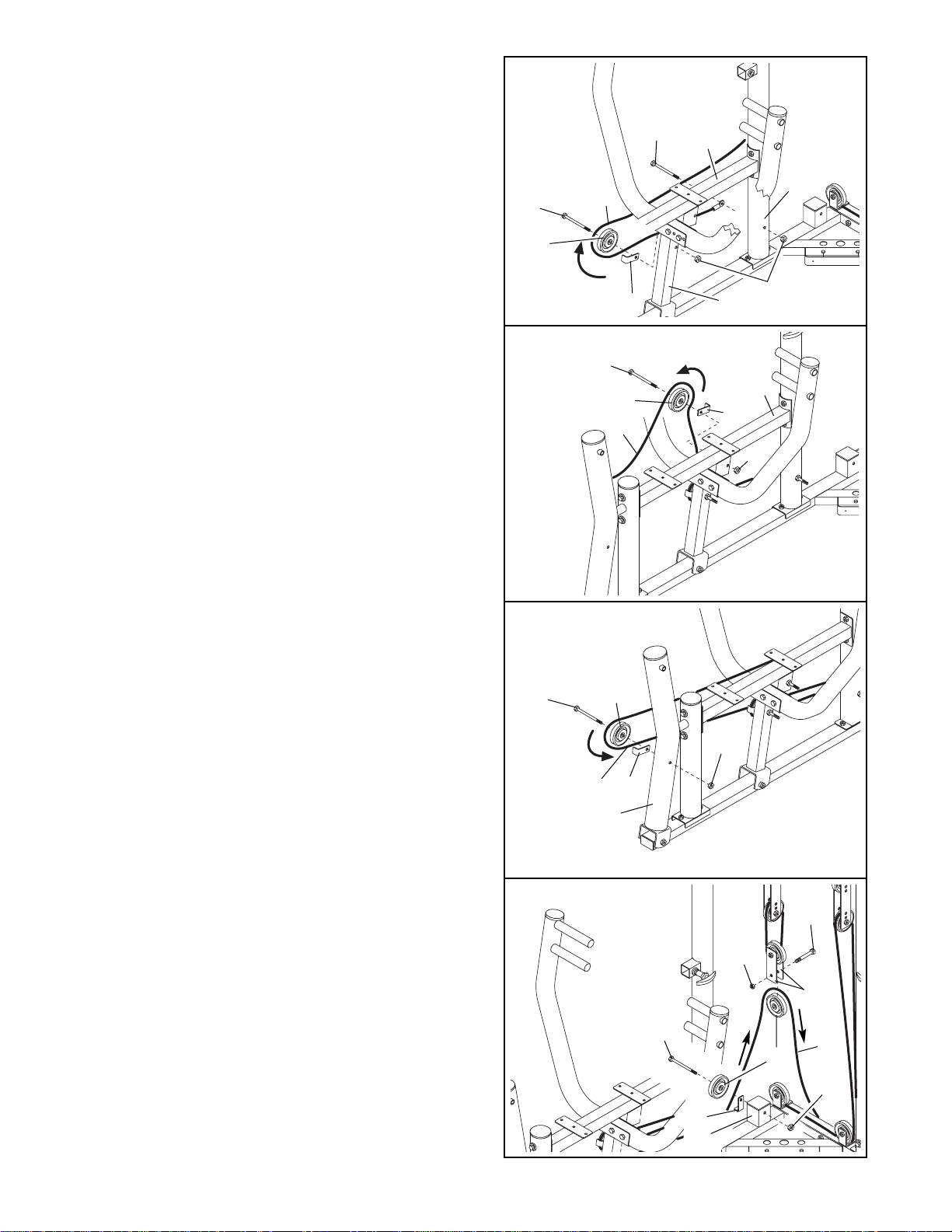

21. Wrap the Butterfly Cable (73) over a “V”-Pulley (27). Attach the Pulley and a Large Cable Trap (32) to the bracket on the Butterfly Upright (1) with a 3/8” x 2 1/2” Bolt (87) and a 3/8” Nylon Locknut (50).
18
36
68
20
80
6
78
40
90
CABLE ASSEMBLY
19
20
21
41
28
28
88
63
Lubricate
Lubricate
3
40
80
79
73
105
85
50
73
27
1
32
87
IMPORTANT: While assembling the cables, do not over tighten the bolts and nuts attaching the pulleys. The pulleys must be able to turn freely. Refer to the Cable ID Chart on page 26 for help identifying the cables.
12

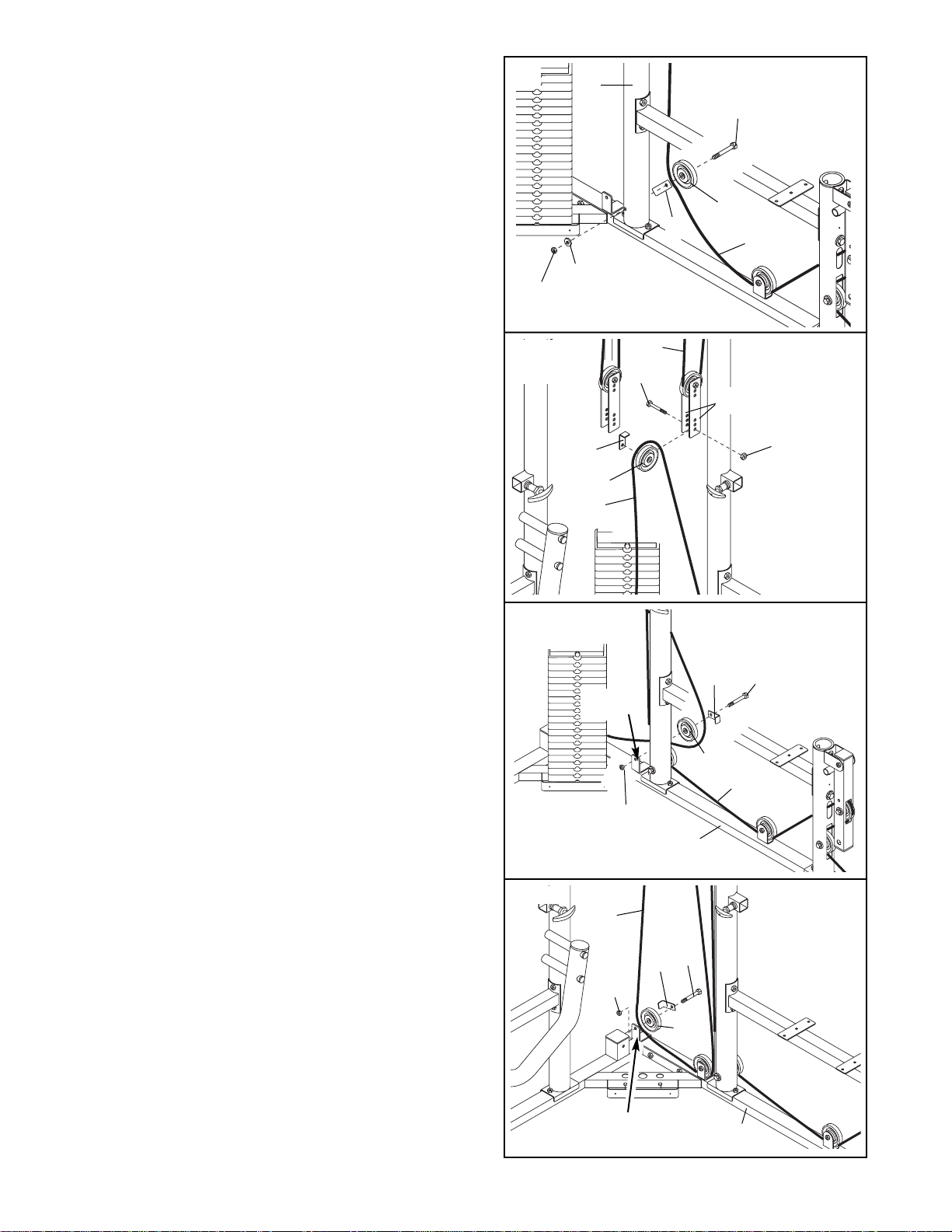

22. Remove the preassembled 3/8” x 2” Bolts (54) from one set of Adjustable Pulley Plates (23).
Wrap the Butterfly Cable (73) around a 3 1/2” Pulley (24). Attach the Pulley and a Cable Trap (25) between the top holes of the Adjustable Pulley Plates (23) with a 3/8” x 2” Bolt (54) and a 3/8” Nylon Locknut (50). Be sure that the Cable Trap
is turned to hold the Cable in place.
23. Wrap the Butterfly Cable (73) around a “V”-Pulley (27). Attach the Pulley and a Large Cable Trap (32) to the bracket on the Butterfly Upright (1) with a 3/8” x 2 1/2” Bolt (87) and a 3/8” Nylon Locknut (50). Be sure that the Cable Trap is turned to
hold the Cable in place.
24. Attach the Butterfly Cable (73) to the Left Pivot Arm (71) with a 5/16” x 2 1/4” Shoulder Bolt (79) and a 5/16” Nylon Jamnut (105).
25. Locate the Ab Cable (47). Insert the Ab Cable up through the Press Top Frame (9) and wrap it around a 3 1/2” Pulley (24).
Slide a 3/8” Washer (48) and a 5/8” x 3/4” Bushing (66) onto a 3/8” x 3 1/4” Bolt (62). Slide the Bolt through the Press Top Frame (9) and the 3 1/2” Pulley (24). Secure another 5/8” x 3/4” Bushing and 3/8” Washer to the Bolt with a 3/8” Nylon Locknut (50).
25
22
23
24
48
48
9
50
50
27
73
71
105
79
54
25
24
50
73
23
87
32
73
1
47
24
66
62
13
26. Wrap the Ab Cable (47) around a 3 1/2” Pulley (24). Insert the Ab Cable down through the Press Top Frame (9).
Slide a 3/8” Washer (48) and a 5/8” x 3/4” Bushing (66) onto a 3/8” x 3 1/4” Bolt (62). Slide the Bolt through the Press Top Frame (9) and the 3 1/2” Pulley (24). Secure another 5/8” x 3/4” Bushing and 3/8” Washer to the Bolt with a 3/8” Nylon Locknut (50).
27. Remove the preassembled 3/8” x 2” Bolts (54) from the other Adjustable Pulley Plates (23).
Wrap the Ab Cable (47) around a 3 1/2” Pulley (24). Attach the Pulley and a Cable Trap (25) between the top holes in the Adjustable Pulley Plates (23) with a 3/8” x 2” Bolt (54) and a 3/8” Nylon Locknut (50). Be sure that the Cable Trap is turned to
hold the Cable in place.
28. Wrap the Ab Cable (47) around a 3 1/2” Pulley (24). Attach the Pulley to the rear bracket on the Press Top Frame (9) with a 3/8” x 2” Bolt (54) and a 3/8” Nylon Locknut (50). Be sure the Ab Cable is rout-
ed in the direction shown.
Wrap the Ab Cable (47) around another 3 1/2” Pulley (24). Attach the Pulley to the forward bracket on the Press Top Frame (9) with a 3/8” x 2” Bolt (54) and a 3/8” Nylon Locknut (50).
29. Wrap the Ab Cable (47) around a 4 1/2” Pulley (82) and slide the Ab Cable through the hole in the Press Upright (2).
Slide a 3/8” Washer (48) and a 5/8” x 1” Bushing (103) onto a 3/8” x 3 3/4” Bolt (102). Slide the Bolt through the Press Upright (2) and the 4 1/2” Pulley (82). Secure another 5/8” x 1” Bushing and 3/8” Washer to the Bolt with a 3/8” Nylon Locknut (50).
29
26
27
28
66
48
50
48
62
24
47
9
47
23
54
50
9
Bracket
48
2
24
47
24
54
54
50
102
103
48
50
47
82
103
24
25
14
30. Locate the Weight Cable (72). Note that one end of the Weight Cable has a bolt on it, and the other end has a ball on it.
Lay the Weight Cable (72) inside the bracket on the Butterfly Base (4) in the manner shown. Attach a 3 1/2” Pulley (24) to the bracket with a 3/8” x 2” Bolt (54) and a 3/8” Nylon Locknut (50). Be sure the
Weight Cable is in the groove of the Pulley.
31. Wrap the Weight Cable (72) around a 3 1/2” Pulley (24). Slide a 3/8” Washer (48) and a 5/8” x 1” Bushing (103) onto a 3/8” x 3 3/4” Bolt (102). Slide the Bolt through the Butterfly Front Leg (3) and the Pulley. Secure another 5/8” x 1” Bushing and 3/8” Washer to the Bolt with a 3/8” Nylon Locknut (50).
32. Insert the Weight Cable (72) through the hole in the Leg Lever (41), up around a 3 1/2” Pulley (24), back through the hole in the Leg Lever, and through the upper hole in the Butterfly Front Leg (3).
Attach the 3 1/2” Pulley (24) and two 5/8” x 1/2” Bushings (99) to the Leg Lever (41) with a 3/8” x 2 3/4” Bolt (89), two 3/8” Washers (48), and a 3/8” Nylon Locknut (50).
33. Lay the Weight Cable (72) under a 3 1/2” Pulley (24) as shown. Attach the 3 1/2” Pulley to the bracket on the Butterfly Base (4) with a 3/8” x 2” Bolt (54) and a 3/8” Nylon Locknut (50).
30
31
32
33
72
4
50
Bracket
24
54
4
50
24
72
54
Bracket
48
72
50
3
102
48
103
24
48
41
24
99
48
50
72
3
89
3
15
35
36
37
34. Wrap the Weight Cable (72) around a 3 1/2” Pulley (24). Attach the Pulley and a Cable Trap (25) to the Butterfly Upright (1) with a 3/8” x 4 3/4” Bolt (60), a 3/8” Washer (48), and a 3/8” Nylon Jamnut (63). Be
sure that the Cable Trap is turned to hold the Cable in place.
35. Wrap the Weight Cable (72) around a 3 1/2” Pulley (24). Attach the Pulley and a Cable Trap (25) between the lowest holes of the Adjustable Pulley Plates (23) hanging from the Butterfly Cable (73) with a 3/8” x 2” Bolt (54) and a 3/8” Nylon Locknut (50). Be sure that the Cable Trap is turned to
hold the Cable in place.
36. Wrap the Weight Cable (72) around a 3 1/2” Pulley (24). Attach the Pulley and a Cable Trap (25) to the bracket on the Butterfly Base (4) with a 3/8” x 1 3/4” Bolt (57) and a 3/8” Nylon Jamnut (63). Be sure
that the Cable Trap is turned to hold the Cable in place.
37. Note: For convenience, the weights assembled in step 8 are not shown in the following draw­ings.
Wrap the Weight Cable (72) around a 3 1/2” Pulley (24). Attach the Pulley and a Cable Trap (25) to the bracket on the Butterfly Base (4) with a 3/8” x 1 3/4” Bolt (57) and a 3/8” Nylon Jamnut (63). Be sure
that the Cable Trap is turned to hold the Cable in place.
34
1
72
60
63
48
25
24
24
72
54
73
63
72
4
57
24
25
63
72
25
Bracket
24
25
50
4
57
23
Bracket
16
38. Wrap the Weight Cable (72) around a 3 1/2” Pulley (24). Attach the Pulley and a Cable Trap (25) between the lowest holes in the Adjustable Pulley Plates (23) hanging from the Ab Cable (47) with a 3/8” x 2” Bolt (54) and a 3/8” Nylon Locknut (50).
Be sure that the Cable Trap is turned to hold the Cable in place.
39. Remove the preassembled 3/8” x 1 3/4” Bolts (57) from the Small Pulley Plates (22).
Wrap the Weight Cable (72) around a 3 1/2” Pulley (24). Attach the Pulley between two Small Pulley Plates (22) with a 3/8” x 1 3/4” Bolt (57) and a 3/8” Nylon Locknut (50).
40. Wrap the Weight Cable (72) around a 4 1/2” Pulley (82) in the direction shown. Attach the Pulley to the bracket on the Press Top Frame (9) with a 3/8” x 2” Bolt (54) and a 3/8” Nylon Locknut (50).
41. Place a 1/2” Washer (11) on top of the Weight Tube (17).
Thread a 1/2” Plain Nut (100) halfway onto the bolt on the Weight Cable (72). Screw the bolt on the Weight Cable into the Weight Tube (17) a couple of turns.
Tighten the 1/2” Plain Nut (100) down onto the 1/2” Washer (11).
38
39
40
23
50
47
72
22
54
24
82
54
24
50
57
72
9
72
17
100
11
41
50
Bracket
72
25
17
42. Locate the Leg Press Cable (75). Attach the Leg Press Cable to the indicated side of the Press Upright (2) with a 3/8” x 3 3/4” Bolt (102) and a 3/8” Nylon Locknut (50). Do not tighten the Nylon
Locknut yet.
Wrap the Leg Press Cable (75) around a 3 1/2” Pulley (24) in the direction shown. Attach the Pulley and a Cable Trap (25) to the indicated side of the Press Frame (8) with a 3/8” x 4 3/4” Bolt (60) and a 3/8” Nylon Locknut (50). Do not tighten the Nylon
Locknut yet. Be sure that the Cable Trap is turned to hold the Cable in place.
43. Wrap the Leg Press Cable (75) around a 3 1/2” Pulley (24) in the direction shown. Attach the Pulley and a Cable Trap (25) to the indicated side of the Press Seat Frame (7) with a 3/8” x 4 3/4” Bolt (60) and a 3/8” Nylon Jamnut (63). Do not tighten the
Nylon Locknut yet. Be sure that the Cable Trap is turned to hold the Cable in place.
44. Wrap the Leg Press Cable (75) around a 3 1/2” Pulley (24) in the direction shown. Attach the Pulley and a Cable Trap (25) to the indicated side of the Press Leg Lever (90) with a 3/8” x 6” Bolt (59) and a 3/8” Nylon Locknut (50). Do not tighten the
Nylon Locknut yet. Be sure that the Cable Trap is turned to hold the Cable in place.
45. Wrap the Leg Press Cable (75) around a 3 1/2” Pulley (24). Attach the Pulley and a Cable Trap (25) to the indicated side of the Press Base (6) with a 3/8” x 5 1/2” Bolt (55) and a 3/8” Nylon Locknut (50). Do not tighten the Nylon Locknut yet. Be
sure that the Cable Trap is turned to hold the Cable in place.
Wrap the Leg Press Cable (75) around another 3 1/2” Pulley (24). Attach the Pulley between the Small Pulley Plates (22) with a 3/8” x 1 3/4” Bolt (57) and the 3/8” Nylon Locknut (50) that was removed in step 40. Be sure the Leg Press Cable
is routed so that it crosses from one side of the Press Base (6) to the other.
45
42
43
44
102
2
7
25
8
50
75
60
75
50
24
55
22
57
50
25
50
7
24
50
90
75
25
59
24
75
24
60
25
6
18
46. Remove the 3/8” Nylon Locknut (50) from the indi­cated 3/8” x 5 1/2” Bolt (55).
Wrap the Leg Press Cable (75) around a 3 1/2” Pulley (24). Secure the Pulley and a Cable Trap (25) to the 3/8” x 5 1/2” Bolt (55) on the indicated side of the Press Base (6) with the 3/8” Nylon Locknut (50). Be sure the Cable Trap is oriented
to hold the Cable in place.
Press a 2 1/2” Square Inner Cap (76) into the Press Base (6).
48. Remove the indicated 3/8” Nylon Locknuts (50). Wrap the Leg Press Cable (75) around a 3 1/2”
Pulley (24). Attach the Pulley and a Cable Trap (25) to the 3/8” x 4 3/4” Bolt (60), on the indicated side of the Press Seat Frame (7), with the first 3/8” Nylon Locknut (50).
Wrap the Leg Press Cable (75) around a 3 1/2” Pulley (24). Attach the Pulley and a Cable Trap (25) to the 3/8” x 4 3/4” Bolt (60), on the indicated side of the Press Frame (8), with a 3/8” Nylon Locknut (50).
Be sure the Cable Traps (25) are oriented to hold the Cable (75) in place.
47. Remove the 3/8” Nylon Locknut (50) from the indi­cated 3/8” x 6” Bolt (59).
Wrap the Leg Press Cable (75) around a 3 1/2” Pulley (24) in the direction shown. Secure the Pulley and a Cable Trap (25) to the 3/8” x 6” Bolt (59) on the indicated side of the Press Leg Lever (90) with the 3/8” Nylon Locknut (50). Be sure the
Cable Trap is oriented to hold the Cable in place.
49. Remove the indicated 3/8” Nylon Locknut (50). Attach the Leg Press Cable (75) to the 3/8” x 3 3/4”
Bolt (102) on the indicated side of the Press Upright (2) with the 3/8” Nylon Locknut (50).
46
47
48
49
75
25
90
59
50
24
25
55
76
6
50
75
102
50
75
2
50
75
24
8
24
60
7
24
25
25
19
50. Locate and open the parts bag labeled “SEAT ASSEMBLY.”
Attach a Seat (13) to the brackets on the Butterfly Seat Frame (14) using four 1/4” x 3/4” Bolts (49).
Repeat this step with the other Seat (not shown) and the Press Seat Frame (not shown).
51. Press a 1 1/2” Square Inner Cap (35) into the end of the Press Backrest Frame (44). Press four 3/4” Round Inner Caps (43) into the welded tubes on the Press Backrest Frame.
Attach a Backrest (12) to the Press Backrest Frame (44) with four 1/4” x 3/4” Bolts (49).
Pull out the Adjustment Knob (5) on the Press Upright (2) as far as it can go. Slide the Press Backrest Frame (44) into the Press Upright and snap the Adjustment Knob into a hole in the Press Backrest Frame. Turn the Adjustment Knob clock­wise until tight.
52. Press a 1 1/2” Square Inner Cap (35) into the end of the Butterfly Backrest Frame (70). Attach the other Backrest (12) to the Butterfly Backrest Frame with four 1/4” x 3/4” Bolts (49).
Pull out the Adjustment Knob (5) on the Butterfly Upright (1) as far as it can go. Slide the Butterfly Backrest Frame (70) into the Butterfly Upright and snap the Adjustment Knob into a hole in the Butterfly Backrest Frame. Turn the Adjustment Knob clockwise until tight.
53. See drawing A. Attach the Shroud (34) to the Press Top Frame (9) with two #8 x 1/2” Screws (45).
See drawing B. Attach the Shroud (34) to the Press Base (6) with two #8 x 1/2” Screws (45).
53
50
51
52
2
49
49
12
44
43
43
13
34
45
6
45
34
12
9
B
A
35
70
1
5
5
49
49
49
14
35
SEAT ASSEMBL Y
20
54
55
56
91
46
3
39
54. Lubricate a 1/2” x 4” Bolt (68). Attach the Foot Press Plate (29) to the Press Leg Lever (90) with the Bolt and a 1/2” Nylon Jamnut (36).
55. Press two 3/4” Round Inner Caps (43) into each of the two Pad Tubes (42).
Slide a Foam Pad (30) onto one side of a Pad Tube (42). Slide the Pad Tube through the hole in the Leg Lever (41). Slide another Foam Pad onto the other side of the Pad Tube.
Slide a Foam Pad (30) onto one side of the other Pad Tube (42). Insert the Pad Tube through the welded tube on the Butterfly Front Leg (3). Slide another Foam Pad onto the other side of the Pad Tube.
56. Attach the Curl Pad (91) to the Curl Post (39) with four 1/4” x 3/4” Bolts (49).
Slide the Curl Post (39) into the Butterfly Front Leg (3) and secure it by inserting the Large Adjustment Knob (46) and turning it clockwise until tight.
57. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in ADJUSTMENTS, beginning on page 21 of this manual.
Before using the weight system, pull each cable a few times to be sure that the cables move smoothly over the pulleys. If one of the cables does not move smoothly, find and correct the problem. IMPORTANT: If the
cables are not properly installed, they may be damaged when heavy weight is used. See the CABLE DIAGRAMS on page 25 and 26 of this manual for proper cable routing. If there is any slack in the cables, you will need to remove the slack by tightening the cables. See TROUBLE-SHOOTING AND MAINTENANCE on page 24.
41
30
Welded Tube
30
43
42
42
3
90
29
Lubricate
68
36
49
49
21
ADJUSTMENTS
The instructions below describe how each part of the weight system can be adjusted. Refer to the exercise guide accompanying this manual to see how the weight system should be set up for each exercise. IMPORT ANT:
When attaching the lat bar, ab strap, or nylon strap, make sure that the attachments are in the correct starting position for the exercise to be performed. If there is any slack in the cables or chain as an exer­cise is performed, the effectiveness of the exercise will be reduced.
47
81
67
69
69
61
19
21
CHANGING THE WEIGHT SETTING
To change the weight setting of the weight stack, insert the Weight Pin (19) under the desired Weight (21) until the bent end of the Weight Pin is touching the Weights. Turn the bent end downward. The weight setting can be changed from 10 pounds to 200 pounds, in 10 pound increments. Note: Due to the
cables and pulleys, the amount of resistance at each exercise station may vary from the weight setting. Use the WEIGHT RESISTANCE CHART on page 23 to find the approximate amount of resis­tance at each weight station.
ATTACHING THE LAT BAR OR AB STRAP TO THE HIGH PULLEY STATION
Attach the Lat Bar (61) to the Ab Cable (47) with a Cable Clip (69). For some exercises, the Chain (67) should be attached between the Lat Bar and the Ab Cable with two Cable Clips. Adjust the length of the
Chain between the Lat Bar and the Ab Cable so the Lat Bar is in the correct starting position for the exercise to be performed.
The Ab Strap (81) can be attached in the same manner.
ATTACHING THE LAT BAR, AB STRAP, OR NYLON STRAP TO THE LOW PULLEY STATION
Attach the Lat Bar (61) to the Weight Cable (72) with a Cable Clip (69). For some exercises, the Chain (67) should be attached between the Lat Bar and the Weight Cable with two Cable Clips. Adjust the length of the
Chain between the Lat Bar and the Weight Cable so the Lat Bar is in the correct starting position for the exercise to be performed.
The Ab Strap (81) or Nylon Strap (26) can be attached in the same manner.
61
26
72
67
69
69
81
22
ATTACHING THE AB STRAP TO THE AB PULLEY STATION
Attach the Ab Strap (81) to the Ab Cable (47) at the ab pulley station with a Cable Clip (69).
ADJUSTING THE BACKREST
To adjust a Backrest (12), loosen the Adjustment Knob (5) on the Press Upright (2) or the Butterfly Upright (not shown) by turning it counterclockwise and pulling it out as far as possible. Slide the Backrest forward or backward to the desired position, and snap the Adjustment Knob into a hole in the Backrest Frame (not shown). Secure the Backrest by turning the Adjustment Knob clockwise until tight.
ADJUSTING THE CURL PAD
Remove the Large Adjustment Knob (46) from the Butterfly Front Leg (3).
Align the holes in the Butterfly Front Leg (3) with the desired set of holes in the Curl Post (39). Re-insert the Large Adjustment Knob (46) through the holes in the Butterfly Front Leg and the holes in the Curl Post. Turn the Large Adjustment Knob clockwise until tight.
Note: When not using the Curl Pad (91), store it away from the weight system.
12
2
5
47
81
69
39
91
46
3
23
WEIGHT RESISTANCE CHART
This chart shows the approximate weight resistance at each weight station. “Top” refers to the 10 lb. top weight. The other numbers refer to the 10 lb. weight plates. The butterfly arm resistance listed is the resistance for each butterfly arm. Note: The actual resistance at each weight station may vary due to differences in individual
weight plates, as well as friction between the cables, pulleys, and weight guides.
WEIGHT
PRESS BUTTERFLY LEG HIGH LOW AB LEG
PLATES
ARM ARM LEVER PULLEY PULLEY PULLEY PRESS
(lbs.) (lbs.) (lbs.) (lbs.) (lbs.) (lbs.) (lbs.)
Top 15 141812221418
128 21 3123332538 240 28 4434443658 352 36 5745554778 465 43 7056675998 577 50 82677870118 690 57 95788981138 7 102 64 108 89 101 92 158 8114 72 121 100 112 103 178
9 127 79 133 111 123 115 198 10 139 86 146 121 134 126 218 11 152 93 159 132 146 137 239 12 164 100 172 143 157 148 259 13 176 108 185 154 168 159 279 14 189 115 197 165 180 171 299 15 201 122 210 176 191 182 319 16 214 129 223 187 202 193 339 17 226 137 236 198 213 204 359 18 238 144 248 209 225 215 379 19 251 151 261 220 236 227 399
TROUBLE-SHOOTING AND MAINTENANCE
Inspect and tighten all parts each time you use the weight system. Replace any worn parts immediately. The weight system can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents.
TIGHTENING THE CABLES
Woven cable, the type of cable used on the weight system, can stretch slightly when it is first used. If there is slack in the cables before resistance is felt, the cables should be tightened.
To tighten the cables, first insert the weight pin into the middle of the weight stack. Slack can be removed from these cables several ways:
See drawing 1. Loosen the 1/2” Plain Nut (100) on the Weight Cable (72) bolt, away from the 1/2” Washer (11). Screw the bolt a few turns into the Weight Tube (17). Retighten the 1/2” Plain Nut down onto the 1/2” Washer.
See drawing 2. Remove either the upper or lower 3/8” Nylon Locknut (50) and 3/8” x 2” Bolt (54) from the Adjustable Pulley Plates (23). Remove the 3 1/2” Pulley (24) and the Cable Trap (25). Reattach the 3 1/2” Pulley and the Cable Trap to a hole closer to the center of the Adjustable Pulley Plates with the 3/8” x 2” Bolt and 3/8” Nylon Locknut.
Either set of Adjustable Pulley Plates (23) can be adjust­ed in this manner.
Do not over tighten the cables. If the cables are over tightened, the top weight will be lifted off the weight stack.
If a cable tends to slip off the pulleys often, it may have become twisted. Remove the cable and re-install it.
If the cables need to be replaced, see ORDERING REPLACEMENT PARTS on the back cover of this manual.
24
11
23
54
72
17
50
24
100
25
2
1
25
CABLE DIAGRAMS
The cable diagrams on this page and the next page show the proper routing of the Leg Press Cable (75), the Ab Cable (47), the Butterfly Cable (73), and the Weight Cable (72). Use the diagrams to be sure that the Cables have been assembled correctly. The starting and ending points of each Cable have been labeled. The numbers show the proper route for each Cable. IMPORTANT: If the Cables have not been correctly routed, the
weight system will not function properly and damage may occur.
Butterfly Cable (73)
Leg Press Cable (75)
2
4
1—Right Arm
3
5—Left Arm
10
8
9
3
7
6
2
1—Press Upright
4
5
Ab Cable (47)
6—Ab Pulley
1—High Pulley
2
3
4
5
11—Press Upright
26
Weight Cable (72)
2
3
1—Low Pulley
4
8
11
12—Weight
Stack
7
6
5
Cable ID
72 47 75 73
9
10
PART IDENTIFICATION CHART—Model No. PFSY59001 R0402A
Cable Clip (69)
3/8" Washer (48)
1/2" Washer (11)
4 1/2" Pulley (82)
1/2" Nylon Jamnut (36)
1/2" Plain Nut (100)
(Not shown to scale)
3/8" Nylon Locknut (50)
5/16" Nylon Locknut (64)
5/8” x 3/4” Bushing (66)
5/8” x 1” Bushing (103)
3/8" Nylon Jamnut (63)
5/16" Nylon Jamnut (105)
1/2" x 3/4" Spacer (97)
5/8" x 1/2" Spacer (99)
"V" Pulley (27)
(Not shown to scale)
3 1/2" Pulley (24)
(Not shown to scale)
Retainer Ring (31)
3/4" Round Inner Cap (43)
1" Round Inner Cap (86)
1" Round Outer Cap (38)
3/8" x 2" Carriage Bolt (92)
5/16" x 2 1/4" Shoulder Bolt (79)
3/8" x 2" Bolt (54)
3/8" x 1 3/4" Bolt (57)
3/8" x 1 1/4" Button Head Bolt (98)
3/8" x 1" Bolt (84)
1" Tap Screw (80)
3/8" x 4 3/4" Bolt (60)
3/8" x 2 1/2" Bolt (87)
5/16" x 2 3/4" Bolt (96)
3/8" x 2 3/4" Bolt (89)
3/8" x 3" Bolt (88)
3/8" x 3 1/4" Bolt (62)
1/4" x 3/4" Bolt (49)
#8 x 1/2" Screw (45)
3/8" x 3 3/4" Bolt (102)
1/2" x 4" Bolt (68)
3/8" x 5 1/2" Bolt (55)
3/8" x 6" Bolt (59)
2 1/2" Square Inner Cap (76)
2” Round Inner Cap (78)
1 1/2" x 2 1/2” Inner Cap (83)
2" Square Inner Cap (28)
3” Round Inner Cap (78)
1 1/2" Square Inner Cap (35)
PART LIST—Model No. PFSY59001 R0402A
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice.
Key No. Qty. Description Key No. Qty. Description
11Butterfly Upright 21Press Upright 31Butterfly Front Leg 41Butterfly Base 52Adjustment Knob 61Press Base 71Press Seat Frame 81Press Frame 91Press Top Frame
10 2 Butterfly Arm
11 1 1/2” Washer 12 2 Backrest 13 2 Seat 14 1 Butterfly Seat Frame 15 2 Weight Guide 16 1 Top Weight 17 1 Weight Tube 18 1 Weight Tube Bumper 19 1 Weight Pin 20 1 Press Front Leg 21 19 Weight 22 2 Small Pulley Plate 23 4 Adjustable Pulley Plate 24 25 3 1/2” Pulley 25 15 Cable Trap 26 1 Ankle Strap 27 2 “V”-Pulley 28 2 2” Square Inner Cap 29 1 Foot Press Plate 30 4 Foam Pad 31 4 Retainer Ring 32 2 Large Cable Trap 33 1 Butterfly Top Frame 34 1 Shroud 35 4 1 1/2” Square Inner Cap 36 3 1/2” Nylon Jamnut 37 4 Pivot Arm Bushing 38 2 1” Round Outer Cap 39 1 Preacher Post 40 2 Bumper 41 1 Leg Lever 42 2 Pad Tube 43 8 3/4” Round Inner Cap 44 1 Press Backrest Frame 45 4 #8 x 1/2” Screw 46 1 Large Adjustment Knob 47 1 Ab Cable 48 29 3/8” Washer 49 20 1/4” x 3/4” Bolt 50 53 3/8” Nylon Locknut 51 2 Weight Bumper 52 1 Plastic Bushing 53 2 Butterfly Handle 54 9 3/8” x 2” Bolt
55 1 3/8” x 5 1/2” Bolt 56 38 Weight Insert 57 6 3/8” x 1 3/4” Bolt 58 6 Butterfly Arm Bushing 59 1 3/8” x 6” Bolt 60 3 3/8” x 4 3/4” Bolt 61 1 Lat Bar 62 8 3/8” x 3 1/4” Bolt 63 4 3/8” Nylon Jamnut 64 4 5/16” Nylon Locknut 65 6 Press Grip 66 4 5/8” x 3/4” Bushing 67 1 Chain 68 3 1/2” x 4” Bolt 69 3 Cable Clip 70 1 Butterfly Backrest Frame 71 1 Left Pivot Arm 72 1 Weight Cable 73 1 Butterfly Cable 74 2 Butterfly Grip 75 1 Leg Press Cable 76 1 2 1/2” Square Inner Cap 77 2 Press Arm 78 2 3” Round Inner Cap 79 2 5/16” x 2 1/4” Shoulder Bolt 80 2 1” Tap Screw 81 1 Ab Strap 82 2 4 1/2” Pulley 83 8 1 1/2” x 2 1/2” Inner Cap 84 4 3/8” x 1” Bolt 85 1 Right Pivot Arm 86 4 1” Round Inner Cap 87 6 3/8” x 2 1/2” Bolt 88 1 3/8” x 3” Bolt 89 3 3/8” x 2 3/4” Bolt 90 1 Press Leg Lever 91 1 Curl Pad 92 8 3/8” x 2” Carriage Bolt 93 1 Workout Decal 94 2 Support Plate 95 1 Plastic Weight Cover 96 4 5/16” x 2 3/4” Bolt 97 1 1/2” x 3/4” Spacer 98 1 3/8” x 1 1/4” Button Head Bolt
99 2 5/8” x 1/2” Spacer 100 1 1/2” Plain Nut 101 4 2” Round Inner Cap 102 11 3/8” x 3 3/4” Bolt 103 4 5/8” x 1” Bushing 104 1 Rounded Support Plate 105 2 5/16” Nylon Jamnut
# 1 User’s Manual # 1 Exercise Guide
EXPLODED DRAWING—Model No. PFSY59001 R0402A
74
53
10
48
62
58
58
58 50
50
37
37
35
37
37
50
50
105
79
62
48
48
83
37
37
71
71
79
105
73
85
85
58
58
35
35
73
83
94
87
33
32
65
61
50
82
54
50
50
66
48
24
66
48
62
87
24
25
23
54
91
101
84
62
37
58
58
10
83
87
27
50
9
94
66
24
62
50
23
24
25
49
25
84
53
31
38
31
50
50
95
27
87
32
57
72
57
45
65
50
24
54
48
50
48
83
35
49
43
49
39
49
50
24
24
25
23
54
48
101
74
1
50
16
50
50
11
100
50
24
103
48
82
50
103
50
48
47
102
47
44
49
43
12
101
86
12
23
49
13
50
5
98
97
17
15
93
5
50
2
13
101
65
49
70
35
34
102
50
49
50
50
25
50
63
19
56
21
75
104
50
75
50
25
86
77
58
64
58
25
24
60
50
14
60
24
48
102
18
102
65
77
30
88
89
28
41
30
80
49
40
3
52
46
62
48
24
50
50
50
7
50
24
60
50
25
96
99
24
48
63
102
48
57
48
48
57
25
24
83
45
55
25
49
78
24
68
99
28
43
48
50
50
25
51
25
76
89
50
24
36
8
42
30
43
102
103
48
48
50
24
63
67
50
24
25
89
50
48
78
50
40
80
90
59
68
54
24
103
24
50
54
24
50
43
63
42
43
26
81
57
69
48
24
50
48
50
50
20
48
102
24
36
72
83
4
50
92
92
30
22
24
22
50
92
6
92
50
50
25
29
83
24
25
36
68
83
ORDERING REPLACEMENT PARTS
To order replacement parts, simply call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be pre­pared to give the following information:
1. The MODEL NUMBER of the product (PFSY59001)
2. The NAME of the product (PROFORM
®
960 weight system)
3. The SERIAL NUMBER of the product (see the front cover of this manual)
4. The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING attached at the center of this manual).
Part No. 184633 R0402A Printed in Canada © 2002 ICON Health & Fitness, Inc.
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of pur­chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim­ited to replacing or repairing, at ICON's option, the product at one of its authorized service centers. All products for which warranty claim is made must be received by ICON at one of its authorized service cen­ters with all freight and other transportation charges prepaid, accompanied by sufficient proof of purchase. All returns must be pre-authorized by ICON. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center, products used for commercial or rental pur­poses, or products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con­nection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci­dental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Loading...
