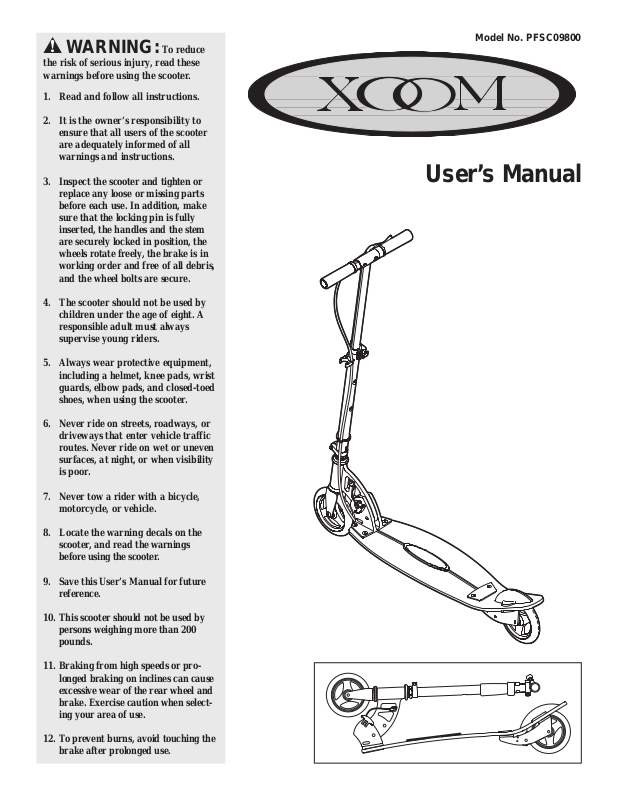

ProForm PFSC09800 User Manual

Page 1

WARNING:To reduce

the risk of serious injury, read these warnings before using the scooter.

1. Read and follow all instructions.

2. It is the owner’s responsibility to ensure that all users of the scooter are adequately informed of all warnings and instructions.

3. Inspect the scooter and tighten or replace any loose or missing parts before each use. In addition, make sure that the locking pin is fully inserted, the handles and the stem are securely locked in position, the wheels rotate freely, the brake is in working order and free of all debris, and the wheel bolts are secure.

4. The scooter should not be used by children under the age of eight. A responsible adult must always supervise young riders.

5. Always wear protective equipment, including a helmet, knee pads, wrist guards, elbow pads, and closed-toed shoes, when using the scooter.

6. Never ride on streets, roadways, or driveways that enter vehicle traffic routes. Never ride on wet or uneven surfaces, at night, or when visibility is poor.

7. Never tow a rider with a bicycle, motorcycle, or vehicle.

8. Locate the warning decals on the scooter, and read the warnings before using the scooter.

9. Save this User’s Manual for future reference.

10. This scooter should not be used by persons weighing more than 200 pounds.

11. Braking from high speeds or prolonged braking on inclines can cause excessive wear of the rear wheel and brake. Exercise caution when selecting your area of use.

12. To prevent burns, avoid touching the brake after prolonged use.

User’s Manual

Model No. PFSC09800

Page 2

Warning Decal Placement

Setup

The decals shown at the right have been placed on the scooter. If a decal is missing or illegible, please call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time, to order a free replacement decal. Apply the replacement decal in the location shown.

Storage

1. Open the quick-release lever. Depress the push pin on the

stem and slide it into the upright. Close the quick-release lever.

2. Depress the push pins and remove the handles from the

stem. Press the handles into the storage clip on the upright.

3. Pull the lock pin out of the head frame. Pivot the upright

down into the horizontal position. Re-insert the lock pin.

Before using the scooter, make sure that the scooter is set up as described and that all parts are securely tightened.

1. Pull the lock pin out of the head frame. Pivot the upright up

until it is in a nearly vertical position. Re-insert the lock pin through the head frame.

2. Insert the handles into the stem until the push pins are visi-

ble in the holes in the stem.

3. Open the quick-release lever. Depress the push pin on the

stem, and slide the stem up until the push pin is visible in the top hole. Close the quick-release lever so that it is snug against the upright. If the quick release is not snug, see ADJUSTING THE QUICK RELEASE on the next page.

Lock Pin

Storage Clip

Brake

Stem

Quick

Release

Head Frame

Handle

Hand

Brake

Handle

Upright

Lock Pin

Push Pins

Push Pin

Upright

Page 3

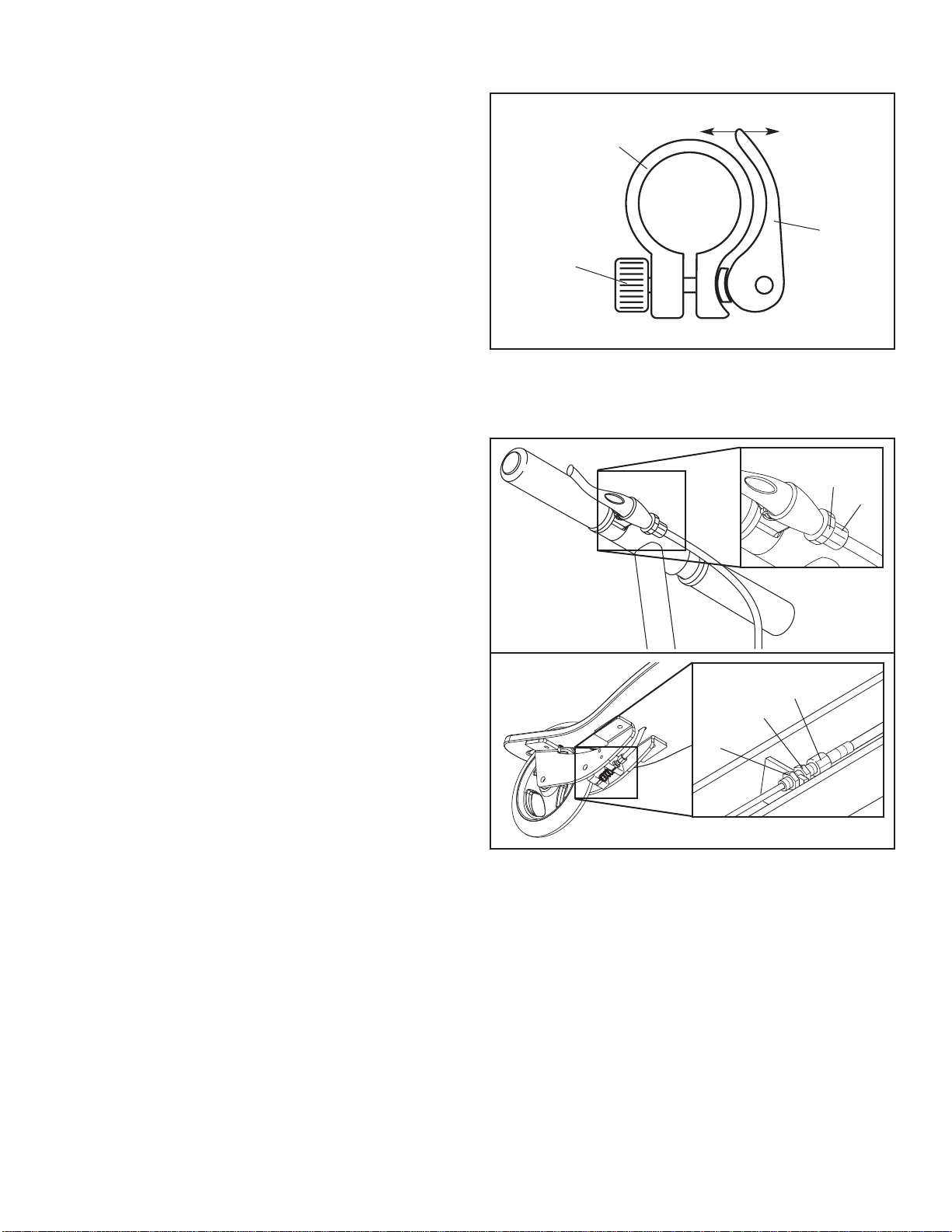

Adjusting The Quick Release

If the quick release doesn’t hold the stem snug in place, you will need to adjust it.

Open the quick-release lever. Turn the adjustment nut clockwise one half turn while keeping the lever from turning. Close the lever. Repeat this procedure until the stem is held snug in place.

If the quick release is too snug to close, it will need to be adjusted.

While the quick-release lever is open, turn the adjustment nut counterclockwise one quarter turn while keeping the lever from turning. Close the lever. Repeat this procedure until the stem is held snug in place and the quick release is closed.

Adjustment

Nut

Open

Lever

Quick Release

Hand Brake Maintenance

Refer to inset drawing 1. Locate the adjustment barrel (B) and the lock nut (A) on the hand brake. Turn the lock nut (A) counterclockwise to loosen it. Next, turn the adjustment barrel (B) counterclockwise a few turns. Then, turn the lock nut (A) clockwise to retighten it. Repeat until the hand brake is properly adjusted.

If the movement of the hand brake needs to be further adjusted, the lower end of the brake cable can be adjusted.

Refer to inset drawing 2. Locate the adjustment barrel (C) and the lock nuts (D and E) near the end of the brake cable. Using a small open-end wrench, turn the outer lock nut (E) counterclockwise to loosen it. Next, turn the adjustment barrel (C) counterclockwise a few turns. Then, turn the inner lock nut (D) clockwise to tighten it.

Page 4

No. Qty. Description

1 1 Deck 2 1 Head Tube 3 1 Fork 4 1 Upright 5 1 Stem 6 2 Handle 7 2 Foam Pad 8 2 Handle Cap

9 3 Push Pin 10 1 Handle Cord 11 1 Quick Release 12 1 Upright Clamp 13 1 Bearing Nut 14 1 Bearing Cap 15 2 Bearing 16 2 Bearing Race 17 2 Bushing 18 1 Pivot Union Bolt Set 19 1 Front Union Bolt Set 20 2 Rear Union Bolt Set 21 2 Wheel w/Bearings 22 2 Rear Wheel Spacer 23 1 Brake Spring 24 1 Brake 25 1 Lock Pin 26 1 Storage Clip 27 2 Front Wheel Spacer 28 1 Tab Washer 29 1 Lower Deck Plate 30 1 Upper Deck Plate 31 1 Head Frame 32 6 Deck Screw 33 1 Cable Tie 34 6 Tek Screw 35 1 Rear Fender 36 4 Mounting Screw 37 1 Hand Brake 38 1 Brake Bracket 39 1 Left Wheel Frame 40 1 Brake Cable 41 9 Flange Nut 42 1 Name Plate 43 1 Name Decal 44 2 Washer 45 1 Upright Bolt 46 2 Rear Deck Screw 47 1 Right Wheel Frame 48 4 Wheel Bearing

# 1 User’s Manual

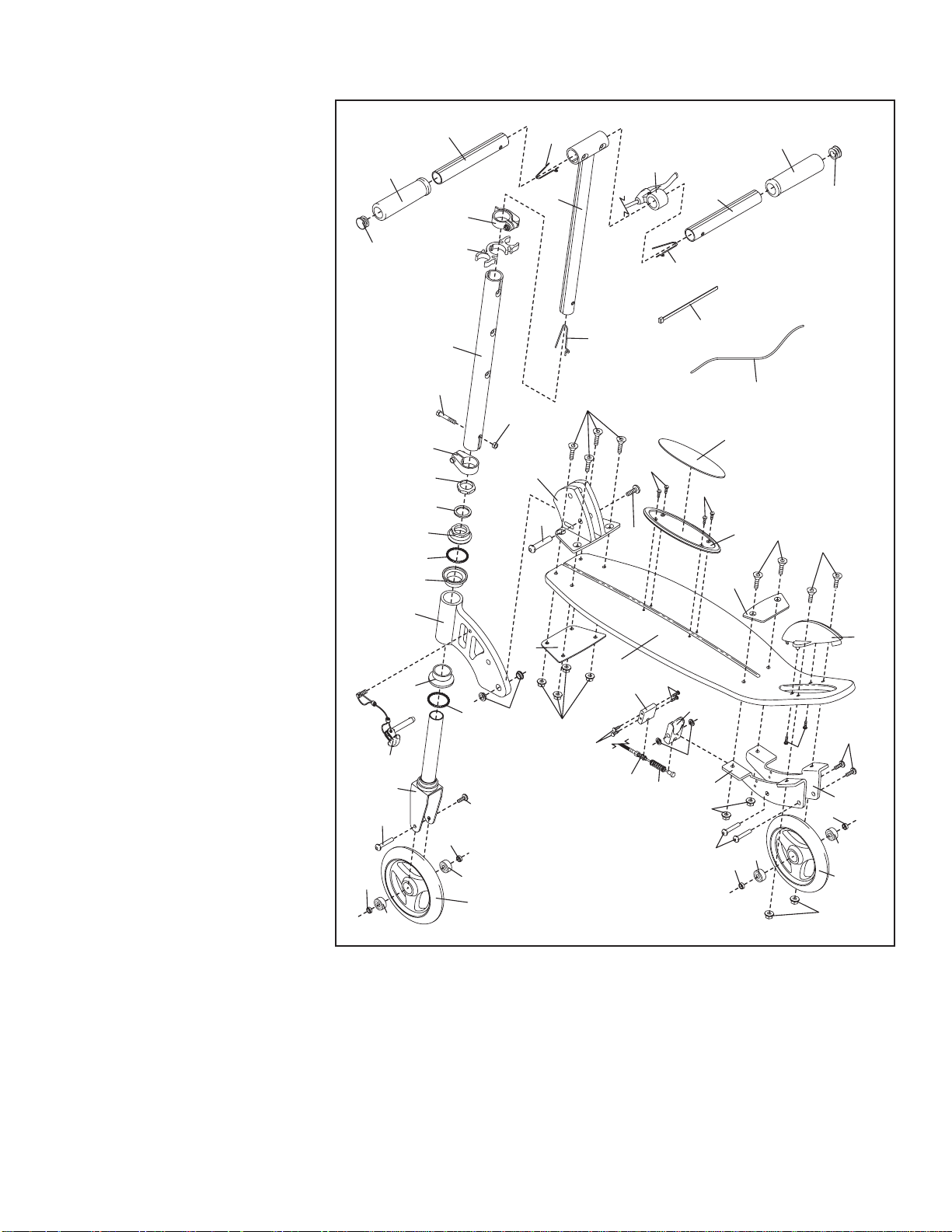

Part List/Exploded Drawing—Model No. PFSC09800 R0101A

Ordering Parts

To order replacement parts, call toll-free 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts, please mention the model number (PFSC09800) and the number and description of the parts needed.

Note: # indicates a non-illustrated part. Specifications are subject to change without notice.
