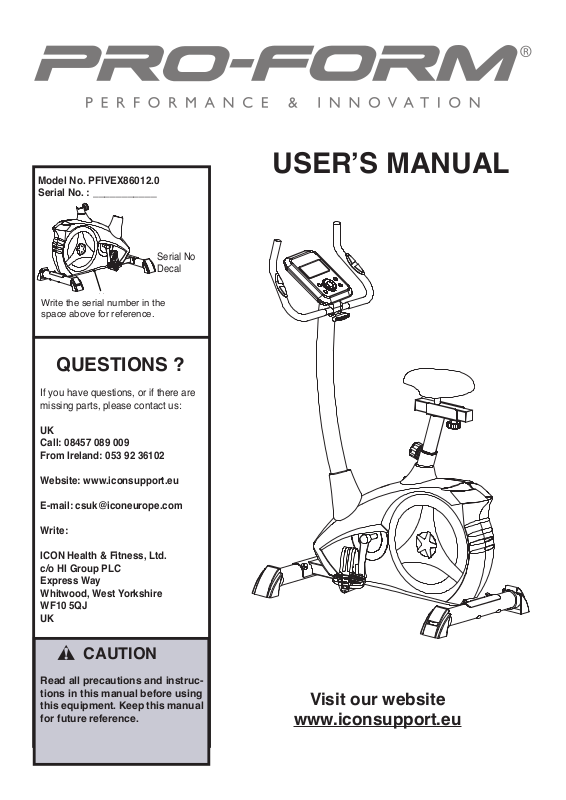

Model No. PFIVEX86012.0
Serial No. :
Write the serial number in the
space above for reference.
___________
Serial No
Decal
QUESTIONS ?
If you have questions, or if there are
missing parts, please contact us:
UK
Call: 08457 089 009
From Ireland: 053 92 36102
USERʼS MANUAL
Website: www.iconsupport.eu
E-mail: csuk@iconeurope.com
Write:
ICON Health & Fitness, Ltd.
c/o HI Group PLC
Express Way
Whitwood, West Yorkshire
WF10 5QJ
UK
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
Visit our website
www.iconsupport.eu
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . .
IMPORTANT PRECAUTIONS
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
MAINTENANCE AND TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
HOW TO OPERATE THE BIKE . . . .
HOW TO MEASURE YOUR PULSE .
CONSOLE FEATURES. . . . . . . . . . . . . . . . . .
EXERCISE GUIDELINES. . . . . . . . . . . . . . . . .
EXPLODED DRAWINGS. . . . . . . . . . . . . . . . . . . . . . . . .
PART LIST . . . . . . . . . . . . . . . . . . . . . . . .
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Last page
. . .
. . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
. . . . . . . . . . .
. . . . . . . . . . .
. .
. . . . . . . .
. . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . .
. . . . . . . . . .
. .
. . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
WARNING DECAL PLACEMENT
This drawing shows the location(s) of
the warning decal(s). If a decal is missing or illegible, call the telephone number on the front cover of this manual
and request a free replacement decal.
Apply the decal in the location shown.
Note: The decal(s) may not be shown
at actual size.
115 Kg
2
IMPORTANT PRECAUTIONS
WARNING : To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your bike before using it. ICON assumes no
responsibility for personal injury or property damage sustained by or through the use of this
product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or
persons with pre-existing health problems.
2. Use this bike only as described in this
manual.
3. It is the responsibility of the owner to ensure
that all users of the bike are adequately
informed of all precautions.
4. The bike is intended for home use only.
Do not use the bike in a commercial,
rental, or institutional setting.
5. Keep the bike indoors, away from
moisture and dust. Place the bike on a
level surface, with a mat beneath it to protect
the oor or carpet. Make sure that there is at
least 3 ft. (0.9 m) of clearance in the front and
rear of the bike and 2 ft. (0.6 m) on each
side.
7. Keep children under age 12 and pets away
from the bike at all times.
8.The bike should not be used by persons
weighing more than 250 lbs. (115 kg).
9. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the bike. Always wear athletic
shoes for foot protection while exercising.
10. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
bike.
11. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in
determining heart rate trends in general.
12. Keep your back straight while using the
bike; do not arch your back.
6. Inspect and properly tighten all parts
regularly. Replace any worn parts
immediately.
13. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
3
BEFORE YOU BEGIN
Thank you for purchasing the ProForm® Racer
5.0. The bike provides an array of features designed to make your workouts at home more effective and enjoyable.
For your benet, read this manual carefully before you use the bike. If you have questions after
reading this manual, please see the front cover of
this manual. To help us assist you, note the product model
number and serial number before contacting us.
The model number is PFIVEX86012.0 and the location of the serial number decal are shown on the
front cover of this manual.
4
ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver and
an adjustable wrench.
As you assemble the exercice bike, use the drawings below to identify small parts. The number in
parentheses below each drawing is the key number of the part, from the PART LIST near the end of
this manual. The number following the parentheses is the quantity needed for assembly.
Note: If a part is not in the hardware kit, check to see if it has been preassembled.
5
STEP 1
Attach the front stabilizer (20) and rear stabilizer
(27) to the main frame (1) with the Carriage bolts
(28),arc washers (13) and Acorn nuts (19) .
STEP 2
Attach the Pedal (22L/R) to the Crank (21L/R) of
the Main frame (1) use the Cross solid wrench.
Note: The left pedal (22L) should be tighten in the
counterclockwise direction, the right pedal (22R)
should be tighten in the clockwise direction.
STEP 3
Insert the vertical post cover (11) into the vertical
post (12) and then connect sensor wire (16) well
with upper sensor wire (3).
Fix the vertical post (12) on the post of the main
frame (1) with hex bolt (14)and arc washer (13)
then cover the vertical post cover (11).
6
STEP 4
Attach the saddle (34) to the horizontal saddle post (33),
secured the screw and nut under the Saddle.
And then t the horizontal saddle post (33) to the vertical
saddle post (29), secured it with the at washer (32) and
knob nut (31) as shown.
Insert the saddle post (29) into the main frame (1), secured
with the Pop –pin knob (30) at a proper height as shown.
STEP 5
Put the pulse sensor wire (4) through the hole of vertical
tube (12).
Use the T shaped bolt (25) to secure the handle cover (10)
and the handlebar (7) to the vertical tube (12) with spacer
(9) and at washer (8).
Connect the Upper sensor wire (3) and pulse sensor wire
(4) to the computer (17), and then x the computer (17)
to the vertical tube (12) with cross pan screw (2) and at
washer(15).
Now, your machine is ready for use.
MAINTENANCE AND TROUBLESHOOTING
Inspect and tighten all parts of the exercise bike
regularly.
Replace any worn parts immediately.
To clean the exercise bike, use a damp cloth and a
small amount of mild soap.
IMPORTANT: To avoid damage to the console,
keep liquids away from the console and keep the
console out of direct sunlight.
7
HOW TO OPERATE THE EXERCISE CYCLE
HOW TO ADJUST THE HEIGHT AND THE LATERAL
POSITION OF THE SEAT
For effective exercise,
the seat should be at the
proper height. As you
pedal, there should be a
slight bend in your knees
when the pedals are in
the lowest position. To
adjust the height of the
seat, rst loosen the seat
post knob. Next, pull the
knob, slide the seat post
upward or downward to the desired position, and
then release the knob. Move the seat post upward
or downward slightly to make sure that the knob is
engaged in one of the adjustment holes in the seat
post. Then, tighten the knob.
To adjust the lateral position of the seat, rst loosen
the seat knob a few turns. Then, move the seat
forward or backward to the desired position, and
rmly tighten the seat knob
HOW TO ADJUST THE ANGLE OF THE
HANDLEBAR
To adjust the angle
of the handlebar,
loosen the pivot handle,
rotate the handlebar
to the desired
angle, and then
Knob
retighten the pivot
handle.
HOW TO ADJUST THE PEDAL STRAPS
To adjust the pedal straps, rst pull the ends of the
pedal straps off the tabs on the pedals.
Adjust the pedal
straps to the desired
position, and then
press the ends of the
pedal straps onto the
tabs.
HOW TO PLUG IN THE POWER ADAPTER
IMPORTANT: If the exercise bike has been exposed
to cold temperatures, allow it to warm to room
temperature before plugging in the power adapter.
If you do not do this, you may damage the console
displays or other electronic components.
Plug the power adapter into the receptacle on the
frame of the exercise bike.
Next, plug the power adapter into the plug adapter.
Then, plug the
plug adapter into
an appropriate
outlet that is
properly
installed in
accordance with
all local codes
and ordinances.
Pedal
Strap
Electric
UK
adaptor
Power
Adaptor
HOW TO MESURE YOUR HEART RATE
Measure your heart rate if desired.
You can measure you heart rate using the handgrip
pulse sensor.
If there are sheets of plastic on the metal contacts
Contact
on the handgrip pulse sensor, remove the plastic.
In addition, make sure that your hands are clean.
To measure your heart rate, hold the handgrip pulse
sensor with your palms resting against the metal
contacts. Avoid moving your hands or gripping the
contacts tightly.
When your pulse is detected, your heart rate will
be shown in the display. For the most accurate
heart rate reading, hold the contacts for at least 15
seconds.
If your heart rate is not shown, make sure that
your hands are positioned as described.
Be careful not to move your hands excessively or to
squeeze the metal contacts tightly. For optimal
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemicals
to clean the contacts.
8
CONSOLE FEATURES
RECOVERY :
Press this button to use the Pulse recovery test (only
available at the end of a program).
BODY FAT :
Press this button to use the body fat test. Once you’ve
entered your personal data (Gender, Age, Weight,
Height), press this button.
Place your hands on the contacts then wait for the
console 2 to 3 seconds to make the calculation.
2 approximate measures will appear on the screen : your
Fat % and your BMI (Body mass index).
3. Start pedaling and follow your progress with the
display :
Follow your progress with the display.
The console has a large screen that shows the following
workout information:
Speed—This display shows your pedaling speed,
in revolutions per minute (rpm).
Time—This display shows the elapsed time.
Note: When a smart program is selected, the display
will show the time remaining in the program
instead of the elapsed time.
Distance—This display shows the distance you
have pedaled, in total revolutions.
Calories—This display shows the approximate
number of calories you have burnt.
Pulse—This display shows your heart rate when
you use the handgrip pulse sensor.
Watts—This display shows the watts you developed
during the workout.
HOW TO USE THE CONSOLE
Make sure that the adapter is plugged. (see page 9 HOW
TO PLUG THE POWER ADAPTER). If there is a sheet of
clear plastic on the face of the console, remove it.
1. Turn on the console
To turn on the console, press any button on the console
or simply begin pedaling.
While you exercise, the console will display the selected
mode.
4. When you are nished exercising, the console will
automatically turn off
If the pedals do not move for a few seconds, the word
STOP will appear in the display, and the console will turn
off.
At the end of a program, you will hear a tone and the
program will ash.
HOW TO USE THE PULSE RECOVERY TEST :
It is a function to check the condition of pulse recovery
that is scaled from 1.0 to 6.0 while 1.0 means the best
and 6.0 means the worst and the increment is 0.1. In
order to get rated correctly, users must test it right after
the workout nished by pressing “TEST RECOVERY ”
key and then stop exercising. After the key is pressed,
please also apply the heart rate detector appropriately,
the test will last for 1 minute and the result will show in
the display. If the computer does not detect your current
heart rate, pressing “TEST RECOVERY ” will not enter
into pulse recovery test. During the pulse recovery test,
press “TEST RECOVERY ” to exit the test and return to
the stop status.
HOW TO USE THE MANUAL MODE
2. Press the buttons :
ENTER knob :
Turn this knob to increase or decrease the resistance
during the workout. In setting mode, turning this knob to
the right increase the values of time, distance, calories,
age, gender or programs , turning this knob to the left to
decrease them. By pressing the knob, you can validate the
data.
RESET :
By pressing this button more than 3 seconds, all the
values can be reset.
START/STOP:
For a quick start, press this button to start the counting of
the console, it will start from 0.
1. Turn on the console.
To turn on the console,press any button on the console
or simply begin pedaling. The entire display will light for a
moment; the console will then be ready for use.
2. Select the user
When you turn on the console, the word U1 will ash on
the display. If your equipment has been kept connected,
then your data will be recorded. You can save up to 4
proles, if you have already recorded your data select
your prole U1, U2, U3 or 4 then validate by pressing
ENTER.
If your data have not been recorded, turn the knob to set
9
your data : gender, age, height and weight, validate each
data by pressing the button ENTER.
3. Select the manual mode.
Once the user is selected, the word STOP as well as
the different programs (Manual, PROGRAM, WATT,
PERSONAL, HRC) will appear, turn the knob to select
the MANUAL program and press ENTER. Finally press
START / STOP to start.
For a quicker start, press the Quick start button and start
pedaling.
4. Change the resistance of the pedals as
desired.
As you pedal, change the resistance of the pedals by
pressing the Resistance increase and decrease buttons.
There are sixteen resistance levels. Note: After you’ve
pressed the buttons, it will take a moment for the pedals
to reach the selected resistance level.
and to the prole shown on the display. Press ENTER to
validate.
Note : Programs 2, 3, 6, 7, 9 10, 11 and 12 being
Performance programs and programs 1, 4, 5 and 8
being Endurance programs.
Consult a coach for more details on the selection and
use of a program.
The prole will ash on the display and you will still
be able to modify the prole course by increasing or
decreasing the difculty. To do so, turn the knob and
choose the resistance to start with, press ENTER to
validate, time will ash and the word STOP will appear.
You’ll then be able to choose the goal of your workout :
time, distance, calorie and pulse.
Choose the data then press ENTER. Do the same for
Distance, Calories or Pulse
Then, press START/STOP to start.
4. Change the resistance of the pedals as
desired.
5. Follow your progress with the display.
The console displays the elapsed time and the distance
you’ve pedaled. Note: When a smart program is selected,
the display will show the time remaining in the program
instead of the elapsed time.It also displays your pedaling
speed (in RPM), the calories and fat calories you’ve burnt
and also your heart rate when you use the handgrip pulse
sensor.
6. Measure your heart rate if desired.
see HOW TO MEASURE YOUR HEART RATE page 8
7. When you are nished exercising, the console will
automatically turn to sleeping mode
If the pedals do not move for a few seconds, the word
STOP will appear in the display, and the console will
turn to sleeping mode. If the pedals do not move and
the console buttons are not pressed for a few minutes,
the temperature will appear on the display and then the
console will automatically turn off.
HOW TO USE THE PRESET PROGRAMS :
1. Turn on the console
To turn on the console, press any button on the console
or simply begin pedaling.
2. Select the user. ( see page 10)
As you pedal, change the resistance of the pedals by
pressing the Resistance increase and decrease buttons.
There are sixteen resistance levels. Note: After you’ve
pressed the buttons, it will take a moment for the pedals
to reach the selected resistance level.
5. When you are nished exercising, the console will
automatically turn off
If the pedals do not move for a few seconds, the word
STOP will appear in the display, and the console will turn
off.
At the end of a program, you will hear a tone and the
program will ash.
USER SETTING PROGRAMS :
1. Turn on the console
To turn on the console, press any button on the console
or simply begin pedaling.
2. Select the user. ( see page 9)
3. Select your preset program
Once the user is selected, the word «SELECT
WORKOUT» will appear on the display. Press ENTER to
have the selection of programs appear. Turn the knob to
select the program : MANUAL, PROGRAM, USER PRO,
HRC (Heart Rate) and WATT . Select the word USER
PRO by pressing ENTER.
3. Select your preset program
Once the user is selected, the word STOP as well as
the different programs (Manual, PROGRAM, WATT,
PERSONAL, HRC) will appear, turn the knob to select
your preset program and press ENTER. Turn the knob
again to select the programs according to your goals
4. Enter your data
The user is free to modify the values of resistance, there
are 16 levels of resistance. This prole will be saved
in the console after the set up. Once your program is
selected and after having pressed the ENTER button, the
rst column start ashing and you can turn the knob to
10
increase or decrease the values and create your prole.
Press ENTER to validate the value.
to adjust the values for the second column and so on. Do
the same for the 16 columns. Then, press START/STOP
to start.
Note : Time cannot be modied, the program last 20
minutes.
You will then be able
WATT PROGRAM :
1. Turn on the console
To turn on the console, press any button on the console
or simply begin pedaling.
2. Select the user. ( see page 9)
5. When you are nished exercising, the console will
automatically turn off
If the pedals do not move for a few seconds, the word
STOP will appear in the display, and the console will turn
off.
At the end of a program, you will hear a tone and the
program will ash.
HEART RATE CONTROL PROGRAMS :
1. Turn on the console
To turn on the console, press any button on the console
or simply begin pedaling.
2. Select the user. ( see page 9)
3. Select your preset program
Once the user is selected, the word «SELECT
WORKOUT» will appear on the display. Press ENTER to
have the selection of programs appear. Turn the knob to
select the program : MANUAL, PROGRAM, USER PRO,
HRC (Heart Rate) and WATT. Select the word USER
PRO by pressing ENTER.
Turn the knob to choose your heart rate goal (55%, 75%
ou 90% of your maximum heart rate or your precise goal
TARGET HR)
The HRC is calculated as follow : 220- your age. Fr
instance, for a person of 35 years old : 220-35 = 185
pulse/min.
3. Select the watt program
Once the user is selected, the word «SELECT
WORKOUT» will appear on the display. Press ENTER to
have the selection of programs appear. Turn the knob to
select the program : MANUAL, PROGRAM, USER PRO,
HRC (Heart Rate) and WATT. Select the word WATT by
pressing ENTER.
4. Enter your data
Turn the knob to enter the data. Enter your Watt goal
(max : 350), then validate by pressing ENTER. Do the
same for Time then press ENTER to validate
Finally press START/STOP to start.
NOTE : Since this program is based on your speed, you
cannot change the resistance of the pedals as desired.
4. When you are nished exercising, the console will
automatically turn off
If the pedals do not move for a few seconds, the word
STOP will appear in the display, and the console will turn
off.
At the end of a program, you will hear a tone and the
program will ash.
4. Entering your datas
Turn the knob to enter your data. Enter your Time goal,
then validate by pressing ENTER. Do the same for
distance and calories Press ENTER to validate and then
START/STOP to start.
During your heart rate control program you cannot
modify the resistance, the level of resistance changes
automatically forcing you to reach your heart rate goal.
Note : You have to leave your hands on the contacts.
5. When you are nished exercising, the console will
automatically turn off
If the pedals do not move for a few seconds, the word
STOP will appear in the display, and the console will turn
off.
At the end of a program, you will hear a tone and the
program will ash.
11
EXERCISE GUIDELINES
WARNING:
Before beginning this or any exercise program, consult your physician. This is especially important for persons over the age of 35
or persons with pre-existing health problems.
The pulse sensor is not a medical device. Various factors may affect the accuracy of heart
rate readings. The pulse sensor is intended
only as an exercise aid in determining heart
rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use
your heart rate as a guide to nd the proper intensity
level. The chart below shows recommended heart
rates for fat burning and aerobic exercise.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the rst few minutes of exercise, your
body uses carbohydrate calories for energy. Only af-
ter the rst few minutes of exercise does your body
begin to use stored fat calories for energy. If your
goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest number in
your training one. For maximum fat burning, exercise
with your heart rate near the middle number in your
training zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
he rst few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as
you exercise–never hold your breath.
To nd the proper intensity level, nd your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age dene your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is
the heart rate for maximum fat burning, and the highest number is the heart rate for aerobic exercise.
Cooling Down—Finish with 5 to 10 minutes of
stretching. Stretching increases the exibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular ex-
ercise, you may complete up to ve workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
12
EXPLODED DRAWING—Model No. PFIVEX86012.0 part 1
13
EXPLODED DRAWING—Model No. PFIVEX86012.0 part 2
14
PART LIST—Model No. PFIVEX86012.0
Item
Description
1
Main frame
2
Cross pan screw M4X10
3
Upper sensor wire
4
Pulse sensor wire
5
Square end cap
6
U-shaped slider
7
Handlebar
8
Flat washer D8
9
Spacer
10
Handle cover
11
Vertical tube cover
12
Vertical tube
13
Arc washer Φ8.5*1.5*Φ25*R30
14
Screw M8X15
15
Foam grip
16
Sensor wire
17
Computer
18
Front stabilizer end cap
19
Nut M8
20
Front stabilizer
21
Crank
22
Pedal
23
Crank spout plug
24
Flange bolt M8X25
25
T shaped bolt M8X65
26
Rear stabilizer end cap
27
Rear stabilizer
28
Carriage bolt M8*74
29
vertical saddle post
30
Pop –pin knob M16*1.5
31
Knob nut M10
32
Flat washer D10
33
Horizontal saddle tube
34
Saddle
35
End cap
36
Hex nut M10x1.0
37
Shield
38
Spring washer D17
39
Bearing
40
Middle axle spacer
41
Middle axle
42
Belt tray
Qty.
1
2
1
2
2
1
1
1
1
1
1
1
8
4
2
1
1
2
4
1
1each
1each
2
2
1
2
1
4
1
1
1
1
1
1
2
1
1
1
2
2
1
1
Item
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
Description
Belt
Bolt
Spring washer
Spring washer
Magnetic board axle
Magnetic board
Spring
Hex bolt
Hex nut
Flat washer D6
Sensor
Idle wheel
Bushing
Bolt M8*20
Idler wheel conrod
Spring
Nylon nut M10
Flange nut M10X1
Bolt M6×50
U-shaped washer
Hex nut M6
Thin nut M10X1.0
Spacer
Hex thin nut M10*1.0
Small belt pulley
Fly wheel
Flywheel axle
Screw ST4*20
Screw ST4*10
Rotating disk
Adapter
Motor
Vertical tube circle
Nylon nut M8
Middle axle spacer
Hex bolt M8X16
Chain cover
Screw ST2.9X10
Circle
Tension control cable
Flat washer Φ10*Φ20*1.5
Qty.
1
2
2
2
1
1
1
1
2
2
1
1
1
1
1
1
4
1
2
2
2
2
1
2
1
1
1
9
6
2
1
1
1
1
1
3
1each
8
1
1
1
15
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
IMPORTANT RECYCLING INFORMATION FOR E. U. CUSTOMERS
This electronic product must not be disposed of in municipal waste. To preserve
the environment, this product must be recycled after its useful life as required by
law. Please use recycling facilities that are authorized to collect this type of waste in
your area. In doing so, you will help to conserve natural resources and improve
European standards of environmental protection. If you require more information about
safe and correct disposal methods, please contact your local city ofce or the
establishment where you purchased this product.
SPECIFICATION :
Open Dimension : (L x l x h): 120x67x154 cm
Product Weight : 26,3 Kg
Printed in China © 2012 Icon Health & Fitness, Inc.
Loading...
