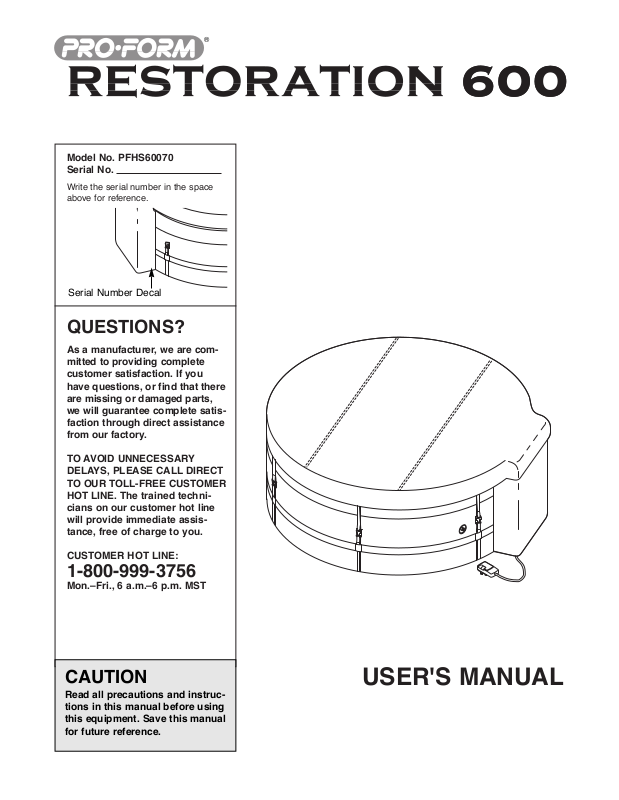

ProForm PFHS60070 User Manual

USER'S MANUAL

QUESTIONS?

As a manufacturer, we are com­mitted to providing complete
customer satisfaction. If you
have questions, or find that there
are missing or damaged parts,
we will guarantee complete satis­faction through direct assistance
from our factory.

TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained techni­cians on our customer hot line
will provide immediate assis­tance, free of charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.ÐFri., 6 a.m.Ð6 p.m. MST

Model No. PFHS60070
Serial No.

Write the serial number in the space
above for reference.

CAUTION

Read all precautions and instruc­tions in this manual before using
this equipment. Save this manual
for future reference.

Serial Number Decal

¨

TABLE OF CONTENTS

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

CHOOSING A LOCATION FOR THE RESTORATION 600 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

USING THE RESTORATION 600 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

Note: A PART LIST and an EXPLODED DRAWING are attached to the center of this manual. Remove the PART
LIST and EXPLODED DRAWING before beginning assembly.

2

PROFORM¨is a registered trademark of ICON Health & Fitness, Inc.

LIMITED WARRANTY

ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of pur­chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim­ited to replacing or repairing, at ICON's option, the product at one of its authorized service centers. All
products for which warranty claim is made must be received by ICON at one of its authorized service cen­ters with all freight and other transportation charges prepaid, accompanied by sufficient proof of purchase.
All returns must be pre-authorized by ICON. This warranty does not extend to any product or damage to
a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or
repairs not provided by an ICON authorized service center, products used for commercial or rental pur­poses, or products used as store display models. No other warranty beyond that specifically set forth
above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con­nection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci­dental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

3

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of drowning, electric shock, or serious injury, read the following
important precautions before using the RESTORATION 600.

READ AND FOLLOW ALL INSTRUCTIONS

1. It is the responsibility of the owner to ensure
that all users of the RESTORATION 600 are
adequately informed of all precautions.

2. Use the RESTORATION 600 only as
described in this manual.

3. The RESTORATION 600 is intended for home
use only. Do not use the spa in any commer­cial, rental, or institutional setting.

4. Use the RESTORATION 600 only on a level
surface. Do not use the spa on carpet or
other materials that could be damaged by
moisture. Do not use the spa on rough or
sharp surfaces such as gravel or wood
chips.

5. The RESTORATION 600 will weigh approxi­mately 2400 pounds when it is assembled
and filled with water. Be sure that the loca­tion you select for the spa will support this
weight, plus the weight of the occupants.

6. Inspect and tighten all parts regularly.
Replace any worn parts immediately.

7. DANGERÑRisk of injury: Do not remove or
alter the covers on the suction fittings. Never
operate the RESTORATION 600 if the suction
guard is missing or broken. Keep hair and
body away from the suction guard. If you
need to replace a suction fitting, be sure that
the flow rate of the replacement is compatible.

8. Do not bring any object into the RESTORA­TION 600 that could puncture the liner.

9. Never insert any object into any opening.

10. Do not sit on the spa cover or place objects
on it. It is not designed to support weight.

11. Remove any water which may collect on the
spa cover.

12. Keep children and pets away from the
RESTORATION 600 when it is not in use.

13. Keep all chemicals away from children and
pets.

14. The pH and chemical balance of the water
must be maintained as explained in this man­ual (see page 13). Failure to do so may cause
injury to users or damage to the spa jet unit,
and will void the warranty.

15. The water pump in the spa jet unit must be
primed before you use the RESTORATION 600
the first time. You must also prime the pump
before using the unit each time you re-fill the
spa. The spa jet unit may be seriously dam­aged if the pump is not properly primed (see
PRIMING THE SPA JET UNIT on page 10).

16. DANGERÑWhen connecting the power cord
(see PLUGGING IN THE RESTORATION 600
on page 10), plug the power cord directly
into a grounded circuit capable of carrying
15 or more amps. No other appliance should
be on the same circuit. Replace the power
cord immediately if damaged.

17. Do not use an extension cord with the
RESTORATION 600. This could damage the
motor and will void the warranty.

18. DANGERÑIf you will be using the RESTORA­TION 600 outside, do not bury the power
cord; you should also keep the power cord
away from lawn mowers, hedge trimmers,
and other similar equipment.

19. WARNINGÑThe power cord is equipped with
a Ground Fault Circuit Interrupter (GFCI),
located at the end of the power cord. The
GFCI must be tested before each use. To test
the GFCI, press the ÒtestÓ button while the
spa jet unit is running. The spa jet unit
should shut off. Press the ÒresetÓ button.
The spa jet unit should resume normal oper­ation. If the spa jet unit continues to run after
the ÒtestÓ button is pressed, then the GFCI is
damaged. Do not use the RESTORATION 600
until the GFCI has been repaired or replaced
by a qualified electrician.

4

20. Keep all electrical appliances such as radios,
telephones, televisions, and lights at least
five feet (1.52 meters) away from the water.

21. A wire connector is provided on the pump
motor of this unit to connect a minimum No.
8 AWG (804 mm2) solid copper conductor
between this unit and any metal equipment,
electrical enclosure made of metal, metal
water pipes, or conduit within five feet
(1.52m) of the unit.

22. DANGERÑRisk of electric shock: Do not set
up the RESTORATION 600 within five feet of
any metal objects or surfaces. As an alterna­tive, you may use the spa within five feet of
metal objects if each metal object is perma­nently connected to the wire connector on
the pump motor of this unit by a minimum
No. 8 AWG (804 mm2) solid copper conductor
(see instruction 21).

23. DANGERÑRisk of drowning: Exercise
extreme caution to prevent unauthorized and
unsupervised use of the RESTORATION 600
by children. Children must always be super­vised.

24. DANGERÑTo reduce the risk of drowning:
¥ Never use the spa alone;
¥ Children should not use the spa unless

they are supervised by an adult;
¥ Keep pets away from the spa at all times;
¥ Always replace and lock the spa cover

when the spa is not in use.

25. WARNINGÑTo reduce the risk of injury: The
water temperature should never exceed
104¡F (40¡C). Temperatures between 100¡F
(38¡C) and 104¡F (40¡C) are considered to be
safe for healthy adults. However, if you plan
to remain in the RESTORATION 600 for more
than 10 to 15 minutes, a lower temperature is
recommended. Lower temperatures are also
recommended for children.

26. WARNINGÑTo reduce the risk of injury:
Always use an accurate thermometer to
determine the water temperature before
using the RESTORATION 600.

27. WARNINGÑTo reduce the risk of injury:
Pregnant women should consult with their
physician before using the RESTORATION

600. Pregnant women should not use the spa
if the water temperature is above 100¡F (38¡C);
the unborn child could be seriously harmed.

28. DANGERÑTo reduce the risk of drowning:
Prolonged immersion in the RESTORATION
600 may cause hyperthermia, a dangerous
condition which occurs when the internal
body temperature rises several degrees
above the normal body temperature of 98.6¡F.
The symptoms of hyperthermia are nausea,
dizziness, drowsiness, and fainting. Effects
include: a lack of awareness, inability to per­ceive heat or danger, and a greater risk of
drowning due to a loss of consciousness.

Special note: Individuals suffering from
hyperthermia may be unable to realize that
they must exit the spa, and they also may be
physically unable to do so.

29. WARNINGÑTo reduce the risk of drowning:
Heat from the water, in conjunction with alco­hol or drugs can cause unconsciousness. Do

not use the RESTORATION 600 if you are
under the influence of drugs or alcohol.

30. WARNINGÑTo reduce the risk of injury or
drowning: Consult your physician about pos­sible side-effects of any medications you may
be taking before using the RESTORATION

600. Heat from the water, in conjunction with
some medications may cause drowsiness
and increase the risk of drowning. Others
can effect blood pressure, heart rate, and cir­culation.

31. WARNINGÑTo reduce the risk of injury: It is
especially important for persons over the age
of 35 or persons with pre-existing health
problems, such as obesity, heart disease,
high or low blood pressure, circulatory prob­lems, or diabetes to consult your physician
before using this product.

32. If you feel pain or dizziness at any time while
using the RESTORATION 600, discontinue
use and contact a physician.

WARNING: Read all instructions before using the RESTORATION 600. ICON assumes no responsibil­ity for personal injury or property damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

5

WARNING LABEL IDENTIFICATION

The warning labels shown below have been placed on the spa cover, printed inside the inflatable spa
liner, and placed on the side of the spa jet unit of the RESTORATION 600. Locate the labels and familiar­ize yourself with this information. The label on the side of the spa jet unit is an adhesive decal. If this
decal is missing, or if it is not legible, please call our Customer Service Department toll-free at 1-800­999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time, to order a replacement decal. Apply
the decal in the location shown.

6

BEFORE YOU BEGIN

Thank you for selecting the PROFORM¨RESTORA­TION 600. The innovative RESTORATION 600 offers
the features and quality of a traditional hot tub at an
affordable price. Best of all, the RESTORATION 600 is
fully portable, so you can take it wherever there is an
electrical outlet. The RESTORATION 600 allows you
to relax and unwind in the comfort of your own home.

For your benefit, read this manual carefully before
using the PROFORM¨RESTORATION 600. If you

have additional questions, please call our Customer

Service Department toll-free at 1-800-999-3756,
Monday through Friday, 6 a.m. until 6 p.m. Mountain
Time (excluding holidays). To help us assist you,
please note the product model number and serial
number before calling. The model number is
PFHS60070. The serial number can be found on a
decal attached to spa jet unit (see the front cover of
this manual).

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.

Spa Jet Unit

Inflation ValveLocking Buckle

Console (Under
Spa Cover)

Spa Cover

Power Cord

Ground Fault Circuit
Interrupter (GFCI)
