CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
Model No. PFEX1995.3
Serial No.
Write the serial number in the
space above for reference.
USER’S MANUAL
QUESTIONS?
As a manufacturer, we are committed to providing complete customer
satisfaction. If you have questions,
or if parts are damaged or missing,
PLEASE DO NOT CONTACT THE
STORE; please contact Customer
Care.
IMPORTANT: You must note the
product model number and serial
number (see the drawing above)
before contacting us:
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
Sat. 8 a.m.–4 p.m. MST
ON THE WEB:
www.proformservice.com
Serial
Number
Decal
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO OPERATE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

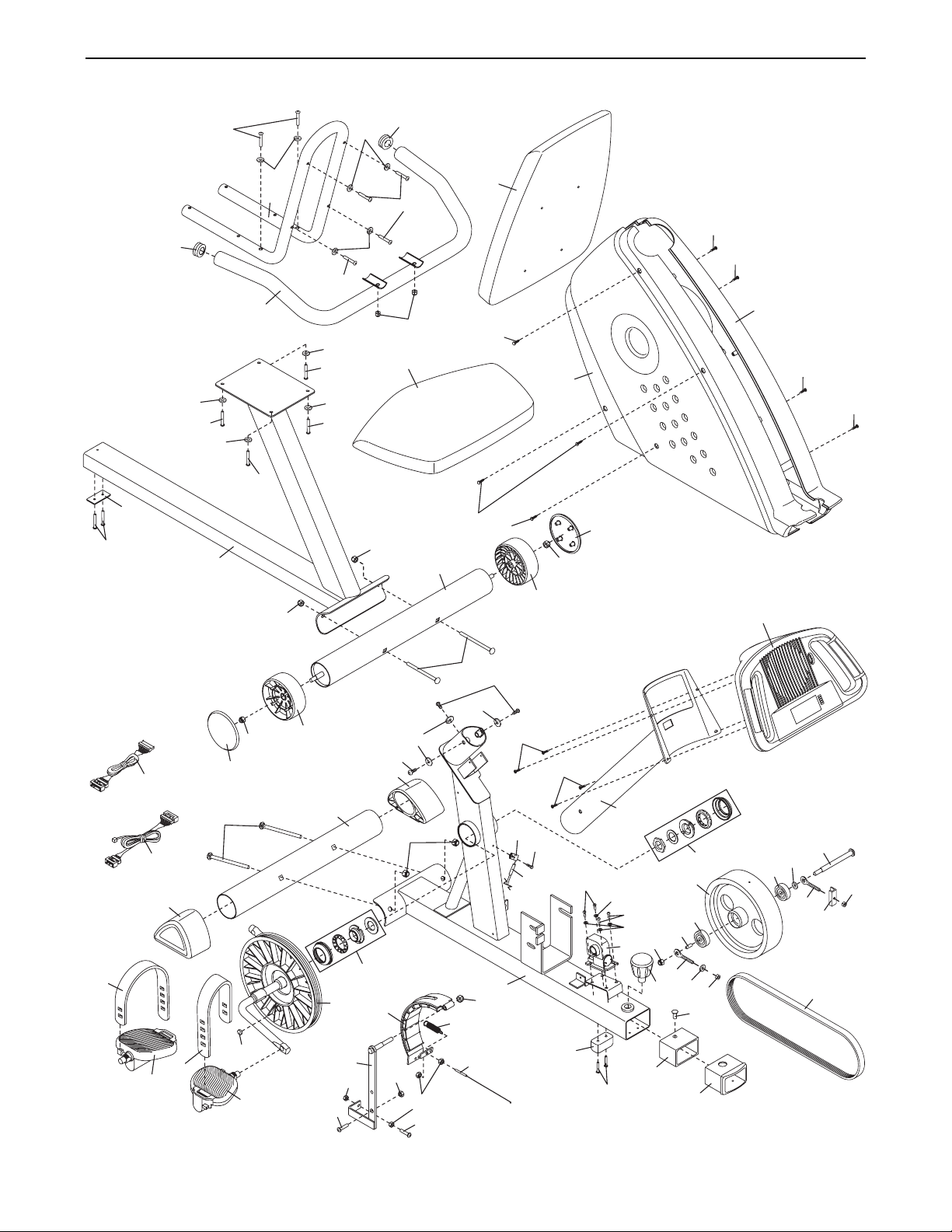

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
PROFORM is a registered trademark of ICON IP, Inc.
WARNING DECAL PLACEMENT
The warning decal shown here has been
applied in the location shown. If the
decal is missing or illegible, call the
telephone number on the front cover
of this manual and request a free
replacement decal. Apply the decal in
the location shown. Note: The decal
may not be shown at actual size.
3
1. Before beginning any exercise program, consult your physician. This is especially important for persons over the age of 35 or persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of the exercise cycle are adequately informed of all precautions.
3. Your exercise cycle is intended for home use
only. Do not use your exercise cycle in a
commercial, rental, or institutional setting.
4. Keep your exercise cycle indoors, away from
moisture and dust. Place your exercise cycle
on a level surface, with a mat beneath it to
protect the floor or carpet. Make sure that
there is enough clearance around your exercise cycle to mount, dismount, and use it.
5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from your exercise cycle at all times.
7. Your exercise cycle should not be used by
persons weighing more than 250 lbs.
(113 kg).
8. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
9. Wear appropriate exercise clothes while
exercising; do not wear loose clothes that
could become caught on your exercise cycle.
Always wear athletic shoes for foot protection while exercising.
10. Keep your back straight while using your
exercise cycle; do not arch your back.
11. When you stop exercising, allow the pedals
to slowly come to a stop.
12. If you feel pain or dizziness while exercising,
stop immediately and cool down.
13. Use your exercise cycle only as described in
this manual.
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise cycle before using your exercise
cycle. ICON assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
IMPORTANT PRECAUTIONS
4
Thank you for selecting the new PROFORM®N35
exercise cycle. Cycling is one of the most effective
exercises for increasing cardiovascular fitness, building endurance, and toning the body. The N35 exercise
cycle offers a selection of features designed to let you
enjoy this healthful exercise in the convenience and
privacy of your home.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
after reading this manual, please see the front cover
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
number decal are shown on the front cover of this
manual.
To avoid a registration fee for any service needed
under warranty, you must register the exercise
cycle at www.proformservice.com/registration.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Seat
Adjustment Knob
Pedal/Strap
Console
Pulse Sensor
Wheel
Fan
Handlebar
BEFORE YOU BEGIN
5
ASSEMBLY
To hire an authorized service technician to assemble the exercise cycle, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-
ing materials. Do not dispose of the packing materials until assembly is completed. In addition to the included
hex keys, assembly requires a Phillips screwdriver and an adjustable wrench .
As you assemble the exercise cycle, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number
following the key number is the quantity needed for assembly. Note: Some small parts may have been pre-
assembled. If a part is not in the hardware kit, check to see if it has been preassembled.
M6 Washer
(55)–8
M4 x 16mm
Round Head
Screw (52)–4
M8 Split
Washer (59)–5
M8 x 25mm Button
Screw (33)–3
M8 Nylon
Locknut (60)–4
M6 x 38mm Button
Screw (48)–4
M8 x 70mm Button
Bolt (54)–2
M10 x 75mm Carriage Bolt (51)–4
M10 Nylon
Locknut (63)–4
M6 x 42mm Button
Screw (49)–4
6
3. Attach the Seat Frame (7) to the Handlebar (6) with
two M8 x 70mm Button Bolts (54), two M8 Split
Washers (59), and two M8 Nylon Locknuts (60). Do
not tighten the Button Bolts yet.
7
6
60
54
59
59
1.
While another person lifts the front of the Frame (1),
attach the Front Stabilizer (3) to the Frame with two
M10 x 75mm Carriage Bolts (51) and two M10
Nylon Locknuts (63).
See the inset drawing. Loosen the Adjustment Knob
(17), slide the Rear Frame (2) out of the Frame (1),
and then retighten the Adjustment Knob.
3
51
1
1
2. Attach the Wheels (18) to the Rear Stabilizer (4)
with two M8 Nylon Locknuts (60). Press a Wheel
Cap (19) onto each Wheel.
Attach the Rear Stabilizer (4) to the Rear Frame (2)
with two M10 x 75mm Carriage Bolts (51) and two
M10 Nylon Locknuts (63).
51
18
4
19
60
18
19
2
63
63
60
2
3
To make assembly easier, read the information
on page 5 before you begin assembling the
exercise cycle.
63
17
2
1
7
4. Attach the Backrest (5) to the Seat Frame (7) with
four M6 x 38mm Button Screws (48) and four M6
Washers (55). Do not tighten the Button Screws
yet.
4
5
7
55
55
48
48
12
55
55
55
7
5
49
2
49
5. Have another person hold the Seat Frame (7) under
the Rear Frame (2) as shown. Attach the Seat
Frame and the Seat (12) to the Rear Frame with
four M6 x 42mm Button Screws (49) and four M6
Washers (55).
See step 3. Tighten the two M8 x 70mm Button
Bolts (54).
See step 4. Tighten the four M6 x 38mm Button
Screws (48).
6
Ta b
Battery Door
Batteries
16
6. The Console (16) requires four “D” batteries (not
included); alkaline batteries are recommended.
IMPORTANT: If the exercise cycle has been
exposed to cold temperatures, allow it to warm
to room temperature before inserting batteries
into the Console. If you do not do this, the console displays or other electronic components
may become damaged. Press the tab on the bat-
tery door and remove it. Insert four batteries into
the Console as shown. Make sure that the batter-
ies are oriented as shown by the diagram on the
battery door. Then, reattach the battery door.
8
7. Connect the console wire harness to the Upper
Wire Harness (36). Insert the console wire harness
into the Upright (13). Attach the Console (16) to the
Upright with four M4 x 16mm Round Head Screws
(52).
7
16
13
36
Console
Wire
Harness
52
13
36
8
8. Connect the Upper Wire Harness (36) to the Lower
Wire Harness (8). Attach the Upright (13) to the
Frame (1) with three M8 x 25mm Button Screws
(33) and three M8 Split Washers (59).
Be careful
to avoid pinching the Wire Harnesses.
8
33
33
33
59
59
1
9
9
25
24
Tab
31
9. Identify the Left Pedal (24), which is marked with a
“Left” sticker. Firmly tighten the Left Pedal
counter-
clockwise
into the left arm of the Crank (31).
Tighten the Right Pedal (not shown)
clockwise
into
the right arm of the Crank. IMPORTANT: Tighten
both Pedals as firmly as possible. After using
the exercise cycle for one week, retighten the
Pedals. For best performance, keep the Pedals
tightened.
Adjust the Left Pedal Strap (25) to the desired position, and press the end of the Left Pedal Strap onto
the tab on the Left Pedal (24). Adjust the Right
Pedal Strap (not shown) in the same way.
10. Make sure that all parts are properly tightened before you use the exercise cycle. Note: Some hardware
may be left over after assembly is completed. Place a mat beneath the exercise cycle to protect the floor.
10
HOW TO OPERATE THE EXERCISE CYCLE
HOW TO ADJUST THE SEAT
After the exercise cycle is assembled, adjust the Seat
(12) to the proper position. As you pedal, there should
be a slight bend in your knees when the pedals are in
the farthest forward position. Loosen the Adjustment
Knob (17), slide the Rear Frame (2) forward or backward in the Frame (1), and then tighten the Adjustment
Knob.
12
17
2
1
11
FEATURES OF THE CONSOLE
This advanced console offers a selection of features
designed to make your workouts more effective. When
you use the manual mode of the console, you can
change the resistance of the pedals with the touch of
a button. As you pedal, the console will provide continuous exercise feedback. You can even measure your
heart rate using the built-in handgrip pulse sensor.
The console also offers five preset programs that
automatically change the resistance of the pedals and
prompt you to vary your pedaling pace while guiding
you through an effective workout.
To use the manual mode of the console, see the
instructions at the right. To use a preset program,
see page 13.
Before using the console, make sure that batteries are
installed (see assembly step 6 on page 7). If there is a
sheet of clear plastic on the display, remove the plastic.
HOW TO USE THE MANUAL MODE
1. Turn on the console.
To turn on the console, press the Increase button
or begin pedaling. The pace guide will light for a
moment; the console will then be ready for use.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected. If you have selected a program,
reselect the manual mode by pressing the
Program button repeatedly until no program indicators (see the drawing above) appear along the
left side of the display.
3. Change the resistance of the pedals as
desired.
As you pedal,
change the resistance of the pedals
by pressing the
Increase and
Decrease buttons.
There are ten resistance levels. Note: After you press the buttons, it
will take a moment for the pedals to reach the
selected resistance level.
Fan
Button
Increase
Button
Program Button
Program
Indicator
Display
Pace
Guide
Decrease
Button
Program
Profiles
DIAGRAM OF THE CONSOLE
12
4.

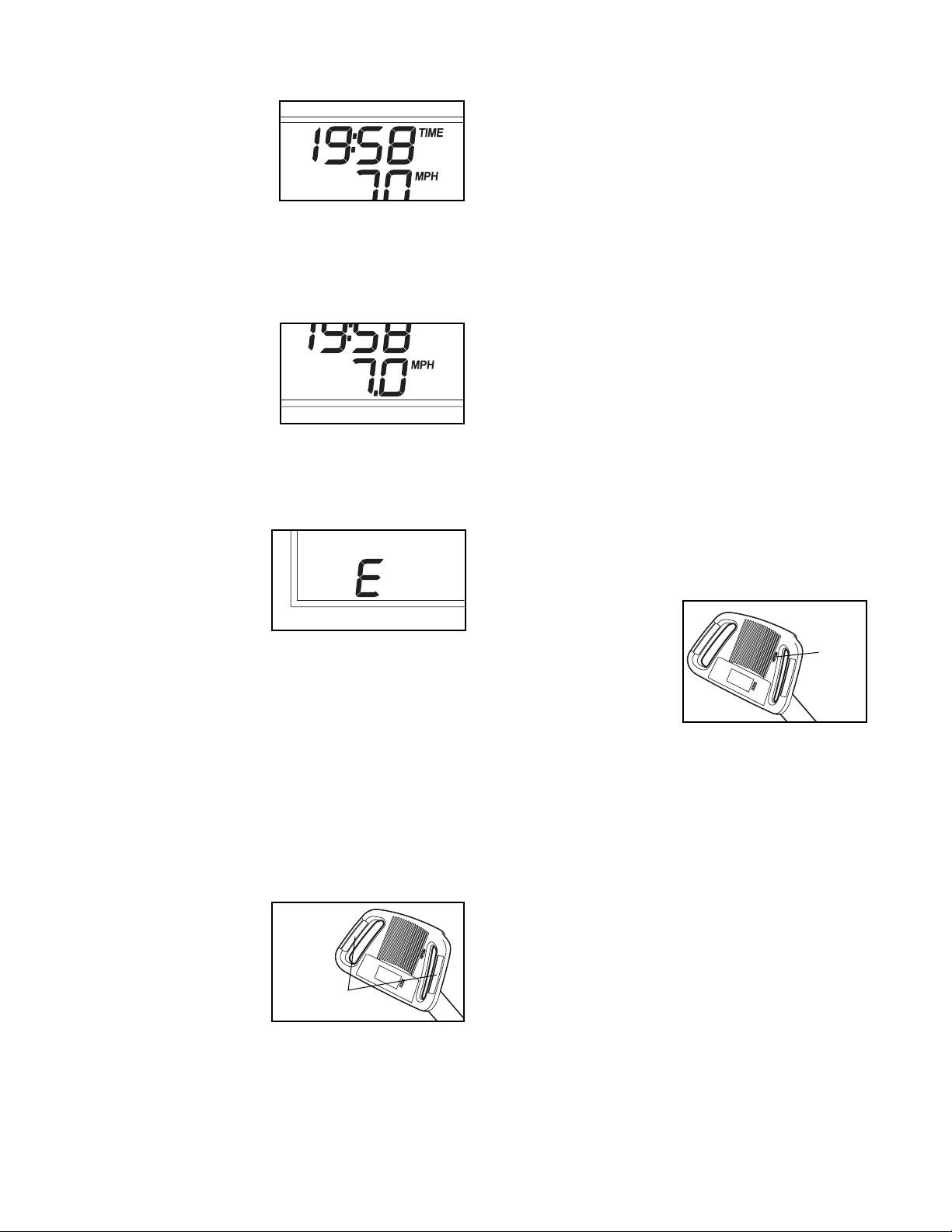

Follow your progress with the display.
The upper half of
the display will show
the elapsed time,
the distance you
have pedaled, and
the resistance level
of the pedals. The
display will change modes every few seconds.
Note: When a preset program is selected, the display will show the time remaining in the program
instead of the elapsed time.
The lower half of the
display will show
your pedaling speed
and the approximate
number of calories
you have burned.
The display will
change modes every few seconds. The lower half
of the display will also show your heart rate when
you use the handgrip pulse sensor (see step 5).
Note: The console
can display speed
and distance in
either miles or
kilometers. The
letters MPH or
KM/H will appear in
the lower half of the display to indicate the selected
unit of measurement. To change the unit of measurement, first hold down the Program button for
several seconds. An E (for English) or an M (for
metric) will appear in the display. Press the Increase
button to change the unit of measurement. When
the desired unit of measurement is selected, press
the Program button again. Note: When you replace
the batteries, it may be necessary to reselect the
unit of measurement.
5. Measure your heart rate if desired.
If there are sheets
of clear plastic on
the metal contacts on the
handgrip pulse
sensor, remove
the plastic. Next,
hold the handgrip
pulse sensor with your palms resting on the contacts. When your pulse is detected, the heart-
shaped indicator in the lower half of the display
will flash each time your heart beats, and then
your heart rate will appear in the display.
For the most accurate heart rate reading, continue
to hold the handgrip pulse sensor for about 30
seconds. Note: If you continue to hold the handgrip pulse sensor, the display will show your heart
rate for about 30 seconds. The display will then
show your heart rate along with the other modes.
If your heart rate does not appear, make sure that
your hands are positioned as described. Avoid
moving your hands excessively or squeezing the
metal contacts too tightly. For optimal performance,
periodically clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
6. Turn on the fan if desired.
To turn on the fan at low speed, press the Fan button. To turn on the fan at high speed, press the
Fan button a second time. To turn off the fan,
press the Fan button a third time. Note: If the fan
is turned on but the pedals do not move for thirty
seconds, the fan will automatically turn off to conserve the batteries.
Rotate the thumb
tab on the right side
of the fan to adjust
the angle of the fan.
7. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for a few seconds, the
time will begin to flash in the display and the console will pause. If the pedals do not move for a few
minutes, the console will turn off and the display
will be reset.
Contacts
Thumb
Ta b
13
HOW TO USE A PRESET PROGRAM
1. Turn on the console.
See step 1 on page 11.
2. Select a preset program.
To select a preset
program, press the
Program button
repeatedly until the
number 1, 2, 3, 4, or
5 appears along the
left side of the display. When you select a preset program, the display will show how long the program will last.
3. Begin pedaling to start the program.
Each preset program consists of 30 one-minute
segments. One resistance level and one target
pace are programmed for each segment.
At the end of each segment, the resistance level
will flash in the display for a few seconds. The
resistance of the pedals will then automatically
change to the resistance level programmed for the
next segment. Note: If the resistance level is too
low or too high, you can override it by pressing the
Increase and Decrease buttons. However, when
the current segment ends, the resistance will automatically change to the resistance level programmed for the next segment.
During the program, the pace guide will prompt
you to keep your pedaling pace near the target
pace programmed for the current segment. When
one of the two lower indicators lights, increase
your pace; when one of the two upper indicators
lights, decrease your pace. When the center indicator lights, maintain your current pace. IMPOR-
TANT: The pace guide is intended only to provide a goal. Make sure to pedal at a pace that
is comfortable for you.
The display will show the time remaining in the
program. If you stop pedaling for a few seconds,
the program will pause and the time will flash in
the display. To restart the program, simply resume
pedaling.
4. Follow your progress with the display.
See step 4 on page 12.
5. Measure your heart rate if desired.
See step 5 on page 12.
6. Turn on the fan if desired.
See step 6 on page 12.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 12.
14
Inspect and properly tighten all parts of the exercise
cycle regularly. Replace any worn parts immediately.
To clean the exercise cycle, use a damp cloth and a
small amount of liquid dish soap. IMPORTANT: To
avoid damaging the console, keep liquids away
from the console and keep the console out of
direct sunlight.
BATTERY REPLACEMENT
If the console display becomes dim, the batteries
should be replaced; most console problems are the
result of low batteries. To replace the batteries, see
assembly step 6 on page 7.

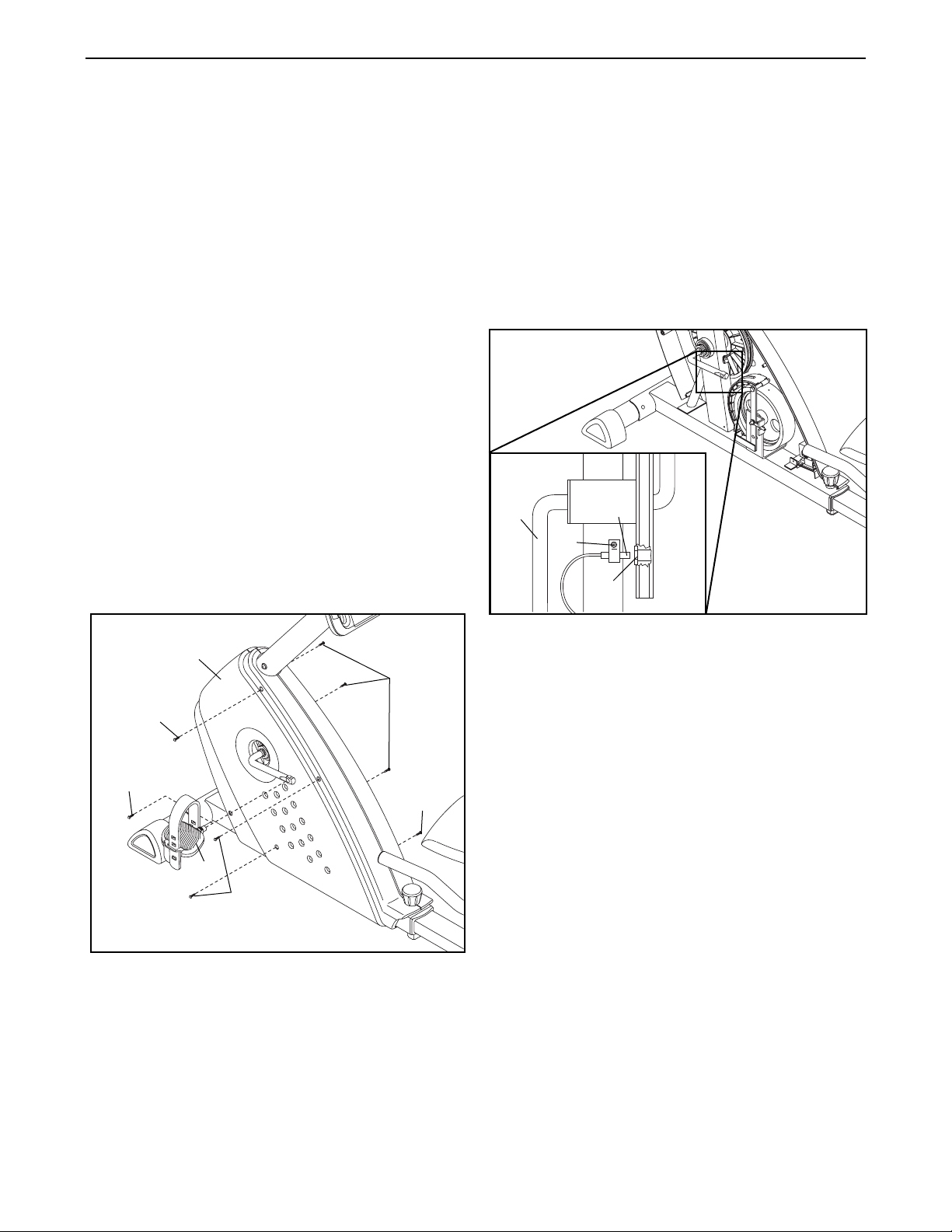

HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, you must first remove the Left Side Shield (9).
Using an adjustable wrench, turn the Left Pedal (24)
clockwise and remove it. Next, remove the seven M4
x 16mm Screws (57) and the M4 x 25mm Screw (45).
Then, carefully remove the Left Side Shield.
With the left side shield removed, locate the Reed
Switch (43). Turn the Crank (31) until the Magnet (38)
is aligned with the Reed Switch. Next, loosen, but do
not remove, the indicated M4 x 16mm Screw (57).
Slide the Reed Switch slightly closer to or away from
the Magnet, and then retighten the Screw. Turn the
Crank for a moment. Repeat until the console displays
correct feedback. When the Reed Switch is correctly
adjusted, reattach the left side shield and the left
pedal.
HANDGRIP PULSE SENSOR TROUBLESHOOTING
If the handgrip pulse sensor does not function properly,
see step 5 on page 12.
MAINTENANCE AND TROUBLESHOOTING
57
57
57
9
57
45
24
38
43
57
31
15
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.

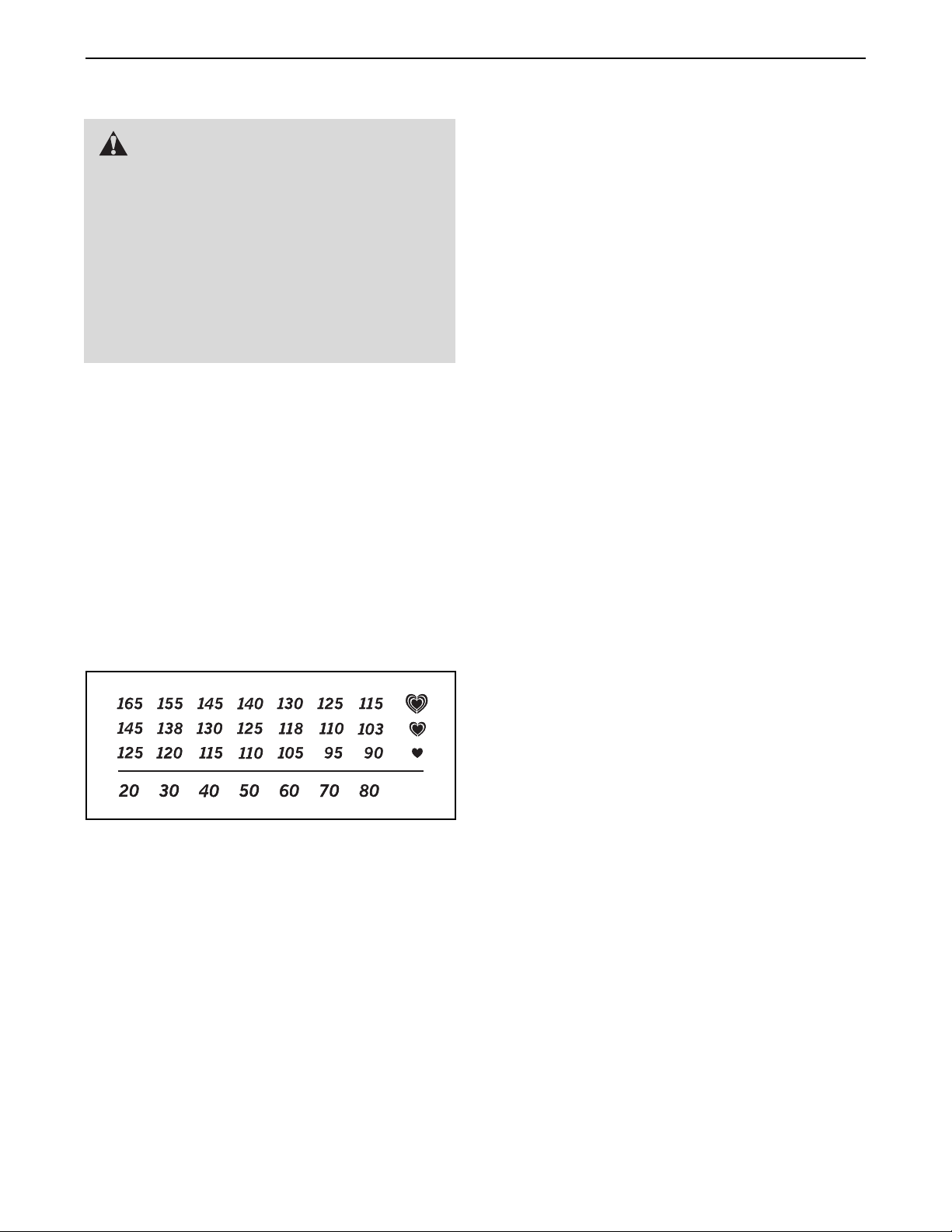

EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses
carbohydrate calories
for energy. Only after
the first few minutes of exercise does your body begin
to use stored
fat calories
for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
Warming up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
EXERCISE GUIDELINES
WARNING: Before beginning
this or any exercise program, consult your
physician. This is especially important for
persons over the age of 35 or persons with
pre-existing health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
16
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right.
Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times. Stretches: Hamstrings, backs of
knees, and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for each leg. Stretches:
Hamstrings, lower back, and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward, and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat
3 times for each leg. To cause further stretching of the achilles
tendons, bend your back leg as well. Stretches: Calves, achilles
tendons, and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. Repeat 3
times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles.
1
2
3
4
5
17
NOTES
18
1 1 Frame
2 1 Rear Frame
3 1 Front Stabilizer
4 1 Rear Stabilizer
5 1 Backrest
6 1 Handlebar
7 1 Seat Frame
8 1 Lower Wire Harness
9 1 Left Side Shield
10 1 Right Side Shield
11 2 Stabilizer Endcap
12 1 Seat
13 1 Upright
14 1 Front Bushing
15 1 Rear Bushing
16 1 Console
17 1 Adjustment Knob
18 2 Wheel
19 2 Wheel Cap
20 1 Frame Pad
21 1 Frame Stop
22 1 Reed Switch Clamp
23 1 C-magnet Bracket
24 1 Left Pedal
25 1 Left Pedal Strap
26 1 Right Pedal
27 1 Right Pedal Strap
28 1 Resistance Motor
29 1 Flywheel Axle
30 1 Belt
31 1 Pulley/Crank
32 1 C-magnet
33 3 M8 x 25mm Button Screw
34 1 Flywheel
35 1 Crank Bearing Assembly
36 1 Upper Wire Harness
37 2 Bearing
38 1 Magnet
39 2 Tension Bolt
40 1 Tension Bracket
41 1 M8 Washer
42 1 Flywheel Washer
43 1 Reed Switch/Wire
44 2 Handlebar Endcap
45 3 M4 x 25mm Screw
46 1 Resistance Cable
47 1 Return Spring
48 4 M6 x 38mm Button Screw
49 4 M6 x 42mm Button Screw
50 3 M4 x 16mm Flat Head Screw
51 4 M10 x 75mm Carriage Bolt
52 4 M4 x 16mm Round Head Screw
53 1 5mm Spacer
54 2 M8 x 70mm Button Bolt
55 8 M6 Washer
56 1 M8 x 20mm Button Bolt
57 12 M4 x 16mm Screw
58 4 M5 Washer
59 5 M8 Split Washer
60 5 M8 Nylon Locknut
61 6 M6 Nut
62 2 M8 Jamnut
63 4 M10 Nylon Locknut
64 1 M6 x 38mm Bolt
* – User’s Manual
* – Hex Key
Note: Specifications are subject to change without notice. See the back cover of this manual for information
about ordering replacement parts. *These parts are not illustrated.
PART LIST—Model No. PFEX1995.3 R1107A
Key No. Qty. Description Key No. Qty. Description
19
EXPLODED DRAWING—Model No. PFEX1995.3 R1107A
50
21
44
55
49
55
2
54
6
49
59
7
55
49
55
49
48
55
55
63
44
48
12
60
5
57
57
10
57
9
57
57
4
19
60
57
45
27
36
8
11
51
19
60
63
18
18
51
33
59
62
52
52
13
22
57
43
1
57
58
57
58
28
62
17
39
53
34
41
35
37
61
50
59
33
11
3
63
35
31
32
47
16
37
29
42
61
39
40
30
26
25
38
24
56
23
61
60
61
64
46
20
45
14
15
Part No. 261894 R1107A Printed in China © 2007 ICON IP, Inc.
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer’s responsibility. For
in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend
to any product or damage to a product caused by or attributable to freight damage, abuse, misuse,
improper or abnormal usage or repairs not provided by an ICON authorized service center; products used
for commercial or rental purposes; or products used as store display models. No other warranty beyond
that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
Loading...
