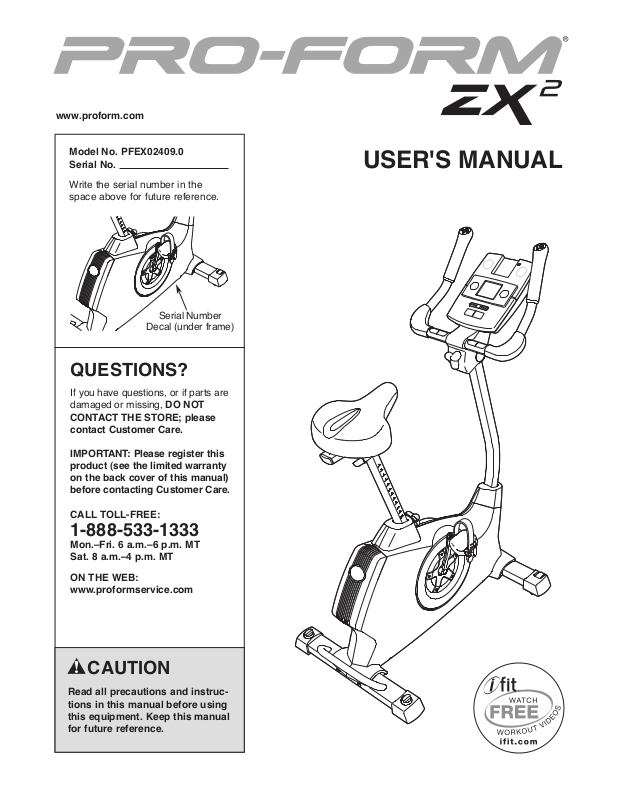

www.proform.com
Model No. PFEX02409.0
Serial No.
Write the serial number in the
space above for future reference.
Serial Number
Decal (under frame)
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
USER'S MANUAL
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
OW TO USE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
H
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise cycle before using your exercise
cycle. ICON assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons with pre-existing health problems.
2. Use the exercise cycle only as described in
this manual.
3. It is the responsibility of the owner to ensure
that all users of the exercise cycle are adequately informed of all precautions.
4. The exercise cycle is intended for home use
only. Do not use the exercise cycle in a commercial, rental, or institutional setting.
5. Keep the exercise cycle indoors, away from
moisture and dust. Place the exercise cycle
on a level surface, with a mat beneath it to
protect the floor or carpet. Make sure that
there is at least 2 ft. (0.6 m) of clearance
around your exercise cycle.
6. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
7. Keep children under age 12 and pets away
from the exercise cycle at all times.
8. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise cycle. Always wear
athletic shoes for foot protection.
9. The exercise cycle should not be used by
persons weighing more than 250 lbs.
(113 kg).
10. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
11. Always keep your back straight while using
the exercise cycle; do not arch your back.
12. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
3
BEFORE YOU BEGIN
hank you for selecting the new PROFORM
T
exercise cycle. Cycling is an effective exercise for
increasing cardiovascular fitness, building endurance,
and toning the body. The ZX2 exercise cycle provides
n impressive selection of features designed to make
a
your workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the exercise cycle. If you have questions
Handgrip Pulse Sensor
Adjustment Knob
®
X2
Z
fter reading this manual, please see the front cover
a
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
umber decal are shown on the front cover of this
n
manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Game Controller
Console
Handlebar
Seat
Seat Adjustment Knob
Seat Post
Leveling Knob
Leveling Foot
Adjustment Knob
Pedal/Strap
Wheel
4
M10 x 95mm Patch
Screw (76)–4
M8 x 20mm
Patch Screw (74)–4
M6 x 60mm Bolt Set (51)–1
M4 x 16mm
Screw (90)–8
M4 x 5mm
Bright Screw
(91)–1
M8 Split
Washer (75)–8
M8 Washer
(43)–2
M8 Locknut
(72)–4
M6 x 70mm Bolt Set (50)–1
ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-
ng materials. Do not dispose of the packing materials until assembly is completed.
i
In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable
wrench , and a rubber mallet .
As you assemble the exercise cycle, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number
following the parentheses is the quantity needed for assembly. Note: If a part is not in the hardware kit,
check to see if it has been preassembled.
1.
To make assembly easier, read the
information at the top of this page before
you begin.
Attach the Rear Stabilizer (3) to the Frame (1)
with two M10 x 95mm Patch Screws (76).
5
1
3
76
1
2. Attach the Front Stabilizer (2) to the Frame (1)
with two M10 x 95mm Patch Screws (76).
2
3. Loosen the Adjustment Knob (27) in the Frame
(1) a few turns.
Orient the Seat Post (6) as shown. Then, pull
the Adjustment Knob (27) outward and insert
the Seat Post into the Frame (1). Slide the Seat
Post upward or downward to the desired position, and release the Adjustment Knob.
Move the Seat Post (6) upward or downward
slightly to make sure that the Adjustment
Knob (27) is engaged in one of the adjustment holes in the Seat Post. Then, tighten the
Adjustment Knob.
2
1
3
Adjustment
Holes
6
1
27
76
4. Orient the Seat (23) and the Seat Carriage (24)
as shown.
Attach the Seat (23) to the Seat Carriage (24)
with four M8 Locknuts (72) and four M8 Split
Washers (75).
Next, slide the Seat Carriage (24) onto the Seat
Post (6). Slide the Seat Carriage all the way forward, and tighten the Seat Adjustment Knob
(26).
Then, tighten an M4 x 5mm Bright Screw (91)
into the rear of the Seat Post (6).
4
23
6
91
24
75
72
26
6
5. Apply some of the included grease to an M6 x
70mm Bolt Set (50).
rient the Handlebar (5) and the Upright (4) as
O
shown.
While a second person holds the Handlebar (5)
near the Upright (4), insert the Extension Wire
(59) upward through the Handlebar.
Tip: Avoid pinching the Extension Wire (59).
Attach the Handlebar (5) to the Upright (4) with
the M6 x 70mm Bolt Set (50) and two M8
Washers (43).
5
0
5
Grease
51
43
5
59
43
50
Then, attach an M6 x 60mm Bolt Set (51)
through the lower bracket on the Handlebar (5).
6. The Console (13) can use four D batteries (not
included); alkaline batteries are recommended.
IMPORTANT: If the Console has been
exposed to cold temperatures, allow it to
warm to room temperature before inserting
batteries. Otherwise, you may damage the
console displays or other electronic components. Remove the indicated screw, remove the
battery cover, insert the batteries into the battery compartment, and then reattach the battery
cover. Make sure to orient the batteries as
shown by the diagrams inside the battery
compartment.
To purchase an optional AC adapter, contact
the store where you purchased this product
or call the telephone number on the front
cover of this manual. To avoid damaging the
console, use only a manufacturer-supplied
AC adapter. Plug one end of the AC adapter
into the jack on the console; plug the other end
into an outlet installed in accordance with all
local codes and ordinances.
Avoid pinching the
Extension Wire (59)
6
Batteries
13
51
Screw
4
Battery
Cover
Batteries
7
7. While another person holds the Console (13)
near the Handlebar (5), connect the console
wires to the Extension Wire (59), the Pulse Wire
61), the Left Controller Wire (66), and the Right
(
Controller Wire (67). Look at the tags on the
ires and make sure that the Left and Right
w
Controller Wires are connected to the correct wires on the console.
Insert the excess wire downward into the
Handlebar (5) or upward into the Console (13).
7
13
Console
ires
W
61
59
66
Tip: Avoid pinching the wires. Attach the
Console (13) to the Handlebar (5) with four M4
x 16mm Screws (90).
8. Orient the Upright (4) assembly and the Pivot
Cover (12) as shown.
Slide the Pivot Cover (12) upward to the
Handlebar (5). Tip: Bend and flex the Pivot
Cover slightly to slide it over the Handlebar.
Attach the Pivot Cover (12) to the Handlebar (5)
with four M4 x 16mm Screws (90).
Next, pivot the Handlebar (5) until the hole in
the Handlebar is aligned with an adjustment
hole in the Upright (4).
Tighten an Adjustment Knob (27) into the
Handlebar (5) and into an adjustment hole in
the Upright (4). Make sure that the
Adjustment Knob is engaged in one of the
adjustment holes.
Avoid pinching
the wires
8
Adjustment
Holes
5
Hole
90
67
5
90
90
4
12
90
27
90
8
9. Slide the Front Shield Cover (7) upward onto
the Upright (4).
hile another person holds the Upright (4) near
W
the Frame (1), connect the Extension Wire (59)
o the Wire Harness (58).
t
Insert the Upright (4) into the Frame (1).
Tip: Avoid pinching the wires. Attach the
Upright (4) with four M8 x 20mm Patch Screws
(74) and four M8 Split Washers (75).
Then, slide the Front Shield Cover (7) downward to the Frame (1) and press it into place.
9
75
4
7
59
1
58
75
74
75
Avoid pinching
he wires
t
74
10. Identify the Right Pedal (21), which is marked
with an “R.”
Using an adjustable wrench, firmly tighten the
Right Pedal (21) clockwise into the Right Crank
Arm (19).
Tighten the Left Pedal (not shown) counter-
clockwise into the Left Crank Arm (not shown).
IMPORTANT: Tighten both pedals as firmly
as possible. After using the exercise cycle
for one week, retighten the pedals. For best
performance, keep the pedals tightened.
Adjust the strap on the Right Pedal (21) to the
desired position, and press the ends of the
straps onto the tabs on the Right Pedal. Adjust
the strap on the Left Pedal (not shown) in
the same way.
11. Make sure that all parts are properly tightened before you use the exercise cycle. Note: Some hardware may be left over after assembly is completed. Place a mat under the exercise cycle to protect the
floor or carpet.
10
19
Strap
21
Tab
9
HOW TO USE THE EXERCISE CYCLE
HOW TO ADJUST THE HEIGHT OF THE SEAT
For effective exercise, the seat should be at the
roper height. As you pedal, there should be a slight
p
bend in your knees when the pedals are in the lowest
osition.
p
To adjust the
seat, first loosen
the adjustment
knob a few turns.
Next, pull the
knob outward,
slide the seat
post upward or
downward to the
desired position,
and then release
the knob. Move
the seat post
upward or
downward
slightly to make
sure that the
knob is engaged in one of the adjustment holes in
the seat post. Then, tighten the knob.
HOW TO ADJUST THE LATERAL POSITION OF
THE SEAT
To adjust the lateral position of
the seat, first
loosen the seat
adjustment knob
a few turns.
Then, move the
seat forward or
backward to the
desired position,
and firmly tighten
the knob.
Seat Post
Seat
Seat Knob
Seat Post
Seat
Holes
Knob
HOW TO ADJUST THE PEDAL STRAPS
To loosen the
edal straps, pull
p
the straps
pward. To
u
tighten the pedal
staps, adjust the
straps to the
desired position,
and press the
ends of the straps
onto the tabs on
the pedals.
HOW TO ADJUST THE ANGLE OF THE
HANDLEBAR
To adjust the
angle of the handlebar, first
loosen the adjustment knob a few
turns. Next, pull
the knob outward,
pivot the handlebar to the desired
angle, and then
release the knob
into an adjustment hole. Make
sure that the
knob is engaged
in one of the
adjustment holes. Then, tighten the knob.
HOW TO LEVEL THE EXERCISE CYCLE
If the exercise
cycle rocks
slightly on your
floor during use,
turn one or both
of the leveling
knobs on the rear
stabilizer and
adjust the leveling
feet until the rocking motion is
eliminated.
Handlebar
Knob
Leveling
Knobs
Tab
Holes
Strap
10
CONSOLE DIAGRAM
Workout
Buttons
Display
Button
FEATURES OF THE CONSOLE
This revolutionary console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. While you exercise, the console will display continuous exercise feedback. You can even
measure your heart rate using the handgrip pulse sensor.
The console offers sixteen preset workouts—eight
weight loss workouts and eight aerobic/performance
workouts. Each workout automatically changes the
resistance of the pedals and prompts you to vary your
pedaling speed as it guides you through an effective
workout.
The console also features two motivational interactive
games. Using the dual game controllers, play the challenging Fat Blocker™ game or the fast-paced Calorie
Destroyer™ game during your workouts—the harder
you exercise, the greater your advantage!
Game
Buttons
Volume
Button
Resistance
specific fitness goals. For example, lose unwanted
pounds with the 8-week Weight Loss workout. iFit
workouts control the resistance of the pedals while the
voice of a personal trainer coaches you through your
workouts. iFit cards are available separately. To pur-
chase iFit cards, go to www.iFit.com or see the
front cover of this manual. iFit cards are also
available at select stores.
You can even connect your MP3 player or CD player
to the consoleʼs sound system and listen to your
favorite workout music or audio books while you exercise.
To use the manual mode, see page 12. To use a
preset workout, see page 14. To play the Fat
Blocker game, see page 15. To play the Calorie
Destroyer game, see page 16. To use an iFit workout, see page 17. To use the sound system, see
page 17. To change the console settings, see page
18.
Note: If there is a sheet of clear plastic on the face of
the console, remove the plastic.
Volume
Button
Buttons
The console also features the iFit interactive workout
system, which enables the console to accept iFit cards
containing workouts designed to help you achieve
11
HOW TO USE THE MANUAL MODE
4. Follow your progress with the display.
1. Begin pedaling or press any button on the
onsole to turn on the console.
c
hen you turn on the console, the display will
W
light. The console will then be ready for use.
2. Select the manual mode.
Each time you turn on the console, the manual
mode will be selected.
If you have selected a workout, press any of the
Workouts or Fitness Games buttons (see the
drawing on page 11) repeatedly until zeroes
appear in the display.
The console offers several display modes. The
isplay mode that you select will determine which
d
workout information is shown. Press the Display
utton (see the drawing on page 11) repeatedly to
b
select the desired display mode.
The display can show the following workout information:
Time—When the manual mode is selected, this
display will show the elapsed time. When a workout is selected, the display will show the time
remaining in the workout instead of the elapsed
time.
3. Change the resistance of the pedals as
desired.
As you pedal,
change the resistance of the pedals
by pressing the
resistance
increase and
decrease buttons
(see the drawing
on page 11) repeatedly. Note: After you press the
buttons, it will take a moment for the pedals to
reach the selected resistance level.
Speed—This display will show your pedaling
speed, in miles per hour (MPH) or kilometers per
hour (KM/H).
Distance—This display will show the distance you
have pedaled, in miles or kilometers.
Calories—This display will show the approximate
number of calories you have burned.
Watts—This display will show your approximate
power output in watts.
12
Pulse—This display will show your heart rate
when you use the handgrip pulse sensor (see step
5 below).
Resistance—This display will show the resistance
evel of the pedals for a few seconds each time
l
the resistance level changes.
When your pulse is detected, dashes will appear
in the display, and then your heart rate will be
shown. For the most accurate heart rate reading,
old the contacts for at least 15 seconds. Note: If
h
you continue to hold the handgrip pulse sensor,
he display will show your heart rate for up to 30
t
seconds.
Profile—When a workout is selected, this display
will show a profile of the resistance settings for the
workout.
Display Settings—The console offers a display
settings mode that can be entered when the words
HOLD DISPLAY FOR SETTINGS appear in the
display. To change the display settings, see HOW
TO CHANGE THE CONSOLE SETTINGS on page
18.
Change the volume level of the console by pressing the Volume increase and decrease buttons.
Note:
The console can show pedaling speed and
distance in either miles or kilometers. The letters
MPH or KM/H will appear in the display to show
which unit of measurement is selected. To change
the unit of measurement, see step 3 of HOW TO
CHANGE THE CONSOLE SETTINGS on page 18.
5. Measure your heart rate if desired.
If there are sheets
of clear plastic on
the metal contacts
on the handgrip
pulse sensor,
remove the plastic. To measure
your heart rate,
hold the handgrip
pulse sensor with
your palms resting
against the metal contacts. Avoid moving your
hands or gripping the contacts tightly.
Contacts
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
to squeeze the metal contacts tightly. For optimal
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
6. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
tone will sound, the console will pause, and the
time will flash in the display. To resume your workout, simply resume pedaling.
If the pedals do not move for several minutes and
the buttons are not pressed, the console will turn
off and the display will be reset.
13
HOW TO USE A PRESET WORKOUT
1. Begin pedaling or press any button on the
onsole to turn on the console.
c
hen you turn on the console, the display will
W
light. The console will then be ready for use.
2. Select a preset workout.
To select a preset workout, press the Weight Loss
or the Aerobic/Performance button repeatedly until
the profile of the desired workout appears in the
display.
The workout time and a profile of the resistance
levels for the workout will appear in the display.
Profile
If a different resistance level and/or target speed is
programmed for the next segment, the resistance
level and/or the target speed will flash in the dis-
lay for a few seconds to alert you. The resistance
p
of the pedals will then change.
As you exercise,
you will be
prompted to keep
your pedaling
speed near the target speed for the
current segment.
When an upwardpointing arrow appears in the display, increase
your speed. When a downward-pointing arrow
appears in the display, decrease your speed.
When no arrows appear, maintain your current
speed.
IMPORTANT: The target speed is intended only
to provide motivation. Your actual speed may
be slower than the target speed. Make sure to
exercise at a speed that is comfortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the resistance buttons.
IMPORTANT: When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level for the next segment.
3. Begin pedaling to start the workout.
Each workout is divided into 20 or 30 one-minute
segments. One resistance level and one target
speed are programmed for each segment. Note:
The same resistance level and/or target speed
may be programmed for consecutive segments.
During the workout, the workout profile will show
your progress. The flashing segment of the profile
represents the current segment of the workout.
The height of the flashing segment indicates the
resistance level for the current segment.
At the end of each segment of the workout, a
series of tones will sound and the next segment of
the profile will begin to flash. The resistance level
and the target speed will also appear in the display.
The workout will continue in this way until the last
segment ends. To stop the workout at any time,
stop pedaling. A tone will sound, the console will
pause, and the time will begin to flash in the display. To restart the workout, simply resume
pedaling.
4. Follow your progress with the display.
See step 4 on page 12.
5. Measure your heart rate if desired.
See step 5 on page 13.
6. When you are finished exercising, the console
will turn off automatically.
See step 6 on page 13.
14
HOW TO PLAY THE FAT BLOCKER GAME
The Fat Blocker game requires quick thinking and fast
reflexes. In addition to the console buttons, you will
use the four-button game controllers on the handlebar
to play the game. Follow the steps below to play the
Fat Blocker game.
1. Begin pedaling or press any button on the
console to turn on the console.
Your goal is to
maneuver the
blocks so that they
form a complete
row of black
squares across the
entire arena. Each
time you complete
a row of black squares, the row will disappear, and
all blocks above will move downward one row.
Complete Row
When you turn on the console, the display will
light. The console will then be ready for use.
2. Select the Fat Blocker game.
To select the Fat Blocker game, press the Fat
Blockers button (see the drawing on page 11).
3. Begin pedaling or press a button on either
controller to start the game.
When you start the Fat Blocker game, a game
arena will appear in the center of the display.
As you play, the blocks will fall faster and faster;
however, the faster you pedal, the more slowly the
blocks will fall, giving you extra time to position
and orient the blocks. The game will continue until
any part of a stacked block reaches the top of the
arena.
When the game ends, the display will show your
final score and the level of play that you reached.
The display will then show the four highest scores
recorded since the scores were reset. If desired,
press and hold down the right button on either
controller to reset the scores. Note: If your score is
one of the four highest, the display will prompt you
to enter a name consisting of three letters or digits. While the line below the first letter is flashing,
press the up and down buttons on either controller
to select the desired letter or digit. Next, press the
right button on either controller and select another
letter or digit. Repeat this process to select a third
letter or digit. Then, press the right button on either
controller again. The display will then show the
four highest scores recorded since the scores
were reset.
A block composed of four or five black squares will
slowly move downward until it reaches the bottom
of the arena. Another block will then move downward. Blocks come in eight different shapes. As
each block falls, you can move it to the left or right
using the left and right buttons on the left controller. In addition, you can rotate the block
counterclockwise or clockwise using the left and
right buttons on the right controller. Once you have
positioned and oriented a block, you can speed its
motion to the bottom of the arena, if desired, by
pressing the down button on either controller.
4. Follow your progress with the display.
While you exercise and play the Fat Blocker
game, the corners of the display will show the
elapsed time, the approximate number of calories
you have burned, and your pedaling speed. In
addition, the display will show your current score
and the game level that you have reached.
To pause the game, press the Display button. To
resume the game, press the Display button
repeatedly until the words FAT BLOCKER appear
at the top of the display, and then press a button
on either controller.
5. When you are finished exercising, the console
will turn off automatically.
See step 6 on page 13.
15
HOW TO PLAY THE CALORIE DESTROYER GAME
The Calorie Destroyer game is a fast-paced game that
its you against a squadron of laser-firing drones. In
p
addition to the console buttons, you will use the four-
utton game controllers on the handlebar to play the
b
game. Follow the steps below to play the Calorie
Destroyer game.
1. Begin pedaling or press any button on the
console to turn on the console.
When you turn on the console, the display will
light. The console will then be ready for use.
2. Select the Calorie Destroyer game.
To select the Calorie Destroyer game, press the
Calorie Destroyers button (see the drawing on
page 11).
3. Press a button on either controller to start the
game.
When you start the Calorie Destroyer game, a
game arena will appear in the display. Three rows
of drones will begin to move across the top of the
arena, periodically firing their lasers downward.
Each time the drones reach the left or right side of
the arena, they will reverse direction and move
downward.
Between the drones and the laser blaster are five
shields. You can hide the laser blaster below a
shield if desired. However, each time a shield is hit
y a laser, a piece will be vaporized.
b
our goal is to keep the laser blaster from being
Y
hit and to keep any drone from reaching the bottom of the arena. If the laser blaster is hit, it will be
disabled and another laser blaster will appear in its
place; there are a total of four laser blasters. If you
vaporize the entire squadron of drones, a new
squadron will appear.
As you play, the drones will move faster and
faster. The game will continue until all four laser
blasters are disabled or a drone reaches the bottom of the arena.
When the game ends, the display will show the
level of play that you reached and your final score.
The display will then show the four highest scores
recorded since the scores were reset. If desired,
press and hold down the right button on either
controller to reset the scores. Note: If your score is
one of the four highest, the display will prompt you
to enter a name consisting of three letters or digits. While the line below the first letter is flashing,
press the up and down buttons on either controller
to select the desired letter or digit. Next, press the
right button on either controller and select another
letter or digit. Repeat this process to select a third
letter or digit. Then, press the right button on either
controller again. The display will then show the
four highest scores recorded since the scores
were reset.
At the bottom of the arena is a laser blaster. You
can fire the laser blaster at the drones by pressing
the up button on either controller. In addition, while
you are pedaling, you can move the laser blaster
to the left or right using the left and right buttons
on either controller. The faster you pedal, the
faster the laser blaster will move.
4. Follow your progress with the display.
While you exercise and play the Calorie Destroyer
game, the upper left corner of the display will
show the elapsed time. In addition, the display will
show the game level that you have reached and
your current score.
To pause the game, press the Display button. To
resume the game, press the Display button
repeatedly until the word DESTROYER appears at
the top of the display, and then press a button on
either controller.
5. When you are finished exercising, the console
will turn off automatically.
See step 6 on page 13.
16
HOW TO USE AN IFIT WORKOUT
HOW TO USE THE SOUND SYSTEM
iFit cards are available separately. To purchase iFit
ards, go to www.iFit.com or see the front cover of this
c
manual. iFit cards are also available at select stores.
1. Begin pedaling or press any button on the console to turn on the console.
When you turn on the console, the display will
light. The console will then be ready for use.
2.
Insert an iFit card and select a workout.
To use an iFit workout, insert an iFit card into the
iFit slot; make sure that the iFit card is oriented so
that the metal contacts are face down and are facing the slot. When the iFit card is properly
inserted, the indicator next to the slot will light and
text will appear in the display.
iFit Slot
To play music or audio books through the consoleʼs
ound system while you exercise, plug the included
s
audio cable into the jack on the console and into a
ack on your MP3 player or CD player; make sure
j
that the audio cable is fully plugged in.
Next, press the play button on your MP3 player or CD
player. Adjust the volume level using the volume control on your MP3 player or CD player or press the
Volume increase and decrease buttons on the console.
When not in use, unplug the audio cable from the jack
on the console.
iFit Card
Next, select the desired workout on the iFit card
by pressing the increase and decrease buttons
next to the iFit slot.
A moment after you select a workout, the voice of
a personal trainer will begin guiding you through
your workout.
iFit workouts function in the same way as preset
workouts. To use the workout, see steps 3 to 6 on
page 14.
3.
When you are finished exercising, remove the
iFit card.
Remove the iFit card when you are finished exercising. Store the iFit card in a secure place.
17
HOW TO CHANGE THE CONSOLE SETTINGS
3. Select a unit of measurement if desired.
The console features a display settings mode that
llows you to select a backlight option, to select a unit
a
of measurement for the console, and to turn the game
ounds on or off. Follow the steps below to change
s
the console settings.
1. Enter the display settings mode.
To enter the display settings mode, first press the
Display button repeatedly until the words HOLD
DISPLAY FOR SETTINGS appear in the display.
Then, press and hold the Display button until the
display settings information appears in the display.
2. Select a backlight option if desired.
The console has three backlight options. The ON
option keeps the backlight on while the console is
on. The AUTO option keeps the backlight on only
while you are pedaling. The OFF option turns the
backlight off.
An X will appear next to the currently selected
backlight option. To change the backlight option,
press the resistance increase and decrease buttons to choose the desired backlight option.
The console can show pedaling speed and dis-
ance in either miles or kilometers.
t
he word ENGLISH for English miles or the word
T
METRIC for metric kilometers will appear in the
display. An X will appear next to the currently
selected unit of measurement.
To change the unit of measurement, press the
resistance increase and decrease buttons to
choose the desired unit of measurement.
Then, press the Display button to proceed to the
next option.
Then, press the Display button to proceed to the
next option.
4. Turn the game sounds on or off if desired.
The console game sounds can be turned on or
turned off. The words OFF and ON will appear in
the display. An X will appear next to the currently
selected option.
To change the option, press the resistance
increase and decrease buttons to choose ON or
OFF.
5. Exit the display settings mode.
Press the Display button to save your settings and
exit the display settings mode.
18
MAINTENANCE AND TROUBLESHOOTING
nspect and tighten all parts of the exercise cycle reg-
I
ularly. Replace any worn parts immediately.
To clean the exercise cycle, use a damp cloth and a
mall amount of mild soap. IMPORTANT: To avoid
s
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
CONSOLE TROUBLESHOOTING
If the console does not display your heart rate when
you use the handgrip pulse sensor, see step 5 on
page 13.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, you must first remove the left pedal, the left
disc cover, and the left pedal disc (see the instructions
below).
Using an adjustable wrench, turn the left pedal clockwise and remove it.
ext, rotate the
N
Left Crank Arm
(20) to a vertical
position with the
nd of the Left
e
Crank Arm pointing
upward.
Rotate the left Pedal Disc (17) clockwise to release it
from the Left Shield (11).
Then, work the left Pedal Disc (17) upward and
remove it from the Left Crank Arm (20).
Locate the Reed Switch (57). Loosen, but do not
remove, the two M4 x 12.7mm Flange Screws (63).
2
17
0
11
Next, rotate the Left Crank Arm (20) to a vertical position with the end of the Left Crank Arm pointing
downward.
20
Tab
Using a flat screwdriver, release the tabs on each
point of the left Disc Cover (18). Carefully work the left
Disc Cover over the Left Crank Arm (20) and remove
the left Disc Cover.
18
Tab
55
57
63
Next, rotate the Left Crank Arm (20) until a Magnet
(55) is aligned with the Reed Switch (57). Slide the
Reed Switch slightly toward or away from the Magnet.
Then, retighten the M4 x 12.7mm Flange Screws (63).
Rotate the Left Crank Arm (20) for a moment. Repeat
these actions until the console displays correct feedback.
When the reed switch is correctly adjusted, reattach
the left pedal disc, the left disc cover, and the left
pedal.
20
19
HOW TO ADJUST THE DRIVE BELT
If you can feel the pedals slip while you are pedaling,
ven when the resistance is adjusted to the highest
e
level, the drive belt may need to be adjusted.
To adjust the drive belt, you must first remove the right
pedal, the seat post, the top shield cover, the rear
shield cover, the front shield cover, the right disc
cover, the right pedal disc, and the right shield (see
the instructions below).
Using an adjustable wrench, turn the Right Pedal (21)
counterclockwise and remove it.
Next, rotate the Right Crank Arm (19) to a vertical
position with the end of the Right Crank Arm pointing
upward.
Rotate the right Pedal Disc (17) clockwise to release it
rom the Right Shield (10).
f
Then, work the right Pedal Disc (17) upward and
remove it from the Right Crank Arm (19).
See the EXPLODED DRAWING on page 23 and
remove the M4 x 19mm Screws (89) and the M4 x
25mm Screws (62) from the Right and Left Shields
(10, 11). Then, remove the Right Shield.
Next, remove the indicated Adjustment Knob (27) and
remove the Seat Post (6).
6
27
8
9
17
18
10
Using a flat screwdriver, remove the Top Shield Cover
(8) and the Rear Shield Cover (9). Then, use the flat
screwdriver to release the Front Shield Cover (7).
Rotate the Right Crank Arm (19) to a vertical position
with the end of the Right Crank Arm pointing downward.
7
21
19
Next, loosen the M6 x 20mm Hex Screw (85). Then,
tighten the M10 x 50mm Hex Screw (86) until the
Drive Belt (54) is tight.
54
85
86
When the Drive Belt (54) is tight, tighten the M6 x
20mm Hex Screw (85).
Then, reattach the right shield, the right pedal disc, the
right disc cover, the front shield cover, the rear shield
cover, the top shield cover, the seat post, and the right
pedal.
Using a flat screwdriver, release the tabs on each
point of the right Disc Cover (18). Carefully work the
right Disc Cover over the Right Crank Arm (19) and
remove the right Disc Cover. Note: See the drawings
on page 19 for more detail.
20
EXERCISE GUIDELINES
WARNING: B
or any exercise program, consult your physician. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
efore beginning this
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
21
PART LIST—Model No. PFEX02409.0 R
Key No. Qty. Description Key No. Qty. Description
0709A
1
21Front Stabilizer
31Rear Stabilizer
41Upright
51Handlebar
6 1 Seat Post
71Front Shield Cover
81Top Shield Cover
91Rear Shield Cover
10 1 Right Shield
11 1 Left Shield
12 1 Pivot Cover
13 1 Console
14 1 Right Pad
15 1 Left Pad
16 1 Pulse Sensor
17 2 Pedal Disc
18 2 Disc Cover
19 1 Right Crank Arm
20 1 Left Crank Arm
21 1 Right Pedal/Strap
22 1 Left Pedal/Strap
23 1 Seat
24 1 Seat Carriage
25 2 Seat Post Cap
26 1 Seat Adjustment Knob
27 2 Adjustment Knob
28 1 Seat Post Sleeve
29 2 Leveling Knob
30 1 Seat Bracket
31 2 Leveling Foot
32 2 Rear Stabilizer Cap
33 1 Right Stabilizer Cap
34 1 Left Stabilizer Cap
35 2 Wheel
36 2 Foot
37 2 Game Grip
38 1 Pulley
39 1 Crank
40 2 Crank Bearing
41 2 Snap Ring
42 1 Flywheel
43 2 M8 Washer
44 1 Flywheel Axle
45 1 Idler
46 1 Motor Bracket
47 1 Resistance Motor
48 1 Resistance Disc
1 Frame
9 1 Resistance Arm
4
50 1 M6 x 70mm Bolt Set
51 1 M6 x 60mm Bolt Set
52 1 Arm Lock
53 1 C-magnet
54 1 Drive Belt
55 2 Magnet
56 1 Clamp
57 1 Reed Switch/Wire
58 1 Wire Harness
59 1 Extension Wire
60 2 Wire Clamp
61 1 Pulse Wire
62 2 M4 x 25mm Screw
63 2 M4 x 12.7mm Flange Screw
64 1 Audio Cable
65 3 M8 x 17mm Flat Head Screw
66 1 Left Controller Wire
67 1 Right Controller Wire
68 2 Crank Cap
69 2 Upright Pivot Bushing
70 2 5/16" Flange Screw
71 4 M8 x 20mm Button Bolt
72 8 M8 Locknut
73 2 M8 Jam Nut
74 4 M8 x 20mm Patch Screw
75 12 M8 Split Washer
76 4 M10 x 95mm Patch Screw
77 1 M6 x 65mm Hex Screw
78 1 M6 Locknut
79 4 M4 x 12mm Flange Screw
80 2 M6 x 8mm Hex Screw
81 1 M5 Washer
82 1 M5 x 7mm Screw
83 1 M6 x 14.67mm Shoulder Screw
84 1 M6 Washer
85 1 M6 x 20mm Hex Screw
86 1 M10 x 50mm Hex Screw
87 1 M3.5 x 12mm Screw
88 1 M4 x 12.7mm Bright Screw
89 8 M4 x 19mm Screw
90 18 M4 x 16mm Screw
91 2 M4 x 5mm Bright Screw
92 2 Handlebar Pivot Bushing
93 6 M4 x 19mm Flat Head Screw
*–Assembly Tool
*–Userʼs Manual
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
22
4
50
6
9
13
14
1
5
8
27
12
23
24
25
25
26
37
61
64
69
92
72
50
91
93
90
90
90
90
75
30
65
43
43
51
51
5
90
93
90
90
37
1
2
3
10
11
17
18
18
17
27
19
20
21
22
28
29
31
32
29
32
31
33
34
35
35
36
36
38
39
40
40
41
42
44
45
46
47
48
49
52
53
54
55
55
56
57
58
59
68
68
70
70
71
71
72
72
73
73
74
74
74
75
75
76
76
77
78
79
80
81
82
83
84
85
86
87
90
90
90
90
63
89
90
89
90
89
89
89
89
89
62
62
88
75
75
90
74
41
60
60
66
67
7
93
16
EXPLODED DRAWING—Model No. PFEX02409.0 R0709A
23
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
IMPORTANT: You must register this product within 30 days of the purchase date to avoid added
fees for service needed under warranty. Go to www.proformservice.com/registration.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame is warranted for seven (7) years from the
date of purchase. Parts and labor are warranted for ninety (90) days from the date of purchase.
This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to
repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All
repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to
a service center, freight charges to and from the service center will be the customerʼs responsibility. For
replacement parts shipped while the product is under warranty, the customer will be responsible for a minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge. This
warranty does not extend to any damage to a product caused by or attributable to freight damage, abuse,
misuse, improper or abnormal usage, or repairs not provided by an ICON authorized service center; to
products used for commercial or rental purposes or as store display models; or to products transported
or purchased outside the US. No other warranty beyond that specifically set forth above is authorized by
ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
Part No. 284378 R0709A Printed in China © 2009 ICON IP, Inc.
Loading...
