Model No. PFEVEX92407EL.0
Serial No.
Write the serial number in the
space above for future reference.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete customer
satisfaction. If you have questions,
or if there are missing parts, please
contact us at the numbers or
addresses listed below:
Call: 08457 089 009
Outside UK: 0 (44) 113 3877133
USER'S MANUAL
Fax: 0 (44) 113 3877125
E-mail: csuk@iconeurope.com
Write:
ICON Health & Fitness, Ltd.
Unit 4
Revie Road Industrial Estate
Revie Road, Beeston
Leeds, LS11 8JG
UK
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
EFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
B
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO OPERATE THE EXERCISE CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
The warning decal shown here has been
applied in the location shown. If a decal is
missing or illegible, call the telephone number on the front cover of this manual and
request a free replacement decal. Apply the
decal in the location shown. Note: The decal
may not be shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: T
instructions in this manual and all warnings on your exercise cycle before using your exercise
cycle. ICON assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over the age of 35 or
persons with pre-existing health problems.
2. Read all instructions in this manual and all
warnings on the exercise cycle before using
the exercise cycle.
3. Use the exercise cycle only as described in
this manual.
4. It is the responsibility of the owner to ensure
that all users of the exercise cycle are adequately informed of all precautions.
5. The exercise cycle is intended for home use
only. Do not use the exercise cycle in a
commercial, rental, or institutional setting.
6. Keep the exercise cycle indoors, away from
moisture and dust. Place the exercise cycle
on a level surface, with a mat beneath it to
protect the floor or carpet. Make sure that
there is enough clearance around the exercise cycle to mount, dismount, and use it.
o reduce the risk of serious injury, read all important precautions and
7. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
8. Keep children under the age of 12 and pets
away from the exercise cycle at all times.
9. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise cycle. Always wear
athletic shoes for foot protection.
10. The exercise cycle should not be used by
persons weighing more than 250 lbs.
(113 kg).
11. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
12. Always keep your back straight while using
the exercise cycle; do not arch your back.
13. If you feel pain or dizziness while exercising,
stop immediately and cool down.
3
BEFORE YOU BEGIN
ongratulations for selecting the new PROFORM
C
GAMEFIT exercise cycle. Cycling is one of the most
effective exercises for increasing cardiovascular fitness, building endurance, and toning the entire body.
he GAMEFIT exercise cycle offers a selection of fea-
T
tures designed to let you enjoy this healthful exercise
in the convenience and privacy of your home.
For your benefit, read this manual carefully before
using the exercise cycle. If you have questions after
Game Controller
Console
Handlebar
®
eading this manual, please see the front cover of this
r
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
ecal are shown on the front cover of this manual.
d
Before reading further, please familiarize yourself with
the parts labeled in the drawing below.
Pulse Sensor
Water Bottle Holder*
Seat
Seat Knob
Adjustment Knob
Leveling Foot
Pedal/Strap
Wheel
*Water bottle is not included
4
ASSEMBLY
M10 x 20mm Button
Screw (35)–3
M10 x 73mm Button
Screw (33)–4
M8 Locknut
(37)–4
M8 Split
Washer (36)–4
M10 Split
Washer (34)–4
M6 x 8mm
Screw (51)–2
M4 x 15mm
Bright Screw
(15)–4
Curved
Washer (66)–2
M8 x 45mm Button
Screw (67)–2
M10 Bright Split
Washer (69)–3
M4 x 15mm
Screw (68)–7
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included tools and your own adjustable wrench and Phillips
screwdriver .
Use the part drawings below to identify the small parts used in assembly. The number in parentheses below
each drawing refers to the key number of the part, from the PART LIST near the end of this manual. The second
number refers to the quantity needed for assembly. Note: Some small parts may have been preattached for
shipping. If a part is not in the hardware kit, check to see if it has been preattached.
5
1.
To make assembly easier, read the
information on page 5 before you begin
ssembling the exercise cycle.
a
dentify the Front Stabilizer (2), which has round
I
wheels. While another person lifts the front of the
Frame (1), attach the Front Stabilizer to the Frame
with two M10 x 73mm Button Screws (33) and two
M10 Split Washers (34).
1
1
2
2. While another person lifts the rear of the Frame (1),
attach the Rear Stabilizer (14) to the Frame with
two M10 x 73mm Button Screws (33) and two M10
Split Washers (34).
3. While another person holds the Upright (3) near the
Frame (1), connect the Upper Wire Harness (32) to
the Lower Wire Harness (31).
Gently pull the upper end of the Upper Wire
Harness (32) to remove the slack, and slide the
Upright (3) onto the Frame (1).
34
2
3
3
33
34
14
1
34
Avoid pinching the
Wire Harnesses (31, 32)
35
69
34
33
Tip: Avoid pinching the Wire Harnesses (31, 32)
during this step. Attach the Upright (3) with three
M10 x 20mm Button Screws (35) and three M10
Bright Split Washers (69).
69
35
1
32
31
6
4. Orient the Handlebar (47) as shown. While a second person holds the Handlebar near the Upright
(3), insert the Game Wires (45) into the front of the
pright and pull them upward out of the top of the
U
Upright. Tip: Use an elastic band or a piece of
ape to prevent the Game Wires and the Upper
t
Wire Harness (32) from falling down into the
Upright.
Attach the Handlebar (47) to the Upright (3) with
two M8 x 45mm Button Screws (67) and two
Curved Washers (66).
4
32
3
5
4
47
66
5. Attach the Left and Right Handlebar Covers (64, 65)
and the Rear Handlebar Cover (46) around the
Upright (3) and the Handlebar (47) with five
M4 x 15mm Screws (68).
5
68
64
66
46
3
68
67
65
68
47
6. The Console (6) can use four 1.5V “D” batteries (not
included); alkaline batteries are recommended.
IMPORTANT: If the Console has been exposed
to cold temperatures, allow it to warm to room
temperature before inserting batteries.
Otherwise, you may damage the console displays or other electronic components. Remove
the battery cover, insert the batteries into the battery
compartment, and reattach the battery cover. Make
sure to orient the batteries as shown by the diagram inside the battery compartment.
To purchase an optional AC adapter, contact the
store where you purchased this product or call
the telephone number on the cover of this manual. To avoid damaging the console, use only a
manufacturer-supplied AC adapter. Plug one end
of the AC adapter into the jack on the console; plug
the other end into an outlet installed in accordance
with all local codes and ordinances.
6
Batteries
Batteries
Battery
Cover
6
7
7. While another person holds the Console (6) near
the Upright (3), connect the console wire harness to
the Upper Wire Harness (32). Next, connect the
console game wire marked with a tag to the Game
ire (45) marked with a tag. Then, connect the
W
other console game wire to the other Game Wire.
Tip: Avoid pinching the wires during this step.
nsert the excess wires downward into the Upright
I
(3). Attach the Console (6) to the Upright with four
M4 x 15mm Bright Screws (15).
7
Console Wire
Harness
32
3
15
45
Game Wires
Console
6
8. Attach the Water Bottle Holder (29) to the Upright
(3) with two M4 x 15mm Screws (68).
9. Orient the Seat Post (5) as shown. Loosen the
Adjustment Knob (11) a few turns, pull the
Adjustment Knob outward, and insert the Seat Post
into the Frame (1). Move the Seat Post upward or
downward to the desired position, and then release
the Adjustment Knob into one of the adjustment
holes in the Seat Post. Then, tighten the Adjustment
Knob a few turns. Make sure that the Adjustment
Knob is engaged in an adjustment hole.
15
8
68
29
3
9
Avoid pinching the
wires during this step
51
5
Attach an M6 x 8mm Screw (51) to the front of the
Seat Post (5).
1
11
8
10. Orient the Seat (12) and the Seat Carriage (26) as
shown. Attach the Seat to the Seat Carriage with
four M8 Locknuts (37) and four M8 Split Washers
(36). Note: The Seat Carriage, Locknuts, and
Split Washers may be preattached to the under-
ide of the Seat.
s
Slide the Seat Carriage (26) onto the Seat Post (5)
and move the Seat Carriage forward or backward to
the desired position. Then, tighten the Seat Knob
(52) into the Seat Carriage.
Attach an M6 x 8mm Screw (51) to the rear of the
Seat Post (5).
10
12
51
5
26
36
52
37
11. Identify the Left Pedal (24), which is marked with an
“L.” Using an adjustable wrench, firmly tighten the
Left Pedal counterclockwise into the Left Crank Arm
(42). Tighten the Right Pedal (not shown) clockwise
into the Right Crank Arm (not shown). IMPORTANT:
Tighten both Pedals as firmly as possible. After
using the exercise cycle for one week, retighten
the Pedals. For best performance, keep the
Pedals tightened.
Adjust the strap on the Left Pedal (24) to the
desired position, and press the end of the strap
onto the tab on the side of the Left Pedal. Adjust the
strap on the Right Pedal (not shown) in the same
way.
12. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is
completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
11
Strap
Tab
42
24
9
HOW TO OPERATE THE EXERCISE CYCLE
HOW TO ADJUST THE HEIGHT OF THE SEAT
For effective exercise, the seat
should be at the
proper height. As
you pedal, there
should be a slight
bend in your knees
when the pedals
are in the lowest
position. To adjust
the seat, first turn
the adjustment
knob counterclockwise several turns
to loosen it. Next, pull the knob, slide the seat post
upward or downward to the desired position, and then
release the knob. Move the seat post upward or
downward slightly to make sure that the knob is
engaged in one of the adjustment holes in the seat
post. Then, turn the knob clockwise to tighten it.
HOW TO ADJUST THE LATERAL POSITION OF
THE SEAT
Seat
Post
eat
S
Adjustment
Knob
HOW TO ADJUST THE PEDAL STRAPS
To adjust the pedal
straps, first pull the
ends of the pedal
straps off the tabs
on the pedals.
Adjust the pedal
straps to the
desired position,
and then press the
ends of the pedal
straps onto the
tabs.
HOW TO LEVEL THE EXERCISE CYCLE
If the exercise cycle rocks slightly on your floor, turn
one or both of the leveling feet under the rear
stabilizer.
Pedal
Strap
To adjust the lateral
position of the seat,
first loosen the seat
knob a few turns.
Then, move the
seat forward or
backward to the
desired position,
and firmly tighten
the seat knob.
Seat
Seat Knob
10
ONSOLE DIAGRAM
C
FEATURES OF THE CONSOLE
The revolutionary console offers an array of features
designed to make your workouts more effective and
enjoyable. When you use the manual mode of the
console, you can change the resistance of the pedals
with the touch of a button. While you exercise, the
console will display continuous exercise feedback. You
can even measure your heart rate using the handgrip
pulse sensor.
Smart Workouts
The console offers ten smart workouts. Each workout
automatically changes the resistance of the pedals
and prompts you to vary your pedaling pace as it
guides you through an effective workout. You can also
adjust the intensity level of each smart workout.
Interactive Games
The console also features two motivational interactive
games. Using the dual game controllers, play the challenging Fat Blocker™ game or the fast-paced Calorie
Destroyer™ game during your workouts—the harder
you exercise, the greater the advantage you will have!
The console keeps track of the four highest scores for
each game—compete with other users or try to top
your own high score.
To use the manual mode of the console, see page
12. To use a smart workout, see page 13. To play
the Fat Blocker game, see page 15. To play the
Calorie Destroyer game, see page 16.
11

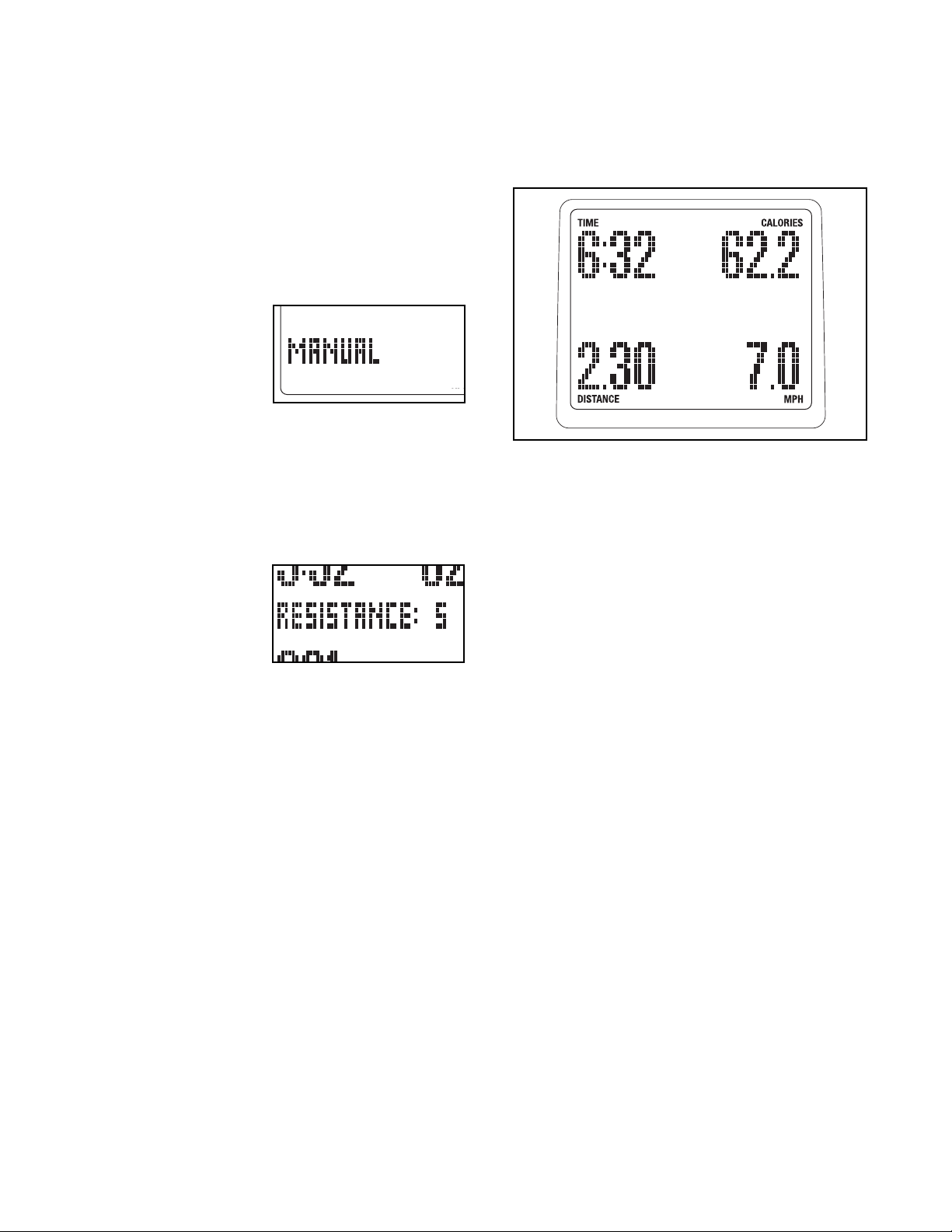

HOW TO USE THE MANUAL MODE
4. Follow your progress with the display.
Note: If there is a sheet of clear plastic on the face
f the console, remove the plastic.
o
. Begin pedaling or press any button on the con-
1
sole to turn on the console.
A moment after you begin pedaling or press a button, the display will light.
2. Select the manual mode.
Each time you turn
on the console, the
manual mode will
be selected. If you
have selected a
workout, reselect
the manual mode
by pressing the Workouts button repeatedly until
the word MANUAL appears in the lower left corner
of the display.
3. Change the resistance of the pedals as
desired.
As you pedal,
change the resistance of the pedals
by pressing the
increase and
decrease buttons
repeatedly. Note:
After you press the buttons, it will take a moment
for the pedals to reach the selected resistance
level.
The upper left corner of the display will show
he elapsed time. Note: When a workout is select-
t
ed, the display will show the time remaining in the
orkout instead of the elapsed time.
w
The lower left corner of the display will show
the distance you have pedaled, in miles or kilometers.
The upper right corner of the display will show
the approximate number of calories you have
burned. The upper right corner of the display will
also show your heart rate when you use the handgrip pulse sensor (see step 5 on page 13).
The lower right corner of the display will show
your pedaling pace in miles or kilometers per hour.
The center of the display will show the resistance setting of the pedals for a few seconds each
time the resistance setting changes.
12
You can also view selected information at a larger
size. Press the Display button repeatedly to view
time and distance information, time and calorie
information, or time and pace information. Press
the Display button again to view all information.
The console has three backlight options. The “On”
option keeps the backlight on while the console is
on. To conserve the batteries, the “Auto” option
keeps the backlight on only while you are pedaling. The “Off” option turns the backlight off. To
select a backlight option, first press and hold down
the Workouts button for several seconds until the
word BACKLIGHT appears in the display. Next,
press the increase button to select the desired
backlight option. Then, press the Workouts button
to save your selection.
The console can show speed and distance in
either miles or kilometers. The letters MPH or
KM/H will appear in the display to show which unit
f measurement is selected. To change the unit of
o
measurement, first press and hold down the
orkouts button for several seconds until the word
W
ENGLISH or METRIC appears in the display. Next,
press the decrease button to select the desired
unit of measurement. Then, press the Workouts
button to save your selection.
5. Measure your heart rate if desired.
If there are sheets
of clear plastic on
the metal contacts
on the handgrip
pulse sensor,
remove the plastic. To measure
your heart rate,
hold the handgrip
pulse sensor with
your palms resting
against the metal contacts. Avoid moving your
hands or gripping the contacts too tightly.
When your pulse is detected, one, two, or three
dashes will appear, and then your heart rate will
be shown. For the most accurate heart rate reading, hold the contacts for at least 15 seconds.
Note: If you continue to hold the handgrip pulse
sensor, the display will show your heart rate for up
to 30 seconds.
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
to squeeze the metal contacts too tightly. For optimal performance, clean the metal contacts using a
soft cloth; never use alcohol, abrasives, or
chemicals to clean the contacts.
6. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
tone will sound and the console will pause. If the
pedals do not move for several minutes and the
buttons are not pressed, the console will turn off
and the display will be reset.
Contacts
HOW TO USE A SMART WORKOUT
1. Begin pedaling or press any button on the conole to turn on the console.
s
moment after you begin pedaling or press a but-
A
ton, the display will light.
2. Select a smart workout.
To select one of the
ten smart workouts,
press the Workouts
button repeatedly
until PROGRAM 1,
2, 3, 4, 5, 6, 7, 8,
9, or 10 appears in
the display. The
workout time and a profile of the resistance settings for the workout will also appear in the display.
3. Adjust the intensity level if desired.
A few seconds
after you select a
smart workout, the
words ADJUST
INTENSITY will
appear in the display. To increase or
decrease the overall intensity level of
the workout, press the increase and decrease buttons. The resistance levels of all the segments in
the workout will then increase or decrease proportionately.
4. Begin pedaling to start the workout.
Each workout is divided into either 20 or 30 oneminute segments. One resistance setting and one
target speed setting are programmed for each
segment. Note: The same resistance setting
and/or target speed setting may be programmed
for consecutive segments.
The resistance setting and the target speed setting
for the first segment will appear in the center of
the display for a few seconds. The resistance setting will then be indicated by the height of the
flashing column of the profile in the display. The
resistance settings for the next several segments
will be indicated by the heights of the columns to
the right of the flashing column.
Profile
13
When the first segment of the workout ends, the
resistance setting and the target speed setting for
the second segment will appear in the center of
he display for a few seconds to alert you. The
t
entire profile will then shift one column to the left,
nd the pedals will automatically adjust to the
a
resistance setting for the second segment.
If the resistance setting for the current segment is
too high or too low, you can manually override the
setting by pressing the increase and decrease but-
ons. IMPORTANT: When the current segment
t
of the workout ends, the pedals will automati-
ally adjust to the resistance setting for the
c
next segment.

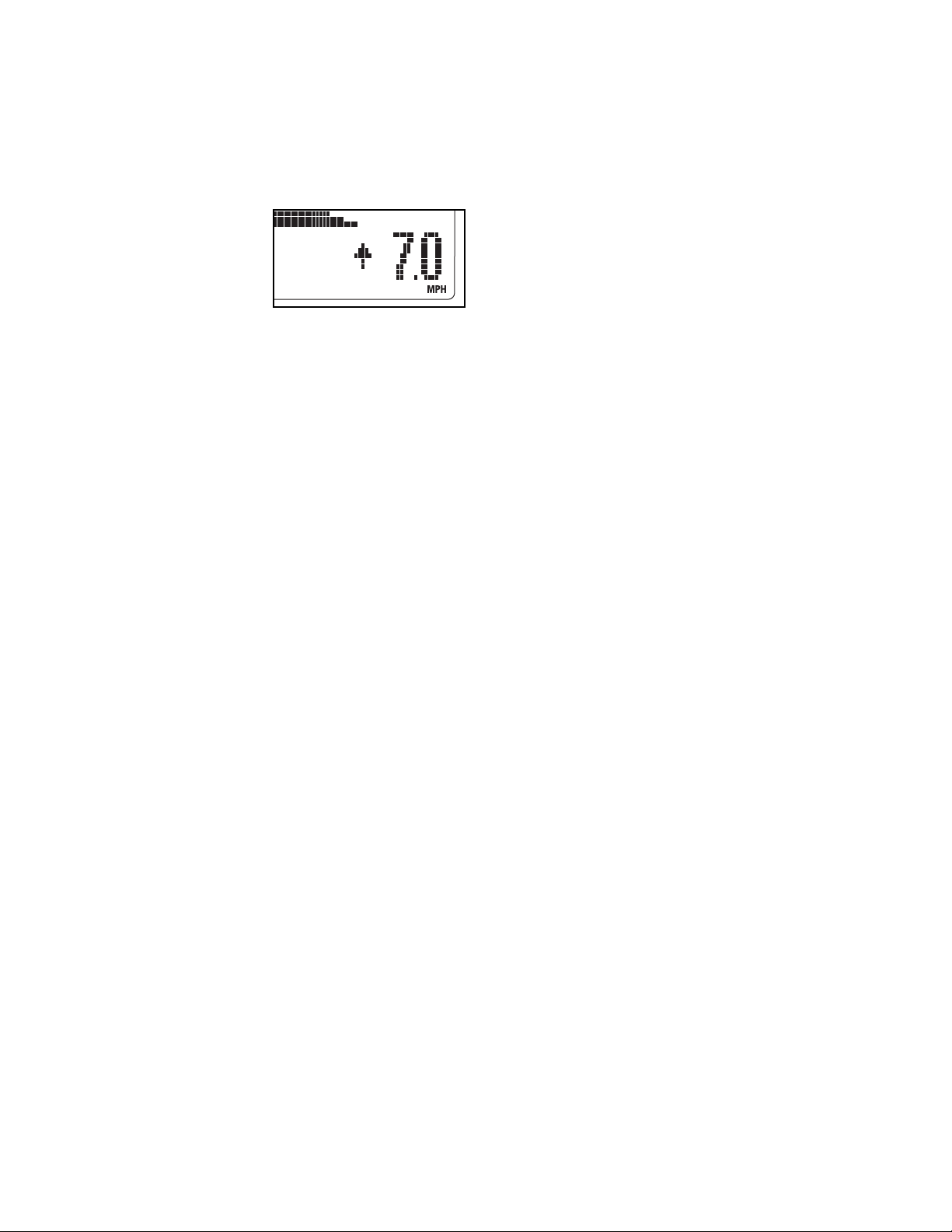

As you exercise,
you will be prompted to keep your
pedaling pace near
the target speed
setting for the current segment.
When an upward arrow appears in the display,
increase your pace. When a downward arrow
appears in the display, decrease your pace. When
no arrows appear, maintain your current pace.
IMPORTANT: The target speed settings are
intended only to provide motivation. Your actual pace may be slower than the target speed
settings. Make sure to exercise at a pace that
is comfortable for you.
The workout will continue in this way until the last
segment ends. To stop the workout at any time,
stop pedaling. A tone will sound and the time will
begin to flash in the display. To restart the workout,
simply resume pedaling.
5. Follow your progress with the display.
See step 4 on page 12.
6. Measure your heart rate if desired.
See step 5 on page 13.
7. When you are finished exercising, the console
will turn off automatically.
See step 6 on page 13.
14
HOW TO PLAY THE FAT BLOCKER GAME
The Fat Blocker game requires quick thinking and fast
eflexes. You will use the four-button game controllers
r
on the handlebars to play the game. Follow the steps
elow to play the Fat Blocker game.
b
1. Begin pedaling or press any button on the console to turn on the console.
A moment after you begin pedaling or press a button, the display will light.
2. Select the Fat Blocker game.
To select the Fat Blocker game, press the Fitness
Games button repeatedly until the words FAT
BLOCKER appear at the top of the display.
Your goal is to
maneuver the
blocks so that they
orm a complete
f
row of black
quares across the
s
entire arena. Each
time you complete a row of black squares, the row
will disappear, and all blocks above will move
downward one row.
As you play, the blocks will fall faster and faster;
however, your pedaling pace will affect the speed
of the blocks—the faster you pedal, the more
slowly the blocks will fall, giving you extra time to
position and orient the blocks. The game will continue until any part of a stacked block reaches the
top of the arena.
Complete Row
3. Press a button on either controller to start the
game.
When you start the Fat Blocker game, a game
arena will appear in the center of the display.
A block composed of four or five black squares will
slowly move downward until it reaches the bottom
of the arena. Another block will then move downward. Blocks come in eight different shapes. As
each block falls, you can move it to the left or right
using the left and right buttons on the left controller. In addition, you can rotate the block counterclockwise or clockwise using the left and right
buttons on the right controller. Once you have
positioned and oriented a block, you can speed its
motion to the bottom of the arena, if desired, by
pressing the down button on either controller.
When the game ends, the display will show your
final score and the level of play that you reached.
The display will then show the four highest scores
recorded since the scores were reset. If desired,
press and hold down the right button on either
controller to reset the scores. Note: If your score is
one of the four highest, the display will prompt you
to enter a name consisting of three letters or digits. While the line below the first letter is flashing,
press the up and down buttons on either controller
to select the desired letter or digit. Next, press the
right button on either controller and select another
letter or digit. Repeat this process to select a third
letter or digit. Then, press the right button on either
controller again. The display will then show the
four highest scores recorded since the scores
were reset.
4. Follow your progress with the display.
While you exercise and play the Fat Blocker
game, the corners of the display will show the
elapsed time, the approximate number of calories
you have burned, and your pedaling pace. In addition, the display will show your current score and
the game level that you have reached.
To pause the game, press the Display button. To
resume the game, press the Display button
repeatedly until the words FAT BLOCKER appear
at the top of the display, and then press a button
on either controller.
5. When you are finished exercising, the console
will turn off automatically.
15
See step 6 on page 13.
HOW TO PLAY THE CALORIE DESTROYER GAME
The Calorie Destroyer game is a fast-paced game that
its you against a squadron of laser-firing drones. You
p
will use the four-button game controllers on the han-
lebars to play the game. Follow the steps below to
d
play the Calorie Destroyer game.
1. Begin pedaling or press any button on the console to turn on the console.
A moment after you begin pedaling or press a button, the display will light.
2. Select the Calorie Destroyer game.
To select the Calorie Destroyer game, press the
Fitness Games button repeatedly until the word
DESTROYER appears at the top of the display.
3. Press a button on either controller to start the
game.
When you start the Calorie Destroyer game, a
game arena will appear in the display. Three rows
of drones will begin to move across the top of the
arena, periodically firing their lasers downward.
Each time the drones reach the left or right side of
the arena, they will reverse direction and move
downward.
Between the drones and the laser blaster are five
shields. You can hide the laser blaster below a
shield if desired. However, each time a shield is hit
y a laser, a piece will be vaporized.
b
our goal is to keep the laser blaster from being
Y
hit and to keep any drone from reaching the bottom of the arena. If the laser blaster is hit, it will be
disabled and another laser blaster will appear in its
place; there are a total of four laser blasters. If you
vaporize the entire squadron of drones, a new
squadron will appear.
As you play, the drones will move faster and
faster. The game will continue until all four laser
blasters are disabled or a drone reaches the bottom of the arena.
When the game ends, the display will show the
level of play that you reached and your final score.
The display will then show the four highest scores
recorded since the scores were reset. If desired,
press and hold down the right button on either
controller to reset the scores. Note: If your score is
one of the four highest, the display will prompt you
to enter a name consisting of three letters or digits. While the line below the first letter is flashing,
press the up and down buttons on either controller
to select the desired letter or digit. Next, press the
right button on either controller and select another
letter or digit. Repeat this process to select a third
letter or digit. Then, press the right button on either
controller again. The display will then show the
four highest scores recorded since the scores
were reset.
At the bottom of the arena is a laser blaster. You
can fire the laser blaster at the drones by pressing
the up button on either controller. In addition, while
you are pedaling, you can move the laser blaster
to the left or right using the left and right buttons
on either controller. The faster you pedal, the
faster the laser blaster will move.
4. Follow your progress with the display.
While you exercise and play the Calorie Destroyer
game, the upper left corner of the display will
show the elapsed time. In addition, the display will
show the game level that you have reached and
your current score.
To pause the game, press the Display button. To
resume the game, press the Display button
repeatedly until the word DESTROYER appears at
the top of the display, and then press a button on
either controller.
5. When you are finished exercising, the console
will turn off automatically.
See step 6 on page 13.
16
MAINTENANCE AND TROUBLESHOOTING
Inspect and properly tighten all parts of the exercise
cycle regularly. Replace any worn parts immediately.
o clean the exercise cycle, use a damp cloth and a
T
small amount of mild soap. IMPORTANT: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
PULSE SENSOR TROUBLESHOOTING
For optimal performance of the pulse sensor, keep the
metal contacts clean. Clean the contacts with a soft
cloth—never use alcohol, abrasives, or chemicals.
Avoid moving your hands while using the pulse sensor. Excessive movement may interfere with heart
rate readings. Do not hold the metal contacts too
tightly; doing so may interfere with heart rate readings. For the most accurate heart rate reading, hold
the metal contacts for about 15 seconds.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, the left pedal and the left side shield must be
removed.
Next, locate
the Reed
Switch (21).
urn the Left
T
Crank Arm
(42) until the
Magnet (16) is
aligned with
the Reed
Switch.
Loosen, but
do not
remove, the
indicated M5 x 12mm Screw (53). Slide the Reed
Switch slightly closer to or away from the Magnet, and
then retighten the Screw. Turn the Crank Arm for a
moment. Repeat until the console displays correct
feedback.
When the Reed Switch is correctly adjusted, reattach
the left side shield and the left pedal.
BATTERY REPLACEMENT
If the console display becomes dim, the batteries
should be replaced; most console problems are the
result of low batteries. To replace the batteries, see
assembly step 6 on page 7.
53
21
16
42
Using an adjustable wrench, turn the left pedal clockwise and remove the left pedal.
Remove the screws from the left side shield. Note:
There are two different sizes of screws in the left side
shield. Make sure to note the location of each
screw. Then, carefully pry the left side shield away
from the exercise cycle.
HOW TO LEVEL THE EXERCISE CYCLE
If the exercise cycle rocks slightly on your floor, turn
one or both of the leveling feet under the rear
stabilizer.
17
EXERCISE GUIDELINES
WARNING: B
this or any exercise program, consult your
physician. This is especially important for
persons over the age of 35 or persons with
pre-existing health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
efore beginning
Burning Fat—To burn fat effectively, you must exer-
cise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
18
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right.
ove slowly as you stretch—never bounce.
M
. Toe Touch Stretch
1
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times. Stretches: Hamstrings, back of knees
and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for each leg. Stretches:
Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat
3 times for each leg. To cause further stretching of the achilles
tendons, bend your back leg as well. Stretches: Calves, achilles
tendons and ankles.
1
2
3
4
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. Repeat 3
times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for
15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and
hip muscles.
5
19
NOTES
20
NOTES
21
PART LIST—Model No. PFEVEX92407EL.0 R0708A
Key No. Qty. Description Key No. Qty. Description
11Frame
21Front Stabilizer
31Upright
42Cap
51Seat Post
61Console
71Eddy Mechanism
81Resistance Motor
91Crank
10 1 Resistance Cable
11 1 Adjustment Knob
12 1 Seat
13 2 Foot
14 1 Rear Stabilizer
15 4 M4 x 15mm Bright Screw
16 1 Magnet
17 1 Left Shield
18 1 Right Shield
19 1 Spring
20 1 Seat Post Bushing
21 1 Reed Switch/Wire
22 1 Clamp
23 1 Belt
24 1 Left Pedal/Strap
25 1 Right Pedal/Strap
26 1 Seat Carriage
27 2 Crank Bearing Set
28 1 Idler
29 1 Water Bottle Holder
30 2 Bracket
31 1 Lower Wire Harness
32 1 Upper Wire Harness
33 4 M10 x 73mm Button Screw
34 4 M10 Split Washer
35 3 M10 x 20mm Button Screw
36 4 M8 Split Washer
37 7 M8 Locknut
38 2 M6 Nut
39 5 M4 x 25mm Screw
40 4 M4 x 12mm Screw
41 8 M5 x 20mm Screw
42 1 Left Crank Arm
43 1 Right Crank Arm
44 2 Crank Cover
45 2 Game Controller/Wire
46 1 Rear Handlebar Cover
47 1 Handlebar
48 2 Game Grip
49 2 Wheel
50 2 Hub Cap
51 2 M6 x 8mm Screw
52 1 Seat Knob
53 5 M5 x 12mm Screw
54 2 5/16" x 1" Flange Screw
55 1 M8 x 20mm Bolt
56 2 Snap Ring
57 2 Eye Bolt
58 2 3/8" Nut
59 2 Flywheel Nut
60 1 M8 Washer
61 1 Pulley
62 4 M6 x 16mm Screw
63 4 M6 Jam Nut
64 1 Left Handlebar Cover
65 1 Right Handlebar Cover
66 2 Curved Washer
67 2 M8 x 45mm Button Screw
68 7 M4 x 15mm Screw
69 3 M10 Bright Split Washer
*–Assembly Tool
*–Userʼs Manual
Note: Specifications are subject to change without notice. See the back cover of this manual for information
about ordering replacement parts. *These parts are not illustrated.
22
2
3
1
4
4
5
6
11
12
14
49
17
1
8
20
21
22
23
24
25
27
29
31
32
33
33
35
35
69
69
36
37
68
41
41
41
41
41
41
53
39
39
39
15
50
37
37
50
49
16
27
44
54
42
56
9
43
54
44
52
26
51
46
45
47
48
7
8
28
19
13
13
57
30
57
30
10
58
58
59
59
38
38
55
60
37
53
53
56
36
61
62
62
63
34
34
34
64
48
45
65
66
67
66
67
68
68
68
40
40
40
40
3
9
EXPLODED DRAWING—Model No. PFEVEX92407EL.0
R0708A
23
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
rovide the following information when contacting us:
p
• the model number and the serial number of the product (see the front cover of this manual)
the name of the product (see the front cover of this manual)
•
• the key number and description of the part(s) (see the PART LIST and the EXPLODED DRAWING near the
end of this manual)
Part No. 270748 R0708A Printed in China © 2008 ICON IP, Inc.
Loading...
