ProForm PFEVEX740101 User Manual

Model No. PFEVEX74010.1 Serial No.
Write the serial number in the space above for reference.
Serial Number Decal
(under frame)
QUESTIONS?
If you have questions, or if there are missing parts, please contact us:
UK Call: 08457 089 009 From Ireland: 053 92 36102
USER'S MANUAL
Website: www.iconsupport.eu E-mail: csuk@iconeurope.com
Write: ICON Health & Fitness, Ltd. c/o HI Group PLC Express Way Whitwood, West Yorkshire WF10 5QJ UK
AUSTRALIA Call: 1-800-237-173 E-mail: australiacc@iconfitness.com
CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Keep this manual for future reference.
www.iconeurope.com
TABLE OF CONTENTS
This product should always be used on a level surface.
This product is not intended for therapeutic use.
M
isuse of this machine may result in serious injury.
R
ead user’s manual prior to use and follow all warnings and instructions.
Do not allow children on or around machine.
User weight must not exceed 275 pounds.
Replace label if damaged, illegible, or removed.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
OW TO USE THE EXERCISE BIKE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
H
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

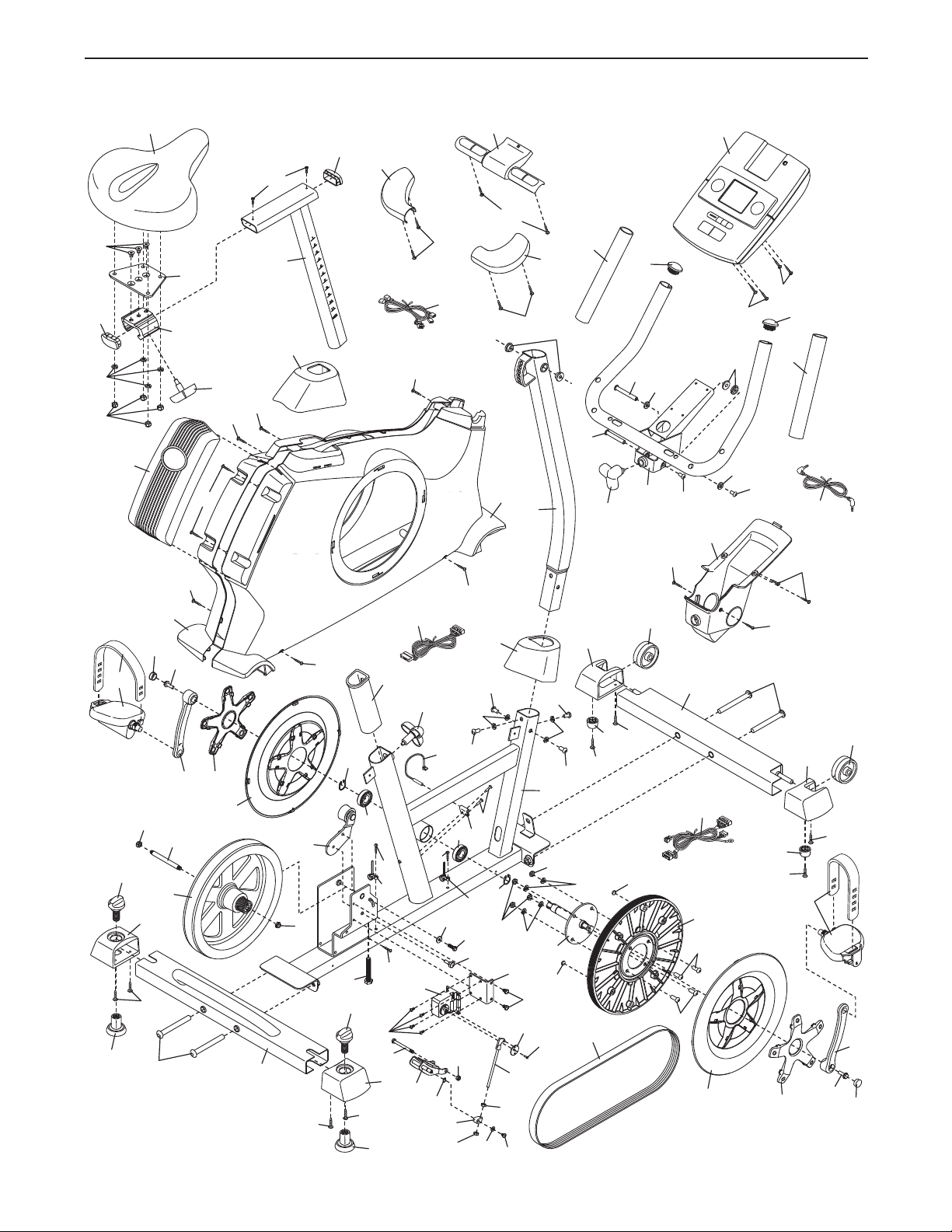

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
RECYCLING INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a free replacement decal. Apply the decal in the location shown. Note: The decal(s) may not be
shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: T
instructions in this manual and all warnings on your exercise bike before using your exercise bike. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
1. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or per­sons with pre-existing health problems.
2. Use the exercise bike only as described in this manual.
3. It is the responsibility of the owner to ensure that all users of the exercise bike are ade­quately informed of all precautions.
4. The exercise bike is intended for home use only. Do not use the exercise bike in a com­mercial, rental, or institutional setting.
5. Keep the exercise bike indoors, away from moisture and dust. Do not put the exercise bike in a garage or covered patio, or near water.
6. Place the exercise bike on a level surface with at least 2 ft. (0.6 m) of clearance around the exercise bike. To protect the floor or carpet from damage, place a mat under the exercise bike.
o reduce the risk of serious injury, read all important precautions and
8. Keep children under age 12 and pets away from the exercise bike at all times.
9. Wear appropriate clothes while exercising; do not wear loose clothes that could become caught on the exercise bike. Always wear athletic shoes for foot protection.
10. The exercise bike should not be used by persons weighing more than 275 lbs. (125 kg).
11. The pulse sensor is not a medical device. Various factors, including the user's move­ment, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.
12. Always keep your back straight while using the exercise bike; do not arch your back.
13. Over exercising may result in serious injury or death. If you feel faint or if you experience pain while exercising, stop immediately and cool down.
7. Inspect and properly tighten all parts regu­larly. Replace any worn parts immediately.
3
BEFORE YOU BEGIN
hank you for selecting the new PROFORM
T exercise bike. Cycling is an effective exercise for increasing cardiovascular fitness, building endurance, and toning the body. The 300 ZLX exercise bike pro-
ides an impressive selection of features designed to
v make your workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before you use the exercise bike. If you have questions
Handgrip Pulse Sensor
Adjustment Knob
®
3
00 ZLX
fter reading this manual, please see the front cover
a of this manual. To help us assist you, note the product model number and serial number before contacting us. The model number and the location of the serial
umber decal are shown on the front cover of this
n manual.
Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.
Console
Handlebar
Seat
Seat Adjustment Knob
Seat Post
Leveling Knob
Leveling Foot
Adjustment Knob
Pedal/Strap
Wheel
4
M10 x 95mm Patch
Screw (76)–4
M8 x 20mm
Patch Screw (74)–4
M6 x 60mm Bolt Set (51)–1
M4 x 16mm
Screw (90)–8
M4 x 5mm
Bright Screw
(91)–1
M8 Split
Washer (75)–8
M8 Washer
(43)–2
M8 Locknut
(72)–4
M6 x 70mm Bolt Set (50)–1
ASSEMBLY
Assembly requires two persons. Place all parts of the exercise bike in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
n addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable
I wrench , and a rubber mallet .
See the drawings below to identify the small parts needed for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if
it has been preassembled. To avoid damaging parts, do not use power tools for assembly.
5
1.
To make assembly easier, read the
nformation on page 5 before you begin.
i
Attach the Rear Stabilizer (3) to the Frame (1) with two M10 x 95mm Patch Screws (76).
1
3
1
76
2. Attach the Front Stabilizer (2) to the Frame (1) with two M10 x 95mm Patch Screws (76).
2
2
1
76
6

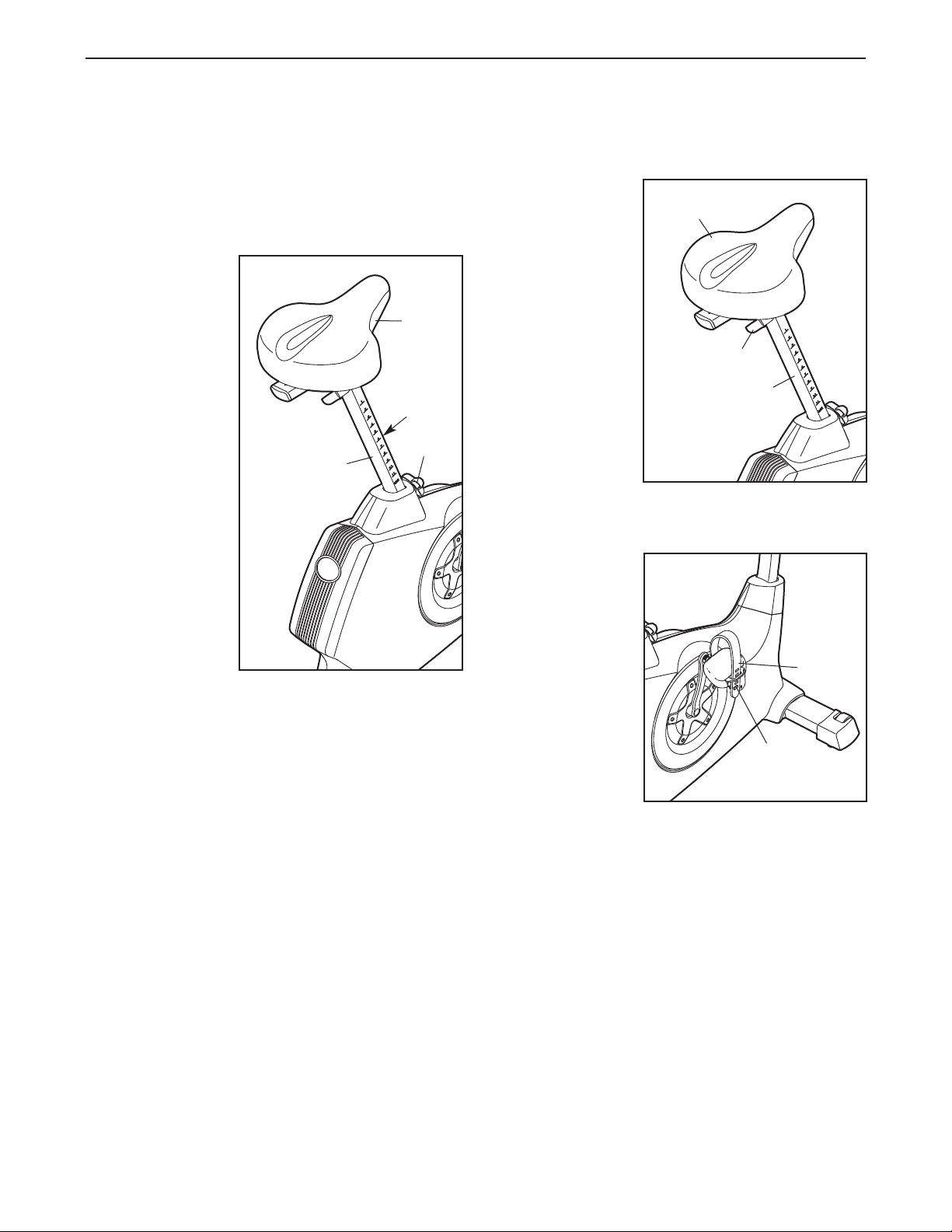

3. Loosen the Adjustment Knob (27) in the Frame (1) a few turns.
rient the Seat Post (6) as shown. Then, pull
O the Adjustment Knob (27) outward and insert
he Seat Post into the Frame (1). Slide the Seat
t Post upward or downward to the desired posi­tion, and release the Adjustment Knob.
3
Adjustment
Holes
6
Move the Seat Post (6) upward or downward slightly to make sure that the Adjustment Knob (27) is engaged in one of the adjust­ment holes in the Seat Post. Then, tighten the
Adjustment Knob.
4. Orient the Seat (23) and the Seat Carriage (24) as shown.
Attach the Seat (23) to the Seat Carriage (24) with four M8 Locknuts (72) and four M8 Split Washers (75).
Next, slide the Seat Carriage (24) onto the Seat Post (6). Slide the Seat Carriage all the way for­ward, and tighten the Seat Adjustment Knob (26).
1
27
4
23
6
91
24
26
Then, tighten an M4 x 5mm Bright Screw (91) into the rear of the Seat Post (6).
75
72
7

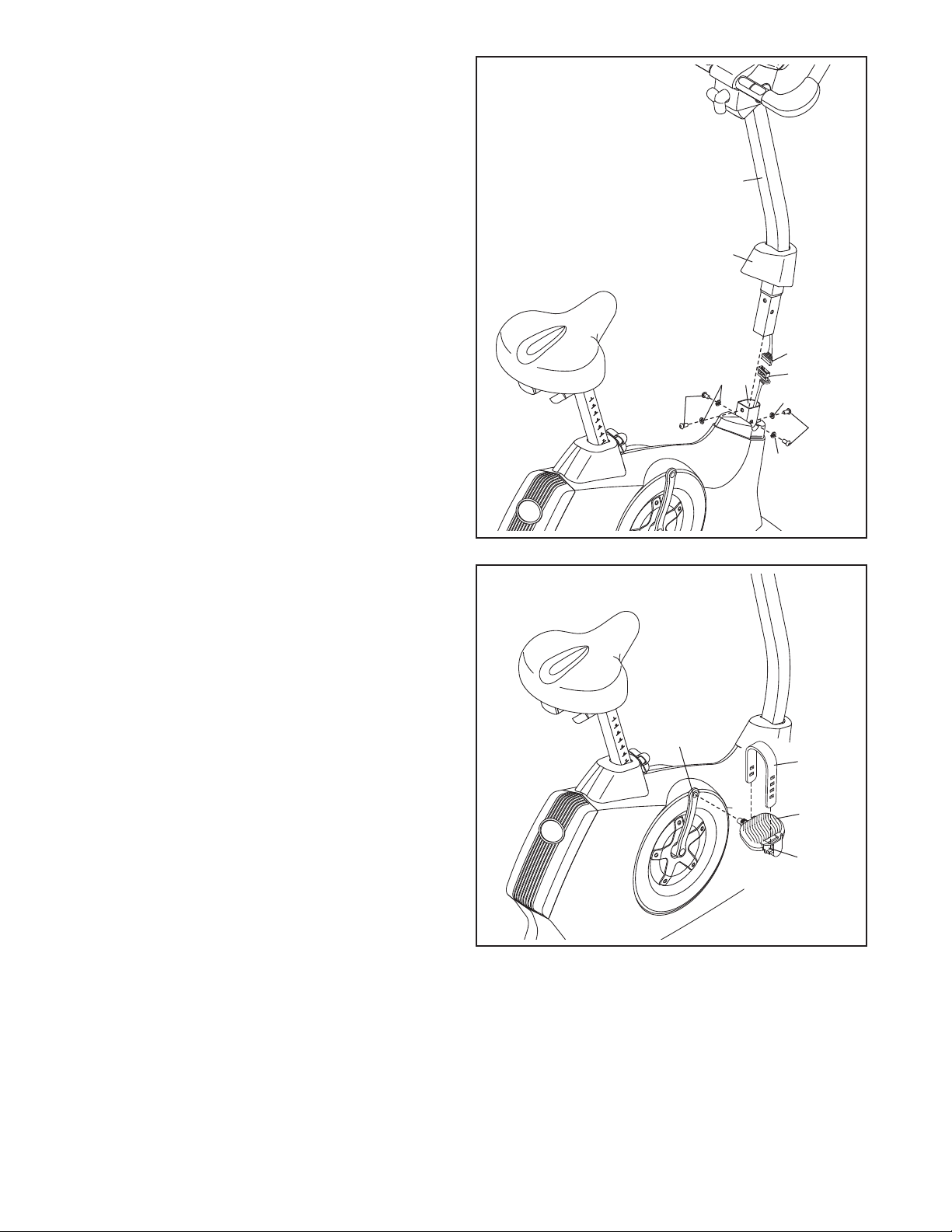

5. Apply some of the included grease to an M6 x 70mm Bolt Set (50).
rient the Handlebar (5) and the Upright (4) as
O shown.
While a second person holds the Handlebar (5) near the Upright (4), insert the Extension Wire (59) upward through the Handlebar.
Tip: Avoid pinching the Extension Wire (59).
Attach the Handlebar (5) to the Upright (4) with the M6 x 70mm Bolt Set (50) and two M8 Washers (43).
5
0
5
Grease
51
43
5
59
43
50
Then, attach an M6 x 60mm Bolt Set (51) through the lower bracket on the Handlebar (5).
6. The Console (13) can use four D batteries (not included); alkaline batteries are recommended.
IMPORTANT: If the Console has been exposed to cold temperatures, allow it to warm to room temperature before inserting batteries. Otherwise, you may damage the console displays or other electronic compo­nents. Remove the indicated screw, remove the
battery cover, insert the batteries into the bat­tery compartment, and then reattach the battery cover. Make sure to orient the batteries as
shown by the diagrams inside the battery compartment.
To purchase an optional power adapter, call the telephone number on the front cover of this manual. To avoid damaging the console, use only a manufacturer-supplied power adapter. Plug one end of the power adapter
into the receptacle on the console; plug the other end into an outlet installed in accordance with all local codes and ordinances.
Avoid pinching the
Extension Wire (59)
6
Batteries
Screw
13
51
4
Battery
Cover
Batteries
8
