ProForm PFEVEX71316.0 User Manual

Model No. PFEVEX71316.0 Serial No.

Write the serial number in the space above for reference.

Serial

Number

Decal

CUSTOMER SERVICE

UNITED KINGDOM Call: 0330 123 1045 From Ireland: 053 92 36102 Website: www.iconsupport.eu E-mail: csuk@iconeurope.com Write:

ICON Health & Fitness, Ltd. Unit 1D, The Gateway Fryers Way, Silkwood Park OSSETT WF5 9TJ UNITED KINGDOM

USER’S MANUAL

AUSTRALIA Call: 1800 993 770 E-mail: australiacc@iconfitness.com Write:

ICON Health & Fitness PO Box 635 WINSTON HILLS NSW 2153 AUSTRALIA

CAUTION

Read all precautions and instructions in this manual before using this equipment. Keep this manual for future reference.

www.iconeurope.com

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS ..................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

HOW TO USE THE EXERCISE BIKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

MAINTENANCE AND TROUBLESHOOTING .....................................................25

EXERCISE GUIDELINES ....................................................................27

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

RECYCLING INFORMATION ......................................................... Back Cover

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning decal(s). If a decal is missing or illegible, see

the front cover of this manual and request a free replacement decal. Apply the decal in the location shown. Note: The decal(s) may not be

shown at actual size.

PROFORM is a registered trademark of ICON Health & Fitness, Inc. IFIT is a registered trademark of ICON Health & Fitness, Inc. LE TOUR DE FRANCE is a registered trademark of Société du Tour de France. App Store is a trademark of Apple Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google Inc. The BLUETOOTH® word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license. IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read all

important precautions and instructions in this manual and all warnings on your exercise bike before using your exercise bike. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

1. It is the responsibility of the owner to ensure that all users of the exercise bike are adequately informed of all precautions.

2. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.

3. The exercise bike is not intended for use by persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, unless they are given supervision or instruction about use of the exercise bike by someone responsible for their safety.

4. Use the exercise bike only as described in this manual.

5. The exercise bike is intended for home use only. Do not use the exercise bike in a commercial, rental, or institutional setting.

6. Keep the exercise bike indoors, away from moisture and dust. Do not put the exercise bike in a garage or covered patio, or near water.

8. Inspect and properly tighten all parts each time the exercise bike is used. Replace any worn parts immediately.

9. Keep children under age 13 and pets away from the exercise bike at all times.

10. When connecting the power cord, plug the power cord into a grounded circuit.

11. Do not modify the power cord or use an adapter to connect the power cord to an improper receptacle. Keep the power cord away from heated surfaces. Do not use an extension cord.

12. Do not operate the exercise bike if the power cord or plug is damaged, or if the exercise bike is not working properly.

13. DANGER: Always unplug the power

cord and press the power switch to the off position when the exercise bike is not in use and before cleaning the exercise bike. Servicing other than the procedures in this manual should be performed by an authorized service representative only.

7. Place the exercise bike on a level surface with at least 2 ft. (0.6 m) of clearance around the exercise bike. To protect the floor or carpet from damage, place a mat under the exercise bike.

14. Wear appropriate clothes while exercising; do not wear loose clothes that could become caught on the exercise bike. Always wear athletic shoes for foot protection.

15. The exercise bike should not be used by persons weighing more than 330 lbs. (150 kg).

16. Be careful when mounting and dismounting the exercise bike.

SAVE THESE INSTRUCTIONS

17. Always keep your back straight while using the exercise bike; do not arch your back.

18. Over exercising may result in serious injury or death. If you feel faint, if you become short of breath, or if you experience pain while exercising, stop immediately and cool down.

BEFORE YOU BEGIN

Congratulations for selecting the revolutionary PROFORM® LE TOUR DE FRANCE® exercise bike. The LE TOUR DE FRANCE exercise bike is unlike any other exercise bike. With an incline system that allows you to simulate actual terrain and an array of other features, the LE TOUR DE FRANCE exercise bike is designed to let you enjoy the outdoor cycling experience indoors.

For your benefit, read this manual carefully before you use the exercise bike. If you have questions after

Incline Control

Handlebar

Armrest

Handlebar Carriage

reading this manual, please see the front cover of this manual. To help us assist you, note the product model number and serial number before contacting us. The model number and the location of the serial number decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.

Tablet Holder

Gear

Control

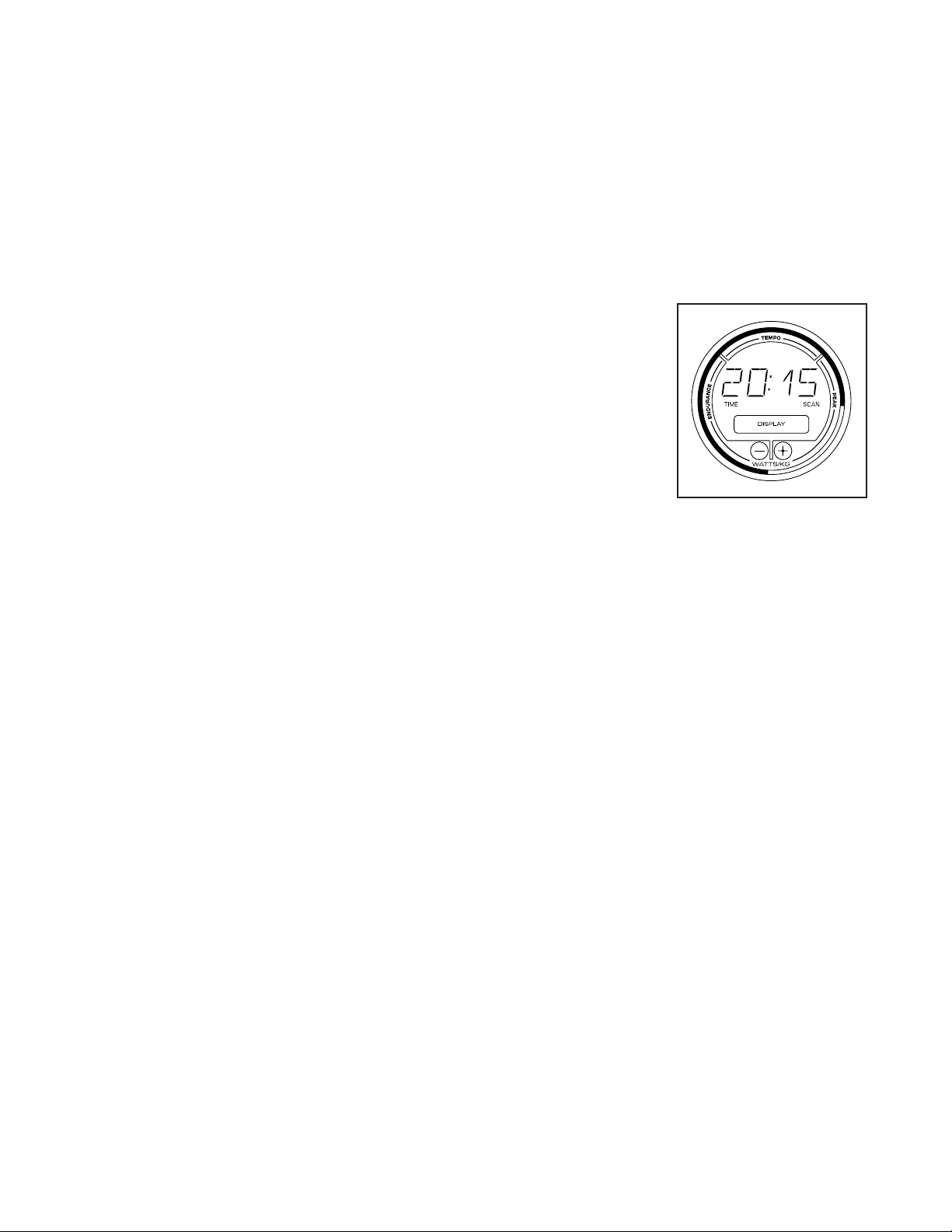

Console

Handlebar Knob

Seat

Seat Carriage

Seat Knob

Leveling Foot

*Water bottle is not included

Water Bottle Holder*

Post Knobs

Power Switch

Pedal/Strap

Power Cord

Wheel

Length: 4 ft. 11 in. (150 cm) Width: 2 ft. 1 in. (64 cm) Weight: 128 lbs. (58 kg)

PART IDENTIFICATION CHART

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see

whether it has been preassembled. Extra parts may be included.

#8 x 6mm

Screw (92)–1

#8 x 10mm

Screw (110)–2

M10 x 58mm Screw (74)–4

M4 x 12mm

Screw (94)–4

M6 x 16mm

Screw (103)–4

ASSEMBLY

• Assembly requires two persons.

• Place all parts in a cleared area and remove the packing materials. Do not dispose of the packing materials until you complete all assembly steps.

• Left parts are marked “L” or “Left” and right parts are marked “R” or “Right.”

• To identify small parts, see page 6.

1. Go to www.iconsupport.eu on your computer

and register your product.

• activates your warranty

• saves you time if you ever need to contact Customer Service

• allows us to notify you of upgrades and offers

Note: If you do not have internet access, call

Customer Service (see the front cover of this manual) and register your product.

• In addition to the included tool(s), assembly requires the following tools:

one Phillips screwdriver

Assembly may be easier if you have your own set of wrenches. To avoid damaging parts, do not use power tools.

2. Remove and discard the indicated shipping

insert (A). If there are shipping screws in the Rear Stabilizer (23), remove and discard them.

Attach the Rear Stabilizer (23) to the Base (1)

with two M10 x 58mm Screws (74).

3. If there are shipping screws in the Front Stabilizer (22), remove and discard them.

Attach the Front Stabilizer (22) to the Base (1)

with two M10 x 58mm Screws (74).

4. Attach the Water Bottle Holder (8) to the Frame (2) with two #8 x 10mm Screws (110); start all

the Screws, and then tighten them.

110

5. Locate the Post Knob (47) near the rear of the Frame (2). Loosen the Post Knob, and then pull it outward.

Next, insert the Seat Post (3) into the Frame (2),

and release the Post Knob (47) into one of the adjustment holes in the Seat Post. Make sure

that the Post Knob is in an adjustment hole.

Then, tighten the Post Knob.

6. Loosen the Seat Knob (29), and then pull it downward.

Next, insert the Seat Carriage (4) into the Seat

Post (3), and release the Seat Knob (29) into one of the adjustment holes in the Seat Carriage.

Make sure that the Seat Knob is in an adjustment hole. Then, tighten the Seat Knob.

See the inset drawing. Tighten a #8 x 6mm

Screw (92) into the underside of the Seat Carriage (4).

7. Have a second person hold the Handlebar Post (6) near the Frame (2).

Locate the long wire tie (B) in the Handlebar

Post (6). Tie the lower end of the long wire tie to the Main Wire (68).

Next, locate the middle of the long wire tie (B) in

the access hole (C) in the Handlebar Carriage (105). In the indicated location (D), pull the long wire tie upward until the end of the Main Wire (68) is in the access hole.

See the inset drawing. Next, pull the free end

of the long wire tie until the Main Wire (68) is routed through the Handlebar Carriage (105) as shown. Then, untie and discard the long wire tie;

do not remove the short wire tie.

Avoid pinching the Main Wire (68)

105

8. Tip: Avoid pinching the Main Wire (68) during this step.

Locate the Post Knob (47) near the front of the

Frame (2). Loosen the Post Knob, and then pull it outward.

Next, insert the Handlebar Post (6) into the

Frame (2), and release the Post Knob (47) into one of the adjustment holes in the Handlebar Post. Make sure that the Post Knob is in an adjustment hole. Then, tighten the Post Knob.

Avoid pinching the

Main Wire (68)

9. Have a second person hold the Handlebar (7) near the Handlebar Carriage (105).

Locate the remaining wire tie (E) in the

Handlebar Carriage (105). Tie the indicated end of the wire tie to the two wires (F) on the Handlebar (7).

Next, pull the other end of the wire tie (E)

until the two wires (F) are routed through the Handlebar Carriage (105). Then, untie and discard the wire tie.

105
