IMPORTANT PRECAUTIONS
WARNING:
tions before using the exercise cycle.
1. Read all instructions in this manual and all warnings on the exercise cycle before using the exercise cycle. Use the exercise cycle only as described in this manual.
2. It is the responsibility of the owner to ensure that all users of the exercise cycle are ade­quately informed of all precautions.
3. The exercise cycle is intended for home use only. Do not use the exercise cycle in a commercial, rental, or institutional setting.
4. Keep the exercise cycle indoors, away from moisture and dust. Place the exercise cycle on a level surface, with a mat beneath it to protect the floor enough clearance around the exercise cycle to mount, dismount, and use it.
Inspect and properly tighten all parts regularly.
5. Replace any worn parts immediately.
Keep children under the age of 12 and pets
6. away from the exercise cycle at all times.
The exercise cycle should not be used by
7. persons weighing more than 1
To reduce the risk of serious injury, read the following important precau-
. Make sure that there is
13 kg (250 lbs).
8. Wear appropriate clothes while exercising; do not wear loose clothes that could become caught on the exercise cycle. Always wear athletic shoes for foot protection.
9. The pulse sensor is not a medical device. Various factors, including the user's move­ment, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.
10.Always keep your back straight while using the exercise cycle; do not arch your back.
11. If you feel pain or dizziness while exercising, stop immediately and cool down.
12. The exercise cycle does not have a freewheel; the pedals will continue to move until the fly wheel stops.
13. The warning decals shown on page 3 have been placed on the exercise cycle. If a decal is missing or illegible, call the telephone num ber on the front cover of this manual and request a free replacement decal. decal in the location shown.
Apply the
-
-
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
2
BEFORE YOU BEGIN
Prt # 210124
• Not for therapeutic use.
• Nicht für thera­peutisch Gebrauch.
Congratulations for selecting the new PROFORM®748
KG exercise cycle. Cycling is one of the most effec-
E tive exercises for increasing cardiovascular fitness, building endurance, and toning the entire body. The 748 EKG exercise cycle offers a selection of features designed to let you enjoy this healthful exercise in the
onvenience and privacy of your home.
c
For your benefit, read this manual carefully before you use the exercise cycle.
Handlebar
Console
Pulse Sensor
Adjustment Handle
If you have questions
after reading this manual, see the front cover of this
anual. To help us assist you, please note the prod-
m uct model number and serial number before contact­ing us. The model number is PFEVEX2916.0. The ser­ial number can be found on a decal attached to the exercise cycle (see the front cover of this manual).
Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.
FRONT
Water Bottle
Holder*
Seat
Seat Knob
Seat Post
Adjustment Knob
REAR
Leveling Foot
Wheel
Pedal/Strap
*
No water bottle is included
3
M10 x 20mm Button
Screw (35)–3
M10 x 73mm Button Screw (33)–4
M8 Nylon
Locknut (37)–4
M8 Split
Washer (36)–4
M10 Split
Washer (34)–7
M6 x 8mm
Screw (51)–2
M4 x 15mm
Screw (15)–2
M4 x 15mm
Screw (40)–4
ASSEMBLY
Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the packing
aterials. Do not dispose of the packing materials until assembly is completed.
m
Assembly requires the included tools and your own adjustable wrench and Phillips screwdriver .
Use the part drawings below to identify the small parts used in assembly. The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on page 22. The second number refers to the quantity needed for assembly.
part is not in the parts bag, check to see if it has been preattached.
Note: Some small parts may have been preattached for shipping. If a
1. Identify the Front Stabilizer (2), which has round wheels. While another person lifts the front of the Frame (1), attach the Front Stabilizer to the Frame with two M10 x 73mm Button Screws (33) and two M10 Split Washers (34).
1
34
1
2
34
33
4
2. While another person lifts the rear of the Frame (1),
ttach the Rear Stabilizer (14) to the Frame with two
a M10 x 73mm Button Screws (33) and two M10 Split
ashers (34).
W
2
14
3. While another person holds the Upright (3) near the
Frame (1), connect the Upper Wire Harness (32) to the Lower Wire Harness (31).
Gently pull the upper end of the Upper Wire Harness (32) to remove the slack, and slide the Upright (3) onto the Frame (1). Be careful to avoid pinching the Wire
Harnesses.
Button Screws (35) and three M10 Split Washers (34).
Attach the Upright with three M10 x 20mm
1
34
3
Be careful to avoid
pinching the Wire
Harnesses (31, 32)
35
34
32
31
35
3
34
1
34
33
4. Attach the Water Bottle Holder (29) to the Upright (3)
with two M4 x 15mm Screws (15).
4
15
29
3
5
5. The Console (6) requires four “AA” batteries; alkaline batteries are recommended. Press the tab on the bat­tery cover and remove the battery cover. Insert four batteries into the console; make sure that the batter-
es are oriented as shown by the diagram inside
i the battery compartment. Then, reattach the battery
cover.
ote: The Console (6) can be operated with an option-
N al power supply instead of batteries.
power supply, call the telephone number on the front cover of this manual. Plug one end of the
power supply into the jack on the console. Plug the other end of the power supply into an appropriate out­let that is properly installed in accordance with all local codes and ordinances.
To purchase a
5
atteries
B
Battery
Cover
6
6. While another person holds the Console (6) near the Upright (3), connect the console wire harness to the Upper Wire Harness (32).
Insert the excess Upper Wire Harness (32) downward into the Upright (3). Attach the Console (6) to the Upright with four M4 x 15mm Screws (40).
to avoid pinching the wires.
7. Attach the Handlebar (47) to the Upright (3) with the Upright Clamp (45) and the Adjustment Handle (46). Note: The Adjustment Handle may work like a span-
Turn the handle clockwise, push it toward the
ner. Handlebar, turn it counterclockwise, pull it away from the Handlebar, and then turn it clockwise again.
Be careful
6
Console Wire
Harness
3
40
40
7
32
Be careful to avoid
pinching the wires
6
47
3
45
46
6
8. Orient the Seat Post (5) as shown. Loosen the Adjustment Knob (11) a few turns, pull the Adjustment
nob outward, and insert the Seat Post into the Frame
K (1). Move the Seat Post upward or downward to the
esired position, and then release the Adjustment
d Knob into one of the adjustment holes in the Seat Post. Then, tighten the Adjustment Knob a few turns.
Make sure that the Adjustment Knob is engaged in an adjustment hole.
Attach an M6 x 8mm Screw (51) to the front of the Seat Post (5).
Orient the Seat (12) and the Seat Carriage (26) as
9. shown. Attach the Seat to the Seat Carriage with four M8 Nylon Locknuts (37) and four M8 Split Washers (36).
Note: The Nylon Locknuts and Split Washers
may be preattached to the underside of the Seat.
8
9
51
5
1
11
12
51
Slide the Seat Carriage (26) onto the Seat Post (5) and move the Seat Carriage forward or backward to the desired position. Then, tighten the Seat Knob (52) into the Seat Carriage.
Attach an M6 x 8mm Screw (51) to the rear of the Seat Post (5).
10.Identify the Left Pedal (24), which is marked with an “L.” Using an adjustable wrench, Left Pedal (42). Tighten the Right Pedal (not shown) into the Right Crank
Tighten both Pedals as firmly as possible. After using the exercise cycle for one week, retighten the Pedals. For best performance, keep the Pedals tightened.
Adjust the strap on the Left Pedal (24) to the desired position, and press the end of the strap onto the tab on the side of the Left Pedal. Adjust the strap on the Right Pedal (not shown) in the same way.
counterclockwise
Arm (not shown).
firmly tighten the
into the Left Crank Arm
clockwise
Important:
10
5
Strap
Ta b
52
26
36
37
42
24
11. Make sure that all parts are properly tightened before you use the exercise cycle. Note: After assembly is completed, some extra parts may be left over. Place a mat beneath the exercise cycle to protect the floor.
7
HOW TO OPERATE THE EXERCISE CYCLE
HOW TO ADJUST THE HEIGHT OF THE SEAT
For effective exer­cise, the seat should be at the
roper height. As
p you pedal, there should be a slight bend in your knees when the pedals are in the lowest position. To adjust the seat, first turn the adjustment knob counterclock­wise several turns to loosen it. Next, pull the knob, slide the seat post upward or downward to the desired posi­tion, and then release the knob.
upward or downward slightly to make sure that the knob is engaged in one of the adjustment holes in the seat post. Then, turn the knob clockwise to tight-
en it.
HOW TO ADJUST THE LATERAL POSITION OF THE SEAT
To adjust the later­al position of the seat, first loosen the seat knob a few turns. Then, move the seat for­ward or backward to the desired posi­tion, and firmly tighten the seat knob.
Seat Post
Move the seat post
Seat
Seat
Knob
eat
S
Adjustment
Knob
HOW TO ADJUST THE HANDLEBAR
To adjust the han­dlebar, first turn the indicated adjustment
andle counter-
h clockwise to loosen it. Note: The adjust­ment handle may work like a spanner. Turn the handle counterclockwise, pull it away from the handlebar, turn it clockwise, push it toward the handlebar, and then turn it counterclock­wise again. Repeat until the handlebar is loose. Move the handlebar upward or downward to the desired posi­tion and then retighten the handle.
HOW TO ADJUST THE PEDAL STRAPS
To adjust the pedal straps, first pull the ends of the pedal straps off the tabs on the pedals. Adjust the pedal straps to the desired position, and then press the ends of the pedal straps onto the tabs.
Handle
Pedal
Strap
8
ONSOLE DIAGRAM
C
FEATURES OF THE CONSOLE
The console offers a selection of features designed to make your workouts more effective. When you use the manual mode of the console, you can change the resistance of the pedals with the touch of a button. As you exercise, the console will provide continuous exer­cise feedback. You can even monitor your heart rate using the handgrip pulse sensor or the optional chest pulse sensor. Note: For information about the
optional chest pulse sensor, see page 19.
The console features six smart programs that automati­cally change the resistance of the pedals and prompt you to vary your pedaling pace while guiding you through an effective workout.
The console also of automatically control the resistance of the pedals and prompt you to maintain a constant pedaling pace to keep your heart rate near target heart rate settings dur­ing your workouts.
In addition, the console also features iFIT.com interac­tive technology is like having a personal trainer in your home. Using the included audio cable, you can connect the exercise
fers two heart rate programs that
. Having iFIT.com interactive technology
cycle to your home stereo, portable stereo, computer, or VCR and play special iFIT.com CD and video pro­grams (iFIT.com CDs and videocassettes are available separately). iFIT.com CD and video programs automati­cally control the resistance of the pedals and prompt you to vary your pace as a personal trainer coaches you through every step of your workout. High-energy music provides added motivation.
iFIT.com CDs and videocassettes, visit our website at www.iconeurope.com.
ith the
W you can also go to our website at www.iFIT.com and access programs directly from the Internet.
www
To use the manual mode of the console, follow the
steps beginning on page 10. T see page 12. To use a heart rate program, see page
13. To use an iFIT.com CD or video program, see page 17. To use a program directly from our web- site, see page 18.
Before using the console, make sure that batteries are installed (see assembly step 5 on page 6). If there is a sheet of clear plastic on the display, remove the plastic.
exercise cycle
.com for more information.
.iFIT
connected to your computer
To purchase
,
Explore
o use a smart program,
9
OW TO USE THE MANUAL MODE
H
urn on the console.
T
1
To turn on the console, press any button or begin pedaling. The display will light and the console will be ready for use.
Select the manual mode.
2
Each time you turn on the console, the manual mode will be selected. If you have selected a program, reselect the manual mode by pressing any of the Program buttons repeatedly until zeroes appear in the display.
Begin pedaling and change the resistance of
3
the pedals as desired.
As you pedal, change the resis­tance of the pedals by pressing the Increase and Decrease buttons. There are ten resistance levels. Note: After you press the buttons, it will take a moment for the pedals to reach the selected resistance level.
Follow your progress with the display.
4
The upper section of the display will show the elapsed time and the distance, in miles or kilometers, that you have pedaled. The display will change modes every few sec­onds. Note: When you select a smart program the display will show the time remaining in the pro­gram instead of the elapsed time.
The second section of the display will show
our pedaling pace, in
y miles or kilometers
er hour.
p The third section of
the display will show the approximate num­ber of calories you have burned and the resistance level of the pedals. The display will change modes every few seconds. The display will also show your heart rate when you use the handgrip pulse sensor or the optional chest pulse sensor (see step 5 on page 11).
The last section of the display will show a track representing 1/4 mile. As you exercise, indicators will appear in succession around the track until the entire track appears. The track will then disappear and the indicators will again begin to appear in succession
Note: The console can show speed and distance in either miles of kilometers.
The letters MPH or Km/H will appear in the display to indicate which unit of measurement is selected. To change the unit of measurement, press and hold down the Program Select button for a few seconds. An “E” for English mile or an “M” for metric kilometers will appear in the display. Press the Increase button to select the desired unit of measurement. Then, press the Program Select button. Note: When you replace the batter­ies, it may be necessary to reselect the unit of measurement.
10
Measure your heart rate if desired.
5
ou can measure you heart rate using either the
Y handgrip pulse sensor or the optional chest pulse
ensor (see page 19 for information about the
s optional chest pulse sensor). Note: If you hold the handgrip pulse sensor and wear the chest pulse sensor at the same time, the console will not dis­play your heart rate accurately.
If there are sheets of clear plastic on the metal contacts on the handgrip pulse sensor, remove the plas-
Next, hold the
tic.
handgrip pulse sen­sor with your palms resting on the metal
Contacts
contacts. the contacts too tightly. When your pulse is
etected, a heart-shaped symbol will flash in the
d display each time your heart beats and then your
eart rate will be shown. For the most accurate
h heart rate reading, hold the contacts for at least 15 seconds.
When you are finished exercising, the console
6
will turn off automatically.
If the pedals do not move for a few seconds, the time will begin to flash in the display and the con­sole will pause. If the pedals do not move for a few minutes and no buttons are pressed, the con­sole will turn off and the display will be reset.
Avoid moving your hands or gripping
11
OW TO USE A SMART PROGRAM
H
urn on the console.
T
1
To turn on the console, press any button or begin pedaling. The display will light and the console will be ready for use.
Select a smart program.
2
To select a smart program, press the Program Select but­ton repeatedly until P3, P4, P5, P6, P7, or P8 appears in the display. The first section of the display will show how long the program will last.
Begin pedaling to start the program.
3
Each program is divided into 30 one-minute seg­ments. One resistance level and one pace setting are programmed for each segment. Note: The same resistance level and/or pace setting may be programmed for two or more consecutive seg­ments.
As you exercise, the display will prompt
ou to keep your
y pedaling pace near
he pace setting for
t the current segment. When the word “faster” appears in the display, increase your pace. When the word “slower” appears, decrease your pace. When the center of the target flashes, maintain your current pace.
Important: The pace settings are intended only to provide motivation. Your actual pace may be slower than the pace settings. Make sure to pedal at a pace that is comfortable for you.
If the resistance level for the current segment is too high or too low, you can manually override the level by pressing the decrease and increase but-
Important: When the current segment of
tons.
the program ends, the pedals will automatically adjust to the resistance setting for the next segment.
If you stop pedaling for several seconds, the time will begin to flash in the display. To restart the pro­gram, simply resume pedaling.
Whenever the resistance is about to change, the resistance level will flash in the display for a few seconds. The resistance of the pedals will then automatically change to the resistance level pro­grammed for the next segment. Note: If the resis­tance level is too low or too high, you can over­ride it by pressing the Increase and Decrease buttons. However, when the current segment ends, the resistance will automatically change to the resistance level programmed for the next seg­ment.
The program will continue until the display shows a time of 0:00. If you continue to pedal after the program is completed, the display will continue to show exercise feedback; however, the display will not show the elapsed time until you select the manual mode or a new program.
Follow your progress with the display.
4
See step 4 on page 10.
Measure your heart rate if desired.
5
See step 5 on page 11.
When you are finished exercising, the console
6
will turn off automatically.
See step 6 on page 11.
12
OW TO USE A HEART RATE PROGRAM
H
Hold the handgrip pulse sensor or wear the
4
optional chest pulse sensor.
urn on the console.
T
1
To turn on the console, press any button or begin pedaling. The display will light and the console will be ready for use.
Select a heart rate program.
2
To select one of the two heart rate pro­grams, press the button with the heart rate symbol once or twice until P1 or P2 appears in the display play will show how long the program will last.
Enter a target heart rate setting.
. The first section of the dis-
3
If you select the first heart rate pro­gram,
target heart rate set­ting of the program will appear in the display. Use the Increase and Decrease buttons to change the maximum heart rate setting, if desired. Note: If you change the maximum target heart rate setting, the intensity level of the entire program will change.
the maximum
To use a heart rate program, you must hold the
andgrip pulse sensor or wear the optional chest
h pulse sensor (see page 19 for information about the optional chest pulse sensor). Note: If you hold the handgrip pulse sensor and wear the chest pulse sensor at the same time, the console will not display your heart rate accurately.
If you use the handgrip pulse sensor, it is not nec­essary to hold the handgrip pulse sensor continu­ously during a heart rate program; however, you should hold the handgrip pulse sensor frequently for the program to operate properly.
you hold the handgrip pulse sensor, keep your hands on the metal contacts for at least 30 seconds.
Begin pedaling to start the program.
Each time
5
First heart rate control program
is divided into 30 one-minute segments. One target heart rate setting is programmed for each seg­ment. Note: The same target heart rate setting may be programmed for two or more consecutive segments.
Second heart rate program—The same target heart rate is programmed for all segments of this program.
—This program
If you select the second heart rate program,
the target heart rate setting for the program will appear in the display. Use the Increase and Decrease buttons to change the target heart rate setting, if desired. Note: The same target heart rate setting will be used for the entire program.
13
Both heart rate programs—As you pedal, the
LINE OUT
P
HONES
LINE OUT
PHONES
A
LINE OUT
PHONES
LINE OUT
PHONES
PHONES
PHONES
console will regularly compare your heart rate to
he target heart rate setting. If your heart rate is
t too far below or above the target heart rate, the
esistance of the pedals will automatically increase
r or decrease to bring your heart rate closer to the target heart rate.
You will also be prompted to pedal at a steady pace. When the word “faster” appears in the display, increase your pace. When the word “slower” appears, decrease your pace. When the center of the tar­get flashes, maintain your current pace.
Important: Make sure to exercise at a pace that is comfortable for you.
If the resistance level for the current segment is too high or too low, you can manually override the level by pressing the decrease and increase but­tons; however, if you change the resistance level, you might not maintain the target heart rate. Also, when the console compares your heart rate to the target heart rate setting, the resistance of the pedals may automatically increase or decrease to bring your heart rate closer to the target heart rate setting.
HOW TO CONNECT YOUR CD PLAYER, VCR OR COMPUTER
To use iFIT.com CDs, the exercise cycle must be con-
nected to your portable CD player, portable stereo,
ome stereo, or computer with CD player. See pages 14
h to 16 for connecting instructions. To use iFIT.com videocassettes, the exercise cycle must be connected to your VCR. See page 16 for connecting instructions. To use iFIT.com programs directly from our website, the exercise cycle must be connected to your computer. See page 16.

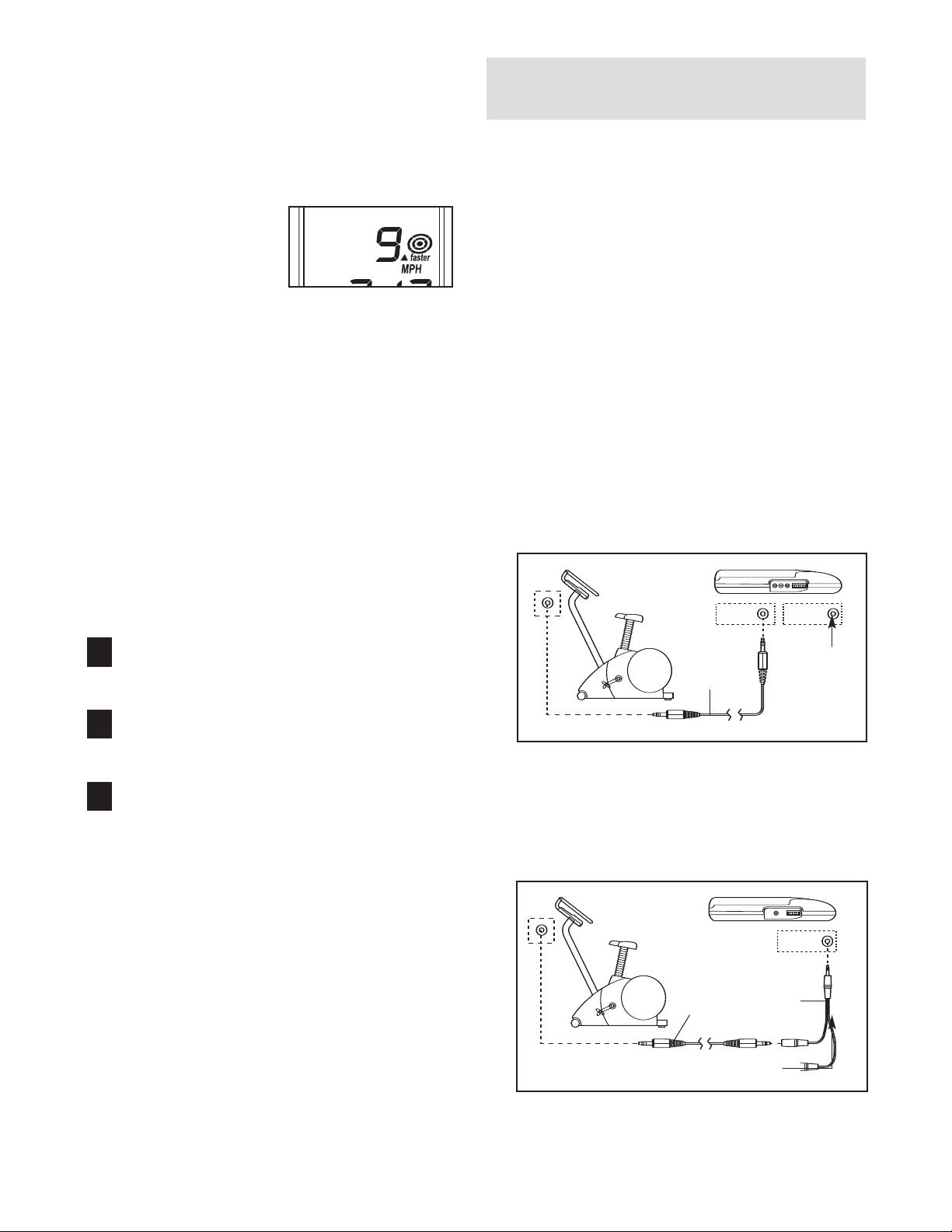

HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and PHONES jacks, see instruction A below. If your CD player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the audio cable into the LINE OUT jack on your CD player. Plug your headphones into the PHONES jack.
A
Follow your progress with the display.
6
See step 4 on page 10.
Measure your heart rate if desired.
7
See step 5 on page 11.
When you are finished exercising, the console
8
will turn off automatically.
See step 6 on page 11.
Audio Cable
Head-
phones
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the audio cable into the splitter. Plug the splitter into the PHONES jack on your CD player. Plug your headphones into the other side of the splitter.
B
Audio Cable
Splitter
Headphones
14
HOW TO CONNECT YOUR PORTABLE STEREO
CD
VCR
Amp
LINE OUT
LINE OUT
A
CD
VCR
Amp
L
INE OUT
LINE OUT
CD
VCR
Amp
LINE OUT
AUDIO OUT
RIGHT
LEFT
LINE OUT
A
PHONES
A
UDIO OUT
RIGHT
LEFT
B
L
INE OUT
LINE OUT
HOW TO CONNECT YOUR HOME STEREO
ote: If your stereo has an RCA-type AUDIO OUT
N jack, see instruction A below. If your stereo has a
.5mm LINE OUT jack, see instruction B. If your
3 stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the audio cable into the adapter. Plug the adapter into an AUDIO OUT jack on your stereo.
A/B
Adapter
Audio Cable
B. See the drawing above. Plug one end of the audio
cable into the jack beneath the console. Plug the other end of the audio cable into the LINE OUT jack on your stereo. Do not use the adapter.
C. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the audio cable into the splitter. Plug the splitter into the PHONES jack on your stereo. Plug your head­phones into the other side of the splitter.
ote: If your stereo has an unused LINE OUT jack,
N see instruction A below. If the LINE OUT jack is
eing used, see instruction B.
b
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the audio cable into the adapter. Plug the adapter into the LINE OUT jack on your stereo.
A
Adapter
Audio Cable
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the audio cable into the adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the LINE OUT jack on your stereo and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the LINE OUT jack on your stereo.
B
C
Audio Cable
Splitter
Audio Cable
RCA Y-adapter
Adapter
Headphones
Wire removed from
LINE OUT jack
15
HOW TO CONNECT YOUR COMPUTER
AUDIO OUT
R
IGHT
LEFT
V
IDEO AUDIO
ANT. IN
R
FOUT
I
N
OUT
C
H
34
VIDEO AUDIO
ANT. IN
RF OUT
I
N
O
UT
CH
3
4
A
AUDIO OUT
RIGHT
LEFT
V
IDEO AUDIO
ANT. IN
R
FOUT
IN
OUT
C
H
34
LINE OUT
A
PHONES
LINE OUT
HOW TO CONNECT YOUR VCR
ote: If your computer has a 3.5mm LINE OUT jack,
N see instruction A. If your computer has only a
HONES jack, see instruction B.
P
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the audio cable into the LINE OUT jack on your com­puter.
A
Audio
Cable
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the audio cable into the splitter. Plug the splitter into the PHONES jack on your computer. Plug your head­phones or speakers into the other side of the splitter.
B
Audio Cable
Splitter
ote: If your VCR has an unused AUDIO OUT jack,
N see instruction A below. If the AUDIO OUT jack is
eing used, see instruction B. If you have a TV
b with a built-in VCR, see instruction B. If your VCR is connected to your home stereo, see HOW TO CONNECT YOUR HOME STEREO on page 15.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the audio cable into the adapter. Plug the adapter into the AUDIO OUT jack on your VCR.
A
Adapter
Audio Cable
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the audio cable into the adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the AUDIO OUT jack on your VCR and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the AUDIO OUT jack on your VCR.
B
Headphones/Speakers
16
Audio Cable
RCA
Y-adapter
Adapter
Wire removed from
AUDIO OUT jack
HOW TO USE AN IFIT.COM CD OR VIDEO PROGRAM
To use iFIT.com CDs or videocassettes, the exercise cycle must be connected to your portable CD player, portable stereo, home stereo, computer with CD play­er, or VCR. See HOW TO CONNECT YOUR CD PLAYER, VCR, OR COMPUTER on page 14. To
purchase iFIT.com CDs and videocassettes, visit our website at www.iFIT.com.
The program will function in almost the same way as a preset program (see step 3 on page 12).
owever, an electronic “chirping” sound will alert
H you when the resistance level and/or the target
ace is about to change.
p
Note: If the resistance of the pedals and/or the target pace does not change when a “chirp” sounds:
• Make sure that the indicator near the iFIT but­ton is lit.
Follow the steps below to use an iFIT.com CD or video program.
Turn on the console.
1
See step 1 on page 10.
Select the iFIT.com mode.
2
To select the iFIT.com mode, press the iFIT but­ton.
Insert the iFIT.com CD or videocassette.
3
If you are using an iFIT.com CD, insert the CD into your CD player. If you are using an iFIT.com videocassette, insert the videocassette into your VCR.
Press the play button on your CD player or
4
VCR.
A moment after you press the play button, your personal trainer will begin guiding you through your workout. Simply follow your personal trainer’ instructions.
• Adjust the volume of your CD player or VCR. If the volume is too high or too low, the con­sole may not detect the program signals.
• Make sure that the audio cable is properly connected and that it is fully plugged in.
Follow your progress with the display.
5
See step 4 on page 10.
Measure your heart rate if desired.
6
See step 5 on page 11.
When you are finished exercising, the console
7
will turn off automatically.
See step 6 on page 11.
s
17
HOW TO USE A PROGRAM DIRECTLY FROM OUR WEBSITE
Our website at www.iFIT.com allows you to play iFIT.com programs directly from the Internet. To use programs from our website, the exercise cycle must be connected to your home computer. See HOW TO CONNECT YOUR COMPUTER on page 16. In addi­tion, you must have an Internet connection and an Internet service provider. A list of specific system requirements is found on our website.
Follow the steps below to use a program from our website.
Turn on the console.
1
See step 1 on page 10.
Select the iFIT.com mode.
2
To select the iFIT.com mode, press the iFIT but­ton.
Go to your computer and start an Internet con-
3
nection.
Start your Web browser, if necessary, and go
4
to our website at www.iFIT.com.
Follow the desired links on our website to
5
select a program.
Follow the online instructions to start the
6
program.
hen you start the program, an on-screen count-
W down will begin.
Return to the exercise cycle and begin
7
pedaling.
When the on-screen countdown ends, the pro­gram will begin. The program will function in almost the same way as a preset program (see step 3 on page 12). However, an electronic “chirp­ing” sound will alert you when the resistance level and/or the target pace is about to change.
Follow your progress with the display.
8
See step 4 on page 10.
Measure your heart rate if desired.
9
See step 5 on page 11.
When you are finished exercising, the console
10
will turn off automatically.
See step 6 on page 11.
18
THE OPTIONAL CHEST PULSE SENSOR
he optional chest pulse sensor provides hands-free
T operation and continuously monitors your heart rate
uring your workouts. To purchase the optional
d
chest pulse sensor, call the telephone number on the front cover of this manual.
INSTALLING THE RECEIVER FOR THE OPTIONAL CHEST PULSE SENSOR
If you purchase the optional chest pulse sensor, follow the steps below to install the receiver included with the chest pulse sensor.
1. See step 6 on page 6 and remove the Console (6) from the upright.
Connect the wire on the receiver (A) to the indicat­ed wire extending from the Console (6). Attach the receiver to the plastic posts in the recess on the back of the Console with the three included small screws.
2. Reattach the Console (6) to the upright.
1
Screws
A
6
Console
Wire
19
MAINTENANCE AND TROUBLESHOOTING
Inspect and properly tighten all parts of the exercise
ycle regularly. Replace any worn parts immediately.
c
o clean the exercise cycle, use a damp cloth and a
T small amount of mild soap—
abrasives, or chemicals to clean the exercise cycle.
Important: To avoid damage to the console, keep liquids away from the console and keep the con­sole out of direct sunlight.
PULSE SENSOR TROUBLESHOOTING
For optimal performance of the pulse sensor, keep the metal contacts clean. Clean the contacts with a soft cloth—
to clean the metal contacts.
Avoid moving your hands or squeezing the metal con­tacts too tightly while using the pulse sensor; doing so may interfere with heart rate readings. For the most accurate heart rate reading, hold the metal contacts for about 15 seconds.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the reed switch should be adjusted. To adjust the reed switch, the left pedal and the left side shield must be removed.
Using an adjustable wrench, turn the left pedal clock­wise and remove the left pedal.
never use alcohol, abrasives, or chemicals
never use alcohol,
Next, locate
he Reed
t Switch (21).
urn the Left
T Crank Arm (42) until the Magnet (16) is aligned with the Reed Switch. Loosen, but do not remove, the indicated M5 x 12mm Screw (53). Slide the Reed Switch slightly closer to or away from the Magnet, and then retighten the Screw. Turn the Left Crank Arm for a moment. Repeat until the console displays correct feedback.
When the Reed Switch is correctly adjusted, reattach the left side shield and the left pedal.
BATTERY REPLACEMENT
If the console display becomes dim, the batteries should be replaced; most console problems are the result of low batteries. To replace the batteries, see assembly step 5 on page 6.
HOW TO LEVEL THE EXERCISE CYCLE
If the exercise cycle rocks slightly on your floor, turn one or both of the leveling feet under the rear stabilizer.
53
21
16
42
Remove the screws from the left side shield. Note: There are two different sizes of screws in the left side shield. Be sure to note the location of each screw. Then, carefully pry the left side shield away from the exercise cycle.
20
CONDITIONING GUIDELINES
The following guidelines will help you to plan your exercise program. Remember that proper nutrition and adequate rest are essential for successful results.
WARNING:
Before beginning this or any exercise pro­gram, consult your physician. This is espe­cially important for persons over the age of 35 or persons with pre-existing health prob­lems.
The pulse sensor is not a medical device. Various factors may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determin­ing heart rate trends in general.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recom­mended heart rates for fat burning, maximum fat burning, and cardiovascular (aerobic) exercise.
During the first few minutes of exercise, your body uses easily accessible gy. Only after the first few minutes of exercise does your body begin to use stored
f your goal is to burn fat, adjust the intensity of your
I exercise until your heart rate is near the lowest num­ber in your training zone as you exercise. For maxi­mum fat burning, adjust the intensity of your exercise until your heart rate is near the middle number in your training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys­tem, your exercise must be “aerobic.” Aerobic exer­cise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching and light exercise. A proper warm-up increases your body temperature, heart rate, and circulation in prepa­ration for exercise.
carbohydrate
fat
calories for energy.
calories for ener-
To find the proper heart rate for you, first find your age at the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age. The three numbers are your “training zone.” The lowest number is the recommended heart rate for fat burning; the middle number is the recommended heart rate for maximum fat burning; the highest num­ber is the recommended heart rate for aerobic exer­cise.
Fat Burning
o burn fat effectively, you must exercise at a relative-
T ly low intensity level for a sustained period of time.
Training zone exercise, consisting of 20 to 30 min­utes of exercising with your heart rate in your training zone. Note: During the first few weeks of your exer­cise program, do not keep your heart rate in your training zone for longer than 20 minutes.
A cool-down, with 5 to 10 minutes of stretching. This will increase the flexibility of your muscles and will help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three work­outs each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each week, if desired. Remember, the key to success is make exer­cise a regular and enjoyable part of your everyday life.
21
PART LIST—Model No. PFEVEX2916.0 R0207A
Key No. Qty. Description Key No. Qty. Description
1 1 Frame 2 1 Front Stabilizer 3 1 Upright 4 2 Endcap 5 1 Seat Post 6 1 Console 7 1 Eddy Mechanism 8 1 Resistance Motor
9 1 Crank 10 1 Resistance Cable 11 1 Adjustment Knob 12 1 Seat 13 2 Foot 14 1 Rear Stabilizer 15 2 M4 x 15mm Screw 16 1 Magnet 17 1 Left Side Shield 18 1 Right Side Shield 19 1 Spring 20 1 Seat Post Bushing 21 1 Reed Switch/Wire 22 1 Clamp 23 1 Belt 24 1 Left Pedal/Strap 25 1 Right Pedal/Strap 26 1 Seat Carriage 27 2 Crank Bearing Set 28 1 Idler 29 1 Water Bottle Holder 30 2 Idler Pulley 31 1 Lower Wire Harness 32 1 Upper Wire Harness 33 4 M10 x 73mm Button Screw 34 7 M10 Split Washer
35 3 M10 x 20mm Button Screw 36 4 M8 Split Washer 37 7 M8 Nylon Locknut 38 2 M6 Nut 39 3 M4 x 25mm Screw 40 4 M4 x 15mm Screw 41 8 M5 x 20mm Screw 42 1 Left Crank Arm 43 1 Right Crank Arm 44 2 Crank Cover 45 1 Upright Clamp 46 1 Adjustment Handle 47 1 Handlebar 48 2 Handlebar Endcap 49 2 Wheel 50 2 Hub Cap 51 2 M6 x 8mm Screw 52 1 Seat Knob 53 5 M5 x 12mm Screw 54 2 M8 x 25mm Flange Screw 55 1 M8 x 20mm Bolt 56 2 Snap Ring 57 2 Eye Bolt 58 2 3/8" Nut 59 2 Flywheel Nut 60 1 M8 Washer 61 1 Pulley 62 4 M6 x 16mm Screw 63 4 M6 Nylon Jamnut 64 2 Foam Grip
# 1 Assembly Tool # 1 User’s Manual # 2 Hex Key
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of this manual for information about ordering replacement parts.
22
EXPLODED DRAWING—Model No. PFEVEX2916.0 R0207A
2
3
1
4
4
5
6
11
12
14
49
17
1
8
20
21
22
23
24
25
27
29
31
32
33
33
35
35
34
34
36
37
15
41
41
41
41
41
4
1
53
39
39
39
40
50
37
37
50
49
16
27
44
54
42
56
9
43
54
44
52
26
51
46
45
47
48
7
8
28
19
13
13
57
30
57
30
10
58
58
59
59
38
38
55
60
37
53
53
56
36
61
62
62
63
34
34
34
64
23
ORDERING REPLACEMENT PARTS
To order replacement parts, contact the ICON Health & Fitness, Ltd. office, or write:
ICON Health & Fitness, Ltd. Customer Service Department Unit 4, Revie Road Industrial Estate Revie Road Beeston Leeds, LS118JG UK
Tel:
08457 089 009
Outside the UK: 0 (044) 113 387 7133 Fax: 0 (044) 113 387 7125
To help us assist you, please be prepared to give the following information:
• the MODEL NUMBER of the product (PFEVEX2916.0)
• the NAME of the product (PROFORM 748 EKG exercise cycle)
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part(s) (see pages 22 and 23)
PROFORM is a registered trademark of ICON IP
Part No. 246636 R0207A Printed in China © 2007 ICON IP, Inc.
, Inc.
Loading...
