ProForm PFEVEL69831, PFEVEL69832 User Manual

Model No. PFEVEL69832
www.iconeurope.com
Visit our website at
Serial No.
Serial
Decal
QUESTIONS?
As a manufacturer, we are com­mitted to providing complete customer satisfaction. If you have questions, or if there are missing parts, please call:
08457 089 009
USERʼS MANUAL
Or write: ICON Health & Fitness, Ltd. Customer Service Department Unit 4 Revie Road Industrial Estate Revie Road Beeston Leeds, LS118JG UK
email: csuk@iconeurope.com
CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Keep this manual for future reference.
Class HC Fitness Product
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE ELLIPTICAL CROSSTRAINER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: T
tions before using the elliptical crosstrainer.
1. Read all instructions in this manual before using the elliptical crosstrainer.
2. It is the responsibility of the owner to ensure that all users of the elliptical crosstrainer are adequately informed of all precautions.
3. The elliptical crosstrainer is intended for home use only. Do not use the elliptical crosstrainer in a commercial, rental, or insti­tutional setting.
4. Place the elliptical crosstrainer on a level surface, with a mat beneath it to protect the floor or carpet. Keep the elliptical crosstrain­er indoors, away from moisture and dust.
5. Inspect and properly tighten all parts regu­larly. Replace any worn parts immediately.
6. Keep children under 12 and pets away from the elliptical crosstrainer at all times.
7. The elliptical crosstrainer should not be used by persons weighing more than 115 kg (250 lbs.).
o reduce the risk of serious injury, read the following important precau-
11. Keep your back straight whilst using the elliptical crosstrainer; do not arch your back.
12. If you feel pain or dizziness whilst exercis­ing, stop immediately and cool down.
13. When you stop exercising, allow the pedals to slowly come to a complete stop. The ellip­tical crosstrainer does not have a free wheel; the pedals will continue to move until the flywheel stops.
14. Always unplug the power cord immediately
after use and before cleaning the elliptical crosstrainer.
15. The decal shown below has been placed on
the elliptical crosstrainer. If the decal is missing or illegible, please call our Customer Service Department at 08457 089 009 and order a free replacement decal. Apply the decal in the location shown.
8. Wear appropriate exercise clothes whilst using the elliptical crosstrainer. Always wear athletic shoes for foot protection whilst exercising.
9. Hold the centre handlebar or the left and right handlebars when mounting, dismounting, or using the elliptical crosstrainer.
10. The pulse sensor is not a medical device. Various factors may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determin­ing heart rate trends in general.
WARNING: Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health prob­lems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
3
BEFORE YOU BEGIN
Congratulations for selecting the new PROFORM
00 TR elliptical crosstrainer. The PROFORM
7
®
®
00
7 TR is an incredibly smooth exerciser that moves your feet in a natural elliptical path, minimising the impact on your knees and ankles. And the unique PROFORM
®
700 TR features adjustable resistance and a state-of-the-art console to help you get the most from your exercise. Welcome to a whole new world of natural, elliptical-motion exercise from PROFORM.
For your benefit, read this manual carefully before you use the elliptical crosstrainer. If you have
Left Handlebar
Handgrip Pulse Sensor
Fan
CD Player
questions after reading this manual, please call our
ustomer Service Department at 08457 089 009. To
C help us assist you, please note the product model number and serial number before calling. The model number is PFEVEL69832. The serial number can be found on a decal attached to the elliptical crosstrainer (see the front cover of this manual for the location of the decal).
Before reading further, please familiarise yourself with the parts that are labelled in the drawing below.
Centre Handlebar
CD Holder
Console
Right Handlebar
Flex Bar
Pedal
BACK
Power Jack
Water Bottle Holder*
FRONT
Wheel
Levelling Foot
RIGHT SIDE
*No bottle is included
4
ASSEMBLY
Union Bolt Set (27)–2
M4 x 52mm Screw (98)–2
M4 x 16mm Round
Head Screw (45)–1
M8 Split
Washer (94)–10
M8.5 Small
Washer (53)–2
M6 x 16mm Tapered
Button Screw (107)–8
M8 x 43mm Button
Bolt (50)–4
M8 x 38mm Button
Screw (70)–2
M10 x 35mm Carriage
Bolt (20)–2
M8 x 54mm Button
Screw (33)–4
M8 x 45mm Button
Screw (102)–4
M4 x 14mm Round Head Screw (93)–2
M8 Nylon
Locknut (46)–4
M10 Washer
(99)–2
M4 x 12mm Round Head Screw (18)–6
M4 x 16mm
Screw (116)–6
M8 x 25mm Button
Screw (22)–2
M10 Split
Washer (123)–2
Wave Washer
(124)–2
Assembly requires two persons. Place all parts of the elliptical crosstrainer in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included hex keys, assembly requires a phillips screwdriver , an adjustable spanner
and a rubber mallet .
,
See the drawings below to identify the small parts needed for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST on pages 25 and 26. The number following the key number is the quantity needed for assembly. Note: Some small parts may have been pre-assembled. If a
part is not found in the parts bag, check to see if it has been pre-assembled.
1. Whilst another person lifts the front of the Frame (1),
thread a Levelling Foot (72) fully into the underside of the Frame. Next, attach the Front Stabiliser (3) to the front of the Frame with two M8 x 54mm Button Screws (33) and two M8 Split Washers (94).
5
1
3
94
94
33
1
72
. Slide the Stabiliser Cover (31) onto the Frame (1).
2
Next, move and lift each Flex Bar (14) out of the way
nd slide the Stabiliser Cover onto the Front Stabiliser
a (3). Whilst another person lifts the front of the Frame, attach the Stabiliser Cover to the Front Stabiliser with two M4 x 52mm Screws (98).
2
31
1
14
14
3
98
3. With the help of a second person, carefully tip the
elliptical crosstrainer onto one side.
Make sure that the Left and Right Stabiliser Endcaps (35, 92) are on the Rear Stabiliser (4).
Attach the Rear Stabiliser (4) to the Frame (1) with four M8 x 45mm Button Screws (102) and four M8 Split Washers (94).
With the help of a second person, carefully tip the elliptical crosstrainer back to the vertical position.
4. Have another person hold the Upright (2) in the posi-
tion shown. Connect the Upper Wire Harness (86) to the Lower Wire Harness (87). Next, slide the Upright onto the Frame (1). Be careful to avoid disconnect- ing or pinching the Wire Harnesses. Attach the Upright with two M8 x 54mm Button Screws (33), two M8 x 38mm Button Screws (70), and four M8 Split Washers (94). Be careful to avoid damaging the
Wire Harnesses with the Button Screws.
Hold the Left and Right Handlebar Covers (26, 29) around the Upright (2) and the indicated tube. Press the Handlebar Covers together and connect them with an M4 x 16mm Round Head Screw (45).
Hold the Left and Right Upright Covers (34, 38) around the Upright (2). Attach the Upright Covers with two M4 x 14mm Round Head Screws (93).
3
4
34
93
26
Make sure the wire
harnesses do not
get pinched and
damaged
during this step.
70
94
94
92
4
94
1
86
29
Tube 2
94
94
87
102
94
35
93
38
45
33
1
6
5. Identify the Left Handlebar (9), which is marked with a
sticker. Insert the Left Handlebar into one of the Handlebar Legs (79); make sure that the Handlebar
eg is turned so the hexagonal holes are on the
L indicated side. Attach the Left Handlebar to the
andlebar Leg with two M8 x 43mm Button Bolts (50)
H and two M8 Nylon Locknuts (46). Make sure that the
Nylon Locknuts are seated in the hexagonal holes. Do not fully tighten the Button Bolts yet.
5
9
Tube
Attach the Right Handlebar (not shown) to the other Handlebar Leg (not shown) in the same way.
6. Apply a generous amount of the included grease to the
Pivot Axle (108) and to the two M8.5 Small Washers (53). Insert the Pivot Axle into the Upright (2) and centre it. Reapply grease to both sides of the Pivot Axle.
Identify the Left and Right Handlebars (9, 10), which are marked with stickers. Slide a Handlebar Spacer (25) onto the short tube on each Handlebar, and then slide the Handlebars onto the Pivot Axle (108). Make sure
that the Handlebars are on the correct sides.
Tighten an M8 x 25mm Button Screw (22) with an M8.5 Small Washer (53) and a Wave Washer (124) into each end of the Pivot Axle (108). Orient the two Handlebar Caps (23) as shown, and press the small tabs on the Handlebar Caps into the two Handlebar Spacers (25).
7. Apply a thin film of grease to the shaft of a Union Bolt
Set (27) and to the two Bushings (28) in the left Handlebar Leg (79).
6
22
53
23
Grease
7
124
79
9
50
Tube
79
25
46
Hexagonal
Holes
22
10
124
108
Tube
Grease
25
2
79
23
53
Attach the left Handlebar Leg (79) to the left Flex Bar (14) with the Union Bolt Set (27).
See assembly step 5 above. Tighten the two M8 x 43mm Button Bolts (50) in the left Handlebar Leg (79).
Make sure that the M8 Nylon Locknuts (46) are seated in the hexagonal holes.
Repeat this step to attach the right Handlebar Leg (79) to the right Flex Bar (14).
7
28
Grease
27
14
27
14
8. Identify the Left Pedal (13). Attach the Left Pedal to
the left Flex Bar (14) with an M10 x 35mm Carriage Bolt (20), an M10 Washer (99), an M10 Split Washer
123), and a Pedal Knob (15) as shown. Note: The
( Left Pedal can be attached in any of five positions
see HOW TO ADJUST THE PEDALS on page 10).
(
Attach the Right Pedal (12) in the same way. Make sure that both Pedals are in the same position.
8
20
13
14
99
12
9. Loosen the eight indicated screws (A) in the Centre
Handlebar (63).
Attach the Centre Handlebar (63) to the Upright (2) with eight M6 x 16mm Tapered Button Screws (107).
Do not tighten the Tapered Button Screws yet.
Retighten the eight screws (A) in the Centre Handlebar (63).
10. See step 11. Remove the six indicated three M4 x
16mm Screws (116) and the Left and Right Handlebar Covers (109, 110) from the Console (5).
Attach the CD Holder (114) to the Console (5) with two M4 x 12mm Round Head Screws (18) as shown.
Whilst another person holds the Console (5) in the position shown, connect the wire harnesses on the Console to the Upper Wire Harness (86) and the Pulse Wire Harness (122). Insert the excess wire har­ness down into the Upright (2).
Attach the Console (5) to the Upright (2) with four M4 x 12mm Round Head Screws (18). Be careful to
avoid pinching the wire harnesses.
9
10
107
107
18
123
2
63
114
86
15
A
2
18
5
Wire
Harnesses
122
8
11. Attach the Left Handlebar Cover (109) to the Console
(5) with three M4 x 16mm Screws (116). Attach the Right Handlebar Cover (110) in the same way.
See assembly step 9. Tighten the eight M6 x 16mm
apered Button Screws (107).
T
1
1
5
110
109
116
116
12. Plug one end of the Power Supply (96) into the jack at
the rear of the elliptical crosstrainer. Using the includ­ed adaptor (not shown), plug the other end of the Power Supply into an appropriate outlet that is proper­ly installed in accordance with all local codes and ordi­nances.
Note: The Console (5) can be operated with batteries instead of the Power Supply (96) if desired. To install batteries, follow the instructions below.
See the inset drawing. Press the indicated tab on the battery drawer and pull the battery drawer down. Press four “D” batteries into the battery clips; make
sure that the batteries are oriented as shown by the markings inside of the battery clips. Then,
close the battery drawer. Note: Alkaline batteries are recommended.
12
Power
Jack
96
5
Batteries
Battery
Drawer
Tab
13. Make sure that all parts of the elliptical crosstrainer are properly tightened. Note: Some hardware may
be left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the elliptical crosstrainer.
The elliptical crosstrainer is now fully assembled. If you have purchased the optional chest pulse sensor (see page 20), go to page 21.
9
HOW TO USE THE ELLIPTICAL CROSSTRAINER
HOW TO EXERCISE ON THE ELLIPTICAL CROSSTRAINER
o mount the elliptical crosstrainer, hold the centre han-
T dlebar and step onto the pedal that is in the lowest
osition. Then, step onto the other pedal. Push the
p pedals until they begin to move with a continuous motion. Note: The crank arms (inside of the side
shields) can be turned in either direction. It is rec­ommended that you turn the crank arms in the same direction that you pedal a bicycle; however, for variety, you can turn the crank arms in the opposite direction.
Handlebar
To dismount the elliptical crosstrainer, wait until the pedals come to a complete stop. Note: The elliptical
crosstrainer does not have a free wheel; the ped-
ls will continue to move until the flywheel stops.
a
When the pedals are stationary, step off the highest
edal first. Then, step off the lowest pedal.
p
HOW TO ADJUST THE PEDALS
The motion of the pedals is determined by their positions on the flex bars. There are five positions. To adjust each pedal, first loosen the knob beneath the pedal. Next, push the bolt upward, slide the pedal forward or backward to the desired position, and then retighten the knob. Make sure that both pedals are in the same position.
Pedal
Bolt
Flex
Bar
Knob
Side
Shields
Pedal
10
FEATURES OF THE CONSOLE
The advanced console offers a selection of features designed to make your workouts more enjoyable and effective. When the manual mode of the console is selected, the resistance of the pedals can be changed with the touch of a button. As you work out, the con­sole will provide continuous exercise feedback. You can even measure your heart rate using the built-in handgrip pulse sensor or the optional chest pulse sen­sor (see page 20).
The console also offers six Smart programs. Each pro­gram automatically changes the resistance of the ped­als and prompts you to increase or decrease your pace as it guides you through an effective workout. In addi­tion, the console features two Heart Rate programs that change the resistance of the pedals and prompt you to vary your pace to keep your heart rate near a target heart rate as you exercise.
The console also features iFIT.com interactive technol-
ogy. Having iFIT.com technology is like having a per­sonal trainer in your home. Using the built-in CD player, you can play special iFIT.com CD programs. iFIT.com CD programs automatically control the resistance of the pedals and prompt you to vary your pace whilst a personal trainer coaches you through every step of your workout. High-energy music provides added moti­vation. To purchase iFIT.com CDs, visit our Web
site at www.iconeurope.com.
Using the included audio cable, you can also connect the elliptical crosstrainer to your VCR and TV and play iFIT.com video programs. iFIT.com video programs offer the same benefits as iFIT.com CD programs, and allow you to enjoy breathtaking scenery whilst you exercise. To purchase iFIT.com videocassettes,
visit our Web site at www.iconeurope.com.
You can even connect the elliptical crosstrainer to your home computer, go to our Web site at www.iFIT.com, and access programs directly from our Web site.
Explore www.iFIT.com for more information.
11
To use the manual mode of the console, see the
instructions below. To use a Smart program, see page 14. To use a Heart Rate program, see page 15.
o use an iFIT.com CD program, see page 16. To
T use an iFIT.com video program, see page 19. To
se a program directly from our Web site, see
u
page 20.
HOW TO USE THE MANUAL MODE
Turn on the console.
1
Make sure that the power supply is plugged in or that batteries are installed in the console (see assembly step 12 on page 9).
To turn on the console, press the On/Reset button or begin pedalling. (The On/Reset button is the button just above the large display.)
Select the manual mode.
2
Each time the console is turned on, the manual mode will be selected. If a program has been select­ed, reselect the manual mode by pressing the Program button repeatedly until the letters RPM appear in the small display.
Begin pedalling and change the resistance of
3
the pedals as desired.
As you pedal, change the resistance of the ped­als by pressing the Resistance + and – buttons. There are ten resistance levels; level 10 is the most challenging. Note: After the buttons are pressed, it will take a few seconds for the resis­tance to reach the selected level.
pulse sensor or wear the optional chest pulse sensor, the display will also show your heart rate (see step 5 on page 13).
The centre of the
arge display will
l
show the elapsed time and your pedalling pace (in minutes per mile). The display will change from one number to the other every few seconds. Note: When a program is selected (except for Heart Rate program 2), the display will show the time remaining in the pro­gram instead of the elapsed time.
The lower sec­tion of the large display will show
your pedalling speed, your ped­alling pace (in revolutions per minute), and the resistance level. The display will change from one number to the next every few seconds.
Note: The con­sole can show speed and dis­tance in either miles or kilome­tres. The letters
MPH or KM/H will appear in the lower section of the large display to show which unit of measure­ment is selected. To change the unit of measure­ment, first hold down the Program button for a few seconds. An E (for English) or an M (for metric) will appear in the lower section of the large display. Press the Resistance + button to change the unit of measurement. Then, press the On/Reset button. Note: When the batteries are replaced, it may be necessary to reselect the desired unit of measure­ment.
Follow your progress with the large display and
4
the small display.
The upper sec­tion of the large display will
show the dis­tance you have pedalled and the numbers of calories and fat calories you have burned (see FAT BURNING on page 23). The dis­play will change from one number to the next every few seconds. When you use the handgrip
12
The small display will
show your pedalling pace (in revolutions per minute). The indicator bar in the small display will increase or decrease in length as you increase or decrease your pedalling pace. Note: When you use a Heart Rate program, the small display will show your heart rate instead of your pedalling pace (see step 5 on page 13).
Indicator Bar
To reset the displays, press the On/Reset button.
Measure your heart rate if desired.
5
You can measure your heart rate using the built-in
andgrip pulse sensor or the optional chest pulse
h sensor. To use the handgrip pulse sensor, follow
he instructions below. Note: If you wear the
t
chest pulse sensor and hold the handgrip pulse sensor at the same time, the console will not display your heart rate accurately.
If there are thin sheets of plastic on the metal contacts on the hand­grips, peel off the plastic. To
use the hand­grip pulse sen­sor, hold the handgrips with your palms resting against the metal contacts. Avoid moving your hands
or squeezing the handgrips too tightly; exces­sive movement or pressure may interfere with heart rate readings. When your pulse is detect-
ed, the heart-shaped indicator in the large display will flash each time your heart beats, and your heart rate will be shown.
Metal
Contacts
play will show your heart rate continuously for 30 seconds. The display will then show your heart rate along with other feedback modes.
urn on the fan if desired.
T
6
To turn on the fan at low speed, press the fan but­ton. To turn on the fan at high speed, press the fan button a second time. To turn off the fan, press the fan button a third time. Note: If the fan is turned on but the pedals are not moved for thirty seconds, the fan will automatically turn off.
Rotate the thumb wheel on the right side of the fan to pivot the fan to the desired angle.
Thumb Wheel
When you are finished exercising, the console
7
will automatically turn off.
If the pedals are not moved for a few seconds, the displays will pause and the time will flash in the large display. If the pedals are not moved and the console buttons are not pressed for a few minutes, the console will turn off to conserve the batteries.
For the most accurate heart rate reading, continue to hold the handgrips for about 30 seconds. Note: When you first hold the handgrips, the large dis-
13
OW TO USE A SMART PROGRAM
H
ach Smart program will automatically change the
E resistance of the pedals and prompt you to increase or decrease your pace as it guides you through an effec­tive workout. Programs 3 and 4 are weight loss pro-
rams, programs 5 and 6 are aerobic programs, and
g programs 7 and 8 are high-performance programs.
Follow the steps below to use a Smart program.
Turn on the console.
1
See step 1 on page 12.
Select one of the Smart programs.
2
Each time the console is turned on, the manual mode will be selected. To select a Smart program, press the Program button repeatedly until the num­ber 3, 4, 5, 6, 7, or 8 appears in the small dis­play.
Begin pedalling to start the program.
3
Each Smart program consists of either 20 or 30 one-minute periods. One resistance level and one target pace are programmed for each period. Note: The same resistance level and/or target pace may be programmed for two or more con­secutive periods.
appears at the tip of each arrow (see the drawing
t the right). Note:
a When the word
ARGET does not
T appear in the small display, your actual pedalling pace will be shown. Important:
The target pace is intended only to provide a goal. Your actual pace may be slower than the target pace, especially during the first few months of your exercise program. Make sure to pedal at a pace that is comfortable for you.
During the last three seconds of each period, a series of tones will sound and the time will flash in the large display. The resistance of the pedals will then change if a different resistance level is pro­grammed for the next period. In addition, the number of arrows in the small display will change if a different target pace is programmed for the next period.
During the program, the centre of the large dis­play will show the time remaining in the program. If you stop pedalling for a few seconds, the dis­plays will pause and the time will flash. To restart the program, resume pedalling.
Follow your progress with the large display.
Indicator
Bar
rrows
A
4
See step 4 on page 12.
Measure your heart rate if desired.
5
See step 5 on page 13.
When you begin pedalling, the resistance of the pedals will automatically change to the resistance level programmed for the first period. Note: If the resistance level is too high or too low, you can change it by pressing the Resistance buttons.
The target pace for the first period will appear in the small display for a few seconds, and the arrows in the small display will help you to pedal at the target pace—simply increase or decrease your pace until one segment of the indicator bar
14
Turn on the fan if desired.
6
See step 6 on page 13.
When you are finished exercising, the console
7
will automatically turn off.
See step 7 on page 13.
OW TO USE A HEART RATE PROGRAM
H
eart Rate program 1 is designed to keep your heart
H rate between 65% and 85% of your maximum heart rate during your workout. (Your maximum heart rate is estimated by subtracting your age from 220. For
xample, if you are 25 years old, your maximum heart
e rate is 195 beats per minute.) Heart Rate program 2 is designed to keep your heart rate near a target heart rate that you select.
Follow the steps below to use a Heart Rate program.
Turn on the console.
1
See step 1 on page 12.
uously during the Heart Rate program; however, you must hold the handgrips frequently for the pro­gram to operate properly. Each time you hold the
andgrips, keep your hands on the metal con-
h tacts for at least 30 seconds.
Begin pedalling to start the program.
5
Heart rate program 1 consists of 20 one-minute
periods. One resistance level and one target heart rate are programmed for each period. (Note: The same resistance level and/or target heart rate may be programmed for two or more consecutive periods.) Heart Rate program 2 is sixty minutes long (you may choose to use only part of the pro­gram). The same resistance level and target heart rate are programmed for the entire program.

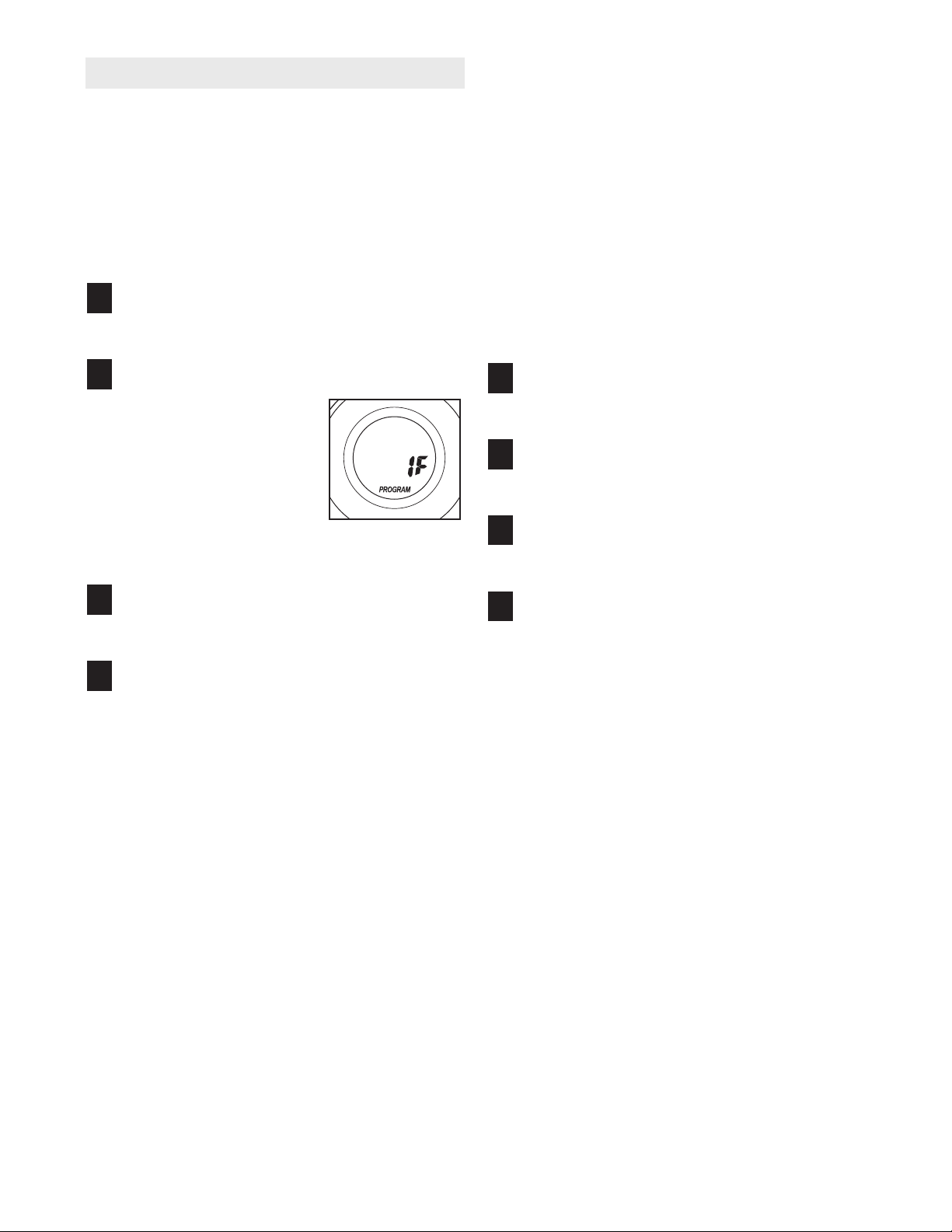

Select one of the Heart Rate programs.
2
Each time the console is turned on, the manual mode will be selected. To select a Heart Rate pro­gram, press the Program button repeatedly until the number 1 or 2 appears in the small display.
Enter your age or a target heart rate.
3
If program 1 is selected, the word AGE and the
current age setting will appear in the large display. If you have already entered your age, press the Enter button. If you have not entered your age, press the small + and – buttons to enter your age, and then press the Enter button. Once you have entered your age, it will be saved in memory until the batteries are replaced.
If program 2 is selected, the letters PLS and the current target heart rate will appear in the large display. If you do not wish to change the target heart rate, press the Enter button. If you wish to change the target heart rate, press the small + and – buttons, and then press the Enter button. The target heart rate can be from 70 to 170 beats per minute.
Hold the handgrip pulse sensor
.
4
To use a Heart Rate program, you must use the handgrip pulse sensor or wear the optional chest pulse sensor. If you use the handgrip pulse sen­sor, it is not necessary to hold the handgrips contin-
When you begin pedalling, the resistance of the pedals will automatically change to the resistance level programmed for the first period.
As you pedal, the arrows in the small display will help you to keep your heart rate near the current target heart rate. When you hold the handgrip pulse sensor or wear the optional chest pulse sensor, the console will compare your heart rate to the current target heart rate. If your heart rate is too far above or below the target heart rate, the number of arrows in the small dis­play will change to prompt you to increase or decrease your pace. When the number of arrows changes, change your pace until one segment of the indicator bar appears at the tip of each arrow.
Important: The target pace is intended only to provide a goal. Your actual pace may be slow­er than the target pace, especially during the first few months of your exercise program. Make sure to pedal at a pace that is comfort­able for you.
During the last three seconds of each period, a series of tones will sound and the time will flash in the large display. The resistance of the pedals will then change if a different resistance level is pro­grammed for the next period. Note: If the resis­tance level is too high or too low, you can adjust it by pressing the Resistance buttons. However, when the next period begins, the resistance will automatically change if a different resistance level is programmed for the next period.
Indicator
Bar
Arrows
15
The program will continue in this way until the large display shows that no time remains in the program. Note: If you stop pedalling for a few sec-
nds, the program will end. To use the program
o again, reselect it and start it at the beginning.
Follow your progress with the large display.
6
See step 4 on page 12.
OW TO USE IFIT.COM CD PROGRAMS
H
When you use an iFIT.com CD program, a certified personal trainer will guide you through your workout whilst the program interactively controls the resistance of the pedals and prompts you to increase or decrease
our pace. Note: To purchase iFIT.com CDs, visit
y
our Web site at www.iconeurope.com.
Turn on the fan if desired.
7
See step 6 on page 13.
When you are finished exercising, the console
8
will automatically turn off.
See step 7 on page 13.
Follow the steps below to use an iFIT.com CD program.
Turn on the console.
1
See step 1 on page 12.
Select the iFIT.com mode.
2
Each time the console is turned on, the manual mode will be selected. To use an iFIT.com CD, press the iFIT.com button. The iFIT.com indicator will light and the letters IF will appear in the small display.
Insert an iFIT.com CD into the CD player.
3
To open the CD player, slide the centre button on the CD player upward. Carefully insert an iFIT.com CD into the CD player and then close the lid.
16
Press the Play/Pause button to start the
4
program.
To start the CD program, press the play/pause button on the CD player. A moment after the button is pressed, your personal trainer will begin guiding you through your workout. Simply follow your per­sonal trainerʼs instructions.
The CD program will function in almost the same way as a Smart program (see step 3 on page 14). However, an electronic “chirping” sound will alert
ou when the resistance level and/or the target
y pace is about to change. Note: If the resistance
evel and/or the target pace does not change
l when a “chirp” is heard, make sure that the iFIT.com indicator is lit. In addition, adjust the volume (see step 5 below). If the volume is too high or too low, the console may not detect the program signals.
Follow your progress with the large display.
6
See step 4 on page 12.
Measure your heart rate if desired.
7
See step 5 on page 13.
urn on the fan if desired.
T
8
See step 6 on page 13.
To stop the pro­gram at any time, press the play/pause but­ton and stop pedalling. To restart the program, press the play/pause button and begin pedalling.
Note: To select a different pro­gram on the CD, press the skip/search but­tons on the CD player.
Adjust the volume if desired.
5
To adjust the volume, press the Volume – and + buttons on the CD player.
When you are finished exercising, the console
9
will automatically turn off.
See step 7 on page 13.
Note: Always remove iFIT.com CDs from the CD player when you are finished using them.
HOW TO PLAY MUSIC CDS
If desired, you can play your own music CDs in the CD player. Before playing music CDs, select the manual mode of the console (see HOW TO USE THE MANUAL MODE on page 12).
17
LINE OUT
PHONES
AUDIO OUT
R
IGHT
L
EFT
VIDEO AUDIO
ANT. IN
RF OUT
IN
OUT
CH 34
VIDEO AUDIO
ANT. IN
RFOUT
IN
OUT
CH 34
A
HOW TO CONNECT THE ELLIPTICAL CROSSTRAINER TO YOUR VCR OR COMPUTER
HOW TO CONNECT TO YOUR VCR
HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 3.5mm LINE OUT
ack, see instruction A. If your computer has only
j a PHONES jack, see instruction B.
Note: If your VCR has an unused AUDIO OUT jack, see instruction A below. If the AUDIO OUT jack is being used, see instruction B. If you have a TV with a built-in VCR, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the audio cable into the adapter. Plug the adapter into the AUDIO OUT jack on your VCR.
A
Adaptor
Audio Cable
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the audio cable into the adapter. Plug the adapter into an RCA Y-adaptor (available at electronics stores). Next, remove the wire that is currently plugged into the AUDIO OUT jack on your VCR and plug the wire into the unused side of the Y-adaptor. Plug the Y-adaptor into the AUDIO OUT jack on your VCR.
B
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the audio cable into the LINE OUT jack on your com­puter.
A
Audio Cable
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the audio cable into the splitter. Plug the splitter into the PHONES jack on your computer. Plug your head­phones or speakers into the other side of the splitter.
B
Splitter
Audio Cable
Headphones/Speakers
RCA Y-Adaptor
Audio Cable
Wire removed from
AUDIO OUT jack
Adaptor
18
OW TO USE IFIT.COM VIDEO PROGRAMS
H
Note: If the resistance level and/or the target pace does not change when a “chirp” is heard:
To use iFIT.com videocassettes, the elliptical crosstrainer must be connected to your VCR. See HOW TO CONNECT TO YOUR VCR on page 18. To
purchase iFIT.com videocassettes, visit our Web site at www.iconeurope.com.
Follow the steps below to use an iFIT.com video pro­gram.
Turn on the console.
1
See step 1 on page 12.
Select the iFIT.com mode.
2
Each time the console is turned on, the manual mode will be selected. To use an iFIT.com videocas­sette, press the iFIT.com button. The iFIT.com indi­cator will light and the let­ters IF will appear in the small display.
• Make sure that the iFIT.com indicator is lit.
• Adjust the volume of your VCR. If the volume s too high or too low, the console may not
i detect the program signals.
Make sure that the audio cable is properly
connected and that it is fully plugged in.
To stop the program at any time, stop pedalling and press the pause button on your VCR. To restart the program, press the play button on your VCR and begin pedalling.
Follow your progress with the large display.
5
See step 4 on page 12.
Measure your heart rate if desired.
6
See step 5 on page 13.
Turn on the fan if desired.
7
See step 6 on page 13.
Insert the iFIT.com videocassette.
3
Insert the videocassette into your VCR.
Press the play button on your VCR.
4
A moment after the play button is pressed, your personal trainer will begin guiding you through your workout. Simply follow your personal trainerʼs instructions.
The video program will function in almost the same way as a Smart program (see step 3 on page 14). However, an electronic “chirping” sound will alert you when the resistance level and/or the target pace is about to change.
When you are finished exercising, the console
8
will automatically turn off.
See step 7 on page 13.
19
HOW TO USE PROGRAMS DIRECTLY FROM OUR WEB SITE
ur Web site at www.iFIT.com allows you to play
O iFIT.com programs directly from the internet. To use
rograms from our Web site, the elliptical crosstrainer
p must be connected to your computer. See HOW TO CONNECT TO YOUR COMPUTER on page 18. In addition, you must have an internet connection and an internet service provider. A list of specific system requirements is found on our Web site.
Follow the steps below to use a program from our Web site.
Turn on the console.
1
See step 1 on page 12.
Select the iFIT.com mode.
2
Each time the console is turned on, the manual mode will be selected. To use a program from our Web site, press the iFIT.com button. The iFIT.com indicator will light and the letters IF will appear in the small display.
Go to your computer and start an internet
3
connection.
Start your Web browser, if necessary, and go
4
to our Web site at www.iFIT.com.
eturn to the elliptical crosstrainer and begin
R
7
pedalling.
When the on-screen countdown ends, the pro-
ram will begin. The program will function in
g almost the same way as a Smart program (see step 3 on page 14). However, an electronic “chirp­ing” sound will alert you when the resistance level and/or the target pace is about to change.
Follow your progress with the large display.
8
See step 4 on page 12.
Measure your heart rate if desired.
9
See step 5 on page 13.
Turn on the fan if desired.
10
See step 6 on page 13.
When you are finished exercising, the console
11
will automatically turn off.
See step 7 on page 13.
THE OPTIONAL CHEST PULSE SENSOR
The optional chest pulse sensor provides hands-free operation and continuously monitors your heart rate during your workouts. To purchase the optional
chest pulse sensor, call 08457 089 009.
Follow the desired links on our Web site to
5
select a program.
Follow the on-line instructions to start the
6
program.
When you start the program, an on-screen count­down will begin.
20
INSTALLING THE RECEIVER FOR THE OPTIONAL CHEST PULSE SENSOR
If you have purchased the optional chest pulse sensor (see page 20), follow the steps below to install
he receiver included with the chest pulse sensor.
t
. Look under the housing (A) and locate the two
1
recessed screws (B). Remove the two screws, and remove the lid (C) from the housing. Set the lid and the screws aside.
C
2. Gently remove the housing (A) from the Upright (2) and the Water Bottle Holder (91).
3. See the bottom drawing. Wrap the wires (D) on the receiver (E) lengthwise around the receiver as shown.
Make sure that the wires and the connector do not touch the small cylinder.
4. Hold the receiver (E) so the small cylinder is oriented as shown, and carefully insert the receiver into the housing (A). Attach the receiver to the housing with the two screws (F) included with the chest pulse sensor.
5. Locate the indicated wires (G) inside of the housing (A). Pull the end of the wires out of the housing and connect it to the wires (D) on the receiver (E). Make
sure that the connectors snap together.
6. Gently feed the wires into the Upright (2) and insert the housing (A) into the Upright. Be careful to avoid
pinching the wires.
7. Reattach the lid (C) and the housing (A) to the Water Bottle Holder (91) with the two screws (B). Note: The wires included with the chest pulse sensor are not needed and may be discarded.
2
Connector
E
91
G
F
E
D
A
B
D
Small
Cylinder
21
MAINTENANCE AND TROUBLESHOOTING
nspect and tighten all parts of the elliptical crosstrain-
I er regularly. Replace any worn parts immediately. The elliptical crosstrainer can be cleaned with a soft cloth and a small amount of mild detergent. Keep liquids
way from the console. Never use abrasives or
a solvents.

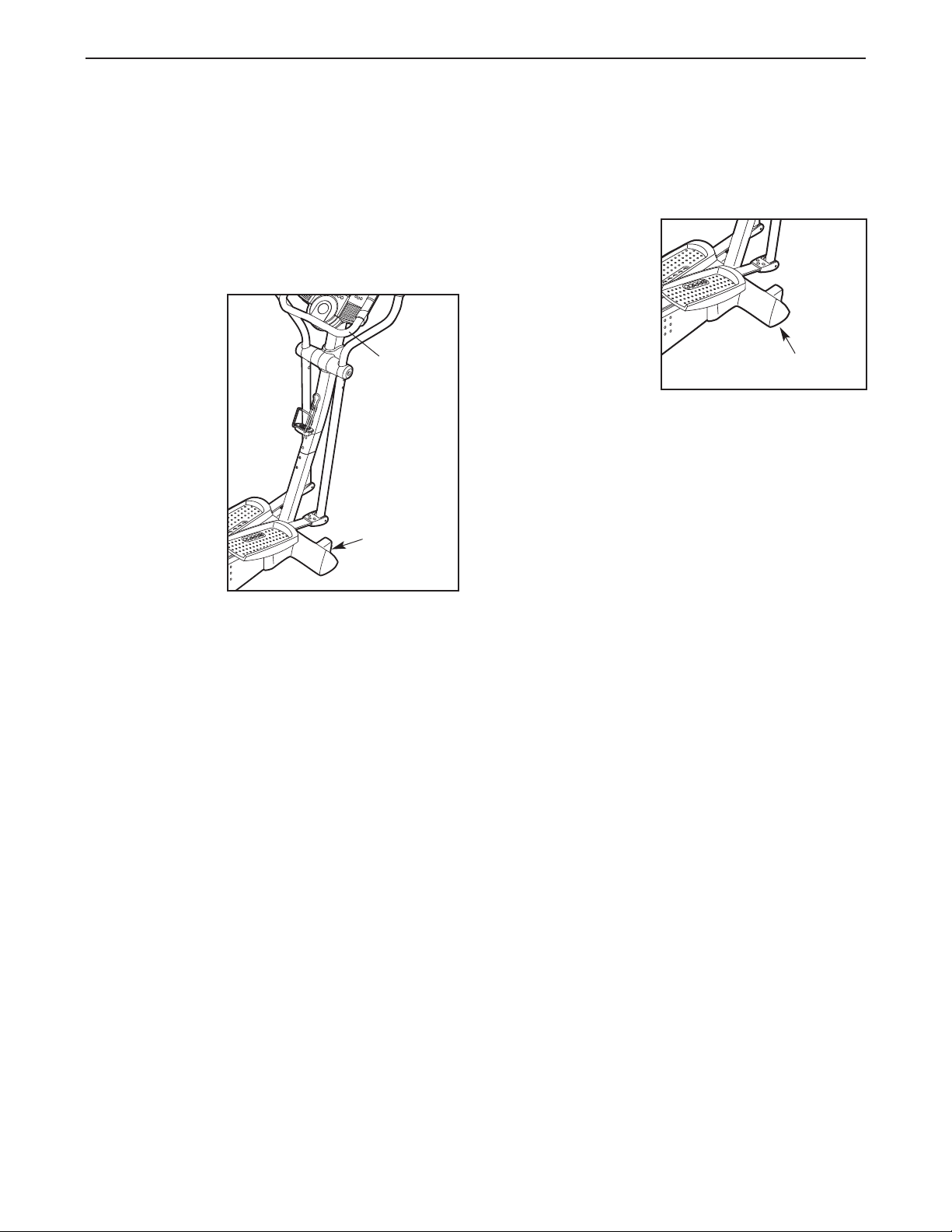

HOW TO MOVE THE ELLIPTICAL CROSSTRAINER
Stand in front of the elliptical crosstrainer, hold the centre han­dlebar firmly, and place one foot against one of the wheels. Pull the handlebar until the elliptical crosstrainer can be moved on the front wheels, and carefully move the elliptical crosstrainer to the desired loca­tion. Then, place one foot against one of the wheels and lower the ellip­tical crosstrainer. Due to the size and weight of the
Centre
Handlebar
Wheel
lliptical crosstrainer, use extreme caution whilst
e moving and lowering it.
HOW TO LEVEL THE ELLIPTICAL CROSSTRAINER
After the elliptical crosstrainer has been moved, make sure that the ends of both stabilisers are touching the floor. If the elliptical crosstrainer rocks slightly during use, turn one or both of the Levelling feet under the front Stabiliser until the rocking motion is eliminated.
HANDGRIP PULSE SENSOR TROUBLESHOOTING
If the handgrip pulse sensor does not function proper­ly, see step 5 on page 13. Note: For optimal perfor­mance of the handgrip pulse sensor, keep the metal contacts clean using a soft cloth and a small amount of mild detergent. Never use alcohol, abrasives, or
chemicals.
Levelling Foot
22
CONDITIONING GUIDELINES
WARNING:
• Before beginning this or any exercise pro­gram, consult your physician. This is espe-
ially important for persons over the age of
c 35 or persons with pre-existing health prob­lems.
• The pulse sensor is not a medical device. Various factors may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in deter­mining heart rate trends in general.
The following guidelines will help you to plan your exercise program. Remember that proper nutrition and adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recom­mended heart rates for fat burning, maximum fat burning, and cardiovascular (aerobic) exercise.
During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for ener­gy. Only after the first few minutes of exercise does
our body begin to use stored fat calories for energy.
y If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest num­ber in your training zone as you exercise.
For maximum fat burning, adjust the intensity of your exercise until your heart rate is near the middle num­ber in your training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys­tem, your exercise must be “aerobic.” Aerobic exer­cise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone as you exercise.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching and light exercise. A proper warm-up increases your body temperature, heart rate, and circulation in prepa­ration for exercise.

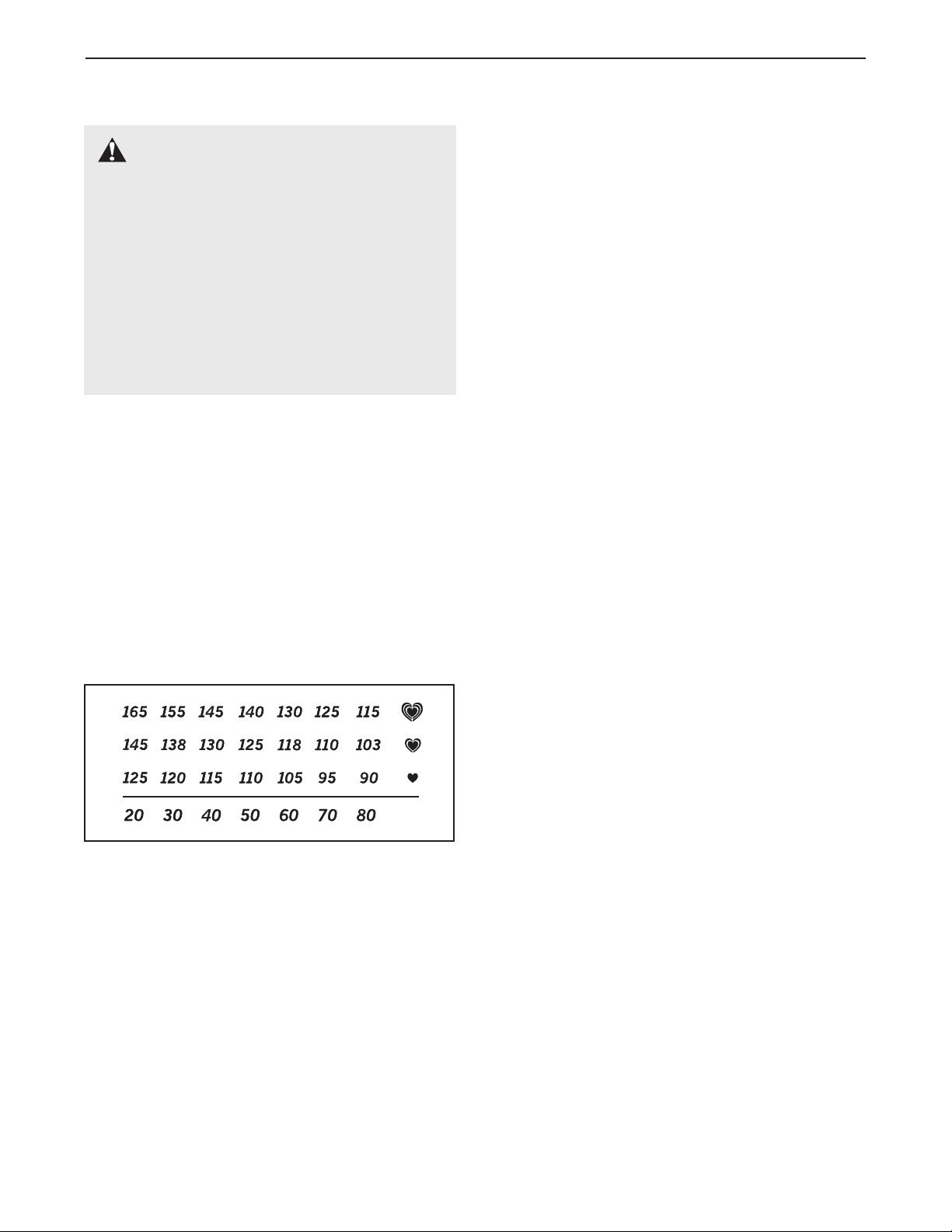

To find the proper heart rate for you, first find your age at the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age. The three numbers are your “training zone.” The lower two numbers are recommended heart rates for fat burning; the highest number is the recommend­ed heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relative­ly low intensity level for a sustained period of time.
Training zone exercise, consisting of 20 to 30 min­utes of exercising with your heart rate in your training zone. Note: During the first few weeks of your exer­cise program, do not keep your heart rate in your training zone for longer than 20 minutes.
A cool-down, with 5 to 10 minutes of stretching. This will increase the flexibility of your muscles and will help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months of regular exer­cise, you may complete up to five workouts each week if desired. The key to success is to make exercise a regular and enjoyable part of your everyday life.
23
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right.
ove slowly as you stretch—never bounce.
M
. Toe Touch Stretch
1
Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg. Reach toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg. To cause further stretching of the achilles ten­dons, bend your back leg as well. Stretches: Calves, achilles ten­dons and ankles.
1
2
3
4
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp one foot with your other hand. Bring your heel as close to your but­tocks as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull your feet toward your groin area as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.
5
24
PART LIST—Model No. PFEVEL69832 R
1004A
Key
No.
Qty. Description
11 Frame 21 Upright 31 Front Stabiliser 41 Rear Stabiliser 51 Console 61 Left Side Shield 71 Right Side Shield 81 Rear Left Side Shield
91 Left Handlebar 10 1 Right Handlebar 11 2 Foam Grip 12 1 Right Pedal 13 1 Left Pedal 14 2 Flex Bar 15 2 Pedal Knob 16 1 Left Flex Bracket 17 2 Front Flex Bracket 18 6 M4 x 12mm Round Head Screw 19 6 M6 x 26mm Flat Screw 20 2 M10 x 35mm Carriage Bolt 21 2 Snap Ring 22 2 M8 x 25mm Button Screw 23 2 Handlebar Cap 24 6 Handlebar Bushing 25 2 Handlebar Spacer 26 1 Left Handlebar Cover 27 2 Union Bolt Set 28 4 Front Flex Bushing 29 1 Right Handlebar Cover 30 1 Centre Cover 31 1 Stabiliser Cover 32 2 Wheel 33 6 M8 x 54mm Button Screw 34 1 Left Upright Cover 35 1 Left Stabiliser Endcap 36 1 Left Crank Arm 37 1 Pulley 38 1 Right Upright Cover 39 1 Crank 40 2 Crank Bearing 41 1 Flywheel 42 2 Flywheel Bearing 43 1 Magnet 44 1 Flywheel Axle 45 1 M4 x 16mm Round Head Screw 46 6 M8 Nylon Locknut 47 2 Crank Screw 48 1 Right Crank Arm 49 1 M6 x 38mm Bolt 50 4 M8 x 43mm Button Bolt 51 1 M6 x 18mm Bolt 52 1 “C” Magnet Bracket
Key
No.
Qty. Description
53 2 M8.5 Small Washer 54 1 “C” Magnet 55 1 Motor 56 1 Belt 57 2 M8 x 33mm Button Bolt 58 12 M6 Washer 59 15 M6 Nylon Locknut 60 2 M6 Nut 61 4 M5 Nylon Locknut 62 4 M5 x 14mm Bolt 63 1 Centre Handlebar 64 4 M6 x 32mm Button Screw 65 2 M8.5 Large Washer 66 4 M4 x 16mm Flat Head Screw 67 1 M8 x 25mm Patch Screw 68 1 Right Rear Side Shield 69 1 Reed Switch Clamp 70 2 M8 x 38mm Button Screw 71 2 Handlebar Grip 72 3 Levelling Foot 73 2 M5 x 16mm Screw 74 2 M4 x 25mm Round Head Screw 75 1 Left Inner Shield 76 1 Spring 77 1 Reed Switch 78 1 Reed Switch Bracket 79 2 Handlebar Leg 80 1 Side Shield Cover 81 1 Right Inner Shield 82 1 Right Flex Bracket 83 1 Large Frame Spacer 84 10 M4 x 12mm Tap Screw 85 1 Adjustment Cable Assembly 86 1 Upper Wire Harness 87 1 Lower Wire Harness 88 2 Flex Bracket Spacer 89 2 M8 x 25mm Button Screw 90 4 Motor Washer 91 1 Water Bottle Holder 92 1 Right Stabiliser Endcap 93 2 M4 x 14mm Round Head Screw 94 10 M8 Split Washer 95 1 Front Plate 96 1 Power Supply 97 1 Idler Assembly 98 3 M4 x 52mm Screw
99 2 M10 Washer 100 2 Small Spacer 101 2 Large Spacer 102 4 M8 x 45mm Button Screw 103 1 Alignment Rod 104 2 M6 Nut
25
ey
K
Qty. Description
No.
ey
K
Qty. Description
No.
105 1 Idler Bolt 106 1 Idler Adjustment Screw 107 8 M6 x 16mm Tapered Button Screw
08 1 Pivot Axle
1 109 1 Left Handlebar Cover
110 1 Right Handlebar Cover 111 10 M4 x 14mm Screw 112 2 M6 x 30mm Flat Bolt 113 1 Rear Plate 114 1 CD Holder 115 2 M8 x 43mm Button Screw 116 18 M4 x 16mm Screw
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of this manual for information about ordering replacement parts.
117 1 M8 x 25mm Left Thread Patch Screw 118 2 M4 x 30mm Screw 119 1 Upper Side Shield Bracket
20 2 Front Side Shield Bracket
1 121 2 Rear Side Shield Bracket 122 1 Pulse Wire Harness 123 2 M10 Split Washer 124 2 Wave Washer
#1 Power Supply Adapter #2 Hex Key #1 Grease #1 Userʼs Manual
26
EXPLODED DRAWING—Model No. PFEVEL69832 R
2
3
4
5
6
7
80
9
10
11
12
13
14
14
15
15
82
16
17
17
19
64
20
19
20
64
22
23
24
24
25
26
27
27
28
30
31
68
32
32
92
35
48
36
39
40
21
41
42
42
43
44
46
47
47
46
54
56
33
85
78
69
116
77
73
76
72
72
111
111
93
86
87
53
59
58
58
59
50
46
88
88
79
79
49
60
51
52
71
71
93
91
1
24
24
25
24
24
23
53
22
46
50
55
61
62
90
90
37
21
40
115
115
33
28
58
59
58
27
27
58
59
58
58
8
29
45
111
84
116
111
81
116
116
104
103
97
46
106
105
94
94
102
96
65
117
100
100
101
98
98
33
59
59
33
70
94
94
94
94
109
116
116
110
84
84
38
34
107
107
107
107
63
108
83
75
98
116
111
111
111
116
116
65
67
18
111
112
99
84
58
58
84
113
95
84
89
73
94
112
59
99
74
72
18
18
18
18
114
18
89
116
119
118
66
121
120
84
121
120
66
122
123
123
124
124
1004A
27
ORDERING REPLACEMENT PARTS
To order replacement parts, contact the ICON Health & Fitness, Ltd. office, or write:
CON Health & Fitness, Ltd.
I Customer Service Department Unit 4 Revie Road Industrial Estate Revie Road Beeston Leeds, LS118JG UK
Tel:
08457 089 009
Outside the UK: 0 (044) 113 387 7133 Fax: 0 (044) 113 387 7125
To help us assist you, please be prepared to give the following information:
• the MODEL NUMBER of the product (PFEVEL69832)
®
• the NAME of the product (PROFORM
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part(s) (see page 25 and 26)
700 TR elliptical crosstrainer)
Part No. 216476 R1004A Printed in China © 2004 ICON IP, Inc.
Loading...
