USERʼS MANUAL
CAUTION
Read all precautions and
instructions in this manual
before using this equipment.
Keep this manual for future
reference.
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
EFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
B
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
ONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
C
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
PROFORM
®
is a registered trademark of ICON Health & Fitness, Inc.
2
IMPORTANT PRECAUTIONS
WARNING:
tions before using the elliptical exerciser.
1. Read all instructions in this manual before
using the elliptical exerciser.
2. Use the elliptical exerciser only as described
in this manual.
3. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
4. Place the elliptical exerciser on a level surface, with a mat beneath it to protect the
floor or carpet. Keep the elliptical exerciser
indoors, away from moisture and dust.
5. Inspect and tighten all parts regularly.
Replace any worn parts immediately.
6. Keep children under the age of 12 and pets
away from the elliptical exerciser at all
times.
7. The elliptical exerciser should not be used
by persons weighing more than 114 kilograms.
To reduce the risk of serious injury, read the following important precau-
11. Always keep your back straight when using
the elliptical exerciser. Do not arch your
back.
12. If you feel pain or dizziness at any time
whilst exercising, stop immediately and
begin cooling down.
13. The elliptical exerciser is intended for inhome use only. Do not use the elliptical
exerciser in a commercial, rental, or institutional setting.
14. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
15. The decal shown below has been placed on
the elliptical exerciser. If the decal is missing or illegible, please call our Customer
Service Department at 0345-089009 to order
a free replacement decal. Apply the decal in
the location shown.
8. Wear appropriate clothing when using the
elliptical exerciser. Always wear athletic
shoes for foot protection.
9. When mounting or dismounting the elliptical
exerciser, always hold the handlebars or the
T-handle and step onto and off the pedal
that is in the lowest position.
10. Each time you stop exercising on the
elliptical exerciser, allow the pedals to come
to a complete stop before dismounting. The
elliptical exerciser does not have a free
wheel; the pedals will continue to move until
the flywheel stops.
WARNING: Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health
problems. Read all instructions before using. ICON assumes no responsibility for personal injury
or property damage sustained by or through the use of this product.
3
BEFORE YOU BEGIN
Congratulations for selecting the PROFORM®530E
low-impact elliptical exerciser. The PROFORM®530E
s an incredibly smooth exerciser that moves your feet
i
in a natural elliptical path, minimising the impact on
your knees and ankles. And the unique PROFORM
530E features adjustable resistance, upper-body and
stationary handlebars, and a multi-mode exercise
monitor to help you get the most from your exercise.
Welcome to a whole new world of natural, ellipticalmotion exercise from PROFORM.
For your benefit, read this manual carefully before you
use the PROFORM®530E. If you have questions after
®
T-handle/Pulse Sensor
reading the manual, call our Customer Service
Department 0345-08900.To help us assist you,
lease note the product model number and serial
p
number before calling. The model number is
PFEVEL47300. The serial number can be found on a
decal attached to the elliptical exerciser (see the front
cover of this manual for the location of the decal).
Before reading further, please look at the drawing
below and familiarise yourself with the parts that are
labelled.
Book Holder
Console
Handlebar
FRONT
Wheel
LEFT SIDE
Pedal
Resistance Knob
Upright
Side Shield
Pedal Disk
Pedal Arm
BACK
4
ASSEMBLY
M10 Nylon
Locknut (29)–6
M6 Nylon
Locknut (17)–2
M6 x 16mm Button
Head Bolt (54)–2
M10 x 25mm Button
Head Screw (42)–2
M4 x 19mm
Flange Screw
(16)–6
M4 x 16mm
Screw (34)–5
Pedal Arm Spacer (41)–2*
Handlebar Spacer (39)–2
Weld Spacer (49)–2
5/8” Axle Cap (57)–2*
3/4” Axle Cap (43)–4*
M10 x 45mm Button
Head Bolt (59)–2
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
ssembly requires the following tools: the included allen wrench, a phillips screwdriver ,
A
an adjustable spanner , a rubber mallet , and pliers .
As you assemble the elliptical exerciser, use the drawings below to identify the small parts used in assembly.
The number in parentheses below each drawing refers to the key number of the part, from the PART LIST on
page 18. The second number refers to the quantity used in assembly. Note: Some small parts may have been
pre-attached for shipping. If a part is not in the parts bag, check to see if it has been pre-attached. If
assistance is needed, call
0345-089009.
5
1. Turn the Resistance Control (26) counterclockwise to
the minimum setting.
f the Resistance Control (26) is attached to the
I
Upright (3), remove the M4 x 16mm Screw (34). Pull
he bottom of the Resistance Control away from the
t
Upright and then slide it down to release it. Do not
pull on the Resistance Control or remove it from
the Upright.
1
Tab
26
3
34
2. Lay a cloth over the front of the Frame (1) to protect
it. Lay the Upright (3) in the position shown. Connect
the Extension Wire (2) to the Reed Switch Wire (25).
Next, connect the Resistance Cable (26) to the
Extension Cable (55) in the following way:
• Refer to drawing A. Pull up on the metal bracket,
and insert the tip of the Resistance Cable (26) into
the wire clip on the Extension Cable (55) as shown.
• Refer to drawing B. Firmly pull the Resistance
Cable (26) and slide it into the metal bracket on the
Extension Cable (55) as shown.
• Refer to drawing C. Using pliers, squeeze the
prongs on the upper end of the metal bracket
together.
3. Align the two holes in the front of the Upright (3) with
the two welded bolts on the front of the Frame (1).
Carefully push the Reed Switch Wire (not shown) into
the Upright until there is no slack.
2
A
Metal
Bracket
26
3
55
3
2
1
25
B
26
55
3
26
55
C
26
55
29
Next, pivot the Upright (3) about halfway to the vertical position whilst guiding the metal bracket on the
Extension Cable (not shown) into the Upright. Once
the top edge of the metal bracket is inside the
Upright, pivot the Upright to the vertical position so it
rests on the four welded bolts on the Frame (1). Be
careful to avoid pinching the wires. Tighten an M10
Nylon Locknut (29) onto each welded bolt.
Refer to step 1. Reattach the Resistance Control (26)
to the Upright (3) with the M4 x 16mm Screw (34).
Welded
Bolts
1
6
4. Attach the two Wheel Brackets (38) to the Frame (1)
with the two M10 x 25mm Button Head Screws (42)
as shown.
Attach a Wheel (61) to each Wheel Bracket (38) with
n M10 x 45mm Button Head Bolt (59) and an M10
a
Nylon Locknut (29).
4
61
29
42
38
59
1
59

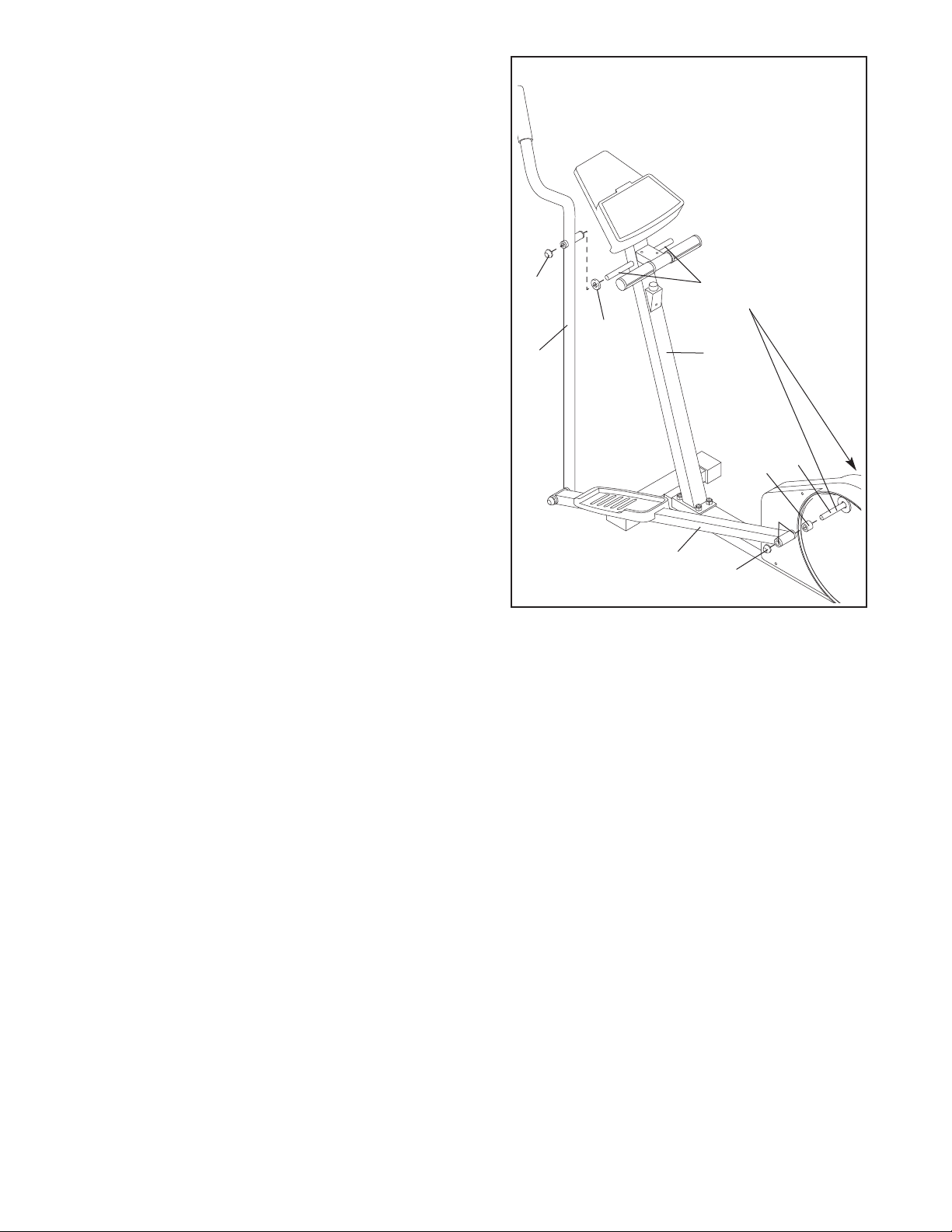

5. Route both Pulse Wires (15) into and up through the
Upright (3) as shown.
Attach the T-handle (10) to the Upright (3) with two
M6 x 16mm Button Head Bolts (54) and two M6
Nylon Locknuts (17).
6. The Console (6) requires two 1,5V batteries (not
included). Alkaline batteries are recommended. To
install batteries, turn the console over. Remove the
four M4 x 16mm Screws (34), and separate the
Console from the Console Base (14). Insert two batteries into the battery clip as shown in the inset drawing. Make sure that the negative ends of the bat-
teries (marked “—”) are touching the springs in
the battery clip.
Attach a Plastic Tie (9) to the battery clip as shown.
5
3
54
15
10
17
6
14
6
Batteries
9
Battery
Clip
Attach the Console (6) to the Console Base (14) with
the four M4 x 16mm Screws (34), making sure that the
indicated wires are extending from the Console Base.
Be careful not to pinch the wires.
Wires
34
7
7. Connect the Extension Wire (2) to the corresponding
wire on the Console (6).
ext, connect the two Pulse Wires (15) to the two
N
remaining wires on the Console (6). Note: Either
ulse Wire can be attached to either wire on the
P
Console.
7
6
onsole
C
Wires
14
Next, connect the ground wire to the indicated hole in
the Upright (3) with an M4 x 16mm Screw (34).
Carefully feed the wires down into the Upright (3).
Attach the Console Base (14) to the Upright with four
M4 x 16mm Screws (34). Be careful to avoid pinch-
ing the wires.
8. Find the Left Pedal (31), which has a ridge on the
right side. Attach the Left Pedal to one of the Pedal
Arms (12) with three M4 x 19mm Flange Screws
(16) as shown.
Repeat this step to attach the Right Pedal to the
other Pedal Arm (not shown).
15
2
34
34
3
8
Ridge
16
34
Ground Wire
31
12
9. Identify the Left Handlebar (8) (there is an “L” sticker
on the Left Handlebar). Apply a thin film of the
included grease to the axle on the Left Handlebar.
Make sure that there are two Pedal Arm Bushings
(11) in each Pedal Arm (12).
Slide a Handlebar Spacer (39) and the Pedal Arm
(12) with the Left Pedal (31) onto the Left Handlebar
(8) as shown. (Note: These parts fit tightly; it may be
helpful to use the rubber mallet.) Next, tap a 3/4”
Axle Cap (43) onto the Left Handlebar.
Repeat this step to attach the other Pedal Arm (12) to
the Right Handlebar (62).
9
62
8
39
11
43
Grease
12
31
12
Apply
8
10. Apply a thin film of the included grease to the axles
on the Upright (3) and the Crank Arms (33). Slide a
Weld Spacer (49) onto the left axle on the Upright.
ake sure that the open side of the Weld Spacer is
M
facing the Upright.
Slide a Pedal Arm Spacer (41) onto the left Crank
Arm (33).
Make sure that there are two Rear Pedal Arm
Bushings (11) in the Pedal Arm (12) attached to the
Left Handlebar (8).
With the help of another person, slide the Left
Handlebar (8) onto the left axle on the Upright (3)
whilst sliding the left Pedal Arm (12) onto the left
Crank Arm (33). (Note: These parts fit tightly; it may
be helpful to use the rubber mallet. In addition, it
may be helpful to rotate the left Crank Arm [33] to a
different position.)
10
57
Apply
Grease
49
8
3
Tap a 5/8” Axle Cap (57) onto the left axle on the
Upright (3).
Tap a 3/4” Axle Cap (43) onto the left Crank Arm (33).
Repeat this step to attach the Right Handlebar and
the right Pedal Arm (not shown).
11. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may
be left over after assembly is completed. To protect the floor or carpet from damage, place a mat under
the elliptical exerciser.
12
43
41
33
11
9
HOW TO USE THE ELLIPTICAL EXERCISER
OW TO EXERCISE ON THE ELLIPTICAL
H
EXERCISER
To mount the elliptical exerciser, firmly hold the handlebars or the pulse grips and carefully step onto the
pedal that is in the lowest position. Next, step onto the
other pedal. Push the pedals until they begin to move
with a continuous motion. Note: The pedal disks can
turn in either direction; it is recommended that
you turn the pedal disks in the direction shown
below; however, to give variety to your exercise,
you may choose to turn the pedal disks in the
opposite direction.
Pedal Disk
OW TO ADJUST THE RESISTANCE OF THE
H
PEDALS
As you exercise,
you can adjust
the resistance of
the pedals with
the resistance
knob on the
Upright. To
increase the
resistance,
turn the knob
clockwise; to
decrease the
resistance, turn the knob counterclockwise.
Resistance
Knob
Pedal
To dismount the elliptical exerciser, allow the pedals
to come to a complete stop. CAUTION: The elliptical
exerciser does not have a free wheel; the pedals
will continue to move until the flywheel stops.
When the pedals are stationary, step off the highest
pedal first. Then, step off the lowest pedal.
10
DESCRIPTION OF THE CONSOLE
HOW THE PACER PROGRAMS OPERATE
The innovative
console offers a
manual mode and
three pacer programs. The pacer
programs are
esigned to help
d
you reach specific
exercise goals by
pacing your exercise. You can
choose from a stamina-building
Interval program,
an Aerobic program, and a special Fat Burn program. As you
exercise, seven
monitor modes will
provide continuous exercise feedback. The monitor
modes are described below:
Speed—This mode shows your exercising pace,
in kilometres or miles per hour (see HOW TO
SELECT KILOMETRES OR MILES on page 13).
Time—If you select the manual mode, this mode
will show the elapsed time. If you select one of
the three pacer programs, this mode will count
down the time remaining in the program.
When you use a
pacer program,
two columns of
bars will appear in
the display. The
left column repre-
ents a target
s
pace, and the right
column shows
your actual exercising pace. The target pace will
change periodically during the program; as the target
pace changes, simply adjust your exercising pace to
keep both columns at the same height. Important: The
target pace is a goal pace. Your actual pace may be
slower than the target pace, especially during the
first few months of your exercise program. Be sure
to exercise at a pace that is comfortable for you.
The three graphs
on the console
show how the target pace will
change during the
programs. During
the Aerobic
program (P2), for example, the target pace will gradually increase during the first half of the program, and
gradually decrease during the last half of the program.
Each program will last twenty minutes.
STEP-BY-STEP CONSOLE OPERATION
Actual
Target
Distance—This mode shows the distance you
have stridden, in kilometres or miles.
Lap—This mode shows the number of laps you
have completed. One lap equals 0.25 kilometres
or miles.
Calorie—This mode shows the approximate
number of calories you have burned.
Scan—This mode displays the above five
modes, for 5 seconds each, in a repeating cycle.
Pulse—This mode shows your heart rate when
the pulse sensor is used. (See step 5 on
page 12.)
Before the console can be operated, two batteries
must be installed (see assembly step 6 on page 7).
Follow the steps below to operate the console.
Turn on the power
1
To turn on the
power, press
the on/reset
button or simply begin exercising. The
entire display
will appear for two seconds; the console will then
be ready for use. Note: If batteries were just
installed, the power will already be on.
On/Reset
Button
11
Select one of the three pacer programs or the
2
manual mode
To select one
of the pacer
programs,
repeatedly
ress the pro-
p
gram button.
The program
indicator will
show which
program you
have selected.
To select the
manual mode, press the program button until the
program indicator disappears. The programs will
be selected in the following order: program 1
(Interval), program 2 (Aerobic), program 3 (Fat
Burn), manual mode.
Begin your workout
Program Indicator
Program Button
3
If you selected the manual mode, go
to step 4. If
you selected
one of the
pacer programs, two
columns of
bars will appear in the display. The left column
will show one bar, indicating a relatively slow
pace. The right column will show your actual
exercising pace. Adjust your exercising pace until
only one bar appears in the right column. Each
time the target pace changes during the program,
adjust your exercising pace to keep both columns
at the same height.
Follow your progress with the LED track and
4
the seven monitor modes
The LED track—
The LED track
represents a distance of 0.25
kilometres or
miles. As you
pedal, the indicators around the
track will light one
at a time until you have completed one lap. A new
lap will then begin.
Actual
Target
The scan
mode—
Repeatedly
press the
mode button
until an arrow
appears under
the scan symbol. When the
scan mode is
selected, the
console will display the speed, time, distance, lap
and calorie modes, for 5 seconds each, in a
repeating cycle.
The speed,
time, distance, lap,
or calorie
mode—
Repeatedly
press the
mode button until an arrow appears below or
above the desired mode symbol. Make sure that
there is not an arrow under the scan symbol.
The pulse mode—To use the pulse mode, see
step 5.
To reset the display, press the on/reset button.
Measure your heart rate if desired
Mode
Arrow
Mode
Button
5
To use the
pulse sensor,
place your
hands on the
metal contacts. Your
palms must be
resting on the
upper contacts
and your fingers must be
touching the lower contacts. Avoid moving your
hands. After a moment, the heart-shaped indicator in the display will begin to flash and your heart
rate will be shown. For the most accurate heart
rate reading, continue to hold the contacts for
about 15 seconds.
Make sure that your hands are positioned as
described above, and that you are not moving
your hands excessively or squeezing the metal
contacts too tightly.
Metal
Contacts
12
Turn off the power
6
o turn off the power, simply wait for about
T
six minutes. If the pedals are not moved and the
console buttons are not pressed for six minutes,
the power will turn off automatically.
HOW TO SELECT KILOMETRES OR MILES
The console can
display distance
and speed in either
kilometres or miles.
If a “KPH” appears
in the display, distance and speed
will be shown in
kilometres; if a “KPH” does not appear, distance and
speed will be shown in miles.
To change the
unit of measurement, first
remove the four
indicated screws
from the console.
Lift the console a
few inches and
turn it over; be
careful not to
pull on the
wires.
Next, locate the
small switch on
the back of the
console. Slide the switch up or down to change the
unit of measurement. Reattach the console with the
four screws; be careful not to pinch any of the
wires.
Switch
Screws
13
MAINTENANCE
nspect and tighten all parts of the elliptical exerciser
I
regularly. Replace any worn parts immediately.
The elliptical exerciser can be wiped clean with a soft
loth and mild detergent. Do not use abrasives or
c
solvents. To prevent damage to the console, keep
liquids away from the console. Use only a sealable
water bottle in the console.
CONSOLE TROUBLE-SHOOTING
If the console does not function properly, the batteries
should be replaced. To replace the batteries, refer to
assembly step 6 on page 7.
STORAGE
When storing the elliptical exerciser, remove the batteries from the console. Keep the elliptical exerciser in
a clean, dry location, away from moisture and dust.
ULSE SENSOR TROUBLE-SHOOTING
P
• Avoid moving your hands whilst using the pulse
sensor. Excessive movement may interfere with
eart rate readings.
h
• Do not hold the metal contacts too tightly; doing so
may interfere with heart rate readings.
• For the most accurate heart rate reading, hold the
metal contacts for about 15 seconds.
• For optimal performance of the pulse sensor, keep
the metal contacts clean. The contacts can be
cleaned with a soft cloth—never use alcohol,
abrasives, or chemicals.
14
CONDITIONING GUIDELINES
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
WARNING:
Before beginning this or any exercise program, consult your physician. This is especially important for persons over the age of 35
or persons with pre-existing health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recommended heart rates for fat burning, maximum fat
burning, and cardiovascular (aerobic) exercise.
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time.
During the first few minutes of exercise, your body
uses easily accessible carbohydrate calories for energy. Only after the first few minutes of exercise does
your body begin to use stored fat calories for energy.
If your goal is to burn fat, adjust the intensity of your
exercise until your heart rate is near the lowest number in your training zone as you exercise.
For maximum fat burning, adjust the intensity of your
exercise until your heart rate is near the middle number in your training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen
for prolonged periods of time. This increases the
demand on the heart to pump blood to the muscles,
and on the lungs to oxygenate the blood. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
To find the proper heart rate for you, first find your age
on the bottom line of the chart (ages are rounded off
to the nearest ten years). Next, find the three numbers
above your age. The three numbers are your “training
zone.” The lowest number is the recommended heart
rate for fat burning; the middle number is the recommended heart rate for maximum fat burning; the highest number is the recommended heart rate for aerobic
exercise.
To measure your heart rate, first exercise for at least
four minutes. Then, measure your heart rate using the
pulse sensor (see step 5 on page 12).
Each workout should include the following three
important parts:
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise. A proper warm-up increases your
body temperature, heart rate, and circulation in preparation for exercise.
Training zone exercise, consisting of 20 to 30 minutes of exercising with your heart rate in your training
zone. (During the first few weeks of your exercise
program, do not keep your heart rate in your training
zone for longer than 20 minutes.)
A cool-down, with 5 to 10 minutes of stretching. This
will increase the flexibility of your muscles and will
help to prevent post-exercise problems.
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each week
if desired. The key to success is to make exercise a
regular and enjoyable part of your everyday life.
15
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the
ight. Move slowly as you stretch—never bounce.
r
. Toe Touch Stretch
1
Stand with your knees bent slightly and slowly bend forward
from your hips. Allow your back and shoulders to relax as you
reach down toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Hamstrings,
back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for each leg. Stretches:
Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place
your hands against a wall. Keep your back leg straight and
your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall. Hold for 15 counts,
then relax. Repeat 3 times for each leg. To cause further
stretching of the achilles tendons, bend your back leg as well.
Stretches: Calves, achilles tendons and ankles.
1
2
3
4
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and
grasp one foot with your other hand. Bring your heel as close
to your buttocks as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Quadriceps and hip
muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward. Pull your feet toward your groin area as far as possible.
Hold for 15 counts, then relax. Repeat 3 times. Stretches:
Quadriceps and hip muscles.
5
16
NOTES
17
PART LIST—Model No. PFEVEL47300 R
1100A
Key
o. Qty. Description
N
11Frame
21Extension Wire
3
41Right Side Shield
51Left Side Shield
61Console
72Foam Handlebar Grip
81Left Handlebar
91Plastic Tie
10 1 T-handle
11 8 Pedal Arm Bushing
12 2 Pedal Arm
13 13 M5 x 16mm Screw
14 1 Console Base
15 2 Pulse Wire
16 6 M4 x 19mm Flange Screw
17 2 M6 Nylon Locknut
18 1 Adjustment Bracket
19 1 M6 Eyebolt
20 4 M8 Nylon Locknut
21 1 Flywheel Axle
22 2 Flywheel Bearing
23 1 Flywheel
24 1 Magnet
25 1 Reed Switch Wire
26 1 Resistance Control/Cable
27 4 Stabiliser Endcap
28 1 Hook
29 8 M10 Nylon Locknut
30 1 Belt
31 1 Left Pedal
32 1 Pulley w/Shaft
33 2 Crank Arm
34 18 M4 x 16mm Screw
35 2 5/16” Zinc Bolt
36 2 Pulley Bearing
37 2 Pedal Disk
1 Upright
Key
o. Qty. Description
N
38 2 Wheel Bracket
39 2 Handlebar Spacer
0 1 Side Shield Bracket
4
41 2* Pedal Arm Spacer
42 2 M10 x 25mm Button Head Screw
43 4* 3/4” Axle Cap
44 1 Reed Switch Clamp
45 1 Right Pedal
46 1 Cable Clamp Hardware
47 1 “C” Magnet
48 1 M8 Shoulder Bolt
49 2 Weld Spacer
50 1 Resistance Control Knob
51 1 M6 x 64mm Bolt
52 1 Return Spring
53 2 M10 Washer
54 2 M6 x 16mm Button Head Bolt
55 1 Extension Cable
56 4 Pivot Bushing
57 2* 5/8” Axle Cap
58 1 M4 x 64mm Screw
59 2 M10 x 45mm Button Head Bolt
60 1 3/4” Plastic Spacer
61 2 Wheel
62 1 Right Handlebar
63 2 Pulse Grip
64 3 M6 Nut
65 1 Idler Arm
66 1 “J” Bolt
67 1 M10 x 25mm Bolt
68 1 M8 Split Washer
#1Userʼs Manual
#2Side Shield Decal
#1Warning Decal
#1Hardware Kit
#1Allen Wrench
Note: “#” indicates a non-illustrated part. “*” indicates that an extra part may be included. Specifications are
subject to change without notice. See the back cover of this manual for information about ordering replacement
parts.
18
14
20
21
22
23
24
25
34
64
18
19
20
22
1
3
4
5
7
8
62
12
28
30
37
37
13
13
41
11
43
41
11
43
11
16
46
29
45
34
25
53
53
11
43
16
31
11
43
12
50
26
34
34
56
57
57
56
27
27
27
27
56
56
6
40
13
34
13
13
39
39
11
49
49
54
17
10
35
32
36
36
60
33
35
33
58
13
34
63
34
15
34
47
48
20
52
44
64
51
55
29
61
59
59
42
38
2
9
20
68
29
65
67
66

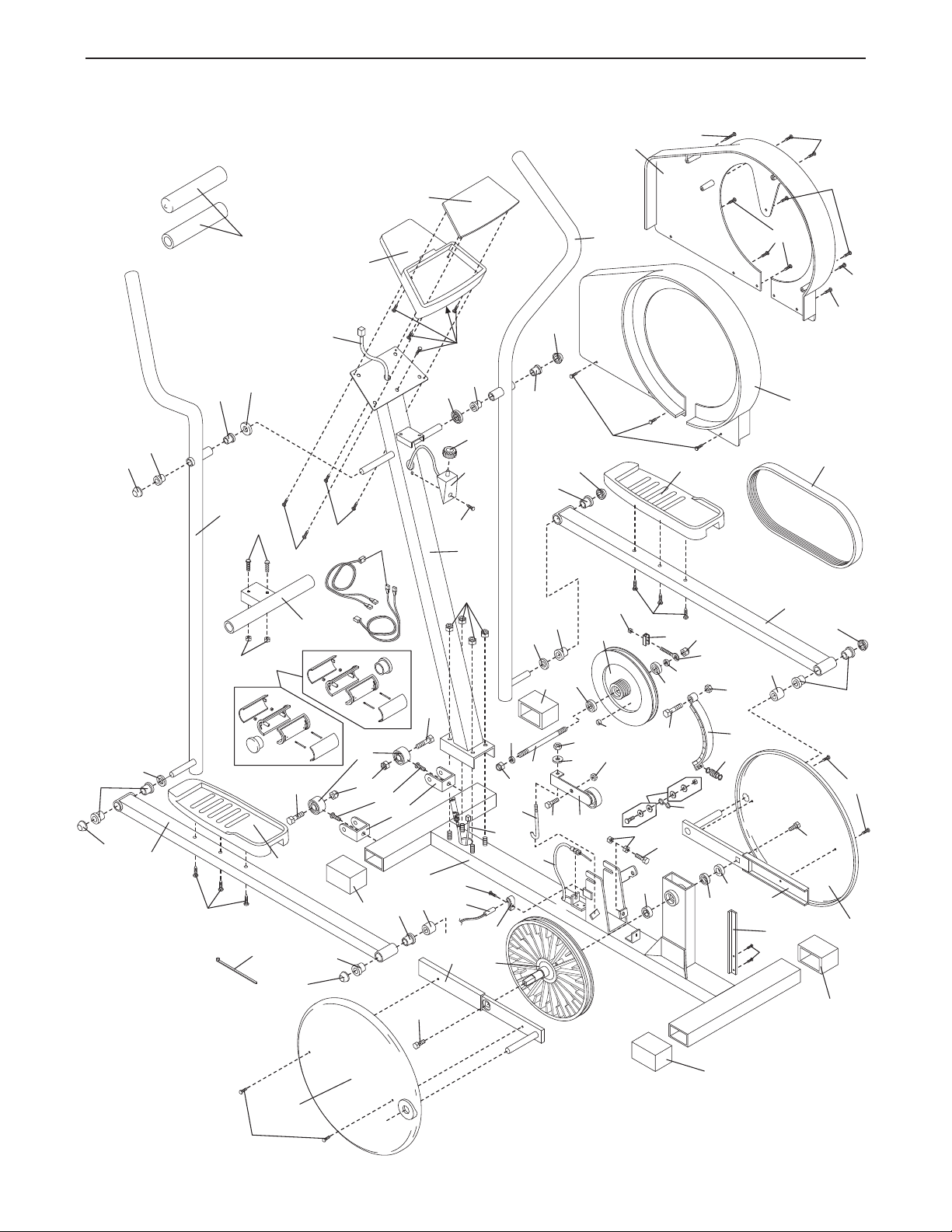

EXPLODED DRAWING—Model No. PFEVEL47300 R
1100A
19
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, contact the ICON Health & Fitness Ltd. office, or write:
CON Health & Fitness, Ltd.
I
Greenwich House
223 North Street
Sheepscar
Leeds LS7 2AA
West Yorkshire
Tel: Country Code:
0345-089009
Fax: 0113-2411120
When ordering parts, please be prepared to give the following information:
• The MODEL NUMBER OF THE PRODUCT (PFEVEL47300)
®
• The NAME OF THE PRODUCT (PROFORM
• The SERIAL NUMBER OF THE PRODUCT (see the front cover of this manual)
530E elliptical exerciser)
• The KEY NUMBER and the DESCRIPTION OF THE PART(S) (see the PART LIST and the EXPLODED DRAWING attached in the centre of this manual).
Part No. 172188 R1100A Printed in China © 2000 ICON Health & Fitness, Inc.
Loading...
