ProForm PFEVEL2786.0 User Manual

CAUTION
Read all precautions and instructions in this manual before using this equipment. Keep this manual for future reference.
Model No. PFEVEL2786.0 Serial No.
Number
Decal
USER'S MANUAL
QUESTIONS?
As a manufacturer, we are committed to providing com­plete customer satisfaction. If you have questions, or if there are missing or damaged parts, please call:
Or write: ICON Health & Fitness, Ltd. Unit 4 Revie Road Industrial Estate Revie Road, Beeston Leeds, LS11 8JG UK
email: csuk@iconeurope.com
08457 089 009
Visit our website at
www.iconeurope.com
2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
IMPORTANT PRECAUTIONS
WARNING:
To reduce the risk of serious injury, read the following important precau-
tions before using the elliptical exerciser.
1. Read all instructions in this manual and all warnings on the elliptical exerciser before using the elliptical exerciser.
2. It is the responsibility of the owner to ensure that all users of the elliptical exerciser are adequately informed of all precautions.
3. The elliptical exerciser is intended for home use only. Do not use the elliptical exerciser in a commercial, rental, or institu­tional setting.
4. Keep the elliptical exerciser indoors, away from moisture and dust. Place the elliptical exerciser on a level surface, with a mat beneath it to protect the floor or carpet. Make sure that there is enough clearance around the elliptical exerciser to mount, dis­mount, and use it.
5. Inspect and properly tighten all parts regu­larly. Replace any worn parts immediately.
6. Keep children under 12 and pets away from the elliptical exerciser at all times.
7. The elliptical exerciser should not be used by persons weighing more than 250 pounds (113 kg).
8. Wear appropriate exercise clothes when using the elliptical exerciser. Always wear athletic shoes for foot protection while exer­cising.
9. When mounting and dismounting the ellipti­cal exerciser, always hold the handlebars and step onto and off the pedal that is in the lowest position.
10. The pulse sensor is not a medical device. Various factors may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determin­ing heart rate trends in general.
11. Keep your back straight when using the ellip­tical exerciser; do not arch your back.
12. If you feel pain or dizziness while exercising, stop immediately and cool down.
13. When you stop exercising, allow the pedals to slowly come to a stop.
WARNING: Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health prob­lems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
3
BEFORE YOU BEGIN
Thank you for selecting the new PROFORM®470 HR low-impact elliptical exerciser. The 470 HR is an incredibly smooth exerciser that moves your feet in a natural elliptical path, minimizing the impact on your knees and ankles. Welcome to a whole new world of natural, elliptical-motion exercise.
For your benefit, read this manual carefully before you use the elliptical exerciser. If you have ques-
tions after reading this manual, please see the front cover of this manual. To help us assist you, note the product model number and serial number before con­tacting us. The model number is PFEVEL2786.0. The serial number can be found on a decal attached to the elliptical exerciser (see the front cover of this manual).
Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.
FRONT
BACK
Transport Wheel
Side Shield
Pedal
Upright
Console
Pulse Sensor
Handlebar
Pedal Disc
The decal shown above has been placed on the elliptical exerciser. If the decal is missing or illegible, call the telephone number on the front cover of this manual and order a free replacement decal. Apply the decal in the location shown.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires a phillips screwdriver , an adjustable wrench , and a rubber mallet .
See the drawings below to identify the small parts needed for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST on page 22. The number following the key number is the quantity needed for assembly. Note: Some small parts may have been preassembled. If a part
is not in the parts bag, check to see if it has been preassembled.
4
ASSEMBLY
M6 Washer
(55)–2
M6 Nylon
Locknut (56)–6
M6 x 1 3/8" Button
Bolt (46)–4
M6 x 2 1/2" Button
Shoulder Bolt (40)–2
M6 Arc
Washer (39)–4
M8 Nylon
Locknut (57)–4
M8 Cap Nut
(24)–2
M8 x 5/8" Button
Screw (45)–6
M8 Washer
(52)–4
Console
Screw (68)–4
M8 x 1 9/16" Hex Bolt (41)–4
M8 x 3 3/8" Button Screw (42)–2
Washer (54)–8
M8 Arc
M4 x 1/2"
Screw (49)–16
M8 x 3 1/2" Carriage Bolt (51)–2
5
1. Identify the Front Stabilizer (2), which has Transport Wheels (29) attached to it. Attach the Front Stabilizer to the Frame (1) with two M8 x 3 1/2" Carriage Bolts (51), two M8 Arc Washers (54), and two M8 Cap Nuts (24).
2. With the help of another person, raise the Frame (1) up onto its front end. While the other person holds the Frame, attach the Rear Stabilizer (20) to the Frame with two M8 x 3 3/8" Button Screws (42).
With the help of another person, lower the Frame (1) so that it rests on the Rear Stabilizer (20) and the Front Stabilizer (not shown).
2
1
51
54
1
24
2
20
42
1
54
24
29
29
3. While another person holds the Upright (3) near the Frame (1), connect the Upper Wire Harness (75) to the Reed Switch Wire (67).
Slide the Upright (3) onto the Frame (1).
Be careful
to avoid pinching the wires. Align the holes in the
Upright with the holes in the Frame. Attach the Upright with six M8 x 5/8" Button Screws (45) and six M8 Arc Washers (54).
3
67
1
3
45
54
45
45
54
54
54
75
54
Avoid pinching
the wires during
this step
6
5. While another person holds the Console (22) near the top of the Upright (3), connect the console wire to the Upper Wire (75). Then, connect the lower wire on the back of the console to the upper wire on the back of the console.
Attach the Console (22) to the Upright (3) with four Console Screws (68). Be careful to avoid pinch-
ing the wires.
Note: If you have purchased the optional pulse sen­sor (see page 19 for more information), disregard the instructions for installing the receiver. The con­sole on this elliptical exerciser already has a receiv­er installed.
5
22
75
3
68
Console Wire
22
Batteries
Battery Cover
4
4. The Console (22) requires four “AA” batteries; alka­line batteries are recommended. Remove the bat­tery cover from the back of the Console and insert four batteries into the Console; make sure that the
batteries are oriented as shown by the diagram inside the Console. Then, reattach the battery
cover.
Avoid pinching
the wires during
this step
6
57
8
4
52
6. Identify the Right Pedal (63), which has an “R” molded into its bottom surface, and the Right Pedal Tube (64), which is marked with a sticker.
Attach the Right Pedal (63) to the Right Pedal Tube (64) with two M8 x 1 9/16" Hex Bolts (41), two M8 Washers (52), and two M8 Nylon Locknuts (57).
Attach the Left Pedal (8) to the Left Pedal Tube (4) in the same way.
64
63
52
41
7

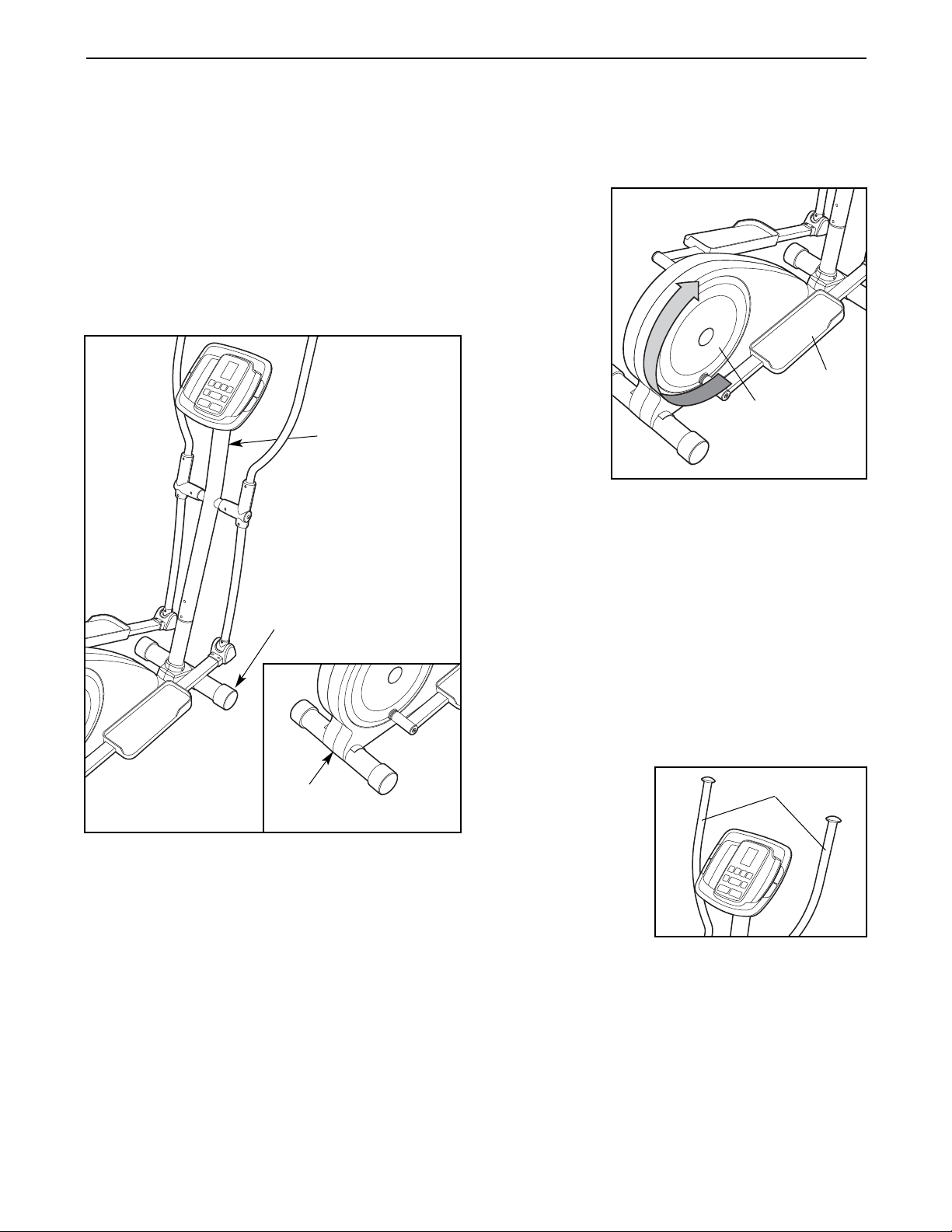

7. Slide a Pedal Tube Cover (78) onto the Right Handlebar Leg (71).
Apply a thin film of the included grease to the parts shown at the right. Next, attach the Right Pedal Tube (64) to the Right Handlebar Leg (71) with an M6 x 2 1/2" Button Shoulder Bolt (40), an M6 Washer (55), and an M6 Nylon Locknut (56).
Repeat this step to attach the Left Pedal Tube (4) to the Left Handlebar Leg (5).
71
4
5
56
7
8. Attach the right Pedal Tube Cover (78) to the Right Pedal Tube (64) with two M4 x 1/2" Screws (49).
Repeat this step for the Left Pedal Tube (4).
8
78
55
64
64
78
49
40
4
9. Insert a Plastic Sleeve (16) and a Handlebar (6) into the top of the Right Handlebar Leg (71). Align the holes in the Plastic Sleeve and the Handlebar with the holes in the Right Handlebar Leg. Then, attach the Handlebar with two M6 x 1 3/8" Button Bolts (46), two M6 Arc Washers (39), and two M6 Nylon Locknuts (56).
Repeat this step to attach the other Handlebar (6) to the Left Handlebar Leg (5).
9
16
39
71
5
46
56
56
6
6
Grease
Grease
8
10
73
49
49
49
72
6
49
10. Attach a Right Rear Pivot Cover (72) and a Right Front Pivot Cover (73) around the right Handlebar (6) and the Right Handlebar Leg (71) with six M4 x 1/2" Screws (49).
Repeat this step for the left Handlebar (6) and the Left Handlebar Leg (5).
71
6
5
11. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the elliptical exerciser.
9
HOW TO USE THE ELLIPTICAL EXERCISER
HOW TO MOVE THE ELLIPTICAL EXERCISER
Due to the size and weight of the elliptical exercis­er, moving it requires two persons. Stand in front of
the elliptical exerciser, hold the upright, and place one foot against one of the transport wheels. Pull on the upright and have a second person lift the base until the elliptical exerciser will roll on the transport wheels. Carefully move the elliptical exerciser to the desired location, and then lower it to the floor.
HOW TO EXERCISE ON THE ELLIPTICAL EXERCISER
To mount the elliptical exer­ciser, firmly hold the han­dlebars and carefully step onto the pedal that is in the lower position. Next, step onto the other pedal. Push the pedals until they begin to move with a continuous motion. Note: The pedal discs can turn in either
direction. It is recommended that you turn the pedal discs in the direction shown above; howev­er, for variety, you can turn the pedal discs in the opposite direction.
To dismount the elliptical exerciser, allow the pedals to come to a complete stop. The elliptical exerciser
does not have a freewheel; the pedals will contin­ue to move until the flywheel stops. When the ped-
als are stationary, step off the higher pedal first. Then, step off the lower pedal.
To add upper-body exercise to your workouts on the elliptical exerciser, push and pull the handlebars to work your arms, shoul­ders, and back.
Pedal
Pedal Disc
Handlebars
Place
your foot
here
Pull on upright
Lift here
10
FEATURES OF THE CONSOLE
The console offers a selection features designed to make your workouts more effective. When you use the manual mode of the console, you can change the resistance of the pedals with the touch of a button. As you exercise, the console will provide continuous exer­cise feedback. You can even monitor your heart rate using the handgrip pulse sensor or the optional chest pulse sensor. (For information about the optional chest pulse sensor, see page 19.)
The console also features six smart programs that automatically change the resistance of the pedals and prompt you to vary your pedaling pace while guiding you through an effective workout.
The console also offers two heart rate programs that automatically control the resistance of the pedals and prompt you to maintain a constant pedaling pace to keep your heart rate near target heart rate settings dur­ing your workouts.

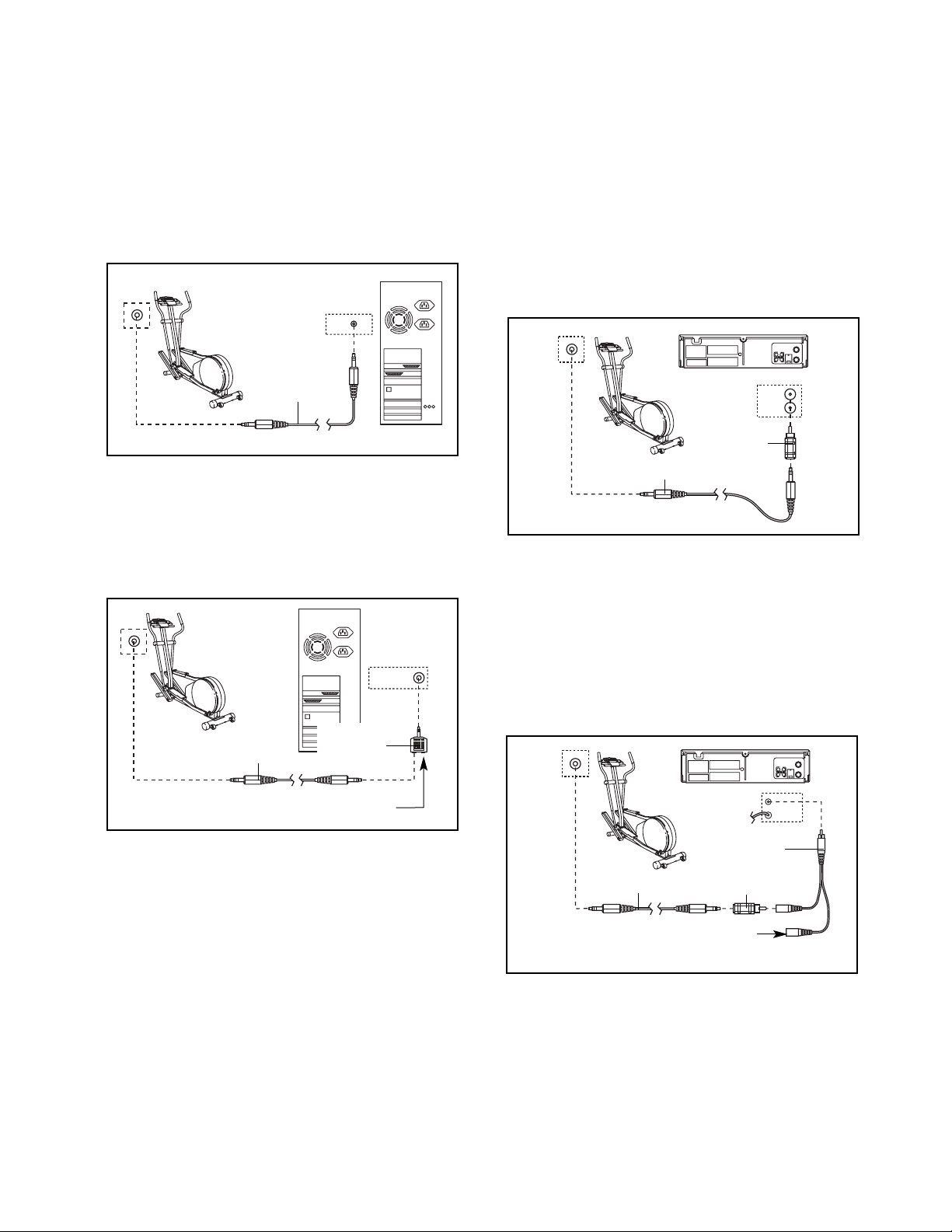

In addition, the console features iFIT.com interactive technology. Having iFIT.com interactive technology is like having a personal trainer in your home. Using the included audio cable, you can connect the elliptical
exerciser to your home stereo, portable stereo, com­puter, or VCR and play special iFIT.com CD and video programs (iFIT.com CDs and videocassettes are avail­able separately). iFIT.com CD and video programs automatically control the resistance of the pedals and prompt you to vary your pace as a personal trainer coaches you through every step of your workout. High­energy music provides added motivation. To purchase
iFIT.com CDs and videocassettes, visit our Web site at www.iconeurope.com.
With the elliptical exerciser connected to your comput­er, you can also go to our Web site at www.iFIT.com and access programs directly from the Internet.
Explore www.iFIT.com for more information.
To use the manual mode of the console, follow the
steps beginning on page 11. To use a smart program, see page 12. To use a heart rate program, see page
13. To use an iFIT.com CD or video program, see page 17. To use a program directly from our Web site, see page 18.
Before using the console, make sure that batteries are installed (see assembly step 4 on page 6). If there is a sheet of clear plastic on the display, remove the plastic.

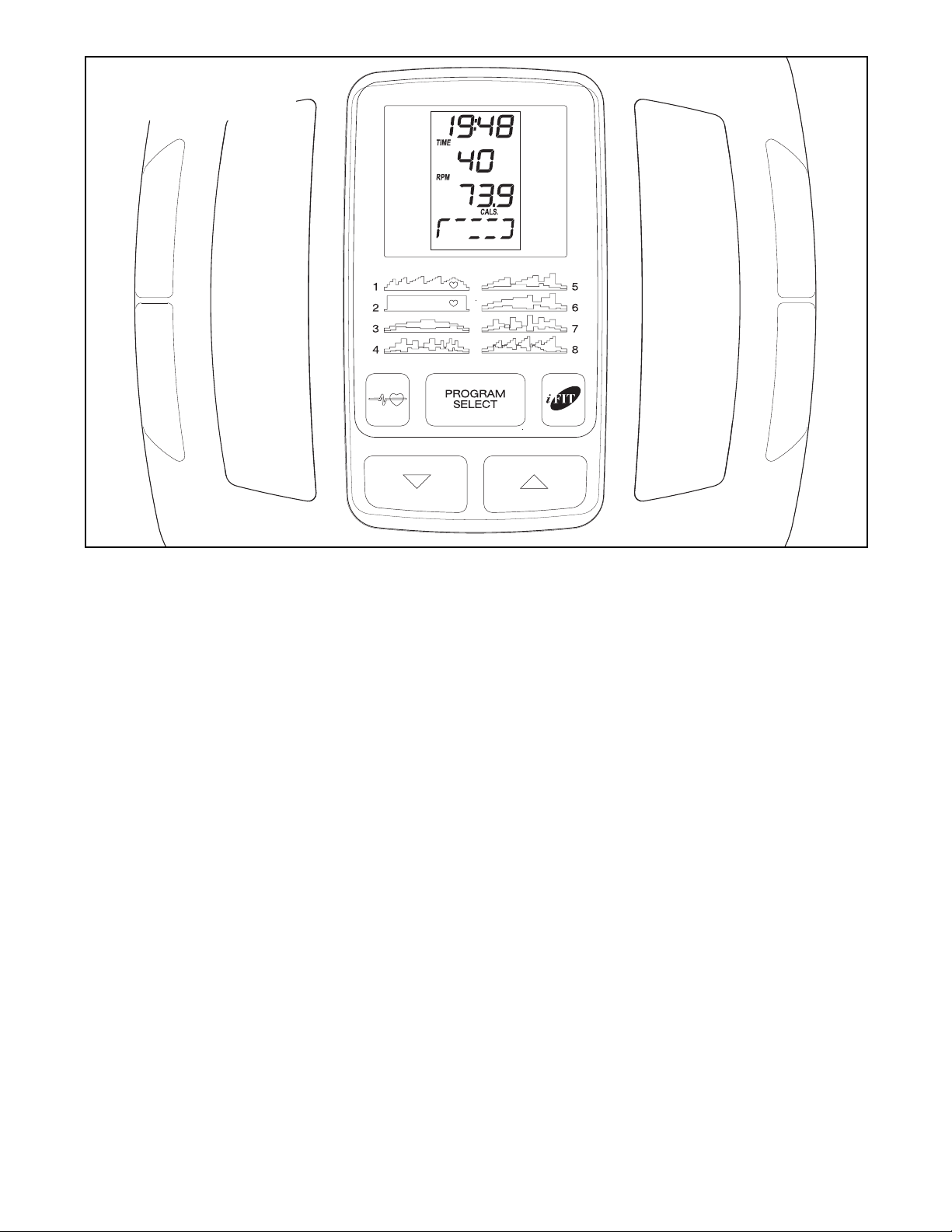

CONSOLE DIAGRAM
11
HOW TO USE THE MANUAL MODE
Turn on the console.
To turn on the console, press any button or begin pedaling. The display will light and the console will be ready for use.
Select the manual mode.
Each time you turn on the console, the manual mode will be selected. If you have selected a program, reselect the manual mode by pressing any of the Programs buttons repeatedly until zeroes appear in the display.
Begin pedaling and change the resistance of the pedals as desired.
As you pedal, change the resis­tance of the pedals by pressing the Increase and Decrease buttons. There are ten resistance levels. Note: After you press the buttons, it will take a moment for the pedals to reach the selected resistance level.
Follow your progress with the display.
The upper section of the display will show the elapsed time and the distance (total number of revolu­tions) that you have pedaled. The display will change modes every few seconds. Note: When you select a program, with the exception of the second heart rate program, the display will show the time remaining in the program instead of the elapsed time.
The second section of the display will show your pedaling pace, in revolutions per minute (rpm).
The third section of the display will show the approximate num­ber of calories you have burned and the resistance level of the pedals. The display will change modes every few seconds. The display will also show your heart rate when you use the handgrip pulse sensor.
The lower section of the display will show a track representing 640 revolutions. As you exercise, indica­tors will appear in succession around the track until the entire track appears. The track will then disappear and the indicators will again begin to appear in succession
Measure your heart rate if desired.
If there are sheets of clear plastic on the metal contacts on the handgrip pulse sensor, remove the plas­tic. Next, hold the
handgrip pulse sen­sor with your palms resting on the metal contacts. Avoid moving
your hands or gripping the contacts too tight­ly. When your pulse is detected, a heart-shaped
symbol will flash in the display each time your heart beats and then your heart rate will be shown. For the most accurate heart rate reading, hold the contacts for at least 15 seconds.
When you are finished exercising, the console will turn off automatically.
If the pedals do not move for a few seconds, the time will begin to flash in the display and the con­sole will pause. If the pedals do not move for a few minutes and no buttons are pressed, the con­sole will turn off and the display will be reset.
6
5
4
3
2
1
Contacts
12

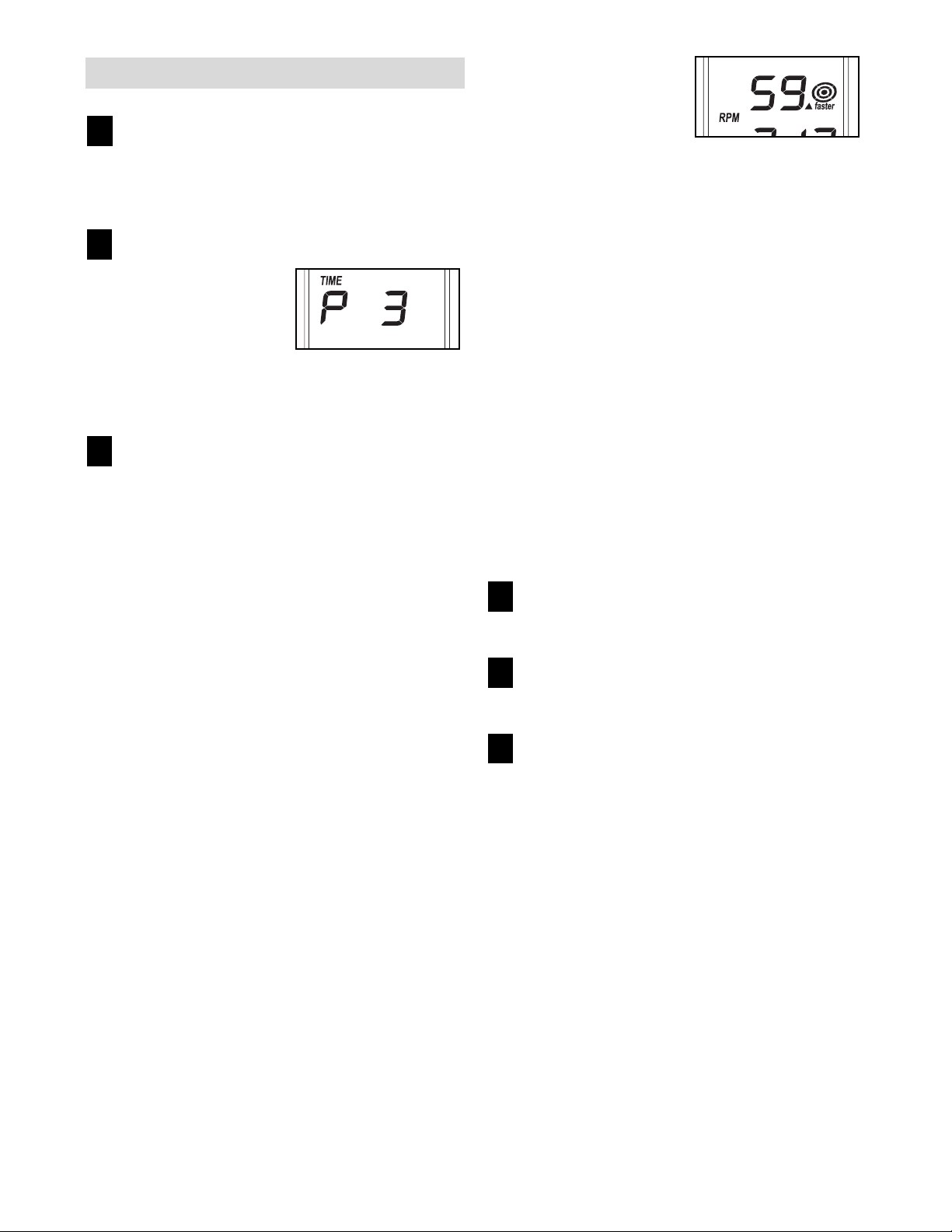

HOW TO USE A SMART PROGRAM
Turn on the console.
To turn on the console, press any button or begin pedaling. The display will light and the console will be ready for use.
Select a smart program.
To select a smart program, press the Program Select but­ton repeatedly until P3, P4, P5, P6, P7, or P8 appears in the display. The upper section of the display will show how long the program will last.
Begin pedaling to start the program.
Each program is divided into 30 one-minute seg­ments. One resistance level and one pace setting are programmed for each segment. Note: The same resistance level and/or pace setting may be programmed for two or more consecutive seg­ments.
Whenever the resistance is about to change, the resistance level will flash in the display for a few seconds to alert you. The resistance of the pedals will then automatically change to the resistance level programmed for the next segment. Note: If the resistance level is too low or too high, you can override it by pressing the Increase and Decrease buttons. However, when the current segment ends, the resistance will automatically change to the resistance level programmed for the next segment.
As you exercise, the display will prompt you to keep your pedaling pace near the pace setting for the current segment. When the word “faster” appears in the display, increase your pace. When the word “slower” appears, decrease your pace. When the center of the target flashes, maintain your current pace.
Important: The pace settings are intended only to provide motivation. Your actual pace may be slower than the pace settings. Make sure to exercise at a pace that is comfortable for you.
If you stop pedaling for several seconds, the time will begin to flash in the display. To restart the pro­gram, simply resume pedaling.
The program will continue until the display shows a time of 0:00. If you continue to pedal after the program is completed, the display will continue to show exercise feedback; however, the display will not show the elapsed time until you select the manual mode or a new program.
Follow your progress with the display.
See step 4 on page 11.
Measure your heart rate if desired.
See step 5 on page 11.
When you are finished exercising, the console will automatically turn off.
See step 6 on page 11.
6
5
4
3
2
1
13
HOW TO USE A HEART RATE PROGRAM
Turn on the console.
To turn on the console, press any button or begin pedaling. The display will light and the console will be ready for use.
Select a heart rate program.
To select one of the two heart rate pro­grams, press the button with the heart rate symbol once or twice until P1 or P2 appears in the display. The upper sec­tion of the display will show how long the program will last.
Enter a target heart rate setting.
If you select the first heart rate pro­gram, the maxi-
mum target heart rate setting of the program will appear in the display. Use the Increase and Decrease buttons to change the maximum heart rate set­ting, if desired (see EXERCISE INTENSITY on page 20). Note: If you change the maximum tar­get heart rate setting, the intensity level of the entire program will change.
If you select the second heart rate program,
the target heart rate setting for the program will appear in the display. Use the Increase and Decrease buttons to change the target heart rate setting, if desired (see EXERCISE INTENSITY on page 20). Note: The same target heart rate set­ting will be used for the entire program.
Hold the handgrip pulse sensor.
It is not necessary to hold the handgrip pulse sensor continuously during a heart rate program; however, you should hold the handgrip pulse sen­sor frequently for the program to operate properly.
Each time you hold the handgrip pulse sen­sor, keep your hands on the metal contacts for at least 30 seconds.
Begin pedaling to start the program.
The first heart rate control program—This pro-
gram is divided into 30 one-minute segments. One target heart rate setting is programmed for each segment. Note: The same target heart rate set­ting may be programmed for two or more consec­utive segments.
The second heart rate program—The same tar­get heart rate setting is programmed for all seg­ments of this program.
5
4
3
2
1
14
Both heart rate programs—As you pedal, the
console will regularly compare your heart rate to the target heart rate setting. If your heart rate is too far below or above the target heart rate, the resistance of the pedals will automatically increase or decrease to bring your heart rate closer to the target heart rate setting.
You will also be prompted to pedal at a steady pace. When the word “faster” appears in the display, increase your pace. When the word “slower” appears, decrease your pace. When the center of the tar­get flashes, maintain your current pace.
Important: Make sure to exercise at a pace that is comfortable for you.
Note: You can manually override the resistance settings; however, if you change the resistance setting, you might not maintain the target heart rate. Also, when the console compares your heart rate to the target heart rate setting, the resistance of the pedals may automatically increase or decrease to bring your heart rate closer to the tar­get heart rate setting.
Follow your progress with the display.
See step 4 on page 11.
Measure your heart rate if desired.
See step 5 on page 11.
When you are finished exercising, the console will turn off automatically.
See step 6 on page 11.
HOW TO CONNECT YOUR CD PLAYER, VCR OR COMPUTER
To use iFIT.com CDs, the elliptical exerciser must be
connected to your portable CD player, portable stereo, home stereo, or computer with CD player. See pages 14 to 16 for connecting instructions. To use iFIT.com videocassettes, the elliptical exerciser must be con­nected to your VCR. See page 16 for connecting instructions. To use iFIT.com programs directly from our Web site, the elliptical exerciser must be connected to your computer. See page 16.
HOW TO CONNECT YOUR PORTABLE CD PLAYER
Note: If your CD player has separate LINE OUT and PHONES jacks, see instruction A below. If your CD player has only one jack, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the audio cable into the LINE OUT jack on your CD player. Plug your headphones into the PHONES jack.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the audio cable into the splitter. Plug the splitter into the PHONES jack on your CD player. Plug your headphones into the other side of the splitter.
8
7
6
Audio Cable
Head-
phones
A
Audio Cable
Splitter
Headphones
B
LINE OUT
PHONES
LINE OUT
PHONES
PHONES
PHONES
15
HOW TO CONNECT YOUR PORTABLE STEREO
Note: If your stereo has an RCA-type AUDIO OUT jack, see instruction A below. If your stereo has a
3.5mm LINE OUT jack, see instruction B. If your stereo has only a PHONES jack, see instruction C.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the audio cable into the adapter. Plug the adapter into an AUDIO OUT jack on your stereo.
B. See the drawing above. Plug one end of the audio
cable into the jack beneath the console. Plug the other end of the audio cable into the LINE OUT jack on your stereo. Do not use the adapter.
C. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the audio cable into the splitter. Plug the splitter into the PHONES jack on your stereo. Plug your head­phones into the other side of the splitter.
HOW TO CONNECT YOUR HOME STEREO
Note: If your stereo has an unused LINE OUT jack, see instruction A below. If the LINE OUT jack is being used, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the audio cable into the adapter. Plug the adapter into the LINE OUT jack on your stereo.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the audio cable into the adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the LINE OUT jack on your stereo and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the LINE OUT jack on your stereo.
Audio Cable
A
Audio Cable
RCA Y-adapter
adapter
Wire removed from
LINE OUT jack
B
adapter
Audio
Cable
adapter
A/B
Audio Cable
C
Splitter
Headphones
AUDIO OUT
RIGHT
LEFT
CD
VCR
Amp
LINE OUT
LINE OUT
CD
VCR
Amp
LINE OUT
PHONES
16
HOW TO CONNECT YOUR COMPUTER
Note: If your computer has a 3.5mm LINE OUT jack, see instruction A. If your computer has only a PHONES jack, see instruction B.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the audio cable into the LINE OUT jack on your com­puter.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the audio cable into the splitter. Plug the splitter into the PHONES jack on your computer. Plug your head­phones or speakers into the other side of the splitter.
HOW TO CONNECT YOUR VCR
Note: If your VCR has an unused AUDIO OUT jack, see instruction A below. If the AUDIO OUT jack is being used, see instruction B. If you have a TV with a built-in VCR, see instruction B. If your VCR is connected to your home stereo, see HOW TO CONNECT YOUR HOME STEREO on page 15.
A. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the audio cable into the adapter. Plug the adapter into the AUDIO OUT jack on your VCR.
B. Plug one end of the audio cable into the jack
beneath the console. Plug the other end of the audio cable into the adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the AUDIO OUT jack on your VCR and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the AUDIO OUT jack on your VCR.
Audio Cable
adapter
A
Audio Cable
adapter
B
Wire removed from
AUDIO OUT jack
RCA
Y-adapter
Audio Cable
A
Audio Cable
B
Splitter
Headphones/Speakers
LINE OUT
PHONES
VIDEO AUDIO
IN
CH
34
OUT
AUDIO OUT
RIGHT
LEFT
ANT. IN
RF OUT
ANT. IN
VIDEO AUDIO
IN
RF OUT CH 34
OUT
17
HOW TO USE AN IFIT.COM CD OR VIDEO PROGRAM
To use iFIT.com CDs or videocassettes, the elliptical exerciser must be connected to your portable CD play­er, portable stereo, home stereo, computer with CD player, or VCR. See HOW TO CONNECT YOUR CD PLAYER, VCR, OR COMPUTER on page 14. To
purchase iFIT.com CDs and videocassettes, visit our Web site at www.iFIT.com.
Follow the steps below to use an iFIT.com CD or video program.
Turn on the console.
See step 1 on page 11.
Select the iFIT.com mode.
To select the iFIT.com mode, press the iFIT but­ton.
Insert the iFIT.com CD or videocassette.
If you are using an iFIT.com CD, insert the CD into your CD player. If you are using an iFIT.com videocassette, insert the videocassette into your VCR.
Press the play button on your CD player or VCR.
A moment after you press the play button, your personal trainer will begin guiding you through your workout. Simply follow your personal trainer’s instructions.
The program will function in almost the same way as a smart program (see step 3 on page 12). However, an electronic “chirping” sound will alert you when the resistance level and/or the target pace is about to change.
Note: If the resistance of the pedals and/or the target pace does not change when a “chirp” sounds:
• Make sure that the indicator near the iFIT but­ton is lit.
• Adjust the volume of your CD player or VCR. If the volume is too high or too low, the con­sole may not detect the program signals.
• Make sure that the audio cable is properly connected and that it is fully plugged in.
Follow your progress with the display.
See step 4 on page 11.
Measure your heart rate if desired.
See step 5 on page 11.
When you are finished exercising, the console will turn off automatically.
See step 6 on page 11.
7
6
5
4
3
2
1
18
HOW TO USE A PROGRAM DIRECTLY FROM OUR WEBSITE
Our Web site at www.iFIT.com allows you to play iFIT.com programs directly from the Internet. To use programs from our Web site, the elliptical exerciser must be connected to your home computer. See HOW TO CONNECT YOUR COMPUTER on page 16. In addition, you must have an Internet connection and an Internet service provider. A list of specific system requirements is found on our Web site.
Follow the steps below to use a program from our Web site.
Turn on the console.
See step 1 on page 11.
Select the iFIT.com mode.
To select the iFIT.com mode, press the iFIT but­ton.
Go to your computer and start an Internet con­nection.
Start your Web browser, if necessary, and go to our Web site at www.iFIT.com.
Follow the desired links on our Web site to select a program.
Follow the online instructions to start the program.
When you start the program, an on-screen count­down will begin.
Return to the elliptical exerciser and begin pedaling.
When the on-screen countdown ends, the pro­gram will begin. The program will function in almost the same way as a smart program (see step 3 on page 12). However, an electronic “chirp­ing” sound will alert you when the resistance level and/or the target pace is about to change.
Follow your progress with the display.
See step 4 on page 11.
Measure your heart rate if desired.
See step 5 on page 11.
When you are finished exercising, the con­sole will turn off automatically.
See step 6 on page 11.
10
9
8
7
6
5
4
3
2
1
19
THE OPTIONAL CHEST PULSE SENSOR
The optional chest pulse sensor provides hands-free operation and continuously monitors your heart rate during your workouts. To purchase the optional
chest pulse sensor, call the telephone number on the front cover of this manual.
Inspect and properly tighten all parts of the elliptical exerciser regularly. Replace any worn parts immedi­ately.
The elliptical exerciser can be wiped clean with a soft cloth and mild detergent. Do not use abrasives or solvents. To prevent damage to the console, keep liquids away from the console and keep the console out of direct sunlight.
When storing the elliptical exerciser, remove the bat­teries from the console. Keep the elliptical exerciser in a clean, dry location, away from moisture and dust.
CONSOLE TROUBLESHOOTING
If the console does not function properly, the batteries should be replaced. To replace the batteries, see assembly step 4 on page 6.
HANDGRIP PULSE SENSOR TROUBLESHOOTING
If the handgrip pulse sensor does not function proper­ly, see step 5 on page 11.
MAINTENANCE AND TROUBLESHOOTING
20
The following guidelines will help you to plan your exercise program. Remember that proper nutrition and adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recom­mended heart rates for fat burning, maximum fat burn­ing, and cardiovascular (aerobic) exercise.

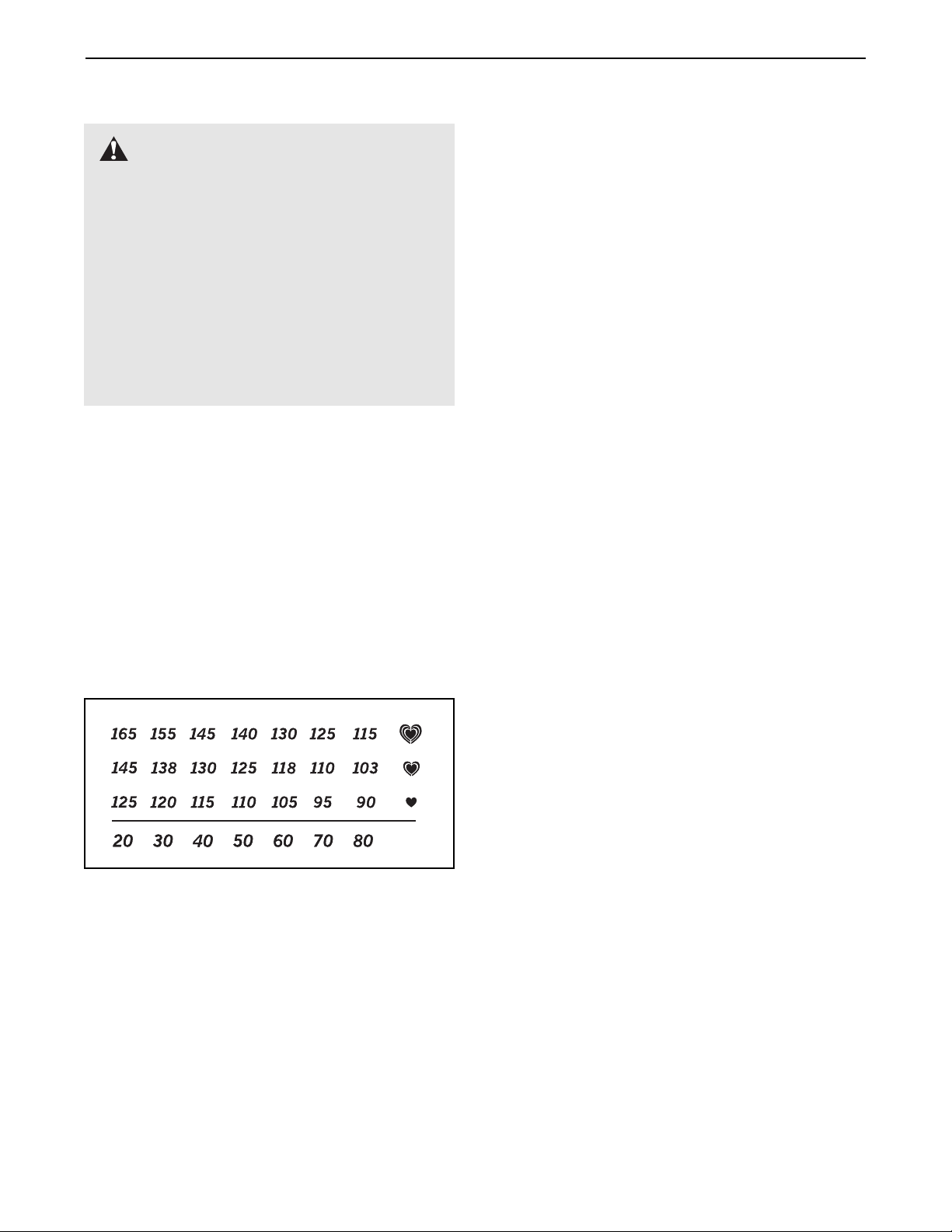

To find the proper heart rate for you, first find your age near the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age; the three numbers are your “training zone.” The lowest number is the recommended heart rate for fat burning; the middle number is the recom­mended heart rate for maximum fat burning; and the highest number is the heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relative­ly low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses easily accessible
carbohydrate
calories for ener­gy. Only after the first few minutes of exercise does your body begin to use stored
fat
calories for energy. If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest num­ber or the middle number in your training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular sys­tem, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching and light exercise. A proper warm-up increases your body temperature, heart rate, and circulation in prepa­ration for exercise.
Training zone exercise, consisting of 20 to 30 min­utes of exercising with your heart rate in your training zone. (During the first few weeks of your exercise pro­gram, do not keep your heart rate in your training zone for longer than 20 minutes.)
A cool-down, with 5 to 10 minutes of stretching. This will increase the flexibility of your muscles and will help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, plan three work­outs each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each week, if desired. The key to success is make exercise a regu­lar and enjoyable part of your everyday life.
WARNING:
Before beginning this or any exercise pro­gram, consult your physician. This is espe­cially important for individuals over the age of 35 or individuals with pre-existing health problems.
The pulse sensor is not a medical device. Various factors may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determin­ing heart rate trends in general.
CONDITIONING GUIDELINES
21
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of knees, and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg. Reach toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Hamstrings, lower back, and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons, and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Quadriceps and hip muscles.
1
2
3
4
22
PART LIST—Model No. PFEVEL2786.0 R0906A
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of this manual for information about ordering replacement parts.
1 1 Frame 2 1 Front Stabilizer 3 1 Upright 4 1 Left Pedal Tube 5 1 Left Handlebar Leg 6 2 Handlebar 7 1 Flywheel 8 1 Left Pedal
9 1 Flywheel Axle 10 1 “C” Magnet 11 2 Upright Spacer 12 1 Left Rear Pivot Cover 13 2 Handlebar Endcap 14 1 Driving Wheel Assembly 15 1 Right Crank Arm 16 2 Plastic Sleeve 17 8 Handlebar Bushing 18 1 Spring 19 2 Foam Handle Grip 20 1 Rear Stabilizer 21 1 Left Side Shield 22 1 Console 23 4 Leg Bushing 24 2 M8 Cap Nut 25 2 Pedal Disc 26 4 M8 x 3/4" Hex Bolt 27 2 Disc Cover 28 2 Rear Stabilizer Endcap 29 2 Transport Wheel 30 1 Drive Belt 31 2 Plastic Washer 32 4 Nylon Bushing 33 2 Flywheel Bearing 34 2 Crank Bearing 35 2 Pedal Tube Endcap 36 1 “C” Clip 37 2 Eyebolt 38 2 Adjustment Bracket 39 4 M6 Arc Washer 40 2 M6 x 2 1/2" Button Shoulder Bolt 41 4 M8 x 1 9/16" Hex Bolt 42 2 M8 x 3 3/8" Button Screw 43 1 M8 x 2 3/8" Hex Bolt
44 1 M8 x 2 3/8" Tap Hex Bolt 45 6 M8 x 5/8" Button Screw 46 4 M6 x 1 3/8" Button Bolt 47 10 M5 x 5/8" Button Screw 48 5 M4 x 1 9/16" Button Screw 49 24 M4 x 1/2" Screw 50 4 Wave Washer 51 2 M8 x 3 1/2" Carriage Bolt 52 5 M8 Washer 53 4 M10 Washer 54 8 M8 Arc Washer 55 2 M6 Washer 56 8 M6 Nylon Locknut 57 8 M8 Nylon Locknut 58 1 M10 Nylon Locknut 59 1 M8 Hex Nut 60 1 Magnet 61 1 Clamp 62 2 M10 Spacer 63 1 Right Pedal 64 1 Right Pedal Tube 65 1 Right Side Shield 66 6 M4 x 3/4" Screw 67 1 Reed Switch/Wire 68 5 Console Screw 69 1 Left Front Pivot Cover 70 1 Lower Cable 71 1 Right Handlebar Leg 72 1 Right Rear Pivot Cover 73 1 Right Front Pivot Cover 74 1 Pulse Wire 75 1 Upper Wire 76 2 Rear Leg Cover 77 2 Front Leg Cover 78 2 Pedal Tube Cover 79 1 Left Frame Cover 80 1 Right Frame Cover 81 1 Resistance Motor 82 1 Resistance Cable Assembly 83 2 Pulley Washer 84 1 Resistance Pulley
# 1 Assembly Tool # 1 User’s Manual
Key No. Qty. Description Key No. Qty. Description
EXPLODED DRAWING—Model No. PFEVEL2786.0 R0906A
23
13
47
32
26
25
17
28
47
27
17
49
56
56
38
57
15
32
40
49
19
17
23
29
24
69
49
12
49
49
26
78
74
75
7
9
33
53
62
37
53
57
24
54
84
57
83
34
47
36
47
47
21
33
10
67
56
38
18
4
43
49
35
52
59
61
82
41
8
52
57
50
53
57
37
62
60
70
44
31
14
47
47
68
34
1
79
54
5
76
16
66
25
23
6
49
39
17
77
39
56
55
66
50
50
45
45
54
46
17
11
51
54
80
29
54
66
30
16
19
23
77
17
35
39
47
13
39
49
6
46
26
32
40
48
22
68
50
56
49
78
55
17
49
71 23
49
64
65
11
3
54
54
49
49
41
63
2
17
32
26
49
45
52
57
72
76
73
56
48
42
20
28
81
31
53
58
27
48
47
Part No. 245639 R0906A Printed in China © 2006 ICON IP, Inc.
PROFORM is a registered trademark of ICON IP, Inc.
ORDERING REPLACEMENT PARTS
To order replacement parts, contact the ICON Health & Fitness, Ltd. office, or write:
ICON Health & Fitness, Ltd. Customer Service Department Unit 4, Revie Road Industrial Estate Revie Road Beeston Leeds, LS118JG UK
Te l:
Outside the UK: 0 (044) 113 387 7133 Fax: 0 (044) 113 387 7125
To help us assist you, please be prepared to give the following information:
• the MODEL NUMBER of the product (PFEVEL2786.0)
• the NAME of the product (PROFORM 470 HR elliptical exerciser)
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part(s) (see pages 22 and 23)
08457 089 009
Loading...
