ProForm PFES80040 User Manual
Model No. PFES80040
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal (Under Seat)
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts, we
will guarantee complete satisfaction through direct assistance from our factory.
USER’S MANUAL
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLLFREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot line will provide
immediate assistance, free of
charge.
CUSTOMER HOT LINE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instruc
tions in this manual before using
this equipment. Save this manual
for future reference.
-
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPOR
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

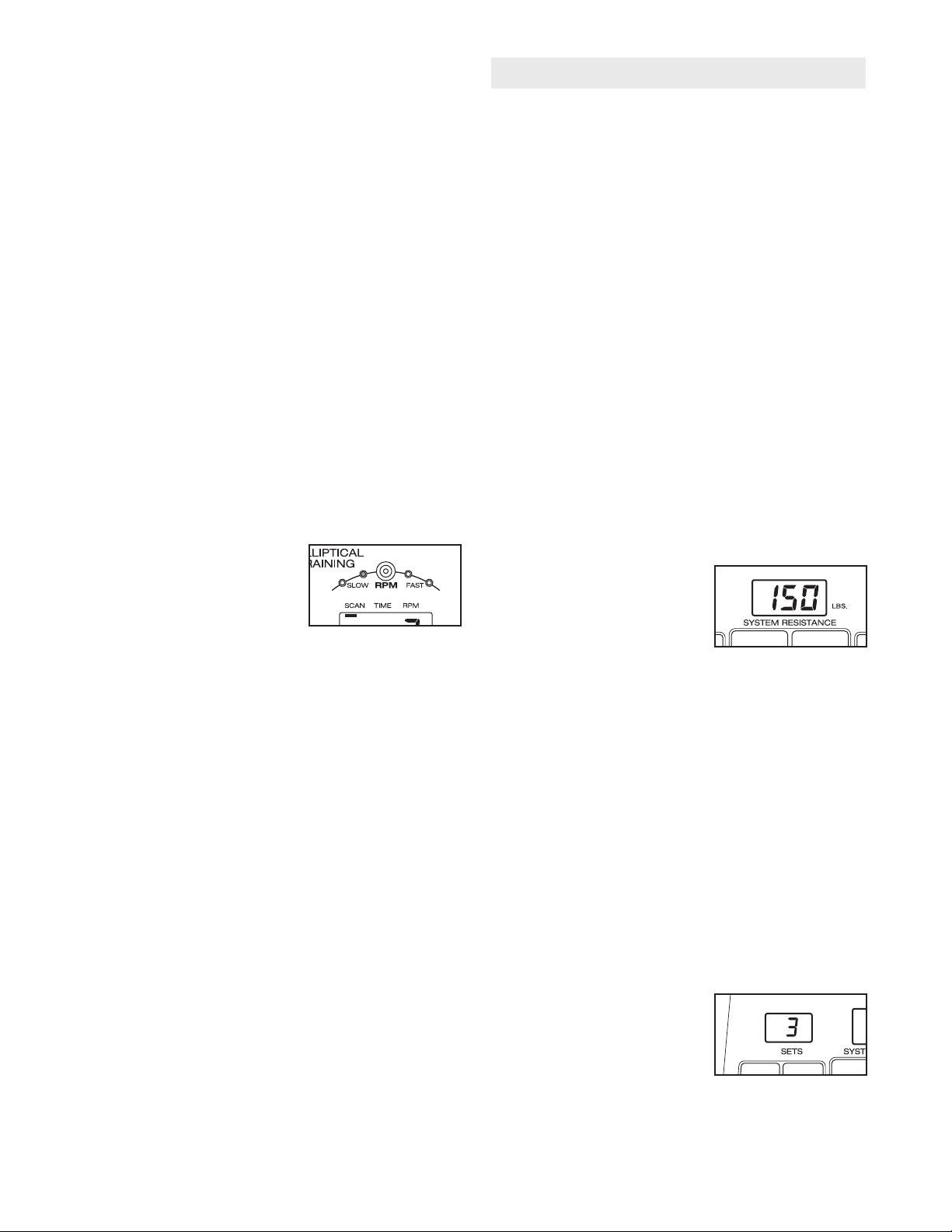

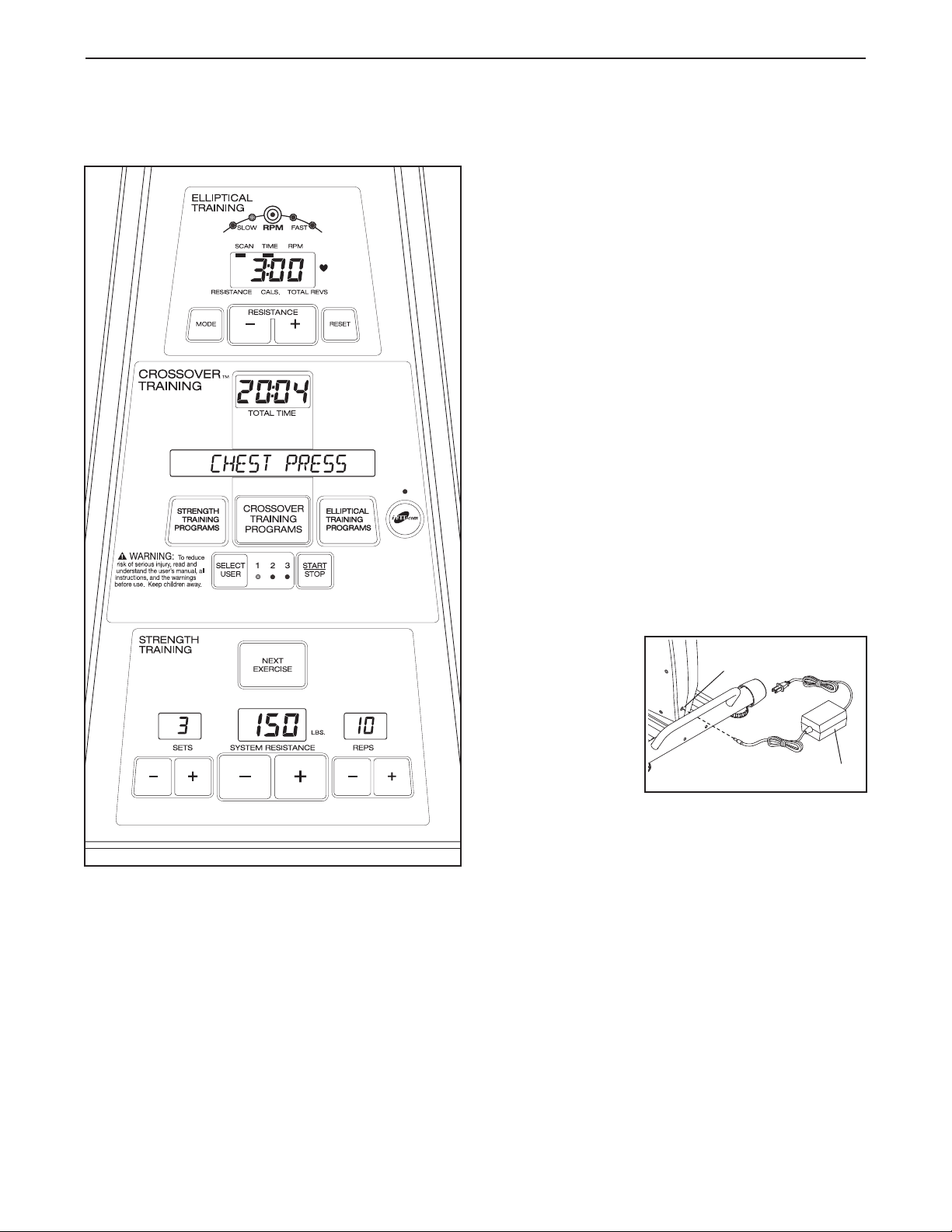

CONSOLE OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

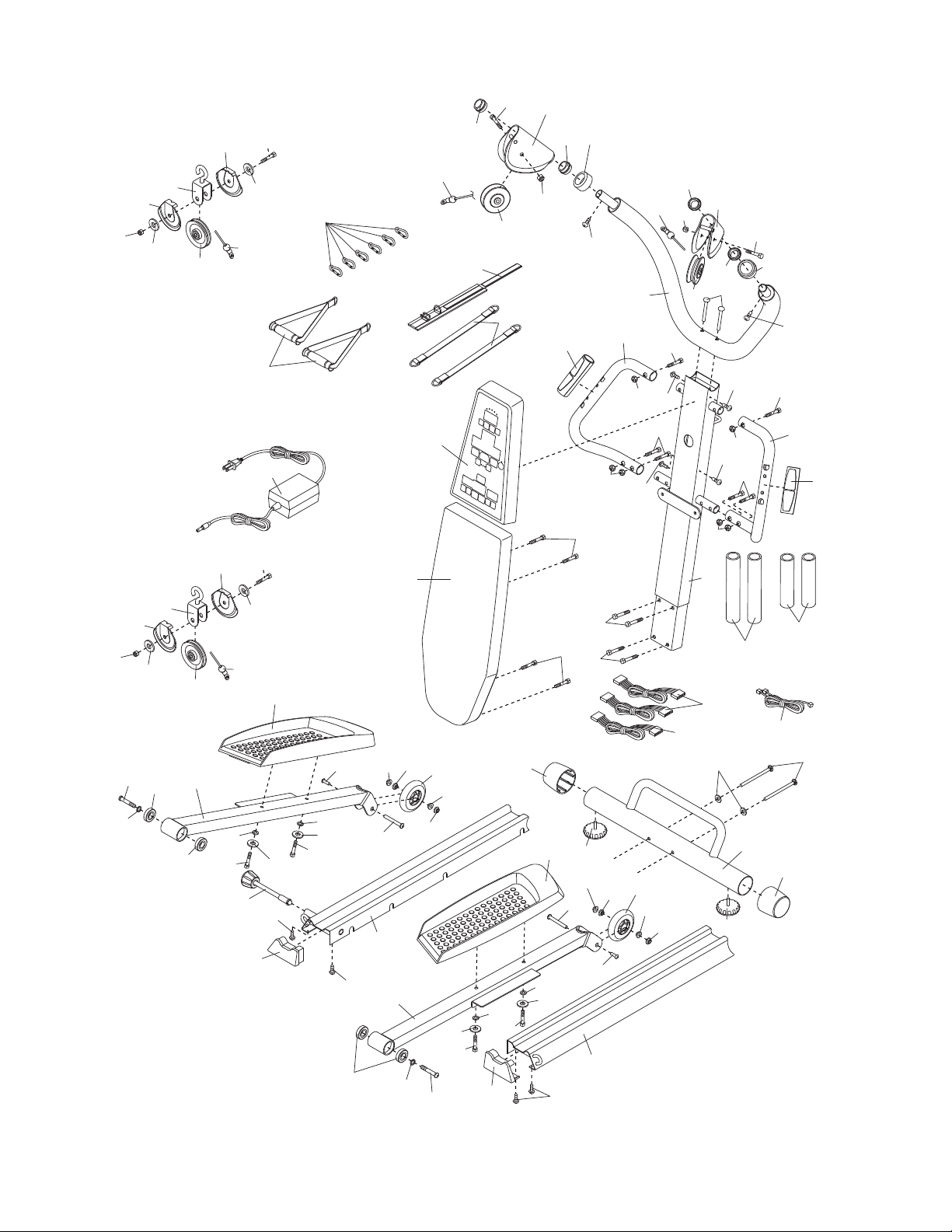

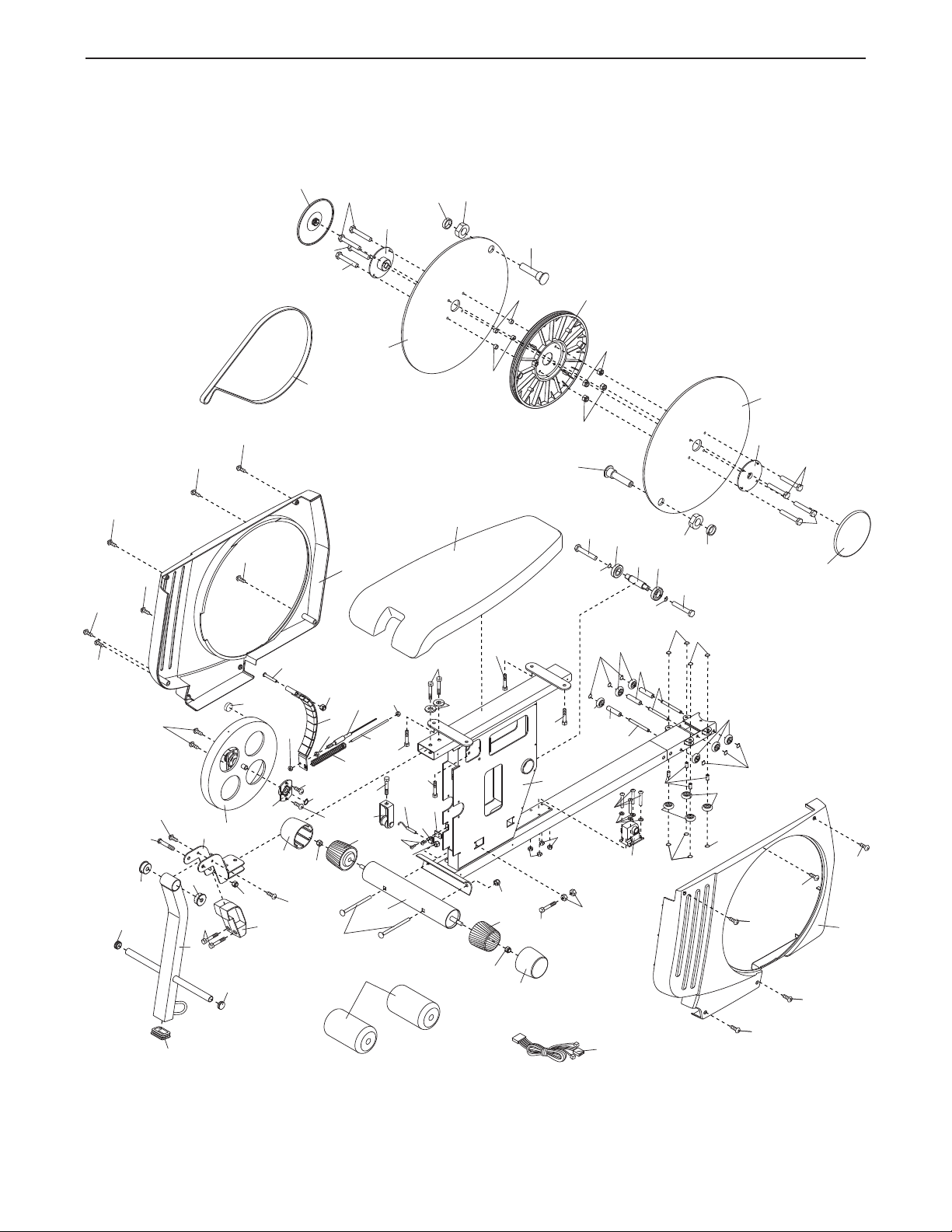

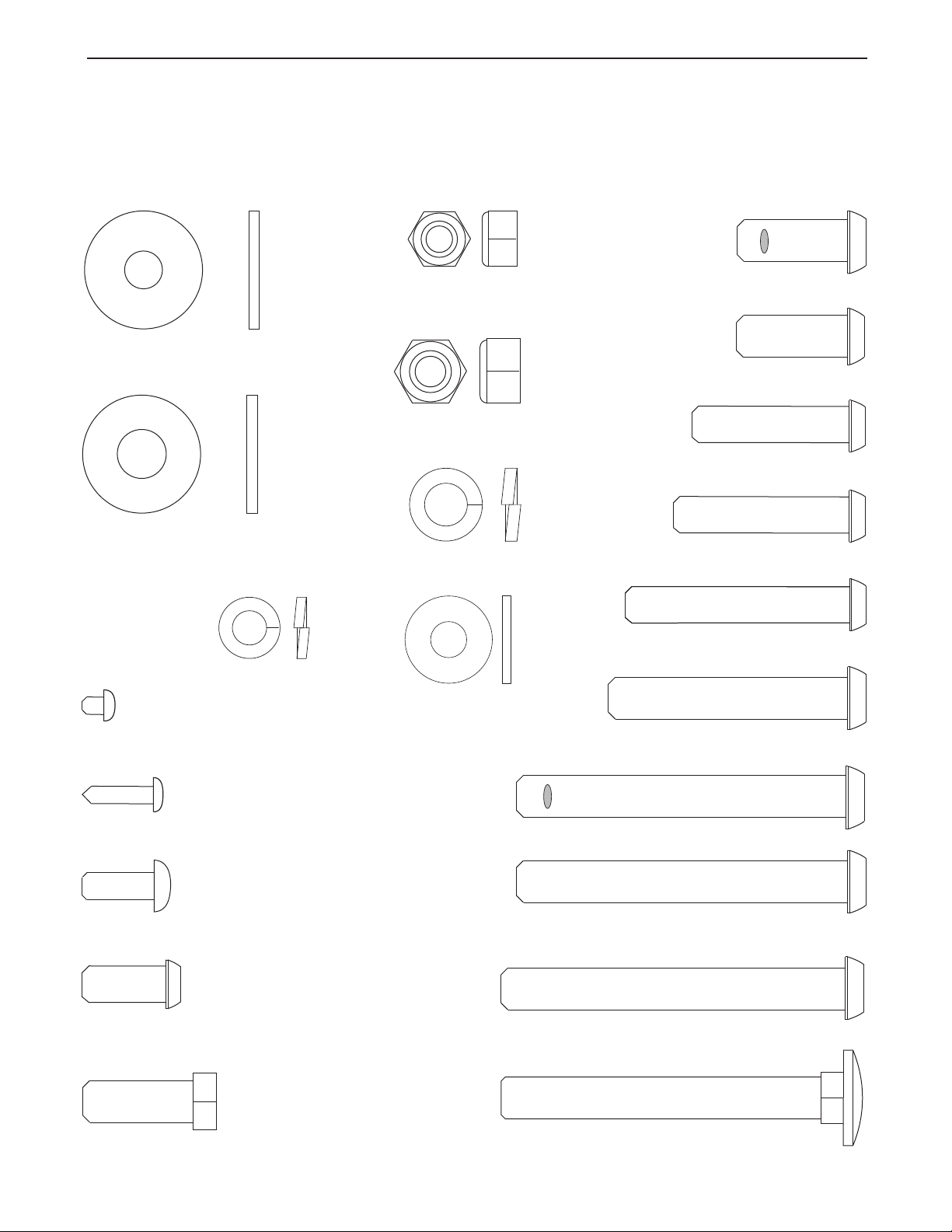

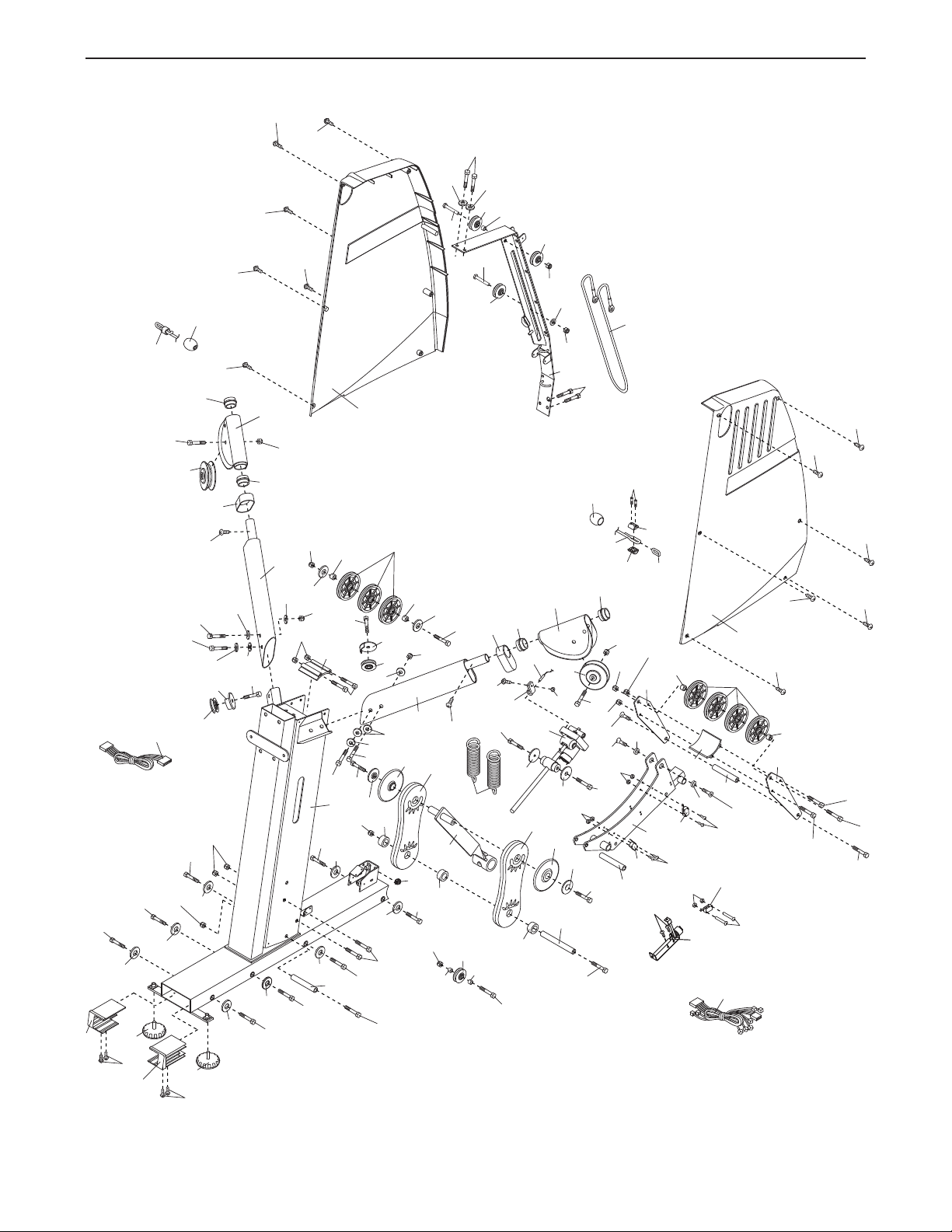

Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the center of
this manual. Remove the PART IDENTIFICATION CHART and PART LIST/EXPLODED DRAWING before beginning assembly.
TANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
WARNING DECAL PLACEMENT
The decal shown here has been placed on the
elliptical trainer. If the decal is missing or illegible, please call our Customer Service
Department toll-free at 1-888-533-1333, Monday
through Friday, 6 a.m. until 6 p.m. Mountain
Time, to order a free replacement decal. Apply
the decal in the location shown.
PROFORM is a registered trademark of ICON IP
2
, Inc.
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the elliptical trainer.
1. Read all instructions in this manual before
using the elliptical trainer. Use the elliptical
trainer only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the elliptical trainer are adequately informed of all precautions.
3. The elliptical trainer is intended for home use
only. Do not use the elliptical trainer in any
commercial, rental, or institutional setting.
4. Use the elliptical trainer only on a level surface. Cover the floor beneath the elliptical
trainer to protect the floor.
5. Keep the elliptical trainer indoors, away from
moisture and dust. Do not put the elliptical
trainer in a garage or covered patio, or near
water.
6. Make sure all parts are properly tightened
each time the elliptical trainer is used.
Replace any worn parts immediately.
7. Keep children under 12 and pets away from
the elliptical trainer at all times.
8. Keep hands and feet away from moving parts.
9. Wear appropriate clothes when exercising;
do not wear loose clothes that could become
Always wear
caught on the elliptical trainer
athletic shoes for foot protection while exercising.
10. The pulse sensor is not a medical device.
Various factors, including the user’s movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
.
11. The elliptical trainer is designed to support a
maximum user weight of 250 pounds.
12. The elliptical trainer is designed to be used
with the included resistance. Do not use the
elliptical trainer with dumbbells or any other
type of weight to increase the resistance.
13. Make sure that the cables remain on the pulleys at all times. If the cables bind as you are
exercising, stop immediately and make sure
that the cables are on the pulleys. Replace all
cables at least every two years.
14. Hold the handles when mounting, dismounting, or using the elliptical trainer’s elliptical
station.
15. Always keep your back straight when using
the elliptical trainer; do not arch your back.
16. When you stop using the elliptical station,
allow the pedals to slowly come to a stop.
The elliptical trainer does not have a freewheel; the pedals will continue to move until
the flywheel stops.
17. Make sure all electrical connections are complete before connecting the elliptical trainer
to a power source.
18. Always unplug the power cord immediately
after use and before cleaning the elliptical
trainer.
Use the high pulley station only when the
19.
seat base is collapsed and secured next to
the upright base.
20. If you feel pain or dizziness at any time while
exercising, stop immediately and begin cooling down.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
3
BEFORE YOU BEGIN
Thank you for selecting the versatile PROFORM
CROSSOVER ELLIPTICAL TRAINER. The elliptical
trainer offers a selection of weight stations designed to
develop every major muscle group of the body.
Whether your goal is to tone your body
muscle size and strength, or improve your cardiovascular system, the elliptical trainer will help you to achieve
the specific results you want.
For your benefit, read this manual carefully before
using the elliptical trainer. If you have questions
after reading this manual, please call our Customer
High Pulley Station
Top Arm
Console
, build dramatic
®
Service Department toll-free at 1-888-533-1333,
Monday through Friday, 6 a.m. until 6 p.m. Mountain
Time (excluding holidays). To help us assist you,
please note the product model number and serial
number before calling.
PFES80040. The serial number can be found on a
decal attached to the elliptical trainer (see the front
cover of this manual).
Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.
The model number is
ASSEMBLED
DIMENSIONS:
Height: 85 in.
Width: 37 in.
Depth: 83 in.
Handle
Backrest
Seat
Leg Lever
Pulse Sensor
Middle Pulley Station
Handle
Pedal
Low Pulley Station
4
ASSEMBLY
Make Things Easier for Yourself
Everything in this manual is designed to ensure
that the elliptical trainer can be assembled successfully by anyone. However, it is important to
realize that the versatile elliptical trainer has
many parts and that the assembly process will
take time. Most people find that by setting aside
plenty of time, assembly will go smoothly.
Before beginning assembly, carefully read the
following information and instructions:
Assembly requires two people.
•
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the elliptical trainer
all parts are oriented as shown in the drawings.
• For help identifying small parts, use the
IDENTIFICATION CHART.
The following tools (not included) are required
for assembly:
• Two adjustable wrenches
• One rubber mallet
• One Phillips screwdriver
• Lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
, make sure
PART
1. Remove the sheath covering the Rope (162).
Attach the Right Arm (12) to the Upright Base (1)
with an M10 x 25mm Button Screw (87), an M10
x 54mm Button Bolt (90), an M10 Split Washer
(114), three M10 Large Black Washers (186), and
an M10 Nylon Locknut (81).
Attach the Left Arm (13 [not shown]) in the
same manner.
1
81
186
Sheath
1
162
87
1
90
186
14
12
5
2. Attach the Seat Stabilizer (9) to the Seat Base (2)
with two M10 x 78mm Carriage Bolts (149) and
two M10 Nylon Locknuts (81).
2
81
81
2
3. Attach the Upright Stabilizer (10) to the Upright
Base (1) with two M10 x 78mm Button Screws
(101) and two M10 Split Washers (114).
4. Identify the Right Rail (6). Carefully tip the Upright
Base (1) and the Seat Base (2) onto the left side.
Attach the Right Rail to the Upright Base with four
M10 x 25mm Screws (86) and four M10 Large
Zinc W
ashers (82).
149
3
4
2
9
101
114
114
10
1
urn the Base Knob (44 [not shown]) out and
T
attach the Left Rail (5 [not shown]) in the
same manner
.
1
6
82
82
86
82
82
86
86
86
6
5. Insert the connector of the Upper Wire Harness
(188) into the socket of the Middle Wire Harness
(37). Next, connect the two W
together in the same manner.
ire Harness connector is wider than the Wire
W
Harness connectors.
The connectors should slide easily into the
sockets and snap into place.
not slide easily and snap into place, turn it over and
then insert it. IF THE CONNECTOR IS NOT
INSERTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS
TURNED ON.
Pull the Upper Wire Harness (188) and the Wire
Harness (159) in the indicated location to remove
slack. Slide the Upright (3) into the Upright Base
(1). Be careful not to pinch the Wire
Harnesses.
Base with four M10 x 25mm Patch Screws (135).
Attach the Upright to the Upright
ire Harnesses (159)
Note: The Upper
If a connector does
5
Pull
188
159
3
159
159
1
135
188
37
6. Hold the Right Handle (16) near the Upright (3).
Connect the Pulse Sensor Wire (54) to the
Sensor Wire Harness (187). Push the excess
wire into the Upright.
The connector should slide easily into the socket and snap into place. If the connector does not
slide easily and snap into place, turn it over and
then insert it. IF THE CONNECTOR IS NOT
INSERTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS
TURNED ON.
Attach the Right Handle (16) to the Upright (3)
with three M8 x 36mm Button Bolts (103) and
three M8 Nylon Locknuts (102). Make sure the
Locknuts sit inside of the hexagonal holes in
the Right Handle. Be careful not to pinch the
wires with the Bolts.
Note: Make sure that the Long Handgrip (184)
is pushed up against the Pulse Sensor (54).
135
6
187
103
17
102
3
54
16
102
103
54
184
Repeat this step with the Left Handle (17).
7
7. Attach the Backrest (22) to the Upright (3) and
Upright Base (1) with four M6 x 16mm Screws
(130).
7
22
130
3
130
1
8. Connect the Sensor Wire Harness (187), the Wire
Harness (159), and the Upper Wire Harness
(188) to the Console (71). Push the excess wire
into the Upright (3).
The connector should slide easily into the socket and snap into place. If a connector does not
slide easily and snap into place, turn it over and
then insert it. IF THE CONNECTOR IS NOT
INSERTED PROPERLY, THE CONSOLE MAY
BE DAMAGED WHEN THE POWER IS
TURNED ON.
Attach the Console (71) to the Upright (3) with
four M4 x 16mm Screws (85). Make sure the
wires do not get pinched.
9. Attach the two Swivel Arms (58) to the Top Arm
(11) with two M4 x 5mm Screws (131).
8
71
9
85
85
58
131
187
188
159
11
3
85
85
58
10. Attach the Top Arm (11) to the Upright (3) with
two M10 x 75mm Patch Screws (99).
Route the Short Cables (163) through the bracket
on the back of the Upright (3).
131
10
11
99
163
3
163
Bracket
8
11. Attach the Leg Lever Bracket (14) to the Seat
Base (2) with two M8 x 40mm Button Screws
(142) and two M8 Split W
ashers (140).
11
142
140
140
2
14
12. Grease an M10 x 75mm Button Bolt (129). Attach
the Leg Lever (4) to the Leg Lever Bracket (14)
with the Bolt and an M10 Nylon Locknut (81). Do
not overtighten the Locknut; the Leg Lever
must be able to pivot easily.
13. Attach the Right Pedal (28) to the Right Pedal
Leg (8) with two M8 x 51mm Button Screws (98),
two M8 Split Washers (140), and two M8
Washers (139).
Repeat this step with the Left Pedal (27) and
the Left Pedal Leg (7).
12
13
14
129
814
27
7
28
Slide a Plastic Spacer (180) onto the right Crank
14.
Shaft (68). Orient the Right Pedal Leg (8) as
shown. Attach the Right Pedal Leg to the Crank
Shaft with an M8 x 19mm Button Screw (94) and
an M8 Large Zinc Washer (74).
Repeat this step with the Left Pedal Leg (7).
14
68
180
8
139
140
7
8
74
94
140
98
9
Loading...
