ww.proform.com

Model No. PFEL97910.0 Serial No.

Serial

Number

Decal

QUESTIONS?

If you have questions, or if parts are damaged or missing, DO NOT

CONTACT THE STORE; please contact Customer Care.

USERʼS MANUAL

IMPORTANT: Please register this product (see the limited warranty on the back cover of this manual) before contacting Customer Care.

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri., 6 a.m.–6 p.m. MT Sat. 8 a.m.–4 p.m. MT

ON THE WEB: www.proformservice.com

CAUTION

Read all precautions and instructions in this manual before using this equipment. Keep this manual for future reference.

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

MPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning decal(s). If a decal is missing or illegible, see

the front cover of this manual and request a free replacement decal. Apply the decal in the location shown. Note: The decal(s) may not be

shown at actual size.

PROFORM is a registered trademark of ICON IP, Inc.

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical exerciser before using your elliptical exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or

hrough the use of this product.

1. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.

2. It is the responsibility of the owner to ensure that all users of the elliptical exerciser are adequately informed of all precautions.

3. The elliptical exerciser is intended for home use only. Do not use the elliptical exerciser in a commercial, rental, or institutional setting.

4. Keep the elliptical exerciser indoors, away from moisture and dust. Place the elliptical exerciser on a level surface, with a mat beneath it to protect the floor or carpet. Make sure that there is at least 3 ft. (0.9 m) of clearance in the front and rear of the elliptical exerciser and 2 ft. (0.6 m) on each side.

5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.

8. Wear appropriate exercise clothes when exercising; do not wear loose clothes that could become caught on the elliptical exerciser. Always wear athletic shoes for foot protection.

9. Hold the upper body arms or the handlebars when mounting, dismounting, or using the elliptical exerciser.

10. Keep your back straight while using the elliptical exerciser; do not arch your back.

11. The pulse sensor is not a medical device. Various factors, including the userʼs movement, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.

12. Over exercising may result in serious injury or death. If you feel faint or if you experience pain while exercising, stop immediately and cool down.

6. Keep children under age 12 and pets away from the elliptical exerciser at all times.

7. The elliptical exerciser should not be used by persons weighing more than 325 lbs. (147 kg).

13. Use the elliptical exerciser only as described in this manual.

BEFORE YOU BEGIN

Thank you for selecting the revolutionary PROFORM

00 ZNE elliptical exerciser. The 900 ZNE elliptical

9 exerciser provides an impressive selection of features designed to make your workouts at home more effective and enjoyable.

cover of this manual. To help us assist you, note the

roduct model number and serial number before con-

p tacting us. The model number and the location of the serial number decal are shown on the front cover of this manual.

For your benefit, read this manual carefully before you use the elliptical exerciser. If you have ques-

tions after reading this manual, please see the front

Upper Body Arm

Water Bottle Holder*

Storage Magnet

Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.

Fan

Console

Pulse Sensor

Pedal Disc

Handle

Leveling Foot

Ramp

Wheel

Pedal

Pedal Arm Latch

Leveling Foot

Latch Button

Power Socket

*Water bottle is not included

ASSEMBLY

M10 x 93mm Button Screw (82)–4

M10 x 25mm

Washer (87)–2

M8 Split

Washer (101)–4

M4 x 16mm

Screw (116)–16

M6 Split Washer

(102)–8

M6 x 35mm

Screw (109)–4

M6 x 62mm

Screw (108)–4

M8.5 x 16mm x

1.5mm Washer (103)–6

Link Arm

Spacer (74)–4

M8 x 20mm Button

Screw (107)–4

M8 x 25mm Button

Screw (110)–2

M10 x 20mm Button

Screw (111)–2

M8 x 15mm Button

Screw (106)–10

M10 Curved

Washer (99)–4

Wave Washer

(100)–2

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed.

In addition to the included tool(s), assembly requires a Phillips screwdriver and a rubber mallet .

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the parentheses is the quantity needed for assembly. Note: If a part is not in the hardware

kit, check to see if it has been preassembled.

To make assembly easier, read the

nformation on page 5 before you begin.

f there is a shipping bracket attached to the

I rear of the Folding Frame (not shown), remove the screw and the shipping bracket from the Folding Frame. Discard the screw and the shipping bracket.

See HOW TO FOLD AND UNFOLD THE ELLIPTICAL EXERCISER on page 11 and unfold the elliptical exerciser.

While another person lifts the front of the Frame (1), attach the Front Stabilizer (4) to the Frame with two M10 x 93mm Button Screws (82) and two M10 Curved Washers (99).

2. While another person lifts the Folding Frame (2), attach the Rear Stabilizer (3) to the Folding Frame with two M10 x 93mm Button Screws (82) and two M10 Curved Washers (99).

Tighten the Center Foot (95) into the Frame (1).

3. Attach the Front Ramp Cover (6) to the

amp (5) with four M4 x 16mm Screws (116).

Slide an M10 x 25mm Washer (87) onto an M10 x 20mm Button Screw (111). Tighten the Button Screw into one end of the Ramp Axle (72). Apply a small amount of the included

rease to the Ramp Axle.

Orient the Ramp (5) as shown. Align the lower end of the Ramp with the welded tube on the Frame (1). Insert the Ramp Axle (72) into the Ramp and the welded tube.

Slide an M10 x 25mm Washer (87) onto an M10 x 20mm Button Screw (111). Tighten the Button Screw into the open end of the Ramp Axle (72).

116

111

4. Identify the Left Pedal (34) and the Left Pedal Arm (32), which are marked with stickers.

Attach the Left Pedal (34) to the Left Pedal Arm (32) with two M6 x 62mm Screws (108), two M6 x 35mm Screws (109), and four M6 Split Washers (102).

Attach the Right Pedal (not shown) to the Right Pedal Arm (not shown) in the same way.

111

102

109

108

Grease

102

109

102

5. Insert the Roller (38) on the Left Pedal Arm (32) and the Roller on the Right Pedal Arm (33) into the sides of the Ramp (5).

Attach the Rear Ramp Cover (7) to the

amp (5) with two M4 x 16mm Screws (116).

See the inset drawing. Lift the Pedal Arm

atch (41) on the Left Pedal Arm (32) and set

L the end of the Left Pedal Arm on the left Crank Bushing Sleeve (54). Release the Pedal Arm Latch; make sure that the Left Pedal Arm is securely connected to the Crank Bushing Sleeve.

Connect the Right Pedal Arm (33) to the right Crank Bushing Sleeve (not shown) in the same way.

116

6. While another person holds the Upright (10) near the Frame (1), connect the Upper Wire Harness (65) to the Lower Wire Harness (64).

Tip: Avoid pinching the Wire Harnesses (64,

65). Carefully insert the Upright (10) into the

Frame (1).

Attach the Upright with four M8 x 20mm Button Screws (107) and four M8 Split Washers (101).

Avoid pinch-

ing the Wire

Harnesses

(64, 65)

101

107

101

107

7. Attach the Left Upper Body Arm (22) to the left Upper Body Leg (24) with three M8 x 15mm Button Screws (106).

Attach the Right Upper Body Arm (23) in the

ame way.

106

8. Hold the Left Rear Upper Body Cover (26) and the Left Front Upper Body Cover (27) around the left Upper Body Leg (24). Attach the Upper Body Covers with five M4 x 16mm Screws (116).

Attach the Right Rear Upper Body Cover (28) and the Right Front Upper Body Cover (29) in the same way.

116

9. Apply a small amount of grease to the axle on the Left Link Arm (30), to the axle on the Left Pedal Arm (32), and to a Wave Washer (100).

Slide the Wave Washer (100) onto the axle on

he Left Pedal Arm (32). Next, slide a Link Arm

t Spacer (74) onto the axle on the Left Link Arm (30).

Then, gradually work the axle on the Left Link Arm (30) into the left Upper Body Leg (24) while at the same time working the Left Link Arm onto the axle on the Left Pedal Arm (32).

Tip: These parts are designed to fit tightly. It may be helpful to move the Left Pedal Arm (32) while working these parts into place.

Repeat this step with the Right Link Arm (31).

10. Attach the Left Link Arm (30) to the Left Pedal Arm (32) with an M8 x 15mm Button Screw (106), an M8.5 x 16mm x 1.5mm Washer (103), and an Axle Cover (66).

Attach the Left Link Arm (30) to the left Upper Body Leg (24) with an M8 x 25mm Button Screw (110), two M8.5 x 16mm x 1.5mm Washers (103), two Axle Covers (66), a Link Arm Spacer (74), and an M8 x 15mm Button Screw (106) as shown.

Grease

110

103

100

Grease

106

103

Attach the Right Link Arm (31) in the same way.

11. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the elliptical exerciser.

Plug the power cord into the power socket at the rear of the elliptical exerciser (see HOW TO PLUG IN THE POWER CORD on page 11). IMPORTANT: If the elliptical exerciser has been exposed to cold tempera-

tures, allow it to warm to room temperature before plugging in the power cord. If you do not do this, the console displays or other electronic components may become damaged.

106

103

HOW TO USE THE ELLIPTICAL EXERCISER

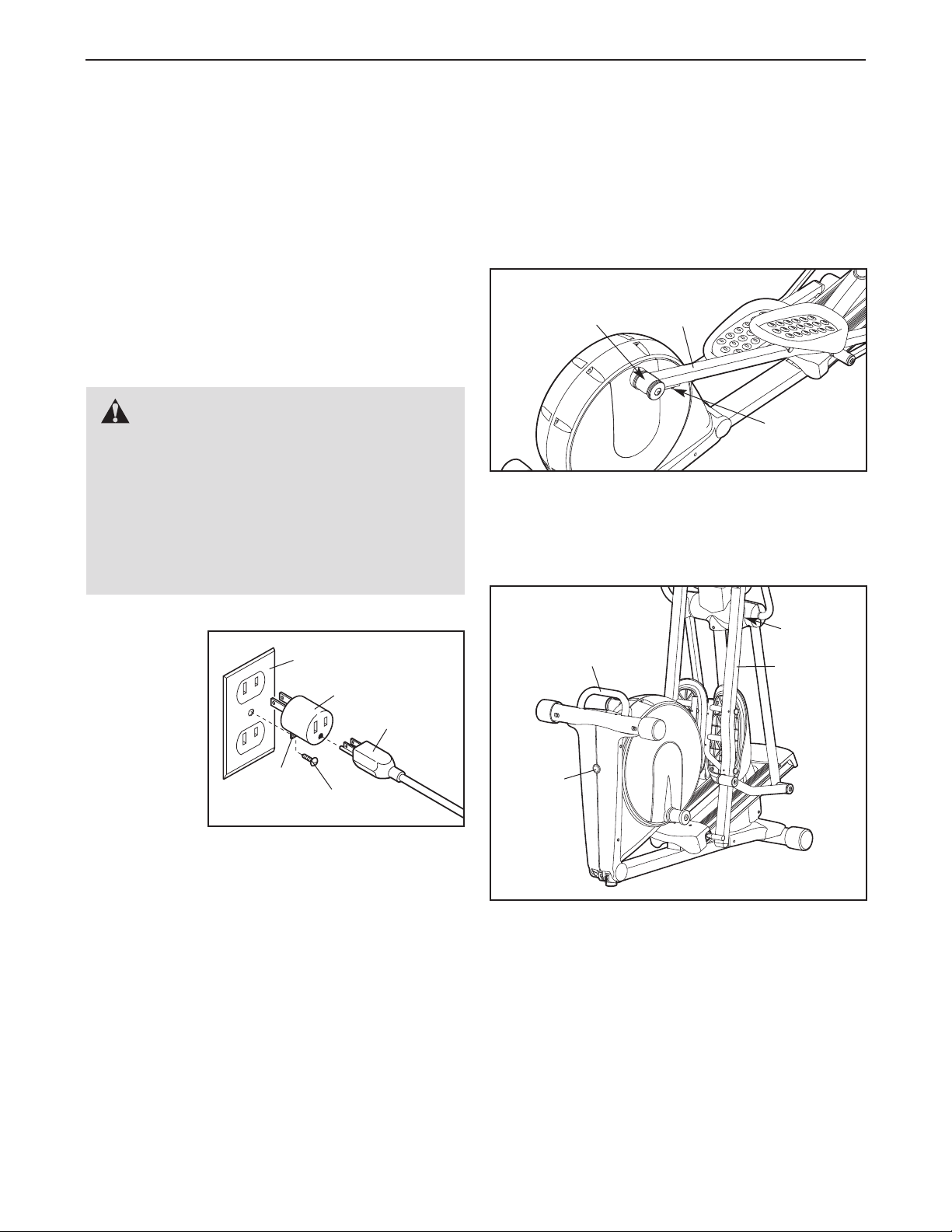

HOW TO PLUG IN THE POWER CORD

This product must be grounded. If it should mal-

unction or break down, grounding provides a path of

f least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. Plug the power cord into an appro-

priate outlet that is properly installed and grounded in accordance with all local codes and ordinances. This product is for use on a nominal 120volt circuit. IMPORTANT: The elliptical exerciser is not compatible with GFCI-equipped outlets.

DANGER: Improper connection

of the equipment-grounding conductor can result in an increased risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

HOW TO FOLD AND UNFOLD THE ELLIPTICAL

XERCISER

hen the elliptical exerciser is not in use, the frame

W can be folded out of the way. First, lift the latch under each pedal arm, and lift the pedal arms off the sleeves on the crank arms.

Pedal

Sleeve

Next, raise the pedal arms until they touch the magnets on the upper body legs; the magnets will hold the pedal arms in place. Then, hold the handle and lift the frame until it locks in a vertical position.

Arm

Latch

A temporary adapter may be used to connect the power cord to a 2-pole receptacle as shown at the right if a properly grounded outlet is not available. The temporary adapter should be used only until a properly grounded outlet can be installed by a qualified electrician.

The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used, it must be held in place by a metal screw. Some 2-pole receptacle out-

let box covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is grounded before using an adapter.

Grounded Outlet Box

Adapter

Grounding Plug

Lug

Metal Screw

Magnet

Handle

Latch

Button

To use the elliptical exerciser, first hold the handle, press the latch button, and lower the frame.

Next, pull the pedal arms off the magnets on the upper body legs. Then, lift the latches under the pedal arms, and set the pedal arms on the sleeves on the crank arms. Release the latches, and make sure that the pedal arms are securely connected to the crank arms.

Pedal Arm

HOW TO MOVE THE ELLIPTICAL EXERCISER

To move the elliptical exerciser, first fold it as

escribed on page 11. Next, stand in front of the ellip-

d tical exerciser, hold the handgrip pulse sensors, and

lace one foot against the center of the front stabilizer.

p Pull the pulse sensors until the elliptical exerciser will roll on the front wheels. Carefully move the elliptical exerciser to the desired position, and then lower it.

Handgrip

Pulse

Sensors

HOW TO EXERCISE ON THE ELLIPTICAL EXERCISER

o mount the elliptical exerciser, hold the upper body

T arms and step onto the pedal that is in the lowest

osition. Next, step onto the other pedal. Push the

p pedals until they begin to move with a continuous motion.

Note: The crank arms can turn in either direction. It is recommended that you turn the crank arms in the direction shown by the arrow; however, for variety you can turn the crank arms in the opposite direction.

Upper Body Arms

Place

your foot

here

Pedals

Crank Arm

To dismount the elliptical exerciser, wait until the pedals come to a complete stop. Note: The elliptical

exerciser does not have a free wheel; the pedals will continue to move until the flywheel stops.

When the pedals are stationary, step off the higher pedal first. Then, step off the lower pedal.

CONSOLE DIAGRAM

FEATURES OF THE CONSOLE

The advanced console offers an array of features designed to make your workouts more effective and enjoyable.

When you select the manual mode of the console, you can change the resistance of the pedals and the incline of the ramp with the touch of a button. As you exercise, the console will provide continuous exercise feedback. You can even measure your heart rate using the handgrip pulse sensor.

The console also offers twenty preset programs. Each program automatically changes the resistance of the pedals and prompts you to increase or decrease your pedaling pace as it guides you through an effective workout.

The console also offers two custom programs that allow you to create your own workout programs and store them in memory for future use.

In addition, the console features two heart rate programs that change the resistance of the pedals to keep your heart rate near target heart rate settings while you exercise.

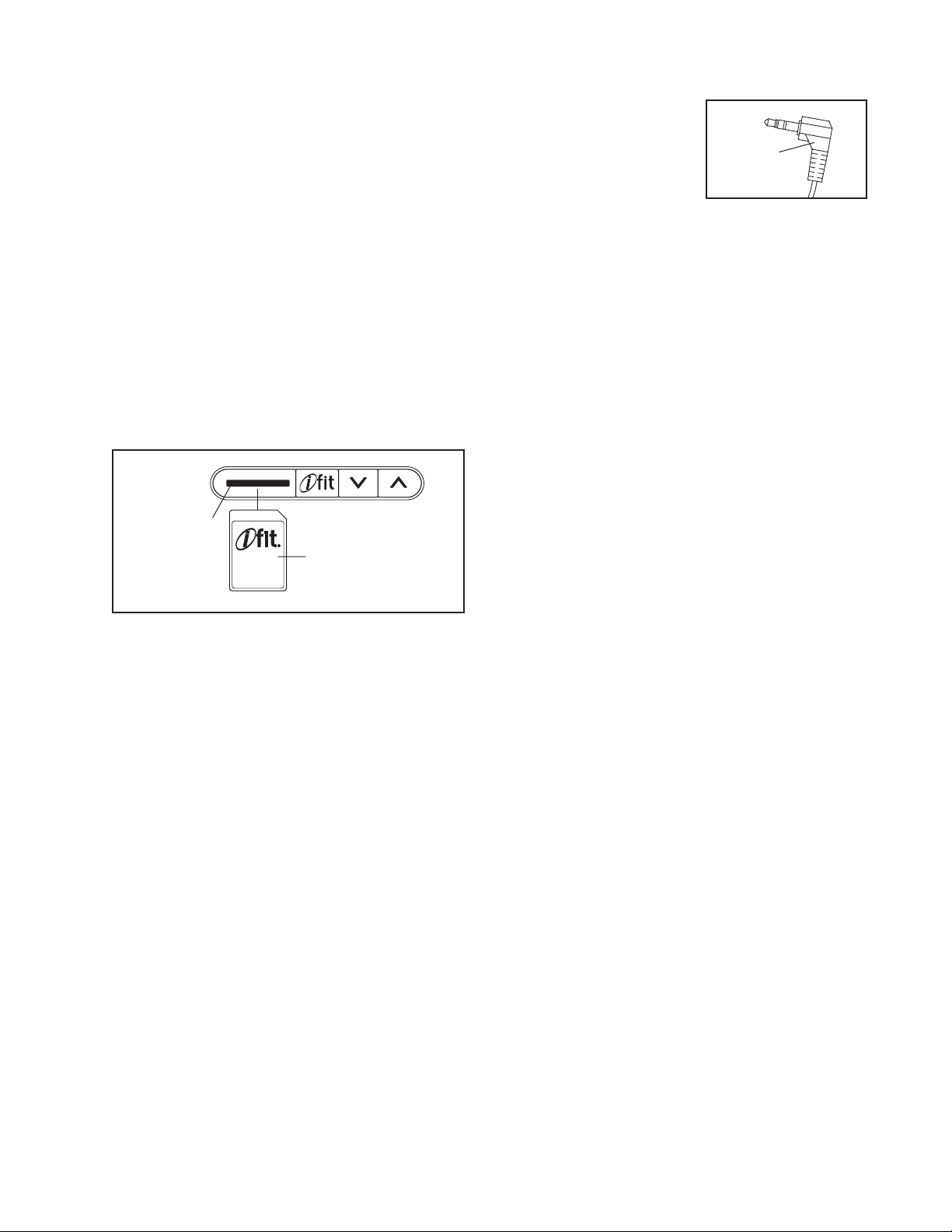

The console features the iFit interactive workout system, which enables the console to accept iFit cards containing workouts designed to help you achieve specific fitness goals. For example, lose unwanted pounds with the 8-week Weight Loss workout. iFit workouts control the resistance of the pedals while the voice of a personal trainer coaches you through your workouts. iFit cards are available separately. To pur-

chase iFit cards, go to www.iFit.com or see the front cover of this manual. iFit cards are also available at select stores.

You can even connect your MP3 player or CD player to the console sound system and listen to your favorite music or audio books while you exercise.

To use the manual mode, see page 14. To use a preset program, see page 16. To create a custom program, see page 17. To use a custom program,

see page 18. To use a heart rate program, see page

19. To use an iFIT program, see page 21. To use

the sound system, see page 21.

HOW TO USE THE MANUAL MODE

4. Follow your progress with the display.

Note: If there is a sheet of clear plastic on the face of the console, remove the plastic.

1. Press any button on the console or begin pedaling to turn on the console.

When you turn on the console, the display will turn on. A tone will then sound and the console will be ready for use.

2. Select the manual mode.

When you turn on the console, the manual mode will be selected. If you have selected a program, reselect the manual mode by pressing any of the Programs buttons repeatedly until zeros appear in the display.

While you pedal, the upper left corner of the display will show the elapsed time. Note: During a program, except for heart rate program 1, the display will show the time remaining in the program.

The upper right corner of the display will show the distance you have pedaled, in total revolutions. The display will also show your heart rate when you use the handgrip pulse sensor (see step 5 on page 15).

The lower left corner of the display will show the ramp incline level.

The lower center of the display will show the approximate number of grams of carbs you have burned.

3. Begin pedaling and change the resistance of the pedals and the incline of the ramp as desired.

As you pedal, change the resistance of the pedals by pressing the OneTouch Resistance buttons. There are fifteen resistance levels. Note: After you press the buttons, it will take a moment for the pedals to reach the selected resistance level.

To vary the motion of the pedals, you can change the incline of the ramp. To change the incline, press the OneTouch Ramp buttons. There are five incline levels. Note: After you press the buttons, it will take a moment for the ramp to reach the selected incline level.

The lower right corner of the display will show your pedaling pace, in revolutions per minute.

The center of the display will show the resistance level of the pedals for a few seconds each time the resistance level changes.

You can also view selected information at a larger size. Press the Display button repeatedly to view the elapsed time and the distance you have pedaled, the elapsed time and the approximate number of calories you have burned, the elapsed time, or the approximate number of calories you have burned. Press the Display button again to view a workout history of resistance levels and pedaling pace.

To again view the time, distance, ramp incline, number of grams of carbs burned, and pedaling pace, press the Display button again.

To view the total distance pedaled since the elliptical exerciser was purchased and the trip distance, press the Odometer button. The information will appear in the display for a few seconds. To reset the trip distance, hold down the Odometer button for a few seconds.

5. Measure your heart rate if desired.

6. Turn on the fan if desired.

If there are sheets of clear plastic on the metal contacts on the handgrip

ulse sensor,

p remove the plastic. In addition, make sure that your hands are clean. To measure

your heart rate, hold the handgrip pulse sensor with your palms resting against the metal contacts. Avoid moving

your hands or gripping the contacts tightly.

When your pulse is detected, your heart rate will be shown in the display. For the most accurate heart rate reading, hold the contacts for at least 15 seconds.

If your heart rate is not shown, make sure that your hands are positioned as described. Be careful not to move your hands excessively or to squeeze the metal contacts tightly. For optimal performance, clean the metal contacts using a soft cloth; never use alcohol, abrasives, or chemi-

cals to clean the contacts.

Contacts

To turn on the fan at high speed, press the Fan button. To turn on the fan at low speed, press the Fan button a second time. To select the auto mode, press the Fan button again; when the auto mode is selected, the speed of the fan will auto-

atically increase or decrease as you increase or

m decrease your pedaling speed.

Pivot the fan louvers above the display upward or downward to direct the airflow from the fan.

To turn off the fan, press the Fan button again. Note: If the pedals are not moved for about thirty seconds, the fan will automatically turn off.

7. When you are finished exercising, the console will turn off automatically.

If the pedals are not moved for several seconds, a series of tones will sound and the console will pause.

If the pedals are not moved for about five minutes, the console will turn off and the display will be reset.

HOW TO USE A PRESET PROGRAM

1. Turn on the console.

See step 1 on page 14.

2. Select a preset program.

To select a weight loss program, press the Weight Loss Programs button repeatedly; to select an aerobic fitness program, press the Aerobic Fitness Programs button; to select a competition program, press the Competition Programs button.

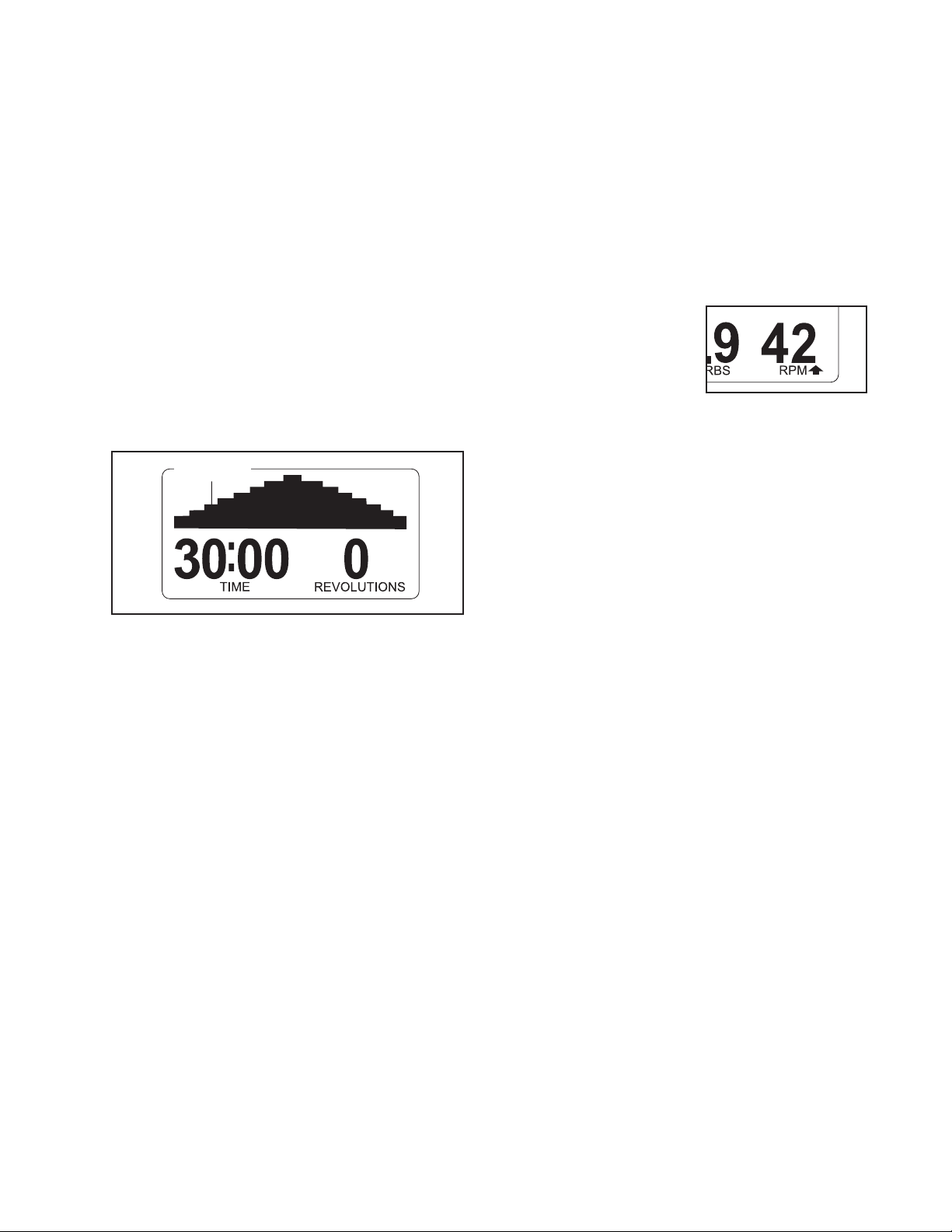

When you select a preset program, the name of the program, the program time, and the maximum pace and resistance level for the program will appear in the display for a few seconds. A profile of the resistance levels of the program will then appear in the display.

Profile

During the program, the program profile will show your progress (see the drawing above). The flashing segment of the profile represents the current

egment of the program. The height of the flashing

s segment indicates the resistance level for the cur-

ent segment. At the end of each segment of the

r program, a series of tones will sound and the next segment of the profile will begin to flash. If a different resistance level is programmed for the next segment, the resistance level will appear in the display for a few seconds to alert you. The resistance of the pedals will then change.

As you exercise, you will be prompted to keep your pedaling pace near the target pace setting for the current segment. When an upward-pointing arrow or the prompt SPEED UP appears next to the pace information in the display (see step 4 on page 17), increase your pace. When a downward-pointing arrow or the prompt SLOW DOWN appears, decrease your pace. When no arrow or prompt appears, maintain your current pace. IMPORTANT: The target pace set-

tings are intended only to provide motivation. Make sure to pedal at a pace that is comfortable for you.

3. Begin pedaling to start the program.

Each program is divided into 20, 30, or 45 oneminute segments. One resistance level and one target pace setting are programmed for each segment. Note: The same resistance level and/or target pace setting may be programmed for two or more consecutive segments.

If the resistance level for the current segment is too high or too low, you can manually override the setting by pressing the OneTouch Resistance buttons. However, when the current segment ends, the pedals will automatically adjust to the resistance level for the next segment.

If you stop pedaling for several seconds, a series of tones will sound and the program will pause. To restart the program, simply resume pedaling. The program will continue until the last segment of the profile flashes and the last segment of the program ends.

4. Follow your progress with the display.

HOW TO CREATE A CUSTOM PROGRAM

During the program, the display will show the program profile, the time remaining in the program, and the distance you have pedaled.

To view the profile, your pedaling pace, and the

istance you have pedaled, press the Display but-

d ton. Note: The words SPEED UP or SLOW DOWN may appear in the display to prompt you to keep your pedaling pace near the target pace setting for the current segment.

To view the time remaining in the program and the distance pedaled, press the Display button. Press the Display button again to view the time remaining and the approximate number of calories burned.

To view the time remaining, distance pedaled, ramp incline, number of grams of carbs burned, and pedaling pace, press the Display button again. Note: An upward- or downward-pointing arrow may appear in the display to prompt you to keep your pedaling pace near the target pace setting for the current segment.

1. Turn on the console.

See step 1 on page 14.

2. Select a custom program.

To select a custom program, press the Custom Programs button once or twice. When you select a custom program, the name of the program and the settings for the program will appear in the display for a few seconds.

3. Begin pedaling to start the program, and program the desired settings.

To view the first display again, press the Display button again.

5. Measure your heart rate if desired.

See step 5 on page 15.

6. Turn on the fan if desired.

See step 6 on page 15.

When you are finished exercising, the console will turn off automatically.

See step 7 on page 15.

Each custom program is divided into 30 oneminute segments. You can program one resistance level and one target pace setting for each segment.

To program a resistance level for the first segment, simply adjust the resistance of the pedals by pressing the OneTouch Resistance buttons. To program a target pace for the first segment, simply pedal at the desired pace.

At the end of the first segment, the program will store the current resistance level and your current pace in memory. Program a resistance level and a target pace for the second segment as described above.

Continue exercising for up to forty minutes. Stop pedaling when you are finished with your workout. The program you created will then be stored in memory. Note: If your workout is less than thirty minutes long, any remaining segments in the program will be stored with the last resistance level and target pace setting you programmed.

4. When the program is finished, the console will turn off automatically.

See step 7 on page 15.

HOW TO USE A CUSTOM PROGRAM

1. Turn on the console.

See step 1 on page 14.

2. Select a custom program.

To select a custom program, press the Custom Programs button repeatedly until the words CUSTOM 1 or CUSTOM 2 appear in the display.

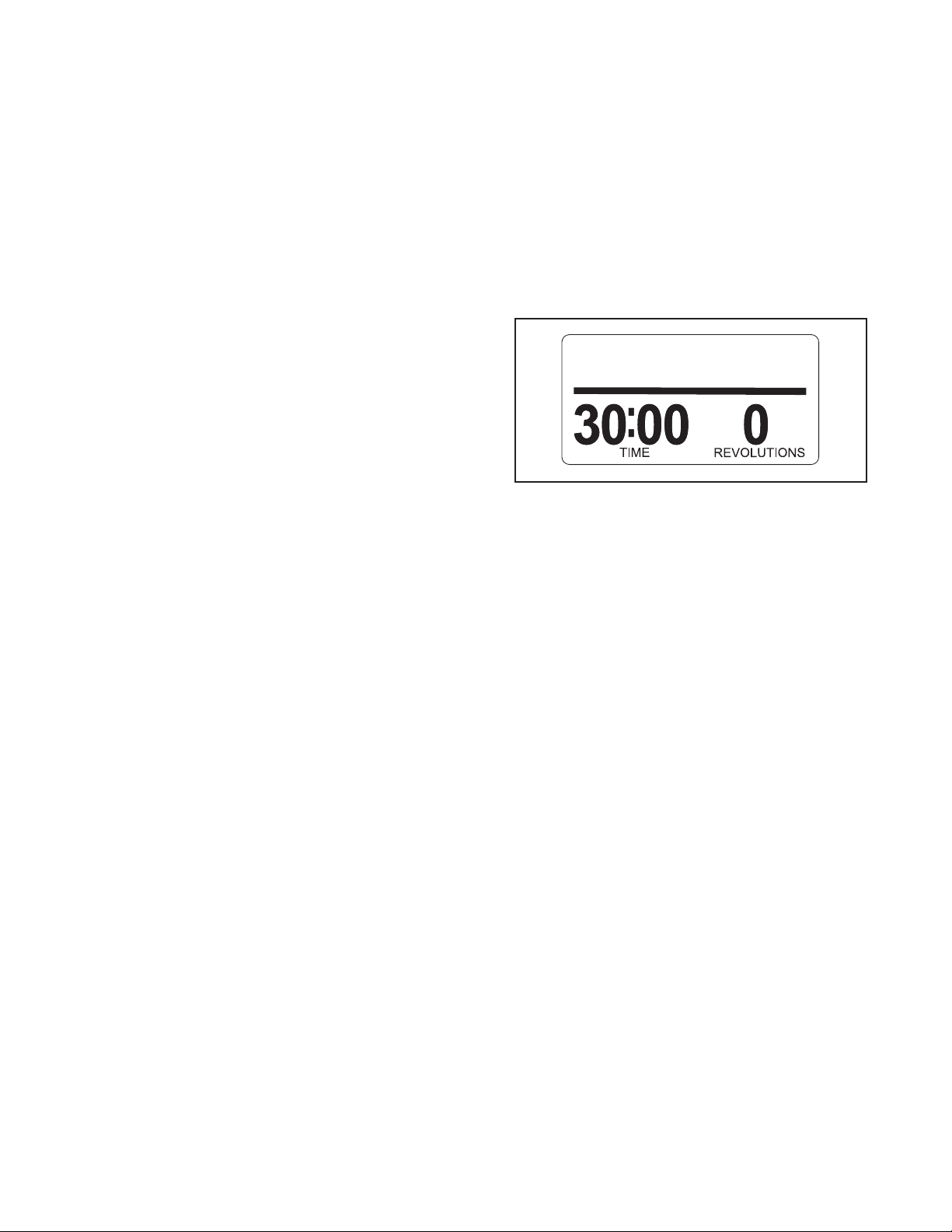

When you select a custom program, the name of the program, the program time, and the maximum pace and resistance level will appear in the display for a few seconds. A profile of the resistance levels of the program will then appear in the display.

Profile

3. Begin pedaling to start the program.

Each custom program is divided into 30 oneminute segments. One resistance level and one target pace setting are programmed for each segment. Note: The same resistance level and/or target pace setting may be programmed for two or more consecutive segments.

During the program, the program profile will show your progress. The flashing segment of the profile represents the current segment of the program. The height of the flashing segment indicates the resistance level for the current segment. At the end of each segment of the program, a series of tones will sound and the next segment of the profile will begin to flash. If a different resistance level is programmed for the next segment, the resistance level will appear in the display for a few seconds to alert you. The resistance of the pedals will then change.

As you exercise, you will be prompted to keep your pedaling

ace near the target

p pace setting for the cur-

ent segment. When an

r upward-pointing arrow or the prompt SPEED UP appears next to the pace information in the display (see step 4 on page 17), increase your pace. When a downward-pointing arrow or the prompt SLOW DOWN appears, decrease your pace. When no arrow or prompt appears, maintain your current pace. IMPORTANT: The target pace set-

tings are intended only to provide motivation. Make sure to pedal at a pace that is comfortable for you.

4. Change the program if desired.

If desired, you can change the program while using it. To change the resistance level for the current segment, simply press the OneTouch Resistance buttons. At the end of the current segment, the new resistance level will be stored in memory. To change the target pace for the cur- rent segment, simply change your pedaling pace. At the end of the current segment, your pace will be stored in memory. You can continue exercising and changing the program for up to thirty minutes.

5. Follow your progress with the display.

HOW TO USE A HEART RATE PROGRAM

See step 4 on page 17.

6. Measure your heart rate if desired.

See step 5 on page 15.

Turn on the fan if desired.

See step 6 on page 15.

When you are finished exercising, the console will turn off automatically.

See step 7 on page 15.

1. Turn on the console.

See step 1 on page 14.

2. Select a heart rate program.

To select one of the heart rate programs, press the Heart Rate Programs button repeatedly until the words HEART RATE 1 or HEART RATE 2 appear in the display.

3. Enter a target heart rate setting.

A few seconds after you select a heart rate program, the words ENTER MAX TARGET HEART RATE FOR THIS WORKOUT will appear in the display and the number 110 will begin to flash.

During heart rate program 1, the same target heart rate setting will be programmed for all segments of the program. If you have selected heart rate program 1, press the increase and decrease buttons above the Heart Rate Programs button to enter the desired target heart rate setting (see EXERCISE INTENSITY on page 23).

During heart rate program 2, different target heart rate settings will be programmed for different segments of the program. If you have selected heart rate program 2, press the increase and decrease buttons above the Heart Rate Programs button to enter the desired maximum target heart rate setting for the program (see EXERCISE INTENSITY on page 23).

4. Hold the handgrip pulse sensor.

It is not necessary to hold the handgrip pulse sensor continuously during heart rate programs; however, you should hold the handgrip pulse sensor frequently for the programs to operate properly.

Each time you hold the handgrip pulse sensor, keep your hands on the metal contacts for at least 30 seconds.

5. Begin pedaling to start the program.

Heart rate program 1 is divided into 40 one-

minute segments. Note: For a shorter workout, stop exercising or select a different program before the program ends.

eart rate program 2 is divided into 30 one-

minute segments. One target heart rate setting is programmed for each segment. Note: The same target heart rate setting may be programmed for consecutive segments.

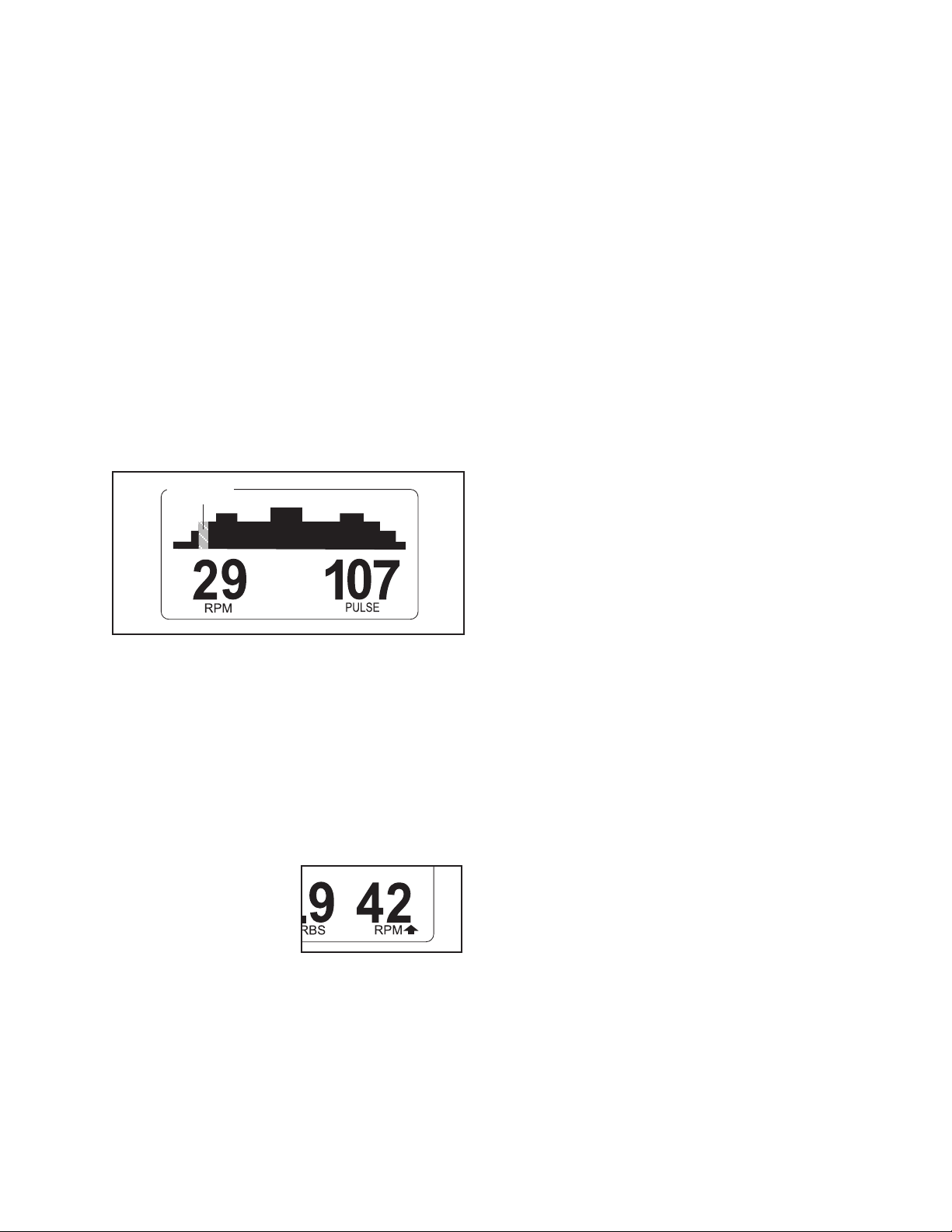

During the program, the program profile in the display will show your progress. The flashing segment of the profile represents the current segment of the program. The height of the flashing segment indicates the target heart rate setting for the current segment. At the end of each segment of the program, a series of tones will sound and the next segment of the profile will begin to flash.

Profile

If the resistance level for the current segment is

oo high or too low, you can manually override the

t setting by pressing the OneTouch Resistance buttons. However, when the console compares your heart rate to the target heart rate setting, the resistance of the pedals may automatically increase or decrease to bring your heart rate closer to the tar-

et heart rate setting.

6. Follow your progress with the display.

During heart rate program 1, the display will

show a graphic that represents a heartbeat each time your heartbeat is detected, the elapsed time, and the distance that you have pedaled. During heart rate program 2, the display will show the program profile, the time remaining in the program, and the distance that you have pedaled.

During both programs, the console will regularly compare your heart rate to the target heart rate setting for the current segment of the program. If your heart rate is too far below or above the target heart rate setting, the resistance of the pedals will automatically increase or decrease to bring your heart rate closer to the target heart rate setting. Each time the resistance changes, the resistance level will appear in the display for a few seconds to alert you.

While you exercise, you will be prompted to maintain a constant pedaling pace. When an upward-pointing arrow or the prompt SPEED UP appears next to the pace information in the display (see step 6 on this page), increase your pace. When a downward-pointing arrow or the prompt SLOW DOWN appears, decrease your pace. When no arrow or prompt appears, maintain your current pace.

To view the profile, your pedaling pace, and the distance you have pedaled, press the Display button. Note: The words SPEED UP or SLOW DOWN may appear in the display to prompt you to keep your pedaling pace near the target pace setting for the current segment.

To view the time remaining in the program and the distance pedaled, press the Display button. Press the Display button again to view the time remaining and the approximate number of calories burned.

To view the first display again, press the Display button again.

7. Turn on the fan if desired.

See step 6 on page 15.

8. When you are finished exercising, the console will turn off automatically.

See step 7 on page 15.

HOW TO USE AN IFIT PROGRAM

HOW TO USE THE SOUND SYSTEM

iFit cards are available separately. To purchase iFit

ards, go to www.iFit.com or see the front cover of this

c manual. iFit cards are also available at select stores.

1. Begin pedaling or press any button on the console to turn on the console.

A moment after you begin pedaling or press a button, a tone will sound, and the display will turn on.

Insert an iFit card and select a program.

To use an iFit program, insert an iFit card into the iFit slot; make sure that the iFit card is oriented so that the metal contacts are face down and are facing the slot. When the iFit card is properly inserted, the indicator next to the slot will turn on and text will appear in the display.

iFIT Slot

To play music or audio

ooks through the console

b sound system while you

xercise, first locate the

e audio cable in the center of the console. Plug the audio cable into a jack on your MP3 player or CD player; make sure that the audio

cable is fully plugged in.

Next, press the play button on your MP3 player or CD player. Adjust the volume level using the volume control on your MP3 player or CD player.

When not in use, insert the audio cable into the storage recess on the console.

able

iFIT Card

Next, select the desired program on the iFit card by pressing the increase and decrease buttons next to the iFit slot.

A moment after you select a program, the voice of a personal trainer will begin guiding you through your workout.

iFit programs function in the same way as preset programs. To use the program, see steps 3 to 7 on page 16.

When you are finished exercising, remove the iFit card.

Remove the iFit card when you are finished exercising. Store the iFit card in a secure place.

MAINTENANCE AND TROUBLESHOOTING

Inspect and tighten all parts of the elliptical exerciser

egularly. Replace any worn parts immediately.

To clean the elliptical exerciser, use a damp cloth and a small amount of mild soap. IMPORTANT: To avoid

amage to the console, keep liquids away from

d the console and keep the console out of direct sunlight.

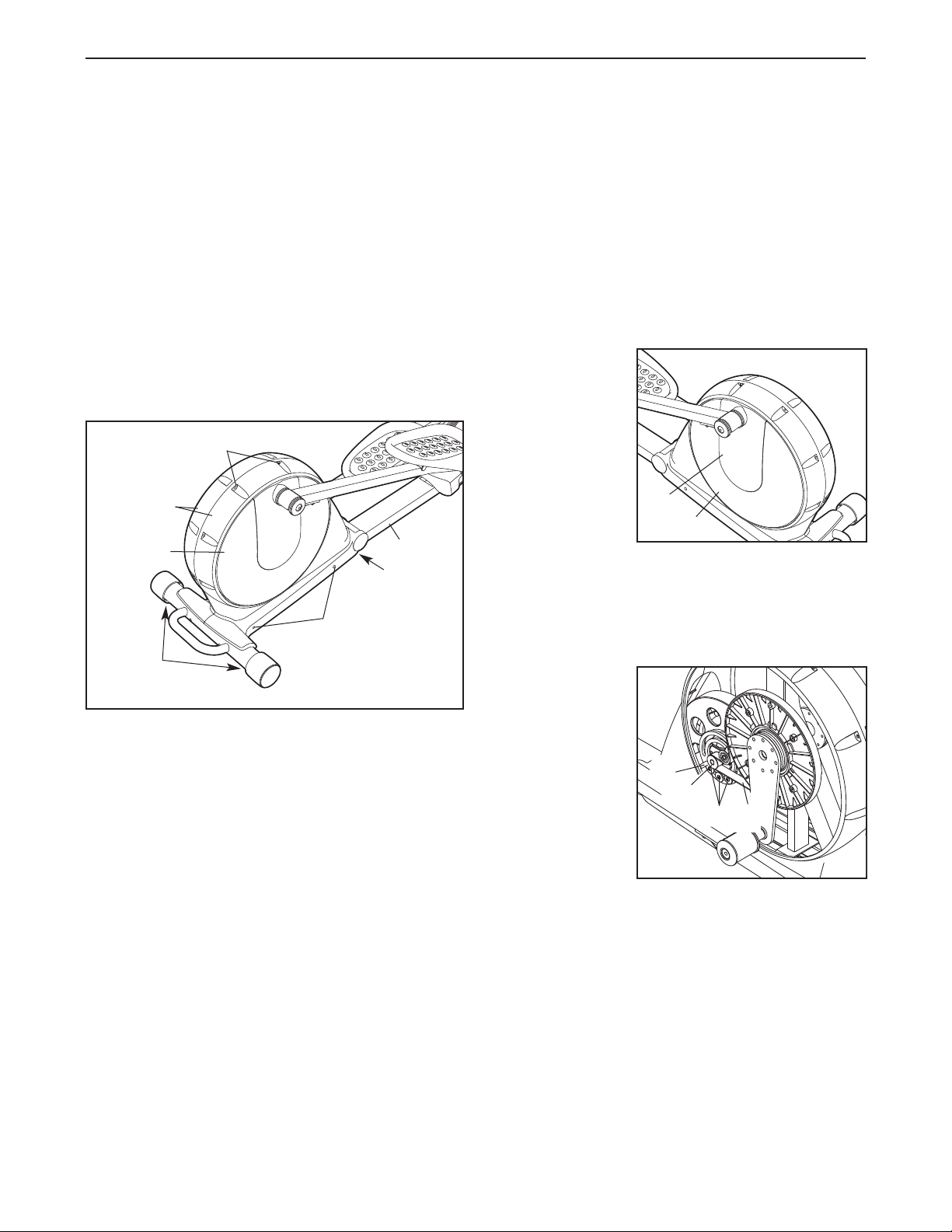

HOW TO LEVEL THE ELLIPTICAL EXERCISER OR ELIMINATE FLEXING IN THE FRAME

If the elliptical exerciser rocks on your floor during use, turn one or both of the Leveling Feet (98) until the rocking motion is eliminated.

14, 15

116

Adjust the position of the Side Shields (14, 15) until

he Discs (12) no longer rub against them, and then

t tighten the Bolt Sets (88) and the M4 x 16mm Screws (116).

ANDGRIP PULSE SENSOR TROUBLESHOOTING

If the handgrip pulse sensor does not function properly, see step 5 on page 15.

HOW TO ADJUST THE BELT

If the pedals slip while you are pedaling, even while the resistance is adjusted to the highest setting, the belt may need to be adjusted. To adjust the belt, first carefully pry off the left Disc Cover (13) using a flat screwdriver. Next, remove the four screws (not shown) from the center of the left Disc (12). Gently rotate the Disc Cover and the Disc away from the elliptical exerciser.

If the elliptical exerciser flexes in the center during use, turn the Center Foot (95) until the flexing is eliminated.

HOW TO ELIMINATE RUBBING OF THE DISCS

See the drawing above. If the Discs (12) rub against the Side Shields (14, 15) during use, make sure that the Center Foot (95) is installed in the Frame (1). If the Center Foot is installed, loosen the two indicated Bolt Sets (88) and the two M4 x 16mm Screws (116) in each side of the elliptical exerciser.

Loosen, but do not remove, the three 1/4" x 19mm Button Screws (114). Insert the shaft of a screwdriver downward between the Idler (47) and the Idler Pulley (48). Pull the top of the screwdriver toward the rear of the elliptical exerciser until the Belt (96) is tight, and then tighten the three Button Screws.

Reattach the left disc with the four screws and then reattach the left disc cover.

114

EXERCISE GUIDELINES

WARNING: B

or any exercise program, consult your physician. This is especially important for persons over the age of 35 or persons with pre-existing health problems.

The pulse sensor is not a medical device. Various factors may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.

These guidelines will help you to plan your exercise program. For detailed exercise information, obtain a reputable book or consult your physician. Remember, proper nutrition and adequate rest are essential for successful results.

efore beginning this

Burning Fat—To burn fat effectively, you must exer-

cise at a low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses carbohydrate calories for energy. Only after the first few minutes of exercise does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest number in your training zone. For maximum fat burning, exercise with your heart rate near the middle number in your training zone.

Aerobic Exercise—If your goal is to strengthen your cardiovascular system, you must perform aerobic exercise, which is activity that requires large amounts of oxygen for prolonged periods of time. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone.

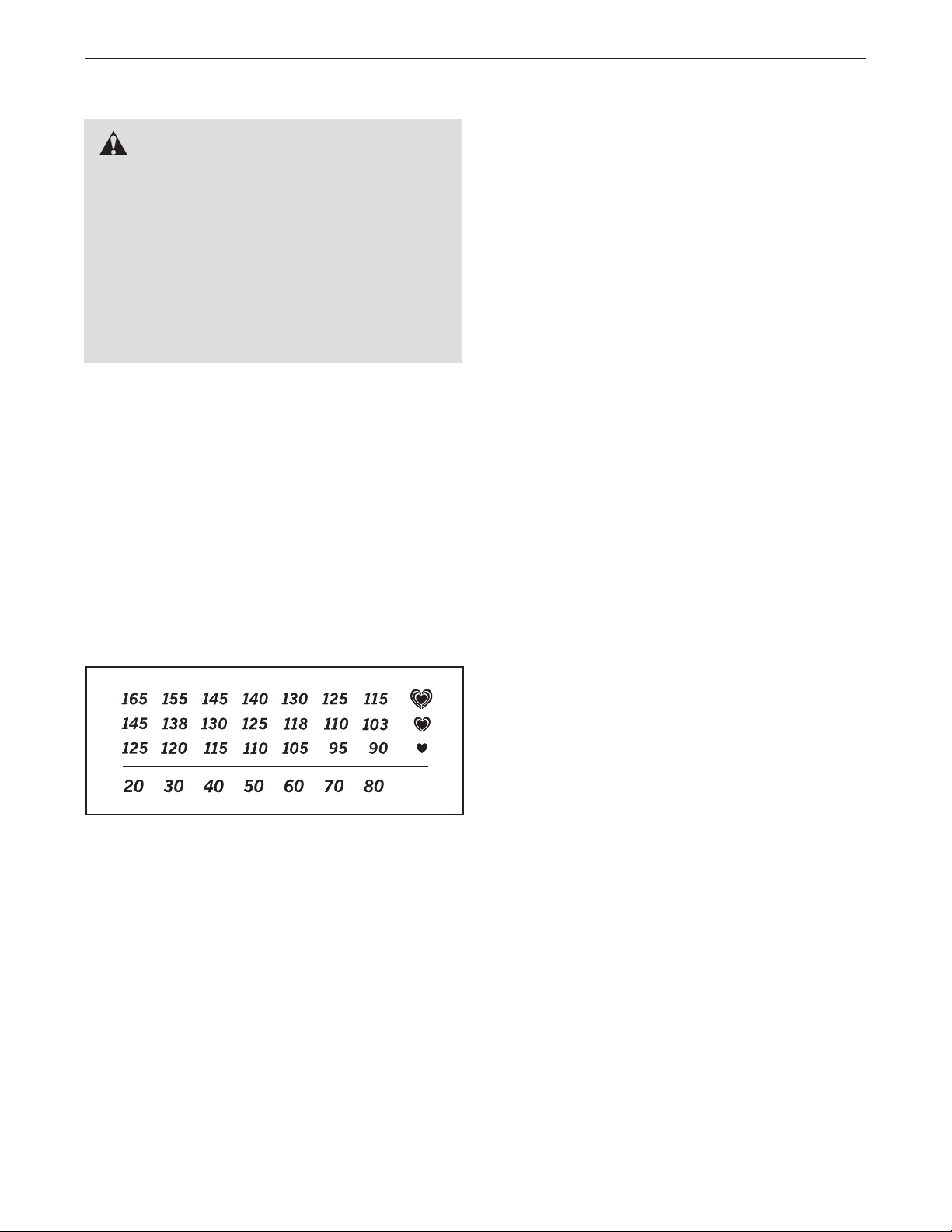

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your heart rate as a guide to find the proper intensity level. The chart below shows recommended heart rates for fat burning and aerobic exercise.

To find the proper intensity level, find your age at the bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your age define your “training zone.” The lowest number is the heart rate for fat burning, the middle number is the heart rate for maximum fat burning, and the highest number is the heart rate for aerobic exercise.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretching

and light exercise. A warm-up increases your body temperature, heart rate, and circulation in preparation for exercise.

Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise–never hold your breath.

Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each week, if desired. Remember, the key to success is to make exercise a regular and enjoyable part of your everyday life.

PART LIST—Model No. PFEL97910.0 R

Key No. Qty. Description Key No. Qty. Description

0210A

11Frame 2 31Rear Stabilizer 41Front Stabilizer 51Ramp 61Front Ramp Cover 71Rear Ramp Cover 82Side Ramp Cover 91Lift Motor

10 1 Upright

11 1 Console 12 2 Disc 13 2 Disc Cover 14 1 Left Side Shield 15 1 Right Side Shield 16 2 Rear Cap 17 2 Wheel 18 2 Wheel Cover 19 1 Rear Upright Cover 20 1 Front Upright Cover 21 2 Handgrip 22 1 Left Upper Body Arm 23 1 Right Upper Body Arm 24 2 Upper Body Leg 25 2 Pulse Sensor/Wire 26 1 Left Rear Upper Body Cover 27 1 Left Front Upper Body Cover 28 1 Right Rear Upper Body Cover 29 1 Right Front Upper Body Cover 30 1 Left Link Arm 31 1 Right Link Arm 32 1 Left Pedal Arm 33 1 Right Pedal Arm 34 1 Left Pedal 35 1 Right Pedal 36 1 Left Frame Cover 37 1 Right Frame Cover 38 4 Roller 39 2 Pedal Arm Cap 40 1 Tray 41 2 Pedal Arm Latch 42 4 Pedal Arm Latch Spring 43 6 Pedal Arm Cap 44 1 Eddy Mechanism 45 1 Eddy Crank Assembly 46 1 Pillow Block 47 1 Idler 48 1 Idler Pulley 49 Eddy Motor 50 1 Reed Switch/Wire

1 Folding Frame

51 1 Clamp

2 2 Large Axle Cover

5 53 2 Crank Bushing 54 2 Crank Bushing Sleeve 55 2 Crank Arm 56 1 Crank Arm Spacer 57 1 Large Pulley 58 1 Crank Flange 59 2 Crank Bearing Assembly 60 1 Crank Spacer 61 1 Crank 62 2 Lift Bracket 63 1 Lift Axle 64 1 Lower Wire Harness 65 1 Upper Wire Harness 66 6 Axle Cover 67 8 Bushing Assembly 68 4 Brass Bushing 69 1 Latch Bracket 70 1 Latch Button 71 1 Upper Body Axle 72 1 Ramp Axle 73 1 Pivot Axle 74 4 Link Arm Spacer 75 1 Latch Axle 76 1 Latch Spring 77 2 Lift Axle Screw 78 1 Button Frame 79 2 Hairpin Cotter 80 2 Lift Axle Washer 81 1 Control Board 82 4 M10 x 93mm Button Screw 83 2 Crank Snap Ring 84 2 Crank Arm Washer 85 2 Outside Crank Bushing 86 1 Flange Screw 87 4 M10 x 25mm Washer 88 5 Bolt Set 89 4 Small Snap Ring 90 1 Idler Snap Ring 91 1 Eddy Snap Ring 92 1 Idler Spacer 93 2 M10 Locknut 94 3 Idler Washer 95 1 Center Foot 96 1 Belt 97 1 Control Box 98 2 Leveling Foot 99 4 M10 Curved Washer

100 4 Wave Washer

ey No. Qty. Description Key No. Qty. Description

101 4 M8 Split Washer

02 12 M6 Split Washer

1 103 8 M8.5 x 16mm x 1.5mm Washer

04 4 M8 x 20mm x 2mm Washer

1 105 4 M8 x 16mm Button Screw 106 10 M8 x 15mm Button Screw 107 8 M8 x 20mm Button Screw 108 4 M6 x 62mm Screw 109 4 M6 x 35mm Screw 110 6 M8 x 25mm Button Screw 111 4 M10 x 20mm Button Screw 112 8 M8 x 25mm Shoulder Screw 113 2 M8 x 30mm Button Screw 114 5 1/4" x 19mm Button Screw 115 3 M4 x 12mm Screw 116 56 M4 x 16mm Screw 117 8 M4 x 16mm Cupped Screw 118 4 M6 Locknut 119 4 Bearing Assembly

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of this manual. *These parts are not illustrated.

120 2 Upright Brass Bushing

21 1 Left Lift Arm

1 122 1 Right Lift Arm

23 2 Lift Bushing

1 124 1 Transformer 125 1 Control Box Cover 126 1 Motor Clevis Pin 127 1 Bracket Pin 128 1 Lift Reed Switch 129 1 Switch Cover 130 1 Power Socket 131 2 Motor Spacer 132 4 M4 x 10mm Screw

*–Userʼs Manual *–Assembly Tool *–Grease Packet *–Power Cord *–Lift Motor Power Wire *–Lift Motor Sensor Wire

EXPLODED DRAWING A—Model No. PFEL97910.0 R

119

120

116

110

103

105

104

106

116

117

116

117

116

104

105

106

116

115

100

106

103

110

103

106

103

100

106

103

100

108

102

109

102

109

108

117

116

0210A

118

101

107

101

116

111

116

111

102

114

102

114

116

113

103

113

103

112

110

111

116

115

112

121

122

123

126

127

128

129

131

107

124

116

130

116

132

125

105

104

105

104

EXPLODED DRAWING B—Model No. PFEL97910.0 R

0210A

ORDERING REPLACEMENT PARTS

To order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to provide the following information when contacting us:

• the model number and serial number of the product (see the front cover of this manual)

• the name of the product (see the front cover of this manual)

• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING near the end of this manual)

LIMITED WARRANTY

IMPORTANT: You must register this product within 30 days of the purchase date to avoid added fees for service needed under warranty. Go to www.proformservice.com/registration.

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and material, under normal use and service conditions. The frame is warranted for a lifetime. Parts and labor are warranted for one (1) year from the date of purchase.

This warranty extends only to the original purchaser. ICONʼs obligation under this warranty is limited to repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped to a service center, freight charges to and from the service center will be the customerʼs responsibility. For replacement parts shipped while the product is under warranty, the customer will be responsible for a minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend to any damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage, or repairs not provided by an ICON authorized service center; to products used for commercial or rental purposes or as store display models; or to products transported or purchased outside the US. No other warranty beyond that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights that vary from state to state.

ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813

ProForm PFEL979100 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
