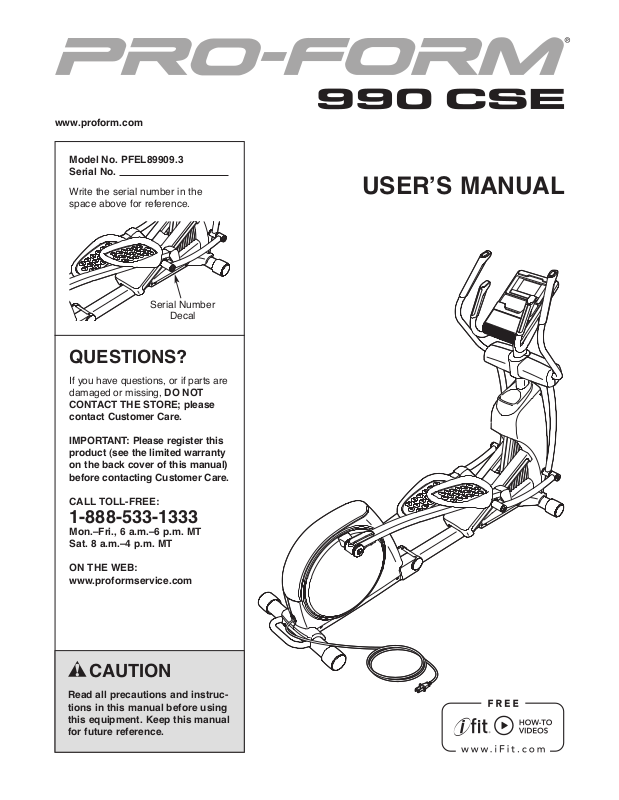

www.proform.com
Model No. PFEL89909.3
Serial No.
Write the serial number in the
space above for reference.
Serial Number
Decal
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
USERʼS MANUAL
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
!
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
SSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
A
HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning decal(s).
If a decal is missing or illegible, see the front cover of
this manual and request a
free replacement decal. Apply
the decal in the location
shown. Note: The decal(s) may
not be shown at actual size.
(inside the frame covers)
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the use
f this product.
o
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or
persons with pre-existing health problems.
2. Use the elliptical only as described in this
manual.
3. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
4. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
5. Keep the elliptical indoors, away from
moisture and dust. Do not put the elliptical
in a garage or covered patio, or near water.
6. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front
and rear of the elliptical and 2 ft. (0.6 m) on
each side. To protect the floor or carpet from
damage, place a mat under the elliptical.
9. The elliptical should not be used by persons
weighing more than 325 lbs. (147 kg).
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
11. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
12. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in
determining heart rate trends in general.
13. The elliptical does not have a freewheel; the
pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
14. Keep your back straight while using the
elliptical; do not arch your back.
7. Inspect and properly tighten all parts
regularly. Replace any worn parts
immediately.
8. Keep children under age 12 and pets away
from the elliptical at all times.
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
3
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM
90 CSE elliptical. The 990 CSE elliptical provides an
9
impressive selection of features designed to make
your workouts at home more effective and enjoyable.
®
manual. To help us assist you, note the product model
umber and serial number before contacting us. The
n
model number and the location of the serial number
decal are shown on the front cover of this manual.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
Length: 6 ft. 10 in. (208 cm)
Width: 2 ft. 3 in. (69 cm)
Weight: 214 lbs. (97 kg)
Water Bottle Holder*
Pedal
Console
Fan
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Ramp Controls
Resistance Controls
Pulse Sensor
Upper Body Arm
Ramp
Access Cover
Pedal Disc
Reset/Off
Switch
Handle
Leveling Foot
Wheel
Pedal Arm Latch
Latch Button
Power Cord
*Water bottle is not included
4
M8 Split
Washer (103)–4
M8 Washer
(95)–8
M6 Washer
(112)–8
M4 x 16mm
Screw (106)–8
M8 x 16mm
Screw (102)–16
M8 x 25mm
Screw (121)–2
M6 x 50mm
Screw (62)–4
M10 x 95mm Screw (100)–4
Wave Washer
(118)–2
M6 x 12mm
Screw (111)–4
PART IDENTIFICATION CHART
se the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is
U
the key number of the part, from the PART LIST near the end of this manual. The number following the key
number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it has
been preattached. Extra parts may be included.
5
ASSEMBLY
• To hire an authorized service technician
to assemble the elliptical, call
1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you complete all assembly steps.
• To identify small parts, see page 5.
1. Have a second person hold the Folding Frame
(2) to prevent the elliptical from tipping until this
step is completed.
Attach the Rear Stabilizer (4) to the Folding
Frame (2) with two M10 x 95mm Screws (100).
Next, hold the handle on the Rear Stabilizer (4),
press the Latch Button (67), and unfold the
elliptical so that the Rear Stabilizer is resting on
the floor.
• In addition to the included tool(s), assembly
requires:
one Phillips screwdriver
one adjustable wrench
one rubber mallet
Assembly will be more convenient if you have you
own set of ratchet wrenches. To avoid damaging
parts, do not use power tools for assembly.
1
100
Handle
4
2
67
6
2. Orient the Front Stabilizer (3) so that the small
welded tubes are facing away from the Main
Frame (1).
Attach the Front Stabilizer (3) to the Main Frame
1) with two M10 x 95mm Screws (100).
(
2
3. Orient the Upright (5) and the Top Cover (27) as
shown, and slide the Top Cover upward onto
the Upright.
Have a second person hold the Upright (5) and
the Top Cover (27) near the Main Frame (1).
Locate the wire tie in the Upright (5). Tie the
lower end of the wire tie to the Wire Harness
(60). Next, pull the upper end of the wire tie
until the Wire Harness is routed through the
Upright.
Welded
Tubes
1
3
Wire Tie
Avoid pinching the
Wire Harness (60)
102
5
102
100
3
Tip: To prevent the Wire Harness (60) from
falling into the Upright (5), secure the Wire
Harness with the wire tie.
Tip: Avoid pinching the Wire Harness (60).
Slide the Upright (5) onto the Main Frame (1).
Attach the Upright (5) with four M8 x 16mm
Screws (102) and four M8 Split Washers (103);
do not tighten the Screws yet.
Slide the Top Cover (27) downward; do not
press the Top Cover onto the Frame Covers
(21, 22) yet.
103
27
103
102
Wire Tie
60
1
21
22
7
4. Apply a generous amount of the included
grease to the Upright Axle (48) and to two
Wave Washers (118).
Tip: Avoid damaging the Wire Harness (60).
nsert the Upright Axle (48) through the Upright
I
(5) and center it. Slide a Wave Washer (118)
onto each side of the Upright Axle.
4
02
1
60
5
9
118
Avoid damaging the
Wire Harness (60)
Grease
48
Next, identify the Right and Left Upper Body
Legs (6, 7), which are marked with “Right” and
“Left” stickers, and orient them as shown.
Slide the Right and Left Upper Body Legs (6, 7)
onto the right and left sides of the Upright Axle
(48).
Tighten an M8 x 16mm Screw (102) and an M8
Washer (95) into each end of the Upright Axle
(48).
5. Identify the Right Pedal (14), the Right Gel Pad
(55), and the Right Pedal Arm (12), which are
marked with “Right” stickers, and orient them as
shown.
Set the Right Gel Pad (55) on the Right Pedal
Arm (12). Then, set the Right Pedal (14) on the
Right Gel Pad.
7
5
5
14
55
118
95
102
6
Attach the Right Pedal (14) to the Right Pedal
Arm (12) with two M6 x 50mm Screws (62), two
M6 x 12mm Screws (111), and four M6
Washers (112).
Attach the Left Pedal (not shown) and the
Left Gel Pad (not shown) to the Left Pedal
Arm (not shown) in the same way.
12
112
111
62
111
112
62
8
6. See drawing 6a. Locate the Pedal Arm Roller
(32) on the Right Pedal Arm (12). Set the Pedal
Arm Roller on the Ramp (130).
ee drawing 6b. Apply grease to the axle on
S
the right Crank Arm (39).
Orient a Pedal Arm Sleeve (46) so that the flat
side is facing the elliptical. Slide the Pedal Arm
Sleeve onto the axle on the right Crank Arm
(39). Attach the Pedal Arm Sleeve with an M8 x
25mm Screw (121), a Large Axle Cover (113),
and an M8 Washer (95).
Next, pull upward on the Latch (50) on the Right
Pedal Arm (12). Press the Right Pedal Arm onto
the Pedal Arm Sleeve (46). Make sure that the
Right Pedal Arm latches into place.
Repeat this step on the other side of the
elliptical.
6
6b
a
130
32
12
Grease
39
Flat
Side
46
12
95
50
113
121
9
7. Press the Ramp Cover (131) downward onto
the Ramp (130).
7
131
130
8. Identify the Right Link Arm (43), which is
marked with an “R” sticker. Orient the Right Link
Arm as shown.
Apply grease to the axle on the Right Pedal
Arm (12). Slide the Right Link Arm (43) onto the
axle.
Attach the Right Link Arm (43) with an M8 x
16mm Screw (102), a Small Axle Cover (56),
and an M8 Washer (95).
Next, apply grease to a Link Arm Axle (114).
Insert the Link Arm Axle into the Right Upper
Body Leg (6) and the Right Link Arm (43) from
the side shown.
Insert a hex key into the M8 x 16mm Screw
(102) in the Link Arm Axle (114). Using a second hex key, tighten another M8 x 16mm Screw
(102), a Small Axle Cover (56), and an M8
Washer (95) into the other end of the Link Arm
Axle.
Repeat this step on the other side of the
elliptical.
8
Grease
114
102
Grease
43
6
Narrow
Tube
95
10
12
Wide
Tube
95
56
102
56
102
9. Identify the Right Upper Body Arm (8), which is
marked with a “Right” sticker, and orient it as
shown.
Have a second person hold the Right Upper
ody Arm (8) near the Right Upper Body Leg
B
(6).
Locate the wire tie in the right side of the
Upright (5). Tie the wire tie to the Right Grip
Wire (45). Pull the upper end of the wire tie until
the Right Grip Wire is routed through the
Upright.
9
Avoid pinching the
ight Grip Wire (45)
9
R
5
Tip: To prevent the Right Grip Wire (45) from
falling into the Upright (5), secure the Right
Grip Wire with the wire tie.
Tip: Avoid pinching Right Grip Wire (45).
Attach the Right Upper Body Arm (8) to the
Right Upper Body Leg (6) with three M8 x
16mm Screws (102).
Attach the Left Upper Body Arm (9) to the
Left Upper Body Leg (7) in the same way.
10. Untie and discard the wire ties on the wires in
the Upright (5).
Have a second person hold the Console (33)
near the Upright (5).
Connect the wires on the Console (33) to the
Pulse Wire (105), the Wire Harness (60), and
the Grip Wires (45, 104). Make sure to con-
nect the console wire that has a tag to the
Grip Wire that has a tag.
10
33
7
Wire Tie
6
8
102
45
102
Avoid pinching
the wires
60
105
Insert the Pulse Wire (105) upward into the
Console (33). Insert the other wires downward
into the Upright (5).
Tip: Avoid pinching the wires. Attach the
Console (33) to the Upright (5) with four M4 x
16mm Screws (106).
See step 3. Tighten the four M8 x 16mm
Screws (102). Then, slide the Top Cover (27)
downward and press it onto the Frame Covers
(21, 22).
11
104
106
45
5
1. Attach the Front Upright Cover (24) to the
1
Upright (5) with four M4 x 16mm Screws (106).
11
24
5
106
12. Attach the Rear Upright Cover (25) around the
Upright (5) by pressing the tabs on the Rear
Upright Cover into the Front Upright Cover (24).
13. Make sure that all parts of the elliptical are properly tightened. Note: Some hardware may be left over
after assembly is completed. To protect the floor or carpet from damage, place a mat under the elliptical.
12
24
5
25
12
HOW TO USE THE ELLIPTICAL
OW TO PLUG IN THE POWER CORD
H
H
OW TO FOLD AND UNFOLD THE ELLIPTICAL
This product must be grounded. If it should mal-
function or break down, grounding provides a path of
east resistance for electric current to reduce the risk
l
of electric shock. This product is equipped with a cord
having an equipment-grounding conductor and a
grounding plug. Plug the power cord into an appro-
priate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances. This product is for use on a nominal
120-volt circuit. IMPORTANT: The elliptical is not
compatible with GFCI-equipped outlets and may
not be compatible with AFCI-equipped outlets.
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet installed
by a qualified electrician.
When the elliptical is not in use, the frame can be
folded out of the way. First, lift the latch under each
edal arm, and lift the pedal arms off the pedal arm
p
sleeves.
Latches
Pedal Arms
Handle
Sleeve
Handlebars
A temporary
adapter may
be used to
connect the
power cord
to a 2-pole
receptacle as
shown at the
right if a
properly
grounded
outlet is not
available. The temporary adapter should be used only
until a properly grounded outlet can be installed by a
qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used, it must be held in
place by a metal screw. Some 2-pole receptacle out-
let box covers are not grounded. Contact a
qualified electrician to determine if the outlet box
cover is grounded before using an adapter.
Grounded Outlet Box
Adapter
Power Cord
Lug
Metal Screw
Latch Button
Next, raise the pedal arms until they touch the handlebars; magnets on the pedal arms will hold the pedal
arms in place. Then, hold the handle and lift the frame
until it locks into a vertical position.
To unfold the elliptical, first hold the handle, press the
latch button, and lower the frame. Next, pull the pedal
arms away from the handlebars.
Then, lift the latches under the pedal arms, and set
the pedal arms on the pedal arm sleeves. Release the
latches, and make sure that the pedal arms are
securely connected to the pedal arm sleeves.
13
HOW TO MOVE THE ELLIPTICAL
HOW TO EXERCISE ON THE ELLIPTICAL
To move the elliptical, first fold it as described on page
12. Next, stand in front of the elliptical, hold the
upright, and place one foot against one of the wheels.
Pull the upright until the elliptical rolls on the wheels.
Carefully move the elliptical to the desired position,
nd then lower it to the floor.
a
Pull on
the upright
Place
your foot
here
To mount the elliptical, hold the upper body arms and
step onto the pedal that is in the lowest position. Next,
step onto the other pedal. Push the pedals until they
begin to move with a continuous motion.
Upper Body Arms
Handlebars
Pedals
Crank Arm
HOW TO LEVEL THE ELLIPTICAL
If the elliptical
rocks slightly
on your floor
during use,
turn one or
both of the leveling feet
beneath the
rear stabilizer
until the rocking motion is eliminated.
If the frame of the elliptical flexes during use, turn the
center leveling foot until the flexing motion is
eliminated.
Leveling
Feet
Note: The crank arms can turn in either direction.
It is recommended that you turn the crank arms in
the direction shown by the arrow; however, for
variety you can turn the crank arms in the opposite direction.
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
a freewheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the lower
pedal.
14
CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals and the
incline of the ramp with the touch of a button. While
you exercise, the console will display continuous exercise feedback. You can also measure your heart rate
using the handgrip pulse sensor.
The console offers twenty preset workouts—ten target
toning workouts and ten performance workouts. Each
workout automatically changes the resistance of the
pedals and the incline of the ramp and prompts you to
vary your pedaling pace as it guides you through an
effective workout.
The console also features an iFit training mode that
allows your console to communicate with your wireless network through an optional iFit Live module.
With the iFit Live mode, you can download personalized workouts, create your own workouts, track your
workout results, and access many other features. See
www.iFit.com for complete information.
To purchase an iFit Live module at any time, go to
www.iFit.com or call the telephone number on the
front cover of this manual.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To turn on the power, see page 16. To use the
manual mode, see page 16. To use a preset workout, see page 18. To use the iFit training mode, see
page 19. To use the sound system, see page 19. To
use the information mode, see page 19.
Note: If there is a sheet of plastic on the display,
remove the plastic.
15
HOW TO TURN ON THE POWER
IMPORTANT: If the elliptical has been exposed to
old temperatures, allow it to warm to room tem-
c
perature before turning on the power. If you do not
o this, you may damage the console displays or
d
other electrical components.
Plug in the power cord (see
HOW TO PLUG IN THE
POWER CORD on page
13). Next, locate the power
switch on the frame near
the power cord. Make sure
that the power switch is in
the on position.
The display will then light and the console will be
ready for use.
Note: When you turn on the power for the first
time, the ramp will calibrate automatically. The
ramp will move upward and downward as it calibrates.
When the ramp stops moving, the ramp is calibrated.
On
Position
3. Change the resistance of the pedals and the
incline of the ramp as desired.
s you pedal, change the resistance of the pedals
A
by pressing one of the numbered 1 Step
esistance buttons or by pressing the 1 Step
R
Resistance Increase and Decrease buttons
located on the console or on the right upper body
arm.
Note: After you press the buttons, it will take a
moment for the pedals to reach the selected resistance level.
To vary the motion of the pedals, you can change
the incline of the ramp. To change the incline,
press one of the numbered 1 Step Power Ramp
buttons or press the 1 Step Power Ramp Increase
and Decrease buttons located on the console or
on the left upper body arm.
Note: After you press the buttons, it will take a
moment for the ramp to reach the selected incline
level.
IMPORTANT: If the ramp does not calibrate automatically, see HOW TO CALIBRATE THE RAMP on
page 20 and manually calibrate the ramp.
HOW TO USE THE MANUAL MODE
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER above.
2. Select the manual mode.
Each time you turn on the console, the main menu
will appear.
To select the manual
mode, press the
Increase and Decrease
buttons next to the
Enter button and highlight START. Then,
press the Enter button.
If you have selected a workout or the iFit Training
mode, press the Menu button to return to the main
menu.
4.
Follow your progress with the display.
The console offers several display modes. The
display mode that you select will determine which
workout information is shown. Press the Display
button repeatedly to select the desired display
mode.
The display can show the following workout
information:
Calories—This display mode will show the
approximate number of calories you have burned.
Profile—When a workout is selected, this display
mode will show a profile of the resistance levels
for the workout.
Pulse—This display mode will show your heart
rate when you use the handgrip pulse sensor (see
step 5 on page 17).
Ramp—This display mode will show the incline
level of the ramp for a few seconds each time the
ramp incline changes.
16
Resistance—This display mode will show the
resistance level of the pedals for a few seconds
each time the resistance level changes.
RPM—This display mode will show your pedaling
pace, in revolutions per minute (rpm).
trides—This display mode will show the total
S
number of strides you have pedaled.
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
queeze the metal contacts tightly. For optimal
s
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
6. Turn on the fan if desired.
Time—When the manual mode is selected, this
display mode will show the elapsed time. When a
workout is selected, the display mode will show
the time remaining in the workout instead of the
elapsed time.
Change the volume level of the console by pressing the Volume Increase and Decrease buttons.
5. Measure your heart rate if desired.
If there are sheets of
plastic on the metal
contacts on the handgrip pulse sensor,
remove the plastic. To
measure your heart
rate, hold the handgrip
pulse sensor with your
palms resting against
the metal contacts.
Avoid moving your hands or gripping the contacts tightly.
When your pulse is detected, your heart rate will
appear in the display. For the most accurate heart
rate reading, hold the contacts for at least 15
seconds.
Contacts
The fan has high and low speed settings. Press
the Fan button repeatedly to select a fan speed or
to turn off the fan.
7. When you are finished exercising, unplug the
power cord.
If the pedals do not move for several seconds, a
tone will sound and the console will pause.
If the pedals do not move for several minutes and
the buttons are not pressed, the console will turn
off and the display will be reset.
When you are finished exercising, switch the
power switch to the off position and unplug the
power cord. IMPORTANT: If you do not do this,
the electrical components on the elliptical may
wear prematurely.
17
HOW TO USE A PRESET WORKOUT
1. Begin pedaling or press any button on the
onsole to turn on the console.
c
ee HOW TO TURN ON THE POWER on page
S
16.
When the first segment of the workout ends, the
resistance level, ramp incline, and the target rpm
for the second segment will appear in the display
or a few seconds to alert you. The next segment
f
of the profile will begin to flash, and the pedals will
utomatically adjust to the resistance level and the
a
ramp incline for the next segment.
2. Select a preset workout.
If you have selected a workout or the iFit Training
mode, press the Menu button to return to the main
menu.
To select a preset workout, first press the
Increase and Decrease
buttons next to the
Enter button and highlight WORKOUTS.
Then, press the Enter
button.
Next, press the Increase and Decrease buttons to
highlight the desired workout category. Then,
press the Enter button. You can also press the
Target Toning Workouts button or the Performance
Workouts button.
Press the Increase and Decrease buttons to highlight the desired workout category. Then, press the
Enter button.
Press the Increase and Decrease buttons to highlight the name of the desired workout. The
duration, the maximum rpm (pedaling pace), the
maximum resistance level, the maximum ramp
level, and a profile of the resistance levels of the
workout will appear in the right side of the display.
Then, press the Enter button.
As you exercise, you will be prompted to keep
your pedaling pace (rpm) near the target rpm for
the current segment. When the word FASTER
appears in the display, increase your pedaling
pace. When the word SLOWER appears,
decrease your pedaling pace. When no words
appear, maintain your current pedaling pace.
IMPORTANT: The target rpm is intended only to
provide motivation. Your actual pedaling pace
(rpm) may be slower than the target rpm. Make
sure to pedal at a pace that is comfortable for
you.
If the resistance level or the ramp incline for the
current segment is too high or too low, you can
manually override the setting by pressing the 1
Step Resistance buttons and the 1 Step Power
Ramp buttons. IMPORTANT: When the current
segment of the workout ends, the pedals will
automatically adjust to the resistance level or
the ramp incline for the next segment.
The workout will continue in this way until the last
segment ends. To stop the workout at any time,
stop pedaling. A tone will sound and the time will
begin to flash in the display. To restart the workout,
simply resume pedaling.
4. Follow your progress with the display.
See step 4 on page 16.
3. Begin pedaling to start the workout.
Each workout is divided into one-minute segments. One resistance level, one ramp incline, and
one target rpm (pedaling pace) are programmed
for each segment. Note: The same resistance
level, ramp incline, and/or target rpm may be programmed for consecutive segments.
The workout profile will
show your progress.
The flashing segment
of the profile represents
the current segment of
the workout. The height
of the flashing segment
indicates the resistance level for the current
segment.
Current Segment
5.
Measure your heart rate if desired.
See step 5 on page 17.
6. Turn on the fan if desired.
See step 6 on page 17.
7. When you are finished exercising, unplug the
power cord.
See step 7 on page 17.
18
HOW TO USE THE IFIT TRAINING MODE
HOW TO USE THE INFORMATION MODE
The optional iFit Live module allows your console to
ommunicate with your wireless network and unlocks
c
exciting new features. For example, you can download
ersonalized workouts, create your own workouts,
p
track your workout results, and access many other
features on the iFit Live website. To purchase an iFit
Live module at any time, go to www.iFit.com or
call the telephone number on the front cover of
this manual.
To select the iFit training mode, insert the iFit Live
module into the console. Press the Menu button and
then press the Increase and Decrease buttons next to
the Enter button and highlight IFIT TRAINING. Then,
press the Enter button.
For more information about the iFit training mode,
go to www.iFit.com.
Note: To use an iFit Live module, you must have
access to a computer with an internet connection and
a USB port. You will also need an iFit.com membership. To use a wireless iFit Live module, you must also
have your own wireless network including an 802.11b
router with SSID broadcast enabled (hidden networks
are not supported).
The console features an information mode that allows
ou to view usage information and to adjust the con-
y
trast level of the displays.
To select the information mode, press and hold down
the Display button for a few seconds until the information mode appears in the display.
The display will show the
total number (in thousands)
of strides that have been
pedaled on the elliptical.
The display will also show
the total number of hours
that the elliptical has been
used.
The currently selected contrast level will also appear
in the display. Press the Increase and Decrease buttons next to the Enter button repeatedly to select the
desired contrast level.
Press the Display button to save the contrast level setting and exit the information mode.
IMPORTANT: To satisfy exposure compliance
requirements, the antenna and transmitter in the
iFit Live module must be at least 8 in. (20 cm) from
all persons and must not be near or connected to
any other antenna or transmitter.
HOW TO USE THE SOUND SYSTEM
To play music or audio books through the console
sound system while you exercise, plug the included
audio cable into the jack on the side of the console
and into a jack on your MP3 player or CD player;
make sure that the audio cable is fully plugged in.
Next, press the play button on your MP3 player or CD
player. Adjust the volume level using the volume control on your MP3 player or CD player or press the
Volume Increase and Decrease buttons on the
console.
19
MAINTENANCE AND TROUBLESHOOTING
Inspect and tighten all parts of the elliptical regularly.
Replace any worn parts immediately.
To clean the elliptical, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damag-
ing the console, keep liquids away from the
console and keep the console out of direct
sunlight.
CONSOLE TROUBLESHOOTING
If the console does not turn on, make sure that the
power cord is fully plugged in. If lines appear in the
console display, see HOW TO USE THE INFORMATION MODE on page 19 and adjust the contrast level
of the display.
If the console does not display your heart rate when
you hold the handgrip pulse sensor, or if the displayed
heart rate appears to be too high or too low, see step
5 on page 17.
HOW TO CALIBRATE THE RAMP
If the ramp is not functioning properly, the ramp may
need to be calibrated. To calibrate the ramp, press
and hold the Target Toning Workouts button for several seconds until the calibration mode appears in the
display.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted.
To adjust the reed switch, first unplug the power
cord. Next, lift the Latch (50) underneath the Left
Pedal Arm (13), and lift the Left Pedal Arm off the left
Pedal Arm Sleeve (46).
13
50
46
Next, remove the M8 x 25mm Screw (121), the Large
Axle Cover (113), and the M8 Washer (95) from the
left Pedal Arm Sleeve (46), and slide the Pedal Arm
Sleeve off the elliptical. Then, using a flat screwdriver,
gently pry the left Disc (17) off the elliptical.
Press the Target Toning Workouts once. The ramp calibration instructions will appear in the display. Press
the 1 Step Power Ramp Increase or Decrease button
to calibrate the ramp. The ramp will move upward and
downward as it calibrates.
When the ramp stops moving, the ramp is calibrated.
Then, press the Target Toning Workouts button repeatedly to exit the calibration mode.
121
17
113
95
46
20
Using the flat screwdriver, release the tabs on the
ccess Cover (20), and lift the Access Cover off the
A
elliptical. Then, remove the seven indicated M4 x
16mm Screws (106), and remove the Left Shield (19).
0
2
106
HOW TO ADJUST THE DRIVE BELT
If you can feel the pedals slip while you are pedaling,
even when the resistance is adjusted to the highest
level, the drive belt may need to be adjusted.
To adjust the drive belt, first unplug the power cord.
ext, see HOW TO ADJUST THE REED SWITCH
N
beginning on page 20 and remove the left pedal arm
sleeve, the left disc, the access cover, and the left
shield.
Next, loosen the Pivot Screw (97). Tighten the Belt
Adjustment Screw (85) until the Drive Belt (38) is tight.
When the Drive Belt is tight, tighten the Pivot Screw.
106
19
106
106
Next, rotate the Large Pulley (74) until a Pulley
Magnet (75) is aligned with the Reed Switch (69).
Loosen, but do not remove, the indicated M4 x 16mm
Screw (106), and slide the Reed Switch slightly toward
or away from the Pulley Magnet. Then, retighten the
Screw.
75
106
69
74
38
97
85
When you are finished, reattach the left shield, the
access cover, the left disc, and the left pedal arm
sleeve.
Plug in the power cord and rotate the large pulley for a
moment. Repeat these actions until the console displays correct feedback. When the reed switch is
correctly adjusted, reattach the left shield, the access
cover, the left disc, and the left pedal arm sleeve.
21
EXERCISE GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physician. This is especially important for persons
ver age 35 or persons with pre-existing
o
health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
ody uses carbohydrate calories for energy. Only after
b
the first few minutes of exercise does your body begin
o use stored fat calories for energy. If your goal is to
t
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling Down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
22
PART LIST Model No. PFEL89909.3 R1011A
ey No. Qty. Description Key No. Qty. Description
K
11Main Frame
21Folding Frame
31Front Stabilizer
41Rear Stabilizer
51Upright
61Right Upper Body Leg
71Left Upper Body Leg
81Right Upper Body Arm
91Left Upper Body Arm
10 2 Pedal Pad
11 1 Left Gel Pad
12 1 Right Pedal Arm
13 1 Left Pedal Arm
14 1 Right Pedal
15 1 Left Pedal
16 2 Wheel Cap
17 2 Disc
18 1 Right Shield
19 1 Left Shield
20 1 Access Cover
21 1 Right Frame Cover
22 1 Left Frame Cover
23 1 Lift Motor Cover
24 1 Front Upright Cover
25 1 Rear Upright Cover
26 1 Water Bottle Holder
27 1 Top Cover
28 1 Right Pedal Arm Cover
29 18 Mount
30 2 Latch Cover
31 4 Pedal Arm Magnet
32 2 Pedal Arm Roller
33 1 Console
34 2 Pulse Sensor/Wire
35 1 Right Grip/Controls
36 2 Wheel
37 2 Stabilizer Cap
38 1 Drive Belt
39 2 Crank Arm
40 1 Left Pedal Arm Cover
41 3 Leveling Foot
42 1 Latch Bracket
43 1 Right Link Arm
44 1 Left Grip/Controls
45 1 Right Grip Wire
46 2 Pedal Arm Sleeve
47 4 Large Bushing
48 1 Upright Axle
49 2 Latch Housing
50 2 Latch
51 2 Large Latch Spring
52 2 Latch Insert
53 4 Long Latch Spring
54 4 Leg Bearing Assembly
55 1 Right Gel Pad
56 6 Small Axle Cover
57 2 Upright Bushing
58 12 Small Bushing
59 1 Audio Cable
60 1 Wire Harness
61 1 Flywheel
62 4 M6 x 50mm Screw
63 1 Frame Axle
64 4 Front Frame Bushing
65 1 Latch Bracket Axle
66 1 Latch Bracket Spring
67 1 Latch Button
68 1 Button Housing
69 1 Reed Switch/Wire
70 1 Clamp
71 1 Crank Hub
72 1 Crank
73 1 Crank Spacer
74 1 Large Pulley
75 2 Pulley Magnet
76 2 Folding Frame Bearing
77 1 Idler
78 1 Resistance Motor
79 1 Resistance Arm
80 1 Resistance Wheel
81 1 Resistance Bracket
82 1 Motor Bracket
83 1 C-magnet Bracket
84 1 Flywheel Axle
85 1 Belt Adjustment Screw
86 12 M8 x 28mm Screw
87 2 Large Snap Ring
88 1 C-magnet Bracket Bolt
89 4 Resistance Motor Screw
90 1 M5 x 7mm Screw
91 1 M3.5 x 12mm Screw
92 1 M6 Locknut
93 2 Lift Motor Link Arm
94 2 M8 Jam Nut
95 12 M8 Washer
96 1 M6 Washer
97 1 Pivot Screw
98 2 Motor Bracket Screw
99 1 Idler Bolt
100 4 M10 x 95mm Screw
23
Key No. Qty. Description Key No. Qty. Description
01 3 Small Snap Ring
1
102 18 M8 x 16mm Screw
103 4 M8 Split Washer
104 1 Left Grip Wire
105 1 Pulse Wire
106 48 M4 x 16mm Screw
07 2 M10 x 25mm Button Screw
1
108 2 M10 x 32mm Washer
109 4 M8 x 16mm Button Screw
110 2 M8 x 23.5mm x 1mm Washer
111 4 M6 x 12mm Screw
112 8 M6 Washer
113 2 Large Axle Cover
114 2 Link Arm Axle
115 1 Power Switch
116 1 Power Cord Plate
117 2 Rear Frame Bushing
118 2 Wave Washer
119 1 Power Cord
120 1 Control Board
121 2 M8 x 25mm Screw
122 1 3/8" x 1" Flange Screw
123 1 Control Box Cover
124 1 Control Box
125 1 Transformer
126 2 M10 Locknut
127 2 Long C-pin
128 2 Short C-pin
129 2 #8 x 1/2" Screw
30 1 Ramp
1
131 1 Ramp Cover
132 2 Ramp Bushing
133 1 Ramp Axle
134 1 Lift Motor
135 1 Lift Motor Stop
36 2 Ramp Roller
1
137 1 Roller Axle
138 1 Lift Arm
139 2 Lift Arm Bushing
140 2 Plastic Washer
141 2 M8 x 27mm Bolt
142 4 M8 Locknut
143 2 M8 x 47mm Bolt
144 1 Left Link Arm
145 2 Medium Snap Ring
146 4 #6 x 3/8" Screw
147 1 Frame Wire Harness
148 1 Ground Wire
149 1 Lift Motor Wire Harness
150 1 Motor Power Wire Harness
151 1 M5 Washer
152 2 Adjustment Nut
*–Blue Wire
*–White Wire
*–Userʼs Manual
*–Assembly Tool
*–Grease Packet
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
24
EXPLODED DRAWING A M
102
95
102
28
27
26
6
8
102
54
95
102
34
59
35
106
106
54
57
118
57
118
48
54
34
106
33
54
95
102
102
102
106
95
121
95
127
106
49
51
52
50
53
40
50
51
52
49
106
127
53
30
31
95
121
95
44
9
7
102
103
103
102
102
103
25
105
104
45
56
144
58
58
58
58
58
15
128
13
113
47
30
31
47
46
112
112
111
62
62
32
101
111
112
12
101
10
62
112
113
47
46
47
58
58
128
43
102
114
56
95
114
56
58
58
58
56
5
24
31
31
102
95
56
112
11
111
32
14
10
55
odel No. PFEL89909.3 R1011A
25
EXPLODED DRAWING B M
67
42
110
109
65
109
66
75
75
86
86
87
76
73
74
82
96
90
78
89
80
91
81
79
83
77
88
94
84
94
98
97
92
99
85
76
87
71
86
86
68
106
106
70
69
125
120
124
123
146
106
129
117
108
107
117
63
108
110
72
39
86
100
119
147
107
142
141
38
61
115
116
2
37
4
37
122
39
131
130
29
29
109
133
64
1
64
41
16
100
36
36
126
3
126
16
23
106
142
143
134
135
136
145
145
137
141
142
139
140
140
93
138
41
41
109
143
142
64
93
132
132
60
148
149
150
151
152
101
odel No. PFEL89909.3 R1011A
26
EXPLODED DRAWING C Model No. PFEL89909.3 R1011A
17
17
18
19
20
21
22
106
106
106
106
106
106
106
106
106
106
106
106
106
106
106
29
106
106
29
29
29
29
27
ORDERING REPLACEMENT PARTS
To order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
IMPORTANT: You must register this product within 30 days of the purchase date to avoid added
fees for service needed under warranty. Go to www.proformservice.com/registration.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame is warranted for a lifetime. Parts and labor
are warranted for one (1) year from the date of purchase.
This warranty extends only to the original purchaser (customer). ICONʼs obligation under this warranty is
limited to repairing or replacing, at ICONʼs option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be preauthorized by ICON. If the product is
shipped to a service center, freight charges to and from the service center will be the customerʼs responsibility. If replacement parts are shipped while the product is under warranty, the customer will be
responsible for a minimal handling charge. For in-home service, the customer will be responsible for a
minimal trip charge. This warranty does not extend to freight damage to the product. This warranty will
automatically be voided if the product is used as a store display model, if the product is purchased or
transported outside the USA, if all instructions in this manual are not followed, if the product is abused or
improperly or abnormally used, or if the product is used for commercial or rental purposes. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or
consequential damages. Accordingly, the above limitation may not apply to the customer.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to the customer.
This warranty provides specific legal rights; the customer may have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
Part No. 313977 R1011A Printed in China © 2011 ICON IP, Inc.
Loading...
