ProForm PFEL899091 User Manual
www.proform.com
Model No. PFEL89909.1
Serial No.
Write the serial number in the
space above for reference.
Serial Number
Decal
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
USERʼS MANUAL
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
TABLE OF CONTENTS
!
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
EFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
B
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

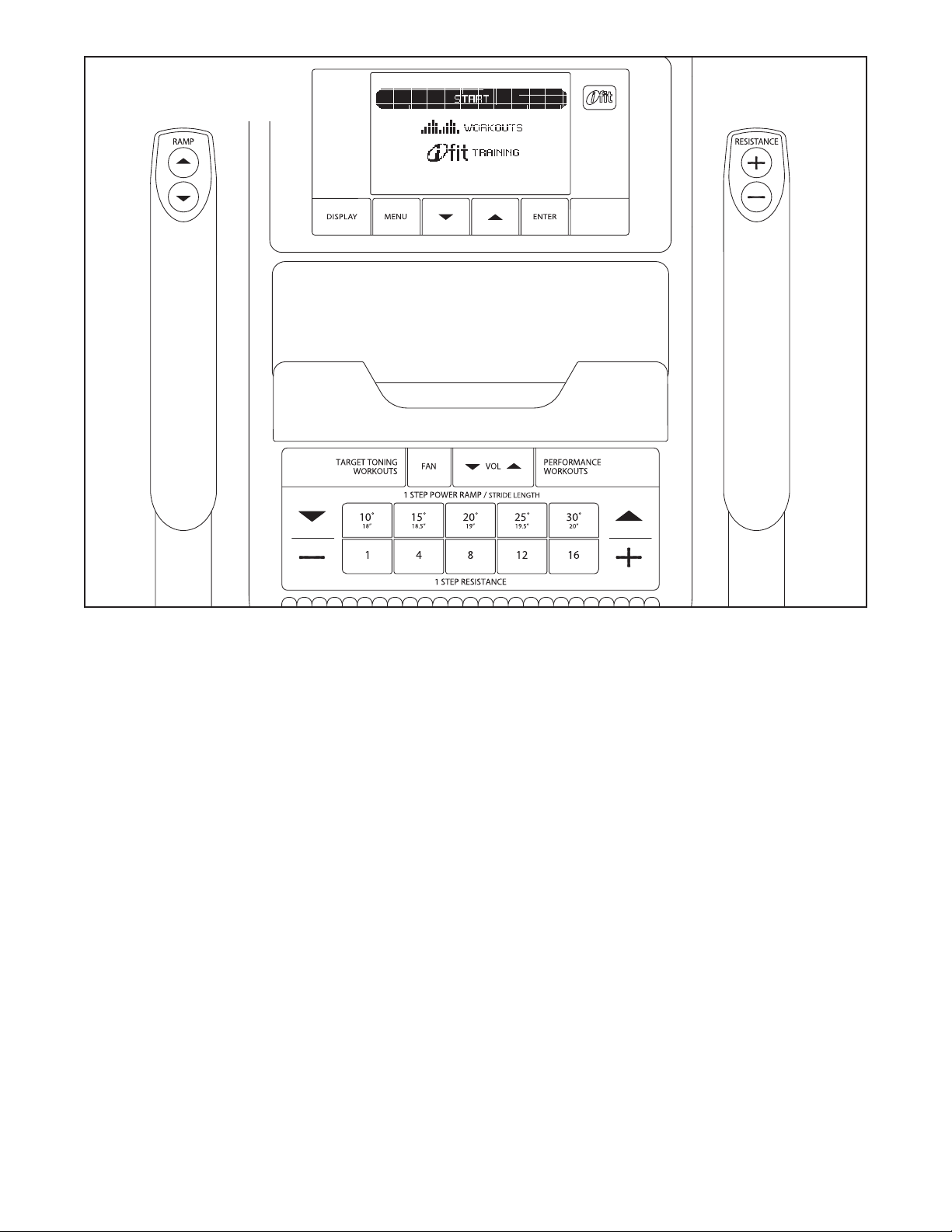

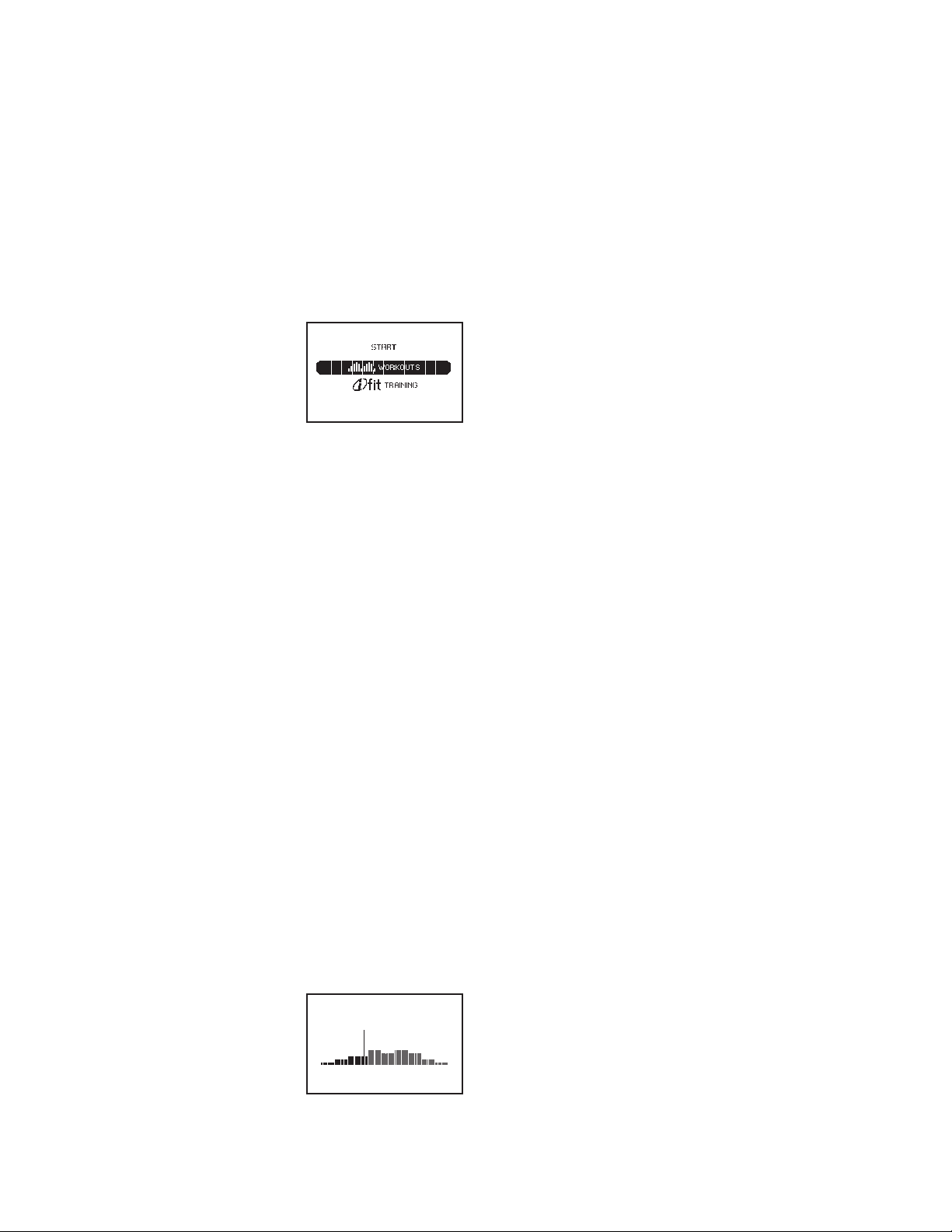

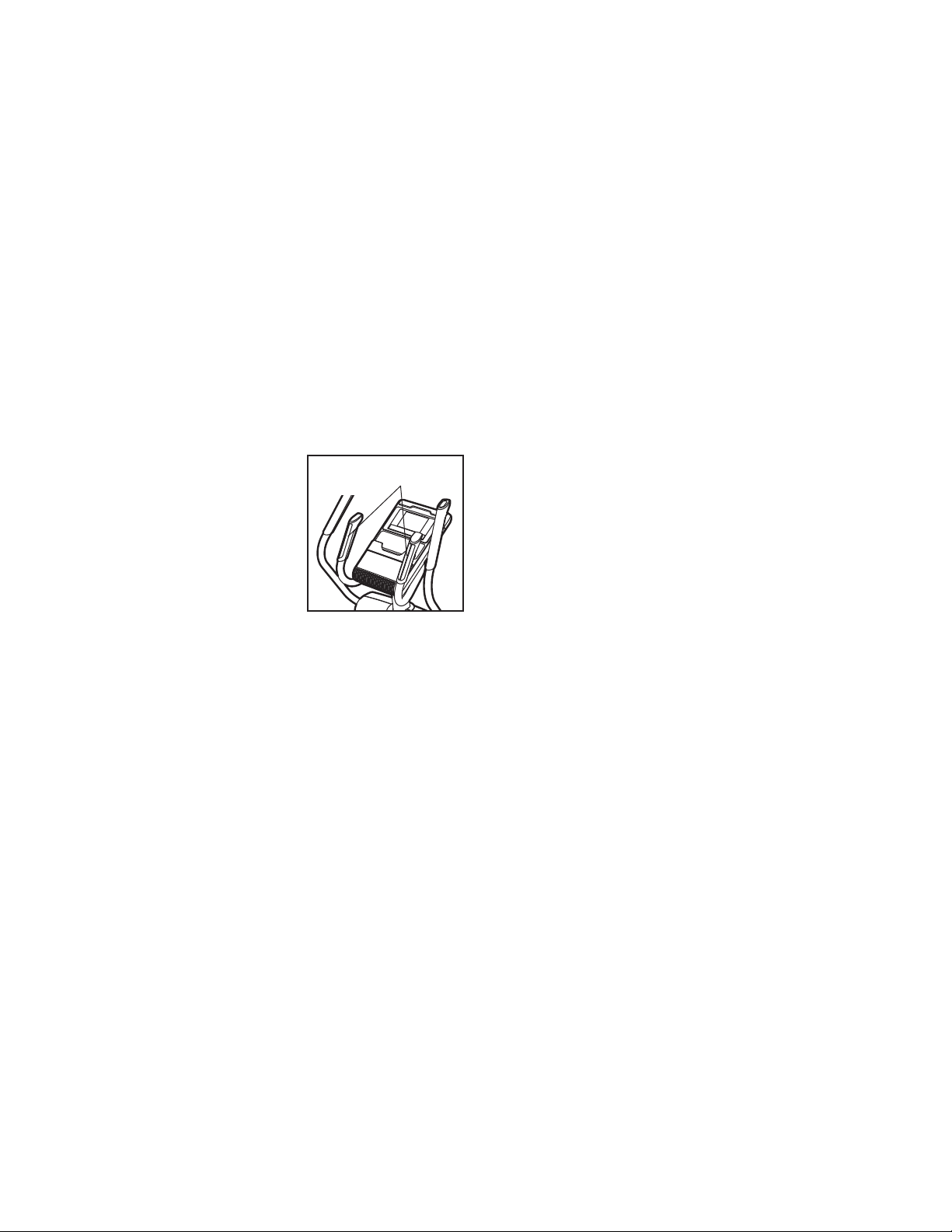

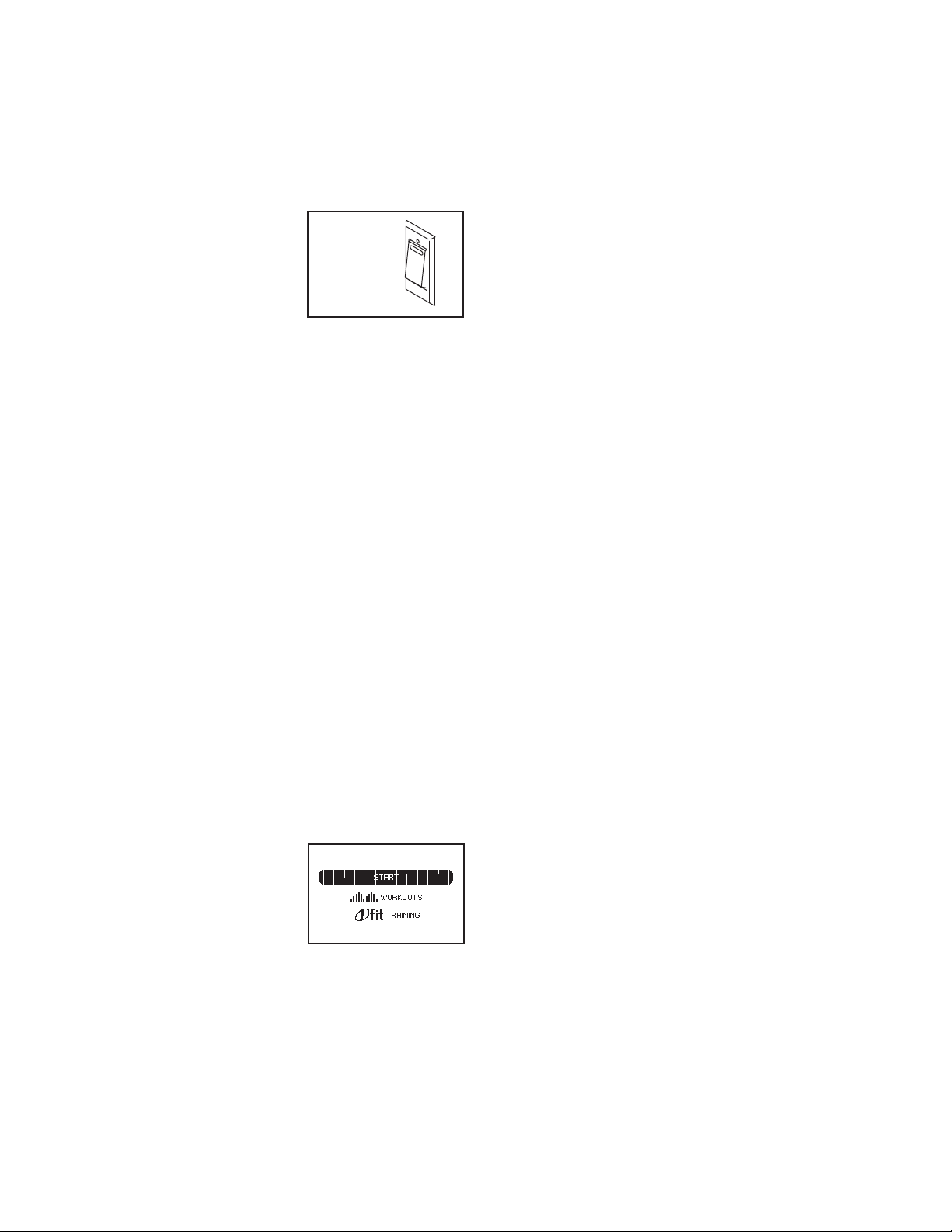

HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

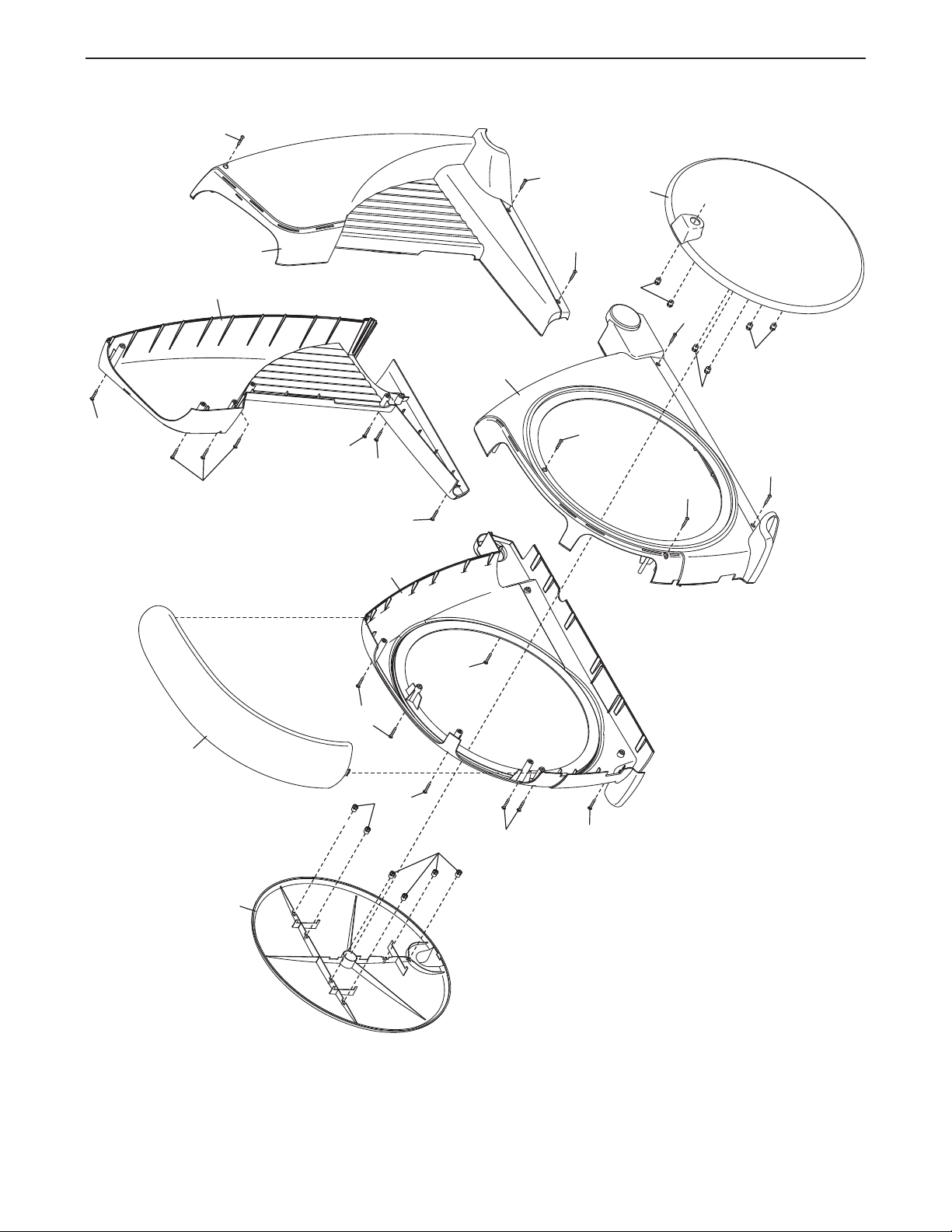

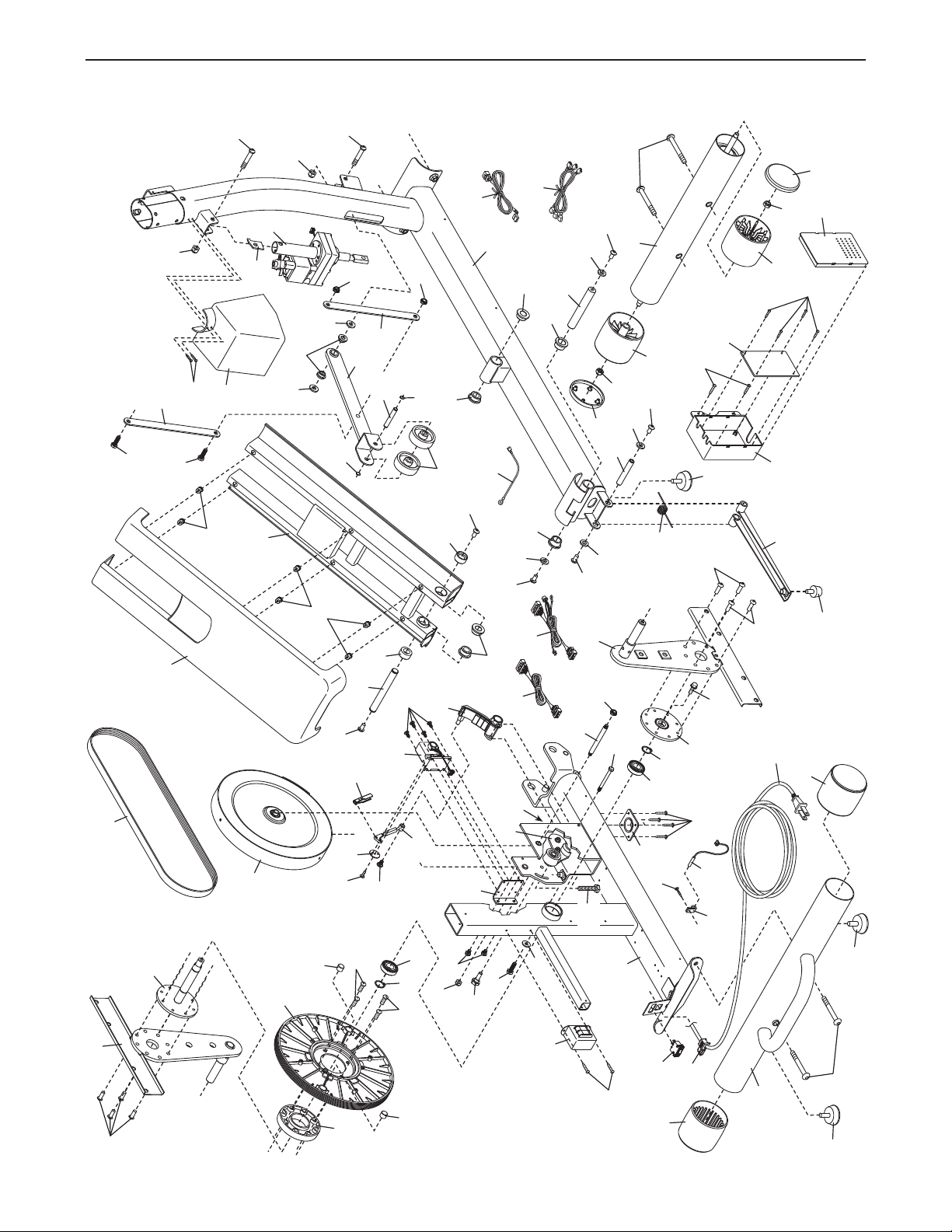

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning decal(s).
If a decal is missing or illegible, see the front cover of
this manual and request a
free replacement decal. Apply
the decal in the location
shown. Note: The decal(s) may
not be shown at actual size.
(inside the frame covers)
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the use
f this product.
o
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or
persons with pre-existing health problems.
2. Use the elliptical only as described in this
manual.
3. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
4. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
5. Keep the elliptical indoors, away from
moisture and dust. Do not put the elliptical
in a garage or covered patio, or near water.
6. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front
and rear of the elliptical and 2 ft. (0.6 m) on
each side. To protect the floor or carpet from
damage, place a mat under the elliptical.
9. The elliptical should not be used by persons
weighing more than 325 lbs. (147 kg).
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
11. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
12. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in
determining heart rate trends in general.
13. The elliptical does not have a freewheel; the
pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
14. Keep your back straight while using the
elliptical; do not arch your back.
7. Inspect and properly tighten all parts
regularly. Replace any worn parts
immediately.
8. Keep children under age 12 and pets away
from the elliptical at all times.
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
3
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM
90 CSE elliptical. The 990 CSE elliptical provides an
9
impressive selection of features designed to make
your workouts at home more effective and enjoyable.
®
manual. To help us assist you, note the product model
umber and serial number before contacting us. The
n
model number and the location of the serial number
decal are shown on the front cover of this manual.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
Ramp Controls
Pulse Sensor
Fan
Water Bottle Holder*
Pedal
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Resistance
Controls
Console
Upper Body Arm
Ramp
Access Cover
Pedal Disc
Power
Switch
Handle
Leveling Foot
Wheel
Pedal Arm Latch
Latch Button
Power Cord
*Water bottle is not included
4

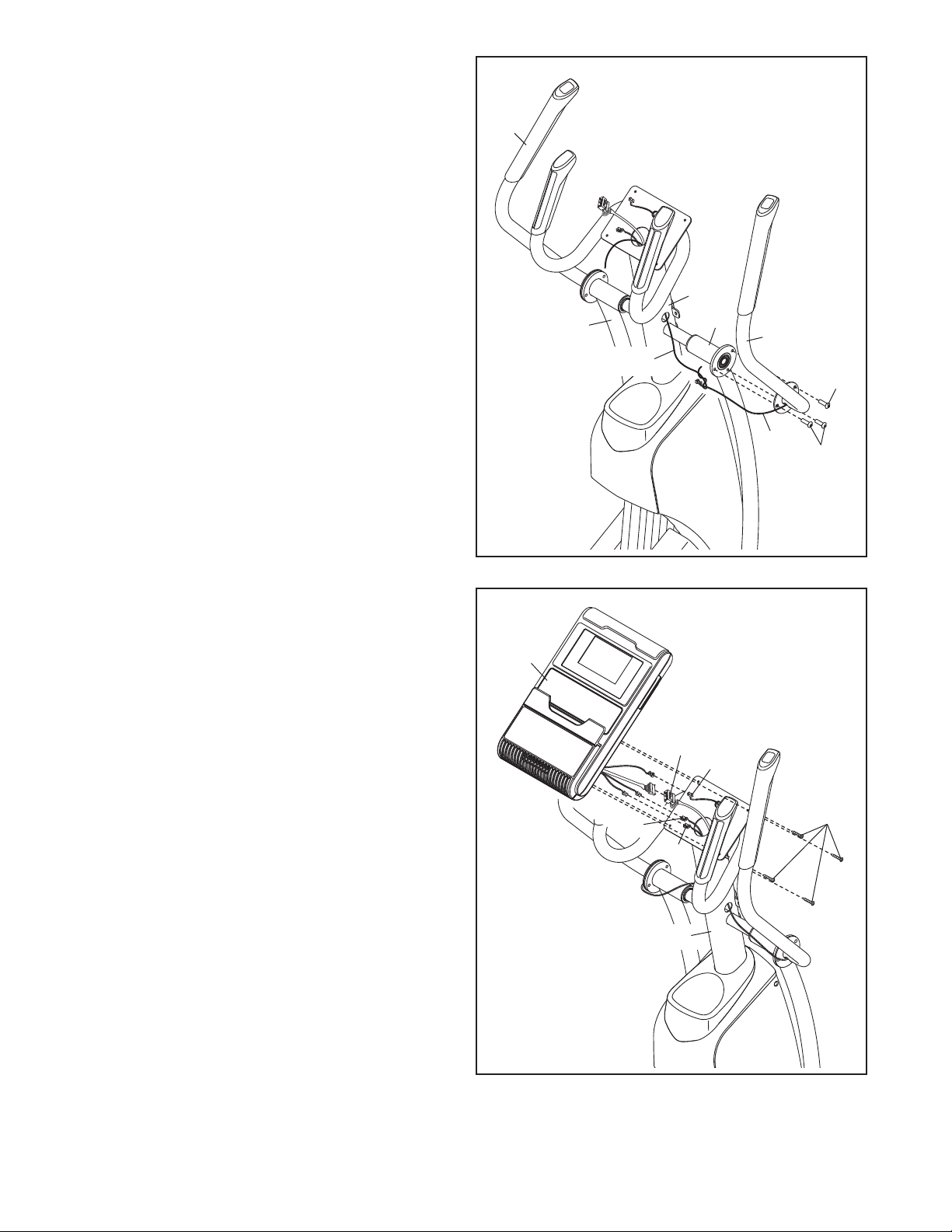

ASSEMBLY
M8 Split
Washer (103)–4
M8 Washer
(95)–8
M6 Washer
(112)–8
M4 x 16mm
Screw (106)–8
M8 x 16mm Patch
Screw (102)–16
M8 x 25mm Patch
Screw (121)–2
M6 x 50mm
Patch Screw (62)–4
M10 x 95mm Patch Screw (100)–4
Wave Washer
(118)–2
M6 x 12mm Patch
Screw (111)–4
To hire an authorized service technician to assemble the elliptical, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable
wrench , and a rubber mallet .
See the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if
it has been preassembled. To avoid damaging parts, do not use power tools for assembly.
5
1.
o make assembly easier, read the
T
information on page 5 before you begin.
ave a second person hold the Folding Frame
H
(2) to prevent the elliptical from tipping until this
step is completed.
Attach the Rear Stabilizer (4) to the Folding
Frame (2) with two M10 x 95mm Patch Screws
(100).
Next, hold the handle on the Rear Stabilizer (4),
press the Latch Button (67), and unfold the
elliptical so that the Rear Stabilizer is resting on
the floor.
1
100
Handle
4
2
2. Orient the Front Stabilizer (3) so that the small
welded tubes are facing away from the Main
Frame (1).
Attach the Front Stabilizer (3) to the Main Frame
(1) with two M10 x 95mm Patch Screws (100).
67
2
Welded
Tubes
100
3
1
6
3. Orient the Upright (5) and the Top Cover (27) as
shown, and slide the Top Cover upward onto
the Upright.
ave a second person hold the Upright (5) and
H
the Top Cover (27) near the Main Frame (1).
3
Wire Tie
Locate the wire tie in the Upright (5). Tie the
ower end of the wire tie to the Wire Harness
l
(60). Next, pull the upper end of the wire tie
until the Wire Harness is routed through the
Upright.
Tip: To prevent the Wire Harness (60) from
falling into the Upright (5), secure the Wire
Harness with the wire tie.
Tip: Avoid pinching the Wire Harness (60).
Slide the Upright (5) onto the Main Frame (1).
Attach the Upright (5) with four M8 x 16mm
Patch Screws (102) and four M8 Split Washers
(103); do not tighten the Patch Screws yet.
Slide the Top Cover (27) downward; do not
press the Top Cover onto the Frame Covers
(21, 22) yet.
102
103
102
27
22
Avoid pinching the
ire Harness (60)
W
5
102
103
Wire Tie
60
1
21
4. Apply a generous amount of the included
grease to the Upright Axle (48) and to two
Wave Washers (118).
Tip: Avoid damaging the Wire Harness (60).
Insert the Upright Axle (48) through the Upright
(5) and center it. Slide a Wave Washer (118)
onto each side of the Upright Axle.
Next, identify the Right and Left Upper Body
Legs (6, 7), which are marked with “Right” and
“Left” stickers, and orient them as shown.
Slide the Right and Left Upper Body Legs (6, 7)
onto the right and left sides of the Upright Axle
(48).
Tighten an M8 x 16mm Patch Screw (102) and
an M8 Washer (95) into each end of the Upright
Axle (48).
4
102
95
60
118
7
5
Avoid damaging the
Wire Harness (60)
Grease
48
118
6
95
102
7
5. Identify the Right Pedal (14), the Right Gel Pad
(55), and the Right Pedal Arm (12), which are
marked with “Right” stickers, and orient them as
shown.
Set the Right Gel Pad (55) on the Right Pedal
Arm (12). Then, set the Right Pedal (14) on the
Right Gel Pad.
Attach the Right Pedal (14) to the Right Pedal
Arm (12) with two M6 x 50mm Patch Screws
(62), two M6 x 12mm Patch Screws (111), and
four M6 Washers (112).
Attach the Left Pedal (not shown) and the
Left Gel Pad (not shown) to the Left Pedal
Arm (not shown) in the same way.
5
14
5
5
12
112
112
111
111
62
62
6. See drawing 6a. Locate the Pedal Arm Roller
(32) on the Right Pedal Arm (12). Set the Pedal
Arm Roller on the Ramp (130).
See drawing 6b. Apply grease to the axle on
the right Crank Arm (39).
Orient a Pedal Arm Sleeve (46) so that the flat
side is facing the elliptical. Slide the Pedal Arm
Sleeve onto the axle on the right Crank Arm
(39). Attach the Pedal Arm Sleeve with an M8 x
25mm Patch Screw (121), a Large Axle Cover
(113), and an M8 Washer (95).
Next, pull upward on the Latch (50) on the Right
Pedal Arm (12). Press the Right Pedal Arm onto
the Pedal Arm Sleeve (46). Make sure that the
Right Pedal Arm latches into place.
Repeat this step on the other side of the
elliptical.
6a
130
32
12
6b
12
Grease
50
39
46
Flat
Side
95
113
121
8
7. Press the Ramp Cover (131) downward onto
the Ramp (130).
7
131
130
8. Identify the Right Link Arm (43), which is
marked with an “R” sticker. Orient the Right Link
Arm as shown.
Apply grease to the axle on the Right Pedal
Arm (12). Slide the Right Link Arm (43) onto the
axle.
Attach the Right Link Arm (43) with an M8 x
16mm Patch Screw (102), a Small Axle Cover
(56), and an M8 Washer (95).
Next, apply grease to a Link Arm Axle (114).
Insert the Link Arm Axle into the Right Upper
Body Leg (6) and the Right Link Arm (43) from
the side shown.
Insert a hex key into the M8 x 16mm Patch
Screw (102) in the Link Arm Axle (114). Using a
second hex key, tighten another M8 x 16mm
Patch Screw (102), a Small Axle Cover (56),
and an M8 Washer (95) into the other end of
the Link Arm Axle.
Repeat this step on the other side of the
elliptical.
8
Grease
114
102
Grease
43
6
Narrow
Tube
95
56
102
12
Wide
Tube
95
56
102
9
