ProForm PFEL899090 User Manual

www.proform.com

Model No. PFEL89909.0
Serial No.

Write the serial number in the
space above for reference.

Serial Number

Decal

QUESTIONS?

If you have questions, or if parts are
damaged or missing, DO NOT

CONTACT THE STORE; please
contact Customer Care.

USERʼS MANUAL

IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri., 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT

ON THE WEB:
www.proformservice.com

CAUTION

Read all precautions and instruc­tions in this manual before using
this equipment. Keep this manual
for future reference.

TABLE OF CONTENTS

!

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

EFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

B

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

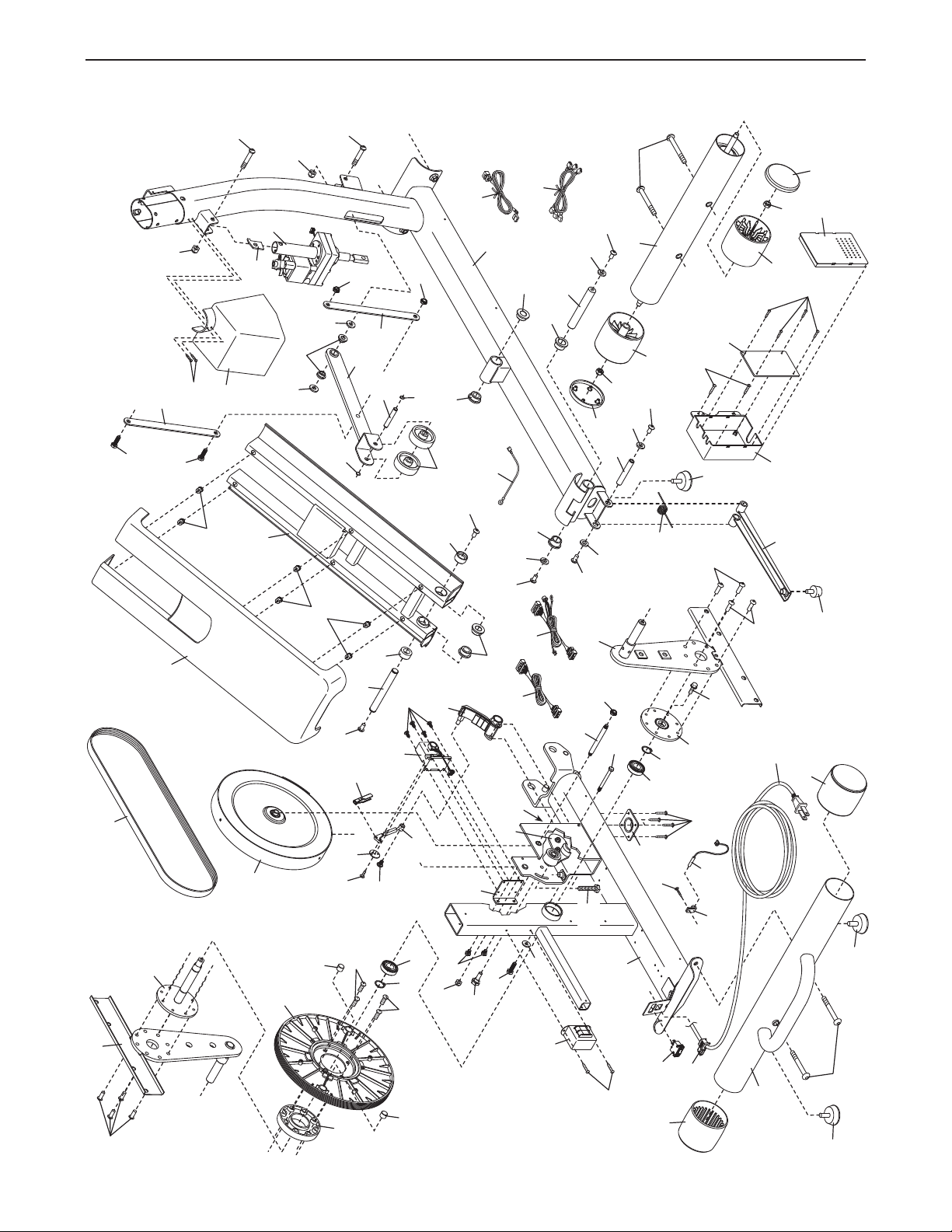

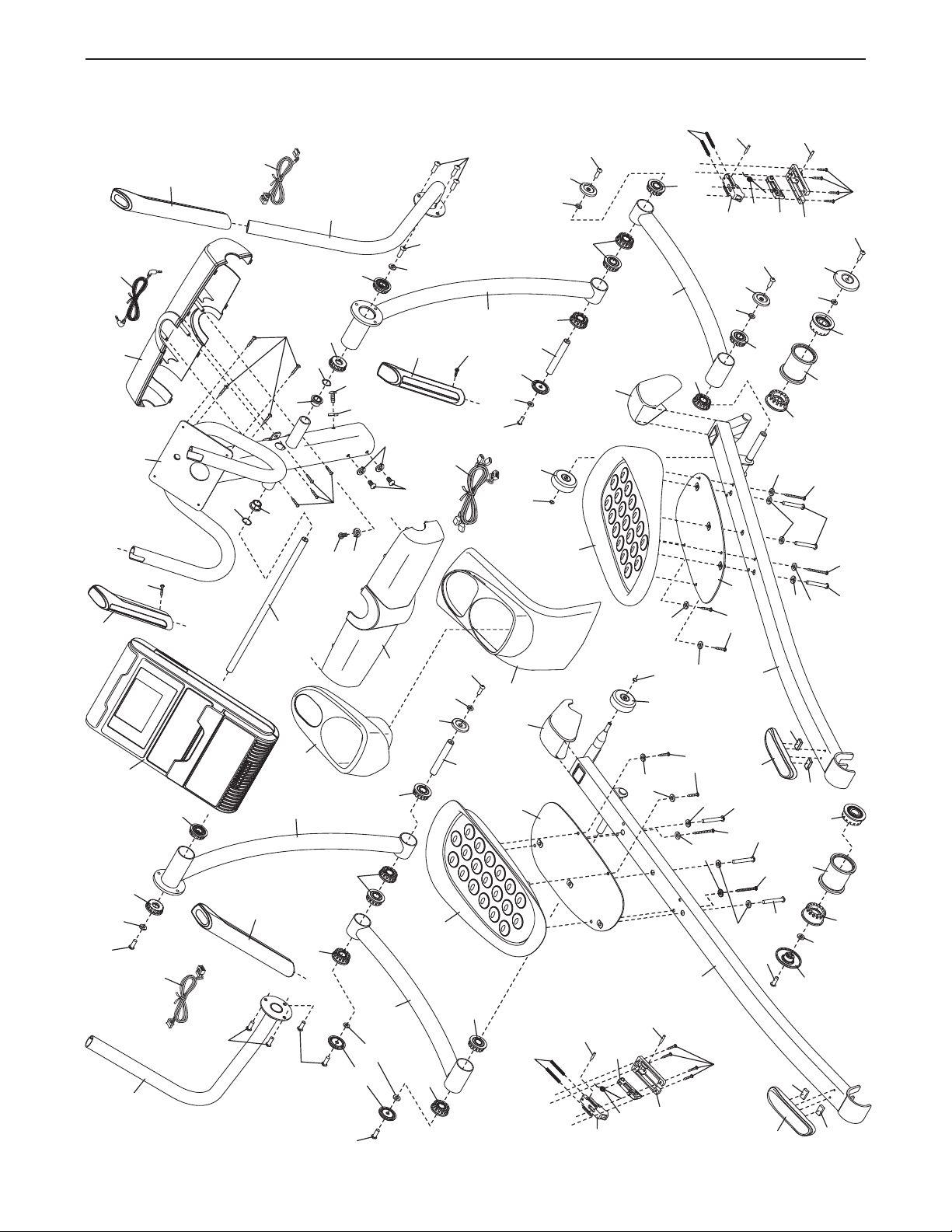

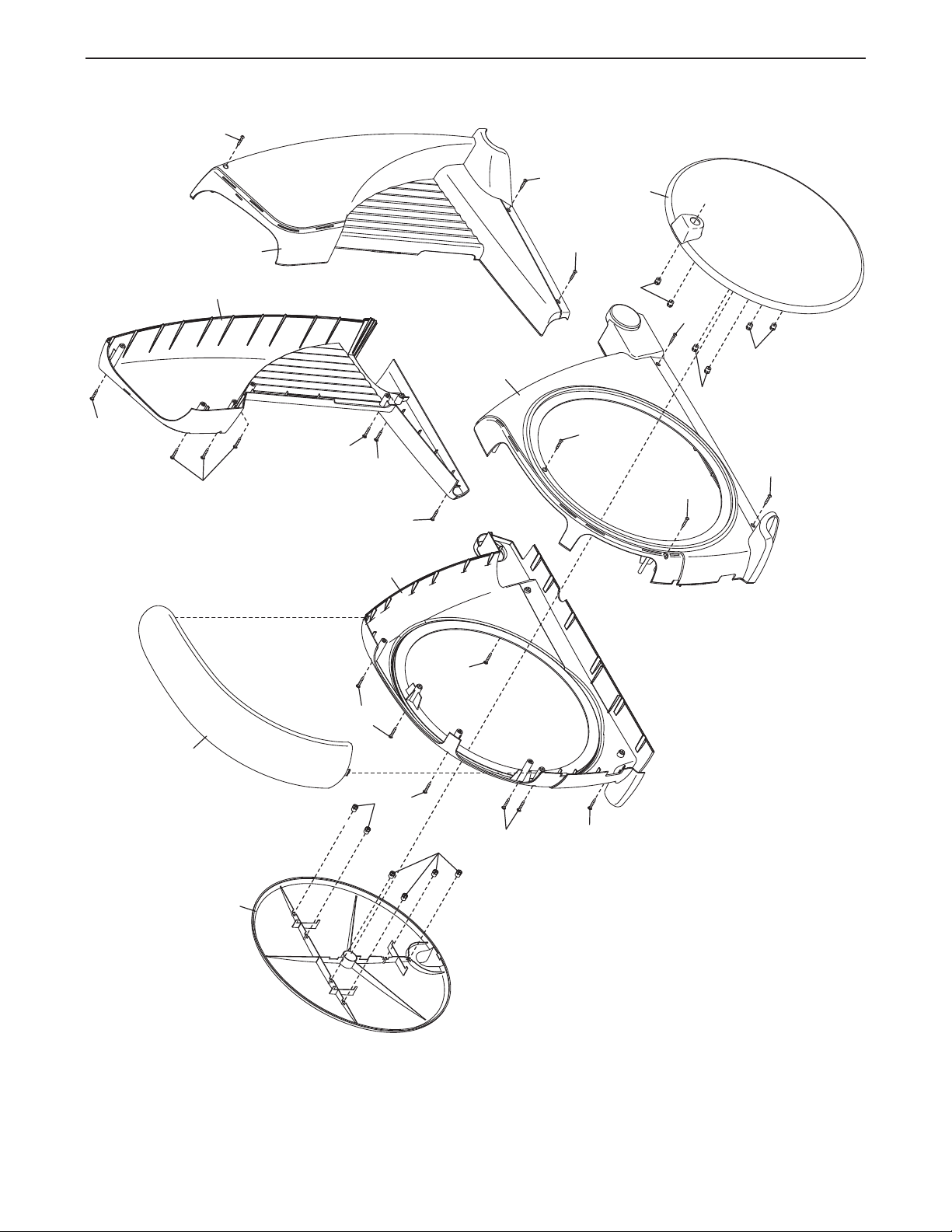

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

WARNING DECAL PLACEMENT

This drawing shows the loca­tion(s) of the warning decal(s).

If a decal is missing or illegi­ble, see the front cover of
this manual and request a
free replacement decal. Apply
the decal in the location
shown. Note: The decal(s) may

not be shown at actual size.

(inside the frame covers)

PROFORM is a registered trademark of ICON IP, Inc.

2

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the use

f this product.

o

1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or
persons with pre-existing health problems.

2. Use the elliptical only as described in this
manual.

3. It is the responsibility of the owner to ensure

that all users of the elliptical are adequately
informed of all precautions.

4. The elliptical is intended for home use only.

Do not use the elliptical in a commercial,
rental, or institutional setting.

5. Keep the elliptical indoors, away from

moisture and dust. Place the elliptical on a
level surface, with a mat beneath it to protect
the floor or carpet. Make sure that there is at
least 3 ft. (0.9 m) of clearance in the front
and rear of your elliptical and 2 ft. (0.6 m) on
each side.

6. Inspect and properly tighten all parts

regularly. Replace any worn parts
immediately.

7. Keep children under age 12 and pets away

from the elliptical at all times.

8. The elliptical should not be used by persons
weighing more than 325 lbs. (147 kg).

9. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.

10. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.

11. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in
determining heart rate trends in general.

12. The elliptical does not have a freewheel; the
pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.

13. Keep your back straight while using the
elliptical; do not arch your back.

14. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.

3

BEFORE YOU BEGIN

Thank you for selecting the revolutionary PROFORM

90 CSE elliptical. The 990 CSE elliptical provides an

9
impressive selection of features designed to make
your workouts at home more effective and enjoyable.

®

manual. To help us assist you, note the product model

umber and serial number before contacting us. The

n
model number and the location of the serial number
decal are shown on the front cover of this manual.

For your benefit, read this manual carefully before
you use the elliptical. If you have questions after

reading this manual, please see the front cover of this

Ramp Controls

Pulse Sensor

Fan

Water Bottle Holder*

Pedal

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.

Resistance

Controls

Console

Upper Body Arm

Ramp

Access Cover

Pedal Disc

Power
Switch

Handle

Leveling Foot

Wheel

Pedal Arm Latch

Latch Button

Power Cord

*Water bottle is not included

4

ASSEMBLY

M8 Split

Washer (103)–4

M8 Washer

(95)–14

M6 Washer

(112)–4

M4 x 16mm

Screw (106)–8

M8 x 16mm Patch

Screw (102)–16

M8 x 25mm Patch

Screw (121)–2

M8 x 44mm Patch

Screw (55)–6

M6 x 50mm

Patch Screw (62)–4

M10 x 95mm Patch Screw (100)–4

Wave Washer

(118)–2

To hire an authorized service technician to assemble the elliptical, call 1-800-445-2480.

Assembly requires two persons. Place all parts of the elliptical in a cleared area and remove the packing

materials. Do not dispose of the packing materials until assembly is completed.

In addition to the included tool(s), assembly requires a Phillips screwdriver , an adjustable
wrench , and a rubber mallet .

As you assemble the elliptical, use the drawings below to identify small parts. The number in parentheses below
each drawing is the key number of the part, from the PART LIST near the end of this manual. The number fol­lowing the parentheses is the quantity needed for assembly. Note: If a part is not in the hardware kit, check

to see if it has been preassembled.

5

1.

o make assembly easier, read the

T
information on page 5 before you begin.

ave a second person hold the Folding Frame

H
(2) to prevent the elliptical from tipping until this
step is completed.

Attach the Rear Stabilizer (4) to the Folding
Frame (2) with two M10 x 95mm Patch Screws
(100).

Next, hold the handle on the Rear Stabilizer (4),
press the Latch Button (67), and unfold the
elliptical so that the Rear Stabilizer is resting on
the floor.

1

100

Handle

4

2

2. Orient the Front Stabilizer (3) so that the small
welded tubes are facing away from the Main
Frame (1).

Attach the Front Stabilizer (3) to the Main Frame
(1) with two M10 x 95mm Patch Screws (100).

67

2

Welded

Tubes

100

3

1

6

3. Orient the Upright (5) and the Top Cover (27) as
shown, and slide the Top Cover upward onto
the Upright.

ave a second person hold the Upright (5) and

H
the Top Cover (27) near the Main Frame (1).

3

Wire Tie

Locate the wire tie in the Upright (5). Tie the

ower end of the wire tie to the Wire Harness

l
(60). Next, pull the upper end of the wire tie
until the Wire Harness is routed through the
Upright. Then, untie and discard the wire tie.

Tip: To prevent the Wire Harness (60) from
falling into the Upright (5), secure the Wire
Harness with a rubber band or tape.

Tip: Avoid pinching the Wire Harness (60).

Slide the Upright (5) onto the Main Frame (1).

Attach the Upright (5) with four M8 x 16mm
Patch Screws (102) and four M8 Split Washers
(103); do not tighten the Patch Screws yet.

Slide the Top Cover (27) downward; do not

press the Top Cover onto the Frame Covers
(21, 22) yet.

102

103

102

27

22

Avoid pinching the

ire Harness (60)

W

5

102

103

Wire Tie

60

1

21

4. Apply a generous amount of the included
grease to the Upright Axle (48) and to two
Wave Washers (118).

Tip: Avoid damaging the Wire Harness (60).

Insert the Upright Axle (48) through the Upright
(5) and center it. Slide a Wave Washer (118)
onto each side of the Upright Axle.

Next, identify the Right and Left Upper Body
Legs (6, 7), which are marked with “Right” and
“Left” stickers, and orient them as shown.

Slide the Right and Left Upper Body Legs (6, 7)
onto the right and left sides of the Upright Axle
(48).

Tighten an M8 x 16mm Patch Screw (102) and
an M8 Washer (95) into each end of the Upright
Axle (48).

4

102

95

60

118

7

5

Avoid damaging the

Wire Harness (60)

Grease

48

118

6

95

102

7

5. Identify the Right Pedal (14) and the Right
Pedal Arm (12), which are marked with “Right”
stickers, and orient them as shown.

Attach the Right Pedal (14) to the Right Pedal
Arm (12) with three M8 x 44mm Patch Screws
(55) and three M8 Washers (95); do not

tighten the Patch Screws yet.

Next, tighten two M6 x 50mm Patch Screws
(62) and two M6 Washers (112) into the Right
Pedal Arm (12) and the Right Pedal (14). Then,

tighten the three M8 x 44mm Patch Screws
(55).

Attach the Left Pedal (not shown) to the Left
Pedal Arm (not shown) in the same way.

5

14

Do not use

these holes

12

95

95

112

55

62

6. See drawing 6a. Locate the Pedal Arm Roller
(32) on the Right Pedal Arm (12). Set the Pedal
Arm Roller on the Ramp (130).

See drawing 6b. Apply grease to the axle on
the right Crank Arm (39).

Orient a Pedal Arm Sleeve (46) so that the flat
side is facing the elliptical. Slide the Pedal Arm
Sleeve onto the axle on the right Crank Arm
(39). Attach the Pedal Arm Sleeve with an M8 x
25mm Patch Screw (121), a Large Axle Cover
(113), and an M8 Washer (95).

Next, pull upward on the Latch (50) on the Right
Pedal Arm (12). Press the Right Pedal Arm onto
the Pedal Arm Sleeve (46). Make sure that the

Right Pedal Arm latches into place.

Repeat this step on the other side of the
elliptical.

6a

130

32

12

6b

12

Grease

50

39

46

Flat

Side

95

113

121

8

7. Press the Ramp Cover (131) downward onto
the Ramp (130).

7

131

130

8. Identify the Right Link Arm (43), which is
marked with an “R” sticker. Orient the Right Link
Arm as shown.

Apply grease to the axle on the Right Pedal
Arm (12). Slide the Right Link Arm (43) onto the
axle.

Attach the Right Link Arm (43) with an M8 x
16mm Patch Screw (102), a Small Axle Cover
(56), and an M8 Washer (95).

Next, apply grease to a Link Arm Axle (114).
Insert the Link Arm Axle into the Right Upper
Body Leg (6) and the Right Link Arm (43) from
the side shown.

Insert a hex key into the M8 x 16mm Patch
Screw (102) in the Link Arm Axle (114). Using a
second hex key, tighten another M8 x 16mm
Patch Screw (102), a Small Axle Cover (56),
and an M8 Washer (95) into the other end of
the Link Arm Axle.

Repeat this step on the other side of the
elliptical.

8

Grease

114

102

Grease

43

6

Narrow

Tube

95

56

102

12

Wide
Tube

95

56

102

9
