ProForm PFEL8947.0 User Manual

CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Keep this manu­al for future reference.
Model No. PFEL8947.0 Serial No.
USER’S MANUAL
As a manufacturer, we are com­mitted to providing complete customer satisfaction. If you have questions, or if parts are damaged or missing, PLEASE CONTACT OUR CUSTOMER SERVICE DEPARTMENT DIRECTLY.
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB: www.proformservice.com
Serial Number Decal
(under frame)
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
2
PROFORM is a registered trademark of ICON IP, Inc.
3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precau-
tions before using the elliptical exerciser.
1. Read all instructions in this manual and all warnings on the elliptical exerciser before using the elliptical exerciser. Use the ellipti­cal exercise only as described in this manual.
2. It is the responsibility of the owner to ensure that all users of the elliptical exerciser are adequately informed of all precautions.
3. The elliptical exerciser is intended for home use only. Do not use the elliptical exerciser in a commercial, rental, or institu­tional setting.
4. Keep the elliptical exerciser indoors, away from moisture and dust. Place the elliptical exerciser on a level surface, with a mat beneath it to protect the floor or carpet. Make sure that there is enough clearance around the elliptical exerciser to mount, dis­mount, and use it.
5. Inspect and properly tighten all parts regu­larly. Replace any worn parts immediately.
6. Keep children under 12 and pets away from the elliptical exerciser at all times.
7. The elliptical exerciser should not be used by persons weighing more than 275 pounds.
8. Wear appropriate exercise clothes while using the elliptical exerciser. Always wear athletic shoes for foot protection while exer­cising.
9. Hold the handgrip pulse sensor or the han­dlebars when mounting, dismounting, or using the elliptical exerciser.
10. The pulse sensor is not a medical device. Various factors may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determin­ing heart rate trends in general.
11. Keep your back straight while using the ellip­tical exerciser; do not arch your back.
12. If you feel pain or dizziness while exercising, stop immediately and cool down.
13. When you stop exercising, allow the pedals to slowly come to a stop.
14. The decal shown below has been placed on the elliptical exerciser. If the decal is miss­ing or illegible, call the toll-free telephone number on the front cover of this manual and order a free replacement decal. Apply the decal in the location shown.
WARNING: Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health prob­lems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM
®
160 elliptical exerciser. The 160 elliptical exerciser provides a wide array of features designed to make your workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before you use the elliptical exerciser. If you have ques-
tions after reading this manual, please see the front cover of this manual. To help us assist you, note the product model number and serial number before con-
tacting us. The model number is PFEL8947.0. The serial number can be found on a decal attached to the elliptical exerciser (see the front cover of this manual).
To avoid a registration fee for any service needed under warranty, you must register the elliptical exerciser at www.proformservice.com/registration.
Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.
Handgrip Pulse Sensor
Handlebar
Wheel
Pedal
Console
Water Bottle Holder*
Accessory Tray
Leveling Foot
Leveling Foot
Fan
*No water bottle is included
ASSEMBLY
To hire an authorized service technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the included hex keys, assembly requires a Phillips screwdriver , an adjustable wrench , and a rubber mallet .
As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses below each drawing is the key number of the part, from the PART LIST on pages 24 and 25. The number follow­ing the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-assem-
bled. If a part is not in the parts bag, check to see if it has been pre-assembled.
5
Star Washer
(100)–3
M10 x 20mm x
1mm Washer
(81)–2
M4 x 16mm Self-tapping
Screw (79)–10
M8 x 16mm Button
Screw (95)–3
M4 x 13mm
Washer (93)–2
M10 x 20mm x
1.5mm Washer (84)–2
M4 x 16mm
Screw (86)–4
M6 Split
Washer (88)–8
M10 x 20mm x
2mm Washer
(92)–4
M8 x 48mm Button
Screw (78)–2
M8 Split
Washer (72)–2
M10 x 25mm
Washer (94)–4
M6 x 35mm Phillips
Screw (87)–8
M10 x 20mm Button
M10 Spacer
M8 Nylon
Locknut (96)–4
Screw (91)–4
(76)–2
Wave Washer
(98)–8
M10 Nylon
Locknut (97)–2
M8 x 42mm Bolt
(71)–4
M10 x 23mm Shoulder
Screw (80)–8
M10 x 62mm Bolt (89)–4 M10 x 78mm Button Screw (90)–2
6
1.
Orient the the Front Stabilizer (35) as shown. Attach the two Wheels (25) to the Front Stabilizer with two M10 x 62mm Bolts (89) and two M10 Nylon Locknuts (97).
Attach two Feet (26) to the underside of the Front Stabilizer (35).
2. Have a second person tip the Frame (2) back­ward. Attach the Front Stabilizer (35) to the Frame with two M10 x 78mm Button Screws (90).
97
26
26
1
2
2
89
89
25
25
35
90
35
3. Orient the Base (1) near the Frame (2) as shown. See the inset drawing. Attach two Feet (26) to the underside of the Base.
Have a second person tip the Frame (2) forward. Insert the Base (1) into the Frame. Attach the Base with two M10 x 62mm Bolts (89), two M10 Spacers (76), two M8 x 48mm Button Screws (78), and two M8 Split Washers (72).
2
89
1
72
78
3
1
76
26
26
To make assembly easier, read the infor­mation on page 5 before you begin assem­bling the elliptical exerciser.
7
4. Have a second person hold the Upright (6) near the Frame (2) as shown.
Pull the Wire Harness (48) out of the Frame (2) and insert it upward through the Upright (6). Do not let the Wire Harness fall into the Upright; use a piece of tape or an elastic band to hold the Wire Harness in place until step 12.
Insert the Upright (6) into the Frame (2). Attach the Upright with three M8 x 16mm Button Screws (95) and three Star Washers (100). Avoid pinch-
ing the Wire Harness (48) between the Upright and the Frame.
6
4
95
95
100
2
95
100
5. Orient the Left Roller Leg (12), which is marked with a “Left” sticker, near the left Crank Arm (36) as shown.
Apply a small amount of the included grease to both sides of a Wave Washer (98). Slide the Wave Washer onto the end of the left Crank Arm (36). Next, slide the Left Roller Leg (12) onto the Crank Arm and set the Roller (22) on the Base (1). Attach the Left Roller Leg with an M10 x 23mm Shoulder Screw (80), an M10 x 20mm x
1.5mm Washer (84), and a Crank Axle Cap (30).
Repeat this step to attach the Right Roller Leg (21) to the right Crank Arm (not shown).
5
36
1
84
30
98
22
80
12
21
6. Identify the Left Handlebar (8), which is marked with a “Left” sticker. Insert the Left Handlebar into one of the Handlebar Legs (11) as shown.
Attach the Left Handlebar (8) with two M8 x 42mm Bolts (71) and two M8 Nylon Locknuts (96). Make sure that the Nylon Locknuts are
inside the hexagonal holes.
Assemble the Right Handlebar (not shown) and the other Handlebar Leg (not shown) in the same way.
11
71
Grease
8
96
6
48
Hexagonal
Hole
Hexagonal
Hole
8
7. Position an Inner Handlebar Cover (18) and an Outer Handlebar Cover (19) around the Left Handlebar (8) as shown.
Attach the Inner and Outer Handlebar Covers (18, 19) with three M4 x 16mm Self-tapping Screws (79) and an M4 x 13mm Washer (93).
Start all three Self-tapping Screws before tightening them.
Repeat this step for the Right Handlebar (not shown).
7
8. Apply a generous amount of grease to the Pivot
Axle (65) and insert it into the Frame (2).
Attach the two Frame Covers (17) to the Frame (2) with four M4 x 16mm Screws (86) as shown.
8
86
86
65
17
17
2
19
18
79
79
8
93
Grease
9
9. Apply a small amount of grease to both sides of
a Wave Washer (98). Slide the Wave Washer onto the left side of the Pivot Axle (65). Next, slide the Left Handlebar (8) onto the Pivot Axle as shown.
Attach the Left Handlebar (8) with an M10 x 23mm Shoulder Screw (80) and an M10 x 20mm x 1mm Washer (81).
Repeat this step to attach the Right Handlebar (9) to the Pivot Axle (65).
10. Identify the Left Pedal (13) and the Left Pedal
Leg (14), which are marked with “Left” stickers, and orient them as shown.
Attach the Left Pedal (13) to the Left Pedal Leg (14) with four M6 x 35mm Phillips Screws (87) and four M6 Split Washers (88). Start all four
Phillips Screws before tightening them.
Repeat this step to attach the Right Pedal (not shown) to the Right Pedal Leg (not shown).
9
10
98
9
81
8
80
65
88
88
13
14
87
87
Grease
10

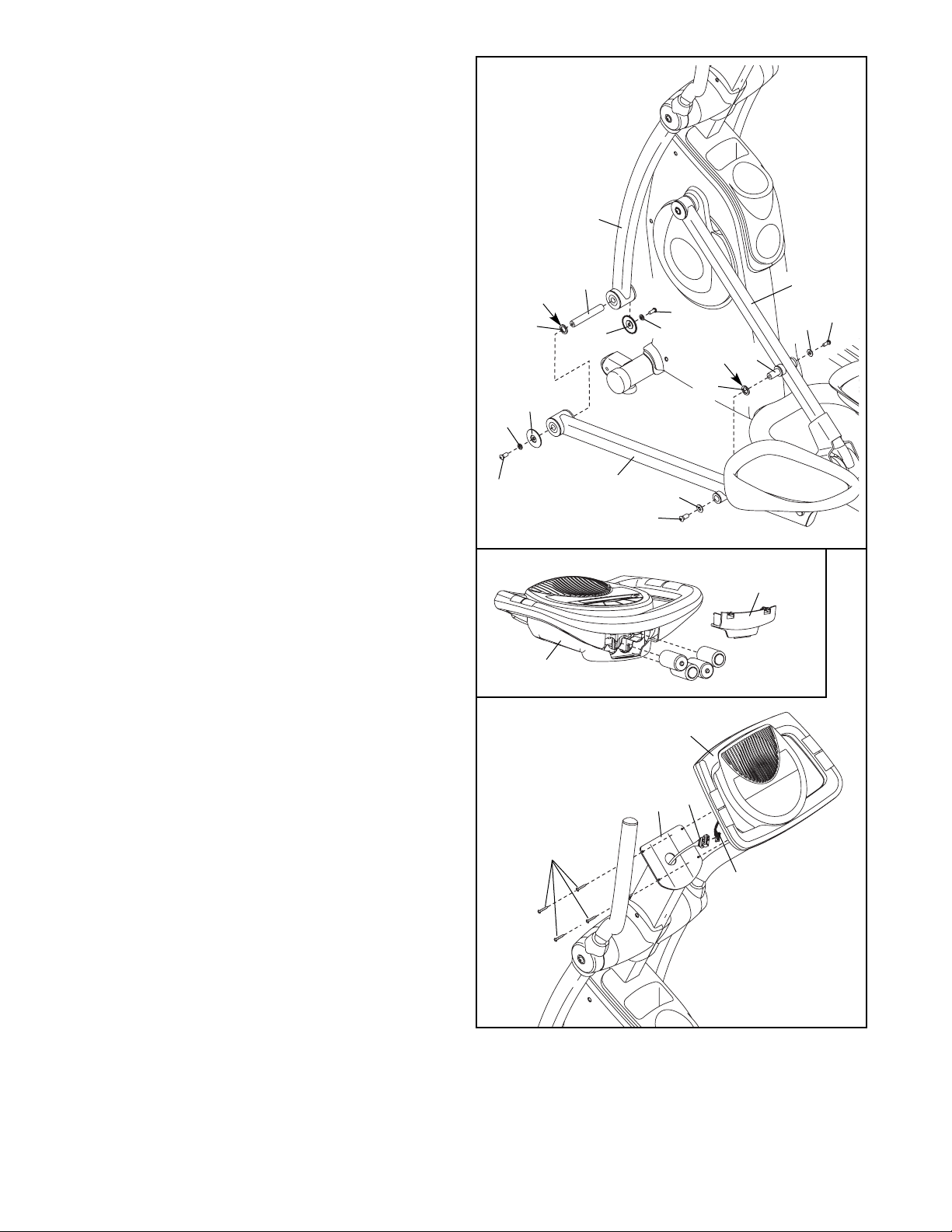

11. Apply a generous amount of grease to two Pedal
Leg Axles (32). Insert one Pedal Leg Axle into the bottom of the Left Handlebar Leg (11). Insert the other Pedal Leg Axle into the left Roller Leg (21).
Apply a small amount of grease to both sides of two Wave Washers (98). Place a Wave Washer on each Pedal Leg Axle (32).
Orient the Left Pedal Leg (14) as shown, and slide it onto the Pedal Leg Axles (32). Attach the Left Pedal Leg to the Left Handlebar Leg (11) with two M10 x 23mm Shoulder Screws (80), two M10 x 20mm x 2mm Washers (92), and two Axle Caps (31).
Attach the Left Pedal Leg (14) to the left Roller Leg (21) with two M10 x 20mm Button Screws (91) and two M10 x 25mm Washers (94); do not overtighten the Button Screws. The Legs (11, 14, 21) must be able to pivot freely.
Repeat this step for the Right Pedal Leg (not shown).
12. The Console (5) requires four 1.5V “D” batteries
(not included); alkaline batteries are recommended. See the inset drawing. Remove the battery cover from the Console and insert four batteries into the Console. Make sure that the batteries are oriented as shown by the dia­gram in the battery compartment. Then, reattach the battery cover.
Have a second person hold the Console (5) near the Upright (6) as shown. Connect the console wire to the Wire Harness (48). Insert the excess wire downward into the Upright.
Attach the Console (5) to the Upright (6) with four M4 x 16mm Self-tapping Screws (79).
13. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the elliptical exerciser.
92
91
14
94
80
31
32
31
11
80
21
94
91
12
5
5
Battery Cover
Console
Wire
48
6
79
92
32
11
Grease
98
Grease
98
11
HOW TO USE THE ELLIPTICAL EXERCISER
HOW TO MOVE THE ELLIPTICAL EXERCISER
Due to the size and weight of the elliptical exercis­er, moving it requires two persons. Stand in front of
the elliptical exerciser, hold the upright, and place one foot against one of the front wheels. Pull on the upright and have a second person lift the base until the ellipti­cal exerciser will roll on the front wheels. Carefully move the elliptical exerciser to the desired location, and then lower it to the floor.
HOW TO LEVEL THE ELLIPTICAL EXERCISER
If the elliptical exerciser rocks slightly on your floor during use, turn one or both of the lev­eling feet beneath the base or beneath the front stabilizer until the rocking motion is eliminated.
HOW TO EXERCISE ON THE ELLIPTICAL EXERCISER
To mount the elliptical exerciser, hold the handlebars and step onto the pedal that is in the lower position. Then, step onto the other pedal. Push the pedals until they begin to move with a continuous motion. Note:
The crank arm covers can turn in either direction. It is recommended that you turn the crank arm covers in the direction shown by the arrow below; however, for variety, you can turn the crank arm covers in the opposite direction.
To dismount the elliptical exerciser, wait until the ped­als come to a complete stop. Note: The elliptical
exerciser does not have a free wheel; the pedals will continue to move until the flywheel stops.
When the pedals are stationary, step off the higher pedal first. Then, step off the lower pedal.
Place
your foot
here
Pull on upright
Leveling
Feet
Lift here
Pedals
Crank Arm
Cover
Handlebars
12
FEATURES OF THE CONSOLE
The advanced console offers an array of features designed to make your workouts more effective and enjoyable.
When you select the manual mode of the console, you can change the resistance of the pedals with the touch of a button. As you exercise, the console will display continuous exercise feedback. You can even measure your heart rate using the handgrip pulse sensor.
The console also features five interactive cross train­ing programs designed to help you to burn calories and enhance your cardiovascular system while toning and strengthening your muscles. The cross training programs automatically control the resistance of the pedals and prompt you to perform a variety of strength exercises during your workout. Choose an upper body, lower body, or whole body cross training program to focus your workout. Note: The strength exercises require the use of dumbbells and an inflatable exercise ball (not included). To purchase dumbbells or an
exercise ball, call toll-free 1-888-533-1333.
You can also use four calorie goal programs designed to help you burn 300 or 400 calories in 25, 30, or 45­minute workouts. The calorie goal programs automati­cally control the resistance of the pedals and prompt you to increase or decrease your pace while counting the calories you burn.
The console also offers a high performance program and a heart rate control program. The high performance program automatically changes the resistance of the pedals and prompts you to increase or decrease your pace as it guides you through an effective workout. The heart rate control program changes the resistance of the pedals and prompts you maintain a steady pace to keep your heart rate near a target heart rate while you exercise.
To use the manual mode of the console, follow the steps beginning on page 13. To use a cross training
program, see page 15. To use a calorie goal pro- gram, see page 17. To use the high performance program, see page 18. To use the heart rate control program, see page 19.
Note: If there is a sheet of clear plastic on the face of the console, remove the plastic.
13
HOW TO USE THE MANUAL MODE
Press the Resistance decrease button or begin pedaling to turn on the console.
A moment after you turn on the console, the dis­play will light.
Select the manual mode.
Each time you turn on the console, the manual mode will be selected automatically. If you have selected a program, reselect the manual mode by pressing the Programs button repeatedly until the words MANUAL MODE appear in the top of the display.
Begin pedaling and change the resistance of the pedals as desired.
As you pedal, change the resistance of the ped­als by pressing the Resistance increase and decrease buttons repeatedly. There are ten resis­tance levels. Note: After you press the buttons, it will take a moment for the pedals to reach the selected resistance level.
Follow your progress with the display.

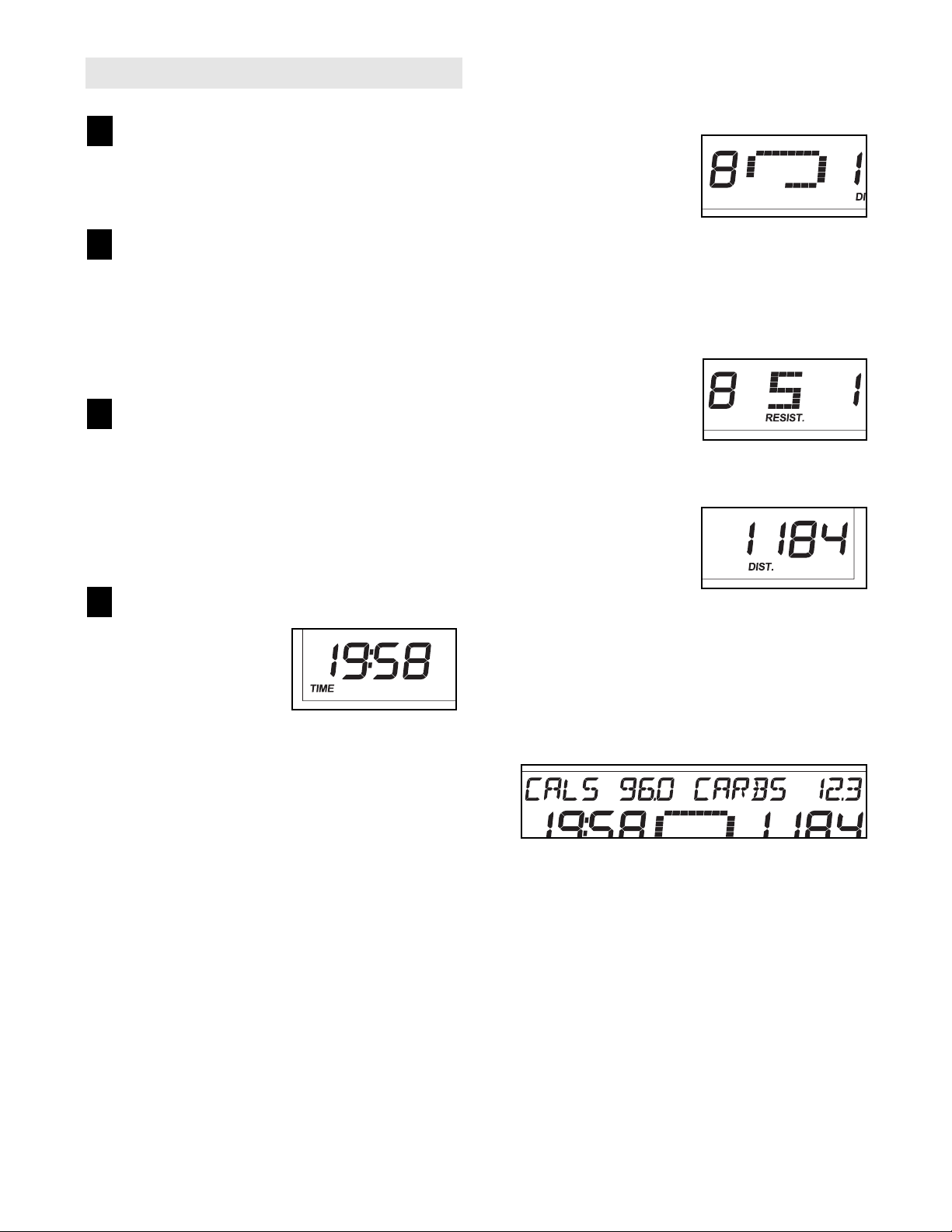

The left side of the display—The left
side of the display will show the elapsed time. Note: When a program is selected, the display will show the time remaining in the program instead of the elapsed time. An exception is the heart rate control program, which shows the elapsed time.
The left side of the display will also show your heart rate when you use the handgrip pulse sen­sor (see step 5 on page 14).
When a program is selected, the left side of the display will also show the approximate number of calories you have burned.
The center of the display—When you
select the manual mode, the center of the display will show a track that represents 640 revolutions. As you exercise, indicators will appear in succession around the track until the entire track appears. The track will then disappear and the indicators will again begin to appear in succession.
The center of the dis­play will also show the resistance setting of the pedals for a few seconds each time the resistance setting changes.
The right side of the display—The right
side of the display will show the distance (total revolutions) you have pedaled and your pedaling pace, (revolutions per minute [rpm]).
The top of the display—When you select the manual mode, the top of the display will show the approximate number of calories you have burned and the approximate number of grams of carbs you have burned.
4
3
2
1
14
Measure your heart rate if desired.
If there are sheets of clear plastic on the metal contacts on the handgrip pulse sensor, remove the plastic.
To measure your heart rate, hold the handgrip pulse sen­sor with your palms resting against the metal contacts. Avoid moving
your hands or gripping the contacts too tightly.
When your pulse is detected, a heart­shaped symbol will flash in the left side of the display each time your heart beats, one or two dashes will appear, and then your heart rate will be shown. For the most accu­rate heart rate reading, hold the contacts for at least 15 seconds. Note: If you continue to hold the handgrip pulse sensor, the display will show your heart rate for up to 30 seconds.
If your heart rate is not shown, make sure that your hands are positioned as described. Be care­ful not to move your hands excessively or to squeeze the metal contacts too tightly. For opti­mal performance, clean the metal contacts using a soft cloth; never use alcohol, abrasives, or
chemicals to clean the contacts.
Change the display color if desired.
Press the Display Color button repeatedly to select a backlight color for the display.
Turn on the fan if desired.
To turn on the fan at high speed, press the Fan button. To turn on the fan at low speed, press the button a second time. To turn off the fan, press the button a third time. Note: If the pedals do not move for a few minutes, the fan will automatically turn off to conserve the batteries.
Pivot the thumb tab on the right side of the fan to adjust the fan angle.
When you are finished exercising, the console will turn off automatically.
If the pedals do not move for several seconds, a tone will sound and the console will pause.
If the pedals do not move for about five minutes and the buttons are not pressed, the console will turn off and the display will be reset.
8
7
65
Thumb
Ta b
Metal Contacts
15
HOW TO USE A CROSS TRAINING PROGRAM
Press the Resistance decrease button or begin pedaling to turn on the console.
A moment after you turn on the console, the dis­play will light.
Select one of the five cross training programs.
To select a cross training program, press the Programs button repeatedly until the name of the desired cross training program appears in the dis­play. When a cross training program is selected, the program time will appear in the display and a profile of the resistance settings for the program will scroll across the matrix in the display.
Begin pedaling to start the program.
Each program is divided into 25, 30, or 45 one­minute segments. One resistance setting and one target rpm (revolutions per minute) setting are programmed for most segments. (Note: The same resistance and/or target rpm setting may be pro­grammed for two or more consecutive segments.) During other segments, the console will prompt you to perform strength exercises.
The resistance setting for the first segment will be shown in the flashing Current Segment column of the matrix. The resis­tance settings for the next several segments will be shown in the columns to the right. The target rpm setting will appear in the top of the display.
When only three seconds remain in the first seg­ment of the program, both the Current Segment column and the column to the right will flash and a series of tones will sound. If the resistance and/or target rpm is about to change, the resis­tance setting and/or the target rpm setting will appear in the display to alert you.
When the first segment is completed,
all resis-
tance settings will move one column to the left
. The resistance setting for the second segment will then be shown in the flashing Current Segment column and the resistance of the pedals will automatically adjust to the setting for the sec­ond segment. Note: If all the indicators in the Current Segment column are lit,
the resistance
settings may move downward
so that only the
highest indicators appear in the matrix.
As you exercise, you will be prompted to keep your pedaling pace near the target rpm setting for the current segment. When the words PEDAL FASTER appear in the display, increase your pace. When the words PEDAL SLOWER appear in the display, decrease your pace. When the words PEDALING IN RANGE appear, maintain your current pace.
Important: The target rpm settings are intend­ed only to provide motivation. Your actual pace may be slower than the target rpm set­tings. Make sure to exercise at a pace that is comfortable for you.
If the resistance setting for the current segment is too high or too low, you can manually override the setting by pressing the Resistance decrease or increase buttons. Every few times you press a Resistance button, an additional indicator will appear or disappear in the Current Segment col­umn; if any of the columns to the right of the Current Segment column have the same number of lit indicators as the Current Segment column, an additional indicator may appear or disappear in those columns as well. Important: When the
current segment of the program ends, the ellip­tical exerciser will automatically adjust to the resistance setting for the next segment.
To stop the program at any time, stop pedaling. The time will begin to flash in the display. To restart the program, simply resume pedaling.
3
2
1
Current Segment
16
Perform the first strength exercise when prompted.
When the first strength exercise segment begins, the name of the first strength exercise will appear in the display for a few seconds. The time will pause and flash in the display. Next, the display will show the recommended number of repetitions for the first strength exer­cise.
Step off the ellipti­cal exerciser and prepare to begin the first strength exercise. Every few seconds, the con­sole will sound a tone; when a tone sounds, perform one repetition of the exercise. Exercise with a slow, steady motion; do not perform more than one repetition each time a tone sounds. The display will count down the repetitions as you perform them.
Note: Refer to the accompanying exercise chart to see the correct form for each exercise. When performing lunges, alternate legs with each repe­tition. When performing dumbbell rows, perform half the repetitions with your right arm and half the repetitions with your left arm. The strength exercises require the use of dumbbells and an inflatable exercise ball (not included). To pur-
chase dumbbells or an exercise ball, call toll­free 1-888-533-1333.
Continue the cross training program.
When you have performed the recommended number of repetitions, the words START PEDAL­ING will appear in the display. To continue the cross training program, step onto the elliptical exerciser and start pedaling. the pedals will auto­matically adjust to the resistance setting for the next segment.
The program will continue in this way until the last segment ends. Then, the words PROGRAM DONE will appear in the display.
Follow your progress with the display.
See step 4 on page 13.
Measure your heart rate if desired.
See step 5 on page 14.
Change the display color if desired.
See step 6 on page 14.
Turn on the fan if desired.
See step 7 on page 14.
When you are finished exercising, the con­sole will turn off automatically.
See step 8 on page 14.
10
9
8
7
6
54
17
HOW TO USE A CALORIE GOAL PROGRAM
Press the Resistance decrease button or begin pedaling to turn on the console.
A moment after you turn on the console, the dis­play will light.
Select one of the calorie goal programs.
Press the Programs button repeatedly until the name of the desired calorie goal program appears in the display. When a calorie goal pro­gram is selected, the program time will appear in the display and a profile of the resistance settings for the program will scroll across the matrix in the display.
Begin pedaling to start the program.
Each program is divided into 25, 30, or 45 one­minute segments. One resistance setting and one target rpm (revolutions per minute) setting are programmed for each segment. Note: The same resistance setting and/or target rpm setting may be programmed for two or more consecutive seg­ments. The display for a calorie goal program work in the same way as the display for the cross train­ing programs (see step 3 on page 15).
As you exercise, you will be prompted to near the target rpm setting for the current segment. When the words PEDAL FASTER appear in the display, increase your pace. When the words PEDAL SLOWER appear in the display, decrease your pace. When the words PEDALING IN RANGE appear, maintain your current pace.
Important: The target rpm settings are intend­ed only to provide motivation. Your actual pace may be slower than the target rpm set­tings. Make sure to exercise at a pace that is comfortable for you. Note: If you manually over-
ride the resistance settings of a calorie goal pro­gram, you may not reach your calorie goal.
To stop the program at any time, stop pedaling. The time will begin to flash in the display. To restart the program, simply resume pedaling.
When the last segment of the program ends, the words PROGRAM DONE will appear in the dis­play.
Follow
your progress with the display.
See step 4 on page 13.
Measure your heart rate if desired.
See step 5 on page 14.
Change the display color if desired.
See step 6 on page 14.
Turn on the fan if desired.
See step 7 on page 14.
When you are finished exercising, the console will turn off automatically.
See step 8 on page 14.
8
7
6
5
4
3
2
1
18
HOW TO USE THE HIGH PERFORMANCE PROGRAM
Press the Resistance decrease button or begin pedaling to turn on the console.
A moment after you turn on the console, the dis­play will light.
Select the high performance program.
Press the Programs button repeatedly until the words HIGH PERFORMANCE appear in the dis­play. The program time will appear in the display and a profile of the resistance settings for the pro­gram will scroll across the matrix in the display.
Begin pedaling to start the program.
The program is divided into 45 one-minute seg­ments. One resistance setting and one target rpm setting are programmed for each segment. Note: The same resistance setting and/or target rpm set­ting may be programmed for two or more consecu­tive segments. The displays for the high perfor­mance program work in the same way as the dis­plays for the cross training programs (see step 3 on page 16).
As you exercise, you will be prompted to keep your pedaling pace near the target rpm setting for the current segment. When the words PEDAL FASTER appear in the display, increase your pace. When the words PEDAL SLOWER appear in the display, decrease your pace. When the
words PEDALING IN RANGE appear, maintain your current pace.
Important: The target rpm settings are intend­ed only to provide motivation. Your actual pace may be slower than the target rpm set­tings. Make sure to exercise at a pace that is comfortable for you.
To stop the program at any time, stop pedaling. The time will begin to flash in the display. To restart the program, simply resume pedaling.
When the last segment of the program ends, the words PROGRAM DONE will appear in the dis­play.
Follow
your progress with the display.
See step 4 on page 13.
Measure your heart rate if desired.
See step 5 on page 14.
Change the display color if desired.
See step 6 on page 14.
Turn on the fan if desired.
See step 7 on page 14.
When you are finished exercising, the console will turn off automatically.
See step 8 on page 14.
8
7
6
5
4
3
2
1
19
HOW TO USE THE HEART RATE CONTROL PROGRAM
Press the Resistance decrease button or begin pedaling to turn on the console.
A moment after you turn on the console, the dis­play will light.
Select the heart rate control program.
Press the Programs button repeatedly until the words HEART RATE CONTROL appear in the display.
Enter a target heart rate.
The target heart rate setting for the program will flash in the dis­play. Use the Resistance increase and decrease buttons to change the target heart rate setting.
Hold the handgrip pulse sensor.
It is not necessary to hold the handgrip pulse sensor continu­ously; however, you should hold the hand­grip pulse sensor fre­quently for the program to operate properly. Each
time you hold the handgrip pulse sensor, keep your hands on the metal contacts for at least 30 seconds. When you are not holding the hand-
grip pulse sensor, the letters PLS will appear in the display instead of your heart rate.
Begin pedaling to start the program.
During the program, the console will regularly compare your heart rate to the target heart rate. If your heart rate is too far below or above the target heart rate, the resistance of the pedals will auto­matically increase or decrease to bring your heart rate closer to the target heart rate.
You will also be prompted to pedal at a steady pace so you can maintain your target heart rate. When the words PEDAL FASTER appear in the display, increase your pace. When the words PEDAL SLOWER appear in the display, decrease your pace. When the words PEDALING IN RANGE appear, maintain your current pace.
Important: Make sure to exercise at a pace that is comfortable for you. Note: If you manu-
ally override the resistance settings, you may not maintain your target heart rate.
To stop the program at any time, stop pedaling. The time will begin to flash in the display. To restart the program, simply resume pedaling.
Follow
your progress with the display.
See step 4 on page 13.
Measure your heart rate if desired.
See step 5 on page 14.
Change the display color if desired.
See step 6 on page 14.
Turn on the fan if desired.
See step 7 on page 14.
When you are finished exercising, the con­sole will turn off automatically.
See step 8 on page 14.
10
9
8
7
6
5
4
3
2
1
20
Inspect and tighten all parts of the elliptical exerciser regularly. Replace any worn parts immediately.
To clean the elliptical exerciser, use a damp cloth and a small amount of mild soap. Important: To avoid
damage to the console, keep liquids away from the console and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
If the console display becomes dim, the batteries should be replaced; most console problems are the result of low batteries. See assembly step 12 on page 10 for replacement instructions.
HANDGRIP PULSE SENSOR TROUBLESHOOTING
If the console does not display your heart rate when you hold the handgrip pulse sensor, or if the displayed heart rate appears to be too high or too low, see step 5 on page 14.
HOW TO LEVEL THE ELLIPTICAL EXERCISER
If the elliptical exerciser rocks slightly on your floor during use, see HOW TO LEVEL THE ELLIPTICAL EXERCISER on page 11.
HOW TO ADJUST THE DRIVE BELT
If the pedals slip while you are pedaling, even while the resistance is adjusted to the highest setting, the
drive belt may need to be adjusted. To adjust the drive belt, first remove the screws from the left and right side shields (not shown). Gently pull the side shields apart and remove the convenience tray.
Next, locate the Idler Screw (68) and loosen it one half turn. Step onto the elliptical exerciser and move the pedals. If the pedals continue to slip, turn the Idler Screw another half turn and test the pedals again. Continue in this way until the pedals no longer slip. Then, replace the convenience tray and reattach the side shields.
MAINTENANCE AND TROUBLESHOOTING
68
21
CONDITIONING GUIDELINES
The following guidelines will help you to plan your exercise program. Remember that proper nutrition and adequate rest are essential for successful results. Each workout should include the following three parts:
Warming Up—Begin each workout with 5 to 10 min­utes of stretching and light exercise. A proper warm­up increases your body temperature, heart rate, and circulation in preparation for exercise.
Training Zone Exercise—Each workout should con­sist of 20 to 30 minutes of exercising with your heart rate in your training zone. Note: During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 min­utes.
Cooling Down—End each workout with 5 to 10 min­utes of stretching. This will increase the flexibility of your muscles and will help to prevent post-exercise problems.
To maintain or improve your condition, plan three workouts each week, with at least one day of rest between workouts. Schedule your workouts for the time of day when your energy level is the highest. After a few months of regular exercise, you may com­plete up to five workouts each week, if desired. Remember, the key to success is make exercise a regular and enjoyable part of your everyday life.
CARDIOVASCULAR TRAINING GUIDELINES
Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide.
The chart below shows recommended heart rates for fat burning, maximum fat burning, and cardiovascular (aerobic) exercise.
To find the proper heart rate for you, first find your age at the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age. The three numbers are your “training zone.” The lowest number is the recommended heart rate for fat burning, the middle number is the recom­mended heart rate for maximum fat burning, and the highest number is the recommended heart rate for aerobic exercise.
Fat Burning—To burn fat effectively, you must exer­cise at a relatively low intensity level for a sustained period of time. During the first few minutes of exer­cise, your body uses easily accessible
carbohydrate
calories for energy. Only after the first few minutes of exercise does your body begin to use stored
fat
calo­ries for energy. If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest number in your training zone as you exer­cise. For maximum fat burning, adjust the intensity of your exercise until your heart rate is near the middle number in your training zone as you exercise.
Aerobic Exercise—If your goal is to strengthen your cardiovascular system, your exercise must be “aero­bic.” Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone.
WARNING:
Before beginning this or any exercise pro­gram, consult your physician. This is espe­cially important for persons over the age of 35 or persons with pre-existing health problems.
The pulse sensor is not a medical device. Various factors may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determin­ing heart rate trends in general.
22
STRENGTH TRAINING GUIDELINES
During strength exercises, you must maintain proper form for the best results. Maintaining proper form involves moving through the full range of motion for each exercise and moving only the appropriate parts of the body. Exercising in an uncontrolled manner will reduce the benefits of strength exercises. On the exercise chart accompanying this manual are pho­tographs showing the correct form for several strength exercises.
Perform each repetition of each strength exercise smoothly and without pausing. The exertion phase of each repetition should last only about half as long as the return phase. Proper breathing is also important. Exhale during the exertion phase of each repetition and inhale during the return phase—never hold your breath.
To increase the size and strength of your muscles, you must work your muscles at a level close to their maximum capacity. Your muscles will adapt and grow as you progressively increase the amount of weight that you use. You can tone your muscles by working them at a moderate percentage of their capacity. The proper amount of weight to use for each strength exer­cise depends on you—you must gauge your limits and select an appropriate amount of weight.
It is important to avoid overdoing it during the first few months of your exercise program. Progress at your own pace and be sensitive to your body’s signals. If you experience pain or dizziness at any time while exercising, stop immediately and cool down. Find out what is wrong before continuing. Remember that ade­quate rest and a proper diet are important factors in any exercise program.
23
NOTES
24
1 1 Base 2 1 Frame 3 2 Outer Crank Arm Cover 4 2 Inner Crank Arm Cover 5 1 Console 6 1 Upright 7 2 Roller Cover 8 1 Left Handlebar 9 1 Right Handlebar 10 2 Handlebar Endcap 11 2 Handlebar Leg 12 1 Left Roller Leg 13 1 Left Pedal 14 1 Left Pedal Leg 15 1 Right Pedal 16 1 Right Pedal Leg 17 2 Frame Cover 18 2 Inner Handlebar Cover 19 2 Outer Handlebar Cover 20 2 Axle Bearing 21 1 Right Roller Leg 22 2 Roller 23 2 Stabilizer Endcap 24 2 Roller Axle 25 2 Wheel 26 4 Foot 27 4 Wheel Bearing 28 1 Left Side Shield 29 1 Right Side Shield 30 2 Crank Axle Cap 31 4 Axle Cap 32 4 Pedal Leg Axle 33 8 Axle Bushing 34 4 Roller Bushing 35 1 Front Stabilizer 36 2 Crank Arm 37 1 Convenience Tray 38 2 Crank Hub 39 1 Pulley Spacer 40 1 Pulley 41 12 Axle Bushing 42 2 Pedal Leg Endcap 43 1 Crank Sleeve 44 2 Crank Bearing Set 45 1 Crank 46 8 Round Inner Cap 47 4 Snap Ring 48 1 Wire Harness
49 2 Base Endcap 50 1 Reed Switch/Wire 51 1 Belt 52 1 Flywheel 53 1 “C” Magnet 54 2 Outer Bearing Set 55 1 Magnet 56 1 Spring 57 1 Idler 58 1 Flywheel Pulley 59 1 Clamp 60 2 Inner Bearing Set 61 1 Motor 62 1 Resistance Cable Pulley 63 1 Resistance Cable Set 64 2 Foam Grip 65 1 Pivot Axle 66 2 Hub Cover 67 1 Stop Screw 68 1 Idler Screw 69 1 M8 Flange Screw 70 4 M8 x 35mm Screw 71 4 M8 x 42mm Bolt 72 2 M8 Split Washer 73 4 M4 x 12mm Flange Screw 74 8 M8 x 25mm Screw 75 2 3/8" Flange Screw 76 2 M10 Spacer 77 2 Pivot Bushing 78 2 M8 x 48mm Button Screw 79 18 M4 x 16mm Self-tapping Screw 80 8 M10 x 23mm Shoulder Screw 81 2 M10 x 20mm x 1mm Washer 82 4 M8 x 16mm Patch Screw 83 4 M8 x 25mm Washer 84 2 M10 x 20mm x 1.5mm Washer 85 10 M4 x 12mm Screw 86 6 M4 x 16mm Screw 87 8 M6 x 35mm Phillips Screw 88 8 M6 Split Washer 89 4 M10 x 62mm Bolt 90 2 M10 x 78mm Button Screw 91 4 M10 x 20mm Button Screw 92 4 M10 x 20mm x 2mm Washer 93 2 M4 x 13mm Washer 94 4 M10 x 25mm Washer 95 3 M8 x 16mm Button Screw 96 6 M8 Nylon Locknut
PART LIST—Model No. PFEL8947.0 R0906B
Key No. Qty. Description Key No. Qty. Description
25
97 2 M10 Nylon Locknut 98 8 Wave Washer 99 1 M4 x 12mm Screw 100 3 Star Washer
# 3 Hex Key # 1 Grease # 1 User’s Manual
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of this manual for information about ordering replacement parts.
Key No. Qty. Description Key No. Qty. Description
26
EXPLODED DRAWING A—Model No. PFEL8947.0 R0906B
49
80
81
10
19
96
71
41
41
98
9
18
93
79
79
11
66
98
33
33
74
74
47
52
1
55
26
49
65
10
50
73
39
99
3
48
73
38
75
76
74
36
66
61
72
78
89
63
74
86
3
17
6
5
77
95
100
79
95
17
8
86
79
86
79
18
41
79
93
96
41
19
64
51
71
81
80
100
98
95
36
11
77
75
25
38
89
47
44
2
90
33
33
23
97
45
98
35
85
57
4
97
96
47
26
85
25
43
53
44
70
85
40
89
56
20
20
4
47
58
23
68
59
26
96
79
70
62
67
69
27
EXPLODED DRAWING B—Model No. PFEL8947.0 R0906B
80
33
92
31
33
15
16
32
31
46
41
41
37
46
91
94
42
86
85
46
88
88
29
88
79
87
80
30
87
54
84
60
98
91
21
41
94
41
7
32
34
82
83
85
98
27
24
22
27
34
83
82
31
13
33
80
91
92
33
94
41
32
14
31
80
92
41
92
80
46
42
46
46
85
88
88
98
60
87
86
54
30
79
84
80
12
79
32
41
98
41
79
94
91
28
79
7
85
82
24
34
27
22
83
27
34
83
82
Part No. 246617 R0906B Printed in China © 2006 ICON IP, Inc.
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of pur­chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim­ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped to a service center, freight charges to and from the service center will be the customer’s responsibility. For in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center; products used for commercial or rental purposes; or products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con­nection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci­dental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, please be prepared to give the following information when contacting us:
• the MODEL NUMBER of the product (PFEL8947.0)
• the NAME of the product (PROFORM 160 elliptical exerciser)
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part(s) (see pages 24 to 27)
Loading...
