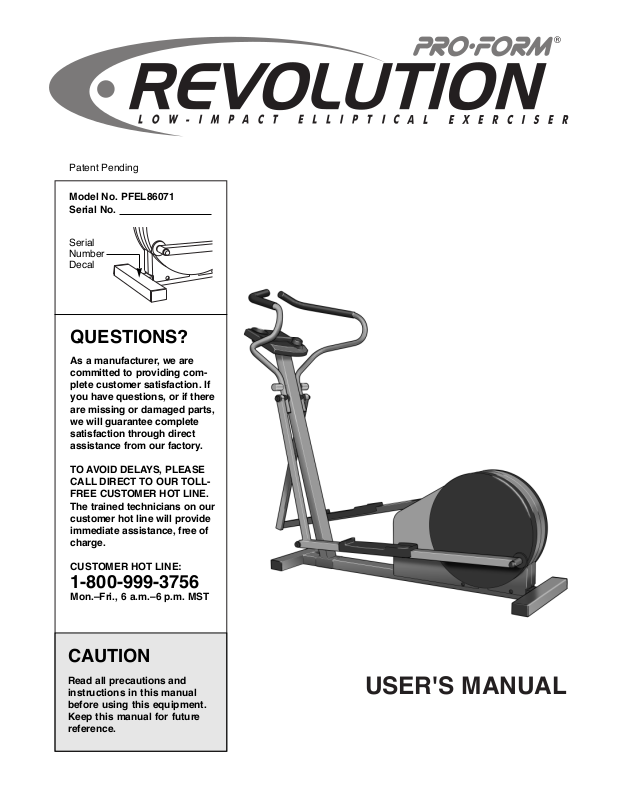

USER'S MANUAL

CAUTION

Read all precautions and
instructions in this manual
before using this equipment.
Keep this manual for future
reference.

Model No. PFEL86071
Serial No.

Serial
Number
Decal

QUESTIONS?

As a manufacturer, we are
committed to providing com­plete customer satisfaction. If
you have questions, or if there
are missing or damaged parts,
we will guarantee complete
satisfaction through direct
assistance from our factory.

TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL­FREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot line will provide
immediate assistance, free of
charge.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.ÐFri., 6 a.m.Ð6 p.m. MST

Patent Pending

2

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

HOW TO USE THE PROFORM¨REVOLUTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

¨

3

1. Read all instructions in this manual before
using the REVOLUTION.

2. Use the REVOLUTION only as described in
this manual.

3. It is the responsibility of the owner to
ensure that all users of the REVOLUTION
are adequately informed of all precautions.

4. Place the REVOLUTION on a level surface,
with a mat beneath it to protect the floor or
carpet. Keep the REVOLUTION indoors,
away from moisture and dust.

5. Inspect and tighten all parts regularly.
Replace any worn parts immediately.

6. Keep children under the age of 12 and pets
away from the REVOLUTION at all times.

7. The REVOLUTION should not be used by
persons weighing more than 250 pounds.

8. Wear appropriate clothing when using the
REVOLUTION. Always wear athletic shoes
for foot protection.

9. When mounting and dismounting the
REVOLUTION, always hold the handlebars
firmly and step onto and off the pedal that
is in the lowest position.

10. Each time you stop exercising on the
REVOLUTION, allow the pedals to come to
a complete stop before dismounting.

11. Always keep your back straight when using
the REVOLUTION. Do not arch your back.

12. If you feel pain or dizziness at any time
while exercising, stop immediately and
begin cooling down.

13. The REVOLUTION is intended for in-home
use only. Do not use the REVOLUTION in a
commercial, rental, or institutional setting.

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read the following important precautions before
using the PROFORM¨REVOLUTION.

WARNING: Before beginning this or any exercise program, consult your physician. This is espe­cially important for persons over the age of 35 or persons with pre-existing health problems. Read
all instructions before using. ICON assumes no responsibility for personal injury or property dam­age sustained by or through the use of this product.

The decal shown at the right
has been placed on the
REVOLUTION. If the decal is
missing, or if it is not legible,
please call our Customer
Service Department toll-free at
1-800-999-3756 to order a free
replacement decal. Apply the
decal in the location shown.

Do not allow children on or
around machine.

Keep hands and feet away
from moving parts and contact
points.

Read owner's manual and
follow instructions.

4

BEFORE YOU BEGIN

Congratulations for selecting the PROFORM

¨

REVOLUTION low-impact elliptical exerciser. The
REVOLUTION is an incredibly smooth exerciser that
moves your feet in a natural elliptical path, minimizing
the impact on your knees and ankles. And the unique
REVOLUTION features adjustable resistance, dual­motion handlebars, and a multi-mode exercise
monitor to help you get the most from your exercise.
Welcome to a whole new world of natural, elliptical­motion exercise from PROFORM.

For your benefit, read this manual carefully before
you use the PROFORM¨REVOLUTION. If you have

questions after reading the manual, call our Customer
Service Department toll-free at 1-800-999-3756,
Monday through Friday, 6 a.m. until 6 p.m. Mountain
Time (excluding holidays). To help us assist you,
please note the product model number and serial
number before calling. The model number is
PFEL86071. The serial number can be found on a
decal attached to the REVOLUTION (see the front
cover of this manual for the location of the decal).

Before reading further, please look at the drawing
below and familiarize yourself with the parts that are
labeled.

Resistance Knob

FRONT

BACK

LEFT SIDE

Pedal Arm

Pedal Disk

Side Shield

Pedal

Book Holder

Lock Knob

Upright

Link Arm

Water Bottle Holder

(Bottle not included)

Handlebar

5

PART IDENTIFICATION CHART

Use the chart below to identify the small parts used in
assembly. The number in parenthesis below each part
is the key number of the part, from the PART LIST on
page 14. The number after the dash indicates the

quantity needed for assembly. Note: Some small

parts may have been pre-attached for shipping. If
a part is not in the parts bag, check to see if it has
been pre-attached.

3/8" Nylon Locknut (29)Ñ4

5/8Ó Axle Cap (57)Ñ2

#8 x 3/4" Screw (44)Ñ4

Handlebar Spacer (55)Ñ4

Pedal Arm Spacer (41)Ñ2

3/4Ó Axle Cap (43)Ñ2

Pivot Bushing (56)Ñ4

Link Arm Bushing (49)Ñ2

#8 x 3/4" Round Head Screw (16)Ñ6
