Model No. PFEL77908.0
Serial No.
Write the serial number in the
space above for reference.
Serial Number
Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete customer
satisfaction. If you have questions,
or if parts are missing, PLEASE DO
NOT CONTACT THE STORE;
please contact Customer Care.
USERʼS MANUAL
IMPORTANT: You must note the
product model number and
serial number (see the drawing
above) before contacting us:
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MST
Sat. 8 a.m.–4 p.m. MST
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
TABLE OF CONTENTS
ARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
W
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
OW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
H
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

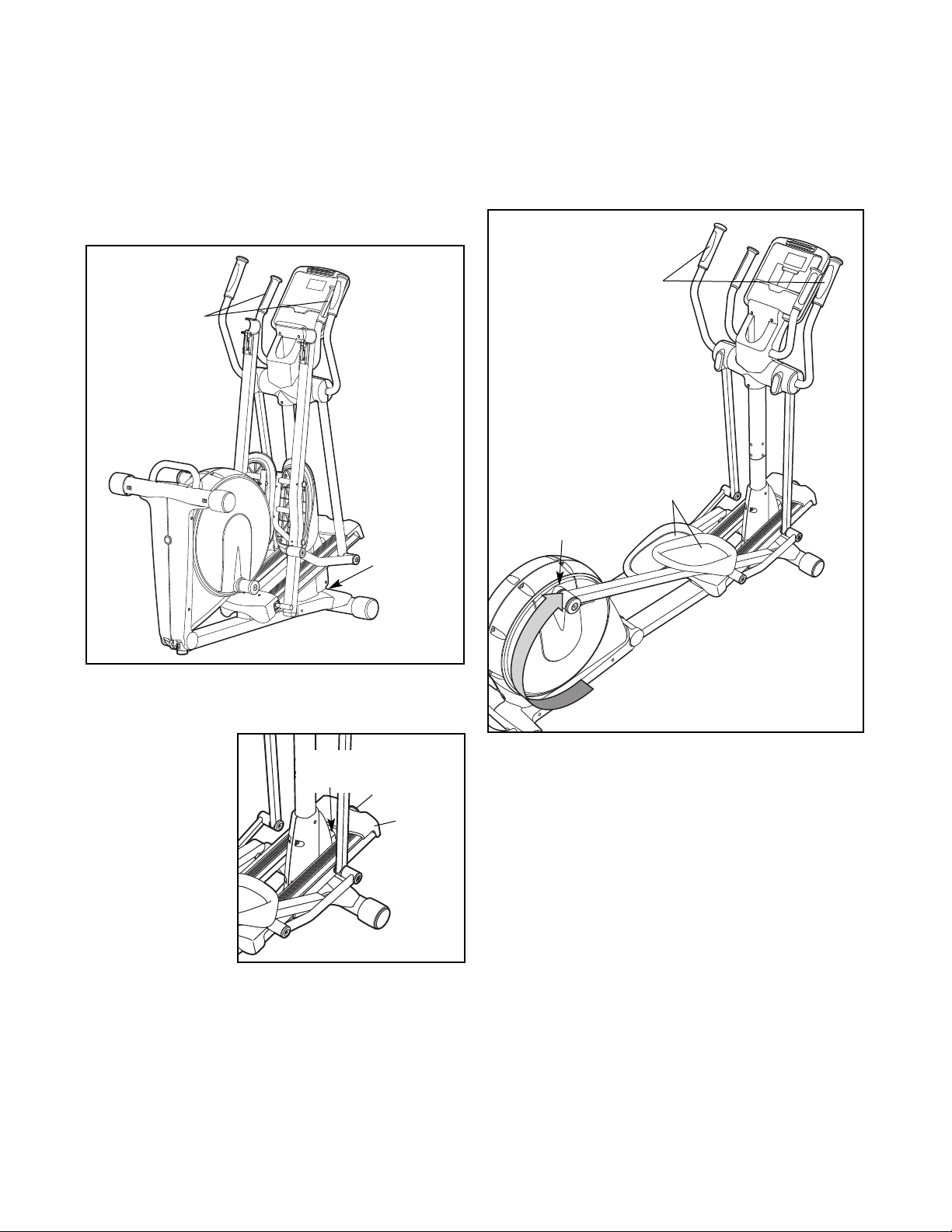

WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, call the
telephone number on the front cover of this
manual and request a free replacement decal.
Apply the decal in the location shown. Note: The
decal(s) may not be shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical exerciser before using your elliptical
exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or
hrough the use of this product.
t
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over the age of 35 or
persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. Your elliptical exerciser is intended for home
use only. Do not use your elliptical exerciser
in a commercial, rental, or institutional setting.
4. Keep your elliptical exerciser indoors, away
from moisture and dust. Place your elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is enough clearance
around your elliptical exerciser to mount,
dismount, and use it.
5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from your elliptical exerciser at all times.
7. Your elliptical exerciser should not be used
by persons weighing more than 300 lbs.
(136 kg).
8. Wear appropriate exercise clothes when
exercising; do not wear loose clothes that
could become caught on your elliptical exerciser. Always wear athletic shoes for foot
protection.
9. Hold the handgrip pulse sensor or the upper
body arms when mounting, dismounting, or
using your elliptical exerciser.
10. Keep your back straight while using your
elliptical exerciser; do not arch your back.
11. The pulse sensor is not a medical device.
Various factors, including the userʼs movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
12. When you stop exercising, allow the pedals
to slowly come to a stop.
13. If you feel pain or dizziness while exercising,
stop immediately and cool down.
14. Use your elliptical exerciser only as
described in this manual.
3
BEFORE YOU BEGIN
Thank you for purchasing the revolutionary
ROFORM
P
The SPACESAVER DX elliptical exerciser provides a
wide array of features designed to make your workouts at home more effective and enjoyable—and when
youʼre not exercising, the unique elliptical exerciser
can be folded out of the way.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, please see the front
cover of this manual. To help us assist you, note the
®
PACESAVER DX elliptical exerciser.
S
Upper Body Arm
Stereo Speakers
Water Bottle Holder*
Storage Magnet
product model number and serial number before con-
acting us. The model number and the location of the
t
serial number decal are shown on the front cover of
this manual.
To avoid a registration fee for any service needed
under warranty, you must register the elliptical
exerciser at www.proformservice.com/registration.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Fan
Console
Pulse Sensor
Stereo Cable
Pedal Disc
Handle
Leveling Foot
Incline Knob
Ramp
Wheel
Pedal
Pedal Arm Latch
Latch Button
*Water bottle is not included
4
M10 x 93mm Patch Screw (82)–4
M10 x 25mm
Washer (87)–2
M8 Split
Washer (101)–4
M4 x 16mm
Screw (97)–16
M6 Split Washer
(102)–8
M6 x 35mm Patch
Screw (109)–4
M6 x 62mm
Patch Screw (108)–4
M8.5 x 16mm x
1.5mm Washer
(103)–6
Link Arm
Spacer (74)–4
M8 x 20mm Patch
Screw (107)–4
M8 x 25mm Patch
Screw (110)–2
M10 x 20mm Patch
Screw (111)–2
M8 x 15mm Patch
Screw (106)–10
M10 Curved
Washer (99)–4
Wave Washer
(100)–2
ASSEMBLY
To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.
ssembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
A
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included hex keys, assembly requires a Phillips screwdriver , an adjustable
wrench , and a rubber mallet .
As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number
following the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-
assembled. If a part is not in the hardware kit, check to see if it has been preassembled.
5
1.
To make assembly easier, read the
information on page 5 before you begin
assembling the elliptical exerciser.
1
If there is a shipping bracket attached to the
ear of the Folding Frame (not shown), remove
r
the screw and the shipping bracket from the
Folding Frame. Discard the screw and the shipping bracket.
See HOW TO FOLD AND UNFOLD THE
ELLIPTICAL EXERCISER on page 12 and
unfold the elliptical exerciser.
While another person lifts the front of the Frame
(1), attach the Front Stabilizer (4) to the Frame
with two M10 x 93mm Patch Screws (82) and
two M10 Curved Washers (99).
2. While another person lifts the Folding Frame
(2), attach the Rear Stabilizer (3) to the Folding
Frame with two M10 x 93mm Patch Screws (82)
and two M10 Curved Washers (99).
Next, tighten the Center Foot (95) into the
Frame (1).
82
99
2
1
9
9
4
1
95
3
2
99
99
82
6
3. Attach the Front Ramp Cover (6) to the
amp (5) with four M4 x 16mm Screws (97).
R
Slide an M10 x 25mm Washer (87) onto an M10
x 20mm Patch Screw (111). Tighten the Button
Screw into one end of the Ramp Axle (72).
Apply a small amount of the included grease to
he Ramp Axle.
t
Orient the Ramp (5) as shown. Align the lower
end of the Ramp with the welded tube on the
Frame (1). Insert the Ramp Axle (72) into the
Ramp and the welded tube. Then, pull the
Ramp Knob (9), lower the Ramp, and engage
the Ramp Pin (62) in one of the three adjustment holes in the front of the Frame.
3
9
97
6
62
5
Slide an M10 x 25mm Washer (87) onto an M10
x 20mm Patch Screw (111). Tighten the Patch
Screw into the open end of the Ramp Axle (72).
4. Identify the Left Pedal (34) and the Left Pedal
Arm (32), which are marked with stickers.
Attach the Left Pedal (34) to the Left Pedal
Arm (32) with two M6 x 62mm Patch Screws
(108), two M6 x 35mm Patch Screws (109), and
four M6 Split Washers (102).
4
Adjustment
Holes
111
32
87
72
Grease
34
87
111
1
Attach the Right Pedal (not shown) to the
Right Pedal Arm (not shown) in the same
way.
102
109
108
102
109
102
7
5. Insert the Roller (38) on the Left Pedal Arm (32)
and the Roller on the Right Pedal Arm (33) into
the sides of the Ramp (5).
Attach the Rear Ramp Cover (7) to the
amp (5) with two M4 x 16mm Screws (97).
R
See the inset drawing. Lift the Pedal Arm
atch (41) on the Left Pedal Arm (32), and set
L
the end of the Left Pedal Arm on the left Crank
Bushing Sleeve (54). Release the Pedal Arm
Latch, and make sure that the Left Pedal Arm is
securely connected to the Crank Bushing
Sleeve.
Connect the Right Pedal Arm (not shown) to
the right Crank Bushing Sleeve (not shown)
in the same way.
5
7
9
3
3
5
32
7
38
41
32
54
8
6. While another person holds the Upright (10)
near the Frame (1), connect the ends of the
Upper Wire Harness (65) to the ends of the
ower Wire Harness (64).
L
arefully insert the Upright (10) into the
C
Frame (1); be careful not to damage the Wire
Harnesses (64, 65). Attach the Upright with
four M8 x 20mm Patch Screws (107) and four
M8 Split Washers (101).
6
Avoid pinching
the wires during
this step
101
10
65
107
64
101

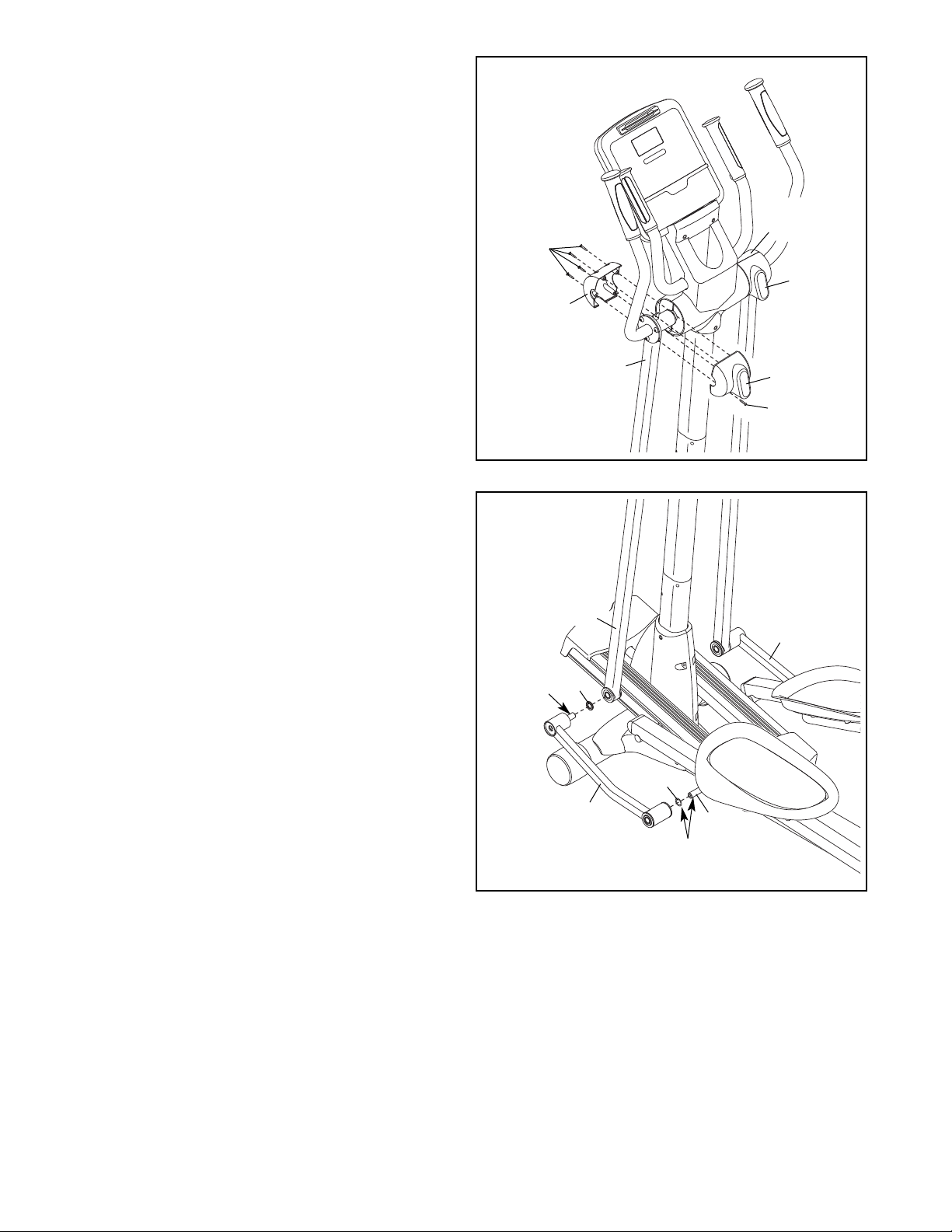

7. Attach the Left Upper Body Arm (22) to the left
Upper Body Leg (24) with three M8 x 15mm
Patch Screws (106).
Attach the Right Upper Body Arm (23) in the
same way.
107
7
22
106
24
1
23
9
8. Hold the Left Rear Upper Body Cover (26) and
the Left Front Upper Body Cover (27) around
the left Upper Body Leg (24). Attach the Upper
ody Covers with five M4 x 16mm Screws (97).
B
ttach the Right Rear Upper Body Cover
A
(28) and the Right Front Upper Body Cover
(29) in the same way.
8
29
97
28
27
9. Apply a small amount of grease to the axle on
the Left Link Arm (30), to the axle on the Left
Pedal Arm (32), and to a Wave Washer (100).
Slide the Wave Washer (100) onto the axle on
the Left Pedal Arm (32). Next, slide a Link Arm
Spacer (74) onto the axle on the Left Link Arm
(30).
Then, insert the axle on the Left Link Arm (30)
into the left Upper Body Leg (24) while sliding
the Left Link Arm onto the axle on the Left
Pedal Arm (32).
Repeat this step with the Right Link Arm
(31).
9
Grease
74
24
30
24
26
97
31
100
32
Grease
10
10. Attach the Left Link Arm (30) to the Left Pedal
rm (32) with an M8 x 15mm Patch Screw
A
(106), an M8.5 x 16mm x 1.5mm Washer (103),
and an Axle Cover (66).
Attach the Left Link Arm (30) to the left Upper
Body Leg (24) with an M8 x 25mm Patch Screw
110), two M8.5 x 16mm x 1.5mm
(
Washers (103), two Axle Covers (66), a Link
Arm Spacer (74), and an M8 x 15mm Patch
Screw (106) as shown.
0
1
103
110
66
74
24
30
6
31
106
103
6
Attach the Right Link Arm (31) in the same
way.
11. Make sure that all parts are properly tightened before you use the elliptical exerciser. Note: After assem-
bly is completed, some extra parts may be left over. Place a mat beneath the elliptical exerciser to protect the
floor.
Plug the power adapter into the jack on the frame of the elliptical exerciser (see HOW TO PLUG IN THE
POWER ADAPTER on page 12). IMPORTANT: If the elliptical exerciser has been exposed to cold tem-
peratures, allow it to warm to room temperature before plugging in the power cord. If you do not do
this, the console displays or other electronic components may become damaged.
106
103
66
32
11
HOW TO USE THE ELLIPTICAL EXERCISER
HOW TO PLUG IN THE POWER ADAPTER
Plug one end of the included power adapter into the
jack on the front of the elliptical exerciser. Plug the
other end of the power adapter into an appropriate
outlet that is properly installed in accordance with all
local codes and ordinances.
Note: The console can also be operated with four 1.5V
D batteries (not included); alkaline batteries are recommended. Locate the battery covers on the back of
the console. Press the tabs on the battery covers,
remove the battery covers, and insert two batteries
into each battery compartment; make sure to orient
the batteries as shown by the symbols inside the
battery compartments. Then, reattach the battery
covers.
HOW TO FOLD AND UNFOLD THE ELLIPTICAL
EXERCISER
When the elliptical exerciser is not in use, the frame
can be folded out of the way. First, lift the latch under
each pedal arm, and lift the pedal arms off the sleeves
on the crank arms.
Next, raise the pedal arms until they touch the magnets on the upper body legs; the magnets will hold the
pedal arms in place. Then, hold the handle and lift the
frame until it locks in a vertical position.
Magnet
Handle
Latch
Button
To use the elliptical exerciser, first hold the handle,
press the latch button, and lower the frame.
Pedal Arm
Sleeve
Pedal Arm
Next, pull the pedal arms off the magnets on the upper
body legs. Then, lift the latches under the pedal
arms, and set the pedal arms on the sleeves on the
crank arms. Release the latches, and make sure that
the pedal arms are securely connected to the crank
arms.
Latch
12
HOW TO MOVE THE ELLIPTICAL EXERCISER
To move the elliptical exerciser, first fold it as
escribed on page 12. Next, stand in front of the ellip-
d
tical exerciser, hold the handgrip pulse sensors, and
lace one foot against the center of the front stabilizer.
p
Pull the pulse sensors until the elliptical exerciser will
roll on the front wheels. Carefully move the elliptical
exerciser to the desired position, and then lower it.
Handgrip
Pulse
Sensors
HOW TO EXERCISE ON THE ELLIPTICAL
EXERCISER
o mount the elliptical exerciser, hold the upper body
T
arms and step onto the pedal that is in the lower posi-
ion. Next, step onto the other pedal. Push the pedals
t
until they begin to move with a continuous motion.
Upper Body Arms
Pedals
Place
your foot
here
HOW TO CHANGE THE INCLINE OF THE RAMP
To vary the
motion of the
pedals, you can
change the
incline of the
ramp. To change
the incline, pull
the ramp knob,
raise or lower the
ramp, and
engage the ramp
pin into one of
the three adjustment holes in the
front of the frame.
Ramp
Pin
Ramp
Knob
Ramp
Crank Arm
Note: The crank arms can turn in either direction.
It is recommended that you turn the crank arms in
the direction shown by the arrow at the right; however, for variety you can turn the crank arms in the
opposite direction.
To dismount the elliptical exerciser, wait until the pedals come to a complete stop. Note: The elliptical
exerciser does not have a free wheel; the pedals
will continue to move until the flywheel stops.
When the pedals are stationary, step off the higher
pedal first. Then, step off the lower pedal.
13
CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable. When you select the manual mode of the
console, you can change the resistance of the pedals
with the touch of a button. As you exercise, the console will provide continuous exercise feedback. You
can even measure your heart rate using the handgrip
pulse sensor.
The console offers six preset programs. Each program
automatically changes the resistance of the pedals
and prompts you to increase or decrease your pedaling speed as it guides you through an effective workout.
In addition, the console features two heart rate programs that change the resistance of the pedals to
keep your heart rate near target heart rate settings
while you exercise.
You can even connect your MP3 player or CD player
to the consoleʼs sound system and listen to your
favorite workout music or audio books while you exercise.
To use the manual mode, see page 15. To use a
preset program, see page 17. To use a heart rate
program, see page 18. To use the sound system,
see page 19.
14
HOW TO USE THE MANUAL MODE
4. Follow your progress with the display.
Note: If there is a sheet of clear plastic on the face of
he console, remove the plastic.
t
. Press any button on the console or begin
1
pedaling to turn on the console.
When you turn on the console, the display will
light. A tone will then sound and the console will
be ready for use.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected. If you have selected a program,
reselect the manual mode by pressing any of the
Programs buttons repeatedly until zeros appear in
the display.
While you pedal, the upper left corner of the dis-
lay will show the elapsed time.
p
The lower left corner of the display will show your
pedaling speed, in revolutions per minute.
The upper right corner of the display will show
your heart rate when you use the handgrip pulse
sensor (see step 5 on page 16).
The lower right corner of the display will show the
distance (total number of revolutions) that you
have pedaled.
The center of the display will show the resistance
setting of the pedals for a few seconds each time
the resistance setting changes.
3. Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change the resistance of the pedals
by pressing the Resistance buttons. There are
twelve resistance levels. Note: After you press the
buttons, it will take a moment for the pedals to
reach the selected resistance level.
To view the approximate number of calories that
you are burning per hour and the approximate
number of calories that you have burned during
your workout, press the Display button.
You can also view selected information at a larger
size. Press the Display button repeatedly to view
the elapsed time, the distance that you have pedaled, your pedaling speed, or the approximate
number of calories that you have burned.
To again view the elapsed time, your pedaling
speed, and the distance that you have pedaled,
press the Display button again.
15
5. Measure your heart rate if desired.
6. Turn on the fan if desired.
If there are
heets of clear
s
plastic on the
etal contacts on
m
the handgrip
pulse sensor,
remove the plastic. In addition,
make sure that
your hands are
clean. To measure
your heart rate, hold the handgrip pulse sensor
with your palms resting against the metal contacts.
Avoid moving your hands or gripping the contacts tightly.
When your pulse is detected, your heart rate will
be shown in the display. For the most accurate
heart rate reading, hold the contacts for at least 15
seconds.
If your heart rate is not shown, make sure that
your hands are positioned as described. Be careful not to move your hands excessively or to
squeeze the metal contacts tightly. For optimal
performance, clean the metal contacts using a soft
cloth; never use alcohol, abrasives, or chemi-
cals to clean the contacts.
ontacts
C
The fan has high, low, and auto speed settings.
hile the auto mode is selected, the speed of the
W
fan will automatically increase or decrease as you
ncrease or decrease your pedaling speed. Press
i
the Fan button repeatedly to select a fan speed or
to turn off the fan. Note: If the pedals do not move
for about thirty seconds, the fan will turn off automatically.
Pivot the fan louvers above the display upward or
downward to direct the airflow from the fan.
To turn off the fan, press the Fan button again.
Note: If the pedals do not move for about thirty
seconds, the fan will automatically turn off to conserve the batteries.
7. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
series of tones will sound and the console will
pause.
If the pedals do not move for about five minutes,
the console will turn off and the displays will be
reset.
16
HOW TO USE A PRESET PROGRAM
1. Press any button on the console or begin
edaling to turn on the console.
p
hen you turn on the console, the display will
W
light. A tone will then sound and the console will
be ready for use.
2. Select a preset program.
To select one of the three weight loss programs,
press the Wt. Loss Programs button repeatedly; to
select one of the three aerobic fitness programs,
press the Aerobic Programs button repeatedly.
When you select a preset program, the name of
the program will appear in the display for a few
seconds. A profile of the resistance settings of the
program will then appear in the display.
As you exercise, you
will be prompted to
keep your pedaling
peed near the target
s
speed setting for the
urrent segment. When
c
an upward-pointing arrow appears in the display,
increase your speed. When a downward-pointing
arrow appears, decrease your speed. When no
arrow appears, maintain your current speed.
IMPORTANT: The target speed settings are
intended only to provide motivation. Make sure
to pedal at a speed that is comfortable for you.
If the resistance setting for the current segment is
too high or too low, you can manually override the
setting by pressing the Resistance buttons.
However, when the current segment ends, the
resistance of the pedals will automatically adjust to
the resistance setting for the next segment.
If you stop pedaling for several seconds, a series
of tones will sound and the program will pause. To
restart the program, simply resume pedaling. The
program will continue until the last segment of the
profile ends.
Arrow
Profile
3. Begin pedaling to start the program.
Each program is divided into either 20 or 30 oneminute segments. One resistance setting and one
target speed setting are programmed for each
segment. Note: The same resistance setting
and/or target speed setting may be programmed
for consecutive segments.
During the program, the program profile will show
your progress (see the drawing above). The flashing column of the profile represents the current
segment of the program. The height of the flashing
column indicates the resistance setting for the current segment. At the end of each segment of the
program, a series of tones will sound and the next
segment of the profile will begin to flash. If a different resistance setting is programmed for the next
segment, the resistance setting will appear in the
display for a few seconds to alert you. The resistance of the pedals will then change.
4. Follow your progress with the display.
During the program, the display will show the program profile, your pedaling speed, and the distance that you have pedaled.
To view the time remaining in the program instead
of the program profile, press the Display button.
To view the approximate number of calories that
you are burning per hour and the approximate
number of calories that you have burned during
your workout, press the Display button again.
To view the program profile again, press the
Display button again.
5. Measure your heart rate if desired.
See step 5 on page 16.
6. Turn on the fan if desired.
See step 6 on page 16.
7. When you are finished exercising, the console
will turn off automatically.
17
See step 7 on page 16.
HOW TO USE A HEART RATE PROGRAM
5.
Begin pedaling to start the program.
1. Press any button on the console or begin
edaling to turn on the console.
p
hen you turn on the console, the display will
W
light. A tone will then sound and the console will
be ready for use.
2. Select a heart rate program.
To select one of the heart rate programs, press the
Heart Rate Programs button repeatedly until the
name of the heart rate program appears in the display.
3. Enter a target heart rate setting.
A few seconds after you select a heart rate program, the words ENTER HEART RATE will appear
in the display and the number 110 will begin to
flash.
During heart rate program 1, the same target
heart rate setting will be programmed for all segments of the program. If you have selected heart
rate program 1, press the increase and decrease
buttons above the Heart Rate Programs button to
enter the desired target heart rate setting (see
EXERCISE INTENSITY on page 21).
Heart rate program 1 is divided into 40 one-
inute segments. Note: For a shorter workout,
m
stop exercising or select a different program
efore the program ends.
b
Heart rate program 2 is divided into 30 oneminute segments. One target heart rate setting is
programmed for each segment. Note: The same
target heart rate setting may be programmed for
consecutive segments.
During the program, the program profile in the display will show your progress. The flashing column
of the profile represents the current segment of the
program. The height of the flashing column indicates the target heart rate setting for the current
segment. At the end of each segment of the program, a series of tones will sound and the next
segment of the profile will begin to flash.
Profile
Arrow
During heart rate program 2, different target
heart rate settings will be programmed for different
segments of the program. If you have selected
heart rate program 2, press the increase and
decrease buttons above the Heart Rate Programs
button to enter the desired maximum target heart
rate setting for the program (see EXERCISE
INTENSITY on page 21).
4. Hold the handgrip pulse sensor.
It is not necessary to hold the handgrip pulse sensor continuously during heart rate programs; however, you should hold the handgrip pulse sensor
frequently for the programs to operate properly.
Each time you hold the handgrip pulse sensor,
keep your hands on the metal contacts for at
least 30 seconds.
During both programs, the console will regularly
compare your heart rate to the target heart rate
setting for the current segment of the program. If
your heart rate is too far below or above the target
heart rate setting, the resistance of the pedals will
automatically increase or decrease to bring your
heart rate closer to the target heart rate setting.
Each time the resistance changes, the resistance
setting will appear in the display for a few seconds
to alert you.
While you exercise, you will be prompted to maintain a constant pedaling speed. If an upward-pointing arrow appears in the display (see the drawing
above), increase your speed. If a downward-pointing arrow appears, decrease your speed. When no
arrow appears, maintain your current speed.
If the resistance setting for the current segment is
too high or too low, you can manually override the
setting by pressing the OneTouch Resistance buttons. However, when the console compares your
heart rate to the target heart rate setting, the resistance of the pedals may automatically increase or
decrease to bring your heart rate closer to the target heart rate setting.
18
If you stop pedaling for several seconds, a series
of tones will sound and the program will pause. To
restart the program, simply resume pedaling. The
rogram will continue until the last segment of the
p
program ends.
6. Follow your progress with the display.
During heart rate program 1, the display will
show your heart rate, your pedaling speed, and
the distance that you have pedaled. During heart
rate program 2, the display will show the program
profile, your pedaling speed, and the distance that
you have pedaled.
To view the time remaining in the program instead
of your heart rate or the program profile, press the
Display button.
To view the approximate number of calories that
you are burning per hour and the approximate
number of calories that you have burned during
your workout, press the Display button again.
To view your heart rate or the program profile
again, press the Display button again.
HOW TO USE THE SOUND SYSTEM
To play music or audio
ooks through the con-
b
soleʼs sound system while
ou exercise, first locate
y
the audio cable in the center of the console above
the speakers. Plug the
cable into a jack on your MP3 player or CD player;
make sure that the audio cable is fully plugged in.
Next, press the play button on your MP3 player or CD
player. Adjust the volume of the speakers using the
volume control on your MP3 player or CD player.
When not in use, insert the audio cable into the storage bracket on the console.
C
able
7. Turn on the fan if desired.
See step 6 on page 16.
8. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 16.
19
MAINTENANCE AND TROUBLESHOOTING
Inspect and tighten all parts of the elliptical exerciser
egularly. Replace any worn parts immediately.
r
To clean the elliptical exerciser, use a damp cloth and
a small amount of mild soap. IMPORTANT: To avoid
amage to the console, keep liquids away from
d
the console and keep the console out of direct
sunlight.
CONSOLE TROUBLESHOOTING
If the handgrip pulse sensor does not function properly, see step 5 on page 16.
HOW TO LEVEL THE ELLIPTICAL EXERCISER OR
ELIMINATE FLEXING IN THE FRAME
If the elliptical exerciser rocks on your floor during use,
turn one or both of the Leveling Feet (98) until the
rocking motion is eliminated.
88
14, 15
12
95
2
97
98
If the elliptical exerciser flexes in the center during
use, turn the Center Foot (95) until the flexing is eliminated.
HOW TO ELIMINATE RUBBING OF THE DISCS
Adjust the position of the Side Shields (14, 15) until the
iscs (12) no longer rub against them, and then tighten
D
the Bolt Sets (88) and the M4 x 16mm Screws (97).
HOW TO ADJUST THE BELT
If the pedals slip
while you are
pedaling, even
while the resistance is adjusted
to the highest setting, the belt may
need to be adjusted. To adjust the
belt, first carefully
pry off the left
Disc Cover (13)
using a flat screwdriver. Next, remove the four Screws
(not shown) from the center of the left Disc (12).
Gently rotate the Disc Cover and the Disc away from
the elliptical exerciser.
Loosen, but do
not remove, the
three 1/4" x
19mm Button
Screws (114).
Insert the shaft of
a screwdriver
downward
between the
Idler (47) and the
Idler Pulley (48).
Pull the top of the
screwdriver
toward the rear of the elliptical exerciser until the Belt
(96) is tight, and then tighten the three Button Screws.
Reattach the left disc with the four screws and then
reattach the left disc cover.
47
13
48
12
114
96
See the drawing above. If the Discs (12) rub against
the Side Shields (14, 15) during use, make sure that
the Center Foot (95) is installed in the Folding Frame
(2). If the Center Foot is installed, loosen the two indicated Bolt Sets (88) and the two M4 x 16mm Screws
(97) in each side of the elliptical exerciser.
20
EXERCISE GUIDELINES
WARNING: Before beginning
this or any exercise program, consult your
physician. This is especially important for
persons over the age of 35 or persons with
re-existing health problems.
p
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
Burning Fat—To burn fat effectively, you must exer-
ise at a low intensity level for a sustained period of
c
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
o use stored fat calories for energy. If your goal is to
t
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
WORKOUT GUIDELINES
Warming up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
21
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right.
ove slowly as you stretch—never bounce.
M
. Toe Touch Stretch
1
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times. Stretches: Hamstrings, back of knees
and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for each leg. Stretches:
Hamstrings, lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat
3 times for each leg. To cause further stretching of the achilles
tendons, bend your back leg as well. Stretches: Calves, achilles
tendons and ankles.
1
2
3
4
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. Repeat 3
times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for
15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and
hip muscles.
5
22
NOTES
23
PART LIST—Model No. PFEL77908.0 R0508A
Key No. Qty. Description Key No. Qty. Description
11Frame
2
31Rear Stabilizer
41Front Stabilizer
51Ramp
61Front Ramp Cover
71Rear Ramp Cover
82Side Ramp Cover
91Ramp Knob
10 1 Upright
11 1 Console
12 2 Disc
13 2 Disc Cover
14 1 Left Side Shield
15 1 Right Side Shield
16 2 Rear Endcap
17 2 Wheel
18 2 Wheel Cover
19 1 Rear Upright Cover
20 1 Front Upright Cover
21 2 Handgrip
22 1 Left Upper Body Arm
23 1 Right Upper Body Arm
24 2 Upper Body Leg
25 2 Pulse Sensor/Wire
26 1 Left Rear Upper Body Cover
27 1 Left Front Upper Body Cover
28 1 Right Rear Upper Body Cover
29 1 Right Front Upper Body Cover
30 1 Left Link Arm
31 1 Right Link Arm
32 1 Left Pedal Arm
33 1 Right Pedal Arm
34 1 Left Pedal
35 1 Right Pedal
36 1 Left Frame Cover
37 1 Right Frame Cover
38 2 Roller
39 2 Pedal Arm Endcap
40 1 Tray
41 2 Pedal Arm Latch
42 4 Pedal Arm Latch Spring
43 6 Pedal Arm Cap
44 1 Eddy Mechanism
45 1 Eddy Crank Assembly
46 1 Pillow Block
47 1 Idler
48 1 Idler Pulley
49 1 Eddy Motor
50 1 Reed Switch/Wire
1 Folding Frame
51 1 Clamp
2 2 Large Axle Cover
5
53 2 Crank Bushing
54 2 Crank Bushing Sleeve
55 2 Crank Arm
56 1 Crank Arm Spacer
57 1 Large Pulley
58 1 Crank Flange
59 1 Left Crank Bearing Assembly
60 1 Crank Spacer
61 1 Crank
62 1 Ramp Pin
63 1 Ramp Spring
64 1 Lower Wire Harness
65 1 Upper Wire Harness
66 6 Axle Cover
67 8 Bushing Assembly
68 4 Brass Bushing
69 1 Latch Bracket
70 1 Latch Spring
71 1 Upper Body Axle
72 1 Ramp Axle
73 1 Pivot Axle
74 4 Link Arm Spacer
75 1 Latch Axle
76 1 Latch Button
77 1 Latch Frame
78 2 Upright Brass Bushing
79 4 Bearing Assembly
80 4 M6 Nylon Locknut
81 6 M4 x 16mm Cupped Screw
82 4 M10 x 93mm Patch Screw
83 2 Crank Snap Ring
84 2 Crank Arm Washer
85 2 Outside Crank Bushing
86 1 Flange Screw
87 4 M10 x 25mm Washer
88 7 Bolt Set
89 2 Small Snap Ring
90 1 Idler Snap Ring
91 1 Eddy Snap Ring
92 1 Idler Spacer
93 2 M10 Nylon Locknut
94 3 Idler Washer
95 1 Center Foot
96 1 Belt
97 51 M4 x 16mm Screw
98 2 Leveling Foot
99 4 M10 Curved Washer
100 4 Wave Washer
24
ey No. Qty. Description Key No. Qty. Description
K
01 4 M8 Split Washer
1
102 12 M6 Split Washer
03 8 M8.5 x 16mm x 1.5mm Washer
1
104 4 M8 x 20mm x 2mm Washer
105 4 M8 x 16mm Patch Screw
106 10 M8 x 15mm Patch Screw
07 4 M8 x 20mm Patch Screw
1
108 4 M6 x 62mm Patch Screw
109 4 M6 x 35mm Patch Screw
110 6 M8 x 25mm Patch Screw
111 4 M10 x 20mm Patch Screw
Note: Specifications are subject to change without notice. See the back cover of this manual for information
about ordering replacement parts. *These parts are not illustrated.
12 8 M8 x 25mm Shoulder Screw
1
113 2 M8 x 30mm Patch Screw
14 5 1/4" x 19mm Button Screw
1
115 3 M4 x 12mm Screw
116 1 Right Crank Bearing Assembly
117 1 Accessory Tray
*
*–Hex Key
*–Grease Packet
*–Power Adapter Wire
– Userʼs Manual
25

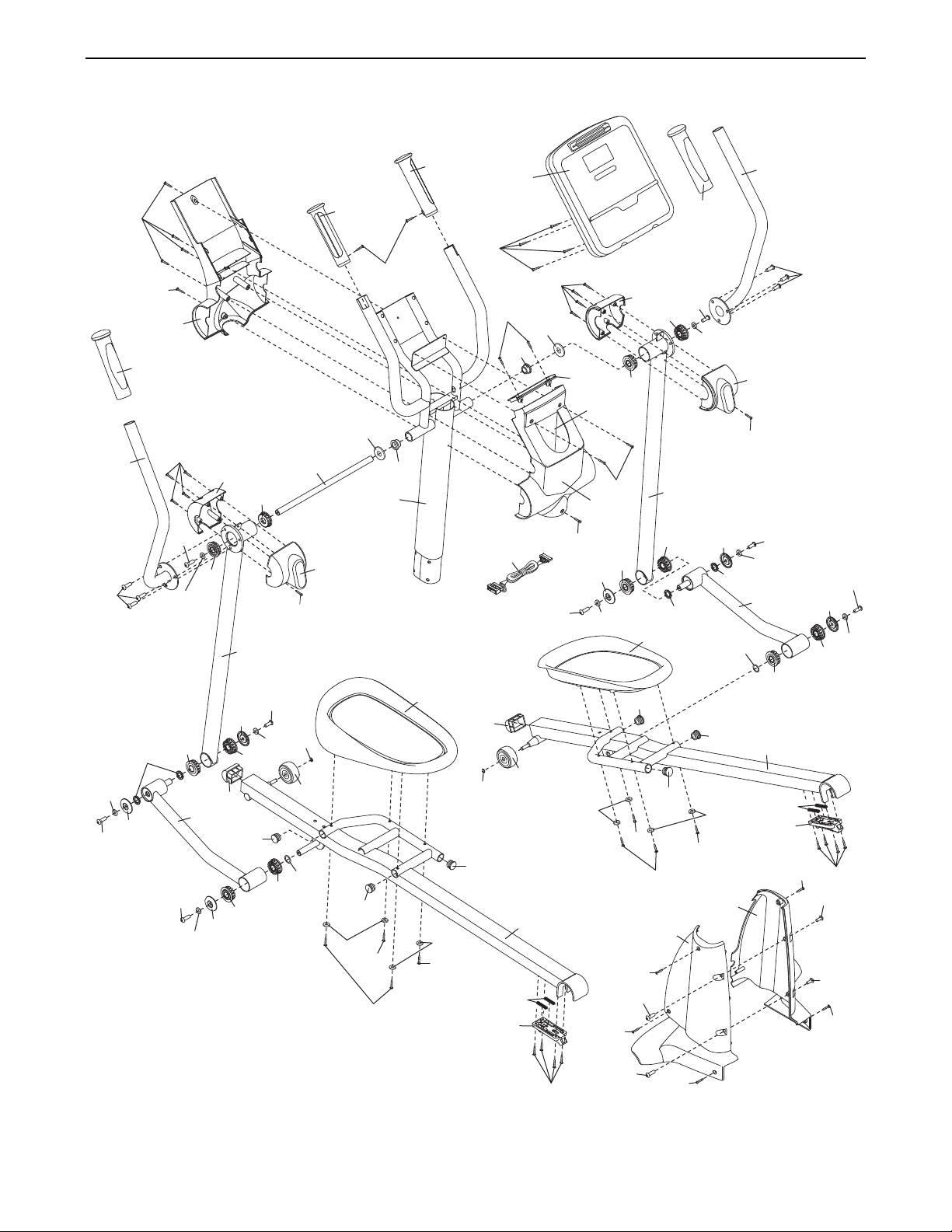

EXPLODED DRAWING A—Model No. PFEL77908.0 R0508A
10
1
1
19
20
21
21
22
23
24
24
25
25
26
27
28
29
31
30
32
33
34
35
36
37
38
38
39
39
40
41
42
41
42
43
43
43
43
43
43
65
66
66
66
66
66
67
67
66
67
67
67
67
67
67
79
79
79
79
78
78
71
74
74
74
88
88
88
88
89
89
97
97
110
103
103
105
104
106
97
97
81
97
97
97
81
97
104
105
106
97
97
115
100
100
106
103
110
103
106
103
100
106
106
103
100
108
102
102
109
109
102
102
109
108
108
81
97
81
81
81
117
26
1
2
3
4
5
6
7
8
8
9
62
63
12
1
3
12
13
14
15
16
16
17
17
18
18
44
45
46
47
48
49
50
51
95
52
54
53
55
56
57
76
59
60
61
116
58
55
52
54
53
64
68
68
68
68
69
70
72
88
75
82
8
2
83
83
84
85
84
85
86
88
88
88
90
91
92
94
73
93
93
80
80
96
99
99
107
101
107
101
97
97
97
97
111
87
97
97
97
111
87
102
114
102
114
114
97
97
113
103
113
103
112
110
110
87
87
111
111
97
97
97
115
112
98
98
104
105
104
105
77

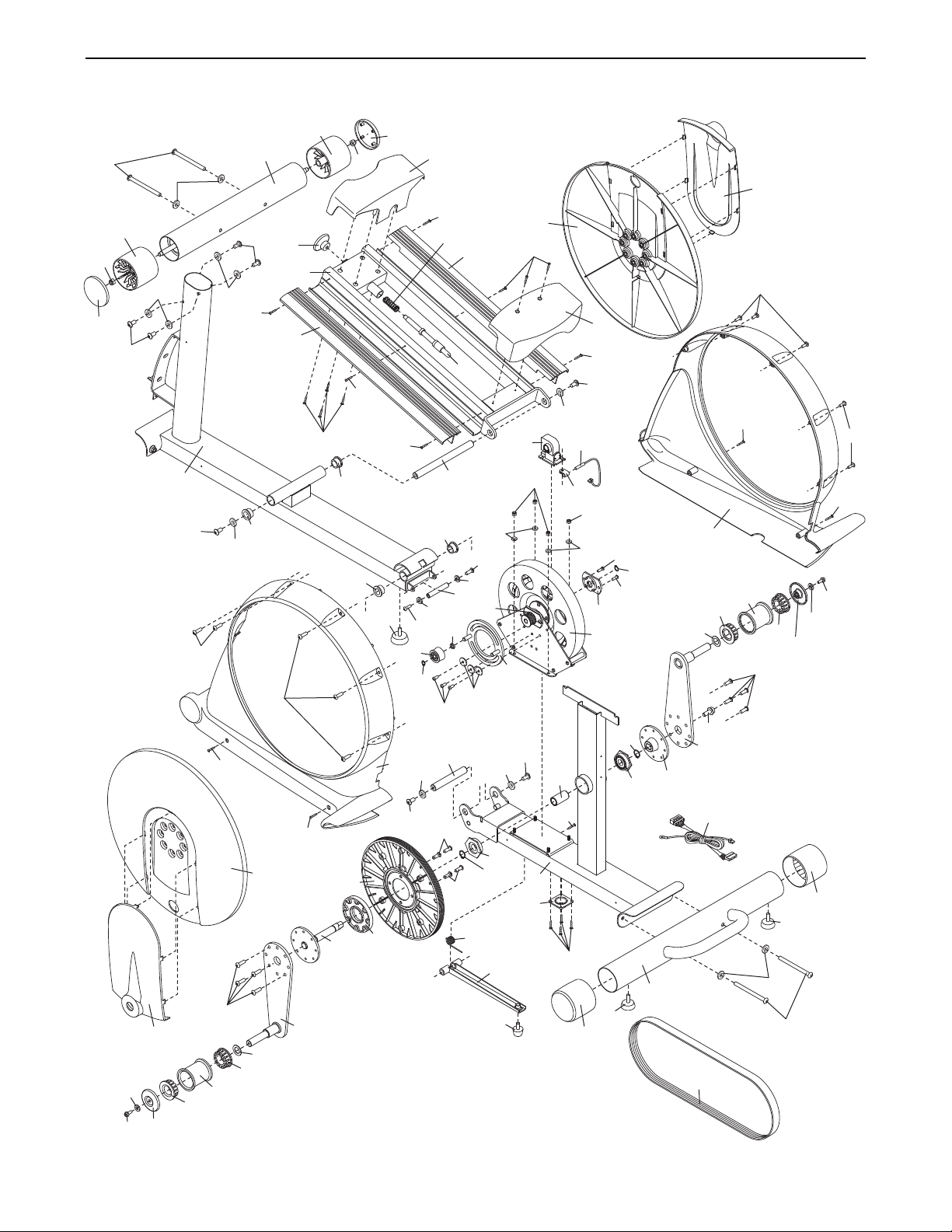

EXPLODED DRAWING B—Model No. PFEL77908.0 R0508A
27
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of one (1) year from the date of purchase.
There is a lifetime warranty on the frame. This warranty extends only to the original purchaser. ICON's
obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through
one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped to a service center, freight charges to and from the service center will be the customerʼs responsibility. For in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON
authorized service center; products used for commercial or rental purposes; or products used as store
display models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 264001 R0508A Printed in China © 2008 ICON IP, Inc.
Loading...
