CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
Serial
Number
Decal
Model No. PFEL73807.0
Serial No.
Write the serial number in the
space above for reference.
QUESTIONS?
As a manufacturer, we are committed to providing complete customer
satisfaction. If you have questions,
or if parts are damaged or missing,
PLEASE DO NOT CONTACT THE
STORE; please contact Customer
Care.
IMPORTANT: You must note the
product model number and serial
number (see the drawing above)
before contacting us:
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MST
Sat. 8 a.m.–4 p.m. MST
ON THE WEB:
www.proformservice.com
USER’S MANUAL
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
2
PROFORM is a registered trademark of ICON IP, Inc.
WARNING DECAL PLACEMENT
The warning decal shown here has been
applied in the location shown. If the decal is
missing or illegible, see the front cover of
this manual and request a free replacement
decal. Apply the decal in the location
shown. Note: The decal may not be shown at
actual size.
3
1. Before beginning any exercise program, consult your physician. This is especially important for persons over the age of 35 or persons with pre-existing health problems.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. Your elliptical exerciser is intended for home
use only. Do not use your elliptical exerciser
in a commercial, rental, or institutional setting.
4. Keep your elliptical exerciser indoors, away
from moisture and dust. Place your elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is enough clearance
around your elliptical exerciser to mount,
dismount, and use it.
5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from your elliptical exerciser at all times.
7. Your elliptical exerciser should not be used
by persons weighing more than 250 lbs.
(113 kg).
8. Wear appropriate exercise clothes when
exercising; do not wear loose clothes that
could become caught on your elliptical exerciser. Always wear athletic shoes for foot
protection.
9. Hold the handgrip pulse sensor or the upper
body arms when mounting, dismounting, or
using your elliptical exerciser.
10. Keep your back straight while using your
elliptical exerciser; do not arch your back.
11. The pulse sensor is not a medical device.
Various factors, including the user’s movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
12. When you stop exercising, allow the pedals
to slowly come to a stop.
13. If you feel pain or dizziness while exercising,
stop immediately and cool down.
14. Use your elliptical exerciser only as
described in this manual.
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical exerciser before using your elliptical
exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or
through the use of this product.
IMPORTANT PRECAUTIONS
4
BEFORE YOU BEGIN
Thank you for purchasing the revolutionary
PROFORM®RAZOR 400 elliptical exerciser. The
RAZOR 400 elliptical exerciser provides a wide array
of features designed to make your workouts at home
more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, please see the back
cover of this manual. To help us assist you, note the
product model number and serial number before con-
tacting us. The model number and the location of the
serial number decal are shown on the front cover of
this manual.
To avoid a registration fee for any service needed
under warranty, you must register the elliptical
exerciser at www.proformservice.com/registration.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Pulse Sensor
Upper Body Arm
Pedal Disc
Wheel
Pedal
Water Bottle Holder*
Console
Fan
*No water bottle is included
Adjustment Knob
5
ASSEMBLY
To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires the included hex keys and your own Phillips screwdriver ,
adjustable wrench , and rubber mallet .
As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number
following the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-
assembled. If a part is not in the parts bag, check to see if it has been pre-assembled.
M6 Nylon
Locknut (77)–4
M4 x 12mm
Screw (99)–4
M6 x 16mm Patch
Screw (80)–6
Wave Washer
(88)–2
M4 x 16mm
Screw (84)–8
M6 x 36mm Button
Bolt (76)–4
M10 Split
Washer (78)–10
M4 x 16mm
Flat Head
Screw (103)–2
M10 x 20mm Patch
Screw (79)–4
M4 x 20mm Screw
(92)–4
M10 x 70mm Button Screw (75)–6
M10 x 35mm Shoulder
Screw (63)–2
M4 x 32mm Screw
(95)–2
6
2. Attach a Wheel (50) to the front of the Frame (1)
with an M10 x 35mm Shoulder Screw (63).
Repeat this step to attach the other
Wheel (50).
2
1.
While another person lifts the rear of the Frame
(1), attach a Frame Cover (48) to the Frame
with two M4 x 16mm Screws (84).
Repeat this step to attach the other
Frame Cover (48).
48
1
1
To make assembly easier, read the
information on page 5 before you begin
assembling the elliptical exerciser.
84
63
50
1
63
50
84
48
7
4. Tip: Be careful not to pinch the Wire Harness
(49) during this step.
Orient the Water Bottle Holder (5) as shown and
slide it onto the Upright (2). Attach the Water
Bottle Holder with two M4 x 32mm Screws (95).
Slide the Console Cover (96) onto the Upright
(2) and move it downward to the Water Bottle
Holder (5). Then, insert the Console Bracket (3)
into the top of the Upright. Attach the Console
Bracket with four M4 x 12mm Screws (99).
4
3. Tip: Be careful not to pinch the Wire Harness
(49) during this step.
Have another person hold the Upright (2) near
the Frame (1). Locate the wire tie in the Upright.
Tie the lower end of the wire tie to the Wire
Harness (49). Next, pull the upper end of the
wire tie upward out of the top of the Upright.
Then, untie and discard the wire tie. Tip: To
prevent the Wire Harness from falling inside
the Upright, secure the Wire Harness with a
rubber band.
Attach the Upright (2) to the Frame (1) with four
M10 x 20mm Patch Screws (79), and four M10
Split Washers (78). Tip: Tighten the two Patch
Screws on the front of the elliptical exerciser
before tightening the other two Patch
Screws.
3
Avoid pinching the
Wire Harness (49)
during this step
Avoid pinching
the Wire
Harness (49)
during this step
2
1
49
78
78
78
79
79
79
99
99
95
49
96
3
5
Wire Tie
2
8
5. The Console (4) can be operated with four 1.5V
“D” batteries (not included); alkaline batteries are
recommended. IMPORTANT: If the elliptical
exerciser has been exposed to cold temperatures, allow it to warm to room temperature
before inserting batteries into the Console. If
you do not do this, the console displays or
other electronic components may become
damaged. Remove the two screws from the
back of the console, and remove the battery
cover. Insert four batteries into the Console.
Orient the batteries as shown by the markings
inside the battery compartment. Then, reattach
the battery cover.
The Console (4) can also be operated with an
optional power supply (not included). To pur-
chase a power supply, call the telephone
number on the front cover of this manual. To
avoid damaging the console, use only a
manufacturer-supplied power supply. Plug
one end of the power supply into the jack on
the Console; plug the other end into an outlet
installed in accordance with all local codes and
ordinances.
5
6. Tip: Be careful not to pinch the wires during
this step.
While a second person holds the Console (4)
near the Upright (2), connect the console wire to
the Wire Harness (49).
Attach the Console (4) with two M4 x 16mm
Screws (84) and two M4 x 16mm Flat Head
Screws (103).
6
4
4
2
103
96
84
49
Console Wire
Batteries
Battery
Cover
Screws
Avoid pinching
the wires during
this step
9
8. Attach the Left Pedal (12) to the left Pedal Arm
(14) with three M10 x 70mm Button Screws
(75), three M10 Split Washers (78), and an M4
x 16mm Screw (84).
Repeat this step on the right side of the
elliptical exerciser.
8
7
7. Slide the Console Cover (96) (see the drawing
in step 6) upward to the Console (4). Attach the
Console Cover with four M4 x 20mm Screws
(92).
96
92
92
14
75
78
78
12
84
4
10

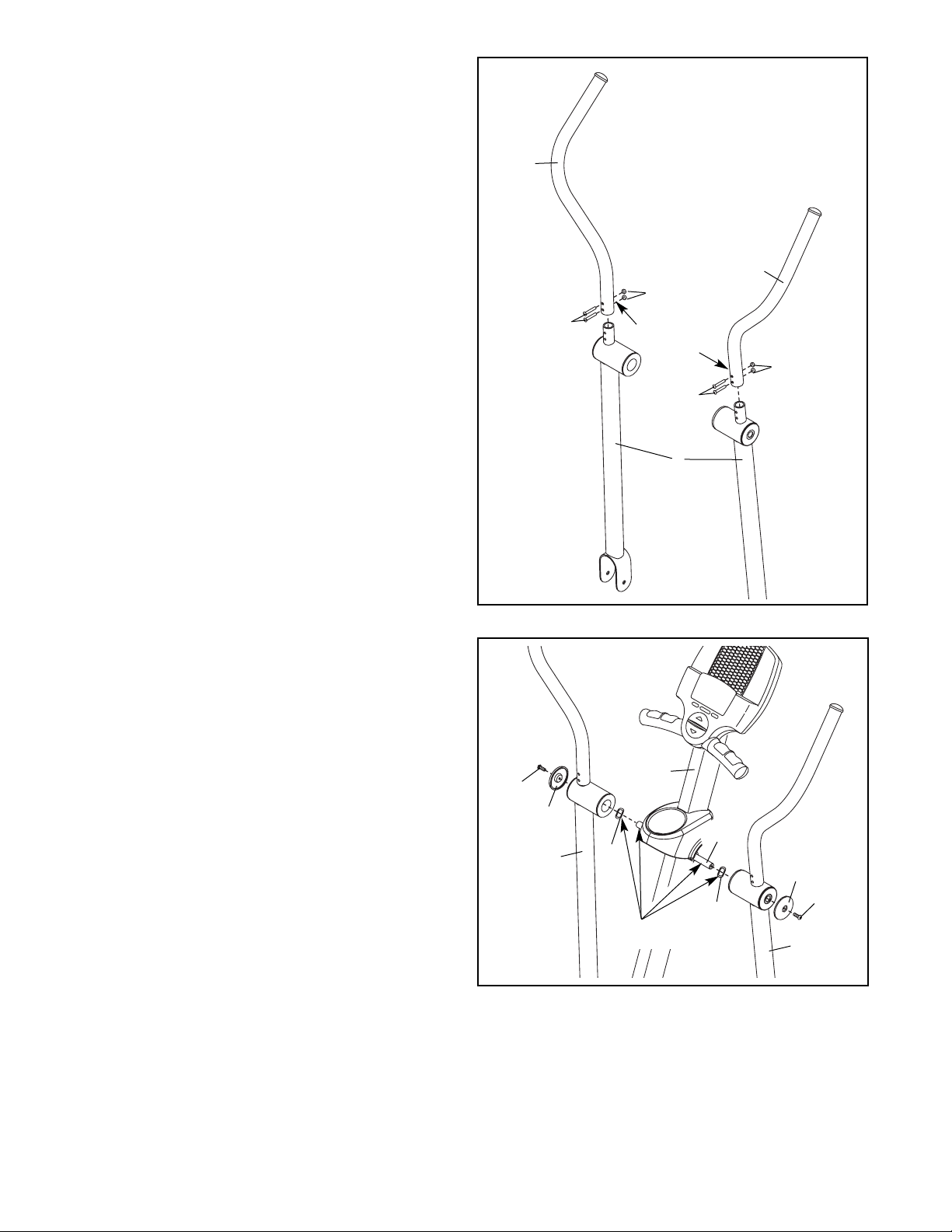

10. Apply a generous amount of the included
grease to the Pivot Axle (16). Then, apply a
small amount of grease to two Wave Washers
(88).
Insert the Pivot Axle (16) into the Upright (2).
Slide a Wave Washer (88) onto each end of the
Pivot Axle.
Slide the left Upper Body Leg (6) onto the Pivot
Axle (16). Attach the left Upper Body Leg with
an M6 x 16mm Patch Screw (80) and a Large
Axle Cover (20). Attach the right Upper Body
Leg (6) in the same way.
10
9. Identify the Left Upper Body Arm (8), which is
marked with an “L” sticker. Orient the Left Upper
Body Arm and the left Upper Body Leg (6) as
shown; make sure that the hexagonal holes
in the Left Upper Body Arm are in the indicated location.
Slide the Left Upper Body Arm (8) onto the left
Upper Body Leg (6). Attach the Left Upper Body
Arm with two M6 x 36mm Button Bolts (76) and
two M6 Nylon Locknuts (77); make sure that
the Nylon Locknuts are inside the hexagonal
holes.
Repeat this step for the Right Upper Body
Arm (9) and the right Upper Body Leg (6).
9
8
77
80
20
6
88
88
6
20
80
76
Hexagonal
Holes
6
9
77
2
76
Grease
16
11
12. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
11. Apply a small amount of grease to a Pedal Arm
Axle (21). While another person holds the right
Pedal Arm (14) inside the bracket on the right
Upper Body Leg (6), insert the Pedal Arm Axle
through the Upper Body Leg and the Pedal
Arm.
Then, tighten an M6 x 16mm Patch Screw (80)
and an Axle Cover (22) into each end of the
Pedal Arm Axle (21).
Repeat this step for the other side of the
elliptical exerciser.
11
80
22
21
14
Grease
22
6
80
12
HOW TO USE THE ELLIPTICAL EXERCISER
HOW TO MOVE THE ELLIPTICAL EXERCISER
To move the elliptical exerciser, stand in front of it,
place one foot against one of the wheels, and firmly
hold the upper end of the upright. Pull the upright forward until you can move the elliptical exerciser on the
wheels. Carefully move the elliptical exerciser to the
desired location and then lower it to the floor. To
decrease the risk of injury, do not attempt to move
the elliptical exerciser over an uneven surface.
HOW TO EXERCISE ON THE ELLIPTICAL
EXERCISER
To mount the elliptical exerciser, hold the upper body
arms and step onto the pedal that is in the lowest
position. Next, step onto the other pedal. Push the
pedals until they begin to move with a continuous
motion.
Note: The pedal discs can turn in either direction.
It is recommended that you turn the pedal discs in
the direction shown by the arrow below; however,
for variety you can turn the pedal discs in the
opposite direction.
To dismount the elliptical exerciser, wait until the pedals come to a complete stop. Note: The elliptical
exerciser does not have a free wheel; the pedals
will continue to move until the flywheel stops.
When the pedals are stationary, step off the higher
pedal first. Then, step off the lower pedal.
Place
your foot
here
Upright
Wheel
Pedals
Pedal Disc
Upper Body Arms
13
HOW TO ADJUST THE STRIDE OF THE
ELLIPTICAL EXERCISER
To adjust the stride of the elliptical exerciser, first pull
one of the adjustment knobs until the adjustment
bracket pivots freely. Pivot the adjustment bracket
until the adjustment knob is aligned with one of the
two holes in the crank arm, and gently release the
knob. Then, pivot the adjustment bracket back and
forth slightly to make sure that the adjustment pin is
engaged in one of the holes in the crank arm.
Adjust the other side of the elliptical exerciser in the
same way.
Adjustment
Bracket
Adjustment
Knob
Crank
Arm
Holes
Adjustment
Pin
14
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable. When you use the manual mode of the
console, you can change the resistance of the pedals
with the touch of a button. As you exercise, the console will provide continuous exercise feedback. You
can even measure your heart rate using the handgrip
pulse sensor.
The console offers six preset workouts. Each preset
workout automatically changes the resistance of the
pedals and prompts you to increase or decrease your
pedaling pace as it guides you through an effective
workout.
To use the manual mode of the console, follow the
steps beginning on page 15. To use a preset work-
out, see page 17.
CONSOLE DIAGRAM
15
HOW TO USE THE MANUAL MODE
Note: If there is a sheet of clear plastic on the face of
the console, remove the plastic.
1. Press the Display button or the decrease but-
ton on the console, or begin pedaling to turn
on the console.
When you turn on the console, the display will
light. A tone will then sound and the console will
be ready for use.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected. If you have selected a workout,
reselect the manual mode by pressing the
Workouts button repeatedly until the words MANUAL MODE appear in the display.
3. Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change the resistance of the pedals
by pressing the increase and decrease buttons.
Note: After you press the buttons, it will take a
moment for the pedals to reach the selected resistance level.
4. Follow your progress with the display.
The upper left display–This
display can show the approximate number of calories you
have burned and the elapsed
time.
The lower left display–This
display can show the elapsed
time and the approximate number of calories you have
burned. Note: During a workout, the display will show the
time remaining in the workout.
The upper middle
display–This display will show
the resistance level of the pedals for a few seconds each time
the resistance level changes.
This display will also show your
heart rate when you use the handgrip pulse sensor
(see step 5 on page 16).
The lower middle
display–This display will show
a track representing 640 revolutions. As you exercise, indicators will appear in succession
around the track until the entire
track appears. The track will then disappear and
the indicators will again begin to appear in succession.
The upper right display–This
display can show the distance
you have pedaled (in total revolutions) and your pedaling
pace (in revolutions per
minute).
The lower right display–This
display can show your pedaling pace (in revolutions per
minute) and the distance you
have pedaled (in total revolutions).
To view selected information at a larger size, press
the Display button repeatedly until the desired
information appears in the lower left and lower
right displays.
Track
16
5. Measure your heart rate if desired.
If there are
sheets of clear
plastic on the
metal contacts
on the handgrip
pulse sensor,
remove the plastic. In addition,
make sure that
your hands are
clean. To measure
your heart rate,
hold the handgrip pulse sensor with your palms
resting against the metal contacts. Avoid moving
your hands or gripping the contacts tightly.
When your pulse is detected,
a heart-shaped symbol will
flash in the display, one or two
dashes will appear, and then
your heart rate will be shown.
For the most accurate heart
rate reading, hold the contacts for at least 15 seconds.
If your heart rate is not shown, make sure that your
hands are positioned as described. Be careful not
to move your hands excessively or to squeeze the
metal contacts tightly. For optimal performance,
clean the metal contacts using a soft cloth; never
use alcohol, abrasives, or chemicals to clean
the contacts.
6. Turn on the fan if desired.
The fan has high and low speed settings. Press
the Fan button repeatedly to select a fan speed or
to turn off the fan. Note: If the pedals do not move
for about thirty seconds, the fan will turn off automatically.
7. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
series of tones will sound, the console will pause,
and the time will flash in the display.
If the pedals do not move for about five minutes,
the console will turn off and the display will be
reset.
Contacts
17
HOW TO USE A PRESET WORKOUT
1. Turn on the console.
See step 1 on page 15.
2. Select a preset workout.
To select a preset workout, press the Workouts
button repeatedly until the name of the desired
workout appears in the display.

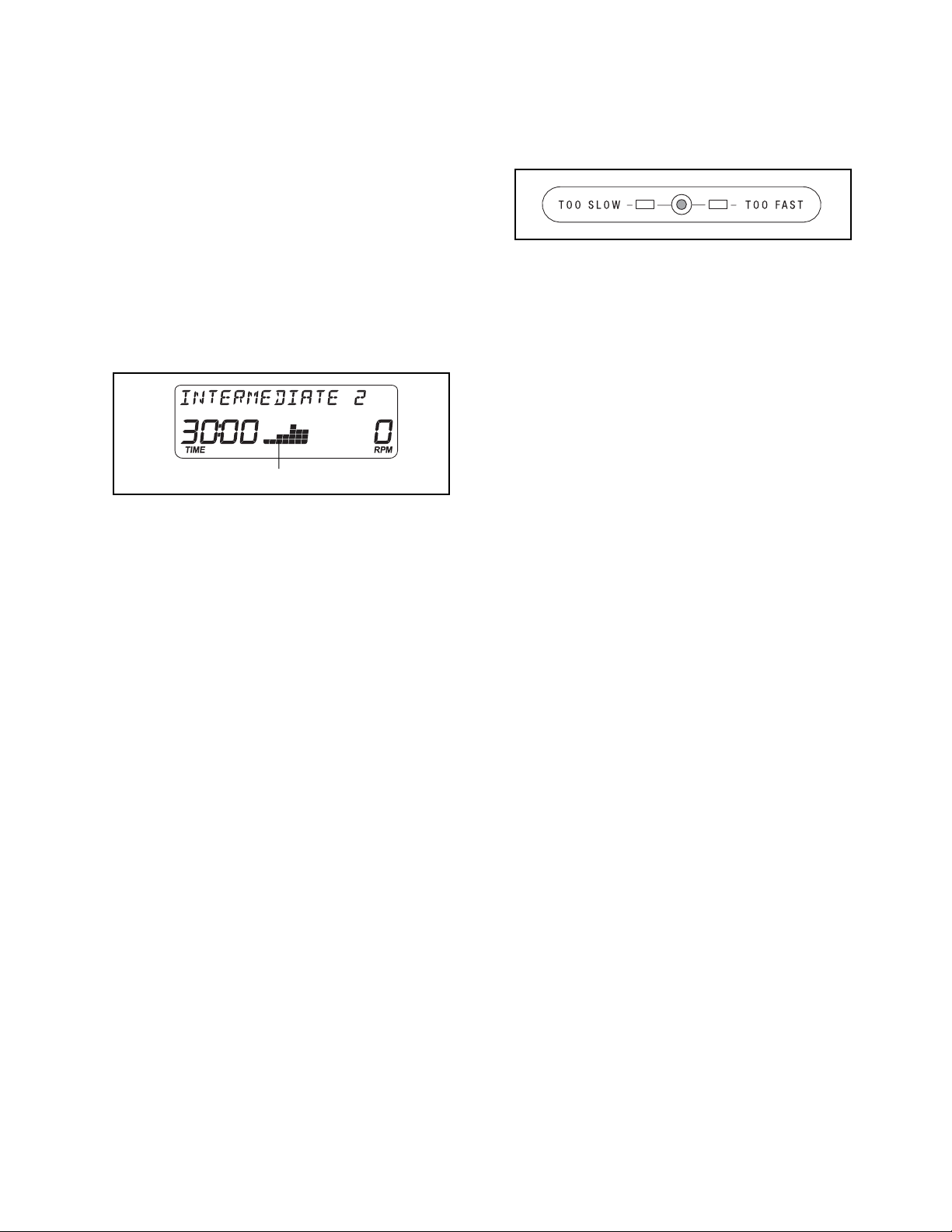

When you select a preset workout, the name of
the workout will appear in the display and a profile
of the resistance levels of the workout will scroll
across the matrix.
3. Begin pedaling to start the workout.
Each workout is divided into 20, 30, or 45 oneminute segments. One resistance level and one
target pace setting are programmed for each segment. Note: The same resistance level and/or target
pace setting may be programmed for two or more
consecutive segments.
During the workout, the workout profile will show
your progress (see the drawing above). The flashing segment of the profile represents the current
segment of the workout. The height of the flashing
segment indicates the resistance level for the current segment. At the end of each segment of the
workout, a series of tones will sound and the next
segment of the profile will begin to flash. If a different resistance level is programmed for the next
segment, the resistance level will flash in the display for a few seconds to alert you. The resistance
of the pedals will then change.
You will also be prompted to keep your pedaling
pace near the target pace setting for the current
segment. When the TOO SLOW indicator is lit,
increase your pace. When the TOO FAST indica-
tor is lit, decrease your pace. When the center
indicator is lit, maintain your current pace.
Important: The target pace settings are intended only to provide motivation. Make sure to
pedal at a pace that is comfortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the decrease and increase buttons. However, when the current segment ends,
the pedals will automatically adjust to the resistance level for the next segment.
If you stop pedaling for several seconds, a series
of tones will sound and the workout will pause. To
restart the workout, simply resume pedaling. The
workout will continue until the last segment of the
profile flashes and the last segment of the workout
ends.
When the workout is completed, the words PROGRAM DONE will appear in the display for a few
seconds. Note: If you continue to pedal after the
workout is completed, the display will continue to
show exercise feedback; however, the display will
not show the elapsed time until you select the
manual mode or a new workout.
4. Follow your progress with the display.
See step 4 on page 15.
5. Measure your heart rate if desired.
See step 5 on page 16.
6. Turn on the fan if desired.
See step 6 on page 16.
7. When you are finished exercising, the console
will turn off automatically.
See step 7 on page 16.
Profile
20
Key No. Qty. Description Key No. Qty. Description
PART LIST—Model No. PFEL73807.0 R1007A
1 1 Frame
2 1 Upright
3 1 Console Bracket
4 1 Console
5 1 Water Bottle Holder
6 2 Upper Body Leg
7 1 Resistance Wheel
8 1 Left Upper Body Arm
9 1 Right Upper Body Arm
10 2 Foam Grip
11 2 Upper Endcap
12 1 Left Pedal
13 1 Right Pedal
14 2 Pedal Arm
15 2 Pedal Bracket
16 1 Pivot Axle
17 2 Inner Bushing Set
18 2 Outer Bushing Set
19 2 Upright Bushing
20 2 Large Axle Cover
21 2 Pedal Arm Axle
22 4 Axle Cover
23 4 Pedal Arm Bushing Set
24 1 Crank Assembly
25 1 Crank Arm
26 1 Left Pedal Disc
27 1 Right Pedal Disc
28 2 Pedal Disc Cover
29 2 Adjustment Pin
30 2 Spring
31 1 Left Adjustment Bracket
32 4 Large Snap Ring
33 2 36mm x 29mm Wave Washer
34 4 Adjustment Bushing
35 2 Pedal Arm Bracket
36 2 Adjustment Knob
37 2 Fender Washer
38 2 Crank Bearing
39 1 Crank Spacer
40 1 Crank Arm Spacer
41 2 Magnet
42 1 Extended Reed Switch Wire
43 1 Right Adjustment Bracket
44 1 Left Side Shield
45 1 Right Side Shield
46 1 Belt
47 2 Foot
48 2 Frame Cover
49 1 Wire Harness
50 2 Wheel
51 1 Flywheel
52 1 Idler
53 1 “C” Magnet
54 1 Resistance Motor
55 1 Motor Bracket
56 1 Resistance Arm
57 1 Clamp
58 1 Reed Switch/Wire
59 1 Magnet Spacer
60 1 Key
61 1 Square Nut
62 1 Flange Screw
63 2 M10 x 35mm Shoulder Screw
64 1 Flywheel Bolt
65 1 “C” Magnet Bolt
66 1 Idler Bolt
67 1 Key Screw
68 1 Crank Arm Screw
69 4 Resistance Motor Bolt
70 4 Resistance Motor Nut
71 4 Motor Bracket Screw
72 1 Belt Adjustment Screw
73 2 M10 x 58mm Shoulder Bolt
74 4 M8 Nylon Locknut
75 6 M10 x 70mm Button Screw
76 4 M6 x 36mm Button Bolt
77 4 M6 Nylon Locknut
78 10 M10 Split Washer
79 4 M10 x 20mm Patch Screw
80 6 M6 x 16mm Patch Screw
81 3 M8 x 12mm Button Screw
82 1 M10 Nylon Locknut
83 7 M6 Star Washer
84 14 M4 x 16mm Screw
85 2 Flywheel Spacer
86 – Not Used
87 2 31mm x 24mm Wave Washer
88 2 Wave Washer
89 – Not Used
90 3 M6 Washer
18
Inspect and tighten all parts of the elliptical exerciser
regularly. Replace any worn parts immediately.
To clean the elliptical exerciser, use a damp cloth and
a small amount of mild soap. Important: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
BATTERY REPLACEMENT
If the console displays become dim, the batteries
should be replaced; most console problems are the
result of low batteries. See assembly step 5 on page 8
for replacement instructions.
HANDGRIP PULSE SENSOR TROUBLESHOOTING
If the handgrip pulse sensor does not function properly, see step 5 on page 16.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. First, remove all of the
screws from both side shields; there are four sizes of
screws in the side shields—note which size of
screw you remove from each hole. Then, gently pry
the side shields away from the frame.
Next, locate the
Reed Switch (58).
Turn the Left
Pedal Disc (26)
until the Magnet
(41) is aligned
with the Reed
Switch. Loosen,
but do not
remove, the indicated M4 x
12mm Screw
(99). Slide the
Reed Switch slightly closer to or away from the
Magnet, and then retighten the Screw. Rock the Left
Pedal Disc forward and backward just enough that the
Magnet passes the Reed Switch repeatedly. Repeat
until the console displays correct feedback. When the
Reed Switch is correctly adjusted, reattach the side
shields. Note: If you have questions as to which screw
should be in which hole, see EXPLODED DRAWING
B on page 23 and the PART LIST on page 20.
HOW TO ADJUST THE BELT
If you can feel the pedals slip while you are pedaling,
even when the resistance of the pedals is at the highest setting, the Belt (46) may need to be adjusted.
First, remove all the screws from both side shields;
there are four sizes of screws in the side shields—
note which size of screw you remove from each
hole. Then, gently pry the side shields away from the
frame.
Next, turn the
Belt Adjustment
Screw (72) until
the Belt (46) is
tight. Then, reattach the side
shields. Note: If
you have questions as to which
screw should be
in which hole,
see EXPLODED
DRAWING B on page 23 and the PART LIST on page
20.
MAINTENANCE AND TROUBLESHOOTING
41
26
58
72
46
99
19
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses
carbohydrate calories
for energy. Only after
the first few minutes of exercise does your body begin
to use stored
fat calories
for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone.
WORKOUT GUIDELINES
Warming up—Start with 5 to 10 minutes of stretching
and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise–never hold your breath.
Cooling down—Finish with 5 to 10 minutes of
stretching. Stretching increases the flexibility of your
muscles and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each
week, if desired. Remember, the key to success is to
make exercise a regular and enjoyable part of your
everyday life.
EXERCISE GUIDELINES
WARNING: Before beginning
this or any exercise program, consult your
physician. This is especially important for
persons over the age of 35 or persons with
pre-existing health problems.
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
21
Note: Specifications are subject to change without notice. See the back cover of this manual for information
about ordering replacement parts. *These parts are not illustrated.
91 1 M4 x 63mm Screw
92 15 M4 x 20mm Screw
93 1 M4 x 35mm Screw
94 1 M6 Washer
95 2 M4 x 32mm Screw
96 1 Console Cover
97 2 M8 x 18mm Button Screw
98 7 M5 x 15mm Screw
99 7 M4 x 12mm Screw
100 2 M5 x 20mm Screw
101 1 M4 x 45mm Screw
102 2 M5 x 10mm Screw
103 2 M4 x 16mm Flat Head Screw
104 2 M5 Washer
* – User’s Manual
* – Hex Key
* – Grease Packet
Key No. Qty. Description Key No. Qty. Description
22
EXPLODED DRAWING A—Model No. PFEL73807.0 R1007A
11
4
10
80
95
99
20
80
92
99
22
6
13
21
22
80
88
19
19
23
23
15
14
78
78
75
73
79
2
78
84
84
74
79
78
9
77
84
18
76
17
16
96
3
103
5
11
10
49
17
77
8
76
18
20
80
88
78
79
15
14
23
80
78
74
75
78
84
84
22
6
12
21
22
23
80
73
23
EXPLODED DRAWING B—Model No. PFEL73807.0 R1007A
92
45
101
63
92
51
64
50
85
70
85
92
74
52
59
53
48
56
72
99
47
57
58
100
66
65
38
82
40
50
29
63
74
34
30
35
27
67
25
68
34
32
60
87
43
36
97
37
28
81
42
46
33
32
62
94
61
1
71
54
26
55
97
41
7
69
28
37
99
31
87
24
33
32
36
83
32
30
34
90
29
83
98
90
35
83
34
38
90
41
92
92
93
104
92
92
39
83
98
99
102
104
44
92
91
92
92
48
84
47
100
Part No. 255392 R1007A Printed in China © 2007 ICON IP, Inc.
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. There is a five (5) year warranty on the frame. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product
through one of its authorized service centers. All repairs for which warranty claims are made must be preauthorized by ICON. This warranty does not extend to any product or damage to a product caused by or
attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an
ICON authorized service center, products used for commercial or rental purposes, or products used as
store display models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
Loading...
