ProForm PFEL649140 User Manual

www.proform.com

Model No. PFEL64914.0 Serial No.

Write the serial number in the space above for reference.

Serial Number

Decal

ACTIVATE YOUR WARRANTY

To register your product and activate your warranty today, go to www.proformservice.com/ registration.

USER’S MANUAL

CUSTOMER CARE

For service at any time, go to www.proformservice.com.

Or call 1-888-533-1333 Mon.–Fri. 6 a.m.–6 p.m. MT Sat. 8 a.m.–12 p.m. MT

Please do not contact the store.

CAUTION

Read all precautions and instructions in this manual before using this equipment. Keep this manual for future reference.

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

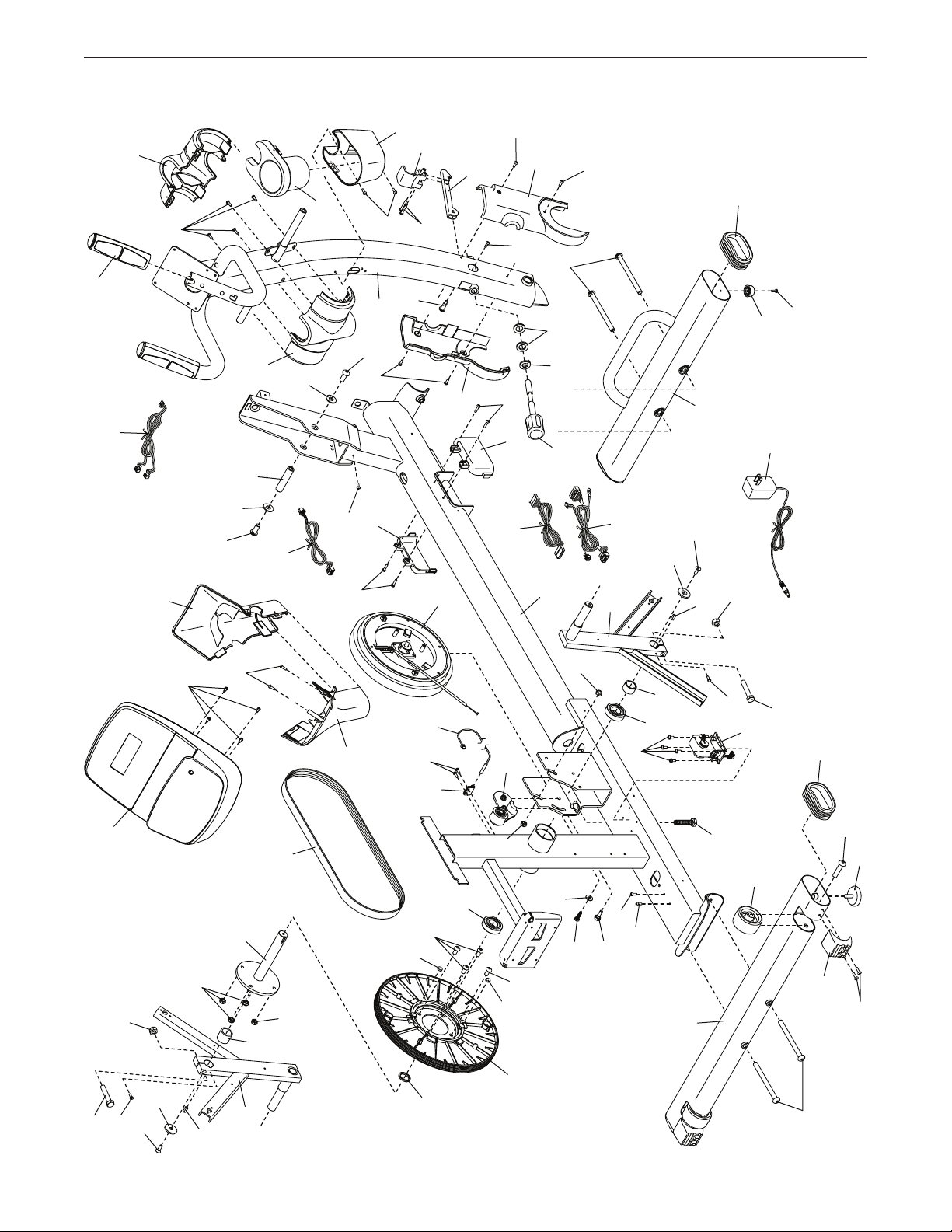

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

WARNING DECAL PLACEMENT

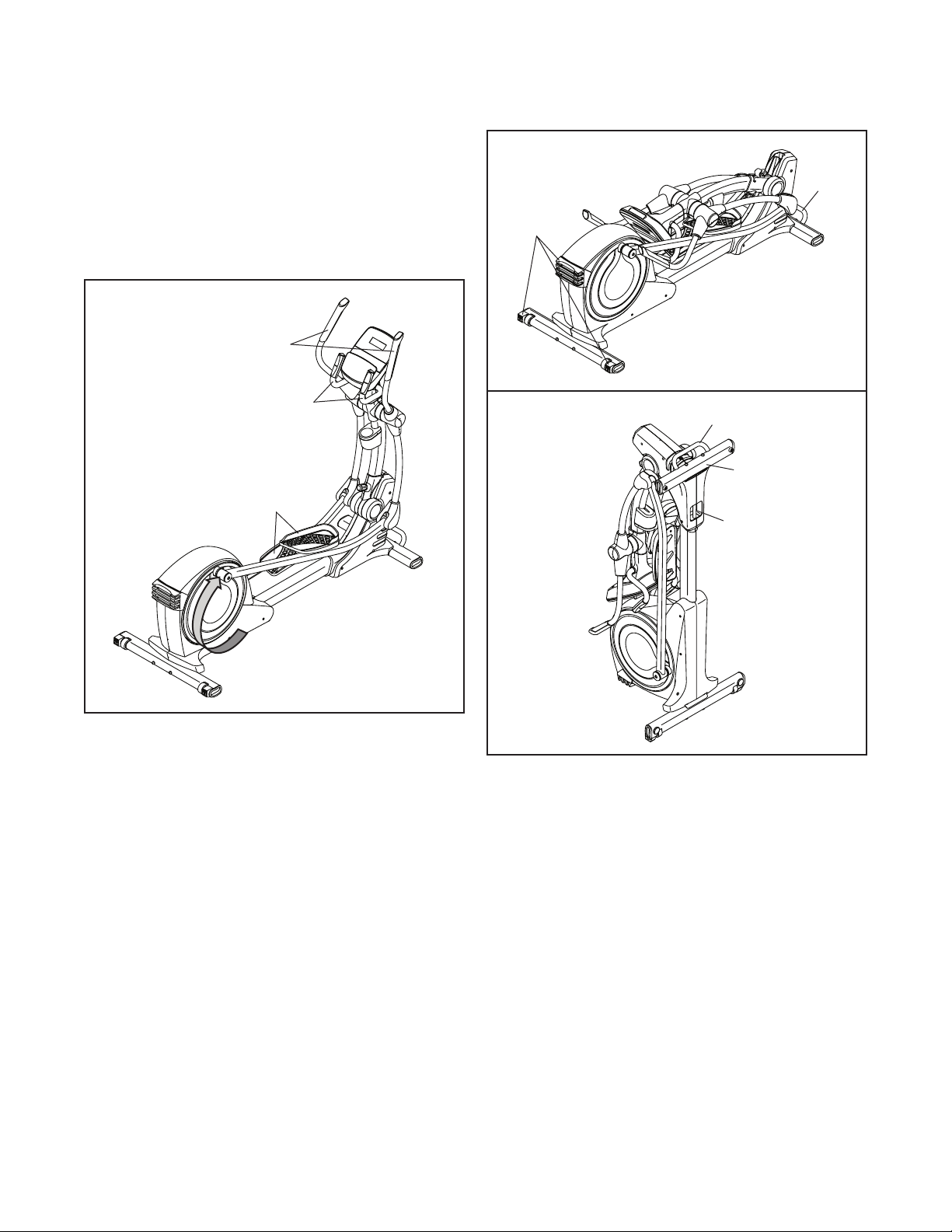

This drawing shows the location(s) of the warning decal(s). If a decal is missing

or illegible, see the front cover of this manual and request a free replacement decal. Apply the decal in the location shown. Note: The decal(s) may not be

shown at actual size.

PROFORM is a registered trademark of ICON Health & Fitness, Inc.

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical before using your elliptical. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

1. It is the responsibility of the owner to ensure that all users of the elliptical are adequately informed of all precautions.

2. Before beginning any exercise program, consult your physician. This is especially important for persons over age 35 or persons with pre-existing health problems.

3. Use the elliptical only as described in this manual.

4. The elliptical is intended for home use only. Do not use the elliptical in a commercial, rental, or institutional setting.

5. Keep the elliptical indoors, away from moisture and dust. Do not put the elliptical in a garage or covered patio, or near water.

6. Place the elliptical on a level surface, with at least 3 ft. (0.9 m) of clearance in the front and rear of the elliptical and 2 ft. (0.6 m) on each side. To protect the floor or carpet from damage, place a mat under the elliptical.

able to safely support 85 lbs. (38.5 kg) to place the elliptical in the storage position.

10. The elliptical should not be used by persons weighing more than 275 lbs. (125 kg).

11. Wear appropriate clothes while exercising; do not wear loose clothes that could become caught on the elliptical. Always wear athletic shoes for foot protection while exercising.

12. Hold the handlebars or the upper body arms when mounting, dismounting, or using the elliptical.

13. The heart rate monitor is not a medical device. Various factors may affect the accuracy of heart rate readings. The heart rate monitor is intended only as an exercise aid in determining heart rate trends in general.

14. The elliptical does not have a freewheel; the pedals will continue to move until the flywheel stops. Reduce your pedaling speed in a controlled way.

7. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.

8. Keep children under age 12 and pets away from the elliptical at all times.

9. Do not attempt to place the elliptical in the storage position until it is properly assembled and the upright is folded. You must be

15. Keep your back straight while using the elliptical; do not arch your back.

16. Over exercising may result in serious injury or death. If you feel faint, if you become short of breath, or if you experience pain while exercising, stop immediately and cool down.

STANDARD SERVICE PLANS

all

BEFORE YOU BEGIN

Thank you for selecting the revolutionary PROFORM® SMART STRIDER E S elliptical. The SMART STRIDER E S elliptical provides an impressive selection of features designed to make your workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before you use the elliptical. If you have questions after

Length: 6 ft. 2 in. (188 cm) Width: 2 ft. 1 in. (64 cm)

Heart Rate Monitor

Handlebar

Accessory Tray

reading this manual, please see the front cover of this manual. To help us assist you, note the product model number and serial number before contacting us. The model number and the location of the serial number decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.

Console

Upper Body Arm

Latch

Large Storage Foot

Wheel

Small Storage Foot

Leveling Foot

Upright Knob

Pedal

Handle

ASSEMBLY

• To hire an authorized service technician to assemble this product, call 1-800-445-2480.

• Assembly requires two persons.

• Place all parts in a cleared area and remove the packing materials. Do not dispose of the packing materials until you ﬁ nish all assembly steps.

1. Go to www.proformservice.com/registration

on your computer and register your product.

• activates your warranty

• saves you time if you ever need to contact Customer Care

• allows us to notify you of upgrades and offers

Note: If you do not have Internet access, call

Customer Care (see the front cover of this manual) and register your product.

• In addition to the included tool(s), assembly requires the following tool(s):

one Phillips screwdriver

one rubber mallet

Assembly may be easier if you have a set of wrenches. To avoid damaging parts, do not use power tools.

2. If necessary, remove and discard the shipping supports and the shipping screws attached to the rear of the Frame (1).

With the help of another person, place some

packing inserts from the packing material under the rear of the Frame (1) so that the Frame is lifted off the floor. Have another person hold

the elliptical to prevent it from moving from side to side until this step is completed.

Orient the Rear Stabilizer (70) as shown. Attach

the Rear Stabilizer to the Frame (1) with two M10 x 120mm Screws (84).

Then, remove the packing inserts and lower the

Rear Stabilizer (70).

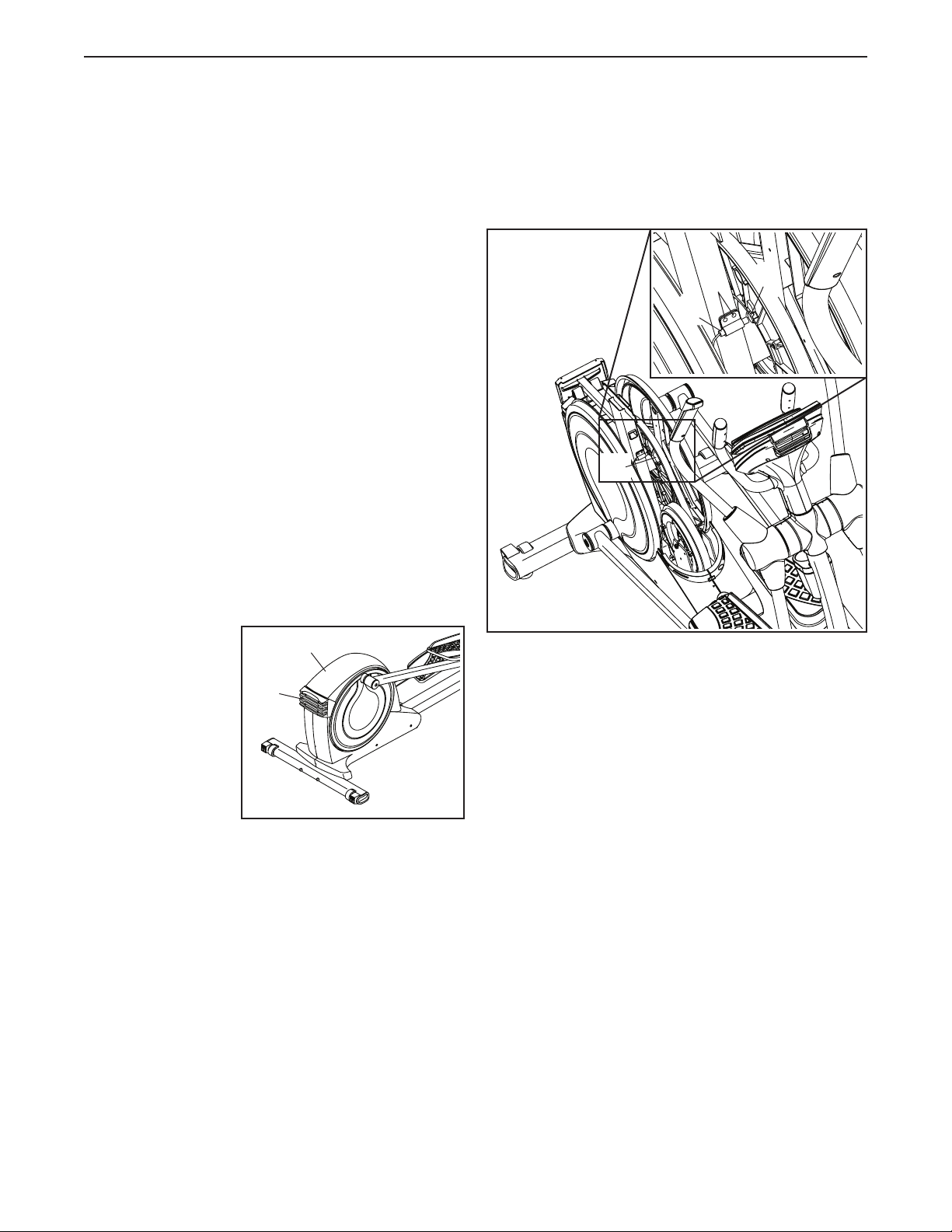

3. If necessary, remove and discard the shipping supports and the shipping screws attached to the front of the Frame (1).

With the help of another person, place some

packing inserts from the packing material under the Frame (1) so that the Frame is lifted off the floor.

Attach the Front Stabilizer (73) to the Frame

(1) with two M10 x 120mm Screws (84). Then, remove the packing inserts and lower the Front Stabilizer.

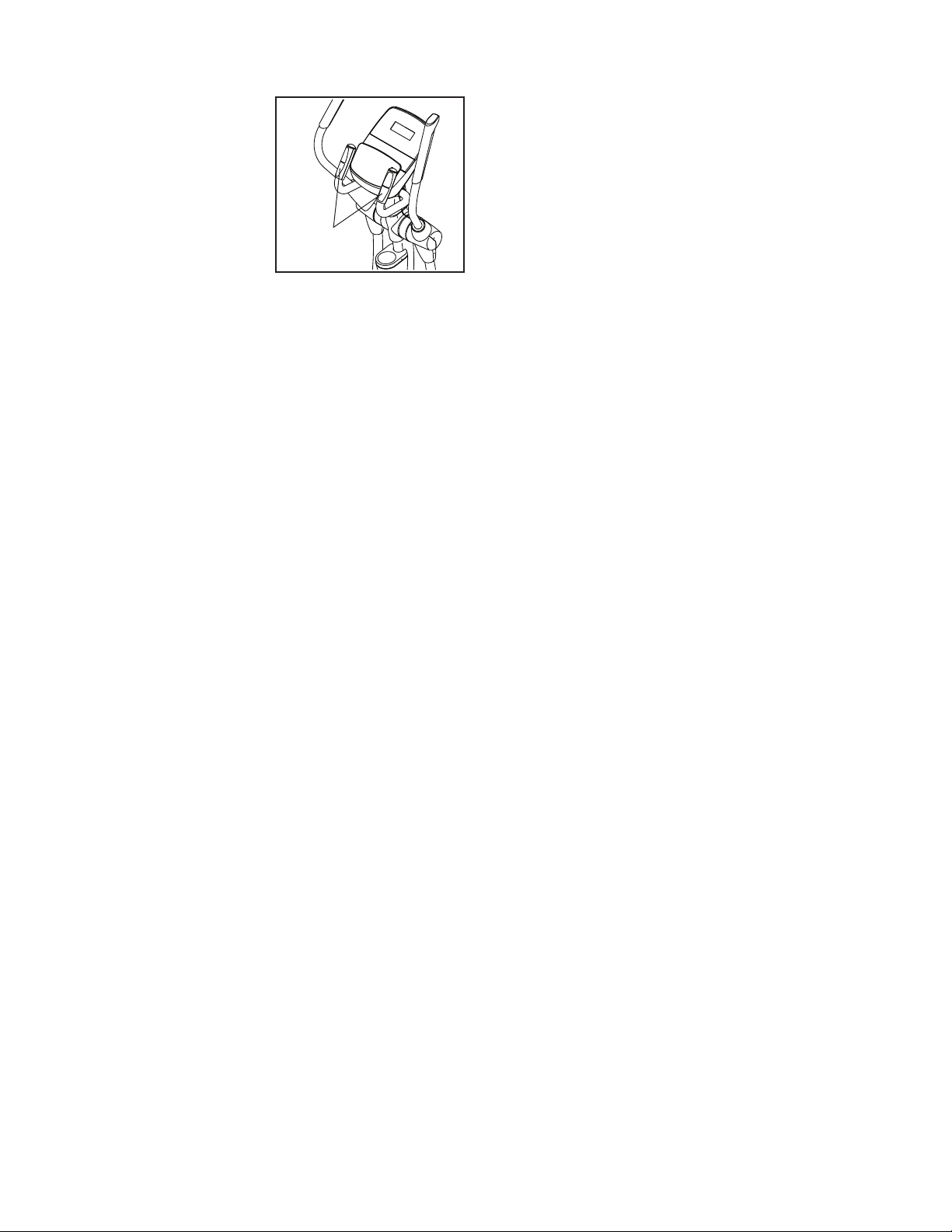

4. With the help of a second person, lift the Upright (2) upward into the upright position.

See the inset drawing. Tighten the Upright

Knob (85) into the Upright (2).

5. Rotate the Right Upper Body Arm (9) to the upright position.

Attach the Right Upper Body Arm (9) to the

Right Upper Body Leg (6) with an M10 x 50mm Screw (95).

Then, tighten the indicated M10 x 45mm

Screw (78).

Press the Upper Body Arm Cover (20) downward

and turn it so that it is flush with the Right Leg Front and Rear Covers (11, 15).

Repeat this step on the other side of the

elliptical.

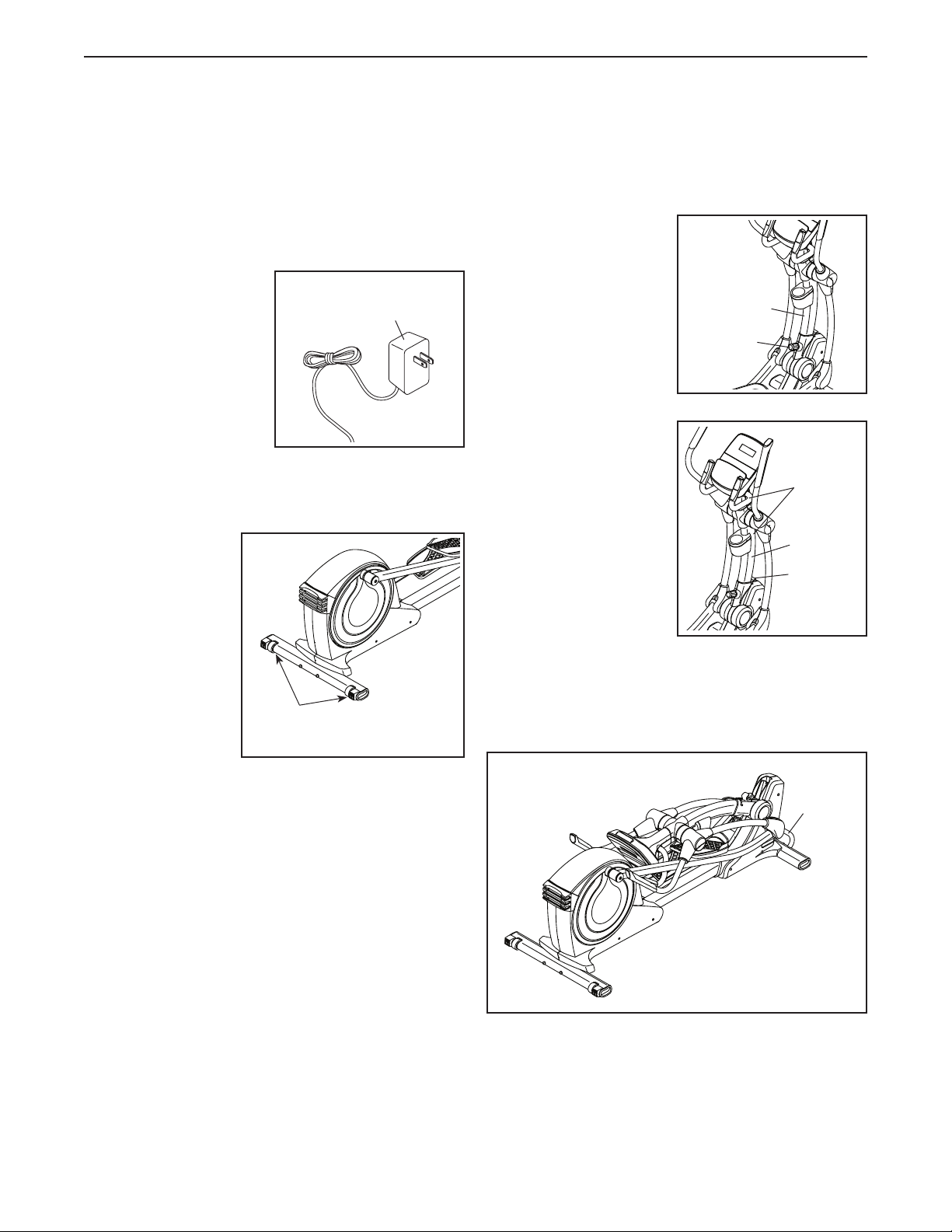

6. Plug the Power Adapter (104) into the receptacle on the frame of the elliptical.

Note: To plug the Power Adapter (104) into an

outlet, see HOW TO PLUG IN THE POWER ADAPTER on page 9.

11, 15

104

7. Make sure that all parts of the elliptical are properly tightened. Note: Extra parts may be included. Place a mat beneath the elliptical to protect the floor.

+ 16 hidden pages
