Page 1
www.proform.com
Model No. PFEL64912.1
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal
(under frame)
ACTIVATE YOUR
WARRANTY
To register your product and
activate your warranty today,
go to www.proformservice.com/
registration.
USER’S MANUAL
CUSTOMER CARE
For service at any time, go to
www.proformservice.com.
Or call 1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
Page 2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

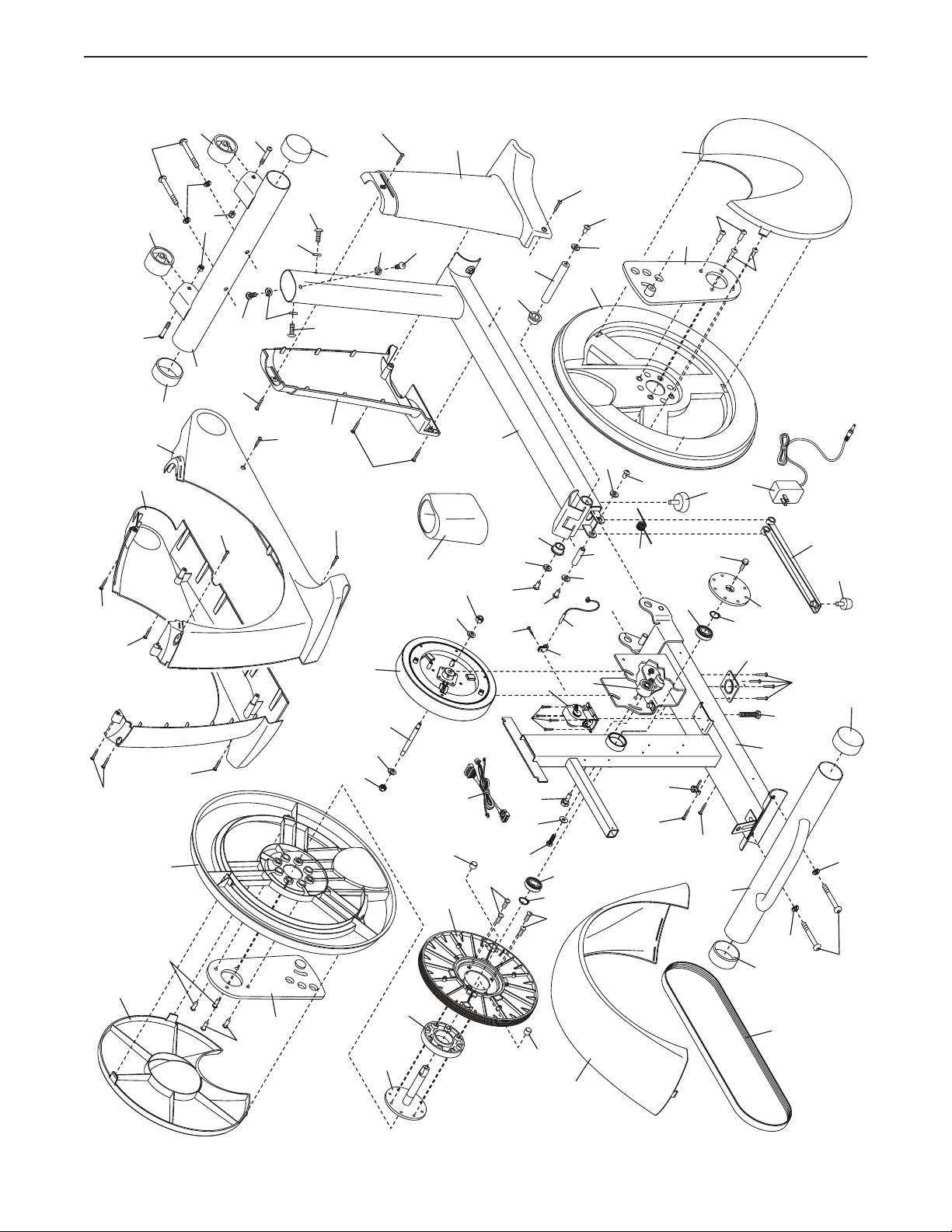

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see the
front cover of this manual and request a free
replacement decal. Apply the decal in the location shown. Note: The decal(s) may not be shown at
actual size.
PROFORM is a registered trademark of ICON Health & Fitness, Inc.
2
Page 3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons with pre-existing health problems.
3. Use the elliptical only as described in this
manual.
4. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
5. Keep the elliptical indoors, away from moisture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
6. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from damage, place a mat under the elliptical.
9. The elliptical should not be used by persons
weighing more than 300 lbs. (136 kg).
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
11. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
12. The heart rate monitor is not a medical
device. Various factors may affect the accuracy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
13. The elliptical does not have a freewheel; the
pedals will continue to move until the flywheel stops. Reduce your pedaling speed in
a controlled way.
14. Keep your back straight while using the elliptical; do not arch your back.
7. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the elliptical at all times.
15. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
3
Page 4
STANDARD SERVICE PLANS
4
Page 5
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM®
420 CE elliptical. The 420 CE elliptical provides an
impressive selection of features designed to make your
workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
Length: 6 ft. 2 in. (188 cm)
Width: 2 ft. 1 in. (64 cm)
Heart Rate Monitor
Accessory Tray
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.

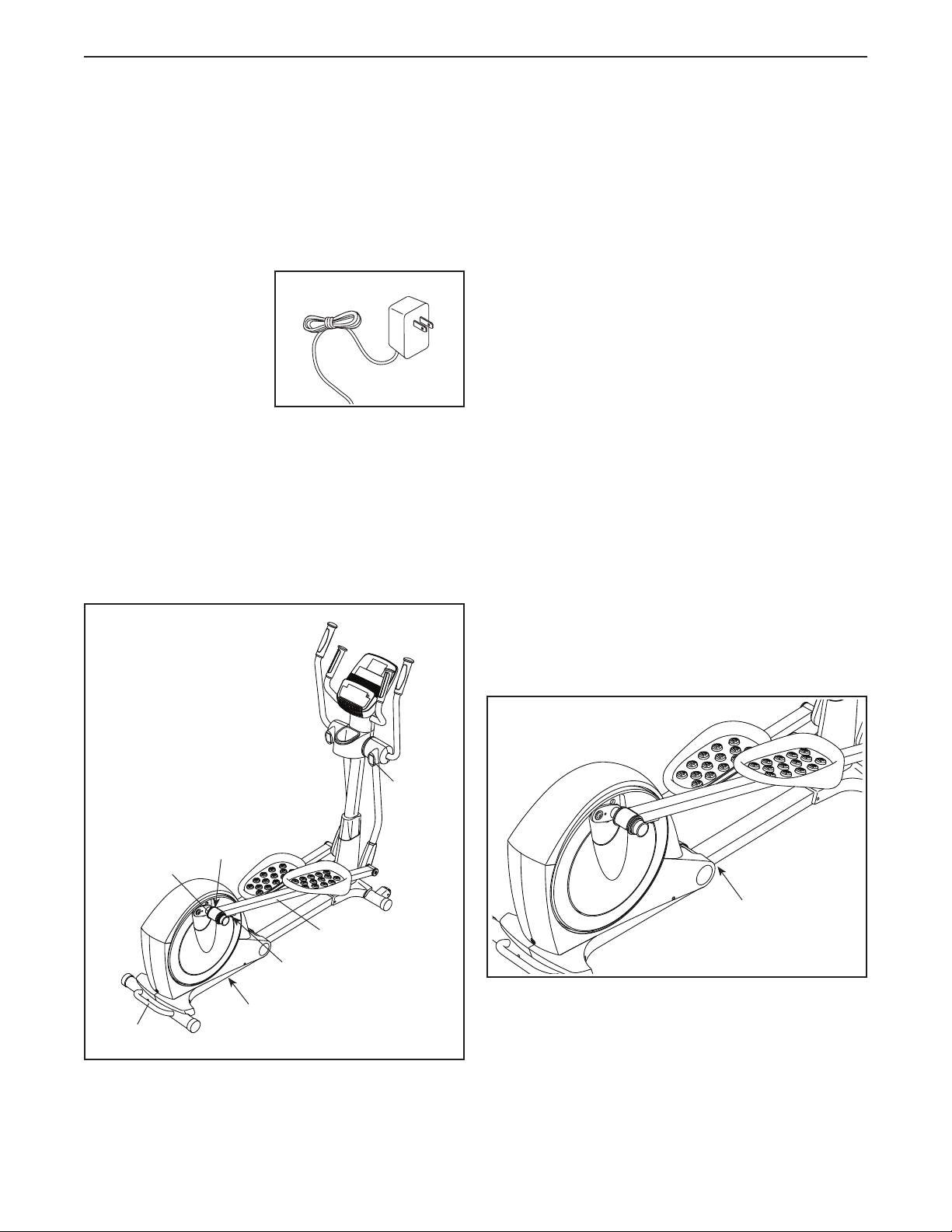

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Console
Upper Body Arm
Handlebar
Storage Magnet
Adjustment Knob
Adjustment Bracket
Crank Arm
Handle
Wheel
Pedal
Pedal Arm Latch
Storage Latch
5
Page 6
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M8 x 16mm x
2mm Washer
(59)–2
M8 Split
Washer
(103)–14
M8 x 16mm
Screw (102)–16
M8 x 23mm x 2mm
Washer (83)–2
M10 Split
Washer (91)–4
M8 x 23mm Shoulder
Screw (98)–2
M8 x 23.5mm x
1mm Washer
(110)–2
M4 x 16mm
Screw (93)–12
Small Wave
Washer
(118)–2
M4 x 19mm
Flat Head
Screw (117)–1
M10 x 80mm
Screw (100)–4
Medium Wave
Washer
(112)–2
M6 x 12mm
Screw (111)–8
6
Page 7
ASSEMBLY
• To hire an authorized service technician to
assemble this product, call 1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you fi nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
1. Go to www.proform.com/registration on your
computer and register your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Care
• allows us to notify you of upgrades and offers
Note: If you do not have Internet access, call
Customer Care (see the front cover of this
manual) and register your product.
• To identify small parts, see page 6.
In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one rubber mallet
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
1
7
Page 8
2. Orient the Front Stabilizer (3) as shown.
While a second person lifts the Frame (1), attach
the Front Stabilizer (3) to the Frame with two
M10 x 80mm Screws (100) and two M10 Split
Washers (91).
2
91
3
1
100
3. Orient the Rear Stabilizer (4) as shown.
While a second person lifts the Folding Frame
(2), attach the Rear Stabilizer (4) to the Folding
Frame with two M10 x 80mm Screws (100) and
two M10 Split Washers (91).
3
4
2
100
91
8
Page 9
4a. Orient the Upright (5) and the Top Cover (23)
as shown. Slide the Top Cover upward onto the
Upright.
Have a second person hold the Upright (5) and
the Top Cover (23) near the Frame (1).
Locate the wire tie in the Upright (5). Tie the
lower end of the wire tie to the Wire Harness
(60). Then, pull the upper end of the wire tie until
the Wire Harness is routed through the Upright.
Tip: To prevent the Wire Harness (60) from fall-
ing into the Upright (5), secure the Wire Harness
with the wire tie.
4a
Wire Tie
5
23
Wire Tie
60
1
4b. Tip: Avoid pinching the Wire Harness (60).
Insert the Upright (5) into the Frame (1).
Attach the Upright (5) with four M8 x 16mm
Screws (102) and four M8 Split Washers (103).
Do not tighten the Screws yet.
Then, slide the Top Cover (23) downward. Do
not press the Top Cover into the Frame (1)
yet.
4b
Avoid
pinching
the Wire
Harness
(60)
102
5
23
102
103
1
102
103
102
9
Page 10
5. Using a plastic bag to keep your fingers clean,
apply a generous amount of the included grease
to the Upright Axle (48) and to two Small Wave
Washers (118).
Insert the Upright Axle (48) into the Upright (5)
and center it. Slide a Small Wave Washer (118)
onto each end of the Upright Axle.

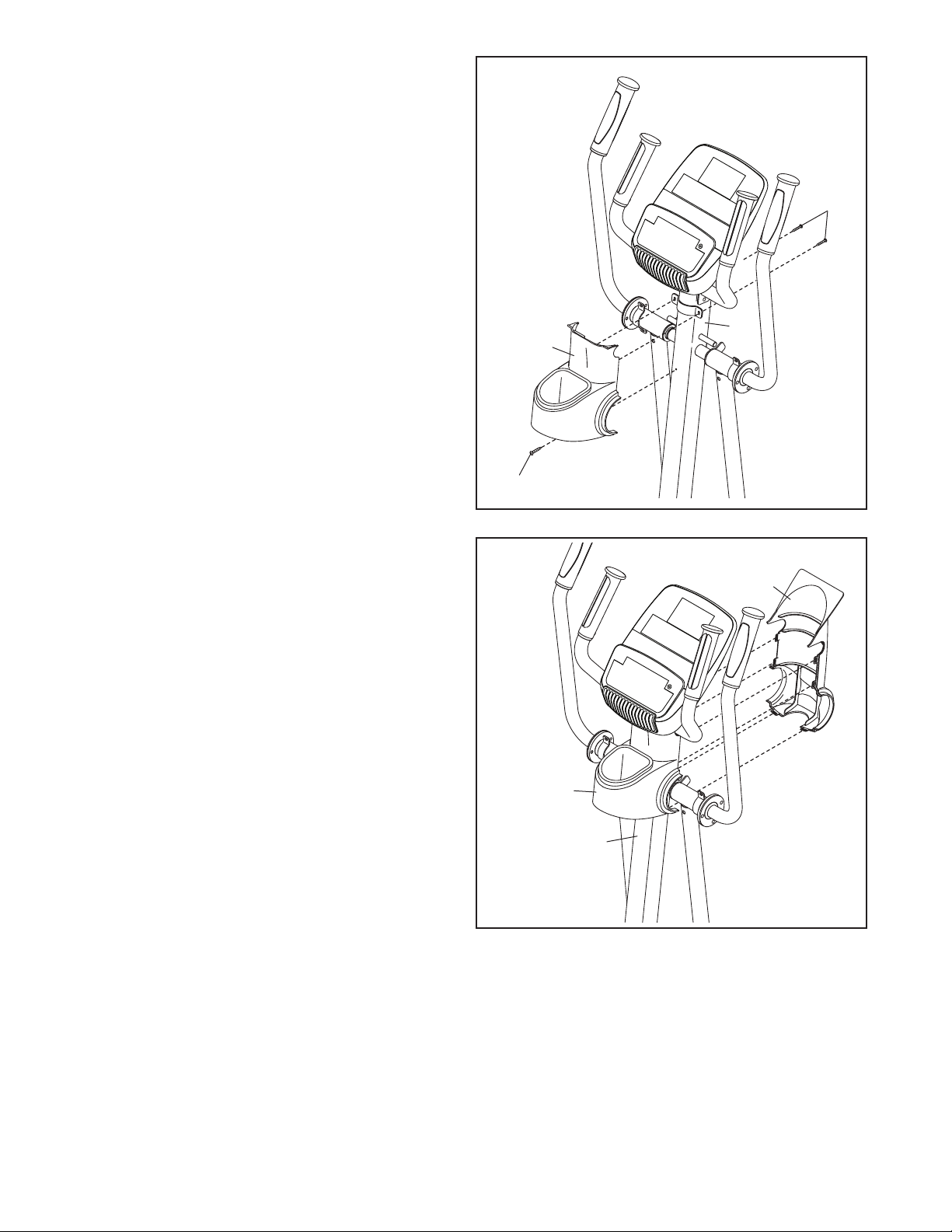

Identify the Right and Left Upper Body Legs (6, 7
and orient them as shown.
Slide the Right and Left Upper Body Legs (6, 7)
onto each side of the Upright Axle (48).
At the same time, tighten two M8 x 16mm
Screws (102) with M8 x 23mm x 2mm Washers
(83) into the ends of the Upright Axle (48). Firmly
tighten the Screws.
5
102
Grease
83
118
7
5
6
Grease
118
48
83
102
6. See the upper drawing. Apply some of the
included grease to the axle on the Right
Upper Body Leg (6) and to a Medium Wave
Washer (112).
Slide a Leg Spacer (55) and the Medium Wave
Washer (112) onto the Right Upper Body Leg
(6). Make sure that the flat side of the Leg
Spacer is facing outward.
Identify the Right Pedal Arm (12) and orient it as
shown. Slide the Right Pedal Arm onto the Right
Upper Body Leg (6).
Attach the Right Pedal Arm (12) with an M8 x
23mm Shoulder Screw (98), an M8 x 16mm x
2mm Washer (59), an Axle Cover (56), and an
M8 x 23.5mm x 1mm Washer (110).
See the lower drawing. Press the Right Pedal
Arm (12) onto the right Adjustment Sleeve (46).
Make sure that the Right Pedal Arm latches
into place.
Tighten an Adjustment Knob (45) onto the right
Adjustment Pin (44).
6
6
Grease
112
12
110
56
59
98
46
55
Flat
Side
12
45
44
Repeat this step on the other side of the
elliptical.
10
Page 11

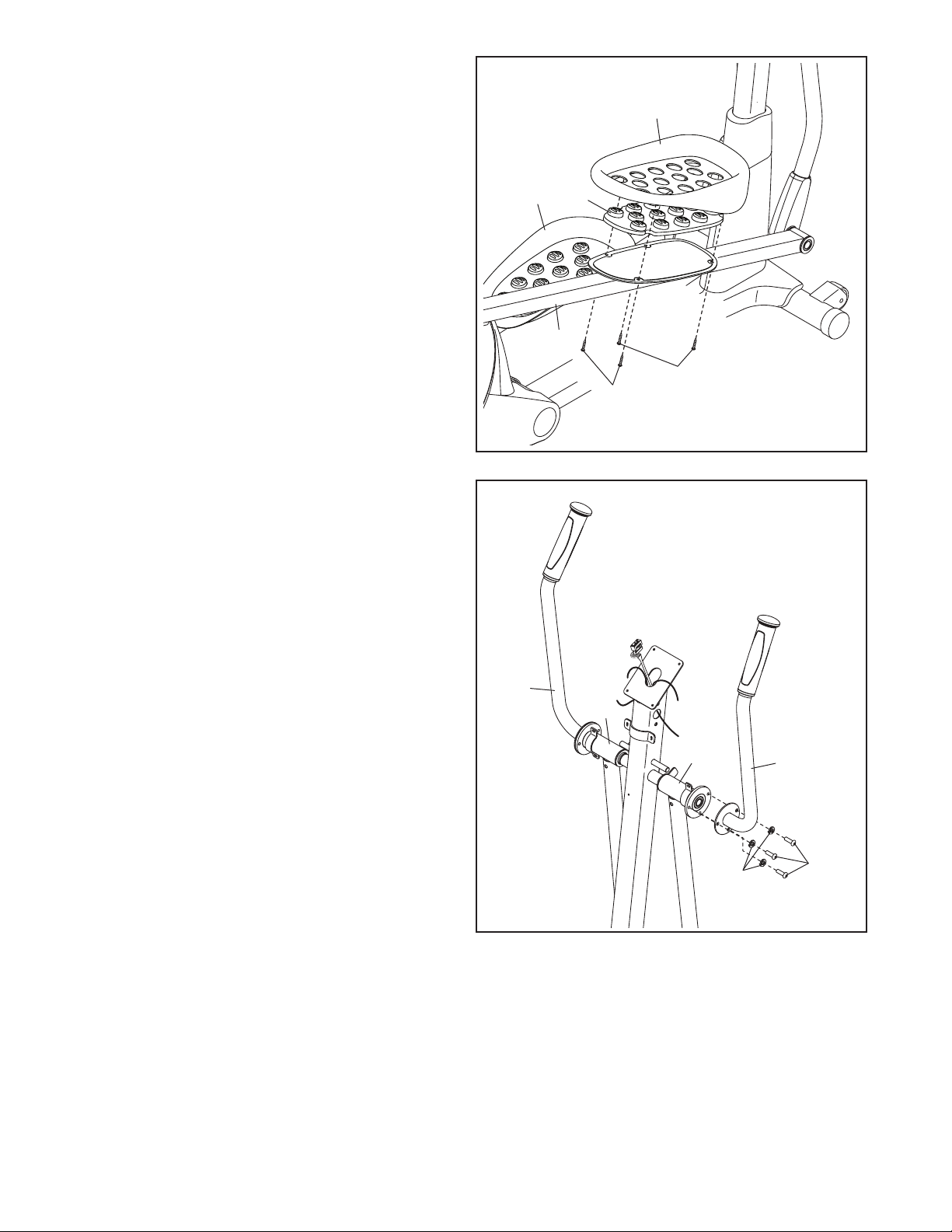

7. Identify the Right Pedal (14) and the Right Gel
Pad (81) and orient them as shown.
7
Set the Right Gel Pad (81) and the Right Pedal
(14) on the Right Pedal Arm (12).
Attach the Right Pedal (14) to the Right Pedal
Arm (12) with four M6 x 12mm Screws (111).
Attach the Left Pedal (15) to the Left Pedal Arm
(not shown) in the same way.
8. Identify the Right Upper Body Arm (8) and orient it
as shown.
Attach the Right Upper Body Arm (8) to the
Right Upper Body Leg (6) with three M8 x 16mm
Screws (102) and three M8 Split Washers (103).
14
15
81
12
111
111
8
Attach the Left Upper Body Arm (9) to the Left
Upper Body Leg (7) in the same way.
9
7
6
103
8
102
11
Page 12

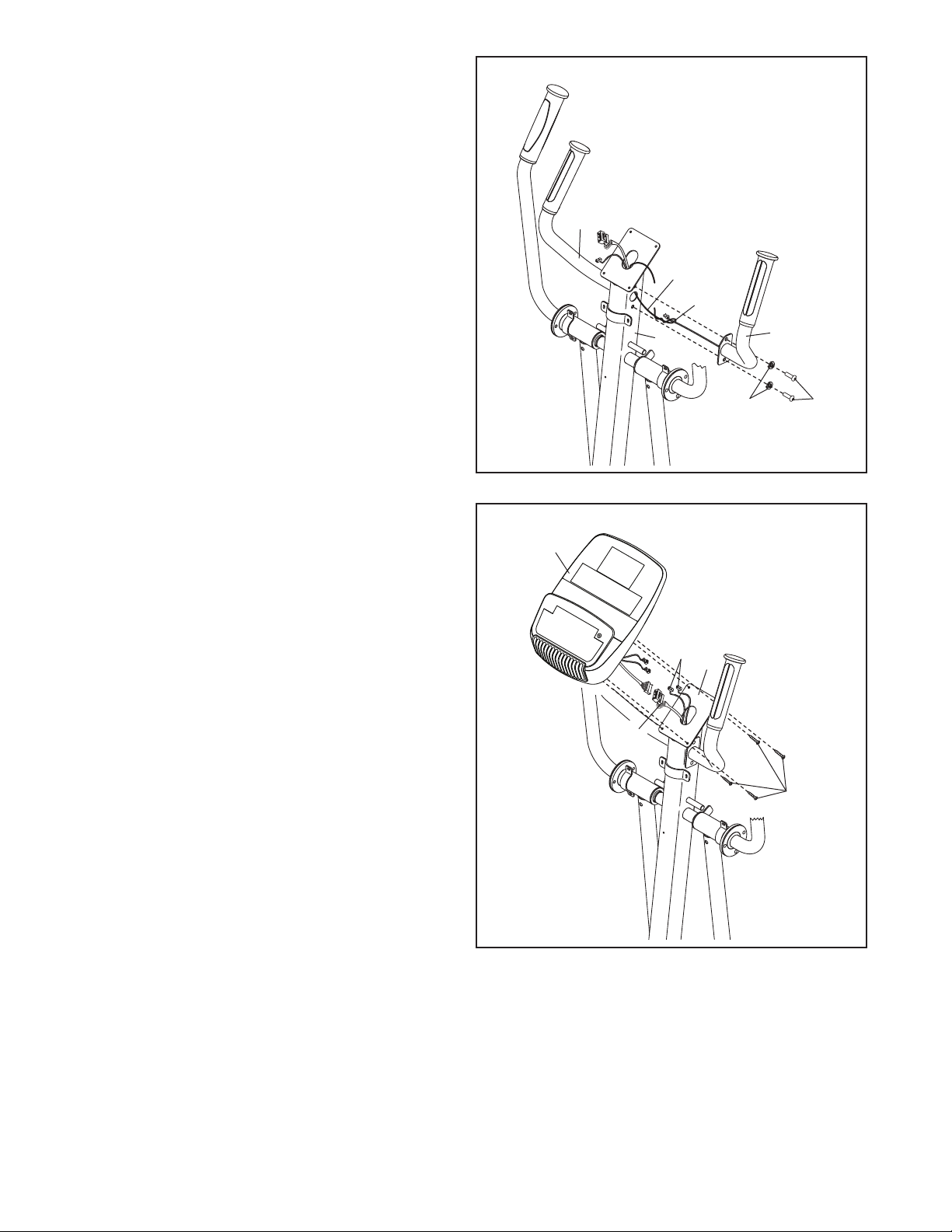

9. Identify the Right Handlebar (10) and orient it as
shown.
Have a second person hold the Right Handlebar
(10) near the right side of the Upright (5).
Locate the indicated wire tie in the Upright (5).
Tie the lower end of the wire tie to the Pulse
Wire (34) inside the Right Handlebar (10). Next,
pull the upper end of the wire tie upward out of
the top of the Upright. Then, untie and discard
the wire tie.
Tip: Avoid pinching the Pulse Wire (34).
Attach the Right Handlebar (10) to the Upright
(5) with two M8 x 16mm Screws (102) and two
M8 Split Washers (103).
9
Avoid pinching the
Pulse Wire (34)
11
Wire Tie
34
5
10
Attach the Left Handlebar (11) in the same way.
10. Untie and discard the wire tie (not shown) on the
Wire Harness (60).
While a second person holds the Console (33)
near the Upright (5), connect the wires on the
Console to the Wire Harness (60) and to the
Pulse Wires (34).
Insert the excess wire into the Upright (5) or into
the Console (33).
Tip: Avoid pinching the wires. Attach the
Console (33) to the Upright (5) with four M4 x
16mm Screws (93).
10
33
60
103
Avoid pinching
the wires
34
5
102
93
12
Page 13
11. Attach the R e a r Upright Cover (24) t o the Upright
(5) with two M4 x 16mm Screws (93) and an M4
x 19mm Flat Head Screw (117).
11
93
5
24
117
12. Attach the Front Upright Cover (25) around the
Upright (5) by pressing the tabs on the Front
Upright Cover into the Rear Upright Cover (24).
12
25
24
5
13
Page 14
13. Identify the Right Rear and Front Leg Covers
(29, 30).
Attach the Right Rear Leg Cover (29) to the
Right Upper Body Leg (6) with three M4 x 16mm
Screws (93).
13
Attach the Right Front Leg Cover (30) around
the Right Upper Body Leg (6) by pressing the
tabs on the Right Front Leg Cover into the Right
Rear Leg Cover (29).
Attach the Left Rear and Front Leg Covers (31,
32) in the same way.
See step 3. Tighten the four M8 x 16mm
Screws (102).
Then, slide the Top Cover (23) downward and
press it over the Frame (1).

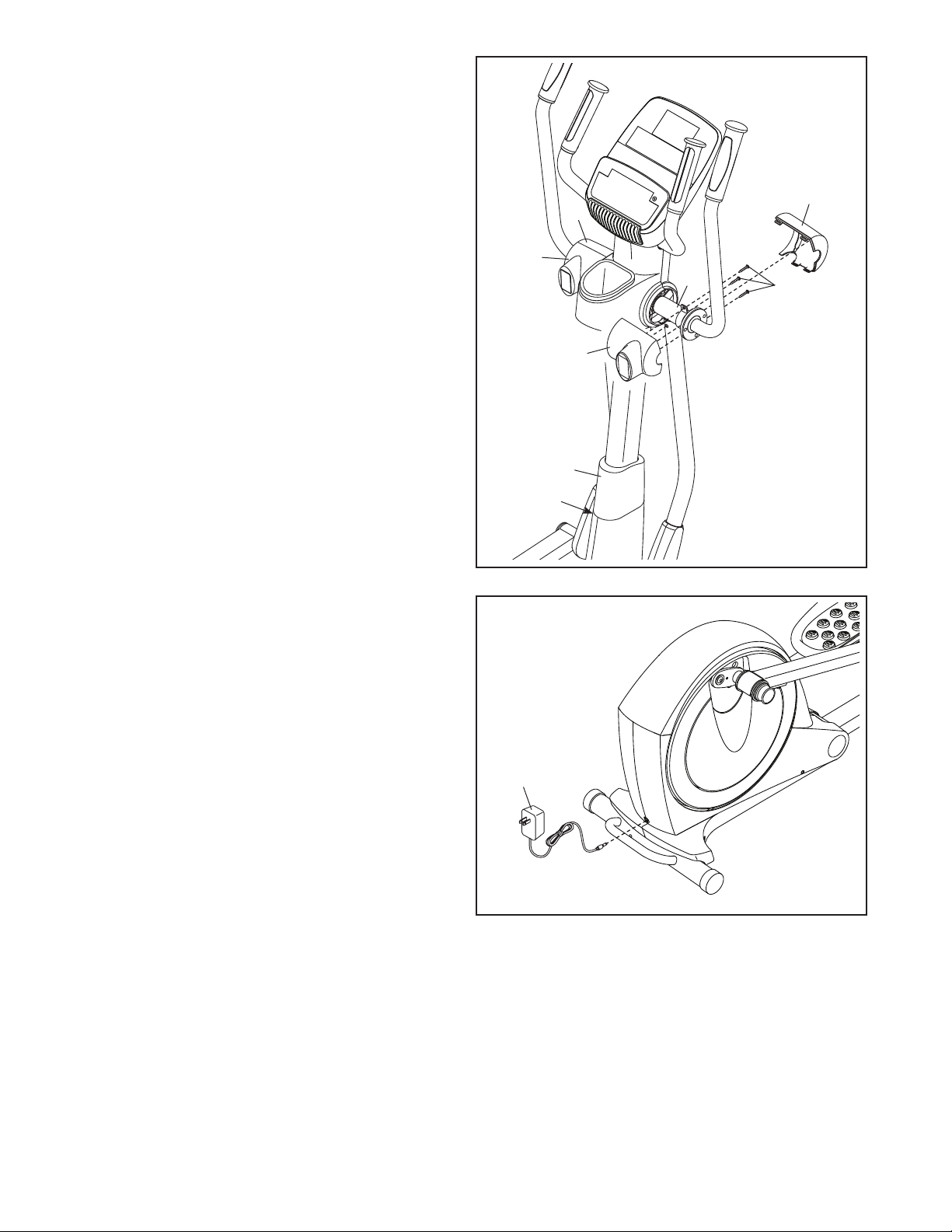

14. Plug the Power Adapter (79) into the receptacle
at the back of the elliptical.
14
31
1
23
32
29
30
6
93
Note: To plug the Power Adapter (79) into an
outlet, see HOW TO PLUG IN THE POWER
ADAPTER on page 15.
79
15. Make sure that all parts of the elliptical are properly tightened. Note: Extra parts may be included. To
protect the floor or carpet from damage, place a mat under the elliptical.
14
Page 15
HOW TO USE THE ELLIPTICAL
HOW TO PLUG IN THE POWER ADAPTER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room temperature before you plug in the power adapter. If
you do not do this, you may damage the console
displays or other electronic components.
Plug the power adapter
into the receptacle at
the back of the elliptical. Then, plug the
power adapter into an
appropriate outlet that
is properly installed
in accordance with
all local codes and
ordinances.
HOW TO FOLD AND UNFOLD THE ELLIPTICAL
When the elliptical is not in use, the frame can be
folded out of the way. First, lift the latch under each
pedal arm, and lift the pedal arms off the adjustment
sleeves on the crank arms.
Next, raise the pedal arms until they touch the magnets
on the upper body legs; the magnets will hold the pedal
arms in place. Then, hold the handle and lift the frame
until it locks in a vertical position.
To use the elliptical, first hold the handle, press the
latch button, and lower the frame.
Next, pull the pedal arms off the magnets on the upper
body legs. Then, lift the latches under the pedal
arms, and set the pedal arms on the adjustment
sleeves on the crank arms. Release the latches, and
make sure that the pedal arms are securely connected
to the adjustment sleeves.
HOW TO MOVE THE ELLIPTICAL
To move the elliptical, first fold it as described at
the left. Next, stand in front of the elliptical, hold the
upright, and place one foot against one of the wheels.
Pull the upright until the elliptical rolls on the front
wheels. Carefully move the elliptical to the desired
position, and then lower it to the floor.
HOW TO ELIMINATE FLEXING IN THE CENTER OF
THE ELLIPTICAL
Crank
Arm
Handle
If the elliptical flexes in the center during use, turn the
leveling foot under the center of the frame until the flexing is eliminated.
Magnet
Sleeve
Leveling Foot
Pedal Arm
Latch
Latch Button
15
Page 16

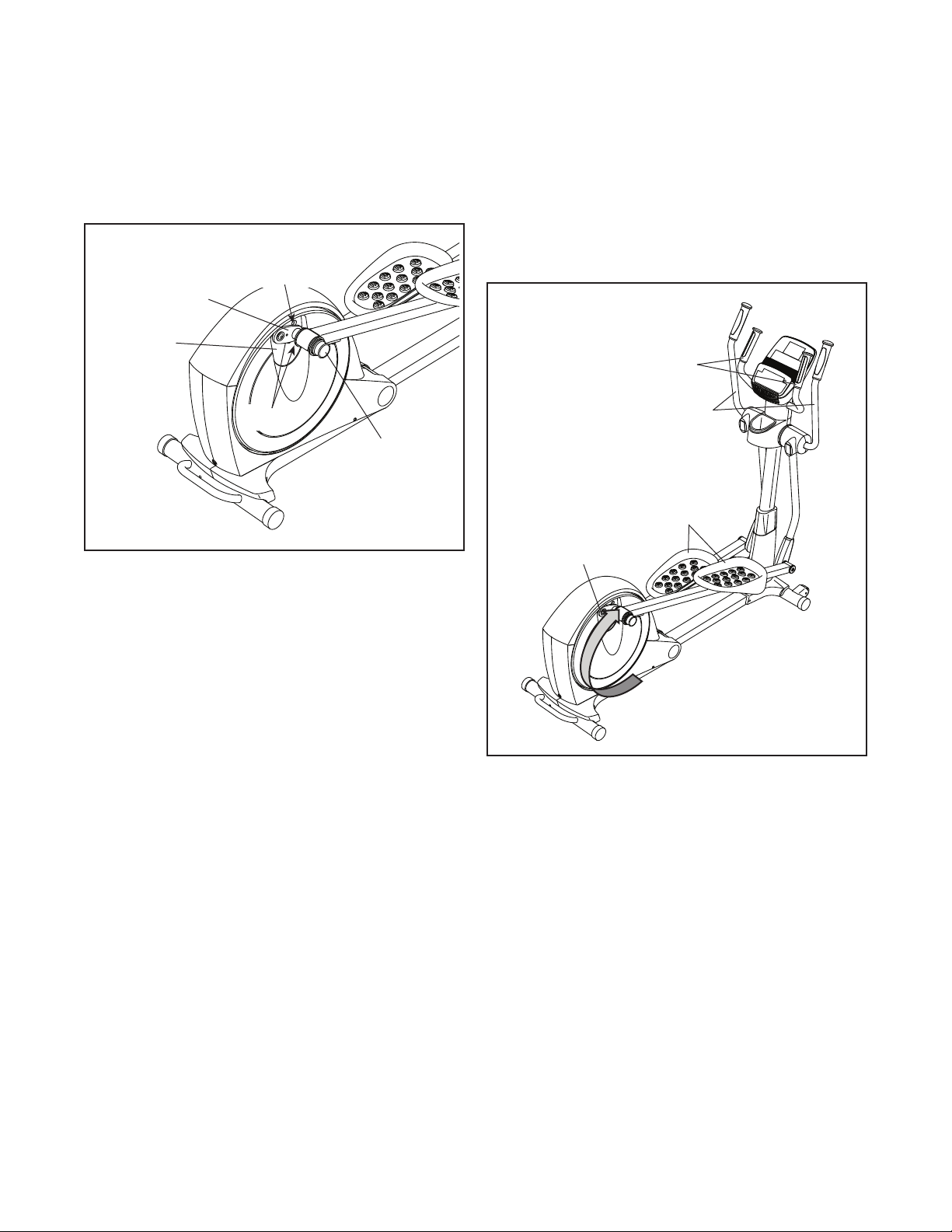

HOW TO ADJUST THE STRIDE LENGTH OF THE
ELLIPTICAL
To adjust the stride length of the elliptical, first pull one
of the adjustment knobs until the adjustment arm will
pivot freely. Pivot the adjustment arm until the adjustment knob is aligned with one of the holes in the crank
arm, and gently release the knob into the hole.
Adjustment
Adjustment
Arm
Crank
Arm
Pin
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the upper body arms or the
handlebars and step onto the pedal that is in the lowest
position. Next, step onto the other pedal. Push the pedals until they begin to move with a continuous motion.
Note: The crank arms can turn in either direction.
It is recommended that you turn the crank arms
in the direction shown by the arrow; however, for
variety, you can turn the crank arms in the opposite direction.
Handlebars
Holes
Adjustment
Knob
Pivot the adjustment arm back and forth slightly to
make sure that the adjustment pin is engaged in one of
the holes in the crank arm.
Adjust the stride length on the other side of the elliptical in the same way. Make sure that both sides of
the elliptical are adjusted to the same stride length.
Upper Body Arms
Pedals
Crank Arm
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the highest pedal first. Then, step off the lowest pedal.
16
Page 17

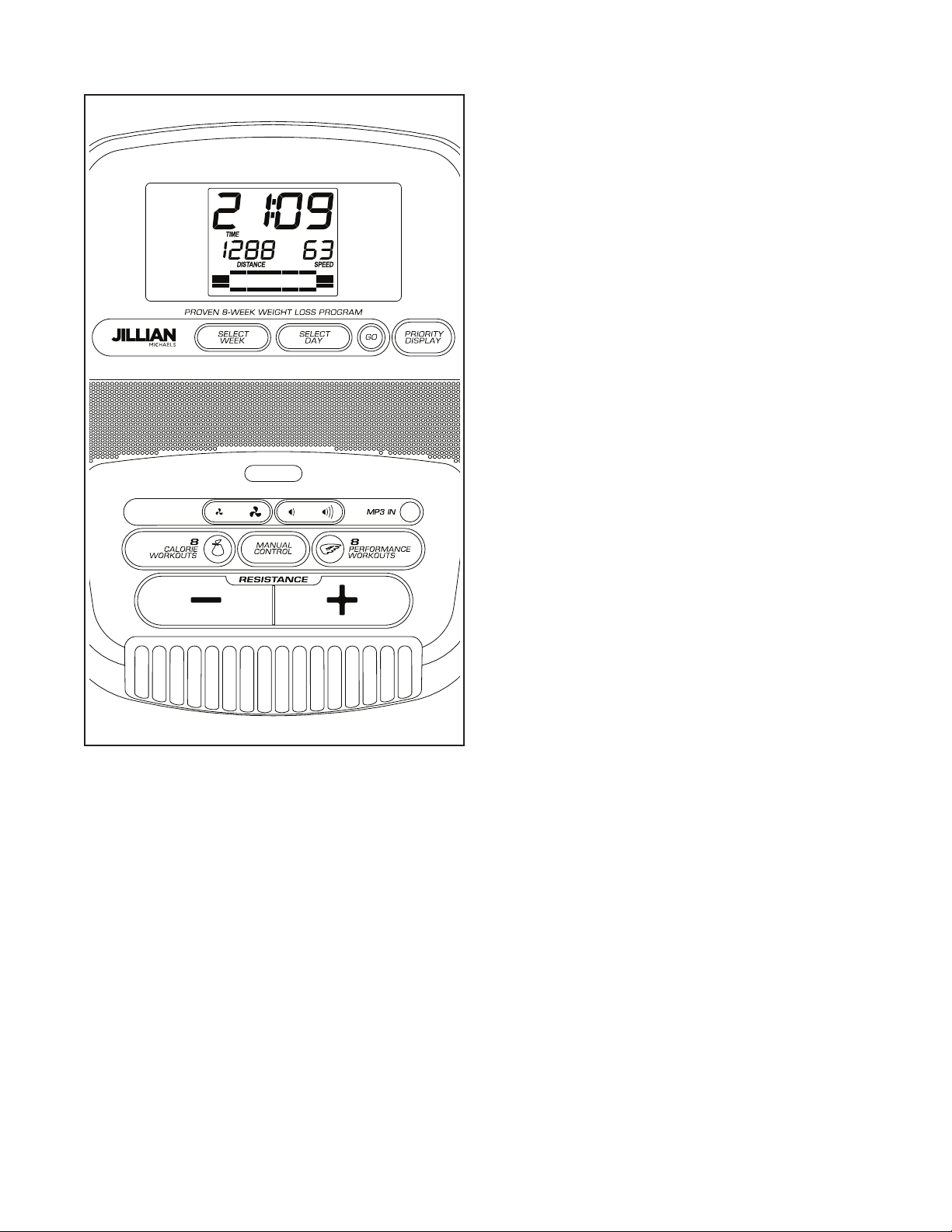

CONSOLE DIAGRAM FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. While you exercise, the console will display
continuous exercise feedback. You can also measure
your heart rate using the handgrip heart rate monitor.
Lose unwanted pounds with the progressive 8-week
weight-loss program. Each workout in the program
controls the resistance of the pedals as it guides you
through an effective workout designed to help you
achieve the results you want.
The console also offers a selection of preset workouts.
Each workout automatically changes the resistance
of the pedals as it guides you through an effective
workout.
You ca n e ve n co nn ec t y ou r MP 3 pl ay er or C D pl ay er
to the console sound system and listen to your favorite
music or audio books while you exercise.
To use the manual mode, see page 18. To use
an 8-week weight-loss workout, see page 20. To
use a preset workout, see page 21. To use the
sound system, see page 22. To cha nge conso le
settings, see page 22.
Note: If there is a sheet of plastic on the display,
remove the plastic.
17
Page 18
HOW TO ACTIVATE THE CONSOLE
4. Follow your progress with the display.
The included power adapter must be used to operate
the elliptical. See HOW TO PLUG IN THE POWER
ADAPTER on page 15. When the power adapter is
plugged in, the displays will turn on and the console
will be ready for use.
HOW TO TURN OFF THE CONSOLE
If the pedals do not move for several seconds, a tone
will sound and the console will pause.
If the pedals do not move for several minutes and the
buttons are not pressed, the console will turn off and
the display will be reset.
When you are finished exercising, unplug the power
adapter. IMPORTANT: If you do not do this, the
electrical components on the elliptical may wear
prematurely.
HOW TO USE THE MANUAL MODE
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO ACTIVATE THE CONSOLE above.
2. Select the manual mode.
Each time you turn
on the console, the
manual mode will be
selected. If you have
selected a workout,
reselect the manual
mode by pressing
the Manual Control
button.
3. Change the resistance of the pedals as desired.

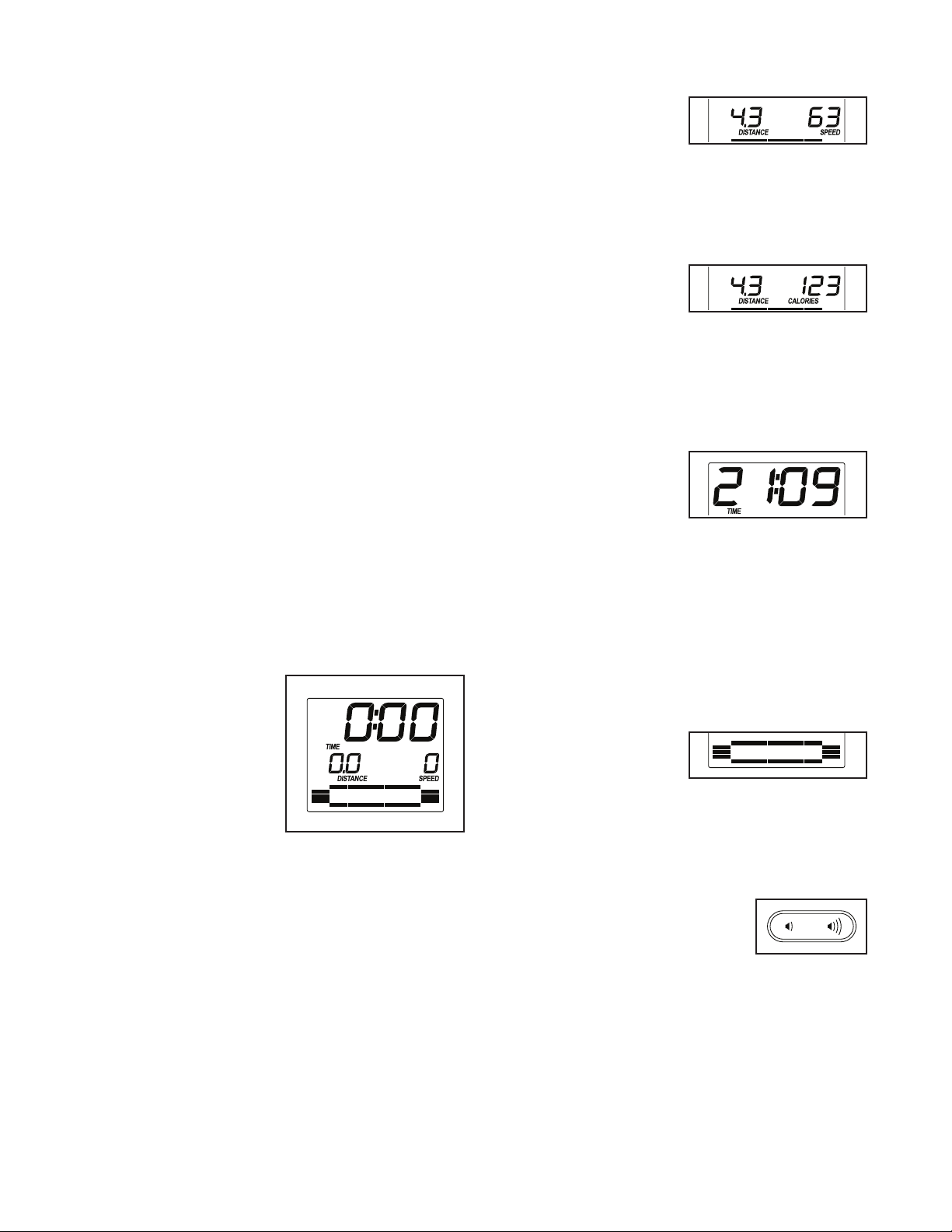

The center left
display—This dis-
play can show the
elapsed time and the
distance in miles or kilometers that you have pedaled. Note: When a workout is selected, the display
will show the time remaining in the workout instead
of the elapsed time.
The center right
display—This display can show your
pedaling speed in
revolutions per minute and the approximate number of calories that you have burned.
This display also shows your heart rate when you
use the handgrip heart rate monitor (see step 5).
The upper
display—This
display can show
the elapsed time,
the distance that
you have pedaled, your pedaling speed, and the
approximate number of calories you have burned.
Press the Priority Display button repeatedly until
the upper display shows the information that you
are most interested in viewing.
Note: While information is shown in the upper dis-
play, the same information will not be shown in the
lower left or lower right display.
The lower display—
This display will
show a track representing 1/4 mile
(400 m). As you exercise, indicators will appear in
succession around the track until the entire track
appears. The track will then disappear and the
indicators will again begin to appear in succession.
As you pedal, change the resistance of the pedals
by pressing the Resistance increase and decrease
buttons.
Note: After you press a button, it will take a
moment for the pedals to reach the selected resistance level.
To c h an g e t he vo l um e l e ve l o f
the console, press the volume increase and decrease
buttons.
Note: The console can show distance in either
miles or kilometers. To view or change the unit of
measurement, see HOW TO CHANGE CONSOLE
SETTINGS on page 22.
18
Page 19
5. Measure your heart rate if desired.
If there are sheets
of plastic on the
metal contacts
on the handgrip
heart rate monitor,
remove the plastic.
To m e as u re yo u r
heart rate, hold the
handgrip heart rate
monitor with your
palms resting against
the contacts. Avoid
moving your hands or gripping the contacts
tightly.
When your pulse is detected, your heart rate will be
shown in the display. For the most accurate heart
rate reading, hold the contacts for at least 15
seconds.
Contacts
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
to squeeze the contacts tightly. For optimal performance, clean the contacts using a soft cloth; never
use alcohol, abrasives, or chemicals to clean
the contacts.

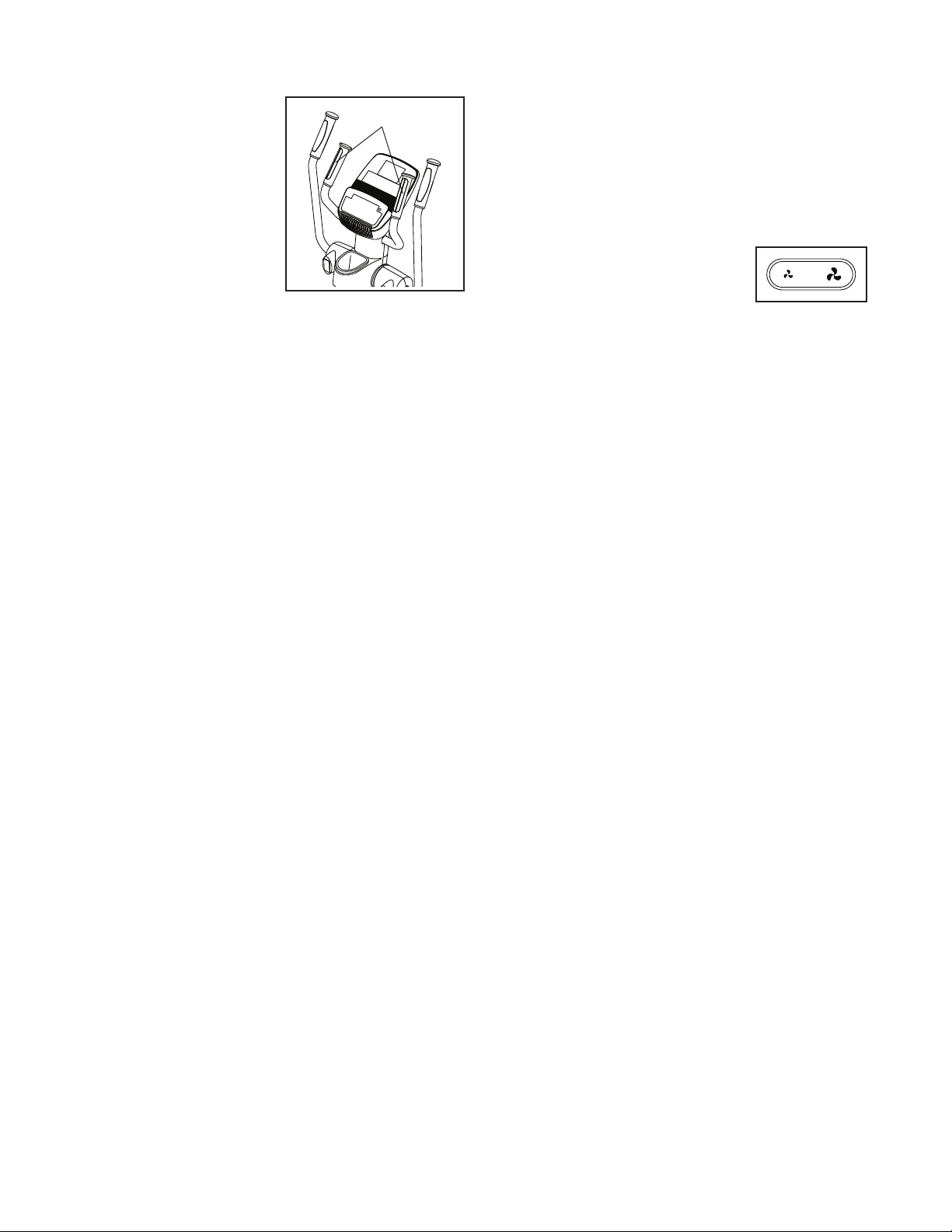

6. Turn on the fan if desired.
The fan has low and high
speed settings. Press the fan
increase and decrease buttons repeatedly to select a fan
speed or to turn off the fan.
Note: If the pedals do not move for about thirty
seconds the fan will turn off automatically.
7. When you are finished exercising, the console
will turn off automatically.
See HOW TO TURN OFF THE CONSOLE on
page 18.
19
Page 20
HOW TO USE AN 8-WEEK WEIGHT-LOSS
WORKOUT
1. Begin pedaling or press any button on the
console to turn on the console.

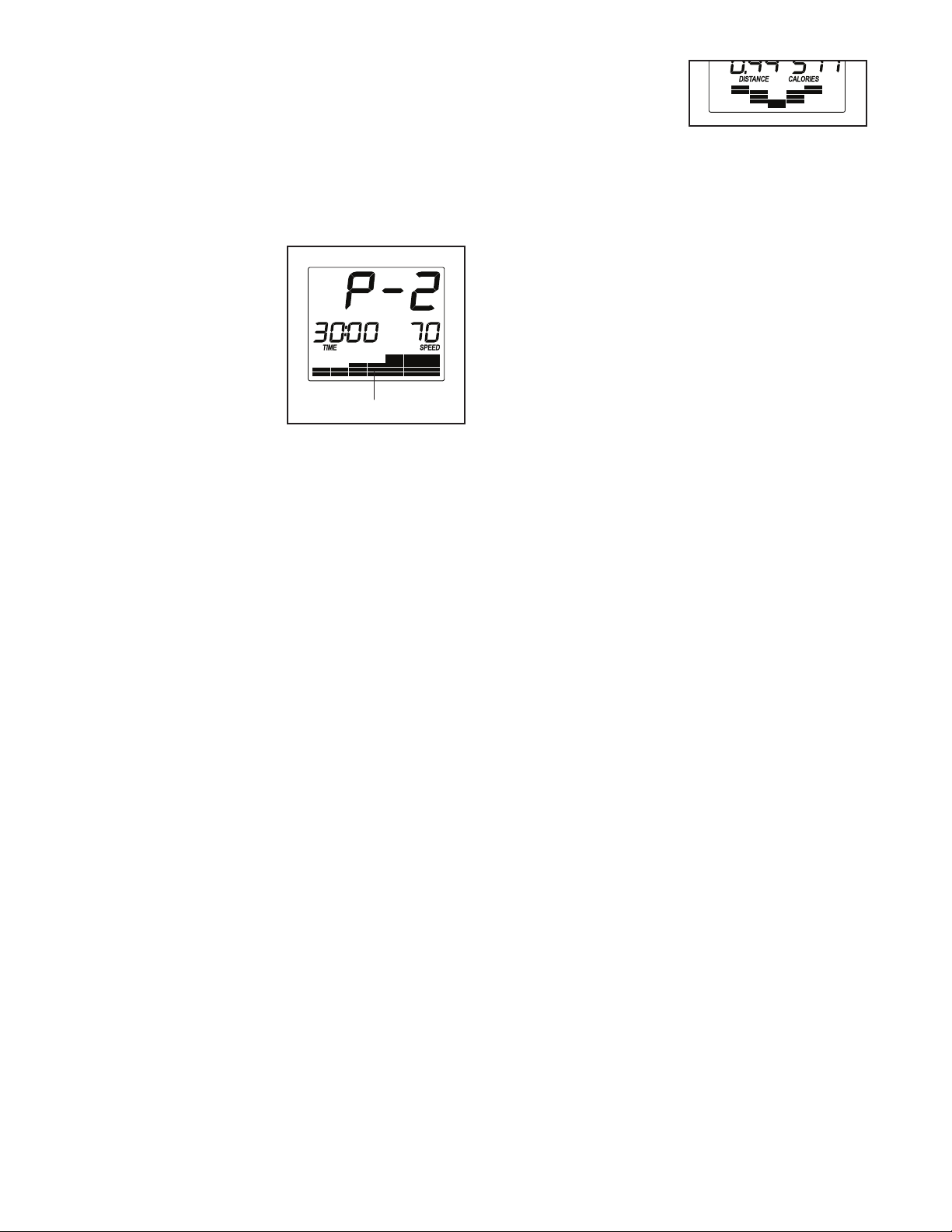

the profile will begin to flash. If a different resistance level and/or target speed is programmed for
the next segment, the resistance level will appear
in the display for a few seconds to alert you. The
resistance of the pedals will then change.
See HOW TO ACTIVATE THE CONSOLE on
page 18.
2. Select the desired week of the program.
To s e le c t t he de s ir e d
week of the program,
press the Select
Week button repeatedly until the number
of the desired week
appears in the lower
left display.
Week Number
3. Select the desired day of the program.
There are three day
workouts for each
week of the program.
To s e le c t t he de s ir e d
day of the program,
press the Select
Day button repeatedly until the number
of the desired day
appears in the lower
right display.
4. Start the workout.
Day Number
As you exercise, you
will be prompted to
keep your pedaling speed near the
target speed for
the current segment. When an upward-pointing
arrow appears in the lower display, increase
your pedaling speed. When a downward-pointing
arrow appears, decrease your pedaling speed.
When no arrow appears, maintain your current
pedaling speed.
IMPORTANT: The target speed is intended only
to provide motivation. Your actual pedaling
speed may be slower than the target speed.
Make sure to pedal at a speed that is comfortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override
the setting by pressing the Resistance buttons.
IMPORTANT: When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level programmed for
the next segment.
The workout will continue in this way until the last
segment ends. To stop the workout at any time,
stop pedaling. A tone will sound and the time will
pause and flash in the display. To restart the workout, simply resume pedaling.
Press the Go button and begin pedaling to start the
workout.
Each workout is divided into one-minute segments.
One resistance level and one target speed are
programmed for each segment. Note: The same
resistance level and/or target speed may be programmed for consecutive segments.

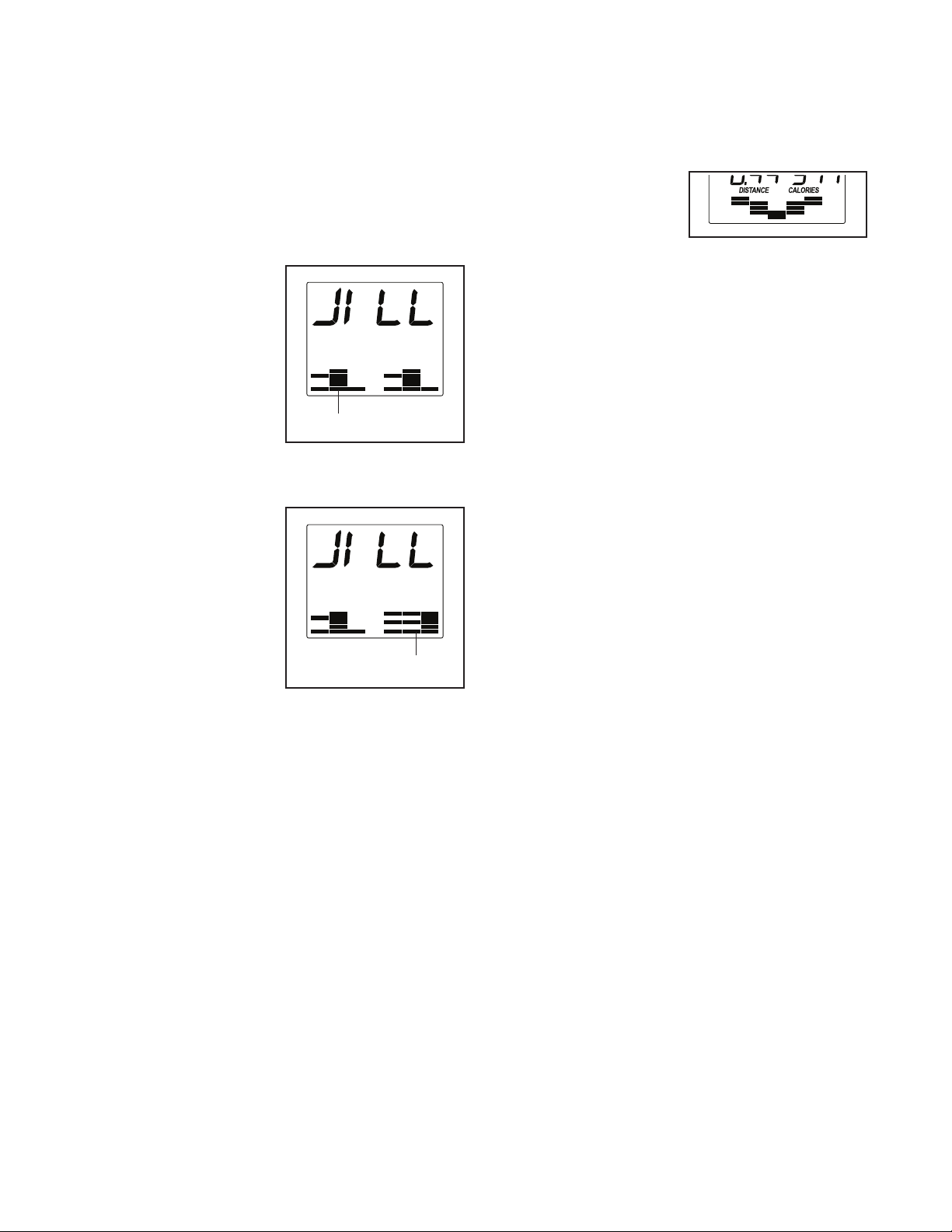

During the workout, the workout profile will show
your progress. The flashing segment of the profile
represents the current segment of the workout. The
height of the flashing segment indicates the resistance level for the current segment.
At the end of each segment of the workout, a
series of tones will sound and the next segment of
5. Follow your progress with the display.
See step 4 on page 18.
6. Measure your heart rate if desired.
See step 5 on page 19.
7. Turn on the fan if desired.
See step 6 on page 19.
8. When you are finished exercising, the console
will turn off automatically.
See HOW TO TURN OFF THE CONSOLE on
page 18.
20
Page 21
HOW TO USE A PRESET WORKOUT
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO ACTIVATE THE CONSOLE on
page 18.
2. Select a preset workout.
To s e le c t a p r es e t
workout, press the
Calorie Workouts
or the Performance
Workouts button
repeatedly until the
name of the desired
workout appears in
the display.
The workout duration, the maximum speed, and a
profile of the resistance levels will also appear in
the display.
3. Begin pedaling to start the workout.
Each workout is divided into one-minute segments.
One resistance level and one target speed are
programmed for each segment. Note: The same
resistance level and/or target speed may be programmed for consecutive segments.
During the workout, the workout profile will show
your progress. The flashing segment of the profile
represents the current segment of the workout. The
height of the flashing segment indicates the resistance level for the current segment.
At the end of each segment of the workout, a
series of tones will sound and the next segment of
the profile will begin to flash. If a different resistance level and/or target speed is programmed for
the next segment, the resistance level will appear
in the display for a few seconds to alert you. The
resistance of the pedals will then change.
Profile
As you exercise, you
will be prompted to
keep your pedaling speed near the
target speed for
the current segment. When an upward-pointing
arrow appears in the lower display, increase
your pedaling speed. When a downward-pointing
arrow appears, decrease your pedaling speed.
When no arrow appears, maintain your current
pedaling speed.
IMPORTANT: The target speed is intended only
to provide motivation. Your actual pedaling
speed may be slower than the target speed.
Make sure to pedal at a speed that is comfortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override
the setting by pressing the Resistance buttons.
IMPORTANT: When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level programmed for
the next segment.
The workout will continue in this way until the last
segment ends. To stop the workout at any time,
stop pedaling. A tone will sound and the time will
pause and flash in the display. To restart the workout, simply resume pedaling.
4. Follow your progress with the display.
See step 4 on page 18.
5. Measure your heart rate if desired.
See step 5 on page 19.
6. Turn on the fan if desired.
See step 6 on page 19.
7. When you are finished exercising, the console
will turn off automatically.
See HOW TO TURN OFF THE CONSOLE on
page 18.
21
Page 22
HOW TO USE THE SOUND SYSTEM
To p l ay mu s ic or au d io bo o ks th r ou gh t he co n so l e
sound system while you exercise, plug a 3.5 mm male
to 3.5 mm male audio cable (not included) into the jack
on the console and into a jack on your MP3 player,
CD player, or other personal audio player; make sure
that the audio cable is fully plugged in. Note: To
purchase an audio cable, see your local electronics
store.

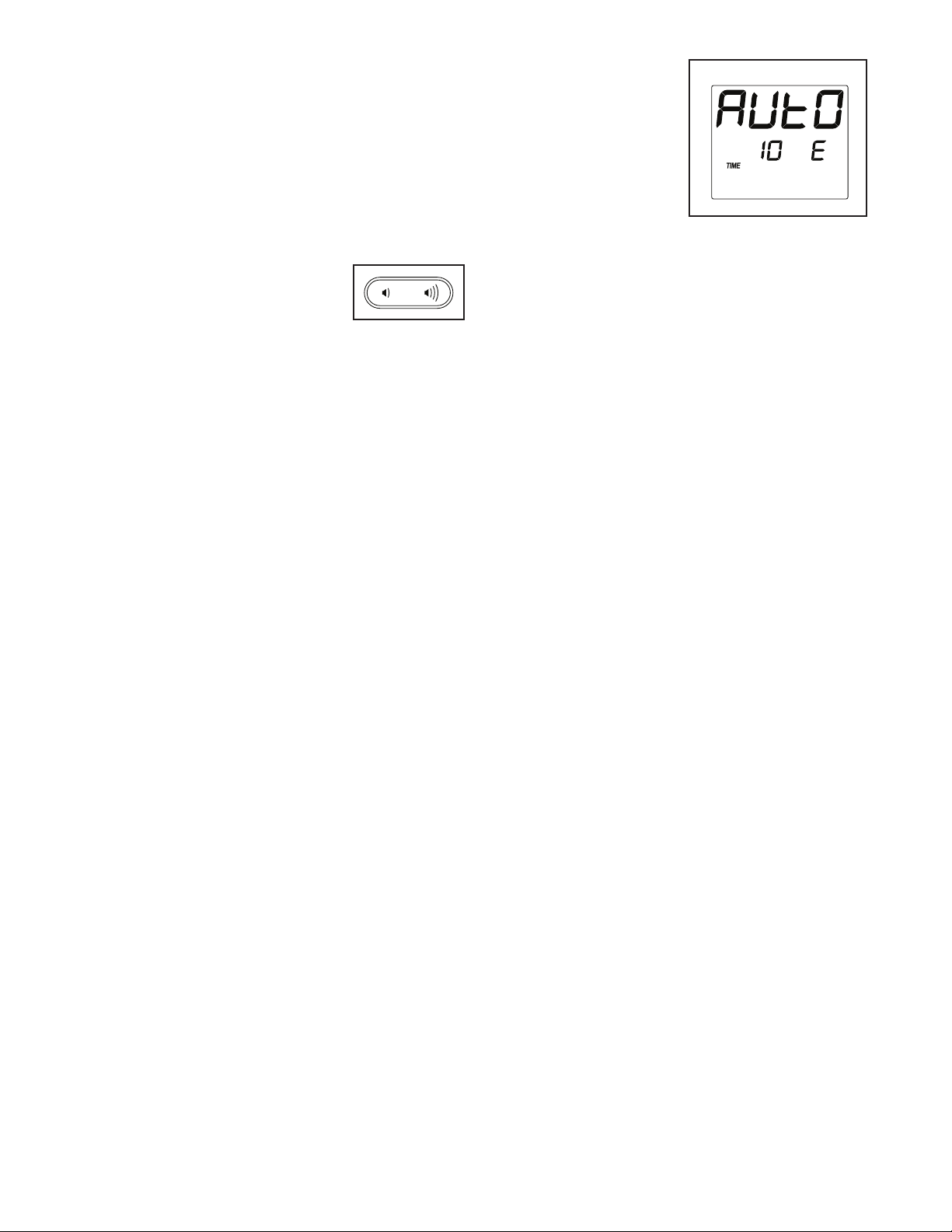

The console has three
backlight options. The
ON option keeps the
backlight on while the
console is on. The
AUTO option keeps the
backlight on only while
you are pedaling. The
OFF option turns off the
backlight.
Next, press the play button on
your personal audio player. Adjust
the volume level using the volume
increase and decrease buttons
on the console or the volume control on your personal
audio player.
HOW TO CHANGE CONSOLE SETTINGS
The console features a user mode that allows you to
select a backlight option for the console and to view
console usage information.
To s e le c t t he us e r m od e , p re s s a nd h ol d d ow n t h e
Priority Display button for a few seconds until the user
mode information appears in the display.
The upper display will show the currently selected
backlight option. Press the Resistance increase button
repeatedly to select the desired backlight option.
The console can show pedaling speed and distance in
either miles or kilometers.
The lower right display will show the selected unit of
measurement. An E for English miles or an M for metric kilometers will appear in the lower right display. To
change the unit of measurement, press the Resistance
decrease button repeatedly.
The lower left display will show the total number of
hours that the console has been used since the elliptical was purchased.
Press the Priority Display button to save the console
settings and exit the user mode.
22
Page 23
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to
computer or peripheral devices. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
23
Page 24
MAINTENANCE AND TROUBLESHOOTING
MAINTENANCE
Inspect and tighten all parts of the elliptical regularly.
Replace any worn parts immediately.
To clean the elliptical, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damage
to the console, keep liquids away from the console
and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
If the console does not display your heart rate when
you use the handgrip heart rate monitor, see step 5 on
page 19.
If a replacement power adapter is needed, call the
telephone number on the cover of this manual.
IMPORTANT: To avoid damaging the console, use
only a manufacturer-supplied regulated power
adapter.
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted.
Unplug the power
adapter. To adjust
the reed switch, you
must first remove the
To p S hi e ld (2 0 ). Us i ng
a flat screwdriver,
release the tabs on the
front and rear of the
To p S hi e ld an d t h en
remove the Top Shield.
20
Next, locate the Reed Switch (69). Loosen, but do not
remove, the M4 x 16mm Screw (93).
93
69
Next, rotate the Large Pulley (74) until a Magnet (75)
is aligned with the Reed Switch (69). Slide the Reed
Switch slightly toward or away from the Magnet. Then,
retighten the M4 x 16mm Screw (93).
Plug in the power adapter. Rotate the Large Pulley (74)
for a moment.
Repeat these actions until the console displays correct
feedback. When the reed switch is correctly adjusted,
reattach the top shield.
74
75
24
Page 25

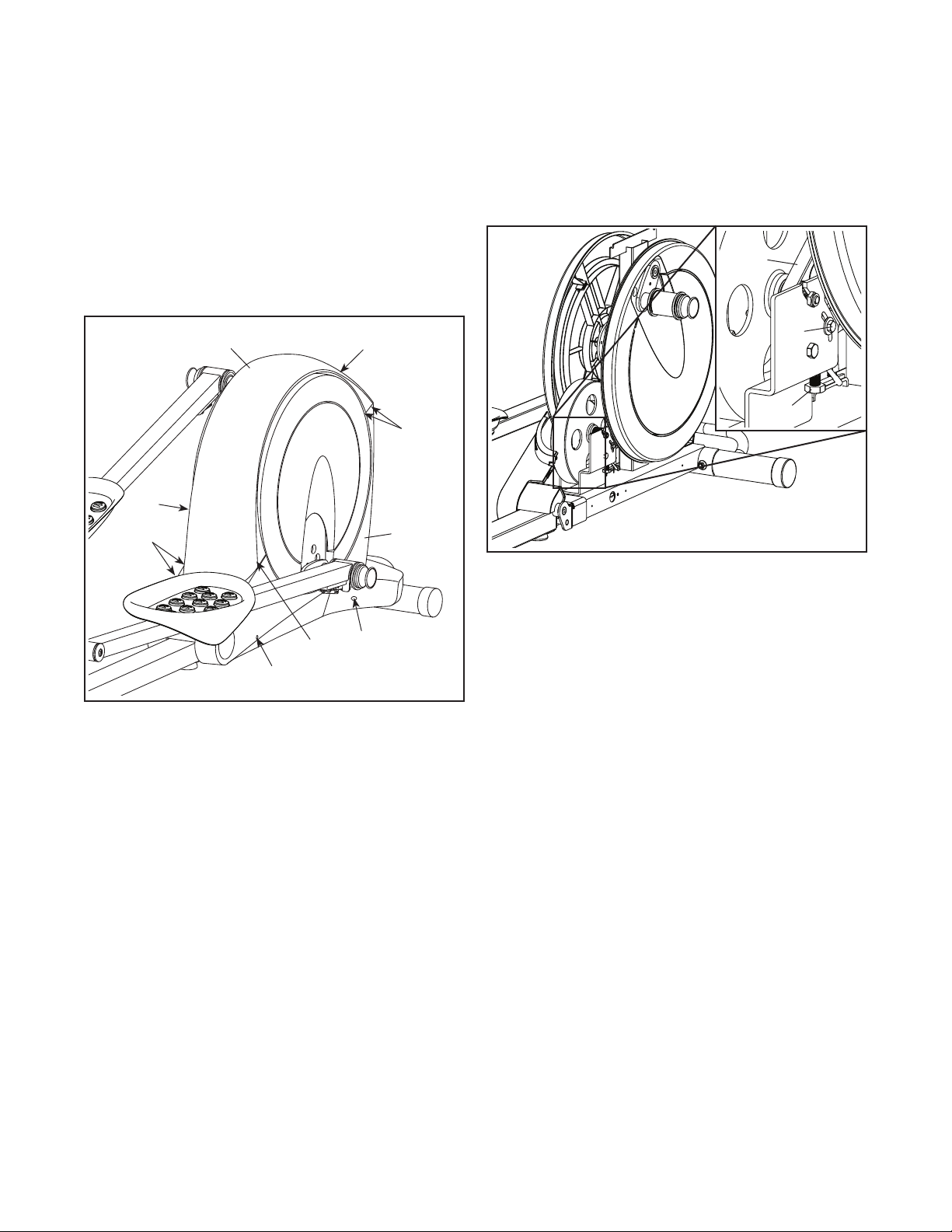

HOW TO ADJUST THE DRIVE BELT
If you can feel the pedals slip while you are pedaling,
even when the resistance is adjusted to the highest
level, the drive belt may need to be adjusted.
Next, remove the M4 x 16mm Screws (93) and the M4
x 42mm Screws (90) from the Right and Left Shields
(18, 19). Make sure to note which size of Screw you
remove from each hole. Then, gently remove the Left
Shield.

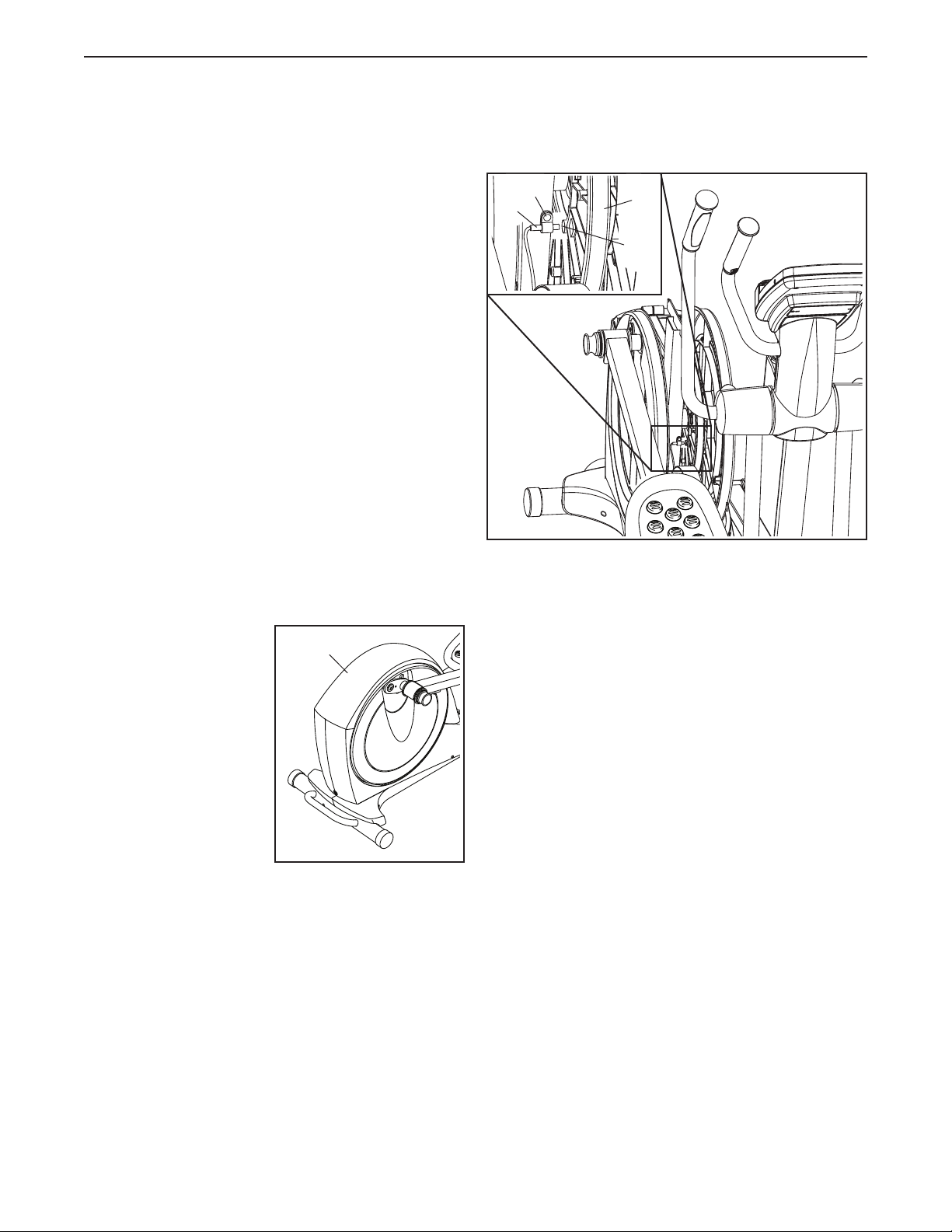

Unplug the power adapter. To a dj u st th e d r iv e b e lt ,
you must remove the top shield and the left shield (see
the instructions below).
Using a flat screwdriver, release the tabs on the front
and rear of the Top Shield (20) and then remove the
To p S hi e ld .
20
18
90
93
93
19
Loosen the Pivot Screw (97). Then, tighten the Belt
Adjustment Screw (85) until the Drive Belt (38) is tight.
38
97
85
When the Drive Belt (38) is tight, tighten the Pivot
Screw (97).
90
93
90
Then, reattach the left shield and the top shield.
25
Page 26
EXERCISE GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physician. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The heart rate monitor is not a medical device.
Variou s facto rs may affect the acc uracy o f
heart rate readings. The heart rate monitor is
intended only as an exercise aid in determining heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise ; never hold your breath.
To f i nd th e p r op e r i nt e ns i ty le v el , fi nd yo u r a ge at th e
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To m a in t ai n o r i m pr o ve yo u r c on d it io n, c o mp l et e t h re e
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each week,
if desired. Remember, the key to success is to make
exercise a regular and enjoyable part of your everyday
life.
26
Page 27

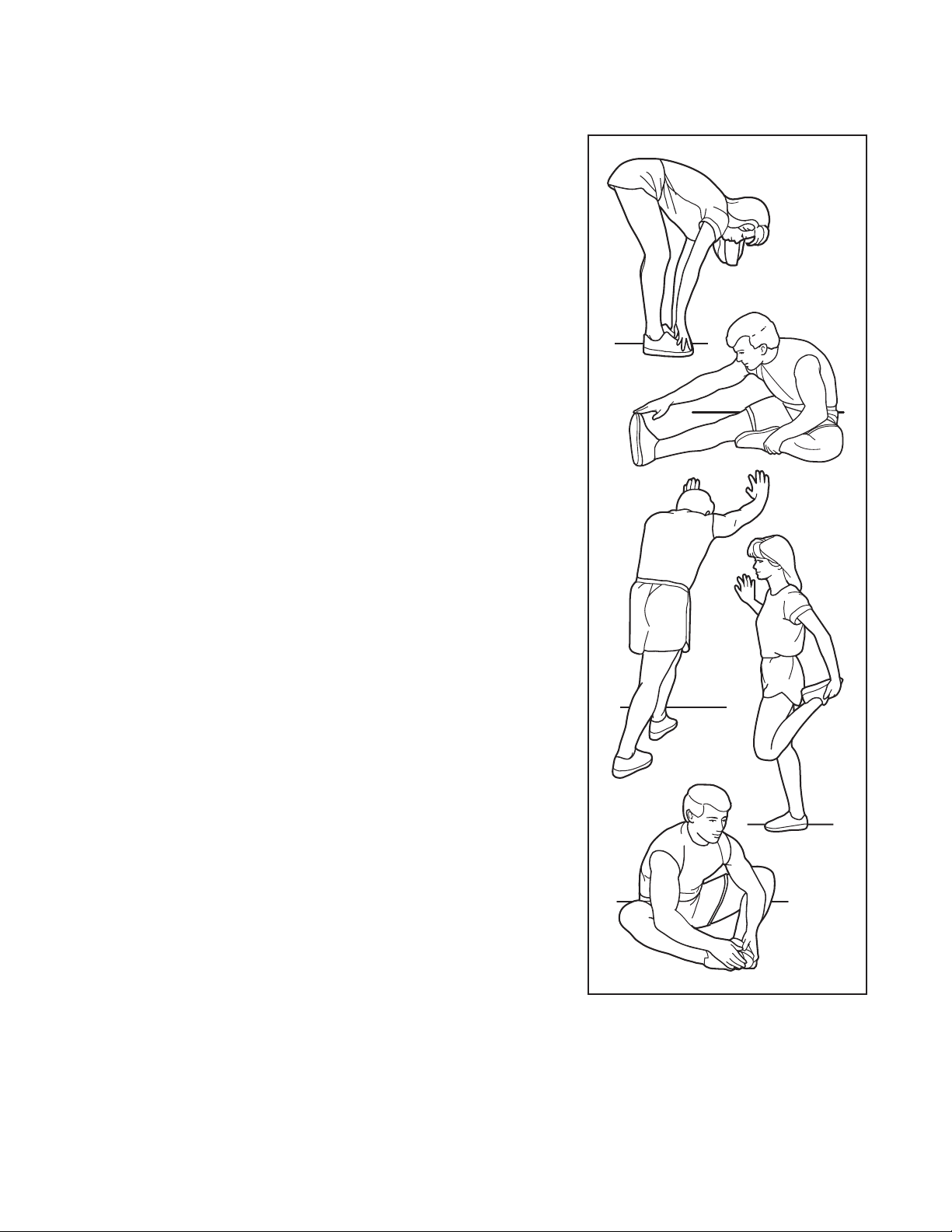

SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch; never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach down
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times. Stretches: Hamstrings, back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward
you and rest it against the inner thigh of your extended leg. Reach
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Hamstrings, lower back and
groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back foot
flat on the floor. Bend your front leg, lean forward and move your
hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times
for each leg. To cause further stretching of the achilles tendons,
bend your back leg as well. Stretches: Calves, achilles tendons and
ankles.
4. Quadriceps Stretch
1
2
3
4
With one hand against a wall for balance, reach back and grasp one
foot with your other hand. Bring your heel as close to your buttocks
as possible. Hold for 15 counts, then relax. Repeat 3 times for each
leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles.
5
27
Page 28
PART LIST
K e y N o . Q t y . D e s c r i p t i o n K e y N o . Q t y . D e s c r i p t i o n
Model No. PFEL64912.1 R0414A
1 1 Frame
2 1 Folding Frame
3 1 Front Stabilizer
4 1 Rear Stabilizer
5 1 Upright
6 1 Right Upper Body Leg
7 1 Left Upper Body Leg
8 1 Right Upper Body Arm
9 1 Left Upper Body Arm
10 1 Right Handlebar
11 1 Left Handlebar
12 1 Right Pedal Arm
13 1 Left Pedal Arm
14 1 Right Pedal
15 1 Left Pedal
16 2 Disc
17 2 Disc Cover
18 1 Right Shield
19 1 Left Shield
20 1 Top Shield
21 1 Right Frame Cover
22 1 Left Frame Cover
23 1 Top Cover
24 1 Rear Upright Cover
25 1 Front Upright Cover
26 1 Accessory Tray
27 2 Inner Leg Cover
28 2 Outer Leg Cover
29 1 Right Rear Leg Cover
30 1 Right Front Leg Cover
31 1 Left Rear Leg Cover
32 1 Left Front Leg Cover
33 1 Console
34 2 Pulse Sensor/Wire
35 2 Handgrip
36 2 Wheel
37 4 Stabilizer Cap
38 1 Drive Belt
39 1 Right Crank Arm
40 1 Left Crank Arm
41 1 Leveling Foot
42 1 Latch Bracket
43 2 Adjustment Arm
44 2 Adjustment Pin
45 2 Adjustment Knob
46 2 Adjustment Sleeve
47 4 Sleeve Bushing
48 1 Upright Axle
49 2 Latch Housing
50 2 Latch
51 2 Latch Spring
52 2 Latch Insert
53 2 Adjustment Arm Spring
54 4 Leg Bearing Assembly
55 2 Leg Spacer
56 2 Axle Cover
57 2 Upright Bushing
58 4 Pedal Arm Bushing
59 2 M8 x 16mm x 2mm Washer
60 1 Wire Harness
61 1 Eddy Mechanism
62 2 Mechanism Spacer
63 1 Frame Axle
64 2 Frame Bushing
65 1 Latch Bracket Axle
66 1 Latch Bracket Spring
67 1 Latch Button
68 1 Button Housing
69 1 Reed Switch/Wire
70 1 Clamp
71 1 Crank Hub
72 1 Crank
73 1 Crank Spacer
74 1 Large Pulley
75 2 Magnet
76 2 Folding Frame Bearing
77 1 Idler
78 1 Resistance Motor
79 1 Power Adapter
80 1 Left Gel Pad
81 1 Right Gel Pad
82 2 Long C-pin
83 2 M8 x 23mm x 2mm Washer
84 1 Flywheel Axle
85 1 Belt Adjustment Screw
86 12 M8 x 28mm Screw
87 2 Small Snap Ring
88 4 M4 x 42mm Flat Head Screw
89 4 Resistance Motor Screw
90 4 M4 x 42mm Screw
91 4 M10 Split Washer
92 1 3/8" x 1" Flange Screw
93 33 M4 x 16mm Screw
94 2 M8 Jam Nut
95 1 Ground Screw
96 1 M6 Washer
97 1 Pivot Screw
98 2 M8 x 23mm Shoulder Screw
99 1 Idler Bolt
100 4 M10 x 80mm Screw
28
Page 29
Key No. Qty. Description Key No. Qty. Description
101 1 Anchored Zip Tie
102 16 M8 x 16mm Screw
103 14 M8 Split Washer
104 2 M10 x 60mm Screw
105 2 M10 Locknut
106 2 Short C-pin
107 2 M10 x 25mm Screw
108 2 M10 x 32mm Washer
109 2 M8 x 16mm Screw
110 4 M8 x 23.5mm x 1mm Washer
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
111 8 M6 x 12mm Screw
112 2 Medium Wave Washer
113 2 M8 x 18mm Screw
114 2 M8 x 32mm Washer
115 2 Large Wave Washer
116 2 Large Snap Ring
117 5 M4 x 19mm Flat Head Screw
118 2 Small Wave Washer
* – Userʼs Manual
* – Assembly Tool
29
Page 30

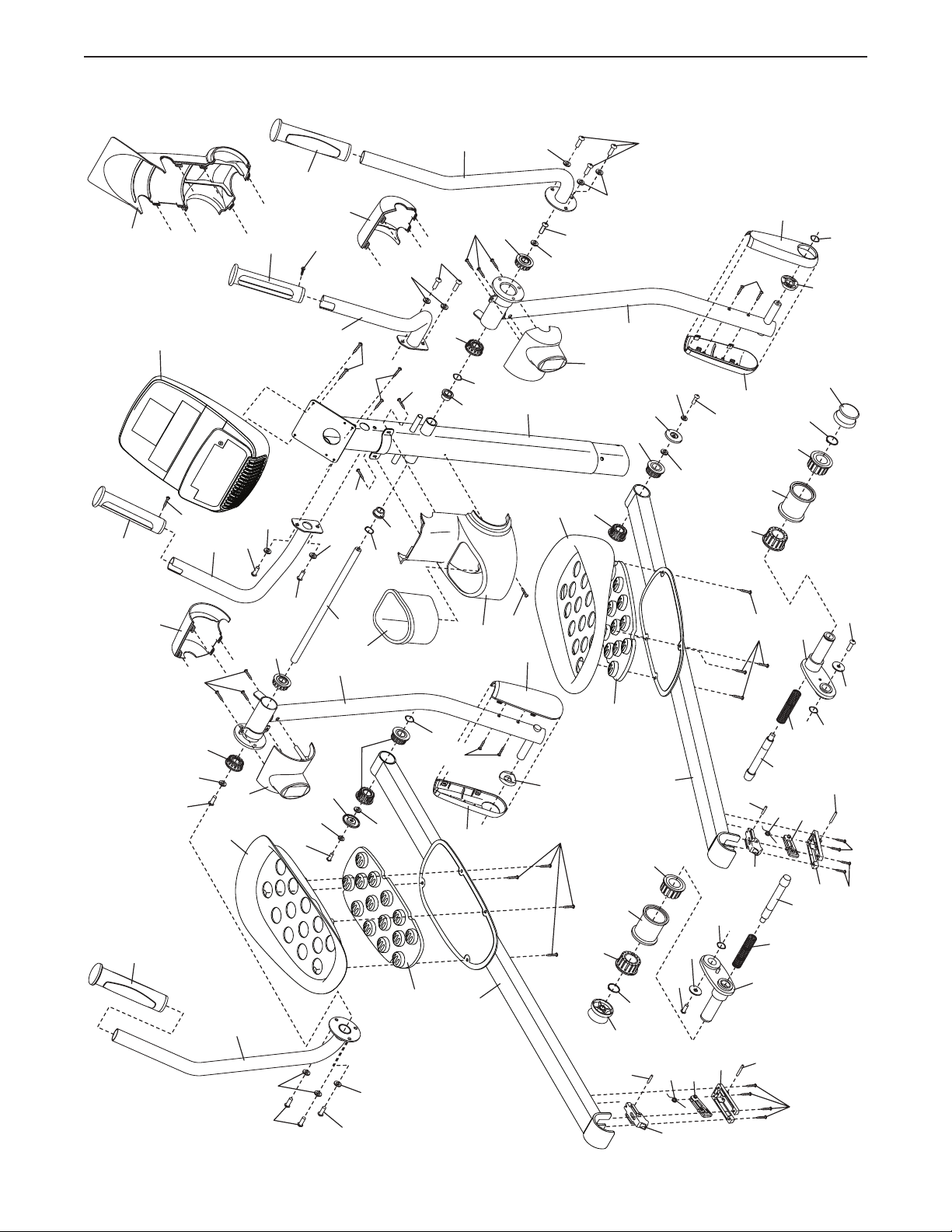

EXPLODED DRAWING A
Model No. PFEL64912.1 R0414A
34
25
33
93
11
102
34
103
35
93
30
10
103
93
93
8
93
102
103
54
93
57
118
118
57
54
5
103
83
14
102
29
58
103
102
28
112
88
55
6
45
116
47
58
56
59
110
27
98
46
47
35
32
83
102
93
54
15
52
49
113
114
115
82
93
93
102
54
31
98
9
103
102
59
56
7
48
58
102
26
103
110
80
112
88
28
13
24
117
27
55
111
47
81
46
45
106
116
47
12
51
50
113
114
52
115
49
106
111
50
43
43
53
44
51
44
53
82
93
30
Page 31
EXPLODED DRAWING B
Model No. PFEL64912.1 R0414A
93
90
100
36
104
19
18
37
91
36
3
105
93
102
93
104
103
103
90
102
37
102
22
90
93
61
62
93
103
84
102
23
62
21
94
1
64
108
107
93
63
89
64
109
78
70
69
93
16
77
110
108
110
65
107
66
109
17
76
39
86
92
41
79
87
68
86
71
2
85
117
42
67
37
93
17
16
86
90
86
40
94
72
73
75
74
60
31
86
97
99
96
75
87
86
76
20
93
101
95
91
4
91
37
38
100
Page 32
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING
near the end of this manual)
LIMITED WARRANTY
IMPORTANT: To protect your fitness equipment with an extended service plan, see page 4.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame is warranted for a lifetime. Parts and labor
are warranted for one (1) year from the date of purchase.
This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is
limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer’s responsibility. If
replacement parts are shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to freight damage to the product. This warranty will automatically be voided
if the product is used as a store display model, if the product is purchased or transported outside the USA,
if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,
or if the product is used for commercial or rental purposes. No other warranty beyond that specifi cally set
forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profi ts, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or
consequential damages. Accordingly, the above limitation may not apply to the customer.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fi tness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to the customer.
This warranty provides specifi c legal rights; the customer may have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
Part No. 345260 R0414A Printed in China © 2014 ICON Health & Fitness, Inc.
Loading...
