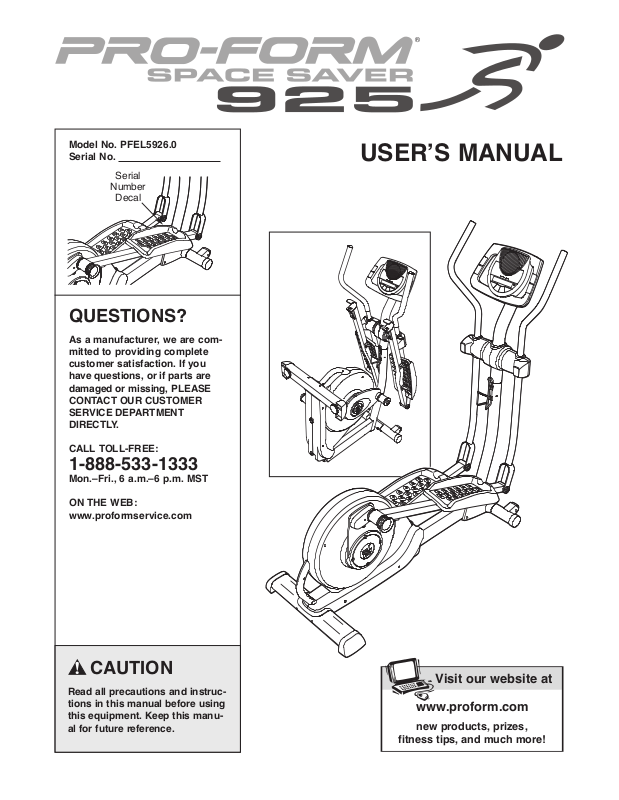

Model No. PFEL5926.0
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
Serial No.
Serial
Number
Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
USER’S MANUAL
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manu
al for future reference.
-
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING:To reduce the risk of serious injury, read the following important precau-
tions before using the elliptical exerciser.
. Read all instructions in this manual and all
1
warnings on the elliptical exerciser before
using the elliptical exerciser. Use the elliptical exercise only as described in this
manual.
0. The pulse sensor is not a medical device.
1
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. The elliptical exerciser is intended for
home use only. Do not use the elliptical
exerciser in a commercial, rental, or institutional setting.
4. Keep the elliptical exerciser indoors, away
from moisture and dust. Place the elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is enough clearance
around the elliptical exerciser to mount, dismount, and use it.
5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
6. Keep children under 12 and pets away from
the elliptical exerciser at all times.
7. The elliptical exerciser should not be used
by persons weighing more than 250 pounds.
11. Keep your back straight while using the elliptical exerciser; do not arch your back.
12. If you feel pain or dizziness while exercising,
stop immediately and cool down.
13. When you stop exercising, allow the pedals
to slowly come to a stop.
14. The decal shown below has been placed on
the elliptical exerciser. If the decal is missing, or if it is not legible, call the toll-free
telephone number on the front cover of this
manual and order a free replacement decal.
Apply the decal in the location shown.
8. Wear appropriate exercise clothes while
using the elliptical exerciser. Always wear
athletic shoes for foot protection while exer
cising.
Hold the handgrip pulse sensor or the han
9.
dlebars
using the elliptical exerciser.
when mounting, dismounting, or
-
-
WARNING:Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health prob
lems. Read all instructions before using. ICON assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.
3
-
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM
25 elliptical exerciser. The 925 elliptical exerciser
9
provides a wide array of features designed to make
your workouts at home more effective and enjoyable—and when you’re not exercising, the unique 925
elliptical exerciser can be folded out of the away.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, see the front cover of
this manual. To help us assist you, please note the
product model number and serial number before call-
Fan
Handgrip Pulse Sensor
Console
®
ing. The model number is PFEL5926.0. The serial
umber can be found on a decal attached to the ellip-
n
tical exerciser (see the front cover of this manual for
the location of the decal).
To avoid a registration fee for any service needed
under warranty, you must register the elliptical
exerciser at www.proformservice.com/registration.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Handlebar
Handle
Adjustment Knob
Adjustment Bracket
Crank Arm
Handle
Leveling Foot
Storage Magnet
Water Bottle Holder*
Wheel
Pedal
Pedal Arm Latch
Storage Latch
*No water bottle is included
4
ASSEMBLY
M10 x 127mm Button Screw (83)–2
M4 x 14mm
Screw (104)–8
M8 Jamnut
(79)–5
M8 Washer
(88)–6
Wave Washer
(111)–2
M8 x 23mm Button
Screw (84)–4
M8 Split
Washer (90)–3
M8 x 43mm Button
Bolt (78)–4
M4 x 16mm
Round Head
Screw (101)–14
M4 x 32mm
Round Head
Screw (105)–6
M4 x 45mm
Screw (108)–2
M8 x 23mm Shoulder
Screw (115)–4
M8 x 69mm Button
Bolt (80)–1
Hub Screw (87)–8
Star Washer
(112)–8
M8 x 15mm Button
Screw (116)–8
M10 x 82mm Button
Screw (82)–2
o hire an authorized service technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480.
T
ssembly requires two persons.Place all parts of the elliptical exerciser in a cleared area and remove the
A
packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires the
included hex keys and your own phillips screwdriver , adjustable wrench , and
rubber mallet .
As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST on pages 20 and 21. The number following the parentheses is the quantity needed for assembly.
bled. If a part is not in the parts bag, check to see if it has been pre-assembled.
Note: Some small parts may have been pre-assem-
5
1. While another person lifts the Base (1), attach the
Front Stabilizer (6) to the Base with two M10 x 82mm
utton Screws (82).
B
ext, hold the Left Stabilizer Cover (118) and the Right
N
Stabilizer Cover (119) around the Base (1). Attach the
Stabilizer Covers with six M4 x 16mm Round Head
Screws (101) (only three are shown).
1
82
101
6
119
118
1
2. Remove the indicated screw and the shipping bracket
from the Base (1). Discard the screw and the shipping
bracket.
Next, turn the Base Foot (26) into the Base (1) as far
as possible.
3. Attach the Rear Stabilizer (7) to the Frame (2) with two
M10 x 127mm Button Screws (83).
Next, hold the handle on the Frame (2), press the
Latch Button (68), and lower the Frame until the Rear
Stabilizer (7) is resting on the floor.
2
1
Shipping
Bracket
26
Screw
3
Handle
83
7
2
4. Identify the Left Crank Arm (36), which is marked with
a sticker. Hold the Left Crank Arm against the left
Crank Hub (38), and align the holes in the Left Crank
Arm with the unused holes in the Crank Hub. Next,
insert four Hub Screws (87) into the Left Crank Arm,
and finger tighten the Hub Screws into the Crank Hub.
Tighten one of the Hub Screws, and then tighten the
Hub Screw farthest from the first Hub Screw. Then,
tighten the remaining two Hub Screws.
Attach a Hub Cover (75) to the Left Crank Arm (36)
with four M8 x 15mm Button Screws (116).
Repeat this step on the other side of the elliptical exer-
Make sure that the Crank Arms (36, 123) are
ciser.
oriented as shown. Note: There are no Pulley
Screws (98) on the right side.
68
4
98
38
87
75
16
1
116
87
Cutout
36
123
6
5. While another person holds the Upright (3), connect
the Upper Wire Harness (48) to the Lower Wire
arness (49). G
H
Upper Wire Harness to remove any slack, and
nsert the Upright into the Base (1). Attach the Upright
i
with an M8 x 69mm Button Bolt (80), an M8 Split
Washer (90), and an M8 Jamnut (79).
the Button Bolt yet; make sure that the Jamnut is
in the hexagonal hole in the Base.
Next, finger tighten two M8 x 23mm Button Screws
(84) with M8 Split Washers (90) into the Base (1).
not tighten the Button Screws yet.
Attach the Water Bottle Holder (22) to the Base (1)
with two M4 x 14mm Screws (104).
ently pull the upper end of the
Do not tighten
Do
5
3
48
80
90
90
84
49
79
90
84
104
22
1
6. Orient one of the Upright Covers (17) as shown, and hold
it against the Upright (3). Attach the Upright Cover with
two M4 x 16mm Round Head Screws (101). Attach the
other Upright Cover in the same way.
7. The Console (5) requires four 1.5V “D” batteries (not
included); alkaline batteries are recommended. Press
the two tabs on the battery cover, and remove the battery cover. Next, insert four batteries into the Console.
Make sure that the batteries are oriented as shown
by the diagrams inside of the battery compartments.
Then, reattach the battery cover to the Console.
6
3
17
101
7
5
17
101
abs
T
8. While another person holds the Console (5) near the
Upright (3), connect the wire harness on the Console to
the Upper Wire Harness (48). Insert the excess wire
harness into the Upright. Next, attach the Console to
the Upright with four M4 x 16mm Round Head Screws
(101). Be careful to avoid pinching the wire har-
ness.
Battery
Cover
5
8
101
3
Batteries
48
ire
W
Harness
7
9. Identify the Left Handlebar (8) and the Left Upper Body
Arm (11), which are marked with stickers.
Orient the Left Handlebar (8) and the Left Upper Body
rm (11) as shown. Insert the Left Handlebar into the
A
Left Upper Body Arm. Attach the Left Handlebar with two
M8 x 43mm Button Bolts (78) and two M8 Jamnuts (79).
Make sure that the Jamnuts are in the hexagonal
holes in the Left Upper Body Arm.
Attach the Right Handlebar (9) to the Right Upper Body
Arm (12) in the same way.
9
9
8
79
10. Insert the Pivot Axle (74) into the Upright (3) and center
it. Apply a generous amount of the included grease to
the Pivot Axle.
Orient the Left Upper Body Arm (11) as shown, and
slide it onto the left end of the Pivot Axle (74). Slide the
Right Upper Body Arm (12) onto the right end of the
Pivot Axle.
10
79
11
74
Grease
78
12
78
3
88
84
111
12
Tighten an M8 x 23mm Button Screw (84) with an M8
Washer (88) and a Wave Washer (111) into each end of
the Pivot
are on the ends of the Pivot Axle.
Hold the Left Front Handlebar Cover (18) and the Left
1.
1
Rear Handlebar Cover (19) around the Left Upper Body
Arm (11). Attach the Handlebar Covers with three M4 x
32mm Round Head Screws (105).
Attach the Right Front Handlebar Cover (20) and the
Right Rear Handlebar Cover (21) around the Right
Upper Body Arm (12) in the same way
Axle (74).
Make sure that the W
ave W
.
ashers
8
88
1
1
111
84
1
1
105
18
11
20
21
12
19
12. Identify the Left Pedal (13) and the Left Pedal Leg
(14), which are marked with stickers.
Attach the Left Pedal (13) to the Left Pedal Leg (14)
ith an M4 x 45mm Screw (108), three M4 x 14mm
w
Screws (104), and four Star Washers (112).
Attach the Right Pedal (not shown) to the Right Pedal
Leg (not shown) in the same way.
2
1
3
1
112
104
112
108
112
14
112
104
13. Apply a thin film of grease to one of the Pedal Leg
Axles (32) and to the faces of the two Pedal Leg
Bushings (33) in the Left Pedal Leg (14).
Next, slide an M8 Washer (88) and a Pedal Leg Cover
(31) onto an M8 x 23mm Shoulder Screw (115), and
turn the Shoulder Screw a few turns into the Pedal
Leg Axle (32).
While another person holds the front end of the Left
Pedal Leg (14) inside of the bracket on the Left Upper
Body Arm (11), insert the Pedal Leg Axle (32) into
both parts. Next, slide an M8 Washer (88) and a
Pedal Leg Cover (31) onto another M8 x 23mm
Shoulder Screw (115), and turn the Shoulder Screw a
few turns into the Pedal Leg Axle. Tighten both
Shoulder Screws.
Repeat this step on the other side of the elliptical
exerciser.
14. Lift the latch on the underside of the Left Pedal Leg
(14), and set the Left Pedal Leg on the left Crank
Bushing Sleeve (43). Release the lever, and make sure
that the Left Pedal Leg is securely connected to the
Crank Bushing Sleeve.
13
14
88
115
Grease
11
31
88
31
115
33–Grease
32
14
Connect the Right Pedal Leg (not shown) in the same
way.
See step 5. Tighten the M8 x 69mm Button Bolt (80)
and the two M8 x 23mm Button Screws (84).
15. Make sure that all parts of the elliptical exerciser are properly tightened. Note: Some hardware may be
left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical exerciser.
14
Latch
43
9
HOW TO USE THE ELLIPTICAL EXERCISER
HOW TO FOLD AND UNFOLD THE ELLIPTICAL
EXERCISER
When the elliptical exerciser is not in use, the frame
an be folded out of the way. First, lift the latch under
c
each pedal leg, and lift the pedal legs off the sleeves
on the crank arms.
Sleeve
Crank
Arm
Pedal Leg
Latch
Next, raise the pedal legs until they touch the magnets
on the upper body arms; the magnets will hold the
pedal legs in place. Then, hold the handle and lift the
frame until it locks in a vertical position.
HOW TO MOVE THE ELLIPTICAL EXERCISER
To move the elliptical exerciser, first fold it as
described at the left. Next, stand in front of the ellipti-
al exerciser, hold the handle on the console bracket,
c
and place one foot against the center of the front stabilizer. Pull the handle until the elliptical exerciser will
roll on the front wheels. Carefully move the elliptical
exerciser to the desired position, and then lower it.
Handle
Place
your foot
here
Pedal Leg
Handle
Frame
Latch
Button
To use the elliptical exerciser, first hold the handle,
press the latch button, and lower the frame.
Next, pull the pedal legs off the magnets on the upper
body arms. Then, lift the latches under the pedal
legs, and set the pedal legs on the sleeves on the
crank arms. Release the latches, and make sure that
the pedal legs are securely connected to the crank
arms.
Magnet
HOW TO LEVEL THE ELLIPTICAL EXERCISER
If the elliptical exerciser rocks slightly on your floor
during use, turn one or both of the leveling feet
beneath the rear stabilizer until the rocking motion is
eliminated.
Leveling
Feet
10
HOW TO EXERCISE ON THE ELLIPTICAL
EXERCISER
HOW TO ADJUST THE STRIDE OF THE ELLIPTICAL
EXERCISER
To mount the elliptical exerciser, hold the handlebars
nd step onto the pedal that is in the lowest position.
a
Next, step onto the other pedal. Push the pedals until
they begin to move with a continuous motion.
The pedal disks can turn in either direction. It is
recommended that you turn the pedal disks in the
direction shown by the arrow below; however, for
variety, you can turn the pedal disks in the opposite direction.
Handlebar
Pedals
Note:
To adjust the stride of the elliptical exerciser, first pull
ne of the adjustment knobs until the adjustment
o
bracket can be pivoted freely. Pivot the adjustment
bracket until the adjustment knob is aligned with one
of the three holes in the crank arm, and gently release
the knob. Then, pivot the adjustment bracket back and
forth slightly to make sure that the adjustment pin is
engaged in one of the three holes in the crank arm.
Crank
Arm
Adjustment
Bracket
Holes
Adjustment
Adjustment
Pin
Knob
Crank
Arm
o dismount the elliptical exerciser, wait until the ped-
T
als come to a complete stop. Note: The elliptical
exerciser does not have a free wheel; the pedals
will continue to move until the flywheel stops.
When the pedals are stationary, step off the highest
pedal first. Then, step off the lowest pedal.
Adjust the other side of the elliptical exerciser in the
same way.
11
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you select the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. As you exercise, the console will display
continuous exercise feedback.
your heart rate using the handgrip pulse sensor.
The console also features six interactive cross training
programs designed to help you to burn calories and
enhance your cardiovascular system while toning and
strengthening your muscles. The cross training programs automatically control the
als and prompt you to perform a variety of strength
exercises during your workout. Choose an upper body,
lower body, or total body cross training program to
focus your workout. Note: The strength exercises
require the use of dumbbells and an inflatable exercise
ball (not included). To purchase dumbbells or an
exercise ball, call the toll-free telephone number
on the front cover of this manual.
You can even measure
resistance of the ped
-
The console also offers two heart rate programs. The
heart rate profile program allows you to enter a maximum heart rate setting and then guides you through an
effective workout by automatically changing the resistance of the pedals and prompting you to maintain a
steady pedaling pace.
The heart rate control program allows you to enter a
target heart rate and then changes the resistance of
the pedals and prompts you to vary your pace to keep
your heart rate near the target heart rate while you
exercise.
o use the manual mode of the console
T
steps beginning on page 13. To use a cross training
program, see page 14. To use a heart rate program,
see page 16.
Note: If there is a sheet of clear plastic on the face
the console, remove the plastic.
of
, follow the
12
OW TO USE THE MANUAL MODE
H
ress the Resistance decrease button or
P
1
begin pedaling to turn on the console.
A moment after you turn on the console, the display will light.
Select the manual mode.
2
Each time you turn on the console, the manual
mode will be selected automatically. If you have
selected a program, reselect the manual mode by
pressing the Programs button repeatedly until the
words MANUAL MODE appear in the display.
Begin pedaling and change the resistance of
3
the pedals as desired.
As you pedal, change the resistance of the pedals by pressing the Resistance increase and
decrease buttons repeatedly. There are ten resistance levels. Note: After you press the buttons, it
will take a moment for the pedals to reach the
selected resistance level.
The center of the display will also show the
esistance setting of
r
the pedals for a few
econds each time the
s
resistance setting
changes.
The right side of the
display—The right
side of the display will
show the distance, in
total revolutions, you
have pedaled. Note:
When a program is selected, the right side of the
display will also show your pedaling pace in revolutions per minute (rpm).
The top of the display—When you select the
manual mode, the top of the display will show the
approximate number of calories you have burned
and your pedaling pace in revolutions per minute
(rpm).
Follow
your progress with the display.
4
The left side of the
display—The left
side of the display
will show the elapsed
time. Note: When a
program is selected,
except for the heart rate control program, the display will show the time remaining in the program
instead of the elapsed time.
The left side of the display will also show your
heart rate when you use the handgrip pulse sensor (see step 5 on this page).
Note: When a program is selected, the left side of
the display will also show the approximate number of calories you have burned.
The center of the
display—When you
select the manual
mode, the center of
the display will show
a track that represents 640 revolutions. As you exercise, indicators
will appear in succession around the track until
the entire track appears. The track will then disappear and the
in succession.
indicators will again begin to appear
Measure your heart rate if desired.
5
If there are sheets of
clear plastic on the
metal contacts on
the handgrip pulse
sensor, remove the
plastic. To measure
your heart rate, hold
the handgrip pulse
sensor with your
palms resting against the metal contacts. A
moving your hands or gripping the contacts
too tightly
When your pulse is
detected, a heartshaped symbol will
flash in the left side of
the display each time
your heart beats, one or two dashes will appear
and then your heart rate will be shown. For the
most accurate heart rate reading, hold the contacts for at least 15 seconds. Note: If you continue
to hold the handgrip pulse sensor
show your heart rate for up to 30 seconds.
.
Metal Contacts
, the display will
void
,
13
If the display does not show your heart rate, make
sure that your hands are positioned as described.
e careful not to move your hands excessively or
B
to squeeze the metal contacts too tightly. For opti-
al performance, clean the metal contacts using
m
a soft cloth; never use alcohol, abrasives, or
chemicals to clean the contacts.
Turn on the fan if desired.
6
To turn on the fan at high speed, press the Fan
button. To turn on the fan at low speed, press the
button a second time. To turn off the fan, press
the button a third time. Note: If the pedals do not
move for a few minutes, the fan will automatically
turn off to conserve the batteries.
Pivot the thumb tab
on the right side of
the fan to adjust the
fan angle.
When you are finished exercising, the console
7
will turn off automatically.
Thumb
ab
T
OW TO USE A CROSS TRAINING PROGRAM
H
ress the Resistance decrease button or
P
1
begin pedaling to turn on the console.
A moment after you turn on the console, the display will light.
Select one of the six cross training programs.
2
To select a cross training program, press the
Programs button repeatedly until the name of the
desired cross training program appears in the display. When you select a cross training program,
the program time will appear in the display and a
profile of the resistance settings for the program
will scroll across the center of the display.
If the pedals do not move for several seconds, a
tone will sound and the console will pause.
If the pedals do not move for about five minutes
and the buttons are not pressed, the console will
turn off and the display will be reset.
Begin pedaling to start the program.
3
Each program is divided into 25, 30, or 45 oneminute segments. One resistance setting and one
target rpm (revolutions per minute) setting are
programmed for most segments. (Note: The same
resistance and/or target rpm setting may be programmed for two or more consecutive segments.)
During other segments, the console will prompt you
to perform strength exercises.
The resistance setting
for the first
will appear in the
flashing Current
Segment column in
the display. The resistance settings for the next several segments will
appear in the columns to the right. The target rpm
setting will appear in the top of the display
When only three seconds remain in the first segment of the program, both the Current Segment
column and the column to the right will flash and
a series of tones will sound. If the resistance
and/or target rpm is about to change, the resistance setting and/or the target rpm setting will
appear in the display to alert you.
segment
Current Segment
.
14
When the first segment is completed,
tance settings will move one column to the left
he resistance setting for the second segment
T
will then appear in the flashing Current Segment
olumn and the pedals will automatically adjust to
c
the resistance setting for the second segment.
Note: If all the indicators in the Current Segment
column are lit,
downward
appear in the matrix.
the resistance settings may move
so that only the highest indicators
all resis-
.
Next, the display will show the recommended
umber of repetitions for the first strength exer-
n
cise.
As you exercise, you will be prompted to keep
your pedaling pace near the target rpm setting for
the current segment. When the words PEDAL
FASTER appear in the display, increase your
pace. When the words PEDAL SLOWER appear
in the display, decrease your pace. When the
words PEDALING IN RANGE appear, maintain
your current pace.
Important: The target rpm settings are intended only to provide motivation. Your actual
pace may be slower than the target rpm settings. Make sure to exercise at a pace that is
comfortable for you.
If the resistance setting for the current segment is
too high or too low, you can manually override the
setting by pressing the Resistance decrease or
increase buttons. Every few times you press a
Resistance button, an additional indicator will
appear or disappear in the Current Segment column; if any of the columns to the right of the
Current Segment column have the same number
of lit indicators as the Current Segment column,
an additional indicator may appear or disappear
in those columns as well.
current segment of the program ends, the ped
als will automatically adjust to the resistance
setting for the next segment.
To stop the program at any time, stop pedaling.
The time will begin to
restart the program, simply resume pedaling.
Important: When the
flash in the display
o
T
.
Step off the elliptical exerciser and prepare to
begin the first strength exercise. Every few seconds, the console will sound a tone; when a tone
sounds, perform one repetition of the exercise.
Exercise with a slow, steady motion; do not perform more than one repetition each time a tone
sounds. The display will count down the repetitions as you perform them.
Note: Refer to the accompanying exercise chart
to see the correct form for each exercise. When
performing lunges, alternate legs with each repetition. When performing dumbbell rows, perform
half the repetitions with your right arm and half
the repetitions with your left arm. The strength
exercises require the use of dumbbells and an
inflatable exercise ball (not included).
chase dumbbells or an exercise ball, call the
toll-free telephone number on the front cover
of this manual.
Continue the cross training program.
To pur-
5
-
When you have performed the recommended
PEDAL
T
number of repetitions, the words ST
ING will appear in the display. To continue the
cross training program, step onto the exerciser
and start pedaling.
adjust to the resistance setting for the next segment.
The pedals will automatically
AR
-
Perform the first strength exercise when
4
prompted.
When the first strength exercise segment begins,
the name of the first strength exercise will appear
in the display for a few seconds. The time will
pause and flash in the display
.
15
The program will continue in this way until the last
segment ends.
DONE will appear in the display.
Then, the words PROGRAM
Follow your progress with the display.
6
See step 4 on page 13.
Measure your heart rate if desired.
7
See step 5 on page 13.
Turn on the fan if desired.
8
See step 6 on page 14.
When you are finished exercising, the console
9
will turn off automatically.
See step 7 on page 14.
HOW TO USE A HEART RATE PROGRAM
Press the Resistance decrease button or
1
begin pedaling to turn on the console.
A moment after you turn on the console, the display will light.
Select one of the two heart rate programs.
2
To select a heart rate program, press the
Programs button repeatedly until HEART RATE
PROFILE or HEART RATE CONTROL appears in
the display.
If you select the heart rate profile program, the
maximum target heart rate setting will flash and a
profile of the target heart rate settings for the program will scroll across the center of the display.
nter a target heart rate setting.
E
3
If you select the heart rate profile program,
maximum target heart rate setting of the program
will flash in the display. Use the Resistance
increase and decrease buttons to change the
maximum heart rate setting, if desired. Note: If
ou change the maximum target heart rate set-
y
ting, the intensity level of the entire program will
change.
If you select the heart rate control program,
the target heart rate setting for the program will
flash in the display. Use the Resistance increase
and decrease buttons to change the target heart
rate setting, if desired. Note: The same target
heart rate setting will be used for the entire program.
Hold the handgrip pulse sensor.
4
It is not necessary to
hold the handgrip pulse
sensor continuously
during a heart rate program; however, you
should hold the handgrip pulse sensor frequently for the program to operate properly.
time you hold the handgrip pulse sensor, keep
your hands on the metal contacts for at least
30 seconds. When you are not holding the hand-
grip pulse sensor, the letters PLS will appear in
the display instead of your heart rate.
Begin pedaling to start the program.
5
Heart rate profile program—This program is
divided into 30 one-minute segments. One target
heart rate setting is programmed for each seg
ment. Note: The same target heart rate setting
may be programmed for two or more consecutive
segments.
the
Each
-
If you select the heart rate control program,
the target heart rate setting for the program will
flash in the display.
16
The target heart rate setting for the first segment
will be shown in the flashing Current Segment
column of the display. The target heart rate settings for the next several segments will be shown
in the columns to the right.
When only three seconds remain in the first segment of the program, both the Current Segment
column and the column to the right will flash, a
series of tones will sound, and
rate settings will move one column to the left.
target heart rate setting for the second segment
will then be shown in the flashing Current
Segment column.
all target heart
The
The program will continue in this way until the last
segment ends. Then, the words PROGRAM
ONE will appear in the display.
D
eart rate control program—The same target
H
heart rate is programmed for all segments of this
program.
Both heart rate programs—As you pedal, the
console will regularly compare your heart rate to
the target heart rate setting. If your heart rate is
too far below or above the target heart rate, the
resistance of the pedals will automatically increase
or decrease to bring your heart rate closer to the
target heart rate.
You will also be prompted to pedal at a steady
pace. When the words PEDAL FASTER appear in
the display, increase your pace. When the words
PEDAL SLOWER appear in the display, decrease
your pace. When the words PEDALING IN
RANGE appear, maintain your current pace.
Important: Make sure to exercise at a pace
that is comfortable for you. Note: You can man-
ally override the resistance settings; however,
u
you may not maintain the target heart rate. Also,
hen the console compares your heart rate to the
w
target heart rate setting, the resistance of the
pedals may automatically increase or decrease to
bring your heart rate closer to the target heart
rate setting.
Follow your progress with the display.
6
See step 4 on page 13.
Measure your heart rate if desired.
7
See step 5 on page 13.
urn on the fan if desired.
T
8
See step 6 on page 14.
When you are finished exercising, the console
9
will turn off automatically.
See step 7 on page 14.
17
MAINTENANCE AND TROUBLESHOOTING
Inspect and tighten all parts of the elliptical exerciser
regularly. Replace any worn parts immediately.
To clean the elliptical exerciser, use a damp cloth and
a small amount of mild soap. Important: To avoid
damage to the console, keep liquids away from
the console and keep the console out of direct
sunlight.
BATTERY REPLACEMENT
If the console display becomes dim, the batteries
should be replaced; most console problems are the
result of low batteries. See assembly step 7 on page
7 for replacement instructions.
HOW TO ELIMINATE FLEXING IN THE CENTER OF
THE ELLIPTICAL EXERCISER
If the elliptical exerciser flexes in the
center during use,
turn the base foot
until the flexing is
eliminated.
HOW TO LEVEL THE ELLIPTICAL EXERCISER
f the elliptical exerciser rocks slightly on your floor
I
during use, see HOW TO LEVEL THE ELLIPTICAL
EXERCISER on page 10.
HANDGRIP PULSE SENSOR TROUBLESHOOTING
• Avoid moving your hands while using the handgrip
pulse sensor. Excessive movement may interfere
with heart rate readings.
• Do not hold the metal contacts too tightly; doing so
may interfere with heart rate readings.
• For the most accurate heart rate reading, hold the
metal contacts for about 30 seconds.
• For optimal performance of the handgrip pulse sensor, keep the metal contacts clean. The contacts
can be cleaned with a soft cloth—
hol, abrasives, or chemicals.
never use alco-
Base
Foot
18
CONDITIONING GUIDELINES
WARNING:
Before beginning this or any exercise program, consult your physician. This is espe-
ially important for persons over the age of 35
c
or persons with pre-existing health problems.
During the first few minutes of exercise, your body
uses easily accessible
gy. Only after the first few minutes of exercise does
your body begin to use stored
f your goal is to burn fat, adjust the intensity of your
I
exercise until your heart rate is near the lowest number in your training zone as you exercise.
carbohydrate
fat
calories for energy.
calories for ener-
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recommended heart rates for fat burning, maximum fat
burning, and cardiovascular (aerobic) exercise.
For maximum fat burning, adjust the intensity of your
exercise until your heart rate is near the middle number in your training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen
for prolonged periods of time. This increases the
demand on the heart to pump blood to the muscles,
and on the lungs to oxygenate the blood. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone as you exercise.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise. A proper warm-up increases your
body temperature, heart rate, and circulation in preparation for exercise.
To find the proper heart rate for you, first find your age
at the bottom of the chart (ages are rounded of
nearest ten years). Next, find the three numbers above
your age.
The lower two numbers are recommended heart rates
for fat burning; the highest number is the recommended heart rate for aerobic exercise.
Fat Burning
o burn fat ef
T
ly low intensity level for a sustained period of time.
The three numbers are your “training zone.”
fectively
, you must exercise at a relative
f
to the
Training zone exercise, consisting of 20 to 30 minutes of exercising with your heart rate in your training
zone. Note: During the first few weeks of your exercise program, do not keep your heart rate in your
training zone for longer than 20 minutes.
A cool-down, with 5 to 10 minutes of stretching. This
will increase the flexibility of your muscles and will
help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts.
cise, you may complete up to five workouts each week
if desired. The key to success is to make exercise a
regular and enjoyable part of your everyday life.
After a few months of regular exer-
19
PART LIST—Model No. PFEL5926.0 R0606A
ey
K
No. Qty. Description
1 1 Base
1 Frame
2
3 1 Upright
4 1 Upright Endcap
5 1 Console
6 1 Front Stabilizer
7 1 Rear Stabilizer
8 1 Left Handlebar
9 1 Right Handlebar
10 2 Handlebar Endcap
11 1 Left Upper Body Arm
12 1 Right Upper Body Arm
13 1 Left Pedal
14 1 Left Pedal Leg
15 1 Right Pedal
16 1 Right Pedal Leg
17 2 Upright Cover
18 1 Left Front Handlebar Cover
19 1 Left Rear Handlebar Cover
20 1 Right Front Handlebar Cover
21 1 Right Rear Handlebar Cover
22 1 Water Bottle Holder
23 2 Front Stabilizer Endcap
24 2 Rear Stabilizer Endcap
25 2 Wheel
26 1 Base Foot
27 2 Leveling Foot
28 1 Left Side Shield
29 1 Right Side Shield
30 6 Upper Body Bushing
31 4 Pedal Leg Cover
32 2 Pedal Leg Axle
33 4 Pedal Leg Bushing
34 1 Base Axle
35 2 Base Bushing
36 1 Left Crank Arm
37 2 Adjustment Arm Cover
38 2 Crank Hub
39 1 Pulley Spacer
40 1 Pulley
41 2 Adjustment Arm
42 4 Crank Bushing
43 2 Crank Bushing Sleeve
44 2 Crank Bearing Set
45 1 Crank
46 1 Crank Spacer
47 2 Crank Snap Ring
48 1 Upper Wire Harness
49
1 Lower Wire Harness
1 Reed Switch/Wire
50
ey
K
No. Qty. Description
51 1 Belt
2 1 Flywheel
5
53 1 “C” Magnet
54 1 Pillow Block
55 1 Magnet
56 1 Spring
57 1 Idler
58 1 Idler Bracket
59 1 Clamp
60 1 Reed Switch Bracket
61 1 Base Pin
62 2 Latch Bracket Spacer
63 2 Hair Pin
64 1 Latch Bracket
65 1 Pivot Bracket
66 2 Pivot Bracket Spacer
67 1 Frame Pin
68 1 Latch Button
69 1 Roll Pin
70 1 Motor
71 1 Resistance Cable Pulley
72 1 Resistance Cable Set
73 2 Foam Grip
74 1 Pivot Axle
75 2 Hub Cover
76 2 Adjustment Knob
77 2 Flywheel Bracket
78 4 M8 x 43mm Button Bolt
79 7 M8 Jamnut
80 1 M8 x 69mm Button Bolt
81 2 M10 Nylon Locknut
82 2 M10 x 82mm Button Screw
83 2 M10 x 127mm Button Screw
84 8 M8 x 23mm Button Screw
85 1 M6 x 10mm Button Screw
86 2 Crank Screw
87 8 Hub Screw
88 8 M8 Washer
89 2 M10 x 60mm Button Screw
90 3 M8 Split Washer
91 1 Flywheel Spacer
92 1 Flywheel Washer
93 1 Flywheel Snap Ring
94 4 Pillow Block Screw
95 1 Stop Screw
96 1 M8 x 35mm Screw
97 1 “E” Clip
98 4 Pulley Screw
99
2 Adjustment Pin
2 M4 x 25mm Screw
100
20
ey
K
No. Qty. Description
ey
K
No. Qty. Description
101 14 M4 x 16mm Round Head Screw
102 4 Motor Washer
103 13 M4 x 16mm Screw
104 8 M4 x 14mm Screw
105 6 M4 x 32mm Round Head Screw
106 2 Adjustment Spring
107 4 M4 x 12mm Screw
108 2 M4 x 45mm Screw
109 2 Large Snap Ring
110 2 M8 Small Washer
111 2 Wave Washer
112 8 Star Washer
113 1 M10 Washer
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
114 1 M6 Nut
115 4 M8 x 23mm Shoulder Screw
116 8 M8 x 15mm Button Screw
117 2 Large Wave Washer
118 1 Left Stabilizer Cover
119 1 Right Stabilizer Cover
120 2 M4 x 12mm Round Head Screw
121 2 M8 Large Washer
122 2 Middle Wave Washer
123 1 Right Crank Arm
# 2 Hex Key
# 1 Grease
# 1 User’s Manual
21
EXPLODED DRAWING A—Model No. PFEL5926.0 R0606A
1
4
3
5
6
8
9
10
10
11
12
13
14
15
16
17
17
18
19
20
21
22
23
23
25
25
26
30
30
30
30
30
30
31
31
32
33
33
31
33
32
33
31
34
35
35
80
78
101
101
79
105
105
88
84
79
101
84
101
101
74
105
79
78
88
84
104
115
115
104
88
84
104
115
115
104
104
84
88
89
82
81
81
89
48
49
84
73
73
108
88
88
88
88
108
90
90
90
111
111
112
112
112
112
112
101
101
118
119
101
101
22
66
2
28
29
75
76
36
86
99
87
106
37
38
39
40
41
42
42
43
107
107
103
38
7
24
24
27
27
83
44
98
98
44
45
46
47
47
103
100
103
51
50
57
58
59
60
103
103
85
96
61
62
62
63
64
63
65
66
67
68
69
113
97
70
95
103
79
71
72
107
100
1
03
103
103
102
102
107
109
123
75
87
114
103
110
53
56
79
110
86
87
87
43
42
42
37
120
120
41
76
106
99
109
116
116
84
84
121
121
122
117
117
122
52
54
55
94
94
94
92
93
91
77
77
EXPLODED DRAWING B—Model No. PFEL5926.0 R0606A
23
HOW TO ORDER REPLACEMENT PARTS
o order replacement parts, please see the front cover of this manual. To help us assist you, please be prepared
T
to provide the following information when contacting us:
• the MODEL NUMBER of the product (PFEL5926.0)
• the NAME of the product (PROFORM 925 elliptical exerciser)
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part(s) (see pages 20 to 23)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer’s responsibility. For
in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend
to any product or damage to a product caused by or attributable to freight damage, abuse, misuse,
improper or abnormal usage or repairs not provided by an ICON authorized service center; products used
for commercial or rental purposes; or products used as store display models. No other warranty beyond
that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
2006 ICON IP, Inc.
Part No. 239285 R0606A
Printed in China
©
Loading...
