www.proform.com
Model No. PFEL55914.4
Serial No.
Write the serial number in the space
above for reference.
Serial
Number
Decal
ACTIVATE YOUR
WARRANTY
To register your product and
activate your warranty today,
go to www.proformservice.com/
registration.
USER’S MANUAL
CUSTOMER CARE
For service at any time, go to
www.proformservice.com.
Or call 1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
CAUTION
Read all precautions and
instructions in this manual before
using this equipment. Keep this
manual for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS ..................................................................3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO USE THE ELLIPTICAL ..............................................................18
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
MAINTENANCE AND TROUBLESHOOTING .....................................................30
EXERCISE GUIDELINES ....................................................................32
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
ORDERING REPLACEMENT PARTS .................................................. Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see
the front cover of this manual and request a
free replacement decal. Apply the decal in the
location shown. Note: The decal(s) may not be
shown at actual size.
Google Maps is a trademark of Google Inc.
IFIT is a registered trademark of ICON Health & Fitness, Inc.
PROFORM is a registered trademark of ICON Health & Fitness, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons with pre-existing health problems.
3. The elliptical is not intended for use by
persons with reduced physical, sensory, or
mental capabilities or lack of experience and
knowledge, unless they are given supervision or instruction about use of the elliptical
by someone responsible for their safety.
4. Use the elliptical only as described in this
manual.
5. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
6. Keep the elliptical indoors, away from moisture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
7. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from damage, place a mat under the elliptical.
8. Inspect and properly tighten all parts each
time the elliptical is used. Replace any worn
parts immediately.
9. Keep children under age 13 and pets away
from the elliptical at all times.
10. The elliptical should not be used by persons
weighing more than 300 lbs. (136 kg).
11. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
12. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
13. The heart rate monitor is not a medical
device. Various factors may affect the accuracy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
14. The elliptical does not have a freewheel; the
pedals will continue to move until the flywheel stops. Reduce your pedaling speed in
a controlled way.
15. Keep your back straight while using the elliptical; do not arch your back.
16. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
3
4
STANDARD SERVICE PLANS
all
5
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM®
ENDURANCE 520 E elliptical. The ENDURANCE 520
E elliptical provides an impressive selection of features
designed to make your workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
Length: 5 ft. 8 in. (173 cm)
Width: 2 ft. 2 in. (66 cm)
Handlebar
Speaker
Accessory Tray
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Tablet Holder
Console
Upper Body Arm
Heart Rate Monitor
Pedal
Roller
Handle
Leveling Foot
Wheel
Ramp Handle
Ramp
6
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M8 Locknut
(102)–4
M4 x 16mm
Screw (101)–16
M10 x 25mm
Screw (92)–4
M5 Washer
(32)–2
#8 x 12mm
Screw (9)–4
M8 Washer
(97)–8
M8 x 13mm
Screw (82)–6
M10 Split
Washer (105)–8
M8 x 14mm
Shoulder
Screw (120)–2
M10 x 122mm Screw
(104)–4
16mm Wave
Washer (54)–2
M8 x 38mm Bolt
(96)–4
7
ASSEMBLY
• To hire an authorized service technician to
assemble this product, call 1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you nish all assembly steps.
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
1. Go to www.proformservice.com/registration
on your computer and register your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Care
• allows us to notify you of upgrades and offers
Note: If you do not have internet access, call
Customer Care (see the front cover of this
manual) and register your product.
• To identify small parts, see page 7.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one rubber mallet
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
1
2. With the help of a second person, place some of
the packing materials (not shown) under the rear
of the Frame (1). Have the second person hold
the Frame to prevent it from tipping while you
complete this step.
Attach the Rear Stabilizer (2) to the Frame (1)
with two M10 x 122mm Screws (104) and two
M10 Split Washers (105).
Remove the packing materials from under the
rear of the Frame (1).
2
104
2
1
105
8
3. Press the Cover Mounts (106) on the underside
of the Rear Stabilizer Cover (15) into the Rear
Stabilizer (2).
3
15
106
2
4. With the help of a second person, place some
of the packing materials (not shown) under the
front of the Frame (1). Have the second per-
son hold the Frame to prevent it from tipping
while you complete this step.
Attach the Front Stabilizer (6) to the Frame (1)
with two M10 x 122mm Screws (104) and two
M10 Split Washers (105).
Remove the packing materials from under the
front of the Frame (1).
4
6
105
1
104
9
5. Orient the Upright (4) as shown. Have a second
person hold the Upright near the Frame (1).
See the inset drawing. Locate the wire tie in
the lower end of the Upright (4). Tie the wire tie
to the Upper Wire (110). Then, pull the upper
end of the wire tie until the Upper Wire is routed
through the Upright.
Tip: To prevent the Upper Wire (110) from
falling into the Upright (4), secure the Upper
Wire with the wire tie.
5
110
4
Wire
Tie
1
Wire
Tie
110
6. Tip: Avoid pinching the Upper Wire (110).
Avoid damaging the indicated plastic tabs.
Set the Upright (4) on the Frame (1).
Attach the Upright (4) with four M10 x 25mm
Screws (92) and four M10 Split Washers (105);
start all of the Screws, and then tighten them.
6
Avoid pinching the Upper
Wire (110) and avoid
damaging the tabs
4
110
92
105
Tabs
92
105
1
10
7. Using a plastic bag to keep your fingers clean,
apply some of the included grease to the Pivot
Axle (35) and to two 16mm Wave Washers (54).
Insert the Pivot Axle (35) through the Upright (4)
and center it. Tip: It may be helpful to use a
rubber mallet.
Identify the Right Upper Body Leg (60) and
orient it as shown.
Slide a 16mm Wave Washer (54) and the Right
Upper Body Leg (60) onto the right side of the
Pivot Axle (35).
Repeat these actions for the Left Upper Body
Leg (46).
Tighten an M8 x 13mm Screw (82) and an M8
Washer (97) into each end of the Pivot Axle (35)
at the same time.
7
4
35
Grease
46
54
60
97
82
8. Identify the Right Upper Body Arm (61) and
orient it as shown.
Slide the Right Upper Body Arm (61) onto the
Right Upper Body Leg (60).
Attach the Right Upper Body Arm (61) with two
M8 x 38mm Bolts (96) and two M8 Locknuts
(102). Make sure that the Locknuts are in the
hexagonal holes.
Repeat this step for the Left Upper Body
Arm (47).
8
47
102
61
96
Hexagonal
Holes
60
11
9. Untie and discard the wire tie on the Upper
Wire (110).
While a second person holds the Console (7)
near the Upright (4), connect the wires on the
Console to the Upper Wire (110) and to the
Pulse Sensor Wires (63).
Insert the excess wire into the Upright (4) or into
the Console (7).
9
7
63
110
4
10. Tip: Avoid pinching the wires. Attach
the Console (7) to the Upright (4) with four
M4 x 16mm Screws (101); start all the Screws,
and then tighten them.
10
4
101
7
Avoid pinching
the wires
101
12

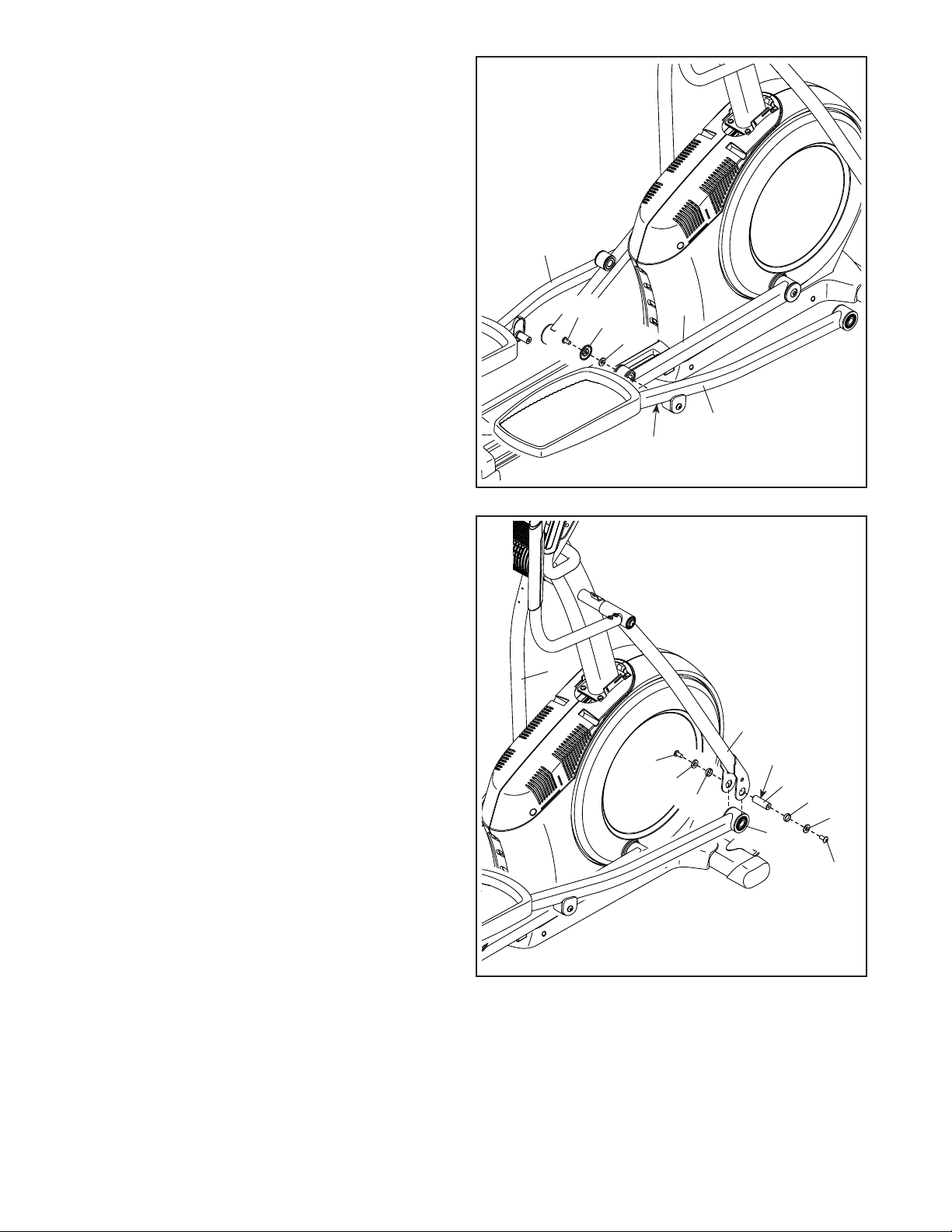

11. Orient the Right Pedal Arm (58) as shown.
Apply grease to the axle on the Right Pedal
Arm (58).
Attach the Right Pedal Arm (58) to the Right
Roller Arm (59) with an M8 x 14mm Shoulder
Screw (120), a Small Axle Cover (55), and an
M8 Washer (97).
11
Repeat this step for the Left Pedal Arm (44).
12. Apply a small amount of grease to one of the
Pedal Arm Axles (64).
Next, slide an M8 Washer (97) and an Axle
Spacer (77) onto an M8 x 13mm Screw (82), and
tighten the Screw a few turns into the Pedal Arm
Axle (64).
While a second person holds the front end of the
Right Pedal Arm (58) inside the bracket on the
Right Upper Body Leg (60), insert the Pedal Arm
Axle (64) into both parts.
12
44
46
120
55
59
97
58
Grease
60
Slide an M8 Washer (97) and an Axle Spacer
(77) onto another M8 x 13mm Screw (82), and
tighten the Screw a few turns into the Pedal Arm
Axle (64). Then, tighten both Screws at the
same time.
Repeat this step on the other side of the
elliptical.
13
82
97
77
Grease
64
77
97
58
82
13. Orient the Rear Upright Cover (81) as shown.
13
Attach the Rear Upright Cover (81) to the Upright
(4) with four M4 x 16mm Screws (101); start all
of the Screws, and then tighten them.
Orient the Front Upright Cover (117) as shown.
Attach the Front Upright Cover (117) around the
Upright (4) by pressing it onto the Rear Upright
Cover (81).
14. Identify the Right Arm Front Cover (65) and
orient it as shown.
117
101
4
81
14
Attach the Right Arm Front Cover (65) to the
Right Upper Body Leg (60) with two M4 x 16mm
Screws (101).
Identify the Right Arm Rear Cover (66) and orient
it as shown.
Attach the Right Arm Rear Cover (66) around the
Right Upper Body Leg (60) by pressing it onto
the Right Arm Front Cover (65).
Repeat this step on the other side of the
elliptical.
65
60
101
66
14
15. Identify the Right Leg Inner Cover (83) and orient
it as shown.
Attach the Right Leg Inner Cover (83) to the
Right Upper Body Leg (60) with an M4 x 16mm
Screw (101) and an M5 Washer (32).
Identify the Right Leg Outer Cover (69) and
orient it as shown.
15
Attach the Right Leg Outer Cover (69) around
the Right Upper Body Leg (60) by pressing it
onto the Right Leg Inner Cover (83).
Repeat this step on the other side of the
elliptical.
16. Orient the Shield Cover Cap (118) and the Shield
Cover (75) as shown.
First, press the tabs on the Shield Cover Cap
(118) into the Left and Right Shields (73, 74).
Then, press the tabs on the Shield Cover (75)
into the Left and Right Shields (73, 74).
16
75
83
60
32
101
69
118
73, 74
15
17. Orient the Rear Console Cover (80) as shown.
Attach the Rear Console Cover (80) to the
Upright (4) with two M4 x 16mm Screws (101).
Orient the Front Console Cover (79) as shown.
Attach the Front Console Cover (79) around the
Upright (4) by pressing it onto the Rear Console
Cover (80).
17
79
101
4
80
18. IMPORTANT: If you purchased the optional
iFit module, insert the iFit module into the
iFit port on the Console (7) before you attach
the Tablet Holder (121). After the elliptical is
assembled, follow the instructions included
with the iFit module.
Attach the Tablet Holder (121) to the Console (7)
with four #8 x 12mm Screws (9); start all of the
Screws, and then tighten them.
18
7
iFit Port
121
9
16

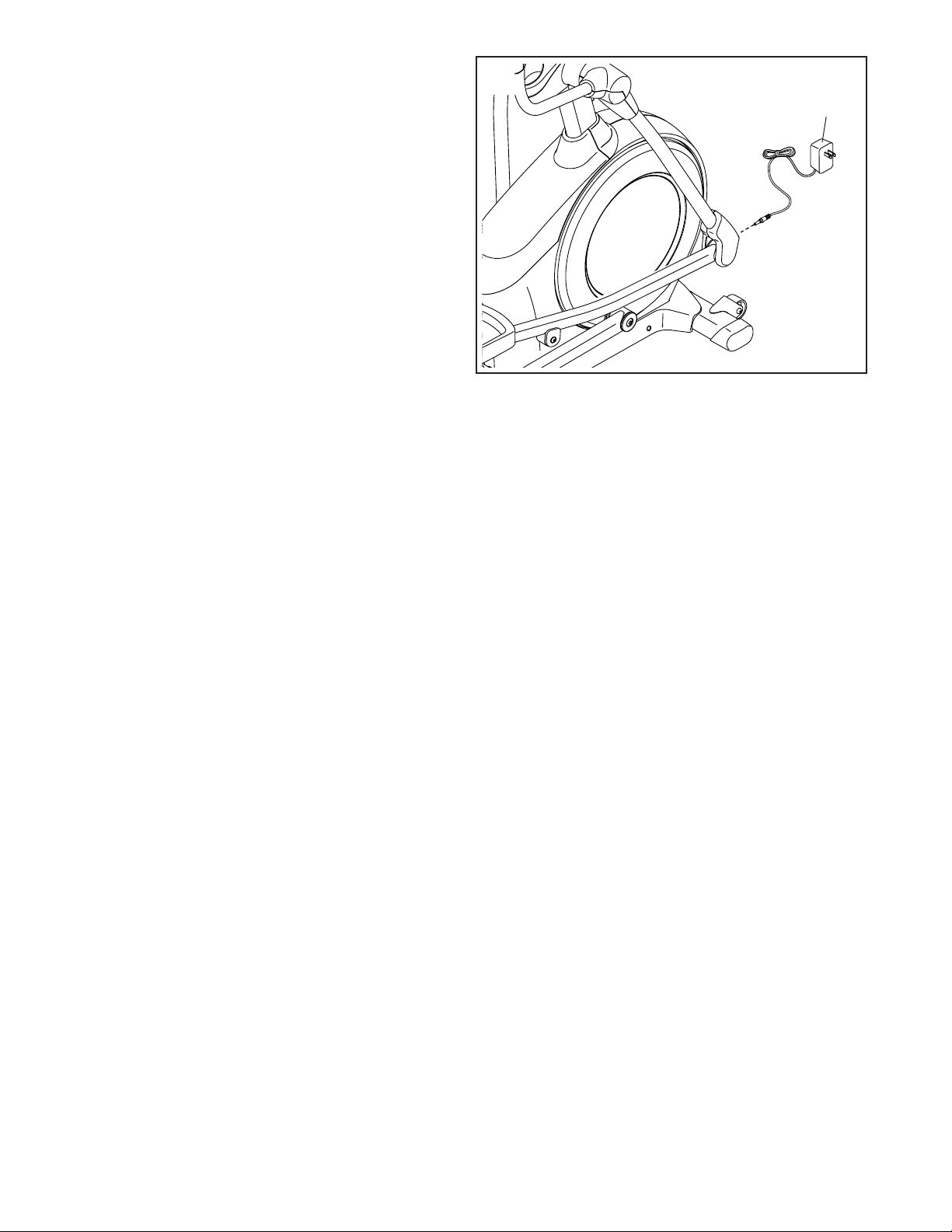

19. Plug the Power Adapter (119) into the receptacle
on the frame of the elliptical.
19
Note: To plug the Power Adapter (119) into an
outlet, see HOW TO PLUG IN THE POWER
ADAPTER on page 18.
20. Make sure that all parts are properly tightened before you use the elliptical. Extra parts may be included.
Place a mat beneath the elliptical to protect the floor.
119
17

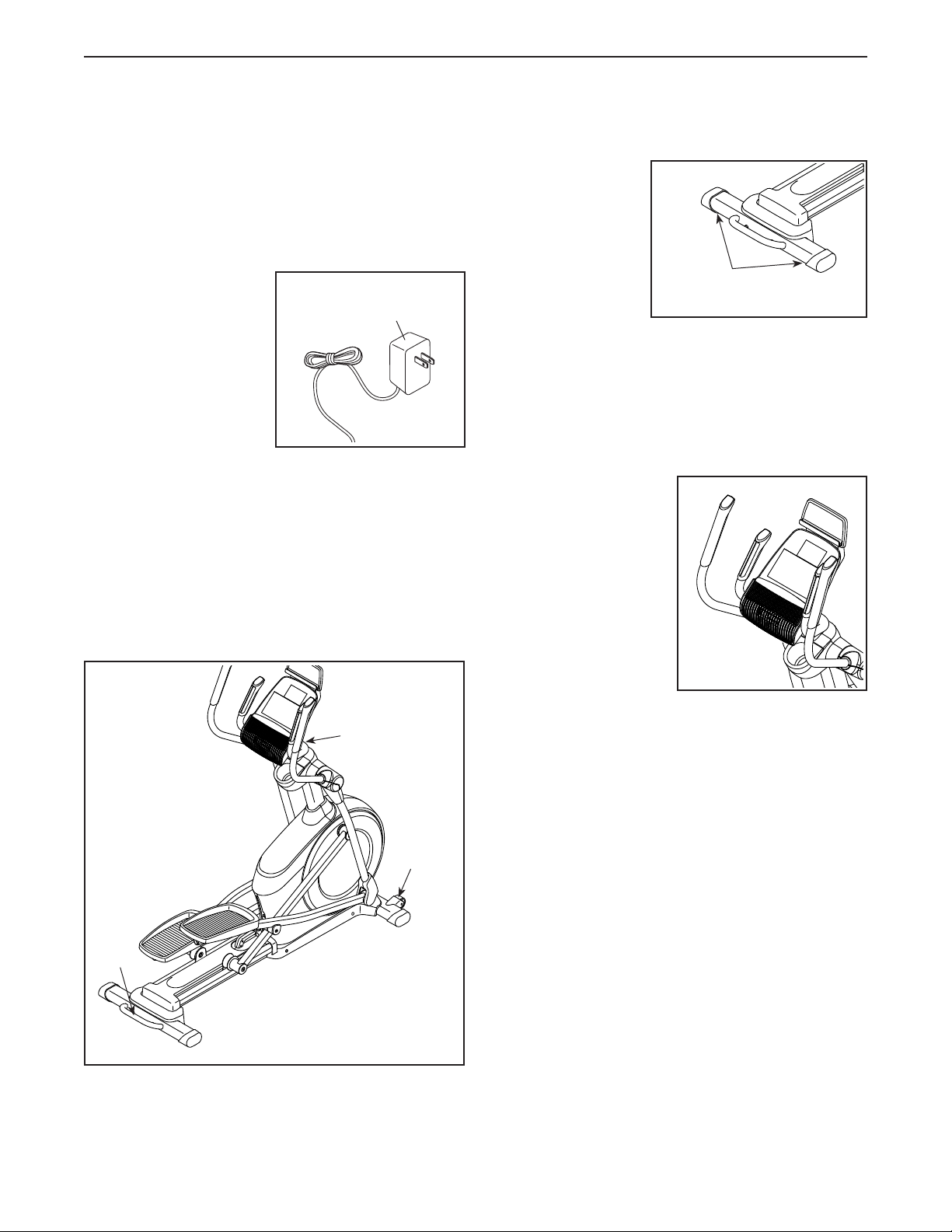

HOW TO USE THE ELLIPTICAL
HOW TO PLUG IN THE POWER ADAPTER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room temperature before you plug in the power adapter. If
you do not do this, you may damage the console
displays or other electronic components.
Plug the power adapter
into the receptacle on
the front of the elliptical. Then, plug the
power adapter into an
appropriate outlet that
is properly installed
in accordance with
all local codes and
ordinances.
HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, moving
it requires two persons. Stand in front of the elliptical,
hold the upright, and place one foot against one of the
wheels. Pull on the upright and have a second person
lift the handle until the elliptical will roll on the wheels.
Carefully move the elliptical to the desired location, and
then lower it to the floor.
Power Adapter
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks
slightly on your
floor during use,
turn one or both
of the leveling feet
beneath the rear of
the frame until the
rocking motion is
eliminated.
HOW TO USE THE TABLET HOLDER
IMPORTANT: The tablet holder was designed for
use with most full-size tablets. Do not place any
other electronic device or object into the tablet
holder.
To insert a tablet into
the tablet holder, set
the bottom edge of the
tablet in the tray. Make
sure that the tablet is
firmly secured in the
tablet holder. Reverse
these actions to
remove the tablet from
the tablet holder.
Leveling
Feet
Lift
here
Pull on the
upright
Place
your foot
here
18
HOW TO CHANGE THE INCLINE OF THE RAMP
To vary the motion of the pedals, you can change the
incline of the ramp. To raise the ramp, simply pull the
ramp handle upward to the desired incline level.
Latch
Button
Ramp
Handle
Ramp
To lower the ramp, press the latch button, pull the ramp
handle, and lower the ramp to the desired incline level.
Then, release the latch button and engage the latch
pin into one of the adjustment holes in the frame. Make
sure that the latch pin is firmly engaged in one of
the adjustment holes in the frame.
Upper
Body Arms
Handlebars
Pedals
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the handlebars or the
upper body arms and step onto the pedal that is in the
lower position. Then, step onto the other pedal. Push
the pedals until they begin to move with a continuous
motion. Note: The pedals can turn in either direc-
tion. It is recommended that you turn the pedals
in the direction shown by the arrow; however, for
variety, you can turn the pedals in the opposite
direction.
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the lower
pedal.
19

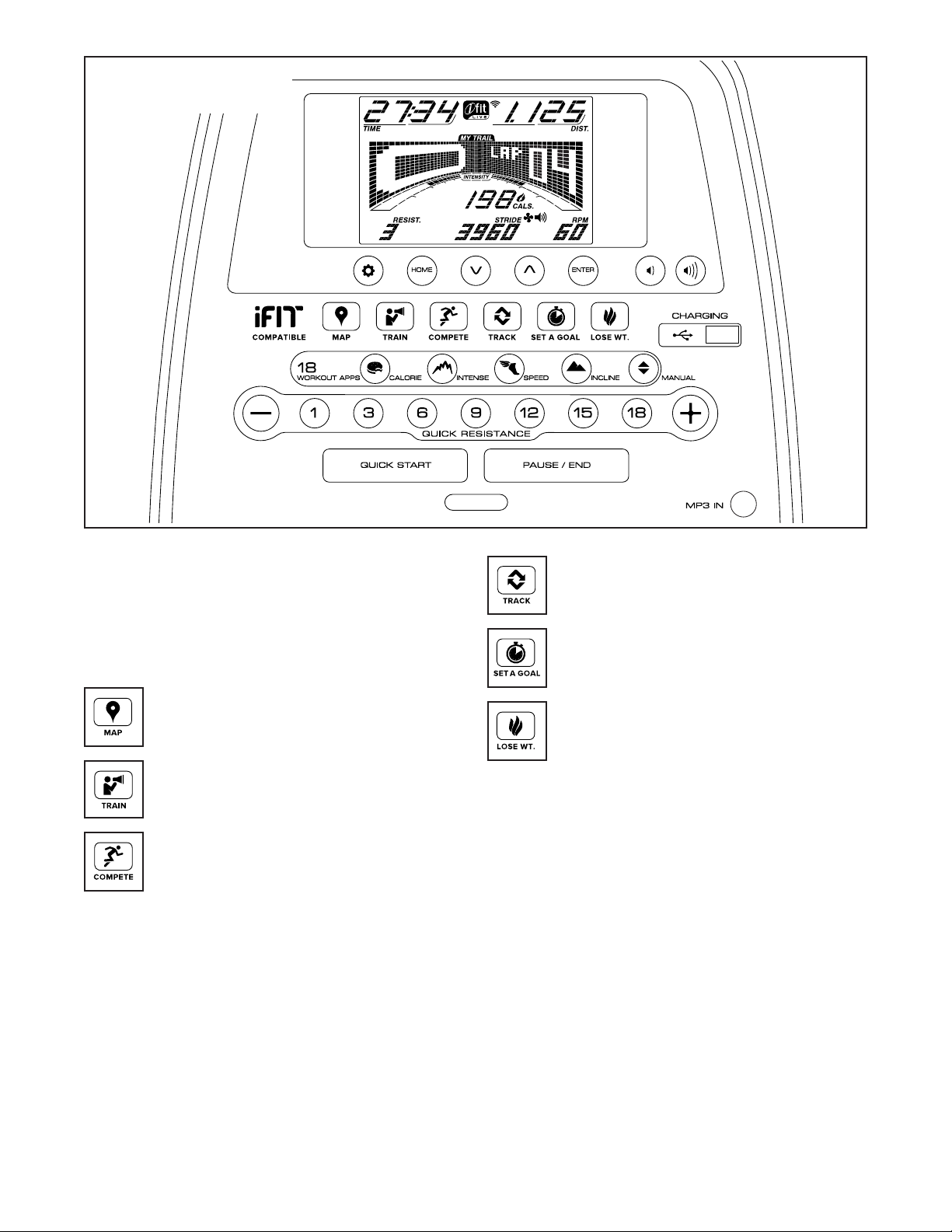

CONSOLE DIAGRAM
MAKE YOUR FITNESS GOALS A REALITY WITH
IFIT.COM
With your new iFit-compatible fitness equipment, you
can use an array of features on iFit.com to make your
fitness goals a reality:
Exercise anywhere in the world with
customizable Google Maps.
Download training workouts designed to
help you reach your personal goals.
Measure your progress by competing
against other users in the iFit community.
Upload your workout results to the iFit cloud
and track your accomplishments.
Set calorie, time, or distance goals for your
workouts.
Choose and download sets of weight-loss
workouts.
Go to iFit.com to learn more.
20
FEATURES OF THE CONSOLE
HOW TO USE THE MANUAL MODE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode, you can change the
resistance of the pedals with the touch of a button.
While you exercise, the console will display continuous
exercise feedback. You can also measure your heart
rate using the handgrip heart rate monitor.
The console also offers a selection of onboard
workouts. Each workout automatically changes the
resistance of the pedals as it guides you through an
effective workout. You can also set a calorie, distance,
or time goal.
The console also features an iFit mode that enables
the console to communicate with your wireless network
through an optional iFit module. With the iFit mode,
you can download personalized workouts, create your
own workouts, track your workout results, race against
other iFit users, and access many other features.
To purchase an iFit module at any time, go to
www.iFit.com or call the telephone number on the
front cover of this manual.
1. Begin pedaling or press any button on the
console to turn on the console.
When you turn on the console, the display will turn
on. The console will then be ready for use.
2. Select the manual mode.
Press the Manual button or the Home button to
select the manual mode.
If a wireless iFit module is not inserted into the
console and connected to iFit, the manual mode
will be selected automatically.
3. Change the resistance of the pedals as desired.
As you pedal, change the resistance of the pedals
by pressing the Quick Resistance increase and
decrease buttons or by pressing one of the numbered Quick Resistance buttons.
Note: After you press a button, it will take a
moment for the pedals to reach the selected
resistance level.
You can even connect your personal audio player to
the console sound system and listen to your favorite
music or audio books while you exercise.
You can also use the charging port on the console
to charge your USB-compatible device while you
exercise.
To use the manual mode, see this page. To use
an onboard workout, see page 23. To use a
set-a-goal workout, see page 25. To use an iFit
workout, see page 26. To use the sound system,
see page 27. To use the charging port, see page
27. To change console settings, see page 28.
Note: If there is a sheet of plastic on the display,
remove the plastic.
Note: The console can display speed and distance in
either miles or kilometers. To find which unit of measurement is selected, see step 3 on page 28. For
simplicity, all instructions in this section refer to miles.
4. Follow your progress with the display.
The display can show the following workout
information:
21
Calories (Cals.)—This display mode will show the
approximate number of calories you have burned.
Calories per Hour (Cals./Hr)—This display mode
will show the approximate number of calories you
are burning per hour.
Distance (Dist.)—This display mode will show
the distance that you have pedaled in miles or
kilometers.
Pulse—This display mode will show your heart rate
when you use the handgrip heart rate monitor (see
step 5).
Resistance (Resist.)—This display mode will
show the resistance level of the pedals.
RPM—This display mode will show your pedaling
speed in revolutions per minute (rpm).
Stride—This display mode will show the total
number of strides you have pedaled.
Time—When the manual mode is selected, this
display mode will show the elapsed time. When a
workout is selected, this display mode will show the
time remaining in the workout.
The matrix offers several display tabs. Press the
increase and decrease buttons next to the Enter
button until the desired tab is shown.
Speed—This tab will show a profile of the speed
settings of the workout. A new segment will appear
at the end of each minute.
My Trail—This tab will show a track that represents
1/4 mile (400 m). As you exercise, the flashing
rectangle will show your progress. The My Trail tab
will also show the number of laps you complete.
Calorie—This tab will show the approximate
amount of calories you have burned. The height of
each segment represents the amount of calories
burned during that segment.
As you exercise, the workout intensity level bar
will indicate the approximate intensity level of your
exercise.
Press the Home button to exit the workout and
return to the default menu (see HOW TO CHANGE
CONSOLE SETTINGS on page 28 to set the
default menu). If necessary, press the Home button
again.
When a wireless iFit module
is connected, the wireless
symbol at the top of the display will show the strength of
your wireless signal. Four arcs
indicate full signal strength.
Change the volume level of
the console by pressing the
volume increase and decrease
buttons.
5. Measure your heart rate if desired.
If there are
sheets of plastic on the metal
contacts on the
handgrip heart
rate monitor,
remove the plastic. To measure
your heart rate,
hold the handgrip
heart rate monitor
with your palms resting against the contacts. Avoid
moving your hands or gripping the contacts
tightly.
Contacts
22
When your pulse is detected, a heart symbol will
flash in the display each time your heart beats,
one or two dashes will appear, and then your heart
rate will be shown. For the most accurate heart
rate reading, hold the contacts for at least 15
seconds.
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
to squeeze the contacts tightly. For optimal performance, clean the contacts using a soft cloth; never
use alcohol, abrasives, or chemicals to clean
the contacts.
6. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
series of tones will sound, the console will pause,
and the time will flash in the display.
HOW TO USE AN ONBOARD WORKOUT
1. Begin pedaling or press any button on the
console to turn on the console.
When you turn on the console, the display will turn
on. The console will then be ready for use.
2. Select an onboard workout.
To select an onboard workout, press the Calorie,
Intense, Speed, or Incline button repeatedly until
the desired workout appears in the display.
When you select an onboard workout, the display
will show the duration of the workout and the name
of the workout. A profile of the speed settings of the
workout will appear in the matrix.
The display will also show the maximum pedaling
speed (rpm) and the maximum resistance level.
If the pedals do not move for several minutes, the
console will turn off and the display will be reset.
Note: The console features a display demo mode,
designed to be used if the elliptical is displayed in a
store. When the demo mode is turned on, the console will show a preset presentation. To turn off the
demo mode, see HOW TO CHANGE CONSOLE
SETTINGS on page 28.
Note: If you select an Incline workout, adjust the
ramp to the desired incline level before you start the
workout.
3. Start the workout.
Press the Quick Start button or begin pedaling to
start the workout.
Each workout is divided into one-minute segments.
One resistance level and one target rpm (speed)
are programmed for each segment. Note: The
same resistance level and/or target rpm may be
programmed for consecutive segments.
The resistance level and the target rpm for the first
segment will appear in the matrix.
During
the workout, the
profile on
the speed
tab will
show your
progress.
The flashing segment of the profile represents the
current segment of the workout. The height of the
flashing segment indicates the target rpm for the
current segment.
Profile
23
At the end of each segment of the workout, a
series of tones will sound and the next segment of
the profile will begin to flash. If a different resistance level and/or target rpm is programmed for
the next segment, the resistance level and/or target
rpm will appear in the display for a few seconds
to alert you. The resistance of the pedals will then
change.
As you exercise, you will be prompted to keep your
pedaling speed near the target rpm for the current segment. When an upward-pointing arrow
appears in the display, increase your pace. When
a downward-pointing arrow appears, decrease
your pace. When no arrow appears, maintain
your current pace.
The workout will continue in this way until the last
segment ends.
To stop the workout at any time, press the Pause/
End button or stop pedaling. The time will flash in
the display. To resume the workout when the console is paused, simply resume pedaling.
To end the workout when the console is paused,
press the Pause/End button again. A summary of
the workout will appear in the displays for several
seconds.
4. Follow your progress with the display.
See step 4 on page 21.
IMPORTANT: The target rpm is intended only to
provide motivation. Your actual pedaling speed
may be slower than the target rpm. Make sure
to pedal at a speed that is comfortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override the
setting by pressing the Quick Resistance buttons.
IMPORTANT: When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level programmed for
the next segment.
5. Measure your heart rate if desired.
See step 5 on page 22.
6. When you are finished exercising, the console
will turn off automatically.
See step 6 on page 23.
24
HOW TO USE A SET-A-GOAL WORKOUT
1. Begin pedaling or press any button on the
console to turn on the console.
When you turn on the console, the display will turn
on. The console will then be ready for use.
2. Set a calorie, distance, or time goal.
To set a calories, distance, or time goal, first press
the Set A Goal button.
Next, press the increase and decrease buttons
next to the Enter button until the name of the
desired goal appears in the display. Then, press
the Enter button.
Then, press the increase and decrease buttons
next to the Enter button to set the desired goal.
Note: The calorie goal is an estimate of the
number of calories that you will burn during
the workout. The actual number of calories that
you burn will depend on various factors such
as your weight. In addition, if you manually
change the resistance level during the workout, the number of calories you burn will be
affected.
The workout will continue in this way until the
calorie, distance, or time goal is reached. To pause
the workout, stop pedaling. The time will pause in
the display. To resume the workout, simply resume
pedaling.
4. Follow your progress with the display.
As you exercise, the calories, time, or distance
display will count down until the desired goal is
reached.
3. Start the workout.
Press the Quick Start button or begin pedaling to
start the workout.
Each workout is divided into one-minute segments.
You can manually change the resistance of the
pedals as desired during the workout by pressing
the Quick Resistance buttons.
Note: If you manually change the resistance level
during a calorie goal workout, the length of the
workout may adjust automatically to ensure that
you meet your calorie goal.
See step 4 on page 21.
5. Measure your heart rate if desired.
See step 5 on page 22.
6. When you are finished exercising, the console
will turn off automatically.
See step 6 on page 23.
25
HOW TO USE AN IFIT WORKOUT
3. Select a user.
You must have an iFit module to use an iFit workout.
To purchase an iFit module at any time, go to
www.iFit.com or call the telephone number on the
front cover of this manual.
To use an iFit module, you must have the following:
• A computer with an internet connection and a USB
port.
• Your own wireless network including an 802.11b/g/n
router with SSID broadcast enabled (hidden
networks are not supported).
• An iFit account. Open an internet browser, go to
www.iFit.com, and follow the prompts on the website to sign up for your iFit account. If you have an
activation code, select the code activation option.
To set up and configure your iFit module, follow the
instructions in the user’s manual that came with
your iFit module. Make sure that your iFit module
is inserted in the console and that it is properly
configured.
To use an iFit workout, follow the instructions below.
If more than one user is registered on your iFit
account, you can switch users in the iFit main
screen. Press the increase and decrease buttons
next to the Enter button to select a user.
4. Select an iFit workout.
IMPORTANT: Before iFit workouts will
download, you must add them to your schedule
on iFit.com (see step 1).
To download an iFit workout from iFit.com to
the console, press the Map, Train, or Lose Wt.
button. The next workout of that type in your schedule will then download. Note: You may be able
to access demo workouts through these buttons,
even if you do not have an iFit module.
To compete in a race or challenge that you
have previously joined on iFit.com, press the
Compete button. To view your workout history,
press the Track button. To use a set-a-goal work-
out, press the Set A Goal button (page 25).
For more information about iFit workouts,
please see www.iFit.com.
1. Add workouts to your schedule on iFit.com.
Open an internet browser, go to
www.iFit.com, and sign in to your iFit account.
Next, navigate to Menu > Library on the website.
Browse the workout programs in the library and join
the desired workouts.
Then, navigate to Menu > Schedule to view your
schedule. All of the workouts that you have joined
will appear on your schedule; you can arrange or
delete the workouts on your schedule as desired.
Take time to explore the iFit.com website before
you log out.
2. Begin pedaling or press any button on the
console to turn on the console.
When you turn on the console, the display will turn
on. The console will then be ready for use.
When you select an iFit workout, the display will
show the name and estimated duration of the
workout. The display will also show the approximate number of calories you will burn during the
workout.
If the iFit workout is a race or challenge, the display
will count down to the beginning of the race.
5. Start the workout.
See step 3 on page 23.
During some workouts, an audio coach will guide
you through your workout. You can select a setting for the audio coach (see HOW TO CHANGE
CONSOLE SETTINGS on page 28).
To stop the workout at any time, stop pedaling. The
time will flash in the display. To resume the workout, simply resume pedaling.
26
6. Follow your progress with the display.
HOW TO USE THE SOUND SYSTEM
See step 4 on page 21.
The My Trail tab will show a map of the trail or it will
show a track and the number of laps you complete.
During a race or challenge, the matrix will
show your position in the race relative to other
competitors.
7. Measure your heart rate if desired.
See step 5 on page 22.
8. When you are finished exercising, the console
will turn off automatically.
See step 6 on page 23.
For more information about iFit features, go to
www.iFit.com.
IMPORTANT: To satisfy exposure compliance
requirements, the antenna and transmitter in the
iFit module must be at least 8 in. (20 cm) from all
persons and must not be near or connected to any
other antenna or transmitter.
To play music or audio books through the console
sound system while you exercise, plug a 3.5 mm male
to 3.5 mm male audio cable (not included) into the
jack on the console and into a jack on your personal
audio player; make sure that the audio cable is fully
plugged in. Note: To purchase an audio cable, see
your local electronics store.
Next, press the play button on
your personal audio player. Adjust
the volume level using the volume
increase and decrease buttons on
the console or the volume control
on your personal audio player.
HOW TO USE THE CHARGING PORT
The console features a charging port that you can
use to charge USB-compatible devices, such as
smartphones, while you exercise.
To use the charging port, plug a USB charging cable
(not included) into the charging port on the console and
into the receptacle on your device; make sure that the
USB charging cable is fully plugged in. Note: The
charging port cannot be used to view or transfer data
or to play music through the console sound system.
27
HOW TO CHANGE CONSOLE SETTINGS
1. Select the settings mode.
To select the settings mode, press the gear button.
The settings information will appear in the display.
The display will show the total number of hours that
the elliptical has been used and the total distance
(in miles or kilometers) that has been pedaled on
the elliptical.
If an iFit module is connected to the console, the
display will show the words WIFI MODULE or USB
MODULE.
If no module is connected, the display will show
the words NO IFIT MODULE. If no module is connected, some of the settings options will not be
available.
2. Navigate the settings mode.
To view distance in miles, select ENGLISH. To view
distance in kilometers, select METRIC.
Demo—The console features a display demo
mode, designed to be used if the elliptical is displayed in a store. Press the Enter button repeatedly
to turn the demo mode ON or OFF.
Contrast Level—The currently selected contrast
level will appear in the display. Press the Quick
Resistance increase and decrease buttons to
adjust the contrast level.
Trainer Voice—The currently selected setting for
the audio coach will appear in the display. Press
the Enter button repeatedly to turn the audio coach
ON or OFF.
Default Menu—The default menu will appear when
you press the Home button. Press the Enter button
repeatedly to select the manual mode or the iFit
menu as the default menu.
While the settings mode is selected, the matrix of
the display will display several optional screens.
Press the decrease button next to the Enter button
repeatedly to select the desired optional screen.
The lower section of the display will show instruc-
tions for the selected screen. Make sure to follow
the instructions shown in the lower part of the
display.
3. Change settings as desired.
Units—The currently selected unit of measurement
will appear in the display. To change the unit of
measurement, press the Enter button repeatedly.
Check Status—The words CHECK WIFI STATUS
or CHECK USB STATUS will appear in the display.
Press the Enter button. After a few seconds, the
status of the iFit module will appear in the display.
To exit this display, press the gear button.
Send/Receive—The words SEND/RECEIVE DATA
will appear in the display. Press the Enter button.
The console will then check for iFit workouts and
firmware downloads.
4. Exit the settings mode.
Press the gear button to exit the settings mode.
28
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to
computer or peripheral devices. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
29
MAINTENANCE AND TROUBLESHOOTING
MAINTENANCE
Regular maintenance is important for optimal
performance and to reduce wear. Inspect and properly
tighten all parts each time the elliptical is used.
Replace any worn parts immediately.
To clean the elliptical, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damage
to the console, keep liquids away from the console
and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
If the console does not display your heart rate when
you hold the handgrip heart rate monitor, or if the displayed heart rate appears to be too high or too low, see
step 5 on page 22.
If a replacement power adapter is needed, call the
telephone number on the cover of this manual.
IMPORTANT: To avoid damaging the console, use
only a manufacturer-supplied regulated power
adapter.
Then, locate the Reed Switch (38). Turn the Pulley (19)
until a Magnet (43) is aligned with the Reed Switch.
19
38
43
101
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the drive
belt, first unplug the power adapter.
Next, use
a standard
screwdriver to
pry off the left
Disc (71).
71
Note: For clarity, the left shield is shown removed in the
drawing at the right.
Slightly loosen the indicated M4 x 16mm Screw (101).
Slide the Reed Switch (38) slightly closer to or away
from the Magnet (43), and then retighten the Screw.
Then, plug in the power adapter and rock the Pulley
(19) forward and backward just enough that the
Magnet (43) passes the Reed Switch (38) repeatedly.
Repeat these actions until the console displays correct
feedback.
When the reed switch is correctly adjusted, reattach
the left disc and plug in the power adapter.
30
HOW TO ADJUST THE DRIVE BELT
If the pedals slip while you are pedaling, even while
the resistance is adjusted to the highest level, the drive
belt may need to be adjusted.
To adjust the drive belt, first unplug the power
adapter.
Next, use
a standard
screwdriver to pry
off the Shield Cover
(75) and the Shield
Cover Cap (118).
118
75
See EXPLODED DRAWING C on page 39.
Identify the Left and Right Shields (73, 74). Remove
the M4 x 19mm Screws (5), the M4 x 25mm Screws
(124), and the M4 x 48mm Screw (107) from the Left
and Right Shields; make sure to note the location of
each size of Screw. Then, remove the Right Shield.
Next, locate and loosen the Idler Screw (89). Next,
tighten the Belt Adjustment Screw (91) until the Drive
Belt (113) is tight. Then, retighten the Idler Screw.
113
See assembly step 15 on page 15. Remove the
Right Leg Outer and Inner Covers (69, 83).
See assembly step 12 on page 13. Remove the
Right Pedal Arm (58) from the Right Upper Body
Leg (60).
Next, remove the M8 x 16mm Screw (95), the Large
Axle Cover (53), and the M8 Washer (not shown) from
the right Crank Arm (20). Then, carefully remove the
Right Roller Arm (59) and the Right Pedal Arm (58)
from the elliptical.
95
53
20
89
91
Reattach the parts that you removed. Then, plug in the
power adapter.
59
58
31
EXERCISE GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physician. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The heart rate monitor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The heart rate monitor is
intended only as an exercise aid in determining heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise; never hold your breath.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each week,
if desired. Remember, the key to success is to make
exercise a regular and enjoyable part of your everyday
life.
32
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch; never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach down
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times. Stretches: Hamstrings, back of knees and back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward
you and rest it against the inner thigh of your extended leg. Reach
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Hamstrings, lower back and
groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your hands
against a wall. Keep your back leg straight and your back foot flat
on the floor. Bend your front leg, lean forward and move your hips
toward the wall. Hold for 15 counts, then relax. Repeat 3 times for
each leg. To cause further stretching of the achilles tendons, bend
your back leg as well. Stretches: Calves, achilles tendons and ankles.
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp one
foot with your other hand. Bring your heel as close to your buttocks
as possible. Hold for 15 counts, then relax. Repeat 3 times for each
leg. Stretches: Quadriceps and hip muscles.
1
2
3
4
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles.
5
33
NOTES
34
PART LIST
Key No. Qty. Description Key No. Qty. Description
Model No. PFEL55914.4 R0416A
1 1 Frame
2 1 Rear Stabilizer
3 1 Ramp
4 1 Upright
5 6 M4 x 19mm Screw
6 1 Front Stabilizer
7 1 Console
8 2 Roller Guide
9 4 #8 x 12mm Screw
10 1 Ramp Cover
11 1 Left Latch Handle
12 1 Right Latch Handle
13 1 Latch Button
14 1 Latch Bracket
15 1 Rear Stabilizer Cover
16 2 Track
17 1 Latch Pin
18 1 Crank
19 1 Pulley
20 2 Crank Arm
21 4 M4 x 10mm Screw
22 1 Idler
23 3 Bumper
24 1 Small Leveling Foot
25 1 Resistance Motor
26 4 M10 Locknut
27 2 M10 Washer
28 1 Eddy Mechanism
29 1 Mechanism Axle
30 4 Stabilizer Cap
31 2 M10 x 19mm Screw
32 2 M5 Washer
33 2 Leveling Foot
34 2 Wheel
35 1 Pivot Axle
36 2 Upright Bushing
37 1 Accessory Tray
38 1 Reed Switch/Wire
39 1 Reed Switch Clamp
40 2 Frame Bearing
41 1 Mechanism Snap Ring
42 1 Sleeve
43 2 Magnet
44 1 Left Pedal Arm
45 1 Left Roller Arm
46 1 Left Upper Body Leg
47 1 Left Upper Body Arm
48 1 Ramp Spring
49 2 Pedal
50 6 Frame Bushing
51 2 Roller
52 2 Pedal Arm Rear Cap
53 4 Large Axle Cover
54 2 16mm Wave Washer
55 2 Small Axle Cover
56 4 Roller Arm Bushing
57 6 Large Arm Bearing
58 1 Right Pedal Arm
59 1 Right Roller Arm
60 1 Right Upper Body Leg
61 1 Right Upper Body Arm
62 2 Grip
63 2 Pulse Sensor/Wire
64 2 Pedal Arm Axle
65 1 Right Arm Front Cover
66 1 Right Arm Rear Cover
67 1 Left Arm Front Cover
68 1 Left Arm Rear Cover
69 1 Right Leg Outer Cover
70 1 Left Leg Outer Cover
71 2 Disc
72 1 Left Leg Inner Cover
73 1 Left Shield
74 1 Right Shield
75 1 Shield Cover
76 1 Left Pedal Arm Side Cap
77 4 Axle Spacer
78 2 Key
79 1 Front Console Cover
80 1 Rear Console Cover
81 1 Rear Upright Cover
82 10 M8 x 13mm Screw
83 1 Right Leg Inner Cover
84 1 Ramp Axle
85 2 M4 x 14mm Screw
86 2 M10 x 58mm Bolt
87 1 Right Pedal Arm Side Cap
88 1 Idler Pivot Screw
89 1 Idler Screw
90 2 M6 Washer
91 1 Belt Adjustment Screw
92 4 M10 x 25mm Screw
93 4 M4 x 12mm Screw
94 2 M4 Nut
95 8 M8 x 16mm Screw
96 4 M8 x 38mm Bolt
97 10 M8 Washer
98 2 M8 x 18mm Washer
99 1 Plastic Spacer
100 4 Leg Bearing
35
Key No. Qty. Description Key No. Qty. Description
101 36 M4 x 16mm Screw
102 6 M8 Locknut
103 8 M6 x 12mm Screw
104 4 M10 x 122mm Screw
105 8 M10 Split Washer
106 3 Cover Mount
107 1 M4 x 48mm Screw
108 2 M6 x 13mm Screw
109 2 M10 x 60mm Bolt
110 1 Upper Wire
111 1 Lower Wire
112 3 M4 x 19mm Self-tapping Screw
113 1 Drive Belt
114 4 M4 x 42mm Screw
115 2 M4 x 30mm Screw
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
116 2 Disc Ring
117 1 Front Upright Cover
118 1 Shield Cover Cap
119 1 Power Adapter
120 2 M8 x 14mm Shoulder Screw
121 1 Tablet Holder
122 2 M4 x 35mm Screw
123 2 M4 x 16mm Machine Screw
124 2 M4 x 25mm Screw
125 2 Small Arm Bearing
126 1 Pin Spring
* – Assembly Tool
* – Grease Packet
* – User’s Manual
36
EXPLODED DRAWING A
Model No. PFEL55914.4 R0416A
34
30
104
105
109
26
34
101
109
23
40
6
43
30
99
39
90
78
23
20
85
18
86
19
93
43
89
88
101
112
112
82
102
108
26
113
25
91
86
10
26
108
90
85
21
42
21
40
78
20
16
38
94
22
101
102
115
29
94
17
115
112
13
101
114
23
126
101
11
14
50
1
12
31
101
48
27
15
24
50
106
50
41
28
31
27
84
30
101
2
33
105
21
21
3
50
37
50
122
30
101
104
33
EXPLODED DRAWING B
Model No. PFEL55914.4 R0416A
82
62
57
67
97
102
61
125
100
101
53
97
95
100
59
65
100
55
120
96
97
101
100
56
97
82
95
56
98
8
66
46
69
60
101
51
32
32
101
101
83
53
82
95
77
64
97
64
77
77
97
72
77
57
97
82
82
125
57
49
95
57
57
53
97
58
45
57
56
87
56
95
97
103
103
52
120
55
95
98
8
51
62
47
101
102
68
96
70
82
97
38
49
95
76
44
52
53
95
103
103
EXPLODED DRAWING C
Model No. PFEL55914.4 R0416A
71
119
111
110
116
35
118
117
105
92
101
36
54
74
123
101
101
5
5
5
79
63
101
37
116
101
105
81
75
124
73
124
5
107
5
5
101
92
4
36
54
101
121
80
9
101
7
71
123
39
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING
near the end of this manual)
LIMITED WARRANTY
IMPORTANT: To protect your fitness equipment with an extended service plan, see page 5.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame is warranted for the lifetime of the original
purchaser (customer). Parts and labor are warranted for one (1) year from the date of purchase.
This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is
limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer’s responsibility. If
replacement parts are shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to freight damage to the product. This warranty will automatically be voided
if the product is used as a store display model, if the product is purchased or transported outside the USA,
if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,
or if the product is used for commercial or rental purposes. No other warranty beyond that specically set
forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or prots, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or
consequential damages. Accordingly, the above limitation may not apply to the customer.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or tness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to the customer.
This warranty provides specic legal rights; the customer may have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
Part No. 381245 R0416A Printed in China © 2016 ICON Health & Fitness, Inc.
Loading...
