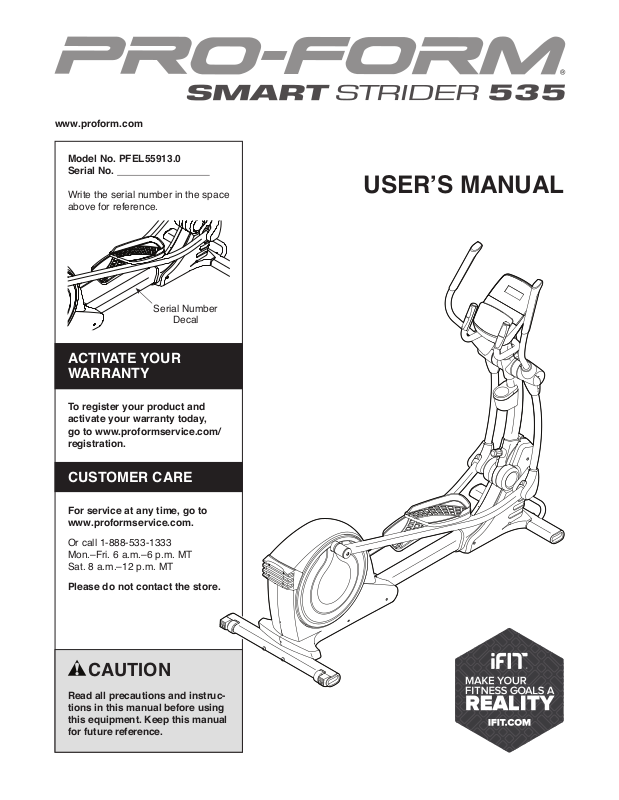

www.proform.com
Model No. PFEL55913.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
ACTIVATE YOUR
WARRANTY
To register your product and
activate your warranty today,
go to www.proformservice.com/
registration.
CUSTOMER CARE
USER’S MANUAL
For service at any time, go to
www.proformservice.com.
Or call 1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

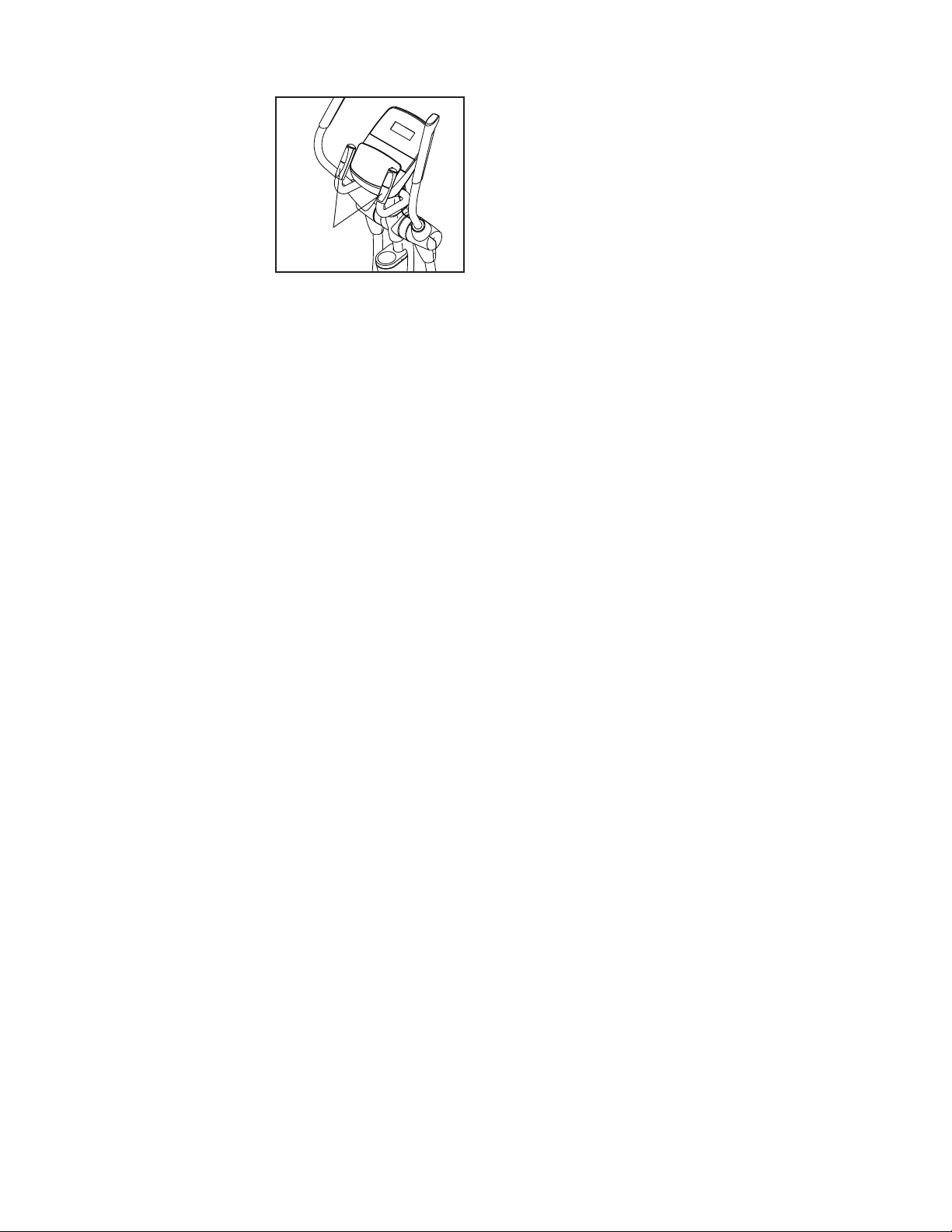

WARNING DECAL PLACEMENT
This drawing shows the location(s) of the
warning decal(s). If a decal is missing
or illegible, see the front cover of this
manual and request a free replacement
decal. Apply the decal in the location
shown. Note: The decal(s) may not be
shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons with pre-existing health problems.
3. Use the elliptical only as described in this
manual.
4. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
5. Keep the elliptical indoors, away from moisture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
6. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from damage, place a mat under the elliptical.
able to safely support 85 lbs. (38.5 kg) to
place the elliptical in the storage position.
10. The elliptical should not be used by persons
weighing more than 275 lbs. (125 kg).
11. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
12. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
13. The heart rate monitor is not a medical
device. Various factors may affect the accuracy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
14. The elliptical does not have a freewheel; the
pedals will continue to move until the flywheel stops. Reduce your pedaling speed in
a controlled way.
7. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the elliptical at all times.
9. Do not attempt to place the elliptical in the
storage position until it is properly assembled and the upright is folded. You must be
15. Keep your back straight while using the elliptical; do not arch your back.
16. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
3
STANDARD SERVICE PLANS
all
4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM®
SMART STRIDER 535 elliptical. The SMART
STRIDER 535 elliptical provides an impressive selection of features designed to make your workouts at
home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
Length: 6 ft. 2 in. (188 cm)
Width: 2 ft. 1 in. (64 cm)
Heart Rate Monitor
Handlebar
Accessory Tray
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Console
Upper Body Arm
Latch
Large Storage Foot
Wheel
Small Storage Foot
Leveling Foot
Upright Knob
Pedal
Handle
5
ASSEMBLY
• To hire an authorized service technician to
assemble this product, call 1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you fi nish all assembly steps.
1. Go to www.proformservice.com/registration
on your computer and register your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Care
• allows us to notify you of upgrades and offers
Note: If you do not have Internet access, call
Customer Care (see the front cover of this
manual) and register your product.
• In addition to the included tool(s), assembly
requires the following tool(s):
one Phillips screwdriver
one rubber mallet
Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
1
2. If necessary, remove and discard the shipping
supports and the shipping screws attached to
the rear of the Frame (1).
With the help of another person, place some
packing inserts from the packing material under
the rear of the Frame (1) so that the Frame is
lifted off the floor. Have another person hold
the elliptical to prevent it from moving from
side to side until this step is completed.
Identify the Rear Stabilizer (70), which has
Wheels (50), and orient it as shown.
Attach the Rear Stabilizer (70) to the Frame
(1) with two M10 x 120mm Screws (84). Then,
remove the packing inserts and lower the Rear
Stabilizer.
2
70
50
1
84
50
6
3. If necessary, remove and discard the shipping
supports and the shipping screws attached to
the front of the Frame (1).
With the help of another person, place some
packing inserts from the packing material under
the Frame (1) so that the Frame is lifted off the
floor. Have another person hold the elliptical
to prevent it from moving from side to side
until this step is completed.
Attach the Front Stabilizer (73) to the Frame
(1) with two M10 x 120mm Screws (84). Then,
remove the packing inserts and lower the Front
Stabilizer.
3
73
1
84
4. With the help of a second person, lift the Upright
(2) upward into the upright position.
See the inset drawing. Tighten the Upright
Knob (85) into the Upright (2).
4
2
2
85
7
5. Rotate the Right Upper Body Arm (9) to the
upright position.
Attach the Right Upper Body Arm (9) to the
Right Upper Body Leg (6) with an M10 x 50mm
Screw (95).
Then, tighten the indicated M10 x 45mm
Screw (78).
Press the Upper Body Arm Cover (20) downward
and turn it so that it is flush with the Right Leg
Front and Rear Covers (11, 15).
5
9
20
78
Repeat this step on the other side of the
elliptical.
6. Plug the Power Adapter (104) into the receptacle
on the frame of the elliptical.
Note: To plug the Power Adapter (104) into an
outlet, see HOW TO PLUG IN THE POWER
ADAPTER on page 9.
11, 1 5
95
6
6
104
7. Make sure that all parts of the elliptical are properly tightened. Note: Extra parts may be included. Place
a mat beneath the elliptical to protect the floor.
8
HOW TO USE THE ELLIPTICAL
HOW TO PLUG IN THE POWER ADAPTER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room temperature before you plug in the power adapter. If
you do not do this, you may damage the console
displays or other electronic components.
Plug the power adapter
into the receptacle on
the frame of the elliptical. Then, plug the
power adapter into an
appropriate outlet that
is properly installed
in accordance with
all local codes and
ordinances.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical
rocks slightly on
your floor during use, turn
one or both of
the leveling feet
beneath the rear
stabilizer until the
rocking motion is
eliminated.
Leveling
Power Adapter
Feet
HOW TO MOVE THE ELLIPTICAL
Due to the size and weight of the elliptical, moving
it requires two persons.
First, loosen the upright
knob and pull it, pull
the upright backward
until the latch locks into
place, and then release
the upright knob.
Next, pull the upright
forward slightly, lift
the latch, and then
lower the upright to the
folded position. Hold
the upright in one of
the indicated locations while you lower
the upright; do not
hold the upper body
arms.
Then, lift the handle on the front stabilizer until the
elliptical will roll on the wheels. Carefully move the
elliptical to the desired location, and then lower it to the
floor.
Pull
backward
Pull knob
Hold to
lower
Pull
forward
Lift latch
handle
When you are finished moving the elliptical, lift the
upright to the upright position and tighten the upright
knob.
9
Lift
HOW TO EXERCISE ON THE ELLIPTICAL
To m o un t t h e e ll i pt i ca l , h ol d t h e ha nd le b ar s o r t h e
upper body arms and step onto the pedal that is in the
lower position. Then, step onto the other pedal. Push
the pedals until they begin to move with a continuous
motion. Note: The pedals can turn in either direc-
tion. It is recommended that you turn the pedals
in the direction shown by the arrow; however, for
variety, you can turn the pedals in the opposite
direction.
Upper
Body Arms
Then, lift the handle on the front stabilizer and tip the
frame upright until the elliptical rests on the small and
large storage feet.
Handle
Storage
Feet
Handlebars
Pedals
To d i sm o un t t h e e ll i pt i ca l , w ai t u nt il t h e p ed a ls co m e t o
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the lower
pedal.
HOW TO STORE THE ELLIPTICAL
Due to the size and weight of the elliptical, storing
it requires two persons. CAUTION: You must be
able to safely lift 85 lbs. (38.5 kg) to lift, store, and
lower the elliptical.
Handle
Stabilizer
Handle
To l o we r t h e e ll i pt i ca l f o r u se , f ir st h o ld th e h a nd l e o n
the frame with one hand and hold the front stabilizer
with your other hand. Next, pull the frame towards you
and lower the frame until you can reach the handle on
the front stabilizer. Then, hold the handle on the front
stabilizer with both hands and finish lowering the elliptical to the floor.
See HOW TO MOVE THE ELLIPTICAL on page 9
and lower the upright to the folded position.
10

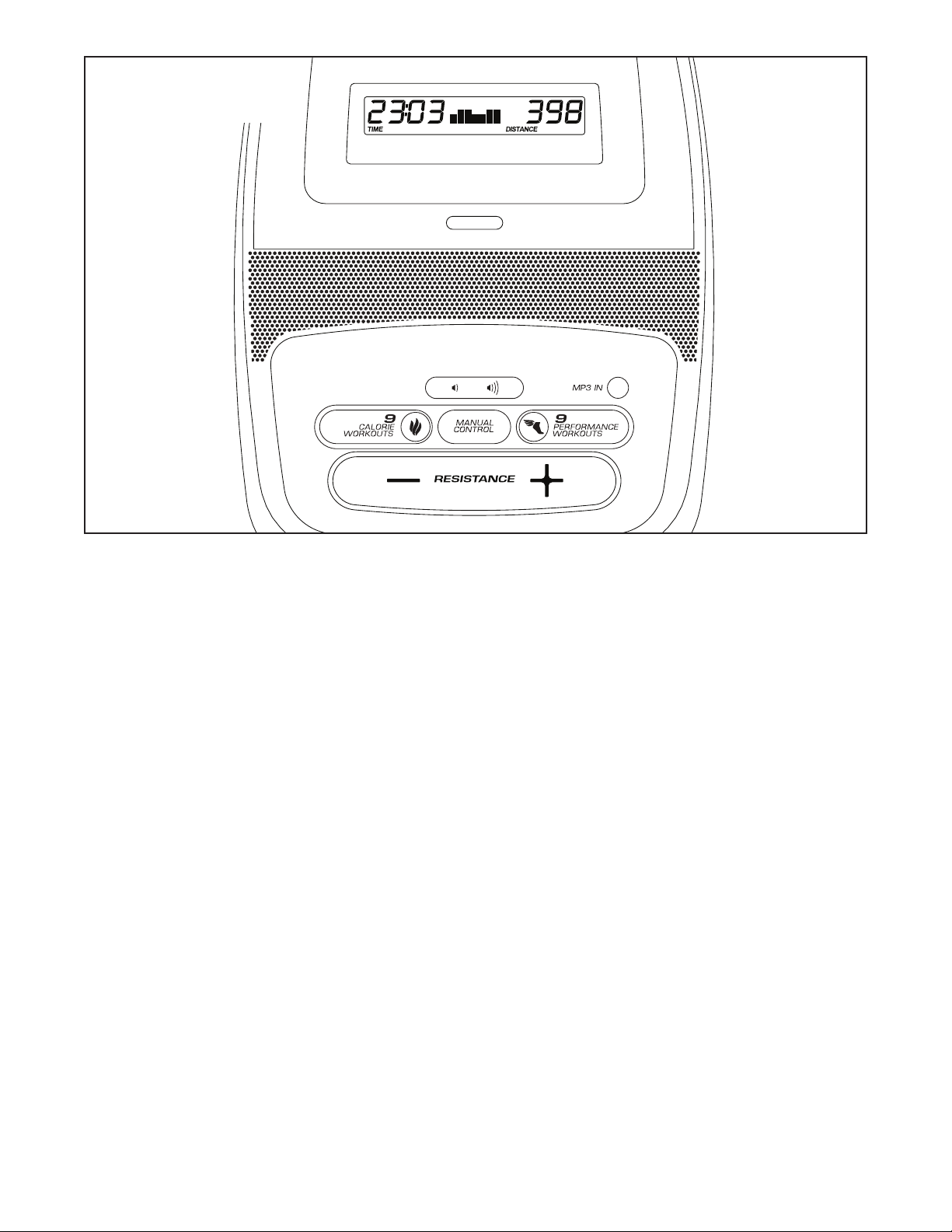

CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals with the touch
of a button. As you exercise, the console will provide
continuous exercise feedback. You can even measure
your heart rate using the handgrip heart rate monitor.
The console also offers a selection of preset workouts. Each preset workout automatically changes the
resistance of the pedals as it guides you through an
effective workout.
You ca n e ve n co nn ec t y ou r MP 3 pl ay er or C D pl ay er
to the console sound system and listen to your favorite
music or audio books while you exercise.
To use the manual mode, see page 12. To use a
preset workout, see page 14. To use the sound
system, see page 15. To use the settings mode,
see page 15.
11
HOW TO USE THE MANUAL MODE
4. Follow your progress with the display.
1. Turn on the console.
Press any button or begin pedaling to turn on the
console.
When you turn on the console, the display will turn
on. A tone will sound and the console will be ready
for use.
2. Select the manual mode.
When you turn on the console, the manual mode
will be selected.
If you have selected a workout, reselect the manual
mode by pressing the Manual Control button.
Track
3. Begin pedaling and change the resistance of
the pedals as desired.
As you pedal, change the
resistance of the pedals by
pressing the Resistance
increase and decrease
buttons.

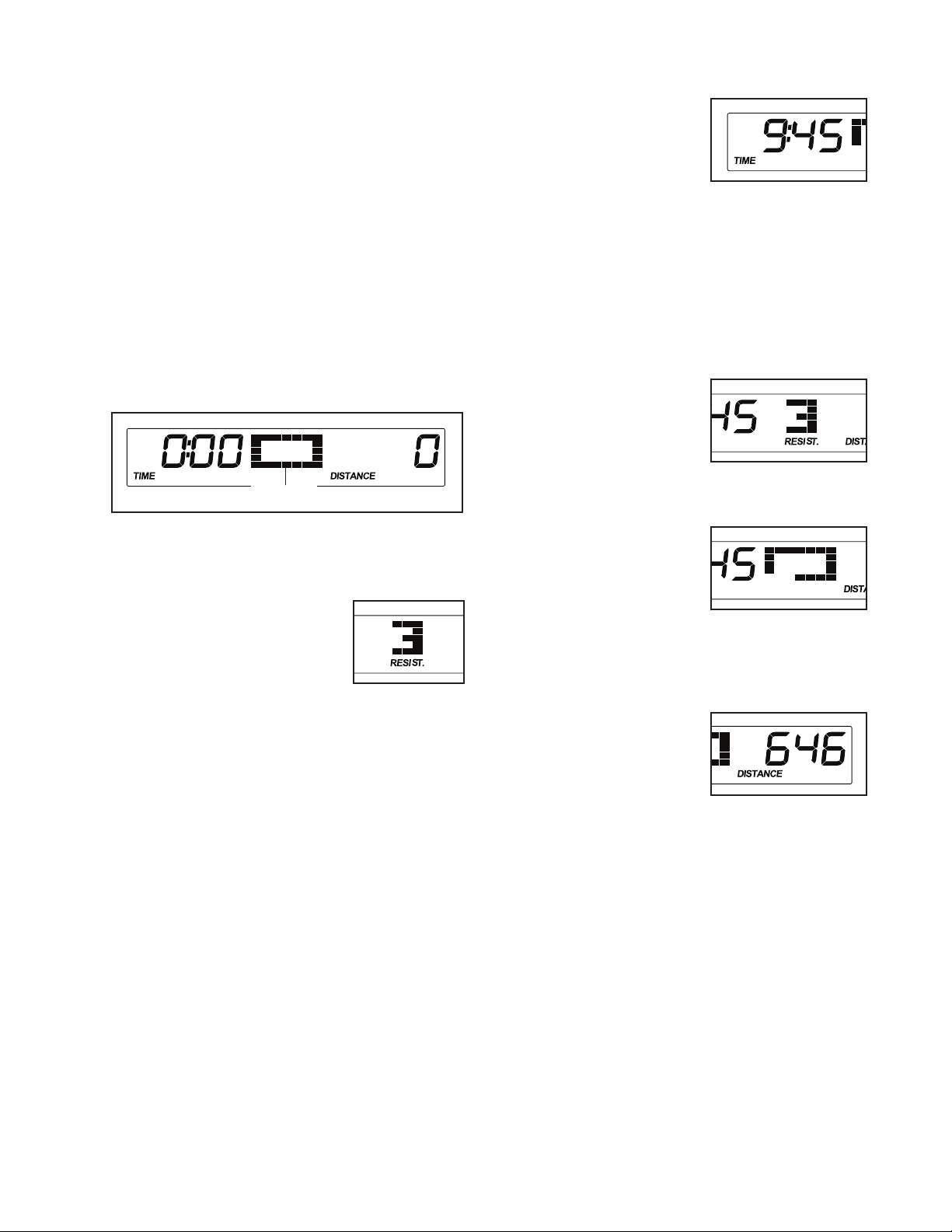

The left display–This
display can show the
elapsed time and the
approximate number
of calories you have
burned. The display will
change modes every few seconds.
Note: During a preset workout, the display will
show the time remaining in the workout.
The left display will also show your heart rate
when you use the handgrip heart rate monitor (see
step 5).
The center display–
This display will show
the resistance level of
the pedals for a few
seconds each time
the resistance level
changes.
This display will also
show a track representing 1/4 mile (400 m). As
you exercise, indicators
will appear in succession around the track
until the entire track appears. The track will then
disappear and the indicators will again begin to
appear in succession.
Note: After you press the buttons, it will take a
moment for the pedals to reach the selected resistance level.
The right display–This
display can show the
distance you have
pedaled in total revolutions and your pedaling
speed in revolutions per
minute (rpm). The display will change modes every
few seconds.
12
5. Measure your heart rate if desired.
If there are sheets
of plastic on the
metal contacts
on the handgrip
heart rate monitor, remove the
plastic. In addition, make sure
that your hands
are clean. To
measure your heart
rate, hold the handgrip heart rate monitor with your
palms resting against the contacts. Avoid moving
your hands or gripping the contacts tightly.
Contacts
If your heart rate is not shown, make sure that your
hands are positioned as described. Be careful not
to move your hands excessively or to squeeze the
contacts tightly. For optimal performance, clean
the contacts using a soft cloth; never use alcohol,
abrasives, or chemicals to clean the contacts.
6. When you are finished exercising, the console
will turn off automatically.
If the pedals do not move for several seconds, a
series of tones will sound, the console will pause,
and the time will flash in the display.
If the pedals do not move for several minutes, the
console will turn off and the display will be reset.
When your pulse is detected, a heart-shaped
symbol will flash in the display and then your heart
rate will be shown. For the most accurate heart
rate reading, hold the contacts for at least 15
seconds.
Note: The console features a display demo mode,
designed to be used if the elliptical is displayed in a
store. When the demo mode is turned on, the
console will show a preset presentation. To turn off
the demo mode, see THE SETTINGS MODE on
page 15.
13
HOW TO USE A PRESET WORKOUT
1. Turn on the console.
Press any button or begin pedaling to turn on the
console.
2. Select a preset workout.
To s e le c t a p r es e t w or k ou t , p re s s th e Ca l or i e
Workouts button or the Performance Workouts
button repeatedly until the number of the desired
workout appears in the left display.
When you select a preset workout, the duration of
the workout will appear in the left display and a profile of the resistance levels of the workout will scroll
across the center display.
The resistance level for the next segment will
appear in the center display for a few seconds to
alert you. The resistance of the pedals will then
change.
The target speed for the next segment will appear
in the right display for a few seconds to alert you.
As you exercise, keep your pedaling speed
near the target speed for the current segment.
IMPORTANT: The target speed is intended only
to provide motivation. Your actual pedaling
speed may be slower than the target speed.
Make sure to pedal at a speed that is comfortable for you.
If the resistance level for the current segment is
too high or too low, you can manually override
the setting by pressing the Resistance buttons.
IMPORTANT: When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level programmed for
the next segment.
If you stop pedaling for several seconds, a series of
tones will sound and the workout will pause.
Profile
3. Begin pedaling to start the workout.
Each workout is divided into one-minute segments.
One resistance level and one target speed are
programmed for each segment. Note: The same
resistance level and/or target speed may be programmed for consecutive segments.
During the workout, the workout profile will show
your progress. The flashing segment of the profile
represents the current segment of the workout. The
height of the flashing segment indicates the resistance level for the current segment.
At the end of each segment of the workout, a
series of tones will sound and the next segment of
the profile will begin to flash.
To restart the workout, simply resume pedaling.
The workout will continue until the last segment
of the profile flashes and the last segment of the
workout ends.
4. Follow your progress with the display.
See step 4 on page 12.
5. Measure your heart rate if desired.
See step 5 on page 13.
6. When you are finished exercising, the console
will turn off automatically.
See step 6 on page 13.
14
HOW TO USE THE SOUND SYSTEM
To p l ay mu s ic or au d io bo o ks th r ou gh t he co n so l e
sound system while you exercise, plug a 3.5 mm male
to 3.5 mm male audio cable (not included) into the
jack on the console and into a jack on your MP3
player, CD player, or other personal audio player;
make sure that the audio cable is fully plugged in.
Note: To purchase an audio cable, see your local
electronics store.
Next, press the play button on
your personal audio player. Adjust
the volume level using the volume
increase and decrease buttons on
the console or the volume control
on your personal audio player.

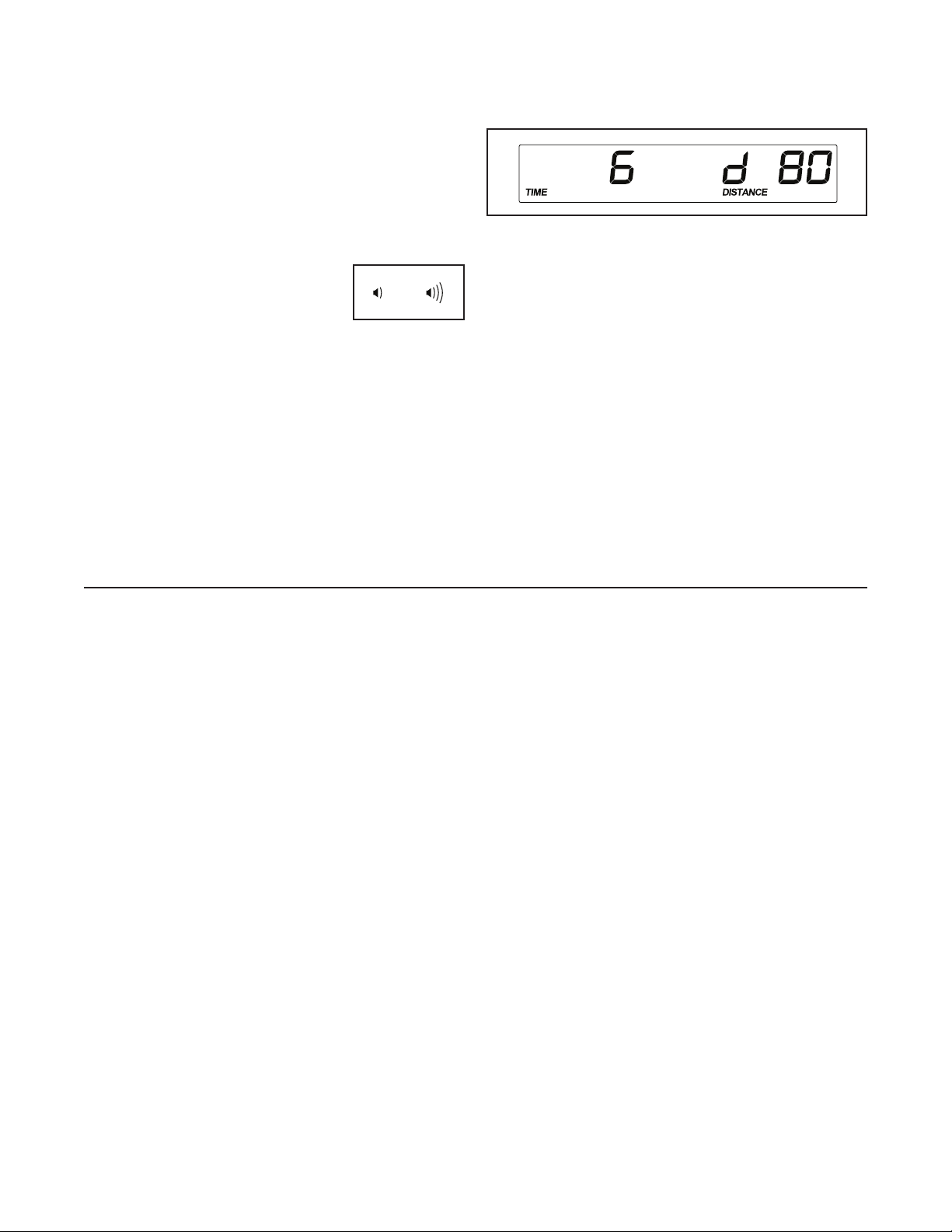

THE SETTINGS MODE
The console features a settings mode that allows you
to view console usage information and to turn on or
turn off the demo mode.
To select the settings mode, press and hold down the
Performance Workouts button for a few seconds until
the settings information appears in the display.
The left display will show the total number of hours that
the console has been used since the elliptical was purchased. The right display will show the total distance
that the elliptical has been pedaled.
The console features a display demo mode, designed
to be used if the elliptical is displayed in a store. While
the demo mode is turned on, the console will show a
preset presentation when it is not in use. If the demo
mode is turned on, a “d” will appear in the right display.
To turn on or turn off the demo mode, press the volume decrease button.
To exit the settings mode, press the Performance
Workouts button.
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to
computer or peripheral devices. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
15
MAINTENANCE AND TROUBLESHOOTING
Inspect and tighten all parts of the elliptical regularly.
Replace any worn parts immediately.
To c l ea n t h e e ll i pt i ca l , u se a d am p cl ot h a n d a s m al l
amount of mild soap. IMPORTANT: To avoid damage
to the console, keep liquids away from the console
and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
If the console does not display your heart rate when
you hold the handgrip heart rate monitor, or if the displayed heart rate appears to be too high or too low, see
step 5 on page 13.
If a replacement power adapter is needed, call the
telephone number on the cover of this manual.
IMPORTANT: To avoid damaging the console, use
only a manufacturer-supplied regulated power
adapter.

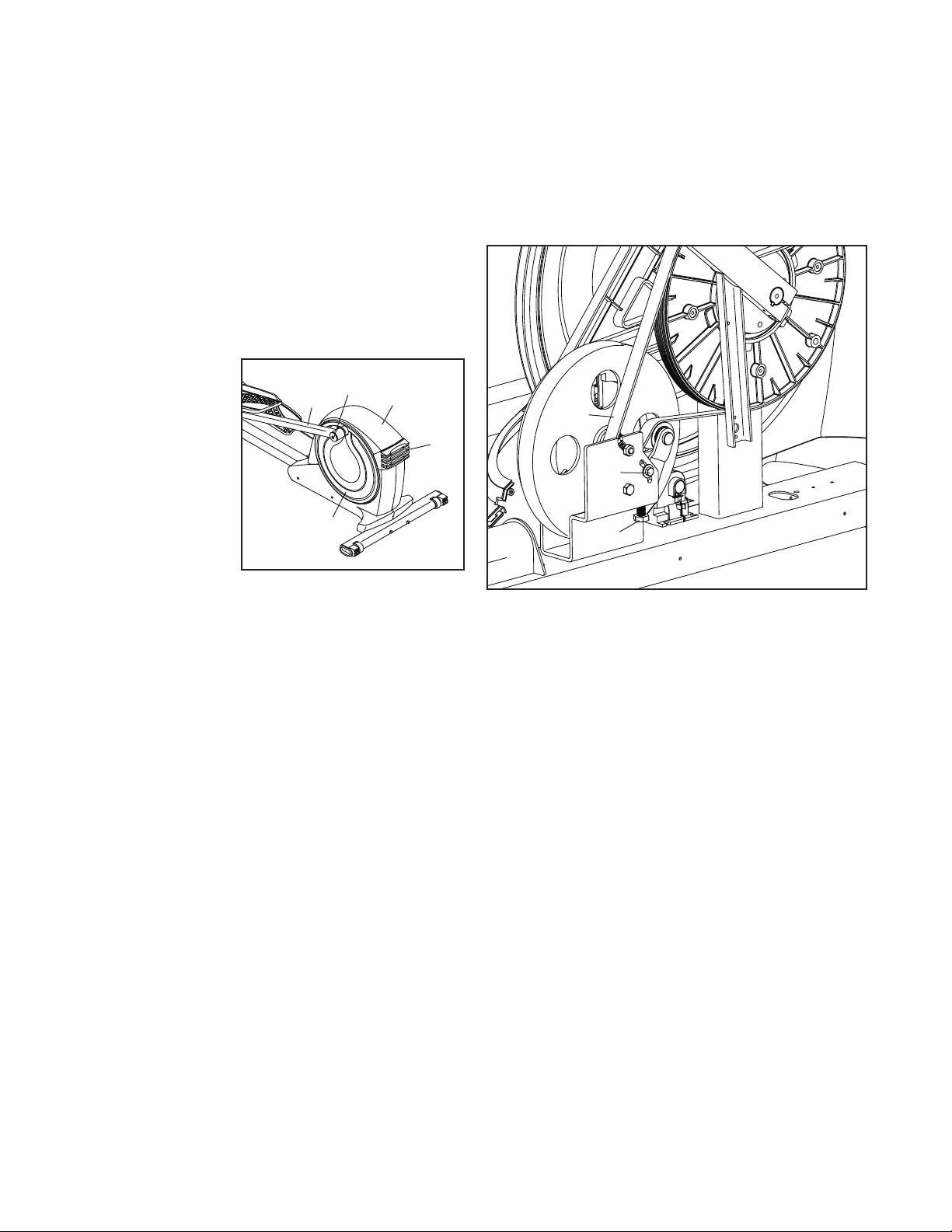

HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted. To adjust the reed
switch, first unplug the power adapter.
Next, look into the access opening and locate the
Reed Switch (58). Rotate the Pulley (66) until a
Magnet (41) is aligned with the Reed Switch. Note: For
clarity, the shields are shown removed in the drawing
below.
61
58
66
41
Next, remove the
four M4 x 16mm
Screws (not
shown) from the
Large Storage
Foot (27), and
then remove the
Large Storage
Foot. Remove the
two M4 x 16mm
Screws (not
shown) from the
To p S hi el d ( 37 ) , a nd t he n u se a f la t s cr ew d ri v er to p ry
the Top Shield upward off the elliptical.
37
27
Next, loosen, but do not remove, the two indicated
M4 x 16mm Screws (61). Slide the Reed Switch (58)
slightly toward or away from the Magnet (41). Then,
retighten the M4 x 16mm Screws.
Plug in the power adapter and rotate the pulley for a
moment. Repeat these actions until the console displays correct feedback.
When the reed switch is correctly adjusted, unplug
the power adapter and reattach the top shield and the
large storage foot. Then, plug in the power adapter.
16
HOW TO ADJUST THE DRIVE BELT
If the pedals slip while you are pedaling, even while the
resistance is adjusted to the highest setting, the drive
belt may need to be adjusted. To adjust the drive belt,
first unplug the power adapter.
See EXPLODED DRAWING B on page 22. First,
remove the M4 x 16mm Screw (61) from the Left Leg
Inner Cover (39). Then, remove the Left Leg Inner
Cover and the Left Leg Outer Cover (92).
Next, remove the two M8 x 16mm Screws (76) and the
two M8 Washers (33) from the Left Upper Body Leg
(101) and the Left Pedal Arm (14).
Then, remove
the M8 x 14mm
Shoulder Screw
(81) from the Left
Pedal Arm (14).
Remove the Left
Pedal Arm from
the elliptical.
14
81
37
27
See EXPLODED DRAWING C on page 23. Remove
all of the M4 x 16mm Screws (61) and M4 x 38mm
Screws (64) from the Left and Right Shields (44, 45).
Make sure to note which size Screws come from
which holes. Then, carefully remove the Left Shield.
Loosen the Idler Screw (97). Tighten the Idler
Adjustment Screw (72) until the Drive Belt (46) is tight.
When the Drive Belt is tight, retighten the Idler Screw.
46
97
26
Remove the four M4 x 16mm Screws (not shown)
from the Large Storage Foot (27), and then remove
the Large Storage Foot. Remove the two M4 x 16mm
Screws (not shown) from the Top Shield (37), and then
use a flat screwdriver to pry the Top Shield upward off
the elliptical. Then, pry the left Pedal Disc (26) off the
elliptical.
72
When you are finished, reattach the left shield, the left
pedal disc, the top shield, the large storage foot, and
the left pedal arm. Then, plug in the power adapter.
17
EXERCISE GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physician. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The heart rate monitor is not a medical device.
Variou s facto rs may affect the acc uracy o f
heart rate readings. The heart rate monitor is
intended only as an exercise aid in determining heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise ; never hold your breath.
To f i nd th e p r op e r i nt e ns i ty le v el , fi nd yo u r a ge at th e
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To m a in t ai n o r i m pr o ve yo u r c on d it io n, c o mp l et e t h re e
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each week,
if desired. Remember, the key to success is to make
exercise a regular and enjoyable part of your everyday
life.
18
PART LIST
K e y N o . Q t y . D e s c r i p t i o n K e y N o . Q t y . D e s c r i p t i o n
Model No. PFEL55913.0 R0514A
1 1 Frame
2 1 Upright
3 1 Rear Upright Cover
4 1 Console
5 1 Accessory Tray
6 1 Right Upper Body Leg
7 1 Eddy Mechanism
8 1 Left Upper Body Arm
9 1 Right Upper Body Arm
10 2 Grip
11 1 Right Leg Front Cover
12 1 Left Pedal
13 1 Right Pedal
14 1 Left Pedal Arm
15 1 Right Leg Rear Cover
16 1 Front Upright Cover
17 4 Pivot Bushing
18 1 Left Leg Front Cover
19 1 Left Leg Rear Cover
20 2 Upper Body Arm Cover
21 1 Tray Housing
22 1 Right Leg Outer Cover
23 4 Pedal Arm Bushing
24 1 Crank
25 2 Crank Arm
26 2 Pedal Disc
27 1 Large Storage Foot
28 1 Upright Wire
29 4 Pedal Arm Bearing
30 2 Pedal Arm Cap
31 2 Pedal Arm Axle
32 1 Right Leg Inner Cover
33 8 M8 Washer
34 1 Left Front Shield
35 1 Right Front Shield
36 2 Crank Arm Cover
37 1 Top Shield
38 2 Frame Bearing
39 1 Left Leg Inner Cover
40 1 Large Spacer
41 2 Magnet
42 1 Main Wire
43 2 Crank Arm Washer
44 1 Left Shield
45 1 Right Shield
46 1 Drive Belt
47 2 Leveling Foot
48 4 Stabilizer Cap
49 1 Right Pedal Arm
50 2 Wheel
51 2 Small Storage Foot
52 1 Idler
53 1 Small Spacer
54 1 Resistance Motor
55 2 Handle Cover
56 4 M4 x 12mm Washer Head Screw
57 1 Clamp
58 1 Reed Switch/Wire
59 2 M10 x 20mm Screw
60 2 Key
61 52 M4 x 16mm Screw
62 2 M4 x 30mm Screw
63 2 Pulse Grip
64 6 M4 x 38mm Screw
65 11 M4 x 19mm Screw
66 1 Pulley
67 2 M4 x 15mm Screw
68 1 M4 x 16mm Ground Screw
69 1 Pulse Wire
70 1 Rear Stabilizer
71 2 M4 x 12mm Screw
72 1 Idler Adjustment Screw
73 1 Front Stabilizer
74 2 M6 x 12mm Flat Head Screw
75 8 M6 x 12mm Screw
76 6 M8 x 16mm Screw
77 2 M10 x 60mm Screw
78 2 M10 x 45mm Screw
79 2 Crank Arm Bolt
80 1 M6 x 25mm Shoulder Screw
81 2 M8 x 14mm Shoulder Screw
82 2 Crank Arm Nut
83 2 M10 Washer
84 4 M10 x 120mm Screw
85 1 Upright Knob
86 1 Right Upright Cover
87 1 Left Upright Cover
88 1 M5 x 5mm Screw
89 1 Latch Release
90 1 Latch
91 2 Front Stabilizer Foot
92 1 Left Leg Outer Cover
93 1 Front Console Cover
94 1 Rear Console Cover
19
Key No. Qty. Description Key No. Qty. Description
95 2 M10 x 50mm Screw
96 1 Pivot Screw
97 1 Idler Screw
98 1 M6 Washer
99 6 M8 Locknut
100 1 Power Wire
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
101 1 Left Upper Body Leg
102 1 Upright Axle
103 4 M8 x 20mm Bolt
104 1 Power Adapter
* – User’s Manual
* – Assembly Tool
20
EXPLODED DRAWING A
Model No. PFEL55913.0 R0514A
63
69
16
93
61
59
83
3
102
100
83
21
89
5
67
62
80
2
59
61
87
55
61
65
7
90
61
55
28
88
65
86
61
48
84
61
91
85
73
104
42
1
25
43
74
60
82
98
99
97
96
61
56
68
38
40
70
72
71
79
54
48
77
47
50
51
61
84
99
43
60
61
24
25
46
99
94
41
58
61
103
53
52
57
99
38
103
41
66
61
4
82
79
71
74
21
EXPLODED DRAWING B
Model No. PFEL55913.0 R0514A
10
61
11
33
22
76
31
23
23
49
75
75
81
76
33
17
61
17
9
95
20
15
78
6
33
76
61
32
13
10
30
18
20
19
8
101
92
39
29
14
12
33
29
22
81
EXPLODED DRAWING C
Model No. PFEL55913.0 R0514A
65
65
65
34
65
65
35
65
26
61
65
61
36
64
64
45
64
37
61
36
61
61
61
44
64
64
61
64
27
61
61
26
23
ORDERING REPLACEMENT PARTS
To order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED DRAWING
near the end of this manual)
LIMITED WARRANTY
IMPORTANT: To protect your fitness equipment with an extended service plan, see page 4.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame is warranted for a lifetime. Parts and labor
are warranted for one (1) year from the date of purchase.
This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is
limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer’s responsibility. If
replacement parts are shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to freight damage to the product. This warranty will automatically be voided
if the product is used as a store display model, if the product is purchased or transported outside the USA,
if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,
or if the product is used for commercial or rental purposes. No other warranty beyond that specifi cally set
forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profi ts, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or
consequential damages. Accordingly, the above limitation may not apply to the customer.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fi tness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to the customer.
This warranty provides specifi c legal rights; the customer may have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
Part No. 351775 R0514A Printed in China © 2013 ICON IP, Inc.
Loading...
