As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.

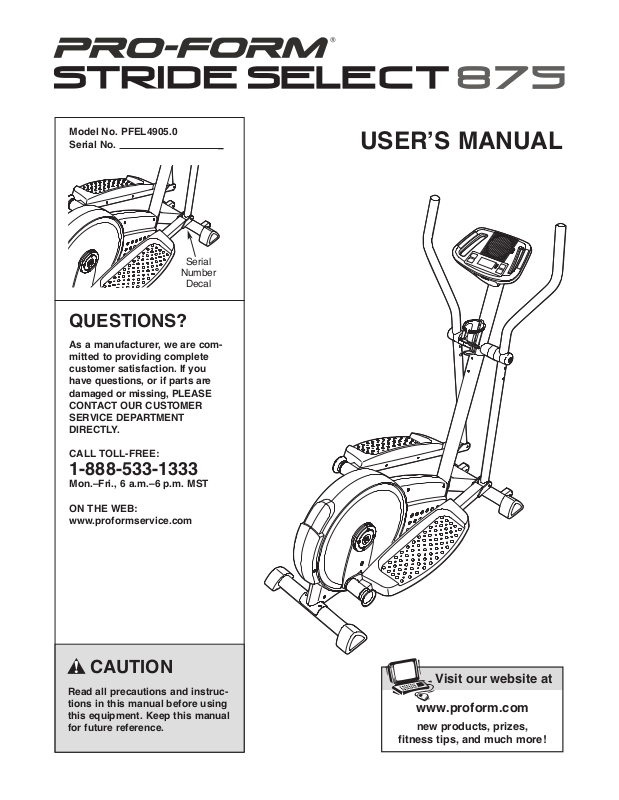

USER’S MANUAL
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING:To reduce the risk of serious injury, read the following important precau-
tions before using the elliptical exerciser.
. Read all instructions in this manual and all
1
warnings on the elliptical exerciser before
using the elliptical exerciser. Use the elliptical exerciser only as described in this
manual.
0. The pulse sensor is not a medical device.
1
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. The elliptical exerciser is intended for
home use only. Do not use the elliptical
exerciser in a commercial, rental, or institutional setting.
4. Keep the elliptical exerciser indoors, away
from moisture and dust. Place the elliptical
exerciser on a level surface, with a mat
beneath it to protect the floor or carpet.
Make sure that there is enough clearance
around the elliptical exerciser to mount, dismount, and use it.
5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
6. Keep children under 12 and pets away from
the elliptical exerciser at all times.
7. The elliptical exerciser should not be used
by persons weighing more than 250 pounds.
11. Keep your back straight when using the elliptical exerciser; do not arch your back.
12. If you feel pain or dizziness while exercising,
stop immediately and cool down.
13. When you stop exercising, allow the pedals
to slowly come to a stop.
14. The decal shown below has been placed on
the elliptical exerciser. If the decal is missing, or if it is not legible, call the toll-free
telephone number on the front cover of this
manual and order a free replacement decal.
Apply the decal in the location shown.
8. Wear appropriate exercise clothes while
using the elliptical exerciser. Always wear
athletic shoes for foot protection while
using the elliptical exerciser.
Hold the handgrip pulse sensor or the han
9.
dlebars
using the elliptical exerciser.
when mounting, dismounting, or
-
WARNING:Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.
3
BEFORE YOU BEGIN
Congratulations for selecting the new PROFORM
TRIDE SELECT 875 elliptical exerciser. The
S
STRIDE SELECT 875 is an incredibly smooth exerciser that moves your feet in a natural elliptical path,
minimizing the impact on your knees and ankles. And
the unique STRIDE SELECT 875 offers an impressive
array of features to help you achieve your fitness
goals in the convenience of your home.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, see the front cover of
Handgrip Pulse Sensor
Console
®
this manual. To help us assist you, please note the
roduct model number and serial number before con-
p
tacting us. The model number is PFEL4905.0. The
serial number can be found on a decal attached to the
elliptical exerciser (see the front cover of this manual).
To avoid a registration fee for any service needed
under warranty, you must register the elliptical
exerciser at www.proformservice.com/registration.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Fan
Handlebar
Water Bottle Holder*
Pedal Disk
BACK
FRONT
Wheel
Pedal
Adjustment Knob
*No water bottle is included
4
ASSEMBLY
M4 x 16mm
Screw (66)–8
M4 x 22mm
Screw (76)–2
M8 x 16mm Button
Screw (84)–4
M10 x 75mm Carriage Bolt (34)–2M10 x 59mm Bolt Set (27)–2
M10 Split
Washer (94)–2
M8 Washer
(53)–6
Wave Washer
(91)–2
M8 Split
Washer (83)–2
M8 x 25mm Patch
Screw (22)–2
M8 x 70mm Button Bolt (67)–2M8 x 45mm Button
Bolt (50)–4
M10 x 83mm Button Screw (63)–2
M10 Nylon
Locknut (29)–2
M8 Nylon
Locknut (46)–6
M8 Jamnut
(80)–4
Cover Screw
(82)–4
o hire an authorized service technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480.
T
ssembly requires two persons.Place all parts of the elliptical exerciser in a cleared area and remove the
A
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included allen wrenches, assembly requires a phillips screwdriver , an adjustable
wrench , and a rubber mallet .
As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST on page 17. The number following the
parentheses is the quantity needed for assembly.
part is not in the parts bag, check to see if it has been preassembled.
Note: Some small parts may have been preassembled. If a
5
1. Identify the Rear Stabilizer (4). While another person
lifts the rear of the Frame (1), attach the Rear
tabilizer to the Frame with two M10 x 75mm Carriage
S
Bolts (34) and two M10 Nylon Locknuts (29).
1
29
1
29
4
34
2. See the inset drawing. Remove the two M10 x 45mm
Button Bolts (33) and the packing tubes from the front
of the Frame (1). Next, remove the rubber band from
the Lower Wire Harness (87). Discard the Button
Bolts, the packing tubes, and the rubber band.
Press the two Stabilizer Endcaps (35) onto the Front
Stabilizer (3). Orient the Stabilizer Endcaps as shown.
3. Slide an M10 Split Washer (94) onto each of the two
M10 x 83mm Button Screws (63). Insert the Button
Screws into the Front Stabilizer (3). Next, slide the
Mast (15) onto the Button Screws and against the
Front Stabilizer.
as shown.
While another person holds the Mast (15) and the
Front Stabilizer (3) near the Frame (1), connect the
Extension Wire Harness (95) to the Lower Wire
Harness (87). Insert the connectors on the W
Harnesses into the Mast.
Make sure that the Mast is oriented
ire
2
Packing
Tube
33
Packing Tube
35
3
Pull
15
87
1
35
3
Make sure that the
wire harnesses do
not get pinched
and damaged
during this step.
While the other person lifts the front of the Frame (1),
carefully pull the upper end of the Extension W
Harness (95) to remove any slack. While holding
the upper end of the Extension Wire Harness,
Stabilizer (3) to the
attach the Mast (15) and the
Frame with the two M10 x 83mm Button Screws (63).
Do not tighten the Button Screws yet.
Make sure that the W
get pinched and damaged during this step.
Front
ire Harnesses (87, 95) do not
ire
3
63
94
95
87
1
6
