IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read the following important precau-

tions before using the elliptical crosstrainer.

1. Read all instructions in this manual before sing the elliptical crosstrainer.

2. It is the responsibility of the owner to ensure

that all users of the elliptical crosstrainer are adequately informed of all precautions.

1. Keep your back straight when using the ellip-

tical crosstrainer; do not arch your back.

12. If you feel pain or dizziness while exercising, stop immediately and cool down.

3. The elliptical crosstrainer is intended for home use only. Do not use the elliptical crosstrainer in a commercial, rental, or institutional setting.

4. Place the elliptical crosstrainer on a level surface, with a mat beneath it to protect the floor or carpet. Keep the elliptical crosstrainer indoors, away from moisture and dust.

5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.

6. Keep children under 12 and pets away from the elliptical crosstrainer at all times.

7. The elliptical crosstrainer should not be used by persons weighing more than 250 pounds.

8. Wear appropriate exercise clothes when using the elliptical crosstrainer. Always wear athletic shoes for foot protection while exercising.

9. Hold the handgrip pulse sensor or the handlebars when mounting, dismounting, or using the elliptical crosstrainer.

13. When you stop exercising, allow the pedals to slowly come to a stop.

14. The decal shown below has been placed on the elliptical crosstrainer. If the decal is missing, or if it is not legible, please call tollfree 1-888-533-1333 and order a free replacement decal. Apply the decal in the location shown.

10. The pulse sensor is not a medical device. Various factors may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.

WARNING: Before beginning this or any exercise program, consult your physician.

This is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

BEFORE YOU BEGIN

Congratulations for selecting the new PROFORM

20 CARDIO CROSSTRAINER. The PROFORM

8 is an incredibly smooth exerciser that moves your feet in a natural elliptical path, minimizing the impact on your knees and ankles. And the unique PROFORM

820 features adjustable resistance and a state-of-theart console to help you get the most from your exercise.

For your benefit, read this manual carefully before you use the elliptical crosstrainer. If you have

questions after reading this manual, call our Customer

Handgrip Pulse Sensor

Handlebar

Service Department toll-free at 1-888-533-1333,

onday through Friday, 6 a.m. until 6 p.m. Mountain

M Time (excluding holidays). To help us assist you, please note the product model number and serial number before calling. The model number is PFEL39031. The serial number can be found on a decal attached to the elliptical crosstrainer (see the front cover of this manual for the location of the decal).

Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.

Console

Water Bottle Holder*

FRONT

Wheel

Leveling Foot

LEFT SIDE

*No water bottle is included

Pedal

Flex Bar

Pedal Disk

BACK

ASSEMBLY

M10 x 112mm Carriage Bolt (34)–4

M10 x 90mm Button Screw (63)–1

M10 x 78mm Button Bolt (27)–2

M4 x 16mm

Screw (66)–4

M10 Nylon

Locknut (29)–6

M8 Nylon

Locknut (46)–4

M10 Split

Washer (70)–3

Frame Spacer (83)–1

M8 x 45mm Button Bolt (50)–4

M10 x 35mm Carriage

Bolt (20)–2

M4 x 22mm

Screw (93)–2

M10

Washer (38)–6

M8.5

Washer (53)–2

Wave Washer

(95)–2

M8 x 25mm Patch

Screw (22)–2

Assembly requires two persons. Place all parts of the elliptical crosstrainer in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the

included allen wrenches, assembly requires a phillips screwdriver , an adjustable

rench , and a rubber mallet .

As you assemble the elliptical crosstrainer, use the drawings below to identify the small parts used in assembly. The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on page 22. The second number refers to the quantity needed for assembly. Note: Some small parts may have

been pre-assembled. If a part is not in the parts bag, check to see if it has been pre-assembled.

1. Identify the Front Stabilizer (3). While another person

lifts the front of the Frame (1), attach the Front Stabilizer to the Frame with two M10 x 112mm

arriage Bolts (34) and two M10 Nylon Locknuts (29).

Make sure that the Front Stabilizer is turned so the

heels (32) are not touching the floor.

2. While another person lifts the back of the Frame (1),

attach the Rear Stabilizer (4) to the Frame with two M10 x 112mm Carriage Bolts (34) and two M10 Nylon Locknuts (29).

3. While another person holds the Upright (2) in the posi-

tion shown, connect the Upper Wire Harness (86) to the Lower Wire Harness (87). Carefully pull the

upper end of the Upper Wire Harness to remove any slack. While holding the upper end of the Upper Wire Harness, insert the Upright into the

Frame (1). Do not pinch the Wire Harnesses.

Slide an M10 Split Washer (70) and a Frame Spacer (83) onto an M10 x 90mm Button Bolt (63). Insert the Button Bolt into the Frame (1) and the Upright (2).

Make sure that the concave end of the Frame Spacer is turned toward the Frame. Do not tighten the Button Bolt yet.

Attach the Water Bottle Holder (91) to the Upright (2) with two M4 x 22mm Screws (93).

Make sure the

wire harnesses

do not get

pinched and

damaged during

this step.

4. While another person holds the Console (5) in the

position shown, connect the wire harness on the Console to the Upper Wire Harness (86). Insert the excess wire harness into the Upright (2). Next, attach the Console to the Upright with four M4 x 16mm Screws (66). Be careful to avoid pinching the wire

harnesses.

Make sure the

wire harnesses

do not get

pinched and

damaged during

this step.

Harness

Wire

5. The Console (5) requires four “D” batteries (not includ-

ed); alkaline batteries are recommended. Remove the indicated screw from the battery drawer, and pull the

attery drawer open. Insert four batteries into the bat-

b tery drawer; make sure that the batteries are orient-

d as shown by the markings inside the battery

e drawer. Close the battery drawer and reattach the

screw. Note: When the batteries are installed correctly, the fan will turn on for a moment.

Screw

Batteries

Battery Drawer

6. Identify the Left Handlebar (9), which is marked with a

sticker. Insert the Left Handlebar into one of the Handlebar Legs (79); make sure that the Handlebar

Leg is turned so the hexagonal holes are on the indicated side. Attach the Left Handlebar to the

Handlebar Leg with two M8 x 45mm Button Bolts (50) and two M8 Nylon Locknuts (46). Make sure that the

Nylon Locknuts are inside of the hexagonal holes. Do not tighten the Button Bolts yet.

Apply a generous amount of the included grease to the Pivot Axle (97) and to the two M8.5 Washers (53). Insert the Pivot Axle into the Upright (2) and centre it. Reapply grease to both ends of the Pivot Axle.

Slide a Handlebar Spacer (25) onto the short tube on the Left Handlebar (9), and rotate the Handlebar Spacer so the arrow is pointing toward the floor. Next, slide the Left Handlebar onto the left end of the Pivot Axle (97). Finger tighten an M8 x 25mm Patch Screw (22) with an M8.5 Washer (53) and a Wave Washer (95) into the end of the Pivot Axle. Then, press the small tabs on a Handlebar Cap (23) into the Handlebar Spacer.

Attach the Right Handlebar (not shown) and the other Handlebar Leg (not shown) in the same way.

Grease

Tube

Arrow

Hexagonal

Holes

Tighten both M8 x 25mm Patch Screws (22) at the same time.

7. Hold the lower end of the left Handlebar Leg (79) inside

of the left Front Flex Bracket (17). Apply a small amount of grease to an M10 x 78mm Button Bolt (27). Attach the left Handlebar Leg to the left Front Flex Bracket with the Button Bolt, two M10 Washers (38), and an M10 Nylon Locknut (29). Do not overtighten

the Nylon Locknut; the left Handlebar Leg must be able to pivot freely.

Attach the right Handlebar Leg (79) to the right Front Flex Bracket (17) in the same way.

See step 6. Tighten the M8 x 45mm Button Bolts (50) in the Handlebar Legs (79). See step 3. Tighten the M10 x 88mm Button Bolt (63).

Grease

8. Identify the Left Pedal (13). Attach the Left Pedal to the

left Flex Bar (14) with an M10 x 35mm Carriage Bolt (20), an M10 Washer (38), an M10 Split Washer (70),

nd a Pedal Knob (15) as shown. Note: The Left Pedal

a can be attached in any of five positions (see HOW TO

DJUST THE PEDALS on page 9).

Attach the Right Pedal (not shown) in the same way. Make sure that both Pedals are in the same position.

9. Make sure that all parts of the elliptical crosstrainer are properly tightened. Note: Some hardware may

be left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the elliptical crosstrainer.

HOW TO USE THE ELLIPTICAL CROSSTRAINER

HOW TO ADJUST THE PEDALS

The motion of the pedals is determined by their positions on the flex bars. There are five positions. To adjust each pedal, first loosen the knob beneath the pedal. Next, push the bolt upward, slide the pedal forward or backward to the desired position, and then retighten the knob. Make sure that both pedals are in the same position.

HOW TO EXERCISE ON THE ELLIPTICAL CROSSTRAINER

To mount the elliptical crosstrainer, hold the handgrip pulse sensor and step onto the pedal that is in the lowest position. Then, step onto the other pedal. Push the pedals until they begin to move with a continuous motion. Note: The pedal disks can turn in either

direction. It is recommended that you move the pedal disks in the direction shown by the arrow below; however, for variety, you can turn the pedal disks in the opposite direction.

Pedal

Bolt

Knob

Flex Bar

To dismount the elliptical crosstrainer, wait until the pedals come to a complete stop. Note: The elliptical

crosstrainer does not have a free wheel; the pedals will continue to move until the flywheel stops.

When the pedals are stationary, step off the highest pedal first. Then, step off the lowest pedal.

HOW TO USE THE HANDLEBARS

The handlebars are designed to add upper-body exercise to your workouts. Push and pull the handlebars as you exercise to work your arms, shoulders, and back.

To exercise only your lower body, hold the handgrip pulse sensor as you exercise.

Handlebars

Handgrip

Pulse

Sensor

CAUTION: Before using the ellipti-

cal crosstrainer, read the following precautions.

Pulse Sensor

Handlebars

Pedals

Pedal Disk

Handgrip

• Always hold the handgrip pulse sensor or the handlebars when mounting, dismounting, or using the elliptical crosstrainer.

• When you stop exercising, allow the pedals to slowly come to a stop.

• The pulse sensor is not a medical device. Various factors may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.

Display Buttons

Fan Button

On/Reset Button

Resistance Buttons

FEATURES OF THE CONSOLE

The advanced console offers a selection of features designed to make your workouts more enjoyable and effective. When the manual mode of the console is selected, the resistance of the pedals can be changed with the touch of a button. As you pedal, the console will provide continuous exercise feedback. You can even measure your heart rate using the built-in handgrip pulse sensor.

The console also offers four Smart programs. Each program automatically changes the resistance of the pedals and prompts you to increase or decrease your pace as it guides you through an effective workout.

In addition, the console features two Heart Rate programs that change the resistance of the pedals and prompt you to vary your pace to keep your heart rate near a target heart rate as you exercise.

The console also features iFIT.com interactive technology. Having iFIT.com technology is like having a per-

sonal trainer in your home. Using a stereo audio cable (available at electronics stores), you can connect the elliptical crosstrainer to your home stereo, portable stereo, computer, or VCR and play special iFIT.com CD and video programs (iFIT.com CDs and videocassettes are available separately). iFIT.com CD and video programs automatically control the resistance of the pedals and prompt you to vary your pace as a personal trainer coaches you through every step of your workout. High-energy music provides added motivation. To

purchase iFIT.com CDs and videocassettes, call toll-free 1-888-533-1333.

With the elliptical crosstrainer connected to your computer, you can also go to our Web site at www.iFIT.com and access programs directly from the internet.

Explore www.iFIT.com for more information.

To use the manual mode of the console, see page

11. To use a Smart program, see page 13. To use a Heart Rate program, see page 14. To use an iFIT.com CD or videocassette, see page 18. To use a program directly from our Web site, see page 19.

OW TO USE THE MANUAL MODE

seconds. If you use the handgrip pulse sensor, the display will also show your heart rate (see step 5 on page 12).

Turn on the console.

ote: The console requires four 1.5V “D” batteries

N (see assembly step 5 on page 7).

To turn on the console, press the On/Reset button or begin pedaling. (See the drawing on page 11 to identify the On/Reset button.)

Select the manual mode.

Each time the console is turned on, the manual mode will be selected. If a program has been selected, select the manual mode by pressing the Program button repeatedly until the letters RPM appear in the small display.

Begin pedaling and change the resistance of

the pedals as desired.

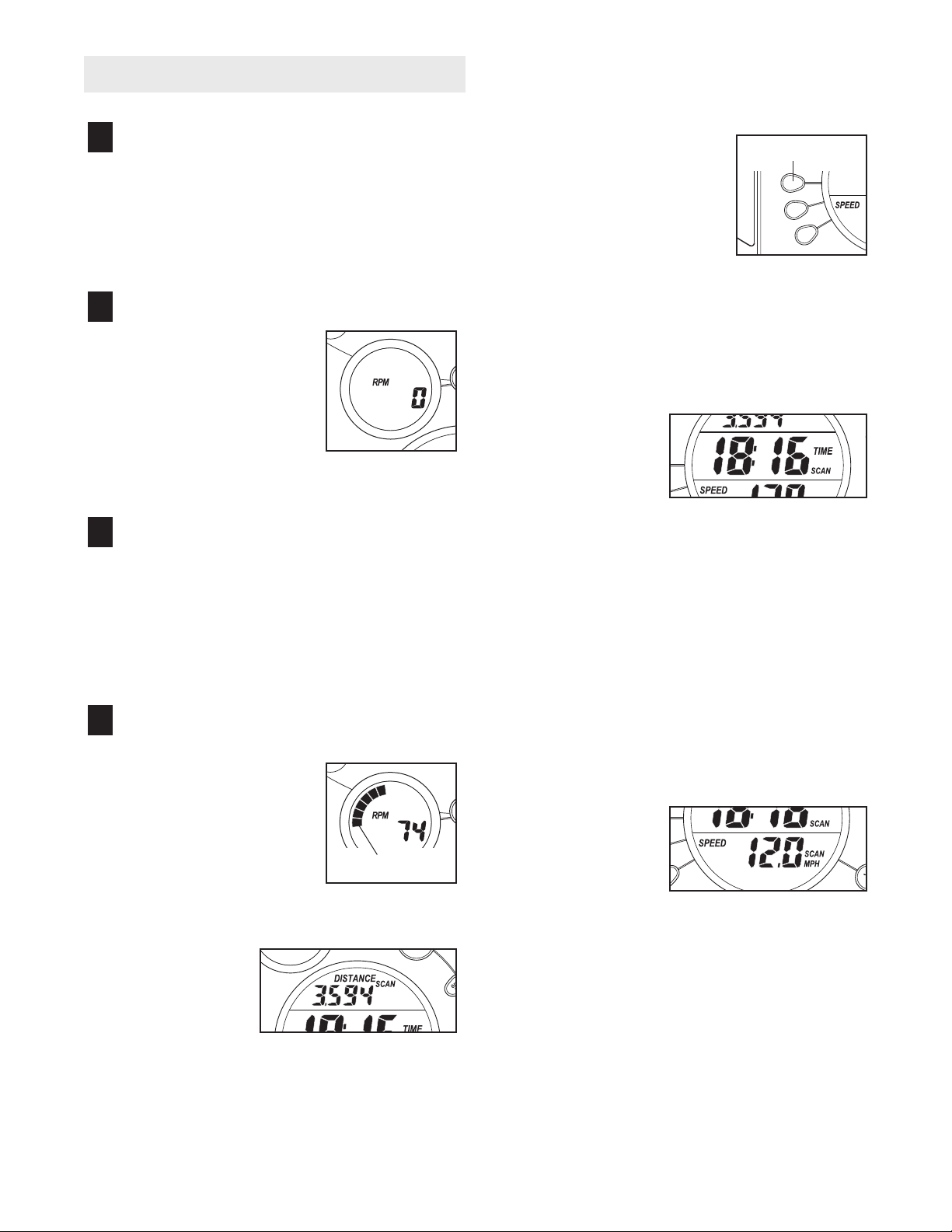

As you pedal, change the resistance of the pedals by pressing the + and – buttons below the large display. There are ten resistance levels— level 10 is the most challenging. Note: After the buttons are pressed, it will take a few seconds for the resistance to reach the selected setting.

Follow your progress with small display and

the large display.

The small display will

show your pedaling pace, in revolutions per minute (RPM). The indicator bar in the small display will increase or decrease in length as you increase or decrease your pedaling pace.

The upper section of the large display

will show the distance you have pedaled and the numbers of calories and fat calories you have burned (see FAT BURNING on page 21 for an explanation of fat calories). The display will change from one number to the next every few

Indicator Bar

To view only the distance

ou have pedaled or the

y number of calories or fat calories you have burned, press the upper button on the left side of the large display until only the word DISTANCE, CALORIES, or FAT CALORIES appears in the upper section of the large display. Make sure that the word SCAN does not appear. To again view the distance you have pedaled and the numbers of calories and fat calories you have burned, press the upper button until the word SCAN reappears.

The center of the large display

will show the elapsed time and your current pace (pace is shown in minutes per mile). The display will change from one number to the other every few seconds. Note: When a program is selected (except for the SelfSelect program), the display will show the time remaining in the program instead of the elapsed time.

To view only the elapsed time or your pace, press the center button on the left side of the large display until only the word TIME or PACE appears. Make sure that the word SCAN does not appear. To view both the elapsed time and your pace, press the center button until the word SCAN reappears.

The lower section of the large display will show

your pedaling speed and the resistance level. The display will change from one number to the other every few seconds.

To view only your pedaling speed or the resistance level, press the lower button on the left side of the large display until only the word SPEED or RESISTANCE appears. Make sure that the word SCAN does not appear. To view both your pedaling speed and the resistance level, press the lower button until the word SCAN reappears.

Upper Button

To reset the displays, press the On/Reset button.

Note: The con-

ole can show

s speed and dis-

ance in either

t miles or kilometers. The let-

ters MPH or KM/H will appear in the lower section of the large display to show which system of measurement is selected. To change the system of measurement, hold down the On/Reset button for about six seconds. Note: When the button is held down, the fan will turn on for a moment. When the batteries are replaced, it may be necessary to reselect the desired system of measurement.

Measure your heart rate if desired.

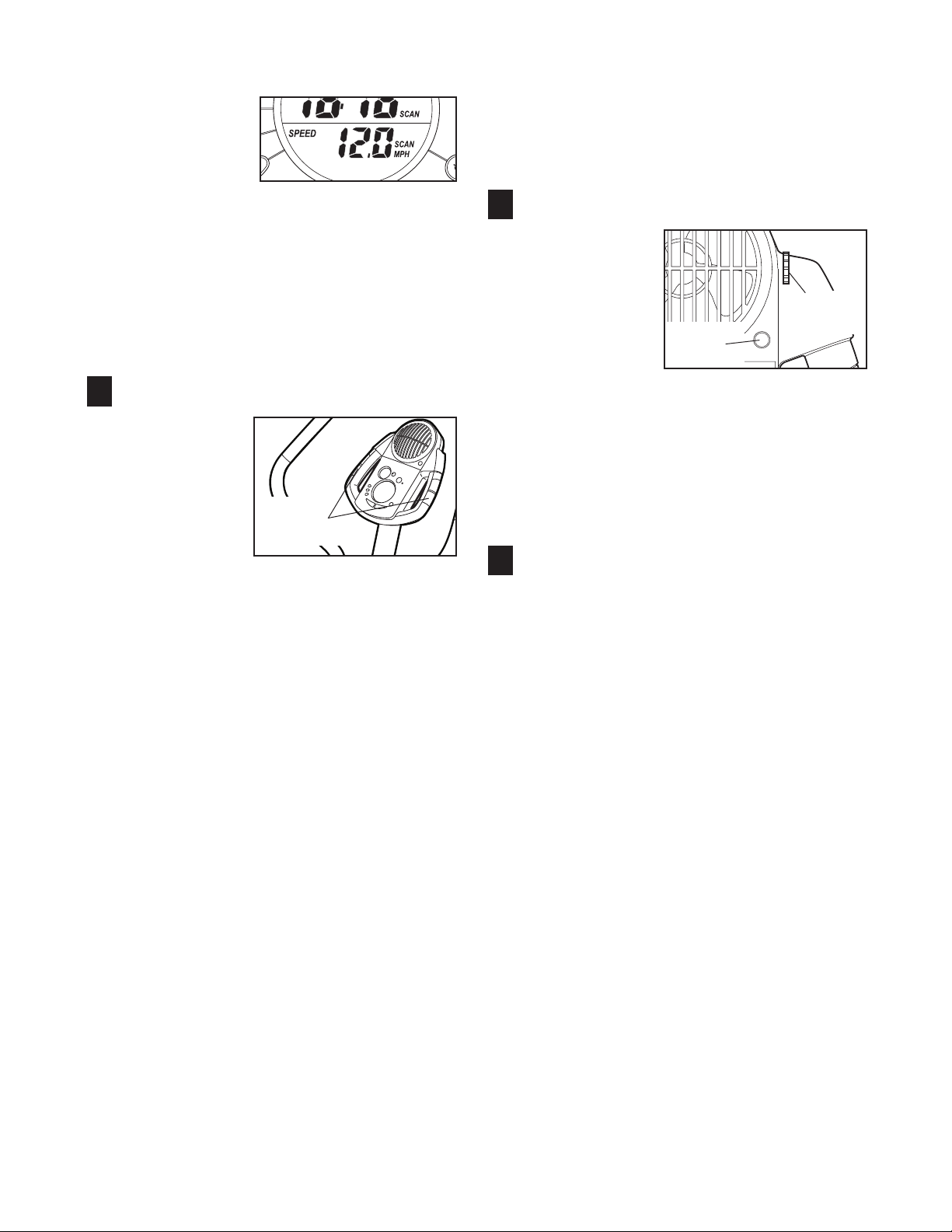

If there are thin sheets of plastic on the metal contacts on the handgrips, peel off the plastic. To

use the handgrip pulse sensor, hold the handgrips with your palms resting against the metal contacts. Avoid moving your hands. When your pulse is detected, the heartshaped indicator in the large display will flash each time your heart beats. After a moment, two dashes (– –) will appear and then your heart rate will be shown.

Metal

Contacts

For the most accurate heart rate reading, continue to hold the handgrips for about 30 seconds. Note: When you first hold the handgrips, the large dis-

lay will show your heart rate continuously for 30

p seconds. The display will then show your heart

ate along with other feedback modes.

Turn on the fan if desired.

To turn on the fan at low speed, press the fan button. To turn on the fan at high speed, press the fan button a second time. To turn off the fan, press the fan button a third time. Note: If the fan is turned on but the pedals are not moved for thirty seconds, the fan will automatically turn off to conserve the batteries.

Rotate the thumb wheel on the right side of the console to pivot the fan to the desired angle.

When you are finished exercising, the console

will automatically turn off.

If the pedals are not moved for a few seconds, the displays will pause and the time will flash in the large display.

If the pedals are not moved and the console buttons are not pressed for a few minutes, the console will turn off to conserve the batteries.

Fan

Button

Thumb

Wheel

OW TO USE A SMART PROGRAM

ach Smart program will automatically change the

E resistance of the pedals and prompt you to increase or decrease your pace as it guides you through an effective workout. Programs 3 and 4 are weight loss pro-

rams, program 5 is an aerobic program, and program

g 6 is a high-performance interval-training program.

Follow the steps below to use a Smart program.

Turn on the console.

See step 1 on page 11.

Select one of the Smart programs.

Each time the console is turned on, the manual mode will be selected. To select a Smart program, press the Program button repeatedly until the number 3, 4, 5, or 6 appears in the small display.

Begin pedaling to start the program.

To start the program, simply begin pedaling. Each Smart program consists of 20 or 30 one-minute periods. One resistance level and one target pace are programmed for each period. (The same resistance level and/or target pace may be programmed for two or more consecutive periods.)

At the end of each period of the program, the resistance of the pedals will automatically change if a different resistance level is programmed for the next period. Note: If the resistance level is too high or too low, you can change it by pressing the + and – buttons below the large display. However, when the current period is completed, the resistance of the pedals will automatically change if a different resistance level is programmed for the next period.

The target pace for the current period will be

hown by the

s arrows in the

mall display. To

s pedal at the target pace, simply increase or decrease your pace until there is one arrow pointing to each segment of the indicator bar (see the drawing above). At the end of each period, the number of arrows will change if a different target pace is programmed for the next period. When the number of arrows changes, change your pace until there is one arrow pointing to each segment of the indicator bar.

Important: The target pace is intended only to provide a goal. Your actual pace may be slower than the target pace, especially during the first few months of your exercise program. Make sure to pedal at a pace that is comfortable for you.

During the program, the center of the large display will show the time remaining in the program. If you stop pedaling for a few seconds, the displays will pause and the time will flash. If you continue pedaling after the program is completed, the displays will continue to show exercise feedback.

Follow your progress with the large display.

Indicator

Bar

rrows

See step 4 on page 11.

Measure your heart rate if desired.

See step 5 on page 12.

Turn on the fan if desired.

See step 6 on page 12.

When you are finished exercising, the console

will automatically turn off.

See step 7 on page 12.

OW TO USE A HEART RATE PROGRAM

eart Rate program 1 is designed to keep your heart

H rate between 65% and 85% of your maximum heart rate during your workout. (Your maximum heart rate is estimated by subtracting your age from 220. For

xample, if you are 25 years old, your maximum heart

e rate is 195 beats per minute.) Heart Rate program 2 is designed to keep your heart rate near a target heart rate that you select.

Follow the steps below to use a Heart Rate program.

Turn on the console.

See step 1 on page 11.

Select one of the Heart Rate programs.

Each time the console is turned on, the manual mode will be selected. To select a Heart Rate program, press the Program button repeatedly until the number 1 or 2 appears in the small display.

Enter your age or a target heart rate.

If program 1 is selected, the word AGE will

appear in the large display and the current age setting will flash. If you have already entered your age, press the Enter button. If you have not entered your age, press the small + and – buttons to enter your age. Then, press the Enter button. Once you have entered your age, it will be saved in memory until the batteries are replaced.

If program 2 is selected, the letters PLS (pulse) will appear in the large display and the current target heart rate will flash. If you do not wish to change the target heart rate, press the Enter button. If you wish to change the target heart rate, press the small + and – buttons. Then, press the Enter button. The target heart rate can be from 70 to 170 beats per minute.

Hold the handgrip pulse sensor

It is not necessary to hold the handgrips continuously during a Heart Rate program; however, you must hold the handgrips frequently for the program

to operate properly. Each time you hold the

handgrips, keep your hands on the metal contacts for at least 30 seconds. Note: When you

re not holding the handgrips, the letters PLS will

a appear in the large display instead of your heart

ate.

egin pedaling to start the program.

To start the program, simply begin pedaling. Program 1 consists of 20 one-minute periods. One resistance level and one target heart rate are programmed for each period. (The same resistance level and/or target heart rate may be programmed for two or more consecutive periods.) Program 2 is sixty minutes long (you may choose to use only part of the program). The same resistance level and target heart rate are programmed for the entire program.

If program 1 is selected, the resistance of the pedals will periodically change. (Note: If the resistance level is too high or too low, you can change it by pressing the + and – buttons below the large display. However, when the current period is completed, the resistance of the pedals may automatically change.) If program 2 is selected, the resistance of the pedals will not change. Note: You can change the resistance level for the entire program by pressing the + and – buttons below the large display if desired.

During programs 1 and 2, the

arrows in the small display will help you to keep your heart rate near the current target heart rate. When you hold the handgrip pulse sensor, the console will compare your heart rate to the current target heart rate. If your heart rate is too far above or below the target heart rate, the number of arrows in the small display will change to prompt you to increase or decrease your pace. When the number of arrows changes, change your pace until there is one arrow pointing to each segment of the indicator bar. Important:

The target pace is intended only to provide a goal. Your actual pace may be slower than the target pace, especially during the first few months of your exercise program. Make sure to pedal at a pace that is comfortable for you.

Indicator

Bar

Arrows

Note: If you stop pedaling for a few seconds, the

LINE OUT

HONES

INE OUT

PHONES

program will end. To use the program again, reselect it and start it at the beginning.

OW TO CONNECT YOUR CD PLAYER, VCR,

H OR COMPUTER

Follow your progress with the large display.

See step 4 on page 11.

Turn on the fan if desired.

See step 6 on page 12.

When you are finished exercising, the console

will automatically turn off.

See step 7 on page 12.

To use iFIT.com CDs, the elliptical crosstrainer must be connected to your portable CD player, portable stereo, home stereo, or computer with CD player. See pages 15 to 17 for connecting instructions. To use iFIT.com videocassettes, the elliptical crosstrainer must be connected to your VCR. See page 17 for connecting instructions. To use iFIT.com programs directly from our Web site, the elliptical crosstrainer must be connected to your computer. See page 17 for connecting instructions.

HOW TO CONNECT YOUR PORTABLE CD PLAYER

Note: If your CD player has separate LINE OUT and PHONES jacks, see instruction A below. If your CD player has only one jack, see instruction B.

A. Plug one end of a 1/8” to 1/8” stereo audio cable

(available at electronics stores) into the jack beneath the console. Plug the other end of the cable into the LINE OUT jack on your CD player. Plug your headphones into the PHONES jack.

Audio Cable

Head-

phones

B. Plug one end of a 1/8” to 1/8” stereo audio cable

(available at electronics stores) into the jack beneath the console. Plug the other end of the cable into a 1/8” Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your CD player. Plug your headphones into the other side of the Y-adapter.

Audio Cable

1/8”

Y-adapter

Headphones

HOW TO CONNECT YOUR PORTABLE STEREO

VCR

Amp

LINE OUT

VCR

Amp

LINE OUT

AUDIO OUT

RIGHT

LEFT

LINE OUT

PHONES

HOW TO CONNECT YOUR HOME STEREO

Note: If your stereo has an RCA-type AUDIO OUT

ack, see instruction A below. If your stereo has a

j 1/8” LINE OUT jack, see instruction B. If your

tereo has only a PHONES jack, see instruction C.

A. Plug one end of a 1/8” to RCA stereo audio cable

(available at electronics stores) into the jack beneath the console. Plug the other end of the cable into the AUDIO OUT jack on your stereo.

A/B

Audio

Cable

B. See the drawing above. Plug one end of a 1/8” to

1/8” stereo audio cable (available at electronics stores) into the jack beneath the console. Plug the other end of the cable into the LINE OUT jack on your stereo.

C. Plug one end of a 1/8” to 1/8” stereo audio cable

(available at electronics stores) into the jack beneath the console. Plug the other end of the cable into a 1/8” Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your stereo. Plug your headphones into the other side of the Y-adapter.

Note: If your stereo has an unused LINE OUT jack,

ee instruction A below. If the LINE OUT jack is

s being used, see instruction B.

A. Plug one end of a 1/8” to RCA stereo audio cable

(available at electronics stores) into the jack beneath the console. Plug the other end of the cable into the LINE OUT jack on your stereo.

Audio Cable

B. Plug one end of a 1/8” to RCA stereo audio cable

(available at electronics stores) into the jack beneath the console. Plug the other end of the cable into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the LINE OUT jack on your stereo and plug the wire into the unused side of the Y-adapter. Plug the Yadapter into the LINE OUT jack on your stereo.

RCA

Y-adapter

Audio Cable

1/8”

Y-adapter

Audio Cable

Wire removed from

LINE OUT jack

Headphones

HOW TO CONNECT YOUR COMPUTER

AUDIO OUT

IGHT

EFT

VIDEO AUDIO

ANT. IN

RF OUT

OUT

CH 34

VIDEO AUDIO

ANT. IN

RF OUT

OUT

LINE OUT

PHONES

HOW TO CONNECT YOUR VCR

Note: If your computer has a 1/8” LINE OUT jack,

ee instruction A. If your computer has only a

s PHONES jack, see instruction B.

A. Plug one end of a 1/8” to 1/8” stereo audio cable

(available at electronics stores) into the jack beneath the console. Plug the other end of the cable into the LINE OUT jack on your computer.

Audio

Cable

B. Plug one end of a 1/8” to 1/8” stereo audio cable

(available at electronics stores) into the jack beneath the console. Plug the other end of the cable into a 1/8” Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your computer. Plug your headphones or speakers into the other side of the Y-adapter.

Note: If your VCR has an unused AUDIO OUT jack,

ee instruction A below. If the AUDIO OUT jack is

s being used, see instruction B. If you have a TV

ith a built-in VCR, see instruction B. If your VCR

w is connected to your home stereo, see HOW TO CONNECT YOUR HOME STEREO on page 16.

A. Plug one end of a 1/8” to RCA stereo audio cable

(available at electronics stores) into the jack beneath the console. Plug the other end of the cable into the AUDIO OUT jack on your VCR.

Audio Cable

B. Plug one end of a 1/8” to RCA stereo audio cable

(available at electronics stores) into the jack beneath the console. Plug the other end of the cable into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the AUDIO OUT jack on your VCR and plug the wire into the unused side of the Yadapter. Plug the Y-adapter into the AUDIO OUT jack on your VCR.

Audio Cable

Y-adapter

Headphones/Speakers

1/8”

RCA

Y-adapter

Audio Cable

Wire removed from

AUDIO OUT jack

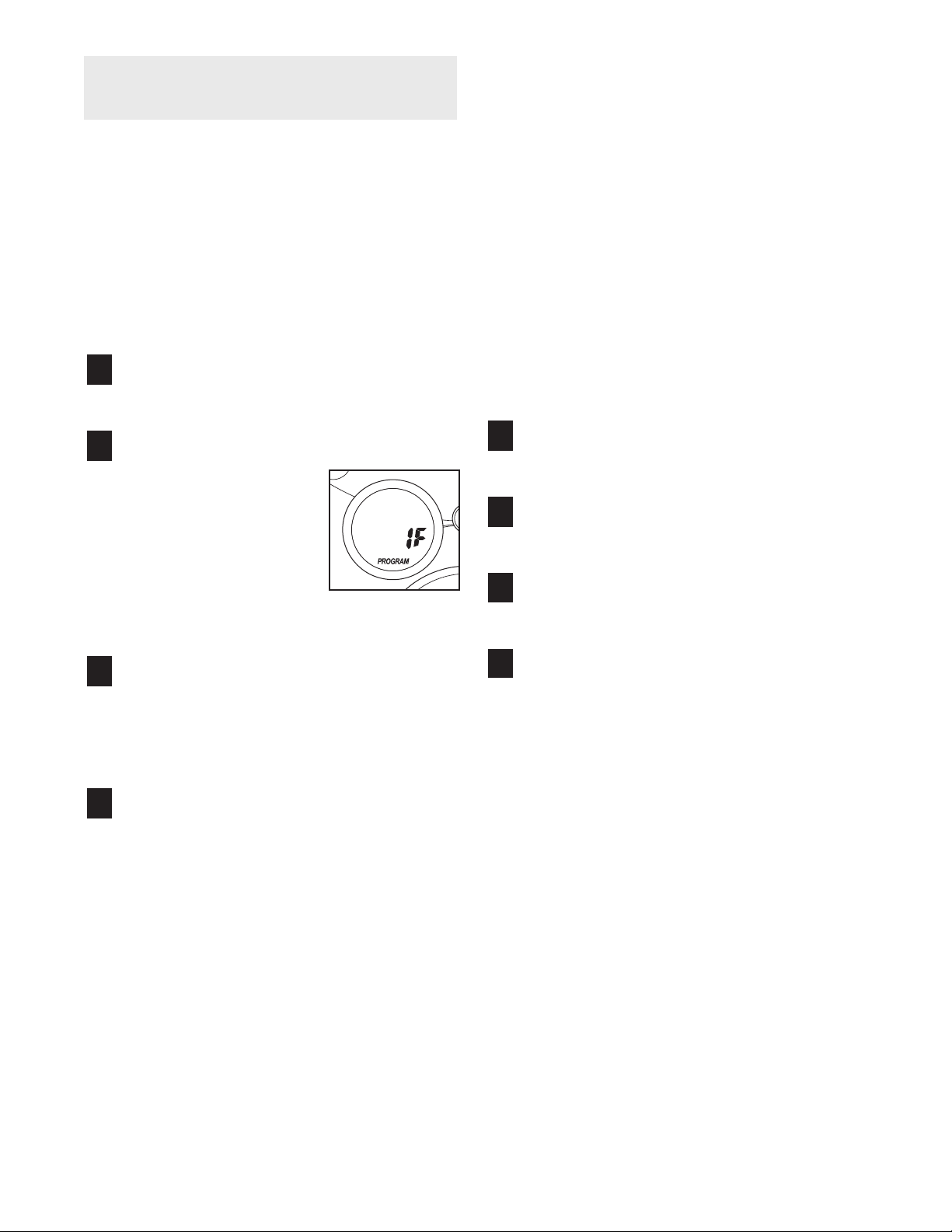

HOW TO USE IFIT.COM CD AND VIDEO PROGRAMS

To use iFIT.com CDs or videocassettes, the elliptical crosstrainer must be connected to your portable CD

layer, portable stereo, home stereo, computer with

p CD player, or VCR. See HOW TO CONNECT YOUR CD PLAYER, VCR, OR COMPUTER on page 15. To

purchase iFIT.com CDs and videocassettes, call toll-free 1-888-533-1333.

The program will function in almost the same way

s a Smart program (see step 3 on page 13).

a However, an electronic “chirping” sound will alert you when the resistance level and/or the target pace is about to change.

Note: If the resistance of the pedals and/or the

arget pace does not change when a “chirp” is

t heard:

• Make sure that the indicator near the iFIT.com button is lit.

Follow the steps below to use an iFIT.com CD or video program.

Turn on the console.

See step 1 on page 11.

Select the iFIT.com mode.

Each time the console is turned on, the manual mode will be selected. To select the iFIT.com mode, press the iFIT.com button. The indicator near the button will light and the letters IF will appear in the small display.

Insert the iFIT.com CD or videocassette.

If you are using an iFIT.com CD, insert the CD into your CD player. If you are using an iFIT.com videocassette, insert the videocassette into your VCR.

• Adjust the volume of your CD player or VCR. If the volume is too high or too low, the console may not detect the program signals.

• Make sure that the audio cable is properly connected and that it is fully plugged in.

Follow your progress with the large display.

See step 4 on page 11.

Measure your heart rate if desired.

See step 5 on page 12.

Turn on the fan if desired.

See step 6 on page 12.

When you are finished exercising, the console

will automatically turn off.

See step 7 on page 12.

Press the play button on your CD player or

VCR.

A moment after the play button is pressed, your personal trainer will begin guiding you through your workout. Simply follow your personal trainerʼs instructions.

HOW TO USE PROGRAMS DIRECTLY FROM OUR WEB SITE

ur Web site at www.iFIT.com allows you to play

O iFIT.com programs directly from the internet. To use

rograms from our Web site, the elliptical crosstrainer

p must be connected to your computer. See HOW TO CONNECT YOUR COMPUTER on page 17. In addition, you must have an internet connection and an internet service provider. A list of specific system requirements will be found on our Web site.

Follow the steps below to use a program from our Web site.

Turn on the console.

See step 1 on page 11.

Select the iFIT.com mode.

Go to your computer and start an internet con-

nection.

tart your Web browser, if necessary, and go

to our Web site at www.iFIT.com.

Follow the desired links on our Web site to

select a program.

Follow the on-line instructions to start the

program.

When you start the program, an on-screen countdown will begin.

Return to the elliptical crosstrainer and begin

pedaling.

When the on-screen countdown ends, the program will begin. The program will function in almost the same way as a Smart program (see step 3 on page 13). However, an electronic “chirping” sound will alert you when the resistance level and/or the target pace is about to change.

Follow your progress with the large display.

See step 4 on page 11.

Measure your heart rate if desired.

See step 5 on page 12.

When you are finished exercising, the console

will automatically turn off.

See step 7 on page 12.

MAINTENANCE AND TROUBLESHOOTING

Inspect and tighten all parts of the elliptical crosstrainer

egularly. Replace any worn parts immediately.

To clean the elliptical crosstrainer, use a damp cloth and a small amount of mild soap. Important: To

void damage to the console, keep liquids away

a from the console and keep the console out of direct sunlight.

BATTERY REPLACEMENT

If the console displays become dim, the batteries should be replaced; most console problems are the result of low batteries. See assembly step 5 on page 7 for replacement instructions.

HOW TO LEVEL THE ELLIPTICAL CROSSTRAINER

After the elliptical crosstrainer has been moved to the location where it will be used, make sure that the ends of both stabilizers are touching the floor. If the elliptical crosstrainer rocks slightly during use, turn one or both of the leveling feet under the front stabilizer until the rocking motion is eliminated.

Leveling Foot

HANDGRIP PULSE SENSOR TROUBLESHOOTING

• Avoid moving your hands while using the handgrip pulse sensor. Excessive movement may interfere with heart rate readings.

• Do not hold the metal contacts too tightly; doing so may interfere with heart rate readings.

• For the most accurate heart rate reading, hold the metal contacts for about 30 seconds.

• For optimal performance of the handgrip pulse sensor, keep the metal contacts clean. The contacts can be cleaned with a soft cloth—never use alcohol, abrasives, or chemicals.

CONDITIONING GUIDELINES

WARNING:

• Before beginning this or any exercise program, consult your physician. This is espe-

ially important for persons over the age of

c 35 or persons with pre-existing health problems.

The following guidelines will help you to plan your exercise program. Remember that proper nutrition and adequate rest are essential for successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recommended heart rates for fat burning, maximum fat burning, and cardiovascular (aerobic) exercise.

During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for energy. Only after the first few minutes of exercise does

our body begin to use stored fat calories for energy.

y If your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest number in your training zone as you exercise.

For maximum fat burning, adjust the intensity of your exercise until your heart rate is near the middle number in your training zone as you exercise.

Aerobic Exercise

If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone as you exercise.

WORKOUT GUIDELINES

Each workout should include the following three parts:

A warm-up, consisting of 5 to 10 minutes of stretching and light exercise. A proper warm-up increases your body temperature, heart rate, and circulation in preparation for exercise.

To find the proper heart rate for you, first find your age at the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age. The three numbers are your “training zone.” The lower two numbers are recommended heart rates for fat burning; the highest number is the recommended heart rate for aerobic exercise.

Fat Burning

To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time.

Training zone exercise, consisting of 20 to 30 minutes of exercising with your heart rate in your training zone. Note: During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.

A cool-down, with 5 to 10 minutes of stretching. This will increase the flexibility of your muscles and will help to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each week if desired. The key to success is to make exercise a regular and enjoyable part of your everyday life.

PART LIST—Model No. PFEL39031 R

Key No. Qty. Description Key No. Qty. Description

0804A

11Frame 21Upright 3 41Rear Stabilizer 51Console 61Left Side Shield 71Right Side Shield 82Pedal Disc 91Left Handlebar

10 1 Right Handlebar

11 2 Foam Grip 12 1 Right Pedal 13 1 Left Pedal 14 2 Flex Bar 15 2 Pedal Knob 16 1 Left Flex Bracket 17 2 Front Flex Bracket 18 4 Rear Flex Bushing 19 12 M6 x 33mm Flat Bolt 20 2 M10 x 35mm Carriage Bolt 21 4 Snap Ring 22 2 M8 x 25mm Patch Screw 23 2 Handlebar Cap 24 6 Handlebar Bushing 25 2 Handlebar Spacer 26 2 Upright Spacer 27 2 M10 x 78mm Button Bolt 28 4 Front Flex Bushing 29 6 M10 Nylon Locknut 30 1 Upright Bushing 31 1 Left Front Endcap 32 2 Wheel 33 2 M6 x 72mm Button Screw 34 4 M10 x 112mm Carriage Bolt 35 2 Rear Stabilizer Endcap 36 1 Left Crank Arm 37 1 Pulley 38 6 M10 Washer 39 1 Crank 40 2 Crank Bearing 41 1 Flywheel 42 2 Flywheel Bearing 43 1 Magnet 44 1 Flywheel Axle 45 4 M8.5mm Washer 46 7 M8 Nylon Locknut 47 2 Crank Screw 48 1 Right Crank Arm 49 1 M6 x 25mm Bolt 50 4 M8 x 45mm Button Bolt

1 Front Stabilizer

51 4 M6 x 18mm Bolt 52 1 “C” Magnet Bracket

3 2 M8.5 Washer

5 54 1 “C” Magnet 55 1 Motor 56 1 Belt 57 2 M8 x 33mm Button Bolt 58 12 M6 Washer 59 16 M6 Nylon Locknut 60 4 M6 Nut 61 4 M5 Nylon Locknut 62 4 M5 x 12mm Bolt 63 1 M10 x 90mm Button Screw 64 2 M4 x 6mm Self-tapping Screw 65 8 M5 x 33mm Screw 66 6 M4 x 16mm Screw 67 4 M4 x 25mm Screw 68 1 Right Front Endcap 69 1 Reed Switch Clamp 70 3 M10 Split Washer 71 2 Handlebar Endcap 72 2 Leveling Foot 73 1 M5 x 16mm Screw 74 8 M4 x 19mm Screw 75 2 M6 Eyebolt 76 1 Spring 77 1 Reed Switch 78 1 Reed Switch Bracket 79 2 Handlebar Leg 80 1 Side Shield Cover 81 1 “U” Bracket 82 1 Right Flex Bracket 83 1 Frame Spacer 84 4 M4 x 12mm Tap Screw 85 2 M5 Nut 86 1 Upper Wire Harness 87 1 Lower Wire Harness 88 2 Flex Bracket Spacer 89 2 M8 x 22mm Button Bolt 90 4 Motor Washer 91 1 Water Bottle Holder 92 4 M8 Nut 93 2 M4 x 22mm Screw 94 1 M6 Large Washer 95 2 Wave Washer 96 2 M3 x 12mm Screw 97 1 Pivot Axle

#2Allen Wrench #1Grease #1Userʼs Manual

Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of this manual for information about ordering replacement parts.

EXPLODED DRAWING—Model No. PFEL39031 R

0804A

HOW TO ORDER REPLACEMENT PARTS

o order replacement parts, simply call our Customer Service Department toll-free at 1-888-533-1333, Monday

T through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give the following information when calling:

• The MODEL NUMBER of the product (PFEL39031)

• The NAME of the product (PROFORM 820 CARDIO CROSSTRAINER)

• The SERIAL NUMBER of the product (see the front cover of this manual)

• The KEY NUMBER and DESCRIPTION of the part(s) (see page 22)

LIMITED WARRANTY

ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center; products used for commercial or rental purposes; or products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

ProForm PFEL39031 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
