ProForm PFEL39030 User Manual

CAUTION

Read all precautions and instruc­tions in this manual before using
this equipment. Keep this manu­al for future reference.

Model No. PFEL39030
Serial No.

Serial

Number

Decal

QUESTIONS?

If you have questions, or if there
are missing parts, we will guar­antee complete satisfaction
through direct assistance from
our factory.

TO AVOID DELA YS, PLEASE
CALL DIRECT TO OUR TOLL­FREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot line will provide
immediate assistance, free of
charge to you.

CUSTOMER HOT LINE:

1-800-999-3756

Mon.–Fri., 6 a.m.–6 p.m. MST

USER’S MANUAL

Patent Pending

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

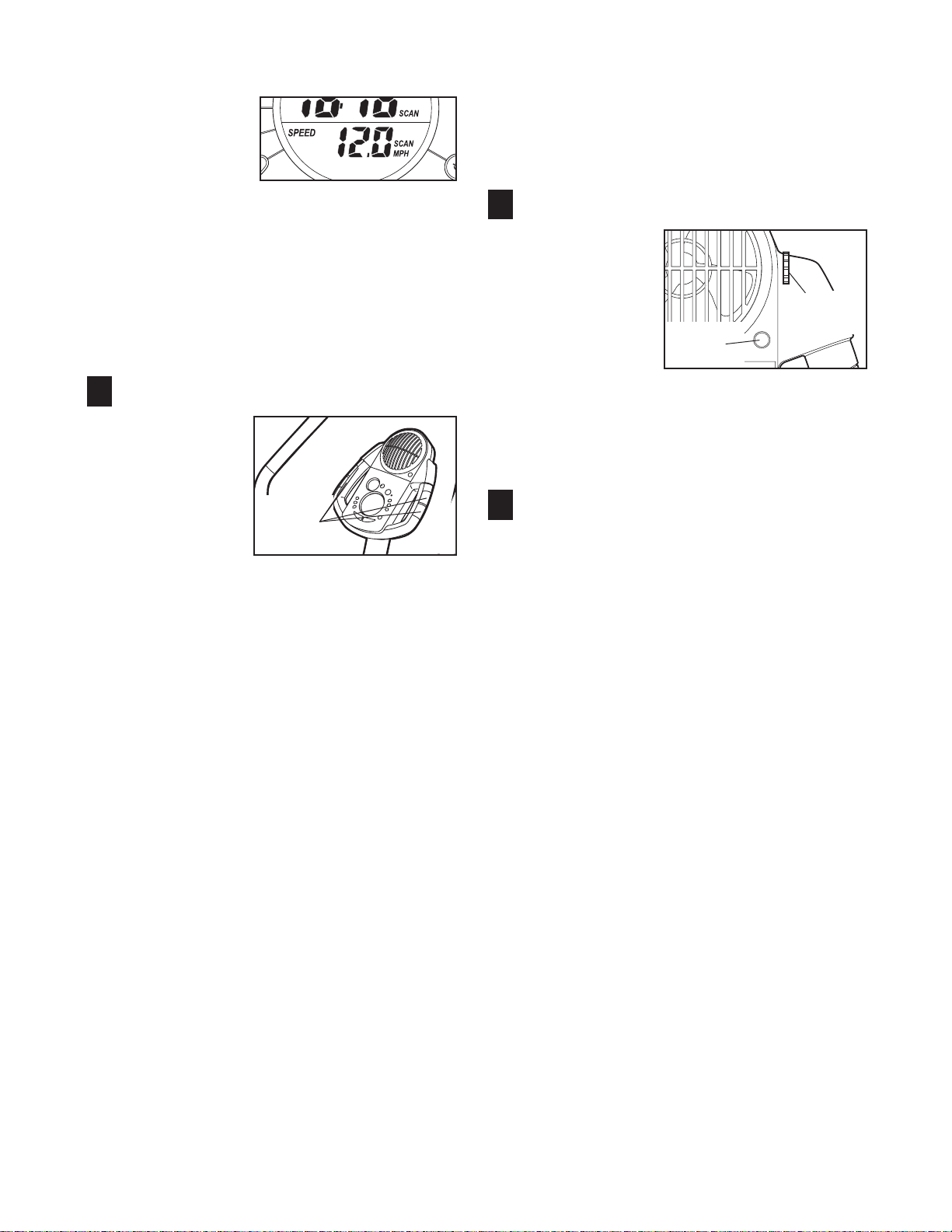

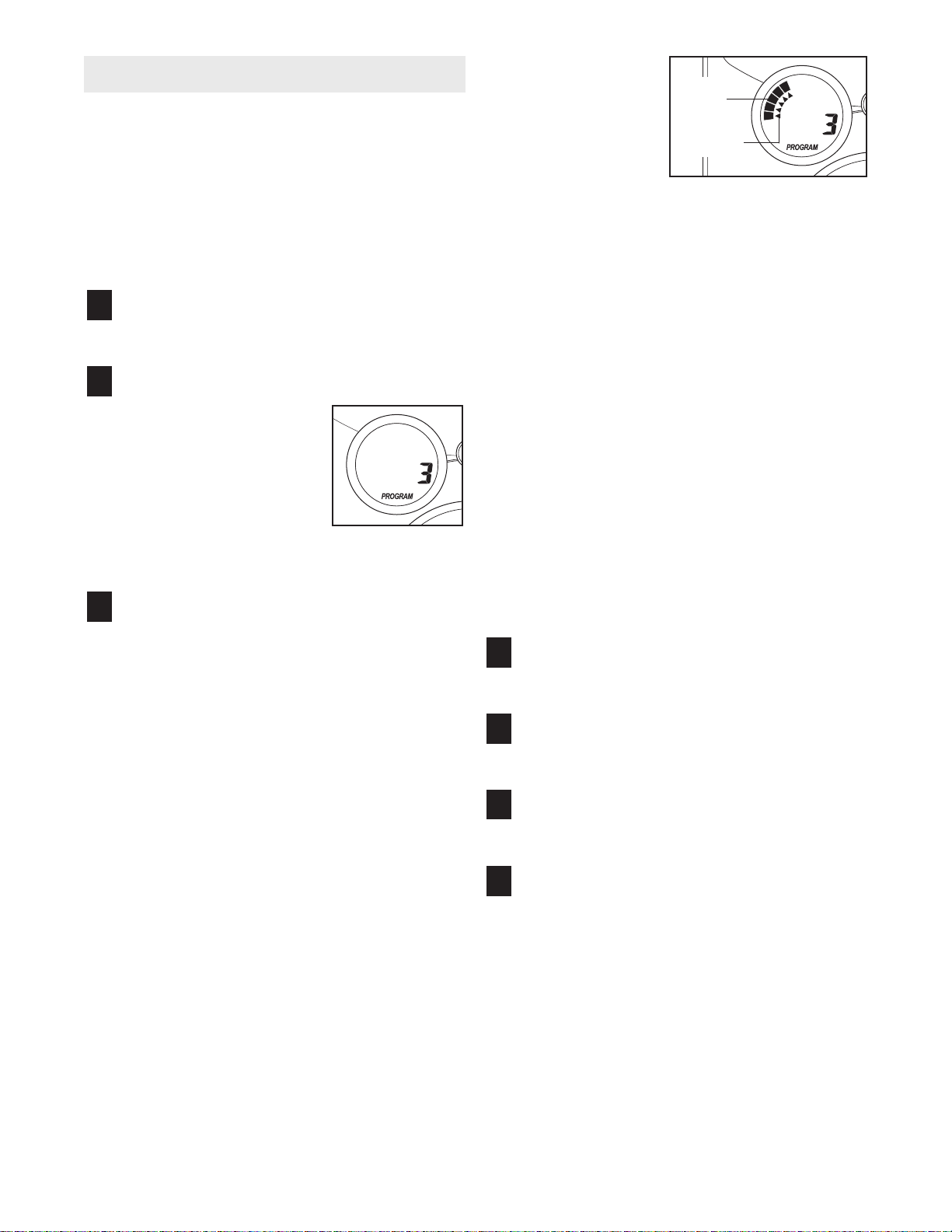

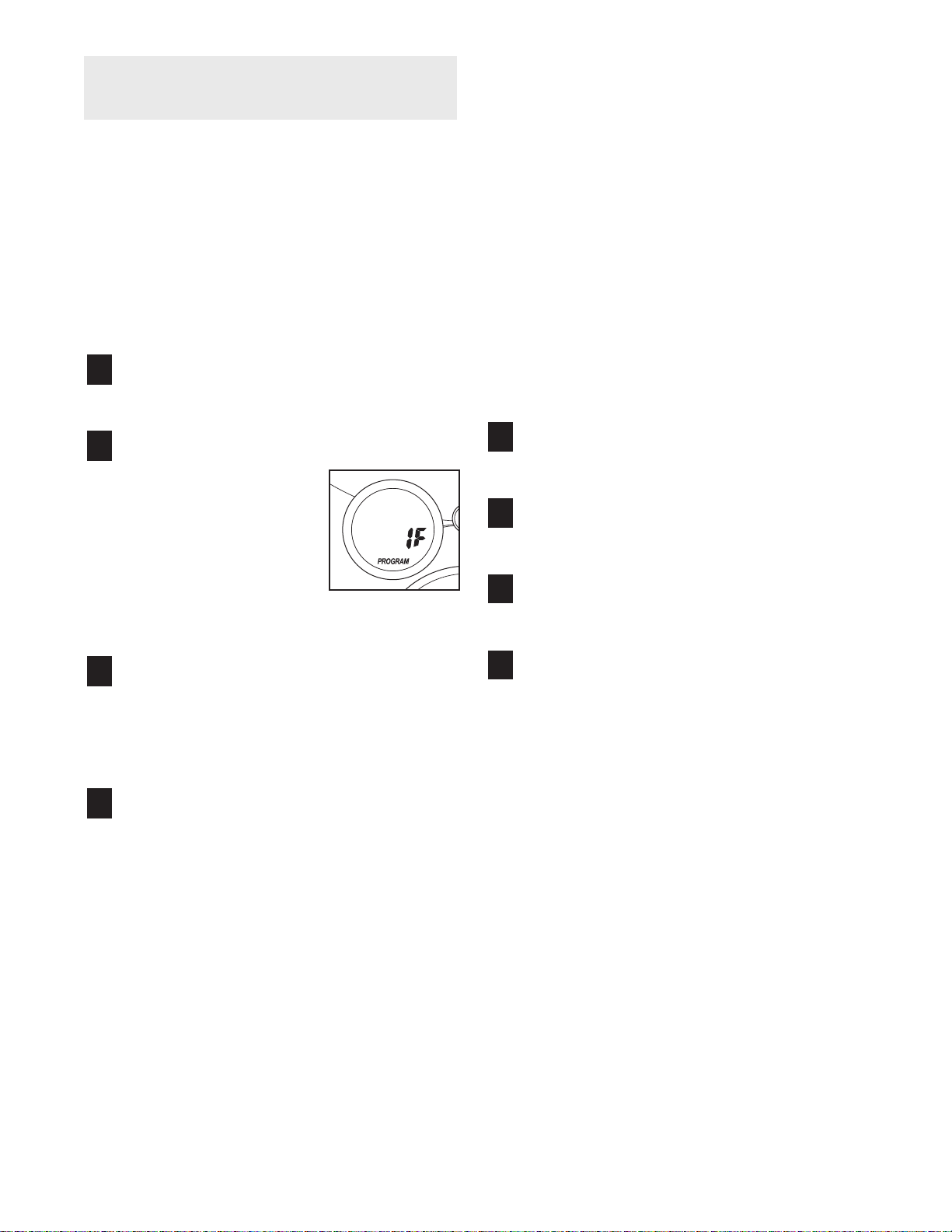

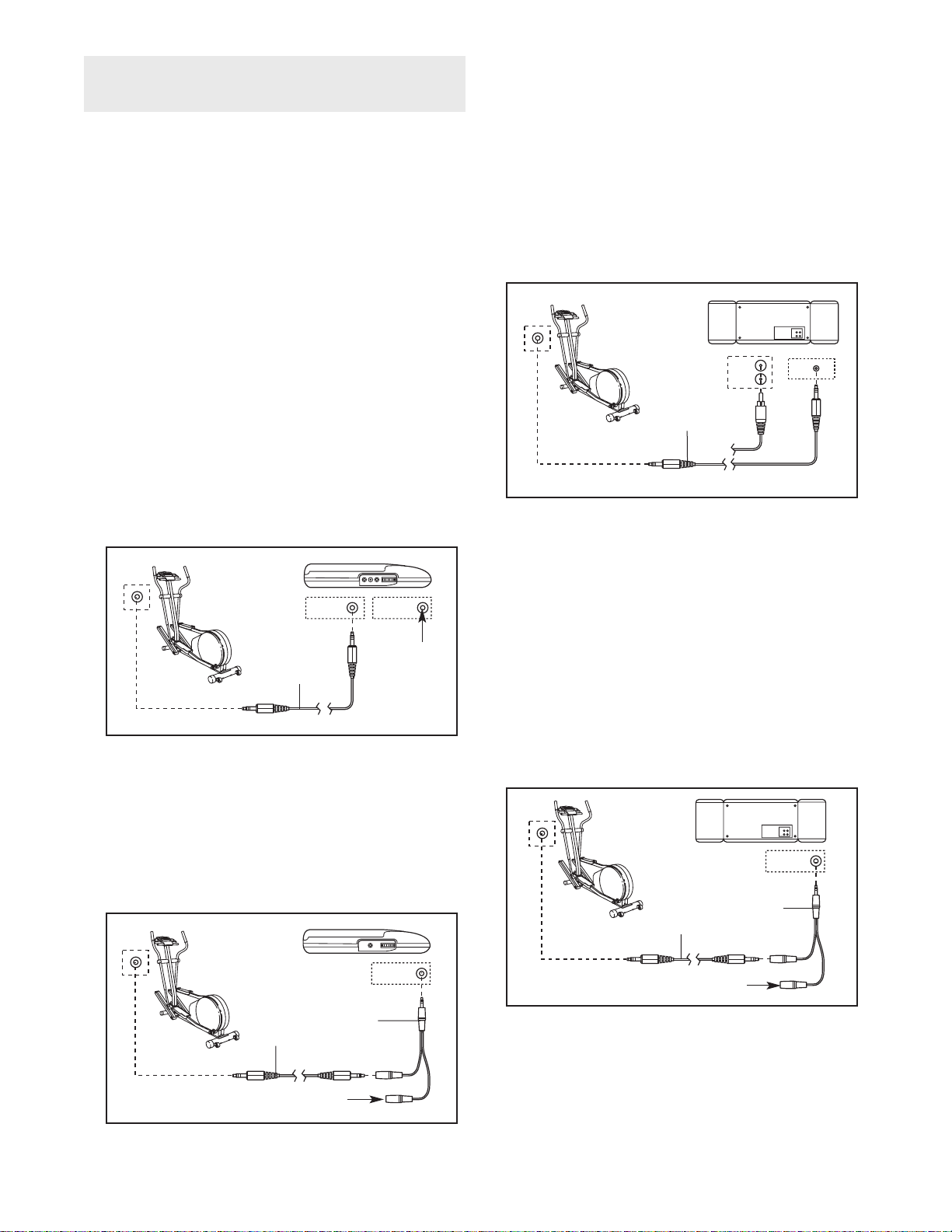

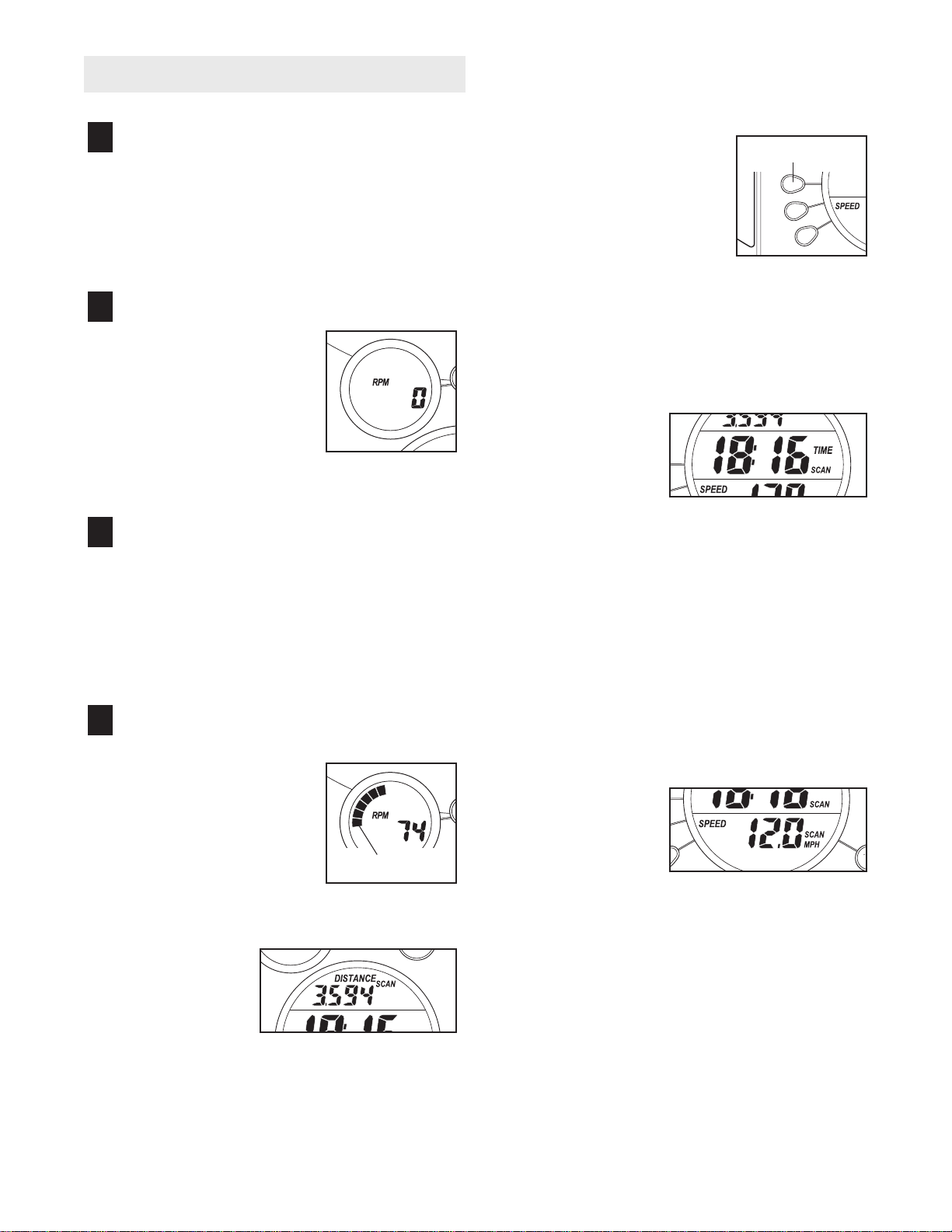

HOW TO USE THE ELLIPTICAL CROSSTRAINER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

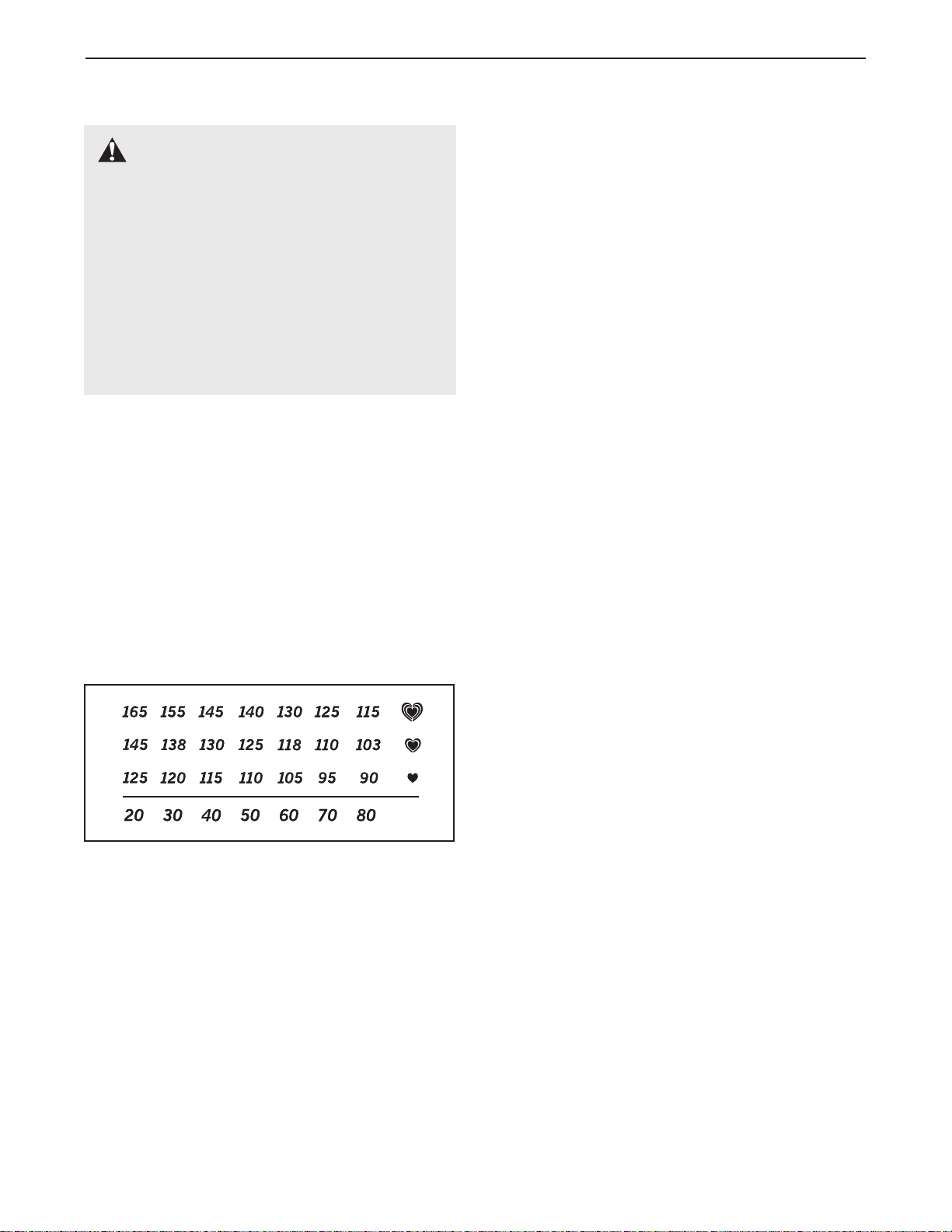

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

2

PROFORM is a registered trademark of ICON Health & Fitness, Inc.

3

IMPORTANT PRECAUTIONS

WARNING:To reduce the risk of serious injury, read the following important precau-

tions before using the elliptical crosstrainer.

1. Read all instructions in this manual before
using the elliptical crosstrainer.

2. It is the responsibility of the owner to ensure
that all users of the elliptical crosstrainer
are adequately informed of all precautions.

3. The elliptical crosstrainer is intended for
home use only. Do not use the elliptical
crosstrainer in a commercial, rental, or insti­tutional setting.

4. Place the elliptical crosstrainer on a level
surface, with a mat beneath it to protect the
floor or carpet. Keep the elliptical crosstrain­er indoors, away from moisture and dust.

5. Inspect and properly tighten all parts regu­larly. Replace any worn parts immediately.

6. Keep children under 12 and pets away from
the elliptical crosstrainer at all times.

7. The elliptical crosstrainer should not be used
by persons weighing more than 250 pounds.

8. Wear appropriate exercise clothes when
using the elliptical crosstrainer. Always wear
athletic shoes for foot protection while exer­cising.

9. Hold the handgrip pulse sensor or the han­dlebars when mounting, dismounting, or
using the elliptical crosstrainer.

10. The pulse sensor is not a medical device.
Various factors may affect the accuracy of

heart rate readings. The pulse sensor is
intended only as an exercise aid in determin­ing heart rate trends in general.

11. Keep your back straight when using the ellip­tical crosstrainer; do not arch your back.

12. If you feel pain or dizziness while exercis­ing, stop immediately and begin cooling
down.

13. When you stop exercising, allow the pedals
to slowly come to a stop.

14. The decal shown below has been placed on
the elliptical crosstrainer. If the decal is
missing, or if it is not legible, please call our
Customer Service Department toll-free at
1-800-999-3756 to order a free replacement
decal. Apply the decal in the location shown.

WARNING:Before beginning this or any exercise program, consult your physician.

This is especially important for persons over the age of 35 or persons with pre-existing health prob­lems. Read all instructions before using. ICON assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.

4

BEFORE YOU BEGIN

Congratulations for selecting the new PROFORM

®

800 CARDIO CROSSTRAINER. The PROFORM®800
is an incredibly smooth exerciser that moves your feet
in a natural elliptical path, minimizing the impact on
your knees and ankles. And the unique PROFORM

®

800 features adjustable resistance and a state-of-the­art console to help you get the most from your exer­cise. Welcome to a whole new world of natural, ellipti­cal-motion exercise from PROFORM.

For your benefit, read this manual carefully before
you use the elliptical crosstrainer. If you have

questions after reading this manual, call our Customer
Service Department toll-free at 1-800-999-3756,
Monday through Friday, 6 a.m. until 6 p.m. Mountain
Time (excluding holidays). To help us assist you,
please note the product model number and serial
number before calling. The model number is
PFEL39030. The serial number can be found on a
decal attached to the elliptical crosstrainer (see the
front cover of this manual for the location of the decal).

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.

Handgrip
Pulse Sensor

Handlebar

FRONT

BACK

LEFT SIDE

Flex Bar

Pedal Disk

*No water bottle is included

Wheel

Pedal

Console

Water Bottle Holder*

Leveling Foot

5

ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical crosstrainer in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
included allen wrenches, assembly requires a phillips screwdriver , an adjustable
wrench , and a rubber mallet .

As you assemble the elliptical crosstrainer, use the drawings below to identify the small parts used in assembly.
The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on
page 22. The second number refers to the quantity needed for assembly. Note: Some small parts may have

been pre-assembled. If a part is not in the parts bag, check to see if it has been pre-assembled.

M4 x 16mm

Screw (66)–4

Frame Spacer (83)–1

M8 x 45mm Button Bolt (50)–4

M4 x 22mm

Screw (93)–2

M8 Nylon

Locknut (46)–4

M10 Split

Washer (70)–1

M8 x 19mm Shoulder

Screw (22)–2

M10 x 112mm Carriage Bolt (34)–4

M10.3 Black

Washer (53)–2

M10 Nylon

Locknut (29)–6

M10

Washer (38)–6

M10 x 33mm Carriage

Bolt (20)–2

M10 x 88mm Button Screw (63)–1

M10 x 78mm Button Bolt (27)–2

6

1. Identify the Front Stabilizer (3). While another person
lifts the front of the Frame (1), attach the Front
Stabilizer to the Frame with two M10 x 112mm
Carriage Bolts (34) and two M10 Nylon Locknuts (29).

Make sure that the Front Stabilizer is turned so the
Wheels (32) are not touching the floor.

3

29

32

32

34

1

1

2. While another person lifts the back of the Frame (1),
attach the Rear Stabilizer (4) to the Frame with two
M10 x 112mm Carriage Bolts (34) and two M10 Nylon
Locknuts (29).

34

4

1

3

2

86

93

91

87

1

63

83

70

3. While another person holds the Upright (2) in the posi­tion shown, connect the Upper Wire Harness (86) to
the Lower Wire Harness (87). Carefully pull the

upper end of the Upper Wire Harness to remove
any slack. While holding the upper end of the
Upper Wire Harness, insert the Upright into the

Frame (1). Do not pinch the Wire Harnesses.
Slide an M10 Split Washer (70) and a Frame Spacer

(83) onto an M10 x 88mm Button Bolt (63). Insert the
Button Bolt into the Frame (1) and the Upright (2).

Make sure that the concave end of the Frame
Spacer is turned toward the Frame. Do not tighten
the Button Bolt yet.

Attach the Water Bottle Holder (91) to the Upright
(2) with two M4 x 22mm Screws (93).

2

29

29

Make sure the

wire harnesses

do not get

pinched and

damaged during

this step.

4. While another person holds the Console (5) in the
position shown, connect the wire harness on the
Console to the Upper Wire Harness (86). Insert the
excess wire harness into the Upright (2). Next, attach
the Console to the Upright with four M4 x 16mm
Screws (66). Be careful to avoid pinching the wire

harnesses.

5

86

66

66

2

Wire

Harness

4

Make sure the

wire harnesses

do not get

pinched and

damaged during

this step.

7. Hold the lower end of the left Handlebar Leg (79) inside
of the left Front Flex Bracket (17). Apply a small
amount of grease to an M10 x 78mm Button Bolt (27).
Attach the left Handlebar Leg to the left Front Flex
Bracket with the Button Bolt, two M10 Washers (38),
and an M10 Nylon Locknut (29). Do not overtighten

the Nylon Locknut; the left Handlebar Leg must be
able to pivot freely.

Attach the right Handlebar Leg (79) to the right Front
Flex Bracket (17) in the same way.

Refer to step 6. Tighten the M8 x 45mm Button Bolts
(50) in the Handlebar Legs (79). Refer to step 3.
Tighten the M10 x 88mm Button Bolt (63).

17

17

27

38

38

29

Grease

7

6. Identify the Left Handlebar (9), which is marked with a
sticker. Insert the Left Handlebar into one of the
Handlebar Legs (79); make sure that the Handlebar

Leg is turned so the hexagonal holes are on the
indicated side. Attach the Left Handlebar to the

Handlebar Leg with two M8 x 45mm Button Bolts (50)
and two M8 Nylon Locknuts (46). Make sure that the

Nylon Locknuts are inside of the hexagonal holes.
Do not fully tighten the Button Bolts yet.

Apply a small amount of the included grease to the left
and right axles on the Upright (2).

Carefully slide an Upright Spacer (26), a Handlebar
Spacer (25), the Left Handlebar (9), and a Handlebar
Cap (23) onto the left axle on the Upright (2) as shown.
Slide an M10.3 Black Washer (53) onto an M8 x 19mm
Shoulder Screw (22), and tighten the Shoulder Screw
into the axle.

Attach the Right Handlebar and the other Handlebar Leg
(not shown) in the same way.

Grease

6

7

26

25

9

2

23

22

53

50

46

Hexagonal

Holes

79

79

79

5. The Console (5) requires four “D” batteries (not includ­ed); alkaline batteries are recommended. Pull the bat­tery drawer open. Insert four batteries into the battery
drawer. Make sure that the batteries are oriented as

shown by the diagram inside the battery drawer.

Close the battery drawer. Note: When the batteries are
installed correctly, the fan will turn on for a moment.

Battery
Drawer

5

Batteries

5

8

9. Make sure that all parts of the elliptical crosstrainer are properly tightened. Note: Some hardware may
be left over after assembly is completed. To protect the floor or carpet from damage, place a mat under the
elliptical crosstrainer.

8

20

15

38

14

13

8. Identify the Left Pedal (13). Attach the Left Pedal to the
left Flex Bar (14) with an M10 x 33mm Carriage Bolt
(20), an M10 Washer (38), and a Pedal Knob (15) as
shown. Note: The Left Pedal can be attached in any of
five positions (see HOW TO ADJUST THE PEDALS on
page 9).

Attach the Right Pedal (not shown) in the same way.
Make sure that both Pedals are in the same position.
