ProForm PFEL29240 User Manual

Model No. PFEL29240

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

Serial No.

Serial Number

Decal

QUESTIONS?

If you have questions, or if there are missing parts, we will guarantee complete satisfaction through direct assistance from our factory.

TO AVOID DELAYS, PLEASE CALL DIRECT TO OUR TOLLFREE CUSTOMER HOT LINE. The trained technicians on our customer hot line will provide immediate assistance, free of charge to you.

USER’S MANUAL

CUSTOMER HOT LINE:

1-888-533-1333

Mon.–Fri., 6 a.m.–6 p.m. MST

CAUTION

Read all precautions and instructions in this manual before using this equipment. Keep this manu al for future reference.

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

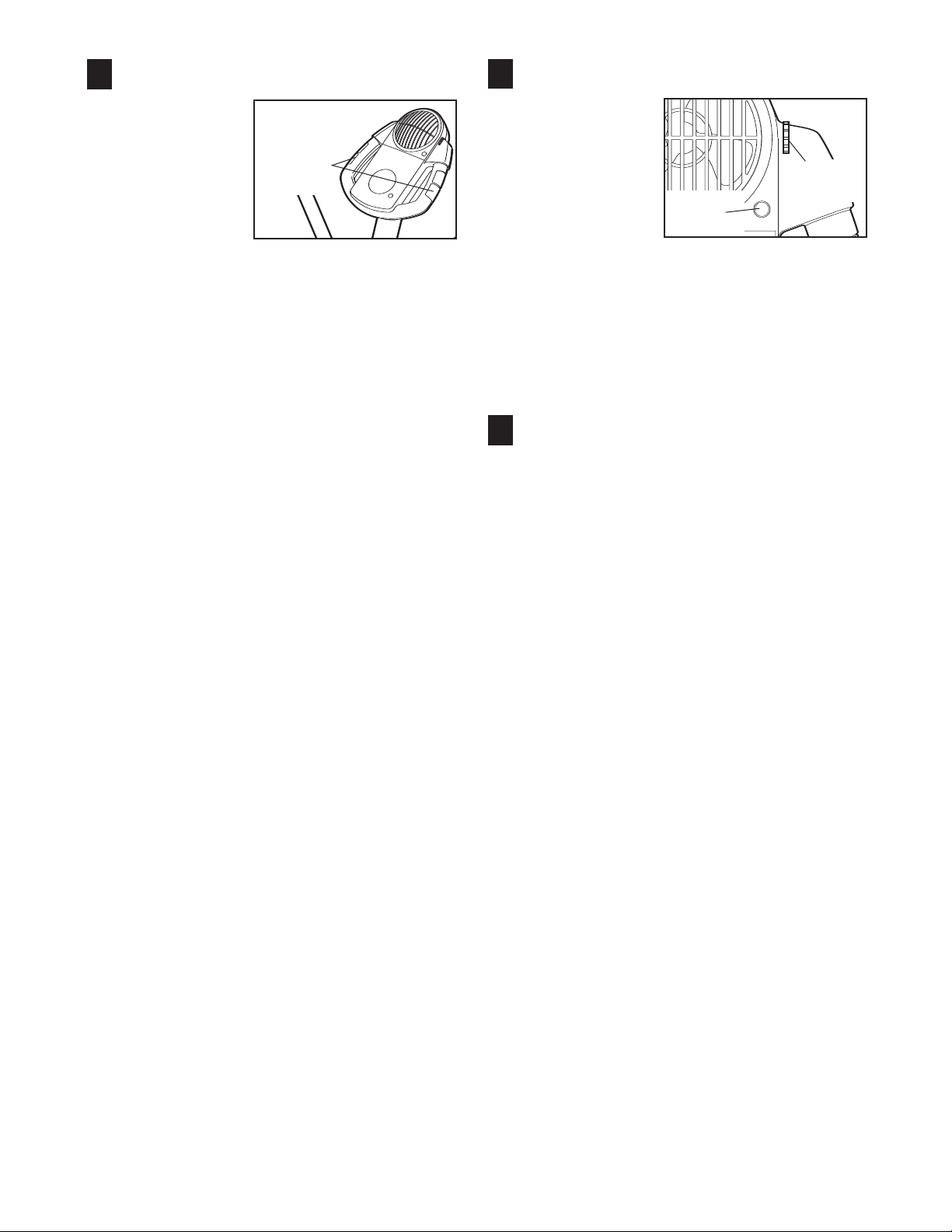

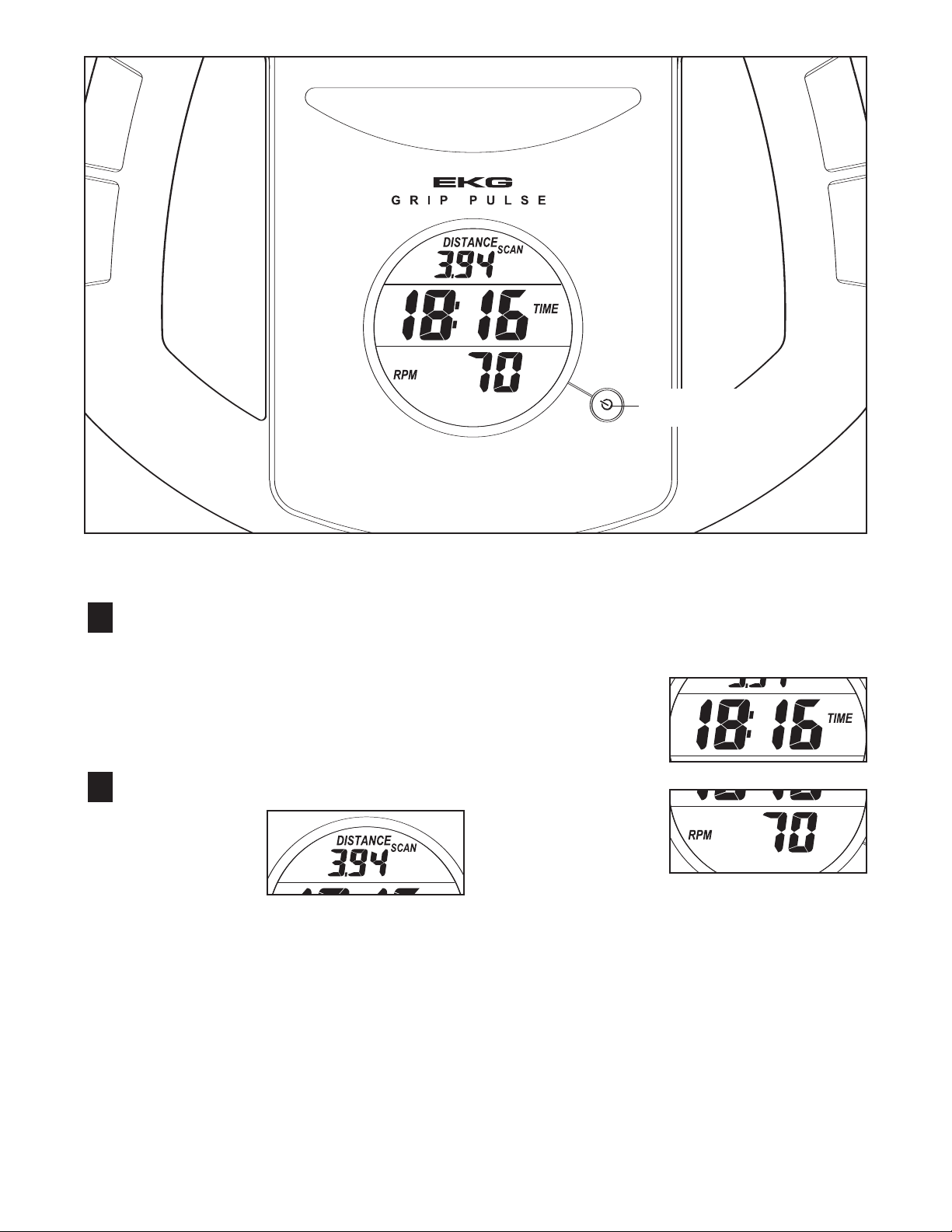

HOW TO USE THE ELLIPTICAL CROSSTRAINER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

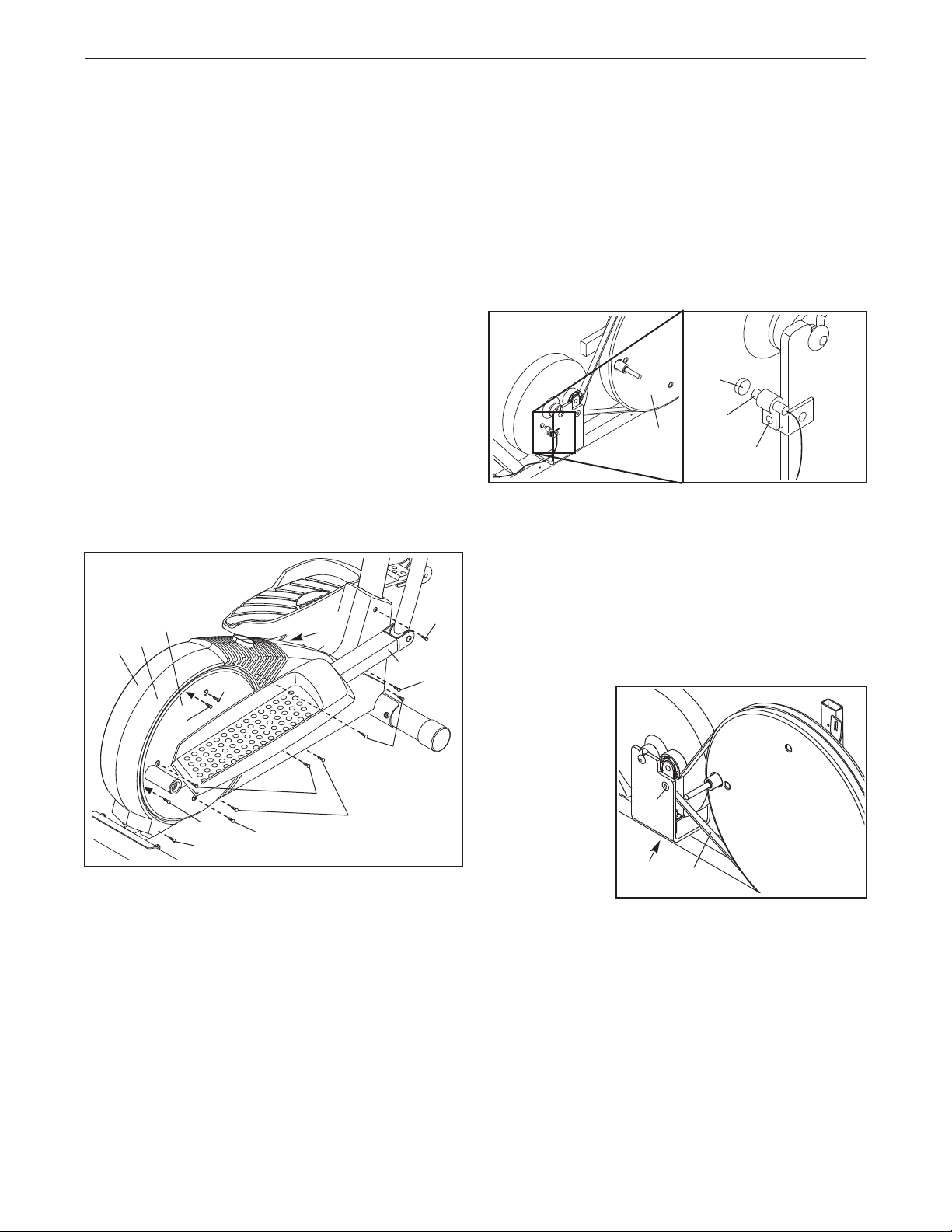

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

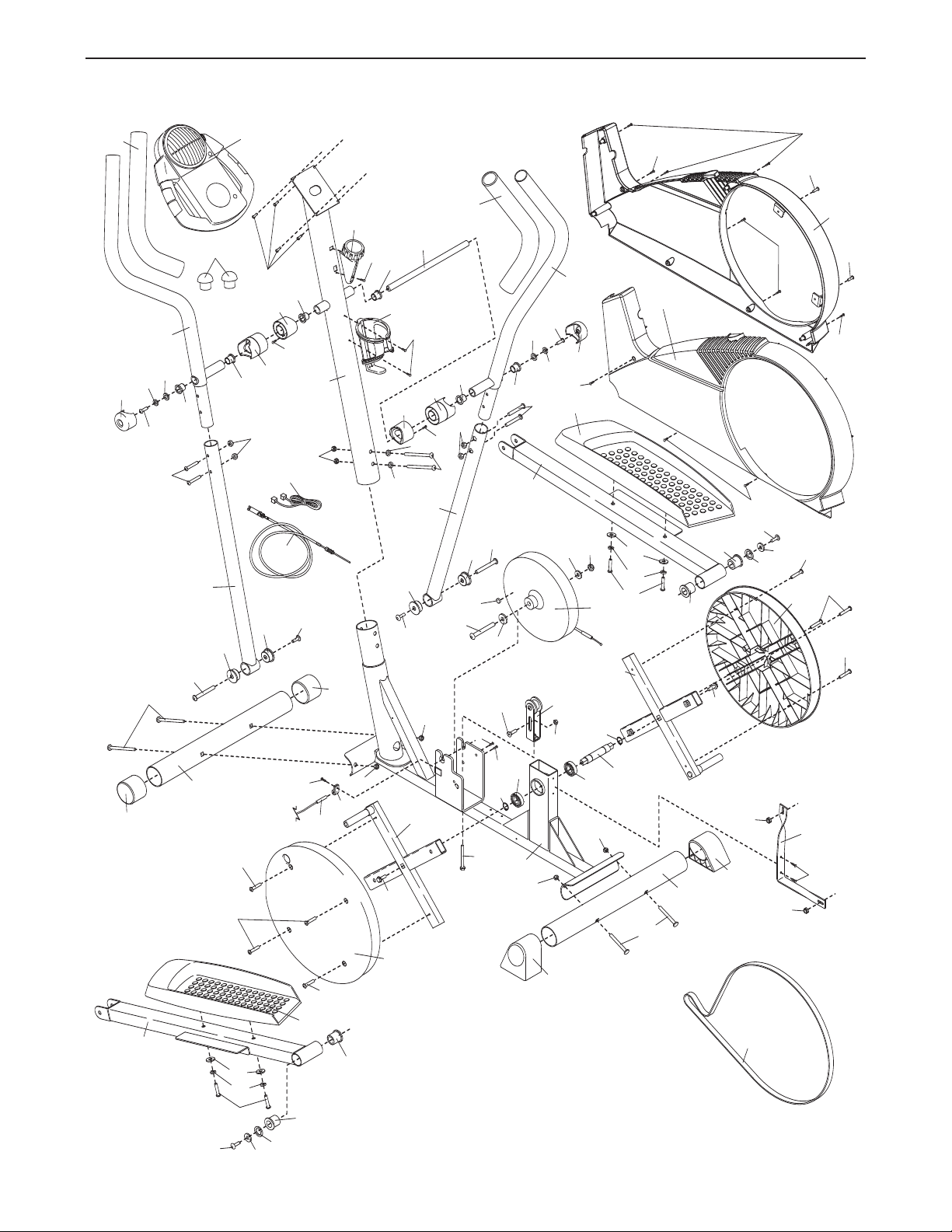

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

PROFORM is a registered trademark of ICON IP, Inc.

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read the following important precau-

tions before using the elliptical crosstrainer.

. Read all instructions in this manual before

using the elliptical crosstrainer.

2. It is the responsibility of the owner to ensure that all users of the elliptical crosstrainer are adequately informed of all precautions.

. The pulse sensor is not a medical device.

Various factors, including the user's movement, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.

3. Place the elliptical crosstrainer on a level surface, with a mat beneath it to protect the floor or carpet. Keep the elliptical crosstrainer indoors, away from moisture and dust.

Inspect and properly tighten all parts regu-

4. larly. Replace any worn parts immediately.

5. Keep children under 12 and pets away from the elliptical crosstrainer at all times.

6. The elliptical crosstrainer should not be used by persons weighing more than 250 pounds.

7. Wear appropriate exercise clothes when using the elliptical crosstrainer. Always wear athletic shoes for foot protection.

8. Always hold the handles on the console or the handlebars when mounting, dismounting, or using the elliptical crosstrainer.

10. Keep your back straight when using the elliptical crosstrainer; do not arch your back.

11. If you feel pain or dizziness while exercising, stop immediately and cool down.

12. When you stop exercising, allow the pedals to slowly come to a stop.

13. The elliptical crosstrainer is intended for home use only. Do not use the elliptical crosstrainer in a commercial, rental, or institutional setting.

14. The warning decal shown on page 4 has been applied to the elliptical crosstrainer. If the decal is missing, or if it is not legible, call our Customer Service Department tollfree at 1-888-533-1333 and order a free replacement decal. Apply the decal in the location shown.

WARNING: Before beginning this or any exercise program, consult your physician.

This is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

BEFORE YOU BEGIN

PENDING M

DRAWINGS PREVIOUS TO LAST REV. DATE ARE OBSOLETE

REV ECN DESCRIPTION OF CHANGE

Congratulations for selecting the new PROFORM

75 CARDIO CROSSTRAINER. The PROFORM 675

is an incredibly smooth exerciser that moves your feet in a natural elliptical path, minimizing the impact on your knees and ankles. And the unique PROFORM 675 features adjustable resistance and a simple-touse console to help you get the most from your exercise. Welcome to a whole new world of natural, elliptical-motion exercise from PROFORM.

For your benefit, read this manual carefully before using the elliptical crosstrainer. If you have ques-

Pulse Sensor

Resistance Knob

tions after reading this manual, please call our

ustomer Service Department toll-free at 1-888-533-

C 1333, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please note the product model number and serial number before calling. The model number is PFEL29240. The serial number is found on a decal attached to the elliptical crosstrainer (see the front cover of this manual for the location of the decal).

Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.

Handlebar

Console

FRONT

Pedal

LEFT SIDE

Water Bottle Holder*

BACK

Pedal Disk

*No water bottle

is included

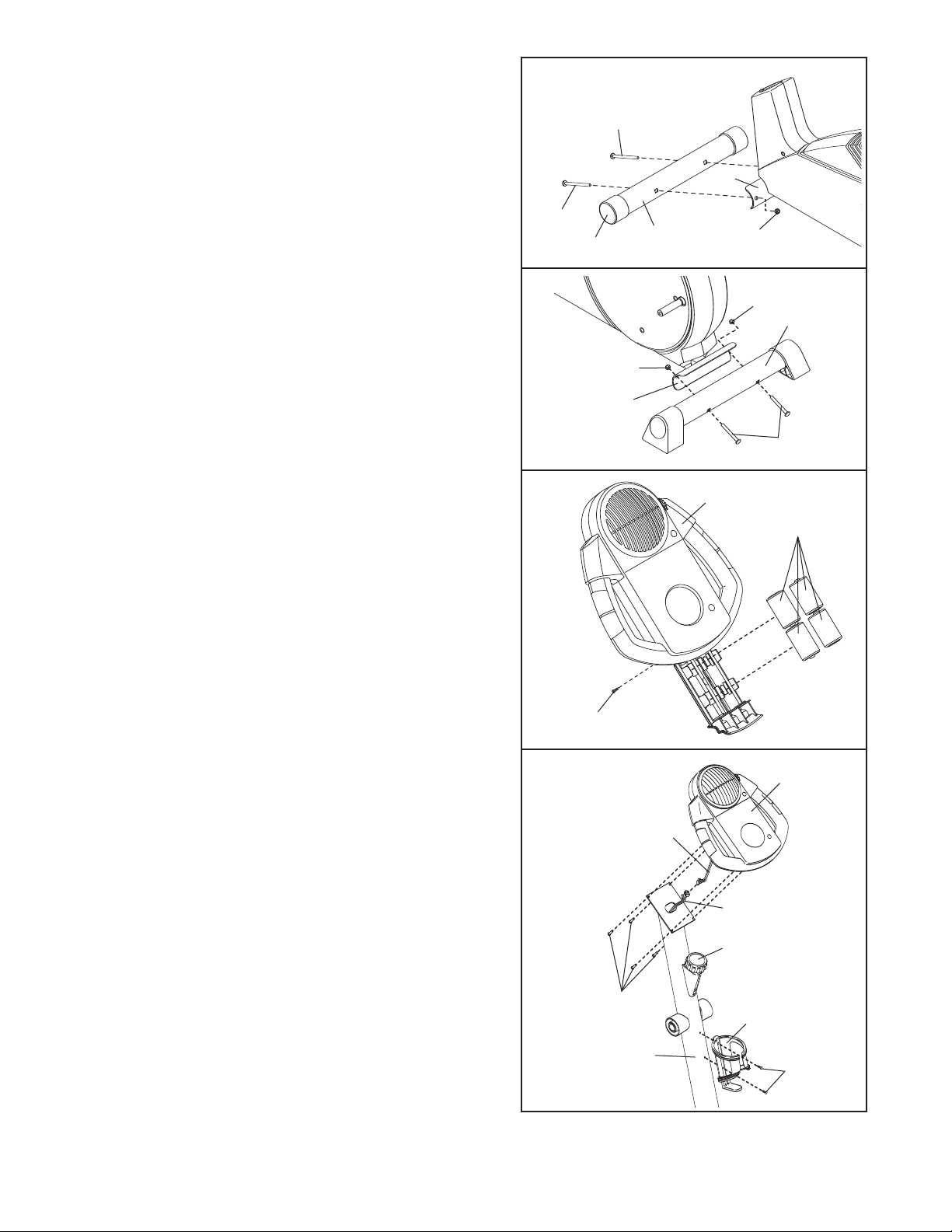

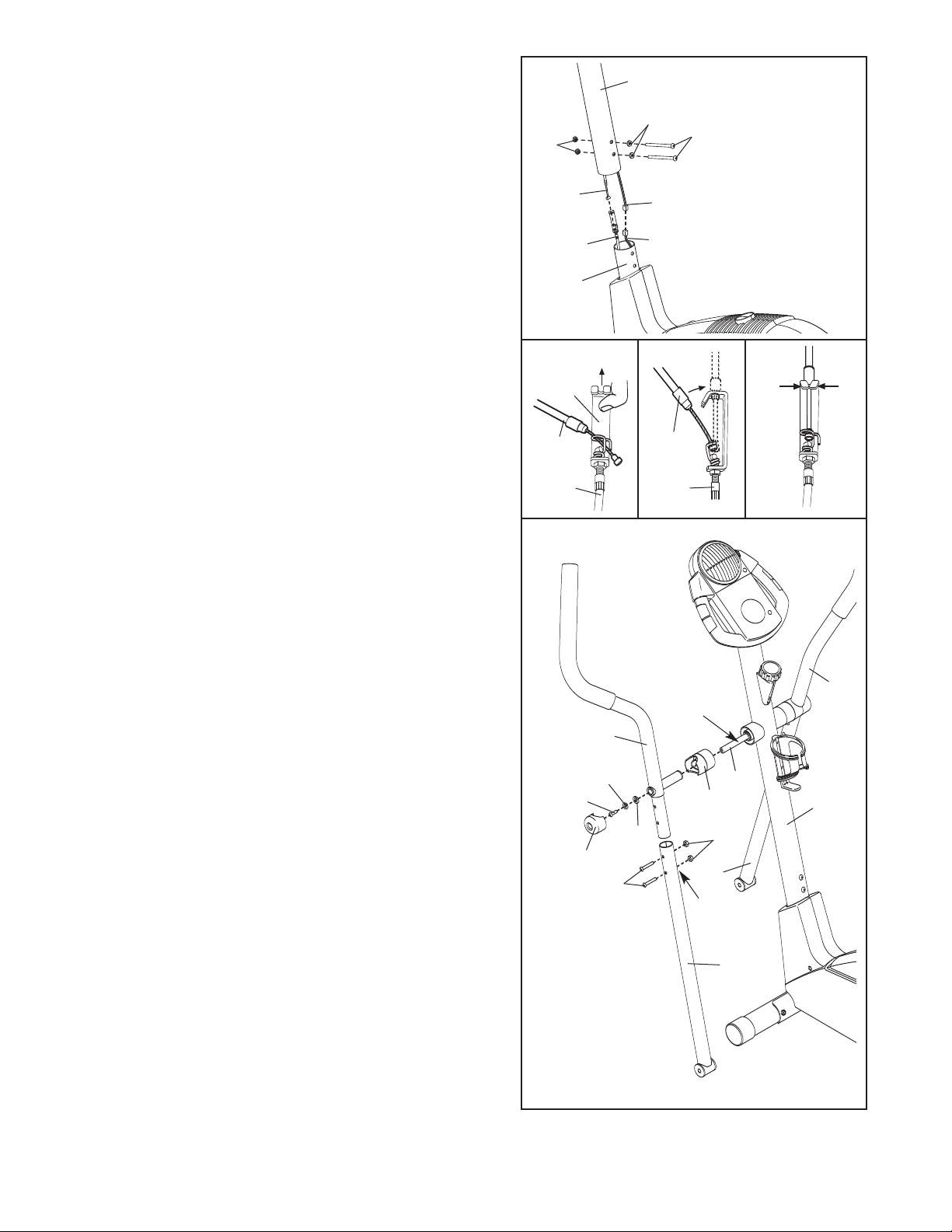

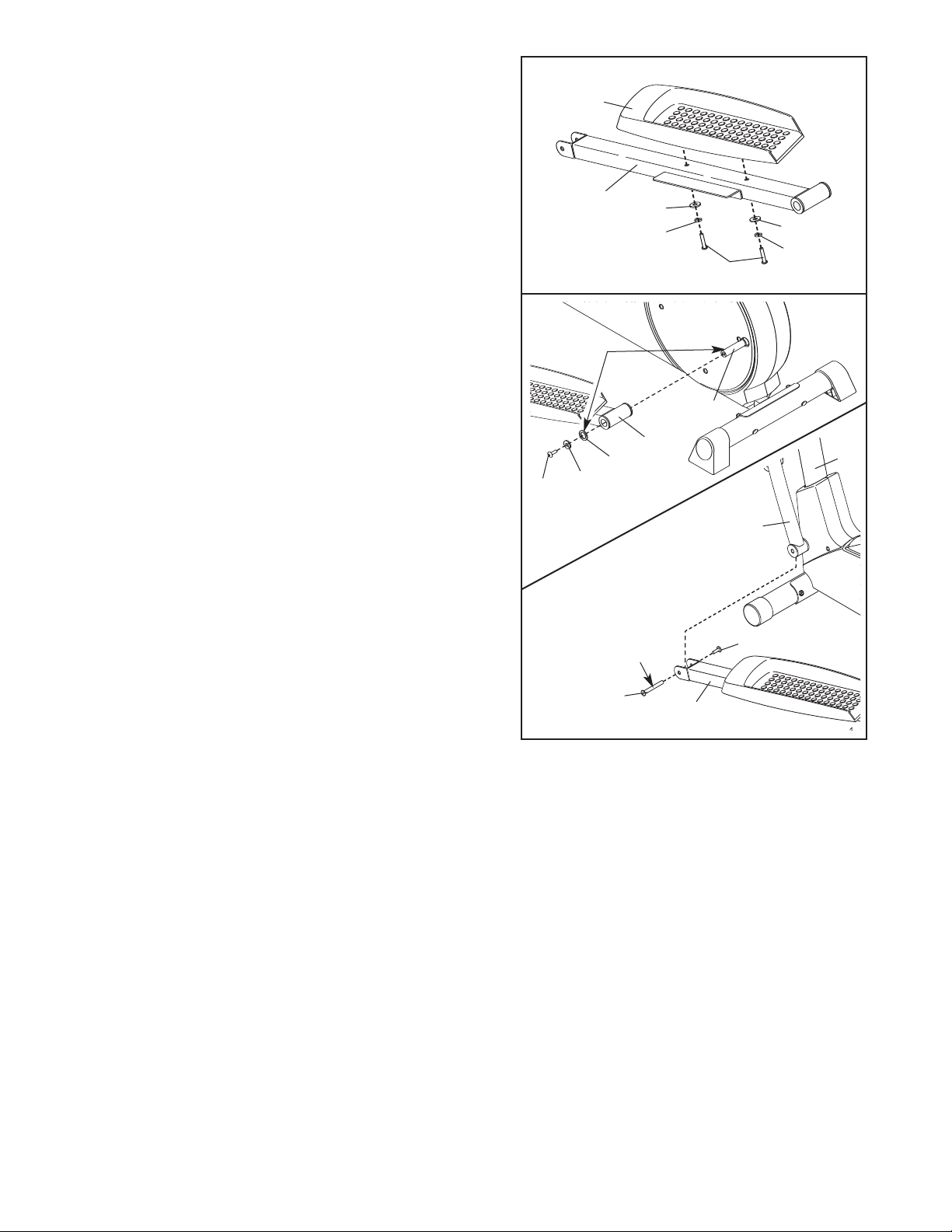

ASSEMBLY

M10 Split

Washer (45)–2

M10 Nylon

Locknut (33)–6

M10 Bolt Set (25)–2

Pedal Leg

Washer (35)–2

M8 Nylon

Locknut (38)–4

M8 x 45mm Button Bolt (50)–4

M10 x 27mm

Patch Screw (40)–2

M10 x 75mm Carriage Bolt (34)–4M10 x 74mm Button Bolt (7)–2

M8 Split

Washer (28)–4

Handlebar

Washer (55)–2

M8 x 25mm Patch

Screw (56)–2

Washer (71)–4

M4 x 22mm

Screw (63)–2

M8 x 52mm Button

Screw (27)–4

Wave

Washer (69)–2

Large Wave

Washer (72)–2

ssembly requires two persons.Place all parts of the elliptical crosstrainer in a cleared area and remove the

A packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the

ncluded allen wrenches, assembly requires a phillips screwdriver , an adjustable

i wrench , and a rubber mallet .

As you assemble the elliptical crosstrainer, use the drawings below to identify the small parts used in assembly. The number in parenthesis below each drawing refers to the key number of the part, from the PART LIST on page 14. The second number refers to the quantity used in assembly.

pre-assembled for shipping. If a part is not in the parts bag, check to see if it has been pre-assembled.

Note: Some small parts may have been
