ProForm PFEL28010 User Manual
CAUTION
Read all precautions and
instructions in this manual
before using this equipment.
Keep this manual for future
reference.
Model No. PFEL28010
Serial No.
Serial
Number
Decal
QUESTIONS?
If you have questions, or if
there are missing or damaged
parts, we will guarantee complete satisfaction through direct
assistance from our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLLFREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot line will provide
immediate assistance, free of
charge.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
Patent Pending
USER'S MANUAL
Visit our website at
www.proform.com
new products, prizes,
fitness tips, and much more!
2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

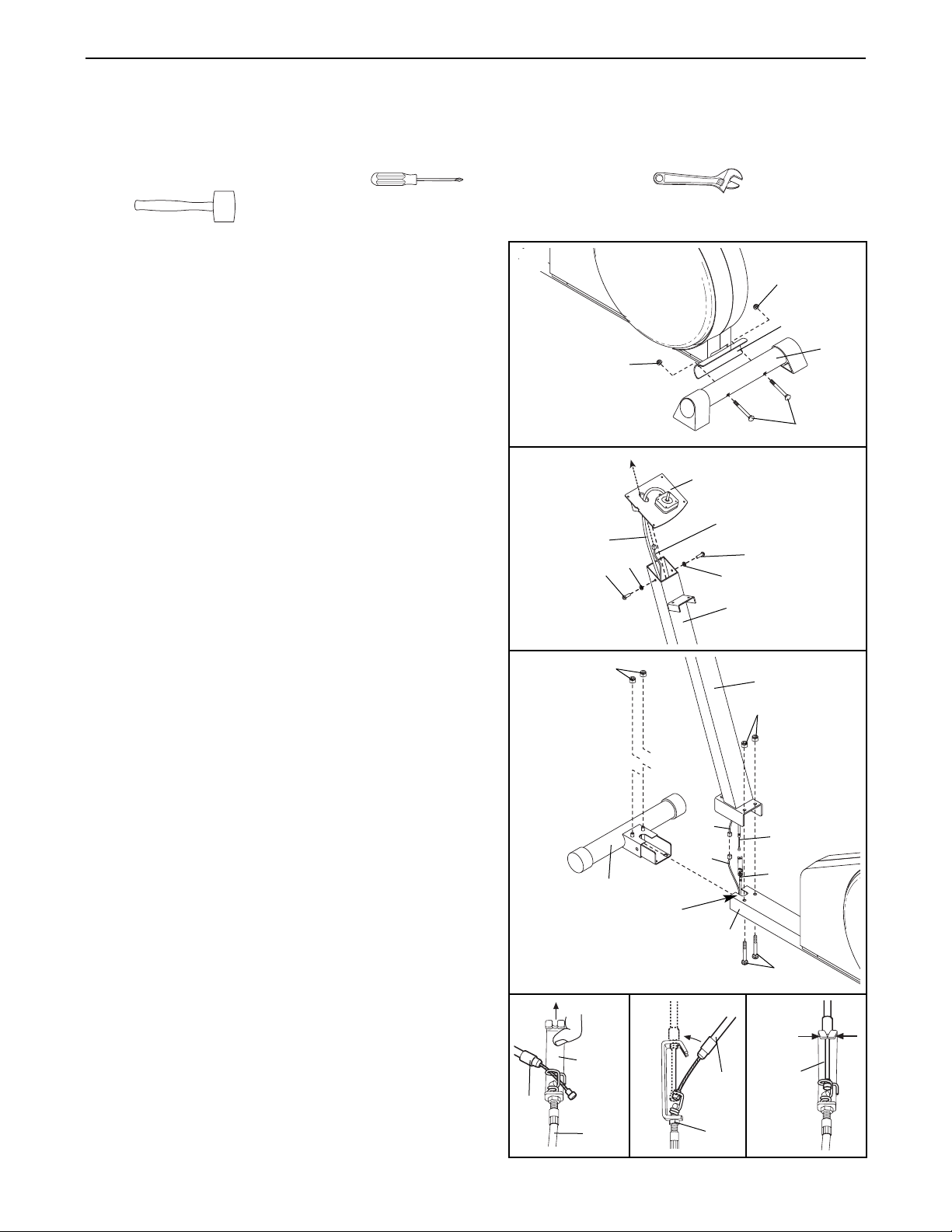

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

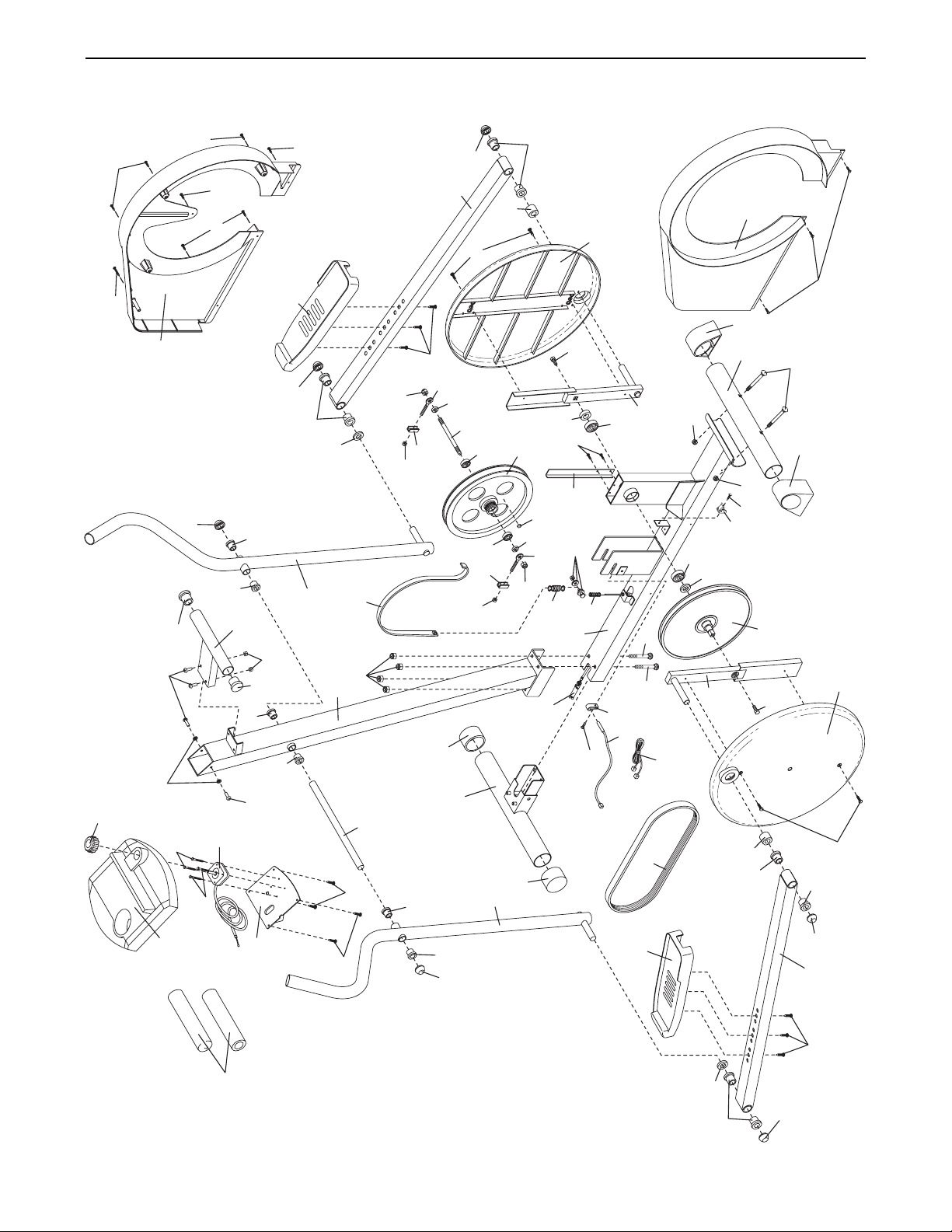

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
3
IMPORTANT PRECAUTIONS
WARNING:
To reduce the risk of serious injury, read the following important precau-
tions before using the elliptical.
1. Read all instructions in this manual before
using the elliptical.
2. Use the elliptical only as described in this
manual.
3. It is the responsibility of the owner to
ensure that all users of the elliptical are adequately informed of all precautions.
4. Place the elliptical on a level surface, with a
mat beneath it to protect the floor or carpet.
Keep the elliptical indoors, away from moisture and dust.
5. Inspect and tighten all parts regularly.
Replace any worn parts immediately.
6. Keep children under the age of 12 and pets
away from the elliptical at all times.
7. The elliptical should not be used by persons
weighing more than 250 pounds.
8. Wear appropriate clothing when using the
elliptical. Always wear athletic shoes for foot
protection.
9. When mounting and dismounting the elliptical, always hold the handlebars or the Thandle and step onto and off the pedal that
is in the lowest position.
10. Each time you stop exercising on the
elliptical, allow the pedals to come to
a complete stop before dismounting.
11. Always keep your back straight when using
the elliptical. Do not arch your back.
12. If you feel pain or dizziness at any time
while exercising, stop immediately and
begin cooling down.
13. The elliptical is intended for in-home use
only. Do not use the elliptical in a commercial, rental, or institutional setting.
WARNING:Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health
problems. Read all instructions before using. ICON assumes no responsibility for personal injury
or property damage sustained by or through the use of this product.
4
BEFORE YOU BEGIN
Congratulations for selecting the PROFORM
®
545S low-impact elliptical exerciser. The 545S is an
incredibly smooth exerciser that moves your feet in a
natural elliptical path, minimizing the impact on your
knees and ankles. And the unique 545S features
adjustable resistance, upper-body and stationary handlebars, and a multi-mode exercise monitor to help
you get the most from your exercise. Welcome to a
whole new world of natural, elliptical-motion exercise
from PROFORM.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading the manual, call our Customer Service
Department toll-free at 1-800-999-3756, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time
(excluding holidays). To help us assist you, please
note the product model number and serial number
before calling. The model number is PFEL28010. The
serial number can be found on a decal attached to the
elliptical (see the front cover of this manual for the
location of the decal).
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Resistance Knob
FRONT
BACK
LEFT SIDE
Pedal Arm
Pedal Disk
Side Shield
Pedal
Book Holder
Upright
Water Bottle Holder
(Bottle not included)
T-Handle
Handlebar
5
PART IDENTIFICATION CHART
Use the chart below to identify the small parts used in
assembly. The number in parenthesis below each part
refers to the key number of the part, from the PART
LIST on page 14. The number after the dash indicates
the quantity needed for assembly. Note: Some small
parts may have been pre-attached for shipping. If
a part is not in the parts bag, check to see if it has
been pre-attached.
* Extra parts may be included.
M4 x 19mm Flange
Screw (9)—6
M10 x 75mm Carriage Bolt (47)—2
M4 x 16mm
Screw (16)—4
M6 x 16mm Button
Screw (54)—4
M6 Nylon
Locknut (55)—2
M10 x 68mm Carriage Bolt (60)—2
M10 Nylon
Locknut (29)—6
Nylon Spacer (39)—2
3/4” Axle Cap (43)—4*
Pedal Arm Spacer (41)—2*
5/8” Axle Cap (57)—2*
