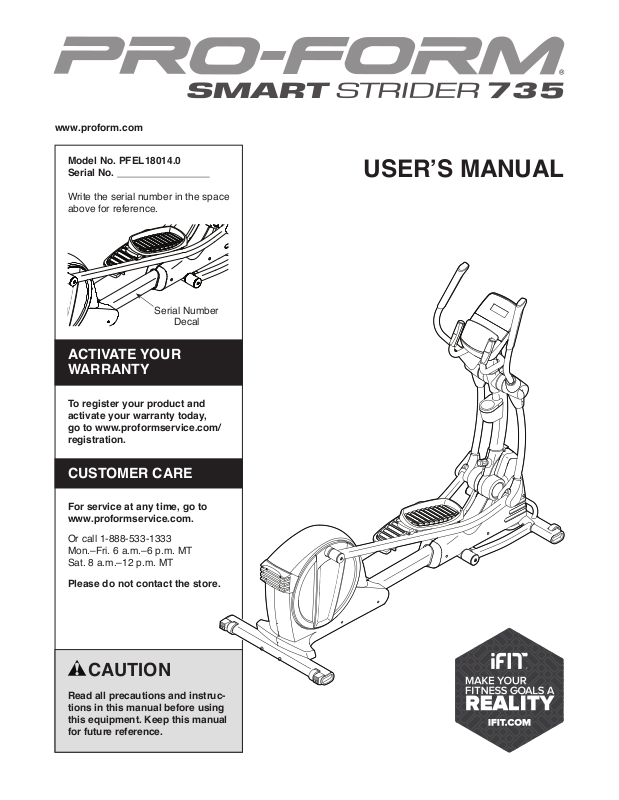

ProForm PFEL180140 User Manual
www.proform.com
Model No. PFEL18014.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
ACTIVATE YOUR
WARRANTY
To register your product and
activate your warranty today,
go to www.proformservice.com/
registration.
USER’S MANUAL
CUSTOMER CARE
For service at any time, go to
www.proformservice.com.
Or call 1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s)
of the warning decal(s). If a decal is
missing or illegible, see the front
cover of this manual and request a
free replacement decal. Apply the
decal in the location shown. Note:
The decal(s) may not be shown at
actual size.
PROFORM is a registered trademark of ICON Health & Fitness, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your elliptical before
using your elliptical. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons with pre-existing health problems.
3. Use the elliptical only as described in this
manual.
4. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
5. Keep the elliptical indoors, away from moisture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
6. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from damage, place a mat under the elliptical.
7. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the elliptical at all times.
9. When connecting the power cord (see page
10), plug the power cord into a grounded
circuit.
10. Do not modify the power cord or use an
adapter to connect the power cord to an
improper receptacle. Keep the power cord
away from heated surfaces. Do not use an
extension cord.
11. Do not operate the elliptical if the power cord
or plug is damaged, or if the elliptical is not
working properly.
12. DANGER: Always unplug the power
cord and switch the power switch to the off
position when the elliptical is not in use and
before cleaning the elliptical. Servicing other
than the procedures in this manual should
be performed by an authorized service representative only.
13. Do not attempt to place the elliptical in the
storage position until it is properly assembled and the upright is folded. You must
be able to safely support 100 lbs. (45 kg) to
place the elliptical in the storage position.
14. The elliptical should not be used by persons
weighing more than 300 lbs. (136 kg).
15. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
16. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
17. The heart rate monitor is not a medical
device. Various factors may affect the accuracy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
18. The elliptical does not have a freewheel; the
pedals will continue to move until the flywheel stops. Reduce your pedaling speed in
a controlled way.
19. Keep your back straight while using the elliptical; do not arch your back.
20. Over exercising may result in serious injury
or death. If you feel faint, if you become short
of breath, or if you experience pain while
exercising, stop immediately and cool down.
SAVE THESE INSTRUCTIONS
3
4
STANDARD SERVICE PLANS
all
5
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM®
SMART STRIDER 735 elliptical. The SMART
STRIDER 735 elliptical provides an impressive selection of features designed to make your workouts at
home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
Length: 6 ft. 2 in. (188 cm)
Width: 2 ft. 1 in. (64 cm)
Heart Rate Monitor
Handlebar
Accessory Tray
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Console
Upper Body Arm
Large Storage Foot
Wheel
Small Storage Foot
Leveling Foot
Upright Knob
Pedal
Pedal Handle
Latch
Handle
Wheel
Incline Frame
6
ASSEMBLY
• To hire an authorized service technician to
assemble this product, call 1-800-445-2480.
• Assembly requires two persons.
1. Go to www.proformservice.com/registration
on your computer and register your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Care
• allows us to notify you of upgrades and offers
Note: If you do not have Internet access, call
Customer Care (see the front cover of this
manual) and register your product.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you fi nish all assembly steps.
• Assembly requires only the included tool(s).
1
2. With the help of another person, place some
sturdy packing materials under the rear of the
Frame (1) so that the Frame is lifted off the floor.
Have the other person hold the elliptical to
prevent it from tipping.
If there are shipping supports attached to the
rear of the Frame (1), remove the screws attaching the shipping supports. Discard the screws
and the shipping supports.
Attach the Rear Stabilizer (70) to the Frame (1)
with two M10 x 120mm Screws (84).
Then, remove the packing materials and lower
the elliptical.
2
70
1
84
7
3. With the help of another person, place some
sturdy packing materials under the front of the
Frame (1). Have the other person hold the
elliptical to prevent it from tipping.
If there are shipping supports attached to the
front of the Frame (1), remove the screws attaching the shipping supports. Discard the screws
and the shipping supports.
Attach the Front Stabilizer (73) to the Frame (1)
with two M10 x 120mm Screws (84).
Then, remove the packing materials and lower
the elliptical.
3
73
1
84
4. With the help of a second person, raise the
Upright (2) to the vertical position.
See the inset drawing. Tighten the Upright
Knob (85).
4
2
85
8
5. Rotate the Right Upper Body Arm (9) to the position shown.
Attach the Right Upper Body Arm (9) to the
Right Upper Body Leg (6) with an M10 x 50mm
Screw (95).
Next, tighten the indicated M10 x 45mm
Screw (78).
5
9
20
78
Then, press the Upper Body Arm Cover (20)
downward and turn it so that it is flush with the
Right Leg Front and Rear Covers (11, 15).
Repeat this step on the other side of the
elliptical.
6. Make sure that all parts of the elliptical are properly tightened. Note: Extra parts may be included. Place
a mat beneath the elliptical to protect the floor.
95
11, 15
6
9
HOW TO USE THE ELLIPTICAL
HOW TO PLUG IN THE POWER CORD
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of
electric shock. The power cord has a plug with a
grounding pin.
DANGER: Improper connection of
the power cord increases the risk of electric
shock. Do not modify the plug; if it will not fit
an outlet, have a proper outlet installed by a
qualified electrician. If you are unsure whether
the product is properly grounded, contact a
qualified electrician.
Plug the
power cord
into an
appropriate
outlet that
is properly
installed and
grounded in
accordance
with all local
codes and
ordinances. The outlet must be on a nominal 120-volt
circuit.
Grounded Outlet
Grounding Pin
A temporary
adapter may
be used to
connect the
power cord
to a 2-pole
receptacle
as shown
at the right
if a properly
grounded
outlet is not
available.
The lug or wire extending from the adapter must
be connected with a metal screw to a permanent
ground such as a properly grounded outlet box cover.
Some 2-pole receptacle outlet box covers are not
grounded. Before using an adapter, contact a qualified electrician to determine whether the outlet
box cover is grounded before using an adapter.
The temporary adapter should be used only until
a properly grounded outlet can be installed by a
qualified electrician.
2-pole Receptacle
Adapter
Lug
Metal Screw
10
