Page 1
www.proform.com
Model No. PFEL18012.2
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal (under frame)
ACTIVATE YOUR
WARRANTY
USER’S MANUAL
To register your product and
activate your warranty today,
go to www.proformservice.com/
registration.
CUSTOMER CARE
For service at any time, go to
www.proformservice.com.
Or call 1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–12 p.m. MT
Please do not contact the store.
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
Page 2
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
WARNING DECAL PLACEMENT

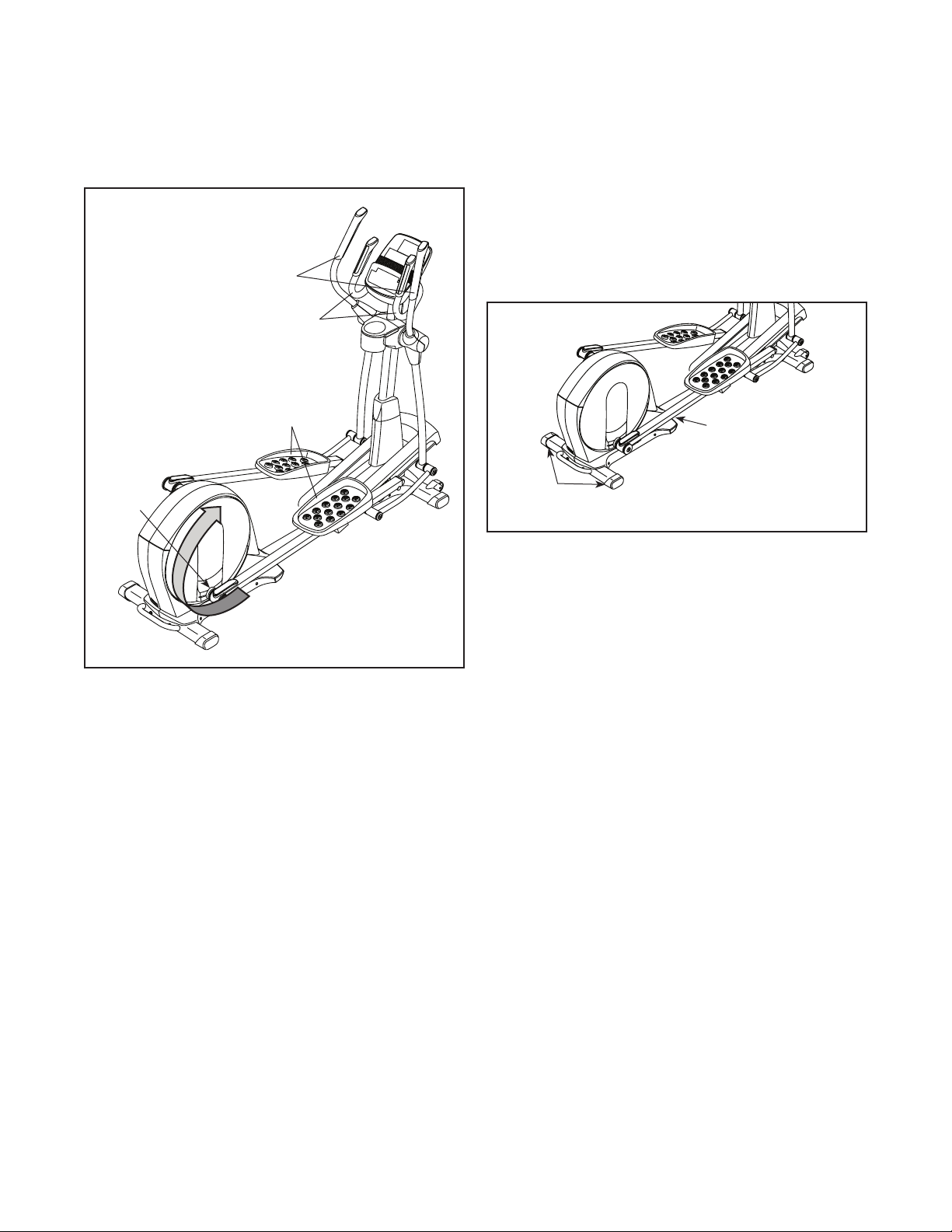

This drawing shows the location(s) of the warning
decal(s). If a decal is missing or illegible, see the
front cover of this manual and request a free
replacement decal. Apply the decal in the location shown. Note: The decal(s) may not be shown
at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
2
Page 3
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read
all important precautions and instructions in this manual and all warnings on your elliptical before
using your elliptical. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
1. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
2. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons
with pre-existing health problems.
3. Use the elliptical only as described in this
manual.
4. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
5. Keep the elliptical indoors, away from moisture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
6. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from damage, place a mat under the elliptical.
7. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the elliptical at all times.
9. When connecting the power cord (see page
22), plug the power cord into a grounded
circuit.
10. Do not modify the power cord or use an
adapter to connect the power cord to an
improper receptacle. Keep the power cord
away from heated surfaces. Do not use an
extension cord.
11. Do not operate the elliptical if the power cord
or plug is damaged, or if the elliptical is not
working properly.
12. DANGER: Always unplug the power
cord and switch the power switch to the off
position when the elliptical is not in use and
before cleaning the elliptical. Servicing other
than the procedures in this manual should be
performed by an authorized service representative only.
13. The elliptical should not be used by persons
weighing more than 300 lbs. (136 kg).
14. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
15. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
16. The heart rate monitor is not a medical
device. Various factors may affect the accuracy of heart rate readings. The heart rate
monitor is intended only as an exercise aid in
determining heart rate trends in general.
17. The elliptical does not have a freewheel; the
pedals will continue to move until the flywheel stops. Reduce your pedaling speed in
a controlled way.
18. Keep your back straight while using the elliptical; do not arch your back.
19. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
SAVE THESE INSTRUCTIONS
3
Page 4
4
Page 5
STANDARD SERVICE PLANS
all
5
Page 6
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM®
14.0 RE elliptical. The 14.0 RE elliptical provides an
impressive selection of features designed to make your
workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
Length: 6 ft. 8 in. (203 cm)
Width: 2 ft. 2 in. (66 cm)
Upper Body Arm
Accessory Tray
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Console
Heart Rate Monitor
Handlebar
Storage Magnet
Access Cover
Power
Switch
Handle
Leveling Foot
Ramp
Wheel
Pedal
Leveling Foot
Latch Button
Pedal Arm Latch
6
Page 7
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M6 x 13mm
Washer
(140)–10
M8 x 16mm
Screw (102)–12
M8 Split
Washer
(131)–8
M4 x 16mm
Screw (93)–14
M8 x 25mm x
1.5mm Washer
(126)–4
M6 x 12mm
Screw (139)–8
M8 x 35mm Screw
(128)–2
M10 x 120mm
Screw (100)–4
M17 x 27mm
Wave Washer
(88)–4
M6 x 50mm
Screw (62)–2
M8 x 45mm Bolt
(104)–6
M8 Locknut
(105)–6
7
Page 8
ASSEMBLY
• To watch an assembly
video, go to
http://productvideo.co/
assembly/proform or
use your mobile phone
or smartphone to read
the QR code at the right.
• Assembly requires two
persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you fi nish all assembly steps.
1. Go to www.proformservice.com/registration
on your computer and register your product.
• activates your warranty
• saves you time if you ever need to contact
Customer Care
• Left parts are marked “L” or “Left” and right parts
are marked “R” or “Right.”
• To identify small parts, see page 7.
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one rubber mallet
Assembly may be easier if you have your own set
of wrenches. To avoid damaging parts, do not use
power tools.
1
• allows us to notify you of upgrades and offers
Note: If you do not have Internet access, call
Customer Care (see the front cover of this
manual) and register your product.
2. While a second person lifts the Folding Frame
(2), attach the Rear Stabilizer (4) to the Folding
Frame with two M10 x 120mm Screws (100).
Note: The Folding Frame may be in the folded
position.
Note: If the elliptical is in the folded position,
unfold it after completing this step. To unfold the
elliptical, hold the handle on the Rear Stabilizer
(4), press the Latch Button (67), and lower the
Rear Stabilizer and the Folding Frame (2) to the
floor.
2
4
67
2
100
Handle
8
Page 9
3. While a second person lifts the front of the
Frame (1), attach the Front Stabilizer (3) with
two M10 x 120mm Screws (100).
3
3
1
100
4. Orient the Upright (5) and the Top Cover (23)
as shown. Slide the Top Cover upward onto the
Upright.
Tip: Avoid pinching the Upright Wire (60).
Slide the Upright (5) onto the Frame (1). Attach
the Upright with eight M8 x 16mm Screws (102)
and eight M8 Split Washers (131) (only four of
each are shown); do not tighten the Screws
yet.
4
5
23
102
131
60
102
131
102
Avoid pinching the
Upright Wire (60)
1
131
102
9
Page 10
5. Locate the wire tie in the Upright (5). Tie the
lower end of the wire tie to the Upright Wire (60).
Next, pull the upper end of the wire tie until the
Upright Wire is routed through the Upright.
Tip: To prevent the Upright Wire (60) from falling
into the Upright (5), secure the Upright Wire with
the wire tie.
Do not press the Top Cover (23) into place yet.
5
Wire Tie
5
23
Wire
Tie
60

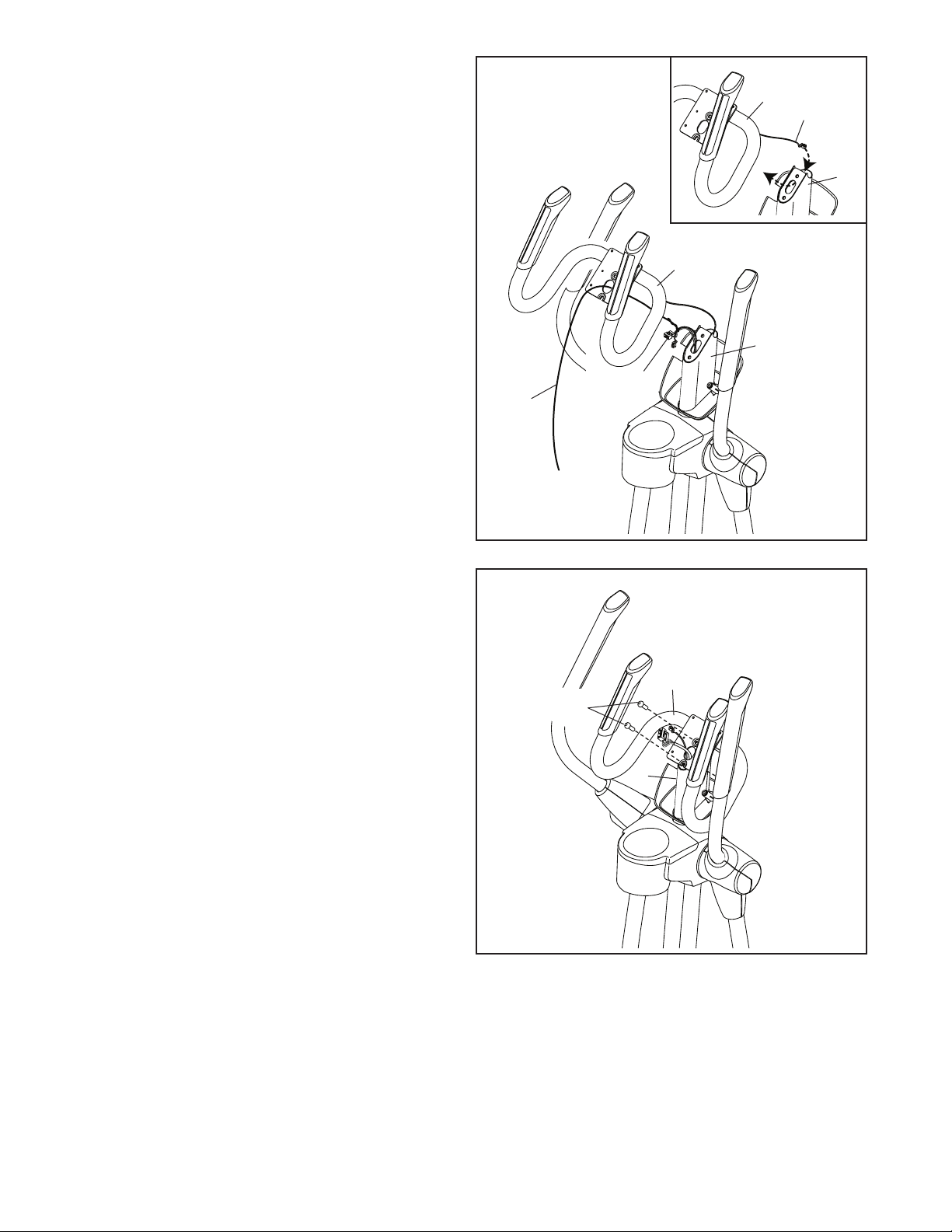

6. Identify the Right Upper Body Arm (8) and the
Right Upper Body Leg (6) and orient them as
shown.
Insert the Right Upper Body Arm (8) into the
Right Upper Body Leg (6).
Attach the Right Upper Body Arm (8) with three
M8 x 45mm Bolts (104) and three M8 Locknuts
(105). Make sure that the Locknuts are inside
the hexagonal holes. Do not fully tighten the
Bolts yet.
Assemble the Left Upper Body Arm (9) and
the Left Upper Body Leg (7) in the same way.
6
9
8
104
104
105
105
104
7
Hexagonal
Holes
6
10
Page 11

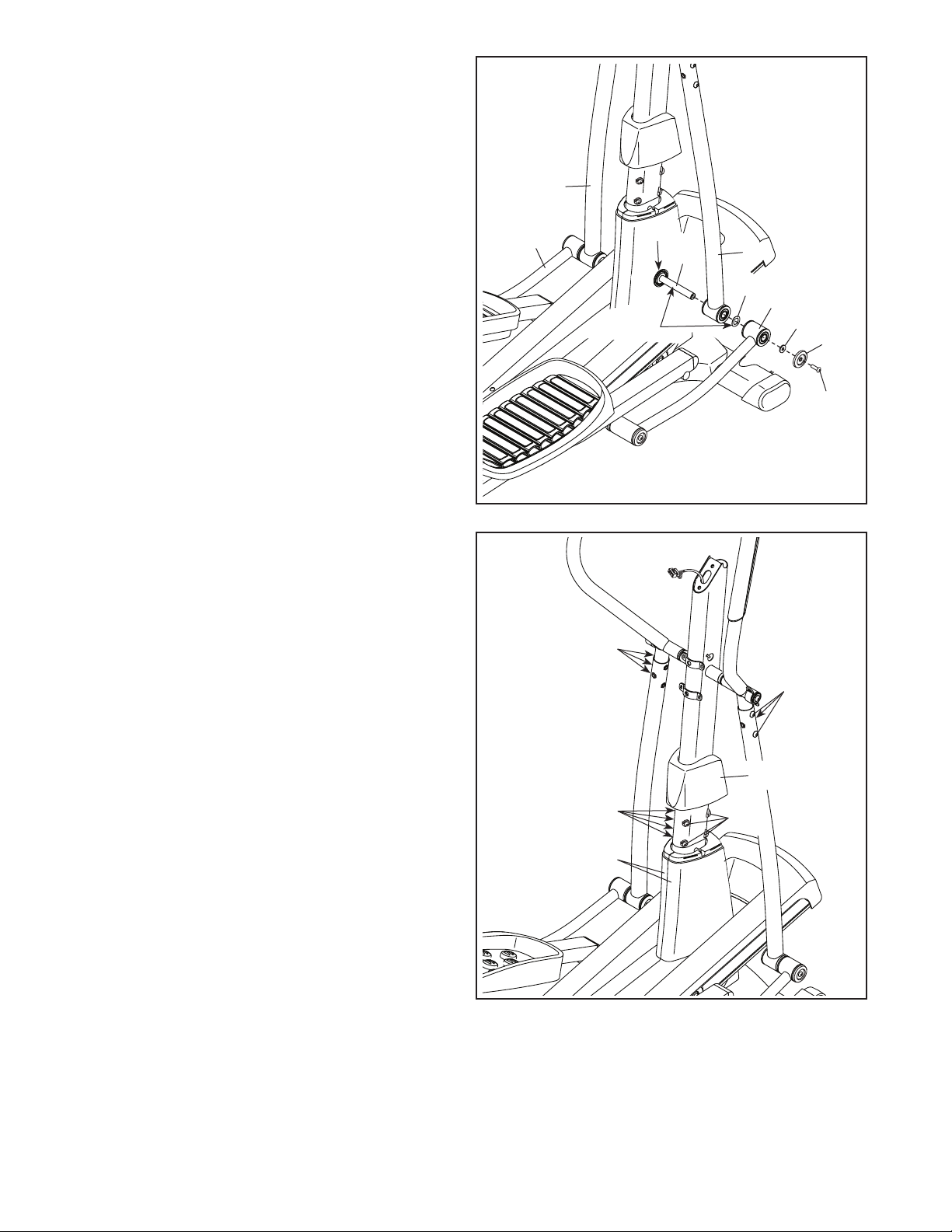

7. Using a small plastic bag to keep your fingers
clean, apply a generous amount of the included
grease to the Upright Axle (48) and to two M17 x
27mm Wave Washers (88).
Tip: Avoid damaging the Upright Wire (60).
Insert the Upright Axle (48) through the Upright
(5) and center it. Slide an M17 x 27mm Wave
Washer (88) onto each side of the Upright Axle.
Slide the Right and Left Upper Body Arms
(8, 9) onto the right and left sides of the Upright
Axle (48).
7
102
126
Avoid damaging the
Upright Wire (60)
88
60
48
5
9
Tighten an M8 x 16mm Screw (102) and an M8
x 25mm x 1.5mm Washer (126) into each end of
the Upright Axle (48) at the same time.
8. Identify the Right Pedal (14) and the Right Pedal
Arm (12) and orient them as shown.
Attach the Right Pedal (14) to the Right Pedal
Arm (12) with four M6 x 12mm Screws (139) and
four M6 x 13mm Washers (140); do not tighten
the Screws yet.
Next, tighten an M6 x 50mm Screw (62) with
an M6 x 13mm Washer (140) into the Right
Pedal Arm (12) and the Right Pedal (14). Then,
tighten the four M6 x 12mm Screws (139).
Attach the Left Pedal (not shown) to the Left
Pedal Arm (not shown) assembly in the same
way.
88
8
Grease
8
14
12
139
140
140
126
102
140
62
11
139
Page 12
9. See the upper drawing. Locate the Ramp
Roller (92) on the Right Pedal Arm (12).
9
Set the Ramp Roller (92) on the right side of the
Ramp (43).

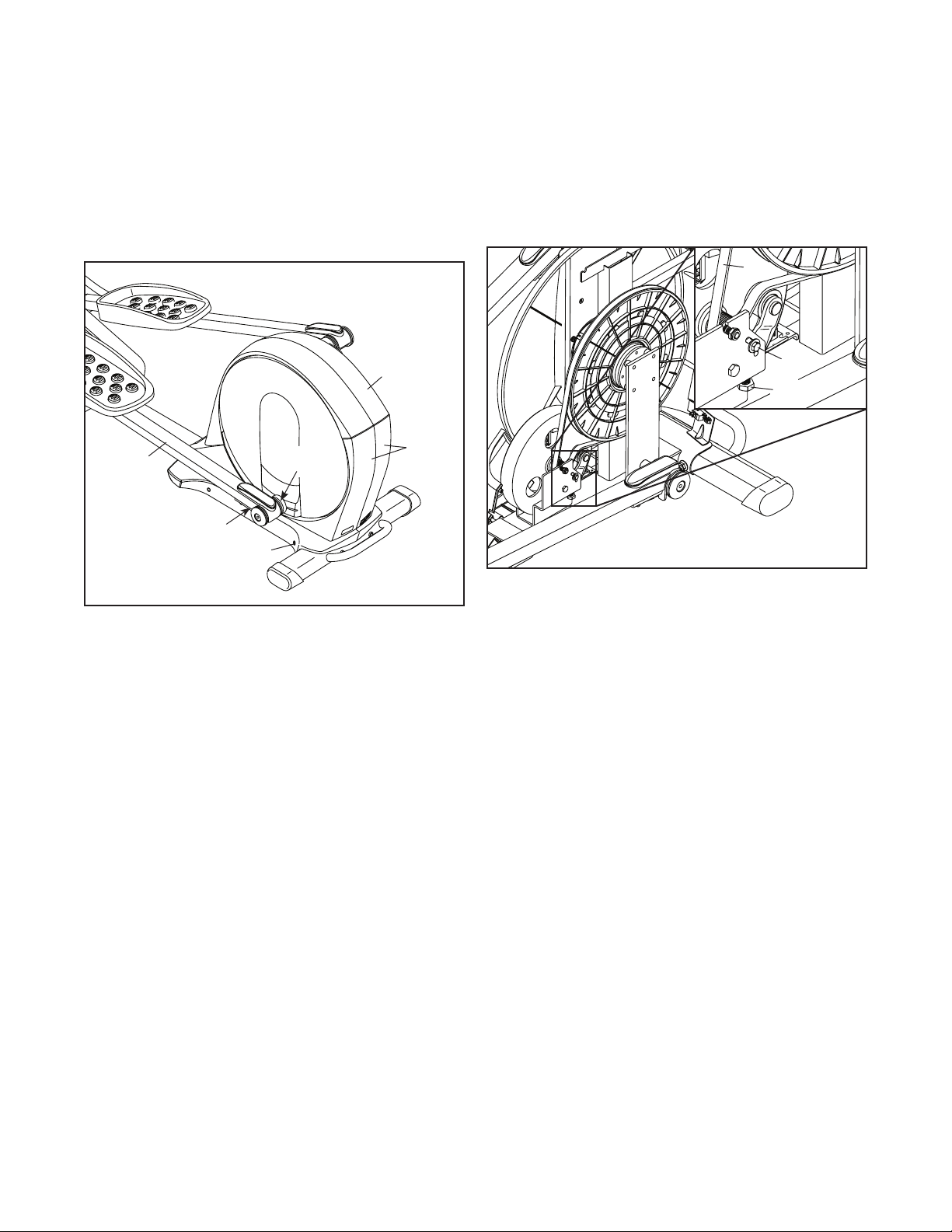

See the lower drawing. Pull upward on the
Latch (117) on the Right Pedal Arm (12).
Press the Right Pedal Arm (12) onto the right
Sleeve (136). Make sure that the Right Pedal
Arm latches into place.
Repeat this step on the other side of the
elliptical.
92
12
43
12
117
10. Orient the Ramp Cover (44) around the Upright
(5) as shown.
Press the mounts on the underside of the Ramp
Cover (44) into the Ramp (43).
136
10
44
5
43
12
Page 13
11. Apply grease to a Link Arm Axle (94) and to an
M17 x 27mm Wave Washer (88).
Insert the Link Arm Axle (94) into the Right
Upper Body Leg (6) from the side shown. Next,
slide the M17 x 27mm Wave Washer (88) onto
the Link Arm Axle. Then, insert the Link Arm Axle
into the Right Link Arm (90).
11
7
Insert a hex key into the M8 x 35mm Screw
(128) in the Link Arm Axle (94).
Using a second hex key, tighten another
M8 x 35mm Screw (128), a Pivot Axle Cover
(111), and an M8 x 25mm x 1.5mm Washer (126)
into the other end of the Link Arm Axle (94).
Tip: Avoid damaging the Pivot Axle Cover
when tightening the Screw.
Repeat this step on the other side of the
elliptical.
12. Tighten the six M8 x 45mm Bolts (104) and
the eight M8 x 16mm Screws (102).
Then, press the Top Cover (23) onto the Right
and Left Frame Covers (21, 22).
12
91
Grease
104
128
94
6
88
90
126
111
128
102
21, 22
104
23
102
13
Page 14
13. With the help of a second person, place some of
the packaging materials (not shown) under the
rear of the Frame (1). Have the second person
hold the Frame to prevent it from tipping
while you complete this step.
Tighten the Leveling Foot (41) into the underside
of the Frame (1).
13
1
41
14. Tip: Avoid pinching the wires. Attach the Rear
Upright Cover (24) to the Upright (5) with four M4
x 16mm Screws (93). Tip: It may be necessary
to bend the upper end of the Rear Upright
Cover gently into place around the Upright.
15. Orient the Front Upright Cover (25) as shown.
Attach the Front Upright Cover (25) around the
Upright (5) by pressing it into the Rear Upright
Cover (24).
14
Avoid pinching
the wires
5
93
24
15
25
14
5
24
Page 15

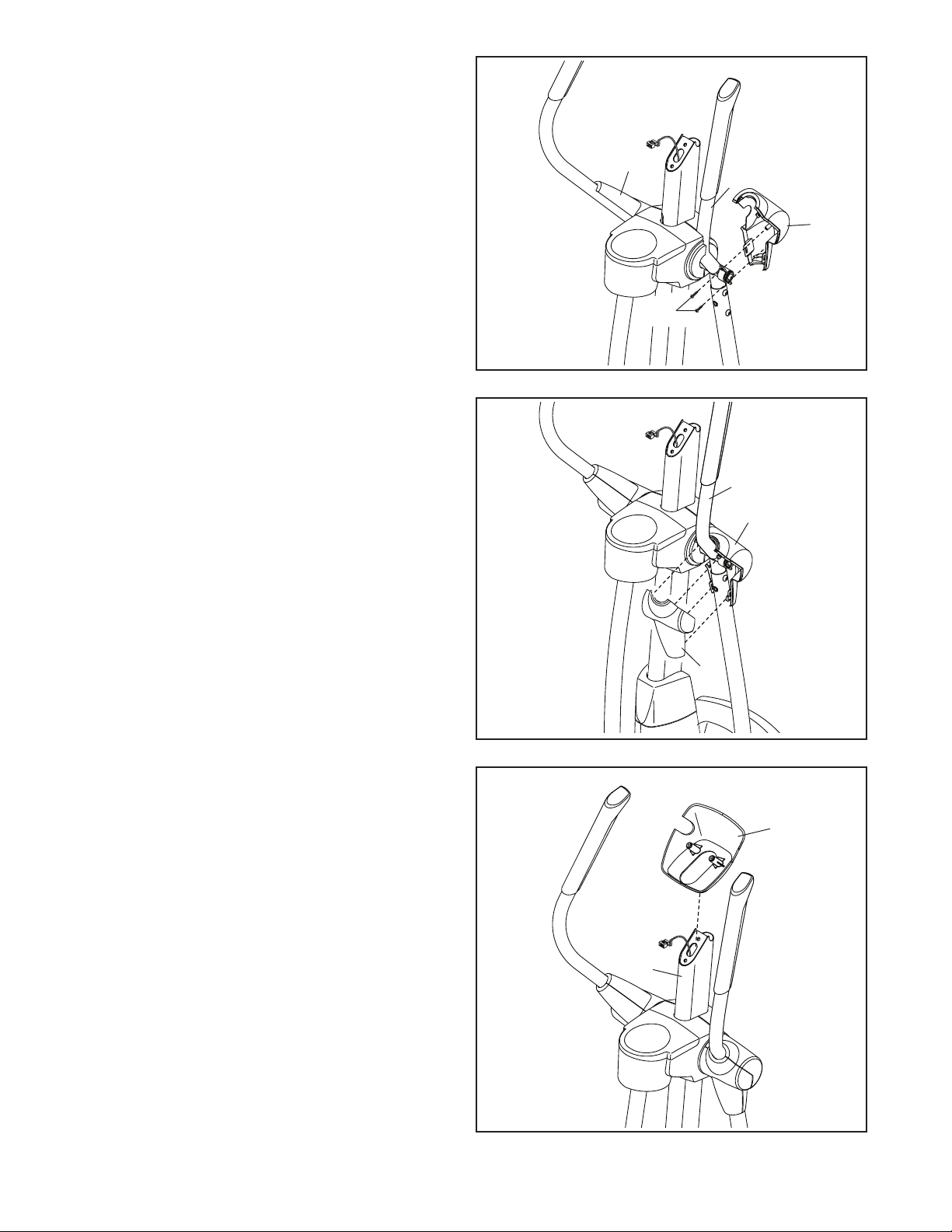

16. Identify the Right Front Leg Cover (30).
Attach the Right Front Leg Cover (30) to the
Right Upper Body Arm (8) with two M4 x 16mm
Screws (93).
16
Repeat this step on the other side of the
elliptical.
17. Identify the Right Rear Leg Cover (29).
Attach the Right Rear Leg Cover (29) around the
Right Upper Body Arm (8) by pressing it into the
Right Front Leg Cover (30).
Repeat this step on the other side of the
elliptical.
32
8
30
93
17
8
30
18. Orient the Console Cover (11) as shown. Slide
the Console Cover onto the Upright (5).
29
18
11
5
15
Page 16
19. Have a second person hold the Handlebar (10)
near the Upright (5).
See the inset drawing. Locate the Pulse Wire
(135) in the Handlebar (10). Insert the Pulse
Wire into the front of the Upright (5) and pull it
out of the hole in the Upright as shown.
Tie the end of the wire tie to the Upright Wire
(60) and the Pulse Wire (135). Then, insert the
other end of the wire tie upward through the
Handlebar (10). Next, pull the upper end of the
wire tie until the Upright Wire and the Pulse Wire
are routed through the Upright.
19
10
135
5
10
5
60, 135
Wire
Tie
20. Tip: Avoid pinching the wires. Attach the
Handlebar (10) to the Upright (5) with two M8 x
16mm Screws (102).
20
Avoid pinching
the wires
10
102
5
16
Page 17
21. While a second person holds the Console (33)
near the Handlebar (10), connect the wires on the
Console to the Upright Wire (60) and to the Pulse
Wire (135).
Insert the excess wire into the Handlebar (10).
21
33
Avoid pinching
the wires
Tip: Avoid pinching the wires. Attach the
Console (33) to the Handlebar (10) with four M4
x 16mm Screws (93).
22. Attach the Console Cover (11) to the Handlebar
(10) with two M4 x 16mm Screws (93).
135
10
60
93
22
10
11
23. Make sure that all parts are properly tightened before you use the elliptical. Note: Extra parts may be
included. Place a mat under the elliptical to protect the floor or carpet.
93
17
Page 18
HOW TO USE THE ELLIPTICAL
HOW TO PLUG IN THE POWER CORD
This product must be grounded. If it should malfunc-
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of
electric shock. The power cord has a plug with a
grounding pin.
DANGER: Improper connection of
the power cord increases the risk of electric
shock. Do not modify the plug; if it will not fit
an outlet, have a proper outlet installed by a
qualified electrician. If you are unsure whether
the product is properly grounded, contact a
qualified electrician.
Plug the
power cord
into an
appropriate
outlet that
is properly
installed and
grounded in
accordance
with all local
codes and
ordinances. The outlet must be on a nominal 120-volt
circuit.
Grounded Outlet
Grounding Pin
A temporary
adapter may
be used to
connect the
power cord
to a 2-pole
receptacle
as shown
at the right
if a properly
grounded
outlet is not
available.
The lug or wire extending from the adapter must
be connected with a metal screw to a permanent
ground such as a properly grounded outlet box cover.
Some 2-pole receptacle outlet box covers are not
grounded. Before using an adapter, contact a qualified electrician to determine whether the outlet
box cover is grounded before using an adapter.
The temporary adapter should be used only until
a properly grounded outlet can be installed by a
qualified electrician.
2-pole Receptacle
Adapter
Lug
Metal Screw
18
Page 19

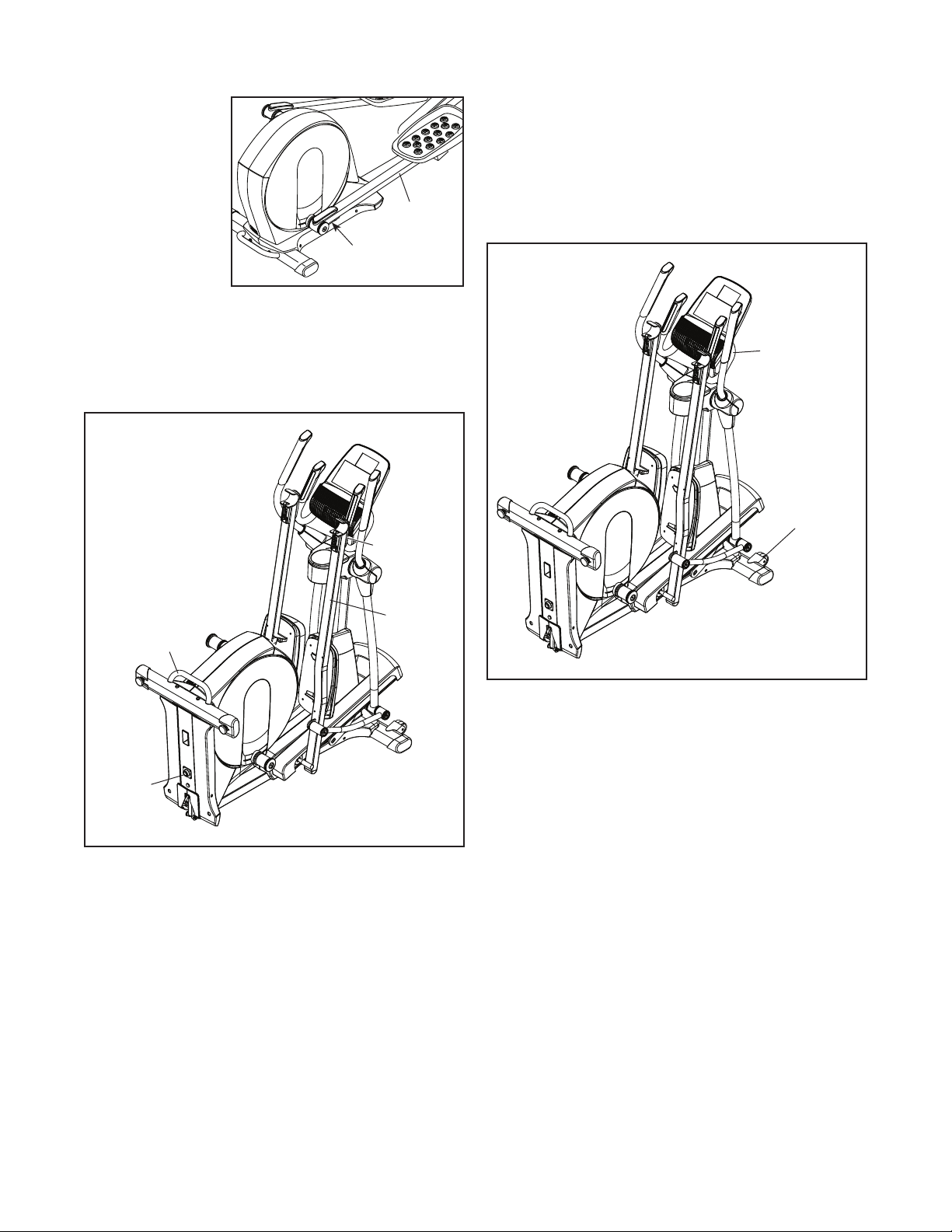

HOW TO FOLD AND UNFOLD THE ELLIPTICAL
HOW TO MOVE THE ELLIPTICAL

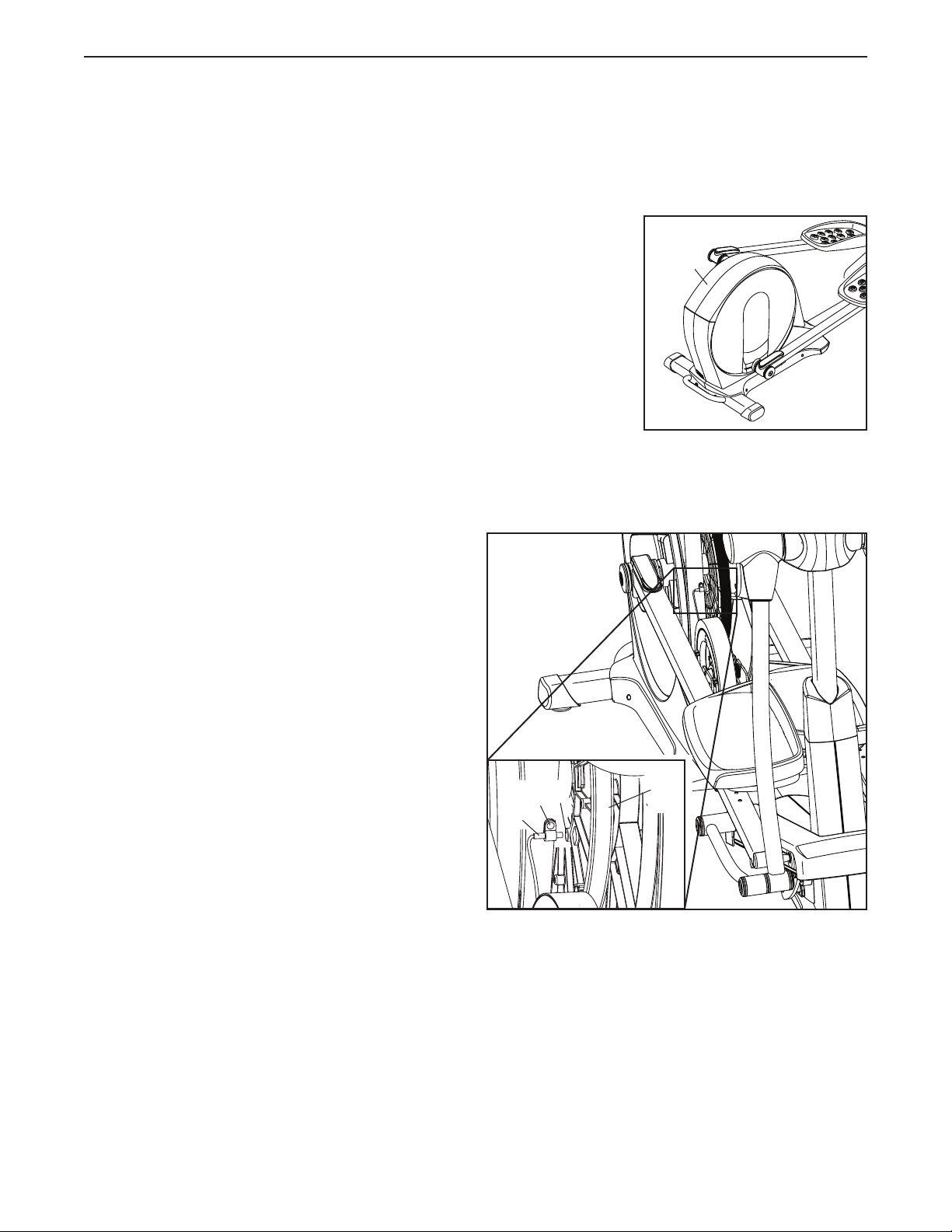

When the elliptical is not in use,
the frame can
be folded out of
the way. First, lift
the latch under
each pedal arm,
and lift the pedal
arms off the
sleeves on the
crank arms.
Next, raise the pedal arms until the magnets on the
pedal arms touch the handlebars; the magnets will hold
the pedal arms in place. Then, hold the handle and lift
the frame until it locks in a vertical position.
Pedal
Arm
Latch
Magnet
To move the elliptical, first fold it as described at
the left. Next, stand in front of the elliptical, hold the
upright, and place one foot against one of the wheels.
Pull the upright until the elliptical rolls on the wheels.
With the help of a second person, carefully move the
elliptical to the desired location, and then lower it to the
floor.
Pull on the
handlebar
Place your
foot here
Pedal
Handle
Latch
Button
To use the elliptical, first hold the handle, press the
latch button, and lower the frame.
Next, pull the magnets on the pedal arms off the handlebars. Then, lift the latches under the pedal arms,
and set the pedal arms on the sleeves on the crank
arms. Release the latches, and make sure that the
pedal arms are securely connected to the crank arms.
Arm
19
Page 20
HOW TO EXERCISE ON THE ELLIPTICAL
To mount the elliptical, hold the upper body arms and
step onto the pedal that is in the lowest position. Next,
step onto the other pedal. Push the pedals until they
begin to move with a continuous motion.
Upper Body Arms
Handlebars
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the lower
pedal.
HOW TO LEVEL THE ELLIPTICAL
If the elliptical rocks slightly on your floor during use,
turn one or both of the leveling feet beneath the rear
stabilizer until the rocking motion is eliminated.
Pedals
Crank
Arm
Note: The crank arms can turn in either direction.
It is recommended that you turn the crank arms
in the direction shown by the arrow; however, for
variety you can turn the crank arms in the opposite
direction.
Leveling
Foot
Leveling
Feet
If the frame of the elliptical flexes during use, turn the
center leveling foot until the flexing motion is
eliminated.
20
Page 21

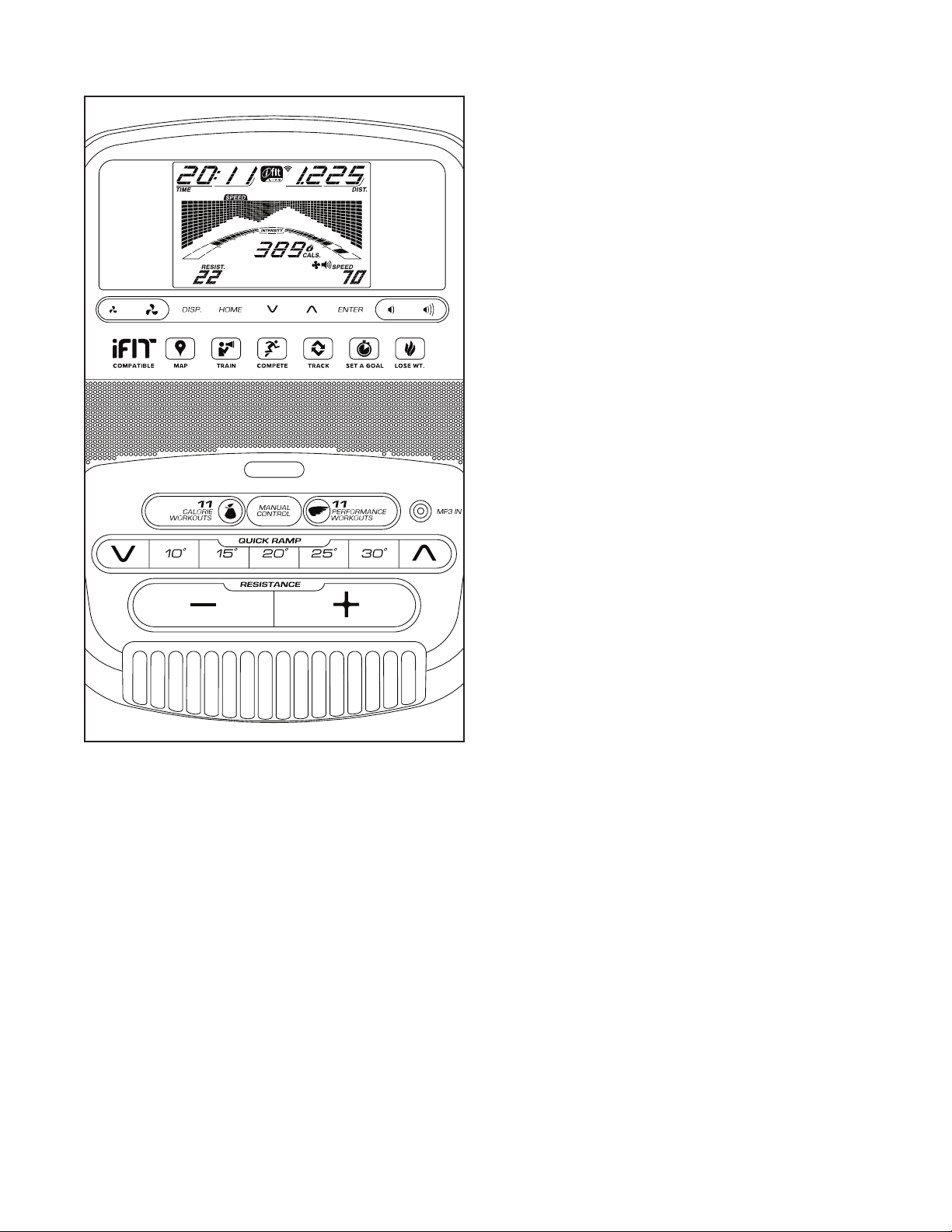

CONSOLE DIAGRAM FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals and the incline
of the ramp with the touch of a button.
While you exercise, the console will display continuous
exercise feedback. You can also measure your heart
rate using the handgrip heart rate monitor.
The console offers a selection of onboard workouts.
Each workout automatically changes the resistance of
the pedals and the incline of the ramp and prompts you
to vary your pedaling pace as it guides you through
an effective workout. You can also set a customized
workout goal with the set-a-goal workout.
The console also features an iFit mode that enables
the console to communicate with your wireless network
through an optional iFit module. With the iFit mode,
you can download personalized workouts, create your
own workouts, track your workout results, race against
other iFit users, and access many other features. To
purchase an iFit module at any time, go to
www.iFit.com or call the telephone number on the
front cover of this manual.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To turn on the power, see page 22. To use the
manual mode, see page 22. To use an onboard
workout, see page 25. To use a set-a-goal workout, see page 26. To use an iFit workout, see page
27. To use the sound system, see page 28. To
change console settings, see page 29.
Note: If there is a sheet of plastic on the display,
remove the plastic.
21
Page 22

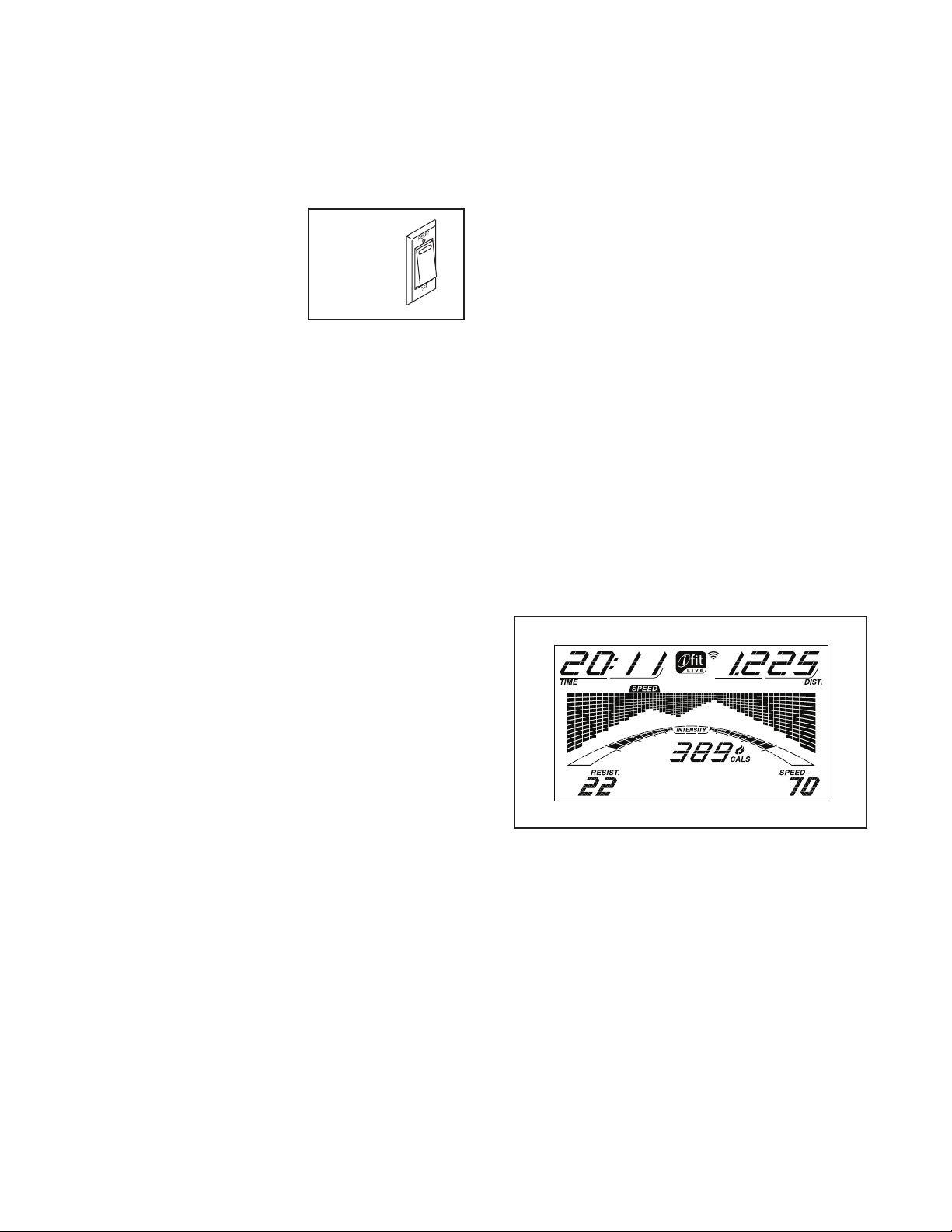

HOW TO TURN ON THE POWER
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room temperature before you turn on the power. If you do
not do this, you may damage the console displays
or other electrical components.
Plug in the power cord (see
HOW TO PLUG IN THE
POWER CORD on page
18). Next, locate the
power switch on the frame
near the power cord. Press
the power switch to the
reset position.
The display will then turn on and the console will be
ready for use.
Note: When you turn on the power for the fi rst time,
the incline system may calibrate automatically. The
ramp will move upward and downward as it calibrates.
When the ramp stops moving, the incline system is
calibrated.
IMPORTANT: If the incline system does not calibrate automatically, see HOW TO CALIBRATE THE
INCLINE SYSTEM on page 31 and manually calibrate the incline system.
Reset
Position
If a wireless iFit module is not inserted into the con-
sole and connected to iFit, the manual mode will be
selected automatically.
3. Change the resistance of the pedals and the
incline of the ramp as desired.
As you pedal, change the resistance of the pedals
by pressing the Resistance increase and decrease
buttons.
Note: After you press a button, it will take a
moment for the pedals to reach the selected
resistance level.
To vary the motion of the pedals, you can change
the incline of the ramp. To change the incline,
press one of the numbered Quick Ramp buttons
or press the Quick Ramp increase and decrease
buttons.
Note: After you press a button, it will take a
moment for the ramp to reach the selected incline
level.
4. Follow your progress with the display.
The display can show the following workout
information:
IMPORTANT: The console features a display demo
mode, designed to be used if the elliptical is displayed in a store. If the demo mode is turned on,
the console will not turn off and the display will
not be reset when you finish exercising. To turn off
the demo mode, see HOW TO CHANGE CONSOLE
SETTINGS on page 29.
HOW TO USE THE MANUAL MODE
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER above.
2. Select the manual mode.
Press the Manual Control button on the console to
select the manual mode.
Calories (Cals.)—This display mode will show the
approximate number of calories you have burned.
Calories per Hour (Cals./Hr)—This display mode
will show the approximate number of calories you
are burning per hour.
22
Page 23
Distance (Dist.)—This display mode will show
the distance that you have pedaled in miles or
kilometers.
Incline—This display mode will show the incline
level of the ramp for a few seconds each time the
incline level changes.
Pulse—This display mode will show your heart rate
when you use the handgrip heart rate monitor (see
step 5).
Resistance (Resist.)—This display mode will
show the resistance level of the pedals for a few
seconds each time the resistance level changes.
RPM—This display mode will show your pedaling
speed in revolutions per minute (rpm).
Calorie—This tab will show the approximate
amount of calories you have burned. The height of
each segment represents the amount of calories
burned during that segment.
Incline—This tab will show a profile of the incline
settings of the workout. A new segment will appear
at the end of each minute.
As you exercise, the workout intensity level bar
will indicate the approximate intensity level of your
exercise.
Stride—This display mode will show the total num-
ber of strides you have pedaled.
Time—When the manual mode is selected, this
display mode will show the elapsed time. When an
onboard workout is selected, this display mode will
show the time remaining in the workout.
The matrix offers several display tabs. Press the
Disp. button until the desired tab is shown. You can
also press the increase and decrease buttons next
to the Enter button.
Speed—This tab will show a profile of the speed
settings of the workout. A new segment will appear
at the end of each minute.

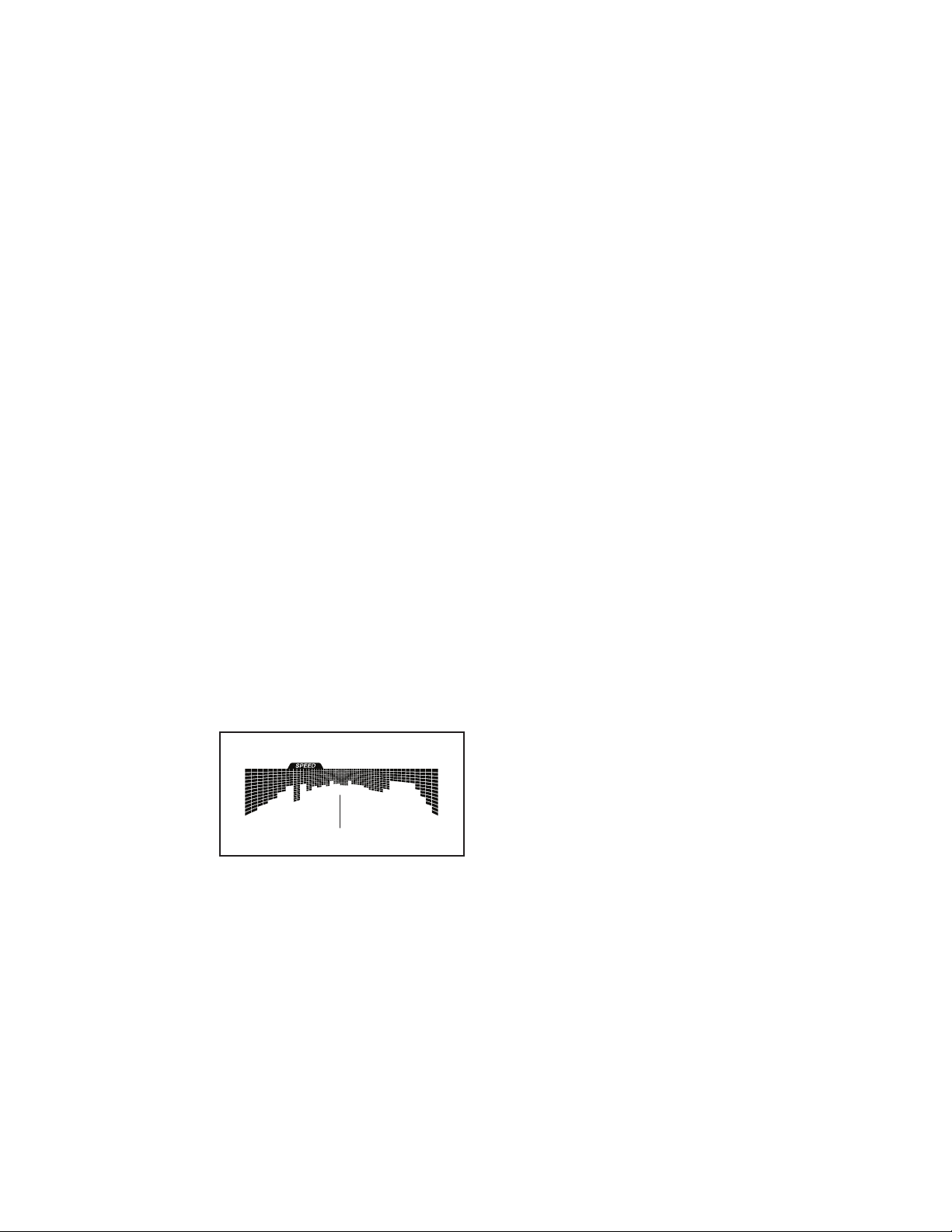

My Trail—This tab will show a track that represents
1/4 mile (400 m). As you exercise, the flashing
rectangle will show your progress. The My Trail tab
will also show the number of laps you complete.
Press the Home button to exit the workout and
return to the default menu (see HOW TO CHANGE
CONSOLE SETTINGS on page 29 to set the
default menu). If necessary, press the Home button
again.

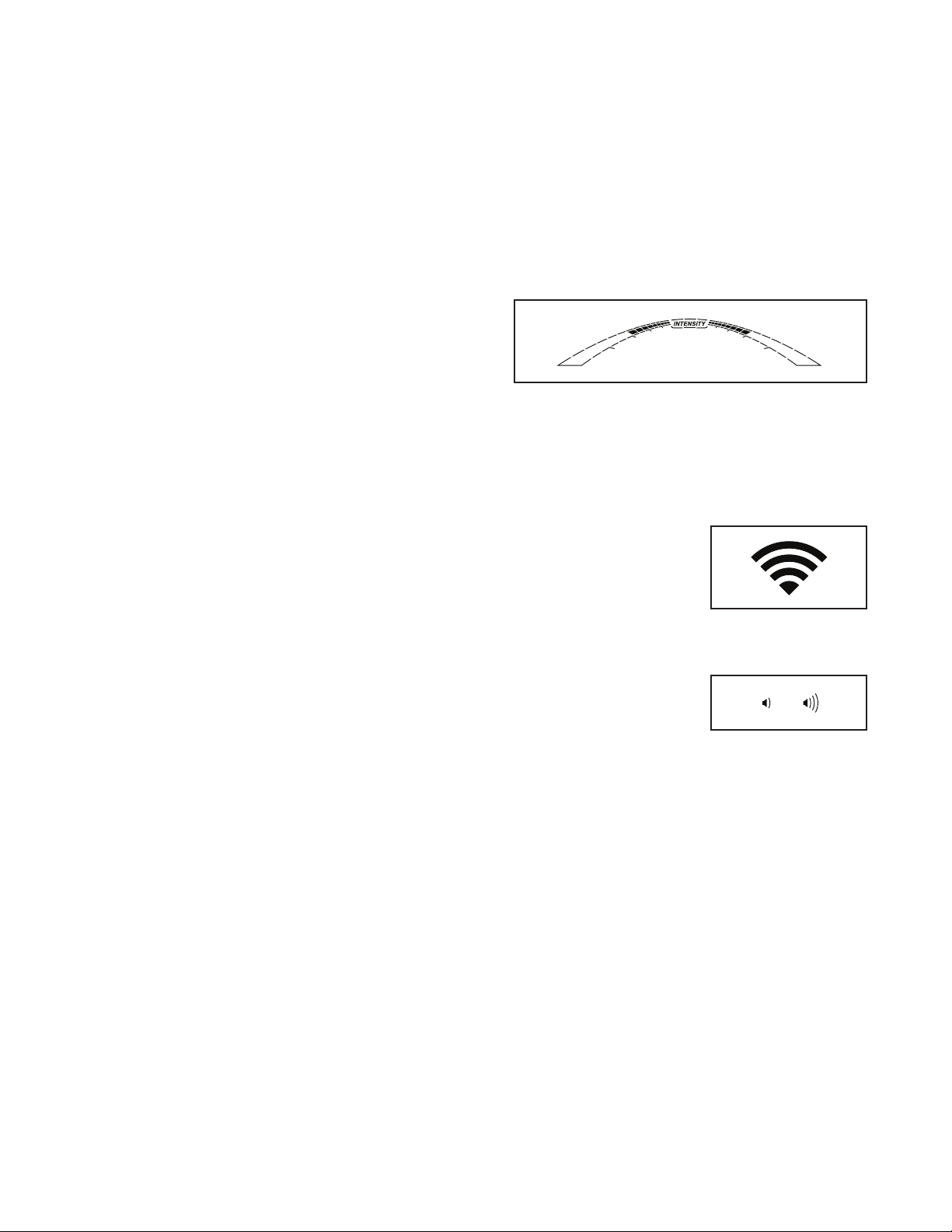

When a wireless iFit
module is connected,
the wireless symbol at
the top of the display
will show the strength
of your wireless signal.
Four arcs indicate full signal strength.
Change the volume
level of the console by
pressing the volume
increase and decrease
buttons.
23
Page 24
5. Measure your heart rate if desired.
6. Turn on the fan if desired.
If there are
sheets of plastic on the metal
contacts on the
handgrip heart
rate monitor,
remove the plastic. To measure
your heart rate,
hold the handgrip
heart rate monitor
with your palms resting against the contacts. Avoid
moving your hands or gripping the contacts
tightly.
When your pulse is detected, a heart symbol will
flash in the display each time your heart beats,
one or two dashes will appear, and then your heart
rate will be shown. For the most accurate heart
rate reading, hold the contacts for at least 15
seconds.
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
to squeeze the contacts tightly. For optimal performance, clean the contacts using a soft cloth; never
use alcohol, abrasives, or chemicals to clean
the contacts.
Contacts
The fan has low and
high speed settings.
Press the fan increase
and decrease buttons
repeatedly to select a fan speed or to turn off the
fan.
Note: If the pedals do not move for about thirty
seconds, the fan will turn off automatically.
7. When you are finished exercising, unplug the
power cord.
If the pedals do not move for several seconds, a
tone will sound and the console will pause.
If the pedals do not move for several minutes and
the buttons are not pressed, the console will turn
off and the display will be reset.
When you are finished exercising, press the power
switch to the off position and unplug the power
cord. IMPORTANT: If you do not do this, the
electrical components on the elliptical may
wear prematurely.
24
Page 25
HOW TO USE AN ONBOARD WORKOUT
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER on
page 22.
2. Select an onboard workout.
To select an onboard workout, press the Calorie
button or the Performance button repeatedly until
the desired workout appears in the display.
When you select an onboard workout, the display
will show the duration of the workout and the name
of the workout. A profile of the speed settings of the
workout will appear in the matrix.
The display will also show the maximum speed
(rpm), the maximum resistance level, and the maximum ramp level.
3. Begin pedaling to start the workout.
Each workout is divided into one-minute seg-
ments. One resistance level, one incline level, and
one target rpm (speed) are programmed for each
segment. Note: The same resistance level, incline
level, and/or target rpm may be programmed for
consecutive segments.
The resistance level, the incline level, and the
target rpm for the first segment will appear in the
matrix.
resistance level, incline level, and/or target rpm is
programmed for the next segment, the resistance
level, incline level, and/or target rpm will appear
in the display for a few seconds to alert you. The
resistance of the pedals and the incline of the ramp
will then change.
As you exercise, you will be prompted to keep your
pedaling speed near the target rpm for the current segment. When an upward-pointing arrow
appears in the display, increase your pace. When
a downward-pointing arrow appears, decrease
your pace. When no arrow appears, maintain
your current pace.
IMPORTANT: The target rpm is intended only to
provide motivation. Your actual pedaling speed
may be slower than the target rpm. Make sure
to pedal at a speed that is comfortable for you.
If the resistance level or incline level for the
current segment is too high or too low, you can
manually override the setting by pressing the
Resistance buttons or the Quick Ramp buttons.
IMPORTANT: When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level programmed for
the next segment and the ramp will automatically adjust to the incline level programmed for
the next segment.
The workout will continue in this way until the last
segment ends. To stop the workout at any time,
stop pedaling. The time will flash in the display. To
resume the workout, simply resume pedaling.
During the
workout,
the profiles
on the
speed and
incline tabs
will show
your progress. The flashing segment of the profile represents
the current segment of the workout. The height of
the flashing segment indicates the target speed or
the incline level for the current segment.
At the end of each segment of the workout, a
series of tones will sound and the next segment
of the profile will begin to flash. If a different
Profile
4. Follow your progress with the display.
See step 4 on page 22.
5. Measure your heart rate if desired.
See step 5 on page 24.
6. Turn on the fan if desired.
See step 6 on page 24.
7. When you are fi nished exercising, unplug the
power cord.
See step 7 on page 24.
25
Page 26
HOW TO USE A SET-A-GOAL WORKOUT
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER on
page 22.
2. Set a calories, distance, or time goal.
To set a calories, distance, or time goal, first press
the Set A Goal button.
Next, press the increase and decrease buttons
next to the Enter button until the name of the
desired goal appears in the display. Then, press
the Enter button.
Then, press the increase and decrease buttons
next to the Enter button to set the desired goal.
Note: The calorie goal is an estimate of the
number of calories that you will burn during
the workout. The actual number of calories
that you burn will depend on various factors
such as your weight. In addition, if you manually change the resistance level or incline level
during the workout, the number of calories you
burn will be affected.
The workout will continue in this way until the calo-
ries, distance, or time goal is reached. To pause
the workout, stop pedaling. The time will pause in
the display. To resume the workout, simply resume
pedaling.
4. Follow your progress with the display.
See step 4 on page 22.
5. Measure your heart rate if desired.
3. Begin pedaling to start the workout.
As you exercise, a target rpm (speed) may
appear in the display to help you reach your goal.
Keep your pedaling speed near the target rpm.
IMPORTANT: The target rpm is intended only to
provide motivation. Your actual pedaling speed
may be slower than the target rpm. Make sure
to pedal at a speed that is comfortable for you.
See step 5 on page 24.
6. Turn on the fan if desired.
See step 6 on page 24.
7. When you are fi nished exercising, unplug the
power cord.
See step 7 on page 24.
26
Page 27
HOW TO USE AN IFIT WORKOUT
You must have an iFit module to use an iFit workout.
To purchase an iFit module at any time, go to
www.iFit.com or call the telephone number on the
front cover of this manual.
Press the Map button, the Train button, or the Lose
Wt. button to download the next workout of that
type in your schedule.
Press the Compete button to compete in a race
that you have previously scheduled.
Note: To use an iFit module, you must have access
to a computer with an internet connection and a USB
port. You will also need an iFit.com membership. To
use a wireless iFit module, you must also have your
own wireless network including an 802.11b/g/n router
with SSID broadcast enabled (hidden networks are not
supported).
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER on
page 22.
2. Insert the iFit module into the console.
To use an iFit workout, make sure that the iFit
module is inserted in the console.
IMPORTANT: To satisfy exposure compliance
requirements, the antenna and transmitter in
the iFit module must be at least 8 in. (20 cm)
from all persons and must not be near or connected to any other antenna or transmitter.
3. Select a user.
If more than one user is registered with your
iFit.com membership, you can switch users in the
iFit main screen. Press the increase and decrease
buttons next to the Enter button to select a user.
4. Select an iFit workout.
To select an iFit workout, press one of the iFit but-
tons. Before some workouts will download, you
must add them to your schedule on www.iFit.com.
Press the Track button to re-run a recent iFit work-
out from your schedule. Next, press the increase
and decrease buttons to select the desired workout. Then, press the Enter button to start the
workout.
To use a set-a-goal workout, press the Set A Goal
button (see page 26).
For more information about the iFit workouts,
please see www.iFit.com.
When you select an iFit workout, the display will
show the duration of the workout and the approximate number of calories you will burn. The display
may also show the name of the workout. If you
select a competition workout, the display may
count down to the beginning of the race.
Note: The iFit buttons may also run demo work-
outs. To use the demo workouts, remove the iFit
module from the console and press one of the iFit
buttons.
5. Begin pedaling to start the workout.
See step 3 on page 25.
During some workouts, an audio coach will guide
you through your workout. You can select a setting for the audio coach (see HOW TO CHANGE
CONSOLE SETTINGS on page 29).
To stop the workout at any time, stop pedaling. The
time will flash in the display. To resume the workout, simply resume pedaling.
27
Page 28
6. Follow your progress with the display.
HOW TO USE THE SOUND SYSTEM
See step 4 on page 22.
The My Trail tab will show a map of the trail or it will
show a track and the number of laps you complete.
During a competition workout, the Competition tab
will show your progress in the race. As you race,
the top line in the matrix will show how much of the
race you have completed. The other lines will show
other competitors. The end of the matrix represents
the end of the race.
7. Measure your heart rate if desired.
See step 5 on page 24.

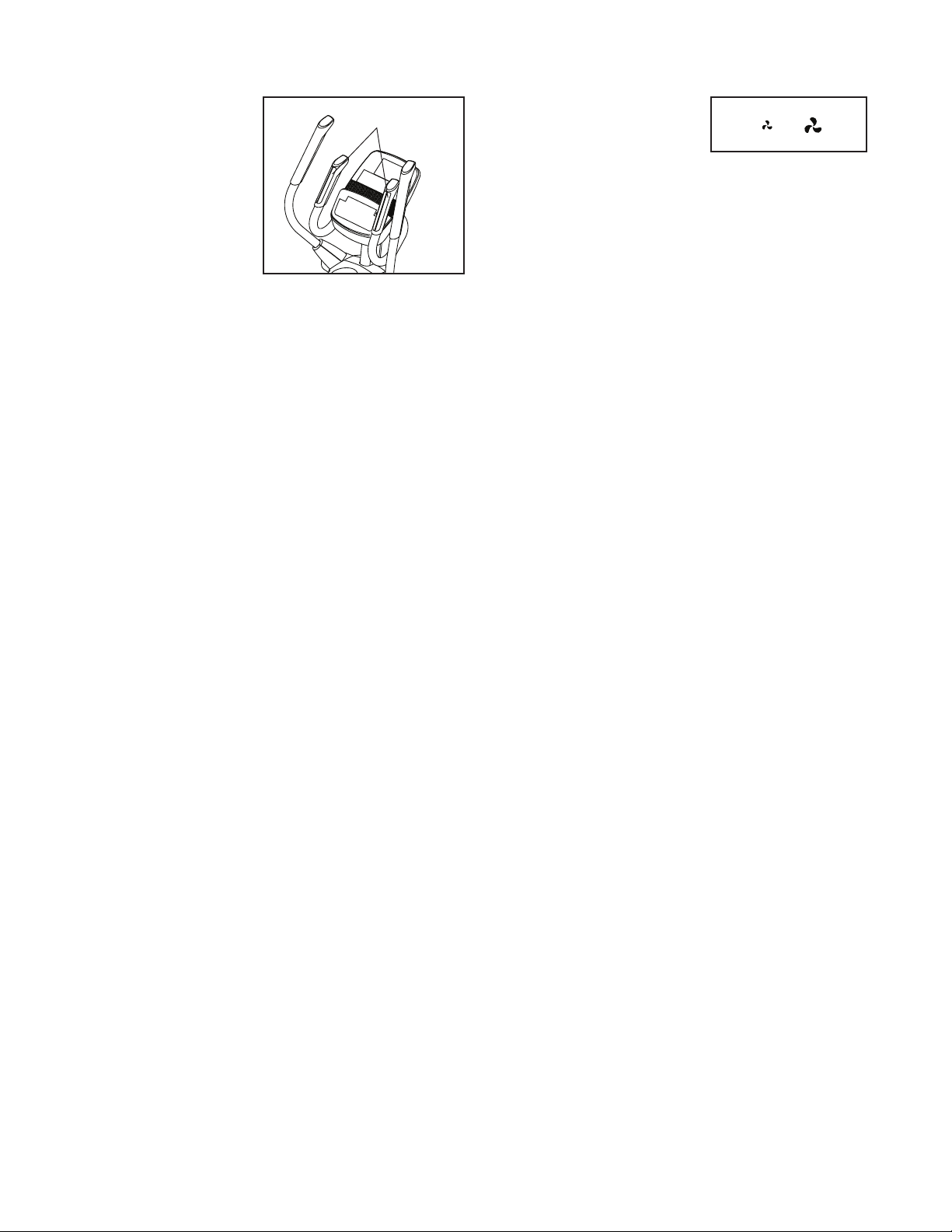

8. Turn on the fan if desired.
See step 6 on page 24.
9. When you are fi nished exercising, unplug the
power cord.
See step 7 on page 24.
To play music or audio books through the console
sound system while you exercise, plug a 3.5 mm male
to 3.5 mm male audio cable (not included) into the jack
on the console and into a jack on your MP3 player,
CD player, or other personal audio player; make sure
that the audio cable is fully plugged in. Note: To
purchase an audio cable, see your local electronics
store.
Next, press the play button
on your personal audio
player. Adjust the volume
level using the volume
increase and decrease buttons on the console or the
volume control on your personal audio player.
For more information about iFit, please go to
www.iFit.com.
28
Page 29
HOW TO CHANGE CONSOLE SETTINGS
1. Select the settings mode.
To select the settings mode, press and hold the
Disp. button until the settings information appears
in the display.
The display will show the total number of hours that
the elliptical has been used and the total distance
(in miles or kilometers) that has been pedaled on
the elliptical.
If an iFit module is connected to the console, the
display will show the words WIFI MODULE or USB
MODULE.
If no module is connected, the display will show
the words NO IFIT MODULE. If no module is connected, some of the settings options will not be
available.
2. Navigate the settings mode.
While the settings mode is selected, the matrix of
the display will display several optional screens.
Press the decrease button next to the Enter button
repeatedly to select the desired optional screen.
The lower section of the display will show instruc-
tions for the selected screen. Make sure to follow
the instructions shown in the lower part of the
display.
3. Change settings as desired.
Demo—The console features a display demo
mode, designed to be used if the elliptical is displayed in a store. Press the Enter button repeatedly
to turn the demo mode ON or OFF.
Contrast Level—The currently selected contrast
level will appear in the display. Press the Incline
increase and decrease buttons to adjust the contrast level.
Trainer Voice—The currently selected setting for
the audio coach will appear in the display. Press
the Enter button repeatedly to turn the audio coach
ON or OFF.
Default Menu—The default menu will appear when
you press the Home button. Press the Enter button
repeatedly to select the manual mode or the iFit
menu as the default menu.
Check Status—The words CHECK WIFI STATUS
or CHECK USB STATUS will appear in the display.
Press the Enter button. After a few seconds, the
status of the iFit module will appear in the display.
To exit this display, press the Settings button.
Send/Receive—The words SEND/RECEIVE DATA
will appear in the display. Press the Enter button.
The console will then check for iFit workouts and
firmware downloads.
4. Exit the settings mode.
Press the Disp. button to exit the settings mode.
Units—The currently selected unit of measurement
will appear in the display. To change the unit of
measurement, press the Enter button repeatedly.
To view distance in miles, select ENGLISH. To view
distance in kilometers, select METRIC.
29
Page 30
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to
computer or peripheral devices. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
30
Page 31
MAINTENANCE AND TROUBLESHOOTING
MAINTENANCE
Inspect and tighten all parts of the elliptical regularly.
Replace any worn parts immediately.
To clean the elliptical, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damage
to the console, keep liquids away from the console
and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
If the console does not turn on, make sure that the
power cord is fully plugged in. If lines appear in the
console display, see HOW TO CHANGE CONSOLE
SETTINGS on page 29 and adjust the contrast level
of the display.
If the console does not display your heart rate when
you hold the handgrip heart rate monitor, or if the displayed heart rate appears to be too high or too low, see
step 5 on page 24.
HOW TO GREASE THE ROLLERS
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted.
To adjust the
reed switch,
first unplug the
power cord.
Using a flat
screwdriver,
release the tabs
on the Top Shield
(20) and pry
the Top Shield
upward off the
elliptical.
Next, look into the access opening and locate the
Reed Switch (69). Rotate the Large Pulley (74) until a
Magnet (75) is aligned with the Reed Switch.
20

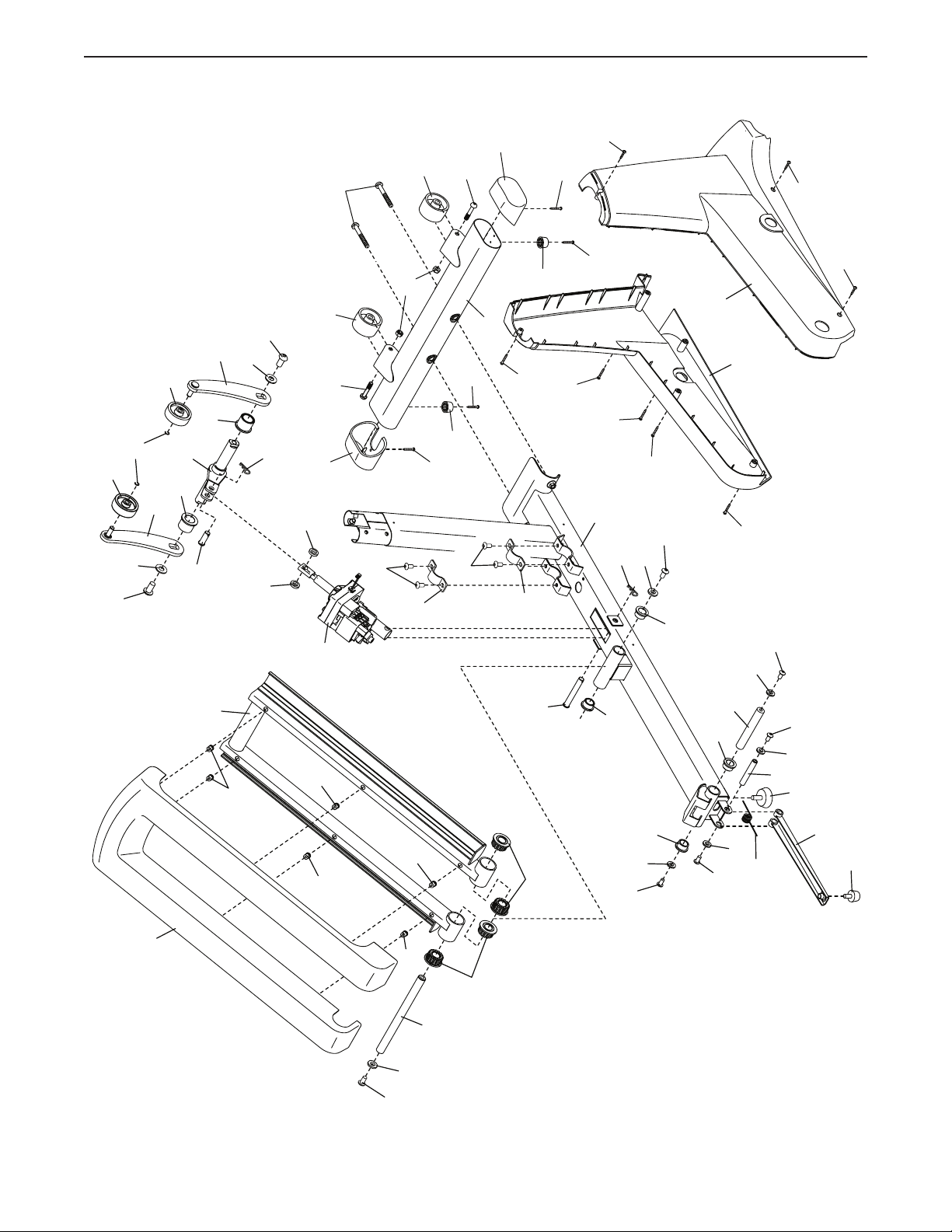

See the EXPLODED DRAWING near the end of this
manual. If the Ramp Rollers (92) squeak when moving on the Ramp (43), apply a small amount of the
included PTFE grease to a paper towel. Spread a thin
layer of grease evenly along the tracks on the Ramp.
Then, wipe off any excess grease.
HOW TO CALIBRATE THE INCLINE SYSTEM
If the ramp is not functioning properly, the incline system may need to be calibrated. To calibrate the incline
system, press and hold the Calorie button for several
seconds until the test mode appears in the display.
Press the Calorie button again. Press the Quick Ramp
increase or decrease button to calibrate the incline
system. The ramp will move upward and downward as
the incline system calibrates.
When the ramp stops moving, the incline system is
calibrated. Then, press the Calorie button repeatedly
to exit the test mode.
75
93
69
Next, loosen, but do not remove, the indicated M4 x
16mm Screw (93). Slide the Reed Switch (69) slightly
toward or away from the Magnet (75). Then, retighten
the M4 x 16mm Screw.
Plug in the power cord and rotate the large pulley for
a moment. Repeat these actions until the console
displays correct feedback. When the reed switch is
correctly adjusted, reattach the access cover.
74
31
Page 32
HOW TO ADJUST THE DRIVE BELT
If you can feel the pedals slip while you are pedaling,
even when the resistance is adjusted to the highest
level, the drive belt may need to be adjusted.

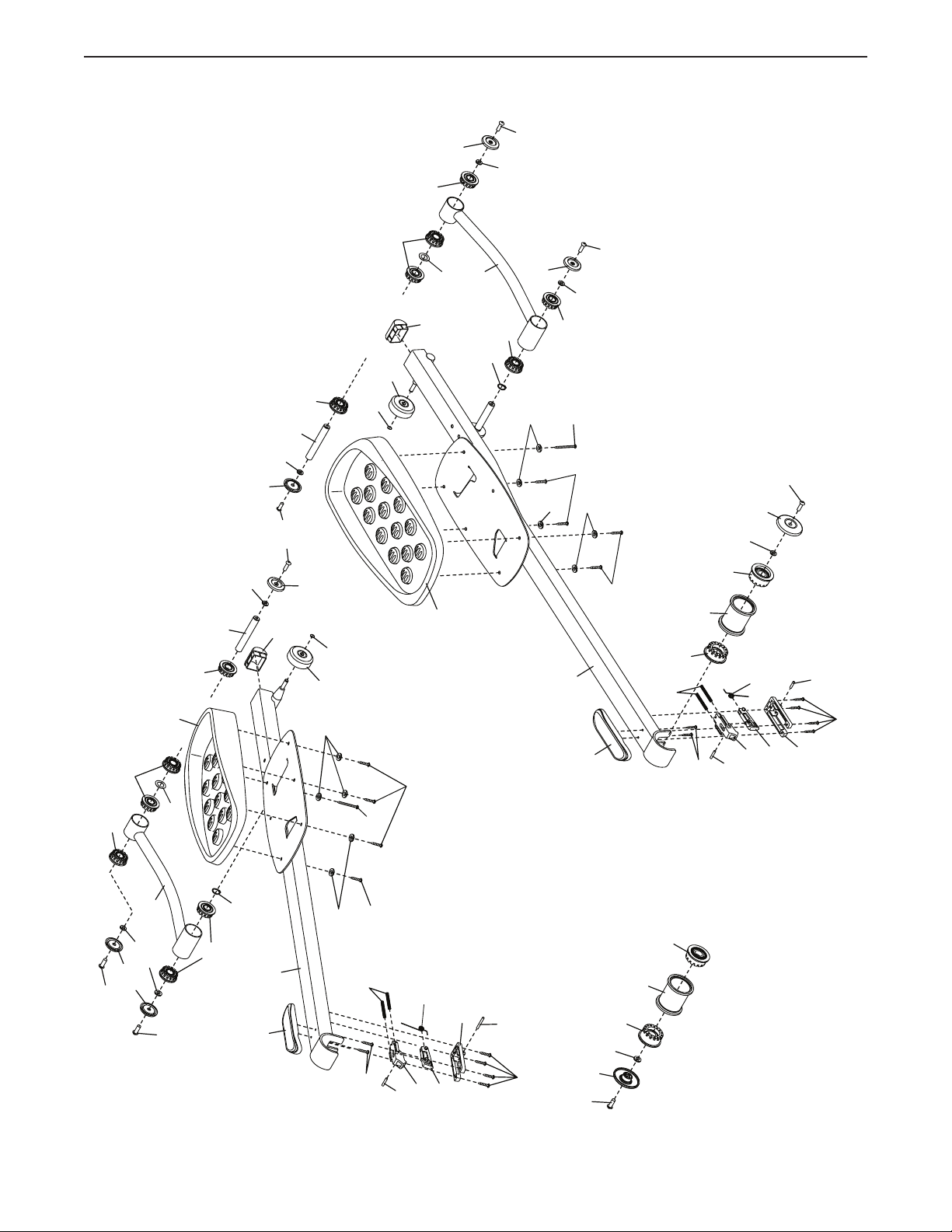

See EXPLODED DRAWING B on page 37. Remove
the M4 x 16mm Screws (93) and the M4 x 42mm
Screws (124) from the Right and Left Shields (18, 19).
Make sure to note which size Screws come from
which holes. Then, carefully remove the Left Shield.
To adjust the drive belt, first unplug the power cord.
Using a flat screwdriver, release the tabs on the Top
Cover (20) and pry the Top Shield upward off the
elliptical.
20
13
117
Next, lift the Latch (117) on the underside of the Left
Pedal Arm (13), and then lift the Left Pedal Arm off the
left Sleeve (136).
136
124
19, 18
Loosen the Pivot Screw (97). Tighten the Belt
Adjustment Screw (85) until the Drive Belt (38) is tight.
When the Drive Belt is tight, tighten the Pivot Screw.
38
97
85
When you are finished, reattach the left shield, replace
the left pedal arm, and reattach the access cover.
Then, plug in the power cord.
32
Page 33
EXERCISE GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physician. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The heart rate monitor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The heart rate monitor is
intended only as an exercise aid in determining heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.

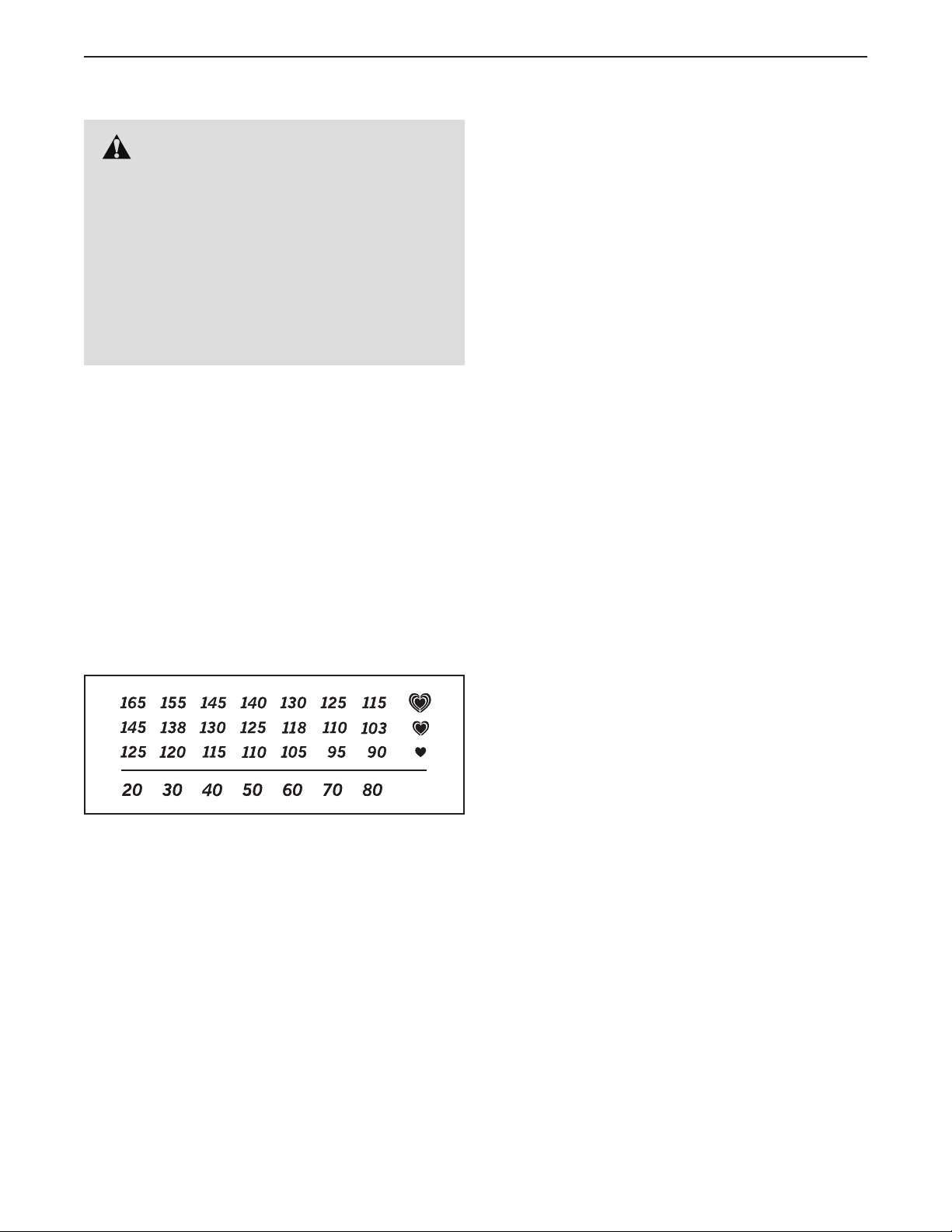

EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise ; never hold your breath.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each week,
if desired. Remember, the key to success is to make
exercise a regular and enjoyable part of your everyday
life.
33
Page 34
PART LIST
Key No. Qty. Description Key No. Qty. Description
Model No. PFEL18012.2 R0214A
1 1 Frame
2 1 Folding Frame
3 1 Front Stabilizer
4 1 Rear Stabilizer
5 1 Upright
6 1 Right Upper Body Leg
7 1 Left Upper Body Leg
8 1 Right Upper Body Arm
9 1 Left Upper Body Arm
10 1 Handlebar
11 1 Console Cover
12 1 Right Pedal Arm
13 1 Left Pedal Arm
14 1 Right Pedal
15 1 Left Pedal
16 2 Disc
17 2 Disc Cover
18 1 Right Shield
19 1 Left Shield
20 1 Top Shield
21 1 Right Frame Cover
22 1 Left Frame Cover
23 1 Top Cover
24 1 Rear Upright Cover/Receiver
25 1 Front Upright Cover
26 1 Accessory Tray
27 1 Control Board
28 1 Board Bracket
29 1 Right Rear Leg Cover
30 1 Right Front Leg Cover
31 1 Left Rear Leg Cover
32 1 Left Front Leg Cover
33 1 Console
34 2 Pulse Sensor
35 2 Handgrip
36 2 Wheel
37 4 Stabilizer Cap
38 1 Drive Belt
39 2 Crank Arm
40 8 M8 Shoulder Screw
41 3 Leveling Foot
42 1 Latch Bracket
43 1 Ramp
44 1 Ramp Cover
45 1 Ramp Axle
46 4 Ramp Axle Bushing
47 1 Lift Motor
48 1 Upright Axle
49 1 Lift Axle
50 1 Right Lift Arm
51 1 Left Lift Arm
52 2 Lift Axle Bushing
53 1 Long Motor Axle
54 1 Short Motor Axle
55 2 Bumper
56 2 #8 x 25mm Flange Screw
57 6 Upright Bushing
58 2 M10 x 60mm Bolt
59 1 Power Cord
60 1 Upright Wire
61 1 Eddy Mechanism
62 2 M6 x 50mm Screw
63 1 Frame Axle
64 4 Frame Bushing
65 1 Latch Bracket Axle
66 1 Latch Bracket Spring
67 1 Latch Button
68 1 Button Housing
69 1 Reed Switch/Wire
70 1 Clamp
71 1 Crank Hub
72 1 Crank
73 1 Crank Spacer
74 1 Large Pulley
75 2 Magnet
76 2 Folding Frame Bearing
77 1 Idler
78 1 Resistance Motor
79 2 Lift Roller
80 2 Lift Axle Washer
81 2 Hairpin Cotter Pin
82 2 Lift Axle Screw
83 2 Lift Axle Bracket
84 2 Motor Spacer
85 1 Belt Adjustment Screw
86 4 M8 x 28mm Screw
87 2 Large Snap Ring
88 4 M17 x 27mm Wave Washer
89 4 M4 x 8mm Screw
90 1 Right Link Arm
91 1 Left Link Arm
92 2 Ramp Roller
93 48 M4 x 16mm Screw
94 2 Link Arm Axle
95 1 Ground Screw
96 1 M6 Washer
97 1 Pivot Screw
98 2 Pedal Arm Cap
99 1 Idler Bolt
100 4 M10 x 120mm Screw
34
Page 35
Key No. Qty. Description Key No. Qty. Description
101 1 Anchored Zip Tie
102 20 M8 x 16mm Screw
103 2 M10 Locknut
104 6 M8 x 45mm Bolt
105 6 M8 Locknut
106 12 Link Arm Bushing
107 4 M10 x 20mm Screw
108 4 M10 Washer
109 1 Frame Wire
110 2 M8 x 23.5mm x 1mm Washer
111 6 Pivot Axle Cover
112 2 M8 Washer
113 2 Crank Axle Cover
114 2 Magnet Assembly
115 2 Pedal Arm Snap Ring
116 4 Long Latch Spring
117 2 Latch
118 2 Latch Spring
119 2 Medium Snap Ring
120 14 Mushroom Fastener/Screw
121 2 Latch Insert
122 1 3/8" x 1/2" Flange Screw
123 2 Latch Housing
124 4 M4 x 42mm Screw
125 1 Power Switch
126 8 M8 x 25mm x 1.5mm Washer
127 1 Grommet
128 6 M8 x 35mm Screw
129 2 Outer Sleeve Bushing
130 2 Small Snap Ring
131 8 M8 Split Washer
132 2 Short Spring Pin
133 1 Frame Cap
134 2 Inner Sleeve Bushing
135 1 Pulse Wire
136 2 Sleeve
137 2 Long Spring Pin
138 4 M4 x 12mm Screw
139 8 M6 x 12mm Screw
140 10 M6 x 13mm Washer
141 4 M4 x 25mm Screw
142 2 M19 x 27mm Wave Washer
* – Userʼs Manual
* – Assembly Tool
* – Grease Packet
* – PTFE Grease Packet
* – Resistance Motor Wire
* – Lift Motor Wire A
* – Lift Motor Wire B
* – Blue Wire
* – Green Wire
* – White Wire
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
35
Page 36

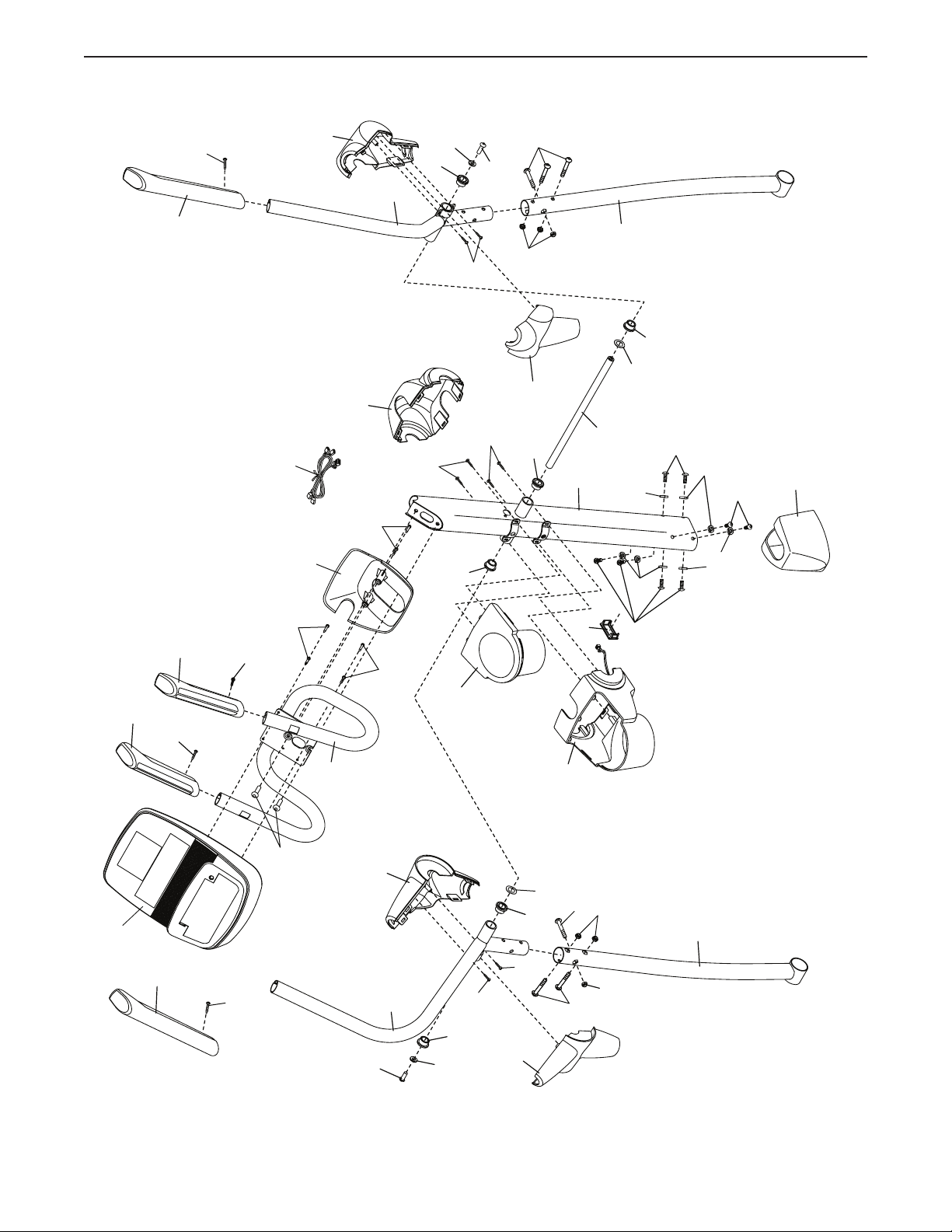

EXPLODED DRAWING A
Model No. PFEL18012.2 R0214A
34
35
93
34
93
93
135
93
11
30
25
93
93
102
104
105
29
57
5
127
48
6
88
131
131
102
57
102
131
131
102
23
126
57
8
93
93
93
57
26
33
35
93
102
10
32
102
24
88
104
57
93
9
93
57
31
126
105
7
105
104
36
Page 37

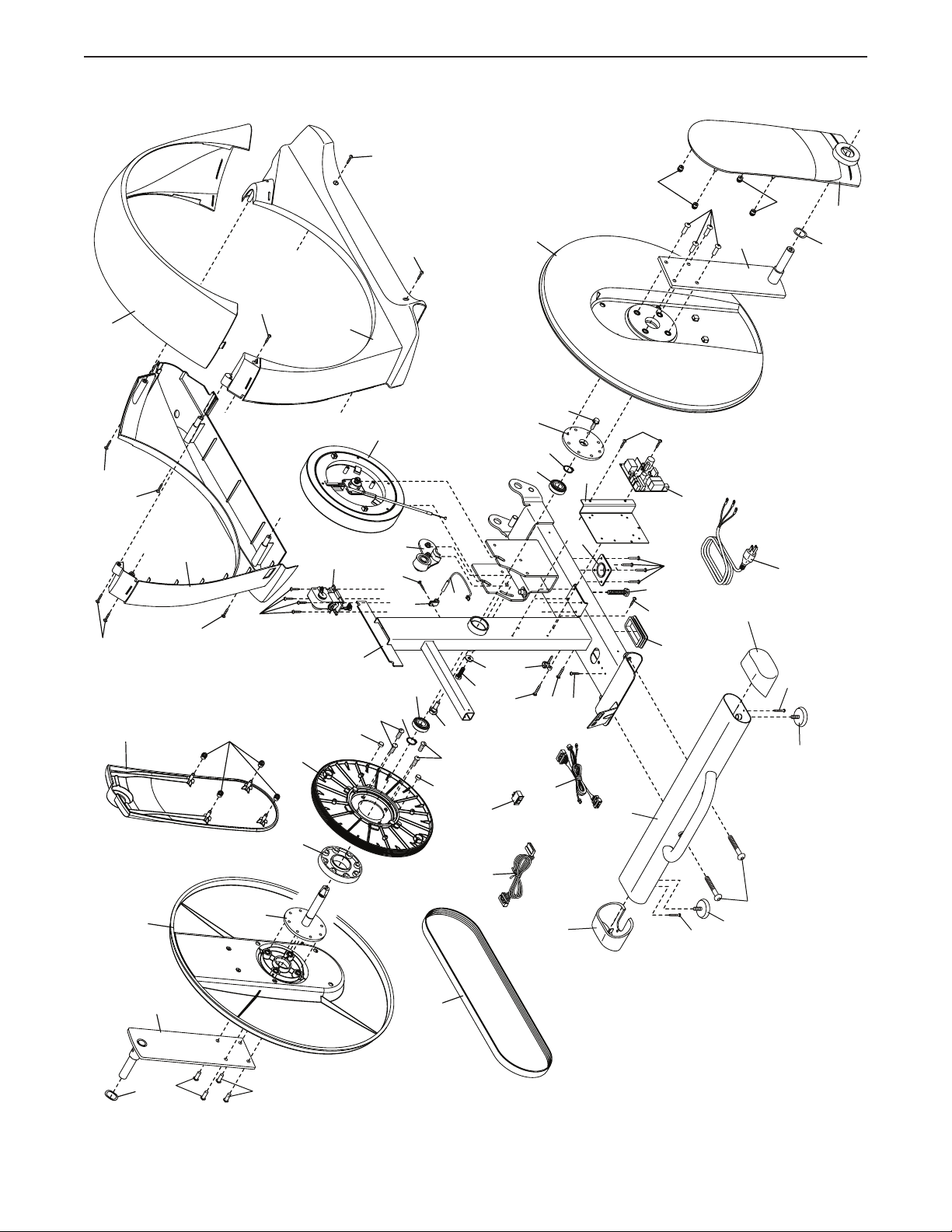

EXPLODED DRAWING B
124
Model No. PFEL18012.2 R0214A
20
93
93
124
17
19
124
120
93
138
74
78
18
2
75
86
61
77
93
87
124
70
76
99
86
69
97
96
93
16
71
76
101
87
93
122
95
68
28
120
93
85
93
93
133
27
40
39
37
120
59
93
17
142
41
16
142
39
40
72
40
73
38
75
37
125
60
109
37
4
100
41
93
Page 38
EXPLODED DRAWING C
Model No. PFEL18012.2 R0214A
79
82
80
93
141
141
56
1
93
81
141
108
107
64
93
93
21
22
93
107
108
37
36
58
100
103
36
82
50
80
79
52
119
49
52
51
54
81
84
84
37
47
58
93
102
83
3
56
55
102
55
141
83
44
43
120
120
120
107
120
120
108
45
46
53
46
64
108
107
64
64
63
102
110
66
102
110
65
41
42
67
38
Page 39
EXPLODED DRAWING D
Model No. PFEL18012.2 R0214A
94
126
111
126
128
98
94
106
111
130
106
92
106
98
14
111
88
90
128
126
102
111
126
106
115
140
106
140
62
139
140114
139
128
113
112
129
136
106
128
106
111
91
126
15
88
102
106
106
130
93
12
129
112
113
128
92
140
139
62
115
13
114
140
116
89
139
132
118
123
137
121
117
136
116
134
134
89
132
118
117
121
137
93
123
39
Page 40
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
IMPORTANT: To protect your fitness equipment with an extended service plan, see page 5.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame is warranted for a lifetime. Parts are warranted for two (2) years from the date of purchase. Labor is warranted for one (1) year from the date of
purchase.
This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is
limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer’s responsibility. If
replacement parts are shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to freight damage to the product. This warranty will automatically be voided
if the product is used as a store display model, if the product is purchased or transported outside the USA,
if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,
or if the product is used for commercial or rental purposes. No other warranty beyond that specifi cally set
forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profi ts, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or
consequential damages. Accordingly, the above limitation may not apply to the customer.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fi tness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to the customer.
This warranty provides specifi c legal rights; the customer may have other rights that vary from state to state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
Part No. 351723 R0214A Printed in China © 2014 ICON IP, Inc.
Loading...
