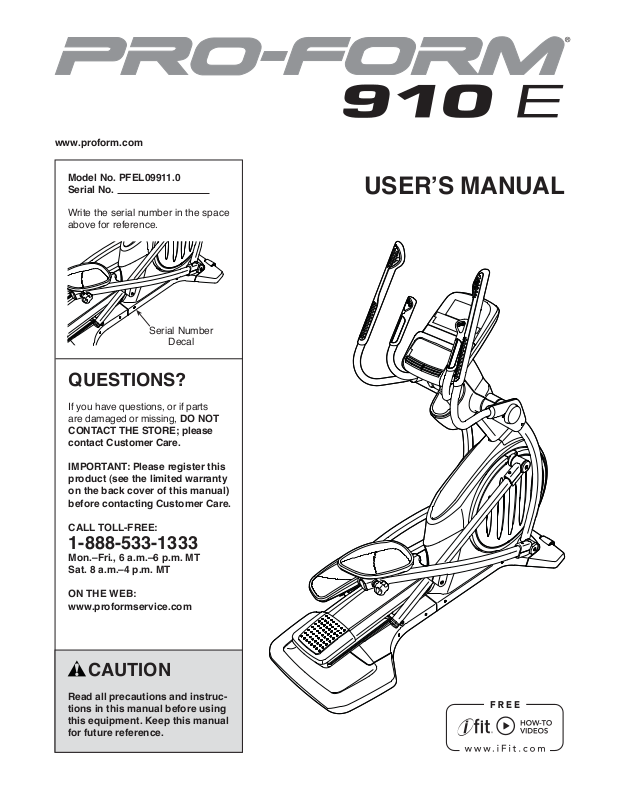

www.proform.com
Model No. PFEL09911.0
Serial No.
Write the serial number in the space
above for reference.
Serial Number
Decal
QUESTIONS?
If you have questions, or if parts
are damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
USER’S MANUAL
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri., 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
TABLE OF CONTENTS
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
HOW TO USE THE ELLIPTICAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
WARNING DECAL PLACEMENT
This drawing shows the location(s) of the
warning decal(s). If a decal is missing
or illegible, see the front cover of this
manual and request a free replacement
decal. Apply the decal in the location
shown. Note: The decal(s) may not be
shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or persons with pre-existing health problems.
2. Use the elliptical only as described in this
manual.
3. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
4. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
5. Keep the elliptical indoors, away from moisture and dust. Do not put the elliptical in a
garage or covered patio, or near water.
6. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front and
rear of the elliptical and 2 ft. (0.6 m) on each
side. To protect the floor or carpet from damage, place a mat under the elliptical.
9. The elliptical should not be used by persons
weighing more than 325 lbs. (147 kg).
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
11. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
12. The heart rate monitor is not a medical
device. Various factors may affect the accuracy of heart rate readings. The heart rate
monitor is intended only as an exercise aid
in determining heart rate trends in general.
13. The elliptical does not have a freewheel; the
pedals will continue to move until the flywheel stops. Reduce your pedaling speed in
a controlled way.
14. Keep your back straight while using the elliptical; do not arch your back.
7. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the elliptical at all times.
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
3
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM®
910 E elliptical. The 910 E elliptical provides an
impressive selection of features designed to make your
workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
Upper Body Arm
Ramp Control
Handlebar
Fan
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Console
Resistance Control
Heart Rate Monitor
Accessory Tray
Pedal
Ramp
Wheel
Pedal Knob
Roller
Length: 5 ft. 9 in. (175 cm)
Width: 2 ft. 2 in. (66 cm)
4
PART IDENTIFICATION CHART
Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M8 Locknut
(102)–4
#8 x 1/2"
Screw (124)–4
#8 x 3/4"
Screw (123)–11
M8 x 35mm
Bolt (96)–4
M8 Star
Washer (122)–4
Screw (121)–8
Wave Washer
M6 x 10mm
M10 x 90mm
Screw (84)–2
(95)–2
M8 x 16mm
Screw (120)–8
M10 x 75mm Screw
(119)–2
M8 x 25mm
Washer (98)–6
M8 x 19mm
Screw (82)–4
5
ASSEMBLY
• To hire an authorized service technician to
assemble this product, call 1-800-445-2480.
• Assembly requires two persons.
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until you complete all assembly steps.
• To identify small parts, see page 5.
1. Remove the screws (not shown) and the shipping bracket (not shown) from the front of the
Frame (1). Discard the screws.
With the help of a second person, place the ship-
ping bracket (not shown) under the front of the
Frame (1). Have the second person hold the
Frame to prevent it from tipping while you
complete this step.
Attach the Front Stabilizer (6) to the Frame
(1) with two M10 x 90mm Screws (84). Then,
remove and discard the shipping bracket (not
shown).
• In addition to the included tool(s), assembly
requires the following tools:
one Phillips screwdriver
one adjustable wrench
one rubber mallet
• Assembly may be easier if you have a set of
wrenches. To avoid damaging parts, do not use
power tools.
1
6
1
84
2. Orient the Front Stabilizer Cover (8) as shown.
Press the Mounts (117) (only three are shown)
on the underside of the Front Stabilizer Cover
(8) into the Frame (1). Then, press the Front
Stabilizer Cover into place.
2
8
117
1
6
3. Remove the screws (not shown) and the shipping bracket (not shown) from the rear of the
Frame (1). Discard the screws.
With the help of a second person, place the ship-
ping bracket (not shown) under the rear of the
Frame (1). Have the second person hold the
Frame to prevent it from tipping while you
complete this step.
Orient the Rear Stabilizer (5) so that the welded
tubes are in the locations shown.
Attach the Rear Stabilizer (5) to the Frame (1)
with two M10 x 75mm Screws (119).
Then, remove and discard the shipping bracket
(not shown).
3
5
1
119
Welded Tubes
4. Orient the Rear Stabilizer Cover (2) as shown.
Press the Mounts (117) on the underside of the
Rear Stabilizer Cover (2) into the Rear Stabilizer
(5). Then, press the Rear Stabilizer Cover into
place.
5. Have a second person hold the Upright (4) near
the Frame (1).
See the inset drawing. Locate the wire tie in the
lower end of the Upright (4). Tie the wire tie to
the Main Wire (110). Then, pull the upper end of
the wire tie until the Main Wire is routed through
the Upright.
4
2
117
5
5
Wire
Tie
4
110
Tip: To prevent the Main Wire (110) from fall-
ing into the Upright (4), secure the Main Wire
with the wire tie.
110
1
Wire
Tie
7
6. Tip: Avoid pinching the Main Wire (110). Set
the Upright (4) on the Frame (1).
6
Attach the Upright (4) with four M8 x 19mm
Screws (82) and four M8 Star Washers (122).
7. Orient the Lower Upright Cover (56) as shown.
110
Avoid pinching the
Main Wire (110)
7
82
4
122
1
Press the Lower Upright Cover (56) into the
Shield Cover (75).
56
75
8
8. Identify the Left and Right Inner Covers (55, 68),
which are marked with “Left” and “Right” stickers, and orient them as shown.
Slide the Left Inner Cover (55) onto the left side
of the Upright (4). Then, slide the Right Inner
Cover (68) onto the right side of the Upright.
8
55
4
68
9. Using a small plastic bag to keep your fingers
clean, apply some of the included grease to the
Pivot Axle (35) and to two Wave Washers (95).
Insert the Pivot Axle (35) through the Upright (4)
and then center it. Tip: It may be helpful to use
a rubber mallet.
Identify the Right Upper Body Arm (61), which
is marked with a “Right” sticker, and orient it as
shown.
Slide a Wave Washer (95) and the Right Upper
Body Arm (61) onto the right side of the Pivot
Axle (35).
Repeat these actions for the Left Upper Body
Arm (not shown).
9
4
35
Grease
95
61
9
10. Tighten an M8 x 16mm Screw (120) and an M8
x 25mm Washer (98) into each end of the Pivot
Axle (35) at the same time.
10
120
98
35
98
120
11. Identify the Right Pedal (49) and the Right Pedal
Arm (58), which are marked with “Right” stickers,
and orient them as shown.
Attach the Right Pedal (49) to the Right Pedal
Bracket (139) on the Right Pedal Arm (58) with
four M6 x 10mm Screws (121).
Repeat this step for the Left Pedal (not
shown) and the Left Pedal Arm (not shown).
11
49
58
139
121
121
10
12. Orient the Left Pedal Arm (44) as shown.
Apply grease to the axle on the Left Pedal Arm
(44).
Attach the Left Pedal Arm (44) to the Left Roller
Arm (12) with an M8 x 16mm Screw (120), a
Roller Arm Cover (81), and an M8 x 25mm
Washer (98).
12
44
Grease
12
Repeat this step for the Right Pedal Arm (not
shown).
13. Tip: Do not insert the Right Upper Body Arm
(61) into the Right Upper Body Leg (36) until
step 14.
Orient the Right Upper Body Leg (36) as shown.
Apply grease to the axle on the Right Upper
Body Leg.
Slide the Pedal Arm Flex Bracket (136) on the
Right Pedal Arm (58) onto the Right Upper Body
Leg (36).
Attach the Pedal Arm Bracket (136) to the Right
Upper Body Leg (36) with two M8 x 16mm
Screws (120), two Axle Covers (53), and an M8
x 25mm Washer (98). Do not fully tighten the
Screws yet.
13
61
120
98
53
81
120
36
Grease
136
98
53
Repeat this step on the other side of the
elliptical.
58
120
11
14. Insert the Right Upper Body Arm (61) into the
Right Upper Body Leg (36).
Attach the Right Upper Body Arm (61) with two
M8 x 35mm Bolts (96) and two M8 Locknuts
(102). Make sure that the Locknuts are in the
hexagonal holes.
Repeat this step on the other side of the
elliptical.
See step 13. Tighten the M8 x 16mm
Screws (120).
14
61
96
36
Hexagonal
Holes
102
15. Attach the Right Inner Cover (68) to the
Right Upper Body Arm (61) with a #8 x 3/4"
Screw (123).
Identify the Right Outer Cover (67), which is
marked with a “Right” sticker, and orient it as
shown.
Attach the Right Outer Cover (67) to the Right
Inner Cover (68) and the Right Upper Body Leg
(36) with two #8 x 3/4" Screws (123).
Repeat this step on the other side of the
elliptical.
15
123
61
68
36
67
123
12
16. Untie and discard the wire tie on the Main
Wire (110).
While a second person holds the Console (7)
near the Upright (4), connect the wires on the
Console to the Main Wire (110), to the Right and
Left Sensor Wires (63, 69), and to the Extension
Wire (150).
16
7
63, 69
150
Insert the excess wire into the Upright (4) or into
the Console (7).
17. Tip: Avoid pinching the wires. Attach the
Console (7) to the Upright (4) with four #8 x 1/2"
Screws (124).
110
4
17
7
Avoid pinching
the wires
124
4
124
18. Note: If you purchase the optional chest
heart rate monitor (see page 23), see
step 21 on page 14 to install the receiver
included with the heart rate monitor.
Orient the Rear Upright Cover (80) as shown.
Attach the Rear Upright Cover (80) to the Upright
(4) with four #8 x 3/4" Screws (123).
13
18
80
123
123
4
19. Orient the Front Upright Cover (91) as shown.
Press the Front Upright Cover (91) into the Rear
Upright Cover (80).
19
123
Attach the Front Upright Cover (91) to the
Upright (4) with a #8 x 3/4" Screw (123).
4
80
20. Make sure that all parts are properly tightened before you use the elliptical. Note: After assembly is completed, some extra parts may be left over. Place a mat beneath the elliptical to protect the floor.
If you purchase the optional chest heart rate monitor (see page 23), follow the additional step below to
install the receiver included with the heart rate monitor.
91
21. See steps 18 and 19. Remove the Front and
Rear Upright Covers (91, 80) if necessary.
Remove the paper from the adhesive pad on
the back of the Receiver (A). Press the Receiver
onto the indicated location on the inside of the
Rear Upright Cover (80) below the Accessory
Tray (37).
See the inset drawing. Make sure that the
antenna on the Receiver (A) is oriented so
that it is in a horizontal position parallel to
the floor.
Connect the wire on the Receiver (A) to the
Extension Wire (150).
Next, attach the Rear Upright Cover (80) with
four #8 x 3/4" Screws (123). Then, see step 19
and attach the Front Upright Cover (91).
Note: Discard any other wires that are included
with the heart rate monitor.
21
37
80
123
123
4
A
Antenna
A
14
HOW TO USE THE ELLIPTICAL
HOW TO PLUG IN THE POWER CORD
This product must be grounded. If it should mal-
function or break down, grounding provides a path of
least resistance for electric current to reduce the risk
of electric shock. The power cord has a plug with a
grounding pin.
DANGER: Improper connection of
the power cord increases the risk of electric
shock. Do not modify the plug—if it will not fit
an outlet, have a proper outlet installed by a
qualified electrician. If you are unsure whether
the product is properly grounded, contact a
qualified electrician.
Plug the
power cord
into an
appropriate
outlet that
is properly
installed and
grounded in
accordance
with all local
codes and
ordinances. The outlet must be on a nominal 120-
volt circuit.
Grounded Outlet
Grounding Pin
The lug or wire extending from the adapter must
be connected with a metal screw to a permanent
ground such as a properly grounded outlet box cover.
Some 2-pole receptacle outlet box covers are not
grounded. Before using an adapter, contact a
qualified electrician to determine whether the outlet box cover is grounded before using an adapter.
The temporary adapter should be used only until
a properly grounded outlet can be installed by a
qualified electrician.
HOW TO ADJUST THE POSITIONS OF THE
PEDALS
Each pedal can be adjusted to several positions. To
adjust each pedal, simply lift the pedal and turn the
pedal knob beneath the pedal. Make sure to adjust
both pedals to the same position.
Pedal
Pedal
Knob
A temporary
adapter may
be used to
connect the
power cord
to a 2-pole
receptacle
as shown
at the right
if a properly
grounded
outlet is not
available.
2-pole Receptacle
Adapter
Lug
Metal Screw
15
HOW TO MOVE THE ELLIPTICAL
HOW TO EXERCISE ON THE ELLIPTICAL
Due to the size and weight of the elliptical, moving
it requires two persons. Stand in front of the elliptical,
hold the upright, and place one foot against one of the
front wheels. Pull on the upright and have a second
person lift the handle on the ramp until the elliptical will
roll on the front wheels. Carefully move the elliptical to
the desired location, and then lower it to the floor.
Pull on the
upright
Place
your foot
here
To mount the elliptical, hold the upper body arms or
the handlebars and step onto the pedal that is in the
lower position. Then, step onto the other pedal. Push
the pedals until they begin to move with a continuous
motion. Note: The crank arms can turn in either
direction. It is recommended that you turn the
crank arms in the direction shown by the arrow;
however, for variety, you can turn the crank arms in
the opposite direction.
Upper Body
Arms
Handlebars
Crank Arm
Lift here
Pedals
To dismount the elliptical, wait until the pedals come to
a complete stop. Note: The elliptical does not have
a free wheel; the pedals will continue to move until
the flywheel stops. When the pedals are stationary,
step off the higher pedal first. Then, step off the lower
pedal.
16
CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The advanced console offers an array of features
designed to make your workouts more effective and
enjoyable.
When you use the manual mode of the console, you
can change the resistance of the pedals and the incline
of the ramp with the touch of a button. While you
exercise, the console will display continuous exercise
feedback. You can also measure your heart rate using
the handgrip heart rate monitor or an optional chest
heart rate monitor.
In addition, the console offers twenty-four target toning
workouts designed to work different muscle groups.
Each workout automatically changes the resistance of
the pedals and the incline of the ramp and prompts you
to vary your pedaling pace as it guides you through an
effective workout.
The console also features revolutionary iFit Live
technology that enables the console to communicate
with your wireless network through an optional iFit Live
module. With the iFit Live mode, you can download
personalized workouts, create your own workouts,
track your workout results, race against other iFit Live
runners, and access many other features. To pur-
chase an iFit Live module at any time, go to
www.iFit.com or call the telephone number on the
front cover of this manual.
You can even connect your MP3 player or CD player
to the console sound system and listen to your favorite
music or audio books while you exercise.
To turn on the power, see page 18. To use the
manual mode, see page 18. To use a target toning workout, see page 21. To use an iFit Live
workout, see page 22. To use the sound system,
see page 23. To change console settings, see
page 24.
Note: If there is a sheet of plastic on the display,
remove the plastic.
17
HOW TO TURN ON THE POWER
HOW TO USE THE MANUAL MODE
IMPORTANT: If the elliptical has been exposed to
cold temperatures, allow it to warm to room temperature before turning on the power. If you do not
do this, you may damage the console displays or
other electrical components.
Plug in the power cord (see
HOW TO PLUG IN THE
POWER CORD on page
15). Next, locate the
power switch on the frame
near the power cord. Press
the power switch to the
reset position.
The display will then light and the console will be ready
for use.
Note: When you turn on the power for the fi rst time,
the ramp will calibrate automatically. The ramp will
move upward and downward as it calibrates. When the
ramp stops moving, the ramp is calibrated.
IMPORTANT: If the ramp does not calibrate automatically, see HOW TO CALIBRATE THE RAMP on
page 26 and manually calibrate the ramp.
Reset
Position
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER at the left.
2. Select the manual mode.
Press the Manual Control button on the console to
select the manual mode.
If a wireless iFit Live module is not inserted into
the console and connected to iFit Live, the manual
mode will be selected automatically.
3. Change the resistance of the pedals and the
incline of the ramp as desired.
As you pedal, change the resistance of the pedals
by pressing the Resistance increase and decrease
buttons located on the console or on the right
handlebar.
Note: After you press a button, it will take a
moment for the pedals to reach the selected resistance level.
To vary the motion of the pedals, you can change
the incline of the ramp. To change the incline,
press one of the numbered Quick Power Ramp
buttons or press the Quick Power Ramp increase
and decrease buttons located on the console or on
the left handlebar.
Note: After you press a button, it will take a
moment for the ramp to reach the selected incline
level.
18
4. Follow your progress with the display.
The display can show the following workout
information:
Stride—This display mode will show the total num-
ber of strides you have pedaled.
Time—When the manual mode is selected, this
display mode will show the elapsed time. When a
workout is selected, this display mode will show the
time remaining in the workout.
The matrix offers several display tabs. Press the
Display button until the desired tab is shown. You
can also press the increase and decrease buttons
next to the Enter button.
Incline—This tab will show a profi le of the incline
settings of the workout. A new segment will appear
at the end of each minute.
Calories (Cals.)—This display mode will show the
approximate number of calories you have burned.
Calories per Hour (Cals./Hr)—This display mode
will show the approximate number of calories you
are burning per hour.
Distance (Dist.)—This display mode will show
the distance that you have pedaled in miles or
kilometers.
Incline—This display mode will show the incline
level of the ramp for a few seconds each time the
incline level changes.
Pulse—This display mode will show your heart rate
when you use the handgrip heart rate monitor or
an optional chest heart rate monitor (see step 5 on
page 20).
Resistance (Resist.)—This display mode will
show the resistance level of the pedals for a few
seconds each time the resistance level changes.
RPM—This display mode will show your pedaling
speed in revolutions per minute (rpm).
Speed—This tab will show a profi le of the speed
settings of the workout. A new segment will appear
at the end of each minute.
My Trail—This tab will show a track that rep-
resents 1/4 mile (400 m). As you exercise, the
flashing rectangle will show your progress. The
My Trail tab will also show the number of laps you
complete.
Calorie—This tab will show the approximate
amount of calories you have burned. The height of
each segment represents the amount of calories
burned during that segment.
As you exercise, the workout intensity level bar
will indicate the approximate intensity level of your
exercise.
Press the Home button to return to the default
menu (see HOW TO CHANGE CONSOLE
SETTINGS on page 24 to set the default menu).
If necessary, press the Home button again.
19
When a wireless iFit
Live module is connected, the wireless
symbol at the top
of the display will
show the strength of
your wireless signal. Four arcs indicate full signal
strength.
To exit the manual mode or a workout, press the
Home button. If necessary, press the Home button
again.
Change the volume
level of the console by
pressing the Volume
increase and decrease
buttons.
5. Measure your heart rate if desired.
You can measure you heart rate using either the
handgrip heart rate monitor or the optional chest
heart rate monitor (see page 23 for information
about the optional chest heart rate monitor).
If there are sheets
of plastic on the
metal contacts
on the handgrip
heart rate monitor,
remove the plastic. To measure
your heart rate,
hold the handgrip
heart rate monitor
with your palms
resting against the
contacts. Avoid moving your hands or gripping
the contacts tightly.
Contacts
When your pulse is detected, a heart symbol will
flash in the display each time your heart beats,
one or two dashes will appear, and then your heart
rate will be shown. For the most accurate heart
rate reading, hold the contacts for at least 15
seconds.
If the display does not show your heart rate, make
sure that your hands are positioned as described.
Be careful not to move your hands excessively or
to squeeze the contacts tightly. For optimal performance, clean the contacts using a soft cloth; never
use alcohol, abrasives, or chemicals to clean
the contacts.
6. Turn on the fan if desired.
The fan has low and
high speed settings. Press the Fan
increase and decrease
buttons repeatedly to
select a fan speed or
to turn off the fan.
Note: If the pedals do not move for about thirty
seconds, the fan will turn off automatically.
7. When you are finished exercising, unplug the
power cord.
If the pedals do not move for several seconds, a
tone will sound and the console will pause.
If the pedals do not move for several minutes and
the buttons are not pressed, the console will turn
off and the display will be reset.
When you are finished exercising, press the power
switch to the off position and unplug the power
cord. IMPORTANT: If you do not do this, the
electrical components on the elliptical may
wear prematurely.
20
HOW TO USE A TARGET TONING WORKOUT
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER on
page 18.
2. Select a target toning workout.
At the end of each segment of the workout, a
series of tones will sound and the next segment of
the profile will begin to flash. If a different resistance level, ramp incline level, and/or target rpm is
programmed for the next segment, the resistance
level, ramp incline level, and/or target rpm will
appear in the display for a few seconds to alert
you. The resistance of the pedals and the incline
level of the ramp will then change.
To select a target toning workout, press the 8
Decline button, the 8 Level button, or the 8 Incline
button repeatedly until the desired workout appears
in the display.
When you select a target toning workout, the dis-
play will show the duration of the workout and the
name of the workout. A profile of the speed settings
of the workout will appear in the matrix.
The display will also show the maximum pedaling
speed (rpm), the maximum resistance level, and
the maximum ramp level.
3. Begin pedaling to start the workout.
Each workout is divided into one-minute segments.
One resistance level, one ramp incline level, and
one target rpm (speed) are programmed for each
segment. Note: The same resistance level, ramp
incline level, and/or target rpm may be programmed for consecutive segments.
The resistance level, the ramp incline level, and the
target rpm for the first segment will appear in the
matrix.
During the
workout,
the profiles on
the speed
and incline
tabs will
show your
progress.
The flashing segment of the profile represents the
current segment of the workout. The height of the
flashing segment indicates the target speed or the
incline level for the current segment.
Profile
As you exercise, you will be prompted to keep your
pedaling speed near the target rpm for the current
segment. When an upward-pointing arrow appears
in the display, increase your pace. When a downward-pointing arrow appears, decrease your pace.
When no arrow appears, maintain your current
pace.
IMPORTANT: The target rpm is intended only to
provide motivation. Your actual pedaling speed
may be slower than the target rpm. Make sure
to pedal at a speed that is comfortable for you.
If the resistance level or incline level for the current
segment is too high or too low, you can manually
override the setting by pressing the Resistance
buttons or the Quick Power Ramp buttons.
IMPORTANT: When the current segment of the
workout ends, the pedals will automatically
adjust to the resistance level programmed for
the next segment and the ramp will automatically adjust to the incline level programmed for
the next segment.
The workout will continue in this way until the last
segment ends. To stop the workout at any time,
stop pedaling. The time will flash in the display. To
resume the workout, simply resume pedaling.
4. Follow your progress with the display.
See step 4 on page 19.
5. Measure your heart rate if desired.
See step 5 on page 20.
6. Turn on the fan if desired.
See step 6 on page 20.
7. When you are fi nished exercising, unplug the
power cord.
See step 7 on page 20.
21
HOW TO USE AN IFIT LIVE WORKOUT
5. Select an iFit Live workout.
You must have an iFit Live module to use an iFit Live
workout.
To purchase an iFit Live module at any time, go to
www.iFit.com or call the telephone number on the
front cover of this manual.
Note: To use an iFit Live module, you must have
access to a computer with an internet connection and a
USB port. You will also need an iFit.com membership.
To use a wireless iFit Live module, you must also have
your own wireless network including an 802.11b router
with SSID broadcast enabled (hidden networks are not
supported).
IMPORTANT: To satisfy exposure compliance
requirements, the antenna and transmitter in the
iFit Live module must be at least 8 in. (20 cm) from
all persons and must not be near or connected to
any other antenna or transmitter.
1. Begin pedaling or press any button on the
console to turn on the console.
See HOW TO TURN ON THE POWER on
page 18.
2. Make sure that the iFit Live module is inserted
in the console.
To use an iFit Live workout, make sure that the iFit
Live module is inserted in the console.
3. Select the iFit Live mode.
To select the iFit Live mode, press the iFit Live
button.
To select an iFit Live workout, press one of the
iFit Live buttons. Note: Before some workouts will
download, you must go to www.iFit.com and add
them to your schedule.
Press the iFit Live button to download the next
workout in your schedule. Press the My Trainer
button, the My Maps button, the World Tour button, or the Event Training button to download the
next workout of that type in your schedule. Press
the Compete button to compete in a race that you
have previously scheduled. For more information
about the iFit Live workouts, please see
www.iFit.com.
When you select an iFit Live workout, the dis-
play will show the duration of the workout and the
approximate number of calories you will burn. The
display may also show the name of the workout. If
you select a competition workout, the display may
count down to the beginning of the race.
6. Start the workout.
See step 3 on page 21.
During some workouts, the voice of a personal
trainer will guide you through your workout. You
can select an audio setting for your personal trainer
(see HOW TO CHANGE CONSOLE SETTINGS on
page 24).
To stop the workout at any time, stop pedaling. The
time will flash in the display. To resume the workout, simply resume pedaling.
4. Select a user.
If more than one user is registered with your iFit.
com membership, you can switch users in the iFit
Live main screen. Press the increase and decrease
buttons next to the Enter button to select a user.
22
7. Follow your progress with the display.
HOW TO USE THE SOUND SYSTEM
See step 4 on page 19.
The My Trail tab will show a map of the trail you are
walking or running or it will show a track and the
number of laps you complete.
During a competition workout, the Competition tab
will show your progress in the race. As you race,
the top line in the matrix will show how much of the
race you have completed. The other lines will show
other competitors. The end of the matrix represents
the end of the race.
8. Measure your heart rate if desired.
See step 5 on page 20.
9. Turn on the fan if desired.
See step 6 on page 20.
10. When you are fi nished exercising, unplug the
power cord.
See step 7 on page 20.
For more information about the iFit Live mode, go
to www.iFit.com.
To play music or audio books through the console
sound system while you exercise, plug the included
audio cable into the jack on the console and into a jack
on your MP3 player or CD player; make sure that the
audio cable is fully plugged in.
Next, press the play button
on your MP3 player or CD
player. Adjust the volume
level using the Volume
increase and decrease
buttons on the console or
the volume control on your MP3 player or CD player.
THE OPTIONAL CHEST HEART RATE MONITOR
Whether your
goal is to
burn fat or to
strengthen your
cardiovascular
system, the key
to achieving the
best results is
to maintain the
proper heart
rate during your
workouts. The optional chest heart rate monitor will
enable you to continuously monitor your heart rate
while you exercise, helping you to reach your personal
fitness goals. To purchase a chest heart rate moni-
tor, please see the front cover of this manual.
23
HOW TO CHANGE CONSOLE SETTINGS
The console features a user mode that allows you to
view usage information, select a unit of measurement,
and adjust the contrast level of the display.
When an iFit Live module is connected to the console,
you can also use the information mode to choose an
audio setting for the voice of the personal trainer, set a
default menu, check the status of the iFit Live module,
and check for downloads.
6. Select an audio setting for the voice of the
personal trainer if desired.
Press the decrease button to view the audio setting
for the voice of the personal trainer. The currently
selected audio setting for the voice of the personal
trainer will appear in the display.
To change the audio setting, press the Enter button
repeatedly to turn the voice of the personal trainer
ON or OFF.
1. Select the information mode.
To select the information mode, press and hold
down the Display button for a few seconds until the
information mode appears in the display.
2. View usage information.
The display will show the total number of hours that
the elliptical has been used. The display will also
show the total distance (in miles or kilometers) that
has been pedaled on the elliptical.
3. Select a unit of measurement if desired.
The word ENGLISH for English miles or the word
METRIC for metric kilometers will appear in the
display to indicate the currently selected unit of
measurement.
To change the unit of measurement, press the
Enter button repeatedly to select the desired unit of
measurement.
4. Adjust the contrast level of the display if
desired.
7. Set the default menu if desired.
Press the decrease button to view the default menu
setting. The default menu is the menu that will
appear when you turn on the console. Press the
Enter button repeatedly to select the manual mode
main menu or the iFit Live menu as the default
menu.
8 Check the status of the iFit Live module if
desired.
Press the decrease button to view the iFit Live
status display. The words CHECK WIFI STATUS or
CHECK USB STATUS will appear in the display.
Then, press the Enter button. After a few seconds,
the status of the iFit Live module will appear in the
display. To exit this display, press and hold down
the Display button for a few seconds.
9. Check for downloads if desired.
Press the decrease button to view the downloads
display. The words SEND/RECEIVE DATA will
appear in the display.
Press the decrease button to view the contrast
level. The currently selected contrast level will
appear in the display. Press the Quick Power
Ramp increase and decrease buttons to adjust the
contrast level.
5. Determine if an iFit Live module is connected to
the console.
If an iFit Live module is connected to the console,
the display will show the words WIFI MODULE or
USB MODULE.
If no module is connected, the display will show
the words NO IFIT MODULE. If no module is connected, go to step 10.
Then, press the Enter button. The console will
then check for iFit Live workouts and firmware
downloads.
10. Exit the information mode.
Press the Display button to exit the information
mode.
24
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: To assure continued compliance, use only shielded interface cables when connecting to
computer or peripheral devices. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.
25
MAINTENANCE AND TROUBLESHOOTING
Inspect and tighten all parts of the elliptical regularly.
Replace any worn parts immediately.
To clean the elliptical, use a damp cloth and a small
amount of mild soap. IMPORTANT: To avoid damage
to the console, keep liquids away from the console
and keep the console out of direct sunlight.
CONSOLE TROUBLESHOOTING
If the console does not display your heart rate when
you hold the handgrip heart rate monitor, or if the displayed heart rate appears to be too high or too low, see
step 5 on page 20.
HOW TO CALIBRATE THE RAMP
If the ramp is not functioning properly, the ramp may
need to be calibrated. To calibrate the ramp, press and
hold the 8 Decline button for several seconds until the
test mode appears in the display.
Press the 8 Decline button again. Then, press the
Quick Power Ramp increase or decrease button to
calibrate the ramp. The ramp will move upward and
downward as it calibrates.
When the ramp stops moving, the ramp is calibrated.
Then, press the 8 Decline button repeatedly to exit the
calibration mode.
HOW TO GREASE THE ROLLERS
HOW TO ADJUST THE DRIVE BELT
If the pedals slip while you are pedaling, even while
the resistance is adjusted to the highest level, the drive
belt may need to be adjusted.
To adjust the drive belt,
first unplug the power
cord. Use a flat screwdriver to remove the
Lower Upright Cover
(56).
Next, remove the M4
x 16mm Screw (104),
and then use a flat
screwdriver to remove
the Shield Cover (75).
Then, use a flat screwdriver to remove the
Front Stabilizer Cover
(8).
56
104
75
8
See the EXPLODED DRAWING near the end of this
manual. If the Rollers (51) squeak when moving on
the Tracks (11), apply a small amount of white marine
grease equally to each Roller. Spread the grease
evenly around the Rollers. Pedal the elliptical until a
thin fi lm of grease is distributed along the Tracks; then,
wipe off any excess grease.
Remove all the M4 x 16mm Screws (104) from the
right Disc (71). Then, gently remove the right Disc.
104
104
71
104
26
Loosen the M6 x
12mm Hex Screw (85)
and the M10 x 58mm
Hex Bolt (86). Then,
remove the right Crank
Arm (20). Gently move
the right Crank Arm
and the Right Roller
Arm (45) out of the
way. Do not misplace
the Key (78) while
removing the Crank
Arm.
Next, remove all the M4 x 16mm Screws (104) and
all the M4 x 22mm Screws (127) from the Right Front
Shield (74); note which size of screw you remove
from each hole. Then, gently remove the Right Front
Shield.
78
20
45
86
85
HOW TO ADJUST THE REED SWITCH
If the console does not display correct feedback, the
reed switch should be adjusted.
To adjust the reed switch, first unplug the power cord.
Remove all the M4 x 16mm Screws (104) from the left
Disc (71). Then, gently remove the left Disc.
104
104
71
104
127
104
74
104
Locate and loosen
the Idler Screw (101).
Next, tighten the Belt
Adjustment Screw (88)
until the Drive Belt
(113) is tight. Then,
retighten the Idler
Screw.
104
127
127
104
101
113
88
Next, locate the Reed Switch (38). Turn the left Crank
Arm (20) until one of the Magnets (43) on the Pulley
(19) is aligned with the Reed Switch.
43
104
38
Loosen, but do not remove, the M4 x 16mm Screw
(104). Slide the Reed Switch (38) slightly closer to or
away from the Magnet (43). Then, retighten the Screw.
Plug in the power cord and turn the left Crank Arm (20)
for a moment.
19
20
Reattach the right front shield, the right crank arm, the
right disc, the front stabilizer cover, the shield cover,
and the lower upright cover.
Repeat these actions until the console displays correct
feedback. Then, reattach the left disc.
27
EXERCISE GUIDELINES
WARNING: Before beginning this
or any exercise program, consult your physician. This is especially important for persons
over age 35 or persons with pre-existing
health problems.
The heart rate monitor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The heart rate monitor is
intended only as an exercise aid in determining heart rate trends in general.
These guidelines will help you to plan your exercise
program. For detailed exercise information, obtain a
reputable book or consult your physician. Remember,
proper nutrition and adequate rest are essential for
successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, exercising at the proper intensity is the key to achieving results. You can use your
heart rate as a guide to find the proper intensity level.
The chart below shows recommended heart rates for
fat burning and aerobic exercise.
Burning Fat—To burn fat effectively, you must exercise at a low intensity level for a sustained period of
time. During the first few minutes of exercise, your
body uses carbohydrate calories for energy. Only after
the first few minutes of exercise does your body begin
to use stored fat calories for energy. If your goal is to
burn fat, adjust the intensity of your exercise until your
heart rate is near the lowest number in your training
zone. For maximum fat burning, exercise with your
heart rate near the middle number in your training
zone.
Aerobic Exercise—If your goal is to strengthen your
cardiovascular system, you must perform aerobic
exercise, which is activity that requires large amounts
of oxygen for prolonged periods of time. For aerobic
exercise, adjust the intensity of your exercise until your
heart rate is near the highest number in your training
zone.
WORKOUT GUIDELINES
Warming Up—Start with 5 to 10 minutes of stretch-
ing and light exercise. A warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.
Training Zone Exercise—Exercise for 20 to 30 minutes with your heart rate in your training zone. (During
the first few weeks of your exercise program, do not
keep your heart rate in your training zone for longer
than 20 minutes.) Breathe regularly and deeply as you
exercise —never hold your breath.
To find the proper intensity level, find your age at the
bottom of the chart (ages are rounded off to the nearest ten years). The three numbers listed above your
age define your “training zone.” The lowest number is
the heart rate for fat burning, the middle number is the
heart rate for maximum fat burning, and the highest
number is the heart rate for aerobic exercise.
Cooling Down—Finish with 5 to 10 minutes of stretching. Stretching increases the flexibility of your muscles
and helps to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each week,
if desired. Remember, the key to success is to make
exercise a regular and enjoyable part of your everyday
life.
28
SUGGESTED STRETCHES
The correct form for several basic stretches is shown at the right. Move slowly as you stretch —never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts, then
relax. Repeat 3 times. Stretches: Hamstrings, back of knees and
back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot toward
you and rest it against the inner thigh of your extended leg. Reach
toward your toes as far as possible. Hold for 15 counts, then relax.
Repeat 3 times for each leg. Stretches: Hamstrings, lower back and
groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat
3 times for each leg. To cause further stretching of the achilles
tendons, bend your back leg as well. Stretches: Calves, achilles
tendons and ankles.
4. Quadriceps Stretch
1
2
3
4
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times for
each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip
muscles.
5
29
PART LIST
Key No. Qty. Description Key No. Qty. Description
Model No. PFEL09911.0 R1111A
1 1 Frame
2 1 Rear Stabilizer Cover
3 1 Ramp
4 1 Upright
5 1 Rear Stabilizer
6 1 Front Stabilizer
7 1 Console
8 1 Front Stabilizer Cover
9 1 Bottom Ramp Cover
10 1 Top Ramp Cover
11 2 Track
12 1 Left Roller Arm
13 1 Lift Motor
14 1 Left Pedal
15 1 Control Board
16 1 Power Switch
17 1 Power Cord Grommet
18 1 Crank
19 1 Pulley
20 2 Crank Arm
21 2 Roller Arm Cap
22 1 Idler
23 1 C-magnet
24 1 Motor Bracket
25 1 Resistance Motor
26 1 Resistance Rod
27 1 Resistance Disc
28 1 Flywheel
29 1 Flywheel Axle
30 6 Pivot Bushing
31 1 Lift Axle
32 2 Lift Spacer
33 2 Medium Snap Ring
34 2 Wheel
35 1 Pivot Axle
36 1 Right Upper Body Leg
37 1 Accessory Tray
38 1 Reed Switch
39 1 Clamp
40 2 R14 Bearing
41 1 Right Grip
42 1 Large Snap Ring
43 2 Magnet
44 1 Left Pedal Arm
45 1 Right Roller Arm
46 1 Left Upper Body Leg
47 1 Left Upper Body Arm
48 1 Left Grip
49 1 Right Pedal
50 1 Small Snap Ring
51 2 Roller
52 2 Pedal Arm Cap
53 6 Axle Cover
54 1 Left Outer Cover
55 1 Left Inner Cover
56 1 Lower Upright Cover
57 4 Roller Arm Bushing
58 1 Right Pedal Arm
59 4 Axle Bushing
60 2 Crank Arm Cover
61 1 Right Upper Body Arm
62 1 Resistance Bracket
63 1 Right Sensor/Wire
64 1 M5 x 7mm Screw
65 1 Ramp Axle
66 1 Left Pedal Arm Cover
67 1 Right Outer Cover
68 1 Right Inner Cover
69 1 Left Sensor/Wire
70 4 Pivot Arm Bushing
71 2 Disc
72 2 Ramp Bushing
73 1 Left Front Shield
74 1 Right Front Shield
75 1 Shield Cover
76 1 Left Rear Shield
77 1 Right Rear Shield
78 2 Key
79 5 M6 Locknut
80 1 Rear Upright Cover
81 2 Roller Arm Cover
82 4 M8 x 19mm Screw
83 1 Spacer
84 2 M10 x 90mm Screw
85 2 M6 x 12mm Hex Screw
86 2 M10 x 58mm Hex Bolt
87 1 Right Pedal Arm Cover
88 1 Belt Adjustment Screw
89 1 Pivot Screw
90 1 M6 x 65mm Bolt
91 1 Front Upright Cover
92 4 Leveling Foot
93 9 M4 x 12mm Screw
94 2 Motor Bracket Screw
95 2 Wave Washer
96 4 M8 x 35mm Bolt
97 1 Motor Axle
98 12 M8 x 25mm Washer
99 8 M10 Locknut
100 1 M5 Washer
30
Key No. Qty. Description Key No. Qty. Description
101 1 Idler Screw
102 10 M8 Locknut
103 1 M3.5 x 12mm Flat Head Screw
104 46 M4 x 16mm Screw
105 4 M8 x 16mm Hex Screw
106 2 M4 x 13mm Bright Screw
107 4 Standoff
108 2 Small M6 Washer
109 1 Large M6 Washer
110 1 Main Wire
111 2 M5 Nut
112 1 Power Cord
113 1 Drive Belt
114 1 Audio Cable
115 4 Track Screw
116 2 M10 x 105mm Button Bolt
117 30 Mount/Screw
118 1 Control Board Bracket
119 2 M10 x 75mm Screw
120 18 M8 x 16mm Screw
121 8 M6 x 10mm Screw
122 4 M8 Star Washer
123 11 #8 x 3/4" Screw
124 6 #8 x 1/2" Screw
125 2 M6 x 12mm Screw
126 2 M4 x 75mm Screw
127 14 M4 x 22mm Screw
128 2 M4 x 16mm Screw
129 2 M8 x 23mm Washer
130 2 Nylon Insert
131 2 Lift Motor Bushing
132 2 1" Grommet
133 4 Crank Arm Bushing
134 1 Ramp Shield
135 2 Roller Arm Flex Bracket
136 2 Pedal Arm Flex Bracket
137 8 Flex Bracket Cover
138 1 Left Pedal Bracket
139 1 Right Pedal Bracket
140 2 Pedal Spring
141 2 Spring Liner
142 2 Pedal Knob
143 1 Right Pedal Adjustment Bracket
144 4 Adjustment Bushing
145 2 Pedal Bracket Screw
146 2 Knob Pin
147 4 M10 x 56mm Bolt
148 1 Left Pedal Adjustment Bracket
149 2 Foot
150 1 Extension Wire
* – User’s Manual
* – Assembly Tool
* – Grease Packet
* – Blue Wire
* – Green Wire
* – White Wire
* – Lift Motor Wire A
* – Lift Motor Wire B
* – Resistance Motor Wire
Note: Specifications are subject to change without notice. For information about ordering replacement parts, see
the back cover of this manual. *These parts are not illustrated.
31
EXPLODED DRAWING A
104
Model No. PFEL09911.0 R1111A
73
56
104
123
48
91
35
104
75
37
95
55
80
102
123
104
71
104
46
137
98
104
147
120
133
135
53
104
133
12
53
104
99
120
104
104
128
137
57
60
104
81
120
98
104
104
76
104
104
104
33
123
47
98
120
70
54
70
96
14
32
53
120
98
147
59
136
104
138
59
137
121
140
99
141
66
57
137
104
44
121
142
120
126
51
21
145
148
144
146
52
144
EXPLODED DRAWING B
Model No. PFEL09911.0 R1111A
1
34
99
89
43
98
120
94
24
25
20
116
34
43
102
40
104
19
120
18
102
83
106
132
101
109
92
84
99
6
116
92
17
16
78
27
93
105
86
85
103
79
90
26
130
23
50
111
62
64
100
111
130
99
98
78
42
40
86
85
105
106
104
88
39
22
125
13
97
108
113
102
32
32
125
131
131
108
132
30
72
129
105
104
38
118
29
28
20
15
107
124
102
65
30
31
98
120
5
98
30
120
92
72
129
119
92
149
104
105
33
149
104
EXPLODED DRAWING C
Model No. PFEL09911.0 R1111A
104
41
104
68
123
70
95
61
133
70
135
98
120
133
96
98
53
102
99
67
49
120
104
123
36
120
104
139
53
59
136
137
98
147
121
140
141
58
59
53
99
120
137
104
120
87
146
142
144
74
127
104
104
60
104
127
71
127
104
128
104
127
104
127
137
147
104
104
104
104
137
77
45
81
98
57
120
57
104
104
33
51
145
126
52
144
143
21
34
EXPLODED DRAWING D
Model No. PFEL09911.0 R1111A
30
122
150
82
63
104
69
124
7
104
123
124
30
123
112
117
4
8
117
117
2
79
114
110
117
117
117
117
117
134
10
115
117
115
117
93
117
127
11
93
79
127
127
115
3
115
9
79
127
79
117
35
ORDERING REPLACEMENT PARTS
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to
provide the following information when contacting us:
• the model number and serial number of the product (see the front cover of this manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the replacement part(s) (see the PART LIST and the EXPLODED
DRAWING near the end of this manual)
LIMITED WARRANTY
IMPORTANT: You must register this product within 30 days of the purchase date to avoid added
fees for service needed under warranty. Go to www.proformservice.com/registration.
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions. The frame is warranted for a lifetime. Parts are warranted for three (3) years from the date of purchase. Labor is warranted for one (1) year from the date of
purchase.
This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is
limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer’s responsibility. If
replacement parts are shipped while the product is under warranty, the customer will be responsible for a
minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.
This warranty does not extend to freight damage to the product. This warranty will automatically be voided
if the product is used as a store display model, if the product is purchased or transported outside the USA,
if all instructions in this manual are not followed, if the product is abused or improperly or abnormally used,
or if the product is used for commercial or rental purposes. No other warranty beyond that specifically set
forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in connection with the use or performance of the product; damages with respect to any economic loss, loss of
property, loss of revenues or profits, loss of enjoyment or use, or costs of removal or installation; or other
consequential damages of any kind. Some states do not allow the exclusion or limitation of incidental or
consequential damages. Accordingly, the above limitation may not apply to the customer.
The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of
merchantability or fitness for a particular purpose are limited in their scope and duration to the terms set
forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the
above limitation may not apply to the customer.
This warranty provides specific legal rights; the customer may have other rights that vary from state to
state.
ICON Health & Fitness, Inc., 1500 S. 1000 W., Logan, UT 84321-9813
Part No. 322817 R1111A Printed in China © 2011 ICON IP, Inc.
Loading...
